AMS SERIES
CAUTION
Please read through this manual carefully before use. This product is strictly for indoor
use only, please install this product in dry and cool environment and keep out of the
reach of children and pets.
AERIAL DISTRIBUTION
Item ref: 130.034UK, 130.035UK
User Manual
AMPLIFIERS WITH DC PASS
INTRODUCTION:
Thank you for choosing this Mercury AMS series distribution amplifier. It is designed to amplify weak
FM/DAB/TV signals from the aerial and distribute them to multiple outputs, ideal for use with passive
indoor aerials or to distribute the analogue RF2 signal from a satellite receiver.
AMS02
AMS04
Item Ref
130.034UK
130.035UK
No of outputs
2
4
Frequency response
88 – 862MHz
88 – 862MHz
Max output level
94dBµV
89dBµV
Gain per split
10dB
6dB
Noise
<4dB
<4dB
Impedance
75Ω
75Ω
Power
12Vdc
12Vdc
Dimensions
99 x 73 x 27mm
99 x 73 x 27mm
Weight
110g
150g
PRODUCT FEATURES:
- Easy to install, plug and play.
- Built in low noise high gain amplifier to boost weak signals from the aerial.
- LED power indicator.
- Integrated wall mount.
- DC pass allows the control of satellite via Magic Eye remote extender (124.157UK).
- Short circuit protection and maximum output limiter prevents overload.
SPECIFICATION:
INSTALLATION:
Before install please ensure all devices to be connected to the amplifier are switched off and
disconnected from the mains. The unit is designed to be connected with ”F” connectors for a secure
connection, for coax connector (RF/IEC-169-2/Belling-Lee), a coax to” F” connector adaptor can be
used.
EXAMPLE INSTALLATION:
130.034UK, 130.035UK User Manual
The diagram above shows a basic example of distributing TV signal from a single aerial source. If all
TV sets are digital TV compatible, set top boxes will not be required, and the aerial can be plugged
into the amplifier directly.
Distribution of satellite signal:
The diagram above shows how the analogue signal from a satellite receiver can be distributed.
Because the AMS series amplifier is designed with DC pass, all 4 TV’s can be set up with “Magic eye”
remote extension units, which allow remote control of the satellite receiver. This is achieved by
connecting the RF2 output of the satellite receiver to the input of the amplifier.
Please note: only one satellite channel can be viewed at any particular time from the satellite receiver.
AMS series amplifiers do not require setup to operate, for satellite receiver set up please refer to your
satellite receiver manual.
130.034UK, 130.035UK User Manual

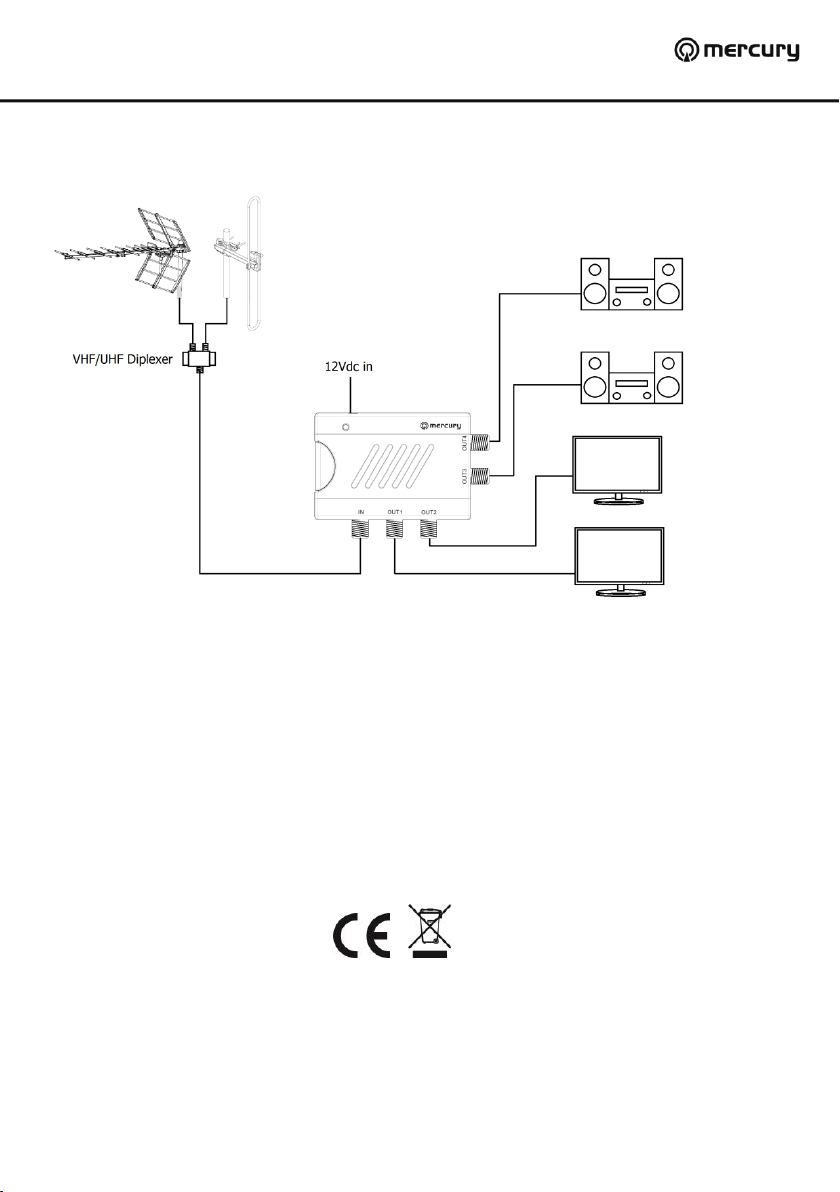

Distribution of VHF/UHF
AMS amplifiers can also be used to distribute both radio and TV signals, this will required a VHF/UHF
diplexer to combine the signals to a single input.
This product is classed as Electrical or Electronic equipment and should not be disposed
with other household or commercial waste at the end of its useful life. The goods must be disposed of
according to your local council guidelines.
Errors and omissions excepted.
Copyright© 2014. AVSL Group Ltd
130.034UK, 130.035UK User Manual
