Avocent UMG4000-400 Product Data Sheet

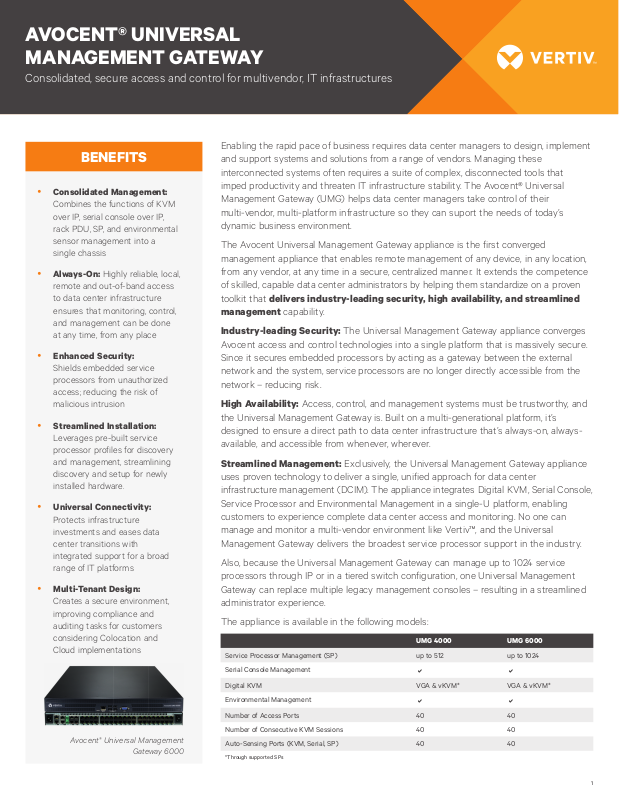

AVOCENT® UNIVERSAL
MANAGEMENT GATEWAY

Consolidated, secure access and control for multivendor, IT infrastructures

Enabling the rapid pace of business requires data center managers to design, implement

BENEFITS

 Consolidated Management:

Combines the functions of KVM
over IP, serial console over IP,
rack PDU, SP, and environmental
sensor management into a
single chassis

 Always-On: Highly reliable, local,

remote and out-of-band access
to data center infrastructure
ensures that monitoring, control,
and management can be done
at any time, from any place

 Enhanced Security:

Shields embedded service
processors from unauthorized
access; reducing the risk of
malicious intrusion

 Streamlined Installation:

Leverages pre-built service
processor profiles for discovery
and management, streamlining
discovery and setup for newly
installed hardware.

 Universal Connectivity:

Protects infrastructure
investments and eases data
center transitions with
integrated support for a broad
range of IT platforms

 Multi-Tenant Design:

Creates a secure environment,
improving compliance and
auditing tasks for customers
considering Colocation and
Cloud implementations

Avocent® Universal Management

Gateway 6000

and support systems and solutions from a range of vendors. Managing these
interconnected systems often requires a suite of complex, disconnected tools that
imped productivity and threaten IT infrastructure stability. The Avocent® Universal
Management Gateway (UMG) helps data center managers take control of their
multi-vendor, multi-platform infrastructure so they can suport the needs of today’s
dynamic business environment.

The Avocent Universal Management Gateway appliance is the first converged
management appliance that enables remote management of any device, in any location,
from any vendor, at any time in a secure, centralized manner. It extends the competence
of skilled, capable data center administrators by helping them standardize on a proven
toolkit that delivers industry-leading security, high availability, and streamlined

management capability.

Industry-leading Security: The Universal Management Gateway appliance converges

Avocent access and control technologies into a single platform that is massively secure.
Since it secures embedded processors by acting as a gateway between the external
network and the system, service processors are no longer directly accessible from the
network – reducing risk.

High Availability: Access, control, and management systems must be trustworthy, and
the Universal Management Gateway is. Built on a multi-generational platform, it’s
designed to ensure a direct path to data center infrastructure that’s always-on, always­available, and accessible from whenever, wherever.

Streamlined Management: Exclusively, the Universal Management Gateway appliance
uses proven technology to deliver a single, unified approach for data center
infrastructure management (DCIM). The appliance integrates Digital KVM, Serial Console,
Service Processor and Environmental Management in a single-U platform, enabling
customers to experience complete data center access and monitoring. No one can
manage and monitor a multi-vendor environment like Vertiv™, and the Universal
Management Gateway delivers the broadest service processor support in the industry.

Also, because the Universal Management Gateway can manage up to 1024 service
processors through IP or in a tiered switch configuration, one Universal Management
Gateway can replace multiple legacy management consoles – resulting in a streamlined
administrator experience.

The appliance is available in the following models:

Service Processor Management (SP) up to 512 up to 1024

Serial Console Management

Digital KVM VGA & vKVM* VGA & vKVM*

Environmental Management

Number of Access Ports 40 40

Number of Consecutive KVM Sessions 40 40

Auto-Sensing Ports (KVM, Serial, SP) 40 40

*Through supported SPs

UMG 4000 UMG 6000

 

 

1

AVOCENT® UNIVERSAL MANAGEMENT GATEWAY

Serial

over IP

FEATURES

Service Processor Support*

Cisco: USC-B Chassis and Blades, UCS CIMC/Monolithic

Dell: DRAC 5, iDRAC, iDRAC7, iDRAC8, M1000E Chassis, C Series

FSC: iRMC, iRMC S2

HP: BladeSystem, iLO 2, iLO 3, iLO 4

IBM: BladeCenter, IMM, IBMIMM2

IPMI: 1.5, 2.0

Oracle: ILOM3

SUN

Server Management

Console access via SoL and vKVM

Console data logging (local, NFS, Syslog)

Power on/off/cycle/status support

Graceful shutdown support (IMPMI only)

System event logs (SEL)

Hardware environmental sensors

Alert management

Platform event traps (PET)

FIPS 140-2 compliance: based on the FIPS 140-2 validated
cryptographic modules (certificate numbers 2473 & 1279)

User Interface

Built-in Consoles

- Secure WebUI

- CLI/SSH

- VGA

Avocent® DSView™ 4 Management Software

- Centralized management

- IT device control

SSH

Local VGA and USB access

SPECIFICATIONS

Mechanical

Size (W x D x H):

1.70 in. (43.1 mm) X 17.1 in. (434 mm) X 20.0 in. (508mm)

Weight: 26 lbs (11.7 kgs)

Environmental - Ports/Connections

Device Ports: 40 RJ45

Device Port Type: Auto-sensing (except the 2000, 32 SP)

Power Supply

Dual Internal (redundant)
AC Input Range: 100 - 240V

Power Usage

UMG 4000
120V 1.15amp, 240V 0.68amp

UMG 6000
120V 1.24amp, 240V 0.71amp

Standards

Approved Agency
UL, FCC, cUL, ICES-003, CE, VCCI, KCC, C-Tick, GOST

Warranty

Two Years

* Please see most recent release notes for exact firmware versions supported

Internet

IPMI-

Enabled
Servers

Blade Chassis

Avocent® Universal

Management

Gateway appliance

KVM

over IP

Local
Administrator

Cisco

UCS-C

Enabled

Servers

Dell

iDRAC

Enabled

Servers

IBM
IMM

Enabled

Servers

Ordering Details

PART # DESCRIPTION

UMG4000-400 UMG 4000 40P(AS) 512SP 5000DP

UMG6000-400 UMG 6000 40P(AS) 1024SP 10KDP

UMIQ-V2 UM KVM MODULE - VGA+SP DUAL RJ45

Maintenance

Use the following key to create the maintenance SKU to suit your needs:

XYAAA-UMGCCCC

Model
CCCC = 4000 or 6000

Typ e
AAA=SLV (Silver) or GLD (Gold)

Year
X=1, 2 or 4

Example of the final SKU:
2YSLV-UMG4000

IBM

Enabled

Servers

Remote

Administrator

HP
iLO

Enabled

Servers

Oracle

ILOM3

Enabled

Servers

Fujitsu

iRMC

Enabled
Servers

VertivCo.com | Vertiv Headquarters, 1050 Dearborn Drive, Columbus, OH, 43085, USA

© 2016 Vertiv C o. All rights reser ved. Vertiv and the Vert iv logo are tradema rks or registered tra demarks of Vertiv Co. A ll other names and lo gos referred to are tra de names, tradem arks or registered t rademarks of their re spective owner s. While every prec aution has been
taken to ensu re accuracy and com pleteness here in, Vertiv Co. assum es no responsib ility, and disclaims a ll liability, for dama ges resulting fro m use of this informatio n or for any errors or omi ssions. Speci fications are sub ject to change with out notice.

2AV-12101 (R09/16)
