AVocation Systems SR-2 User Manual

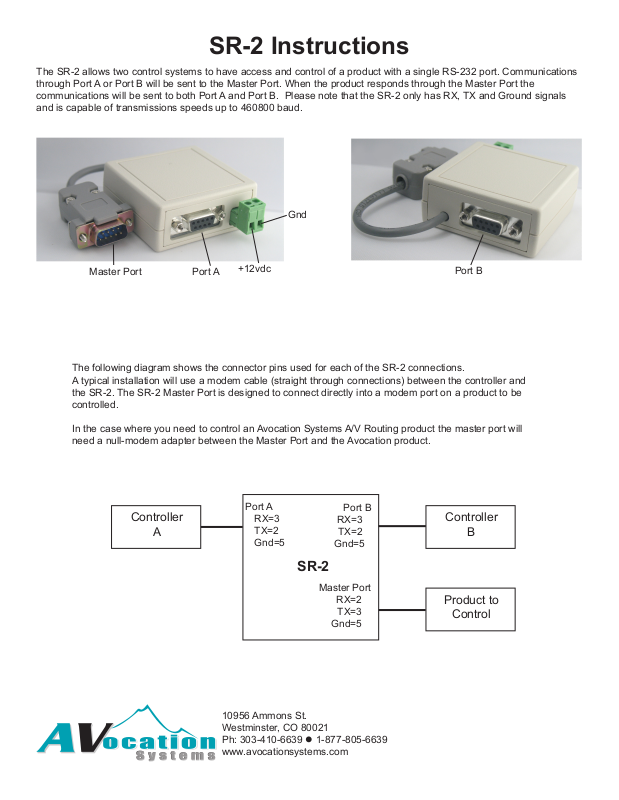

SR-2 Instructions
The SR-2 allows two control systems to have access and control of a product with a single RS-232 port. Communications
through Port A or Port B will be sent to the Master Port. When the product responds through the Master Port the
communications will be sent to both Port A and Port B. Please note that the SR-2 only has RX, TX and Ground signals
and is capable of transmissions speeds up to 460800 baud.
Gnd
Master Port
The following diagram shows the connector pins used for each of the SR-2 connections.
A typical installation will use a modem cable (straight through connections) between the controller and
the SR-2. The SR-2 Master Port is designed to connect directly into a modem port on a product to be
controlled.
In the case where you need to control an Avocation Systems A/V Routing product the master port will
need a null-modem adapter between the Master Port and the Avocation product.
Port A
Controller
A
+12vdc
Port A
RX=3
TX=2
Gnd=5
Port B
RX=3
TX=2
Gnd=5
Port B
Controller
B
SR-2
Master Port
RX=2
TX=3
Gnd=5
10956 Ammons St.
Westminster, CO 80021
Ph: 303-410-6639 l 1-877-805-6639
www.avocationsystems.com
Product to
Control
