FRITZ!Box 7330
Installation
Inst
and Operation
and Operation
tion
Table of Contents
Symbols and Highlighting . . . . . . . . . . . . . . . . . . . . . . . . 7
1 The FRITZ!Box 7330 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2 Ports, Interfaces, Buttons and LEDs . . . . . . . . . . . . . . . . 9
2.1 Ports and Interfaces. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.2 Buttons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.3 LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3 Before You Connect the FRITZ!Box . . . . . . . . . . . . . . . . . 13
3.1 Contents of the FRITZ!Box Package. . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.2 Requirements for Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.3 Security and Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4 Connecting the FRITZ!Box. . . . . . . . . . . . . . . . . . . . . . . . 17
4.1 Connecting to Electrical Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.2 Connecting to the Internet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.3 Connecting to the Fixed Line. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5 Connecting the Computer to the FRITZ!Box. . . . . . . . . . 23
5.1 Connecting Computers to the LAN Port . . . . . . . . . . . . . . . . . . . . . . 23
5.2 Connecting Computers Wirelessly over WLAN . . . . . . . . . . . . . . . . . 25
6 The FRITZ!Box User Interface . . . . . . . . . . . . . . . . . . . . . 31
6.1 Opening the User Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
6.2 Overview: Everything at a Glance . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
6.3 Standard View and Advanced View . . . . . . . . . . . . . . . . . . . . . . . . . 33
6.4 Protecting the User Interface with a Password. . . . . . . . . . . . . . . . . 34
6.5 Saving the FRITZ!Box Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
FRITZ!Box 7330 2
7 Configuring an Internet Connection in the FRITZ!Box . . 36
7.1 Configuring an Internet Connection for DSL. . . . . . . . . . . . . . . . . . . 36
7.2 Changing the Annex Setting of the FRITZ!Box . . . . . . . . . . . . . . . . . 37
7.3 Configuring the Internet Connection for Cable. . . . . . . . . . . . . . . . . 38
7.4 Configuring the Internet Connection for the Mobile Communications
Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
7.5 Configuring the Internet Connection over LAN 1: FRITZ!Box as a Router
39
7.6 Surfing the Net. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
8 Connecting Telephones and Other Terminal Devices . . 42
8.1 Connecting an Analog Telephone or Another Analog Terminal Device
42
8.2 Registering FRITZ!Fon and Other Cordless (DECT) Telephones . . . . 42
8.3 Registering Smartphones with FRITZ!App Fon . . . . . . . . . . . . . . . . . 43
8.4 Connecting an IP Telephone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
9 Setting Up the FRITZ!Box for Telephone Calls . . . . . . . . 47
9.1 Entering Telephone Numbers in FRITZ!Box. . . . . . . . . . . . . . . . . . . . 47
9.2 Configuring Connected Telephones and Terminal Devices . . . . . . . 49
9.3 Making Telephone Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
10 Firmware Update: Updating the FRITZ!OS . . . . . . . . . . . 51
10.1 Searching for and Transferring FRITZ!OS Update with the Wizard . 51
10.2 Automatic Search for Updates and Updating FRITZ!OS. . . . . . . . . . 52
11 MyFRITZ!: Global Access to the FRITZ!Box . . . . . . . . . . . 54
12 FRITZ!Box as an Internet Router . . . . . . . . . . . . . . . . . . . 57
12.1 Child Protection: Restricting Internet Access. . . . . . . . . . . . . . . . . . 57
12.2 Port Forwarding: Making Computers Accessible from the Internet. 58
12.3 Dynamic DNS: Name Instead of IP Address . . . . . . . . . . . . . . . . . . . 61
12.4 Remote Access over HTTPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
12.5 Prioritization: Right of Way for Internet Access . . . . . . . . . . . . . . . . 62
12.6 VPN: Remote Access to the Home Network . . . . . . . . . . . . . . . . . . . 64
12.7 DNS Server: Freely Selectable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
FRITZ!Box 7330 3
12.8 DNSSEC: Security for DNS Queries . . . . . . . . . . . . . . . . . . . . . . . . . . 66
12.9 IPv6: The New Internet Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
12.10 Mobile Nnetwork: Replacing Faulty DSL. . . . . . . . . . . . . . . . . . . . . . 69
13 FRITZ!Box as a WLAN Base Station. . . . . . . . . . . . . . . . . 71
13.1 Connecting WLAN Devices Securely with the FRITZ!Box . . . . . . . . . 71
13.2 Connecting WLAN Devices with the FRITZ!Box Guest Access . . . . . 73
13.3 Switching the WLAN Radio Network On and Off by Schedule. . . . . 74
13.4 Enlarging the WLAN Radio Network . . . . . . . . . . . . . . . . . . . . . . . . . 75
13.5 WLAN—Getting Technical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
14 FRITZ!Box as a Telephone System . . . . . . . . . . . . . . . . . 82
14.1 FRITZ!Box Telephone Book . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
14.2 The FRITZ!Box Call List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
14.3 Setting Up the FRITZ!Box Answering Machine . . . . . . . . . . . . . . . . . 84
14.4 Setting Up FRITZ!Box Fax Reception . . . . . . . . . . . . . . . . . . . . . . . . . 87
14.5 Setting Up Call Diversion. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
14.6 Saving Costs with Dialing Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
14.7 Blocking Telephone Numbers and Callers . . . . . . . . . . . . . . . . . . . . 89
14.8 Setting Up Do Not Disturb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
14.9 Setting Up the Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
14.10 Enabling the Baby Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
14.11 Making Telephone Calls with Convenience Functions. . . . . . . . . . . 93
15 FRITZ!Box as a DECT Base Station . . . . . . . . . . . . . . . . 101
15.1 Paging Cordless Telephones. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
15.2 Deregistering a Cordless Telephone from the FRITZ!Box. . . . . . . . 101
15.3 Enabling DECT Eco . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
16 The FRITZ!Box Home Network. . . . . . . . . . . . . . . . . . . . 103
17 Network Devices in the FRITZ!Box Home Network . . . 105
17.1 Network Settings in the FRITZ!Box . . . . . . . . . . . . . . . . . . . . . . . . . 105
17.2 Obtaining an IP Address Automatically . . . . . . . . . . . . . . . . . . . . . 113
FRITZ!Box 7330 4
18 USB Devices in the FRITZ!Box Home Network . . . . . . . 116
18.1 Power Supply for USB Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
18.2 USB Devices on the FRITZ!Box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
18.3 Using USB Devices Safely . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
18.4 Configuring Password Protection and Access Rights. . . . . . . . . . . 118
18.5 Accessing USB Memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
18.6 Sharing a USB Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
19 Help in Case of Errors . . . . . . . . . . . . . . . . . . . . . . . . . . 125
19.1 Cannot Establish a DSL Connection . . . . . . . . . . . . . . . . . . . . . . . . 125
19.2 The User Interface Does Not Open . . . . . . . . . . . . . . . . . . . . . . . . . 126
19.3 Cannot Establish a WLAN Connection . . . . . . . . . . . . . . . . . . . . . . 131
20 Configuring FRITZ!Box on the Telephone. . . . . . . . . . . 135
20.1 Loading Factory Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
20.2 Switching WLAN On and Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
20.3 Turning Do Not Disturb On/Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
20.4 Switching the Alarm On and Off . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
20.5 Setting Up Call Diversion. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
20.6 Disabling Automatic Outside Dialing . . . . . . . . . . . . . . . . . . . . . . . 142
21 Taking FRITZ!Box out of Operation . . . . . . . . . . . . . . . . 143
21.1 Restoring Factory Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
21.2 Uninstalling Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
22 Technical Specifications. . . . . . . . . . . . . . . . . . . . . . . . 145
22.1 Ports and Interfaces. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
22.2 Router Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
22.3 User Interface and Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
22.4 Physical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
22.5 Cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
FRITZ!Box 7330 5
23 Customer Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
23.1 Documentation on the FRITZ!Box . . . . . . . . . . . . . . . . . . . . . . . . . . 148
23.2 Information in the Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
23.3 Feedback on FRITZ!Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
23.4 Support from the Support Team . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
23.5 Manufacturer’s Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
24 AVM Products for the FRITZ!Box . . . . . . . . . . . . . . . . . . 153
Legal Notice. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Legal Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Declaration of CE Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Disposal Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Drilling Template. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Glossary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
FRITZ!Box 7330 6
Symbols and Highlighting
Symbols and emphasized text are used to mark certain information in
this manual.
Symbols
This symbol marks useful hints and tips.
This symbol indicates important instructions that must be
observed to avoid malfunctions.
Highlighting
Marker Example
Quotation marks designate elements in the
user interface, path entries, and names of
folders and files
Pointed brackets mark wild cards <Telephone number>
Blue, underlined text designates addresses
to be entered in the browser
Blue text designates links and references
within this manual
Bold type emphasizes important words Do not click ...
“Home Network”
“C:\Pictures”
“Info”
fritz.box
see page 159
FRITZ!Box 7330 7
The FRITZ!Box 7330
1 The FRITZ!Box 7330
Welcome! We are pleased you decided on a FRITZ!Box. The
FRITZ!Box 7330 is the hub of your home network, connecting your
computers and network devices with the Internet. You can operate the
FRITZ!Box on a DSL line as an Internet router.
The FRITZ!Box is equipped with ports to connect computers, USB devices and a telephone, an answering machine or a fax machine. The
FRITZ!Box supports the radio technologies WLAN and DECT. You can
use the FRITZ!Box simultaneously as a wireless LAN base station for
wireless devices like notebooks, tablets or smartphones and as DECT
base station for your cordless telephones.
Connected telephones use the FRITZ!Box as a telephone system.
The FRITZ!Box integrates connected computers and network devices
into your private home network. The devices can exchange data with
each other and enjoy shared access to USB hard drives, USB printers
and other USB devices. The FRITZ!Box transmits music, video and image files to suitable playback devices in the home network.
The FRITZ!Box offers you a full range of functions and settings so that
you can set up a home network tailored to your needs.
In the settings of your FRITZ!Box you can access a user interface that is
easy to operate in any web browser. Wizards guide you step by step
through the setup of the most important FRITZ!Box functions, and
comprehensive online Help is available on every page of the user interface.
FRITZ!Box 7330 8
Ports, Interfaces, Buttons and LEDs
UMTS/HSPA modem
and USB devices
Analog telephone,
fax
USB printer,
USB storage media
LAN, 1 Gbit/s,
PC, network
DSL and telephone line
(analog)
USB 2.0 Gigabit LAN
1 analog telephone DSL/ADSL
Notebook, PC, smartphone,
video/TV streaming
FRITZ!Fon or
other DECT telephones
USB 2.0
WLAN
2.4 GHz
DECT
LAN, 100 Mbit/s,
PC, games console
LAN
2 Ports, Interfaces, Buttons and LEDs
This chapter describes the ports, interfaces, buttons and LEDs of the
FRITZ!Box.
2.1 Ports and Interfaces
Possibilities for connecting the FRITZ!Box
• DSL/TEL
Socket for connecting to ADSL2+ and ADSL as well as to
the analog telephone network
• FON 1
FRITZ!Box 7330 9
• LAN1 and LAN2
• USB
One RJ11 socket for one analog telephone or another analog terminal device
2 Ethernet ports for connecting computers and other
network devices like game consoles and network hubs
LAN 1: gigabit Ethernet (10/100/1000 Base-T)
LAN 2: Ethernet (10/100 Base-T)
2 USB 2.0 ports for connecting USB devices like printers
or storage media
Buttons
Fixed LineFixed Line
InternetInternet
PowePower/ DSLDSL
INFOINFO
WLANWLAN
WLAN
WLAN
DECT
DECT
W
WLAN
WWWL
W
DDED
DE
2.2 Buttons
• WLAN base station
Integrated WLAN base station for connecting to WLAN
devices that use the radio standard IEEE 802.11b,
IEEE 802.11g or IEEE 802.11n in the 2.4-GHz frequency
band
• DECT base station
Integrated DECT base station for connecting up to
6 cordless telephones that use the DECT standard
The FRITZ!Box has two buttons on the upper side of the housing.
FRITZ!Box buttons
WLAN Button
With the WLAN button you can turn the WLAN function on and
off and connect wireless devices with the FRITZ!Box by WPS.
WPS is an easy way to establish secure wireless connections
(see page 26).
FRITZ!Box 7330 10
Buttons
DECT Button
With the DECT button you can register cordless telephones on
the FRITZ!Box (see page 42) and page misplaced cordless
handsets (see page 101).
FRITZ!Box 7330 11
LEDs
2.3 LEDs
Five LEDs are built into the top of the FRITZ!Box 7330, which flash
or light up to display various connection statuses and events.
LED Condition Meaning
Power /
DSL
on
flashing
Internet on Telephone connection to the Internet is active
flashing Messages in your mailbox (this function must be supported
Fixed
Line
on Telephone connection to the fixed-line network is active
flashing Messages in your mailbox (this function must be supported
WLAN on WLAN function is enabled
flashing
Info on
flashing
flashing red Error: Open the FRITZ!Box user interface and follow the in-
• Device has electrical power and the DSL line is ready
• Device has electrical power and the connection to DSL is
being established or has been interrupted
by your telephony provider)
by your telephony provider)
• Switching the WLAN function on or off
• Adopting the WLAN settings
• Performing WPS
• WPS procedure aborted: More than two WLAN devices
are performing WPS at the same time. Repeat the WPS
procedure.
• Free telephone connection between two Internet tele-
phony subscribers is active (this function must be supported by your Internet telephony provider)
• The LED signals an event specified in the user interface
under “System / “Info” Display”
• Stick & Surf procedure with FRITZ!WLAN USB Stick from
AVM concluded
• Updating FRITZ!OS, the firmware of your FRITZ!Box
• New messages on the FRITZ!Box answering machine,
online meter reached the defined value, or another
event defined in the user interface under “System / “Info” Display” is signaled
• Stick & Surf procedure with FRITZ!WLAN USB Stick from
AVM in progress
• Registration procedure for a DECT handset in progress
structions on the “Overview” page
FRITZ!Box 7330 12
Before You Connect the FRITZ!Box
3 Before You Connect the FRITZ!Box
• Check the contents of your FRITZ!Box package. See the section
Contents of the FRITZ!Box Package on page 13 for more informa-
tion.
• Make sure that the requirements for connecting and operating
the FRITZ!Box have been met. See the section Requirements for
Operation on page 13 for more information.
• Please see the security and handling instructions in the section
Security and Handling on page 14.
3.1 Contents of the FRITZ!Box Package
• FRITZ!Box 7330
• one power supply unit
• one network cable
• one DSL/telephone cable (gray)
• printed product information
3.2 Requirements for Operation
In order to operate the FRITZ!Box, you must have the following:
• a web browser that supports Java script (for instance, In-
ternet Explorer version 8.0 or higher, or Firefox version 7
or higher)
• a connection to the Internet
– a DSL line, ITU G.992.1 Annex A or B standard
(ADSL), ITU G.992.3 Annex A or B standard (ADSL2),
ITU G.992.5 Annex A or B standard (ADSL2+),
G.992.3/5 Annex J, G.992.3/5 Annex M, G.994.1
(G.hs)
– or an Internet cable access with cable modem
– or a USB modem for mobile Internet access
(UMTS/HSPA)
– or another Internet connection
FRITZ!Box 7330 13
Security and Handling
• for connecting computers via WLAN:
computer with WLAN support (compliant with
IEEE 802.11n, IEEE 802.11g or IEEE 802.11b). Computers that do not have integrated WLAN can be equipped
with WLAN support by installing a WLAN device like a
FRITZ!WLAN USB Stick, for instance.
• for connecting computers using network cable:
computer with a network port (network adapter standard
Ethernet 10/100/1000 Base-T)
• for fixed-line telephony:
an analog telephone line
3.3 Security and Handling
Before installing and using the FRITZ!Box, please read the following security and handling instructions.
Safety Instructions
When connecting the FRITZ!Box 7330, be sure to observe the
following security instructions in order to protect yourself
and the FRITZ!Box from harm.
• Avoid overloading power outlets, extension cables and
socket strips. Overloaded power supply components
present a fire and electrocution risk.
– Avoid using sockets strips and extension cords if at
all possible.
– Do not connect multiple extension cords or socket
strips to each other.
• Before mounting the FRITZ!Box on the wall, make sure
that there are no electrical lines, gas or water pipes located where you need to drill the holes.
If necessary, check the site with a pipe detector or consult with qualified experts.
FRITZ!Box 7330 14
Security and Handling
• Make sure that the ventilation slits on the FRITZ!Box
• Do not place the FRITZ!Box on excessively heat-sensitive
• Do not install the FRITZ!Box during an electrical storm.
• During a storm, disconnect the FRITZ!Box from the power
• Never let liquids get inside the FRITZ!Box. Otherwise,
• Do not open the FRITZ!Box housing. The device contains
• The FRITZ!Box is intended for indoor use only.
housing are always unobstructed. The ventilation slits
provide for air cooling.
– The FRITZ!Box should not be placed on a carpet or on
upholstered furniture.
– Do not cover the FRITZ!Box.
surfaces, as the base of the device can heat up during
normal operation.
supply and from the DSL line.
electric shocks or short circuits may result.
hazardous components and should only be opened by
authorized repair technicians.
Handling the FRITZ!Box
• You can either place FRITZ!Box on a horizontal surface or
mount it on a wall. For a drilling template to mount the
FRITZ!Box on a wall, see page 162.
• Place or hang the FRITZ!Box in a dry location that is free
of dust and protected from direct sunlight.
• For ideal operating conditions, mount the FRITZ!Box on a
wall with the cables connected on the bottom.
• When connecting the FRITZ!Box to your computer using a
network cable, keep in mind that the cable can be no
longer than 100 m.
• If you would like to establish wireless connections be-
tween the FRITZ!Box and the computer, position the
FRITZ!Box at a central location.
FRITZ!Box 7330 15
Security and Handling
• Make sure to keep sufficient distance from potential
sources of interference like microwave devices or electric devices with large metal housings.
FRITZ!Box 7330 16
Connecting the FRITZ!Box
INFOINFO
WLANWLAN
FestnetzFestnetz
InternetInternet
PowerPower / DSLDSL
INFOINFO
WLANWLAN
Fixed LineFixed Line
InternetInternet
PowerPower / DSLDSL
4 Connecting the FRITZ!Box
• Connect the FRITZ!Box to the power supply.
• Connect the FRITZ!Box to your Internet connection.
• Connect the FRITZ!Box to your telephone line.
This chapter tells you how.
Before you connect the FRITZ!Box, note the additional instructions in the section Security and Handling on page 14.
4.1 Connecting to Electrical Power
Connecting to the power supply
1. Pick up the power supply unit included in the FRITZ!Box
package.
Use only this power supply unit for connecting to electrical power.
1. Connect the power supply unit to the socket on the
FRITZ!Box labeled “Power”.
2. Plug the other end into an AC power outlet.
The “Power / DSL” LED begins flashing after a few seconds to
indicate that the FRITZ!Box is ready for operation.
FRITZ!Box 7330 17
Connecting to the Internet
4.2 Connecting to the Internet
The FRITZ!Box can be connected using various types of Internet connections:
• DSL line
• Internet cable access using a cable modem
• Internet via mobile communications network using a
UMTS/HSPA modem
Connecting to a DSL Line
It depends on the type of your line how to connect the
FRITZ!Box.
DSL Line Only, without Fixed Line (also Called IP-based Access)
Via the DSL line, you can establish Internet connections and conduct telephone calls.
Connect the FRITZ!Box to the socket of your DSL line (see page 19).
Socket
DSL Line with Fixed-line Network Connection
In addition to the DSL line you have an analog telephone line. For
these lines you received a DSL splitter (see glossary) from your provider. Usually, the DSL splitter has to be connected with the telephone socket.
Connect the FRITZ!Box to your DSL splitter (see page 20).
Telephone socket (left) and DSL splitter (right)
FRITZ!Box 7330 18
Connecting to the Internet
INFOINFO
WLANWLAN
FestnetzFestnetz
InternetInte
rnet
PowerPo
w
e
r
/
DSLD
SL
INFOINFO
WLANWLAN
Fixed LineFixed
Line
InternetInte
rnet
PowerPo
w
e
r
/
DSLD
SL
Connecting to the DSL Line
Connecting using the DSL/telephone cable
If you have a DSL line without a connection to the fixed-line
telephone network (also called IP-based access), then connect the FRITZ!Box as follows:
1. Connect the gray, long end of the DSL/telephone cable
to the socket on the FRITZ!Box labeled “DSL/TEL”.
2. Connect the shorter, gray end of the cable to the DSL
line. The black cable remains unused.
The “Power / DSL” LED begins flashing and then lights constantly. The FRITZ!Box is ready to establish Internet connections.
FRITZ!Box 7330 19
Connecting to the Internet
INFOINFO
WLANWLAN
FestnetzFest
netz
InternetIntern
et
PowerP
owe
r
/ DSLDSL
INFOINFO
WLANWLAN
FestnetzFest
netz
InternetIntern
et
PowerP
owe
r
/ DSLDSL
Connecting to a DSL Line with Fixed Line
Connecting to the DSL splitter
If you have a DSL line and a line to the fixed-line telephone
network, then connect the FRITZ!Box as follows:
1. Connect the long, gray end of the DSL/telephone cable
to the socket on the FRITZ!Box labeled “DSL/TEL”.
2. Connect the short end of the cable to the DSL socket of
the DSL splitter.
The “Power / DSL” LED lights up after a short time to signalize
that the FRITZ!Box is ready for Internet connections.
Connecting with a Cable Connection
With an additional cable modem you can also use your
FRITZ!Box 7330 on a cable connection. Use a network cable.
1. Connect the free end of the network cable to the LAN
(Ethernet) port on the cable modem.
2. Connect the other end of the network cable to the socket
on the FRITZ!Box labeled “LAN 1”.
3. Connect a computer with the FRITZ!Box either wirelessly
via WLAN or using a network cable (see page 23).
4. Set up the Internet connection for connections via cable
FRITZ!Box 7330 20
in the FRITZ!Box (see page 38).
Connecting to the Internet
Connecting to the Internet via the Mobile
Communications Network
If no other kind of Internet connection is available, you can
use your FRITZ!Box to connect to the Internet via the mobile
communications network. A USB modem for mobile Internet
access (UMTS/HSPA) is required for this.
The FRITZ!Box supports UMTS/HSPA modems from various
manufacturers.
1. Insert the USB modem into the USB port on the
FRITZ!Box.
2. Set up the Internet connection via the mobile communi-
cations network (see page 38).
Connecting with a Router/Network
You can use the FRITZ!Box at an already existing Internet access. For this the FRITZ!Box is not connected to the DSL line,
but to the router or network.
Connecting Using a Network Cable
Connect the FRITZ!Box to the router with a network cable.
1. Insert one end of the cable into the socket on the
FRITZ!Box labeled “LAN 1”.
2. Insert the other end of the cable into a network socket
on the router or in the network.
Once you have connected a computer to the FRITZ!Box, you
can configure the Internet connection as described in section
Configuring the Internet Connection over LAN 1: FRITZ!Box as
a Router on page 39.
FRITZ!Box 7330 21
Connecting to the Fixed Line
INFOINFO
WLANW
LAN
FestnetzF
estnetz
InternetI
nte
rnet
PowerP
o
we
r / DSLD
SL
INFOINFO
WLANW
LAN
Fixed LineF
ix
ed L
ine
InternetI
nte
rnet
PowerP
o
we
r / DSLD
SL
4.3 Connecting to the Fixed Line
The FRITZ!Box is a telephone system (or PBX: Private Branch
Exchange) for Internet and fixed-line telephony. If you want to
make telephone calls via the fixed-line network, connect the
FRITZ!Box with your analog telephone line.
Connecting to the Analog Line
If you have an analog line to the fixed-line telephone network,
then connect the FRITZ!Box as follows:
Connecting to the analog telephone line via the DSL splitter
1. Make sure that the long end of the DSL/telephone cable
is connected to the socket on the FRITZ!Box labeled
“DSL/TEL”.
2. Insert the black end of the DSL/telephone cable into the
telephone socket on your DSL splitter.
The FRITZ!Box is connected with the analog fixed-line network.
FRITZ!Box 7330 22
Connecting the Computer to the FRITZ!Box
INFOINFO
WLANWLAN
FestnetzFestnetz
InternetInternet
PowerPower / DSLDSL
INFOINFO
WLANWLAN
Fixed LineFixed Line
InternetInternet
PowerPower / DSLDSL
5 Connecting the Computer to the FRITZ!Box
You can connect a computer with the FRITZ!Box either using a network
cable or wirelessly over WLAN.
A computer can be connected with the FRITZ!Box using only
one of these methods. It is not possible to connect using the
network cable and WLAN.
5.1 Connecting Computers to the LAN Port
Connecting a computer to the FRITZ!Box using a network cable
1. Set aside the network cable from the FRITZ!Box package.
2. If you work with a Linux operating system: Configure the
network adapter of the computer with the setting
“DHCP”.
3. Connect one end of the network cable to the network
port (network adapter) of the computer.
FRITZ!Box 7330 23
Connecting Computers to the LAN Port
INFOINFO
WLANWLAN
FestnetzFestnetz
InternetInt
ernet
PowerPower
/ DSLDSL
INFOINFO
WLANWLAN
Fixed LineFixed Lin
e
InternetInt
ernet
PowerPower
/ DSLDSL
4. Connect the other end to the “LAN 1” or “LAN 2” socket
of the FRITZ!Box.
For connections at maximum speed (gigabit Ethernet),
connect the network cable to the “LAN 1” socket.
Now the FRITZ!Box and the computer are connected to each
other.
Connecting More Computers to the LAN Ports
Additional cables are required to connect further computers.
In purchasing a LAN cable, note the instructions in the section Network Cable on page 147.
One computer can be connected to each network port of the
FRITZ!Box.
Connecting a Network Hub or Switch
You can also connect a network hub or switch to the LAN
ports on the FRITZ!Box.
Connecting the FRITZ!Box to a network hub
1. Set aside the network cable from the FRITZ!Box package.
FRITZ!Box 7330 24
Connecting Computers Wirelessly over WLAN
2. Connect one end of the LAN cable to the uplink port (see
glossary) of the network hub or network switch.
3. Connect the other end to the “LAN 1” or “LAN 2” socket
of the FRITZ!Box.
For connections at maximum speed (gigabit Ethernet),
connect the network cable to the “LAN 1” socket.
The FRITZ!Box and the network hub are now connected with
each other.
5.2 Connecting Computers Wirelessly over WLAN
Using WLAN radio technology you can connect multiple computers with the FRITZ!Box wirelessly.
Please note the following before establishing a wireless connection between the computer and the FRITZ!Box:
• WLAN device
A computer to be connected to the FRITZ!Box via WLAN
must be equipped with a WLAN device for it to support
WLAN. A WLAN device can be an external WLAN adapter—like a USB stick, for example—or a device integrated
in the computer. Many modern computers and notebooks come with a WLAN device integrated.
• WLAN security settings
In the FRITZ!Box, WLAN security settings are enabled upon delivery. Before a computer can establish a wireless
connection to the FRITZ!Box, the WLAN security settings
of the FRITZ!Box must be transferred to the WLAN device.
For this procedure the FRITZ!Box supports the two automatic methods AVM Stick & Surf and WPS (Wi-Fi Protected Setup). The security settings can also be transferred
manually.
For more information on WLAN, see the section FRITZ!Box as
a WLAN Base Station from page 71.
FRITZ!Box 7330 25
Connecting Computers Wirelessly over WLAN
Establishing a WLAN Connection with AVM Stick & Surf
If you use a FRITZ!WLAN USB Stick from AVM as the WLAN device, you can use AVM Stick & Surf to establish a secure
WLAN connection quickly and conveniently.
1. Switch on your computer.
2. Insert your FRITZ!WLAN USB Stick into one of the USB
ports on the FRITZ!Box.
The WLAN security settings are transmitted to the
FRITZ!WLAN USB Stick. The “Info” LED on the FRITZ!Box
begins flashing quickly.
As soon as the “Info” LED stops flashing, transmission
of the settings has been concluded.
3. Remove the FRITZ!WLAN USB Stick.
4. Now insert the FRITZ!WLAN USB Stick into the USB port
of the computer.
The security settings will be adopted and the WLAN connection between the FRITZ!Box and the FRITZ!WLAN USB Stick
will be established. As soon as the WLAN connection has
been established the computer is connected to the FRITZ!Box.
See the AVM FRITZ!WLAN USB Stick manual for details.
Establishing a WLAN Connection Using WPS
The FRITZ!Box supports WPS (Wi-Fi Protected Setup). WLAN
devices that also support WPS can be connected with your
FRITZ!Box securely using this method. All of the necessary
WLAN security settings are transferred in the process. There
are two kinds of WPS: the push-button method and the PIN
method.
WPS with the Push-button Method
The push-button method (WPS PBC) can be used if your WLAN
device is equipped with a WPS button, or if WPS can be enabled via the control software of the WLAN device.
FRITZ!Box 7330 26
Connecting Computers Wirelessly over WLAN
FestnetzFestnetz
InternetInternet
WLANWLAN
INFOINFO
Power/DSLPower/DSL
1. Press the “WLAN” button on the FRITZ!Box until the
“WLAN” LED begins flashing.
2. When the “WLAN” flashes, start WPS on the WLAN de-
vice. You have 2 minutes for this task.
How to start WPS depends on the WLAN device. Either
press a button on the WLAN device, or start WPS in the
control software of the WLAN device.
The connection between the FRITZ!Box and the computer is
established automatically. The computer is now connected
with the FRITZ!Box.
WPS with the PIN Method
If your WLAN device supports WPS, but does not have a button to start the push method nor any possibility to enable it in
its control software, use the PIN method to establish the
WLAN connection.
You can choose between two methods:
• the FRITZ!Box specifies the PIN
• the WLAN device specifies the PIN.
The FRITZ!Box Specifies the PIN
1. Open the FRITZ!Box user interface.
2. Select the “WLAN / Security” menu.
3. Go to the “WPS Quick Connection” page.
FRITZ!Box 7330 27
4. Enable the setting “WPS enabled”.
Connecting Computers Wirelessly over WLAN
5. Select the option “PIN method (WPS-PIN), the FRITZ!Box
specifies the PIN”.
6. The PIN will be displayed. Enter this PIN in the control
software of the WLAN device.
7. Click “Start WPS”.
The “WLAN” LED on the FRITZ!Box flashes slowly, indicating
that the WPS procedure has begun. Now a secure WLAN connection is being established between the FRITZ!Box and the
WLAN device.
The WLAN Device Specifies the PIN
1. Open the FRITZ!Box user interface.
2. Select the “WLAN / Security” menu.
3. Go to the “WPS Quick Connection” page.
4. Enable the setting “WPS enabled”.
5. Select the option “PIN method (WPS-PIN), the WLAN de-
vice specifies the PIN”.
6. Now start the control software of the WLAN device. The
program outputs a PIN for establishing a connection.
7. Enter this PIN in the FRITZ!Box user interface.
8. Click “Start WPS”.
The “WLAN” LED on the FRITZ!Box flashes slowly, indicating
that the WPS procedure has begun. Now a secure WLAN connection is being established between the FRITZ!Box and the
WLAN device.
Transferring the WLAN Security Settings Manually
The WLAN security settings for WLAN devices can also be
transferred manually. Manual transfer is unavoidable if a
WLAN device does not support any methods for transferring
the security settings automatically.
For manual transfer the WLAN security settings have to be entered in the WLAN software.
FRITZ!Box 7330 28
Connecting Computers Wirelessly over WLAN
WLAN devices are generally delivered with their own WLAN
software, which is installed in the computer along with the
WLAN device. By now many operating systems have WLAN
software included. Integrated WLAN devices sometimes use
the operating system’s WLAN software.
Installing a WLAN Device
If you need to use a separate WLAN device because you do
not have one integrated, then install the WLAN device in the
computer along with the corresponding WLAN software.
Please take note of the instructions in the documentation of
the device.
Transferring WLAN Security Settings
The values for WLAN security preconfigured in the FRITZ!Box
have to be transferred to the WLAN device.
The values preset in the FRITZ!Box are printed on the sticker
attached to the bottom of the housing. If you would like to
establish a WLAN connection using these values, then your
WLAN device must support the preset encryption method. If
this is not the case, first change the settings in the FRITZ!Box.
To do this, connect your computer and the FRITZ!Box using a
network cable.
1. Start the WLAN software.
2. The following table presents the values that are possible
for the connection between the FRITZ!Box and the WLAN
device. Enter in the WLAN software the values set in the
FRITZ!Box. If you changed the preconfigured values in
the FRITZ!Box, then enter these changed values in the
WLAN software.
SSID (name of the
WLAN radio network)
Encryption method WPA2 (AES-CCMP)
Encryption WPA2-PSK (AES)
WLAN key The key is printed on the sticker at-
Network mode Infrastructure
FRITZ!Box 7330 29
FRITZ!Box Fon WLAN 7330
tached to the bottom of the housing.
Connecting Computers Wirelessly over WLAN
3. Confirm your entries using the relevant button in the us-
er interface (for instance, “OK” or “Connect”).
Now your WLAN device and the FRITZ!Box are connected with
each other wirelessly.
If the WLAN Device Does Not Support WPA
If your WLAN device does not support WPA encryption, you
must convert the encryption set in the FRITZ!Box to WEP. For
this you must change the WLAN settings in the FRITZ!Box.
1. Connect the FRITZ!Box and the computer using the net-
work cable (yellow) (see the section Connecting Compu-
ters to the LAN Port on page 23).
2. Open the FRITZ!Box user interface (see the section
Opening the User Interface on page 31).
3. Select the “WLAN / Security” menu.
4. Open the “Encryption” page, then select WEP encryption
and enter a network key.
5. Click the “Apply” button.
A window is displayed with the WLAN security settings.
6. Make a note of the settings or print out the page.
7. Close the user interface and clear the connection be-
tween the FRITZ!Box and the computer. Remove the network cable (yellow).
8. Configure your WLAN device with the security settings
entered in the FRITZ!Box.
The WLAN connection between your WLAN device and the
FRITZ!Box will be established.
We strongly recommend using a WLAN device that supports
WPA or WPA2 (for instance, a FRITZ!WLAN USB Stick from
AVM). WEP is out of date and data encrypted with WEP can be
deciphered within minutes.
FRITZ!Box 7330 30
The FRITZ!Box User Interface
6The FRITZ!Box User Interface
The FRITZ!Box has a user interface you can open in a web browser on
your computer.
In the user interface you can set up the FRITZ!Box, enable or disable
functions and receive information on the FRITZ!Box and on your connections.
6.1 Opening the User Interface
The FRITZ!Box user interface can be opened on every computer connected with the FRITZ!Box.
1. Start a web browser on your computer.
2. Enter fritz.box
in the address line of the browser.
The FRITZ!Box user interface opens.
Entering the address fritz.box in the browser
If the user interface does not open, see the instructions on
resolving errors in the section from page 126.
The Wizard: Opening the User Interface for the First Time
When you open the user interface for the first time, a wizard
starts to assist you in configuring the FRITZ!Box.
If you cancel the wizard, you can configure your FRITZ!Box
without this wizard. You can change the settings configured
with this wizard at any time.
For comprehensive information on configuring the many diverse functions of your FRITZ!Box, see the following chapters
in this manual.
FRITZ!Box 7330 31
Overview: Everything at a Glance
6.2 Overview: Everything at a Glance
All important information about the FRITZ!Box is displayed directly on the “Overview” page of the FRITZ!Box user interface.
By clicking the linked entries or “more...” you can jump from
this page to the corresponding menus and configure settings
there.

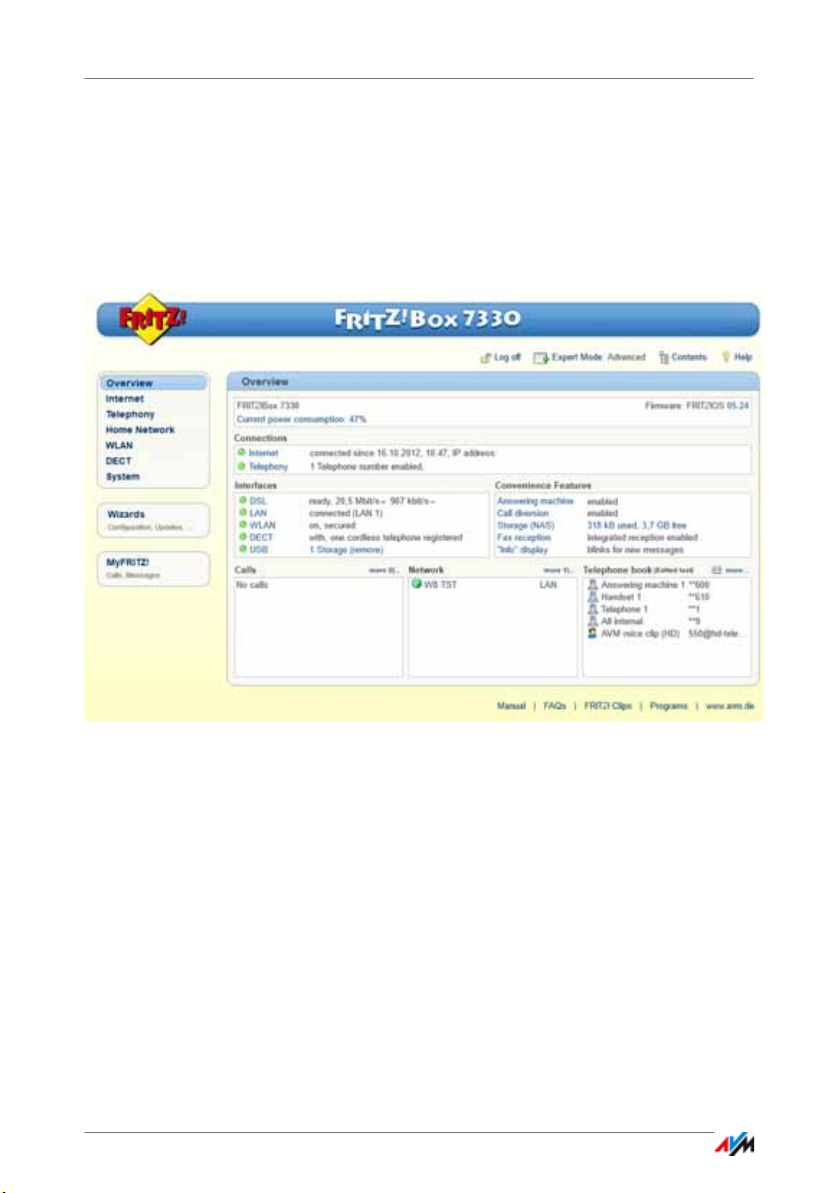

The FRITZ!Box overview page
In the upper area of the window the FRITZ!Box is displayed
with its complete product name, the currently installed version of FRITZ!OS, and its current energy consumption.
Depending on your settings, the following additional information is displayed here:
• If you assigned an individual name for your FRITZ!Box
(see page 103), this name will be displayed here.
• If you use the automatic search for updates (page 52)
and a new FRITZ!OS version is available on the AVM
Update Server for your FRITZ!Box, you will be notified.
FRITZ!Box 7330 32
Standard View and Advanced View
The middle area of the window presents information about
connections, ports and configured convenience functions like
MyFRITZ!, call diversion, guest access, remote access, port
forwarding and push service.
In the lower area of the window, the information is rounded
out by the last telephone calls conducted, the list of connected devices like computers, network storage and telephones,
and the telephone book entries edited last.
6.3 Standard View and Advanced View
The FRITZ!Box user interface has two views: the standard view
and the advanced view.
In the standard view all of the settings required for everyday
operation of the FRITZ!Box are at your disposal. Some pages
and areas of the FRITZ!Box user interface are not displayed.
Upon delivery, the FRITZ!Box interface is set to display the
standard view.
In the advanced view additional settings options appear under various menus and commands. The expanded menu
items contain network and DSL settings for advanced users
and are not required for normal FRITZ!Box operation.
Enabling this option is recommended only if you have advanced network expertise. When this setting is selected, settings can be configured which have the result that the
FRITZ!Box user interface can no longer be opened.
Fast Switching between the Views
The “View” icon in the link list of the FRITZ!Box allows you
to switch immediately between the standard view and the advanced view.
FRITZ!Box 7330 33
Protecting the User Interface with a Password
6.4 Protecting the User Interface with a Password
You can protect the user interface of the FRITZ!Box with a
password. The password will be requested every time the user interface is opened. This protects the settings of your
FRITZ!Box from unauthorized access.
For reasons of security, we recommend setting up and using
password protection for the user interface.
Setting Up Password Protection
As long as no password protection has been set up, every
time you open the user interface you will be prompted to enter a password. If you disabled this message, here is how to
set password protection:
1. Open the FRITZ!Box user interface (see page 31).
2. Go to the “System / FRITZ!Box Password” menu.
3. Enter a password and save the password by clicking
“Apply”.
Password protection is now enabled.
Be sure to remember the password! If you forget the password, the factory settings will have to be restored to your
FRITZ!Box. All of the settings you configured will be discarded. This is why we recommend saving the settings of your
FRITZ!Box in a backup file (see page 35).
Forgot Password—What to Do?
If you have forgotten your password for the user interface, for
reasons of security, you have to restore the factory settings to
your FRITZ!Box:
1. Open the FRITZ!Box user interface (see page 31).
2. In the “Welcome to FRITZ!Box” window, click “reset” be-
low the password prompt and follow the instructions on
the screen.
The FRITZ!Box is reset to the factory settings and then restarted. Afterward you can once again access the
FRITZ!Box user interface.
FRITZ!Box 7330 34
Saving the FRITZ!Box Settings
3. After restarting, reconfigure the FRITZ!Box over the user
interface or load your saved settings to the FRITZ!Box
(see page 35).
This concludes the reset of the FRITZ!Box.
Logging Off the User Interface
When password protection is enabled, you can log off the user interface at any time. To do so, click in the
list of links.
If you do not click on the user interface for a period of longer
than ten minutes, you will be logged off automatically. The
only pages excepted from this are those which are constantly
updated, like the “Overview” page. No automatic logout will
take place on these pages.
6.5 Saving the FRITZ!Box Settings
All of the settings you configure in your FRITZ!Box can be
saved in a backup file on your computer. With this backup file
you can restore your settings to the FRITZ!Box at any time or
load your settings to another FRITZ!Box.
Saving and Restoring Settings
To save and restore your FRITZ!Box settings, use the “System
/ Save Settings” menu in the user interface. Here you can
• save your FRITZ!Box settings on the “Save” tab.
• restore all of your saved settings to the same FRITZ!Box
on the “Restore” tab.
• load all of your saved settings to another FRITZ!Box of
the same model on the “Restore” tab.
• load your saved settings to another FRITZ!Box model on
the “Apply” tab. In this case you can select which settings are to be applied to the FRITZ!Box.
To load your saved settings to another FRITZ!Box of the same
model, or to apply the settings of another FRITZ!Box model
to your FRITZ!Box, the backup file must always be passwordprotected.
Instructions for saving, restoring and applying FRITZ!Box settings are presented in the user interface’s Online Help.
FRITZ!Box 7330 35
Configuring an Internet Connection in the FRITZ!Box
7 Configuring an Internet Connection in the FRITZ!Box
Once you have connected the FRITZ!Box to your Internet connection,
you must configure the Internet connection in the FRITZ!Box user interface so that the FRITZ!Box can establish the connection to your Internet service provider and connect to the Internet.
The sequence and number of steps required to configure your Internet
connection depend on the kind of connection, the desired operating
mode, and the Internet service provider.
7.1 Configuring an Internet Connection for DSL
If you have a DSL line, you received Internet account information from your DSL or Internet service provider. The Internet
account information is required to configure the Internet connection.
Your Internet service provider also supplied information
about the configuration of your Internet connection. Always
perform the Internet connection setup as described by your
provider.
Configuring an Internet Connection Automatically
If your Internet service provider arranges for the service of automatically configuring your Internet connection, the automatic configuration will be performed right after the
FRITZ!Box is connected. No additional settings for the Internet connection have to be configured in the FRITZ!Box. To
start automatic configuration, some providers require that
you enter a start code.
Configuring the Internet Connection Using the Wizard
The wizard takes you step by step through the setup.
1. Open the FRITZ!Box user interface (see page 31).
2. Select the “Wizards” entry in the menu.
3. Click the “Check Internet Connection” Wizard and follow
the instructions.
When the Wizard is finished, your Internet connection has
been configured.
FRITZ!Box 7330 36
Changing the Annex Setting of the FRITZ!Box
Configuring the Internet Connection Without the Wizard
You can also set up the Internet connection without the Wizard.
Choose this method if the FRITZ!Box is connected to a DSL
modem or a DSL router, or integrated into an existing network.
1. Open the FRITZ!Box user interface (see page 31).
2. On the “Overview” page, select the “Advanced View”.
3. Select the “Internet / Account Information” menu and
enter your account information.
Also take advantage of the Help available in the FRITZ!Box user interface.
7.2 Changing the Annex Setting of the FRITZ!Box
The FRITZ!Box cannot establish a connection to the DSL
network. This is signaled by the continued flashing of the
“Power / DSL” LED.
Cause
The kind of DSL (Annex A, B, J or M) set in the FRITZ!Box is not
the same as the annex used on your DSL line.
Help
1. Contact your Internet service provider to find out which
annex is used on your DSL line.
2. Connect a computer with the FRITZ!Box either wirelessly
via WLAN or using a network cable.
3. Open the FRITZ!Box user interface.
4. Open the “Internet / DSL Information” and select the
“Line Settings” page.
5. In the “Annex Settings” area, make sure that the annex
working on your DSL line is set. Save your settings by
clicking “Apply”.
FRITZ!Box 7330 37
Configuring the Internet Connection for Cable
After the annex setting has been changed, the FRITZ!Box restarts automatically. The connection to the DSL network has
been established as soon as the “Power / DSL” LED stops
flashing and remains lit up.
7.3 Configuring the Internet Connection for Cable
With an additional cable modem you can also use your
FRITZ!Box 7330 on a cable connection. Then the Internet connection is established and controlled by the FRITZ!Box itself,
so that in this operating mode, too, all FRITZ!Box functions
(like Internet telephony, firewall) are available without restriction.
1. Open the FRITZ!Box user interface (see page 31).
2. Select “Wizards” in the menu.
3. Click the “Check Internet Connection” Wizard and follow
the instructions.
7.4 Configuring the Internet Connection for the Mobile
Communications Network
With a USB modem you can also establish the Internet connection with your FRITZ!Box 7330 via the mobile communications network. A USB modem for mobile Internet access
(UMTS/HSPA) and a SIM card from a mobile communications
provider are required for this. The FRITZ!Box supports
UMTS/HSPA modems from various manufacturers.
1. Insert the USB modem in the USB port on the FRITZ!Box.
2. Open the FRITZ!Box user interface (see page 31).
In the “Internet” menu, the sub-menu “Mobile Telephone Network” is displayed.
The “Mobile Telephone Network” menu is not available
until the UMTS/HSPA modem has been connected to the
USB port of the FRITZ!Box.
3. Select the setting “Mobile connection enabled”.
FRITZ!Box 7330 38
Configuring the Internet Connection over LAN 1: FRITZ!Box as a Router
4. Configure the settings for your Internet connection over
the mobile communications network. For more information, see the Online Help of the FRITZ!Box.
When the mobile communications function is used, the
FRITZ!Box user interface presents information about network
availability, connection status and throughput.
After this function has been set up, the “Internet / Mobile
Telephone Network” menu is always available, even when the
USB modem has been disconnected.
Due to technical limitations on the part of the mobile communications network providers, some limitations may arise
for Internet telephone calls and for applications requiring an
incoming connection. The same is true for using port forwarding, sharing USB storage memory, remote access via
HTTPS, dynamic DNS and VPN. Contact your network provider
for details on any restrictions that may apply.
7.5 Configuring the Internet Connection over LAN 1: FRITZ!Box as a
Router
You can use the FRITZ!Box at an already existing Internet access via the “LAN 1” socket. For this the FRITZ!Box is not connected to the router or network. For this kind of connection
the FRITZ!Box can be configured as an independent router or
as an IP client in the existing network.
Configuring FRITZ!Box as a Router
You can configure the FRITZ!Box to work as an independent
router to provide a network with its own network address
range.
1. Connect the FRITZ!Box to the router/network with a cable
as described in section Connecting with a Router/Net-
work on page 21.
2. Open the FRITZ!Box user interface.
3. Select the “Internet / Account Information” menu.
4. Select the “Existing connection over LAN” entry from the
“Internet Service Provider” drop-down list.
FRITZ!Box 7330 39
Configuring the Internet Connection over LAN 1: FRITZ!Box as a Router
5. Click “Apply”.
When the settings are applied the network address
range of the FRITZ!Box changes automatically.
The FRITZ!Box is configured as a router and the network range
is changed. The FRITZ!Box, along with the connected network
devices, forms its own self-contained network.
Configuring FRITZ!Box as an IP Client
You can configure the FRITZ!Box such that it is integrated into
the existing network as an IP client and shares the existing Internet connection in the network.
1. Connect the FRITZ!Box to the router/network with a cable
as described in section Connecting with a Router/Net-
work on page 21.
2. Open the FRITZ!Box user interface.
3. Select the “Internet / Account Information” menu.
4. Select the “More Internet Service Providers” entry from
the “Internet Service Provider” drop-down list.
5. Select the “Other Internet Service Provider” entry from
the second drop-down list.
6. From the “Connection” area, select the “External modem
or router” option.
7. In the “Operating Mode” area, select the setting “Share
existing Internet connection in the network (IP client
mode)”.
The FRITZ!Box is integrated into the existing network as an IP
client. The FRITZ!Box and the connected network devices receive an IP address from the IP address range of the existing
network. The FRITZ!Box and the connected network devices
are thus part of this network.
FRITZ!Box 7330 40
Surfing the Net
7.6 Surfing the Net
Once you have set up the Internet connection in your
FRITZ!Box, you can surf the Internet with any computer connected to the FRITZ!Box.
1. Start a web browser on your computer.
2. Enter in the address field the URL of the web page you
The requested Internet page is opened and displayed.
would like to visit, for instance www.avm.de/en
.
FRITZ!Box 7330 41
Connecting Telephones and Other Terminal Devices
INFOINFO
WLANWLAN
FestnetzFestnetz
InternetInternet
PowerPo
w
er / DSLD
S
L
INFOINFO
WLANWLAN
Fixed LineFixed Line
InternetInternet
PowerPo
w
er / DSLD
S
L
8 Connecting Telephones and Other Terminal Devices
This chapter describes how to connect telephones, fax machines, answering machines and telephone systems (PBXs) to the FRITZ!Box.
8.1 Connecting an Analog Telephone or Another Analog Terminal
Device
You can connect an analog terminal device with an RJ11 plug
to the FRITZ!Box, for instance a telephone or a fax machine.
Connecting an analog telephone with an RJ11 plug
Connect the telephone to the “FON 1” port of the FRITZ!Box.
For instructions on how to set up the FRITZ!Box for making
telephone calls, start reading from page 47.
8.2 Registering FRITZ!Fon and Other Cordless (DECT) Telephones
Up to six cordless telephones can be registered on the
FRITZ!Box. The cordless telephones must support the DECT
standard.
The cordless telephones FRITZ!Fon by AVM are the ideal complement to your FRITZ!Box 7330 (see also AVM Products for
the FRITZ!Box from page 153).
1. Start the registration of your cordless telephone with a
base station.
2. Follow the directions on the display of the cordless tele-
FRITZ!Box 7330 42
phone.
Registering Smartphones with FRITZ!App Fon
Fixed LineFixed Line
InternetInternet
WLANWLAN
InfoInfo
Power/DSLPower
/DSL
10 seconds
3. As soon as you are prompted to press the DECT, register,
or paging button on the base station, press the DECT
button on the FRITZ!Box.
Hold the DECT button down for about 10 seconds until
the DECT LED on the FRITZ!Box begins flashing.
4. If you are asked for the PIN of the DECT base station, en-
ter the DECT pin of the FRITZ!Box.
Upon delivery the PIN of the FRITZ!Box is “0000”.
If you changed the PIN and forgot it, you can enter a new
DECT PIN in “DECT / Base Station” menu of the FRITZ!Box
user interface (see page 31).
The cordless telephone is connected with the FRITZ!Box.
8.3 Registering Smartphones with FRITZ!App Fon
The FRITZ!App Fon software connects your smartphone with
the FRITZ!Box via WLAN. Calls you make from home then use
not the mobile communications network, but the telephone
numbers set up in the FRITZ!Box.
The free FRITZ!App Fon software can be installed on an
iPhone, iPod or iPad with iOS 4 or higher, and on Android
smartphones with Google Android 2.1 or higher.
FRITZ!App Fon for Android smartphones is available at the
Android Market
App Store.
Registering a Smartphone on FRITZ!Box
1. Install FRITZ!App Fon on your smartphone.
FRITZ!Box 7330 43
. FRITZ!App Fon for iOS is offered in the Apple
Connecting an IP Telephone
2. Connect your smartphone with the FRITZ!Box via WLAN.
To establish the connection you need the WLAN key of
the FRITZ!Box. The preconfigured WLAN key is printed on
the sticker on the underside of your FRITZ!Box.
3. Start the FRITZ!App Fon. If you protected the user inter-
face of the FRITZ!Box with a password, enter the password to log in.
Once FRITZ!App Fon has been started, use your smartphone
to make calls from home over the FRITZ!Box.
Defining Telephone Numbers for the Smartphone
A new telephone device for FRITZ!App Fon is entered automatically in the FRITZ!Box. The name of the telephone device is
listed in the FRITZ!App Fon under “More / FRITZ!Box”.
You can assign telephone numbers to this telephone to determine which telephone numbers are used to make calls with
your smartphone from home. See the section Configuring
Connected Telephones and Terminal Devices on page 49 for
instructions.
8.4 Connecting an IP Telephone
With your FRITZ!Box 7330 you can also use IP telephones to
make calls over the Internet and the fixed-line telephone network. Connect an IP telephone by plugging it into a network
port on the FRITZ!Box or wirelessly via WLAN.
Connecting an IP Telephone to the LAN Port of the FRITZ!Box
IP telephones with a LAN port can be connected to the
FRITZ!Box with a network cable.
FRITZ!Box 7330 44
Connecting an IP Telephone
INFOINFO
WLANWLAN
FestnetzFestnetz
InternetInternet
PowerPower / DSLDSL
INFOINFO
WLANWLAN
Fixed LineFixed Line
InternetInternet
PowerPower / DSLDSL
WLAN
INFOINFO
WLANWLAN
FestnetzFestnetz
InternetInternet
PowerPo
w
er / DSLD
S
L
INFOINFO
WLANWLAN
Fixed LineFixed Line
InternetInternet
PowerPo
w
er / DSLD
S
L
Connecting an IP telephone to the LAN socket of the FRITZ!Box
1. Connect a network cable to the IP telephone.
2. Connect the free end of the network cable to a LAN port
on the FRITZ!Box.
The IP telephone is now connected with the FRITZ!Box.
You cannot make calls with the IP telephone yet. The IP telephone still has to be configured in the FRITZ!Box (see
page 49).
Connecting an IP Telephone with the FRITZ!Box over WLAN
IP telephones that support WLAN can be connected wirelessly
to the FRITZ!Box via WLAN.
Connecting an IP Telephone with the FRITZ!Box over WLAN
1. Use your IP telephone to search for WLAN devices at your
location.
2. Select your FRITZ!Box 7330 from the list of WLAN devices
found.
FRITZ!Box 7330 45
Connecting an IP Telephone
3. Enter the WLAN key of the FRITZ!Box.
The preconfigured WLAN key is printed on the sticker on
the underside of your FRITZ!Box.
Now the IP telephone will be connected with the FRITZ!Box.
You cannot make calls with the IP telephone yet. The IP telephone still has to be configured in the FRITZ!Box (see
page 49).
FRITZ!Box 7330 46
Setting Up the FRITZ!Box for Telephone Calls
9 Setting Up the FRITZ!Box for Telephone Calls
This chapter describes how to set up your FRITZ!Box for making telephone calls.
9.1 Entering Telephone Numbers in FRITZ!Box
You can enter Internet telephone numbers and fixed-line telephone numbers in the FRITZ!Box.
Entering Internet Telephone Numbers
Your Internet telephone numbers must always be entered in
the FRITZ!Box.
The FRITZ!Box requires the Internet telephone numbers and
their corresponding login data to register the Internet telephone numbers with the registrar. The registrar is a server
(computer) in the Internet that belongs to your Internet telephony provider.
Automatic Configuration of Internet Telephone Numbers
Some Internet telephony providers will configure your Internet telephone numbers in the FRITZ!Box automatically. This is
known as remote configuration, and starts right after the
FRITZ!Box is connected, or as soon as a start code is entered.
The FRITZ!Box receives the data for remote configuration from
the provider’s “auto configuration server” in the Internet.
The automatically configured Internet telephone numbers are
located in the FRITZ!Box user interface under “Telephony /
Own Telephone Numbers”.
Entering Internet Telephone Numbers with the Wizard
You can enter multiple Internet telephone numbers from different providers in the FRITZ!Box.
1. Open the FRITZ!Box user interface (see page 31).
2. Click “Wizards”.
3. Click “Manage Your Own Phone Numbers”.
FRITZ!Box 7330 47
Entering Telephone Numbers in FRITZ!Box
4. Click “Add Telephone Number” and follow the Wizard’s
instructions.
You receive all account information (user name, password) from your Internet telephony provider.
Entering Fixed-line Telephone Numbers
If you connect the FRITZ!Box with an fixed telephone line, you
can make telephone calls via the fixed-line network right
away.
You must enter your fixed-line numbers in the FRITZ!Box if you
have multiple telephone numbers and
• you would like to assign the telephone numbers to cer-
tain telephones or other terminal devices.
• you would like to configure a convenience function of-
fered by the FRITZ!Box, such as the answering machine
or call diversion.
You receive one telephone number for an analog telephone
line, and usually three for an ISDN line.
Entering Fixed-line Numbers with the Wizard
1. Open the FRITZ!Box user interface (see page 31).
2. Click “Wizards”.
3. Click “Manage Your Own Phone Numbers”.
4. Click “Add Telephone Number” and follow the Wizard’s
instructions.
Editing or Deleting Telephone Numbers
All telephone numbers you entered in the FRITZ!Box are listed
under “Telephony / Own Telephone Numbers” in the user interface.
You can edit and delete telephone numbers here.
FRITZ!Box 7330 48
Configuring Connected Telephones and Terminal Devices
9.2 Configuring Connected Telephones and Terminal Devices
Once you have entered your telephone numbers, configure all
of the connected telephones and other terminal devices in
the FRITZ!Box. In the process you must define, depending on
the type of device:
• The telephone number the terminal device uses to place
outgoing calls to the public telephone network.
• Telephone numbers for accepting calls. A telephone can
be set to ring for all incoming calls or only for calls to certain telephone numbers.
• Internal name for the terminal device. This name will be
displayed, for instance, in the call list of the FRITZ!Box.
Setting Up Telephones and Terminal Devices with the Wizard
1. Open the FRITZ!Box user interface (see page 31).
2. Click “Wizards” in the menu.
3. Click “Manage Your Telephony Devices”.
The telephones and other terminal devices that have already been configured are displayed in the user interface.
4. To set up a new terminal device, click “Configure New
Device”. Follow the wizard’s instructions.
Click the “Edit” button to open the settings of a terminal device.
Editing or Deleting Telephones and Terminal Devices
All telephones and other terminal devices you set up in the
FRITZ!Box are listed under “Telephony / Telephony Devices”
in the user interface.
Here you can edit the settings of terminal devices and delete
terminal devices.
FRITZ!Box 7330 49
Making Telephone Calls
9.3 Making Telephone Calls
Once you have set up your telephones, you can make outgoing telephone calls to the public network and accept incoming calls.
A telephone places outgoing calls using the telephone number you defined for outgoing calls while setting up the telephone (see page 49).
For incoming calls a telephone reacts only to calls to those
telephone numbers you assigned to the telephone during setup (see page 49).
FRITZ!Box 7330 50
Firmware Update: Updating the FRITZ!OS
10 Firmware Update: Updating the FRITZ!OS
AVM provides free updates of the firmware for your FRITZ!Box. The
firmware—called FRITZ!OS—is the software stored in the FRITZ!Box
that controls all of the FRITZ!Box functions.
FRITZ!OS updates contain further developments of existing FRITZ!Box
functions and often also introduce new functions for your FRITZ!Box.
A FRITZ!OS update is necessary if you would like to take advantage of
further developments and new functions.
10.1 Searching for and Transferring FRITZ!OS Update with the Wizard
1. Open the FRITZ!Box user interface (see page 31).
2. Click “Wizards” in the menu and start the “Update Firm-
ware” Wizard.
The Wizard checks whether a FRITZ!OS update is available for your FRITZ!Box.
If the Wizard finds an update, it displays the version
number of the new FRITZ!OS. Click the link under the
FRITZ!OS version to view information about further developments and new functions contained in the
FRITZ!OS update. Read this information before starting
the update.
3. To transfer FRITZ!OS update to the FRITZ!Box, click “Start
Firmware Update Now”.
The FRITZ!OS update begins and the “Info” LED on the
FRITZ!Box starts flashing.
Do not interrupt the power supply to the FRITZ!Box during the FRITZ!OS update!
The FRITZ!OS update is complete when the “Info” LED stops
flashing.
FRITZ!Box 7330 51
Automatic Search for Updates and Updating FRITZ!OS
10.2 Automatic Search for Updates and Updating FRITZ!OS
With the AVM service “Search for updates automatically” you
will always be informed about the latest FRITZ!OS updates for
your FRITZ!Box. When a new firmware for your FRITZ!Box is
found on the AVM website, you will be notified on the “Overview” page.
New updates are not installed automatically.
Updating FRITZ!OS
1. Open the “Overview” page.
When an FRITZ!OS update for your FRITZ!Box is found,
you will be notified with the message “The latest firmware is not installed: Update?”.
2. Click the “Update?” link to install the update.
3. In the next window, click “Start Firmware Update Now”.
The FRITZ!OS update begins and the “Info” LED on the
FRITZ!Box starts flashing.
Do not interrupt the power supply to the FRITZ!Box during the FRITZ!OS update!
The FRITZ!OS update is complete when the “Info” LED stops
flashing.
Disabling the Service
The service “Search for updates automatically” is set by default upon delivery of the FRITZ!Box, but you can disable it if
desired.
1. Open the FRITZ!Box user interface (see page 31).
2. Select the “Contents” link in the header.
The contents page, or site map, of the FRITZ!Box user
interface is opened.
FRITZ!Box 7330 52
Automatic Search for Updates and Updating FRITZ!OS
3. Scroll down to the end of this page and click the “AVM
Services” link.
The “AVM Services” page is opened.
4. Disable the setting “FRITZ!Box searches for updates peri-
odically” and save your setting with “Apply”.
The AVM service “Search for updates automatically” is now
disabled.
FRITZ!Box 7330 53
MyFRITZ!: Global Access to the FRITZ!Box
11 MyFRITZ!: Global Access to the FRITZ!Box
MyFRITZ! is a web service by AVM with which you can access your
FRITZ!Box from anywhere in the world over the Internet.
• FRITZ!NAS: When you use MyFRITZ!, FRITZ!NAS is available every-
where. You can access photographs, music and documents
located on the storage media connected to the FRITZ!Box.
• Answering machine: With MyFRITZ! you can listen to the messag-
es on the answering machine of the FRITZ!Box from anywhere in
the world.
• Call list: With MyFRITZ! you can view the call list in the FRITZ!Box
from anywhere in the world.
The MyFRITZ! Principle
• Set up a MyFRITZ! account.
• Register your FRITZ!Box with your MyFRITZ! account.
• From wherever you are, you can access your FRITZ!Box
from the www.myfritz.net
The MyFRITZ! Account
You need a MyFRITZ! account if you would like to use the
MyFRITZ! service. Register your FRITZ!Box with your MyFRITZ!
account. Every time the public IP address is changed, the
FRITZ!Box now will transmit the changed IP address to the
MyFRITZ! account. This ensures that the current, public IP address of the FRITZ!Box is always known. When you log in to
MyFRITZ!, you will be forwarded to the FRITZ!Box using the IP
address.
page.
Setting Up a MyFRITZ! Account and Registering the FRITZ!Box
• Make sure that the Internet connection is active and that
you can access your e-mail.
• You can set up the MyFRITZ! account in the FRITZ!Box
user interface in the “Internet / MyFRITZ!” menu.
FRITZ!Box 7330 54
MyFRITZ!: Global Access to the FRITZ!Box
• Enter the following user data:
– For the MyFRITZ! account, enter your e-mail address
and assign a MyFRITZ password.
– For access to the FRITZ!Box over the Internet, enter a
FRITZ!Box Internet password. This password is requested by the FRITZ!Box whenever you want to
access the FRITZ!Box via MyFRITZ!.
• You receive an e-mail from MyFRITZ! containing a regis-
tration link. If possible, open the e-mail on the computer
on which you began to set up the account. Click the registration link.
• You are forwarded to the MyFRITZ! website, where you
are prompted to read the terms of use and activate the
account.
• Once the account has been activated successfully, you
will be redirected to the FRITZ!Box user interface. Now
the FRITZ!Box is registered with your MyFRITZ! account.
Using MyFRITZ!
As soon as you have created a MyFRITZ! account and registered your FRITZ!Box with the account, you can begin using
the MyFRITZ! service.
1. Start the www.myfritz.net
2. Log in with your e-mail address and your MyFRITZ! pass-
word.
3. Click the “To My FRITZ!Box” button.
4. Enter the Internet password for your FRITZ!Box.
• You will be directed to the MyFRITZ! page of your
FRITZ!Box.
• You have access to the storage media enabled for shar-
ing, to the call list, and to the voice messages on the answering machine.
• Click the “FRITZ!Box” button to open the user interface
of your FRITZ!Box.
FRITZ!Box 7330 55
website.
MyFRITZ!: Global Access to the FRITZ!Box
MyFRITZ! in the Home Network
You can also use MyFRITZ! in the FRITZ!Box home network.
1. Enter “myfritz.box” in the address field of your browser.
2. Enter the Internet password for your FRITZ!Box.
You will be directed to the MyFRITZ! page of your FRITZ!Box. In
this case you do not have to log in to MyFRITZ!.
Multiple FRITZ!Boxes
You can register multiple FRITZ!Boxes at one MyFRITZ! account.
• Every FRITZ!Box is registered with the MyFRITZ! account
over your user interface. From the “Internet / MyFRITZ!”
menu, select the setting “Register the FRITZ!Box with an
existing MyFRITZ! account”.
• When you log in to MyFRITZ!, all registered devices will
be displayed.
Security with MyFRITZ!
For the following MyFRITZ! activities the https security protocol is used:
• setting up a MyFRITZ! account with myfritz.net
• registration of the FRITZ!Box with the MyFRITZ! account
• accessing the MyFRITZ! page of your FRITZ!Box over
myfritz.net
• accessing the user interface of the FRITZ!Box
The FRITZ!Box generates its own https certificate. Because this certificate does not come from a certification
authority preset in common browsers, you have to confirm that the connection should be established nevertheless. Firefox and Internet Explorer will remember your
confirmation and refrain from showing any further warnings.
http is used for the daily update of the IP address on
myfritz.net. The password is never transmitted as clear text.
FRITZ!Box 7330 56
FRITZ!Box as an Internet Router
12 FRITZ!Box as an Internet Router
The FRITZ!Box connects computers in your home network with the
Internet. This chapter explains the possibilities offered by using the
FRITZ!Box as an Internet router and how to take advantage of them.
12.1 Child Protection: Restricting Internet Access
The child protection feature allows you to define access rules
to the Internet for individual computers or Windows users.
These access rules may include restrictions of Internet access
time, filter lists and a list with blocked network applications.
• Restrict Internet access time: Using the time restriction
you can restrict the amount of time the user can surf the
web. You can define on which days of the week, at what
times of day, and for how long a computer or Windows
user is allowed to use the Internet connection.
• Block or permit web sites: you can use filter lists to de-
fine which Internet pages are allowed to be accessed
and to which access is blocked. For instance, you can
block all Internet pages the government has defined as
offensive or harmful to minors.
You can create both filter lists, the whitelist and the
blacklist. A whitelist contains all Internet pages to which
access is allowed. A blacklist contains all Internet pages
to which access is blocked.
• Block network applications: You can list network appli-
cations for which Internet access should be blocked. For
instance, you can block Internet access for file-sharing
software.
Child protection can be enabled for each computer individually, regardless of the computer’s operating system.
You can also enable child protection individually for all Windows users in all Windows operating systems (Windows 7,
Windows Vista and Windows XP). This option is useful if a
computer is used by multiple users.
FRITZ!Box 7330 57
Port Forwarding: Making Computers Accessible from the Internet
The child protection feature is available only if you have set
up the Internet connection in the FRITZ!Box and established
an Internet connection. Child protection is not available if you
have configured the FRITZ!Box as an IP client. In this case, use
the corresponding functions of the router whose Internet connection is being shared.
Setting Up Child Protection in the FRITZ!Box
1. Open the FRITZ!Box user interface (see page 31).
2. Select the “Internet / Filters” menu.
3. Set up child protection. See the Online Help available in
the FRITZ!Box user interface for more information.
12.2 Port Forwarding: Making Computers Accessible from the Internet
With default settings in the FRITZ!Box, programs on your computer and LAN cannot be accessed from the Internet. For
applications like online games and file sharing software or
server services like HTTP, FTP, VPN, terminal and remote access servers you have to make your computer accessible for
other Internet users.
Port Forwarding
Using port forwarding, you allow incoming connections from
the Internet. By releasing certain ports for incoming connections, you grant controlled access to your computers in your
network to other Internet users. Ports serve to assign incoming data packets to the various applications when all applications can be accessed at one IP address only.
The following port forwarding methods are possible in the
FRITZ!Box:
FRITZ!Box 7330 58
Port Forwarding: Making Computers Accessible from the Internet
PING IPv4:
The FRITZ!Box responds to ping inquiries from
the Internet addressed to the IPv4 address of the
FRITZ!Box.
IPv6:
The FRITZ!Box responds to ping inquiries from
the Internet addressed to the IPv6 address of the
FRITZ!Box. Additionally, you can set up PING6
port forwarding rules for each computer in the
home network since each computer has its own
globally valid IPv6 address.
TCP
UDP
ESP
GRE
Exposed Host
(Open firewall
completely)
IPv4:
Within IPv4 networks you can open the FRITZ!Box
firewall for the protocols TCP and UDP when entering the port range. One port can be opened for
exactly one computer.
IPv6:
Within IPv6 networks you can open the FRITZ!Box
firewall for the protocols TCP and UDP when entering the port range. One port can be opened for
each computer in the network.
IPv4:
Within IPv4 networks you can open the firewall
for the two protocols ESP and GRE which do not
use ports.
IPv4:
Within IPv4 networks you can open the firewall
for one computer completely. This computer is
then no longer protected by the FRITZ!Box firewall. If individual ports are already open for other
computers, then data packets for these ports are
not forwarded to the exposed host but to the other computer instead.
IPv6:
Within IPv6 networks you can open the firewall
for each computer completely. These computers
are then no longer protected by the FRITZ!Box
firewall.
FRITZ!Box 7330 59
Port Forwarding: Making Computers Accessible from the Internet
Setting Up Port Forwarding in the FRITZ!Box
• IPv4: Port forwarding for IPv4 is set up in the “Internet /
Permit Access” menu, on the “Port Forwarding” page.
• IPv6: Enable the advanced view. Port forwarding for IPv6
is also set up in the “Internet / Permit Access” menu, on
the “IPv6” page.
Determining the IPv4 Address for Accessing the FRITZ!Box
If you have enabled ports for forwarding in the FRITZ!Box, other Internet users can access your computers at the IP address
assigned to your FRITZ!Box by the Internet service provider.
This is a public IPv4 address.
Here is how to determine the public IPv4 address of the
FRITZ!Box:
1. Open any Internet page in order to establish an Internet
connection.
2. Open the FRITZ!Box user interface and enable the ad-
vanced view in the user interface.
3. The FRITZ!Box’s public IPv4 address is displayed on the
“Overview” page in the “Connections” area.
Every time the Internet connection is interrupted the Internet
service provider re-assigns the IP address. The IP address
may change in the process. Therefore it is a good idea to use
MyFRITZ! or dynamic DNS so that the IP address can always
be reached under the same name. For more information
about MyFRITZ!, see the section MyFRITZ!: Global Access to
the FRITZ!Box on page 54. For more information about dy-
namic DNS, see the section Dynamic DNS: Name Instead of
IP Address on page 61.
FRITZ!Box 7330 60
Dynamic DNS: Name Instead of IP Address
12.3 Dynamic DNS: Name Instead of IP Address
Dynamic DNS is an Internet service that makes it possible for
the FRITZ!Box to remain accessible from the Internet at all
times under a fixed name, even though the public IP address
changes.
Dynamic DNS can be used as an alternative to MyFRITZ!. Both
services can be used in parallel.
You must register with a dynamic DNS provider to use this
service. When you register, you agree on the fixed name (domain name) at which your FRITZ!Box should be accessible
from the Internet. You also define a user name and password.
Every time the IP address changes, the FRITZ!Box transmits
the new IP address to the dynamic DNS provider in the form of
an update request. Then the domain name is assigned to the
current IP address by the dynamic DNS provider.
Setting Up Dynamic DNS in the FRITZ!Box
1. Open the FRITZ!Box user interface (see page 31).
2. Enable the advanced view.
3. Select the “Internet / Permit Access” menu.
4. Select the “Dynamic DNS” page and set up dynamic
DNS. Consult the Online Help available in the FRITZ!Box
user interface for more information.
12.4 Remote Access over HTTPS
With this function it is possible to access the user interface of
the FRITZ!Box from another location. This allows you to configure settings in the FRITZ!Box or perform a FRITZ!OS update
using a computer that is not in your own network (LAN or
WLAN).
Setting Up Remote Access over HTTPS in the FRITZ!Box
1. Open the FRITZ!Box user interface (see page 31).
2. Enable the advanced view.
3. Select the “Internet / Permit Access” menu.
FRITZ!Box 7330 61
Prioritization: Right of Way for Internet Access
4. Select the “Remote Access” page and set up dynamic
DNS. For more information, see the Online Help.
12.5 Prioritization: Right of Way for Internet Access
Prioritization is a function you can use to specify that network
applications and network devices be treated with higher or
lower priority when they access the Internet connection. For
example, you may wish to ensure that applications like Internet telephony, IPTV and video on demand are always treated
with higher priority than other applications. You can also
specify that file-sharing applications like eMule and BitTorrent always have to wait behind online games.
Categories for Prioritization
There are three categories for prioritization: “real-time applications”, “prioritized applications” and “background applications”. The categories are explained below.
Network applications and network devices are assigned to
the categories using rules.
Real-time Applications
• Network applications of this category always have priori-
ty over other applications accessing the Internet at the
same time.
• When the Internet connection is working at full capacity,
the network packets of the applications of this category
will always be sent first. In this case data from network
applications assigned to other categories, like “prioritized applications”, will be transmitted later.
• If multiple network applications are assigned to this cat-
egory, then they must share the available capacity.
• Whenever Internet telephony is included in this catego-
ry, this application always has the highest priority, even
over other real-time applications.
FRITZ!Box 7330 62
Prioritization: Right of Way for Internet Access
Prioritized Applications
This category is suitable for applications that require a fast reaction time (for example, company access, terminal applications, games).
• For network applications prioritized in this category,
90% of the FRITZ!Box’s upload bandwidth is available,
as long as no application from the “real-time applications” category requires bandwidth. The remaining 10%
of the upload bandwidth is available for applications
that are prioritized in lower categories or not prioritized
at all.
• If multiple network applications are assigned to the “pri-
oritized applications” category, then they must share
the available capacity.
Background Applications
This category is suitable for applications that do not require
any high transmission speed and which are not time-critical
(for example, peer-to-peer services or automatic updates).
• Network applications assigned to this category are al-
ways treated with the lowest priority when the Internet
connection is working at full capacity. So whenever an
application from a different category or a non-prioritized
application requires the entire bandwidth, all background applications must wait until bandwidth capacity
becomes available again.
• If no other network applications are active, then the
background applications receive the entire bandwidth.
Prioritization Method in the FRITZ!Box
The following algorithm is used in the FRITZ!Box to send data
packets according to their prioritization:
• Change in the order in which packets are sent to the
Internet (upstream direction)
The order of the packets the FRITZ!Box receives from the
Internet (downstream direction) cannot be changed.
FRITZ!Box 7330 63
VPN: Remote Access to the Home Network
• Discard low-priority packets in order to ensure the trans-
mission of higher-priority packets. This algorithm is
used whenever more packets are supposed to be sent to
the Internet than the upstream transmission rate of the
Internet connection allows.
• As long as no packets are being sent from higher-priority
applications, the full transmission rate of the Internet
connection is available for low-priority packets.
Setting Up Prioritization in the FRITZ!Box
1. Enable the advanced view.
2. Prioritization is set up in the “Internet / Filters / Prioriti-
zation” menu.
12.6 VPN: Remote Access to the Home Network
Via VPN (see glossary) a secure remote access to the network
of the FRITZ!Box can be established. The VPN solution for the
FRITZ!Box features the following:
• The VPN solution for the FRITZ!Box is based on the IPSec
standard.
• Computer-LAN coupling and LAN-LAN coupling: VPN con-
nections can be set up for individual remote computers
or even for remote networks.
• A maximum of eight simultaneous active VPN connec-
tions is supported.
• The configuration files for the VPN connections are creat-
ed using a separate program. The program is provided
free of charge and can be downloaded from the AVM web
site.
• A free VPN client for individual computers can also be
downloaded from the AVM web site.
The AVM web site offers a Service Portal which presents comprehensive information on VPN in general and in connection
with the FRITZ!Box. Visit this portal to obtain more detailed
information.
www.avm.de/en/vpn
FRITZ!Box 7330 64
VPN: Remote Access to the Home Network
Setting Up VPN in the FRITZ!Box
1. Open the FRITZ!Box user interface.
2. Enable the advanced view.
3. Select the “Internet / Permit Access” menu.
4. Select the “VPN” page.
See the Online Help of the FRITZ!Box to set up VPN.
Supplementary Software for VPN
All of the information required for a VPN is saved in a configuration file. The terminals involved in any VPN must receive
this file.
Individual computers that are networked over a VPN require a
VPN client.
• “Configure FRITZ!Box VPN Connection” Wizard
AVM provides the “Configure FRITZ!Box VPN” software
for creating configuration files. This program is a Wizard
that takes you step by step through the VPN configuration. All of the necessary VPN settings, like the encryption method and access rules, are set automatically. The
resulting configuration files must be imported to the respective terminals of the VPN tunnel. At the terminal
with the FRITZ!Box the configuration file is then imported
to the FRITZ!Box. The VPN parameters in these files can
be adjusted manually to connect to products by other
manufacturers.
• The “FRITZ!VPN” VPN Client
AVM offers the “FRITZ!VPN” software as a VPN client.
Both the Wizard and the client can be downloaded free of
charge from the VPN Service Portal on the AVM web site:
www.avm.de/en/vpn
FRITZ!Box 7330 65
DNS Server: Freely Selectable
12.7 DNS Server: Freely Selectable
DNS servers are preset in the FRITZ!Box for IPv4 and IPv6.
These are the DNS servers assigned by the Internet service
provider.
For both IPv4 and IPv6, the preset DNS server can be replaced
by a free DNS server. Free DNS servers include, for instance,
OpenDNS and Google DNS.
Here is how to change the DNS server entry:
1. Open the FRITZ!Box user interface.
2. Enable the advanced view.
3. In the “Internet / Account Information” menu, select the
“DNS Server” page.
4. Change the settings for the DNS servers.
The “DNSv6 Server” area is displayed only if you enabled IPv6 support for the FRITZ!Box on the “IPv6” page.
12.8 DNSSEC: Security for DNS Queries
DNSSEC is short for Domain Name System Security Extensions. As the name says, this is an extension of DNS, the
domain name system.
DNSSEC ensures that both the DNS server and the information returned by the DNS server are authentic, or genuine.
Security with DNSSEC
When a home user surfs the web, she or he sends queries to
the Internet by entering URLs in the address line of the browser. A URL is the name of a web site that is easy to remember,
such as www.avm.de/en
er first. The DNS server resolves the URL into the corresponding IP address. There is one unambiguous IP address for
every URL.
FRITZ!Box 7330 66
. Every query is sent to the DNS serv-
IPv6: The New Internet Protocol
The home user relies on the authenticity of the IP address returned by the DNS server. Authentic means that the response
is the IP address of the desired web site, and not a faked IP
address that leads to a fake web site. DNSSEC can ensure that
the returned addresses are authentic.
Support with the FRITZ!Box
The FRITZ!Box supports DNSSEC queries over UDP.
The FRITZ!Box has a DNS proxy. The computers in the home
network use the FRITZ!Box as a DNS server. The FRITZ!Box forwards DNSSEC queries from the home network to the Internet. The FRITZ!Box forwards DNSSEC responses from the
Internet to the home network. The DNSSEC information must
be validated on the computer in the home network. For this
DNSSEC must be supported in the operating system.
12.9 IPv6: The New Internet Protocol
IPv6 stands for Internet protocol version 6 and is the successor to IPv4.
The FRITZ!Box supports the new IPv6 web protocol and can
establish IPv6 connections:
• IPv6 support can be switched on in the FRITZ!Box user
interface.
• For simultaneous use of IPv6 and IPv4, the FRITZ!Box
supports dual-stack and dual-stack lite. This means that
the FRITZ!Box can communicate with both IPv4 and IPv6
domains in the Internet.
• The FRITZ!Box supports native IPv6 and IPv6 with a tun-
nel protocol. Native IPv6 means that your Internet
service provider supports IPv6 directly on your line.
FRITZ!Box 7330 67
IPv6: The New Internet Protocol
IPv6-capable Services in the Home Network
• FRITZ!NAS access via SMB or FTP/FTPS
• access to the user interface with http or https over IPv6
• The DNS resolver of the FRITZ!Box supports queries for
IPv6 addresses (AAAA records) and can query the upstream DNS resolver of the Internet service provider over
IPv6.
• The globally valid prefix is distributed via router adver-
tisement.
• For guest access to the WLAN, the home network and
WLAN guests are separated by IPv6 subnetworks.
• UPnP, UPnP AV media server
• automatic provisioning (TR-064)
IPv6-capable Services in the Internet
• FRITZ!NAS access via FTPS
• completely closed firewall to protect against unwanted
data from the Internet (Stateful Inspection Firewall)
• voice over IPv6
• automatic provisioning (TR-069)
• time synchronization over NTP (Network Time Protocol)
• remote access via https
• dynamic DNS via dyndns.org and namemaster.de
Setting Up IPv6 in the FRITZ!Box
1. Open the FRITZ!Box user interface.
2. Enable the advanced view.
3. Then select the “Internet / Account Information” menu.
4. Select the “IPv6” page and set up IPv6 in the FRITZ!Box.
Consult the Online Help of the FRITZ!Box user interface
for more information.
FRITZ!Box 7330 68
Mobile Nnetwork: Replacing Faulty DSL
Setting Up IPv6 on the Computer
You can establish connections in the IPv6 range of the Internet only if IPv6 is installed and enabled on the computers in
your home network.
• IPv6 is already installed and enabled in the Windows 7
and Windows Vista operating systems.
• IPv6 is not installed and enabled in standard
Windows XP. You must install and enable IPv6 in order to
use it. The IPv6 installation requires Service Pack 2 for
Windows XP.
• IPv6 has been available in the Mac OS X operating sys-
tems since Mac OS 10.
12.10Mobile Nnetwork: Replacing Faulty DSL
Internet access over the mobile telephone network can be set
up so that the mobile telephone connection is established
automatically whenever the DSL connection fails. This guarantees Internet access even when the DSL connection is
missing. A USB modem for mobile Internet access
(UMTS/HSPA) and a SIM card from a mobile communications
provider are required for this. The FRITZ!Box supports
UMTS/HSPA modems from various manufacturers.
Here is how to set up the mobile telephone connection as a
substitute upon DSL failure:
1. Insert the USB modem in the USB port on the FRITZ!Box.
2. Open the FRITZ!Box user interface (see page 31).
In the “Internet” menu, the sub-menu “Mobile Telephone Network” is displayed.
The “Mobile Telephone Network” menu is not available
until the UMTS/HSPA modem has been connected to the
USB port of the FRITZ!Box.
3. Select the setting “Automatically enable the mobile con-
nection when the DSL connection is disrupted”.
FRITZ!Box 7330 69
Mobile Nnetwork: Replacing Faulty DSL
4. Configure the settings for your Internet connection over
the mobile communications network. For more information, see the Online Help of the FRITZ!Box.
Access to the Internet is now guaranteed, even when the DSL
connection fails.
As soon as the DSL connection is stable and available for at
least 30 minutes, the connection will be switched back to the
DSL connection.
FRITZ!Box 7330 70
FRITZ!Box as a WLAN Base Station
13 FRITZ!Box as a WLAN Base Station
The FRITZ!Box is a WLAN base station for WLAN devices like notebooks, tablets or smartphones. The FRITZ!Box can establish WLAN
connections compliant with the fast WLAN N standard. The FRITZ!Box
is preconfigured with an encryption method from today’s safest method WPA2. This encryption method is supported by most of the latest
WLAN devices. The FRITZ!Box supports wireless LAN convenience
functions like guest access, night service and WPS Quick Connection.
13.1 Connecting WLAN Devices Securely with the FRITZ!Box
In a WLAN radio network security is of the utmost importance.
This is why WLAN connections between the FRITZ!Box and
your wireless devices are encrypted. For encryption the
FRITZ!Box and your wireless devices must use the same encryption method. The FRITZ!Box is preconfigured with an encryption method that combines today’s safest methods WPA
and WPA2. These encryption methods are supported by most
of the latest wireless devices.
If you would like to use wireless devices that do not support
WPA2 or WPA, you can switch encryption in the FRITZ!Box to
the older, less secure WEP method. You can also establish
non-encrypted wireless LAN connections. However, if at all
possible we recommend always establishing WPA2 wireless
LAN connections.
WLAN devices can be connected with the FRITZ!Box automatically or manually. A particularly simple and secure automatic
method is WPS, with which a WLAN connection can be established at the touch of a button. For manual WLAN connections
with the FRITZ!Box use the WLAN software of your WLAN
device or the WLAN program on your computer.
Connecting WLAN Devices Automatically (WPS)
WLAN devices that support the fast connection method WPS
can be connected with the FRITZ!Box automatically.
1. Start the WPS function of your WLAN device. Consult the
documentation of the WLAN device to find out how to
start WPS.
FRITZ!Box 7330 71
Connecting WLAN Devices Securely with the FRITZ!Box
2. Press the WLAN button on the FRITZ!Box until the
“WLAN” LED begins flashing. You have 2 minutes for this
task.
3. Your WLAN device and the FRITZ!Box now establish a se-
cure WLAN connection automatically. The WLANFRITZ!Box LED stops flashing and remains on.
With this, the WLAN connection is established. Your WLAN
device is integrated into your home network and can use the
Internet connection of the FRITZ!Box.
Connecting WLAN Devices Manually
You can connect WLAN devices with the FRITZ!Box manually.
WLAN devices like notebooks, tablets and smartphones use
the WLAN software of their own operating system for this connection. A WLAN adapter at the USB port of your computer
can use the WLAN software of your computer or a WLAN program of its own. No matter what program is used to establish
the WLAN connection, the principle is the same: the WLAN
software searches for a WLAN radio network in the vicinity
and, after authorization with a WLAN key, enables the WLAN
connection between the FRITZ!Box and your WLAN device.
1. Make sure that the WLAN function of the FRITZ!Box is en-
abled and the “WLAN” LED is on. If “WLAN” is not on,
press the “WLAN” button briefly.
2. Start the WLAN software of your WLAN device. Consult
the documentation of your WLAN device for instructions.
3. Search for the WLAN radio network of your FRITZ!Box.
Upon delivery this network is called
“FRITZ!Box Fon WLAN 7330”.
4. Enter the WLAN key of the FRITZ!Box.
With this, the WLAN connection is established. Your WLAN
device is integrated into your home network and can use the
Internet connection of the FRITZ!Box.
FRITZ!Box 7330 72
Connecting WLAN Devices with the FRITZ!Box Guest Access
13.2 Connecting WLAN Devices with the FRITZ!Box Guest Access
With the FRITZ!Box you can provide your guests with an Internet connection of their own. At this guest access they can surf
the web with their own smartphones or tablets, but cannot
access the contents of your home network.
You can set up a guest access if you have connected the
FRITZ!Box directly to your DSL line. If the FRITZ!Box is connected in another way, for instance to a cable modem, you cannot
set up guest access.
1. Open the FRITZ!Box user interface.
2. Make sure that the wireless radio network (WLAN) is en-
abled in the “WLAN / Radio Network” menu.
3. Select the “WLAN / Guest Access” menu and enable
guest access.
4. Assign a name for the guest wireless network (SSID) and
enter a WLAN key at least 20 characters long under
“Security”.
This concludes the setup of your guest access. Now guests
can register their WLAN devices with the FRITZ!Box.
1. Your guest starts the WLAN software of her or his WLAN
device, searches for your guest wireless network and enters the WLAN key you specified for authorization.
2. The WLAN connection will be established.
Your guest’s WLAN device can use the Internet connection of
the FRITZ!Box, but has no access to your home network. For
more information, see the Online Help.
FRITZ!Box 7330 73
Switching the WLAN Radio Network On and Off by Schedule
13.3 Switching the WLAN Radio Network On and Off by Schedule
You can switch the WLAN radio network of the FRITZ!Box automatically according to a schedule. This function is called
“night service” and reduces the power consumption of the
FRITZ!Box by completely turning off the WLAN module. The
FRITZ!Box night service also affects any other FRITZ! products
connected in the network (FRITZ!WLAN Repeater, for instance)
by switching the WLAN transmission of these devices on and
off as well.
1. Open the FRITZ!Box user interface.
2. Open the “System / Night Service” menu.
3. Enable the schedule for the WLAN radio network.
With the options “Switch WLAN off daily” and “Switch
WLAN off according to schedule” you define the intervals of the schedule. You can also select the option “The
radio network cannot be switched off until no more
WLAN devices are active”.
For more information on these settings, see the Online Help.
Switching WLAN on and off Manually
You can switch the wireless radio network of the FRITZ!Box on
and off at any time, even when the device is hibernating.
• Press the WLAN button on the FRITZ!Box briefly
or
• Switch on the wireless LAN radio network using a con-
nected telephone
WLAN on r96s1s
WLAN off r96s0s
FRITZ!Box 7330 74
Enlarging the WLAN Radio Network
13.4 Enlarging the WLAN Radio Network
The range of a WLAN radio network is not specified. It depends on
• the WLAN devices you are using for your WLAN connec-
tions
• interference in the vicinity of your WLAN radio network
• the structural conditions where you operate the WLAN
radio network
• the number of WLAN devices in the vicinity of your
FRITZ!Box that work in the same frequency range
You can extend the range of your WLAN radio network with a
WLAN repeater.
Or you can set up a second WLAN router, for instance a second FRITZ!Box as a WDS repeater.
Expanding a WLAN Radio Network with a WLAN
Repeater
You can expand your WLAN radio network with a WLAN repeater. In combination with the FRITZ!Box the AVM
FRITZ!WLAN Repeaters are especially suitable. All models of
the FRITZ!WLAN Repeater series can be integrated into your
WLAN radio network and your home network by WPS Quick
Connection. Find out more in the Internet at:
www.avm.de/en/Produkte/FRITZ_WLAN/FRITZ_WLAN_
Repeater_N_G
Expanding a WLAN Radio Network with a WDS Repeater
You can expand the WLAN radio network of your FRITZ!Box
with what is called a WDS repeater. A WDS repeater can be a
FRITZ!Box or any WLAN router you already have that can be
configured as a WDS repeater to expand your WLAN radio network.
FRITZ!Box 7330 75
WLAN—Getting Technical
See the documentation of your device to find out whether
your existing WLAN router supports the WDS function and
how to configure it as a WDS repeater. Your FRITZ!Box or another FRITZ!Box model can be configured as a WDS repeater
by working through the following steps:
1. Open the FRITZ!Box user interface.
2. Select “View: Advanced”.
3. Select the “WLAN / WDS” menu and follow the instruc-
tions displayed on the screen.
See the Online Help of the FRITZ!Box for more information.
The wireless LAN connection between your FRITZ!Box and a
FRITZ!Box in WDS operation can be encrypted by WPA2. The
wireless LAN connection between your FRITZ!Box and another wireless LAN router is only possible with less secure WEP
encryption.
13.5 WLAN—Getting Technical
A wireless LAN radio network is based on standards defined
by the Institute of Electrical and Electronic Engineers (IEEE).
These standards describe, for instance, the transmission
speeds, encryption methods and frequencies used in a wireless LAN network.
WLAN Standards
The Institute of Electrical and Electronic Engineers (IEEE) defined the WLAN standards IEEE 802.11a, IEEE 802.11b,
IEEE 802.11g, IEEE 802.11n and IEEE 802.11i for WLAN radio
networks.
Standards for the Throughput Rate
The throughputs listed differentiate between gross and net
transmission rates. The net speed describes the transmission
rate of the user data.
FRITZ!Box 7330 76
WLAN—Getting Technical
The FRITZ!Box supports your choice of the standards
IEEE 802.11b, IEEE 802.11g and IEEE 802.11n. WLAN devices
based on one or more of the standards listed can be used for
WLAN connections with the FRITZ!Box.
Standard Frequency Band Gross Data Throughput up to Net Data Throughput up to
802.11b 2.4 GHz 11 Mbit/s 5 Mbit/s
802.11g 2.4 GHz 54 Mbit/s 25 Mbit/s
802.11n 2.4 GHz 300 Mbit/s 150 Mbit/s
IEEE 802.11b
With a maximum throughput rate of 11 Mbit/s, this is the oldest WLAN standard. Older WLAN devices of the first generation can communicate with the FRITZ!Box using 802.11b.
However, if the WLAN device supports newer standards such
as 802.11g, the latest standard should be used.
IEEE 802.11g
This is currently the most common WLAN standard. It communicates with a maximum of 54 Mbit/s gross in the 2.4-GHz
frequency range (ISM) and guarantees broad compatibility
with many WLAN devices.
IEEE 802.11n
This standard allows for high throughput rates and ranges.
The FRITZ!Box supports 802.11n in the 2.4-GHz frequency
band. Modulation processes and antenna techniques like
MIMO (Multiple Input, Multiple Output) use the frequency
band more effectively than the older standards.
The use of the 802.11n standard—and thus the availability
of higher throughput rates—is possible only if the WLAN connection is secured using the WPA2 security mechanism (AESCCMP).
Thanks to compatibility with the 802.11g standard, you can
also continue to use older WLAN devices.
FRITZ!Box 7330 77
WLAN—Getting Technical
Setting the Right Standard in the FRITZ!Box
The throughput rate that can be achieved in your WLAN radio
network depends on the WLAN standards used by the integrated WLAN devices. These WLAN standards must also be
set in the FRITZ!Box. Proceed as follows to check which WLAN
standards are set and change them if needed:
1. Open the FRITZ!Box user interface.
2. Enable the advanced view.
3. Open the “WLAN / Radio Channel” menu and select “Ad-
Make a note of which standards the WLAN devices in your
network are compatible with and then adjust the FRITZ!Box
settings according to the following information:
• Your radio network integrates only WLAN devices that
just radio channel settings” to make the desired changes.
are compatible with one or both of the following standards:
802.11n
802.11g
Set the following mode in the FRITZ!Box:
Mode: 802.11n+g
The 2.4-GHz frequency band will be used.
• Your radio network integrates only WLAN devices that
are compatible with one or both of the following standards:
802.11b
802.11g
Set the following mode in the FRITZ!Box:
Mode: 802.11b+g
The 2.4-GHz frequency band will be used.
FRITZ!Box 7330 78
WLAN—Getting Technical
• Your radio network integrates only WLAN devices that
The Standard for Security
IEEE 802.11i
The WPA2 security mechanism is defined in the IEEE 802.11i
standard. WPA2 is an extension of the familiar security mechanism WPA (Wi-Fi Protected Access).
The main feature of the extension of WPA to WPA2 is the AESCCMP encryption process.
are compatible with one or several of the following standards:
802.11n
802.11g
802.11b
Set the following mode in the FRITZ!Box:
Mode: 802.11n+g+b
The 2.4-GHz frequency band will be used.
Mechanism Encryption
WPA TKIP (Temporary Key Integrity Protocol)
WPA2 TKIP
AES-CCMP
based on the extremely secure AES (Advanced
Encryption Standard) procedure. CCMP (Counter Mode with CBC-MAC Protocol) defines how
the AES procedure is applied to WLAN packets.
FRITZ!Box supports the AES encryption procedure as part of
the WPA2 mechanism, and the TKIP encryption procedure as
part of the WPA mechanism. This means that the FRITZ!Box
can be used in combination with any WLAN devices that also
support WPA2 with AES or WPA with TKIP.
FRITZ!Box 7330 79
WLAN—Getting Technical
Frequency Ranges
WLAN uses the frequency ranges at 2.4 GHz and 5 GHz as its
transmission range.
With the FRITZ!Box you can establish WLAN connections in
the 2.4-GHz range.
2.4-GHz Frequency Band
In the 2.4-GHz frequency band WLAN works in the same range
as Bluetooth, microwave devices and various other devices
like radio-controlled toys, garage-door openers and video
bridges. This means that interference may occur within
WLANs operated in the vicinity of such devices. Generally this
has adverse effects on the transmission rate, including aborted connections.
In the 2.4-GHz frequency range the European regulation authorities have designated 13 channels for WLAN.
A channel can have a bandwidth of 20 MHz (throughput of up
to 130 Mbit/s) or 40 MHz (throughput of up to 300 Mbit/s).
Channels located directly next to each other in the 2.4-GHz
band may overlap and result in mutual interference. For instance, if several WLANs are operated close to each other in
the 2.4-GHz frequency range with a bandwidth of 20 MHz, a
distance of at least five channels should be left empty between each two channels used. This means that if channel 1
is selected for one WLAN, the channels 6 through 13 can be
selected for a second WLAN. This maintains the minimum distance between channels.
Should interference in a WLAN persist, the first step should
be to select a different channel.
FRITZ!Box 7330 80
WLAN—Getting Technical
WLAN Autochannel
With the WLAN autochannel function, the FRITZ!Box automatically searches for the channel subject to the least interference. This process takes into consideration interference from
radio networks in the vicinity (WLAN base stations) and potential sources of interference (for instance video bridges, baby monitors, microwave ovens). Should problems with interference persist despite this function, try to identify the source
of interference and switch it off manually.
Additional tips on interference in the WLAN radio network are
presented in the section Ruling Out Interference from Other
Wireless Networks from page 134.
Allocation of the WLAN Channels in the 2.4-GHz Range
Channel Frequency (GHz) Channel Frequency (GHz)
12.412 82.447
22.417 92.452
3 2.422 10 2.457
4 2.427 11 2.462
5 2.432 12 2.467
6 2.437 13 2.472
72.442
FRITZ!Box 7330 81
FRITZ!Box as a Telephone System
14 FRITZ!Box as a Telephone System
The FRITZ!Box is a telephone system (or PBX: Private Branch Exchange) for Internet and fixed-line telephony. This chapter describes
convenience functions for the telephone system that can be configured in your FRITZ!Box, for instance, telephone books, answering
machines and call diversion.
You will also find out which convenience functions can be used to
make calls, for instance internal calling, alternating between calls,
forwarding calls and three-party conferences.
14.1 FRITZ!Box Telephone Book
The FRITZ!Box provides a telephone book.
If you enable “click to dial”, you can make calls by simply
clicking on a telephone number in the telephone book.
The telephone book and the click to dial feature are available
in the FRITZ!Box user interface (see page 31) under “Telephony / Telephone Book”.
Individual Telephone Books for tFRITZ!Fon
If you have a FRITZ!Fon cordless telephone from AVM, you can
use the FRITZ!Box telephone book on the FRITZ!Fon.
If you have multiple FRITZ!Fon cordless telephones, you can
set up a separate telephone book of its own for each
FRITZ!Fon. Up to 6 telephone books can be saved in the
FRITZ!Box.
Setting Up a New Telephone Book
1. Open the FRITZ!Box user interface (see page 31).
2. Select “Telephony / Telephone Book”.
3. Click “New Telephone Book”.
4. Enter a name for the telephone book in the “Name”
field.
5. Select a telephone book or disable the option “Copy ex-
isting telephone book”. If you disable this option, the
new telephone book will be empty.
FRITZ!Box 7330 82
The FRITZ!Box Call List
6. Click the “OK” button.
The new telephone book is saved in the FRITZ!Box.
Selecting a Telephone Book for FRITZ!Fon
1. Open the FRITZ!Box user interface (see page 31).
2. Select “DECT”.
3. Choose a FRITZ!Fon and click the “Edit” button.
4. Select a telephone book from the drop-down list.
5. Click the “OK” button.
The telephone book is now available on the FRITZ!Fon.
14.2 The FRITZ!Box Call List
The FRITZ!Box saves your outgoing and incoming telephone
and fax calls in the call list. The call list also shows which
calls you missed (missed calls).
In the FRITZ!Box user interface the call list is found in the “Telephony” menu.
Transfer to Telephone Book
Callers from the FRITZ!Box telephone book appear in the call
list along with their names.
Telephone numbers that are not saved in the telephone book
can be added to the telephone book from the call list with the
click of a mouse.
Saving the Call List as a CSV File
You can save the call list as a CSV file on your computer. The
CSV file can then be opened and edited in spreadsheet software.
FRITZ!Box 7330 83
Setting Up the FRITZ!Box Answering Machine
14.3 Setting Up the FRITZ!Box Answering Machine
In the FRITZ!Box you can enable a single answering machine
or multiple answering machines (up to 5) for different telephone numbers.
Enabling an Answering Machine
1. Open the FRITZ!Box user interface (see page 31).
2. Select “Telephony / Telephony Devices”.
3. Click “Configure New Device”.
4. Under “Integrated in the FRITZ!Box”, select the “Answer-
ing machine” option and confirm by clicking “Next”.
5. Specify the mode, greeting delay and greeting length. In
the “Greeting only” mode, callers cannot leave you any
messages.
6. Enter a name for the answering machine and confirm by
clicking “Next”.
7. Specify which calls the answering machine should ac-
cept. Select one or multiple telephone numbers and
confirm by clicking “Next”.
8. Check the settings of the answering machine and then
click “Apply”.
Now the answering machine is enabled.
Changing Settings / Disabling Answering Machine
All configured answering machines are displayed in the
FRITZ!Box user interface under “Telephony / Telephony Devices”. Here you can switch off or delete answering machines
and enable additional functions.
For instance, you can enable the “Send messages via e-mail”
setting for each answering machine. Messages callers leave
on the answering machine then will be sent to you by e-mail
(as audio files). You can select any e-mail address you want.
FRITZ!Box 7330 84
Setting Up the FRITZ!Box Answering Machine
Picking Up a Call from the Answering Machine
With this function, calls that have already been answered by
an answering machine can be transferred to your telephone:
Picking Up a Call
N Pick up the handset.
s09 Dial the sequence shown at left.
P The call is now connected to your extension, and
you can talk with the caller.
Operating the Answering Machine Using the Voice Menu
The answering machines of the FRITZ!Box can be operated using a voice menu. You can listen to new messages, for instance, or switch the answering machine on and off.
Operating the Answering Machine Using the Voice Menu
N Pick up the handset.
Select:
ss600
ss601
ss602
ss603
ss604
Answering machine 1
Answering machine 2
Answering machine 3
Answering machine 4
Answering machine 5
You will enter the voice menu of the answering machine.
Follow the voice menu.
If you do not want to wait for the voice menu instructions, press a telephone key right away.
FRITZ!Box 7330 85
Setting Up the FRITZ!Box Answering Machine
The Answering Machine Menu
Main menu
1 Play back messages
If no messages are available, you will hear two short audio signals and return to the main menu.
1 Play back messages
3 Call back the caller of the message
5 Delete message
7 To previous message
9 To next message
0 Listen to “Play back messages” menu again
r Back to main menu
2 Delete all messages
3 Switch answering machine on/off
4 Record greetings
1 Record greeting message
2 Record announcement
3 Record closing announcement
Record and select
Listen to all greetings/announcements of the select-
1
ed type > Select the desired recording by pressing 2
5 Delete greeting/announcement
Record greeting/announcment > End recording by
8
pressing 1
0 Listen to “Record and select” menu again
r Back to main menu
0 Listen to “Record greetings” menu again
r Back to main menu
5 Switch recording and announcement mode on/off
0 Listen to main menu again
FRITZ!Box 7330 86
Setting Up FRITZ!Box Fax Reception
14.4 Setting Up FRITZ!Box Fax Reception
With the FRITZ!Box you can receive faxes without having to
connect a fax machine. The FRITZ!Box automatically forwards
incoming faxes by e-mail or saves the faxes on a connected
USB storage medium.
1. Open the FRITZ!Box user interface (see page 31).
2. Select the “Telephony / Telephony Devices” menu.
3. Click “Configure New Device”.
4. Select the “Fax reception” option and confirm by click-
ing “Next”.
5. Enter a fax ID. This could be your fax number or name, for
instance.
6. Define whether the FRITZ!Box forwards incoming faxes
by e-mail or saves them.
If you would like to enter multiple e-mail addresses, separate the addresses with commas.
7. Confirm with “Next”.
8. Select one or multiple telephone numbers you would
like to use exclusively for fax reception.
If you would like to make calls and receive faxes over an
analog fixed line, enable automatic fax detection for
your fixed-line telephone number. Please note the information about automatic fax reception in the following
section.
9. Confirm by clicking “Next” and “Apply”.
Automatic Fax Reception on the Analog Fixed Line
If you enabled automatic fax detection on an analog fixed
line, please note:
Fax detection is not enabled until a telephone or answering
machine accepts a call.
If your FRITZ!Box is to receive faxes automatically, set up an
answering machine for fax calls in the FRITZ!Box (see
page 84).
FRITZ!Box 7330 87
Setting Up Call Diversion
14.5 Setting Up Call Diversion
You can configure multiple call diversion modes with different
settings in the FRITZ!Box.
Call diversion can either divert all incoming calls or only certain calls.
You can divert the calls to an external telephone number, to a
certain telephone, or to an answering machine.
Examples for Call Diversion Settings
• All incoming calls will be diverted to another telephone
line.
• Calls that come from a certain telephone number will be
diverted to your mobile telephone number.
• Anonymous calls in which the caller does not transmit a
telephone number will be diverted to an answering machine.
Setting Up a New Call Diversion Setting
1. Open the FRITZ!Box user interface (see page 31).
2. Select the “Telephony / Call Diversion” menu.
3. Click “New Call Diversion”.
4. Define which calls should be diverted.
5. Define the destination and the type of call diversion.
6. Save the settings by clicking “OK”.
Call diversion is set up.
All configured call diversion settings can be viewed in the user interface in the “Telephony / Call Diversion” menu. All call
diversion settings can be disabled or deleted here.
FRITZ!Box 7330 88
Saving Costs with Dialing Rules
14.6 Saving Costs with Dialing Rules
A dialing rule defines which telephone number the FRITZ!Box
uses for outgoing calls in a certain number range (for instance, mobile telephone numbers, international telephone
numbers).
If you have multiple telephone numbers, you can use dialing
rules to have each outgoing call automatically placed using
the most economical telephone rate.
Setting Up New Dialing Rules in FRITZ!Box
1. Open the FRITZ!Box user interface (see page 31).
2. Select the “Telephony / Dialing Rules” menu.
3. Click the “New Dialing Rule” button.
4. Define the range of telephone numbers or the telephone
number to which the dialing rule should apply.
5. Under “Connect via”, select a telephone number or con-
nection type (Internet, fixed line).
6. Save the settings by clicking “OK”.
Now the dialing rule has been set up.
14.7 Blocking Telephone Numbers and Callers
In the FRITZ!Box you can block telephone numbers for outgoing and for incoming calls:
• Blocking telephone numbers for outgoing calls.
Blocked numbers and number ranges (for instance, mobile telephone networks) can no longer be called from
the FRITZ!Box.
FRITZ!Box 7330 89
Setting Up Do Not Disturb
• Blocking telephone numbers for incoming calls:
Setting Up a New Call Block
1. Open the FRITZ!Box user interface (see page 31).
2. Select the “Telephony / Call Blocks” menu.
3. Click the “New Blocking Rule” button.
4. Select whether the call block is to apply to incoming or
5. Enter a range of numbers or a number.
6. Save the settings by clicking “OK”.
If a number has been blocked for incoming calls, the
FRITZ!Box will no longer accept any calls from this telephone number. However, the FRITZ!Box can only recognize a blocked telephone number if the caller allows
transmission of her or his telephone number.
You can also block all anonymous incoming calls, for
which the caller has suppressed transmission of the
telephone number.
outgoing calls.
The call block is now set up.
14.8 Setting Up Do Not Disturb
In the FRITZ!Box night service you can set up a Do Not Disturb
function so that none of the connected telephones and other
terminal devices signal calls. At a time freely defined by the
user (for instance 11:00 p.m. – 6:00 a.m.) the terminal devices then will be set as follows:
• Connected telephones will not ring.
This is not the case for IP telephones. It is not possible to
set up Do Not Disturb for IP telephones in the FRITZ!Box.
• Connected fax and answering machines are disabled.
The Do Not Disturb setting has no effect on fax reception
or the answering machines integrated in the FRITZ!Box.
FRITZ!Box 7330 90
Setting Up the Alarm
Turning Do Not Disturb On/Off
1. Open the FRITZ!Box user interface (see page 31).
2. Select the “System / Night Service / Do Not Disturb”
3. Enable the “Do Not Disturb enabled” option and define
4. Save your settings by clicking “Apply”.
Do Not Disturb is now enabled.
To have the telephones ring again, disable the “Do Not Disturb enabled” option and then click “Apply”.
Instead of setting the do not disturb setting for all telephones, in the FRITZ!Box you can also set the Do Not Disturb
feature for individual telephones. The Do Not Disturb function
for an individual telephone is set up in the telephone settings. In the user interface of the FRITZ!Box, these settings
can be opened for editing in the “Telephony / Telephony Devices” menu.
menu.
the time period during which the telephones should not
be able to ring every day.
14.9 Setting Up the Alarm
In the FRITZ!Box you can set an alarm. When an alarm is set
and enabled, a telephone connected to the FRITZ!Box will ring
at the specified time.
Setting the Alarm in FRITZ!Box
1. Open the FRITZ!Box user interface (see page 31).
2. Select the “Telephony / Alarm” menu.
3. Enable the alarm and enter a time.
4. Select which telephone should ring at the specified
time.
5. Define here whether the alarm should be repeated.
6. Save your settings by clicking “Apply”.
Now the alarm is set up and enabled.
FRITZ!Box 7330 91
Enabling the Baby Monitor
14.10Enabling the Baby Monitor
When the baby monitor is enabled for a telephone, the telephone automatically calls a previously specified telephone
number whenever the volume in the room reaches a defined
level. If the telephone is in the same room as your child, you
can use this function to monitor its sleep.
Enabling Baby Monitor
N Pick up the handset or activate the speaker
s4
<Level>
s
<Telephone number>
r
Q Wait for the second-long acknowledgement
phone function of your telephone.
We recommend using a device with a speaker
phone function.
Enables the baby monitor.
<Level>: Sound level at which a call is triggered.
Enter a numeral between 1 (the most sensitive
setting) and 8.
<Telephone number>: The telephone number to
be called. Enter an internal telephone number
(see page 93), the number 9 for an internal
group call, or any external telephone number
desired.
tone.
Do not hang up the handset!
The baby monitoring function is now enabled.
As soon as the volume in the room reaches the
specified level, the telephone will dial the telephone number you entered. If you accept the
call, you are connected with the telephone
where the baby monitor is enabled.
A new call is initiated no less than one minute
after the previous call.
You can disable the baby monitor at any time by
hanging up the headset.
Telephones on which baby monitoring is enabled can be
called internally (see page 93) so that you can listen in on
the room directly.
FRITZ!Box 7330 92
Making Telephone Calls with Convenience Functions
14.11Making Telephone Calls with Convenience Functions
This chapter describes convenience functions you can use
when placing and making telephone calls, for instance internal calling, forwarding calls, alternating between calls and
three-party conferences.
Making Internal Calls
All calls conducted between telephones connected to the
FRITZ!Box are internal telephone calls. Internal calls are free
of charge.
Dialing Internal
Calls
N Pick up the handset.
ss<internal tele-
phone number>
Select ss and the internal telephone number
of a telephone.
Internal telephone numbers:
Socket “FON 1” of the FRITZ!Box: 1
Cordless DECT telephones: 610 – 615
IP telephones: 620 – 629
Group Call
A group call is placed to all other telephones connected to the
FRITZ!Box. You conduct the call with the party who picks up
first.
Group Call
N Pick up the handset.
ss9 Dial the sequence shown at left.
FRITZ!Box 7330 93
Making Telephone Calls with Convenience Functions
Transferring: Forwarding Calls Internally
You can transfer a call to another telephone connected with
the FRITZ!Box.
Transferring Calls
Call 1
P
R Press the Hold button. Caller 1 is now on hold.
ss<internal tele-
phone number>
Call 2
P
O To transfer call 1 to caller 2, simply hang up the
You are talking to caller 1.
Call caller 2: Select ss and the internal telephone number of a telephone.
Internal telephone numbers:
Socket “FON 1” of the FRITZ!Box: 1
Cordless DECT telephones: 610 – 615
IP telephones: 620 – 629
You can now talk with caller 2.
receiver.
Caller 1 and caller 2 will be connected to each
other.
Shortening the Dialing Procedure
The FRITZ!Box automatically detects when the entry of a telephone number is complete. However, the FRITZ!Box needs a
few seconds after entering the last numeral to detect this. You
can shorten this delay:
Shortening the Dialing Procedure
<Telephone number> rAfter entering the telephone number, press
the r key. This signals to the FRITZ!Box that
the entry of the telephone number is complete.
FRITZ!Box 7330 94
Making Telephone Calls with Convenience Functions
Defining the Outgoing Number for Establishing Calls
When you make a telephone call you can define whether it is
established using an Internet telephone number or the fixedline network. Dialing rules and telephone number settings of
the telephone are then suspended for this call.
Defining the Outgoing Number and the Type of Connection
s111r<telephone number>
s121r<telephone number>
s122r Establishes the call using the second Internet
s123r Establishes the call using the third Internet tele-
Establishes the call using the fixed-line network.
Establishes the call using the first Internet telephone number.
telephone number.
phone number.
etc.
The list of Internet telephone numbers is presented in the FRITZ!Box user interface in the
“Telephony / Internet Telephony” menu.
CLIR for One Call on an Analog Extension (Case by Case)
On the analog extension of the FRITZ!Box, when you make a
call you can define that during this call your telephone number will not be transmitted to the other caller.
Enabling CLIR (Case by Case)
N Pick up the handset.
s31r Dial the sequence shown at left. You
M Dial an external telephone number.
FRITZ!Box 7330 95
hear the external dial tone.
For this call your telephone number will
not be transmitted to the other caller.
Making Telephone Calls with Convenience Functions
Three-party Conference Call
A three-party conference call can involve one other internal
participant and one external participant, or two external participants.
Conducting a Three-party Conference Call
N Pick up the handset.
M Establish the call with party 1: Dial ss and an in-
ternal telephone number (see page 93) or dial an
external telephone number. Talk.
R Press the Hold button. Call 1 is on hold.
M Call party 2.
You can now conduct the second call while call 1 is
on hold.
R3 Dial the sequence shown at left.
D Now all parties can confer together. If either of the
other two parties hangs up, your connection with
the remaining participant remains active.
O To end the three-party conference call, hang up the
handset.
R2 This keyboard shortcut ends the conference and re-
connects you with the party you called before the
conference began. The second call is on hold. You
can alternate between the two parties by dialing the
keypad sequence again.
FRITZ!Box 7330 96
Making Telephone Calls with Convenience Functions
Accepting or Rejecting Waiting Calls on an Analog
Extension of the FRITZ!Box
When the “call waiting” function is switched on, you hear a
signal whenever you receive an external call during an active
telephone conversation. You can then accept the call within
30 seconds. If you do not accept the call, it will be rejected.
You can enable and disable the “call waiting” function in the
FRITZ!Box user interface in the menu “Telephony / Telephony
Devices”.
Accepting or Rejecting Waiting Calls on an Analog Extension
R2 Use this keypad sequence to accept a waiting call.
The first call is on hold.
If you would like to end the first call, hang up the receiver. As soon as you have hung up your telephone
will ring. When you pick up the receiver, you will be
connected with the waiting call.
R1 If the first call was on hold, you can return to the
first call using this keypad sequence.
R0 With this keypad sequence you can reject a waiting
call.
Accepting Waiting Calls on Other Telephones
When making calls with a cordless DECT telephone registered
on the FRITZ!Box, you can accept waiting calls using the telephone menu.
Alternating Between Calls
During a telephone call you can establish a connection to a
second party. You can alternate between the two parties as
often as you like.
FRITZ!Box 7330 97
Making Telephone Calls with Convenience Functions
Alternating Between Calls
Call 1
You are talking with party 1.
P
R Press the Hold (“R”) button.
M Call party 2.
• Dial an external telephone number,
• or dial ss and an internal telephone number.
Internal telephone numbers:
Socket “FON 1” of the FRITZ!Box: 1
Cordless DECT telephones: 610 – 615
IP telephones: 620 – 629
Call 2
P
When party 2 picks up the receiver the call has been
established.
The connection with party 1 is on hold.
R2 If you would like to return to the waiting party 1, dial
the keypad sequence at left.
With this keypad sequence you can alternate between the two parties as often as you like.
Ending Hold
O The waiting party hangs up and you continue the
call with the other party.
or
R1
You end the call with party 2 by dialing the keypad
sequence at left. The conversation with party 1 is
resumed.
or
O
K
You can end the active call by hanging up the handset. Your phone rings. As soon as you pick up the receiver you are connected with the waiting party.
P
FRITZ!Box 7330 98
Making Telephone Calls with Convenience Functions
Consultation / Hold
You can put a telephone call on hold in order to consult with
another party. You call the second party. The party to the other call does not hear the consultation; after you are finished
you can resume the call that was on hold.
Consultation / Hold
Call 1
P
R Press the Hold button. Call 1 is on hold. Party 1
M Establish the connection to party 2: Dial an in-
Call 2
P
R If party 2’s line is busy or the call is not an-
R1 Use this keypad sequence to return from call 2
You are talking to caller 1.
can no longer hear you.
ternal telephone number (see page 93) or an
external telephone number.
If party 2 accepts the call, you can conduct the
conversation.
swered, press the Hold button again to return
to call 1.
back to call 1. Call 1 is now active again.
If you only press the Hold button, the connection to caller 2 remains on hold until caller 2
hangs up.
You can also end call 2 by hanging up the receiver. Your telephone rings and after you pick up
the receiver again you will be connected with
party 1.
FRITZ!Box 7330 99
Making Telephone Calls with Convenience Functions
Using Keypad Shortcuts
With keypad sequences you can control the services and features of your telephone line.
For information about which keypad sequences you can use,
contact your carrier.
Entering Keypad Sequences on an Extension with Automatic
Outside Dialing
N Pick up the handset.
sr<Seq> Dial the sequence shown at left. <Seq> stands for a
keyboard sequence.
Entering Keypad Sequences on an Extension without Automatic
Outside Dialing
N Pick up the handset.
0sr<Seq> Dial the sequence shown at left. <Seq> stands for a
keyboard sequence.
Automatic outside dialing is the default setting in the
FRITZ!Box. If you make a lot of internal calls, you may want to
disable automatic outside dialing. For instructions, see
page 142.
FRITZ!Box 7330 100
