FRITZ!Box 3370
alla
Installation
Inst
and Operation
and Operation
tion
Table of Contents
Symbols and Highlighting . . . . . . . . . . . . . . . . . . . . . . . . . 6
1 The FRITZ!Box 3370. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2 Ports, Interfaces, Buttons and LEDs. . . . . . . . . . . . . . . . . . 8
2.1 Ports and Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.2 Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.3 LEDs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3 Before You Connect the FRITZ!Box . . . . . . . . . . . . . . . . . . 11
3.1 Contents of the FRITZ!Box Package . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.2 Requirements for Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.3 Security and Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4 Connecting the FRITZ!Box . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.1 Connecting to Electrical Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.2 Connecting to the Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5 Connecting the Computer to the FRITZ!Box . . . . . . . . . . . 17
5.1 Connecting Computers to the LAN Port . . . . . . . . . . . . . . . . . . . . . . . . 17
5.2 Connecting Computers Wirelessly over WLAN . . . . . . . . . . . . . . . . . . 19
6 The FRITZ!Box User Interface . . . . . . . . . . . . . . . . . . . . . . 26
6.1 Opening the User Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
6.2 Overview: Everything at a Glance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
6.3 Standard View and Advanced View. . . . . . . . . . . . . . . . . . . . . . . . . . . 28
6.4 Protecting the User Interface with a Password . . . . . . . . . . . . . . . . . . 28
6.5 Saving the FRITZ!Box Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
FRITZ!Box 3370 2
7 Configuring an Internet Connection in the FRITZ!Box . . . 31
7.1 Configuring an Internet Connection for DSL . . . . . . . . . . . . . . . . . . . . 31
7.2 Changing the Annex Setting of the FRITZ!Box. . . . . . . . . . . . . . . . . . . 32
7.3 Configuring the Internet Connection for the Mobile Communications
Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
7.4 Surfing the Net . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
8 Firmware Update: Updating the FRITZ!OS . . . . . . . . . . . . 35
8.1 Searching for and Transferring FRITZ!OS Update with the Wizard. . . 35
8.2 Automatic Search for Updates and Updating FRITZ!OS . . . . . . . . . . . 36
9 MyFRITZ!: Global Access to the FRITZ!Box . . . . . . . . . . . . 38
10 FRITZ!Box as an Internet Router . . . . . . . . . . . . . . . . . . . . 41
10.1 Child Protection: Restricting Internet Access . . . . . . . . . . . . . . . . . . . 41
10.2 Port Forwarding: Making Computers Accessible from the Internet . . 42
10.3 Dynamic DNS: Name Instead of IP Address . . . . . . . . . . . . . . . . . . . . 45
10.4 Remote Access over HTTPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
10.5 Prioritization: Right of Way for Internet Access. . . . . . . . . . . . . . . . . . 46
10.6 VPN: Remote Access to the Home Network. . . . . . . . . . . . . . . . . . . . . 48
10.7 DNS Server: Freely Selectable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
10.8 DNSSEC: Security for DNS Queries . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
10.9 IPv6: The New Internet Protocol. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
10.10 Mobile Network: Replace Faulty DSL . . . . . . . . . . . . . . . . . . . . . . . . . . 53
11 FRITZ!Box as a WLAN Base Station. . . . . . . . . . . . . . . . . . 55
11.1 Connecting WLAN Devices Securely with the FRITZ!Box. . . . . . . . . . . 55
11.2 Connecting WLAN Devices with the FRITZ!Box Guest Access. . . . . . . 57
11.3 Switching the WLAN Radio Network On and Off by Schedule . . . . . . 58
11.4 Enlarging the WLAN Radio Network. . . . . . . . . . . . . . . . . . . . . . . . . . . 58
11.5 WLAN—Getting Technical. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
FRITZ!Box 3370 3
12 The FRITZ!Box Home Network . . . . . . . . . . . . . . . . . . . . . . 68
13 Network Devices in the FRITZ!Box Home Network. . . . . . 70
13.1 Network Settings in the FRITZ!Box. . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
13.2 Obtaining an IP Address Automatically. . . . . . . . . . . . . . . . . . . . . . . . 78
14 USB Devices in the FRITZ!Box Home Network . . . . . . . . . 81
14.1 Power Supply for USB Devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
14.2 USB Devices on the FRITZ!Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
14.3 Using USB Devices Safely . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
14.4 Configuring Password Protection and Access Rights . . . . . . . . . . . . . 82
14.5 Accessing USB Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
14.6 Sharing a USB Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
15 Saving Energy with FRITZ!Box. . . . . . . . . . . . . . . . . . . . . . 90
15.1 Saving Energy with the WLAN Radio Network. . . . . . . . . . . . . . . . . . . 90
15.2 Enabling Energy-saving Mode for USB Hard Drives . . . . . . . . . . . . . . 90
15.3 Saving Energy at the LAN Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
16 Help in Case of Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
16.1 Cannot Establish a DSL Connection . . . . . . . . . . . . . . . . . . . . . . . . . . 92
16.2 The User Interface Does Not Open. . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
16.3 Cannot Establish a WLAN Connection. . . . . . . . . . . . . . . . . . . . . . . . . 98
17 Taking FRITZ!Box out of Operation . . . . . . . . . . . . . . . . . 103
17.1 Restoring Factory Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
17.2 Uninstalling Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
FRITZ!Box 3370 4
18 Technical Specifications. . . . . . . . . . . . . . . . . . . . . . . . . 106
18.1 Ports and Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
18.2 Router Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
18.3 User Interface and Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
18.4 Physical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
18.5 Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
19 Customer Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
19.1 Documentation on the FRITZ!Box. . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
19.2 Information in the Internet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
19.3 Feedback on FRITZ!Box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
19.4 Support from the Support Team . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
19.5 Manufacturer’s Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
20 AVM Products for the FRITZ!Box . . . . . . . . . . . . . . . . . . . 112
Legal Notice. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Legal Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Declaration of CE Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Disposal Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Drilling Template . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
FRITZ!Box 3370 5
Symbols and Highlighting
Symbols and emphasized text are used to mark certain information in
this manual.
Symbols
This symbol marks useful hints and tips.
This symbol indicates important instructions that must be
observed to avoid malfunctions.
Highlighting
Marker Example
Quotation marks designate elements in the
user interface, path entries, and names of
folders and files
Pointed brackets mark wild cards <Telephone number>
Blue, underlined text designates addresses
to be entered in the browser
Blue text designates links and references
within this manual
Bold type emphasizes important words Do not click ...
“Home Network”
“C:\Pictures”
“Info”
fritz.box
see page 117
FRITZ!Box 3370 6
The FRITZ!Box 3370
1 The FRITZ!Box 3370
Welcome! We are glad you decided on a FRITZ!Box. The FRITZ!Box 3370
is the hub of your home network, connecting your computers and network devices with the Internet. You can operate the FRITZ!Box on a DSL
or VDSL line as an Internet router.
The FRITZ!Box has ports for computers and USB devices and supports
wireless LAN technology. This means you can use the FRITZ!Box as a
wireless LAN base station for wireless devices like notebooks, tablets
or smartphones.
The FRITZ!Box integrates connected computers and network devices into your private home network. The devices can exchange data with each
other and enjoy shared access to USB hard drives, USB printers and
other USB devices. The FRITZ!Box transmits music, video and image
files to suitable playback devices in the home network.
The FRITZ!Box offers you a full range of functions and settings so that
you can set up a home network tailored to your needs.
In the settings of your FRITZ!Box you can access a user interface that is
easy to operate in any web browser. Wizards guide you step by step
through the setup of the most important FRITZ!Box functions, and comprehensive online Help is available on every page of the user interface.
FRITZ!Box 3370 7
Ports, Interfaces, Buttons and LEDs
Printer,
storage media
Computer, game
console, network
For DSL without
a telephone line
USB 2.0 4 x Gigabit LAN
UMTS/HSPA modem
and USB devices
Notebook, smartphone,
video/TV streaming
USB 2.0
WLAN
2.4 GHz/5 GHz
DSL/VDSL
2 Ports, Interfaces, Buttons and LEDs
This chapter describes the ports, interfaces, buttons and LEDs of the
FRITZ!Box.
2.1 Ports and Interfaces
Possibilities for connecting the FRITZ!Box
• DSL
Socket for connecting to ADSL2+ and VDSL
• LAN1 – LAN4
4 gigabit Ethernet ports (10/100/1000 Base-T) for connecting computers and other network devices like game
consoles and network hubs
• USB
2 USB 2.0 ports for connecting USB devices like printers
or storage media
• WLAN base station
Integrated WLAN base station for connecting to WLAN
devices that use the radio standard IEEE 802.11a,
IEEE 802.11b, IEEE 802.11g or IEEE 802.11n (in the 2.4or 5-GHz frequency band)
FRITZ!Box 3370 8
Buttons
WLANWLAN
LANLAN
PowePower
DSLDSL
InfoInfo
WLAN
WLAN
Power
Power
2.2 Buttons
The FRITZ!Box has two buttons on the upper side of the housing.
FRITZ!Box buttons
WLAN Button
With the WLAN button you can turn the WLAN function on and
off and connect wireless devices with the FRITZ!Box by WPS.
WPS is an easy way to establish secure wireless connections
(see page 20).
Power Button
Use the Power button to switch the FRITZ!Box on and off.
FRITZ!Box 3370 9
LEDs
2.3 LEDs
Five LEDs are built into the top of the FRITZ!Box 3370, which
flash or light up to display various connection statuses and
events.
LED Condition Meaning
Power on
flashing
LAN on Network connection is active to at least one connected de-
WLAN on WLAN function is enabled
flashing
DSL on Internet connection is active
Info flashing
flashing red Error: Open the FRITZ!Box user interface and follow the in-
• Device has electrical power and the DSL line is ready
for operation
• Device has electrical power and the connection to DSL
is being established or has been interrupted
vice (network adapter or hub/switch)
• Switching the WLAN function on or off
• Adopting the WLAN settings
• Performing WPS
• WPS procedure aborted: More than two WLAN devices
are performing WPS at the same time. Repeat the WPS
procedure.
• Updating FRITZ!OS, the firmware of your FRITZ!Box
• Online meter reached the defined value, or another
event defined in the user interface under “System / “Info” Display” is signaled
structions on the “Overview” page
FRITZ!Box 3370 10
Before You Connect the FRITZ!Box
3 Before You Connect the FRITZ!Box
• Check the contents of your FRITZ!Box package. See the section
Contents of the FRITZ!Box Package on page 11 for more informa-
tion.
• Make sure that the requirements for connecting and operating the
FRITZ!Box have been met. See the section Requirements for Opera-
tion on page 11 for more information.
• Please see the security and handling instructions in the section
Security and Handling on page 12.
3.1 Contents of the FRITZ!Box Package
• FRITZ!Box 3370
• one power supply unit
• one network cable
• one DSL cable
• printed product information
3.2 Requirements for Operation
In order to operate the FRITZ!Box, you must have the following:
• a web browser that supports Java script (for instance, In-
ternet Explorer version 8.0 or higher, or Firefox version 7
or higher)
• a connection to the Internet
– a DSL line, standard ITU G.992.1 Annex A or B
(ADSL), ITU G.992.3 Annex A or B (ADSL2),
ITU G.992.5 Annex A or B (ADSL2+), ITU G.992.3/5
Annex J, ITU G.992.3/5 Annex M, ITU G.994.1 (G.hs)
– or a VDSL2 line, standard ITU G.993.2 Annex A or B
(VDSL2)
– or a USB modem for mobile Internet access
(UMTS/HSPA)
FRITZ!Box 3370 11
Security and Handling
• for connecting computers via WLAN:
computer with WLAN support (compliant with
IEEE 802.11n, IEEE 802.11g, IEEE 802.11a or
IEEE 802.11b). Computers that do not have integrated
WLAN can be equipped with WLAN support by installing
a WLAN device like a FRITZ!WLAN USB Stick N, for instance.
• for connecting computers using network cable:
computer with a network port (network adapter standard
Ethernet 10/100/1000 Base-T)
3.3 Security and Handling
Before installing and using the FRITZ!Box, please read the following security and handling instructions.
Safety Instructions
When connecting the FRITZ!Box 3370, be sure to observe the
following security instructions in order to protect yourself
and the FRITZ!Box from harm.
• Avoid overloading power outlets, extension cables and
socket strips. Overloaded power supply components
present a fire and electrocution risk.
– Avoid using sockets strips and extension cords if at
all possible.
– Do not connect multiple extension cords or socket
strips to each other.
• Before mounting the FRITZ!Box on the wall, make sure
that there are no electrical lines, gas or water pipes located where you need to drill the holes.
If necessary, check the site with a pipe detector or consult with qualified experts.
FRITZ!Box 3370 12
Security and Handling
• Make sure that the ventilation slits on the FRITZ!Box
• Do not place the FRITZ!Box on excessively heat-sensitive
• Do not install the FRITZ!Box during an electrical storm.
• During a storm, disconnect the FRITZ!Box from the power
• Never let liquids get inside the FRITZ!Box. Otherwise,
• Do not open the FRITZ!Box housing. The device contains
• The FRITZ!Box is intended for indoor use only.
housing are always unobstructed. The ventilation slits
provide for air cooling.
– The FRITZ!Box should not be placed on a carpet or on
upholstered furniture.
– Do not cover the FRITZ!Box.
surfaces, as the base of the device can heat up during
normal operation.
supply and from the DSL or VDSL line.
electric shocks or short circuits may result.
hazardous components and should only be opened by
authorized repair technicians.
Handling the FRITZ!Box
• You can either place FRITZ!Box on a horizontal surface or
mount it on a wall. For a drilling template to mount the
FRITZ!Box on a wall, see page 120.
• Place or hang the FRITZ!Box in a dry location that is free
of dust and protected from direct sunlight.
• For ideal operating conditions, mount the FRITZ!Box on a
wall with the cables connected on the bottom.
• When connecting the FRITZ!Box to your computer using a
network cable, keep in mind that the cable can be no
longer than 100 m.
• If you would like to establish wireless connections be-
tween the FRITZ!Box and the computer, position the
FRITZ!Box at a central location.
FRITZ!Box 3370 13
Security and Handling
• Make sure to keep sufficient distance from potential
sources of interference like microwave devices or electric devices with large metal housings.
FRITZ!Box 3370 14
Connecting the FRITZ!Box
InfoInfo
DSLDSL
WLANWLA
N
LANLAN
PowerPower
4 Connecting the FRITZ!Box
• Connect the FRITZ!Box to the power supply.
• Connect the FRITZ!Box to your Internet connection.
This chapter tells you how.
Before you connect the FRITZ!Box, note the additional instructions in the section Security and Handling on page 12.
4.1 Connecting to Electrical Power
Connecting to the power supply
1. Pick up the power supply unit included in the FRITZ!Box
package.
Use only this power supply unit for connecting to electrical power.
1. Connect the power supply unit to the socket on the
FRITZ!Box labeled “Power”.
2. Plug the other end into an AC power outlet.
The “Power” LED begins flashing after a few seconds to indicate that the FRITZ!Box is ready for operation.
4.2 Connecting to the Internet
The FRITZ!Box can be connected using various types of Internet connections:
• DSL/VDSL line
• Internet via mobile communications network using a
FRITZ!Box 3370 15
UMTS/HSPA modem
Connecting to the Internet
InfoInfo
DSLDSL
WLANWLAN
LANLA
N
PowerPower
Connecting to the DSL Line
Connecting to a telephone socket
1. Pick up the DSL cable (gray) included in the package.
The cable has an RJ45 connector on both ends.
2. Insert one end of the cable into the socket on the
FRITZ!Box labeled “DSL”.
3. Connect the other end to the socket on the DSL splitter
labeled “DSL” or similar.
The “Power” LED lights up after a short time to signalize that
the FRITZ!Box is ready for Internet connections over DSL.
Connecting to the Internet via the Mobile
Communications Network
If no other kind of Internet connection is available, you can
use your FRITZ!Box to connect to the Internet via the mobile
communications network. A USB modem for mobile Internet
access (UMTS/HSPA) is required for this.
The FRITZ!Box supports UMTS/HSPA modems from various
manufacturers.
1. Insert the USB modem into the USB port on the
FRITZ!Box.
2. Set up the Internet connection via the mobile communi-
cations network (see page 33).
FRITZ!Box 3370 16
Connecting the Computer to the FRITZ!Box
InfoInfo
DSLDSL
WLANWLA
N
LANLAN
PowerPower
5 Connecting the Computer to the FRITZ!Box
You can connect a computer with the FRITZ!Box either using a network
cable or wirelessly over WLAN.
A computer can be connected with the FRITZ!Box using only
one of these methods. It is not possible to connect using the
network cable and WLAN.
5.1 Connecting Computers to the LAN Port
Connecting a computer to the FRITZ!Box using a network cable
1. Set aside the network cable from the FRITZ!Box package.
2. If you work with a Linux operating system: Configure the
network adapter of the computer with the setting
“DHCP”.
port (network adapter) of the computer.
3. Connect one end of the network cable to the network
4. Connect the other end to the “LAN 1”, “LAN 2”, “LAN 3”
or “LAN 4” socket on the FRITZ!Box.
Now the FRITZ!Box and the computer are connected to each
other.
FRITZ!Box 3370 17
Connecting Computers to the LAN Port
InfoInfo
DSLDSL
WLANW
L
AN
LANLAN
PowerPower
Connecting More Computers to the LAN Ports
Additional cables are required to connect further computers.
In purchasing a LAN cable, note the instructions in the section Network Cable on page 107.
One computer can be connected to each network port of the
FRITZ!Box.
Connecting a Network Hub or Switch
You can also connect a network hub or switch to the LAN
ports on the FRITZ!Box.
Connecting the FRITZ!Box to a network hub
1. Set aside the network cable from the FRITZ!Box package.
2. Connect one end of the LAN cable to the uplink port (see
glossary) of the network hub or network switch.
3. Connect the other end of the cable to one of the LAN
ports on the FRITZ!Box.
The FRITZ!Box and the network hub are now connected with
each other.
FRITZ!Box 3370 18
Connecting Computers Wirelessly over WLAN
5.2 Connecting Computers Wirelessly over WLAN
Using WLAN radio technology you can connect multiple computers with the FRITZ!Box wirelessly.
Please note the following before establishing a wireless connection between the computer and the FRITZ!Box:
• WLAN device
A computer to be connected to the FRITZ!Box via WLAN
must be equipped with a WLAN device for it to support
WLAN. A WLAN device can be an external WLAN adapter—like a USB stick, for example—or a device integrated
in the computer. Many modern computers and notebooks come with a WLAN device integrated.
• WLAN security settings
In the FRITZ!Box, WLAN security settings are enabled upon delivery. Before a computer can establish a wireless
connection to the FRITZ!Box, the WLAN security settings
of the FRITZ!Box must be transferred to the WLAN device.
For this procedure the FRITZ!Box supports the two automatic methods AVM Stick & Surf and WPS (Wi-Fi Protected Setup). The security settings can also be transferred
manually.
For more information on WLAN, see the section FRITZ!Box as
a WLAN Base Station from page 55.
FRITZ!Box 3370 19
Connecting Computers Wirelessly over WLAN
Establishing a WLAN Connection with AVM Stick & Surf
If you use a FRITZ!WLAN USB Stick from AVM as the WLAN device, you can use AVM Stick & Surf to establish a secure
WLAN connection quickly and conveniently.
1. Switch on your computer.
2. Insert your FRITZ!WLAN USB Stick into one of the USB
ports on the FRITZ!Box.
The WLAN security settings are transmitted to the
FRITZ!WLAN USB Stick. The “Info” LED on the FRITZ!Box
begins flashing quickly.
As soon as the “Info” LED stops flashing, transmission
of the settings has been concluded.
3. Remove the FRITZ!WLAN USB Stick.
4. Now insert the FRITZ!WLAN USB Stick into the USB port
of the computer.
The security settings will be adopted and the WLAN connection between the FRITZ!Box and the FRITZ!WLAN USB Stick
will be established. As soon as the WLAN connection has
been established the computer is connected to the FRITZ!Box.
See the AVM FRITZ!WLAN USB Stick manual for details.
Establishing a WLAN Connection Using WPS
The FRITZ!Box supports WPS (Wi-Fi Protected Setup). WLAN
devices that also support WPS can be connected with your
FRITZ!Box securely using this method. All of the necessary
WLAN security settings are transferred in the process. There
are two kinds of WPS: the push-button method and the PIN
method.
FRITZ!Box 3370 20
Connecting Computers Wirelessly over WLAN
WLAN
Power
LAN
DSL
Info
WPS with the Push-button Method
The push-button method (WPS PBC) can be used if your WLAN
device is equipped with a WPS button, or if WPS can be enabled via the control software of the WLAN device.
1. Press the “WLAN” button on the FRITZ!Box until the
“WLAN” LED begins flashing.
Power
WLAN
LAN
Info
DSL
Push for approx.
6 seconds
2. When the “WLAN” flashes, start WPS on the WLAN de-
vice. You have 2 minutes for this task.
How to start WPS depends on the WLAN device. Either
press a button on the WLAN device, or start WPS in the
control software of the WLAN device.
The connection between the FRITZ!Box and the computer is
established automatically. The computer is now connected
with the FRITZ!Box.
WPS with the PIN Method
If your WLAN device supports WPS, but does not have a button to start the push method nor any possibility to enable it in
its control software, use the PIN method to establish the
WLAN connection.
You can choose between two methods:
• the FRITZ!Box specifies the PIN
• the WLAN device specifies the PIN.
FRITZ!Box 3370 21
Connecting Computers Wirelessly over WLAN
The FRITZ!Box Specifies the PIN
1. Open the FRITZ!Box user interface.
2. Select the “WLAN / Security” menu.
3. Go to the “WPS Quick Connection” page.
4. Enable the setting “WPS enabled”.
5. Select the option “PIN method (WPS-PIN), the FRITZ!Box
specifies the PIN”.
6. The PIN will be displayed. Enter this PIN in the control
software of the WLAN device.
7. Click “Start WPS”.
The “WLAN” LED on the FRITZ!Box flashes slowly, indicating
that the WPS procedure has begun. Now a secure WLAN connection is being established between the FRITZ!Box and the
WLAN device.
The WLAN Device Specifies the PIN
1. Open the FRITZ!Box user interface.
2. Select the “WLAN / Security” menu.
3. Go to the “WPS Quick Connection” page.
4. Enable the setting “WPS enabled”.
5. Select the option “PIN method (WPS-PIN), the WLAN de-
vice specifies the PIN”.
6. Now start the control software of the WLAN device. The
program outputs a PIN for establishing a connection.
7. Enter this PIN in the FRITZ!Box user interface.
8. Click “Start WPS”.
The “WLAN” LED on the FRITZ!Box flashes slowly, indicating
that the WPS procedure has begun. Now a secure WLAN connection is being established between the FRITZ!Box and the
WLAN device.
FRITZ!Box 3370 22
Connecting Computers Wirelessly over WLAN
Transferring the WLAN Security Settings Manually
The WLAN security settings for WLAN devices can also be
transferred manually. Manual transfer is unavoidable if a
WLAN device does not support any methods for transferring
the security settings automatically.
For manual transfer the WLAN security settings have to be entered in the WLAN software.
WLAN devices are generally delivered with their own WLAN
software, which is installed in the computer along with the
WLAN device. By now many operating systems have WLAN
software included. Integrated WLAN devices sometimes use
the operating system’s WLAN software.
Installing a WLAN Device
If you need to use a separate WLAN device because you do
not have one integrated, then install the WLAN device in the
computer along with the corresponding WLAN software.
Please take note of the instructions in the documentation of
the device.
Transferring WLAN Security Settings
The values for WLAN security preconfigured in the FRITZ!Box
have to be transferred to the WLAN device.
The values preset in the FRITZ!Box are printed on the sticker
attached to the bottom of the housing. If you would like to
establish a WLAN connection using these values, then your
WLAN device must support the preset encryption method. If
this is not the case, first change the settings in the FRITZ!Box.
To do this, connect your computer and the FRITZ!Box using a
network cable.
1. Start the WLAN software.
2. The following table presents the values that are possible
for the connection between the FRITZ!Box and the WLAN
device. Enter in the WLAN software the values set in the
FRITZ!Box. If you changed the preconfigured values in
the FRITZ!Box, then enter these changed values in the
WLAN software.
FRITZ!Box 3370 23
Connecting Computers Wirelessly over WLAN
SSID (name of the
WLAN radio network)
Encryption method WPA2 (AES-CCMP)
Encryption WPA2-PSK (AES)
WLAN key The key is printed on the sticker at-
Network mode Infrastructure
FRITZ!Box WLAN 3370
tached to the bottom of the housing.
3. Confirm your entries using the relevant button in the us-
er interface (for instance, “OK” or “Connect”).
Now your WLAN device and the FRITZ!Box are connected with
each other wirelessly.
If the WLAN Device Does Not Support WPA
If your WLAN device does not support WPA encryption, you
must convert the encryption set in the FRITZ!Box to WEP. For
this you must change the WLAN settings in the FRITZ!Box.
1. Connect the FRITZ!Box and the computer using the net-
work cable (yellow) (see the section Connecting Compu-
ters to the LAN Port on page 17).
2. Open the FRITZ!Box user interface (see the section
Opening the User Interface on page 26).
3. Select the “WLAN / Security” menu.
4. Open the “Encryption” page, then select WEP encryption
and enter a network key.
5. Click the “Apply” button.
A window is displayed with the WLAN security settings.
6. Make a note of the settings or print out the page.
7. Close the user interface and clear the connection be-
tween the FRITZ!Box and the computer. Remove the network cable (yellow).
8. Configure your WLAN device with the security settings
entered in the FRITZ!Box.
FRITZ!Box 3370 24
Connecting Computers Wirelessly over WLAN
The WLAN connection between your WLAN device and the
FRITZ!Box will be established.
We strongly recommend using a WLAN device that supports
WPA or WPA2 (for instance, a FRITZ!WLAN USB Stick from
AVM). WEP is out of date and data encrypted with WEP can be
deciphered within minutes.
FRITZ!Box 3370 25
The FRITZ!Box User Interface
6 The FRITZ!Box User Interface
The FRITZ!Box has a user interface you can open in a web browser on
your computer.
In the user interface you can set up the FRITZ!Box, enable or disable
functions and receive information on the FRITZ!Box and on your connections.
6.1 Opening the User Interface
The FRITZ!Box user interface can be opened on every computer connected with the FRITZ!Box.
1. Start a web browser on your computer.
2. Enter fritz.box
in the address line of the browser.
The FRITZ!Box user interface opens.
Entering the address fritz.box in the browser
If the user interface does not open, see the instructions on
resolving errors in the section from page 93.
The Wizard: Opening the User Interface for the First Time
When you open the user interface for the first time, a wizard
starts to assist you in configuring the FRITZ!Box.
If you cancel the wizard, you can configure your FRITZ!Box
without this wizard. You can change the settings configured
with this wizard at any time.
For comprehensive information on configuring the many diverse functions of your FRITZ!Box, see the following chapters
in this manual.
FRITZ!Box 3370 26
Overview: Everything at a Glance
6.2 Overview: Everything at a Glance
All important information about the FRITZ!Box is displayed directly on the “Overview” page of the FRITZ!Box user interface.
By clicking the linked entries you can jump from this page to
the corresponding menus and configure settings there.
The FRITZ!Box “Overview” page
In the upper area of the window the FRITZ!Box is displayed
with its complete product name, the currently installed version of FRITZ!OS, and its current energy consumption.
Depending on your settings, the following additional information is displayed here:
• If you assigned an individual name for your FRITZ!Box
(see page 68), this name will be displayed here.
• If you use the automatic search for updates (page 36)
and a new FRITZ!OS version is available on the AVM
Update Server for your FRITZ!Box, you will be notified.
The middle section of the window presents information about
connections, ports and configured convenience functions like
MyFRITZ!, call diversion, guest access, remote access, port
forwarding and push service.
FRITZ!Box 3370 27
Standard View and Advanced View
In the lower area of the window, the information is rounded
out by the last telephone calls conducted, the list of connected devices like computers, network storage and telephones,
and the last telephone book entries to be edited.
6.3 Standard View and Advanced View
The FRITZ!Box user interface has two views: the standard view
and the advanced view.
In the standard view all of the settings required for everyday
operation of the FRITZ!Box are at your disposal. Some pages
and areas of the FRITZ!Box user interface are not displayed.
Upon delivery, the FRITZ!Box interface is set to display the
standard view.
In the advanced view additional settings options appear under various menus and commands. The expanded menu
items contain network and DSL settings for advanced users
and are not required for normal FRITZ!Box operation.
Enabling this option is recommended only if you have advanced network expertise. When this setting is selected, settings can be configured which have the result that the
FRITZ!Box user interface can no longer be opened.
Fast Switching between the Views
The “View” icon in the link list of the FRITZ!Box allows you
to switch immediately between the standard view and the advanced view.
6.4 Protecting the User Interface with a Password
You can protect the user interface of the FRITZ!Box with a
password. The password will be requested every time the user interface is opened. This protects the settings of your
FRITZ!Box from unauthorized access.
For reasons of security, we recommend setting up and using
password protection for the user interface.
FRITZ!Box 3370 28
Protecting the User Interface with a Password
Setting Up Password Protection
As long as no password protection has been set up, every
time you open the user interface you will be prompted to enter a password. If you disabled this message, here is how to
set password protection:
1. Open the FRITZ!Box user interface (see page 26).
2. Go to the “System / FRITZ!Box Password” menu.
3. Enter a password and save the password by clicking “Ap-
ply”.
Password protection is now enabled.
Be sure to remember the password! If you forget the password, the factory settings will have to be restored to your
FRITZ!Box. All of the settings you configured will be discarded. This is why we recommend saving the settings of your
FRITZ!Box in a backup file (see page 30).
Forgot Password—What to Do?
If you have forgotten your password for the user interface, for
reasons of security, you have to restore the factory settings to
your FRITZ!Box:
1. Open the FRITZ!Box user interface (see page 26).
2. In the “Welcome to FRITZ!Box” window, click “reset” be-
low the password prompt and follow the instructions on
the screen.
The FRITZ!Box is reset to the factory settings and then restarted. Afterward you can once again access the
FRITZ!Box user interface.
3. After restarting, reconfigure the FRITZ!Box over the user
interface or load your saved settings to the FRITZ!Box
(see page 30).
This concludes the reset of the FRITZ!Box.
FRITZ!Box 3370 29
Saving the FRITZ!Box Settings
Logging Off the User Interface
When password protection is enabled, you can log off the
user interface at any time. To do so, click in the
list of links.
If you do not click on the user interface for a period of longer
than ten minutes, you will be logged off automatically. The
only pages excepted from this are those which are constantly
updated, like the “Overview” page. No automatic logout will
take place on these pages.
6.5 Saving the FRITZ!Box Settings
All of the settings you configure in your FRITZ!Box can be
saved in a backup file on your computer. With this backup file
you can restore your settings to the FRITZ!Box at any time or
load your settings to another FRITZ!Box.
Saving and Restoring Settings
To save and restore your FRITZ!Box settings, use the “System
/ Save Settings” menu in the user interface. Here you can
• save your FRITZ!Box settings on the “Save” tab.
• restore all of your saved settings to the same FRITZ!Box
on the “Restore” tab.
• load all of your saved settings to another FRITZ!Box of
the same model on the “Restore” tab.
• load your saved settings to another FRITZ!Box model on
the “Apply” tab. In this case you can select which settings are to be applied to the FRITZ!Box.
To load your saved settings to another FRITZ!Box of the same
model, or to apply the settings of another FRITZ!Box model
to your FRITZ!Box, the backup file must always be passwordprotected.
Instructions for saving, restoring and applying FRITZ!Box settings are presented in the user interface’s Online Help.
FRITZ!Box 3370 30
Configuring an Internet Connection in the FRITZ!Box
7 Configuring an Internet Connection in the FRITZ!Box
Once you have connected the FRITZ!Box to your Internet connection,
you must configure the Internet connection in the FRITZ!Box user interface so that the FRITZ!Box can establish the connection to your Internet
service provider and connect to the Internet.
The sequence and number of steps required to configure your Internet
connection depend on the kind of connection, the desired operating
mode, and the Internet service provider.
7.1 Configuring an Internet Connection for DSL
If you have a DSL line, you received Internet account information from your DSL or Internet service provider. The Internet
account information is required to configure the Internet connection.
Your Internet service provider also supplied information
about the configuration of your Internet connection. Always
perform the Internet connection setup as described by your
provider.
Configuring an Internet Connection Automatically
If your Internet service provider arranges for the service of
automatically configuring your Internet connection, the automatic configuration will be performed right after the
FRITZ!Box is connected. No additional settings for the Internet connection have to be configured in the FRITZ!Box. To
start automatic configuration, some providers require that
you enter a start code.
Configuring the Internet Connection Using the Wizard
The wizard takes you step by step through the setup.
1. Open the FRITZ!Box user interface (see page 26).
2. Select the “Wizards” entry in the menu.
3. Click the “Check Internet Connection” Wizard and follow
the instructions.
When the Wizard is finished, your Internet connection has
been configured.
FRITZ!Box 3370 31
Changing the Annex Setting of the FRITZ!Box
Configuring the Internet Connection Without the Wizard
You can also set up the Internet connection without the Wizard.
1. Open the FRITZ!Box user interface (see page 26).
2. Select the “Internet / Account Information” menu and
enter your account information.
Also take advantage of the Help available in the FRITZ!Box
user interface.
7.2 Changing the Annex Setting of the FRITZ!Box
The FRITZ!Box cannot establish a connection to the DSL
network. This is signaled by the continued flashing of the
“Power” LED.
Cause
The kind of DSL (Annex A, B, J or M) set in the FRITZ!Box is not
the same as the annex used on your DSL line.
Help
1. Contact your Internet service provider to find out which
annex is used on your DSL line.
2. Connect a computer with the FRITZ!Box either wirelessly
via WLAN or using a network cable.
3. Open the FRITZ!Box user interface.
4. Open the “Internet / DSL Information” and select the
“Line Settings” page.
5. In the “Annex Settings” area, make sure that the annex
working on your DSL line is set. Save your settings by
clicking “Apply”.
After the annex setting has been changed, the FRITZ!Box restarts automatically. The connection to the DSL network has
been established as soon as the “Power” LED stops flashing
and remains lit up.
FRITZ!Box 3370 32
Configuring the Internet Connection for the Mobile Communications Network
7.3 Configuring the Internet Connection for the Mobile Communications Network
With a USB modem you can also establish the Internet connection with your FRITZ!Box 3370 via the mobile communications network. A USB modem for mobile Internet access
(UMTS/HSPA) and a SIM card from a mobile communications
provider are required for this. The FRITZ!Box supports
UMTS/HSPA modems from various manufacturers.
1. Insert the USB modem in the USB port on the FRITZ!Box.
2. Open the FRITZ!Box user interface (see page 26).
In the “Internet” menu, the sub-menu “Mobile Telephone Network” is displayed.
The “Mobile Telephone Network” menu is not available
until the UMTS/HSPA modem has been connected to the
USB port of the FRITZ!Box.
3. Select the setting “Mobile connection enabled”.
4. Configure the settings for your Internet connection over
the mobile communications network. For more information, see the Online Help of the FRITZ!Box.
When the mobile communications function is used, the
FRITZ!Box user interface presents information about network
availability, connection status and throughput.
After this function has been set up, the “Internet / Mobile
Telephone Network” menu is always available, even when the
USB modem has been disconnected.
Due to technical limitations on the part of the mobile communications network providers, some limitations may arise
for Internet telephone calls and for applications requiring an
incoming connection. The same is true for using port forwarding, sharing USB storage memory, remote access via
HTTPS, dynamic DNS and VPN. Contact your network provider
for details on any restrictions that may apply.
FRITZ!Box 3370 33
Surfing the Net
7.4 Surfing the Net
1. Start a web browser on your computer.
2. Enter in the address field the URL of the web page you
The requested Internet page is opened and displayed.
would like to visit, for instance www.avm.de/en
.
FRITZ!Box 3370 34
Firmware Update: Updating the FRITZ!OS
8 Firmware Update: Updating the FRITZ!OS
AVM provides free updates of the firmware for your FRITZ!Box. The firmware—called FRITZ!OS—is the software stored in the FRITZ!Box that controls all of the FRITZ!Box functions.
FRITZ!OS updates contain further developments of existing FRITZ!Box
functions and often also introduce new functions for your FRITZ!Box.
A FRITZ!OS update is necessary if you would like to take advantage of
further developments and new functions.
8.1 Searching for and Transferring FRITZ!OS Update with the Wizard
1. Open the FRITZ!Box user interface (see page 26).
2. Click “Wizards” in the menu and start the “Update Firm-
ware” Wizard.
The Wizard checks whether a FRITZ!OS update is available for your FRITZ!Box.
If the Wizard finds an update, it displays the version
number of the new FRITZ!OS. Click the link under the
FRITZ!OS version to view information about further developments and new functions contained in the
FRITZ!OS update. Read this information before starting
the update.
3. To transfer FRITZ!OS update to the FRITZ!Box, click “Start
Firmware Update Now”.
The FRITZ!OS update begins and the “Info” LED on the
FRITZ!Box starts flashing.
Do not interrupt the power supply to the FRITZ!Box during the FRITZ!OS update!
The FRITZ!OS update is complete when the “Info” LED stops
flashing.
FRITZ!Box 3370 35
Automatic Search for Updates and Updating FRITZ!OS
8.2 Automatic Search for Updates and Updating FRITZ!OS
With the AVM service “Search for updates automatically” you
will always be informed about the latest FRITZ!OS updates for
your FRITZ!Box. When a new firmware for your FRITZ!Box is
found on the AVM website, you will be notified on the “Overview” page.
New updates are not installed automatically.
Updating FRITZ!OS
1. Open the “Overview” page.
When an FRITZ!OS update for your FRITZ!Box is found,
you will be notified with the message “The latest firmware is not installed: Update?”.
2. Click the “Update?” link to install the update.
3. In the next window, click “Start Firmware Update Now”.
The FRITZ!OS update begins and the “Info” LED on the
FRITZ!Box starts flashing.
Do not interrupt the power supply to the FRITZ!Box during the FRITZ!OS update!
The FRITZ!OS update is complete when the “Info” LED stops
flashing.
Disabling the Service
The service “Search for updates automatically” is set by default upon delivery of the FRITZ!Box, but you can disable it if
desired.
1. Open the FRITZ!Box user interface (see page 26).
2. Select the “Contents” link in the header.
The contents page, or sitemap, of the FRITZ!Box user interface is opened.
FRITZ!Box 3370 36
Automatic Search for Updates and Updating FRITZ!OS
3. Scroll down to the end of this page and click the “AVM
Services” link.
The “AVM Services” page is opened.
4. Disable the setting “FRITZ!Box searches for updates peri-
odically” and save your setting with “Apply”.
The AVM service “Search for updates automatically” is now
disabled.
FRITZ!Box 3370 37
MyFRITZ!: Global Access to the FRITZ!Box
9 MyFRITZ!: Global Access to the FRITZ!Box
MyFRITZ! is an web service by AVM with which you can access your
FRITZ!Box from anywhere in the world over the Internet.
• FRITZ!NAS: When you use MyFRITZ!, FRITZ!NAS is available every-
where. You can access photographs, music and documents located on the storage media connected to the FRITZ!Box.
• Answering machine: With MyFRITZ! you can listen to the messages
on the answering machine of the FRITZ!Box from anywhere in the
world.
• Call list: With MyFRITZ! you can view the call list in the FRITZ!Box
from anywhere in the world.
The MyFRITZ! Principle
• Set up a MyFRITZ! account.
• Register your FRITZ!Box with your MyFRITZ! account.
• From wherever you are, you can access your FRITZ!Box
from the www.myfritz.net
The MyFRITZ! Account
You need a MyFRITZ! account if you would like to use the
MyFRITZ! service. Register your FRITZ!Box with your MyFRITZ!
account. Every time the public IP address is changed, the
FRITZ!Box now will transmit the changed IP address to the
MyFRITZ! account. This ensures that the current, public IP address of the FRITZ!Box is always known. When you log in to
MyFRITZ!, you will be forwarded to the FRITZ!Box using the IP
address.
page.
Setting Up a MyFRITZ! Account and Registering the FRITZ!Box
• Make sure that the Internet connection is active and that
you can access your e-mail.
• You can set up the MyFRITZ! account in the FRITZ!Box
user interface in the “Internet / MyFRITZ!” menu.
• Enter the following user data:
– For the MyFRITZ! account, enter your e-mail address
and assign a MyFRITZ! password.
FRITZ!Box 3370 38
MyFRITZ!: Global Access to the FRITZ!Box
– For access to the FRITZ!Box over the Internet, enter a
FRITZ!Box Internet password. This password is requested by the FRITZ!Box whenever you want to access the FRITZ!Box via MyFRITZ!.
• You receive an e-mail from MyFRITZ! containing a regis-
tration link. If possible, open the e-mail on the computer
on which you began to set up the account. Click the registration link.
• You are forwarded to the MyFRITZ! website, where you
are prompted to read the terms of use and activate the
account.
• Once the account has been activated successfully, you
will be redirected to the FRITZ!Box user interface. Now
the FRITZ!Box is registered with your MyFRITZ! account.
Using MyFRITZ!
As soon as you have created a MyFRITZ! account and registered your FRITZ!Box with the account, you can begin using
the MyFRITZ! service.
1. Open the www.myfritz.net
2. Log in with your e-mail address and your MyFRITZ! pass-
word.
3. Click the “To My FRITZ!Box” button.
4. Enter the Internet password for your FRITZ!Box.
• You will be directed to the MyFRITZ! page of your
FRITZ!Box.
• You have access to the storage media enabled for shar-
ing, to the call list, and to the voice messages on the answering machine.
• Click the “FRITZ!Box” button to open the user interface
of your FRITZ!Box.
FRITZ!Box 3370 39
website.
MyFRITZ!: Global Access to the FRITZ!Box
MyFRITZ! in the Home Network
You can also use MyFRITZ! in the FRITZ!Box home network.
1. Enter “myfritz.box” in the address field of your browser.
2. Enter the Internet password for your FRITZ!Box.
You will be directed to the MyFRITZ! page of your FRITZ!Box. In
this case you do not have to log in to MyFRITZ!.
Multiple FRITZ!Boxes
You can register multiple FRITZ!Boxes at one MyFRITZ! account.
• Every FRITZ!Box is registered with the MyFRITZ! account
over your user interface. From the “Internet / MyFRITZ!”
menu, select the setting “Register the FRITZ!Box at an
existing MyFRITZ! account”.
• When you log in to MyFRITZ!, all registered devices will
be displayed.
Security with MyFRITZ!
For the following MyFRITZ! activities the https security protocol is used:
• setting up a MyFRITZ! account with myfritz.net
• registration of the FRITZ!Box with the MyFRITZ! account
• accessing the MyFRITZ! page of your FRITZ!Box over
myfritz.net
• accessing the user interface of the FRITZ!Box
The FRITZ!Box generates its own https certificate. Because this certificate does not come from a certification
authority preset in common browsers, you have to confirm that the connection should be established nevertheless. Firefox and Internet Explorer will remember your
confirmation and refrain from showing any further warnings.
http is used for the daily update of the IP address on
myfritz.net. The password is never transmitted as clear text.
FRITZ!Box 3370 40
FRITZ!Box as an Internet Router
10 FRITZ!Box as an Internet Router
The FRITZ!Box connects computers in your home network with the Internet. This chapter explains the possibilities offered by using the
FRITZ!Box as an Internet router and how to take advantage of them.
10.1 Child Protection: Restricting Internet Access
The child protection feature allows you to define access rules
to the Internet for individual computers or Windows users.
These access rules may include restrictions of Internet access
time, filter lists and a list with blocked network applications.
• Restrict Internet access time: Using the time restriction
you can restrict the amount of time the user can surf the
web. You can define on which days of the week, at what
times of day, and for how long a computer or Windows
user is allowed to use the Internet connection.
• Block or permit web sites: you can use filter lists to de-
fine which Internet pages are allowed to be accessed
and to which access is blocked. For instance, you can
block all Internet pages the government has defined as
offensive or harmful to minors.
You can create both filter lists, the whitelist and the
blacklist. A whitelist contains all Internet pages to which
access is allowed. A blacklist contains all Internet pages
to which access is blocked.
• Block network applications: You can list network appli-
cations for which Internet access should be blocked. For
instance, you can block Internet access for file-sharing
software.
Child protection can be enabled for each computer individually, regardless of the computer’s operating system.
You can also enable child protection individually for all Windows users in all Windows operating systems (Windows 7,
Windows Vista and Windows XP). This option is useful if a
computer is used by multiple users.
FRITZ!Box 3370 41
Port Forwarding: Making Computers Accessible from the Internet
The child protection feature is available only if you have set
up the Internet connection in the FRITZ!Box and established
an Internet connection. Child protection is not available if you
have configured the FRITZ!Box as an IP client. In this case, use
the corresponding functions of the router whose Internet connection is being shared.
Setting Up Child Protection in the FRITZ!Box
1. Open the FRITZ!Box user interface (see page 26).
2. Select the “Internet / Filters” menu.
3. Set up child protection. See the Online Help available in
the FRITZ!Box user interface for more information.
10.2 Port Forwarding: Making Computers Accessible from the Internet
With default settings in the FRITZ!Box, programs on your computer and LAN cannot be accessed from the Internet. For applications like online games and file sharing software or server services like HTTP, FTP, VPN, terminal and remote access
servers you have to make your computer accessible for other
Internet users.
Port Forwarding
Using port forwarding, you allow incoming connections from
the Internet. By releasing certain ports for incoming connections, you grant controlled access to your computers in your
network to other Internet users. Ports serve to assign incoming data packets to the various applications when all applications can be accessed at one IP address only.
The following port forwarding methods are possible in the
FRITZ!Box:
FRITZ!Box 3370 42
Port Forwarding: Making Computers Accessible from the Internet
PING IPv4:
The FRITZ!Box responds to ping inquiries from
the Internet addressed to the IPv4 address of the
FRITZ!Box.
IPv6:
The FRITZ!Box responds to ping inquiries from
the Internet addressed to the IPv6 address of the
FRITZ!Box. Additionally, you can set up PING6
port forwarding rules for each computer in the
home network since each computer has its own
globally valid IPv6 address.
TCP
UDP
ESP
GRE
Exposed Host
(Open firewall
completely)
IPv4:
Within IPv4 networks you can open the FRITZ!Box
firewall for the protocols TCP and UDP when entering the port range. One port can be opened for
exactly one computer.
IPv6:
Within IPv6 networks you can open the FRITZ!Box
firewall for the protocols TCP and UDP when entering the port range. One port can be opened for
each computer in the network.
IPv4:
Within IPv4 networks you can open the firewall
for the two protocols ESP and GRE which do not
use ports.
IPv4:
Within IPv4 networks you can open the firewall
for one computer completely. This computer is
then no longer protected by the FRITZ!Box firewall. If individual ports are already open for other
computers, then data packets for these ports are
not forwarded to the exposed host but to the other computer instead.
IPv6:
Within IPv6 networks you can open the firewall
for each computer completely. These computers
are then no longer protected by the FRITZ!Box
firewall.
FRITZ!Box 3370 43
Port Forwarding: Making Computers Accessible from the Internet
Setting Up Port Forwarding in the FRITZ!Box
• IPv4: Port forwarding for IPv4 is set up in the “Internet /
Permit Access” menu, on the “Port Forwarding” page.
• IPv6: Enable the advanced view. Port forwarding for IPv6
is also set up in the “Internet / Permit Access” menu, on
the “IPv6” page.
Determining the IPv4 Address for Accessing the FRITZ!Box
If you have enabled ports for forwarding in the FRITZ!Box, other Internet users can access your computers at the IP address
assigned to your FRITZ!Box by the Internet service provider.
This is a public IPv4 address.
Here is how to determine the public IPv4 address of the
FRITZ!Box:
1. Open any Internet page in order to establish an Internet
connection.
2. Open the FRITZ!Box user interface and enable the ad-
vanced view in the user interface.
3. The FRITZ!Box’s public IPv4 address is displayed on the
“Overview” page in the “Connections” area.
Every time the Internet connection is interrupted the Internet
service provider re-assigns the IP address. The IP address
may change in the process. Therefore it is a good idea to use
MyFRITZ! or dynamic DNS so that the IP address can always
be reached under the same name. For more information
about MyFRITZ!, see the section MyFRITZ!: Global Access to
the FRITZ!Box on page 38. For more information about dy-
namic DNS, see the section Dynamic DNS: Name Instead of
IP Address on page 45.
FRITZ!Box 3370 44
Dynamic DNS: Name Instead of IP Address
10.3 Dynamic DNS: Name Instead of IP Address
Dynamic DNS is an Internet service that makes it possible for
the FRITZ!Box to remain accessible from the Internet at all
times under a fixed name, even though the public IP address
changes.
Dynamic DNS can be used as an alternative to MyFRITZ!. Both
services can be used in parallel.
You must register with a dynamic DNS provider to use this
service. When you register, you agree on the fixed name (domain name) at which your FRITZ!Box should be accessible
from the Internet. You also define a user name and password.
Every time the IP address changes, the FRITZ!Box transmits
the new IP address to the dynamic DNS provider in the form of
an update request. Then the domain name is assigned to the
current IP address by the dynamic DNS provider.
Setting Up Dynamic DNS in the FRITZ!Box
1. Open the FRITZ!Box user interface (see page 26).
2. Enable the advanced view.
3. Select the “Internet / Permit Access” menu.
4. Select the “Dynamic DNS” page and set up dynamic
DNS. Consult the Online Help available in the FRITZ!Box
user interface for more information.
10.4 Remote Access over HTTPS
With this function it is possible to access the user interface of
the FRITZ!Box from another location. This allows you to configure settings in the FRITZ!Box or perform a FRITZ!OS update
using a computer that is not in your own network (LAN or
WLAN).
Setting Up Remote Access over HTTPS in the FRITZ!Box
1. Open the FRITZ!Box user interface (see page 26).
2. Enable the advanced view.
3. Select the “Internet / Permit Access” menu.
FRITZ!Box 3370 45
Prioritization: Right of Way for Internet Access
4. Select the “Remote Access” page and set up dynamic
DNS. For more information, see the Online Help.
10.5 Prioritization: Right of Way for Internet Access
Prioritization is a function you can use to specify that network
applications and network devices be treated with higher or
lower priority when they access the Internet connection. For
example, you may wish to ensure that applications like IPTV
and video on demand are always treated with higher priority
than other applications. You can also specify that file-sharing
applications like eMule and BitTorrent always have to wait behind online games.
Categories for Prioritization
There are three categories for prioritization: “Real-time applications”, “Prioritized applications” and “Background applications”. The categories are explained below.
Network applications and network devices are assigned to
the categories using rules.
Real-time Applications
This category is suitable for applications with high demands
on transmission speed and reaction times (for example, IPTV
or video on demand).
• Network applications of this category always have priori-
ty over other applications accessing the Internet at the
same time.
• When the Internet connection is working at full capacity,
the network packets of the applications of this category
will always be sent first. In this case data from network
applications assigned to other categories, like “Prioritized applications”, will be transmitted later.
• If multiple network applications are assigned to this cat-
egory, then they must share the available capacity.
• Whenever Internet telephony is included in this catego-
ry, this application always has the highest priority, even
over other real-time applications.
FRITZ!Box 3370 46
Prioritization: Right of Way for Internet Access
Prioritized Applications
This category is suitable for applications that require a fast reaction time (for example, company access, terminal applications, games).
• For network applications prioritized in this category,
90% of the FRITZ!Box’s upload bandwidth is available,
as long as no application from the “Real-time applications” category requires bandwidth. The remaining 10%
of the upload bandwidth is available for applications
that are prioritized in lower categories or not prioritized
at all.
• If multiple network applications are assigned to the “Pri-
oritized applications” category, then they must share
the available capacity.
Background Applications
This category is suitable for applications that do not require
any high transmission speed and which are not time-critical
(for example, peer-to-peer services or automatic updates).
• Network applications assigned to this category are al-
ways treated with the lowest priority when the Internet
connection is working at full capacity. So whenever an
application from a different category or a non-prioritized
application requires the entire bandwidth, all background applications must wait until bandwidth capacity
becomes available again.
• If no other network applications are active, then the
background applications receive the entire bandwidth.
Prioritization Method in the FRITZ!Box
The following algorithm is used in the FRITZ!Box to send data
packets according to their prioritization:
• Change in the order in which packets are sent to the In-
ternet (upstream direction)
The order of the packets the FRITZ!Box receives from the
Internet (downstream direction) cannot be changed.
FRITZ!Box 3370 47
VPN: Remote Access to the Home Network
• Discard low-priority packets in order to ensure the trans-
mission of higher-priority packets. This algorithm is
used whenever more packets are supposed to be sent to
the Internet than the upstream transmission rate of the
Internet connection allows.
• As long as no packets are being sent from higher-priority
applications, the full transmission rate of the Internet
connection is available for low-priority packets.
Setting Up Prioritization in the FRITZ!Box
1. Enable the advanced view.
2. Prioritization is set up in the “Internet / Filters / Prioriti-
zation” menu.
10.6 VPN: Remote Access to the Home Network
Via VPN (see glossary) a secure remote access to the network
of the FRITZ!Box can be established. The VPN solution for the
FRITZ!Box features the following:
• The VPN solution for the FRITZ!Box is based on the IPSec
standard.
• Computer-LAN coupling and LAN-LAN coupling: VPN con-
nections can be set up for individual remote computers
or even for remote networks.
• A maximum of eight simultaneous active VPN connec-
tions is supported.
• The configuration files for the VPN connections are creat-
ed using a separate program. The program is provided
free of charge and can be downloaded from the AVM web
site.
• A free VPN client for individual computers can also be
downloaded from the AVM web site.
The AVM web site offers a Service Portal which presents comprehensive information on VPN in general and in connection
with the FRITZ!Box. Visit this portal to obtain more detailed information.
www.avm.de/en/vpn
FRITZ!Box 3370 48
VPN: Remote Access to the Home Network
Setting Up VPN in the FRITZ!Box
1. Open the FRITZ!Box user interface.
2. Enable the advanced view.
3. Select the “Internet / Permit Access” menu.
4. Select the “VPN” page.
See the Online Help of the FRITZ!Box to set up VPN.
Supplementary Software for VPN
All of the information required for a VPN is saved in a configuration file. The terminals involved in any VPN must receive
this file.
Individual computers that are networked over a VPN require a
VPN client.
• “Configure FRITZ!Box VPN Connection” Wizard
AVM provides the “Configure FRITZ!Box VPN” software
for creating configuration files. This program is a Wizard
that takes you step by step through the VPN configuration. All of the necessary VPN settings, like the encryption method and access rules, are set automatically. The
resulting configuration files must be imported to the respective terminals of the VPN tunnel. At the terminal
with the FRITZ!Box the configuration file is then imported
to the FRITZ!Box. The VPN parameters in these files can
be adjusted manually to connect to products by other
manufacturers.
• The “FRITZ!VPN” VPN Client
AVM offers the “FRITZ!VPN” software as a VPN client.
Both the Wizard and the client can be downloaded free of
charge from the VPN Service Portal on the AVM web site:
www.avm.de/en/vpn
FRITZ!Box 3370 49
DNS Server: Freely Selectable
10.7 DNS Server: Freely Selectable
DNS servers are preset in the FRITZ!Box for IPv4 and IPv6.
These are the DNS servers assigned by the Internet service
provider.
For both IPv4 and IPv6, the preset DNS server can be replaced
by a free DNS server. Free DNS servers include, for instance,
OpenDNS and Google DNS.
Here is how to change the DNS server entry:
1. Open the FRITZ!Box user interface.
2. Enable the advanced view.
3. In the “Internet / Account Information” menu, select the
“DNS Server” page.
4. Change the settings for the DNS servers.
The “DNSv6” page is displayed only if you enabled IPv6
support for the FRITZ!Box on the “IPv6” page.
10.8 DNSSEC: Security for DNS Queries
DNSSEC is short for Domain Name System Security Extensions. As the name says, this is an extension of DNS, the domain name system.
DNSSEC ensures that both the DNS server and the information returned by the DNS server are authentic, or genuine.
Security with DNSSEC
When a home user surfs the web, she or he sends queries to
the Internet by entering URLs in the address line of the browser. A URL is the name of a web site that is easy to remember,
such as www.avm.de/en
er first. The DNS server resolves the URL into the corresponding IP address. There is one unambiguous IP address for every URL.
FRITZ!Box 3370 50
. Every query is sent to the DNS serv-
IPv6: The New Internet Protocol
The home user relies on the authenticity of the IP address returned by the DNS server. Authentic means that the response
is the IP address of the desired web site, and not a faked IP
address that leads to a fake web site. DNSSEC can ensure that
the returned addresses are authentic.
Support with the FRITZ!Box
The FRITZ!Box supports DNSSEC queries over UDP.
The FRITZ!Box has a DNS proxy. The computers in the home
network use the FRITZ!Box as a DNS server. The FRITZ!Box forwards DNSSEC queries from the home network to the Internet. The FRITZ!Box forwards DNSSEC responses from the Internet to the home network. The DNSSEC information must be
validated on the computer in the home network. For this
DNSSEC must be supported in the operating system.
10.9 IPv6: The New Internet Protocol
IPv6 stands for Internet protocol version 6 and is the successor to IPv4.
The FRITZ!Box supports the new IPv6 web protocol and can
establish IPv6 connections:
• IPv6 support can be switched on in the FRITZ!Box user
interface.
• For simultaneous use of IPv6 and IPv4, the FRITZ!Box
supports dual-stack and dual-stack lite. This means that
the FRITZ!Box can communicate with both IPv4 and IPv6
domains in the Internet.
• The FRITZ!Box supports native IPv6 and IPv6 with a tun-
nel protocol. Native IPv6 means that your Internet service provider supports IPv6 directly on your line.
FRITZ!Box 3370 51
IPv6: The New Internet Protocol
IPv6-capable Services in the Home Network
• FRITZ!NAS access via SMB or FTP/FTPS
• access to the user interface with http or https over IPv6
• The DNS resolver of the FRITZ!Box supports queries for
IPv6 addresses (AAAA records) and can query the upstream DNS resolver of the Internet service pInternet service providerrovider over IPv6.
• The globally valid prefix is distributed via router adver-
tisement.
• For guest access to the WLAN, the home network and
WLAN guests are separated by IPv6 subnetworks.
• UPnP, UPnP AV media server
• automatic provisioning (TR-064)
IPv6-capable Services in the Internet
• FRITZ!NAS access via FTPS
• completely closed firewall to protect against unwanted
data from the Internet (Stateful Inspection Firewall)
• automatic provisioning (TR-069)
• time synchronization over NTP (Network Time Protocol)
• remote access via https
• dynamic DNS via dyndns.org and namemaster.de
Setting Up IPv6 in the FRITZ!Box
1. Open the FRITZ!Box user interface.
2. Enable the advanced view.
3. Then select the “Internet / Account Information” menu.
4. Select the “IPv6” page and set up IPv6 in the FRITZ!Box.
Consult the Online Help of the FRITZ!Box user interface
for more information.
FRITZ!Box 3370 52
Mobile Network: Replace Faulty DSL
Setting Up IPv6 on the Computer
You can establish connections in the IPv6 range of the Internet only if IPv6 is installed and enabled on the computers in
your home network.
• IPv6 is already installed and enabled in the Windows 7
and Windows Vista operating systems.
• IPv6 is not installed and enabled in standard
Windows XP. You must install and enable IPv6 in order to
use it. The IPv6 installation requires Service Pack 2 for
Windows XP.
• IPv6 has been available in the Mac OS X operating sys-
tems since Mac OS 10.
10.10Mobile Network: Replace Faulty DSL
Internet access over the mobile telephone network can be set
up so that the mobile telephone connection is established
automatically whenever the DSL connection fails. This guarantees Internet access even when the DSL connection is
missing. A USB modem for mobile Internet access
(UMTS/HSPA) and a SIM card from a mobile communications
provider are required for this. The FRITZ!Box supports
UMTS/HSPA modems from various manufacturers.
Here is how to set up the mobile telephone connection as a
substitute upon DSL failure:
1. Insert the USB modem in the USB port on the FRITZ!Box.
2. Open the FRITZ!Box user interface (see page 26).
In the “Internet” menu, the sub-menu “Mobile Telephone Network” is displayed.
The “Mobile Telephone Network” menu is not available
until the UMTS/HSPA modem has been connected to the
USB port of the FRITZ!Box.
3. Select the setting “Automatically enable the mobile con-
nection when the DSL connection is disrupted”.
FRITZ!Box 3370 53
Mobile Network: Replace Faulty DSL
4. Configure the settings for your Internet connection over
the mobile communications network. For more information, see the Online Help of the FRITZ!Box.
Access to the Internet is now guaranteed, even when the DSL
connection fails.
As soon as the DSL connection is stable and available for at
least 30 minutes, the connection will be switched back to the
DSL connection.
FRITZ!Box 3370 54
FRITZ!Box as a WLAN Base Station
11 FRITZ!Box as a WLAN Base Station
The FRITZ!Box is a WLAN base station for WLAN devices like notebooks,
tablets or smartphones. The FRITZ!Box can establish WLAN connections
compliant with the fast WLAN N standard in two different frequency
bands at the same time. The FRITZ!Box is preconfigured with an encryption method from today’s safest method WPA2. This encryption method
is supported by most of the latest WLAN devices. The FRITZ!Box supports wireless LAN convenience functions like guest access, night service and WPS Quick Connection.
11.1 Connecting WLAN Devices Securely with the FRITZ!Box
In a WLAN radio network security is of the utmost importance.
This is why WLAN connections between the FRITZ!Box and
your wireless devices are encrypted. For encryption the
FRITZ!Box and your wireless devices must use the same encryption method. The FRITZ!Box is preconfigured with an encryption method that combines today’s safest methods WPA
and WPA2. These encryption methods are supported by most
of the latest wireless devices.
If you would like to use wireless devices that do not support
WPA2 or WPA, you can switch encryption in the FRITZ!Box to
the older, less secure WEP method. You can also establish
non-encrypted wireless LAN connections. However, if at all
possible we recommend always establishing WPA2 wireless
LAN connections.
WLAN devices can be connected with the FRITZ!Box automatically or manually. A particularly simple and secure automatic
method is WPS, with which a WLAN connection can be established at the touch of a button. For manual WLAN connections
with the FRITZ!Box use the WLAN software of your WLAN device or the WLAN program on your computer.
Connecting WLAN Devices Automatically (WPS)
WLAN devices that support the fast connection method WPS
can be connected with the FRITZ!Box automatically.
1. Start the WPS function of your WLAN device. Consult the
documentation of the WLAN device to find out how to
start WPS.
FRITZ!Box 3370 55
Connecting WLAN Devices Securely with the FRITZ!Box
2. Press the WLAN button on the FRITZ!Box until the
“WLAN” LED begins flashing. You have 2 minutes for this
task.
3. Your WLAN device and the FRITZ!Box now establish a se-
cure WLAN connection automatically. The FRITZ!Box
“WLAN” LED stops flashing and remains on.
With this, the WLAN connection is established. Your WLAN device is integrated into your home network and can use the Internet connection of the FRITZ!Box.
Connecting WLAN Devices Manually
You can connect WLAN devices with the FRITZ!Box manually.
WLAN devices like notebooks, tablets and smartphones use
the WLAN software of their own operating system for this connection. A WLAN adapter at the USB port of your computer
can use the WLAN software of your computer or a WLAN program of your own. No matter what program is used to establish the WLAN connection, the principle is the same: the
WLAN software searches for a WLAN radio network in the vicinity and, after authorization with a WLAN key, enables the
WLAN connection between the FRITZ!Box and your WLAN device.
1. Make sure that the WLAN function of the FRITZ!Box is en-
abled and the “WLAN” LED is on. If “WLAN” is not on,
press the “WLAN” button briefly.
2. Start the WLAN software of your WLAN device. Consult
the documentation of your WLAN device for instructions.
3. Search for the WLAN radio network of your FRITZ!Box.
Upon delivery this network is called
“FRITZ!Box WLAN 3370”.
4. Enter the WLAN key of the FRITZ!Box.
With this, the WLAN connection is established. Your WLAN device is integrated into your home network and can use the Internet connection of the FRITZ!Box.
FRITZ!Box 3370 56
Connecting WLAN Devices with the FRITZ!Box Guest Access
11.2 Connecting WLAN Devices with the FRITZ!Box Guest Access
With the FRITZ!Box you can provide your guests with an Internet connection of their own. At this guest access they can surf
the web with their own smartphones or tablets, but cannot
access the contents of your home network.
You can set up a guest access if you have connected the
FRITZ!Box directly to your DSL line. If the FRITZ!Box is connected in another way, for instance to a cable modem, you cannot
set up guest access.
1. Open the FRITZ!Box user interface.
2. Make sure that the wireless radio network (WLAN) is en-
abled in the “WLAN / Radio Network” menu.
3. Select the “WLAN / Guest Access” menu and enable
guest access.
4. Assign a name for the guest wireless network (SSID) and
enter a WLAN key at least 20 characters long under “Security”.
This concludes the setup of your guest access. Now guests
can register their WLAN devices with the FRITZ!Box.
1. Your guest starts the WLAN software of his WLAN device,
searches for your guest wireless network and enters the
WLAN key you specified for authorization.
2. The WLAN connection will be established.
Your guest’s WLAN device can use the Internet connection of
the FRITZ!Box, but has no access to your home network. For
more information, see the Online Help.
FRITZ!Box 3370 57
Switching the WLAN Radio Network On and Off by Schedule
11.3 Switching the WLAN Radio Network On and Off by Schedule
You can switch the WLAN radio network of the FRITZ!Box automatically according to a schedule. This function is called
“night service” and reduces the power consumption of the
FRITZ!Box by completely turning off the WLAN module. The
FRITZ!Box Night Service also affects any other FRITZ! products
connected in the network (FRITZ!WLAN Repeater, for instance)
by switching the WLAN transmission of these devices on and
off as well.
1. Open the FRITZ!Box user interface.
2. Open the “System / Night Service” menu.
3. Enable the schedule for the WLAN radio network.
With the options “Switch WLAN off daily” and “Switch
WLAN off according to schedule” you define the intervals of the schedule. You can also select the option “The
radio network cannot be switched off until no more
WLAN devices are active”.
For more information on these settings, see the Online Help.
Switching WLAN On and Off Manually
You can switch the wireless radio network of the FRITZ!Box on
and off at any time, even when the device is hibernating.
• Press the WLAN button on the FRITZ!Box briefly
11.4 Enlarging the WLAN Radio Network
The range of a WLAN radio network is not specified. It depends on
• the WLAN devices you are using for your WLAN connec-
tions
• interference in the vicinity of your WLAN radio network
• the structural conditions where you operate the WLAN
radio network
• the number of WLAN devices in the vicinity of your
FRITZ!Box that work in the same frequency range
FRITZ!Box 3370 58
Enlarging the WLAN Radio Network
You can extend the range of your WLAN radio network with a
WLAN repeater.
Or you can set up a second WLAN router, for instance a second FRITZ!Box as a WDS repeater.
Expanding a WLAN Radio Network with a WLAN
Repeater
You can expanding your WLAN radio network with a WLAN Repeater. In combination with the FRITZ!Box the AVM
FRITZ!WLAN Repeater are especially suitable. All models of
the FRITZ!WLAN Repeater series can be integrated into your
WLAN radio network and your home network by WPS Quick
Connection. Find out more in the Internet at:
www.avm.de/en/Produkte/FRITZ_WLAN/FRITZ_WLAN_
Repeater_N_G
Expanding a WLAN Radio Network with a WDS Repeater
You can expand the WLAN radio network of your FRITZ!Box
with what is called a WDS repeater. A WDS repeater can be a
FRITZ!Box or any WLAN router you already have that can be
configured as a WDS repeater to expand your WLAN radio network.
See the documentation of your device to find out whether
your existing WLAN router supports the WDS function and
how to configure it as a WDS repeater. Your FRITZ!Box or another FRITZ!Box model can be configured as a WDS repeater
by working through the following steps:
1. Open the FRITZ!Box user interface.
2. Select “View: Advanced”.
3. Select the “WLAN / WDS” menu and follow the instruc-
tions displayed on the screen.
See the Online Help of the FRITZ!Box for more information.
FRITZ!Box 3370 59
WLAN—Getting Technical
The wireless LAN connection between your FRITZ!Box and a
FRITZ!Box in WDS operation can be encrypted by WPA2. The
wireless LAN connection between your FRITZ!Box and another wireless LAN router is only possible with less secure WEP
encryption.
11.5 WLAN—Getting Technical
A wireless LAN radio network is based on standards defined
by the Institute of Electrical and Electronic Engineers (IEEE).
These standards describe, for instance, the transmission
speeds, encryption methods and frequencies used in a wireless LAN network.
WLAN Standards
The Institute of Electrical and Electronic Engineers (IEEE) defined the WLAN standards IEEE 802.11a, IEEE 802.11b, IEEE
802.11g, IEEE 802.11n and IEEE 802.11i for WLAN radio networks.
Standards for the Throughput Rate
The throughputs listed differentiate between gross and net
transmission rates. The net speed describes the transmission
rate of the user data.
The FRITZ!Box supports your choice of the standards
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g and IEEE 802.11n.
WLAN devices based on one or more of the standards listed
can be used for WLAN connections with the FRITZ!Box.
Standard Frequency Band Gross Data Throughput up toNet Data Throughput up to
802.11b 2.4 GHz 11 Mbit/s 5 Mbit/s
802.11g 2.4 GHz 54 Mbit/s 25 Mbit/s
802.11a 5 GHz 54 Mbit/s 25 Mbit/s
802.11n 2.4 / 5 GHz 450 Mbit/s 200 Mbit/s
The standards are intended for different frequency bands.
FRITZ!Box 3370 60
WLAN—Getting Technical
IEEE 802.11a
Because this standard works exclusively in the seldom used
5-GHz range, it offers the opportunity to transmit data relatively free of interference from external influences. WLAN devices that support 802.11a are much less common than devices that work in accordance with the 802.11b/g standard.
IEEE 802.11b
With a maximum throughput rate of 11 Mbit/s, this is the oldest WLAN standard. Older WLAN devices of the first generation can communicate with the FRITZ!Box using 802.11b.
However, if the WLAN device supports newer standards such
as 802.11g, the latest standard should be used.
IEEE 802.11g
This is currently the most common WLAN standard. It communicates with a maximum of 54 Mbit/s gross in the 2.4-GHz
frequency range (ISM) and guarantees broad compatibility
with many WLAN devices.
However, due to heavy use of the 2.4-GHz range, interference
is more common than in the less-used 5-GHz range.
IEEE 802.11n
This standard allows for high throughput rates and ranges.
The FRITZ!Box supports 802.11n in the 2.4-GHz frequency
band, or, if desired, also in the 5-GHz frequency band. Modulation processes and antenna techniques like MIMO (Multiple
Input, Multiple Output) use whichever frequency band is
available more effectively than the older standards.
The use of the 802.11n standard—and thus the availability
of higher throughput rates—is possible only if the WLAN connection is secured using the WPA2 security mechanism (AESCCMP).
Thanks to compatibility with the 802.11g standard, you can
also continue to use older WLAN devices.
FRITZ!Box 3370 61
WLAN—Getting Technical
Setting the Right Standard in the FRITZ!Box
The throughput rate that can be achieved in your WLAN radio
network depends on the WLAN standards used by the integrated WLAN devices. These WLAN standards must also be
set in the FRITZ!Box. Proceed as follows to check which WLAN
standards are set and change them if needed:
1. Open the FRITZ!Box user interface.
2. Enable the advanced view.
3. Open the “WLAN / Radio Channel” menu and select “Ad-
Note the following for the configuration of this setting:
• In order to communicate with each other, the FRITZ!Box
• The standard you configure in the FRITZ!Box must be
just radio channel settings” to make the desired changes.
and all WLAN devices must work in the same frequency
band.
compatible with the standards of all WLAN devices used
in the WLAN.
Make a note of which standards the WLAN devices in your
network are compatible with and then adjust the FRITZ!Box
settings according to the following information:
• Your radio network integrates only WLAN devices that
are compatible with one or both of the following standards:
802.11n
802.11g
Set the following mode in the FRITZ!Box:
Mode: 802.11n+g
The 2.4-GHz frequency band will be used.
FRITZ!Box 3370 62
WLAN—Getting Technical
• Your radio network integrates only WLAN devices that
• Your radio network integrates only WLAN devices that
are compatible with one or both of the following standards:
802.11b
802.11g
Set the following mode in the FRITZ!Box:
Mode: 802.11b+g
The 2.4-GHz frequency band will be used.
are compatible with one or several of the following standards:
802.11n
802.11g
802.11b
Set the following mode in the FRITZ!Box:
Mode: 802.11n+g+b
The 2.4-GHz frequency band will be used.
• Your radio network integrates only WLAN devices that
are compatible with one or both of the following standards:
802.11n
802.11a
Set the following mode in the FRITZ!Box:
Mode: 802.11n+a
The 5-GHz frequency band will be used.
FRITZ!Box 3370 63
WLAN—Getting Technical
The Standard for Security
IEEE 802.11i
The WPA2 security mechanism is defined in the IEEE 802.11i
standard. WPA2 is an extension of the familiar security mechanism WPA (Wi-Fi Protected Access).
The main feature of the extension of WPA to WPA2 is the AESCCMP encryption process.
Mechanism Encryption
WPA TKIP (Temporary Key Integrity Protocol)
WPA2 TKIP
FRITZ!Box supports the AES encryption procedure as part of
the WPA2 mechanism, and the TKIP encryption procedure as
part of the WPA mechanism. This means that the FRITZ!Box
can be used in combination with any WLAN devices that also
support WPA2 with AES or WPA with TKIP.
AES-CCMP
based on the extremely secure AES (Advanced
Encryption Standard) procedure. CCMP (Counter Mode with CBC-MAC Protocol) defines how
the AES procedure is applied to WLAN packets.
Frequency Ranges
WLAN uses the frequency ranges at 2.4 GHz and 5 GHz as its
transmission range.
With the FRITZ!Box you can establish WLAN connections in either the 2.4-GHz or the 5-GHz frequency range.
2.4-GHz Frequency Band
In the 2.4-GHz frequency band WLAN works in the same range
as Bluetooth, microwave devices and various other devices
like radio-controlled toys, garage-door openers and video
bridges. This means that interference may occur within
WLANs operated in the vicinity of such devices. Generally this
has adverse effects on the transmission rate, including aborted connections.
FRITZ!Box 3370 64
WLAN—Getting Technical
In the 2.4-GHz frequency range the European regulation authorities have designated 13 channels for WLAN.
A channel can have a bandwidth of 20 MHz (throughput of up
to 216 Mbit/s) or 40 MHz (throughput of up to 450 Mbit/s).
Channels located directly next to each other in the 2.4-GHz
band may overlap and result in mutual interference. For instance, if several WLANs are operated close to each other in
the 2.4-GHz frequency range with a bandwidth of 20 MHz, a
distance of at least five channels should be left empty between each two channels used. This means that if channel 1
is selected for one WLAN, the channels 6 through 13 can be
selected for a second WLAN. This maintains the minimum distance between channels.
Should interference in a WLAN persist, the first step should
be to select a different channel.
WLAN Autochannel
With the WLAN autochannel function, the FRITZ!Box automatically searches for the channel subject to the least interference. This process takes into consideration interference from
radio networks in the vicinity (WLAN base stations) and potential sources of interference (for instance video bridges,
baby monitors, microwave ovens). Should problems with interference persist despite this function, try to identify the
source of interference and switch it off manually.
Additional tips on interference in the WLAN radio network are
presented in the section Ruling Out Interference from Other
Wireless Networks from page 101.
5-GHz Frequency Band
The FRITZ!Box can operate in the 5-GHz frequency band as an
alternative. This frequency range is used much less often
than the most common 2.4-GHz frequency range.
In the 5-GHz frequency band the FRITZ!Box supports automatic channel switching by DFS (Dynamic Frequency Selection).
DFS ensures that the channels from 52 to 140 are kept free
for higher-priority users, like weather radar systems. If you
are operating your FRITZ!Box in one of these channels, it
FRITZ!Box 3370 65
WLAN—Getting Technical
monitors the selected channel periodically for higher-priority
users, and, if necessary, switches to a different channel. Note
that the FRITZ!Box waits up to ten minutes, as legally required, before occupying a free channel. During this period
you cannot register any WLAN devices. The WLAN connection
is then established automatically. For more information, see
the section Avoiding WLAN Channels with DFS on page 101.
A prerequisite for use of the 5-GHz frequency band is that
WLAN devices used in the network support this frequency
range in accordance with the IEEE 802.11a or IEEE 8002.11n
standard.
2.4 GHz or 5 GHz
The FRITZ!Box works in the wireless network either in the
2.4-GHz range or in the 5-GHz range, but not parallel in both
frequency ranges at the same time.
Bandwidth
In both frequency ranges you can select between channel
bandwidths of 20 MHz or 40 MHz (exception: channel 140 in
the 5-GHz frequency band). The FRITZ!Box initially attempts
to select a channel with 40 MHz bandwidth. If this is not possible due to interference or channels already being used by
other WLANs in the vicinity, the FRITZ!Box automatically
switches temporarily to a bandwidth of 20 MHz. Greater
bandwidth provides for higher data throughput:
Bandwidth (MHz) Maximum Data Throughput (Mbit/s)
20 216
40 450
Increasing bandwidths also increases the probability of interference by wireless networks in the vicinity. Large bandwidths
reduce the frequency range available to other wireless networks in the vicinity.
FRITZ!Box 3370 66
WLAN—Getting Technical
Allocation of the WLAN Channels in the 2.4-GHz Range
Channel Frequency (GHz) Channel Frequency (GHz)
12.412 82.447
22.417 92.452
3 2.422 10 2.457
4 2.427 11 2.462
5 2.432 12 2.467
6 2.437 13 2.472
72.442
Allocation of the WLAN Channels in the 5-GHz Range
Channel Frequency (GHz) Channel Frequency (GHz)
36 5.18 108 5.54
40 5.20 112 5.56
44 5.22 116 5.58
48 5.24 120 5.60
52 5.26 124 5.62
56 5.28 128 5.64
60 5.30 132 5.66
64 5.32 136 5.68
100 5.50 140 5.70 (20 MHz band-
104 5.52
width only)
FRITZ!Box 3370 67
The FRITZ!Box Home Network
12 The FRITZ!Box Home Network
The FRITZ!Box connects your network devices, USB devices and storage
devices in what we call a FRITZ!Box home network. In the home network
the FRITZ!Box makes data like images, music and videos available to all
connected users and allows them to share a printer.
Network Devices
• Network devices include, for instance, computers, game
consoles and smartphones that are connected with the
FRITZ!Box via a network cable connection or via WLAN.
• All network devices can access each other’s folders re-
leased for sharing.
• The USB devices connected to the FRITZ!Box can be ac-
cessed by all network devices at the same time, and
available memory can be shared.
If you would like to learn more about the possibilities of network devices in your FRITZ!Box home network, continue reading in the chapter Network Devices in the FRITZ!Box Home
Network from page 70.
USB Devices
USB devices include, for instance, printers, multi-function devices, and flash memory on the USB ports of the FRITZ!Box.
Connected USB devices can be used jointly and simultaneously by all network devices of your FRITZ!Box home network.
For more information about how to best configure USB devices in your home network and how to use them securely, see
the chapter USB Devices in the FRITZ!Box Home Network from
page 81.
Storage (NAS)
The memory of the FRITZ!Box includes storage media like
flash memory or hard drives connected to the USB ports of
the FRITZ!Box.
What is more, the FRITZ!Box is equipped with integrated internal memory and can manage online storage configured on the
server of your telecommunications provider.
FRITZ!Box 3370 68
The FRITZ!Box Home Network
For more information about how to access the memory in your
FRITZ!Box home network safely and conveniently, see the
chapter Accessing USB Memory from page 83.
FRITZ!Box Name
You can assign an individual name for your FRITZ!Box in the
FRITZ!Box user interface. The name is set up under “Home
Network / FRITZ!Box Name” and appears in the following areas of your home network display:
• name of the WLAN radio network (SSID)
• name of the guest radio network (SSID)
• name of the working group released for home network
sharing
• name of the media server
• name of the DECT base station
• push service sender name
FRITZ!Box 3370 69
Network Devices in the FRITZ!Box Home Network
13 Network Devices in the FRITZ!Box Home Network
All network devices connected with the FRITZ!Box comprise a network.
Network devices include, for instance, computers, game consoles and
smartphones. The devices can be connected with the FRITZ!Box by cable or wirelessly. This chapter describes the network settings in the
FRITZ!Box and how you can change them. You will also learn how you
can change the IP settings for the computer in the most common operating systems.
13.1 Network Settings in the FRITZ!Box
The FRITZ!Box is delivered with preconfigured network settings. According to these settings, all network devices connected with the FRITZ!Box are located in a single network.
The network settings can be changed and adapted to your
conditions and needs. But you should do so only if you are
well versed in networking technology.
The Glossary (page 122) explains concepts and terminology
having to do with IP networks.
Network Overview
The FRITZ!Box user interface shows an overview with all of the
devices and users connected with the FRITZ!Box.
The network overview “Devices and Users” is found in the
menu “Home Network / Network”.
• For each user and each network device, you find an entry
in the network overview. The columns have the following
meanings:
• If you use FRITZ!Powerline devices in your network, then
the FRITZ!Powerline devices are entered in the network
overview along with the network devices connected to
the FRITZ!Powerline devices.
• The network overview is divided into the areas “Active
Connections”, “Guest Network” and “Idle Connections”.
FRITZ!Box 3370 70
Network Settings in the FRITZ!Box
For each user and each network device, you find an entry in
the network overview. The columns have the following meanings:
Icon A green LED before the device name indicates that
Name This column displays the name under which the
IP Address For network devices, also displayed is the IP ad-
Connection The WLAN icon is displayed for wireless connec-
Properties This column indicates whether port forwarding or
a device is actively connected with the FRITZ!Box,
but not using the Internet connection at this time.
A green-blue globe indicates that the device is currently using the Internet connection.
user or the network device is known to the
FRITZ!Box. The names of network devices can be
changed by clicking the button to edit the entry.
dress with which the device is integrated into the
FRITZ!Box network.
tions.
child protection is enabled for the respective user
or network device.
Button for editing the entry
The button opens the entry in editing mode. This
view displays information about the network device, for instance on child protection or port forwarding settings. The name of the device in the
FRITZ!Box can be changed here.
Button for deleting the entry
Users or network devices that do not have an active connection to the FRITZ!Box can be deleted
from the network overview by clicking this button.
Accessing Network Devices by Mouse Click
Network devices that can be reached over the http protocol
can be accessed within the home network by the click of a
mouse. Clicking the device name opens the user interface of
the http application.
FRITZ!Box 3370 71
Network Settings in the FRITZ!Box
Always Assigning the Same IP Address
The editing mode for network devices includes the setting
“Always assign this network device the same IP address”.
When this setting is enabled for a network device, the DHCP
server of the FRITZ!Box will always assign the same IP address
to this device each time the connection is established.
Starting the Computer—Wake on LAN
The Wake on LAN function of computers can be enabled in the
editing mode for network devices. The computers must support wake on LAN and be connected with the FRITZ!Box with a
network cable. The wake on LAN function is also available
when the devices are connected via FRITZ!Powerline devices.
Wake on LAN is a function that allows a computer in the local
network to be started when it is accessed from the Internet.
For instance, you can access a computer using remote maintenance software, without wasting electricity by keeping the
computer switched on permanently. The computer must be in
standby operation.
The FRITZ!Box supports Wake on LAN both for IPv4 and for
IPv6 connections.
• The “Start Computer” Button
You can start the computer each time it is accessed over
the Internet by clicking the “Start Computer” button.
• Starting Automatically
To do this, enable the setting “Start this computer automatically as soon as it is accessed from the Internet”.
When the computer is accessed from the Internet, it is
started automatically.
FRITZ!Box 3370 72
Network Settings in the FRITZ!Box
IPv4 Settings in the FRITZ!Box
The IPv4 settings of the FRITZ!Box are preset upon delivery
with the following values:
Factory Settings
IPv4 address 192.168.178.1
Subnet mask 255.255.255.0
DHCP server enabled
The IP address and the corresponding subnet mask yield the
following values:
Network address of the subnet 192.168.178.0
Entire IPv4 address range for the
computers
The following IPv4 addresses cannot be assigned because
they are reserved for certain purposes:
192.168.178.2 192168178254
This IP address is used by the
FRITZ!Box itself
This IP address is the broadcast address used to send messages into the
network
IP Address in Case of Emergency
The FRITZ!Box has a fixed IP address that cannot be changed.
The FRITZ!Box always can be reached at this IP address.
Fixed IP address 169.254.1.1
For instructions about how to handle fixed IP addresses, see
the section Opening the User Interface Using the Fixed IP
Address from page 97.
FRITZ!Box 3370 73
192.168.178.1
192168178255
Network Settings in the FRITZ!Box
IPv4 Address in the FRITZ!Box
Upon delivery the FRITZ!Box is assigned the following IPv4
address:
192.168.178.1
If you would like to change the IPv4 address, please read
through the following sections.
When Does It Make Sense to Change the IPv4 Address?
You should change the IPv4 address of the FRITZ!Box if the
following apply to your network:
• You have an existing local IPv4 network, one subnet with
several computers.
• Fixed IPv4 addresses are registered in the network set-
tings of the computer, and you do not want to or are not
permitted to change these addresses.
• You want to connect the FRITZ!Box to the local IPv4 net-
work in order to make the FRITZ!Box features available to
all of the computers in the IPv4 network.
Reserved IP Addresses
The entire IP network 192.168.180.0 in the FRITZ!Box is reserved for internal purposes.
IPv4 addresses from this network may not be assigned to the
FRITZ!Box.
DHCP Server for IPv4
The FRITZ!Box is equipped with its own DHCP server for the
IPv4 network. The DHCP server is enabled by default in the
factory settings. The following range of IP addresses is reserved for the DHCP server in the factory settings:
192.168.178.20 - 192.168.178.200
This IP address can be changed as needed.
Every time the operating system on a computer connected
with FRITZ!Box is started, the DHCP server assigns it an IPv4
address from the IP address range of the DHCP server.
FRITZ!Box 3370 74
Network Settings in the FRITZ!Box
Only one DHCP server may be active within any network.
Assigning the IP addresses via the DHCP server ensures that
all of the computers connected with the FRITZ!Box are located
in the same IP network.
The computers can receive their IPv4 addresses from the
DHCP server only if the setting “Obtain an IPv4 address automatically” is enabled in the their IP settings. For more information, see the section Obtaining an IP Address Automati-
cally from page 78.
Fixed IPv4 Addresses When the DHCP Server Is Enabled
If you would like to configure fixed IPv4 addresses on individual computers connected with the FRITZ!Box despite the enabled DHCP server, please note the following:
• The IPv4 addresses must be from the IPv4 network of the
FRITZ!Box.
• The IPv4 addresses may not come from the address
range of the DHCP server.
• Each IPv4 address can be assigned only once.
Disabling the DHCP Server
You can disable the DHCP server.
To make sure that all computers remain in the same IP network when the DHCP server is disabled, you must enter the
IPv4 addresses manually in the computers’ network settings.
First disable the option “Obtain an IP address automatically”
and then enter the IP address manually in the appropriate
field.
In the case of the preset IPv4 address of the FRITZ!Box, the
following IPv4 addresses are available for assignment to the
computers:
192.168.178.2 - 192.168.178.254
FRITZ!Box 3370 75
Network Settings in the FRITZ!Box
Here too: each IPv4 address can be assigned only once.
Changing Network Settings
1. Enable the advanced view in the user interface.
2. Select the “Home Network / Network” menu.
3. Select the “Network Settings” page.
4. Click the “IPv4 Addresses” or “IPv6 Addresses” button,
depending on the address range you would like to
change.
Please note that changes to the network settings in the
FRITZ!Box may make it necessary to adjust the network settings of your computers so that you can continue to access
the FRITZ!Box user interface.
IPv6 Settings in the FRITZ!Box
The following settings options for IPv6 are found in the advanced view in the “Home Network / Network” menu on the
“Network Settings” page.
Additional IPv6 Routers in the Home Network
• IPv6 prefixes from other IPv6 routers
You can allow the network devices connected to the
FRITZ!Box to receive IPv6 prefixes announced by other
IPv6 routers in the local network.
• Also announce DNSv6 server via router advertisement
With this setting you specify that the FRITZ!Box announces the local DNSv6 server in the local network via router
advertisement. Alternatively, the network devices can
identify the local DNSv6 server via DHCPv6.
IPv6 Settings
Click the “IPv6 Addresses” button to configure settings for
the IPv6 addresses in the local network.
FRITZ!Box 3370 76
Network Settings in the FRITZ!Box
Unique Local Adresses
The communication within the local network takes place via
the Unique Local Addresses (ULA). If no IPv6 Internet connection is established, the network devices do not have a ULA
and communication between them is restricted. For this case
you can set the FRITZ!Box such that the network devices receive the ULA from the FRITZ!Box.
DHCPv6 Servers in the Home Network
The FRITZ!Box is equipped with its own DHCPv6 server. The
DHCPv6 server of the FRITZ!Box is switched on by default.
The DHCPv6 server assigns the network devices their IPv6
settings. These settings are used instead of the data in the
router advertisement messages. The DNS server, IPv6 prefixes or IPv6 addresses can all be assigned by DHCPv6. Define
which IPv6 settings should be assigned by the DHCPv6 server.
UPnP Settings
The Universal Plug-and-Play (UPnP) service included in your
FRITZ!Box provides status information about the FRITZ!Box to
all connected computers. Programs with UPnP support on
these computers can receive this information and use them
to display the status of the FRITZ!Box (e.g., connection status,
data transmission). UPnP service thus allows you to monitor
your FRITZ!Box from a connected computer.
Here is how to change the UPnP settings:
1. Open the FRITZ!Box user interface (see page 26).
2. Enable the advanced view.
3. Configure the UPnP settings in the “Home Network / Net-
work” menu on the “Programs” page.
Guest Access over the LAN 4
The network port “LAN 4” can be configured as a guest access. Guests can then connect their laptops to the guest access with a network cable to access the Internet. The guest
device does not have access to the home network.
FRITZ!Box 3370 77
Obtaining an IP Address Automatically
Set up the guest access as follows:
1. Open the FRITZ!Box user interface.
2. In the “Home Network / Network” menu, select the “Net-
work Settings” page.
3. Enable the guest access.
13.2 Obtaining an IP Address Automatically
The FRITZ!Box has its own DHCP server, which assigns IP addresses to the connected computers. The connected computers must be configured such that they can receive their IP addresses automatically. The steps for checking and adjusting
this option differ among the operating systems. See the relevant section for your operating system.
If FRITZ!Box is operated in a network, no other DHCP server
may be activated in this network.
Obtaining an IP Address Automatically in Windows
1. Open the network connections:
Windows XP: Select “Start / Run”, enter “ncpa.cpl” and
then click “OK”.
Windows 7 and Windows Vista: Click “Start”, enter
“ncpa.cpl” in the search line of the start menu, and
press “Enter”.

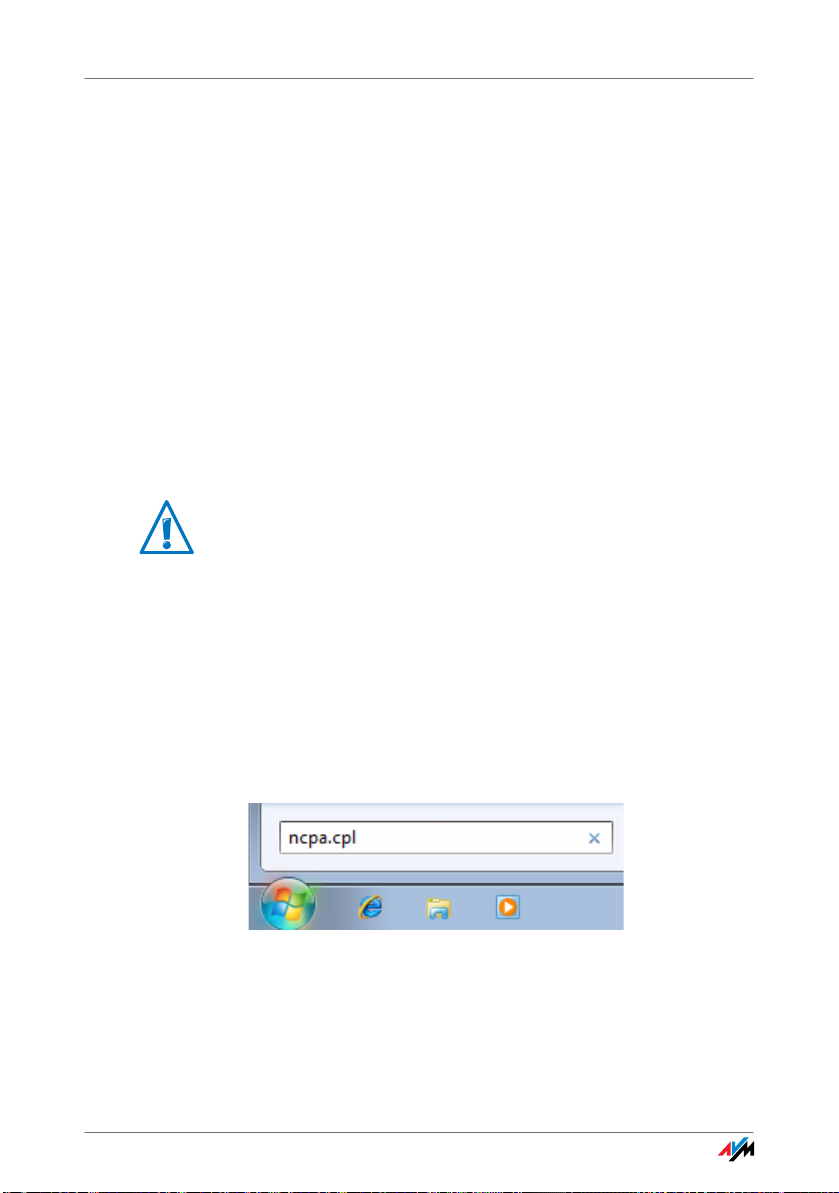

Entering “ncpa.cpl” in Windows 7
2. Click the network connection between the computer and
the FRITZ!Box with the right mouse button and select
“Properties”.
FRITZ!Box 3370 78
Obtaining an IP Address Automatically
3. Windows XP: Under “This connection uses the following
items”, select “Internet Protocol (TCP/IP)”.
Windows 7 and Windows Vista: Under “This connection
uses the following items”, select “Internet Protocol Version 4 (TCP/IPv4)”.
4. Click the “Properties” button.

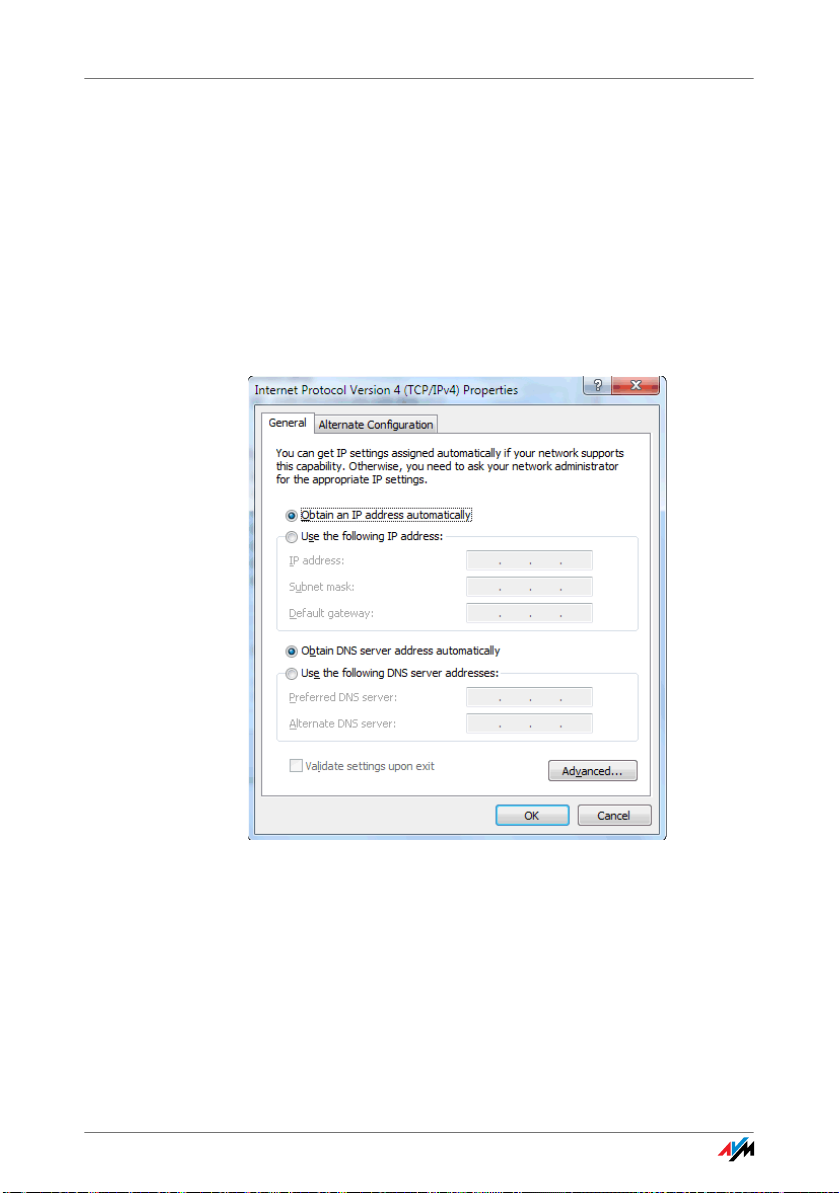

5. On the “General” tab, enable the options “Obtain an IP
address automatically” and “Obtain DNS server address
automatically”.
6. Click “OK” to save the settings.
7. Only in Windows 7 and Windows Vista: Enable the op-
tions “Obtain an IPv6 address automatically” and “Obtain DNS server address automatically” for the Internet
Protocol Version 6 (TCP/IPv6) as well.
The computer now receives an IP address from the FRITZ!Box.
FRITZ!Box 3370 79
Obtaining an IP Address Automatically
Obtaining an IP Address Automatically in Mac OS X
1. Select the “System Preferences...” in the Apple menu.
2. In the “System Preferences” window, click the “Net-
work” icon.
3. In the “Network” window, select the “Built-in Ethernet”
entry from the list. Click the “Advanced...” button.
4. Click the “Advanced...” button. The “TCP/IP” settings
page opens. Select the “Using DHCP” option from the
“Configure IPv4:” drop-down list.
5. Click “OK”.
The computer now receives an IP address from the FRITZ!Box.
Obtaining an IP Address Automatically in Linux
For comprehensive information and tips on the topic of network settings in Linux, see, for example:
www.tldp.org/HOWTO/NET3-4-HOWTO-5.html
FRITZ!Box 3370 80
USB Devices in the FRITZ!Box Home Network
14 USB Devices in the FRITZ!Box Home Network
The FRITZ!Box has two USB ports to which you can connect various USB
devices. All network devices in the FRITZ!Box home network can use
these USB devices jointly and simultaneously.
This chapter describes how to share a printer in the network, which USB
devices can be used in your FRITZ!Box home network, and how to use
these devices safely.
14.1 Power Supply for USB Devices
You can connect USB devices with the following properties to
the FRITZ!Box:
• Some USB devices require more than one USB port for
operation, for instance, hard drives with a USB Y cable.
Connect this type of USB devices to the FRITZ!Box using
a USB hub with its own power supply.
• The total current consumption of connected USB devices
without their own power supply may not exceed 500 mA.
Check the rating plates of the connected USB devices.
USB devices that exceed the total current consumption
of 500 mA can be connected to the FRITZ!Box using a
USB hub with its own power supply.
14.2 USB Devices on the FRITZ!Box
These USB devices can be connected to the FRITZ!Box:
• You can connect up to four USB storage media like hard
disks, USB flash drives or card readers.
• USB storage media must use the file systems EXT2, FAT,
FAT32 or NTFS. On storage media with the FAT and FAT32
file systems you can use files up to a size of 4 GB. In the
EXT2 and NTFS file systems there is no limit to the size of
files that can be used.
• You can connect one standard USB printer or one all-in-
one device with scanner and fax function. The complete
range of functions available in a all-in-one printers
FRITZ!Box 3370 81
Using USB Devices Safely
device is guaranteed only with the USB remote connection of the FRITZ!Box (see also: Sharing a USB Printer on
page 84).
• You can connect a USB hub to the FRITZ!Box and use up
to four USB devices at this hub.
You can use USB hubs with or without a separate power
supply. We recommend deploying a USB hub with its
own power supply if the USB devices to be connected exceed a total current consumption of 500 mA (see also:
Power Supply for USB Devices on page 81).
• You can connect a USB stick from the FRITZ!WLAN USB
Stick series by AVM to conveniently establish secure
WLAN connections using AVM Stick & Surf (see:
Establishing a WLAN Connection with AVM Stick & Surf
on page 20).
14.3 Using USB Devices Safely
Follow the instructions below about how to use USB devices
on your FRITZ!Box.
• The FRITZ!Box can not defend the USB memory from ex-
ternal influences. This means that voltage spikes or
drops, like those that occur during electrical storms, may
lead to data losses on connected USB storage media. We
recommend making regular backups of the USB memory
contents to avoid any losses.
• Whenever you want to remove USB devices from the
FRITZ!Box, go to the “Home Network / USB Devices” area
in the FRITZ!Box user interface to remove them safely
and avoid any loss of data.
14.4 Configuring Password Protection and Access Rights
To protect the data on your USB memory from unauthorized
access, you can set up a password and access rights. Both
the password protection and the access rights are valid on all
memory available in the FRITZ!Box home network. You can
not assign special passwords or access rights for individual
storage media.
FRITZ!Box 3370 82
Accessing USB Memory
1. Start a web browser.
2. Enter “fritz.box” in the address line.
3. Go to the “Home Network / Storage (NAS)” and select
the “Security” tab.
4. Configure the access rights and password protection.
Note that you cannot set up password protection and access
rights if the USB remote connection is active.
14.5 Accessing USB Memory
The participants in the home network have various possibilities for accessing the various storage media of the FRITZ!Box.
• Home network members can access the contents of con-
nected USB memory and all other memory of the
FRITZ!Box especially conveniently with FRITZ!NAS. For
this FRITZ!NAS offers a graphic interface and allows data
exchange by drag & drop.
• Participants in the home network can use FTP software
like FireFTP to exchange files among the FRITZ!Box storage media and workplaces.
Alternatively, you can enter ftp://fritz.box
line of your Internet browser to access the storage media
of the FRITZ!Box.
If you would like to use FTP software, see the documentation of the software as well as the instructions in the
Online Help of the FRITZ!Box user interface.
• For access to media data like music, images and videos
available on the memory or on storage media of the
FRITZ!Box you can enable the FRITZ!Box media server.
FRITZ!Box 3370 83
in the address
Sharing a USB Printer
Suitable playback devices like TV sets, web radios,
smartphones and the Windows Media Player can then
call up the data for streaming from the media server.
Playback devices to be used in connection with the media server must support the UPnP AV standard. The term
“DLNA” is often used to designate this support.
Enable the “media server” function in the FRITZ!Box user
interface under “Home Network / Storage (NAS) / Options Enabled”.
14.6 Sharing a USB Printer
You can connect a USB printer to the USB port of the
FRITZ!Box to make it available to all participants in your home
network. You can either release the printer for sharing as a
network printer or use the FRITZ!Box USB remote connection
software to connect it with a computer. Which option is preferable depends on how you intend to use the printer.
Using a USB Printer as a Network Printer
Configure the USB printer as a network printer on the
FRITZ!Box if
• the participants in the home network are to be able to
use the printer jointly and simultaneously.
• the printer is to be used by computers that use an oper-
ating system other than Windows (e.g. Mac OS X or
Linux).
For information about how to configure a USB printer as a network printer, see the section Setting Up a USB Printer as a
Network Printer on page 85.
Using a USB Printer with FRITZ!Box USB Remote Connection
Configure the USB printer on the FRITZ!Box with the FRITZ!Box
USB remote connection if
• the USB printer is an all-in-one device (fax/printer/scan-
ner) and the entire range of functions is to be used.
• the USB printer is equipped with convenience features
like ink level display and you would like to use these.
FRITZ!Box 3370 84
Sharing a USB Printer
• the USB printer uses bidirectional data exchange. In oth-
For information about how to configure a USB printer with the
USB remote connection, continue reading from the section
Configuring a USB Printer with FRITZ!Box USB Remote Connection on page 88.
Setting Up a USB Printer as a Network Printer
Work through the following steps to connect a USB printer to
the FRITZ!Box and configure it for use as a network printer.
Preparing Configuration
1. Open the FRITZ!Box user interface.
2. Enable the advanced view.
3. Select the “Home Network / USB Devices / USB Remote
er words: Not only does the computer send data to the
printer, the printer also sends status messages to the
computer. This communication in both directions is typical of the “Windows printers” or “GDI printers” that work
only with special Windows device drivers.
Connection” menu.
4. Make sure that the option “printers (including all-in-one
printers)” is disabled.
5. Click “Apply”.
6. Connect the USB printer to the FRITZ!Box.
This concludes the preparations. Continue reading in the section for your operating system.
Setting Up a USB Printer in Windows 7, Vista and XP
1. Click “Start / Control Panel” and select the printer cate-
gory of your operating system:
– “Devices and Printers” (Windows 7)
– “Printers” (Windows Vista
– “Printers and Faxes” (Windows XP)
2. Click the printer icon with the right mouse button and se-
lect “Properties” or “Printer properties”.
FRITZ!Box 3370 85
Sharing a USB Printer
3. Switch to the “Ports” tab.
4. Click “Add”.
5. Double-click the “Standard TCP/IP Port” entry and click
6. Enter “fritz.box” in the “Printer Name or IP Address”
1. Enter any name you wish in the “Port Name” field and
2. Select the “Custom” option and click “Settings...”.
3. Enable the “Raw” option.
If the printer is not displayed, you must first install the
printer drivers for this device. Consult the documentation of your printer for instructions.
“New Port”, then “Next”.
field.
If the FRITZ!Box is configured as a WDS repeater or as an
IP client, enter here the IP address at which the
FRITZ!Box can be reached within the network.
click “Next”.
4. Enter “9100” in the “Port Number” field and click “OK”.
5. Click “Next” and confirm with “Finish” and “Close”.
6. In the “[Printer name] properties” window, switch to the
“Ports” tab.
7. Disable the “Enable bidirectional support” option and
click “Apply”.
The USB printer has been configured and can be used as a
network printer.
Setting Up a USB Printer in Mac OS 10.5
1. In the dock, click “System preferences”.
2. Click “Print & Fax”.
3. Click the “+” sign.
4. In the “Add Printer” window, click “IP”.
FRITZ!Box 3370 86
Sharing a USB Printer
5. In the “Protocol:” drop-down list, select the entry “HP
6. Enter “fritz.box” in the “Address:” input field.
1. In the “Print Using:” drop-down list, select the printer
2. Click “Add”.
The USB printer has been configured and can be used as a
network printer.
Setting Up a USB Printer in Other Operating Systems
The names of entries or menus in other operating systems
not described above may be slightly different than the terms
we use here.
Jetdirect – Socket”.
If the FRITZ!Box is configured as a WDS repeater or as an
IP client, enter here the IP address at which the
FRITZ!Box can be reached within the network.
that is connected to the USB port of your FRITZ!Box.
If the printer is not displayed, you must first install the
printer drivers for this device. Consult the documentation of your printer for instructions.
• As the port type, select “Raw TCP”.
• Enter “9100” as the port.
• As the printer name, enter “fritz.box”.
If the FRITZ!Box is configured as a WDS repeater or as an IP
client, enter here the IP address at which the FRITZ!Box can
be reached within the network.
FRITZ!Box 3370 87
Sharing a USB Printer
Configuring a USB Printer with FRITZ!Box USB Remote
Connection
If you are using an all-in-one device or would like to use the
convenience features of a USB printer connected to the
FRITZ!Box, we recommend installing the FRITZ!Box USB remote connection software. The FRITZ!Box USB remote connection program can be installed on computers with
Windows 7, Vista or XP (32- and 64-bit).
Installing FRITZ!Box USB Remote Connection
Install the program for FRITZ!Box USB remote connection on
all of the computers with which you want to use the connected USB device.
1. Connect the USB printer to the USB port of the
2. Open the FRITZ!Box user interface.
3. Enable the advanced view.
4. Select the “Home Network / USB Devices / USB Remote
FRITZ!Box.
Connection” menu.
5. Click the “USB remote connection software” link.
6. In the window “USB Remote Connection” click “Down-
load”.
7. Download the file “fritzbox-usb-fernanschluss.exe”.
8. Double-click the file and follow the instructions on your
screen.
The FRITZ!Box USB remote connection software is now installed on your computer. Repeat the steps in these instructions for all further Windows users who wish to use the USB
remote connection on this computer.
Enabling the FRITZ!Box USB Remote Connection
1. Open the FRITZ!Box user interface.
2. Enable the advanced view.
3. Select the “Home Network / USB Devices / USB Remote
Connection” menu.
FRITZ!Box 3370 88
Sharing a USB Printer
4. Enable the USB remote connection for printers and se-
5. Click “Apply”.
The FRITZ!Box USB remote connection is enabled.
Using a USB Printer with FRITZ!Box USB Remote Connection
1. Open the FRITZ!Box USB remote connection by clicking
2. Enter in the “My FRITZ!Box” area the FRITZ!Box pass-
3. Click “Refresh”.
4. Click the USB printer in the “Devices” area.
The USB printer is being connected to the computer.
lect the option “printers (including all-in-one printers)”.
For an all-in-one printer with a memory function, also enable the “USB storage media” option.
For an all-in-one printer with a scanner function, also enable the “others (e.g. scanner)” option.
the icon in the Windows task bar.
word.
Do not conduct any firmware updates for USB devices that
are connected with the computer via the FRITZ!Box USB remote connection.
FRITZ!Box 3370 89
Saving Energy with FRITZ!Box
15 Saving Energy with FRITZ!Box
The FRITZ!Box combines a variety of devices in one device: VDSL and
ADSL modem, WLAN router and media server. This means that you generally use much less power with the FRITZ!Box than you would with several separate devices.
What is more, the FRITZ!Box saves energy by reducing processing power
on standby and lowering the power consumption of idle functions. The
FRITZ!Box also offers various settings for energy-saving operation.
The current energy consumption of the total FRITZ!Box system is displayed on the “Overview” page. From there, click
with the mouse to view the Energy Monitor, which displays
details on the energy consumption.
15.1 Saving Energy with the WLAN Radio Network
You can reduce the power consumption of the WLAN radio
network by
• setting up night service for the WLAN radio network (see
page 58).
• turning off the WLAN radio network with the “WLAN” but-
ton whenever no more WLAN devices are registered on
the FRITZ!Box.
• adjusting the setting “Maximum transmitter power” to
the percentage level actually needed. This setting is configured in the “WLAN / Radio Channel” menu in the
FRITZ!Box user interface.
15.2 Enabling Energy-saving Mode for USB Hard Drives
In the FRITZ!Box you can enable an energy-saving function for
USB hard drives connected to the FRITZ!Box.
When the energy-saving function is enabled, connected USB
hard drives will be switched off when they are idle—as long
as the hard drives support the energy-saving function.
FRITZ!Box 3370 90
Saving Energy at the LAN Ports
Enable the energy-saving function in the “Home Network /
USB Devices” menu in the FRITZ!Box user interface. You can
also test here, wether your USB hard disk supports the energy-saving function.
15.3 Saving Energy at the LAN Ports
For the individual LAN ports of your FRITZ!Box you can configure various operation modes. The power consumption of
some modes is higher than others. Select the operation
mode that is best suited to your needs in order to minimize
the power consumption of the LAN ports.
The LAN ports can be configured in the FRITZ!Box user interface. In the “System / Energy Monitor” menu, the following
operating modes are available on the “Settings” page:
Operating Mode Functionality and Power Consumption
Always Enabled The LAN port is always enabled.
Highest power consumption.
Enable Automatically – Power Mode
Enable Automatically – Green Mode
Disabled The LAN port is disabled and consumes no
As needed, the FRITZ!Box establishes LAN
connections with a data throughput rate of
1Gbit/s.
Lower power consumption than for the “Always Enabled” setting.
Default setting of the FRITZ!Box. As needed,
the FRITZ!Box establishes LAN connections
with a data throughput rate of 100 Mbit/s.
Lower power consumption than for the “Detect Automatically - Power Mode” setting.
power.
The first LAN port cannot be disabled.
FRITZ!Box 3370 91
Help in Case of Errors
16 Help in Case of Errors
This chapter provides assistance if you are not able to open
the user interface of your FRITZ!Box or are having problems
with the DSL or WLAN connection.
16.1 Cannot Establish a DSL Connection
The FRITZ!Box automatically establishes a connection to the
DSL network as soon as it is connected with the DSL line. If
the DSL connection is not established, check which kind (annex) of DSL is set in your FRITZ!Box and attempt to resolve the
error.
Changing the Annex Setting of the FRITZ!Box
The FRITZ!Box cannot establish a connection to the DSL
network. This is signaled by the continued flashing of the
“Power” LED.
Cause
The kind of DSL (Annex A, B, J or M) set in the FRITZ!Box is not
the same as the annex used on your DSL line.
Help
1. Contact your Internet service provider to find out which
annex is used on your DSL line.
2. Connect a computer with the FRITZ!Box either wirelessly
via WLAN or using a network cable.
3. Open the FRITZ!Box user interface and enable the ad-
vanced view in the user interface.
4. Open the “Internet / DSL Information / Line Settings”
menu.
5. In the “Annex Settings” area, make sure that the annex
working on your DSL line is set. Save your settings by
clicking “Apply”.
FRITZ!Box 3370 92
The User Interface Does Not Open
After the annex setting has been changed, the FRITZ!Box restarts automatically. The connection to the DSL network has
been established as soon as the “Power” LED stops flashing
and remains lit up.
16.2 The User Interface Does Not Open
If an error message is returned when you open the FRITZ!Box
user interface, this can have various causes. Check the
causes listed below and attempt to resolve the error.
Restarting the FRITZ!Box
The user interface cannot be opened or does not react.
Cause
Inconsistencies within the FRITZ!Box.
Help
1. Restart the FRITZ!Box.
Remove the power cable from the socket.
2. Wait about five seconds before reconnecting to the pow-
er supply.
3. To make sure that the FRITZ!Box has finished restarting,
wait until the “Power” LED lights up and stops flashing
and, if you have switched on WLAN, the “WLAN” LED remains lit up as well. This ensures that the FRITZ!Box restart has been completed.
4. Try again to open the FRITZ!Box user interface by enter-
ing fritz.box
FRITZ!Box 3370 93
in the address field.
The User Interface Does Not Open
Checking the Cable Connections
The FRITZ!Box user interface is not displayed in your web
browser.
Cause
The cable connections are not secure.
Help
Make sure that all cables are plugged in securely.
Checking the Name Resolution
The user interface of the FRITZ!Box cannot be opened by
entering fritz.box.
Cause
The name resolution of the FRITZ!Box does not work.
Help
1. In the web browser, enter the following IP address in
place of fritz.box
:
192.168.178.1
2. If the user interface opens in response to this address,
set the network adapters of your computer to “Obtain
the IP address automatically” (see page 78).
Checking the IP Address
The user interface of the FRITZ!Box cannot be opened by a
fritz.box
Cause
Incorrect IP address on the connected computer.
Help
Set the computer’s network adapter to DHCP so that the network address can obtain its IP address from the DHCP server
of the FRITZ!Box. See the section Obtaining an IP Address Au-
tomatically from page 78 for instructions.
FRITZ!Box 3370 94
nor by entering 192.168.178.1.
The User Interface Does Not Open
If you still cannot open the user interface by entering fritz.box
or by 192.168.178.1
FRITZ!Box as described on page 97.
Disabling Dial-up Connections
The user interface is not opened; a window for a dial-up
connection appears instead.
Cause
The browser must use the network connection between the
computer and FRITZ!Box when the user interface is opened.
For this the automatic establishment of a Dial-Up Networking
connection must be disabled.
Help
You can disable the automatic attempt to establish a Dial-up
Networking connection. The following example explains how
to check the settings of Internet Explorer 8:
1. Select the “Connections” settings page under “Tools /
Internet Options”.
, use the fixed IP address of the
2. In the “Dial-up and Virtual Private Network settings” sec-
tion, enable the option “Never dial a connection”.
3. As a final step, click “OK”.
Disabling Online Operation
The user interface does not appear in the window of your web
browser.
Cause
The web browser is set for offline operation.
Help
Configure the web browser for online operation. Using the example of Internet Explorer 8:
1. Open the “File” menu.
FRITZ!Box 3370 95
The User Interface Does Not Open
2. If a checkmark is displayed in front of “Work Offline”,
click this line.
The checkmark will be removed and Internet Explorer will
switch to online operation.
Checking the Proxy Settings
The user interface does not appear in the window of your web
browser.
Cause
The proxy settings of the web browser prevent the user interface from being opened.
Help
Enter the DNS name and the IP address of the FRITZ!Box as an
exception in the proxy settings of the web browser, as described here for the example of the Internet Explorer 8.
1. Select the “Connections” settings page under “Tools /
Internet Options”.
2. Click the “LAN settings” button in the “Local Area Net-
work (LAN) settings” area.
3. In the “Proxy server” area of the next window, check the
“Use a proxy server for your LAN” option and then click
“Advanced”.
4. Enter as “Exceptions”:
fritz.box
; 192.168.178.1; 169.254.1.1
and click “OK”.
FRITZ!Box 3370 96
The User Interface Does Not Open
Checking the Security Software
The user interface cannot be displayed in the web browser.
Cause
Security software is blocking access to the user interface.
Help
Security software like firewalls can prevent access to the user
interface of the FRITZ!Box. Configure exceptions for the
FRITZ!Box in all of the enabled security software.
If you would like to exit security software to test access to the
FRITZ!Box, remove the DSL cable first. After testing, first start
the security software before reinserting the DSL cable and
connecting to the Internet!
Opening the User Interface Using the Fixed IP Address
The FRITZ!Box has a fixed IP address that cannot be changed.
The FRITZ!Box always can be reached at this IP address.
Fixed IP address 169.254.1.1
Proceed as follows to open the FRITZ!Box user interface using
this IP address:
1. Connect a computer to the FRITZ!Box with a network ca-
ble (see page 17).
2. Make sure that the computer obtains its IP address auto-
matically (see page 78).
3. Start your Internet browser and enter the FRITZ!Box’s
fixed IP address: 169.254.1.1
The FRITZ!Box user interface opens.
4. Check the IP settings of the FRITZ!Box and correct them if
necessary.
FRITZ!Box 3370 97
Cannot Establish a WLAN Connection
16.3 Cannot Establish a WLAN Connection
If you are not able to establish a WLAN connection between
your computer and the FRITZ!Box, then please undertake the
following measures to seek the source of the error and resolve it.
Enabling the WLAN Device
The WLAN device cannot find a wireless network.
Cause
The WLAN device is not ready for operation.
Help
Make sure that the WLAN device is ready for operation. Some
of the WLAN devices installed in notebooks must be activated
by flipping a switch on the notebook.
For questions on the WLAN device of your computer, please
contact the manufacturer.
Enabling WLAN
The WLAN device cannot find the radio network of the
FRITZ!Box.
Cause
WLAN is switched off in the FRITZ!Box. The WLAN LED on the
FRITZ!Box is off.
Help
Press the WLAN button on the FRITZ!Box. The WLAN LED begins flashing. As soon as the WLAN LED stops flashing and
stays lit, the WLAN function of the FRITZ!Box is enabled.
FRITZ!Box 3370 98
Cannot Establish a WLAN Connection
Announcing the Name of the Radio Network
The WLAN device cannot find the wireless network of the
FRITZ!Box.
Cause
The name of the wireless network of the FRITZ!Box is concealed.
Help
1. Connect a computer to the FRITZ!Box with a network ca-
ble (see page 17).
2. Open the FRITZ!Box user interface (see page 26).
3. Select “WLAN / Radio Network”.
4. Enable the option “Name of the radio network visible”.
5. Click the “Apply” button.
6. Remove the network cable and try again to establish a
connection via WLAN.
Checking the Security Settings for WLAN
Make sure that the WLAN security settings of the FRITZ!Box
agree with the security settings of the WLAN adapter.
The WLAN security settings of the FRITZ!Box are found in the
user interface:
1. Connect a computer to the FRITZ!Box with a network ca-
ble (see page 17).
2. Open the FRITZ!Box user interface (see page 26).
3. Select “WLAN / Security”.
4. Click the “Apply” button.
A window is displayed with the WLAN security settings.
You can print out these settings by clicking the “Print
Page” button.
FRITZ!Box 3370 99
Cannot Establish a WLAN Connection
Testing a Non-Encrypted WLAN Connection
Test whether a non-encrypted WLAN connection between the
FRITZ!Box and the WLAN adapter is possible.
1. Connect a computer to the FRITZ!Box with a network ca-
ble (see page 17).
2. Open the FRITZ!Box user interface (see page 26).
3. Select “WLAN / Security”.
4. Enable the “non-encrypted” option.
5. Click the “Apply” button.
6. Remove the network cable and try again to establish a
connection.
Disable WLAN encryption only for testing. Enable WLAN
encryption right away after completing the tests.
If you cannot establish a non-encrypted WLAN connection,
make sure that the WLAN adapter in your computer is installed correctly. If the error cannot be remedied, contact the
manufacturer of the WLAN adapter.
Installing the Current Service Pack for Windows XP
The WLAN connection to the FRITZ!Box cannot be established
using the Microsoft WLAN Service (WZC: Windows Zero
Configuration) in Windows XP with Service Pack 2.
Cause
The required Microsoft patch for WPA2 (IEEE 802.11i) may not
be not installed.
Help
Install Service Pack 3 (SP3) for Windows XP, available as a
free download from Microsoft. Then Microsoft WLAN Service
will support WPA2, so that a WLAN connection can be established to the FRITZ!Box.
FRITZ!Box 3370 100
Loading...
