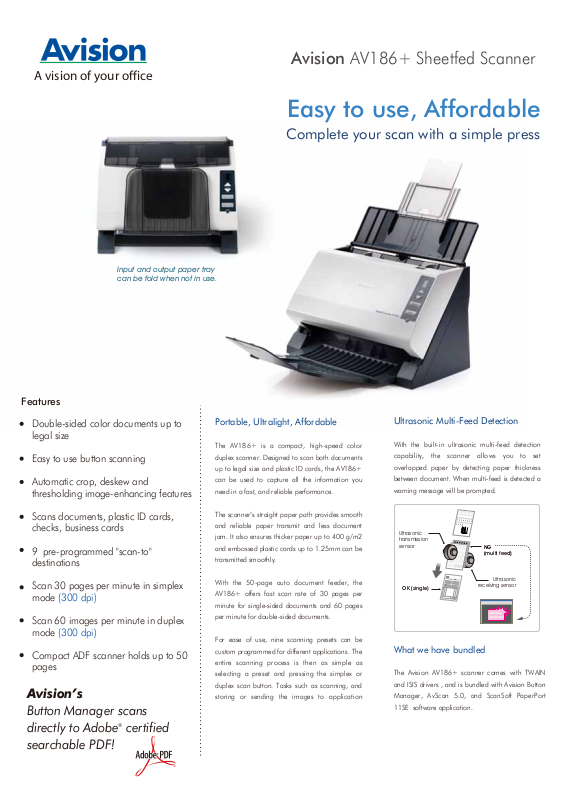

Page 1
A vision of your office
Input and output paper tray
can be fold when not in use.
Avision AV186+ Sheetfed Scanner
Easy to use, Affordable
Complete your scan with a simple press
Features
Double-sided color documents up to
legal size
Easy to use button scanning
Automatic crop, deskew and
thresholding image-enhancing features
Scans documents, plastic ID cards,
checks, business cards
9 pre-programmed "scan-to"
destinations
Scan 30 pages per minute in simplex
mode (300 dpi)
Scan 60 images per minute in duplex
mode (300 dpi)
Compact ADF scanner holds up to 50
pages
Avision’s
Button Manager scans
®
directly to Adobe
certified
Portable, Ultralight, Affordable
The AV186+ is a compact, high-speed color
duplex scanner. Designed to scan both documents
up to legal size and plastic ID cards, the AV186+
can be used to capture all the information you
need in a fast, and reliable performance.
The scanner’s straight paper path provides smooth
and reliable paper transmit and less document
jam. It also ensures thicker paper up to 400 g/m2
and embossed plastic cards up to 1.25mm can be
transmitted smoothly.
With the 50-page auto document feeder, the
AV186+ offers fast scan rate of 30 pages per
minute for single-sided documents and 60 pages
per minute for double-sided documents.
For ease of use, nine scanning presets can be
custom programmed for different applications. The
entire scanning process is then as simple as
selecting a preset and pressing the simplex or
duplex scan button. Tasks such as scanning, and
storing or sending the images to application
Ultrasonic Multi-Feed Detection
With the built-in ultrasonic multi-feed detection
capability, the scanner allows you to set
overlapped paper by detecting paper thickness
between document. When multi-feed is detected a
warning message will be prompted.
80
70
60
50
40
30
20
10
Ultrasonic
transmission
sensor
OK (single)
0
NG
(multi feed)
Ultrasonic
receiving sensor
Warning:
Multi-Feed
What we have bundled
The Avision AV186+ scanner comes with TWAIN
and ISIS drivers , and is bundled with Avision Button
Manager, AvScan 5.0, and ScanSoft PaperPort
11SE software application.
searchable PDF!
Page 2
Avision AV186+ Sheetfed Scanner
Avision’s Button Manager
-Completes your scan in a single step
The Button Manager main screen
Avision’s state-of-the-art software application, the
Button Manager, enables you to complete complex
scanning task in just a single step. When the
button is pressed, the scanner automatically scans
your documents and converts them to a highly
compressed file format, Adobe searchable PDF, or
other image formats, and then sends the file to a
designated folder, or other destination applications
such as e-mail, printer, or your favorable software
application. The original step-by-step procedure is
replaced with only a single touch of the button.
Avision AvScan 5.0
-The Intelligent Document Management
Tool
The AvScan 5.0 main screen
Document imaging is the very first step of
document management. However, poor quality
images can cause serious problems to later
indexing or storing processes. It may increase
scanning labour costs and lower OCR accuracy.
AvScan 5.0 ensures all documents are checked
and polished at the time they are scanned such
that the image quality is guaranteed before they
are ready to use for other purposes.
AvScan 5.0 is an intelligent scanning and
electronic filing solution. AvScan 5.0 possesses
distinct features that convert and index scanned
information into electronic documents for easy
storage and fast retrieval.
ScanSoft Paperport
- The Professional Choice to Organize and Share
Your Documents
The PaperPort11SE main screen
PaperPort provides the easiest way to turn paper
into organized digital documents that everybody
in an office can quickly find and use. PaperPort
works with scanners, multifunction printers, and
networked digital copiers to turn paper
documents into digital documents. It then helps
you to manage them along with all other
electronic documents in one convenient and
easy-to-use filing system.
Avision AV186+ Product Specifications
Paper Feeding:
Scanning Technology:
ID card thickness:
Document Size:
Scanning Speed:
Paper Thickness:
Optical Resolution:
Output Resolution:
Output Formats:
Bundled Software:
Interface/Drivers
Power Supply:
Power Consumption:
Environmental Factors:
Acoustical Noise:
Dimensions
( W x D x H ):
Weight:
Recommended Daily
Scanning Volume:
Multi-feed Dection:
ADF 50-page capacity
Color Charged-Coupled Device ( CCD )
Up to 1.25 mm
Max. 216 mm x 356mm ( 8.5 in x 14 in )
Min. 50 mm x 63.5 mm ( 2 in x 2.5 in )
30 PPM / 60 IPM (Color, A4, 300 dpi)
40 PPM / 80 IPM (Color, A4, 200 dpi)
28~400 g/㎡ (7~110 lbs)
600 dpi
75, 100, 150, 200, 300, 400 and 600 dpi
B/W, greyscale, 24-bit color
Avision ButtonManager
Avision AvScan 5.0
PaperPort 11SE
USB 2.0 / TWAIN , ISIS
Input: 100-240 VAC, 50/60 Hz
Output: 24V, 2.0A
<30 W
Operating temperature:
Operating humidity: 10% to 85%
Standby: <45 dB
Operating: <50 dB
305 mm x 162 mm x 195 mm
( 12 in x 6.4 in x 7.7 in )
3.1 kg ( 6.8 lbs)
3,000 pages
Ultrasonic
10℃ to 35℃ (50℉ to 95℉)
System Requirements
.
Pentium 4 or higher
.
Windows®XP/2000/Vista/7
.
128MB RAM (256MB RAM for Windows XP)
.
CD-ROM drive
.
USB port
Contents
.
AV186+ Scanner
.
Power Supply
.
USB 2.0 Cable
.
Quick Guide
.
CD-ROM includes:
-Scanner Driver
(TWAIN/ISIS Driver)
-Avision Button Manager
-Avision AvScan 5.0
-PaperPort 11SE
