INSTALLATION INSTRUCTIONS
CALL HELPLINE IF ANY ASSISTANCE IS REQUIRED
INSTRUCTION MANUAL CONTENTS
1 BOXED PARTS
A full list of all parts supplied. Check your parts against this list to verify you have all components
required before commencing with the installation.
2
FIT SCREEN BRACKETS
Ascertain parts required and assemble screen brackets to TV. There are two options available. Option
one includes an extension bracket and is for use with screens with vertical fixing centres between
400mm and 475mm. Option two is for use with screens with vertical fixing centres of up to 400mm.
SET TV SUPPORT BRACKET LENGTH3
Adjust the TV support bracket to suit your TV. For smaller TV’s, the bracket can be reduced in length to
ensure it remains hidden behind the TV. For larger TV’s it can be increased in length to ensure it reaches
the TV fixing centres.
ASSEMBLE SHELF MODULE4
Build AV equipment shelf module in preparation for assembly with main bracket (section 10). Slide
components into place and bolt together.
CREATE TEMPLATE5
Modify the supplied template to represent your TV on the Mount. This template can be used during
installation to simulate the mount and TV. This helps to see where and at what angle your TV will be,
before installation, or even marking the walls.
DETERMINE MOUNT AND TV POSITION6
Use templates to simulate the mount layout and TV position. Using the template created in section 5
and the other templates supplied you can simulate the mount layout and position in your room. Adjust
the position of the templates to find your ideal layout.
DETERMINE WALL BRACKET POSITION7
Use templates as a guide for positioning wall brackets. Using the template layout created in section 6
and the guidelines in the manual, calculate and mark the position of the wall brackets.
FIT WALL BRACKETS8
Screw the two wall brackets to the walls using supplied fixings. The wall brackets provide the two
anchor points for support of the entire bracket. The brackets can be fixed to masonry walls or the studs
of a studded wall.
2
HANG SUPPORT ARM ASSEMBLY9
Attach the main body of the product to the wall brackets. Slot the support arm assembly into place
and fix with four screws (one on the end of each arm).
10
11
12
13

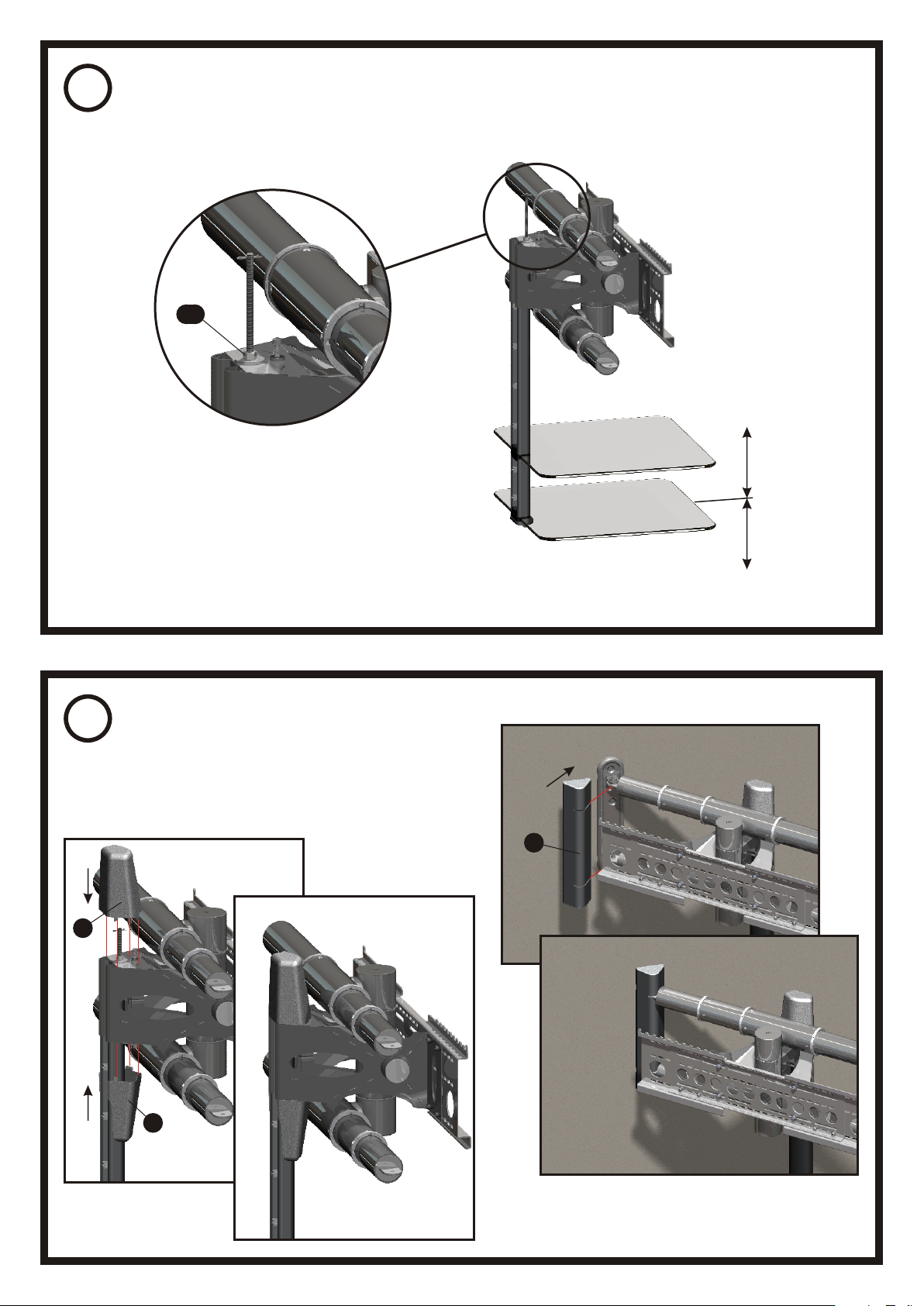

FIT TV SUPPORT BRACKET
Attach the TV support bracket to the main body. Centralise bracket and bolt into place.
FIT SHELF MODULE
Attach the shelf module to the main body. Slide the shelf module into place and fit the support nut
and safety pin.
ADJUSTING SHELF LEVEL
Level the shelves by tilting them forward or backward. Loosen the locking screw, adjust level with the
level screw and then re-tighten the locking screw.
ADJUSTING SHELF HEIGHT
Raise or lower AV equipment shelves to suit. Turn the support nut clockwise to raise the shelves and
anti-clockwise to lower them.
14
15
16
17
FITTING COVERS
Snap fit covers into place. Attach the wall bracket covers and body trim covers.
HANG TV
Hook the TV into place. Lift the TV and screen bracket assembly (assembled in section 2) into place
and lock with two locking screws.
LOCK TV (OPTIONAL)
Use a padlock for security. Insert the locking pin and add a padlock (not supplied) to prevent
unauthorised removal of the TV.
TILT / ROTATE / SLIDE
Fine adjustment of the bracket can be performed to attain perfect positioning. Finger tip tilt and
rotation is possible, as is manual lateral adjustment.
3
1 BOXED PARTS
GLASS SHELF
C x1
B x2A x1
H x1G x2
BOTTOM GLASS SHELF
D x1
F x2E x1
J x1I x1
R-CLIP
N2 x1
x1
R
M8 FULL NUT
L x1K x1
O x1
S1 x1
CABLE CLIP
LOCK PIN
M8 NUT
x18
M
P x1
M6 NUT
x5 S3
S2
N1 x1
Q x2
x8
M8 x 25 SCREW
M6 x 16 SCREW
x4
T1
T2
x8
M6 x 12 SCREW
T3
x4
M6 x 25 SCREW
T4
x4
4
1
M8 x 12 SCREW
M8 SPRING WASHER
10mm WALL PLUG
T5
x4
U2 x4
W x10
M8 x 25 SCREW
M6 WASHER
No14 x 2½" SCREW
T6 x4
U3 x12
X x10
M4 x 16 GRUB SCREW
M8 WASHER
5mm ALLEN KEY
T7
x1
U4 x8
Y1 x1
LARGE WASHER
SPACER
6mm ALLEN KEY
U1 x1
V x4
Y2 x1
2mm ALLEN KEY
TEMPLATE
Y3 x1
TP3
x1
LEVEL
Z x1
TEMPLATE
TP1
x1
TEMPLATE
TP2
x1
5
2
FIT SCREEN BRACKETS
N2
T3-6
U3-4
Q
V(IF REQUIRED)
VERTICAL FIXING
CENTRES
USE SPACERS (V) IF THE REAR OF THE TV
IS NOT FLAT OR THE FIXING HOLES ARE
RECESSED IN TO THE BACK OF THE TV
S2
U4
N1
T3-6
U3-4
V (IF REQUIRED)
OPTION 1
USE THIS OPTION FOR SCREENS
WITH VERTICAL FIXING CENTRES
OF BETWEEN 400mm-475mm
UNDERSIDE OF TV
T3-6
U3-4
V(IF REQUIRED)
VERTICAL FIXING
CENTRES
T3-6
U3-4
V (IF REQUIRED)
OPTION 2
USE THIS OPTION FOR SCREENS
WITH VERTICAL FIXING CENTRES
OF 400mm AND BELOW
UNDERSIDE OF TV
6
SET TV SUPPORT BRACKET LENGTH3
AFTER INSTALLING SCREEN ADAPTERS
(N1) AND (N2) (SEE SECTION 2), PLACE
SUPPORT BRACKET (E) IN PLACE
AND ADJUST ITS LENGTH AS SHOWN
BELOW. ENSURE THE BRACKET IS NOT
VISIBLE FROM IN FRONT OF THE TV AND
THAT THE SLOTS SHOWN ARE NOT
OBSTRUCTED
E
N2
N1
E
ENSURE NO
VISIBLE OVERLAP
ENSURE THESE SLOTS LINE
UP AFTER ADJUSTMENT
7
ASSEMBLE SHELF MODULE4
ii iii i
I
I
T7
J
J
INSERT SCREW HERE
Y3
T7
NOTE:- ALIGN HOLE EDGE TO
EDGE OF PART (I) TO AID ALIGNMENT
AND INSERTION OF GRUB SCREW (T7)
iv
ASSEMBLY OF THE SHELF
MODULE IS A TWO PERSON
OPERATION. LAY COMPONENTS
ON THE FLOOR. ONE PERSON
SHOULD HOLD SHELVES
VERTICALLY WHILE ANOTHER
SLIDES ON THE ADDITIONAL
COMPONENTS AND FITS NUT (S2).
NUT (S2) SHOULD BE FULLY
TIGHTENED TO COMPRESS ALL
ITEMS TOGETHER
PUSH FIT CABLE CLIPS
M
v
D
S2
C
O
H
vi
8

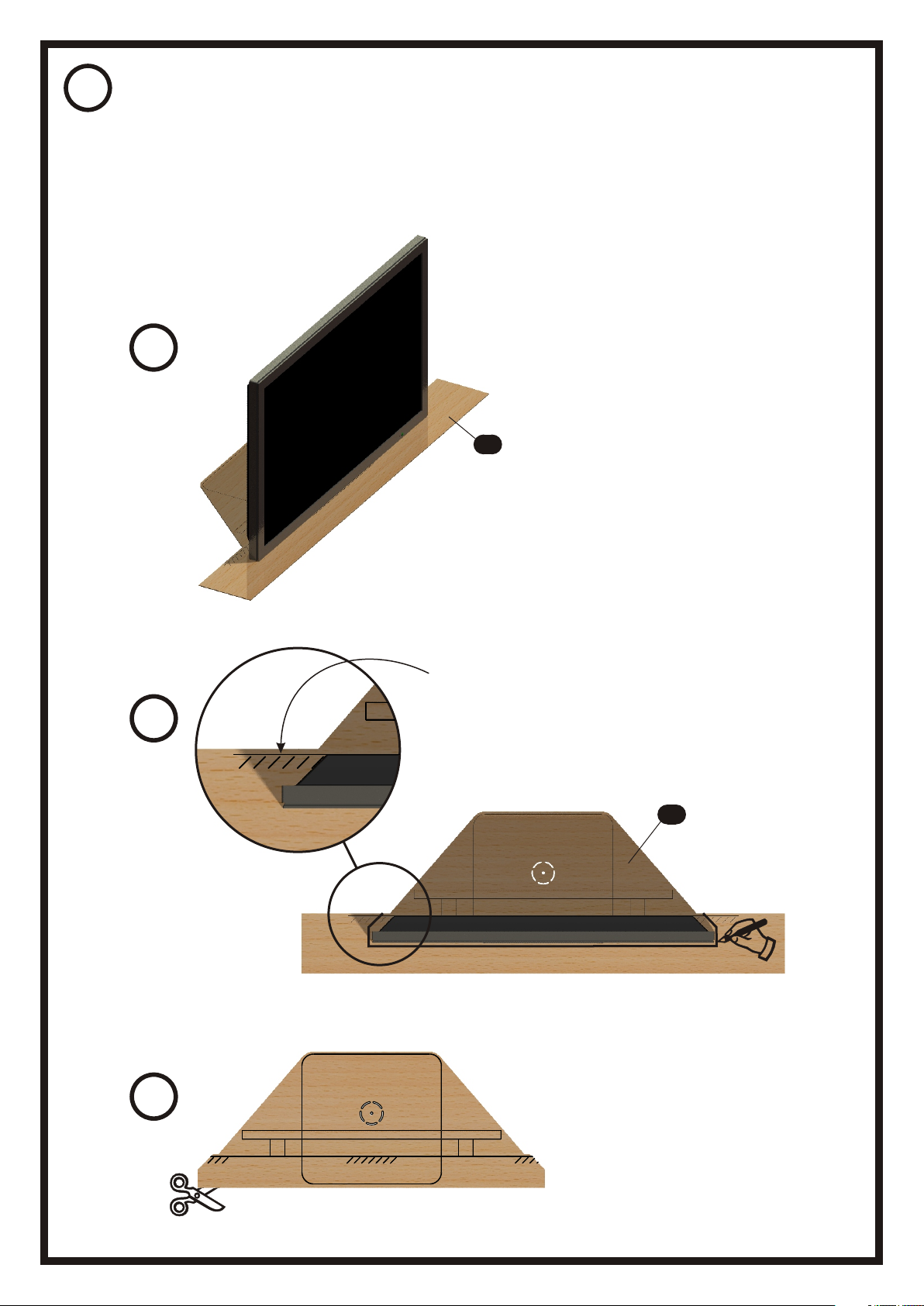

CREATE TEMPLATE5
MODIFICATION OF THE TEMPLATE (TP3) TO SUIT YOUR TV IS REQUIRED. THIS WILL ENABLE YOU TO USE IT
IN CONJUNCTION WITH TEMPLATES (TP1) AND (TP2) TO SIMULATE THE MOUNT AND YOUR TV IN POSITION.
YOU WILL THEN (USING THE TEMPLATES) EASILY BE ABLE TO DETERMINE WHERE AND AT WHAT ANGLE
YOUR TV WILL BE AFTER INSTALLATION. THE TEMPLATES WILL THEN BE USED TO AID IN MARKING THE WALL
FOR PLACEMENT OF THE WALL BRACKETS
i
PLACE TV ON
TEMPLATE (TP3)
TP3
ii
iii
ENSURE REAR OF TV IS IN LINE WITH
THIS LINE AS SHOWN AND THAT THE
TV IS ON CENTRE BEFORE MARKING
TP3
WITH A PENCIL MARK TV PROFILE
TRIM TEMPLATE TO PROFILE LINES
9

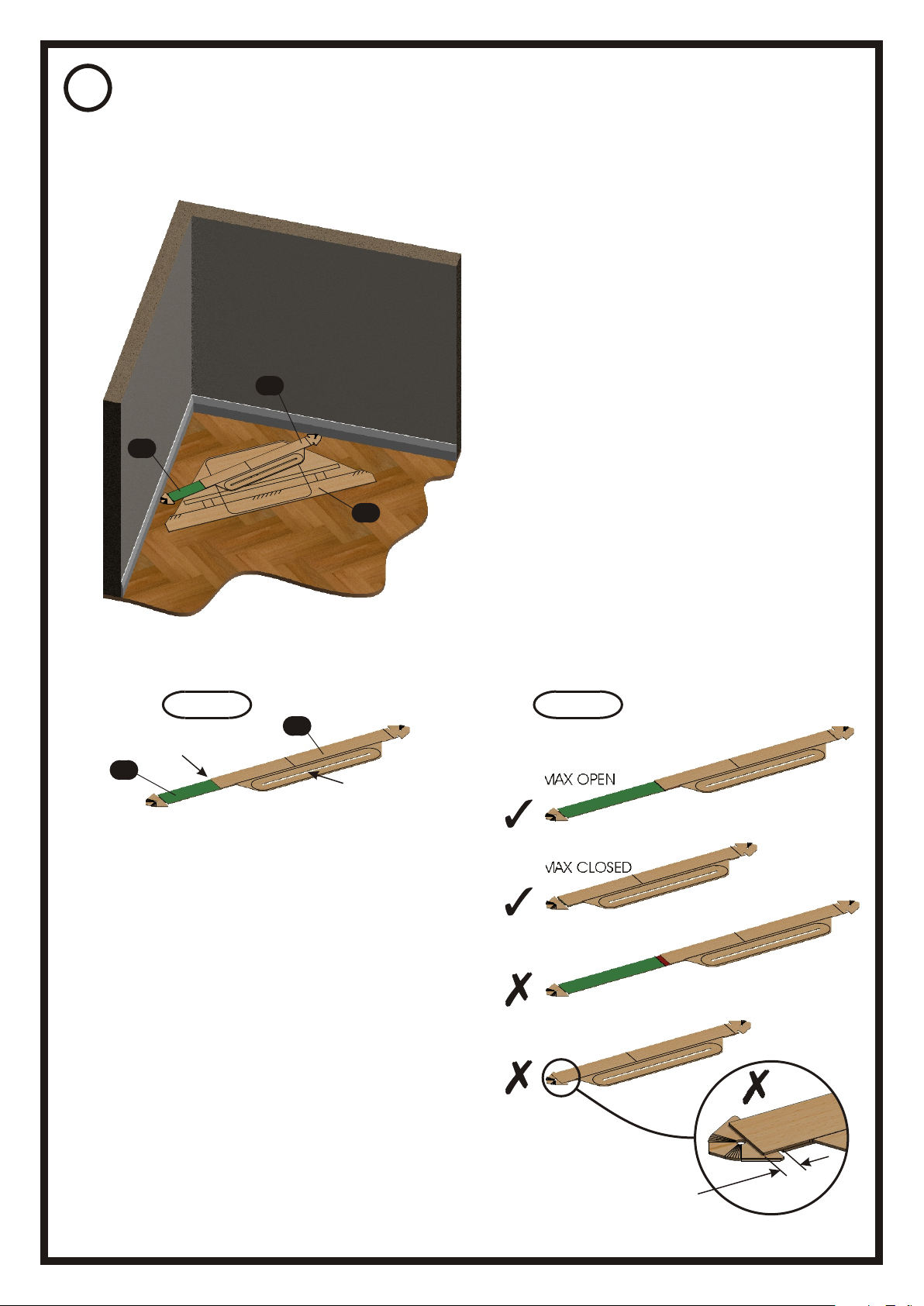

DETERMINE MOUNT AND TV POSITION6
USING TEMPLATES (TP1), (TP2) & (TP3) TO SIMULATE
THE MOUNT AND TV IN YOUR ROOM, YOU CAN
EVALUATE THE POSSIBLE POSITIONS AND LAYOUT
OF THE MOUNT AND TV
TP2
TP2
EDGE “A”
FIG 1
TP1
TP1
TP3
SLOT “B”
PLACE TEMPLATES (TP1), (TP2) & (TP3) ON FLOOR IN
THE CORNER OF THE ROOM AS SHOWN
READ THE WHOLE OF THIS SECTI0N (SECTION 6)
AND USE THE RULES AND GUIDELINES DESCRIBED
TO AID IN YOUR POSITIONING OF THE TEMPLATES
FIG 2
MAX OPEN
TEMPLATES (TP1) & (TP2) ARE USED TO
EMULATE THE TELESCOPIC RANGE OF THE
SUPPORT ARMS. THE GREEN SECTION
REPRESENTS THE TELESCOPIC RANGE
THE EDGE OF (TP1) MARKED “A” (SEE FIG 1)
MUST LIE IN THE GREEN AREA OF (TP2)
NO RED AREA SHOULD BE VISIBLE AND
NO OVERLAP PAST THE GREEN AREA IS
ALLOWABLE (SEE FIG 2)
MAX CLOSED
OVERLAP
10

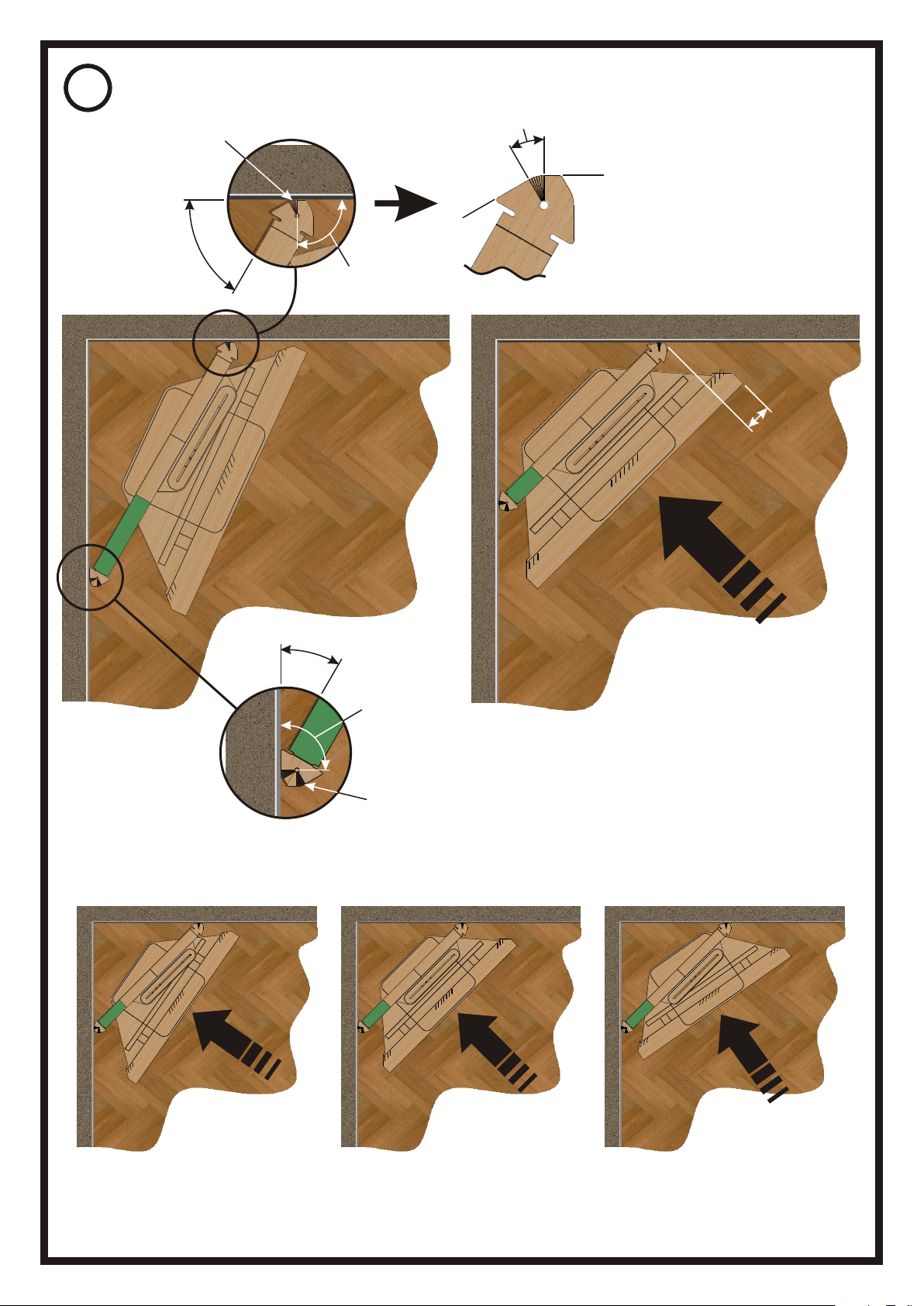

6
CORNER “D”
CAUTION
CLASH
FIG 3
HOLE “C”
FIG 4
SHELF OUTLINE
CORNER “D”
TP3
USE TEMPLATE (TP3) TO SIMULATE THE SCREEN
AND SUPPORT SHELF ORIENTATION
ENSURE HOLE MARKED “C” (SEE FIG 3) IS
INSIDE SLOT MARKED “B” (SEE FIG 1)
WHEN DETERMINING THE SCREEN ORIENTATION ENSURE CORNERS “D”
(SEE FIG 3) DO NOT CLASH WITH (TP1) OR (TP2) (SEE FIG 4)
X°
RELEVANT TO STUDDED
WALLS ONLY
Y°
IN THE INSTANCE WHERE
STUDDED WALLS EXIST, THE
STUD POSITION WILL
INFLUENCE THE BRACKET
POSITION. USE THE TEMPLATES
TO CHECK POSITION AND
DETERMINE THE IDEAL SET OF
STUDS TO USE
IN ORDER TO ACHIEVE THE
DESIRED LAYOUT IT, MAY BE
NECESSARY TO INVERT THE
TEMPLATES (TP1) AND (TP2).
THIS IS NORMALLY REQUIRED
IF ANGLE “X” IS GREATER
THAN ANGLE ”Y”, AS SHOWN
IN THE EXAMPLE ABOVE
11
6
LINES DENOTE
MIN/MAX ANGLE
RANGE
60° MAX
90°
THIS AREA MUST BE IN
CONTACT WITH THE WALLS
E”
“
THE EDGES “E” REPRESENT THE
“E”
MAXIMUM AND MINIMUM
ANGLE TO THE WALL THAT THE
TEMPLATES CAN BE PLACED
ARMS BEHIND TV
30° MIN
90°
LINES DENOTE
MIN/MAX ANGLE
RANGE
ENSURE VIEWING ANGLE
IS SUITABLE FOR ROOM.
IDEALLY SUPPORT ARMS
WOULD NOT BE VISIBLE
FROM IN FRONT OF TV,
IN SOME INSTANCES THIS
IS NOT ALWAYS POSSIBLE
DON’T FORGET TO CHECK THE RANGE OF SCREEN ROTATION YOU CAN ATTAIN WITH YOUR CHOSEN SUPPORT ARM
POSITION. USE THE TEMPLATES TO DEMONSTRATE POSSIBLE ROTATION OF VIEWING ANGLE OF TV TO ROOM. SIMPLY
NOTE WHAT ROTATION IS POSSIBLE WITHOUT THE BRACKET CLASHING WITH THE WALL OR ITS SELF (SEE FIG 4 (PAGE 11)).
CONSIDER THE POSITION OF OTHER FURNITURE AND VIEWING POSITIONS IN THE ROOM
12

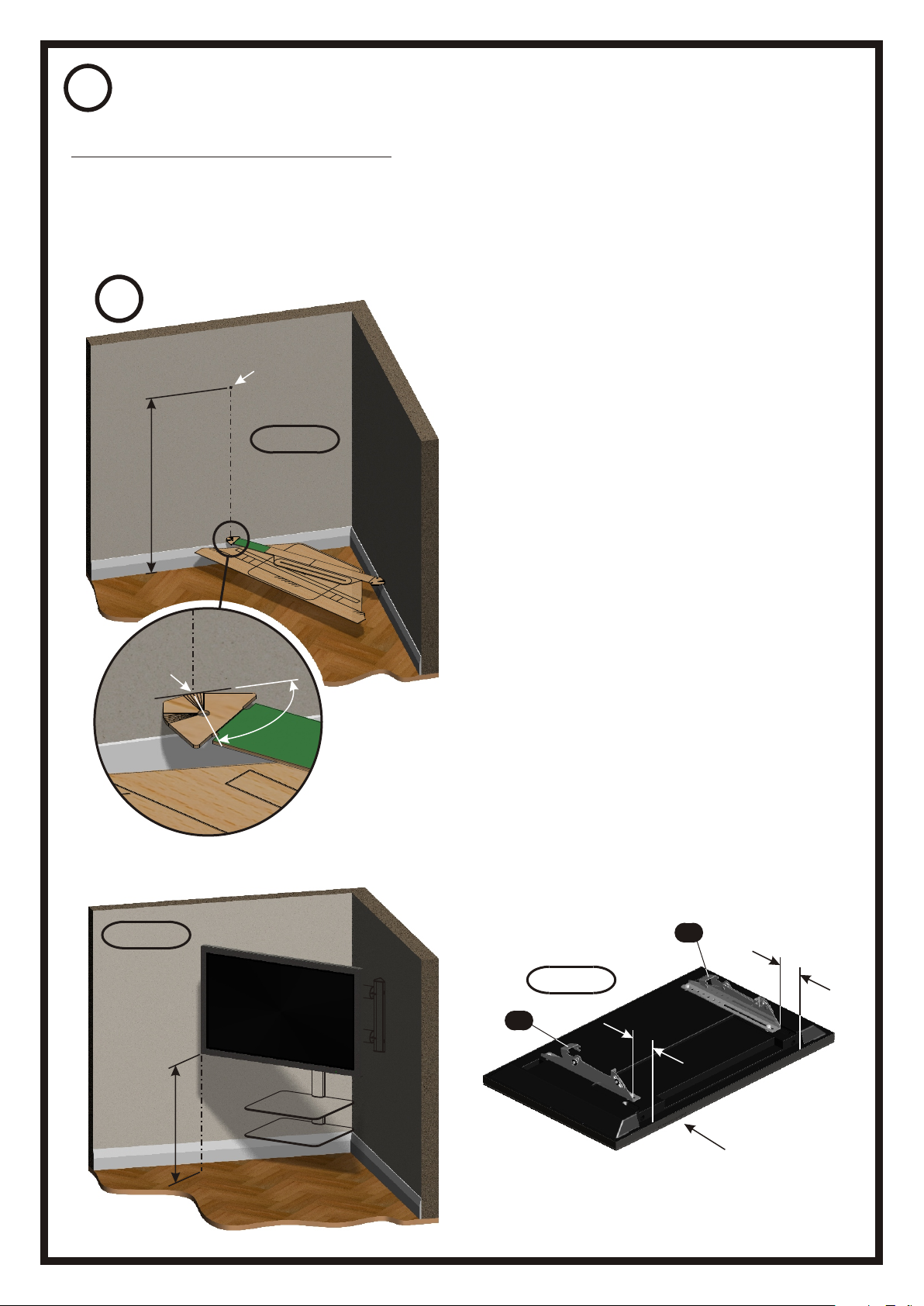

DETERMINE WALL BRACKET POSITION7
MAKE ALLOWANCES FOR SKIRTING/BASE BOARD. ONCE YOU HAVE DECIDED ON THE POSITIONING OF THE UNIT, TAPE
THE TEMPLATES (TP1), (TP2) & (TP3) TOGETHER AND LIFT THEM ABOVE SKIRTING/BASE BOARD WHILE MARKING THE WALL
(ENSURE TEMPLATES REMAIN PARALLEL WITH FLOOR). THIS WILL REMOVE INACCURACIES IN POSITIONING THE WALL
BRACKETS (F) DUE TO THE THICKNESS OF THE SKIRTING/BASE BOARD. THIS IS PARTICULARLY IMPORTANT IF YOU ARE
USING THE TELESCOPIC SUPPORT ARMS ON OR CLOSE TO THEIR MAX OPEN OR MIN CLOSED POSITIONS
i
POINT “J”
DIM “H”
MIN 965mm (38")
POINT “K”
FIG 5
90°
DIMENSION “H” MUST BE A MINIMUM OF 965mm (38").
YOU MAY INCREASE THIS DIMENSION IN ORDER TO RAISE
THE TV IF REQUIRED. TO CALCULATE DIMENSION “H” BASED
ON DESIRED SCREEN HEIGHT, PERFORM THE FOLLOWING
CALCULATION: -
1, NOTE THE HEIGHT “L” (SEE FIG 6) ABOVE THE FLOOR YOU
WISH THE UNDERSIDE OF THE TV TO BE
2, MEASURE DIMENSION “M” (SEE FIG 7)
3, ADD “L” TO “M” AND ADD AN ADDITIONAL 370mm
(14½"). THIS WILL GIVE YOU YOUR OPTIMUM DIMENSION
“H”
i.e. L+M+370mm=H
REMEMBER! DIMENSION “H” MUST NOT BE LESS THAN
965mm (38"). IF IT IS THEN ENSURE YOU MAKE DIMENSION
“H” EQUAL TO 965mm (38"). FAILURE TO DO SO WILL
RESULT IN THE SHELF MODULE NOT FITTING
FIG 6
DIM “L”
MARK A POINT ON THE WALL (POINT “K”) VERTICALLY ABOVE THE POINT “J”
SHOWN IN FIG 5 (POINT “J” IS WHERE THE TEMPLATE TOUCHES THE WALL)
ENSURE POINT “K” IS DIMENSION “H” ABOVE FLOOR
N1
DIM “M”
FIG 7
N2
DIM “M”
UNDERSIDE OF TV
13
7
ii
DIM “H”
Z
MIN 965mm (38")
POSITION THE WALL BRACKET (F)
WITH THE TOP FIXING HOLE ON
CENTRE WITH THE POINT “K”
ALREADY MARKED
USING A LEVEL TO ENSURE THE
BRACKETS ARE VERTICAL MARK
THE OTHER 4 FIXING POINTS
(SEE FIG 8)
POINT “K”
FIG 8
F
iii
FIG 9
DIM “H”
MIN 965 (38")
REPEAT ALL OPERATIONS FOR 2nd BRACKET
IMPORTANT !
ENSURE BOTH WALL BRACKETS (F) ARE INSTALLED
AT THE SAME HEIGHT. IF INSTALLING ABOVE UNEVEN
OR SLOPING FLOORS IT IS IMPERATIVE THAT THE
BRACKETS ARE LEVEL WITH EACH OTHER TO ENSURE
HORIZONTAL INSTALLATION OF THE PRODUCT
14
FIT WALL BRACKETS8
DRILL Ø10mm HOLE FOR PLUG (W)
10mm Ø
65mm ( ")2½
W
F
WHEN FIXING TO BRICKWORK OR SOLID MASONRY, USE SUITABLE WALL PLUGS AND SCREWS (NOT SUPPLIED WITH
ALL MODELS). DO NOT MOUNT ONTO SHEETROCK, PLASTERBOARD OR PANELLED WALLS UNLESS SCREWS ARE
FIXED INTO A SUITABLE WOODEN BATTEN/STUD. IT IS THE RESPONSIBILITY OF THE INSTALLER TO ENSURE THE WALL
STRUCTURE AND FIXINGS ARE CAPABLE OF SUPPORTING THE AV EQUIPMENT AND MOUNT IN A NORMAL WORKING
ENVIRONMENT. IF YOU HAVE ANY DOUBTS REGARDING INSTALLATION, CONSULT A QUALIFIED CONTRACTOR.
CHECK THE STRENGTH OF THE BRACKETS BEFORE HANGING THE MOUNT AND SCREEN
X
W
MASONRY
3mm Ø
DRILL Ø3mm PILOT HOLE
65mm ( ")2½
WOOD STUD
F
ENSURE SCREWS
ARE IN STUDS
X
15
HANG SUPPORT ARM ASSEMBLY9
ENSURE TELESCOPIC ARMS ARE INSERTED THE CORRECT WAY AROUND TO SUIT YOUR INSTALLATION.
REFER TO YOUR TEMPLATE LAYOUT (SEE SECTION 6).
(TP1) REPRESENTS THE EXTERNAL MEMBER, (TP2) REPRESENTS THE INTERNAL MEMBER.
IN THE TEMPLATE EXAMPLE SHOWN, THE TEMPLATE ARRANGEMENT IS NOT THE SAME AS THE OUT OF THE BOX
STANDARD LAYOUT, THEREFORE THE TELESCOPIC ARMS IN THIS INSTANCE WILL NEED SWAPPING AROUND AS
SHOWN
i
NOTE:- THIS HOLE IS IN
THE TOP OF THE SUPPORT
ARM ASSEMBLY
B
INTERNAL MEMBER
EXTERNAL MEMBER
A
SLIDE ARMS
TP1
STANDARD LAYOUT ALTERNATE LAYOUT
TEMPLATE
EXAMPLE
TP2
ii
iii
F
U2
iV
T1
T1
Y2
HEAVY PARTS. HOLD THE ARMS HORIZONTAL TO THE FLOOR AT ALL TIMES. TILTING
THE SUPPORT ARM ASSEMBLY WILL RESULT IN THE TELESCOPIC ARMS SLIDING
OPEN. INJURY COULD BE ATTAINED IF THE ARMS HIT OR ARE DROPPED ONTO
ANOTHER PERSON. USE TWO PEOPLE TO ATTACH ARMS TO WALL BRACKET.
WHILE ONE SUPPORTS THE ARMS THE OTHER SHOULD ADD THE FIXINGS
U2
WARNING:-
16
10
FIT TV SUPPORT BRACKET
Y1
T2
E
U3
S3
E
ENSURE TV SUPPORT BRACKET IS CENTRALISED
ON SUPPORT ARM ASSEMBLY
11
FIT SHELF MODULE
ROOM AND WALL BRACKETS
NOT SHOWN FOR CLARITY
PUSH THREADED BAR
THROUGH HOLE
INSTALLATION OF THE SHELF MODULE IS A TWO PERSON OPERATION.
ONE PERSON SHOULD MOVE THE MODULE INTO POSITION WHILE
ANOTHER GUIDES IT AND FITS WASHER (U1), AND R-CLIP (R)NUT (S1)
17
11
S1
U1
R
IMPORTANT !
ENSURE SAFETY R-CLIP (R)
IS INSTALLED
12
ADJUSTING SHELF LEVEL
TOP ADJUSTING SCREW
BOTTOM ADJUSTING SCREW
CHECK SHELF LEVEL. IF IT REQUIRES ADJUSTMENT, PERFORM
THE FOLLOWING: -
LOOSEN THE BOTTOM ADJUSTING SCREW
USE TOP ADJUSTING SCREW TO LEVEL THE SHELVES
ONCE THE SHELVES ARE LEVEL, RE-TIGHTEN THE BOTTOM
ADJUSTING SCREW
Y1
Z
18
13
ADJUSTING SHELF HEIGHT
S1
105mm (4 1/8")
HEIGHT ADJUSTMENT
USE NUT (S1) TO ADJUST SHELF HEIGHT
14
K
FITTING COVERS
G
L
19
15
HANG TV
ii iii i
ENSURE BOTH LOCKING SCREWS
(ONE ON EACH BRACKET) ARE IN
THE RETRACTED POSITION SHOWN
(NO THREAD PROTRUDING ABOVE
SURFACE)
SCREW LOCKING SCREW INTO
THE FULLY ENGAGED POSITION
AS SHOWN TO SECURE TV
(BOTH BRACKETS)
20
16
LOCK TV (OPTIONAL)
P
USE A PAD LOCK (NOT
SUPPLIED) THROUGH
THIS HOLE TO PREVENT
UNAUTHORISED
REMOVAL OF THE TV
17
TILT / ROTATE / SLIDE
OPTIONAL TILT LOCK: IF REQUIRED YOU CAN LOCK
THE TILTING MECHANISM BY
TIGHTENING THESE NUTS
(4 PLACES)
TILT
21
17
ROTATE
PUSH HERE
PUSH HERE
SLIDE
22
CUSTOMER SERVICES HELPLINE
AVF Group Ltd.
Road 30, Hortonwood Industrial Estate,
Telford, Shropshire, TF1 7YE, England.
+44 (0) 1952 670009
0870 0609777 (UK)
AVF Incorporated.
3187, Cornerstone Drive,
Mira Loma, CA 91752, USA.
1-800 667 0808 (USA)
Orbital Holdings Inc.
3187, Cornerstone Drive,
Mira Loma, CA 91752, USA.
1-800 601 8450 (USA)
No. 462359 rev 02
Loading...
