Chapter 1 Introduction
Welcome to the realm of AVerMedia. AVerMedia EYES Pro /MP2016/ MP3000/MP5000, c omposed of one 32-bit PCI video capture c a rd, works as a digital video surveillance system. It allows you to capture true color images and real-time videos from 4/8/16 camera input(s) simultaneously.
With the latest Motion Detection technology, once any movement detected in the monitoring area , AVerMedia EYES Pro/MP2016/MP3000/ MP5000 automatically starts recording and triggers the alarm. You don’t need to keep your eyes on the monitor all day long anymore; the system will alert you automatically when specified events occur.
1.1 Manual Conventions
The following conventions are used throughout this manual.
Type Stands for Example
[paren.] Keys on the keyboard [Enter] “Quotes” Words to be typed in “AVerMedia” Italic User in each authorization level Administrator Bold Name of a dialog box,
Sections/Option title in the dialo g box/Field names/Buttons
Underlined Table columns Start
Caution Message: These messages are to advise you to proceed carefully. Failure to pay attention could result in damage to the system and may put personnel and environment at risk.
Informational Message: These messages are intended to provide additional inform atio n for the purpose of clarification.
Schedule Backup
1.2 Video Card Specification
4 ports
Product Video Card Specifications
4 EYES Pro 1 card Each video capture card with 4 video inputs 8 EYES Pro 2 cards Each video capture card with 4 video inputs
16 EYES Pro 4 cards Each video capture card with 4 video inputs
MP3004 1 card Each video capture card with 4 video inputs
MP3008
MP2016/MP3016
MP5004 1 card Each video capture card with 4 video inputs
MP5008
MP5016
1 card w/ 1
daughter card
1 card w/ 3
daughter cards
1 card w/ 1
daughter card
2 cards w/2
daughter cards
Each video capture card with 4 vide o inpu ts
Each Video capture card with 4 video inputs
Each video capture card with 4 vide o inpu ts
Each video capture card with 4 vide o inpu ts
AVerMedia has been dedicated to innovating the technology of digital video surveillance system. We have had a significant innovation on promoting hardware that is presented as the par t of MP series above.
1.3 Package Contents
Your AVerMedia EYES Pro/MP2016/MP3000/MP5000 package includes the following
1
2
Page 6
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
1 / 2 / 4 AVerMedia Video Card(s) for EYES Pro
1/2 AVerMedia Video Card(s) and 1/3 daughter card(s) for
MP2016/MP3000/MP5000
AVerMedia EYES Pro/MP2016 /MP3000 /MP5000 Software CD (I ncluding Driver, Application Software, and User’s Manual)
AVerMedia EYES Pro/MP2016 /MP3000/MP5000 User’s Manual
Optional external I/O Box and 15-pin D-type Connector Cable
1.4 Hardware Recommendati ons
CPU Motherboard
Pentium Intel 815E/815EP (PIII), 845 (P4), 845D(P4),
845E(P4), 845G(P4) List of motherboards tested:
ASUS P4B
ASUS P4B266
ASUS P4B533
ASUS P4B533-V
GIGABYTE 8IRX
GIGABYTE 8IEX
GIGABYTE 8IEXP
GIGABYTE 8IGX
MSI 845E Max2
MSI 84 5G Max
(VIA/SiS/ALi chipset motherboards temporarily not supported)
OS Microsoft Windows 98SE/Me/2000 Pr o. /XP Pro.
Expansion Slots 1 / 2 / 3 / 4 × 32-bit PCI 2.1 compliant slots
Transcend DDR 256MB (DDR-266)
RAM
KingSton DDR 256MB (DDR-266) KingMax SD RA M 256MB (PC-133) KingMax DD R 256MB(DDR-333)
III 800MHz or above recommended
Hard disk
HDD
Media
40 GB of free hard disk space, at least 6GB free space for each partition.
Seagate ST340016A (40G 72000rpm) Seagate ST380021A (80G 7200r pm)
CD-ROM drive 16-bit high color SVGA graphic card with
DirectDraw capability List of VGA Cards tested:
Leadtek WinFast GeForce2 MX400
VGA
Leadtek WinFast A170 DDR TDH
Leadtek WinFast 3D S325 32MB
Leadtek WinFast A250 TD 128MB
ATI RADEON 8500 64MB/128MB
ELSA GLADIAC 525 128MB
ELSA GLADIAC 517 VIVO 64MB
Audio Sound card and speakers
Modem
List of modems tested:
Modem2modem feature Internal:
USR 569 9A (Chipset: 3COM)
Creative Lab DI5630 (Chipset: Broadxent)
SmartLink 5634PSV-R
QDK Speedcom+ VPI56SP (Chipset: Conexant)
GVC 56K V.90 Voice/Fax (Chipset: Motorola)
Cyber Marmo t Rock Modem (Chipset: Ambie nt)
Lemel MD-56KVR4 (Chipset: Conexant)
External:
USR 568 6D (Chipset: USR)
GVC 56Kbps (Chipset: Rockwell)
Atrie Explore (Chipset: Conexant)
Zyxel Omni 56K Data/Voice (Chipset: Zyxel)
SmartLink 56TS (Chip s e t: TI)
SmartLink 56TPC (Chipset: IC+)
ART NET V1456VQE (Chipset: TOPIC)
Well USB Soft Modem FM-56USB-ST (USB
interface)
3
4
Page 7
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
Modem
For the current update information, please check our website.
Alarm call out feature Internal:
Creative Lab DI5630 (Chipset: Broadxent)
Creative Lab DI5630-5 (Chipset: Broadxent)
1.5 Installing the Video Cards
1.5.1 Installing the AVerMedia EYES Pro Video Cards
The following instructions are for installing video cards into the AVerMedia EYES Pro system.
Before installing the video c ard, tur n of f the computer’s power, unplug the power cable and disconnect all other cables attached to the back of the computer.
Video card
Video Card
PCI Slot
1. Remove the computer cover.
2. Remove the I/O brackets for the four PCI expansion slot s. Save the screws.
3. Insert the AVerMedia video cards into the available PCI expansion slots.
4. Replace the computer cover and rec onnect all cables.
1.5.2 Installing the AVerMedia MP2016/MP3000/MP5000 Video
Cards
The following instructions are for installing video cards into the AVerMedia MP2016/MP3000/MP5000 system.
Before installing the video card, turn off the comp uter ’s power, unplug the power cable and disconnect all other cables attached to the back of the computer.
MP3004/MP5004/MP5008
Video card
MP3008/MP5016
Video card
5
6
Page 8
AVerMedia User’s Manual
p
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
MP3016 Video card MP2016 Video card
NOTE: Orient the
PCI Slot
Fig. 1 Fig. 2
1. Remove t he computer cover.
2. Remo ve t he I/ O bra cke ts fo r the fo ur PC I exp an sio n sl ots . Save t he screws.
3. Align AVerMedia video card connector with the available PCI slots.
4. Screw AVerMedia video card and the 3 daughter cards respectively into the rear panel with the screws. See the Fig .1.
5. Connect the 3 daughter cards to AVerMedia video card with ribbon cables. See the Fig.2.
6. Replace the computer cover and reconnect all cables.
red mark u
ward.
1.6 Connecting the AVerMedia Video Cards
Up to four cameras can be connected to each AVerMedia video card ­one camera per BNC terminal.
Sensor Inputs
Relay Outputs
Infrared Sensor
Proximity Sensor
Smoke Detector
Reed Switch
Relay Control
Burglar Alarm
Access Control Lock
Camera 1
Camera 2
Camera 3
Camera 4
D-type 15-pin
Connector Cable
(Optional)
Coaxial Cable
(Not Supplied)
1.7 Attaching Cameras
Cameras must be attached to the BNC connectors of the server video cards in a specific order to avoid transmission problems. Video cards are stacked vertically into the chassis. If all four video cards are installed, the rear panel of the server will appear as shown in the diagrams below.
EYES Pro MP2016/MP3000/MP5000
1
2
3
4
5
6
7
9
10
13
14
8
11
12
15
16
1
5
9
13
2
6
10
14
3
7
11
15
4
8
12
16
7
8
Page 9
AVerMedia User’s Manual
y
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
Cameras need to be installed according to the numerical order displayed on the diagrams above. Whether you have one, two, three or four video cards, the pattern is the same - cameras will be installed from
left to right starting with the t op row for EYES Pro and from top to bottom beginning with the left-most column for MP2016/MP3000/MP5000.
1.8 Connecting External Sensor/ Relay
Each system can come with optional External I/O Boxes and D-type 15­pin connector cables enabling you to connect sensor inputs and relay outputs. The pin signals and specifications for the external I/O Box and the D-type 15-pin connectors are described below.
D-type 15-pin Connector Cable
Video Card
External I/O Box
D-type 15-pin conn ector
Sensor Input 2
Sensor Input 1
Sensor Input 3
Sensor Input 4
Relay Outputs 3
Relay Output 1
Rela
Output 2
External I/O Box
Sensor Input Specification
Relay Output Specification
Surge strength: 1500 VAC Nominal power 200mw ~ 360mw Operating power 110mw ~ 200mw
10% )
o
C)
Pick-up Voltage (VDC)
Drop-Out Voltage
(VDC)
Nominal Current (mA)
COIL RATINGS (at 20
Coil Nominal Voltage
(VDC) 5 125 3.75 0.5 40 * Max Continuous Voltage at 20oC : 110% of Coil Nominal Voltage
Coil Resistance (
9
10
Page 10
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
CONTACT RATINGS
Contact Arrangement 1 Form C (SPDT) max. Switch Power
max. Switch voltage max. Switch current
125VA 60W 125VAC 30VDC
2A Contact Resistance 100m Resistive Load 1A/125VAC
2A/30VDC Contact Material AgNi10
External I/O Box Pin Signals
Pin # Definition
1 INPUT SIGNAL 1+ 2 INPUT SIGNAL 2+ 3 INPUT SIGNAL 3+ 4 INPUT SIGNAL 4+ 5 OUTPUT 3 – N ormally Closed 6 INPUT SIGNAL 1-(GND) 7 INPUT SIGNAL 2-(GND) 8 INPUT SIGNAL 3-(GND)
9 INPUT SIGNAL 4-(GND) 10 OUTPUT 3 – Common 11 OUTPUT 1 – Normal l y Open 12 OUTPUT 1 – Common 13 OUTPUT 2 – Normal l y Open 14 OUTPUT 2 – Common 15 OUTPUT 3 – Normal l y Open
Sensor Inputs
External sensors such as infrared sensors, smoke detectors, proximity sensors, door sensors, etc., can be attached to the AVerMedia EYES Pro/ MP2016/MP3000/MP500 0’s input-signal connectors on the External I/O Box. These devices trigger the system to respond with a predefined action (e.g. record video)
Relay Outputs
The AVerMedia EYES Pro/MP2016/MP3000/MP5000’s output connectors (relay output) can be attached to external output contr ol devices such as alarms. The system can be configured to activate or deactivate these devices. Each AVerMedia video card supports three relay outputs. Two of them are normally open relays with one being a toggle switch.
11
12
Page 11
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
Chapter 2 Driver Installation
AVerMedia EYES Pro/MP2016/MP3000/MP5000 are Plug-and-Play digital surveillance systems that supp ort Windows 98SE/Me /2000/XP. To start using this system, first ins tall the drivers and applic ation software from the Software CD that comes with AVerMedia EYES Pro/ MP2016/MP3000 /MP5000 system.
Check Your Windows Version
Before you install the driver, check to see whether you are using Windows 98SE, Windows Me, Windows 2000 or Windows XP. To do this, click Start Æ Settings Æ Control Panel on the Window’s toolbar, and then double-click System. You will see the Windows version under the General tab.
Depending on the version you use, yo u will encounter different dialog boxes when installing the driver. Those listed in the following sections are for installing drivers in Windows 98SE/Me, Windows 2000 and Windows XP.
2.1 Installing the Driver in Windows 98SE/Me
After you have properly installed the AVerMedia video card in your computer, power on your computer and start Windows 98SE/Me.
1. The first time you install the AVerMedia v ideo card driver, you will see the Add
New Hardware Wizard. Insert
the Software CD and click the Next button.
2. Select Search
for the best driver for your device. (Recommended)
and then click the Next button.
3. Choose Specify a location and click the Browse button to find the drivers in the [driver] folder of the EYES Pro /MP2016/MP3000 /MP5000 Software CD. Click the Next button.
4. The Add Hardware Wizard will find ARGUS.inf from the folder you specified. Click the Next button to continue.
13
14
Page 12
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
5. (For Windows 98SE only) Insert the Windows 98SE CD-ROM to start installing the driver.
6. Click the Finish button to complete the installation of video driver.
7. Next you need to install the audio driver. Click the Next button to proceed.
8. Select Search
for the best driver for your device. (Recommended)
and click the Next button.
9. Select Specify a location and click the Next button.
10. The system will find the video driver you just installed because the audio driver is the same as the video driver. Click the Next button to continue.
15
16
Page 13
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
11. Click the Finish button to complete the audio driver installation and reboot your PC.
For EYES Pro, you need to take the procedures (1~14) once for each video card. For MP3000, you are asked to repeat the procedures 4 times; for MP2016/MP5000 8 times at most. If you have installed 4 video cards, you will find the sy stem’s device manager looking like the following figure .
2.2 Installing the Driver in Windows 2000
After you have properly installed the video card in your computer, power on your computer and start Windows 20 00.
1. The first time you install the video card, you will see the
Found New Hardware Wizard.
Insert the EYES Pro/ MP2016/MP3000/ MP5000 Software CD and click the Next button.
2. Select Search for a
suitable driver for my device (recommended)
and click the Next button.
3. Select Specify a location and click the Next button.
17
18
Page 14
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
4. You‘ll be prompted to enter or browse the location of the video card driver. Set the right path and click the OK button.
5. The system will find argus.inf from the folder you specified. Click the Next button to continue.
6. Click the Yes button to proceed with the installation.
7. The system will soon show that it has finished the video driver installation. Click the Finish button.
8. Next you need to install the audio driver. Click the Next button to proceed.
9. Select Search for a
suitable driver for my device (recommended)
and click the Next button.
19
20
Page 15
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
10. Check Specify a location and click the Next button.
11. You‘ll be prompted to enter or browse the location of the AVerMedia v ideo card driver. Set the right path and click the OK button.
12. The system will find the video driver you just installed because the audio driver is the same as the video drive r. Click the Next button to start installing.
13. Click the Yes button to proceed with the installation.
14. Click the Finish button to complete the installation and reboot your PC.
For EYES Pro, you need to take the procedures (1~14) once for each video card. For MP3000, you are asked to repeat the procedures 4 times; for MP2016/MP50 00 8 times at most. If you have installed 4 video cards, you will find the system’s device manager looking like the following figure.
21
22
Page 16
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
2.3 Installing the Driver in Windows XP
After you have properly installed the video card in your computer, power on your computer and start Windows XP.
1. The first time you install the video card, you will see the Found New Hardware Wizard. Insert the EYES Pro/ MP2016/MP3000/ MP5000 Software CD and select Install the
software automatically (recommended).
Click the Next button.
2. The system will then find the driver argus.inf in the Software CD and start installing. When this dialog box shows up, click the Continue Anyway button to proceed.
3. After the installation finished, click the Finish button.
4. You need to continue installing the audio driver. Select Install
the software automatically (recommended) and
click the Next button.
5. Because the audio
capture uses the same driver as the video capture, the system will find the video driver you just installed and start installing. When this dialog box appea rs, click the Continue Anyway button.
23
24
Page 17
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
6. After the installation finished, click the Finish button.
For EYES Pro, you need to take the procedures (1~14) once for each video card. For MP3000, you are asked to repeat the procedures 4 times; for MP2016/MP5000 8 times at most. If you have installed 4 video cards, you will find the sy stem’s device manager looking like the following figure .
2.4 Remove Your Video Card Driver
While removing your video card driver, you need to follow the steps described below.
1. Find the system’s Device
Manager, ungroup Sound, video and game controllers,
and remove all the drivers by the names of “ARGUS WDM Audio
Capture” and “ARGUS WDM Video Capture
2. Delete the following files in the specified paths.
Windows 98/Me: C:\WINDOWS\INF\OTHER\ DVR\ARGUS.inf C:\WINDOWS\SYSTEM32\DRIVERS\argus.sys
Windows 2000: *C:\WINNT\INF\oemX.inf *C:\WINNT\INF\oemX.pnf C:\WINNT\SYSTEM32\DRIVERS\argus.sys
Window s XP: *C:\WINDOWS\INF\oemX.inf *C:\WINDOWS\INF\oemX.pnf C:\WINDOWS\SYSTEM32\DRIVERS\argus.sys
* For the files “oemX.inf” and “oemX.pnf,” “X” stands for numbers. Open each of the oemX.inf and locate the [Manufacturer] section. If the value is DVR, then this is the file you need to delete. For
oemX.pnf, delete the one that has the same number (X) as the oemX.inf you deleted. For example, if oem0.inf has DVR in the [Manufacturer] section, then you need to dele te both oem0.inf and oem0.pnf.
3. Please reboot your computer to complete the re move.
25
26
Page 18
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
Chapter 3 Software Installation
3.1 Installing AVerMedia EYES Pro/MP2016/MP3000/ MP5000 Software
After you successfully install the video card driver, you then are ready to install the EYES Pro/MP2016/MP30 00/MP50 00 app lication so ftware. You can easily complete the installation of AVerMedia EYES Pro/MP2016/ MP3000/MP5000 by follow ing the simp le instructions below.
During the installation, you will be asked to key in a user name and a password. You must remember them because you will be prompted for entering the same user name and password later when entering the AVerMedia EYES Pro/MP2016/MP3000/MP5000 surveillance system.
It’s recommended that you exit all other Windows programs before you install AVerMedia EYES Pro/MP2016/MP3000/ MP5000 surveillance system.
1. Insert the AVerMedia EYES Pro/MP2016/MP3000/MP5000 CD into the CD-ROM drive and wait for it to auto-run.
2. Click the text “AVerMedia EYES Pro”, “AVerMedia MP2016”, “AVerMedia MP3000”, or “ AVerMedia MP50 00” and choose the language version you would like to install.
3. The system will then start preparing to install the AVerMedia EYES Pro/MP2016/MP3000/MP5000 application software.
4. Click the Next button to continue.
5. Read the License Agreement and click the Yes button if you accept it; otherwise click the No button to exit the setup program.
27
28
Page 19
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
6. Enter your Name, Company Name, and the Serial No. (printed on the CD cover) and click the Next button. The name you enter here will be used as the System Manager when operating t h e software.
7. Choose the components you need and then designate the destination folder for the software to be installed. Click the Next button to continue.
9. Select the video format of the camera used in your country. If you don’t know the correct format, contact your local camera supplier. Click the Next button.
10. Set a password for the System Manager. You need to use this password when entering the EYES Pro /MP2016/MP3000/ MP5000 system. Click the Next button to continue. The system then starts to install the software.
8. Specify the folder name to store the AVerMedia EYES Pro/ MP2016/ MP3000/ MP5000 program or choose an existing folder from the list. Click the Next button.
11. Select the n u mber of video channels you will use on this system and click the Next button.
29
30
Page 20
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
12. After the installation finishes, you can choose to create a shortcut of EYES Pro/MP2016/ MP3000/MP5000 program and click the Next button.
13. Before you exit the setup program, you can choose to view the README file. After you click the Finish button, a text file will show up.
3.2 Product Update
To obtain the latest software, go to www.avers.com.tw to down load t he updated software of AVerMedia EYES Pro/MP2016/MP3000/MP5000 system. After you successfully do wnload the file, fo llow the procedure s below to update your software.
1. First you need to remove the older-version software from your computer. Go to Control Panel and double-click on Add/Remove
Programs. Select “Uninstall Digital Video Surveillance System” and click the Add/Remove button. You will need to
reboot the system afterwards.
2. Update your new AVerMedia software. Refer to section 3.1 – Software Installation. It is unnecessary to update a new driver manually because the system will execute the procedure automatically during installation.
If your MP3000 series video card driver is beyond version 3.5, notice that the innovation on hardware in V 3.5 has restrained you to update the entire services, which is described as follows:
Product Present H/W
MP 3004 1 card 1 card
Update Solution
H/W
Update Solution
S/W
4 chs
14. Choose whether you like to restart your computer now or later and click the Finish button to complete the installation.
MP 3008 2 cards 1 card 4 chs
2 sets of
MP 3016
After finishing updating, select the desired channel numbers and disable the unselected channels for keeping the efficiency of the system while reinstalling vid eo c ard dr iver.
31
32
1 card w/ 1
extended card
1 card
1 card w/ 1
extended card
4 chs
8 chs
Page 21
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
3.3 Special Consideration
Defrag Your Hard Disk
Files on your hard disk will unavoidably become fragmented. Fragmentation occurs when the operating system must split files into parts and fit each part into different free segment of the hard disk to make full use of the hard disk space. If files on your hard disk become excessively fragmented, your system would have to work very hard to maintain all the necessary information about the files locations. This results in slow and bogged-down performance and it gets more and more seri ous as the time goes on . Therefore, it is recommended tha t you regularly run a defragment utility pro gram on your hard disk such as Windows Disk Defragmenter especially before you start saving recorded videos to the har d d isk .
Chapter 4 System Configuration and Operation
Before you start running the EYES Pro/MP2016/MP3000/ MP5000 system, please set your monitor resolution to 1024 x 768 and the color to 16-bit true color or above.
4.1 System Configuration
When you first start up the AVerMedia EYES Pro/MP2016/MP3000/ MP5000, the system will reque st you to enter user ID and passwo rd to login surveillance system. Key in the user name and password you
entered during the EYES Pro/MP2016/MP3000/MP5000 installation.
Upon the success of authentication, you will see the following main screen of EYES Pro/MP2016/MP3000 /MP5000 Digital Video Surveillance System.
33
34
Page 22
AVerMedia User’s Manual
/
p
oad /
o
o
a
/ op
o o g
/
p
g
EYES Pro/MP2016/MP3000/MP5000
EYES Pro/MP2016/MP3000/MP5000 Main Screen
Alarm & Relay Status
Network Status
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
Click the System Configuration button to enter the configuration dialog. You need to first set up your sur veillance system before you start using it.
Exit / Login
Split Screen Display
Start
Status Bar (Hard
Disk/Network/Date &Time)
Full Screen
Sto
AutoScan
St
Start
E-Map rt St
Sto
M
Audio Recordin
nit rin
L
Cl se Netw
rk Server
System Configuration
Log Viewer
PTZ Controller
After entering the System Configuration page, you can set up the system, cameras, audio, monitoring, sensors, relays, alarms, networking, scheduler, backup, e-map, and user information.
35
36
Page 23
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
System
Clicking on
System brings you to the following dialog box for system information. Here you need to provide some basic information for the monitoring and recording operation.
2. Minimum Space
Next you need to provide the minimum space for hard disk recycling. During hard disk recycling, the new ly recorded files will overwrite the old ones. This way the system will not run out of hard disk space to save the recorded videos. The system will start hard disk rec ycling when the hard disk free space is less than a user-defined number. The user-defined number has to be greater than 450MB, the system defaults to 450MB.
3. Miscellaneous
Beep if no signal:
Check this box to have the system start beeping whenever a video loss from a camera occurs.
1. Assign Recording Disks
First you need to assign the recording disks. Click
to browse for the folder to save the recorded videos and click the Add button. You can click the Delete button to remove any of the recording disks, as long as there is at least 1 disk left to save the recording data.
37
Auto Reboot: For better system performance and stability, it is recommended for you to check the Auto Reboot box and the system will reboot everyday at a user-defined hour that least interferes with your surveillance operation.
Ask for password when login: Check this box to enable the password protection when users login the surveillance system.
Date Format: Here you can choose to show the date information in the ord er of mm/dd/yy, yy/mm/dd, or dd/mm/yy.
38
Page 24
AVerMedia User’s Manual
,2,3,
,10,11,
,7,11,
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AutoScan:
This function allows you to view each camera image in numerical sequence under 1-Cam Display mode. Check AutoScan to enable this function and define the scan interval from 1 to 60 seconds (defaults 3 seconds). When in this function is enabled, you need to
return to the main menu and click
to start the AutoScan
function. During AutoScan, you can click Focus Camera to jump to any camera. To stop the AutoScan
function, click
again.
4. Video
For Video Standard, you need to choose from NTSC and PAL according to the system you are using.
5. Display & Recording Rate
With this button you can set display and recording rate by camera. You will see the following dialog box when you click this button. There are 5 levels of display and recording rate. Drag the bar to adjust the display/ recording rate for each camera.
In case All is checked, you will see that while you’re adjusting the rate for one camera, the rate of other cameras will be adjusted at the same time. Cameras that are adjusted together use the same video chip on the video capture card.
6. 640 x 480 Resolution
The utility provides your particular demand on the better 640 x 480 resolution for the specific cameras. For EYES Pro/MP2016/MP3000 , you can check the cameras to perform the better resolution by clicking this butto n. Note that those cameras are arranged to be sets according to the same video chipset on the video capture card. For MP5000, you can set all cameras randomly to perform 640 x 480 resolution. The arranged camera sets are listed as follows:
Product Camera Sets
4 EYES Pro 1
4
8 EYES Pro 1,2,3,4 5,6,7,8 16 EYES Pro
MP2016
1,2,3,4 5,6,7,8 9
12 13,14,15,16 1,2,3,4,5,6,7,8,9,10,11, 12,13,14,15,16
MP3004 1, 2, 3, 4 MP3008 1,5 2,6 3,7 4,8
MP3016
1,5,9,13 2,6,10,14
15 4,8,12,16
3
MP5004 1 2 3 4 MP5008 1, 2, 3, 4, 5, 6, 7, 8
MP5016
1,9 2,10 3,11 4,12 5,13
6,14 7,15 8,16
That too many cameras were selected to be 640 x 480 resolution will result in overloading for system. For the further information please refer to our website:
www.avers.com.tw
7. UPS (Uninterruptible Power Supply)
It enhances the security for system to warn administrators and users if AC power fails and proceeds with system shutdown before the end of battery backup power is reached. The UPS device should be connected to your computer (refer to your UPS user’s guide) before the presetting of this task .
39
40
Page 25
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
A. Check Enable to activate UPS meanwhile the Vendor as well as
Model of your UPS will show up in the individual boxes if your
UPS is completely connected to.
B. Determine a limited value for capacity to shutdown your
computer. The value is ranged between 10 and 90%. It is unavailable to be set lower than 10% or higher than 90%.
UPS application must meet Window NT or above. Windows 2000 or Windows XP are recommended.
8. Update
Whenever the above settings are modified, click update.
10. Restore
Click restore your last settings.
11. Default
Click
to abort all the changes you made so far and
to change all values to their default settings.
to
Cameras
Double-click configure.
Cameras and choose the camera you want to
1. Camera ID
In the No. field, you can see the c amera numb er you p ick o ut fr om the left list.
2. Card No. / Port No.:
This section indicates the card number and the BNC connector number that this camera is connected to. It is configured by the system automatically and you cannot change otherwise.
41
42
Page 26
AVerMedia User’s Manual
g
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
3. Enable
Check Enable to enable this camera for
Figure 1.
Gray-scale image
monitoring. If a camera is not enabled, the image from this camera will show as Figure 1 (gray scale) on the screen. This camera’s sign in the menu will change to
.
If a camera input is not physically connected to a camera, you need to de-select Enable, or the system will not reach its best performance.
4. Camera
Display:
Check Display to display the image from this camera on the screen. If you check
Figure 2.
Color ima
e
Enable without checking Display, the image from this camera will show as Figure 2 (color) on the screen. Although the image is not shown on the screen, this camera is still performing Record When
Motion Detected, Record When Start Monitoring, or Don’t Record,
depending on which one you chose in the
Monitoring section of the System
Configuration.
Name: In the Name field, you can set the name for the camera. Comment:
This field allows you to add any remarks you have for this camera. Any comment left can serve as a reminder for system manager.
Image Properties:
You may set the following properties for the image of this camera.
brightness contrast color saturation
Settings for the image properties are configured fo r the designate d card, which may also connect to other cameras. That means, the settings you make for this camera will apply to other cameras that connect to the same card.
The adjustment of image properties will result in inefficiency as the video format is set to be PAL for the unsupported hardware temporarily
5. PTZ Camera PTZ Camera Setup
A. Select a Com Port where PTZ camera connector co nnected and
the PTZ Model you use (refer to your PTZ camera spec.) by the pull-down lists. And click Set to place your setting.
B. To control PTZ camera with server’s camera by entering PTZ
Camera ID at the range of 2~22 5.
Preset Position Setup
A. Choose a position number by the pull-down list to set the
monitoring position with the right side direction interface.
Meanwhile the display you adjust will be shown on the upside. B. Determine a Position Name for the position. C. During AutoPan, Dwell determines the time for the camera to
stay (1~60 seconds) at one position before rotating to the next
position. D. You can set the Speed (5~255 deg/s) with which the camera
rotates from its current position to the nex t pr e set po sition. E. Click Set to involve into the setting.
6. Update
Click this button to update the setting.
7. Restore
Click this button to abort all the changes you made so far and restore your last settings.
8. Default
Click this button to change all values to their default se ttings .
43
44
Page 27
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
Audio
Click Audio to enter the audio page as below.
1. Enable
2. Detection Sensitivity
You can click as a reference when adjusting the se nsitivity. The system defaults the sensitivity to 30%.
3. Properties
You can set the length of time for the system to continue recording the audio once activated. The s ystem defaults to 5 seconds . The length of time you set determines the size of the .WAV file. (1 second long roughly takes up 8 K of space.) The .WAV file format is PCM 8KHz, 16bit, mono. To playback the audi o files, you need
to go to
4. Update
Click this button to update the setting.
5. Restore
Click restore your last settings.
6. Default
Click
to test the volume of your current environment
Log Viewer.
to abort all the changes you made so far and
to change all values to their default settings.
Check here to enable the automatic sound detection. The system will start recording upon detected volume greater than the sensitivity you set. Note that this function only works while
the system is recording videos.
45
46
Page 28
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
Monitoring
In this section you can configure how the cameras perform monitoring/recording and the related properties. Double-click on
Monitoring and choose the camera you want to configure.
Beep upon detected motion:
By checking Beep upon detected motion, you can enable the alarm to start beeping once motion detected. You can do an
instant test it by clicking
and the following two signs
represent different situations.
: Motion detected in the detecting area
: No motion detected in the detecting area
2. Recording
You can choose the suitable recording mode among these three: Record when start monitoring:
The system starts recording once the monitoring starts.
Record when motion detected:
The system starts recording on l y when mot ion is det ect ed, and continues recording for 1~120 (user-defined) seconds after the motion stops. The user-defined le ngth of time (d efault to 1 seco nd) is set in the Stop recording after sec. section.)
Don’t record:
The system doesn’t record no matter what happ e ns.
3. Quality
1. Motion Detection
Sensitivity:
In this area, you can adjust the motion detec tion sensitivity fr om 0 to 100 (system default: 90). The highe r the value is, the better the sensitivity the system can detect.
Record with Time Stamp:
You can also add time information on the recorded video by checking Record with time stamp and choose the color of the time display.
47
adjust the image quality from 0 to 100 (default 50 ). The highe r the value is, the lower the compression ratio gets, and the larger disk space is required. You can also decide the recorded file size
by changing the compression ratio. If you select Fast Recording with MJEPG format (lower compression ratio), the
system record faster, and therefore, the file size is bigger. On the contrary, if you select High Compression Ratio with MPEG4, the recorded file size will be smaller for they are highly co mpr essed.
This section allows you to choose the compressed program and
48
Page 29
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
4. Motion Detection Mask Mask
Mask a specific area to leave the rest area for the motion detection.
A. First check Mask in the Enable field to edit the mask area. B. Check Show Mask to make masked area visible. C. To add or cut any masked areas, simply click
Add or Cut, an d then draw the area you want to add to or cut from the masked area. To clear all masked areas, click Clear. And click Invert to invert the masked areas into unmasked ones and vise versa.
D. Choose a mask color out of from red, green, and blue.
Shield
To e n a b le Shield provides you to protect so me private areas fr om the entire surveillance contro l into a black shie ld, ex: a fitting r oom in a department store.
A. First check Shield in the Enable field to edit the shield ar ea. B. Refer to Mask step C.
5. Edit
Click on either the radio button for mask or shield to spe cify the working ar e a by Add/ Cut/ Invert/ Clear in Motion Detection
Mask field.
6. Update
Click this button to update the setting.
Sensors
Double-click on
Right-click the mouse on
Sensors to list the sensors already been configured.
Sensors to add a new sensor. Click
any desired sensor to enter the setup scr e e n of that sens or.
7. Restore
Click this button to abort all the changes you made so far and restore your last settings.
8. Default
Click this button to change all values to their default se ttings .
9.
Start/ Stop Monitoring
After the settings are placed comple te ly, click on the button activate the functions above when you are back to the main screen.
to
49
1. Sensor ID
In the No. field, you can see the sensor number. In the Name field, you can set the name for the sensor.
2. Content
Since each card can connect to one external I/O Box, and each I/O box supports 4 sensor inputs, yo u can easily determine the Card
No. and Input No. as to where this sensor is connected. In the Comment field you can add any remarks you have for this sensor.
Any comment left can serve as a reminder for the system manager.
50
Page 30
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
3. Test
You can test the sensor immediately after you install it. Click
, and if the test area turns red , it indicates the sensor is
Closed/ON. If it turns green, it indicates the sens or is Open/Off.
4. Enable
Check Enable box to activate the previous setting .
5. Update
Click this button to update the setting.
6. Restore
Click Restore to abort all the changes you made so far and restore your last settings.
Relays
Double-click on
Right-click the mouse on
Relays to list the relays already been configured.
Relays to add a new relay. Click any
desired relay to enter the setup screen of that relay.
1. Relay ID
In the No. field, you can see the relay number. In the Name field, you can set the name for the relay.
2. Content
Since each card can connect to one External I/O Box, and each box supports 3 relay outputs, you can eas ily determine the Card No. and Output No. as to w here this r e lay is connec te d.
In the Comment field you can add any remarks you have for this relay. Any comment you left can serve as a reminder for the system manager.
3. Test
You can test the relay immediately after you install it. Click
, and if the test area turns red, it indicates the relay is ON/HIGH and generates an output signal. If it turns green, it indicates the relay is OFF/LOW.
4. Enable
Check Enable box to activate the previous setting .
5. Update
Click this button to update the setting.
6. Restore
Click
to abort all the changes you made so far and
restore your last settings.
After the sensors and relays are co nfigured, you can go to
Alarm
to create alarms that will alert you when specifie d events take p lace.
51
52
Page 31
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
Alarms
Double-click on
You may right-click the mouse on
Alarm to list the alarm already been configured.
Alarm to add a new alarm
up to 64 alarms. Click any desired alarm to enter the setup screen of
that alarm.
For sensors, select High (Closed/ON) or Low (Open/OFF) to be the event condition. Note that for the alarm to be triggered, both
event conditions for the camera and the sensor have to be met.
3. Action
Recording & Relay Output:
To set actions, check the Recording column of the desired camera to start recording, and check the Enabled column of the desired relay to generate outputs when both the event conditions for cameras and sensors are met.
Relay and Full Screen on Motion retrieve
After an input is triggere d, the output of relay and full screen on motion will revert to normal status after the time you set.
Sound, Call out and Email will be activated
The output ways you designate after an alarm is generated offer you to decide the deferment once an alarm is trig ge r ed .
Full Screen on Motion:
During surveillance, you ca n have the system to instantly pop up the image (1-camera display mode) that has motion detected for a user-defined length of time.
1. Alarm ID
In the No. field, yo u can see th e ala rm numb er. Also, you c an set up the alarm name in the Name field.
2. Conditions
To set the event condition for cameras, check Motion
field of the desired cameras to make their detected motion as an event to trigger the alarm. And check Video Loss
field of the desired cameras to make their weak signal or video loss as events to trigger the alarm.
53
Sound Alarm:
Check Sound to play a .WAV file when an alarm is triggered. You can assign the path of a specific .WAV file for the system play, or
you can record a new .WAV file by clicking
. To do so,
follow the steps below:
A. Click
and the
recording utility pops up. B. Click C. Click
to start recording. to stop recording.
D. Save it as the .wav file.
54
Page 32
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
Call Out:
If you have a voice modem installed, you can make the sy stem to call out to landline/mobile phone or pag er (maximum 5 sets in total) once an alarm is triggered. Follow the following instructions.
A. Check Call Out to enable this function. B. Select a corr ect model for your voice modem from the drop -
down menu of Voice Modem Installed.
C. Click
to bring up the dialog bo x below to set up the telephone information. Here you should follow the steps described below to set the landline/mobile phone or the pager number.
clicking . After you complete the pager or phone information, click
to add this
number to the table.
c. Select Dial next line if busy or Dial All. In the
former case, the system will dial the next number when the current one is busy. But if the call enters the voice mail of the mobile phone or gets picked up by an answering machine, the system will act as if the call-out is completed and won’t dial the next line. Therefore, it is recommended for you to select the latter one, in which case the system will dial all numbers and send the warning message.
d. The
/ buttons allow you to update/delete a pager or a landline/mobile phone number. To update, you need to first select the target number, key in the updated information, and then
click number and click
. To delete, simply select the target
.
Email:
You can email alarm messages once an alarm is triggered. Follow the instructions below.
A. Check Email to enable this function. B. Set the interval period and time to send the emergency e-mail.
a. Select Pager or Phone. b. Key in the numbers for the landline/mobile phone or
the pager, whichever you selected in step a. If you’re
C. Click
up the email information.
to bring up the dialog box below to set
setting up a pager info., you can compose a text message you wish to send to a pager by using numbers, *, and # in the Message field. If you’re setting up a phone info., you can browse for a .WAV
56
file by clicking
or create a new .WAV file by
55
Page 33
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
Provide information for each field.
SMTP Server: The domain name of your mail server or IP address. (eg. avers.com.tw)
From: The sender’s email address.
To: The receiver’s email address. Use “;” (semicolon) to
separate each email address.
Cc: The email address to which you want to send a copy.
Subjec t: The sub ject of this alarm message.
Alarm Message: The content of this email message.
D. You can click
4. Restore
to clear all the inputs. Click
to save the email settings or click
to exit the dialog box without saving.
Networking
Click
Networking to enter the networking setup page.
1. General Server IP:
In this filed, enter the IP address of the server for remote clients to access. Or you can choose from the drop-down menu where lists all the available IP for your computer.
Click
to abort all the changes you made so far and
restore your last settings.
Event Log: This file, “history.log” keeps a record of all IP addresses of the
client’s computer during a remote transmission. You can click to change it’s location.
57
58
Page 34
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
Transmitting Cameras
Here you can select cameras allowed for remote monitoring.
2. Enable WebCam Server
Check here to enable WebCam Server for remote monitoring.
Port:
Set the port no. (default 80) for remote transmiss ion.
Ask for password when remote clients login:
Check here if you need remote clients to pro vide passwords when they login the WebCam server.
Web Root:
In this field, you need to browse for the path where the WebCam home page is stored. When the remote client login the WebCam server, it will link to the WebCam home page from this path.
The WebCam server doesn’t work under servers with IIS (Internet Infor ma tio n Se r vice ) inst alle d.
3. Enable Remote View server (Multicast server) via TCP/IP
If you want to transmit images for remote surveillance via TCP/IP, first check the checkbox to enable this func tion. Determine a port in Port box to connect client to a server with TCP port (default
9090). In addition, a fir ewall NAT function should be configured to enable the mutual transmission.
4. Dynamic DNS
In case a dynamic server is severed, please register a domain name with the IP address: ddns.avers.com.tw on line. Refer to
Appendix B for the further information.
Domain Name & Password
Enter the domain name and password given in the process of registering a domain name or obtain them by asking network administrator.
5. Update
Whenever the above settings are modified, click update.
6. Restore
Click
to abort all the changes you made so far and
restore your last settings.
7. Default
Click
to change all values to their default settings.
to
The following is the detailed illustration to configure the connection:
59
60
Page 35
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
Scheduler
Click Scheduler to enter the setup page for scheduler. You can schedule for monitoring, recording, or enabling network server by date or by weekday. Depending on your needs, after you set all the schedules, you can only enable the ones you currently need and disable the rest, which might be used later.
2. Schedule Recording
You can choose to set the schedule by date or by weekday by selecting By Date or By Weekday.
By Date:
If you set the schedule by date, you can key in the date directly or choose from the drop-down menu and click
to add it to the
column. You can set multiple dates (max 60 days) for
a single task. To take off a date from the column, click on the date you wish to delete and press [Delete] or [Backspace] on the keyboard.
By Weekday:
If you set the schedule by weekday, directly choose any day in a week. Multiple days for a single task are also acceptable.
You can only set future dates to for a schedule. Dates in the past are not a cceptable.
1. Enable
Check this to enable a schedule. Note that you still need to click
after you enable a schedule. Enabled schedules to monitor/record/enable netwo rk server are shown in whereas disabled schedules are shown in
/ / .
/ / ,
61
3. Time
You can key in the start and ending time for the task in the following order: hour, minute, and AM/PM. Or use the up/down button to adjust the time. The start time must be earlier than the ending time. That means you can’t span the time to the next day. To schedule a task that covers more than 1 day, you need to separate it into 2 or more schedules for the sa me task .
62
Page 36
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
4. Task

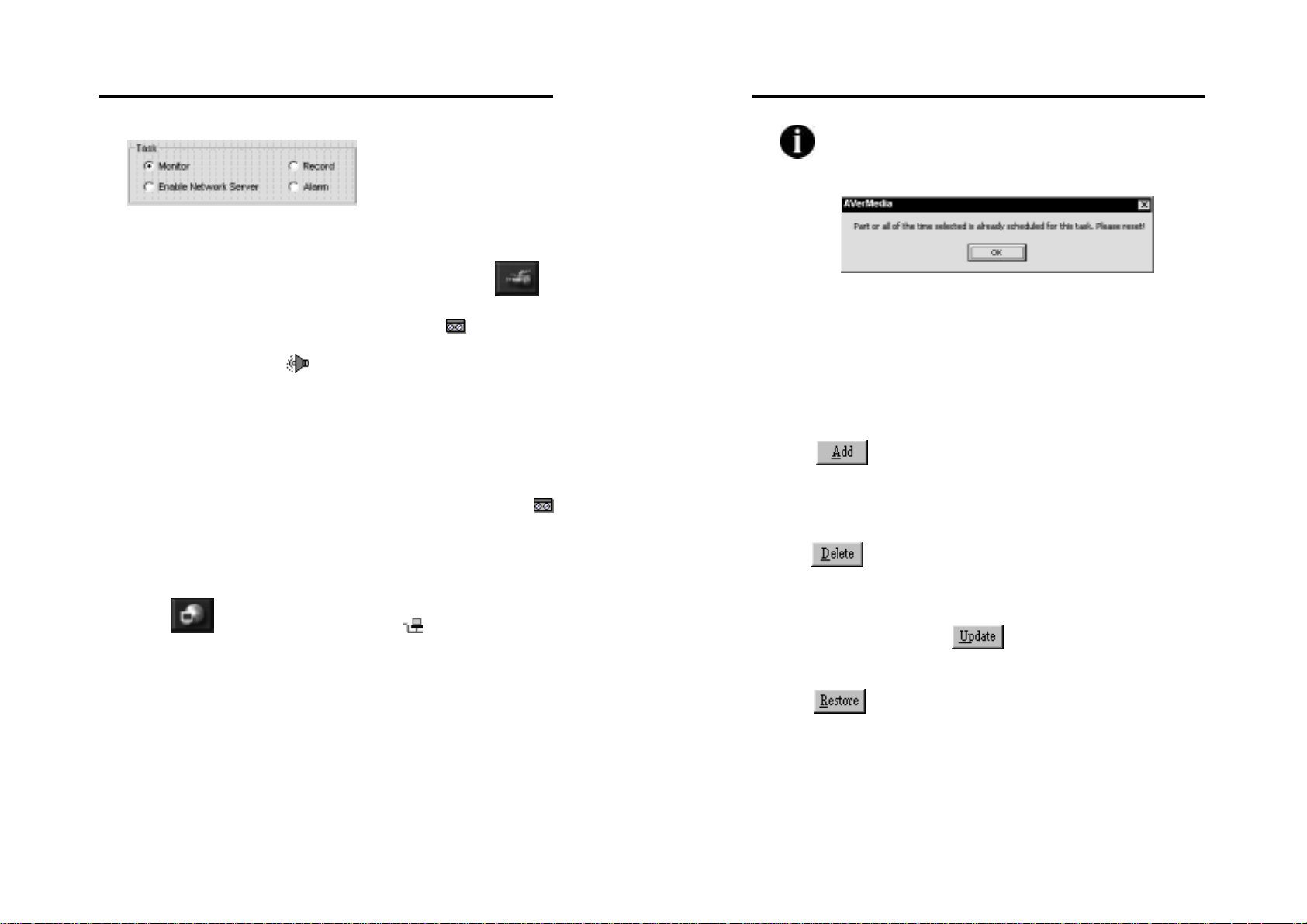

Here you can select the task you’re scheduling for. Monitor
If you select Monitor, the system will activate this button on the main menu when the scheduled time is due. The system will act according to the recording mode set in the
Monitoring
section. Meanwhile, the system will also monitor the event conditions you set in the
Alarm section for the cameras and
sensors and trigger the alarm accordingly.
Record
If you select Record as the task, the system will have the chosen cameras to start recording at the scheduled time. The task you set here enjoys higher priority than the recording mode you set for each camera. That means, even if you have set the camera to
Record when motion detected or Don’t record in the Monitoring section, the camera will still start recording at the
scheduled time. Enable Network Server
When this is selected to be the task, the system will load network
server
based on your settings in the Networking
section and start the remote monitoring for transmitting cameras.
Alarm
If the time of the schedule you set for a task overlaps with the time of an existing schedule for the same task, the system will give you a warning message below. In short, the time of 2 schedules for the same task cannot overlap.
5. Cameras
When you select Record or Alarm to be the task, you need to select the recording camer as here.
6. Comment
Put your remarks here as a reminder of any schedule.
7. Add
Click
to add a new schedule to the table after all the
necessary information is filled in this p age .
8. Delete
You can select any task you want to remove from the table and click
.
9. Update
To update a schedule, select it from the table, revise the information, and then click
to verify.
10. Restore
If Alarm box is checked, the Alarm will execute according to the Alarm section you plan as long as the Time is due. To exercise the prior privilege of Scheduler, the Alarm will perform by the scheduled time even though it is not enabled in Alarm section of System Configuration.
63
Click
to abor t all the changes made so far for a schedule
and restore its last settings.
64
Page 37
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000

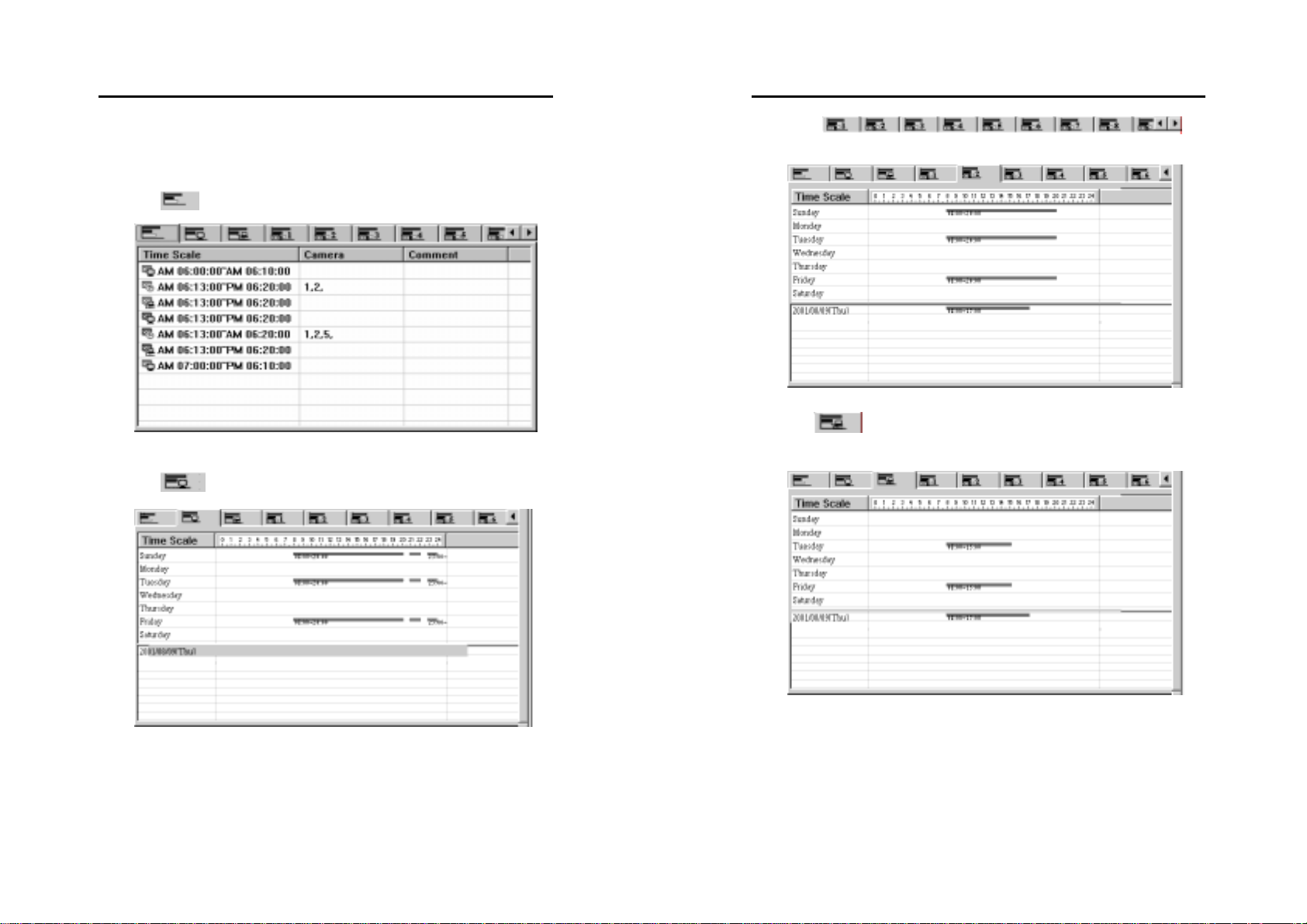

11. Table
This table lists all the schedules you have set. You can arrange the order of the schedules by clicking d ifferent buttons.
Click
to view all the scheduled tasks.
Click
to view all schedules for the task Monitor.
Click to view each camera’s schedules for the task Record.
Click
to view all schedules for the task Enable Network
Server.
65
66
Page 38
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
Backup
Double-click on
Manual Backup and Schedule Backup. Click either to enter
the setup page for each backup method.
Manual Backup
Click
to enter the setup page for manual backup.
Backup to view two backup methods:
1. Operation
There are three ways to backup your files:
Move: Simply move files from their original folders to the destination folders you assigned in the Location field.
Copy: Copy files to the destination you assigne d in the Location field.
Delete all. Don’t make copies.:
Simply delete all the files and leave no copies.
2. Device
Select your backup device (CD-R or Hard Disk/ZIP) here. If you choo se CD-R, you need to specify the size of the CD-R, which will limit the size of each re cording folders. After f inishing the backup, run a CD-R burning program, such as Nero Burning, to burn the folders on CDs.
67
68
Page 39
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
3. From/ To
Here you need to set the start and ending date/time.
4. Cameras
Select the cameras whose files you want to backup. Check
Audio to backup the recorded sound files.
5. Statistic
Click files and their total size.
6. Backup
Click
Schedule Backup
Click to enter the setup page for schedule backup. Depending on your needs, after you set all the schedules, you can only enable the ones you currently need and disable the rest, which might be used later.
to calculate the number of the selected
to start the manual backup.
1. Enable
Check this to enable a schedule for a backup. You still need to click
2. Schedule Backup
You can set the schedule backup by date or by weekday by selecting By Date or By Weekday.
By Date: If you set the schedule backup by date, you can key in the date directly or choose from the drop-down menu and click
add it to the (max 60 days) for a backup schedule. To take off a date from the column, click on the date you wish to delete and press [Delete] or [Backspace] on the keyboard.
By Weekday: If you set the schedule backup by weekday, directly choose any day in a week. Multiple days for a backup schedule are also acceptable.
3. Location
You need to specify a destination here to move the backup files if you check Move To. If you check Delete all. Don’t make copies., the system will delete all the files and leave no copies.
after you check to enable a schedule.
column. You can set multi p le da tes
to
4. Start Time
Set the start time of the backup schedule.
5. Files between the time
Start & End:
The system will look for files of the selected cameras between the Start and End time you set here. Adjust the time by hour/minute and AM/PM with the up/dow n button. Note that the start time cannot be later than the ending time. That
69
70
Page 40
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
means you can’t span the time to the next d ay. To backup files that cover more than 1 day, you need to separate the files into 2 or more backup schedules.
Days before schedule d da te s:
You can also backup files X days (user-defined) before the scheduled dates you put in the Schedule Backup section. Example: If you schedule for 2003/05/03 and 2003/05/06, and you enter “2” in the number of days before scheduled dates field, then the system will backup on 2003/05 /01 and 2003/05/04. So if you want the system to perform backup on the exact dates you scheduled, simply input “0” as the number of days before scheduled dates.
6. Camera
Select the cameras whose files you want to backup. Check
Audio to backup the sound files from the selected cameras.
7. Comment
Put your remarks here to serve as a reminder of a schedule.
8. Add
After all the necessary information is filled in this page, click
to add a new schedule for a certain task to the table.
All the schedules you have set will show up in the follow ing table.
Click to abort all the changes made so far for a schedule and restore its last settings.
E-Map
Here provides a completely configured map where all cameras, sensors , and relays are set.
Double-click on
Right-click the m ouse on
E-Map to list the e-maps already been configured.
E-Map to add a new e-map. Click
any desired e-maps to enter the setup screen of that e-map.
9. Delete
Select the schedule you want to remove from the table and click
to delete.
10. Update
Select the schedule you want to update, revise the information, and then click
to verify the update.
11. Restore
71
72
Page 41
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
1. First define the name of e-map.
2. Configure e-map Import
If an image of m a p (bmp./jpg. formats are supported) has existe d, click Import button to input the image which will be shown on the right side screen.
Edit If you don’t have an image of map in hand or need to modify the image, click Edit button to bring out the bmp. or jpg. programs to create an one or revise it.
3. Arrange Cameras, Sensors, and Relays
To add a new event, drag the button of Camera, Sensor, or Relay in the left side field and drop in the desired position of the map. The buttons not be set up will be disabled. To delete, drag and drop it in any positions out of the map. Whichever camera you click on, the monitoring status of which will be displayed in the left bottom field.
4. Information
Put in some information for each event to be reference during operation. Each edit box is limited in 32 bytes.
5. Click Update button to save your current setup.
6. Click Restore button to recover the previous setup.
7. Click Default button to change the setup to default settings.
Users Information
Click to enter the setup page for user information.
1. Add New Users
To add a new user, first fill the User ID, Full Name, Comment, Password, Confirm Password, and Authorization Level
(System Manager, Administrator, Operator and User) f ields. Nex t select the cameras that can be remotely viewe d by this user and
click
.
2. Remote Visible Camera section
You need to select which cameras and whether the audio files are accessible remotely for the user you are going to add. You can check All Cameras to select all, including the audio.
73
74
Page 42
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
3. Delete To delete a user, selec t that user and click Delete.
4. Update
You can update a user’s information by selecting that user, key in the latest information, and click Update.
5. Restore
During the modification of a user’s information, you can click Restore to abort all the changes made so far and restore the last settings.
6. Authorization Level
The EYES Pro/MP2016/MP3000/MP5000 surveillance system uses the following 4 authorization levels to classify users through password control.
System Manager Administrator
Operator User
You need to enter your ID and password to identify your authorization level when you login/logo ut, stop/start monitor ing, or load/stop network server. The table below illustrates the privilege of users from different levels when accessing each function.
Load / Stop Network Server
System Configuration
System
V V V
V V
V V
Cameras V V
Audio
V V
Monitoring V V
Sensor V V
Relays
Alarms
V V V V
Networking V V
Scheduler
Backup
E-Map
User Information
V V
V V
V V V V
V
4-Level User
Function / Setup
Start / Stop Monitoring
Start / Stop Audio R ecording
Control
System
Admin. Oper. User
Manager
V V V
V V
75
76
Log Viewer
PTZ Controller
1-Camera Display
2-Camera Display
4-Camera Display
V V
V V V
V V V V
V V V V
V V V V
Page 43
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
9-Camera Display
12-Camera Display
16-Camera Display
1-Camera Enlarged Display
6-Camera Display
8-Camera Display
10-Camera Display
13-Camera Display
Full Screen Display
Start / Stop AutoScan
V V V V
V V V V
V V V V
V V V V
V V V V
V V V V
V V V V
V V V V
V V V V
V V V V
4.2 System Operation
This section describes how to operate EYES Pro/MP2016/MP3000/ MP5000 surveillance system.
Focus Camera
The System Manager is allowed to operate all functions and to configure all settings for the system. The Administrator possesses
all the rights as the System Manager except to set the Information section of System Configuration. Operator has no rights to enter System Configuration. The User can only view the monitoring screen.
V V V V
User
77
Product Models
4 EYES Pro/MP3004/MP5004
4 EYES Pro/MP3004/MP5004 provid es Camera Enlarged Display, Display and
78
Start/Stop AutoScan.
4-Camera Display, Full-Screen
1-Camera Display, 1-
Page 44
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
8 EYES Pro/MP3008/MP5008
8 EYES Pro/MP3008/MP5008 provides Camera Enlarged Display, Display, Screen Display an d
16 EYES Pro/MP2016/MP3016/MP5016 provides Display, 6-Camera Display, 10-Camera Display,
16-Camera Display, Full-Screen Display and Start/Stop
AutoScan.
Display Modes Each display mode is illustrated in the grids below. Numbers in the
grids represent the camera number.
1-Camera Display
Click this button to view image from a single camera. If you have more than one camera installed, you can click any number
camera.
8-Camera Display, 9-Camera Display, Full-
Start/Stop AutoScan.
16 EYES Pro/MP2016/MP3016/MP5016
1-Camera Enlarged Display, 4-Camera Display,
8-Camera Display, 9-Camera Display,
12-Camera Display, 13-Camera Display,
(Focus Camera) to switch to a specific
4-Camera Display , 6-Camera
1-Camera Display, 1-
1-Camera
4-Camera Display
Click this button to split the screen into a 4-camera display. The screen will first display cameras 1~4. Click it again changes the display to cameras 5~8. Furthe r clicking will change the d isplay to cameras 9~12, 13~16, 1~4, and so on. See the followi n g sequence.
1 2
3 4
9-Camera Display
Click this button to split the screen into a 9-camera display. The screen will first display the camera 1~9. Click it again changes the display to camera 5~13. Further clicking will c hange the display to cameras 9~1, 13~5, 1 ~9, an d so on . See the fol l o wi n g sequence.
1 2 3 4 5 6 7 8 9
9 10 11 12 13 14 15 16 1
5 6
7 8
9 10
11 12
5 6 7 8 9 10 11 12 13
13 14 15 16 1 2 3 4 5
13 14
15 16
79
80
Page 45
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
12-Camera Display
Click this button to split the sc reen into a 12-camera display. The screen will first display the camera 1~12. Click it again changes the display to camera 5~16. Further clicking will c hange the display to cameras 9~4, 13~8, 1~12, and so on. See the following sequence.
1 2 3 4
5 6 7 8
5 6 7 8
9 10 11 12
9 10 11 12
13 14 15 16
9 10 11 12
5 6 7 8
13 14 15 16
1 2 3 4
9 10 11 12
13 14 15 16
16-Camera Display
Click this button to split the screen into a 16-camera display.
1-Camera Enlarged Display
Click this button to split the screen into a 1-camera enlarged d isplay. Further clicking will change the enlarge d imag e to the next came ra.
1
2
3
4
2
3
4
5
6/8/10/13-Camera Display
Click this button to split the s creen into a 6/8 /10/13-camera display. Further clicking will change the enlarge d imag e to the next came ra.
Full Screen Display
Click this button to switch to full scre e n from all display modes.
1 2 3 4
5 6 7 8
9 10 11 12
13 14 15 16
Start / Stop AutoScan
AutoScan allows you to view each camera image in numerical sequence under 1-Cam Display mode. To enable this function, you need to go to
the
System section of System Configuration to check AutoScan and define the scan interval. After this function is enabled, return to the main menu and click this button to start/stop the AutoScan function.
Duri ng A uto S ca n, you c an c li ck
Focu s C amer a to
jump to any camera.
81
82
Page 46
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
Focus Camera
The number on each button represents the camera number. These buttons show the status (
enabled / disabled) of each camera. Under all display modes, when you click any of the camera number from the focus camera buttons, that particular camera will be switched to the first camera in display.
Start / Stop Monitoring
Click
to start/stop monitoring. If the system is recording videos from a camera, a red triangle will appear in the upper left corner of the image frame. If you set this camera image to be recorded upon detected motion, a green triangle will show up together with the red
one when you click
to start monitoring.
While monitoring, the system simultaneously mo nitors the cameras and sensors for the conditions you set in the
Alarms section of System Configuration. Once both conditions for cameras and sensors are met, the corresponding alarm will be triggered.
Start / Stop Audio Recording
Click this button to start/stop re co rd ing audio. Here it shows the volume of the current environment. According to the se ttings in the
Audio section of System Configuration, once the detected volume is greater than the sensitivity, the system will start to record the sound for a user-defined length of time. It will then save the .WAV file to the path you specified. Note that the auto sound detectio n onl y wo rks
while the system is recording images from the cam era.
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
E-Map
After the configuring in the
E-Map section of System Configuration,
click this button to view the e-maps.
1. Chose a map to view by clicking the map button
2. Check out Cameras, Sensors, Relays on the map Focus on the desired event by clicking on the event button on the map.
3. Monitoring Cameras, Sensors, and Relays If any event is focused, the relative info rmatio n will p rese nt in the
information field; otherwise, you can monitor the status of the camera in the right upper window. The different colors of the icons on the map window will turn to different flashing colors accounting for as follows:
Camera Image
Information Area
.
83
84
Page 47
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
Icon Color Status Icon Color Status
Camera
Camera
Camera
Yellow Normal
Blue Video Loss
Green
Motion
Detection
Sensor
Sensor
Relay
Relay
Yellow
Yellow Normal
Normal
Red Activated
Red Activated
4. Click Exit to leave for main menu.
Load / Close Network Server
Click this button to load/close the network server, which allows for remote surveillance (Web Cam/RemoteManager). You will need to provide a password to identify your authorization level before the system actually loads/closes the network server. To configure the network settings, go to the Configuration.
System Configuration
Networking section of System
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
Log Viewer
Log viewer allows you to playback log files from single channel as well as from 4/9/16 channels simultaneo usly. All the functions here will be introduced in operational order.
Click this button to enter the follow ing lo g v iewer page.
Event Indicator
Time of the currently playing file
End time of the file
Start time of the file search
Playback Speed Control
Playback Control Panel
Search/Stop buttons
Video Search
Event Search
Intelligent Search
Exit
Enable/Disable Audio Playback
Playback Display Mode
Image Adjustment, Zoom In, Zoom Out, Print, and Save
Search Result
Refer to section 4.1 - System Configuration.
85
86
Page 48
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
1. Select Display Mode
When you enter this page, first select the d isplay mode by clicking
(1 Channel), (4 Channels), (9 Channels), and
(16 Channels). You can also click these buttons to switch
display mode during playback. To switch to a specific camera, click
to play videos of that camera.
2. Audio Playback
If you also want to play audio files, click
to enable audio
playback.
3. Select Files to Play
Next you need to choose files that you want to playback.
A. Select Time
B. Play
Click the
Playback button to play files from start to
end. You can also manually drag the slide bar in the directly to
the frame you want to play and click the
Playback button. The lines in the event indicator represent time points where the specified event has taken place.
4. Playback Control
Once you start to playback videos, you can use the following function buttons during playback.
Previous Frame
Pause
Next Frame
Move to Start
Reverse Playback
Playback
Move to End
Click
to select the date & time for the start time (on the left) and end time (on the right) respectively. The system will instantly show video data that has motion (default event) detected during the specified time frame in the event indicator below.
5. Playback Speed Control
You can click the up and down buttons from
to adjust the playback speed. You can choose from 8, 4, 2, 1, 1/2, 1/4, and 1/8 times of the normal speed.
6. Image Quality
Click
to adjust the image quality. You can adjust the
brightness, contrast, color and saturation.
87
88

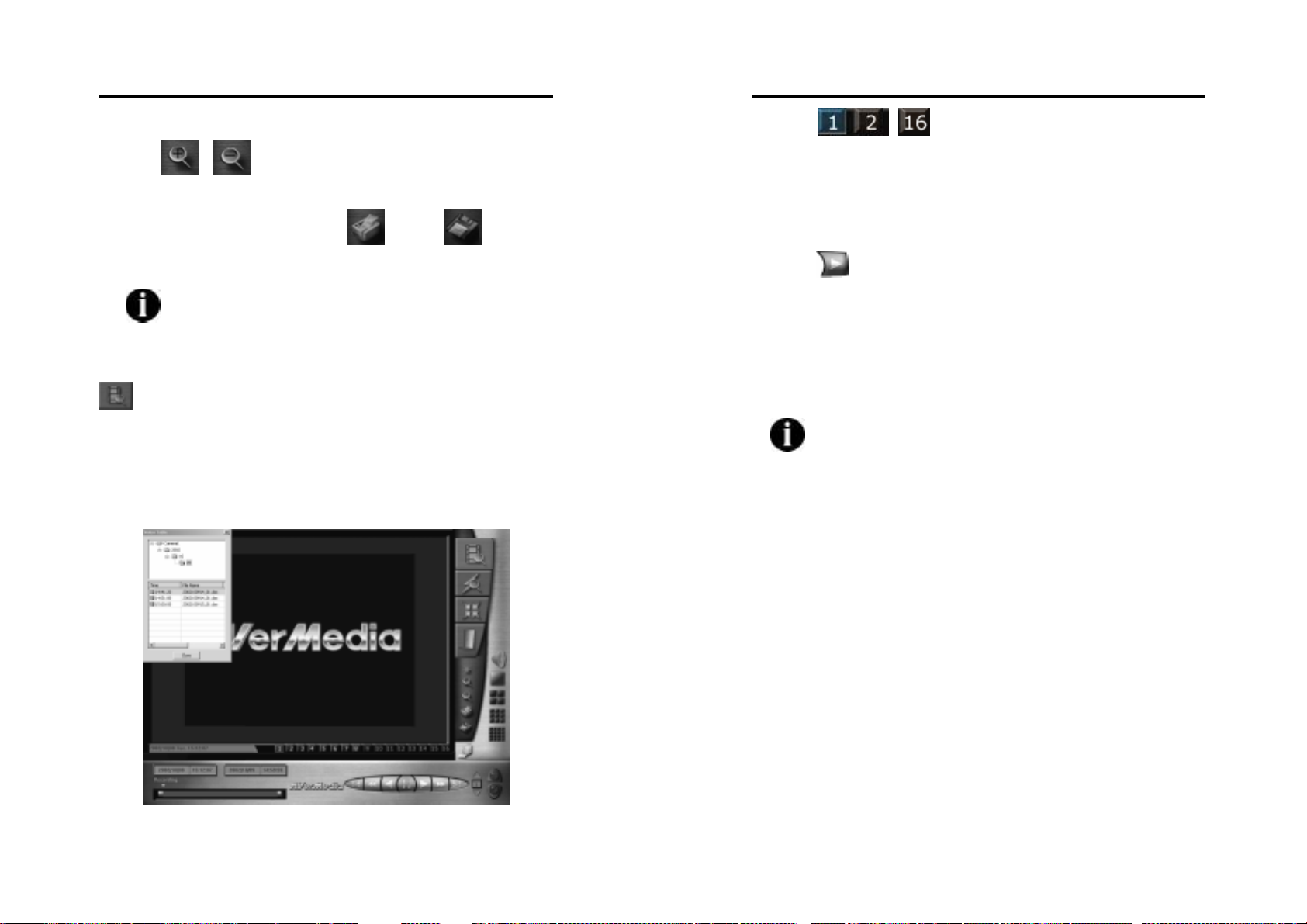

Page 49
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
7. Zoom
Click
/ to zoom in/out the image.
8. Print & Save
During playback, you can click the
Print or Save
buttons to print or save the current image.
Note that every image you save with the format of bmp. provides the functions of anti-counterfeit and anti-destruction. You can access Image Verify from
Programs to make verification for the saved images.
Video Search
Searches the recorded files shown in tree diagram by year/ month/ date/ hour/ minute/ second consequence.
To enable this function, complete the following tasks:
A. Click Video S ear ch and the Video Table searching list will pop up
such as the following window:
B. Click the camera no. button to select the
camera no. which is switchable during searching.
C. Select the required recorded file from the Video Table list and
click Close to hide the window.
D. Once the Video Table hides, the initial and end time and status of
the chosen file will be shown on the left bottom of the window where the start and end time of the files and event indicator locate.
E. Click
Playback button to display the recorded file. During playing, the indicator in event indicato r will move with the display going and show the playing time in the field of the start time of the file.
F. Click Search Result to pop up the previous Video Table
searching list and take the steps above to review the recorded file .
Note that the searched peaks in Event indicato r field in this section denote the time points o f starting recording instead of the file positions. Therefore, a peak (not everyone) is likely to be displayed by clicking on a showed peak directly in Event indicator field.
89
90
Page 50
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
Event Search
Searches the recorded files by the alarm condition and action within a specified period of time.
To make the function workable, complete the following steps:
A. Click Event Search and the playback control panel will turn into
the condition search panel as follow s :
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
G. Select the desired recorded files and click OK to hide Event Table.
Meanwhile, the status of the files will be seen on event indicator and the playback control panel pops up to replace the condition search panel.
H. Click
otherwise move the indicator on event indic ator directly to display the files. During playing, the indicato r will move with the display going and show the displaying time of the file in the field of the start time of the file.
I. Click Search Result to pop up the previous Event Table
searching list and take the steps above to review the recorded file .
Playback button on the playback control panel, or,
Note that the searched purplish red peaks in Event indicator field denote the recorded files that can be displayed on clicking them. However, the other searched peaks with other colors indicate the generations by the selected events that can’t be displayed on clicking them.
B. Choose the camera display mode … (1, 4, 9, 16 ch)
from playback di spl ay mode.
C. Set up the initial and end time for searching in the time fields on
the left bottom of the window.
D. Choose the search condition as the specified condition to search
the file from the condition search panel; Motio n detections, video loss, sensor inputs, relay outputs, audio, system call out, alarm recording.
E. Click Search Result to start searching and the coincident
recorded files will be shown on the pop-up Event Table searching list.
F. Click Stop Search to stop searching if necessary.
91
92
Page 51
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
Intelligent Search
Searches the r ecor ded file s by Mask Area and Search Interval with a specified period of time.
To enable this function, complete the steps below:
A. Click Intelligent Search and the playback control panel will be
replaced by the search condition setting panel such as the following window:
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
G. Select the desired file and click OK to hide Intelligent Table.
Meanwhile, the status of the file will be seen on Event indicator and the playback panel pops up to replace the search condition setting panel.
H. Click
Playback on the playback control panel, or, otherwise move the indicator in event indicator directly to display the file. During playing, the indicator will move with the display going and show the displaying time of the file in the field of the start time of the file.
I. Click Search Result to pop up the previous Intelligent Table
searching list and take the steps above to review the recorded file .
9. Exit
B. Click
the camera no. button to select the camera
no. which is switchable during searching. C. Set up the initial and end time for searching in the time fields. D. Determine a time value for Search Interval. E. Drag out a mask area with Mask Area and color box devices for
the specified detecting area. F. Click Search Result to start searching and the coincidently
recorded files will show the searching list on pop-up Intelligent
Table.
93
Click the
Exit button to exit log viewer.
94
Page 52
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
PTZ Controller
When you click this button, the PTZ control interface will pop up and allows you to control your PTZ cameras. Click this button again to hide this interface.
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
Focus
Press the + and – buttons any time during surveillance to increase/decrease the fo c al leng th to get a clearer image.
Direction buttons
Speed buttons
Zoom In/Out
AutoPan
Focus In/Out
AutoPan Path Group
Preset Positi on No.
1. PTZ Control
Direction & Speed
You may click the buttons on the outer circle to adjust the camera’s direction during surveillance. The inner c ircle contains buttons for 4 levels of PTZ rotating speed. Click on them to change the speed.
Zoom
Press the + and – buttons any time during surveillance to zoom in/out the object.
Preset Position No.
Anytime during the surveillance you can turn the camera to any desired position by directly clicking on buttons 1~16.
AutoPan Path Group
These buttons allow you to select the path of the AutoPan. For example, if you click
and then click the
AutoPan button, the AutoPan will do a s can from preset position 5Æ6, 6Æ7, 7Æ8, 8Æ5, 5Æ6 …… until you click the
AutoPan
You need to first choose the group of the AutoPan paths, and then click this button to run the Auto Pan. If you don’t choose a path
before you click the
AutoPan button, the following
warning will show up.
again.
95
96
Page 53
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
The PTZ camera will run AutoPan based on your preset position settings. For example, if
is chosen and the Dwell/Speed
of preset position 1 and 2 are 3 seconds/30°per second and 6 seconds/90°per secon d.
Therefore, once you click the
AutoPan button, the camera
first turns at a speed of 30°/sec from its current position to position 1 and stays for 3 seconds, then from position 1 to 2 at a speed of
90°/sec and stays for 6 seconds. The camera continues to go around in such a fashion (2Æ3, 3Æ4, 4Æ1, 1Æ2, …..)
PTZ cameras of different makes can have different ways to run the AutoPan function and might differ from the above. Refer to the respective user’s manual of the PTZ camera.
2. Exit PTZ Controller
Status Monitoring
Alarm / Relay /Sensor Status
On the right side of the main surveillance window is a panel that shows alarm, relay and sensor status. Installed sensors are shown in bright color while not installed ones remain dark. Once a sensor is activated, the color will turn yellow. For relays, installed ones are shown in bright color and activated one s turn yellow color.
When an alarm is triggered, the
will turn red color. Double-
clicking on this button will bring up the following dialog box.
Simply click
to exit from PTZ controller interface .
97
98
Page 54
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
The red dot next to the camera/sensor number indicates that the event condition for this particular camera/sensor has been met. The green dot indicates no event occurs. And the blue dots means the video signal is too weak or the video cable has been disconnected (video loss.) The list below lists all events in time order.
You may click the Reset button to clear the triggered alarms including camera recording, siren or other relay outputs. However, this action requires a password to confirm your authorization le vel. Click the Save button to save all alarm records. Click the Close button to close the dialog box.
Hard Disk Status
This area shows the remaining hard disk space and time (in hours) for video recording. When you double-click on this area, a dialog box that lists all recording-related events and disk spac e will po p up.
Network Status
This area presents you the curr ent network status. You can also click
in the upper-right corner of the main surveillance window to get a
full list of network related events.
Note that
will flash in maroon color during data transmission.
Date / Time
Here shows the date and time.
You can click the Save button to save the events. Or click the Recycle button for the system to check if the har d disk needs to start recyc ling. Click the Cancel button to exit.
99
100
Page 55
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
Exit / Re-login EYES Pro/MP2016/MP3000/MP5000
When you want to exit or re-login the system, c lick logout screen below:
to enter the
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
Chapter 5 Using the WebCam
You can monitor images from the AVerMedia EYES Pro/MP2016/ MP3000/MP5000 server using Internet Explorer browser. The AVerMedia EYES Pro/MP2016/MP3000/MP5000 system ha s built in HTTP protocol and web server services.
Note that WebCam function must be running in Internet Explorer with version 5.5 or above.
5.1 Enable WebCam
Before you start monitoring from the remote browser, verify that the AVerMedia EYES Pro/MP2016/MP3000/MP5000 server has finished the following settings.
1. IE setting
Access Internet Options setting from Control Panel as the following dialog.
Click
Click surveillance system as another user.
Click window.
Click
to stop monitoring and logout.
to login the EYES Pro/MP2016/MP3000/MP5000
to cancel the logout and go back to the surveillance
to minimize the surveillance window.
a. Select Security page to configure Internet and Local internet
sectors respectively.
101
102
Page 56
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
b. Click Custom Level button to pup up the following dialo g. Check
Enable or Prompt radio button both in Download signed ActiveX controls and Download unsigned ActiveX controls.
2. Enable Web Cam (see
Verify IP address.
Select cameras to perform remote transmission.
Check Enable WebCam server.
Click the Update button and exit the dialog box.
Networking)
3. Load Network Server
Click networking function.
at the bottom of the main menu to enable the
5.2 Use the WebCam
You can browse the home page of WebCam with Microsoft IE to acce ss desired server by key in the IP or domain name of which.
When you enter the home page, you can see the system defaults to 1­Camera display. You can click these buttons to change different numbers of split display:
1-Camera Display (640x480)
4-Camera Display (320x240) 6-Camera Display (320x240)
8-Camera Display (Enlarged : 480x360, Small: 160x120)
9-Camera Display (320x240)
10-Camera Display (Enlarg ed: 320x240, Small: 160x1 20)
16-Camera Display (160x120)
When the remote transmitting cameras are more than the split display
103
104
Page 57
AVerMedia User’s Manual
g
g
g
g
g
g
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
number, you can click to switch the screen to display the following cameras. For example, the server has assigned camera 1, 2, 3, 5, 7, 10, 13, and 16, in total 8 cameras for remote transmission.
If you select 4-Camera Display,
1 2
Downloadin
3
Downloading
Images…
Downloading
Images…
Images…
10
Downloadin
Images…
Click
Click
Downloading
Images…
5
7
13
Downloadin
Images…
Downloadin
Images…
Downloadin
Images…
16
Click
If you select 6-Camera Display,
1 2 3
Downloading
Images…
5
Downloading
Images…
Click
7
10
Downloading
Images…
Downloading
Images…
Downloading
Images…
Downloading
Images…
Click
13
Downloading Images…
Downloading Images…
16 1 2
You can also change the display sequence by assigning different cameras to different channels. Click
drop down menu
in Server Channel No. corresponding
to select a channel from the
to camera no. If the selected cameras are not remote v iewable, then the image on the screen will not change.
Chapter 6 RemoteManager
6.1 Accessing RemoteManager
You need to install the remote surveillance program RemoteManager from the CD-ROM (See Chapter 3 - Software Installation.)
Note that the operation system of Microsoft and XP are recommended for RemoteManager program.
The RemoteManager program allows you to manage the server from a workstation almost as if you were working from the server console. This will allow you to be able to configure the server from a remote loc ation.
Exit RemoteMana
Start Recording
Setup
Playback
PTZ Control
Center Management
Screen Split
er
Windows 2000
Alarm Report
Channel Status
Time
Date
Rest / Total HDD Space
105
106
Page 58
AVerMedia User’s Manual
g
g
g
g
g
p
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
Login
Once you first start the program by clicking the shortcut of Remote Manager on your desktop, a Login dialog right side will prompt you to enter the user ID and password to access to the program. Note that only “root” is the acceptable user ID for the initial access. And a User Management window for permitting the beginning into the system will be seen. To set the setting of the permission, refer to the 6.3.1 Center Management for the detailed description.
Alarm Report
The image will turn into red and be flashing once an alarm is trigger ed. An alarm message with the detailed alarm status will be seen after you click on it. It will help you control the situation of sur veillance.
Channel Status
An area where the status of all the channels will be shown as the following description and is with a tip of channel’s, server’s, camera’s names while your cursor points the button:
Dark Gray All Disabled
Flashing Pale Gray Video loss
Azure Normal and the image is displayed on the screen Dull Blue Normal but the image had been disabled to display Pink Red Recording and the image is displayed on the scree n Dark Red Recording but the image had been disabled to display
If a camera is not enabled, the ima will show as the ima
e from this camera
e above
(gray scale) on the screen .
If a camera is disconnected to the server or the si
nal from the server is disconnected to the local camera, the ima above on the screen. The si will be picked u
e will show as
nal
at an interval of
one minute until it is received.
Display Mode
Select a display mode to arrange the presentation of the screen.
Full Screen
1-Cam Display
4-Cam Display 9-Cam Display 12-Cam Display No matter what channel mode you choose, you can assemble the channels as you wish by clicking Channel Status
to me et the amount of the mode. For example, if you choose 4-Cam display mode, you can click 4-Cam display (1,4, 8, 13), (3, 5, 7, 8), or other groups of the channels to meet the quantity of 4 channels mode.
6.2 Setup
6.2.1
107
108
Page 59
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
User Management
User Management provides the easy management to safeguard the system from the unidentified users. Only the root is authorized to configure this section.
To achieve the setting, complete the following steps:
1. Click User Management. The following windo w will app e ar:
2. Use Add/Delete/Rename button to arrange User field.
3. Determine a password and make a confirmation.
4. Click Save to save the setup of password.
5. Click OK to save or Cancel to de le te the pr ev ious arrangement.
6. Back to main menu by clicking
6.2.2 Storage Configuration
Assign Recording Disks
First you need to assign the recording disks for your folders’ storage. Click
to browse for the folder to save the recorded videos in a specific path and click Add button to create it. Pay a particular attention on the path definition, the path where the recording files locate has built-in a “\USER\ your ID\” folder., i.e., an indicated path ”C:\Surveillance\record ing” by a root should be searched with the path “C:\Surveillance\recording\USER\root.” You can click Delete button to remove anyone of the recording disks, as long as there is at least 1 disk left to save the recording data.
Minimum Space & Safe ty Q uo t a
Next you need to provide the minimum space and safety quota for hard disk recycling. During hard disk rec ycling, the newly recorded files will overwrite the old ones. This way the system will not run out of hard disk space to save the recorded videos. Minimum Space: The system will start hard disk recycling when the hard disk fr ee sp ac e is less than a user-defined number. The user-defined number has to be greater than 450MB, the system defaults to 450 MB.
109
110
Page 60
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
Safety Quota:
Once the hard disk starts recycling, the system won’t stop until the hard disk free space becomes more than a user-defined number, say 6000MB (default value). Safety quota should be at least 5550 MB more
than the minimum sp ac e you ass igned.
6.2.3
Camera Setup
The setting is placed according to the privilege of every server for the cameras corresponding to the 16 channels respectively. Follow the tasks below to finish this section:
1. Click Camera Setup. It will show a window like the following:
2. Change channel’s names by directly click on .
3. Arrow down the list to selec t the Server’s and Camera’s names for each channel.
4. Check Display to show the images on the screen and Recording to enable the recording functi on fo r each chan n el .
5. Click OK to save or Cancel to de le te the pr ev ious arrangement.
The listed servers and cameras in the pull-down menu are decided by the settings of the each of the servers.
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
6.2.4 Schedule Recording
The function allows you to plan the recording schedule by date or weekday for all the channels.
Do the steps following:
1. Click Schedule Recording to get the window besides:
2. Check the recording by date or by weekday and choose the time by clicking the arrow of the box
. The
following window will show as:
3. Click on the yy/mm position directly and use the upper left and upper right arrows and the red circle in the bottom left corner window to specify a date to be an operating time.
111
112
Page 61
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
4. Click to confirm the time setting. A settled time will appear on the right blank box. Click Delete to delete the previous time setting.
5. Set the Start and End time by the up and down arrows
in
Time field.
6. Check the desired cameras to be involved into the schedule in Camera field.
7. Mentioned comment is allowed by using Add/ Delete/ Update/ Restore buttons for the further information while reco rd ing.
8. Click Ok to save or Cancel to delete the previous arrang ement.
Once the recording has been generated as the schedule, the r ecording status is observed in Channel Status field.
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
6.2.6
Sensor Status
The sensor status is viewed on the consequent window by clicking this button.
6.2.5
Network Setup
If you want to transmit images for remote surveillance via TCP/IP, first click this button to pop up the follow ing dialo gue.
1. Select TCP port connecting to server via Auto assignment or specify at least 32 ports at a range from 1025 to 65535 for transferring image and receiving commands.
2. Click OK to save the setting or Cancel to quit the dialogue without saving.
The following is the detailed illustration to co nfigure the connection:
6.2.7
Relay Status
The relay status is viewed on the consequent window by clicking this button. Otherwise, you can set the duration of the relay output after a relay triggered. Note that the duration value ”0” denotes the incessant relay output.
113
114
Page 62
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
6.2.8 Alarm Control
It is available to choose the server and decide to enable or disable the corresponding alarms.
1. Click Alarm Control to see the window for alarm status.
2. To enable an alarm, simply click on
in the Status column and
change the status to
3. Click the OK button to save the setting.
6.2.9
Back to the main menu by clicking this button.
Back to Main Menu
.
6.3 Operating the RemoteManager
6.3.1
Users can take advantage of this section to manage the connectable servers’ detailed informatio n. The setting should be placed before you commence configuring the system at the first time.
There are two ways to connect server:
1. connection):
First you should connect to the server manually via modem before accessing RemoteManager. Then, it is allowed to add a new server as a dial-up server is installed by server and a dial-up networking established by client.
Center Management
Connection via Modem to Modem (refer to Appendix A for the
2. Connection via TCP/IP Once the function “Enable Remote View server via TCP/IP” in
the setting of Networking section in system configuration has been checked, you are allowed to add a new server via TCP/IP.
Before arranging center manager section, please make sure RemoteView server enabled in networking section of System Configuration.
To offer the complete information, finish the s teps b e low :
1. Click Center Manager button and the following window appears:
2. Click Add to include an
available server to server list. The Add Server window will show as follows or click Delete or Update to modify the setting.
115
116
Page 63
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
3. The multicast servers in LAN will be listed automatically on the left side of the dialog. You can highlight the server which you want to add and click OK or directly double click the server to add a new multicast server.
4. In order to add a new server in WAN, enter the IP Address or domain name of the desired server and the same port number as the setting in Networking section of the server (default 9090). Check Use Dial-Up Networking to configure the further setting of network if the network connectio n is via modem to modem. Click OK to start connecting or Cancel to quit the dialog .
5. The following pop-up window of Add Server will show the Server Name automatically if the IP Address is correct and has been connected. In that case the server name doesn’t show up, please check the connection between server and re mo te clie nt.
If the port number has been changed in server end, please delete the server and set a new one.
User Finish the user’s information given by the specifie d s erver. Conneting quality
Here allows user to pick a proper conneting speed for each server to adjust the network quaility. Drag the slide bar to select one connecting speed out of 11 levels. Namely, if the update of the image is almost failed, you sould to increase the connectining speed. Note that the higher quality needs the higher baud rate. Click OK to save to add the new server in center management or Cancel to quit the setting.
Note that the connecting speed in remote client had better meet with that in server.
6. You will be prompted to click OK in the following window to into the Camera Setup window once one of the users of server has been deleted. About the instruction of the Camera Setup, please refer to 6.2.3 Camera Setup section.
7. Repeat the steps above to add a new server. The maximum numbers of server are limited in 16 for the 16 channels.
6.3.2
Playback
Once in the playback mode, users can view log files recorded in the local/remote hard disks. Click this button and select the kind of f ile you want for playback: Local Playback or Remote Playback.
117
118
Page 64
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
Local Playback
1. Click Playback to display the screen below.
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
Move to Start Move to End
Previous Frame Next Frame
Slide Bar
You can drag the slide bar directly to the frame you want to play.
/ Zoom In/Out
Click the buttons to zoom in or out the images.
Image Quality
You can adjust the brightness, contrast, hue and saturation.
Print
Click the button to print the current image.
2. From the cameras’ list shown in time diagram, choose the desired camera folder first and the time folder by yy/mm/dd then. Consequently, the files ranged within the selected time will be listed in time sequence in the file directory.
The files are located on the local computer so that only the enabled cameras by local user will be found in the file list.
3. Highlight the file you want to review and use the buttons below to control the video pl ayback.
Playback
Click this button to playback the sele c ted file .
Reverse Playback.
Pause
119
Save
Use the playback panel to choose a desired frame and then click Save button.
Delete
Click the button to delete the current file and make sure by clicking Ok button on the pop-up window.
Backup
When you review the log files, you can click this button to save the files onto your local disk.
120
Page 65
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
Remote Playback
1. Select Remote Playback to configure the further setting
Time
Determine a start time and the duration (up to 60 minutes) by clicking on the arrows.
Channel
Check the desired channels to display while playback.
2. Click OK to save the setup or Cancel without any saving to enter
remote playback window below:
3. Refer to the 2~3 steps in the previous Local playback section to view the files.
4. Back to the main menu by clicking
6.3.3
Once you have installed a PTZ camera, the functional utility will help you to exert the control on the surveillance.
To enable the function, follow with the steps below:
1. Click PTZ Control to show the following window:
PTZ Control
.
2. Designate a channel ... connected with PTZ camera
121
for the further setting.
122
Page 66
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
Preset Position Set up
Each PTZ camera can set 16 preset positions. You can move the camera to a desired preset position simply by clicking on the number of the preset position. To set a preset position, first select the number of the preset position and set the direction speed. Then configure the camera’s position with the directional control buttons, focus in/focus out buttons, and zoom in/zoom out buttons. Finally set the stay time, rotation speed, and click the Save button.
Direction Control
Adjust the camera’s direction with the following eight buttons; Up / Down / Left / Right / Upper Left / Bottom Left / Upper Right / Bottom Right.
Direction Speed
There are four speeds to decide the moving speed of the PTZ camera during adjusting Direction Control
Focus in
Decrease the focal length of the camera to focus on the image.
Focus out
Increase the focal length of the camera to focus on the image.
Zoom in
Zoom in to enlarge the image of the object.
Zoom out
Zoom out to reduce the image of the object.
Dwell (Sec)
During AutoPan, this button determines the time for the camera to stay (1~60 seconds) at one position before rotating to the next position.
Rotation Speed (deg/s)
You can set the speed (5~255 deg/s) by the left and right arrows at which the camera rotates from its curr ent position to the next preset position.
Save
After you finish setting a preset posi tio n, you need to click this button to save it and go on to set the next preset position.
Clear
Click this button to clear the setting for the current preset position.
Group
Each PTZ camera has 4 groups to comply with the position sequences as follows: Group 1: 1~4 positions Group 2: 5~8 positions Group 3: 9~12 positions Group 4:13~16 positions
AutoPan
Choose a group number first, and click this button to enable this function.
Back to Main Menu
Click here to back to main menu.
123
124
Page 67
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
6.4 Start Recording
Manually enable the recording setting arranged in the Schedule Recording section by clicking this button. Meanwhile, the recording
status is visible in the Channel Status field and Start Recording button will turn into transparent red.
6.5 Exit RemoteManager
Click this button to exit RemoteManager. First a password control window will prompt you to enter the password to make sure your authorization. Then a window below will appear to confirm the quit. Click OK to ex it or Cancel to bac k to the sy s t e m
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
Appendix A Remote Login with an Modem-to-Modem Connection
To run RemoteManager over a direct Modem-to-Modem connection between the AVerMedia EYES Pro/MP2016/MP3000/MP5000 server and the remote client, follow the instruc tions in the section of the operating system you are using.
When using Modem-to-Modem connection, if the AVerMedia EYES Pro/MP2016/MP3000/MP5000 server is running on a Windows 98 system, the client cannot login from a Windows 2000 or Windows XP system. The client can only login from
a Windows 98 system when the server is running on a Windows 98 syst em. It is suggested that the server run with Windows 2000 or Windows XP system.
A.1 Windows 98SE / Windows Me
1. Server:
A. Install the Dial-up Server. Go to Control Panel and double-
click Add/Remove Programs. Select the Windows Setup tab.
125
126
Page 68
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
B. Select Communication and click . The
Communication dialog box will show up. Check the box next to Dial-up Server and click the OK button.
C. Click the OK button in the Add/Remove Programs
Properties dialog box and the system will start to install the Dial-up Server. If you’re using Windows 98SE, you will be prompted to insert the Windows 98SE CD-ROM.
D. After finished installing the Dial-up Server, you need to enable
the Dial-up Server. Go to
StartÆProgramsÆAccessoriesÆCommunications and click Dial-up Networking. You will enter the window below.
E. Click the Connections tab and select Dial-up Server to enter
the setup page.
127
128
Page 69
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
F. Check Allow caller access to enable the Dial-up Server. Click
to set the login password and then click
to change the server type. Select PPP from the drop-down menu and then click the OK button to finish the ISDN setup for the server end.
2. Client:
A. Go to StartÆProgramsÆAccessoriesÆCommunications
and click Dial-up Networking. Double-click Make New Connection to bring up the Make New Connection wizard. Enter the server’s name and select the ISDN device you are using. Click the Next button to continue.
B. Provide the server’s telephone number, including the area code,
and click the Next button to finish creating the new connection.
C. Go back to the Dial-up Networking window and double-click
the connection you just created. In the Connect to dialog box, enter any User name and the Password set in step F of the
server’s ISDN setup procedure. Click connecting to the AVerMedia EYES Pro/MP2016/MP3000/MP5000 server.
D. Af ter you get c onne cted, access Start Æ Programs Æ Digital
Video Surveillance System Æ RemoteManager to launch RemoteManager. Refer to Chapter 6 RemoteManager to login. (Default IP address: 192.168.55.1)
to start
129
130
Page 70
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
A.2 Windows 2000
1. Server:
A. Go to StartÆProgramsÆAccessoriesÆCommunications
Wizard. Click the Next button. and click Network and Dial­up Connections. In the Network and Dial-up Connections window, double-click Make New Connection to bring up the Network Connection
B. Select Accept incoming connections and click the Next
button.
C. Select the ISDN device you’re using and click the Next button.
D. Select Allow virtual private connections and click the Next
button.
131
132
Page 71
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
E. Select users allow ed to connect to this computer from the list
or click click
to create new users. For each user,
to set the user’s password, which is required when the user login the server. After you finish, click the Next button to continue.
F. Make sure that Internet Protocol (TCP/IP) is selected and
click
to enter the Incoming TCP/IP
Properties dialog box.
G. Check the boxes next to Allow callers to access my local
area network and Specify TCP/IP addresses. Set the From IP as 192.168.55.1 and the To IP as 192.168.55.2. Click the OK button and then click the Next button in the Network Connection Wizard.
H. Click the Finish button to complete the ISDN setup for the
server end.
133
134
Page 72
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
2. Client:
A. Go to StartÆProgramsÆAccessoriesÆCommunications
and click Network and Dial-up Connections. In the
Network and Dial-up Connections window, double-click Make New Connection to bring up the Network Connection Wizard. Click the Next button.
B. Select Dial-up to private network and click the Next button.
C. Provide the server’s telephone number, including the area code,
and click the Next button.
D. Select For all users and click the Next button.
135
136
Page 73
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
E. Click the Finish button to complete the connection setup.
F. Go back to the Network and Dial-up Connections window
and double-click the connection you just created. In the dialog box, enter any User name and the Password set in step E of
the server’s ISDN setup procedure. Click connecting to the AVerMedia EYES Pro/MP2016/MP3000/MP5000 server.
G. After you get connec ted , access Start Æ Programs Æ Digital
Video Surveillance System Æ RemoteManager to launch RemoteManager. Refer to Chapter 6 RemoteManager to login.
to start
A.3 Windows XP
1. Server:
A. Go to StartÆProgramsÆAccessoriesÆCommunications
and click New Connection Wizard. Click the Next button.
B. Select Set up an advanced connection and click the Next
button.
137
138
Page 74
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
C. Select Accept incoming connections and click the Next
button.
D. Select the ISDN device you’re using and c lic k the Next button.
E. Select Allow virtual private connections and click the Next
button.
F. Selec t users allowed to connect to this computer from the list
or click click
to create new users. For each user,
to set the user’s password, which is required when the user login the server. After you finish, click the Next button to continue.
139
140
Page 75
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
G. Make sure that Internet Protocol (TCP/IP) is selected and
click
to enter the Incoming TCP/IP
Properties dialog box.
H. Check the boxes next to Allow callers to access my local
area network and Specify TCP/IP addresses. Set the From IP as 192.168.55.1 and the To IP as 192.168.55.2. Click the OK button and then click the Next button in the Network Connection Wizard.
I. Click the Finish button to complete the ISDN setup for the
server end.
2. Client:
A. Go to StartÆProgramsÆAccessoriesÆCommunications
and click New Connection Wizard. Click the Next button.
141
142
Page 76
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
B. Select Connect to the Internet and click the Next button.
C. Select Set up my connection manually and click the Next
button.
D. Select Connect using a dial-up modem and click the Next
button.
E. Enter the name of this connection and click the Next button.
143
144
Page 77
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
F. Provid e the server’s telep hone number, including the area code,
and click the Next button.
G. Enter any User name and the Password set in step F of the
server’s ISDN setup procedure. Click the Next button to continue.
H. Click the Finish button to complete the connectio n setup.
I. Go to StartÆProgramsÆAccessoriesÆCommunications
and click Network Connections. Double-click the connection you just created. In the dialog box, enter any User name and the Password set in step F of the server’s ISDN setup
procedure. Click
to start connecting to the
AVerMedia EYES Pro/MP2016/MP3000 /MP5000 server.
J. Af ter you ge t conne cted, access Start Æ Programs Æ Digital
Video Surveillance System Æ RemoteManager to launch RemoteManager. Refer to Chapter 6 RemoteManager to login.
145
146
Page 78
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
Appendix B Registering Domain Name on DDNS Server
DDNS (Dynamic Domain Name Service), a data query service chiefly used on Internet for translating domain names into Internet addresses. It is allowed the remote clients intelligently search dynamic servers without any previous enquiring for servers’ Internet addresses.
In order to take advantage of the intelligent service, please first regis ter your domain name on the website: ddns.avers.com.tw
1. User Login Browse the website ddns.avers.com.tw
Netscape Navigator to access the following dialogue.
First input the serial number of your product and select the product name. Then click OK to login or Reset to clear the previous input.
with Microsoft IE or
3. User Information Please provide the following user information, Host Name,
Password, E-mail, Company, and Country to complete the registration procedures.
Note that Host Name and Domain Name (AVerMedia.avers.com.tw) are the replacement for Internet address while a remote client tends to search a dynamic server.
2. Pas sword Set a password to secure your identification.
147
148
Page 79
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
AVerMedia User’s Manual
EYES Pro/MP2016/MP3000/MP5000
LIMITED WARRANTY
AVerMedia TECHNOLOGIES, Inc. warrants that this product to be free of
defects resulting from faulty manufacturing or components under the following terms:
WARRANTY LENGTH
Labor is warranted for 15 months from the date of purchase . Replacement products will be warranted for the remainder of the 15-month warranty period or 30 days, whichever is longer.
WHO IS PROTECTED
This warranty is enforceable only by the first consumer purchaser.
WHAT IS AND IS NOT COVERED
Except as specified below, this warranty covers all defects resulting from faulty manufacturing of this product. The following are not covered by the warranty.
1. Any product on which the serial number has been defaced, modified, or
removed.
2. Damage, deterioration, or malfunction resulting from:
A. Accident, abuse, misuse, neglect, fire, water, lightning, or other acts of
nature, commercial or industrial use, unauthorized product modification, or failure to follow instructions included with the product.
B. Misapplication of service by someone other than the manufacturer’s
representative.
C. Any shipment da mages. (Claims must be ma de with carriers.) D. Any other cause that does not relate to a product defect.
3. Cartons, cases, batteries, cabinets, tapes, or accessories used with the
product.
4. AVerMedia TECHNOLOGIES, Inc. does not warrant that this product will
meet your requirements; it is of this product for your purpose.
your responsibility to determine the suitability
WHAT WE WILL AND WILL N OT PAY FOR
We will pay labor and material expenses for covered ite ms. However, we will not pay for the following:
1. Removal or installation charges.
2. Shipping charges.
3. Any incidental charges.
EXCLUSION OF DAMAGES
THE MANUFACTURER’S SOLE OBLIGATION AND LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT OF A DEFECTIVE PRODUCT AT OUR OPTION. THE MANUFACTURER SHALL NOT, IN ANY EVENT, BE LIABLE TO THE PURCHASER OR ANY THIRD PARTY FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGE (INCLUDING, BUT NOT LIMITED TO, DAMAGES RESULTING FROM INTERRUPTION OF SERVICE AND LOSS OF BUSINESS) OR LIABILITY LIMITATIONS OF IMPLIED WARRANTIES.
There are no other oral or written warranties, expressed or implied, including but not limited to those of merchantability or fitness for a particular purpose. Any implied warranties are limited in duration to 15 mont h s from the date of purchas e .
STATE LAW AND YOUR WARRANTY
This warranty gives you specific legal rights, and you may also have other rights granted under state law. These rights vary from state to state.
CONTACT INFORMATION
Taiwan & International No. 135, Jian Yi Rd., Chung Ho City, Taipei, Taiwan, R.O.C. TEL: 886-2-2226-3630 FAX: 886-2-3234-4842 Web Site: www.avers.com.tw
149
150
Loading...
