AVer MOB1304 User Manual

Oct.2010

THE MARK OF CROSSED-OUT WHEELED BIN INDICATES THAT THIS PRODUCT MUST NOT BE DISPOSED OF WITH YOUR OTHER HOUSEHOLD WASTE. INSTEAD, YOU NEED TO DISPOSE OF THE WASTE EQUIPMENT BY HANDING IT OVER TO A DESIGNATED COLLECTION POINT FOR THE RECYCLING OF WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT. FOR MORE INFORMATION ABOUT WHERE TO DROP OFF YOUR WASTE EQUIPMENT FOR RECYCLING, PLEASE CONTACT YOUR HOUSEHOLD WASTE DISPOSAL SERVICE OR THE SHOP WHERE YOU PURCHASED THE PRODUCT.

TRADEMARKS

AVerMedia, being authorized AVerMedia Information, Inc. to use, is registered trademarks of AVerMedia TECHNOLOGIES, Inc. “AVerDiGi” and “AVer” are trademarks (or registered trademarks) of AVerMedia Information, Inc. Other trademarks used herein for description purposes only belong to each of their respective companies. All other products or corporate names mentioned in this documentation are for identification and explanation purposes only, and may be trademarks or registered trademarks of their respective owners.

© 2009-2010 by AVerMedia Information, Inc. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any means without the written permission of AVerMedia Information, Inc.

SAFTETY WARNING

WARNING

TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

IF THERE IS ANY DAMAGE, SHORTAGE OR INAPPROPRIATE ITEM IN THE PACKAGE, PLEASE CONTACT WITH YOUR LOCAL DEALER. WARRANTY VOID FOR ANY UNAUTHORIZED PRODUCT MODIFICATION.

CAUTION

DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

NOTICE

- INFORMATION IN THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE.

- THE INFORMATION CONTAINED HEREIN IS TO BE CONSIDERED FOR REFERENCT ONLY.

SAFETY PRECAUTION

Refer all work related to the installation of this product to qualified service personnel or system

installers.

Do not block the ventilation opening or slots on the cover. Do not drop metallic parts through slots. This could permanently damage the appliance. Turn the

power off immediately and contact qualified service personnel for service.

Do not attempt to disassemble the appliance. To prevent electric shock, do not remove screws or

covers. There are no user-serviceable parts inside. Contact qualified service personnel for maintenance. Handle the appliance with care. Do not strike or shake, as this may damage the appliance.

Do not expose the appliance to water or moisture, nor try to operate it in wet areas. Do take

immediate action if the appliance becomes wet. Turn the power off and refer servicing to qualified service personnel. Moisture may damage the appliance and also cause electric shock.

Do not use strong or abrasive detergents when cleaning the appliance body. Use a dry cloth to clean

the appliance when it is dirty. When the dirt is hard to remove, use a mild detergent and wipe gently.

Do not overload outlets and extension cords as this may result in a risk of fire or electric shock. Do not operate the appliance beyond its specified temperature, humidity or power source ratings. Do

not use the appliance in an extreme environment where high temperature or high humidity exists. Use the appliance at temperature within indoor type DVR for 45°C and 5°C and humidity below 90%.

Read Instruction：All the safety and operating instructions should be read before the unit is operated. Retain Instructions：The safety and operating instructions should be retained for future reference. Heed Warnings：All warnings on the unit and in the operating instructions should be adhered to. Follow Instructions：All operating and use instructions should be followed. Cleaning：Unplug the unit from the outlet before cleaning. Do not use liquid cleaners or aerosol

cleaners. Use a damp cloth for cleaning

Attachments：Do not use attachment not recommended by the product manufacturer as they may

cause hazards.

Water and Moisture：Do not use this unit near water-for example, near a bath tub, wash bowl, kitchen

sink, or laundry tub, in a wet basement, near a swimming pool, in an unprotected outdoor installation, or any area which is classified as a wet location.

Servicing：Do not attempt to service this unit by yourself as opening or removing covers may expose

you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Chapter 1 Introduction ....................................................................................... 1

1.1 Package Contents .......................................................................................................... 1

1.2 Front Panel ..................................................................................................................... 2

1.3 Back Panel ..................................................................................................................... 3

1.4 Setting Up the DVR Unit ................................................................................................. 5

1.4.1 Installing the Hard Disk .............................................................................................. 5

1.4.2 Mounting the DVR Unit .............................................................................................. 7

1.4.2.1 Installing the lower Z-brackets ................................................................................ 7

1.4.2.2 Installing the Upper Z-brackets ............................................................................... 7

1.4.3 Connecting Devices ................................................................................................... 8

1.4.3.1 Install on the Bus .................................................................................................... 9

1.4.3.2 Install on the Car .................................................................................................. 10

1.4.4 Connecting the Audio/Sensor/Relay/RS485 Device ................................................. 11

1.4.4.1 Audio, Sensor, Relay and RS485 pinhole allocation ............................................. 11

1.5 Familiarizing the Remote Control Buttons .................................................................... 13

1.5.1 New Type Remote Control ....................................................................................... 13

1.5.2 Old Type Remote Control ......................................................................................... 15

1.5.3 Using AB Segment Function .................................................................................... 17

1.5.4 Using USB Backup Button ....................................................................................... 18

1.6 Controlling PTZ Camera ............................................................................................... 19

1.6.1 To Enter the PTZ Mode ............................................................................................ 19

1.6.2 To Set Preset Position .............................................................................................. 20

1.6.3 To Control PTZ Camera ........................................................................................... 20

Chapter 2 Operating the MOB1304 ................................................................. 21

2.1 Using the MOB1304 for the First Time ......................................................................... 21

2.2 Surveillance Screen ...................................................................................................... 22

2.3 Playback the Video ....................................................................................................... 25

2.3.1 To Playback Video .................................................................................................... 25

2.4 Using the GPS Function ............................................................................................... 27

2.4.1 Installing the GPS Device......................................................................................... 27

2.4.2 Enabling the GPS Function ...................................................................................... 28

2.4.3 Viewing the GPS Data .............................................................................................. 29

Chapter 3 OSD Navigation Tree ....................................................................... 31

3.1 Menu Function .............................................................................................................. 34

Chapter 4 Using the USB Playback Console .................................................. 51

4.1 Recommended system requirements ........................................................................... 51

4.2 Installing the USB Playback Console............................................................................ 51

4.3 Running the USB Playback Console ............................................................................ 52

4.3.1 To Cut and Save the Portion of the Recorded Video ................................................ 54

4.3.2 Playback DVR Recorded File from Hard Disk .......................................................... 54

4.3.3 Playback Backup File(*.dvr) ..................................................................................... 55

4.3.4 View the KML File on Google Earth ......................................................................... 56

Chapter 5 Backup Recorded Video File .......................................................... 57

5.1 Familiarizing with HDD Backup Application .................................................................. 57

5.2 To Backup Recorded Video File ................................................................................... 58

Chapter 6 ImageVerification ............................................................................ 59

6.1 To Run the ImageVerification ........................................................................................ 59

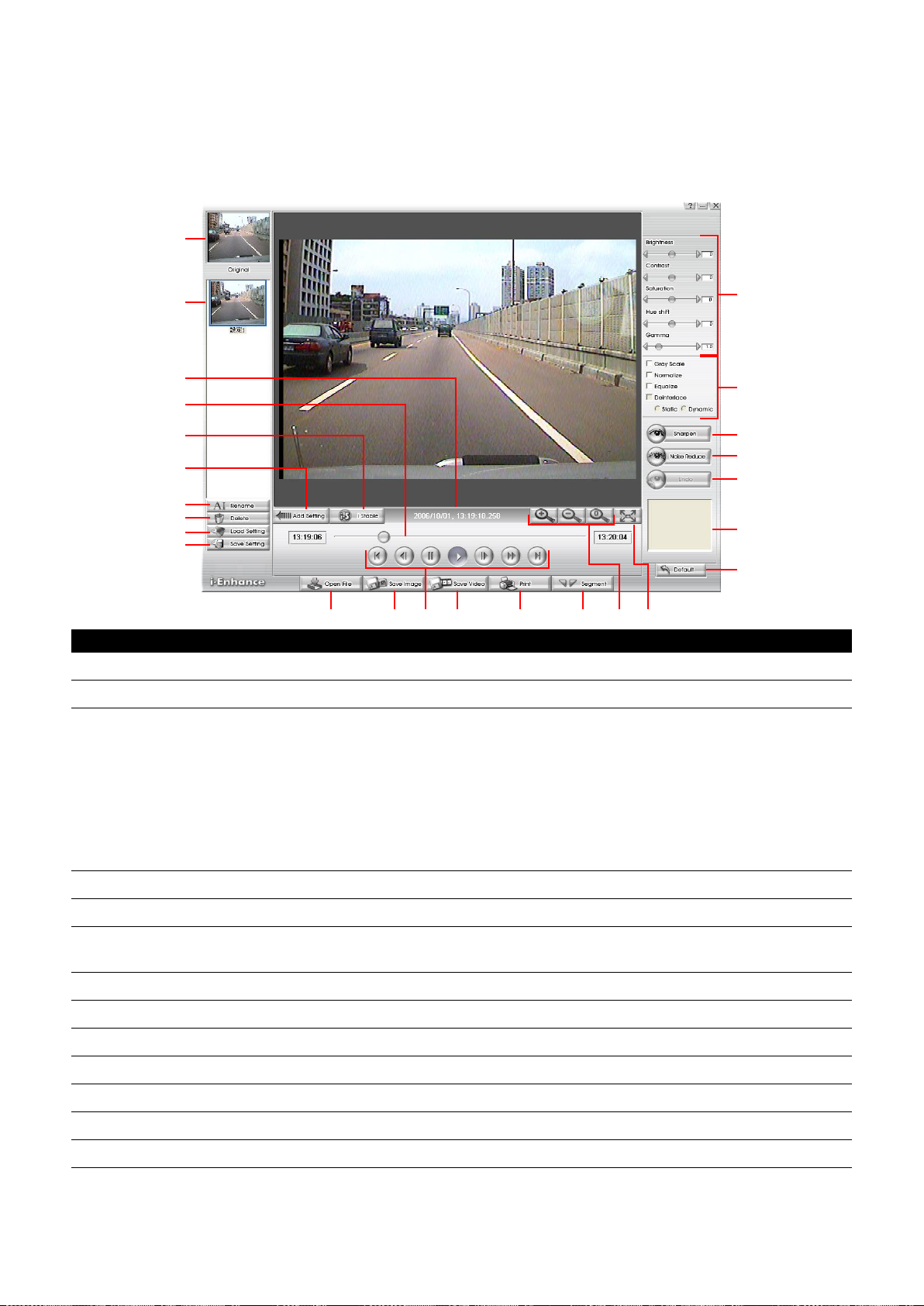

Chapter 7 iEnhance .......................................................................................... 60

7.1 To Use iStable ................................ ................................ ................................ ............... 61

Chapter 1 Introduction

(1)

(2)

(3) (4)

(5)

(6)

(7)

(8)

(9)

(1) AVerDiGi MOB1304 unit

(2) Remote control (batteries are included)

*image of remote control just for reference only

(3) USB cable

(4) Software CD (User Manual and Quick Guide are included)

(5) Z-bracket x 2 (including 4 screws)

(6) Removable hard disk drawer accessories (with spare screws)

(7) Power cable

(8) SATA cable

(9) IR sensor extended cable

AVerDiGi MOB1304 is a 4-channel stand-alone DVR unit for mobile solution that can be installed on the vehicle for security monitoring. It provides real-time monitoring and digital recording of surveillance video. Up to 4 video cameras and 4 sensor devices can be hooked up to this DVR unit. It also provides one audio input and output channel.

DVR unit can be controlled through LCM with remote control. Also, With the On-Screen-Display (OSD) menu, user can customize video recording setting, sensor and alarm settings, password protection, hard drive recycling, and more.

Surveillance video is recorded in high-quality MPEG4 format. Three recording modes are supported; D1 Enhanced Mode can record video from each video camera in higher resolution at 30/25 fps and D1 Mode can record video from each video camera in higher resolution at 60/50 fps and CIF Mode can record video in lower resolution and up to 120/100 fps (NTSC/PAL).

1.1 Package Contents

Name

Function

(1) SATA removable HDD

Drawer

For installing 2.5” or 3.5” SATA hard disk

The DVR unit supports hot swap of hard disk. User can unlock the hard disk key lock and swap the hard disk while the DVR unit is running. The DVR system will stop recording and shutdown hard disk when the hard disk key lock is unlocked. Remove the hard disk when the hard disk stops message display on the monitor/LCM panel.

(2) Key lock of SATA

removable HDD

Lock/unlock the hard disk drawer

(3) USB port

Connect to PC/NB for video backup or playback

(4) USB 2.0 Port

- To connect pen drive / external hard disk for backup

- To connect mouse for OSD menu controlling

The pen drive/ external hard disk must be in FAT32 format.

(5) Power switch

Power on / off the DVR unit

(6) IR sensor

Receive signal from the remote control to operate the unit

(7) IR sensor port

To connect an extended IR sensor cable

(8) HDD LED

Indicate running state of the hard disk. Lights when the HDD is running

(9) DVR power LED

Lights when the unit is on

(10) GPS connector

To connect the GPS device

(11) LCM display panel

- To configure DVR unit without connecting to monitor

- To display system status and setup message

1.2 Front Panel

1.3 Back Panel

Name

Function

(1) DVR ID switch

To setup an ID identification of DVR for series connection. Please refer the switch setup direction on rear panel of DVR to setup.

- The black spot indicates the position of switch.

- Only one DVR can be the MASTER.

(2) Power plug

Connecting the power cord. The power cord divide into 4 lines and each line has sticker on it for function description.

 GND (Black): Power negative(-) connection and camera negative(-)

connection

 12V~24V(Red): Power positive(+) connection  ACC(Green): Connect with the ACC line of vehicle  12V Out(Yellow): Camera positive(+) connection

(3) CH1

Input the video camera signal and display it on channel 1

(4) CH2

Input the video camera signal and display it on channel 2

(5) CH3

Input the video camera signal and display it on channel 3

(6) CH4

Input the video camera signal and display it on channel 4

(7) Video Out (BNC)

Output the video signal to a TV(Call Monitor)

The DVR unit supports dual video output – Video Out and VGA Out.

(8) VGA Out

Output the video signal to a LCD monitor

(9) Audio In

Input the audio signal from a microphone or audio input device.

Microphone with its own power supply is necessary and the internal amplification must be used.

(10) Audio Out

Output the audio signal to a speaker

The audio out device with its own power supply is necessary.

Name

Function

(11) Sensor In

Support 4 sensor device

(12) Alarm Out

Support 1 relay device (Relay: 1A @ 125V AC/30V DC)

(13) RS485

For PTZ camera connection

1.4 Setting Up the DVR Unit

- For hard disk spec, please refer to http://www.avermedia.com/AVerDiGi/ → Products →

AVerDiGi EB Series → AVerDiGi MOB1304 → Hardware Recommendations

- The DVR unit support hot-swap. Therefore, user can remove the hard disk drawer out of DVR

without shutdown the DVR system.

The “compatible hard disks” indicated in the above recommendation list only means that these commercially available hard disks were tested with AVerMedia products and functioned well under normal operation conditions. AVerMedia does not guarantee or provide warranties, explicitly, implied or statutory with respect to the reliability of the hard disk function or its compatibility. In no event AVerMedia shall be liable for damages, with respect to any business interruption of clients, lost profits, loss of programs or other data on your information handling system or otherwise. This includes direct, indirect, incidental, special, or consequential damages, resulting from the incompatibility caused by the usage of these hard disks, even if AVerMedia has expressly advised about the risk of such damages. The entire risk arising out of the use of any information attached here with is borne by the recipient.

1. Using key to unlock the hard disk key lock

2. Pull removable hard disk drawer out

3. Connect the SATA cable to the connector that inside of hard disk drawer.

4. Connect another side of SATA cable to the hard disk.

1.4.1 Installing the Hard Disk

The DVR unit supports one SATA hard disk. Follow the illustrated instructions below to install the hard disk:

5. Connect the power connector to the hard disk. And then, put the hard disk inside the hard disk drawer carefully. Please watch out the SATA cable when put the hard disk into the hard disk drawer.

6. Using the both hand to hold and turn the hard disk drawer over carefully. And then, adjust the hard disk to appropriate position and secure the hard disk with 4 screws on the hard disk drawer.

7. Slide the hard disk drawer back into DVR unit.

8. Using key to lock the hard disk key lock

9. You may now connect all the devices, cables, and power. When the power is connected, the Power LED light

turns on

1.4.2 Mounting the DVR Unit

1. Screwed the Z-bracket for both side.

2. Finished look

1. Screwed the Z-bracket for both side.

2. Finished look

The DVR unit can be mounted in two ways. User can uses the Z-brackets (4 screws included) to mount the DVR unit as the figure below shown.

1.4.2.1 Installing the lower Z-brackets

1.4.2.2 Installing the Upper Z-brackets

- To avoid installing the MOB DVR unit in moisture location.

- To make sure the install location provides sufficient ventilation to keep proper operating

temperature between 45°C and 5°C.

- Leave a front space that is enough for sliding removable hard disk drawer in and out.

- Secure the MOB DVR unit to avoid unauthorized person to damage or tamper the unit,

wires, cameras, and any accessories.

1.4.3 Connecting Devices

The following figure is a sample of DVR unit with all devices‟ connection:

1.4.3.1 Install on the Bus

Under driver seat

top or under storage box

Do not install DVR unit near the door side and on the floor, those locations are high quake spot and are easily to damage the DVR unit.

DVR Install Location:

Circuit diagram:

LCD Monitor

Camera

- The LCD monitor power can connect to the ignition of bus.

- The camera power is connected to the DVR camera power cable and plugs the video

cable into DVR video input.

Under driver seat

top or under storage box

Hang inside the truck

Under passenger seat

Camera/LCD Monitor Install Location:

1.4.3.2 Install on the Car

DVR Install Location:

Circuit diagram:

Camera/LCD Monitor Install Location:

LCD Monitor

Camera

- The LCD monitor power can connect to the ignition of bus.

- The camera power is connected to the DVR camera power cable and plugs the video

cable into DVR video input.

Pin #

Definition

Audio 1 input signal +

Audio 1 input signal -

Audio 2 input signal +

Audio 2 input signal -

Audio 3 input signal +

Audio 3 input signal -

Audio 4 input signal +

Audio 4 input signal -

Audio output signal +

Audio output signal -

1.4.4 Connecting the Audio/Sensor/Relay/RS485 Device

The Sensor and Alarm ports enable you to connect 4 audio input devices, 1 audio output device, 4 sensor inputs and 1 relay outputs. Just connect the external sensor and relay pin directly to the pinhole. The RS485 ports allows user to connect the PTZ camera to the DVR unit. Check the table below and locate which pinhole is assigned to sensor input, relay output, or RS485.

1.4.4.1 Audio, Sensor, Relay and RS485 pinhole allocation

Audio in and out pinhole:

Pin #

Definition

Sensor 1 signal

Sensor 1 Ground signal

Sensor 2 signal

Sensor 2 Ground signal

Sensor 3 signal

Sensor 3 Ground signal

Sensor 4 signal

Sensor 4 Ground signal

Relay signal

DVR site

PTZ site

TX+

RS485 TX+ signal

RS485 RX+ signal

TX-

RS485 TX- signal

RS485 RX- signal

RX+

RS485 RX+ signal

RS485 TX+ signal

RX-

RS485 RX- signal

RS485 TX- signal

If user uses the 2 wires for the PTZ camera connection, please connect to the RS-485 TX+ and TX- of the DVR site.

Sensor in and Alarm pinhole:

The signal from the sensor (i.e., infrared sensors, smoke detectors, proximity sensors, door sensors, etc.) is being transmitted to the unit and this triggers the system to respond and send signal to relay device (i.e., alarm, telephone etc).

RS-485 pinhole:

When connect PTZ camera through RS485 interface, please refer to the following pin definition to connect the DVR and PTZ.

1.5 Familiarizing the Remote Control Buttons

Button

Function

(1)

Press +

, the DVR system will instantly

playback the recorded file that is recorded 60 seconds before.

In multiple DVR mode, press + number

button( ~ ) can switch to the selected DVR.

(2) As a Channel 1 in preview and playback mode

As a channel 1 and preset position in PTZ mode

(3) As a Channel 2 in preview and playback mode

As a channel 3 and preset position in PTZ mode

(4) As a Channel 3 in preview and playback mode

As a preset position in PTZ mode

(5) As a Channel 4 in preview and playback mode

As a preset position in PTZ mode

(6) Switch to QUAD mode in preview and playback mode

As a preset position in PTZ mode

(7)

As a channel 2 in PTZ mode

As a preset position in PTZ mode

A s a channel 4 in PTZ mode

As a preset position in PTZ mode

(8)

To enter the OSD Main menu

Exit from the main menu or sub-menu display

Button

Function

(9) To move up the selection and select the items in the menu list or change the settings.

(10) Make a selection To play the video

Enter sub-menu

(11)

To move the selection to the left

(12)

To move the selection to the right (13)

To move down the selection and select the items in the menu list or change the settings.

Use the remote control to configure the DVR system in OSD mode on surveillance screen. Please refer to the remote control that user has got for following description of remote control

functions.

1.5.1 New Type Remote Control

Button

Function

(14)

Start video recording

(15)

To backup the video segment to external flash memory (See also 1.5.3).

(16)

Set a playing recorded video from A point to B point segment and repeat playing on surveillance screen(See also 1.5.4)

(17)

Fast play the video playback at the speed of 2x, 4x, 8x ,16x, 32x, or 64x

When

button has pressed, and press can go to next frame

To start play recorded file / To enter playback menu

Rewide the video playback at the speed of 2x, 4x, 8x ,16x, 32x, or 64x

When

button has pressed, and press can go back to last frame

Pause the playing

(18) To zoom in view of PTZ camera

To zoom out view of PTZ camera

(19)

PTZ camera control button. Press + camera channel button( )can enter PTZ mode to control PTZ camera.(see 1.6)

(20) To speed up movement of PTZ camera lens

To speed down movement of PTZ camera lens

(21) To focus in PTZ camera lens

To focus out PTZ camera lens

(22)

Stop playing / Stop recording

1.5.2 Old Type Remote Control

Button

Function

(1)

Press

, the DVR system will instantly

playback backward the 60 seconds of the recorded file.

(2)

As a Channel 1 in preview and playback mode

As a channel 1 and preset position in PTZ mode

(3)

As a channel 2 in preview and playback mode

As a channel 3 and preset position in PTZ mode

(4)

As a channel 3 in preview and playback mode

As a preset position in PTZ mode

(5)

As a channel 4 in preview and playback mode

As a preset position in PTZ mode

(6)

Switch to QUAD mode in preview and playback mode

As a preset position in PTZ mode

(7)

As a channel 2 in PTZ mode

As a preset position in PTZ mode

A s a channel 4 in PTZ mode

As a preset position in PTZ mode

Button

Function

(8)

A-B

Set a playing recorded video from A point to B point segment and repeat playing on surveillance screen(See also 1.5.3).

(9) Pause the playing

(10)

¡¡

To play the video

(11)

¡¡

Decrease the video playback at the speed of 2x, 4x, 8x, 16x, 32x, or 64x

(12)

¡¡

Fast play the video playback at the speed of 2x, 4x, 8x , 16x, 32x, or 64x (13)

Stop playing / Stop recording

(14)

USB backup(see also 1.5.4)

(15)

¡¡

To move the selection to the left and right

¡¡

To go up and down and select the items in the menu list or change the settings

¡¡

(16)

To enter the OSD Main menu / Exit from the main menu or sub-menu display

Button

Function

(17)

ZOOM+

To zoom in view of PTZ camera

ZOOM-

To zoom out view of PTZ camera

(18)

PTZ camera control button. Press

PTZ

+ camera channel button(

)can

enter PTZ mode to control PTZ camera.(see also 1.6)

(19)

SPEED+

To speed up movement of PTZ camera lens

SPEED-

To speed down movement of PTZ camera lens

(20)

FOCUS +

To focus in PTZ camera lens

FOCUS -

To focus out PTZ camera lens

(21) Make a selection

Enter to configure mode of selection

(22)

REC

Start video recording

1.5.3 Using AB Segment Function

¡¡

A-B

AB segment function allow user to set a video segment from A to B point and play on the surveillance screen until user stop. User also can backup AB segment video file to pen drive or external hard disk (see also 1.5.4).

1. Press

(play) to call out the

SEARCH MODE

menu to find the recorded video that user

wants to playback.(see also 2.3)

2. Select

TIME SEARCH, FILE LIST TIME SEARCH EVENT LIST SMART MOTION SEARCH

: search by date and time

: search by condition

3. During the playback, press again to set the B point of video segment. On the surveillance screen will display “

, or

SMART MOTION SEARCH

: search by motion event

to set the A point of video segment. And then, press

A-B

repeat playing the AB point video segment which user has set. To cancel AB segment, press

again.

” and

VIDEO BACKUP SETUP

START 2009 / 01 / 09 11:36:21 END 2009 / 01 / 09 11:36:21 BACKUP CH BACKUP SIZE ~0MB BACKUP

1 2 3 4

¡¡

If the external hard disk is first time using, please format to FAT32 format.

The external hard disk needs to be powered by external power.

1.5.4 Using USB Backup Button

By pressing the button to backup the AB segment video file.

1. Set the AB segment video (see 1.5.3).

2. Plug in pen drive or external hard disk to DVR system.

3. During the AB segment video playback, press button.

4. Select the

START

time of backup time by pressing the

button, using

and

setup the date and time. To confirm the value or selection, press .

5. Select the

to set the end of backup time. Press

END

and use

and

to setup

the date and time. To confirm the value or selection, press .

6. Select the

and

7. Select the

8. Select the

BACKUP CH

to select the channel.

BACKUP SIZE BACKUP

to setup the channel that user wants to backup. Press and use

to calculate the total size of backup file.

and press to backup.

9. When backup confirm message appear, press (YES) to start backup file or press

(NO) to exit backup mode.

1.6 Controlling PTZ Camera

PTZ

Using remote control, user can easily control PTZ camera at local site. Before starting, please go to OSD menu to enable PTZ control (see 3.1 Menu Function: PTZ Setup).

1.6.1 To Enter the PTZ Mode

To control PTZ camera, user need to enter the PTZ mode first. Press the camera channel number button (

)

, the surveillance monitor will switch to single

screen of the PTZ mode.

button and

To exit the PTZ mode, press

button. Also, when the DVR system is idle over 1 minute, the

DVR system will automatically exit PTZ mode.

PTZ

¡¡

Move the PTZ camera lens to the right direction

¡¡

Move the PTZ camera lens to the left direction

¡¡

Move the PTZ camera lens to up direction

¡¡

Move the PTZ camera lens to down direction

ZOOM+

To zoom in PTZ camera lens

ZOOM-

To zoom out PTZ camera lens

SPEED-

To speed down movement of PTZ camera lens

SPEED+

To speed up movement of PTZ camera lens

FOCUS +

To focus in PTZ camera lens

FOCUS -

To focus out PTZ camera lens

1.6.2 To Set Preset Position

User can set 9 preset positions for PTZ camera. Using

button to set the preset

position.

1. Press

2. Using

and camera channel number button (

and

to adjust the PTZ camera to the position that user wants.

3. Press one of number button from

over 3 seconds and the position will be

)

to enter PTZ mode.

saved.

4. To move the PTZ camera to preset position, just press the number button in PTZ mode.

1.6.3 To Control PTZ Camera

Use the buttons list in table to operate the PTZ camera.

Chapter 2 Operating the MOB1304

The hard disk drawer must be locked in order for DVR system to detect the hard disk when DVR system starts up.

SYSTEM INITIALIZE

FW VERSION B6. 01. 01. 00. 03 SELF CHECK SUCCESS

HDD STATUS WAIT . . . .

STORAGE SETUP

HDD OVERWRITE HDD SIZE 953, 849MB HDD USED 0MB 0% HDD FORMAT VIDEO BACKUP

¡¡

2.1 Using the MOB1304 for the First Time

For the first time using the DVR unit, suggest user connect with the LCD monitor and setup DVR unit by using remote control. Once the DVR unit has been set up, user can operate the DVR unit through the remote control and LCM panel that is located front panel of DVR unit.

Following the below steps for first time setup.

1. Make sure all devices and power cables are well connected.

2. Turn on the DVR unit by switching the On/Off switch to ON.

3. User should see the

SYSTEM INITIALIZE

can see the current firmware version of the DVR system. The system will do the self checking and hard disk detection.

window appear on the surveillance screen. User

4. When the hard disk has been detected, the

STORAGE SETUP

windows will appear on the

surveillance screen.

5. For the first time use hard disk, please format the hard disk. Using and down and press to make a selection. Select

HDD FORMAT

and

to go up

and press to

enter HDD format screen.

6. To format the hard disk, the password (default password is 111111) is required. Press and use

and

to enter the password. When is done, select

EXECUTE

to start formatting.

and press

CHECK PASSWORD

ENTER PASSWORD EXECUTE

******

¡¡

7. When hard disk format is done, please adjust the system date and time in order to have the correct recording date and time.

8. Press to call up the OSD menu, and then, use

and

to select

SYSTEM

→

DATE/TIME

9. Press and use

10. And then, adjust the

and press to make a selection.

DATE

and

to select the

by using to make a selection and using

TIME

DATE FORMAT

and

to adjust the date and time.

11. When is done, the DVR system is ready to record.

2.2 Surveillance Screen

This chapter will describe meaning of the symbols on the surveillance screen and screen display mode. The MOB DVR system supports record and playback can work simultaneously. When DVR is playback, the recording will work at background.

Surveillance Screen



Symbol

Description



DVR is recording

Audio is enabled

Speaker is available

Motion recording

Hard disk capacity

USB device is plugged

Symbol

Description

Playback the recorded video

Audio is enabled

AB segment is set and playing

Recorded video is playback at backward speed(2x, 4x, 8x, 16x, 32x, or 64x)

Recorded video is playback at faster forward speed(2x, 4x, 8x, 16x, 32x, or 64x)

Always Recording

Button Recording

Alarm Recording

Full Screen Mode

QUAD Screen Mode

CH1: Camera 1

CH2: Camera 2

CH3: Camera 3

CH4: Camera 4

QUAD:4-Channel

Preview Mode



Playback Mode

User can switch to display each channel in full screen or QUAD mode in D1, D1 Enhanced, or CIF record mode.

When you are in full screen preview mode, press the following buttons on the remote control to switch to different channel, or preview all 4 channels:

¡¡

DVR System current date and time

Channel date and time

By enabling

TIME STAMP

function, current date and time could be displayed on each channel

screen to verify the recording date and time. Please follow the below steps to enable

STAMP

1. Press to call out OSD menu.

TIME

2. Using

and

move the highlight to

CAMERA/REC

and press to make a

selection.

3. Select

GENERAL

4. And then, select

5. Using

and

and press to make a selection.

TIME STAMP

by pressing button.

to select the disable/enable of TIME STAMP and press or

to confirm.

6. Press to exit from OSD menu.

7. The current date and time will be display on upper right corner of each channel on the screen..

2.3 Playback the Video

1. Press

¡¡

(play).

2. Use the

¡¡

and

¡¡

buttons to go up and down and select

TIME SEARCH, FILE LIST

, or

SMART MOTION SEARCH

. And

then, press to make a selection.

SEARCH METHOD TIME SEARCH FILE LIST

SMART MOTION SEARCH

TIME SEARCH (search by date and time):

1. In TIME SEARCH window, the

START TIME

and

END TIME

show the date and time from when the recording begins and ends.

2. Press and use the

¡¡

and

¡¡

buttons to set the

SEARCH TIME

3. After SEARCH TIME has set, select

SEARCH EXECUTIION

and press to start searching.

TIME SEARCH

START TIME: 2009 / 01 / 09 11:36:21 END TIME: 2009 / 01 / 09 11:36:21

SEARCH TIME : 2009 / 01 / 09 11:36:21 SEARCH EXECUTION

4. When the playback file is found, the DVR system will start playback automatically.

FILE LIST (search by condition):

1. In FILE LIST window, press and use the

¡¡

and

¡¡

buttons to set the date and time for searching. And then,

select the

EXECUTION

to start searching.

2. The searching result will be list out. Using the

¡¡

and

¡¡

buttons to go up and down and press to make a selection.

FILE LIST

MULTITIME SEARCH : 2009/01/09 11:36:21 EXECUTION

3. After make a selection, the

EVENT LIST

of each channel will

list out. Use the

¡¡

and

¡¡

buttons to the selection and

press to make a selection.

4. The selected event will start to playback.

EVENT LIST

CH1 NORMAL 14:23:25 - 14:23:33 CH2 NORMAL 14:23:25 - 14:23:33 CH3 NORMAL 14:23:25 - 14:23:33

CH4 NORMAL 14:23:25 - 14:23:33

1/1

2009/01/07

SMART MOTION SEARCH (search by motion event):

1. In SMART MOTION SEARCH window, the

START TIME

and

END TIME

show the date and time from when the recording

begins and ends.

2. Use the

¡¡

and

¡¡

press to set

SEARCH START

TIME

and

SEARCH END TIME

for searching period.

3. Then, Select the

CHANNEL

that wants to search.

SMART MOTION SEARCH

START TIME: 2009 / 01 / 09 11:36:21 END TIME: 2009 / 01 / 09 11:36:21

SEARCH START TIME : 2009 / 01 / 09 11:36:21

SEARCH END TIME : 2009 / 01 / 09 11:36:21

CHANNEL : 01 SEARCH AREA SEARCH EXECUTION

To playback recorded video, user doesn‟t need to stop recording. DVR system supports recording and playback simultaneously.

2.3.1 To Playback Video

4. And then, select

SEARCH AREA

to mark an area to search.

Use the

¡¡

, and

¡¡

to move the block and

press to confirm. To exit, press .

5. To start searching, select the

SEARCH EXECUTION

6. When the playback file is found, the DVR system will start playback automatically.

SEARCH AREA SETUP SCREEN

Listed below are the symbols of recording condition that will display on surveillance screen while playback mode and record mode:

A – Always Recording It records non-stop and automatically continue recording when interrupted. L – Alarm Recording It records when the sensor has activated. It records when any movement is detected B – Button Recording

It records when the

REC

record button is pressed.

– NO Recording

It doesn‟t record at all

The “



” play symbol would appear beside the channel number when you are in playback mode.

2.4 Using the GPS Function

GPS device is an optional accessory, please contact with your local dealer for purchasing.

MOB DVR supports GPS that GPS data can be recorded and views the actual location by using Google Earth.

2.4.1 Installing the GPS Device

User needs to install the GPS device on MOB DVR in order to receive the GPS data.

Following the below steps to install the GPS device on MOB DVR.

Plug the GPS connect cable to the GPS connector that is located on front panel of the MOB DVR.

2. Attach the GPS device on the MOB DVR or place where is appropriated. The bottom of GPS device has magnetism can stable attach on MOB DVR.

MAIN MENU

CAMERA/REC

SCHEDULE

EVENT SETUP

DISPLAY

STORAGE

NETWORK

SYSTEM MISCELLANEOUS

MISCELLANEOUS SETUP

MUTLIPLE DVR GPS

GSM 3G

ENTERTAINMENT

¡¡

LATITUDE LONGITUDE

DISPLAY MESSAGE

HEADING SPEED OVER GROUND KM / MILE KM

GPS SETUP

LATITUDE LONGITUDE

DISPLAY MESSAGE

HEADING SPEED OVER GROUND KM / MILE KM

GPS SETUP

2.4.2 Enabling the GPS Function

GPS must be enabled in order to receive the GPS data. Follow the below steps to enable the GPS function on the MOB DVR system

1. Press or use mouse right-click on the screen to call out the OSD menu. Select the

3. Select

Miscellaneous

from Miscellaneous menu.

GPS

from Main menu.

4. Enable the data (Latitude, longitude, heading, speed)and select unit of the distance (KM or Mile). To enable the selection, press and use

confirm the selection, press . User also can use mouse click the selection and use the roller button to change the selection value.

5. Press or use mouse left-click on the screen to exit from OSD menu. The GPS configuration is completed.

and

to mark and un-mark the selection. To

2.4.3 Viewing the GPS Data

There are several ways to view the GPS data – in preview mode, UPC, and Google Earth.  Preview Mode

After GPS has been enabled, user should see the GPS data display on the preview screen. GPS data will change when receive the new data.

 USB Playback Console

The recorded file that contains GPS data can be view when playback on USB Playback Console (UPC).

1. Connect the HDD that contains recorded file from MOB DVR to your PC

2. Install the

3. Run the UPC and select

4. Select the hard disk drive from

application from the Software CD on your PC.

UPC

DVR Recorded File(HD)

Select Disk

window and click OK.

from Disk Select and click OK.

The recorder file must contain GPS data in order to save in *.KML format and view on Google Earth.

5. The Event List windows will appear and list all recorded file. Select the file and click OK to start

playback on UPC application. To go to next page of recorded file list, click previous page, click

. To go to the specific page, enter the page number and click GO.

Pre

. To go back to

6. The selected file will playback on the UPC and GPS will be seen while playback.

 Google Earth

1. User can view the video segment that has contains GPS data that is saved in *.KML format from

UPC by using Google Earth.

2. Install the Google Earth at http://earth.google.com.

3. Playback the recorded file from hard disk that is containing of recorded video data of MOB DVR(see

also Chapter 4.3.2)

4. During the playback, select a video segment that user wants to save in *.KML file format (see also

Chapter 4.3.1)

5. Click Export and select Export KML to save the video segment in *.KML format.

6. After installed Google Earth, double click the KML file that user has saved before.

7. The Google Earth will automatically activate and load the KML file.

8. User can view the location of recorded file on the Google Earth according to the GPS data that MOB

DVR has recorded.

Chapter 3 OSD Navigation Tree

The follow figure is an OSD menu tree map. To call out the OSD menu, press button on the remote control.

32 33

¡¡

If the unit is currently recording the video, user may have to stop video recording to change the settings.

OSD MENU

Description

MAIN MENU

CAMERA/REC

SCHEDULE

EVENT SETUP

DISPLAY

STORAGE

NETWORK

SYSTEM MISCELLANEOUS

CAMERA/REC

Configure camera parameters, name and PTZ camera.

CAMERA / REC SETUP

GENERAL CHANNEL SETTING

PTZ

CHANNEL NAME

GENERAL SETUP

RECORD MODE TIME STAMP

DVR NAME

WATERMARK

PRE RECORD

AUTO RECORD

CIF COMPANY

00 SEC

RECORD MODE

Select D1/CIF/D1 Enhance recording mode. Under D1 mode, the video recording is in full screen resolution and

takes turns from one channel to the next one when Auto Scan enables. Each channel is recorded only at a maximum frame rate of 15fps. Whereas in CIF mode, video recording is at a lower resolution, but each video is recorded in 30fps/25fps (NTSC/PAL). User can switch to view the video in single full screen or QUAD screen both in D1 and CIF mode.

3.1 Menu Function

To navigate in the OSD menu, press to call up and exit from the main menu or sub-menu display. Then use

and

buttons to go up and down and select the items in the menu list or change the settings. Use button to enter sub-menu or make a selection. User also can use

and

buttons to move the selection to the left and right.

OSD MENU

Description

GENERAL SETUP

RECORD MODE TIME STAMP

DVR NAME

WATERMARK

PRE RECORD

AUTO RECORD

CIF COMPANY

00 SEC

DVR NAME

Assign a name for the DVR unit. Maximum is 10 characters may contain A~Z, 0~9, !, “, #, $, %, &, „, (, ), *, +, -, /, :, ;, <. >, ?, @, and space.

TIME STAMP

Enable/disable the time and date display on the each channel.

AUTO RECORD

Enable/disable auto continue recording when interrupted (i.e., power breakdown, video playback or configuration setup). It starts to record after 5 second of idleness. This is applicable in Always Record mode.

PRE RECORD Set the pre-recording time in seconds when alarm has occurred.

CHANNEL SETTING SETUP

120 / 120 FPS

RECORD

ENABLE AUDIO RECORD

PREVIEW

CH1 CH2 CH3 CH4

MAX. FPS 30 30 30 30 FPS 30 30 30 30 QUALITY BEST BEST BEST BEST FPS(ALARM) 30 30 30 30

QUALITY(ALARM) BEST BEST BEST BEST

ENCRYPTION

CHANNEL SETTING

Configure the parameters of each channel.

ENABLE

Enable/disable the channel to display the video on the surveillance screen. If the channel is disabling, there won‟t be any video display and recording.

RECORD Enable/disable the channel number to record video.

The channels are enabled in the INSTALLATION can be set for video recording.

AUDIO RECORD

Enable/disable audio recording. To record sound, make sure the audio input device (ex: microphone) is connected to the DVR unit.

PREVIEW

Enable/disable the video preview on the surveillance screen.

MAX. FPS

Display the maximum frame rate of recording that user can configure. Maximum fps total value depends on the RESOLUTION that user has chosen.

FPS

Set the number of frames per second to be recorded. The higher the frame rate, it uses more hard disk space.

QUALITY

Select the video quality setting from BEST, HIGH, GOOD, MEDIUM, NORMAL or LOW. Choosing higher quality allows user to record less hours but the quality of the recorded video is better.

FPS(ALARM)

Set the number of frames per second to be recorded when alarm has occurred. The higher the frame rate, it uses more hard disk space.

QUALITY(ALARM)

Select the video quality (BEST, HIGH, GOOD, MEDIUM, NORMAL or LOW) of alarm recording. Choosing higher quality allows user to record less hours but the quality of the recorded video is better.

Current total fps value that user has set

Total fps value that user can set

OSD MENU

Description

CAMERA NAME SETUP

CH3

CH2

CH1

CH4

CAMERA1 CAMERA2 CAMERA3 CAMERA4

CHANNEL NAME

Give a name for the channel 1 ~ 4. Maximum is 12 characters and may contain A~Z, 0~9, !, “, #, $, %, &, „, (, ), *, +, -, /, :, ;, <. >, ?, @, and space.

PTZ SETUP

ENABLE

PROTOCOL

BAUD RATE

CH1 CH2 CH3 CH4

AUTO PAN DWELL TIME

010S 010S 010S 010S

OFF OFF OFF OFF

9600

CANON VC - 4CR

001 002 003 004

PTZ SETUP

To enable PTZ camera control by remote control and setup PTZ camera parameters.

ENABLE

Select the channel of PTZ camera. If the PTZ camera is connecting on channel 1, then select the camera 1 for PTZ video to be display on channel 1.

Assign an ID to PTZ camera. The ID range is from 000 to 255 but is limiting by protocol of PTZ camera. Please refer to your PTZ camera user‟s manual for more detail of PTZ ID assignment.

We suggest assigning PTZ camera ID star from 5 to avoid conflict with ID of camera channels.

PROTOCOL

Select the protocol of PTZ camera. The protocol will be different that depends on the brand of PTZ camera. The DVR system currently supports 3 protocols ─ PELCO-D, PELCO-P, and CANON VC-C4R. Please refer to your PTZ camera user manual to make sure which protocol is using for.

BAUD RATE

To setup the baud rate of PTZ camera. For more detail, please refer to your PTZ camera‟s user manual.

AUTO PAN

Select the preset number to assign an auto move direction for the PTZ camera. For example: 1-4 means the PTZ camera will auto move from preset position 1, 2, 3 to 4.

DWELL TIME

Set a time that how long the PTZ camera stays in that position before it moves to the next one.

MAIN MENU

CAMERA/REC

SCHEDULE

EVENT SETUP

DISPLAY

STORAGE

NETWORK

SYSTEM MISCELLANEOUS

DISPLAY

Configure the parameters of video and setting of spot monitor.

DISPLAY SETUP

COLOR ADJUSTMENT

VIDEO SHIELD VGA - TV SELECTION

VIDEO OUT SETTING

SPOT MONITOR EVENT DURATION AUTO SCAN

CH1 MAIN - MAIN QUAD 010 SEC

OSD MENU

Description

DISPLAY SETUP

COLOR ADJUSTMENT

VIDEO SHIELD VGA - TV SELECTION

VIDEO OUT SETTING

SPOT MONITOR EVENT DURATION AUTO SCAN

CH1 MAIN - MAIN QUAD 010 SEC

COLOR ADJUSTMENT

To adjust the brightness, contrast, hue, and saturation value of channel video. To reset the setting, select RESET TO DEFAULT

VALUE.

COLOR ADJUSTMENT SETUP

CONTRAST

BRIGHTNESS HUE

SATURATION

CH1 CH2 CH3 CH4

RESET TO DEFAULT

001 001 001 001 054 054 054 054

124 124 124 124 121 121 121 121

VIDEO OUT SETTING

To select the sharpness, color enhancement, VGA mode, resolution of VGA and TV out setting.

VIDEO OUT SETUP

COLOR ENHANCEMENT

SHARPNESS VGA MODE

RESOULTION

VGA TV

MODE1 SVGA -

00 00 00 00

SHARPNESS

Adjust the sharpness of VGA and TV video output. COLOR ENHANCEMENT

Adjust the color enhancement of VGA and TV video output. VGA MODE

Select the VGA output mode. RESOLUTION

Select the resolution of VGA video output. VIDEO SHIELD

Select the channel and set an area that will be blocking for particular security issue when DVR unit is recording such as enter password for entrance guard.

OSD MENU

Description

DISPLAY SETUP

COLOR ADJUSTMENT

VIDEO SHIELD VGA - TV SELECTION

VIDEO OUT SETTING

SPOT MONITOR EVENT DURATION AUTO SCAN

CH1 MAIN - MAIN QUAD 010 SEC

VGA - TV SELECTION

Select the VGA and TV output order.

- MAIN - MAIN: Both VGA and TV output surveillance video on screen.

When there is only one output connection (TV or VGA), the VGA-TV SELECTION only can be MAIN – MAIN.

- MAIN – SPOT: VGA output surveillance video and TV output the alarm event video.

- SPOT – MAIN: VGA output alarm event video and TV output the surveillance video.

SPOT MONITOR To select the display mode (QUAD or Channel (1, 2, 3, or 4)) on spot

monitor when there is no alarm event.

EVENT DURATION

Set a time gap (10 ~ 999 seconds) before switch back to preview screen mode after display the alarm event.

AUTO SCAN Enable/disable auto cycle switch to display the next channel when in

full screen mode.

MAIN MENU

CAMERA/REC

SCHEDULE

EVENT SETUP

DISPLAY

STORAGE

NETWORK

SYSTEM MISCELLANEOUS

RECORD SCHEDULE

By default, in 24 hours, the recording schedule is set to always record every hour. Refer to the table below to customize the recording condition.

Condition

Description

ALWAYS

Record non-stop.

SMART

Automatically switch to recorded at the frame rate of FPS(alarm) once an alarm is detected and if there is no motion, it records at the frame rate of FPS. The Frame rate setting refers to CHANNEL SETTING.

ALARM

Start recording when the alarm is activated. The alarm activates status according to the setting in ALARM

SETTING.

CAMERA Select a channel (1, 2, 3, or 4) or ALL for record schedule setup.

SET TO ALL

Select a recording condition – ALAWAYS, SMART or ALARM. When each channel has different recording schedule, the time and date table will display as Green color (VARIED RECORD). Please refer to the above table for record condition description.

OSD MENU

Description

MAIN MENU

CAMERA/REC

SCHEDULE

EVENT SETUP

DISPLAY

STORAGE

NETWORK

SYSTEM MISCELLANEOUS

EVENT SETUP

Configure alarm, sensor, motion, temperature, shock, and voltage.

EVENT SETUP

ALARM SETTING SENSOR SETTING

MOTION DETECTION

TEMPERATURE SHOCK DETECTION VOLTAGE

ALARM SETTING

Configure parameters of alarm.

ALARM CONTINUOUSLY

ALARM PERIOD

ALARM TYPE

SELECT / DESELECT ALL SENSOR

RECORD

MOTION DETECTION TEMPERATURE

VIDEO LOSS

VOLTAGE

SHOCK DETECTION

REMOTE TRIGGER

HDD FAIL FAN FAIL

005 SEC

ALARM SETUP

2 3 4

ALARM TYPE Select the way of alarming – REC, EMAIL, GSM, BUZZER, or

RELAY. ALARM PERIOD

Set the amount of time (in seconds) to sending the alarm once triggered.

ALARM CONTINUOUSLY

Enable/disable the alarm event continuously to display on the spot monitor until the next alarm event is coming in.

SELECT/DESECLECT ALL

To enable/disable all below selection.

SENSOR

Enable/disable to send out the alarm if sensor has been triggered according to the setting of SENSOR SETTING.

MOTION DETECTION Enable/disable to send out the alarm if motion has been detected

according to the setting of MOTION DETECTION. TEMPERATURE

Enable/disable to send out the alarm when temperature has exceeded the limit that user has setup.

SHOCK DETECTION

Enable/disable to send out the alarm when MEMS has exceeded the range that user has setup in SHOCK SETUP.

VOLTAGE Enable/disable to send out the alarm when 12V VOLTAGE and RTC

DETECTION has been enabled in VOLTAGE SETUP.

OSD MENU

Description

ALARM CONTINUOUSLY

ALARM PERIOD

ALARM TYPE

SELECT / DESELECT ALL SENSOR

RECORD

MOTION DETECTION TEMPERATURE

VIDEO LOSS

VOLTAGE

SHOCK DETECTION

REMOTE TRIGGER

HDD FAIL FAN FAIL

005 SEC

ALARM SETUP

2 3 4

VIDEO LOSS

Select the channel that will send out the alarm when video is lost. HDD FAIL

Enable/disable to send out alarm when hard disk is failed. FAN FAIL Enable/disable to send out alarm when fan is broken or doesn‟t

start/stop when temperature is over/lower the limit.

EVENT SETUP

ALARM SETTING SENSOR SETTING

MOTION DETECTION

TEMPERATURE SHOCK DETECTION VOLTAGE

SENSOR

Customize the initial state of the attached sensor.

ENABLE

Active/deactivate the sensor.

TYPE

Select the state of the sensor.

- NO: Indicates that the initial state of the sensor is normal open. Video recording initiates when there is a changes in the sensor state

- NC: Indicates that the initial state of the sensor is normal close. Video recording initiates when there is a changes in the sensor state

SENSOR SETUP

TYPE

ENABLE

SENSOR1 SENSOR2 SENSOR3 SENSOR4

NO NO NO NO

OSD MENU

Description

EVENT SETUP

ALARM SETTING SENSOR SETTING

MOTION DETECTION

TEMPERATURE SHOCK DETECTION VOLTAGE

MOTION DECTECION

MOTION DETECTION SETUP

SENSTIVITY

ENABLE

CH1 CH2 CH3 CH4

5 5 5 5

MASK SETUP

ENABLE Enable/disable the channel to detect motion.

SENSITIVITY

Set the sensitivity level. The sensitivity is from HI (High), 9~ 2 and LO (Low).

MASK SETUP

Select a specific area for motion detecting. The DVR system will start recording when the selected area has been detected motion and the

MOTION DETECTION has been enabled in ALARM SETTING.

EVENT SETUP

ALARM SETTING SENSOR SETTING

MOTION DETECTION

TEMPERATURE SHOCK DETECTION VOLTAGE

TEMPERATURE

FAN ON FAN OFF

TEMPERATURE SETUP

TEMP. TYPE

ALARM THRESHOLD

050 040 060/005

HDD STOP

070/005

RESET TO DEFAULT

TEMP. TYPE

Temperature pattern display on front LCM panel.

FAN ON

Set a specific temperature limit for fan active. When the hard disk temperature reaches temperature limit, the fan will be active.

FAN OFF

Set a specific temperature limit for fan stop. When the hard disk temperature reaches temperature limit, the fan will be stop.

OSD MENU

Description

FAN ON FAN OFF

TEMPERATURE SETUP

TEMP. TYPE

ALARM THRESHOLD

050 040 060/005

HDD STOP

070/005

RESET TO DEFAULT

ALARM THRESHOLD

Set the temperature high/low limit (0~100°C/55 ~ 95°C) to prevent DVR unit overheating/overcooling. When DVR unit temperature reaches the high/low limit, the system will show the warning message or send out alarm if the alarm is connected and set.

HDD STOP

Set a specific temperature high/low limit (70 ~100°C /55 ~ 95°C) for HDD shutdown. When the hard disk temperature reaches the temperature limit, the HDD will shutdown.

RESET TO DEFAULT Set all configurations back to factory default.

EVENT SETUP

ALARM SETTING SENSOR SETTING

MOTION DETECTION

TEMPERATURE SHOCK DETECTION VOLTAGE

SHOCK DETECTION SETUP

Set the sensitivity level for vehicle slope detection.

SHOCK DETECTION SETUP

SENSITIVITY

RESET TO DEFAULT

SENSTIVITY Set the sensitivity level of the shock detection.

RESET TO DEFAULT Set all configurations back to factory default.

EVENT SETUP

ALARM SETTING SENSOR SETTING

MOTION DETECTION

TEMPERATURE SHOCK DETECTION VOLTAGE

VOLTAGE SETUP

RTC(3V) DETECTION

SHOUTDOWN SYSTEM

VOLTAGE SETUP

12V DETECTION

12V DETECTION Enable/disable voltage limit for total power supply of DVR system.

RTC(3V) DETECTION Enable/disable voltage limit for RTC (real time clock).

SHOUTDOWN SYSTEM

Enable/disable to shutdown system when the voltage threshold reaches the limit.

OSD MENU

Description

MAIN MENU

CAMERA/REC

SCHEDULE EVENT SETUP

DISPLAY

STORAGE

NETWORK

SYSTEM MISCELLANEOUS

STORAGE SETUP

To format hard disk and backup recorded video to external USB storage device(pen drive or external hard disk)

STORAGE SETUP

HDD SIZE

HDD OVERWRITE

HDD USED

HDD FORMAT VIDEO BACKUP

953 , 849MB

279MB 0%

HDD OVERWRITE

Enable/disable replacing the earliest recorded file when the hard disk space runs out. By default, the HDD overwrite setting is enabled.

HDD SIZE Shows the total capacity of the hard disk.

HDD USED shows the amount of space that has been used.

HDD FORMAT

For security purpose, you may have to enter the password to format hard disk.

To format hard disk:

1. Use the

¡¡

and

¡¡

buttons to go up and down and select

HDD FORMAT

. Then press .

2. In the

CHECK PASSWORD

screen, press . Then use the

¡¡

and

¡¡

buttons to select the security combination

number(Default password is

111111

). Press button again to

make the selection.

3. To move the selection to the left and right, use

¡¡

, and

¡¡

buttons.

CHECK PASSWORD

ENTER PASSWORD EXECUTE

4. After entering the last number, the “PASSWORD CORRECT” appears, you are now authorized to format the hard disk.

5. It is done when the “FORMAT DISK SUCCESS” appears.

Formatting the hard disk will permanently delete all the recorded files. The recorded files will be no longer for retrieving.

OSD MENU

Description

STORAGE SETUP

HDD SIZE

HDD OVERWRITE

HDD USED

HDD FORMAT VIDEO BACKUP

953 , 849MB

279MB 0%

VIDEO BACKUP

To backup the recorded video by selected period.

1 2 3 4

VIDEO BACKUP SETUP

END

START BACKUP CH

BACKUP SIZE BACKUP

2009 / 01 / 06 14 : 50 : 10 2009 / 01 / 06 14 : 52 : 10

~4 MB

Please plug the pen drive or external hard disk into DVR system before starting backup process.

1. Select the

START TIME

and

END TIME

of backup.

2. Select the channels which user wants to backup in

BACKUP CH

3. Select the

BACKUP SIZE to

calculate the size of selected backup

file.

4. And then, select

BACKUP

and press

YES (ENTER)

to start

backup video

AVAILABLE SIZE

BACKUP IN PROCESS

1, 646MB

048%

5. When backup is done, press any key to back to main menu.

USB BACKUP IS SUCCESSFUL

PRESS ANY KEY TO EXIT

OSD MENU

Description

MAIN MENU

CAMERA/REC

SCHEDULE EVENT SETUP

DISPLAY

STORAGE

NETWORK

SYSTEM MISCELLANEOUS

SYSTEM SETUP

To configure the parameters that relate with DVR system.

SYSTEM SETUP

PASSWORD CHANGE

DATE / TIME

SYSTEM INFO

AUDIO SETUP

INSTANT PLAYBACK

LANGUAGE

CONFIGURATION LOG

EXTENSION SETUP

060 SEC

ENGLISH

LED

DELAY POWER OFF

0 MIN

SYSTEM INFO

Display system software version, video system type, ID of DVR, system and hard disk temperature, total voltage of power supply for all cameras, and RTC voltage.

SYSTEM INFO

FW VERSION

VIDEO FORMAT

DVR ID SYSTEM TEMP. HDD TEMP 12V

RTC(3V)

B6 . 01 . 01 . 00 . 03

NTSC

4 40

12 . 3V

03 . 1V

MAC ADDRESS(LAN) 00 : 00 : 00 : 00 : 00 : 00 MAC ADDRESS(W-LAN) FF : FF : FF : FF : FF : FF

CONFIGURATION

Backup and restore the DVR system setting.

CONFIGURATION SETUP

LOAD SYSTEM DEFAULT

EXPORT CONFIGURATION IMPORT CONFIGURATION

LOAD SYSTEM DEFAULT

Set whole system back to factory default. Please restart DVR after default value has loaded.

EXPORT CONFIGURATION:

Backup the current DVR system setting to USB storage device such as pen drive or external hard disk. Plug in the USB storage device before starting to save the configuration. Please restart DVR after default value has loaded.

IMPORT CONFIGURATION:

To restore the previous saved DVR system setting from USB storage device such pen drive or external hard disk. Please restart DVR after default value has loaded.

OSD MENU

Description

SYSTEM SETUP

PASSWORD CHANGE

DATE / TIME

SYSTEM INFO

AUDIO SETUP

INSTANT PLAYBACK

LANGUAGE

CONFIGURATION LOG

EXTENSION SETUP

060 SEC

ENGLISH

LED

DELAY POWER OFF

0 MIN

LOG SETUP

To search event log. Select the SEARCH TIME and select SEARCH EXECUTION to start searching. The search result will be list out. User can select the log to view but some of logs are not viewable.

SEARCH TIME : SEARCH EXECUTION

2009 / 01 / 07 10 : 41 : 02 VIDEO LOSS - 4 2009 / 01 / 07 10 : 41 : 02 VIDEO LOSS - 3

2009 / 01 / 07 10 : 41 : 02 VIDEO LOSS - 1

2009 / 01 / 07 10 : 41 : 02 VIDEO LOSS - 2

2009 / 01 / 07 10 : 40 : 32 VIDEO LOSS - 4 2009 / 01 / 07 10 : 40 : 32 VIDEO LOSS - 3

2009 / 01 / 07 10 : 40 : 32 VIDEO LOSS - 1

2009 / 01 / 07 10 : 40 : 32 VIDEO LOSS - 2

2009 / 01 / 07 10 : 40 : 02 VIDEO LOSS - 4

2009 / 01 / 07 10 : 40 : 02 VIDEO LOSS - 3

1-5

2009 / 01 / 07 10 : 00 : 00

LOG LIST

SYSTEM SETUP

PASSWORD CHANGE

DATE / TIME

SYSTEM INFO

AUDIO SETUP

INSTANT PLAYBACK

LANGUAGE

CONFIGURATION LOG

EXTENSION SETUP

060 SEC

ENGLISH

LED

DELAY POWER OFF

0 MIN

DATE FORMAT

Select the display format of the date -- YYYY/MM/DD, MM/DD/YYYY, or DD/MM/YYYY

DATE

Set the current date

TIME

Set the current time

DAYLIGHT SAVING

To enable/disable daylight saving function.

START

Setup daylight startup date and time.

END

Setup daylight stop date and time.

TIME OFFSET

Assign a time that it is for daylight saving time offset in your time zone. For example: if the time zone is in U.S. Eastern, the time offset is 1 hour.

DATE / TIME SETUP

DATE FORMAT DATE TIME

DAYLIGHT SAVING

START

END OFFSET

YYYY/MM/DD 2009 / 01 / 06 15 : 19 : 09

2009 / 01 / 01 00 : 00 : 00

2009 / 01 / 01 00 : 00 : 00 00 : 00

OSD MENU

Description

SYSTEM SETUP

PASSWORD CHANGE

DATE / TIME

SYSTEM INFO

AUDIO SETUP

INSTANT PLAYBACK

LANGUAGE

CONFIGURATION LOG

EXTENSION SETUP

060 SEC

ENGLISH

LED

DELAY POWER OFF

0 MIN

PASSWORD CHANGE

PASSWORD CHANGE SETUP

PASSWORD SETUP

ADMINISTRATOR

OPERATOR

Enable/disable full system password protection. This would prevent unauthorized user to stop video recording, change system settings and formatting the hard disk.

Default Password

Authority

ADMIN

111111

All

OPERATOR

111111

Preview/Playback

ADMINISTRATOR

Administrator has the authority of formatting hard disk, changing system settings, remote monitor the DVR system and changes the system settings. The factory default password is

111111

OPERATOR

The login account for preview and playback, but no authority to change the DVR system‟s setting. The factory default password is

111111

PASSWORD SETUP

CURRENT NEW CONFIRM EXECUTE

OSD MENU

Description

SYSTEM SETUP

PASSWORD CHANGE

DATE / TIME

SYSTEM INFO

AUDIO SETUP INSTANT PLAYBACK

LANGUAGE

CONFIGURATION LOG

EXTENSION SETUP

060 SEC

ENGLISH

LED

AUDIO SETUP

AUDIO OUT @ QUAD

AUDIO MUTE

CH1 15VOLUME ADJUSTMENT

RESET TO DEFAULT

1 2 3

AUDIO MUTE

Enable/disable to hear audio sound while preview or playback. To hear sound, make sure the unit is connected to a speaker.

If you want to hear the voice when you playback the recorded file on this DVR, please make sure that you have selected Audio Mute Off.

AUDIO OUT

Select the channel to output the audio signal While QUAD mode. Please make sure the audio output device (such as a speaker) is connected to DVR unit.

Audio output device has its own power supply is necessary.

VOLUME ADJUSTMENT

To adjust audio output volume. RESET TO DEFAULT

Set all configurations back to factory default.

INSTANT PLAYBACK

To set the time in seconds for automatically playback the video that has just recorded.

EXTENSION SETUP

The DVR unit provides a port to connect a extended line for system LED indicator or IR receiver. It is convenient for user to easily indicate the DVR unit status or remote control the DVR unit when the DVR unit is installed at hide place. Select LED for extended LED indicator line or IR for extended remote control receiver line.

The external LED indicator line is optional. The external IR receiver line is included in package contents.

LANGUAGE

Select the language of the system

OSD MENU

Description

MAIN MENU

CAMERA/REC

SCHEDULE EVENT SETUP

DISPLAY

STORAGE

NETWORK

SYSTEM MISCELLANEOUS

MISCELLANEOUS SETUP

To setup multiple controls, entertainment, and GPS function.

MISCELLANEOUS SETUP

MUTLIPLE DVR GPS

ENTERTAINMENT

MUTLIPLE DVR

Enable/disable multiple DVR system remote controls. When user has more than one DVR system, user can use MULTIPLE DVR function to control all DVR system by single remote control.

MISCELLANEOUS SETUP

MUTLIPLE DVR GPS

GSM 3G

ENTERTAINMENT

Backup recorded file to USB storage device and playback on MOB DVR. MOB DVR system only can recognize the file that backup from DVR and in *.avf format.

1. Create a folder name “

avf

” in the USB storage device and save

the backup recorded file in avf folder.

2. Plug the USB storage device into USB port of DVR.

3. Press to call out OSD menu.

4. Select

SYSTEM

→

ENTERTAINMENT

and press

5. The recorded files have been detected by DVR system will display on screen.

6. Select the file and press to start playback.

7. The DVR system will cycle switch to playback all files automatically. Between each file play, system will stop for 1~2 seconds.

8. While the file is playback, recording is allowed.

ENTERTAINMENT FILE LIST

2009_01_10_12_03_10_ch1 00 : 01 : 50 2009_01_10_12_03_10_ch2 00 : 01 : 50 2009_01_10_12_03_10_ch3 00 : 01 : 50 2009_01_10_12_03_10_ch4 00 : 01 : 50 2009_01_12_14_05_30_ch1 00 : 02 : 30 2009_01_13_15_03_15_ch2 00 : 03 : 25

1/1

OSD MENU

Description

MISCELLANEOUS SETUP

MUTLIPLE DVR GPS

GSM 3G

ENTERTAINMENT

GPS SETUP

To enable/disable GPS information message display on surveillance screen.

LATITUDE

LONGITUDE

DISPLAY MESSAGE

HEADING SPEED OVER GROUND KM / MILE KM

GPS SETUP

LATITUDE

Enable/disable to display latitude information on surveillance screen.

LONGITUDE

Enable/disable to display longitude information on surveillance screen.

HEADING

Enable/disable to display heading information on surveillance screen.

SPEED OVER GROUND

Enable/disable to display speed information on surveillance screen.

KM/MILE

Select the distance format – KM(kilometer) or MILE

Chapter 4 Using the USB Playback Console

4.1 Recommended system requirements

Pentium® 4 2.4GHZ or above Windows® 2000/ XP/Vista DDR 256 MB Graphic function must support DirectDraw Audio card or built-in Speaker 1 available USB2.0 port

4.2 Installing the USB Playback Console

To install the USB Playback Console:

1. Place Installation CD into the CD-ROM drive. When the installation main screen appears, click

Install USB Playback Console and then follow the on screen instructions

2. Select the language you prefer

3. Click OK to install the application

4. Click Exit to close the installation main screen.

5. You may now connect the external USB storage device that has saved recorded files to PC.

Name

Function

(1) Split Screen Mode

Select from different screen view to playback the recorded video file of the entire camera or one camera on screen.

(2) Exit

Close the application.

(3) Progress bar

Show the progress of the file being played. You may move the bar to seek at any location of the track.

(4) Hour button

Select and click to playback the recorded video file on the specific time frame.

(5) Playback Controller

Begin: Move at the beginning of the recorded video file. Previous: Go back to the previous frame by frame. Slower: Play the recorded video file at the speed of 1/2x,1/ 4x,1/8x,16x, or 1/32x Rewind: Wind back the recorded video file. Pause: Briefly stop playing the recorded video file. Play: Play the recorded video file. Faster: Play the recorded video file at the speed of 2x, 4x, 8x, 16x, or 32x. Next: Go to the next frame by frame. End: Go to the end of the recorded video file.

4.3 Running the USB Playback Console

To run the application, click the icon on the PC desktop

Name

Function

(6) Archive

To select the video file source for playing.

– DVR Recorded File (HD): To playback the recorded video from the hard disk

which was recording video on the DVR system. (see also Chapter 4.3.2)

– Backup File(.dvr): The file is backup and save in *.dvr file format. (see also

Chapter 4.3.3)

– Backup File (.avf): The file is backup and save to external USB storage device in

*.avf format. Select the file source folder and click OK to playback.

(7) Status bar

Display the recorded date, time and play speed.

(8) Language

To switch DVR application UI language.

(9) Adv. Function

Advanced function is including :

HDD Backup: to call out HDD Backup application. (see also Chapter 5) iEnhance: to call out iEnhance application. ( see also Chapter 7) AVF to AVI: save *.avf file format into *.avi file format. Realtime GPS: To view the GPS data of the DVR on the Google map (HD Eraser

function doesn’t support in MOB1304).

HD Eraser: To recover the damage of recorded file (HD Eraser function doesn’t

support in MOB1304).

(10) Export

Export includes Snapshot, Print, Output Video Clip, and Export KML function.

Snapshot: Capture and save the screen shot either in *.jpg or *.bmp format. Print: Print the screen shot. Output: Save the segmented video in *.avi format. Export KML: Save the segmented video in *.KML format and use the Google

Earth to view the actually road direction from virtual map(see also Chapter 4.3.4)

(11) Segment

Keep a portion of the recorded video (see also Chapter 4.3.1)

(12) Full screen

Use the entire area of the screen to only display the video. To return, press the right button of the mouse or ESC on the keyboard.

When you switch to full screen in multiple-screen mode, Left click to toggle to only display one of the video in the multiple-screen mode or all.

(13) Event Log

To select the recorded file that listed in Event List windows.

(14) Camera ID

Show the number of cameras that are being viewed. When you are in single screen mode, click the camera ID number to switch and view other camera.

(15) Sound /Sound bar

Turn on and off the sound Increase and decrease the volume

(16) De-interlace

To enhance the video quality. Set the de-interlace mode to #1, if you are capturing motionless picture and #2, if it captures lots of movement.

(17) Watermark

- When playback *.dvr file, click watermark button to verify the correction of

playback video.

- When playback file from hard disk and *.avf file, click watermark to call out

ImageVerification application. (see also Chapter 6)

4.3.1 To Cut and Save the Portion of the Recorded Video

1. Use the Playback Control buttons or drag the bar on the playback progress bar and pause on where you want to start the cut. Then, click Segment to set the begin mark.

2. Use the Playback Control buttons or drag the bar on the playback progress bar and pause on where you want to end the cut. Then, click Segment to set the end mark. To cancel segmentation, click Segment button again.

3. Click Output button to save the wanted portion.

4. In the Save As dialog box, locate on where user wants to save the file, type the filename, and select the video format.

4.3.2 Playback DVR Recorded File from Hard Disk

1. Please have the hard disk which containing of recorded video data install on your PC or using external USB enclosure to connect to your PC.

2. Click Archive button

3. Select DVR Recorded File(HD) and click OK.

4. Select the hard disk drive from Select Disk window and click OK.

5. The Event List windows will appear and list all recorded file. Select the file and preview the selected file video. And then, click OK to start playback on UPC. To go to next page of recorded file list, click Next. To go back to previous page, click Pre. To go to the specific page, enter the page number and click GO.

When open the backup video file, just locate the where backup file folder is.

When channels of the DVR is less than 16 channels, the Channel 01~16 and Channel 17~32 buttons are nonfunctional.

4.3.3 Playback Backup File(*.dvr)

1. Click Archive button.

2. Select Backup File(*.dvr) and click OK.

3. Locate the backup file folder and click OK.

4. Select the date on the calendar and the time from 00 to 23 to where to start playing the recorded video file.

– Change Folder: To select different playback file form other folder location. – Channel 01~ 16&Channel 17 ~ 32: Switch to different channel group of playback calendar if the

camera channel is more than 16 channels.

The recorder file must contain GPS data in order to save in *.KML format and view on Google Earth.

4.3.4 View the KML File on Google Earth

1. Playback the recorded file from hard disk that is containing of recorded video data of MOB DVR(see

also Chapter 4.3.2)

2. During the playback, select a video segment that user wants to save in *.KML file format (see also

Chapter 4.3.1)

3. Click Export and select Export KML to save the video segment in *.KML format.

4. To install Google Earth, open the browser and enter http://earth.google.com. And download the

Google Earth from the web page.

5. After installed Google Earth, double click the KML file that user has saved before.

6. The Google Earth will automatically activate and load the KML file.

7. User can view the actual location of recorded file according to the GPS data that MOB DVR has

recorded.

Name

Function

(1) Date

Select the date for events

(2) Hour and Channel

User can select the hour and channel for events. : All events in this hour and channel have been selected. : In this hour and channel has events : Partial of events in this hour and channel has been selected.

(3) Event list

All recorded video events list

No.: the list order number Record: the record type(see also Chapter 2.4) Begin Time: the beginning of record time End Time: the end of record time

(4) Set Marked File

Use Ctrl and mouse to select the multiple events from event list, and then click Set Marked File to mark multiple events. When click Set Marked File button, the marked event will turn to un-mark and un-mark event will turn to marked.

(5) Page Switch

Pre: go back last page Next: go to next page Page column: enter the page number and click Go button to go to the page

(6) Select All

Select all listed recorded video events. Click the check box again to cancel for selecting all events.

(7) Video display

Display first frame of each recorded video channel from 4 selected.

(8) Progress bar

Show the progress of the event being played. User may move the bar to seek at any location of the track

Chapter 5 Backup Recorded Video File

HDD Backup application provides user an interface to view recorded video from hard disk and backup it.

5.1 Familiarizing with HDD Backup Application

Name

Function

(9) Source Disk

To select the hard disk drive

(10) Target Path

To locate on where user wants to save the file

(11) Event (%)

Display the backup progress rate of event in percentage

(12) Total (%)

Display the total backup progress rate in percentage

(13) Stop

Stop backup progress

(14) Start

Start backup progress

(15) Export KML

Save the selected event files into KML file format. The export KML file can be view on Google Earth(see also Chapter 4.3.4)

5.2 To Backup Recorded Video File

1. Please have the hard disk which was recording video on the DVR system install on your PC or using external USB enclosure to connect to your PC.

2. To run the HDD Backup application, click the HDD Backup button on USB Playback Application main interface.

3. Click Browse in Source Disk to locate the recorded video file.

4. And then, the Select Disk windows will appear as below:

5. Select the hard disk drive from Select Disk windows. All available hard disk will list on the Select Disk windows with size and name

6. Select the hard disk drive and click OK

7. And then, all the recorded video files will list out.

8. Select the event which user wants to backup. Or mark the Select All to select all listed recorded video event

9. Locate on where user wants to save the backup file

10. Click Start to process backup

11. To stop the backup progress, click Stop

12. To play the backup file, see 4.3.3.

Chapter 6 ImageVerification

Image Verification is a watermark-checking program to identify the authenticity of a saved image (e.g. by

snapshot). This program can only verify uncompressed bmp image files.

6.1 To Run the ImageVerification

1. To run the ImageVerification application, click the main interface.

2. In the ImageVerification screen, click Load Source Image and locate the image source.

3. Click Verify Image to begin the process.

4. Check the result in the Processed Image screen. If the picture is unmodified, the image in the

Source Image and Processed Image screen would be exactly the same. If the picture is being modified, a warning dialog box would prompt and the modified area is highlighted.

Watermark

button on USB Playback Application

(1) (2) (4)(3) (5) (6)

(14)

(13)

(11)

(12)

(10)

(16)

(17)

(21)

(19)

(18)

(22)

(23) (24) (25)

(9)

(15)

(8)(7)

(20)

Name

Function

(1) Open File

Access *.dvr and *.avf video file.

(2) Save Image

Capture and save the screen shot in *.bmp format.

(3) Playback Control

Buttons

Begin: Move at the beginning of the video file. Previous: Go back to previous frame. Pause: Briefly stop playing the video file. Play: Play the video file. Faster: Play the video file at the faster speed. Next: Go to the next frame. End: Go to the end of the video file.

(4) Save Video

Save the edited or segmented video in *.avi format.

(5) Print

Print the screen shot.

(6) Segment

Mark the beginning and the end of the selected portion of the video. Two triangle marks will appear on the slider. To cancel video segmentation, click this button again.

(7) Zoom Buttons

Enlarge, reduce, and set the image back to normal size.

(8) Full Screen

Use the entire screen to only display the video.

(9) Default

Set the video back to original state and delete all the changes in the history box.

(10) History Box

List all the actions.

(11) Undo

Delete the last action.

(12) Noise Reduce

Adjust the softness and repair the damaged colors.

(13) Sharpness

Improve the overall image by enhancing edges. This gives the image more depth.

Chapter 7 iEnhance

The bundled iEnhance is a video editing tool and can only be used with *.dvr and *.avf video file. It allows you to adjust the video picture quality, segment and save the selected portion of the video, zoom in and out the image, and print or save the screen shot. You can also save the setting and apply it on other files. To run iEnhance application, click iEnhance button on USB Playback Console interface.

Name

Function

(14) Effects

Gray Scale: convert the image into black and white (monochrome). Normalize: adjust the brightness intensity. Equalize: automatically adjust the images that are too dark. De-interlace: smooth out the overlying frames.

- Static: de-interlace for motionless scene.

- Dynamic: de-interlace for moving scene.

(15) Picture

Adjustment

Adjust the Brightness, Contrast, Saturation, Hue and Gamma.

(16) Original Screen

Display the original state of the image.

(17) Temporary

Setting Block

Display the sample settings. Click the sample to apply the setting on the current video.

(18) Status Bar

Display the date, and time of the video.

(19) Progress Bar

Show the progress of the file being played. You may move the bar to seek at any location of the track.

(20) iStable

To reduce the jolt in the recorded video.(also see Chapter 7.1)

(21) Add Setting

Include the new setting to the temporary setting block.

(22) Rename

Change the name of the selected setting in the temporary setting block.

(23) Delete

Permanently remove the selected setting in the temporary setting block.

(24) Load Setting

Call the saved settings.

(25) Save Setting

Store the settings in the temporary setting block.

7.1 To Use iStable

The iStable function can reduce the jolt in the recorded video.

1. Click Open File button and

select the recorded video.

2. And then, click iStable button.

3. iStable windows will show up.

4. Select the smoothness level –

1(Low), 2, 3, 4, and 5(High). The default value is 3.

5. Click Play button, and then

iStable function will start to initial the recorded video.

6. When the initialize is done,

user will see the original and stabilized recorded video play in two windows. The original video on the right side of window and the stabilized video on the left side of window.

Warranty Notice

LIMITED WARRANTY

AVerMedia INFORMATION, Inc. warrants this product to be free of defects resulting from faulty manufacture or components under the following terms:

WARRANTY LENGTH

Labor is warranted for (1) one year from the date of purchase. Parts are warranted for (1) one year from the date of purchase. Replacement products will be warranted for the remainder of the one year warranty period or (30) thirty days, whichever is longer.

WHO IS PROTECTED

This warranty is enforceable only by the first consumer purchaser.

WHAT IS AND IS NOT COVERED

Except as specified below, this warranty covers all defects resulting from faulty manufacturing of this product. The following are not covered by the warranty.

1. Any product on which the serial number has been defaced, modified, or removed.

2. Damage, deterioration, or malfunction resulting from:

Accident, abuse, misuse, neglect, fire, water, lightning, or other acts of nature, commercial or industrial use, unauthorized product modification, or failure to follow instructions included with the product.

Misapplication of service by someone other than the manufacturer‟s representative. Any shipment damages. (Claims must be made with carrier.) Any other cause which does not relate to a product defect.

3. Cartons, cases, batteries, cabinets, tapes, or accessories used with product.

4. AVerMedia does not warrant that this product will meet your requirements; it is your responsibility to determine the

suitability of this product for your purpose.

WHAT WE WILL AND WILL NOT PAY FOR

We will pay labor and material expenses for covered items. However, we will not pay for the following :

1. Removal or installation charges.

2. Shipping charges.

3. Any incidental charges.

EXCLUSION OF DAMAGES

THE MANUFACTURER‟S SOLE OBLIGATION AND LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR

REPLACEMENT OF A DEFECTIVE PRODUCT AT OUR OPTION. THE MANUFACTURER SHALL NOT, IN ANY EVENT, BE LIABLE TO THE PURCHASER OR ANY THIRD PARTY FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGE (INCLUDING, BUT NOT LIMITED TO, DAMAGES RESULTING FROM INTERRUPTION OF SERVICE AND LOSS OF BUSINESS) OR LIABILITY IN TORT RELATING TO THIS PRODUCT OR RESULTING FROM ITS USE OR POSSESSION.

LIMITATIONS OF IMPLIED WARRANTIES

There are no other oral or written warranties, expressed or implied, including but not limited to those of merchantability or fitness for a particular purpose. Any implied warranties are limited in duration to one year from the date of purchase.

STATE LAW AND YOUR WARRANTY

This warranty gives you specific legal rights, and you may also have other rights granted under state law. These rights vary from state to state.

CONTACT INFORMATION

http://www.avermedia.com http://www.averdigi.com

AVer MOB1304 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

Chapter 1 Introduction

1.1 Package Contents

1.2 Front Panel

1.3 Back Panel

1.4 Setting Up the DVR Unit

1.4.1 Installing the Hard Disk

1.4.2 Mounting the DVR Unit

1.4.2.1 Installing the lower Z-brackets

1.4.2.2 Installing the Upper Z-brackets

1.4.3 Connecting Devices

1.4.3.1 Install on the Bus

1.4.3.2 Install on the Car

1.4.4 Connecting the Audio/Sensor/Relay/RS485 Device

1.4.4.1 Audio, Sensor, Relay and RS485 pinhole allocation

1.5 Familiarizing the Remote Control Buttons

1.5.1 New Type Remote Control

1.5.2 Old Type Remote Control

1.5.3 Using AB Segment Function

1.5.4 Using USB Backup Button

1.6 Controlling PTZ Camera

1.6.1 To Enter the PTZ Mode

1.6.2 To Set Preset Position

1.6.3 To Control PTZ Camera

Chapter 2 Operating the MOB1304

2.1 Using the MOB1304 for the First Time

2.2 Surveillance Screen

2.3 Playback the Video

2.3.1 To Playback Video

2.4 Using the GPS Function

2.4.1 Installing the GPS Device

2.4.2 Enabling the GPS Function

2.4.3 Viewing the GPS Data

Chapter 3 OSD Navigation Tree

3.1 Menu Function

Chapter 4 Using the USB Playback Console

4.1 Recommended system requirements

4.2 Installing the USB Playback Console

4.3 Running the USB Playback Console

4.3.1 To Cut and Save the Portion of the Recorded Video

4.3.2 Playback DVR Recorded File from Hard Disk

4.3.3 Playback Backup File(*.dvr)

4.3.4 View the KML File on Google Earth

Chapter 5 Backup Recorded Video File

5.1 Familiarizing with HDD Backup Application

5.2 To Backup Recorded Video File

Chapter 6 ImageVerification

6.1 To Run the ImageVerification

Chapter 7 iEnhance

7.1 To Use iStable
