AVer M70 User Manual

Page 1

ENGLISH

Federal Communications Commission Statement (Class A)

NOTE- This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a

frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by tuning the equipment off and on, the user is encouraged to try to correct the interference by one or more

Class A ITE:

Class A ITE is a category of all other ITE which satisfies the class A ITE limits but not the class B ITE limits. Such equipment should not be restricted in its sale but the following warning shall be included in the instructions for use:

Warning - This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

All rights of this object belong to AVer Information Inc. Reproduced or transmitted in any form, or by any means without the prior written permission of AVer Information Inc. is prohibited. AVer Information Inc. reserves the rights to modify its products, including their specifications and any other information stated herein without notice. The official printout of any information shall prevail should there be any discrepancy between the information contained herein and the information contained in that printout. “AVer” is a trademark owned by AVer Information Inc. Other trademarks used herein for description purpose only belong to each of their companies.

NOTICE

SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. THE INFORMATION CONTAINED HEREIN IS TO BE CONSIDERED FOR REFERENCE ONLY.

WARNING

TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. WARRANTY VOID FOR ANY UNAUTHORIZED PRODUCT MODIFICATION.

residential installation. This equipment generates uses and can radiate radio

of the following measures:

 Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

 Consult the dealer or an experienced radio/television technician for help.

THE MARK OF CROSSED-OUT WHEELED BIN INDICATES THAT THIS PRODUCT MUST NOT BE DISPOSED OF WITH YOUR OTHER HOUSEHOLD WASTE. INSTEAD, YOU NEED TO DISPOSE OF THE WASTE EQUIPMENT BY HANDING IT OVER TO A DESIGNATED COLLECTION POINT FOR THE RECYCLING OF WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT. FOR MORE INFORMATION ABOUT WHERE TO DROP OFF YOUR WASTE EQUIPMENT FOR RECYCLING, PLEASE CONTACT YOUR HOUSEHOLD WASTE DISPOSAL SERVICE OR THE SHOP WHERE YOU PURCHASED THE PRODUCT.

Page 2

ENGLISH

Remote Control Battery Safety Information

- Store batteries in any cool & dry place.

- Do not dispose used batteries in domestic waste. Dispose batteries at special collection points or return to stores if applies.

- Remove the batteries if they are not in use for long period of time. Battery leakage and corrosion can damage the remote control, dispose batteries safely.

- Do not mix and use old and new batteries.

- Do not mix and use different types of batteries: alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium).

- Do not dispose batteries in a fire.

- Do not attempt to short circuit the battery terminals.

Page 3

ENGLISH

TTaabbllee ooff CCoonntteennttss

Package Contents ........................................................................... 1

Optional Accessories ..................................................................... 1

Get Familiar with the AVerVision M70 ........................................... 2

Right Panel ............................................................................................. 2

Rear Panel ............................................................................................. 3

Left Panel ............................................................................................... 3

Control Panel .......................................................................................... 4

Remote Control ...................................................................................... 5

Making the Connections ................................................................ 8

Set the TV-RGB Switch Setting .............................................................. 8

Connect to a Monitor or LCD/DLP Projector ........................................... 9

Connect to a Monitor or LCD/DLP Projector with HDMI interface .......... 9

Connect to a TV ................................................................................... 10

Connecting the Power .......................................................................... 10

Connect to a Computer ......................................................................... 11

Connect to a Computer via USB ........................................................... 11

Connect an External Microphone ......................................................... 12

Connect an Amplified Speaker ............................................................. 12

Connect to a Microscope ...................................................................... 12

Setting Up AVerVision M70 .......................................................... 14

Camera Head ....................................................................................... 14

Mechanical Arm .................................................................................... 14

Infrared Sensor ..................................................................................... 15

Mounting the M70 on a Flat Surface .................................................... 15

Anti-glare Sheet .................................................................................... 15

External Memory Storage ..................................................................... 16

Insert an SD Card Insert a USB Flash Drive

........................................................................... 16Insert an SD Card

................................................................ 16

OSD MENU ..................................................................................... 17

Navigate the Menu and Submenu ........................................................ 18

Image ................................................................................................... 18

Brightness ....................................................................................... 18

Contrast .......................................................................................... 18

Mode ............................................................................................... 19

Effect............................................................................................... 19

Mirror .............................................................................................. 19

Advanced ........................................................................................ 19

Auto Image ..................................................................................... 20

Exposure ........................................................................................ 20

White Balance ................................................................................. 20

Focus .............................................................................................. 20

Presentation ......................................................................................... 21



Insert a USB Flash Drive

Page 4

Spotlight .......................................................................................... 21

Visor................................................................................................ 21

PIP .................................................................................................. 22

Split Screen .................................................................................... 22

Timer ............................................................................................... 23

Setting .................................................................................................. 23

Capture ........................................................................................... 23

Resolution ....................................................................................... 23

Quality ............................................................................................ 23

Type ................................................................................................ 24

Interval ............................................................................................ 24

Recording ....................................................................................... 24

Storage ........................................................................................... 24

Format ............................................................................................ 24

USB to PC ...................................................................................... 25

Flicker ............................................................................................. 25

System ................................................................................................. 25

Language ........................................................................................ 25

Output Display ................................................................................ 25

Backup ............................................................................................ 26

Save Setting ................................................................................... 26

Recall Setting .................................................................................. 26

Information ...................................................................................... 26

Default ............................................................................................ 26

Playback ............................................................................................... 27

Slide Show ...................................................................................... 27

Interval ............................................................................................ 27

Slide Show Effect ............................................................................ 27

Current Storage .............................................................................. 27

Delete All ........................................................................................ 27

Annotation ............................................................................................ 28

Connecting a USB mouse or AP20T ............................................... 28

Using the Annotation Control Panel ................................................ 29

Using the AP20T Slide Switch and F button ................................... 29

Transfer Captured Images/Videos to a computer .............................. 30

Technical Specifications .............................................................. 30

Image .............................................................................................. 30

Optics ............................................................................................. 30

Power ............................................................................................. 30

Lighting ........................................................................................... 31

Input/Output .................................................................................... 31

Dimension ....................................................................................... 31

External Storage ............................................................................. 31

RS-232 Diagram Connection ........................................................ 31

RS-232 Cable Specifications ........................................................ 32

RS-232 Transmission Specifications .......................................... 32

RS-232 Communication Format ........................................................... 32

ENGLISH

Page 5

RS-232 Send Command Table ............................................................. 32

RS-232 Get Command Table ............................................................... 37

Troubleshooting ............................................................................ 38

Limited Warranty ........................................................................... 39

ENGLISH

Page 6

PPaacckkaaggee CCoonntteennttss

Make sure the following items are included in the package.

AVerVision M70

Power Adapter (12V, 2A)

* The power adapter will vary

depending on the standard power outlet of the country

where it is sold.

RS-232/CVBS Cable

USB Cable

RGB Cable

Software & Manual CD

ENGLISH

Anti-glare Sheet

Remote Control

(batteries included)

Carrying Bag

OOppttiioonnaall AAcccceessssoorriieess

Microscope Adapter

Light Box

34mm Rubber Coupler

28mm Rubber Coupler

AVer AP20T

(Interactive Wireless Pen)

Page 7

GGeett FFaammiilliiaarr wwiitthh tthhee AAVVeerrVViissiioonn MM7700

(5)

ENGLISH

(1)

(6)

(7)

(2)

(8)

(3)

(4)

(9)

(fig. 1.1)

Name Function

(1) Camera head Contain the camera sensor.

(2) Camera lens Focus the image in the camera.

(3) Control panel Easy access to various functions.

(4) Built-in MIC Record audio when recording video clip. The recorded sound will be

(5) Arm Extendable for viewing coverage.

(6) Left panel Connections for LCD monitor using HDMI cable, microphone,

(7) IR sensor Receive remote control commands.

(8) Rear panel Connections for power, computer for RGB input display and LCD

(9) Right panel On/off switch for USB flash drive port and power button.

Right Panel

in monophonic.

speaker, computer, SD card, and TV-RGB display output switch.

monitor using RGB cable.

(2)

(1)

(3)

(fig. 1.2)

Name Function

(1) USB PC - USB Flash

Drive switch

(2) USB Thumb Drive port Insert a USB flash drive for audio video recording storage.

(3) Power button Turn the unit on/standby mode.

Switch to right (►) for audio video recording directly to a USB flash drive and left (◄) when connecting AVerVision M70 to a computer using a USB cable.

Page 8

Rear Panel

ENGLISH

(1)

(2) (3)

Name Function

(1) Antitheft Slot

(2) DC12V port

(3) RGB INPUT port

(4) RGB OUTPUT port

Attach a Kensington compatible security lock or antitheft device.

Connect the power adapter into this port.

Input the signal from a computer or other sources and pass it through to the RGB OUT port only. Connect this port to the RGB/VGA output port of a computer.

Connect the AVerVision M70 to any display device with RGB cable

Left Panel

(4)

(3)

(2)

(1)

Name Function

(1) Mini USB port

(2) HDMI OUTPUT

(3) MIC port

(4) Speaker port

(5) RS-232/CVBS port

(6) TV-RGB switch

(7) SD card slot

Connect to a USB port of a computer with a USB cable and use AVerVision M70 as a USB Camera or transfer the captured images/videos either from the memory source to computer.

Output the video signal from the main system on an LCD monitor with HDMI interface using HDMI cable.

Connect a 3.5mm plug microphone. The built-in mic will be disabled when an external MIC is connected to this port.

Connect to an amplified speaker.

Connect the supplied RS-232/CVBS cable into this port. The RCA jack outputs the video signal from the camera to a TV or video equipment. The RS-232 jack is used to connect to computer serial port or to any control panel or for centralized control if desire.

TV switch to output display video from RS232/CVBS (via RCA connection), and RGB to RGB and HDMI OUTPUT ports.

Insert the SD card with the label facing up.

(5)

(6)

(4)

(7)

(fig. 1.4)

(fig. 1.3)

Page 9

Control Panel

(1)

(

)

ENGLISH

(7)

(3)

(4)

(5)

(6)

Name Function

(1) MENU

(2) RECORDING

(3) CAP/DEL

(4) PLAYBACK

(5) FREEZE / STOP

(6) Built-in MIC

(7) CAMERA / PC

(8) ▲,▼,◄, & ►

(9) ZOOM IN

(10) ZOOM OUT

(11) ENTER

(12) AUTO FOCUS

(13) LAMP

Open and exit the OSD menu.

Start/Stop audio & video recording. Audio and video recording can be saved on a SD card or an USB Flash drive only. See External

Memory Storage.

- Capture picture in Camera mode. In continuous capture mode, press this button again to stop.

- Delete the selected picture/video in Playback mode.

View & playback captured still images and audio video files.

- Pause or resume image display in Camera mode.

- Stop audio & video playback in Playback mode.

Record audio automatically when recording video clip.

Switch between Camera and Computer.

- Pan and zoom-in image (above digital zoom level) in both live and playback mode.

- Select options in OSD menu.

- Use ▲&▼ to increase and decrease the video playback volume.

- Use ◄&► to play the video backward and forward.

- Move the Spotlight frame and Visor screen cover.

Increase the image magnification in camera and picture playback mode.

Decrease the image magnification in camera and picture playback mode.

- Make a selection in Playback mode and OSD menu.

- Start/Pause video playback.

Adjust the focus automatically.

Turn the overhead light on/off.

(8) (9)

(10)

(11)

(12)

(13)

(fig. 1.5)

Page 10

ENGLISH

Remote Control

The remote control requires two (2) “AAA” size batteries (supplied), make sure batteries are installed properly before use. You can access all the features of AVerVision M70 with the remote.

(1)

(26)

(25)

(24)

(23) (22)

(21) (20) (19)

(18)

(17)

RM-NM

Name Function

(1) POWER Turn the unit on/standby.

(2) (3)

(2) CAMERA / PC Switch between Camera and computer

(4) (5)

(6) (7) (8) (9)

(10)

(3) PLAYBACK View the captured picture/video from

(11) (12) (13)

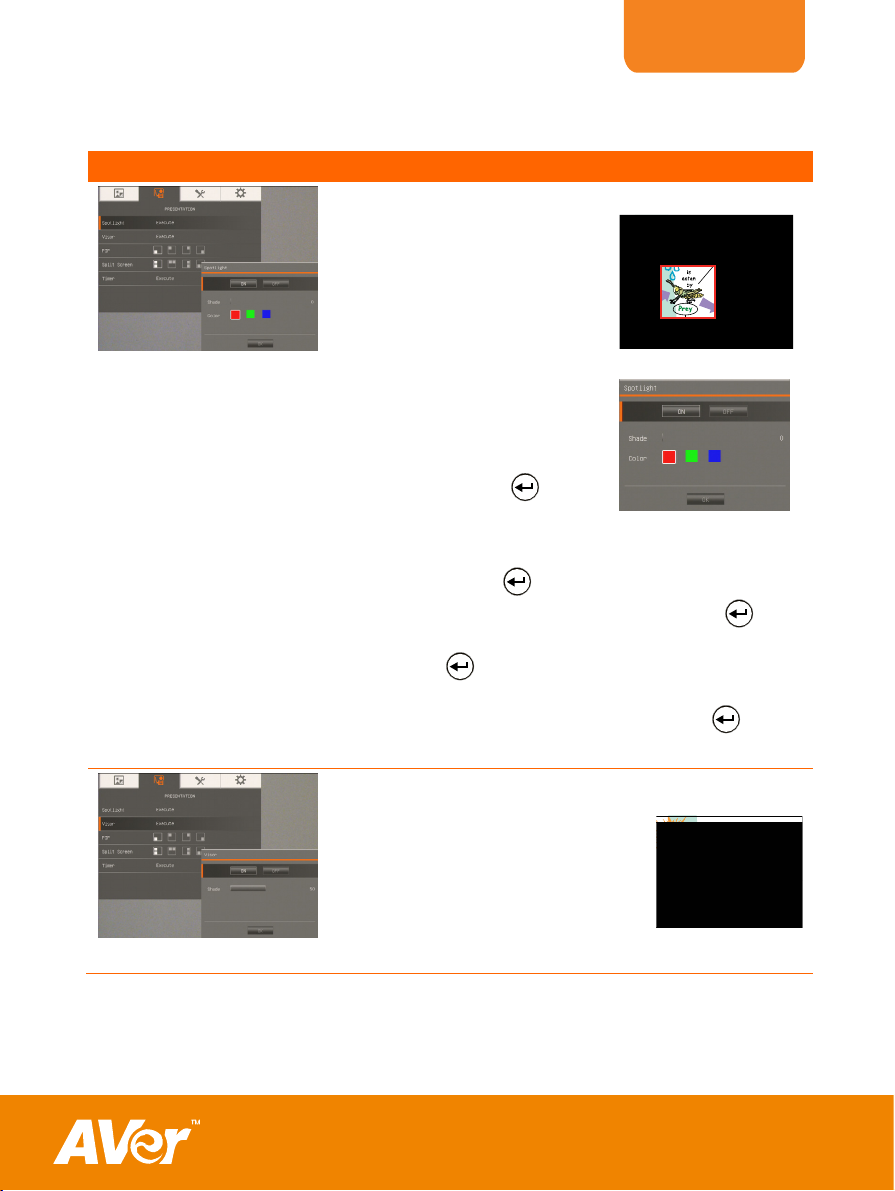

(4) SPOTLIGHT Call the Spotlight submenu. Spotlight

(14)

(15) (16)

mode.

- Camera mode displays the video signal from the built-in camera.

- PC mode displays the video signal from the RGB INPUT port of M70.

the memory in 16-thumbnail images.

overlays a box frame on the presentation screen. You can adjust the box size and move it around.

In the Spotlight submenu, the following options are available.

(fig. 1.6)

ON/OFF – select to run/cancel the

Spotlight. Press selection.

Shade – set the opacity level of the area outside the box. The shaded area will completely turns black when it is set to

level 100. Press selection.

Color – select the Spotlight frame color.

Press

OK – press effect. If you select ON, the frame will appear and blink, use the ▲,▼,◄, & ► buttons to adjust the frame size and

press OFF will close the submenu.

To turn off Spotlight, press

to move to the next selection.

to set the desired size; and

to move to the next

for the setting to take

again.

Page 11

(1)

(26)

(25)

(24)

(23)

(22)

(21) (20) (19)

(18)

(17)

RM-NM

(fig. 1.6)

Name Function

(2)

(5) ISOR Call the Visor submenu. Visor covers

(3) (4) (5) (6) (7) (8)

(9) (10) (11) (12) (13)

(14)

(15) (16)

part of the presentation screen and allo presenter to reveal the material as desire.

sor submenu, the following

In the Vi options are available.

ON/OFF – select to run/cancel the Visor.

Press

to move to the next selection.

Shade et the opacity level of the – s covered area. The shaded area will completely turns black when it is set

level 100. Press selection.

OK – press

for the setting to take

effect. If you select ON, upper part of th presentation screen is slightly exposed. Use the ▲,▼,◄, & ► buttons to reveal more of the covered area; and OFF will close the submenu.

To turn off Visor, press

(6) SPLIT

SCREEN

Divide the screen into tw displays the live image from the built-i camera and the other side displays 8thumbnail size picture/video from the memory.

(7) PIP umbnail size captured

Show a th picture/video from the memory at the corner of the screen in Camera mode.

(8) SLIDE SHOW Start/Stop automatically showing the

captured picture/video one-by-one.

(9) TIMER Call the Timer submenu. Select to

Start/Pause/Stop the timer countdown and set the timer duration.

ENGLISH

to move to the next

again.

o. One side

Page 12

ENGLISH

(1)

(26)

(25)

(24)

(23) (22)

(21) (20) (19)

(18)

(17)

RM-NM

(fig. 1.6)

Name Function

(10) CAPTURE Capture still image in Camera mode. In

(2) (3)

(4) (5)

(11) RECORDING Start/Stop audio & video recording.

(6) (7) (8) (9)

(10)

(12) DEL Delete the selected picture/video in

(11)

(12)

(13)

(13) AUTO IMAGE Automatically adjust and set the white

(14)

(14) BRIGHTNESS

+/-

(15)

(15) DEFAULT Reset to factory default setting.

(16)

(16) NEAR / FAR Adjust the focus manually.

(17) ZOOM

Reset zoom level to 100%.

RESET

(18) ZOOM +/- - Increase/decrease the image

(19)

(20) ▲,▼,◄, & ►

(21) MENU Open and exit the OSD menu.

(22) AUTO

FOCU S

(23) FREEZE

STOP/

(24) ROTA

TE Rotate the image by 90° in Camera

continuous capture mode, press this button again to stop.

Video recording can only be saved either in a SD memory card or a USB flash drive.

Playback mode.

balance and exposure setting.

Adjust the brightness.

magnification in camera and picture playback mode.

- Use to easily page up and page down 16-thumbnail picture preview.

- Make a selection in Playback mode and OSD menu.

- Play/Pause video playback

- Pan the image when image is above digital zoom level in live mode playback captured image mode.

- Move the selection in Playback mode and in OSD menu.

- Use ▲&▼ to increase and decrease the video playback volume.

- Use ◄ &► to play the video backwa and forward.

- Move the Spotlight frame and V screen cover.

Adjust the focus automatically.

- Freeze live images.

- Stop video playback.

mode and Playb

ack mode.

or in

isor

Page 13

ENGLISH

(1)

(26)

(25)

(24)

(23)

(22)

(21) (20) (19)

(18)

(17)

RM-NM

Name Function

(2)

(25) MODE Select from 6 type of modes:

(3) (4) (5) (6) (7) (8)

(9) (10) (11) (12) (13)

(14)

(15) (16)

(26) LAMP

Sharp - adjust the contrast along the edges making text app

Graphics - adjust the gr image.

Motion - increase frame rate. Suf

hting is required when using this

lig mode.

Microscope - automatically adjust optical zoom for microscopic v

Macro - set to view when object is onl 5 –10cm away from the camera.

least 80cm away from the camera.

Turn the overhead light on/off.

ear more visible.

adient of

ficient

iewing.

is at Infinite - set to view when subject

(fig. 1.6)

MMaakkiinngg tthhee CCoonne cti ons

nne cti ons

Before making the connection, make sure the power of all devices are turned off. If you are not sure on where to connect, simply follow the illustrated connections below and also refer to the user manual of the device you are connecting the AVerVision M70 with.

SSeett tthhee TTVV--RRGGBB SSwwiittcchh SSeettttiinngg

The TV-RGB switch etermines the display output

output signal using RGB/HDMI connection and

selection. Switch it to RGB (right) to

TV (left) to output signal using RCA

connection. (see fig. 1.4 # 6)

Switch AVerVision Port Display Device Port

RGB

RGB OUTPUT RGB INPUT

HDMI OUTPUT

RS232/CVBS

(use RS-232/CVBS cable)

HDMI INPUT

VIDEO IN

Page 14

ENGLISH

CCoonnnneecctt ttoo aa MMoonniittoorroorr LLCCDD//DDLLPP PPrrooj

Locate the RGB (VGA) input aphics display devic nnect it to RGB OUTPUT of AVerVision M70.

port

Make sure the to RGB. TV/RGB switch is set

port of the gr e and co

eeccttoorr

RGB cable

CRT monitor

LCD/DLP projector

LCD monitor

CCoonnnneecctt ttoo aa MMoonniittoorr oorr LLCCDD//DDLLPP PPrroojjeeccttoorr wwiitthh HHDDMMII iinntteerrffaaccee

Locate the HDMI input port of the display device and connect it to HDMI OUTPUT port of AVerVision M70.

Make sure the TV/RGB switch is set to RGB.

HDMI cable

HDMI monitor

Page 15

ENGLISH

VIDEO

RS-232/CVBS cable

RCA cable

CCoonnnneecctt ttoo aa TTVV

Locate the VIDEO or SCART RGB (if applicable) input port of the TV or Video equipment

INPUT

Projector

le. (i.e., VCR) to record your presentation and connect it to RCA jack of RS-232/CVBS cab

Television

SCART

VCR

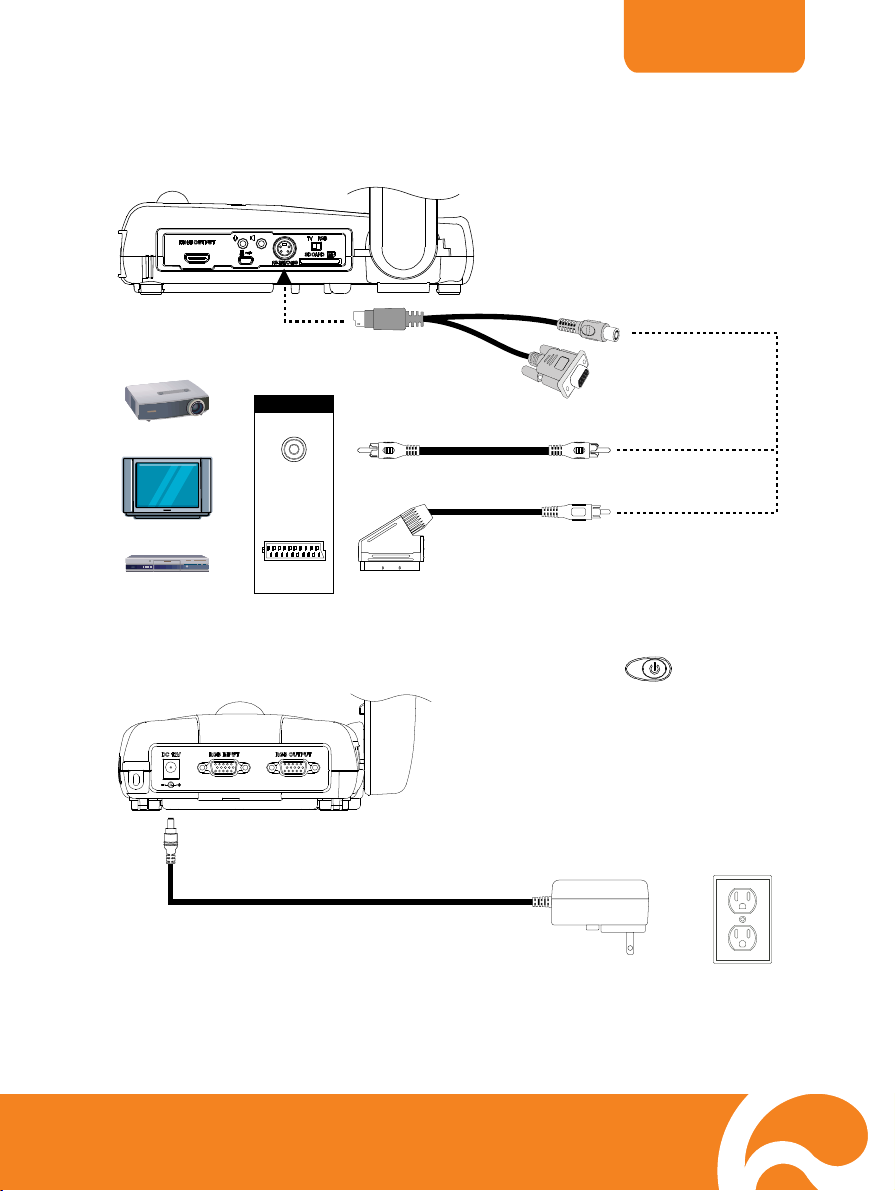

CCoonnnneeccttiinngg tthhee PPoowweerr

Connect the power adapter to a standard 100V~240V AC power outlet. The unit

automatically in standby mode once the power is connected. Press

RCA to SCART cable

(not supplied)

Power adapter

to turn on.

Wall outlet

Page 16

ENGLISH

CCoonnnneecctt ttoo aa CCoommppuutteerr

Locate the RGB (VGA) output port of the computer or laptop and connect it to RGB INPUT port of AVerVision M70. The video signal from the RGB INPUT port is streamed to RGB OUTPUT port.

- To display computer image, press Camera/PC button on the control panel or remote control to switch AVerVision M70 to computer mode.

- For laptop to output display image, use the keyboard command (FN+F5) to switch between the display modes. For different command, please refer to your laptop manual.

Desktop

RGB cable

CCoonnnneecctt ttoo aa CCoommppuutteerr vviiaa UUSSB

Locate the USB port of the computer or lapto M70. This enables you to use AVerVision M7 captured pictures/videos from the memory and to computer. Also see “Transfer Fi AVerVision M70 to PC”.

Make sure the USB Flash Drive switch (see fig. 1.2 #1) is set to the left.

USB cable

p and connect it to USB port of AVerVision

0 as a USB Camera or to transfer the

Laptop

Desktop

Laptop

le from

Page 17

ENGLISH

CCoonnnneecctt aann EExxtteerrnnaall MMiiccrroopphhoonnee

Plug a 3.5mm mono microphone to port. The built-in microphone on the control panel will be disabled when an external microphone is connected. The recorded audio will be in monophonic sou nd.

Microphone

CCoonnnneecctt aann AAmmpplliiffiieedd SSppeeaakkeerr

Plug a 3.5mm plug amplified speaker to port. Only the audio from the video playback is supported.

We recommend connecting an amplified speaker to the Audio output port. Take caution when using earphones. Adjust the volume down on the remote to prevent hearing damage due to loudness.

Amplified Speaker

CCoonnnneecctt ttoo aa MMiiccrroossccooppee

Connect the AVerVision M70 to a microscope enables you to examine microscopic objects on a big screen.

1. Change the image display mode to

Microscope. Press MENU > select

IMAGE tab > select MODE > select

(microscope) and press .

Page 18

2. Aim the camera head at the farthest

point and press AUTO FOCUS.

3. Adjust the focus of the microscope.

4. Select the appropriate rubber coupler size for the microscope eyepiece and insert it in the microscope adapter.

5. Remove the microscope eyepiece from t

he microscope and connect it to

the

icroscope adapter with the

rubbe

r coupler inserted. Fasten the 3 bolts until the adapter secures the eyepiece.

For the eyepiece, we suggest using 15.5mm eye relief or higher.

ENGLISH

Microscope

adapter

Microscope

eyepiece

6. Attach the microscope adapter to the AVerVision camera head. Then connect it to the AVerVision and microscope.

Microscope

Page 19

ENGLISH

Set tin g Up AVerV is ion

This section provides useful tips on how to adjust the AVerVision M70 to meet your needs.

Set tin g U p AVerV isi onMM7700

90°

he left and right and up and down. The camera head can turn freely at 90° to t

90°

CCaammeerraa HHeeaadd

If the camera head is in upright position, you can also press ROTATE on the remote control twice to rotate the image in 180°.

Mec hani cal Ar m

The mechanical arm design can extend

for a full A4 paper viewing.

195°

52mm (2.0 in)

180°

Page 20

ENGLISH

IInnffrraarreedd SSeennssoorr

nnffrraarreedd SSeennssoorr

Aim the remote control at the infrared sensor to operate the unit. Aim the remote control at the infrared sensor to operate the unit.

MMoouunnttiinngg tthhee MM7700 oonn aa FFllaatt SSuurrffaaccee

Measure and mark the horizontal of 75 mm and vertical of 70 mm center line distance

M4.0 screws for 6.004 holes and secure the M70 on the flat surface.

s of between the holes on the flat surface as describe in the illustration below. Use 4 piece

AAnnttii--ggllaarree SShheeeett

The anti-glare sheet is a special coated film that helps eliminate any glare that maybe encountered while displaying very shiny objects or glossy surfaces such as magazines and pictures. To use, simply place the anti-glare sheet on top of the shiny document to reduce reflected light.

Page 21

ENGLISH

EExxtteerrnnaall MMeemmoorryy SSttoorraaggee

AVerVision M70 supports both SD memory card and USB flash dr capture and audio & video recordings. AVerVision M70 can detect when there is an external storage media and automatically switch to the last detected storage. If no external storage is connected, all captured still images will be saved in the built-in memory.

IInnsseerrtt aann SSDD CCaarrdd

Insert the card with the contact facing down until it reaches the end. To remove the card, push to eject and pull the card out. The supported SD card capacity is from 1GB to 32GB (FAT

SD Card

IInnsseerrtt aa UUSSBB FFllaasshh DDrriivvee

Make sure to set the USB Flash Drive switch (see fig. 1.2 #1) to the right before inserting a USB flash drive. AVerVision M70 can support USB flash drive from 2GB to 32GB (FAT).

ive for more image

USB Flash Drive

Page 22

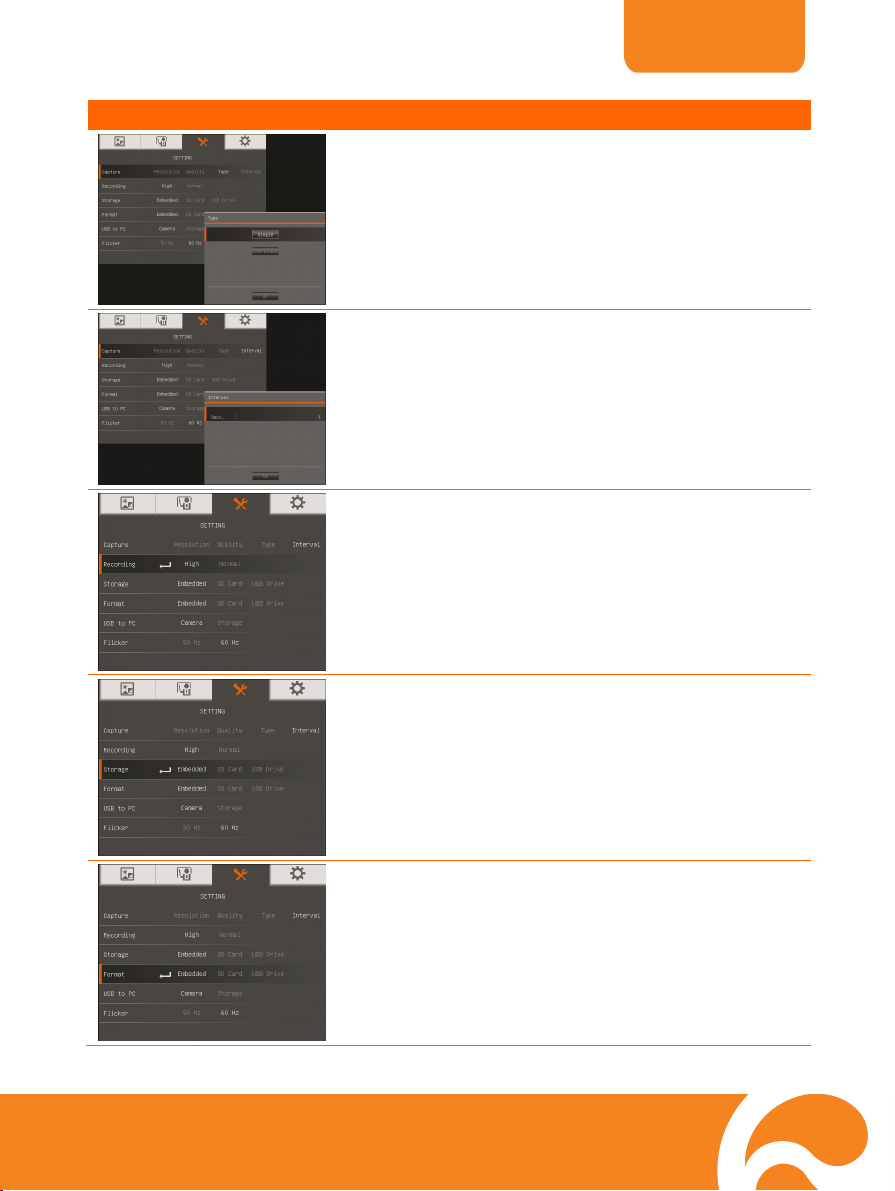

OOSSDD MMEENNU

ENGLISH

There are 4 tabs on the OSD menu: IMAGE, PRESENTATION, SETTING and SYSTE In Playback mode, you can access PLAYBACK OSD menu to enable the Slide Show feature and modify Slide Show interval and transition setting if desire.

For TV output, the RESOLUTION will be disabled in SETTING menu list.


SETTING

PRESENTATION

SYSTEM

ANNOTATION

PLAYBACK

Page 23

NNaavviiggaattee tthhee MMeennuu aanndd SSuubbmmeennuu

1. Press MENU button on the remote or control panel.

2. Press ► and ◄ to toggle between tabs

3. Press ▼ and ▲ to choose a selection in th menu list.

ENGLISH

4. Press

5. Use ► and ◄ to adjust the setting or make a

6. Press

7. Press MENU to close the OSD menu.

IImmaaggee

Menu Screen Function

Brightness

Adjust brightness level manually between 0 and 63.

Contrast

Adjust the contrast level manually between 0 and 255 under bright and dark environments.

to make a selection.

selection.

to enter submenu.

Page 24

Menu Screen Function

Mode

Select from the various image display settings.

Sharp - adjust the contrast along the edges making

text appear more visible.

Graphics - adjust the gradient of image.

Motion - increase frame rate. Sufficient lighting is

required when using this mode.

Microscope - automatically adjust optical zoom for

microscopic viewing.

Macro - set to view when object is only 5 – 10 cm

away from the camera.

Infinite - set to view when subject is at least 80cm

away from the camera.

Effect

Convert the image into positive (true color), monochrome (black and white) or negative.

ENGLISH

Mirror

Select to flip the image in Camera mode.

Advanced

Select to set the Auto Image, Exposure, and White Balance settings.

Page 25

Menu Screen Function

Auto Image

Select ON or OFF to automatically adjust the wh balance exposure compensation.

Exposure

Sel

ect the exposure setting.

AUTO - automatically adjust the camera exposure and the amount of light required.

MANUAL - manually adjust the exposure level. The exposure can be adjuste

White Balance

Select the White Balance setting for various light conditions or color temperature.

AUTO - automatically adjust the MANUAL - manually adjust the red and blue color level.

The color level can be adjusted up to 255.

ENGLISH

ite

and exposure setting, and correct the color and

d up to 100.

white balance.

Focus

adjust the focus. Manually

Page 26

ENGLISH

PPrreesseennttaattiioonn

Menu Screen Function

Spotlight

Spotlight overlays a fram the presentation screen. You can move the Spotlight around the presentation screen using the ▲, ▼, Select Execut Spotlight submenu.

In the Spotlight submenu, th following options are available.

ON/OFF – select to run/cancel

the Spotlight. P move to the next selection. Shade – set the opacity level of The shaded area will completely turns black whe

to level 100. Press to move to the next selection.

Color – select the Spotlight frame color. Press

OK – p for the setting to take effect. If you select

ON, the frame will appear a

► buttons to a to set

◄, & ► buttons.

e to call the

ress

xt selection. move to the ne

ress

just the frame size and press

e; and OFF will close the submenu. the desired siz

e on

the area outside the box.

n it is set

nd blink, use the ▲, ▼, ◄, &

Visor

Visor covers the presentation screen. The upper part of the presentation screen is slightly exposed. Use the ▲, ▼, ◄, & ► buttons to reveal more of the covered area. Select Execute to call the Visor submenu.

Page 27

Menu Screen Function

In the Visor submen ons are available. u, the following opti

ENGLISH

el the Visor. Press ON/OFF – select to run/canc

move to the next selection. Shade – set the opa shaded ar pletely turns black when it is set to

ea will com

level 100. Press

OK – press

for the setting to take effect. If you select

ON, upper part of the presentati exposed. Use the ▲, , ◄ of the covered area; and OF

city level of the covered area. The

to move to the next selection.

on screen is slightly

▼ , & ► buttons to reveal more

F will close the submenu.

PIP

Select the thumbnail playback screen location and show the thumbnail playb n at the corner of the

ack scree screen to recall the captured image from the memory in Camera mode. Select OFF to cancel PIP.

Lower Left

Upper Left

Upper Right

Lower Right

Split Screen

the screen into two parts. Half of the screen

Divide displays the 8-thumbnail images and th display the image from the AVerV

Select the display location of the 8 images. Select OFF to cancel Split

e other half

ision M70 camera.

- thumbnail playback Screen.

Left

Top Below

Right

Page 28

Menu Screen Function

Timer

Start/Pause/Stop the timer and set the timer duration. The timer automatically counts up after the count down reaches zero to show the elapsed time. Even when you switch between Playback, PC or Camera modes, the timer will continue.

ENGLISH

SSeettttiinngg

Menu Screen Function

Capture

Select to set the capture resolution, quality, type and interval settings.

Resolution

Select the capture size. In 5M setting, the c res 2560 X 1920.

olution size is

Quality

Select the capture compression setting.

apture

Page 29

Menu Screen Function

Type

Select the capture type.

Single - capture one picture only. Continuous - capture successive pictures.

Interval

Set the time interval for continuous capture. The length

Recording

Select the video recording compression setting.

ENGLISH

up to 600 sec (10 min). can be set

Storage

Change the storage location. Audio & video recording can only be saved in SD memory card or USB flash drive.

Format

Format to delete all the data in the selected memory.

Page 30

Menu Screen Function

USB to PC

Select the status of the AV sion M connected to the computer via USB switch on the left panel is set to

Camera - can be used as a computer webcam or with our bundled software to record video and capture still image. Storage - trans memory to

Flicker

Select between 50Hz or 60Hz. Som cannot handle high refresh rates. The image will flicker a couple of times as the output is switched to another refresh rate.

ENGLISH

erVi 70 when it is

. Make sure the USB

fer the captured pictures/videos from the

computer hard disk.

e display devices

SSyysstteemm

Menu Screen Function

Language

Change and select different language.

Output Display

Set the resolution to display the image on screen. This selection will be disabled in TV output mode.

Page 31

Menu Screen Function

Backup

Copy the image from the built-in memory to SD car USB flash drive.

Save Setting

Save cur effect, mode, brightness and contrast settings can be saved.

Recall Setting

Restore the setting back to the selected profile number.

ENGLISH

d or

rent setting in the selected profile number. Only

Information

Display the product information.

Default

Restore all the settings into original factory default setting.

Page 32

PPllaayybbaacck

Menu Screen Function

Slide Show

Display all captured still pictures in an automated slide show. The video file will be skipped.

Interval

Set the in length can be set up to 100 sec.

Slide Show Effect

Select the slide show transition effect.

ENGLISH

terval before displaying the next picture. The

Slide image

Checker down Split Vertical Out

Wipe down

Current Storage

Select the source of the images.

Delete All

Permanently delete all the data in selected memory source. A Warning Message will appear. Select YES to continue and NO to stop formatting the storage.

Wipe right

Split Horizontal Out

Page 33

ENGLISH

AAnnnnoottaattiioonn

I ayback mode o screen is frozen in camera mode, you can use

n single image pl

the ann lay strai e on the captured image or still

otation feature to over camera screen with the USB mo connected to the USB port of AVerVision M70. It comes with the following d, Capture, Eraser, and Hide/Show

Annotation can only be supported in the following resolution setting :

- 1024 x 768

- 1280 x 720

- 1280 x 1024

r when the

ght line or freeform lin

use or AP20T

selections: Color Palette, Line Thickness, Line, Freehan

icons.

Connecting a USB mouse or AP20T

1. Set the USB switch on the left panel to

. AVerVision M70 will then detect the USB mouse and the control panel will light up.

LED on t

2. Connect the USB mouse cable o to the USB sl 0. r AP20T dongle ot of AVerVision M7

USB Mouse

AP20T

USB Dongle

Page 34

ENGLISH

ation Control Panel Using the Annot

The annotation control panel appears on the upper left corner of the screen. A cursor will appear on the screen. Move the cursor on the Annotation control panel selections and leftclick to select the features you want to use.

Name Function

Color Palette

Line Thickness

Line

Freehand

Capture

Eraser

Hide/Show

Select the line color.

Select the thickness of the line.

Select to draw a straight line.

Capture the image with the annotation and save it as a new file. Select to erase any part of the annotation that it comes in contact with or delete all annotation.

Shrink or expand the annotation menu.

w freeform line. Select to dra

Using the AP20T Slide Switch and F button

The slide switch and F button of AP20T allow you to use it to freeze the screen when you are in camera mode and zoom in and out the image when you are in playback and camera mode. With the Point Focus feature, you can adjust the focus anywhere on the screen by simply pressing the pen tip on a flat surface.

Name Function

(4)

(1) Slide Up Increase the magnification.

(1)

(2)

(3)

(2) Slide Down Decrease the magnification

(3) F

(4) Pen tip

Freeze the screen in camera mode and turn on Annotation.

Press to adjust the camera focus on the point where the cursor is located.

Page 35

ENGLISH

TTrraannssffeerr CCaappttuurreedd IImmaaggeess//VViiddeeooss ttoo aa ccoommppuutteerr

This enables you to transfer the captured image from the built-in memory or SD to a computer.

The instruction below MUST be read and followed BEFORE connecting the USB cable.

1. Make sure to set the USB switch to for the computer to detect AVerVision M70.

2. MUST set the USB to PC as STORAGE before connecting the USB cable.

3. When “Mass Storage Start…” appears at the lower right corner of the presentation screen, you may now

t the USB cable

connec .

4. Upon connecting the U automatically detects the new removable dis n e(s) from the UUM70 built-in memoryUU to the com

TTeec

hhnniiccaall SSppeecciiffiiccaattiioonns

Ima

Sensor 1/3.2” CMOS

Pixel Count egapixels 5 m

Frame Rate 30 fps (max.)

White Balance Auto / Manual

Exposure Auto / Manual

Image mode Sharp / Graphics / Motion / Microscope / Macro / Infinite

Effect Color / B/W / Negative / Mirror / Rotate / Freeze

RGB output 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768

HDMI output HD 1080p; HD 720p

Image Capture 240 Frames(XGA) ; 80 Frames(5M Pixel)

SB cable, the system

sfer the captured imagk. You can now tra

puter hard disk.

Optics

Focusing Auto / Manual

Shooting Area 420mm x 315mm

Zooming

Total zoom 192X ( 12 Optical + 2X AVERZOOM™ +8X Digital Zo

om)

Power

Power Source 0V, 50-DC 12V, 100-24 60Hz

Consumption 16.8 Watts (lamp off); 18 Watts (lamp on)

Page 36

Lighting

Lamp Type LED light

Input/Output

RGB Input 15-Pins D-sub (VGA)

RGB Output 15-Pins D-sub (VGA)

H HDMI DMI Output

CVBS/RS-232 Mini-DIN Jack (use CVBS/RS-232 Adapter cable)

Composite Video RCA Jack

USB USB2.0

DC 12V Input Power Jack

MIC Phone Jack

Speaker Phone Jack

Dimension

Operating 452mm x 182mm x 504mm (+/-2mm include rubber foot)

Folded 367mm x 182mm x 63mm (+/-2mm include rubber foot)

Weight 2.1 kg (about 4.629 lbs)

External Storage

ure Digital (SD) Max 32GB (FAT) Sec

USB Flash Drive T) Max 32GB (FA

ENGLISH

RRSS--223322 DDiiaaggrraamm CCoonnnneeccttiioonn

AVerVi e con computer or any centralized control panel

sion M70 can b trolled using a

through onnection.

RS-232 c

RS-232/CVBS cable

sktop

Laptop

(not supplied)

2 cableRS-23

Page 37

ENGLISH

RRSS--223322 CCaabbllee SSppeecciiffiiccaattiioonnss

M -232 cable matches the cable specification design. ake sure the RS

PC COM Port

)

12345

6789

RRSS-

223322 TTrraannssmmiissssiioonn SSppeecciiffiiccaattiioonnss

RXD

TXD

DTR

RTS

CTS

(CI)

 Start bit  Data bit 

Stop bit Parity b

  eter

X param

 Baud rate (Com

RRSS--2

munication speed)

3322 CCoommmmuunniiccaattiioonnFFoorrmmaatt

TXD

RXD

：1 bit ：8 bit ：1 bit ：None ：None ：9600bps

AVerVision RS-232 Port

DSUB-9P (Female)DSUB-9P (Female

12345

6789

Send Device Code(1 Byte) : 0x52 Type Code(1 Byte) : 0x0B DataLength Code(1 Byte) : 0x03 Data Code(1 Byte) : See the Command Table for reference. Data Code(2 Byte) : See the Command Table for reference. Data Code(3 Byte)

: See the Command Table for reference. Receive Device Code(1 Byte) : 0x53 CheckSum Code(1 Byte) : See the Command Table for reference. Format : Start + Type + DataLength + Data + CheckSum Example : 0x52 + 0x0B + 0x03+ 0x3 + 0x01 + 0x00 + 0x00 + 0x53 +

0x5A (Command Power)

RRSS--223322 SSeenndd CCoommmmaanndd TTaabbllee

Send Format︰0x52 + 0x0B + 0x03 + Data[0] + Data[1] + Data[2] + 0x53 + CheckSum Receive Format︰0x53 + 0x00 + 0x02+ *2 + *3 + 0x52 + CheckSum

*1 ：CheckSum = 0x0B xor 0x03 xor Data[0] xor Data[1] xor Data[2] xor 0x53

*2 ：Receive data ok : 0x0B, ID error: 0x01, CheckSum error: 0x02, Not Command : 0x03, Function fail = 0x04

*3 ：Data[0], Return 0x00 if error

Page 38

ENGLISH

Function Data[0] Data[1] Data[2] CheckSum

POWER OFF 0x01 0x00 0x00 0x5a

POWER ON 0x01 0x01 0x00 0x5b

CAMERA MODE 0x02 0x00 0x00 0x59

PLAYBACK MODE 0x03 0x00 0x00 0x58

PC-1 PASS THROUGH 0x04 0x00 0x00 0x5f

IMAGE CAPTURE TYPE: SINGLE 0x05 0x00 0x00 0x5e

IMAGE CAPTURE TYPE: CONTINUOUS IMAGE CAPTURE CONTINUOUS INTERVAL INCREASE IMAGE CAPTURE CONTINUOUS INTERVAL DECREASE

NORMAL IMAGE CAPTURE 0x07 0x 0x00 0x5c 00

3M/5 AM IMAGE C PTURE 0x07 0x01 0x00 0x5d

TIMER START 0x08 0x 0x00 0x53 00

TIMER PAUSE 0x08 0x 0x00 0x52 01

TIMER STOP 0x08 0x02 0x00 0x51

TIMER SET TIME 0x08 0x03

PREVIEW MODE: SHARP 0x0A 0x00 0x00 0x51

PREVIEW MODE: GR 0x0A 0x01 0x00 APHIC 0x50

PREVIEW MODE: MO 0x0A 0x02 0x00 TION 0x53

PREVIEW MODE: MICROSCOPE 0x0A 0x03 0x00 0x52

PREVIEW 0x0A 0x04 0x00 0x5 MODE: MACRO 5

PREVIEW 0x0A 0x05 0x00 0x54 MODE: INFINITE

PREVIEW MODE CAPTURE 0x0B 0x00 0x00 0x50

PLAYBACK DELETE 0x0C 0x00 0x00 0x57

PLAYBACK FULL SCREEN 0x0D 0x00 0x00 0x56

MIRROR OFF 0x0E 0x00 0x00 0x55

MIRROR ON 0x0E 0x01 0x00 0x54

ROTATE 0 0x0F 0x00 0x00 0x54

ROTATE 90 0x0F 0x01 0x00 0x55

ROTATE 180 0x0F 0x02 0x00 0x56

ROTATE 270 0x0F 0x03 0x00 0x57

0x05 0x01 0x00 0x5f

0x06 0x00 0x00 0x5d

0x06 0x 0x00 0x5c 01

Value [ ? ~ ? ]

Page 39

ENGLISH

Function Data[0] Data[1] Data[2] CheckSum

EFFECT: COLOR 0x10 0x00 0x00 0x4b

EFFECT: B/W 0x10 0x01 0x00 0x4a

EFFECT: NEGATIVE 0x10 0x02 0x00 0x49

CONTRAST INCREASE 0x11 0x00 0x00 0x4a

CONTRAST DECREASE 0x11 0x01 0x00 0x4b

CONTRAST VALUE 0x11 0x02

BRIGHTNESS INCREASE 0x12 0x00 0x00 0x49

BRIGHTNESS DECREASE 0x12 0x01 0x00 0x48

BRIGHTNESS VALUE 0x12 0x02

EXPOSURE: AUTO 0x13 0x00 0x00 0x48

EXPOSURE: MANUAL 0x13 0x01 0x00 0x49

EXPOSURE MANUAL INCREASE 0x14 0x00 0x00 0x4f

EXPOSURE MA DECREASE

WHITE BALANCE: AUTO 0x15 0x00 0x00 0x4e

WHITE BALANCE: MANUAL f 0x15 0x01 0x00 0x4

WHITE BALANCE BLUE INCREASE WHITE BALANCE BLUE DECREASE WHITE BALANCE RED INCREASE WHITE BALANCE RED DECREASE

FLICKER: 50Hz 0x18 0x00 0x00 0x43

FLICKER: 60Hz 0x18 0x01 0x00 0x42

SPOTLIGHT: OFF 0x19 0x00 0x00 0x42

SPOTLIGHT: ON 0x19 0x01 0x00 0x43

SPOTLIGHT SHADE: 0% dark 0x1A 0x00 0x00 0x41

SPOTLIGHT SHADE: 50% dark 0x1A 0x01 0x00 0x40

SPOTLIGHT SHADE: 100% dark 0x1A 0x02 0x00 0x43

SPOTLIGHT COLOR: RED 0x1B 0x00 0x00 0x40

SPOTLIGHT COLOR: GREEN 0x1B 0x01 0x00 0x41

SPOTLIGHT COLOR: BLUE 0x1B 0x02 0x00 0x42

NUAL

0x14 0x01 0x00 0x4e

0x16 0x00 0x00 0x4d

0x16 0x01 0x00 0x4c

0x17 0x00 0x00 0x4c

0x17 0x01 0x00 0x4d

Value [ ? ~ ? ]

Page 40

ENGLISH

Function Data[0] Data[1] Data[2] CheckSum

SPOTLIGHT RESIZE 0x1C 0x00 0x00 0x47

VISOR: OFF 0x1D 0x00 0x00 0x46

VISOR: ON 0x1D 0x01 0x00 0x47

VISOR SHADE: 50% dark 0x1E 0x00 0x00 0x45

VISOR SHADE: 100% dark 0x1E 0x01 0x00 0x44

PIP: OFF 0x1F 0x00 0x00 0x44

PIP: ON 0x1F 0x01 0x00 0x45

PIP POSITION: BOTTOM LEFT 0x20 0x00 0x00 0x7b

PIP POSITION: TOP LEFT a 0x20 0x01 0x00 0x7

PIP POSITION: TOP RIGHT 0x20 0x02 0x00 0x79

PIP POSITION: BOTTOM RIGHT 0x20 0x03 0x00 0x78

SPLITSCREEN: OFF 0x21 0x00 0x00 0x7a

SPLITSCREEN: ON 0x21 0x01 0x00 0x7b

SPLITSCREEN DIR: UPPER SCREEN SPLITSCREEN DIR: LOWER SCREEN SPLITSCREEN DIR: LEFT SCREEN SPLITSCREEN DIR: RIGH SCREEN

RECORD: OFF 0x23 0x00 0x00 0x78

RECORD: ON 0x23 0x01 0x00 0x79

MOVIE FAST REWIND 0x25 0x00 0x00 0x7e

MOVIE FAST FORWARD 0x25 0x01 0x00 0x7f

MOVIE VOL INC 0x26 0x00 0x00 0x7d

MOVIE VOL DEC 0x26 0x01 0x00 0x7c

RECORD QUALITY: Normal 0x27 0x00 0x00 0x7c

RECORD QUALITY: High 0x27 0x01 0x00 0x7d

STORAGE: EMBEDDED 0x28 0x00 0x00 0x73

STORAGE: SD CARD 0x28 0x01 0x00 0x72

STORAGE: THUMB DRIVE 0x28 0x02 0x00 0x71

FORMAT: EMBEDDED 0x29 0x00 0x00 0x72

FORMAT: SD CARD 0x29 0x01 0x00 0x73

0x22 0x00 0x00 0x79

0x22 0x01 0x00 0x78

0x22 0x02 0x00 0x7b

0x22 0x03 0x00 0x7a

Page 41

ENGLISH

Function Data[0] Data[1] Data[2] CheckSum

FORMAT: THUMB DRIVE 0x29 0x02 0x00 0x70

OUTPUT RES 1024x768 OUTPUT RESOLUTION: 1280x720 OUTPUT RESOLUTION: 1920x1080 OUTPUT RESOLUTION: 1280 x 1024 OUTPUT RES 1600 x 12

USB CONNECT: USB CAMERA 0x30 0x00 0x00 0x6b

USB CONNECT: MASS STORAGE

BACKUP TO SD CARD 0x31 0x00 0x00 0x6a

BACKUP TO THUMBDRIVE 0x31 0x01 0x00 0x6b

PROFILE SAVE: PROFILE 1 0x32 0x00 0x00 0x69

PROFILE SAVE: PROFILE 2 0x32 0x01 0x00 0x68

PROFILE SAVE: PROFILE 3 0x32 0x02 0x00 0x6b

PROFILE RECALL: PROFILE 1 0x33 0x00 0x00 0x68

PROFILE RECALL: PROFILE 2 0x33 0x01 0x00 0x69

PROFILE RECALL: PROFILE 3 0x33 0x02 0x00 0x6a

SLIDESHOW: OFF 0x34 0x00 0x00 0x6f

SLIDESHOW: ON 0x34 0x01 0x00 0x6e

SLIDESHOW EFFECT: EFFECT 0 0x35 0x00 0x00 0x6e

SLIDESHOW EFFECT: EFFECT 1 0x35 0x01 0x00 0x6f

SLIDESHOW EFFECT: EFFECT 2 0x35 0x02 0x00 0x6c

SLIDESHOW EFFECT: EFFECT 3 0x35 0x03 0x00 0x6d

SLIDESHOW EFFECT: EFFECT 4 0x35 0x04 0x00 0x6a

SLIDESHOW EFFECT: EFFECT 5 0x35 0x05 0x00 0x6b

AUTO IMAGE:OFF 0x36 0x00 0x00 0x6d

AUTO IMAGE:ON 0x36 0x01 0x00 0x6c

CAPTURE QUALITY: STANDARD 0x37 0x00 0x00 0x6c

CAPTURE QUALITY: FINE 0x37 0x01 0x00 0x6d

CAPTURE QUALITY: FINEST 0x37 0x02 0x00 0x6e

OLUTION:

0x2F 0x01 0x00 0x75

0x2F 0x02 0x00 0x76

0x2F 0x03 0x00 0x77

0x2F 0x04 0x00 0x70

0x2F 0x05 0x00 0x71

0x30 0x01 0x00 0x6a

Page 42

ENGLISH

Function Data[0] Data[1] Data[2] CheckSum

AUTO FOCUS 0x40 0x00 0x00 0x1b

MENU 0x41 0x00 0x00 0x1a

ARROW - DOWN 0x42 0x00 0x00 0x19

ARROW - UP

ARROW - LEFT

ARROW - RIGHT

ENTER 0x43 0x00 0x00 0x18

FREEZE 0x44 0x00 0x00 0x1f

DEFAULT 0x45 0x00 0x00 0x1e

ZOOM - 0x46 0x00 0x00 0x1d

ZOOM + 0x46 0x01 0x00 0x1c

ZOOM RESET 0x47 0x00 0x00 0x1c

NEAR 0x48 0x00 0x00 0x13

FAR 0x48 0x01 0x00 0x12

LAMP OFF 0x49 0x00 0x00 0x12

LAMP ON 0x49 0x01 0x00 0x13

0x42 0x01 0x00 0x18

0x42 0x02 0x00 0x1b

0x42 0x03 0x00 0x1a

RRSS--223322 GGeett CCoommmmaanndd TTaabbll e

S + 0x0A + 0x01 ta[0] + 0 kSu

end Format︰0x52 + Da x53 + Chec m

R 0x0C + 0 ta[0] + 0x53 + ReCheckSum

eceive Format︰0x53 + x01 + ReDa

* 0 ReData[0] xor 0x52

1 ：ReCheckSum = 0x0C xor 0x 1 xor

Function Data[0]

Red Value 0x02 0x5A Value[ ? ~ ? ]

Blue Value 0x03 0x5B Value[ ? ~ ? ]

Power Status 0x04 0x5C 0 1: ON : OFF

Lamp Status 0x05 0x5D 0 1: ON : OFF

Display Status 0x06

Video Output Status 0x07 0x5F 0: VGA 1: TV

Freeze Status 0x08 0 1: ON 0x50 : OFF

Brightness Value 0x0A 0x52 Value[ ? ~ ? ]

CheckSum

Code

0x5E

ReData[0]

0: Camera Mode 1 ack Mode

: Playb

2: PC-1 Pass Through

Page 43

ENGLISH

Function Data[0]

Contrast Value 0x0B Value[ ? ~ ? ] 0x53

LIGHT BOX Status 0x0C 0 1: ON 0x54 : OFF

TTrroouubblleesshhoooottiinng

T ides many useful tips on how to so mon pro lems while usi

his section prov

VerVision M70.

The on the prese screen

re is no picture ntation .

1 all the connectors again as n this ma

. Check

2. f switch of the display evice.

Check the on/of

3 e setting of the display output device.

. Verify th

4. e presenting from a notebook or computer through the displa ut device, check the

If you ar cable con sure AV

5 MI display output, a delay occurs while waiting for both the d o

. For HD

sync up

I e AVerVision M70 and checked e conne s as spe in

have set up th all th ction cified

t l but I cannot get a pic n the p d prese n scree

he manua

1. button turns orange in standby mode. Press the PO ag

The unit POWER on

2 lt camera display resolution setting is on 1024x768. If your output device does not

. The defau

support thi n be p Simply nd ► b to the cha

3. y output device is on TV or any analog device, please sw TV-RGB dip switch

If your displa to TV.

The picture on the presentation screen is distorted or the image is blu

1. Reset all changed settings, if any, to the original manufacturer default setting. Press

the remote or select Default in Basic tab OSD menu.

2. Use the Brightness and Contrast menu functions to reduce the dis

3. If you discover that the i bl ocus, press the Auto Focus button on the control

pane control

Th uter sig l on p tation

ere is no comp na resen screen.

1. e cable con ns am e displa ision M70 and your PC.

Check all th nectio ong th y device, AVerV

2. PC to the ision rst befo our computer.

Connect your

3. repeated s FN toggles y the

For notebook, computer ima manual.

Th n scree w the C or

e presentatio n does not sho exact desktop image on my P

Notebook after I toggle from Camera to PC mode

1. N k, place the mouse on the desktop and right click, choose

Return to your PC or oteboo “Properties”, c desktop onto t

2. mor o your PC or Noteb he mouse on the desktop and

Then go back one right click again.

nection from computer RG A) outpu ut of ision M70 and make

erVision M70 is in PC Mode

. Wait for around 4 to 7 seconds until you see the camera im the scree

and the LED light will turn blue.

s resolution; no image ca rojected. press hold the FREEZE a utton

nge the resolution setting

mage is

l or remote

ge on the presentation screen. For d , please refer to your laptop

hoose “Setting” tab, “2” mo e box “Extend my Windows his moni

AVerV ly pres

tor”. e time t ook and place t

CheckSum

Code

lve com b ng the

shown i

output d

nual.

ture o referre ntatio

urry or out of f

M70 fi +F5 to

re you power on y

between display modes and displa

ifferent command

tortion if applicable.

click on nitor and check th

ReData[0]

y outp

AVerVB (VG t to RGB inp

isplay device and M70 t

age on n.

WER button

itch the

ain to turn

rry.

DEFAULT on

Page 44

ENGLISH

3. This time choose “Graphics Options”, then “Output To”, then “Intel® y Clone”, and

then choose “Monitor + Notebook”.

4. these s ou s e able t desktop image on your PC or

After you follow Notebook as w

AVerVision M70 can’t detect the ins

Make sure the USB flash drive switch is se inserted.

I have connected in camera freeze mode but still the Annotation c

1. Check the USB switch on the left panel is set to .

2. Make sure the resolution setting is set to the annotation supported resolution setting of either

1024 x 768, 1280 x 720, or 1280 x 1024.

teps, y hould b

ell as on the presen creen.

tation s

o see the same

erted USB flash drive.

t to the right and check if the USB flash drive is properly

the mouse/AP20T and switch to playback single image preview or

ontrol panel doesn’t show up.

The recorded video on MAC with the bundled software doesn’t have sound.

Due to some limitation, we recommend recording the audio directly from the MAC MIC IN port for better audio quality.

Dual Displa

LLi

mmiitteedd WWaarrrraannttyy

For a period of time beginning on the date of purchase of the applicable product and extending as s forth in the “Warranty Period of AVer Product Purchased” section of the warranty card, AVer Information, Inc. (“AVer”) warrants that the applicable product (“Product”) substantially conforms to

er’s documentation for the product andAV that its manufacture and components are free of defect material and workmanship under normal use. “You” as used in this agreement means you individually or the business entity on whose behalf you use or install the product, as applicable. This limited

rranty extends only to You as the originwa al purchaser. Except for the foregoing, the Product is provided “AS IS.” In no event does AVer warrant that You will be able to operate the Product without problems or inter and the entire liability of AVer under this paragraph shall be, at AVer’s option, the repair or replacement of the Product with the same or a comparable product. This warranty does not (a) any Product on which the serial number has been defaced, modified, or removed, or (b) cartons, cases, batteries, cabinets, tapes, or accessories used with this product. This warranty does not apply to any Product that has suffered damage, deterioration or malfunction due to (a) accident, a misuse, neglect, fire, water, lightning, or other acts of nature, commercial or industrial use, unauthorized product modifica misapplication of service by someone other than the manufacturer’s representative, (c) any shipment damages (such claims must be made with the carrier), or (d) any Product defect. The Warranty Period of any repaired or replaced Product shall be the longer of (a

product.

ruptions, or that the Product is suitable for your purposes. Your exclusive remedy

tion or failure to follow instructions included with the Product, (b)

s in

apply to

buse,

other causes that do not relate to a

or replacoriginal Warranty Period or (b) thirty (30) days from the date of delivery of the repaired

) the

Limitations of Warranty

AVer makes no expenses, and attorneys’ fees with respect to claims made against You as a result of Your use or misuse of the Product. This warranty applies only if the Product is installed, operated, maintaine and used in accordance with AVer specifications. Specifically, th

ufail re caused by (i) accident, unusual physical, electrical, or electromagnetic stress, neglect misuse, (ii) fluctuations in electrical power beyond AVer specifications, (iii) use of the Product with an accessories or options not furnished b repair of the Product by anyone other than AVer or its authorized agents.

warranties to any third party. You are responsible for all claims, damages, settlements,

e warranties do not extend to any

y AVer or its authorized agents, or (iv) installation, alteration, or

Page 45

ENGLISH

Disclaimer of Warranty

CEPT AS EXPRESSLY PROVIDED OTEX HERWISE HEREIN AND TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, AVER DISCLAIMS ALL OTHER WARRANTIES WITH R PECT TO THE PRODUCT, WHETHER EXPRESSS

E , IMPLIED, STATUTORY OR OTHERWISE, INCLUDING WITHOUT LIMITATION, SATISFACTORY QUALITY, COURSE OF DEALING, TRADE USAGE OR PRACTICE OR THE IMPLIED WARRANTIES OF MERCH PARTICULAR PURPOSE OR NONINFRINGEMENT OF THIRD PARTY RIGHTS.

imitatioL

IN NO EVENT SHALL AVER BE LIABLE FOR INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, PUNITIVE, OR CONSEQUENTIAL DAMAGES OF ANY NATURE INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS, DATA, REVENUE, PRODUCTION, OR USE, BUSINESS INTERRUPT OR PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES ARISING OUT OF OR IN CONNECTION WITH THIS LIMITED WARRANTY, OR THE USE OR PERFORMANCE OF ANY

RODUCT, WHETHER BASED ON CONTRACP O

THER LEGAL THEORY, EVEN IF AVER HAS ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. AVER’S TOTAL, AGGREGATE LIABILITY FOR DAMAGES OF ANY NATURE, REGARDLESS OF FORM OF ACTION, SHALL IN NO EVENT EXCEED THE AMOUNT PAID BY YOU TO AVER FOR THE SPECI

n of Liability

T OR TORT, INCLUDING NEGLIGENCE, OR ANY

FIC PRODUCT UPON WHICH LIABILITY IS BASED.

Governing Law and Your Rights

This warranty gives you specific legal rights You may also have other rights granted under state law. These rights vary from state to state.

For warranty period, please refer to the warranty card.

;

ANTABILITY, FITNESS FOR A

ION,
