Page 1
BSGX4e
Business Gateway
Installation Guide
Release 01.01
Page 2
Trademarks
Nortel, the Nortel logo, and the Globemark are trademarks of Nortel Networks.
All other trademarks appearing in this guide are the exclusive property of their
respective owners.
Hardware Notice
WARNING: Before working on this equipment, be aware of good safety practices
and the hazards involved with electrical circuits.
WARNING: To reduce risk of injury, fire hazard, and electric shock, do not install
the unit near a damp location.
CAUTION: Do not connect the FXS port (labeled PHONE) to the central office line.
CAUTION: To reduce the risk of fire, use only number 26 AWG or larger UL Listed
or CSA Certified telecommunication line cord for all network and
telecommunication connections.
BSGX4e Business Gateway Installation Guide 2
Release 01.01 NN47928-303
Page 3
C
ONTENTS
ABOUT THIS DOCUMENT
Introduction ....................................................................... 9
Intended Audience ......................................................... ...... 9
Organization....................................................................... 9
Text Conventions ................................................................. 10
Documentation.................................................................... 10
How to get help................................................................... 11
Getting Help from the Nortel Web site ..................................... 11
Getting Help over the phone from a Nortel Solutions Center ........... 11
Getting Help from a specialist by using an Express Routing Code ...... 11
Getting Help through a Nortel distributor or reseller .................... 11
DEVICE OVERVIEW
BSGX4e Front Panel .............................................................. 13

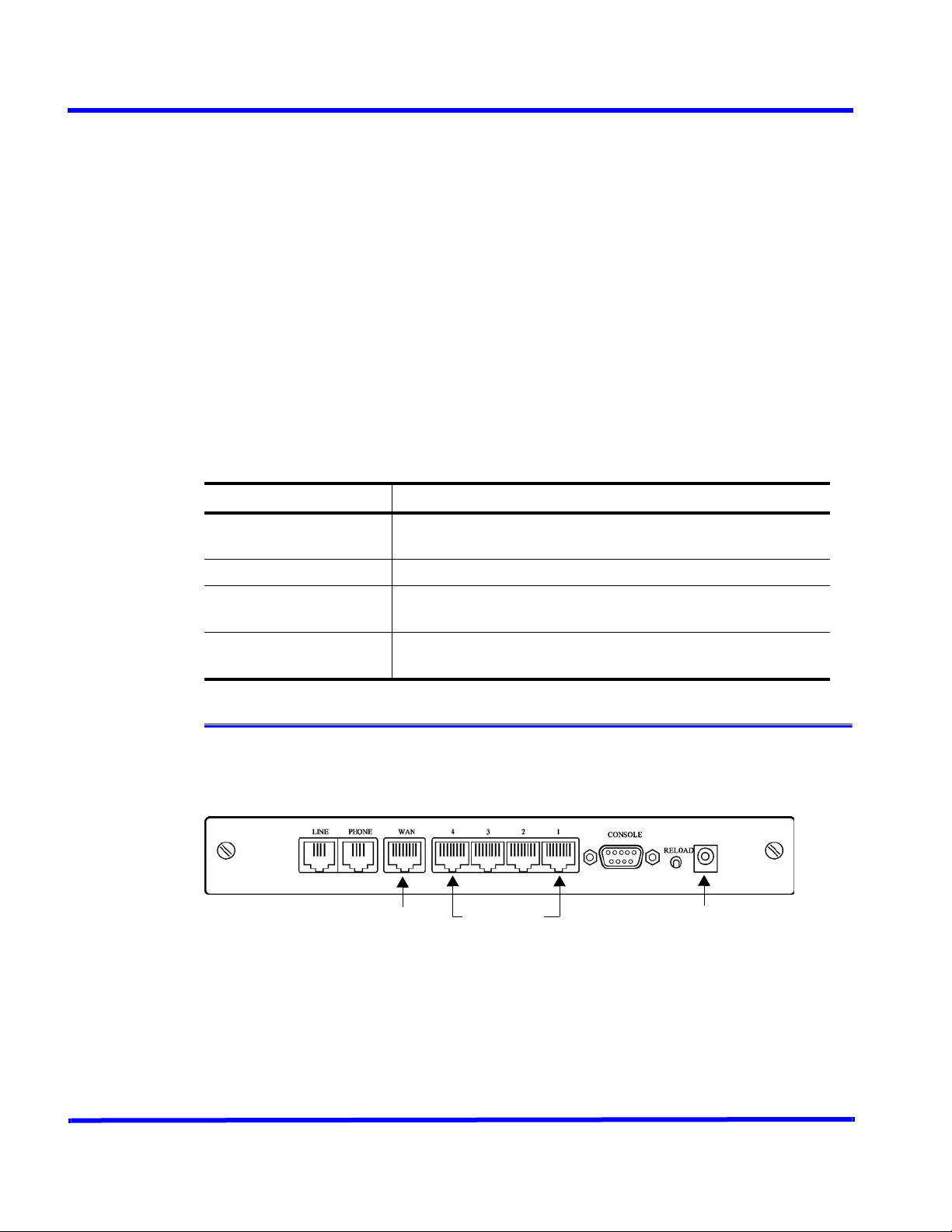

BSGX4e Back Panel ............................................................... 14
INSTALLATION
Introduction ....................................................................... 15
Preparing for Installation........................................................ 15
Unpacking the Unit............................................................. 15
Preparing for Physical Installation........................................... 16
Getting network information................................................. 17
Connecting the cables ........................................................... 18
Connecting power.............................................................. 19
Connecting LAN devices....................................................... 19
Connecting the WAN........................................................... 19
Connecting an optional analog device ...................................... 20
Connecting the lifeline ........................................................ 20
Connecting a console .......................................................... 21
Logging on to the BSGX4e ....................................................... 21
Initializing the WAN connection................................................ 23
IP Address/Mask for eth0...................................................... 23
Default Gateway Address ..................................................... 25
DNS Server....................................................................... 25
Verifying the WAN connection.................................................. 26
DEFAULT SETTINGS
Viewing current settings......................................................... 27
Viewing user accounts......................................................... 27
3 BSGX4e Business Gateway Installation Guide
NN47928-303 Release 01.01
Page 4
Viewing configuration..........................................................27
Restoring default settings........................................................28
Reload Button ...................................................................28
Defaults button in Web UI .....................................................29
Erase Command .................................................................30
SOFTWARE UPGRADES
Introduction........................................................................31
Application Software Images..................................................31
Upgrading software using the Web interface .................................32
Requirements....................................................................32
Logging on to the Web user interface .......................................32
Upgrading software.............................................................33
Save the Current Configuration...............................................34
Upgrade software...............................................................35
Verifying software upgrade....................................................37
Changing the default application image ....................................37
Restore the Configuration .....................................................38

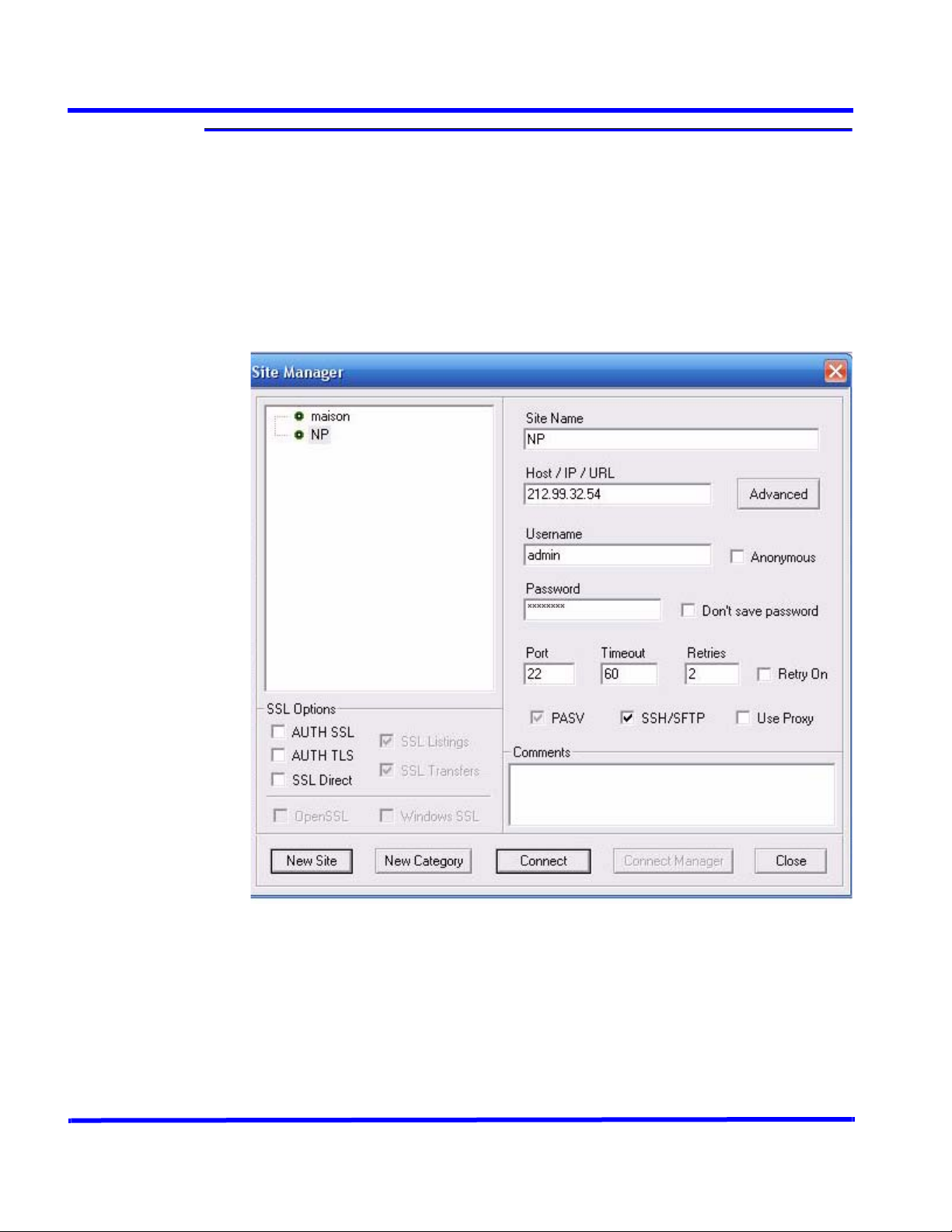

Upgrading software using an Simple File Transfer Protocol session.......40
SIGNAL PINS
Back Panel Layout.................................................................43
DB9 Console Connector...........................................................44
RJ11 Telecom Connectors .......................................................44
RJ45 Ethernet Connectors .......................................................45
TECHNICAL SPECIFICATIONS
.....................................................................................47
RULE COMPLIANCE
FCC Compliance (US) .... ..... ..... ..... ..........................................49
FCC Telecom Statement ....................... ..... ..... ..... .................49
Declaration of Conformity.....................................................50
Equipment Attachment Regulations (Canada)................................51
Canadian Department of Communications Statement ....................51
Supplementary Information ...................................................51
SAFETY INFORMATION
Product Care and Maintenance .................................................53
GLOSSARY
.....................................................................................55
BSGX4e Business Gateway Installation Guide 4
Release 01.01 NN47928-303
Page 5
T
ABLES
1 Installation Guide Organization................................. ..... ..... . 9
2 Text Conventions............................................................ 10
3 BSGX4e Front Panel.......................................................... 13
4 BSGX4e Connectors .......................................................... 14
5 Network Information ........................................................ 18
6 BSGX4e Connectors .......................................................... 43
7 DB9 Serial Connector Pin-Out .............................................. 44
8 RJ11 Telecom Connector Pin-Out ......................................... 45
9 RJ45 Ethernet Connector Pin-Out — MDI/MDIX.......................... 45
10 Unit Specifications........................................................... 47
5 BSGX4e Business Gateway Installation Guide
NN47928-303 Release 01.01
Page 6
BSGX4e Business Gateway Installation Guide 6
Release 01.01 NN47928-303
Page 7
F
IGURES
1 BSGX4e Front Panel.......................................................... 13
2 BSGX4e Back Panel........................................................... 14
3 Network Connections........................................................ 17
4 BSGX4e Back Panel........................................................... 18
5 Reload Button................................................................. 29
6 Web UI Login Window ....................................................... 33
7 System Status screen ........................................................ 33
8 Upgrade Tab .................................................................. 36
9 Reload System ................................................................ 37
10 Application Software Version............................................... 37
11 BSGX4e Back Panel........................................................... 43
12 DB9 Connector................................................................ 44
13 RJ11 Connector............................................................... 44
14 RJ45 Connector............................................................... 45
7 BSGX4e Business Gateway Installation Guide
NN47928-303 Release 01.01
Page 8
BSGX4e Business Gateway Installation Guide 8
Release 01.01 NN47928-303
Page 9
A
BOUT
This section provides information about the intended audience for this guide, how
this guide is organized, typographical conventions, and contact information.
T
HIS
D
OCUMENT
Introduction
The BSGX4e Business Gateway device is deployed as customer premises equipment
and provides a unified solution for voice and data services. The BSGX4e is designed
for use in small- and medium-sized enterprises.
This document provides instructions on how to install the BSGX4e. For information
about operations and configuration, see the BSGX4e Business Gateway User Guide
(PN 950-00005-000).
Intended Audience
This guide is designed for use by network managers, administrators, and technicians
who are responsible for the installation of networking equipment in enterprise and
service provider environments. Knowledge of telecommunication and internet
protocol (IP) technologies is assumed.
Organization
Table 1 describes the organization and content of this installation guide.
Table 1 Installation Guide Organization
Chapter Chapter Title Contents
1 Device Overview Shows the layouts of the BSGX4e front panel and
back panel.
2 Installation Describes how to plan for and physically install the
BSGX4e, log on to the BSGX4e, and initialize its
network connection.
3 Default Settings Shows how to list the current configurations and
describes how to reset the unit to the default
settings if needed.
4 Software
Upgrades
5 Signal Pins Identifies the signal pins of the BSGX4e connectors.
6 Technical
Specifications
Describes how to upgrade configuration software
and find current IP addresses.
Lists the electrical, physical, and networking
characteristics of the BSGX4e.
Page 10
Table 1 Installation Guide Organization
Chapter Chapter Title Contents
7 Rule Compliance Lists the compliance specifications for U.S. Federal
Communications Commission (FCC) and Canadian
telecommunication rules.
8 Safety Lists the safety precautions when using the
BSGX4e.
9 Glossary Defines terms used in this document.
Text Conventions
This guide uses the following text font conventions:
Table 2. Text Conventions
Font Purpose
NOTE:
IMPORTANT:
Emphasizes information to improve product use.
Indicates important information or instructions that must
be followed.
CAUTION:
Indicates how to avoid equipment damage or faulty
application.
WARNING:
Issues warnings to avoid personal injury.
italic emphasis Shows book titles, special terms, or emphasis.
bold emphasis Shows strong emphasis.
courier font Shows a screen capture: what is displayed on the monitor.
blue screen font Emphasizes selected items in a screen capture.
italic screen
Indicates a parameter placeholder in command examples.
font
boldface screen
font
Shows commands that you enter or keyboard keys that you
press.
Documentation
The documentation for the unit is on the CD-ROM, titled BSGX4e Documentation,
that is shipped with the unit. PDF files on the CD contain the following guides:
BSGX4e Business Gateway Installation Guide
BSGX4e Business Gateway User Guide
To view PDF files, use Adobe Acrobat® Reader® 5.0, or later, from your workstation.
If Adobe Acrobat Reader is not installed on your system, you can obtain it free from
the Adobe website: www.adobe.com
BSGX4e Business Gateway Installation Guide 10
Release 01.01 NN47928-303
Page 11
How to get help
This section explains how to get help for Nortel products and services.
Getting Help from the Nortel Web site
The best way to get technical support for Nortel products is from the Nortel
Technical Support Web site:
www.nortel.com/support
This site provides quick access to software, documentation, bulletins, and tools to
address issues with Nortel products. More specifically, the site enables you to:
download software, documentation, and product bulletins
search the Technical Support Web site and the Nortel Knowledge Base for
answers to technical issues
sign up for automatic notification of new software and documentation for Nortel
equipment
open and manage technical support cases
Getting Help over the phone from a Nortel Solutions Center
If you do not find the information you require on the Nortel Technical Support Web
site, and have a Nortel support contract, you can also get help over the phone from
a Nortel Solutions Center.
In North America, call 1-800-4NORTEL (1-800-466-7835).
Outside North America, go to the following Web site to obtain the phone n umber for
your region:
www.nortel.com/callus
Getting Help from a specialist by using an Express Routing Code
To access some Nortel Technical Solutions Centers, you can use an Express Routing
Code (ERC) to quickly route your call to a specialist in your Nortel product or
service. To locate the ERC for your product or service, go to:
www.nortel.com/erc
Getting Help through a Nortel distributor or reseller
If you purchased a service contract for your Nortel product from a distributor or
authorized reseller, contact the technical support staff for that distributor or
reseller.
11 BSGX4e Business Gateway Installation Guide
NN47928-303 Release 01.01
Page 12
BSGX4e Business Gateway Installation Guide 12
Release 01.01 NN47928-303
Page 13
D
EVICE
This chapter describes the BSGX4e front and back panels, including the Light
Emitting Diode (LED) indicators and the function of each connector.
O
VERVIEW
BSGX4e Front Panel
Figure 1 shows the layout of LEDs on the front panel of the BSGX4e unit.
1
BSGX4e
Figure 1. BSGX4e Front Panel
Table 3. BSGX4e Front Panel
LED Name LED State Indication
STATUS Green
Wide Area
Network (WAN)
ETHERNET 10/100 Green Local Area Network (LAN) port is connected.
(ports 1—4) Blinking LAN port is active: signals are received and
STATUS
Unit has power.
Red
Off
Green WAN port is connected.
Blinking WAN port is active; signals are received and
Off WAN port is not connected.
Off LAN port is not connected.
Unit is starting (booting up).
Unit is powered down.
transmitted.
transmitted.
TELECOM: PHONE Green
Off
Foreign Exchange Station (FXS) analog phone line is
in use (off-hook). A call could be in progress.
FXS line could be disconnected or on-hook. (No call
is in progress.)
Page 14
Table 3. BSGX4e Front Panel
LED Name LED State Indication
TELECOM: LINE Green
Off
Foreign Exchange Office (FX0) central office line is in
use (off-hook).
FX0 line could be disconnected or on-hook. It is not
in use.
BSGX4e Back Panel
Figure 2 shows the layout of the connectors on the back panel of the BSGX4e unit.
LINE PHONE WAN 4 3 2 1
RJ11
RJ45
CONSOLE
RELOAD
DB9
Figure 2. BSGX4e Back Panel
Table 4 describes the connectors and the button on the back panel of the BSGX4e.
12V DC
Table 4. BSGX4e Connectors
Name Type Connects to:
LINE RJ11 FX0 port for uplink to central office switch (CO).
PHONE RJ11 FXS port for analog telephone or fax machine.
WAN RJ45 Fast Ethernet port for the WAN interface.
4, 3, 2, 1 RJ45 Fast Ethernet ports for LAN interfaces.
CONSOLE DB9F RS-232 serial port for a terminal console.
RELOAD n/a Recessed button used to reset the unit to the factory
default configuration. See "Reload Button" (page 28).
12 volt
Direct
Current
n/a Alternating Current (AC) power adaptor provided with
the unit. The adaptor converts AC power to 12 volt DC
power.
(DC)
Note: For the signal pin listings of the connectors, see Signal Pins (page 43).
BSGX4e Business Gateway Installation Guide 14
Release 01.01 NN47928-303
Page 15
2
I
NSTALLATION
This chapter describes the requirements and procedures to use to install an BSGX4e
device into a network.
Introduction
The installation steps are as follows:
1. Prepare for installation.
2. Connect the cables.
3. Log on to the BSGX4e.
4. Initialize the BSGX4e WAN connection.
Preparing for Installation
Complete the following tasks before you install the BSGX4e.
1. Unpack the BSGX4e unit and familiarize yourself with its LEDs and connectors.
2. Determine how to physically install and connect the BSGX4e unit.
3. Get the network information required to establish the WAN connection.
Unpacking the Unit
1. Unpack and inspect the shipping carton.
After you open the shipping carton, remove and save all packing materials and
boxes.
Note: If you need to return the unit, repack it with the original packing
material. For more information, consult your customer support (for
contact information see "How to get help" on page 11).
2. Check the packing slip and contents of the shipping carton to ensure that you
receive the following items:
n BSGX4e device
n AC power adapter
n Documentation CD
Page 16
3. Inspect the BSGX4e and the shipping carton for any potential damage that
occurred during shipping.
If you discover that items are missing or damaged, consult your customer support
(see "How to get help" on page 11).
Preparing for Physical Installation
To prepare for the physical installation of the unit, you need to:
1. Prepare the unit location.
2. Determine where the unit is to be connected.
3. Locate the cables and terminal to perform the installation.
Location Requirements
Ensure that the planned location meets the following requirements:
A stable, flat surface to support the unit. The size and weight of the unit are:
Height 1.25" (318 millimeter)
Width 9.6" (243.8 mm)
Depth 7.54" (194.5 mm)
Weight 2.3 lb. (1.05 kilogram)
.
Note: Do not place the unit on top of other equipment or place other
equipment on top of the unit.
A clean, dry environment with adequate air circulation. The operating
temperature and humidity requirements are:
Operating
32 to 104oF (0 to 40oC)
Temperature
Relative
5% to 95% (non condensing)
Humidity
Electrical power: 110 Volts of Alternating Current (VAC) 60 Hertz (Hz) for the
AC adapter. The BSGX4e device operates on 12 Volts of Direct Current (VDC),
which is supplied through the AC adapter provided with the unit.
Console and Cables Required
To log on and initialize the unit, connect a console to the CONSOLE port. The
console can be any PC that can run a terminal emulator (such as Tera Term Pro).
BSGX4e Business Gateway Installation Guide 16
Release 01.01 NN47928-303
Page 17
The following cables are required to install the BSGX4e:
Serial cable To connect the CONSOLE port (DB9 connector) to a terminal (DB9 or
Universal Serial Bus (USB) connector, depending on the terminal).
RJ45 to
RJ45 cables
To connect the Ethernet ports to the WAN and to the LAN devices,
CAT5E or better is recommended.
NOTE: The cables can be straight or crossover. The BSGX4e ports
automatically determine if pairs need to be crossed over.
RJ11 to
RJ11 cables
To connect the TELECOM ports. The LINE (FXO) port connects to the
central office switch, and the PHONE (FXS) port connects to an analog
device (such as a phone or fax machine).
For the signal pinouts of the BSGX4e connectors, see Signal Pins (page 43).
Getting network information
The BSGX4e is inserted into the network between the router that provides access to
the WAN and the devices on the LAN, including all analog and Voice over Internet
Protocol (VoIP) phones. Figure 3 shows an example layout of an IP network with the
BSGX4e between the WAN and LAN.
SNTP
Server
TFTP
Server
Figure 3. Network Connections
Softswitch
17 BSGX4e Business Gateway Installation Guide
NN47928-303 Release 01.01
Page 18
After the BSGX4e is physically installed into the network, network connections are
initialized. If a Dynamic Host Configuration Protocol (DHCP) service is working
properly on the WAN, the BSGX4e receives its IP addressing information from the
DHCP server. This process occurs automatically as soon as the BSGX4e is connected
to the WAN.
However, if DHCP service is not available or not working properly, you can enter IP
addressing information manually. At a minimum, you need to enter the IP address
for the eth0 WAN interface, the default gateway address, and the Domain Name
System (DNS) server address. Table 5 includes blank spaces to record this minimum
information.
After the WAN network connection is established, you can configure other ports and
servers at the console or through a remote connection to the BSGX4e through the
WAN or from a workstation in the LAN. For complete configuration information, see
the BSGX4e Business Gateway User Guide on the Documentation CD.
Table 5. Network Information
Network Destination IP Address / Subnet Mask
BSGX4e WAN interface
(eth0)
Default gateway
Primary DNS server
(DNS1)
DNS domain name
(optional)
Connecting the cables
This section describes how to physically connect the BSGX4e unit.
12V DC
WAN Port
LAN Ports
Figure 4. BSGX4e Back Panel
BSGX4e Business Gateway Installation Guide 18
Release 01.01 NN47928-303
POWER
Page 19
Connecting power
These steps connect power to the BSGX4e unit by using the AC adaptor included with
the unit.
1. Connect the labeled 12V DC on the back panel of the BSGX4e. See Figure 4 on
page 18.
2. Connect the AC plug to the appropriate AC receptacle (power cord or outlet).
3. Ensure that the LED labeled STATUS on the front panel is lit green. If not,
ensure that the power connections are secure and that the outlet has power.
Connecting LAN devices
Repeat these steps for each LAN port on the BSGX4e that you want to connect to a
LAN device (such as a PC or a VoIP phone).
1. Connect one of the connectors of an RJ45 to RJ45 ethernet cable to one of the
four LAN connectors (labeled 4, 3, 2, 1) on the back panel of the BSGX4e. See
Figure 4 on
The cables can be straight or crossover. The LAN switch automatically determines
if pairs need to be crossed over.
page 18.
2. Connect the RJ45 connector on the other end of the cable to the LAN port of
the device to which you want to connect.
You can connect any LAN device to any LAN port, including workstations, VoIP
telephones, and patch panels.
3. Ensure that the corresponding LAN LED on the front panel is lit green. If it is
not, ensure that the cable connectors are locked and secure in their ports.
Connecting the WAN
These steps connect the BSGX4e to the WAN.
1. Connect one of the connectors of an RJ45 to RJ45 Ethernet cable to the WAN
connector on the back panel of the BSGX4e. See Figure 4 on
The cable can be straight or crossover. The WAN port automatically determines if
pairs need to be crossed over.
2. Connect the RJ45 connector on the other end of the cable to the service
provider demarcation point. This point is usually an access router that
connects the network to the WAN.
3. Ensure that the WAN LED on the front panel is lit green. If it is not, ensure that
the cable connectors are locked and secure in their ports.
page 18.
19 BSGX4e Business Gateway Installation Guide
NN47928-303 Release 01.01
Page 20
Connecting an optional analog device
These steps connect the BSGX4e FXS port to an analog telephone or fax device. (This
procedure is optional; the BSGX4e can control a LAN without an analog device.)
CAUTION: Do not connect the PHONE port to the CO Public Switched Telephone
Network (PSTN) phone line.
1. Connect one of the connectors of an RJ11 to RJ11 cable to the port labeled
PHONE on the back panel of the BSGX4e. See Figure 4.
2. Connect the RJ11 connector on the other end of the cable to the analog
device.
3. Put the analog device into an off-hook state (for example, lift the handset of
an analog phone). While the analog device is off-hook, check that the LED
labeled PHONE on the front panel of the BSGX4e is lit green. If it is not, ensure
that the device is off-hook and that both ends of the cable are securely
connected.
4. Return the analog device to its on-hook state. The PHONE LED is no longer lit.
Connecting the lifeline
These steps connect the BSGX4e FXO port to the CO line (PSTN) to act as a
telephone lifeline when VoIP phone service is not available. (VoIP service is not
available when the WAN connection or the required servers are not available.)
1. Connect one of the connectors of an RJ11 to RJ11 cable to the port labeled
LINE on the back panel of the BSGX4e. See Figure 4 on
page 18.
2. Connect the RJ11 connector on the other end of the cable to the CO (PSTN)
phone line.
3. The LED labeled LINE on the front panel of the BSGX4e is not lit unless the CO
(PSTN) phone line is off-hook. The BSGX4e uses this line only when VoIP
service is unavailable, and the BSGX4e switches to Local Call Routing mode.
Verification of the LINE connection requires a debug command, and so it can only
be performed later in the install procedure, after you log on to the BSGX4e
(described in Logging on to the BSGX4e (page 21)).
To verify the LINE connection, enter these commands:
ICAD> debug enable
ICAD> dshow interface fxo
If the LINE (FXO) is connected, but idle, the unit responds:
FXO Port Status:
Port Status
-----------------------------------------0-0 IDLE
BSGX4e Business Gateway Installation Guide 20
Release 01.01 NN47928-303
Page 21
Otherwise, if the FXO port is disconnected, the unit responds:
FXO Port Status:
Port Status
-----------------------------------------0-0 DISC_ERROR
To leave debug mode, enter:
ICAD> debug disable
Connecting a console
These steps connect a console to the BSGX4e unit so that you can initialize the
network connection. After the console is connected, you can log on and enter
commands, as described in the following sections.
Use any PC capable of running a terminal emulator such as Tera Term Pro.
1. Connect the DB9 connector of a serial cable to the port labeled CONSOLE on
the back panel of the BSGX4e. See Figure 4.
2. Connect the other end of the serial cable to the console.
Depending on the console, the connection can be to a DB9 port or a USB port.
3. There is no CONSOLE LED. To verify the connection, attempt to log on as
described in the following section.
Logging on to the BSGX4e
The following steps describe how to log on to the BSGX4e unit from a console
terminal connected to the CONSOLE port of the BSGX4e. Use the same log on
procedure from a remote terminal with a WAN network connection.
1. Power on the console and start the terminal session. The terminal emulator
must use the following settings for the session:
n 9600 baud
n 8 data bits
n no parity
n 1 stop bit
n no flow control
2. The initial display on the console shows this prompt:
User:
3. Enter the default user identification: nnadmin.
User: nnadmin
The unit responds:
21 BSGX4e Business Gateway Installation Guide
NN47928-303 Release 01.01
Page 22
password:
4. Enter the default password: PlsChgMe!
password:
Note: The password is case-sensitive.
Note: Password entry is not echoed back to the display, so characters do not
appear as you type the password.
Note: After three consecutive invalid log on attempts, the unit locks out all
console logins for 15 minutes. The lockout applies only to logins
through the console port.
5. If the correct password is entered, the unit responds:
@@ @@ @@ @@@@@@ @@@
@@ @@ @@@ @@@@@@ @@@
@@ @@ @@@ @@ @@ @@
@@ @@ @@@@ @@@@@@ @@ @@
@@ @@ @@ @@ @@@@@@ @@ @@
@@ @@ @@@@@@ @@ @@@@@@@
@@@@@@@ @@@@@@ @@@@@@ @@@@@@@
@@@@@ @@ @@@@@@ @@ @@
@@@@@@ @@ @@ @@
@@@@@@ @@ @@
@@ @@@ @@@ @@ @ @@ @ @@@ @@ @@@ @@@@ @@ @@@ @@@@
@@ @@ @@ @@@@@ @@@@@ @@@@@ @@@@@ @@ @@@@@ @@@@@ @@ @@ @@ @@
@@ @@@@@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@@@@ @@@
@@ @@ @@@@@ @@ @@ @@ @@ @@@@@ @@ @@@@@ @@@@@ @@ @@ @@
@@ @@@@ @@@ @@ @@ @@ @@ @@@ @@ @@@ @@@@ @@ @@@@ @@@@
@@
@@@@
Multi-Services Platform
MyUnit 2.0.1-01B-0002
ICAD>
6. To keep the network secure, immediately change the default password. To
change the password, enter password as follows:
ICAD> password
The unit responds:
Old Password:
7. Enter the old password (PlsChgMe!) (Asterisks are displayed instead of the
password):
Old Password: *********
The unit responds:
BSGX4e Business Gateway Installation Guide 22
Release 01.01 NN47928-303
Page 23
New Password:
8. Enter the new password.
New Password: ************
The unit responds:
Verify Password:
9. Reenter the new password.
Verify Password: ************
If the new password is reentered correctly, the unit responds:
Changed password for 'nnadmin'
*ICAD*>
Note: A command prompt containing asterisks (*ICAD*>) indicates that the
configuration is changed, but not yet saved to nonvolatile memory;
unsaved changes are lost if power is interrupted or the unit is
restarted.
10.To save the password change, enter:
*ICAD*> save
The unit responds:
Saving:....:.:.:.:.:.:.:....:.:..:.:.:.:.:.:.:.:.:.:.:.:.:...
.....:.........:.:.:.:.:.:.:.:. (9648 bytes)
completed!
Initializing the WAN connection
This section assumes that the BSGX4e unit is physically installed and that a terminal
session from the console has successfully logged on to the unit. The final step in the
BSGX4e installation is the initialization of the WAN network connection.
As described in the section Getting network information (page 17), if the DHCP
service is working properly on the WAN, the BSGX4e receives its IP addressing
information automatically from the DHCP server. Thus, the first step is to ensure
that the BSGX4e has the necessary IP addresses.
If the BSGX4e did not receive its IP addresses automatically, you need to manually
enter the addresses. This minimum network information is listed in Table 5 (page
18).
IP Address/Mask for eth0
1. To check that the unit received the IP address and subnet mask for its WAN
interface (called eth0 for Ethernet interface 0), enter:
23 BSGX4e Business Gateway Installation Guide
NN47928-303 Release 01.01
Page 24
ICAD> show interface ip eth0
The unit responds with a display similar to the following:
“eth0” info:
Interface eth0
Flags (A843) < UP BROADCAST RUNNING SIMPLEX
LINKUP MULTICAST >
IP Address/Mask 192.168.15.33/255.255.255.0
MTU 1500
DHCP on
Lease obtained THU JUN 22 11:04:16:2006
Lease expires THU JUN 22 13:04:16:2006
MAC Address 00:11:22:33:66:77
Speed FULL100
Configured Speed AUTONEG
2. Look at the IP Address/Mask line. It shows the address and mask assigned to
the eth0 (WAN) interface. If the address is correct, skip to the procedure
Default Gateway Address (page 25).
3. If the address is incorrect or unspecified (0.0.0.0), look at the DHCP line. It
shows whether the DHCP client is enabled (on) or disabled (off). If the DHCP
client is on, but the IP address is 0.0.0.0, the DHCP service is not working for
the unit.
4. To manually enter the correct IP address and subn et mask, the DHCP client
must be disabled (off). To disable the DHCP client, enter this command:
ICAD> config interface ip eth0 dhcp no
5. Then, to manually enter the eth0 IP address and subnet mask, enter:
ICAD> config interface ip eth0 address/mask
Specify the address and mask with dotted-decimal or Classless Inter Domain
Routing (CIDR) notation (for example, 192.168.15.33/255.255.255.0 or
192.168.15.33/24).
6. To verify the entry of the address and mask, enter the show command again:
*ICAD*> show interface ip eth0
Assuming that the DHCP client is off, the unit responds with a display similar
to the following:
“eth0” info:
Interface eth0
Flags (A843) < UP BROADCAST RUNNING SIMPLEX
LINKUP MULTICAST >
IP Address/Mask 172.29.250.50/255.255.0.0
MTU 1500
DHCP off
Lease obtained N/A
BSGX4e Business Gateway Installation Guide 24
Release 01.01 NN47928-303
Page 25
Lease expires N/A
MAC Address 00:11:22:33:66:77
Speed FULL100
Configured Speed AUTONEG
Default Gateway Address
1. To check that the unit received the default gateway address, enter:
*ICAD*> show route table
The unit responds with a display similar to the following:
Destination Gateway Netmask Interface
-------------------------------------------------------------
0.0.0.0 66.206.164.193 0.0.0.0 eth0
195.206.164.1 195.216.164.1 255.255.255.224 eth0
127.0.0.1 127.0.0.1 255.0.0.0 lo0
192.168.1.0 192.168.1.1 255.255.255.0 eth1
2. Look at the route with the Destination 0.0.0.0 and Netmask 0.0.0.0. The
address shown under Gateway is the default gateway address. If the address is
correct, skip to the procedure DNS Server (page 25).
3. If the address is incorrect or the table does not have a default route, enter the
correct default gateway address:
*ICAD*> config route table default gw address
4. To verify that the new default route is correct, enter the show command
again:
*ICAD*> show route table
DNS Server
1. To check that the unit has the address of a DNS server, enter:
*ICAD*> show system dns
The unit responds with a display similar to the following:
DNS Settings:
DNS1 192.168.134.160
DNS2 0.0.0.0
Domain wan.com
2. Look at the line DNS1. The address on this line is that of the primary DNS
server. If the DNS settings are correct, go to
3. If the address is incorrect or unspecified (0.0.0.0), enter the correct DNS
server address. You can also enter an optional domain name with the
command:
step 5.
*ICAD*> config system dns dns1 address domain name
25 BSGX4e Business Gateway Installation Guide
NN47928-303 Release 01.01
Page 26
4. To verify the new DNS settings, enter the show command again:
*ICAD*> show system dns
5. To save the changes to the configuration, enter:
*ICAD*> save
Verifying the WAN connection
To verify that the BSGX4e unit is connected to the network, try a simple ping test. If
the BSGX4e includes the network information described in Initializing the WAN
connection (page 23) (its eth0 IP address, the default gateway address, and a DNS
server), a ping from the BSGX4e can reach a network location. An example follows:
To ping the network location www.yahoo.com, enter:
ICAD> ping www.yahoo.com
If the connection is successful, the ping responds with messages similar to the
following:
Pinging www.yahoo.com (68.142.197.87): 56 data bytes
Reply from 68.142.197.87: bytes=56 icmp_seq=0 time=50ms
Reply from 68.142.197.87: bytes=56 icmp_seq=1 time=50ms
Reply from 68.142.197.87: bytes=56 icmp_seq=2 time=50ms
Reply from 68.142.197.87: bytes=56 icmp_seq=3 time=50ms
----- www.yahoo.com ping statistics ----4 packets transmitted, 4 packets received, 0.0% packet loss
Round-trip times: min/avg/max=50/50/50ms
If the ping to a network location is not successful, ensure that the BSGX4e can
reach the access router. To do this check, ping the default gateway address.
To see the default gateway address, look at the default route in the route table
(Destination 0.0.0.0). For example:
ICAD> show route table
Destination Netmask Gateway Interface
-------------------------------------------------------------
0.0.0.0 0.0.0.0 66.206.164.193 eth0
ICAD> ping 66.206.164.193
If the ping to the gateway address is successful, it verifies that the BSGX4e is
well connected to the access router. If the ping to the gateway address is not
successful, ensure that the address is correct and that the WAN LED is lit.
After you connect the unit to the network, you can remotely configure the unit. For
information on all configuration options, see the BSGX4e Business Gateway User
Guide.
BSGX4e Business Gateway Installation Guide 26
Release 01.01 NN47928-303
Page 27
3
D
EFAULT
This appendix describes how to view the current settings in the BSGX4e unit and how
to restore the unit to its factory default settings.
Viewing current settings
This section describes how to view the current settings of the BSGX4e unit.
Viewing user accounts
The BSGX4e uses two predefined user accounts: nnadmin and user.
The user account nnadmin has read and write access and can change the current
settings by using commands such as config.
The user account user can only perform read operations, such as stat to display
statistics. (The only change that the user account user can make is to change the
password for the account.)
S
ETTINGS
To see the existing user accounts and their permissions, enter:
ICAD> show user accounts
The unit responds:
Users:
Name Access Auth Group1 Group3 Group5 Password Inherit Enabled
Group2 Group4
------------------------------------------------------------------------admin ssh + web + cl* SHA admins admins admins ****** yes yes
users admins
user web + cli SHA users users users ****** yes yes
users users
For more information about user accounts and user management, see the BSGX4e
Business Gateway User Guide.
Viewing configuration
The BSGX4e provides several show commands that show various configuration
settings. These commands are described in the BSGX4e Business Gateway User
Guide. To get a full listing of the current configuration, enter:
ICAD> dump
The unit responds with a full configuration listing.
Page 28
Note: To see an example configuration listing and information on all
configuration settings, see the BSGX4e Business Gateway User Guide.
Restoring default settings
Restoring the BSGX4e to its factory settings can be necessary for troubleshooting or
significant system changes.
After the unit is restored to default settings:
All existing and previous configurations are erased; the only configuration that
remains contains the original factory settings.
All user accounts are erased, except the two predefined users nnadmin and user.
Note: After the factory default settings are restored, the default passwords for
nnadmin and user are also restored. Change the default passwords
immediately (see Logging on to the BSGX4e (page 21)).
After the unit is restored to default settings, you can access them through:
n The console port.
n A workstation on the LAN through the eth1 interface. The default eth1 address
is 192.168.1.1.
n A workstation on the WAN if DHCP assigns an address to eth0. (DHCP service is
enabled for eth0 by default.)
Restore the BSGX4e factory default settings using:
the RELOAD button on its back panel.
the Defaults button on the Operations menu in the Web User Interface (UI).
the erase command from the Command Line Interface (CLI).
Reload Button
Reset the BSGX4e unit to its initial factory configuration by pressing the recessed
RELOAD button on its back panel (see Figure 5). Use a pen to push in the RELOAD
button; press the button for at least five seconds.
If a terminal session is logged on to the unit when its reload button is pressed,
information about the reload and restart is sent to the session. The information is
the same as the erase command (see Erase Command (page 30)).
BSGX4e Business Gateway Installation Guide 28
Release 01.01 NN47928-303
Page 29
Reload
button
Figure 5. Reload Button
Defaults button in Web UI
The default configuration can be restored from the Web UI. (The procedure for
logging on to the Web UI is described in Log in to the Web User Interface (page 32))
Note: When the unit is restored to factory default settings, all remote
connections to the unit are lost. This includes the Web UI connection.
The Operations menu shown as follows includes a Defaults button.
Click Defaults to restore the default configuration.
Click Defaults to restore the default configuration.
When the Defaults button is clicked, you are asked to confirm the change. If you
confirm, the following message appears:
The system reload disconnects the Web UI from the BSGX4e device. The IP addresses
for the BSGX4e data interfaces are restored to their defaults.
29 BSGX4e Business Gateway Installation Guide
NN47928-303 Release 01.01
Page 30
The IP address of the LAN (eth1) interface restores to its default, 192.168.1.1.
The IP address of the WAN (eth0) interface restores to its default, 0.0.0.0. DHCP
service activates by default for the eth0 interface so an IP address can be
assigned by DHCP.
To reconnect from the LAN, enter the IP address of the eth1 interface (192.168.1.1)
on the browser entry line. If the browser cannot connect to the default address, the
default address must be reconfigured from the eth0 interface or from the console.
Erase Command
You can restore the default configuration from a terminal session using the erase
command in the CLI. The procedure for starting a terminal session is described in
"Log on to the BSGX4e" on page 21.
Note: When you restore the unit to factory default settings, any remote
connections to the unit are lost. The eth1 interface is assigned the default
IP address 192.168.1.1; the eth0 interface does not have a default IP
address, although DHCP service is enabled by default, so an IP address can
be assigned by DHCP.
1 To erase the current configuration and return the unit to its initial factory
configuration, enter:
ICAD> erase
The unit responds:
The system will reboot automatically after erasing the
configuration.
Are you sure you wish to erase the configuration [y/N]:
2 To erase and restart the system, enter:
Are you sure you wish to erase the configuration [y/N]: y
The system erases the current configuration, reloads the factory default
settings, and restarts. The reload begins with the following message:
Configuration erased, reloading system.....
Note: If the sessions is a remote session, it attempts to reconnect to the default
IP address.
3. A new session begins with the following prompt:
User:
BSGX4e Business Gateway Installation Guide 30
Release 01.01 NN47928-303
Page 31
4
S
OFTWARE
This chapter describes how to upgrade the software in the BSGX4e device.
Introduction
It might be necessary to upgrade or reinstall the software in the BSGX4e memory.
This software includes application software and the bootloader code.
To see the software versions currently in use, log on to the unit and enter the
following command:
BSGX4e> show system info
The unit responds with a display similar to the following:
System Info:
Unit Name MyUnit
Bootcode Ver 1.1.0-01B-001
App. Ver 2.0.2-01B-0007
System Type BSGx4e
Memory 98/128 MB
MAC 0 00:22:11:44:33:04
MAC 1 00:22:11:44:33:05
Serial A628000003
CountryUnited States of America (US)
Temp Unsupported
Up time 0y 0d 4h 33m 20s
U
PGRADES
Look at the Bootcode Ver line to see the bootloader code version and at the App.
Ver line to see the application software version.
Application Software Images
You can store two application software images in an BSGX4e unit in locations slot 1
and slot 2 in its compact flash memory. Only one image can be the primary (default)
image; this is the image that is used to run the unit. The other image is secondary:
an alternate image that you can select to run, if necessary. The selection process is
described in Changing the default application image (page 37).
Page 32
Upgrading software using the Web interface
This section describes how to upgrade the device software through the Web user
interface (Web UI). This upgrade procedure assumes that the BSGX4e unit is
installed into a working IP network as described in Installation (page 15).
Requirements
To upgrade the BSGX4e software using the web UI, you must have the following:
A workstation on which you can run one of these Internet browsers: Microsoft
Internet Explorer or Mozilla FireFox.
The IP address of the BSGX4e. If you connect from the W AN, use the eth0 address.
If you connect from the LAN, use the eth1 address. The procedure for showing the
IP address is described under IP Address/Mask for eth0 (page 23).
The logon name and password for a user account that has administrator
capabilities, such as the default account nnadmin.
The location of the file containing the upgrade software. The file must be on the
workstation; its location is entered during the upgrade procedure. Select the file
from the workstation directories with the Browse button.
Note: To acquire the upgrade software, contact "How to get help" on page 11.
Logging on to the Web user interface
1. Start the Web browser on the workstation.
2.On the entry line of the W eb browser, enter the IP address of the BSGX4e unit.
If the workstation is connected through the LAN, enter the eth1 address; if the
workstation is connected through the WAN, enter the eth0 address:
For example, assuming that the eth1 IP address has not be changed from its
default, enter the following to log on from a workstation on the LAN:
n HTTP:
http://192.168.1.1
n HTTPS:
https://192.168.1.1
3.The logon window opens and requests a user name and password:
BSGX4e Business Gateway Installation Guide 32
Release 01.01 NN47928-303
Page 33
Figure 6. Web UI Login Window
4.In the User name box, type a user name that includes administrator
permissions. The default is nnadmin.
5.In the Password box, type the password for the user name.
6.Click the Login button.
7.After a successful logon to the W eb UI, the browser window shows the System
Status screen. See Figure 7
Upgrading software
Figure 7. System Status screen
33 BSGX4e Business Gateway Installation Guide
NN47928-303 Release 01.01
Page 34

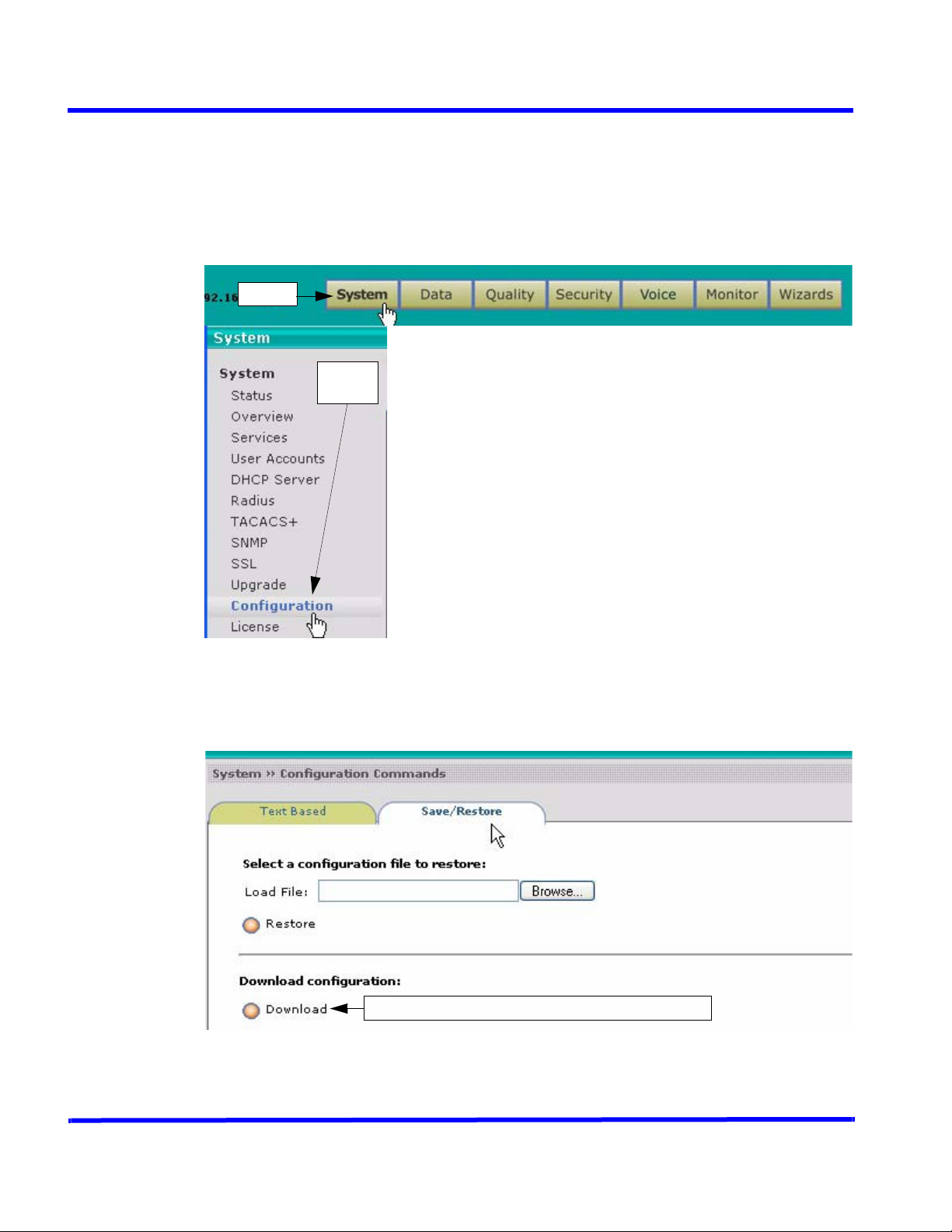

Save the Current Configuration
You can save the current unit configuration and then restore it after the software
upgrade.
1. Open the System Configuration window. Select System from the top menu bar
and then Configuration from the left menu.
Click.
Then
click.
2. From the System Configurati on commands screen, select the Save/Restore tab
and then click the Download button.
Click Download to save the configuration.
BSGX4e Business Gateway Installation Guide 34
Release 01.01 NN47928-303
Page 35
3. The browser displays a window from which you can save the configuration file
(mob.cfg.cpy) to disk.
4. Click OK to save the file mob.cfg.cpy to disk. The default configuration is now
stored on a workstation file; the file can be used to restore the configuration
after the upgrade.
Upgrade software
1. To upgrade software, Select Upgrade from the System menu:
2.The Software tab appears.
35 BSGX4e Business Gateway Installation Guide
NN47928-303 Release 01.01
Page 36
Click the image to upgrade.
Click Browse to find
the upgrade file.
Click Upgrade to start the upload.
Figure 8. Upgrade Tab
3.In the upper half of the Software tab, select the software to be upgraded:
n Slot 1 and Slot 2 represent the application software images that are present in
the BSGX4e.
Note: The slot that is upgraded is automatically set as the default image that is
run when the device restarts. (The default image can be changed after the
upload.)
n Bootloader represents the application that loads the new image at restart.
4.In the Load File text box, enter the software file to upload.
If necessary, press Browse to locate the file on the workstation.
5.Click Upgrade.
Messages are displayed as the upgrade steps complete.
6.When the upgrade is complete, the message Updating Successful appears.
IMPORTANT: Do not reboot before the Updating Successful message appears.
7.To reboot the unit and put the upgraded software into use, select the Reload
System button in the Operations menu in the lower left of the screen. See
Figure 9.
BSGX4e Business Gateway Installation Guide 36
Release 01.01 NN47928-303
Page 37
Figure 9. Reload System
8.When the unit restarts, the connection to the workstation is lost. Use your
browser to reconnect to the unit and then log on again to verify the software
upgrade.
V erifying software upgrade
1. Log in to the BSGX4e again. See Logging on to the Web user interface (page
32).
2.On the right side of the window under the heading System, a line labeled
Application lists the software version that is currently running:
Figure 10. Application Software Version
3.If the version that is listed is the desired upgrade, the software upgrade is
successful.
Changing the default application image
1. From the navigation list on the left pane of the System Screen, select Upgrade.
(See Figure 7)
2. Under Application image to boot from, select the image that is to be the
default by selecting the appropriate button under Default. (See Figure 8)
3.Select Apply.
4.Ensure that the desired image is now highlighted under Default.
37 BSGX4e Business Gateway Installation Guide
NN47928-303 Release 01.01
Page 38
Restore the Configuration
After upgrading the device software, you can upload a device configuration file. It
can be the configuration file saved before the software upgrade (mob.cfg.cpy) or
another configuration file compatible with the current application software.
1. Open the System Configuration window. Select System from the top menu bar
and then Configuration from the left menu.
Click.
Then
click.
2. From the System Configuration window, select the Save/Restore tab.
Click the Browse button to find the
configuration file and then click Restore.
BSGX4e Business Gateway Installation Guide 38
Release 01.01 NN47928-303
Page 39
3. Click the Browse button and find the configuration file to be uploaded. To
restore the configuration that was saved before the software upgrade, find
the mob.cfg.cpy file.
4. Click the Restore button.
5. The configuration file is uploaded. When the upload is complete, you are
directed to reload the system.
6. To reload the system, click the Reload System button in the Operations menu
in the lower left corner of the screen.
7. The reload sends the following message.
8. The reload causes the connection to the workstation to be lost. If desired, use
the browser to reconnect to the device.
39 BSGX4e Business Gateway Installation Guide
NN47928-303 Release 01.01
Page 40
Upgrading software using an Simple File Transfer Protocol session
This section describes how to upgrade the device software through a Simple File
Transfer Protocol (SFTP) session. This upgrade procedure assumes that the BSGX4e
unit is installed into a working IP network as described in Installation (page 15).
To upgrade software using an Simple File Transfer Protocol (SFTP) session:
1.Connect the SFTP server by using an SFTP client (such as CoreFTP). See the
following figure:
BSGX4e Business Gateway Installation Guide 40
Release 01.01 NN47928-303
Page 41
2.Click Yes to accept the SSH certificate.
The SFTP server is now connected.
3.Navigate to /cf0sys in the server.
41 BSGX4e Business Gateway Installation Guide
NN47928-303 Release 01.01
Page 42
4.Navigate to the directory flash.
5.To upgrade application image 1, open directory 1.
OR
To upgrade application image 2, open directory 2.
OR
To upgrade the bootloader, open directory boot.
6.Rename the software upgrade file if needed. An application image must be
the file app.bin; a bootloader image must be the file boot.bin.
7.Drag and drop the new application software.
8.Restart the unit.
BSGX4e Business Gateway Installation Guide 42
Release 01.01 NN47928-303
Page 43
5
S
IGNAL
This appendix lists the signal pin-out specifications of the BSGX4e connectors.
Back Panel Layout
Figure 11 shows the layout of the connectors on the back panel of the BSGX4e unit.
P
INS
LINE PHONE WAN 4 3 2 1
RJ11
Figure 11. BSGX4e Back Panel
Table 6 describes the connectors on the back panel of the BSGX4e.
Table 6. BSGX4e Connectors
Name Type Connects to:
LINE RJ11 Fx0 port for uplink to central office (CO) switch.
PHONE RJ11 FXS port for analog telephone or fax machine.
WAN RJ45 Fast Ethernet port for the WAN interface.
4, 3, 2, 1 RJ45 Fast Ethernet ports for LAN interfaces.
CONSOLE DB9F RS-232 serial port for a terminal console.
RJ45
CONSOLE
DB9
12V DC
RELOAD
Page 44
DB9 Console Connector
Fig 12 shows the pin allocations of the DB9 connector
Figure 12. DB9 Connector
Table 7 lists the signal pin-out for the console connector.
Table 7. DB9 Serial Connector Pin-Out
Pin
Number
1 Not connected
2 Transmitted data (TXD)
3 Received data (RXD)
4 Not connected
Signal
5 Signal ground (GND)
6 Not connected
7 Clear to Send (CTS)
8 Request to Send (RTS)
9 Not connected
RJ11 Telecom Connectors
Fig 13 shows the layout of the RJ11 telecom connector
1
4
Figure 13. RJ11 Connector
Table 8 lists the signal pin-out for the telecom connectors (LINE and PHONE).
BSGX4e Business Gateway Installation Guide 44
Release 01.01 NN47928-303
Page 45
Table 8. RJ11 Telecom Connector Pin-Out
Pin
Number Signal
1 Not connected
2 Tip
3 Ring
4 Not connected
RJ45 Ethernet Connectors
Fig 14 shows the layout of the RJ45 ethernet connector
Figure 14. RJ45 Connector
Table 9 lists the signal pin-out for the Ethernet connectors, WAN, and LAN.
Table 9. RJ45 Ethernet Connector Pin-Out — MDI/MDIX
Pin
Number
1 Received data + (RXD+) Transmitted data + (TXD+)
2 Received data - (RXD-) Received data - (TXD-)
3 Transmitted data +
4 Not connected Shield, 75 ohm
5 Not connected Shield, 75 ohm
6 Transmitted data - (TXD-) Transmitted data - (RXD-)
7 Not connected Shield, 75 ohms
8 Not connected Shield, 75 ohms
Medium Dependent
Interface (MDI) signal
(TXD+)
MDI for crossover (MDIX)
signal
Transmitted data + (RXD+)
45 BSGX4e Business Gateway Installation Guide
NN47928-303 Release 01.01
Page 46
BSGX4e Business Gateway Installation Guide 46
Release 01.01 NN47928-303
Page 47
6
T
ECHNICAL
Table 10 lists technical specifications for the BSGX4e Business Gateway device.
Table 10. Unit Specifications
Environment
Operating
temperature
Storage
temperature
Relative humidity
Dimensions
32 to 104oF (0 to 40oC)
32 to 122oF (0 to 50oC)
5% to 95% (non-condensing)
S
PECIFICATIONS
Height
Width
Depth
Weight
Memory
128MB RAM
128MB Compact
Flash
AC Power
Transformer
DC Power
Voltage range
Frequency range
Average power
consumption
Output voltage
Connectors (see Signal Pins (page 43))
1.25in. (318 mm)
9.6in. (243.8 mm)
7.54in. (194.5 mm)
2.3 lb (1.05 kg)
See DC Power
110VAC
50-60Hz
1 Amp
12V DC
Page 48
BSGX4e Business Gateway Installation Guide 48
Release 01.01 NN47928-303
Page 49
7
R
ULE
This appendix lists the standards compliance statements for the BSGX4e Business
Gateway device.
FCC Compliance (US)
This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference that
may cause undesired operation.
This device has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
device generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this device creates harmful interference to radio
or television reception, the user is encouraged to correct the interference by one or
more of the following measures:
Re-orient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
C
OMPLIANCE
The BSGX4e is not hearing aid compatible.
FCC Telecom Statement
This device complies with Part 68 of the FCC rules and requirements adopted by the
American Council of Trustees and Alumni (ACTA). On the bottom of this device is a
label that includes, among other information, a product identifier in the format
US:AAAEQ##TXXXX. If requested, this number must be provided to the telephone
company.
The Universal Service Order Codes (USOC) for this device (BSGX4e) are
________________________________________________________________.
The Facility Interface Codes (FIC) and the Service Order Codes (SOC) for this
device (BSGX4e) are 02LS2 and 9.0F, respectively.
Page 50
The Ringer Equivalence Number (REN#) for this device (BSGX4e) is
______________________________.
The REN is used to determine the number of devices that you can connect to a
telephone line. Excessive RENs on a telephone line can result in the devices not
ringing in response to an incoming call. In most but not all areas, the number of
RENs should not exceed five. To be certain of the total number of RENs, contact
the local telephone company.
The REN for this product is part of the product identifier that uses the format
US:AAAEQ##TXXXX. The digits represented by ## are the REN without a decimal
point (for example, 03 is a REN of 0.3).
If this device (BSGX4e) causes harm to the telephone network, the telephone
company notifies you in advance that a temporary discontinuance of service can be
required. However, if advance notice is not practical, the telephone company
notifies the customer as soon as possible. Also, you are advised of your right to file a
complaint with the FCC if you believe it is necessary.
The telephone company may make changes in its facilities, equipment, operations,
or procedures that can affect the operation of the BSGX4e. If this happens, the
telephone company provides advance notice, so you can make the necessary
modifications to maintain uninterrupted service.
If you experience trouble with the BSGX4e device, for repair or warranty
information see "How to get help" on page 11:
If the device causes harm to the telephone network, the telephone company may
request that you disconnect the device until the problem is resolved. For any
detailed repair and troubleshooting information, see "How to get help" on page 11.
Connecting the party line service is subject to tariffs. For more information, contact
the state public utility commission, public service commission, or corporation
commission.
If your home or office has specially wired alarm equipment connected to the
telephone line, ensure that the installation of this device (BSGX4e) does not disable
your alarm equipment. If you have questions about what can disable alarm
equipment, consult your telephone company or a qualified installer.
WARNING: Any changes or modifications to this product not expressly approved
by the manufacturer could void any assurance of safety or performance
and could result in violation of Part 15 of the FCC Rules.
Declaration of Conformity
We, the responsible party, declare that the product conforms to the following
standards:
FCC part15, subpart B, class B
Manufacturer name:Nortel
Product name: Business Gateway
BSGX4e Business Gateway Installation Guide 50
Release 01.01 NN47928-303
Page 51
Model number: BSGX4e
Contact Information
Signature:
Name:
Telephone number:
Address:
Date: September 2006
Equipment Attachment Regulations (Canada)
NOTICE: The Industry Canada label identifies certified equipment. This certificatio n
means that the equipment meets telecommunications network protective,
operational, and safety requirements as prescribed in the appropriate Terminal
Equipment Technical Requirements documents. The Department does not guarantee
the equipment will operate to the user’s satisfaction.
Before installing this equipment, users should ensure that is permissible to be
connected to the facilities of the local telecommunications company. The
equipment must also be installed using an acceptable method of connection.
The customer should be aware that compliance with the above conditions may not
prevent degradation of service in some situations. Repairs to certified equipment
should be coordinated by a representative designated by the supplier. Any repairs or
alterations made by the user, or equipment malfunctions, can give the
telecommunications company cause to request that the user disconnect the
equipment.
Users should ensure for their own protection that the electrical ground connections
of the power utility, telephone lines, and internal metallic water pipe system, if
present, are connected together. This precaution can be particularly important in
rural areas.
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus set out in the Radio Interference Regulations of the Canadian
Department of Communications. This equipment meets the applicable Industry
Canada Terminal Equipment Technical Specifications.
The Class B Detail apparatus complies with Canadian ICES-003.
Contact Information
Company name:
Address: Canada
Telephone No.:
Website:
Supplementary Information
This device is in conformance with the following standards:
51 BSGX4e Business Gateway Installation Guide
NN47928-303 Release 01.01
Page 52
FCC part15 class B
UL 60950
CAN/CSA-C22.2 No.950
BSGX4e Business Gateway Installation Guide 52
Release 01.01 NN47928-303
Page 53
8
S
AFETY
This appendix lists safety precautions when using the BSGX4e device.
Product Care and Maintenance
NOTE: For safe and efficient use, read this information before using your
BSGX4e Business Gateway.
Do not expose the product to liquid or moisture.
Do not expose the product to extreme temperatures, neither hot nor cold.
Do not expose the product to lit candles, cigarettes, cigars, open flames, etc.
Do not drop, throw, or try to bend the product, since rough treatment can cause
damage.
Do not allow children to play with the equipment, as it contains small parts that can
detach and create a choking hazard.
I
NFORMATION
Treat the product with care. Keep it in a clean and dust-free location. Use only a
soft, damp cloth to clean the product.
Page 54
BSGX4e Business Gateway Installation Guide 54
Release 01.01 NN47928-303
Page 55
9
G
LOSSARY
CLI
CO
DHCP
DNS
Failover
FXO
FXS
LAN
LED
Command Line Interface
Central Office—connects to the PSTN.
Dynamic Host Configuration Protocol—used to assign and manage IP
addresses for a network.
Domain Name Server
Backup system used to continue operations if the main device goes
down. During a power interruption, an analog telephone connected to
the failover can place emergency calls.
Foreign Exchange Office. Device interface that provides a CO
connection so that a VoIP device can connect to an analog signal.
Receives power (battery) and ring signals.
Foreign Exchange Station. Device interface that connects to an analog
device such as a telephone or fax machine.
Local Area Network.
Light Emitting Diode. Lit or blinking LEDs on the device indicate
connection, signal transmission, and power supply.
MAC
MGCP
PC
PDF
POTS
PSTN
SC
Media Access Control. A MAC address is a hardware address that
uniquely identifies each network device.
Media Gateway Control Protocol
Personal Computer
Portable Document Format
Plain Old Telephone Service.
Public Switched Telephone Network
Session Controller
Page 56
SIP
Session Initiation Protocol
SFTP
TFTP
UA
VoIP
WAN
Simple File Transfer Protocol—can be used to transfer software
upgrades to the device.
Trivial File Transfer Protocol
User Agent, also known as the VoIP gateway, is the software
component that enables an analog device connected to an FXS port to
communicate using the VoIP service.
Voice over Internet Protocol
Wide Area Network
BSGX4e Business Gateway Installation Guide 56
Release 01.01 NN47928-303
