Avanti WCF148DE3S, WCF149SE3S Instruction Manual

Model / Modelo / Modelé: WCF149SE3S / WCF148DE3S

WCF149SE3S

WCF148DE3S

INSTRUCTIONS.

Avanti has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice.

Avanti Products LLC

www.avantiproducts.com

WINE CHILLER

VINERA

CELLIER

INSTRUCTION MANUAL

MANUAL DE INSTRUCCIONES

MANUEL D’INSTRUCTIONS

BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING

P.O. Box 520604 Miami, FL 33152

TABLE OF CONTENTS

Important Safety Instructions

Appliance Safety

Important Safeguides

Refrigerant Gas Warnings

Help Us Help You …

Parts and Features

Electrical Connection

Extension Cord / Surge Protector

Installation Instructions

Before Using Your Appliance

Installation of Your Appliance

Built-in Cabinet Instructions

Operating Your Appliance

ON/OFF Power

Setting the Temperature Control

Storage

Interior Light

Shelves

Pull-out Roller Shelves

Care and Maintenance

Cleaning Your Wine Chiller

Power Failure

Moving Your Wine Chiller

Energy Saving Tips

Charcoal Filtration S ystem

Troubleshooting Guide

Service for Your Appliance

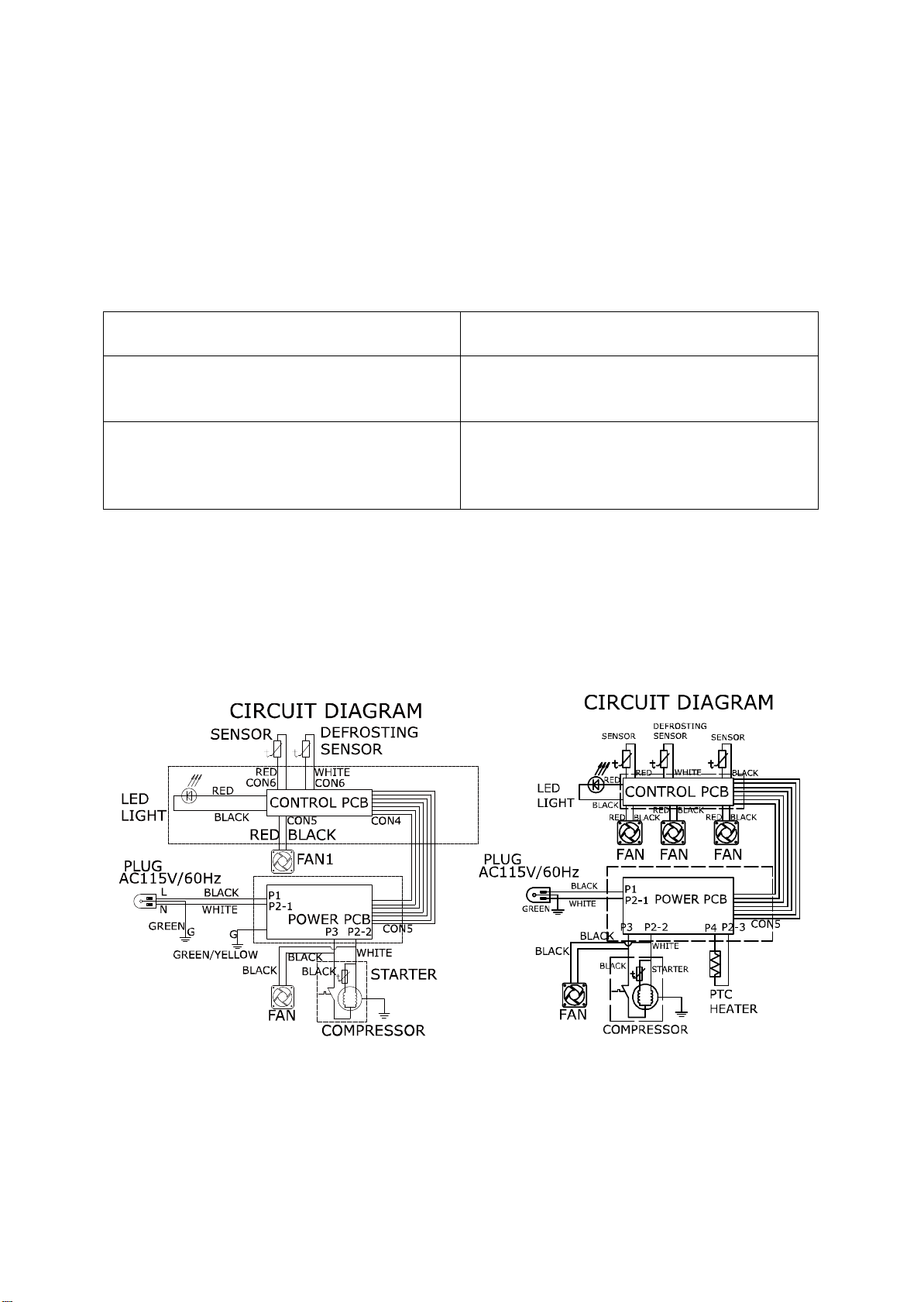

Wiring Diagram

Your Avanti Products War rant y

Instrucciones en Español

16 - 18

Instructions en Français

19 - 31

Registration Information and Registrat ion Car d

Last Page

10 - 11

IMPORTANT SAFETY INSTRUCTIONS



To reduce the risk of fire, electrical shock, these basic precautions:

• Read all instructions before using the Wine Chiller.

-Save these instructions-

WARNING

• DANGER or WARNING: Risk of child entrapment. Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous . . . even if they will “just sit in the garage a few days”.

• Before you throw away your old Wine Chiller: Take off the door. Leave the shelves in place so that children may not easily climb inside.

• Never allow children to operate, play with, or crawl inside the appliance.

• Never clean appliance parts with flammable fluids. The fumes can create a fire

hazard or explosion.

• Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.

APPLIANCE SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the Safety Alert Symbol. This symbol alerts you to potential hazards that

can kill or injure you and others. All safety messages will follow the Safety Alert Symbol and either the words “DANGER”, “WARNING” or “CAUTION”.

Danger means that failure to heed this safety

Warning means that failure to heed this safety

Caution means that failure to heed this safety

All safety messages will alert you do what the potential hazard is, tell you how to reduce the chance of injury, and let you know what can happen if the instruc tions ar e not foll o wed.

or injury when using your appliance, follow

statement may result in severe personal injury or death.

statement may result in extensive product damage, serious personal injury, or death.

statement may result in minor or moderate personal injury, or property or equipment damage.

IMPORTANT SAFEGUIDES

Before the appliance is used, it must be properly positioned and installed as

described in this manual, so read the manual carefully. To reduce the risk of fire, electrical shock or injury when using the appliance, follow basic precaution, including the following:

• Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and do not use an extension cord.

• Replace all panels before operating.

• It is recommended that a separate circuit, serving only your appliance be provided. Use receptacles

that cannot be turned off by a switch or pull chain.

• Never clean appliance parts with flammable fluids. These f um es can c r eate a f ire hazard or explosion. And do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.

• Before proceeding with cleaning and maintenance operations, make sure the power line of the unit is disconnected.

• Do not connect or disconnect the electric plug when your hands are wet.

• Unplug the appliance or disconnect power before cleaning or servicing. Failure to do so can result in

electrical shock or death.

• Do not attempt to repair or replace any part of your appliance unless it is specifically recommended in this material. All other servicing should be referred to a qualified technician.

FOLLOW WARNING CALL OUTS BELOW ONLY WHEN APPLICABLE TO YOUR MODEL

• Use two or more people to move and install appliance. Failure to do so can result in back or other injury.

• To ensure proper ventilation for your appliance, the front of the unit must be completely unobstructed. Choose a well-ventilated area with temperatures above 60°F (16°C) and below 90°F (32°C). This unit must be installed in an area protected from the element, such as wind, rain, water spray or drips.

• The appliance should not be located next to ovens, grills or other sources of high heat.

• The appliance must be installed with all electrical, water and drain connections in accordance with

state and local codes. A standard electrical supply (115 V AC only, 60 Hz), properly grounded in accordance with the National Electrical Code and local codes and ordinances is required.

• Do not kink or pinch the power supply cord of appliance.

• The fuse (or circuit breaker) size should be 15 amperes.

• It is important for the appliance to be leveled in order to work properly. You may need to make

several adjustments to level it.

• Never allow children to operate, play with or crawl inside the appliance.

• Do not use solvent-based cleaning agents of abrasives on the interior. These cleaners may damage

or discolor the interior.

• Do not use this apparatus for other than its intended purpose.

REFRIGERANT GAS WARNINGS / AVERTISSEMENTS GAZ REFRIGERANT

DANGER - Risk of fire or explosion. Flammable refrigerant used.

DO NOT use mechanical devices to defrost wine chiller. DO NOT puncture refrigerant tubing.

DANGER - Risque d’incendie ou d’explosion. Réfrigérant inflammable utilisé. Ne pas utiliser de dispositifs mécaniques pour cellier à dégivrage. Ne pas percer la tuyauterie du réfrigérant

DANGER - Risk of fire or explosion. Flammable refrigerant used. To be repaired only by trained service personnel. DO NOT puncture refrigerant tubing.

DANGER - Risque d’incendie ou d’explsion. Réfrigérant inflammable utilisé. Pour être réparé que par du peronnel qualifié.Ne pas percer la tuyauterie du réfrigérant.

CAUTION - Risk of fire or explosion. Flammable refrigerant u sed. Consult repair manual / owner’s guide before attempting to service this product. All safety precautions must be followed.

AVERTISSEMENT - Risque d’incendie ou d’explosion. Réfrigérant inflammable utilisé. Consultez réparation manuelle / propriétaire, guide avant d’ essayer de réparer ce produit. Toutes les précautions doivent être suivies.

CAUTION - Risk of fire or explosion. Dispose of property in acc ordance with federal or local regulations. Flammable refrigerant used.

AVERTISSEMENT - Risque d’incendie ou d’explosion. Aliéner des biens conformément à la réglementation fedérale ou locale. Réfrigérant inflammable utilisé.

CAUTION - Risk of fire or explosion due to puncture of refrigerant tubing; Follow handling instructions carefully. Flammable refrigerant used.

AVERTISSEMENT - Risque d’incendie ou d’explosion dus à la perforation des tuyaux de fluide réfrigérant, suivez attentivement les instructions remise. Réfrigérant inflammable utilisé

CAUTION-To Prevent A Child From Being Entrapped, Keep Out Of Reach Of Children And Not In The Vicinity Of Freezer (Or Refrigerator).

CAUTION-Risk of Fire

HELP US HELP YOU...

IF YOU NEED SERVICE

We're proud of our service and want you to

NEXT, if you are still not pleased, write all the details,

CAUTION:

Read this guide carefully.

It is intended to help you operate and maintain your new appliance properly.

Keep it handy to answer your questions. If you don't understand something or you need more help, please call:

Avanti Customer Service

800-220-5570

Keep proof of original purchase date (such as your sales slip) with this guide to establish the warranty period.

THIS APPLIANCE IS NOT DESIGNED FOR THE STORAGE OF MEDICINE OR OTHER MEDICAL PRODUCTS.

Write down the model and serial numbers.

You'll find them on a plate located on the rear outside wall of the appliance.

Please write these numbers here:

_____________________________________

Date of Purchase

_____________________________________

Model Number

_____________________________________

Serial Number

Use these numbers in any correspondence or service calls concerning your appliance.

If you received a damaged appliance, immediately contact the dealer (or builder) that sold you the appliance.

Save time and money. Before you call for service, check the Troubleshooting Guide. It lists causes of minor operating problems that you can correct yourself.

be pleased. If for some reason you are not happy with the service you receive, here are some steps to follow for further assistance. FIRST, contact the people who serviced your appliance. Explain why you are not pleased. In most cases, this will solve the problem.

including your telephone number, and send it to:

Customer Service Avanti Products 10880 NW 30 Street

Miami, FL 33172 USA

PARTS & FEATURES

SINGLE ZONE WINE CHILLER

DUAL ZONE WINE CHILLER

1-Stainless Steel Door Frame with Handle

2-Control Panel

2- Burgundy Bottle Shelves (Total 3)

3-Burgundy Bottle Shelves (Total 6)

3-Standard Bottle Shelves (Total 3)

4-Standard Bottle Shelves (7 Full Size / 1 Half)

4-Control Panel

5- Front Grille

5-Burgundy Bottle Shelves (Total 3)

6-Leveling Leg

6-Standard Bottle Shelves (4 Full Size / 1 Half)

7-Front Grille

8-Leveling Leg

The bottom shelf is designed to accommodate larger bottles or to allow for stacking of bottles as shown

WCF149SE3S

WCF148DE3S

ELECTRICAL CONNECTION

Warning

Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized Avanti Products service center.

This appliance should be properly grounded for your safety. The power cord of this appliance is equipped with a three-pron g plug whic h mates with standard three pron g wall outlets to m inimize the possibility of electrical shock.

Do not under an y circumstances c ut or rem ove the third gro und prong f rom the power c ord supplied. For personal safety, this appliance must be properly grounded.

This appliance requir es a standard 115/ 120 Volt AC ~/60Hz electrical ground outlet with three-prong. Have the wall outlet and circuit check ed by a qualified electr ician to make sur e the outlet is properl y grounded. When a s tandar d 2-prong wall outlet is encount ered, it is your respons ibility and oblig ation to have it replaced with a properly grounded 3-prong wall outlet.

The cord should be secured behind the appliance and not left exposed or dangling to prevent accidental injury.

The appliance shoul d always be plugged i nto its own individual electrical outlet which has a voltage rating that matches the rating label o n the appliance. This provides the best performance and a lso prevent overloading house wiring circuits that could cause a fire hazard from overheated. Never unplug the applianc e b y pulling th e power cord. Alwa ys grip the plug f irm ly and pul l straight out f rom the receptacle. Repair or replace imm ediately all power cords that ha ve become fra yed or otherwise damaged. Do not use a cor d that shows crack s or abrasion dam age along its len gth or at either end . When moving the appliance, be careful not to damage the power cord.

 EXTENSION CORD Because of potential safety hazards under certain conditions, it is strongly recommended that you do not use an extension cord with this appliance. However, if you must use an extension cord it is absolutely necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating of the cord be 115 volts and at least 10 amperes.

 SURGE PROTECTOR Most electrical appliances use a series of electric control boards to operate. These boards are very susceptible to power surges and could be damaged or destroyed.

If the appliance is going to be used in an area or if your city / country is prone to power surges / outages; it is suggested that you use a power surge protector for all electrical devices / appliances you use. The surge protector that you select must have a surge block high enough to protect the appliance it is connected to. If you have any questions regarding the type and size of surge protector needed contact a lic ens ed electr ici an in your area.

Damages due to power surges are not considered a manufacturer covered defect and will void your product warranty.

INSTALLATION INSTRUCTIONS

Instruction Manual

Shelves (Model WCF149SE3S)

Shelves (Model WCF148DE3S)

Stainless Steel Handle

Hinge Screw Caps

Keys

Cabinet Opening Dimensions

IN (min)

MM (min)

Width

615

Depth

736

Height

67 ½

1715

Unit Dimensions

IN (min)

MM (min)

Width

23 ½

598

Depth

(with handle)

28 ½

718

Height

66 ¾

1700

29”

 BEFORE USING YOUR WINE CHILLER

• Remove the exterior and interior packing.

• Check to be sure you have all of the following parts:

• Before connecting this app liance to the power s ource, let it stand upright f or approximatel y 2

hours. This will reduce the possibility of a malfunction in the cooling s ystem from handling during transportation.

• Clean the interior surface with lukewarm water using a soft cloth.

 INSTALLATION OF YOUR WINE CHILLER

• This appliance is designed to be for free standing installation or built-in (fully recessed).

• Place your Wine Chiller on a floor that is strong enough to support it when it is fully loaded. To

level your Wine Chiller, adjust the front le veling legs at the bottom of the Wine Chiller.

• Locate the Wine Chiller away from direct s unlight and sources of heat ( s tove, he a ter, radi ator ,

etc.). Direct sunlight may affect the acr ylic coating and heat sourc es may increase electrica l consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly.

• Avoid locating the unit in moist areas.

• Plug the Wine Chiller i nto an exclusive, prop erly installed-grounded wall outlet. Do not under

any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized Avanti Products s ervice cen ter .

 BUILT – IN CABINET INSTRUCTIONS This unit is designed for both built-in or free standing installation. If you plan to use this unit in a builtin application please follow the requirements shown to the right.

OPERATING YOUR WINE CHILLER

Red Wines

58 - 65 ºF

14 - 18 ºC

Rose Wines

49 - 51 ºF

9 - 11 ºC

Dry / White Wines

48 - 57 ºF

10 - 13 ºC

Sparkling Wines

40 - 47 ºF

5 - 8 ºC

Model: WCF149SE3S – SINGLE ZONE

Model: WCF148DE3S – DUAL ZONE

It is recommended you install the appliance in a place where the ambient temperature is between 7278 degrees Fahrenheit. If the ambient temperature is above or below recommended temperatures, the performance of the unit may be affected. For example, placing your unit in extreme cold or hot conditions may cause interior temperatures to fluctuate. The range of 40-65 degrees Fahrenheit may not be reached. Your wine chiller is designed to operate with at a range of 40º - 65º F (5 – 18ºC).

Recommended Temperatures for Chilling Wine.

ON/OFF Power

To turn OFF the appliance, press the

button and hold 2 seconds.

Setting the temperature control

You can select temperature display setting from Fahrenheit to Celsius degree by touching the button. Fahrenheit or Celsius degrees indicator will appear i n blue color in the temperature display window.

Model: WCF149SE3S – Single zone - ONLY If you desire to change the temperature, set the t emperature as you des ire by touching the

button. First press t he you desire to set will increase 1ºF or 1ºC if you touch the temperature will decrease 1ºF or 1ºC if you touch the

Model: WCF148DE3S – Dual zone ONLY The temperature range of lower zone is 1 2º-18ºC ( 54-65ºF ) wh ich is suita ble f or stor ing white and red wines. The temperature range of upper zone is 5º-13ºC (40-56ºF) which is suitable for storing sparkling and white wines.

If you desire to change the temperature, set the t emperature as you des ire by touching the

button. The numbers in the dis play window will flash. The temperature that

button once; on the contrary the

button once.

button. Touch t he The numbers in the dis pla y window will flas h. The temperature that you des ire to s et will inc rease 1 ºF

or 1ºC if you touch the touch the

button once.

button once t o selec t the lower zo ne and once m ore to select the upper zone.

button once; on the contrary the temperature will decrease 1ºF or 1ºC if you

NOTE:

Figure A

Figure B

• If the unit is unplugged, power lost, or turned off, you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the Wine Chiller will not start.

• When you use the wine chiller for the first time or restart the wine chiller after having been shut off for a long time, there could be a few degrees variance between the temperature you select and the one indicated on the LED readout. This is normal and it is due to the length of the activation time. Once the wine chiller is running for a few hours everything will be back to normal.

 STORAGE

Many bottles may differ in size and dimensions. As such the actual number of bottles you may be able to store may vary. NOTE: Capacity: Bottle capacities are approximate maximums when s toring traditional Bordeaux 750 ML bottles and include bulk storage.

 INTERIOR LIGHT

• You can turn the interior light on or off by pushing the button marked

 SHELVES

The appliance is equipped with wooden shelves. You can move the shelves in and out smoothly.

PULL-OUT ROLLER SHELVES

• To prevent damaging the door gasket, make sure to have the door all the way opened when pulling shelves out of the rail compartment.

• For easy access to the bottles, you must pull the shelves approximately 1/3 out of the rail com par tm ent.

• To remove the shelves out of the rail pull each shelf approximately 1/3 out. Use a long flat screwdriver to press down the right plastic notch as shown in Figure A and at the same time lift the left plastic notch as shown in Figure B. Then proceed to pull out the shelf slowly. Contact our service department if assistance is needed.
