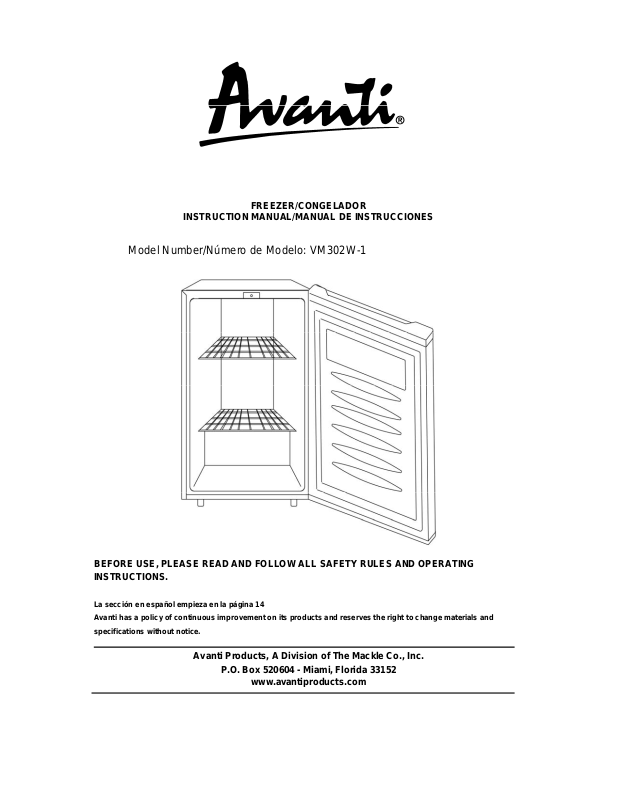

Page 1
FREEZER/CONGELADOR
INSTRUCTION MANUAL/MANUAL DE INSTRUCCIONES
Model Number/Número de Modelo: VM302W-1
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING
INSTRUCTIONS.
La sección en español empieza en la página 14
Avanti has a policy of continuous improvement on its products and reserves the right to change materials and
specifications without notice.
Avanti Products, A Division of The Mackle Co ., Inc.
P.O. Box 520604 - Miami, Florida 33152
www.avantiproducts.com
Page 2
TABLE OF CONTENTS
Freezer Safety 3
Important Safe Guides 4
Help Us Help You 5
Parts and Features 6
Important Safety Instructions 7
Electric al Connection 8
Installation Instructions 9
Before Using Your Freezer 9
Installation of Your Freezer 9
Operating Your Freezer 9
Temperature Control 9
Defrosting Your Freezer 9
The Freezer Compartment 10
Care and Maintenance 10
Cleaning Your Freezer 10
Vacation Time 10
Moving Your Freezer 10
Energy Saving Tips 10
Reversing the Door Swing of Your Freezer 10
Troubleshooting Guide 11
Service for Your Freezer 12
Wiring Diagram 12
Your Avanti Products Warranty 13
Instrucciones en Español 14 – 18
Warranty Information and Registration Card 19
2
Page 3
FREEZER SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual for your appliance. Always read and
obey all safety messages.
This is the Safety Alert Symbol. This symbol alerts you to potential hazards that
can kill or injure you and others. All safety messages will follow the Safety
Alert Symbol and either the words” DANGER”, “WARNING” o r “CAUTION”.
Danger means that failure to heed this safety
statement may result in severe personal
injury or death.
Warning means that failure to heed this
safety statement may result in extensive
product damage, serious personal injury, or
death.
Caution means that failure to heed this
safety statement may result in minor or
moderate personal injury, property or
equipment damage.
All safety messages will alert to know what potential hazard is, tell you how to reduce the chance of
injury, and let you know what can happen if the ins tructions are not followed.
3
Page 4
IMPORTANT SAFEGUIDES
Before the freezer is used, it must be properly positioned and installed as
described in this manual, so read the manual carefully. To reduce the risk of fire,
electrical shock or injury when using the freezer, follow basic precaution,
including the following:
Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and do
not use an ext en sion cord.
Replace all panels before operating.
It is recommended that a separate circuit, serving only your freezer be provided. Use receptacles
that cannot be turned off by a switch or pull chain.
Never clean freezer parts with flammable fluids. These fumes can create a fire hazard or explosion.
And do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appli a n ce. The fumes can create a fi r e ha z ard or explosion.
Before proceeding with cleaning and maintenance operations, make sure the power line of the unit
is disconnected.
Do not connect or disconnect the electric plug when your hands are wet.
Unplug the freezer or disconnect power before cleaning or servicing. Failure to do so can result in
electrical shock or death.
Do not attempt to repair or replace any part of your freezer unless it is specifically recommended in
this manual. All other servicing should be referred to a qualified technici an.
FOLLOW WARNING CALL OUTS BELOW ONLY WHEN APPLICABLE T O YOUR MODEL
Use two or more people to move and install freezer. Failure to do so can result in back or other
injury.
To ensure proper ventilation for your freezer, the front of the unit must be completely unobstructed.
Choose a well-ventilated area with temperatures above 60°F (16
unit must be installed in an area protected from the element, suc h as wind, rain, water spray or
drips.
The freezer should not be located next to ovens, grills or other sources of high heat.
The freezer must be installed with all electrical, water and drain connections in accordance with
state and local codes. A standard electrical supply (115 V AC only, 60 Hz), properly grounded in
accordance with the National Electrical Code and loc al codes and ordinances is required.
Do not kink or pinch the power supply cord of freezer.
The fuse (or circuit breaker) size should be 15 amperes.
It is important for the freezer to be leveled in order to work properly. You may need to make several
adjustments to level it.
All installation must be in accordance with local plumbing code requirements.
Make certain that the pipes are not pinched or kinked or damaged during installations.
Check for leaks after connection.
Never allow children to operate, play with or crawl inside the freezer.
Although the unit has been tested at the factory, due to long-term transit and storage, the first batch
of cubes must be discarded.
Do not use solvent-based cleaning agents of abrasives on the interior. These cleaners may
damage or discolor the interior.
Do not use this apparatus for other than its intended purpose.
°
C) and below 90°F (32°C). This
4
Page 5
HELP US HELP YOU...
Read this guide carefully.
It is intended to help you operate and maintain
your new freezer properly.
Keep it handy to answer your questions.
If you don't understand something or you need
more help, please cal l:
Avanti Customer Service
800-220-5570
Keep proof of original purchase date (suc h as
your sales slip) with this guide to establish the
warranty period.
CAUTION:
THIS FREEZER IS NOT
DESIGNED FOR THE STORAGE
OF MEDICINE OR OTHER
MEDICAL PRODUCTS.
IF YOU NEED SERVICE
We're proud of our service and want you to be
pleased. If for some reason you are not happy
with the service you receive, here are some
steps to follow for further help.
FIRST, contact the people who serviced your
freezer. Explain why you are not pleased. In
most cases, this will solve the problem.
Write down the model and serial numbers.
You'll find them on a plate located on the rear
wall of the freezer.
Please write these numbers here:
____________________________________
Date of Purchase
____________________________________
Model Number
____________________________________
Serial Number
Use these numbers in any correspondence or
service calls concerning your freezer.
If you received a damaged freezer, immediately
contact the dealer (or builder) that sold you the
freezer.
Save time and money. Before you call for
service, check the Troubleshooting Gui de. It
lists caus es of minor oper a ting problem s that
you can correct yourself.
NEXT, if you are still not pleased, write all the
details, including your telephone number, and
send it to:
Customer Service
Avanti Products
10880 NW 30
Miami, FL 33172
th
Street
5
Page 6
PARTS AND FEATURES
1. Cabinet
2. Temperature Control
3. Left Leveling Leg
4. Right Leveling Leg
5. Door with Integrated Handle
6
Page 7
Important Safety Instructions
WARNING
Read all instructions before using the freezer.
DANGER or WARNING: Risk of child entrapment.
Child entrapment and suffocation are not problems of the past. Junked or abandoned
freezer are still dangerous. . . even if they will “just sit in the garage a few days.”
Before you throw away your old refrigerator or freezer: Take off the doors. Leave
the shelves in place so that children may not easily climb inside.
Never allow children to operate, play with, or crawl inside the freezer.
Never clean freezer parts with flammable fluids. The fumes can create a fire hazard or
explosion.
Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of
this or any other freezer. The fumes can create a fire hazard or explosion.
-Save these instructions-
Free Standing Units
To ensure not only the efficient operation of you r unit bu t also your s afe t y.
When installing your unit follow the steps as shown below:
Place your unit on a flat level surface that is strong enough to support the unit once it is
fully loaded.
To reduce the risk of fire, electrical shock,
or injury when using your freezer follow
these basic precautions:
Your unit is equipped with adjus table height leveling legs t o accommodate any
minimal changes in the level of the surface on which it is installed.
Countertop / Table Top Units
When installing units that can be placed on countertops, keep the following in mind:
Surface (countertop) is flat, level, and strong enough to support the unit once it is fully
loaded.
Surface is wide enough to accommodate the unit without any overhang.
Surface is deep enough to accommodate the unit when the door is opened to 90º
7
Page 8
ELECTRICAL CONNECTION
Improper use of the grounded plug can result in t he risk of electrical shock. If the power cord is
damaged, have it replaced by an authorized Avanti Products service center.
Warning
This appliance should be properly grounded for your safety. The power cord of this appliance is
equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the
possibility of electrical shock.
Do not under any circumstances cut or remove the third ground prong from the power cord supplied. For
personal safety, this appliance must be properly grounded.
This appliance requires a standard 115/120 Volt AC ~/60Hz electrical ground outlet with three-prong.
Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly
grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation to
have it replaced with a properly grounded 3-prong wall outlet.
The cord should be secured behind the appliance and not left exposed or dangling to prevent
accidental injury.
The appliance should always be plugged into it s own individual electrical outlet which has a v oltage
rating that matches the rating label on the appliance. This provides the best performance and also
prevent overloading house wiring circuits that could cause a fire hazard from overheated. Never unplug
the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from the
receptacle. Repair or replace immediately all power cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end.
When moving the appliance, be careful not to damage the power cord.
EXTENSION CORD
Because of potential safety hazards under certain conditions, it is strongly recommended that you do
not use an extension cord with this appliance. However, if you must use an extension cord it is
absolutely necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord
having a grounding type plug and outlet and that the electrical rating of the cord be 115 volts and at least
10 amperes.
SURGE PROTECTOR
Most electrical appliances use a series of electric control boards to operate. These boards are very
susceptible to power surges and could be damaged or destroyed.
If the appliance is going to be used in an area or if your city / country is prone to power surges / outages;
it is suggested that you use a power surge protector for all electrical devices / appliances you use. The
surge protector that you select must have a surge block high enough to protect the appliance it is
connected to. If you have any questions regarding the type and size of surge protector needed contact
a licensed electrician in your area.
Damages due to power surges are not considered a manufacture r covered defect and will void your
product warranty.
8
Page 9
INSTALLATION INSTRUCTIONS
Before Using Your Appliance
Remove the exterior and interior packing.
Check to be sure you have all of the following parts:
1 Instruction Manual 1 Plastic Spatula
1 Thermostat Key 1 Ice Cube tray
Before connecting the appliance to the power source, let it stand upright f or approximately 2
hours. This will reduce the possibility of a malfunction in the cooling system from handling
during transportation.
Clean the interior surface with lukewarm water using a soft cloth.
Installation of
Place your freezer on a floor that is strong enough to support the freezer when it is fully loaded.
To level your freezer, adjust the legs at the front of the freezer.
Allow 5 inches of space between the back and sides of the freezer, which allows the proper air
circulation to cool the compressor.
Locate the freezer away from direct sunlight and sources of heat (stove, heater, radiator, etc.).
Direct sunlight may affect the acrylic coating and heat sources may increase electrical
consumption. Extreme cold ambient temperatures may also cause the freezer not to perform
properly.
Avoid locating the freezer in moist areas. Too much moisture in the air will cause frost to form
quickly on the evaporator requiring more frequent defr osting of the freezer.
Your Freezer
Plug the freezer into an exclusive properly inst alled-grounded wall outlet. Do not under any
circumstances cut or remove the third (ground) prong from the power cord. Any questions
concerning power and or grounding should be directed toward a certified electrician or an
authorized Avanti Products service center.
OPERATING YOUR FREEZER
Temperature Control
The first time you turn the unit on using the thermostat key provided set the temperature control to
the maximum setting or the “4” position. (See page 6 for thermostat location).
The range of the temperature control is from position" OFF" the warmest to “4 the coldest. After 24 to
48 hours, using the thermostat key provided adjust the temperature control t o the setting that best
suites your needs. The setting of “3” should be correct for home or office freezer use.
NOTE:
If the unit is unplugged, power lost, or turned off; you must wait 3 to 5 minutes before restarting
the unit. If you attempt to restart before this time delay, the freezer will not start.
Defrosting Your Freezer
When
How?
? For the most efficient operation and minimum energy consum ption, defrost the freezer
compartment when the frost on the freezer walls is excessive or ¼ inch thick.
To start defrosting, unplug the freezer, remove the food and baskets. After the frost or ice has
melted, discard the melted water and dry up the interior of refrigerator. Then the freezer can be
restarted by a turning its thermostat to the desired setting.
Do not use boiling water because it may damage the plastic parts. In addition, never use
a sharp or metallic instrument to remove frost as it may damage the cooling coils and
will void the warranty. We recommend using a plastic scraper.
Use a sponge or towel to pick up the melting ice off the freezer floor.
Remove the frozen food from the freezer and place it in a cooler to protect the food.
CAUTION
9
Page 10
The Freezer Compartment
This c ompartm ent is designed for the long term storage of frozen food.
The storage life of frozen foods varies and the recommended storage time should not be
exceeded. The instructions regarding the care of frozen foods should be followed when
defrosting the freezer.
Pre -packed commercially frozen food should be stored in accordance with th e frozen foods
manufacturer’s instructions for a three st ar frozen food storage compartment or home freezer.
Place frozen food into the freezer as quickly as possible after purchase. If there are instructions
on the packet, carefully follow these instructions regarding storage times.
The freezer door is susceptible to breaking due to excessiv e ice build up. Be sure to defrost
when the ice reaches ¼ inch thick.
CARE AND MAINTENANCE
Cleaning Your Freezer
Unplug the freezer, and remove the food, and baskets.
Wash the inside with a warm water and baking soda solution. The solution should be about 2
tablespoons of baking soda to a quart of water.
Wash the baskets with a mild detergent solution.
The outside of the freezer should be cleaned with mild detergent and warm water.
Failure to unplug the freezer could result in electrical shock or personal injury.
Power Failure
Most power failures are corrected within a few hours and should not affect the temperature of
your freezer if you minimize the number of times the door is opened. If the power is going to be
off for a longer period of time, you need to take the proper steps to protect your food.
CAUTION
Vacation Time
During long absences, remove all the food; unplug your freezer, clean your freezer, and leave the
door open slightly to avoid possible formation of condensation, mold, or o dors.
Moving Your
Remove all the food.
Securely tape down all loose items inside your freezer.
Turn t he leveling screws up to the base to avoid damage.
Tape the door shut.
Be sure the freezer stays in the upright position duri ng transportation.
Energy Saving Tips
The freezer should be located in the coolest area of the room, away from heat producing
appliances or heating ducts, and out of the direct sunlight.
Let hot foods cool to room temperature before placing in the freezer. Overloading the freezer
forces the compressor to run longer. Foods that f reeze too slowly may lose quality, or spoil.
Be sure to wrap foods properly, and wipe containers dry bef ore placing them in the freezer.
This cuts down on frost build-up inside the freezer.
Freezer st orage bask ets shoul d not be lined with aluminum foil, wax paper, or paper toweling.
Liners interfere with cold air circulation, making the freezer less efficient.
Organize and label food to reduce door openings and extended search es. Remove as many
items as needed at one time, and close the door as soon as possible.
Reversing the Door Swing of Your Freezer
This freezer has the capability of either opening the door from the left or right side. The unit is delivered
to you with the door opening from the left side. Should you des ire to reverse the opening direction,
please call customer service for reversal instructions.
Freezer
10
Page 11
PROBLEMS WITH YOUR FREEZER?
You can solve many common freezer problems easily, saving you the cost of a possible service call. Try
the suggestions below to see if you can solve the problem before calling the servicer.
TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE CAUSE
Freezer does not operate properly.
Compressor turns on and off frequently. The room temperature is hotter than normal.
Vibrations. Check to assure that the freezer is level.
The freezer seems to make too much noise.
The door will not close properly.
Not plugged in.
The circuit breaker tripped or blown fuse.
The thermostat is set to the minimum or “1”
position.
The thermostat is set to the “OFF” position.
A large amount of food has been added to the
freezer.
The door is open too often.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
The freezer does not have the correct clearances.
The rattling noise may come from the flow of the
refrigerant, which is normal.
As each cycle ends, you may hear gurgling
sounds caused by the flow of refrigerant in your
freezer.
Contraction and expansion of the inside walls may
cause popping and crackling noises.
The freezer is not level.
The freezer is not level.
The door is reversed and not properly installed.
The gasket is dirty.
The baskets are out of position.
11
Page 12
SERVICE FOR YOUR FREEZER
We are proud of our customer service organization and the network of professional service technicians
that provide service on your Avanti freezers. With the purchase of your Avanti freezer, you can have the
confidence that if you ever need additional informatio n or assistance, the Avanti Products Customer
Service team will be here for you. Just call us toll-free.
AVANTI PRODUCTS CUSTOMER SERVICES
Product Information
800-323-5029
Part Orders
800-220-5570
In-Home Repair Service
800-220-5570
Whatever your questions are about our products,
help is available.
You may order parts and accessories that will be
delivered directly to your home.
You may order these items by personal check,
money order, Master Card, or Visa.
An Avanti Products authorized service center will
provide expert repair service, scheduled at a time
that is convenient for you. Our trained servicers
know your freezer inside and out.
Wiring Diagram
12
Page 13
YOUR AVANTI PRODUCTS
WARRANTY
Staple your sales receipt here. Proof of original
purchase date is needed to obtain service under
warranty.
WHAT IS COVERED – LIMITED ONE-YEAR WARRANTY
Avanti Products warrants that the product is free from defects in materials and/or workmanship for a period of
twelve (12) months from the date of purch ase by the original ow ner. The fore going t imeline begi ns to run u pon the
date of purchase, and shall not be stalled, tolled, extended, or suspended for any reason whatsoever unless
described in detail in the warranty document. For one year from the date of purchase by the original owner, Avanti
products will, at its option, repai r or replace any part of the product which proves to be defective in material or
workmanship under normal use. Avanti Products will provide you with a reasonably similar product that is either
new or factory refurbished. During this period Avanti Products will provide all parts and labor necessary to correct
such defects free of charge, so long as the product has been installed and operated in accordance with the written
instructions in this manual. In rental or commercial use, the warranty period is 90 days. All Avanti app liances of 3.5
cubic feet capacity or less must be brought/sent to the appliance service center for repair.
LIMITED SECOND THROUGH FIFTH YEAR WARRANTY
For the second through the fifth year from the date of origina l purchase, Avanti Product s will provide a replacem ent
compressor free of charge due to a fai lure. Y ou are respo nsibl e for the servi ce l abor and fre ight char ges. In ren tal
or commercial use, the limited compressor warranty is one year and nine months. Costs involved to move the
product to the service center and back to the user’s home, as maybe required, are the user’s responsibility.
WARRANTY EXCLUSIONS / WHAT IS NOT COVERED:
The warranty coverage described herein exclu des all defects or damage that are not the direct fault of Avanti
Products, including without limitation, one or more of the follow ing:
A failure to comply with any applicable state, local, city, or county electrical, plumbing and/or building codes,
regulations, or laws, including failure to install the product in strict conformity with local fire and building codes
and regulations.
Any external, elemental and/or environmental forces and factors, including without limitation, rain, wind, sand,
floods, fires, mud slides, freezing temperatures, excessive moisture or extended exposure to humidity, lightning,
power surges, structural failures surrounding the appliance, and acts of God.
Content losses of food or other content due to
spoilage.
Incidental or consequential damages
Parts and labor costs for the following will not be
considered as warranty:
Evaporator doors, door springs, and/or frames.
Inner door panels, door shelves, door rails, and/or
door supports.
Chest freezer lid liners.
Vegetable crispers.
Light bulbs and/or plastic housing.
Plastic cabinet liners.
Punctured evaporator that void s th e wa rra nty on
the complete sealed system.
In no event shall Avanti Products have any liabi lity or responsibility whatsoeve r for damage to surrounding property ,
including cabinetry, floors, ceilings, and other structures and/or objects around the product. Also excluded from this
warranty are scratches, nicks, minor dents, and other cosmet ic dam age s on externa l surfaces and expos ed pa rts ;
Products on which the serial numbers have been altered, defaced or removed; service visits for customer
education, or visits where there is nothing wrong with the product; correction of installation problems (you are solely
responsible for any structure and setting for the product, including all electrical, plum bing and/or other connecting
facilities, for proper foundation/flooring, and for any alterations including without limitation cabinetry, walls, floors,
shelving etc., as well as the resetting of breakers or fuses.
OUT OF WARRANTY PRODUCT
Avanti Products is under no obligation, at law or otherwise, to provide you with any concessions, including repairs,
pro-rates, or product replacement, once this warranty has expired.
Shipping and handling costs associated with the
replacement of the unit.
Repairs performed by unauthorized servicers.
Service calls that are related to external problems,
such as abuse, misuse, inadequate electrical power,
accidents, fire, floods, or any other acts of God.
Failure of the product if it is used for other than it
intended purpose.
The warranty does not apply ou tside the Continental
USA.
Surcharges including but not limited to, any after
hour, weekend, or holiday servic e call s , tolls, ferry
trip charges, or mileage expense for servi ce call s to
remote areas.
WARRANTY – REFRIGERATION - COMPRESSOR
13
Page 14
INSTRUCCIONES ES ESPAÑOL
Para reducir el riesgo de incendio, descarga
PRECAUCIÓN
Lea todas las instrucciones antes de usar su electrodoméstico.
Peligro o Precaución: Existe el riesgo que los niños queden atrap ados.
Niños atrapados o sof ocamiento no son un problema del pasado. Los electrodomésti cos
son peligrosos aún si solo los deja en el garaje por un par de días.
Antes de desechar su congelador o refrigerador usado: quítele las puertas. Deje las
repisas en su lugar para evitar que los niños se queden atrapados.
No permita que los niños manejen, jueguen o entren dentro del electrodoméstico.
No limpie su electrodoméstico con líquidos inflamables. Los gases pueden ocasionar
fuego o una explosión.
No guarde ni use gasolina u otros líquidos inflamabl es cerca de este o de cualquier otro
electrodoméstico. Los vapores pueden ocasionar fuego o explosión.
- Guarde estas instrucciones.-
INSTRUCCIONES PARA LA INSTALACION
Antes de usar su artefacto
Retire la envoltura interna y externa.
Verifique que tenga las siguientes partes: 1 cubetero de hielo, 1 llave del Termostato, 1 manual de
instrucc i on e s y 1 espátula de plástico
Antes de conectar su electrodoméstico a la corriente eléctrica, ubíquelo en una superficie plana por
lo menos por 2 horas. Esto reducirá la posibilidad de malfuncionamiento en el sistema de
enfriamiento por el manipuleo durante el transporte.
Limpie la superficie interior con agua tibia usando un trapo suave.
Instalación de su congelador
Ubique su congelador en un piso que sea lo suficientemente fuert e para soportar su peso cuando
este totalmente lleno o cargado. Para nivelar el congelador, ajuste las patas delanteras.
Deje aproximadamente 5 pulgadas de espacio entre la parte traser a y los costados de su
electrodoméstico, así permitirá la circulación de aire necesaria para enfriar el compresor.
Mantenga su congelador alejado del aire caliente, vapor o líquidos que puedan salpicarlo, ya que la
unidad podría averiarse.
Los rayos solares directos pueden malograr la capa acrílica, y las fuentes de calor pueden
ocasionar un aumento en el consumo eléctrico. Manténgalo lo más alejado posible del agua para
prevenir algún choque eléctrico. Evite los sitios húmedos y los ambientes extremadamente fríos ya
que esto puede afectar la eficiencia del enfriamiento de su congelador.
Evite ubicar su congelador en áreas mojadas o muy húmedas. Mucha humedad en el aire puede
causar la formación de escarcha rapidamente y necesitará descongelar su congelador más
frecuentemente.
Conecte el congelador a un enchufe de pared exclusivo e instale el c able de tierra. Bajo ninguna
razón se debe retirar la tercera punta del enchufe. Cualquier consulta con respecto a la energía y/o
cable de tierra debe ser dirigida a un electricista certificado o autorizado por el Servicio Técnico de
Avanti Products.
eléctrica, o daño cuando use su
electrodoméstico, siga las siguientes
precauciones.
14
Page 15
Conexión Eléctrica
EL USO INAPROPIADO DEL ENCHUFE A TIERRA PUEDE OCASIONAR RIESGO DE UN
CHOQUE ELECTRICO. SI EL CORDON SE DAÑASE, LLEVELO A UN CENTRO DE SERVICIO
AUTORIZADO POR AVANTI PRODUCTS PARA QUE SE REEMPLACE.
Para su seguridad, esta máquina de hacer hielo debe estar apropiadamente conectada a tierra. El
cordón eléctrico de esta máquina de hacer hielo esta equipado con un enchufe de t res puntas, el
cual encaja perfectamente en los receptáculos/enchufes de pared de tres punt as estándar, para
minimizar la posibilidad de un choque eléctrico.
Bajo ninguna circunstancia corte o retire la tercera punta (cable a tierra) del enc hufe del cordón
eléctrico.
Nunca use un cable de extensión para conectar la unidad a la electricidad.
Nunca use un adaptado con enchufe de solo 2 puntas.
Si solo puede conectar la máquina de hacer hielo a un receptáculo/enchufe de pared de 2 puntas,
comuníquese con un electricista calificado para que reemplace ese recept áculo/enchufe de pared
por uno de 3 puntas, de acuerdo con los códigos de electricidad aplicables.
Esta máquina de hacer hielo requiere un receptáculo/enchufe de pared de tres puntas estándar de
115/120 voltios a.c.~/ 6 0hz.
Para prevenir cualquier daño físico o lesión, el cordón debe ser asegurado detrás de la máquina de
hacer hiel o y no estar expuesto o colgando.
ADVERTENCIA
Cable de Extensión
Debido al posible riesgo de seguridad causado bajo ciertas circunstancias, se recomienda firmemente
que no use un cable de extensión para este electrodoméstico. Sin embargo, si no tiene otra opció n
mas que usar un cable de extensión, asegúrese que este sea un cable de extensión para
electrodomésticos que este listado bajo UL/CUL, que tenga enchufe y receptáculo para enchufe de tres
puntas (cable a tierra) y que la capacidad del cordón eléctrico sea de 115 voltios y no menos de 10
amperios.
Protector contra variaciones de corriente eléctrica (Surge Protector).
La mayoría de electrodomésticos utilizan una series de paneles de control para operar. Estos paneles
son muy susceptibles a las variaciones de corriente eléctrica, las cuales causan que estos se dañen o
destruyen.
Si vive en un área o ciudad done hay muchas variaciones de corriente o apagones, se recomienda que
utilice un protector contra variaciones de corriente para todos los electrodomésticos y aparatos
eléctricos. El protector que elija debe bloquear una variación de electricidad alta para poder proteger el
electrodoméstico al cual está conectado. Por favor contáctese con un electricista licenciado en su área
si tuviera preguntas en referencia al tipo y t amaño de protector que necesita.
Daños debido a variaciones de electricidad no se consideran un defecto del fabricante y podrían anular
la garantía.
15
Page 16
COMO CAMBIAR LA DIRECCION DE APERTURA DE LA PUERTA
En caso de que necesite cambiar el lado de apertura de la puerta, por favor consulte al servicio
posventa de su localidad o al empleado que le vendio la unidad.
USANDO SU CONGELADOR
Control de temperatura
Su congelador tiene un c ontrol que r egula la temperatura. El control d e temperatura está
ubicado en la esquina inferior a mano derecha.
La primera vez que encienda el congelador, ponga la temperatura en la posición de
enfriado máximo, usando la llave del termostato provista. (Si extravía la llave, puede usar
una moneda o un destornillador plano). (Vea la página 6 para localización del termostato)
El control de temperatura va desde lo más caliente “OFF” a lo más frío “4”. Después de 24
a 48 horas, ajuste el control de temperatura al nivel que ust ed necesite. El nivel “3” es el
más adecuado para uso en la casa u oficina.
Para detener el ciclo de congelamiento, voltee el control de temperatura a “OFF”
NOTA:
Si gira la t emperat ura a la posición “OFF” detendrá el ciclo de enfriamiento, esto no significa
que apagará el congelador.
Si la unidad se desconecta, pierde corriente o se apaga la llave principal, tendrá que esperar 3
a 5 minutos para volver a reiniciar la unidad. Si usted intenta reiniciar antes de este tiempo su
congelador no encenderá.
No use agua hirviendo porque dañará las partes de plástico. Tampoco use puntas o
instrumentos metálicos para retirar la escarcha ya que dañará el espiral de enfriamiento y
cancelará la garantía. Le recomendamos usar la espátula de plástico.
Retire los alimentos del congelador y colóquelos en una caja térmica para conservarlos y
protegerlos.
Este compartimiento está diseñado para un periodo largo (3 meses) de almacenamiento de
alimentos congelados.
El tiempo de almacenamiento de los alimentos congelados varía y se recomienda almacenarlos
solamente mientras esté vigente la fecha de expiración. Cuando descongele su congelador
deberá seguir cuidadosamente las inst rucciones.
Alimentos congelados preenvasados comercialmente deben ser almacenados de acuerdo con las
indicaciones de su fabricante.
Coloque los alimentos congelados dentro de su congelador inmediatamente después de
comprarlos. Si hay indicaciones en el envase, sígalas cuidadosamente considerando el tiempo de
almacenamiento.
La puerta del congelador puede quebrarse cuando hay mucho hielo. Asegúrese de descongelarlo
cuando el hie l o haya excedi do ¼ pu lgada de espe s or.
CUIDADO Y MANTENIMIENTO
Limpiando su congelador
Gire el control de temperatura a “0FF”, desconecte el congelador y retire los
alimentos.
Lave el interior con agua tibia y un trapo suave remojado en una solución de
bicarbonato de sodio. La solución consiste en 2 cucharadas de bicarbonato de sodio y
un litro de agua.
Lave la canasta de almacenaje con un detergente s uave.
Las partes externas de su congelador deben ser limpiadas con un detergente suave y
agua tibia.
ADVERTENCIA
Compartimiento de su congelador
16
Page 17
ADVERTENCIA
Asegúrese de desconectar el congelador de la corriente eléctrica. Si no lo hace, puede
ocasionar un choque eléctrico o herirse.
Si falla el suministro eléctrico
Usualmente la electricidad regresa en unas pocas horas sin afectar la temperatura de su congelador,
siempre que la puerta no se abra muy frecuentemente. Si le va faltar electric idad por un período de
tiempo más largo, usted debe tomar los pasos apropiados para proteger sus alimentos.
Si usted sale de vacaciones
Retire todos los alimentos si va a estar ausente por un período largo; desconecte y limpie su
congelador.
Deje la puerta del congelador ligeramente abierta para evitar la formación de mal olor, moho.
Para mover su congelador
Retire los alimentos.
Asegúrese de colocar cinta adhesiva a todo lo que se puede caer dentro de su congelador.
Retire las patas para prevenir que se dañen.
Selle las puertas con cinta adhesiva.
Asegúrese que el congelador se mantenga parado durante el traslado.
Consejos para ahorrar energía
Su congelador debe estar ubicado en el área más fría de la habitación, alejado de
electrodomésticos que produzcan calor o conductos de aire caliente y lejos de los rayos
solares.
Los alime ntos calientes deben estar a temperatura ambiental antes de colocarlos en el
congelador. Si sobrecarga su congelador forzará al compresor a funcionar más tiempo del
normal. Los alimentos que se congelan lentamente pierden calidad y se malogran.
Asegúrese de envolver adecuadamente los alimentos y de secar los empaques o
contenedores antes de colocarlos dentro del congelador. Colocarlos mojados ocasiona
escarcha en el congelador.
La canasta de almacenaje de su congelador no debe ser forrada con papel aluminio, papel de
cera o papel toalla ya que esto interfiere con la circulación del aire frío restando eficiencia a su
congelador.
Organice y coloque etiquetas en los envases de los alimentos con la finalidad de abrir el
congelador lo menos posible y encontrar rápidam ente lo que usted está buscando. Retire la
mayor cantidad posible de cosas que necesita a la vez y cierre la puerta del congelador tan
pronto le sea posible.
17
Page 18
PROBLEMAS CON SU CONGELADOR
Usted puede resolver muchos problemas comunes de su electrodoméstico fácilmente, ahorrándole el
gasto de una posible visita del servicio técnico.
Pruebe las siguientes sugerencias para verificar si usted puede resolver el problema antes de llamar al
servicio técnico.
GUIA PARA SOLUCIONAR PROBLEMAS
PROBLEMA SOLUCIÓN
Su electrodoméstico no funciona No está conectado a la corriente eléctrica.
El interruptor saltó o se quemó un fusible
El control de temperatura está en “OFF” o en la posición “1”
El compresor se enciende y se apaga
frecuentemente
Vibración. Asegúrese que el congelador esté ubicado en un lugar
Sonido de burbujeo, goteo, como agua
que hierve o crujidos.
La puerta no cierra completamente El congelador no está totalmente nivelado.
La temperatura de la habitación es más caliente de lo normal.
Colocó demasiados alimentos descongelados al mismo
tiempo.
La puerta permanece abierta mucho tiempo.
La puerta no quedó completamente cerrada.
El control de temperatura no está funcionando correctamente.
La empaquetadura de la puerta no está sellada
adecuadamente.
El congelador no tiene el suficiente espacio libre.
totalmente plano.
Esto es normal. Es el refrigerante (usado para enfriar el
congelador) que está circulando a través del sistema.
La contracción y expansión de las paredes i nternas puede
ocasionar s o n i dos como crujidos.
La dirección de apertura de la puerta fue invertida pero
instalada incorrectamente.
El sellador de la puerta está sucio.
La canasta de almacenaje está fuera de su sitio obstaculizando
el cierre de la puerta.
18
Page 19
Registration Information
Thank you for purchasing this fine Avanti product. Please fill out this form and return it to the following
address within 100 days from the date of purchase and receive these important benefits:
Avanti Products, A Division of The Mackle Co ., Inc.
P.O.Box 520604 – Miami, Florida 33152
Protect your product:
We will keep the model number and date of purchase of your new Avanti product on file to help
you refer to this information in the event of an insurance claim such as fire or theft.
Promote better products:
We value your input. Your responses will help us develop products designed to best meet your
future needs.
---------------------------------------------------(detach here)-----------------------------------------------------------------
Avanti Registration Card
Name Model # Serial #
Address Date Purchased Store / Dealer Name
City State Zip E-mail Address
Area Code Phone Number Occupation
Did You Purchase An Additional Warranty As your Primary Residence, Do You:
Extended Own Rent
None
Your Age:
Reason for Choosing This Avanti Product:
Please indicate the most important factors
That influenced your decision to purchase this
product:
Price
Product Features
Avanti Reputation
Product Quality
Salesperson Recommendation
Other: ___________________
Friend / Relative Recommendation
Warranty
Other: ___________________
Comments:
under 18 18-25 26-30
31-35 36-50 over 50
Marital Status:
Married Single
Is This Product Used In The:
Home Business
How Did You Learn About This Product:
Advertising
In-Store Dem o
Personal Demo
19
Page 20
VM302W-1 VER 1.0 – 09022011 PRINTED IN CHINA
20
Loading...
