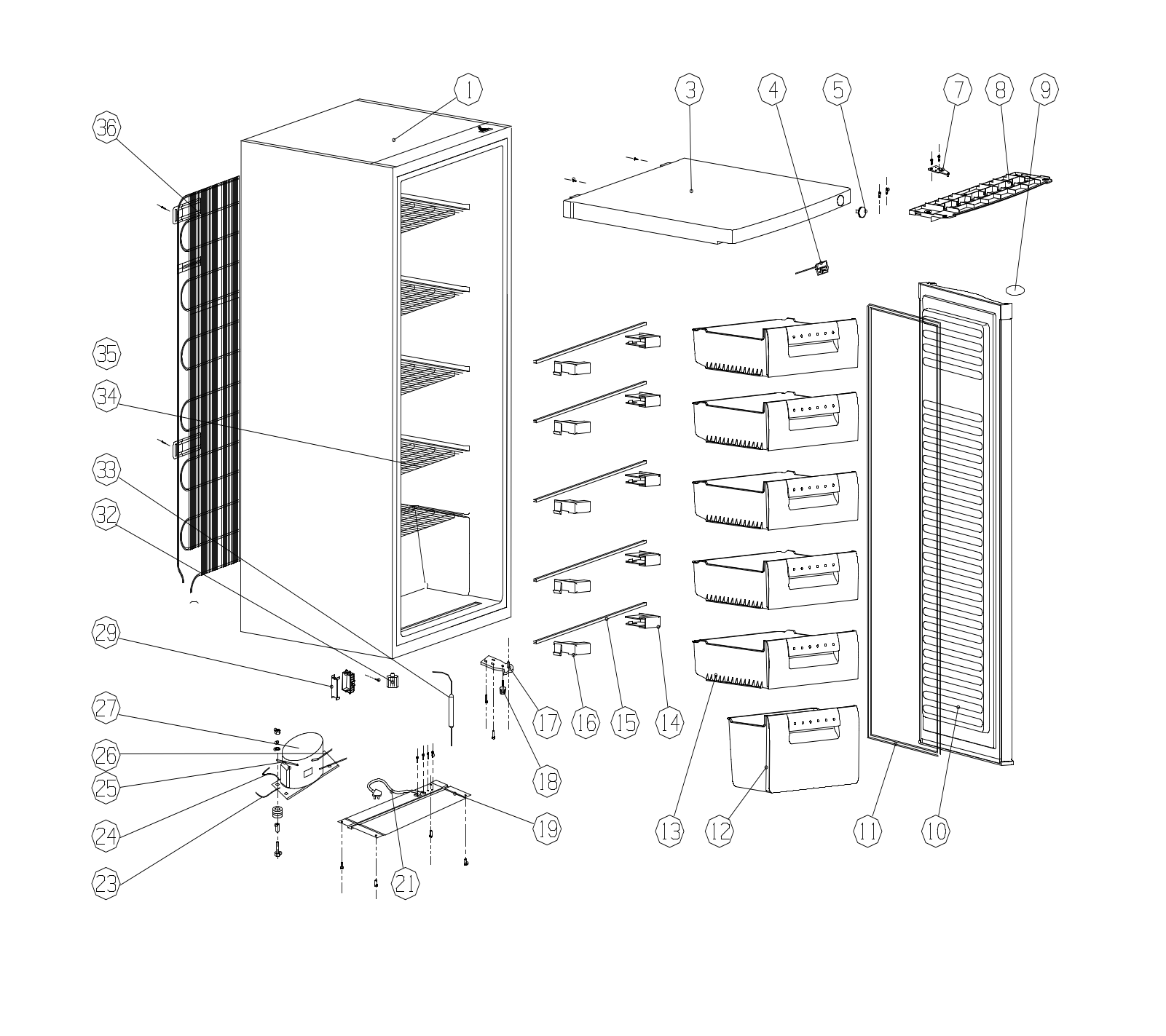

Avanti VM165 Parts List

No. Spare Part No. Description of Spare Part

1 10010378 Box body

Connecting wire of compressor

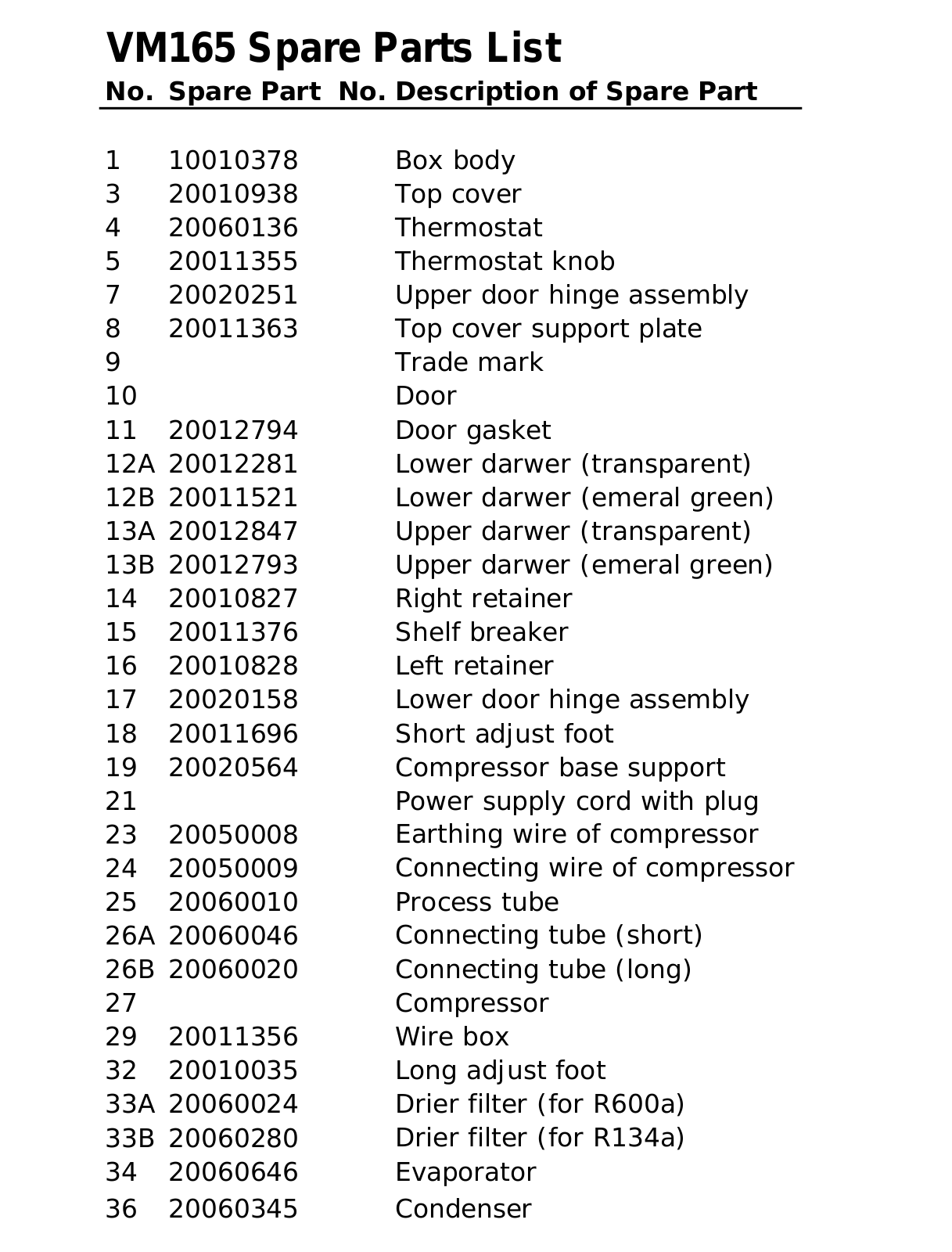

VM165 Spare Parts List

3 20010938 Top cover
4 20060136 Thermostat
5 20011355 Thermostat knob
7 20020251 Upper door hinge assembly
8 20011363 Top cover support plate
9 Trade mark
10 Door
11 20012794 Door gasket
12A 20012281 Lower darwer (transparent)
12B 20011521 Lower darwer (emeral green)
13A 20012847 Upper darwer (transparent)
13B 20012793 Upper darwer (emeral green)
14 20010827 Right retainer
15 20011376 Shelf breaker
16 20010828 Left retainer
17 20020158 Lower door hinge assembly
18 20011696 Short adjust foot
19 20020564 Compressor base support
21 Power supply cord with plug
23 20050008
24 20050009
25 20060010 Process tube
26A 20060046
26B 20060020
27 Compressor
29 20011356 Wire box
32 20010035 Long adjust foot
33A 20060024
33B 20060280
34 20060646 Evaporator

36 20060345 Condenser

Earthing wire of compressor

Connecting tube (short)
Connecting tube (long)

Drier filter (for R600a)
Drier filter (for R134a)
