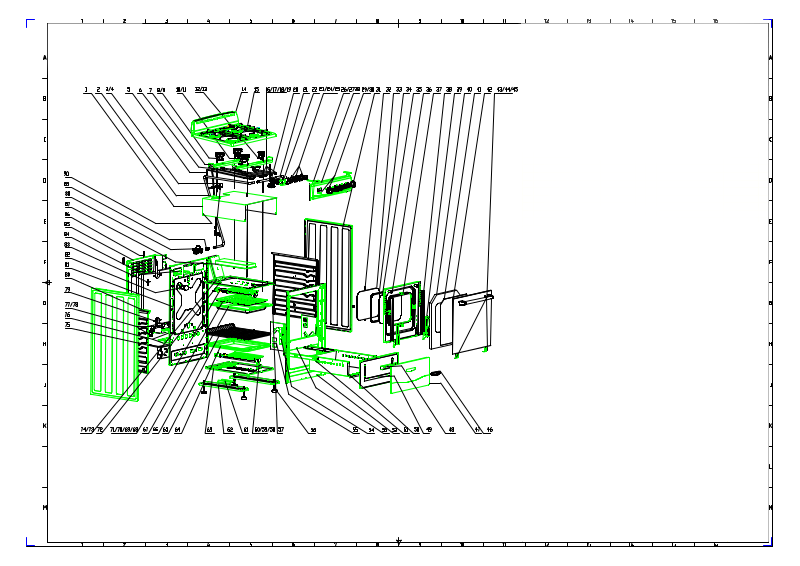

GR2414CW/ GR2415CB/GR2416CSS Spare parts list
Item No. Picture Description Part code Qty per unit
G24C01-011500-01 Assm 1
1
2 Foot G20C01-170500 4
3
4 Gas valve-Mid
5 gas valve-large
6 Gas valve-small
8
9 Lamp switch C20C01-170800 1
10 Regulator G20C01-034001 1
11 Small burner cover G20A01-040000-3 1
12 Small burner G20A01-040000-2 1
13 Mid burner cover G20A01-040100-3 2
14 Mid burner G20A01-040100-2 2
15 Large burner cover G20A01-040200-3 1
16 Large burner G20A01-040200-2 1
17 Small NG injector G20A01-021202 1
18 Small LPG injector G20A01-021200 1
19 Mid NG injector G20A01-021206 2
20 Mid LPG injector G20A01-021201 2
21 Large NG injector G20A01-021224 1
22 Large LPG injector G20A01-021203 1
23 Oven/Broil valve G20C01-030600 1
24 Oven/Broil injector base G20A01-021100 2
25 Oven injecto r NG G20A01-021224 1
26 Broil injector NG G20A01-021213 1
27 Oven injecto r LPG G20A01-021204 1
28 Broil injector LPG G20A01-021202 1
29 Regulator bracket G20C01-034500 1
30 Cook top
31 Pan support G24B02-021400 2
32
Backsplash assembly
Control panel
Knob
Broil tray G20C01-215000 1
G24C01-011500-02 Assm 1
G24C01-011500 Assm 1
G24C01-030304-01 1
G24C01-030304-02 1
G24C01-030313 1
G20C01-030407
G20C01-030406
G20C01-030402
G20A14-030100 7
G20A14-030101 7
G20A14-030102 6
G24C01-020103-01 1
G24C01-020103-02 1
G24C01-020103 1
2
1
1
Page 3
33 Broil grill G20C01-215100 1
34 Rack G24C01-071900 2
35 Oven burner ass embly G20A01-080100Assm 1
36 Broil burner assembly G20A01-090100Assm 1
37 door seal G24C01-071200 1
GC0026-100400 1
38
39 door inner glass G24C01-100500 2
40
41 Door hinge G24C01-110000 2
42 Hinge base(left) G20B01-101200 1
43 Hinge base(right) G20B01-101300 1
44
45
46 Drawer handle G20A01-120601 1
47 Anti-tip bracket G20A01-212500 1
door Outer glass
door handle assembly
Drawer front
Drawer assembly
GC0027-100400 1
GC0027-100400 1
G24A05-101900-02Assm 1
G24A05-101900-02Assm 1
G24A05-101900 1
G24C01-120100-01 1
G24C01-120100-02 1
G24C01-120100 1
G24C02-120200-01 1
G24C02-120200-02 1
G24C02-120200-04 1
