INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
Model Number / No. de Modelo:
COMPACT KITCHEN WITH REFRIGERATOR
MINI COCINA INTEGRADA CON REFRIGERADOR
CK36
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING
INSTRUCTIONS. AND SAVE FOR LOCAL ELECTRICAL I NSPECTOR.
La sección en español empieza en la página 21.
Avanti Products has a policy of continuous improvement on its products and reserves the right to change materials and
specifications without notice.
La política de Avanti es la de continuar mejorando sus productos y se reserva el derecho de cambiar los materiales y
especificaciones sin notificación alguna.
Avanti Products, A Division of The Mackle Co ., Inc.
P.O. Box 520604 - Miami, Florida 33152
www.avantiproducts.com
TABLE OF CONTENTS
Registration Information
Help Us Help You …
Parts And Features
Important Safety Instructions
Installation Instructions
Before Using Your Compact Kitchen
Energy Saving Tips
Installation Of Your Compact Kitchen
Electrical Connection
Power Supply Connections
Backsplash Installation (Only for Model CK30-1)
Water Faucet Installation And Water Line Connection

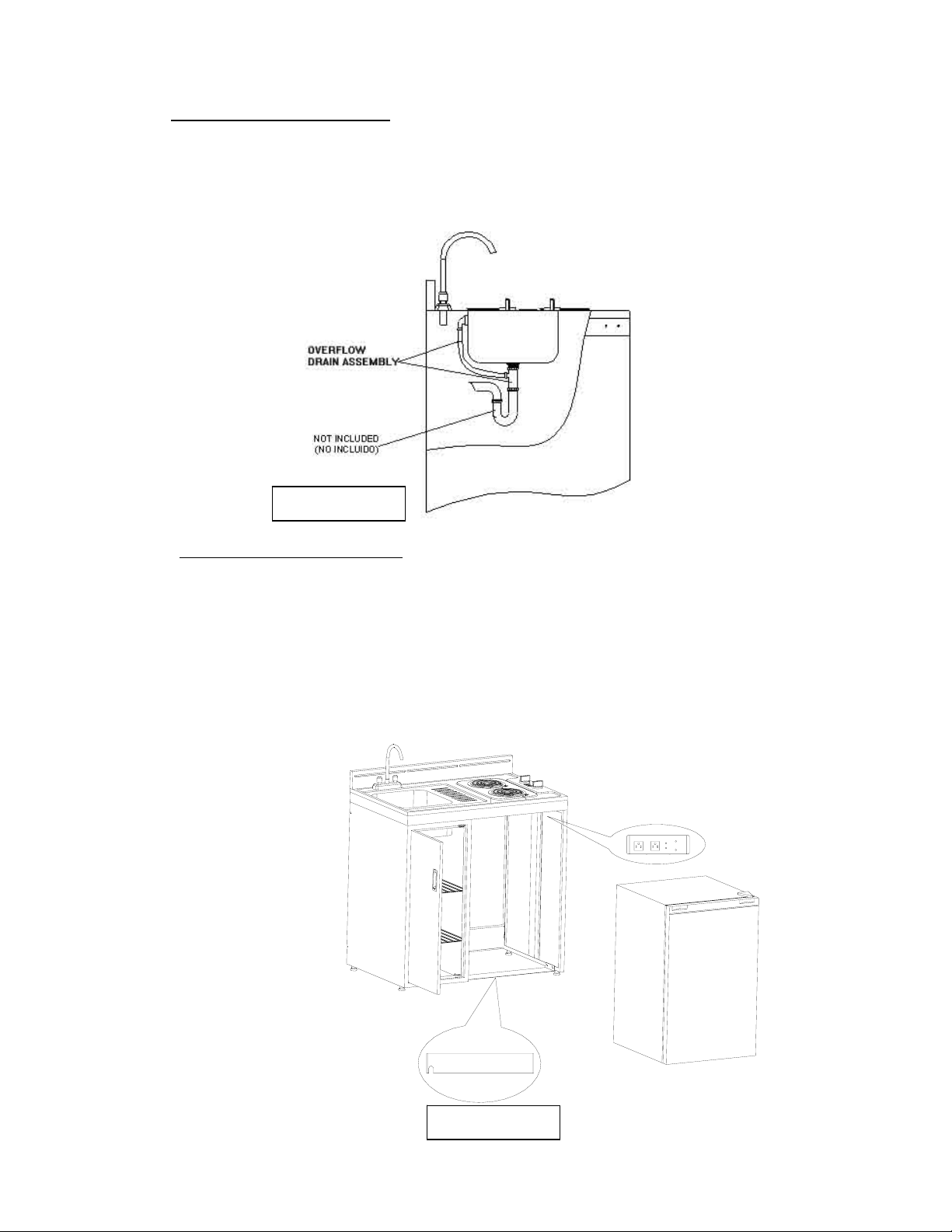

Sink Strainer Installation And Water Drain
Installation Of Your Refrigerator
Installation Of Side Tray (Tray Sold Separately)
Operating Your Compact Kitchen
Operating Your Refrigerator
Operating Your Burners
Directions for Use of Electrical Connection
Care And Maintenance
Cleaning Your Compact Kitchen
Cleaning Burners And Reflector Bowls
Power Failure
Vacation Time
Moving Your Compact Kitchen
Troubleshooting Guide
Service For Your Compact Kitchen
Your Avanti Products Warranty
Wiring Diagram
INSTRUCCIONES EN ESPAÑOL 21~25
10
11
11
12
12
13
13
14
14
14
15
15
15
15
16
17
18
19
20
2
4
5
7
9
9
9
9
14
15
2
HELP US HELP YOU...
Read this guide carefully.
It is intended to help you operate and maintain
your new Compact Kitchen properly.
Keep it handy to answer your questions.
If you don't understand something or you
need more assistance, please call:
Avanti Customer Service
800-220-5570
Keep proof of original purchase date (such as
your sales slip) with this guide to establish the
warranty period.
CAUTION:
THE REFRIGERATOR OF
COMPACT KITCHEN IS NOT
DESIGNED FOR THE STORAGE
OF MEDICINE OR OTHER
MEDICAL PRODUCTS.
IF YOU NEED SERVICE
We're proud of our service and want you to be
pleased. If for some reason you are not happy
with the service you receive, here are some
steps to follow for further assistance.
FIRST, co ntact the people who s erviced your
Compact kitchen. Explain why you are not
pleased. In most cases, this will solve the
problem.
Write down the model and serial numbers.
You'll find them on a plate located on the rear
wall of the Compact Kitchen
Please write these numbers here:
____________________________________
Date of Purchase
____________________________________
Model Number
____________________________________
Serial Number
Use these numbers in any correspondence or
service calls concerni ng your Comp act Kitchen
If you received a damaged Compact Kitchen,
immediately contact the dealer (or builder) that
sold you the Compact Kitchen
Save time and money. Before you call for
service, check the Troubleshooting Gui de. It
lists caus es of minor oper a ting problem s that
you can correct yourself.
NEXT, if you are still not pleased, write all the
details, including your telephone number, and
send it to:
Customer Service
Avanti Products
10880 NW 30 Street
Miami, FL 33172 USA
3

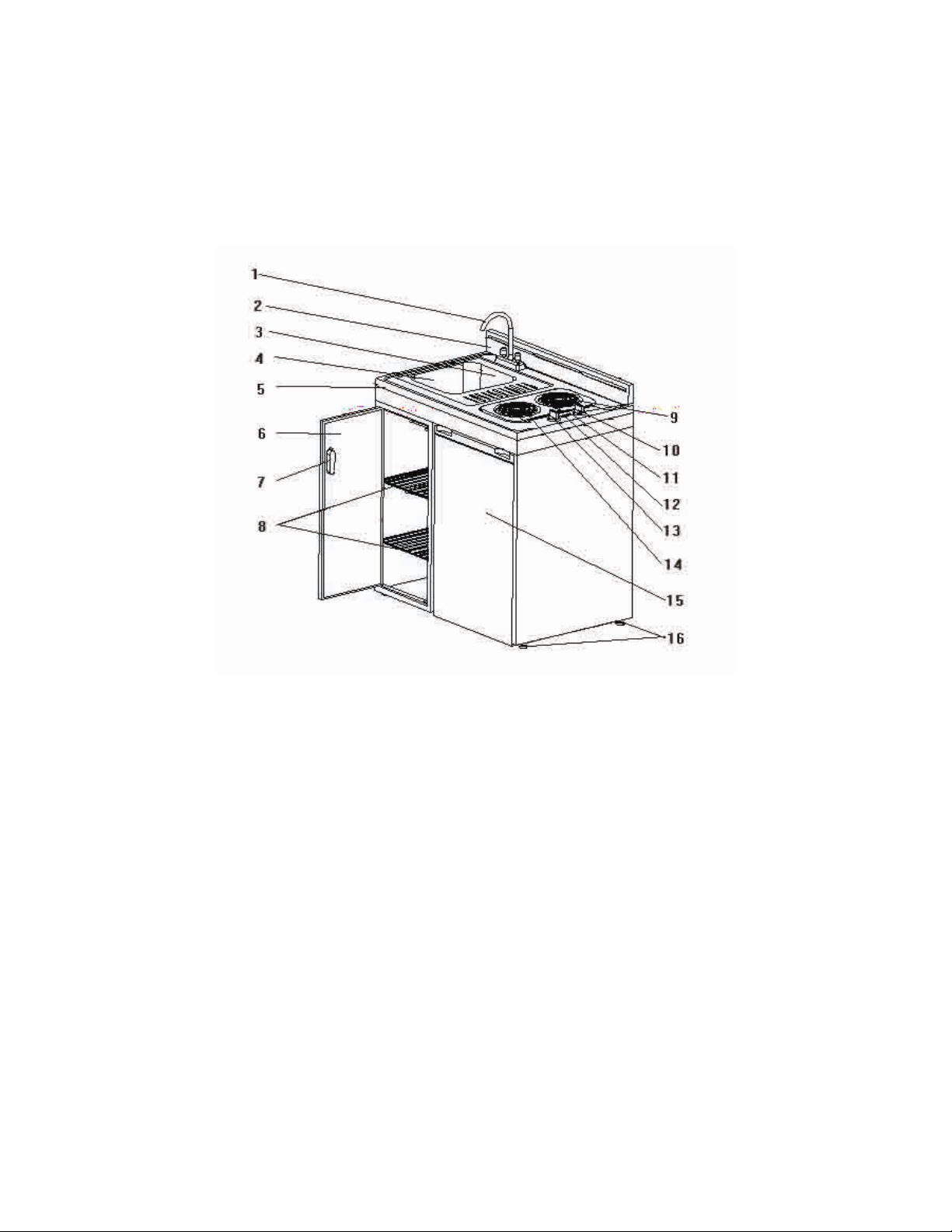

PARTS AND FEATURES
1. Water FaucetAssembly (Spout, Hot and Cold Water Knobs)
2. Backsplash
3. Overflow Drain
4. Sink
5. Cook-top
6. Cabinet Door
7. Cabinet Door Handle
8. Wire S helves (2)
9. Rear Burner (500 Watts)
10. Rear Burner Power Switch Knob
11. Rear Burner Indicator
12. Front Burner Indicator
13. Front Burner Power Switch Knob
14. Front Burner (900 Watts)
15. Refrigerator
16. Leveling Legs
4
IMPORTANT SAFETY INSTRUCTIONS
aWARNINGa
• Read all instructions before using the Compact Kitchen.
• DANGER or WARNING: Risk of child entrapment.
Child entrapment and suffocation are not problems of the past. Junked or abandoned
appliances are still dangerous . . . even if they will “just sit in the garage a few days”.
• Before you throw away your old refri ge ra t or : take off the doors
in place so that children may not easily climb inside.
• Never allow children to operate, play with, or crawl inside the Compact Kitchen.
• Never clean Compact Kitchen parts with flammable fluids. The fumes can create a fire
hazard or explosion.
• Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of
this or any other appliance. The fumes can create a fire hazard or explosion.
• Proper Installation - Be sure your appliance is properly installed, per the manufacturer
instructions.
• Never use your appliance for warming or heating the room.
• Do Not Leave Children Alone - Children should not be left alone or unattended in area
where the appliance is in use. They should never be allowed to sit or stand on any part
of the appliance.
• Wear Proper Apparel - Loose fitting or hanging garments should never be worn while
using the appliance.
• User Servicing - Do not repair or replace any part of the appliance unless specifically
recommended in the manual. All other servicing should be referred to a qualified
technician.
• Storage in or on Appliance - Flammable materials should not be stored in the un it.
• Do Not Use Water on Grease Fires - Smother fire or flame or use dry chemical or foam-
type extinguisher.
• Only Use Dry Potholders - Moist of damp potholders on hot surfaces may result in burns
from steam. Do not let potholder touch hot heating elements as this can create a Fire
Hazard. Do not use a towel or other bulky cloth.
• Use Proper Pan Size - This appliance is equipped with one or more surface units of
different size. Select utensils having flat bottoms large enough to cover the surface unit
heating element. The use of undersized utensils will expose a portion of the heating
element to direct contact and may result in ignition of clothing. Proper relationship of
utensil to burner will also improve efficiency.
• Never Leave Surface Units Unattended at High Heat Settings – Boil over causes
smoking and greasy spillovers that may ignite and can create a Fire Hazard.
• Make Sure Reflector Pans or Drip Bowls Are in Place - Absence of these pans or bowls
during cooking may subject wiring or components underneath to damage.
• Protective Liners - Do not use aluminum foil to line surface unit drip bowls or oven
bottoms, except as suggested in the manual. Improper installation of these liners may
result in a shock or fire hazard.
• Glazed Cooking Utensils - Only certain types of glass, glass/ceramic, ceramic,
earthenware, or other glazed utensils are suitable for range top service without breaking
due to sudden change in temperature.
• Utensil Handles Should Be turned Inward and Should Not Extend Over Adjacent
Surface Units – To minimize burns, ignition of flammable materials, and spillage due to
unintentional contact with the utensil, the handle of a utensil should be positioned so
that it is turned inward, and does not extend over adjacent surface units.
• Do Not Soak Removable Heating Elements – Heating elements should never be
immersed in water.
To reduce the risk of fire, electrical shock, or
injury when using your Compact Kitchen,
follow these basic precautions:
. Leave the shelves
5
• Caution - Do not store items of interest to children in cabinets above a range or on the
back guard of a range - children climbing on the range to reach items could be seriously
injured.
• Do Not Touch Heating Elements or Areas Near Heating Elements - Heating elements
may be hot even though they are dark in color. Areas near heating elements may
become hot enough to cause burns. During and after use, do not touch or let clothing or
other flammable materials contact heating elements or areas near heating elements
until they have had sufficient time to cool. Among these areas are the cook-top and
surfaces facing the cook-top.
• When Replacing Your Faucet – For safety reasons do not use a spout longer than
150mm (6”).
This Unit Is For Indoor Use Only
-SAVE THESE INSTRUCTIONS-
ELECTRICAL INSTALLATION INSTRUCTIONS
The electrical installation shown below must be performed by a qualified and licensed
electrician, following all of the electrical codes and ordinances required by the State.
• Select a designated power source to be used specifically for this unit.
• Make sure that the A/C power and the designated circuit breaker is turned off.
• Attach and secure conduit to the knockout hole of the junction box.
• You must make sure that the conduit is long enough to reach from the unit junction box to the
power source selected.
• Take off the cover plate from the junction box to connect the stripped end of the wires to the
receptacles of the junction box. Please follow the color codes of the wires to make sure that it is
properly grounded.
• At the other end connect all wires to the power source and secure the conduit to the power
receptacle, making sure that the colors of the wires are matched during the connection.
• Install or replace the cover plate to the junction box and turn ON the A/C from the source or circuit
breaker.
• Then install the power cord of the refrigerator and the burners to the junction box of the unit.
6
INSTALLATION INSTRUCTIONS
g
¾ Before Using Your Compact kitchen
• Remove the exterior and interior packing.
• Check to be sure you have all of the following parts:
Kitchen Section
• 2 Wire S helves
• Faucet Set
• Strainer
• Strainer Plug
• Overf low Drain Assembly
• Backsplash and Assembly Screws (Only for model CK30-1)
• Instruction Manual
• Before connecting the refrigerator of y our Compact Kitchen to the power source, let it stand
upright for approximately 2 hours. This will reduce the possibility of a malfunction in the
cooling system of the refrigerator from handling during transportation.
• Clean the interior surface with lukewarm water using a soft cloth.
¾ Energy Saving Tips
• The Compact kitchen should be located in the coolest area of the room, away from heat
producing appliances, and out of the direct sunlight.
¾ Installation of Your Compact Kitchen
• To eliminate the risk of burns or fire by reaching over heated surface units, cabinet storage
space located above the surface units should be avoided. If c abinet storage is to be provid ed,
9
2
NOTE:
1. In order to remove crisper and/or shelves of refrigerator, a clearance A of
10 inches is required. When built-in, no clearance is require d on either side.
2. B = A minimum clearance of 30 inches is required between the top of the
cookin
surface and the bottom of an unprotected wood or metal cabinet.
Figure No. 1
Refrigerator Section
• 3 Wire Shelves
• 1 Crisper with Glass Lid
• Instruction Manual
"
7
the risk can be reduced by installing a range hood that projects horizontally a minimum of 5
inches beyond the bottom of the cabinets.
• Place your Compact kitchen on a floor that is strong enough to support it when it is fully
assembled as above picture. To level your Refrigerator, adjust t he leveling legs at the bottom
of the refrigerator.
• For satisfactory water drai nage of the sink , and proper cabinet door f unction, it is important t o
level the Compact Kitchen in both directions, using the leveling legs provided on the bottom of
the Compact Kitchen for this purpose.
• Locate the Compact kitchen away from direct sunlight and sources of heat (heater, radiat or,
etc.). Direct sunlight may affect the acrylic coating an d heat sources may increase electrical
consumption. Extreme cold ambient temperatures may also cause the unit not to perform
properly.
• Avoid locating the unit in moist areas. As this may result in the risk of electrical shock.
• Do not under any circumstances cut or remove the third (gr ound) prong from the power cord
of your refrigerator or burners. Any questions concer ning power and/or grounding should be
directed toward a certified electrician or an authorized Avanti Products service c enter.
• After connecting the appliance t o the power supply, allow the Refrigerator to cool do wn for 23 hours before placing items in the refrigerator.
¾ Electrical Connection
Improper connection of the equipment-grounding can result in the risk of electrical shock. If the
power cord of the range or refrigerator is damaged, have it replaced by an authorized Avanti
Products service center.
aWARNINGa
• The appliance must be installed and grounded by a qualified technician in acc ordance with the
National Electrical Code ANSI/NFPA No. 70 (Latest Edition) and local electrical code
requirements.
• The appliance is designed to be permanently connected with conduit.
• This appliance requires a standard 115/120 Volt AC ~/60Hz electrical power, and connected to an
individual properly grounded branch circuit, protected by a 15 amp circuit breaker or time delay
fuse.
• This unit should be properly grounded for your safety. The range and refrigerator power cords of
the appliance are equipped with a grounded plug which is connec ted to the grounded permanent
wiring system.
• Do not under any circ umstances cut or remove the third ground lead from the AC supply. Any
questions concerning power and/or grounding should be direct ed toward a certified electrician or
an authorized Avanti Products service center.
• Remove house fuse or open circuit breaker before beginning installation.
• Do not att empt t o repair o r repl ace any pa rt of t he applianc e unles s it is specifically r ec ommended
in this manual. All other servicing should be referred to a qualified technician.
• To minimize the possibility of electric shock, disconnect this appliance from the A/C power supply
before attempting any maintenance.
• Do not use extension cords for the connections of the range and refrigerator.
NOTE: Turning the appliance off does not disconnect the appliance from the power supply. We
recommend having a qualified technician service your appliance.
8
¾ Power Supply Connections
• Prepare the wiring in accordance to the National Electric al Code and/ or local codes and
ordinances by a qualified electrician.
• Remove junction box cover. Remove the 7/8 in. knockout f or the conduit connection.
• Secure the conduit to the junction box with a conduit connector.
• Locate the two wires (white and black) of the unit with stripped ends. Use wire nuts to connect
the incoming white to white and black to black. Connect the incoming ground wire (green)
directly to the ground screw of the junction box.
• Replace the junction box cover. Check to be sure that the wires are not pinched under the unit.
¾ Backsplash Installation
Install the backsplash to the kitchen cabinet as shown in Figure No. 3.
BACK SPLASH
(PANEL TRASERO)
BACK OF UNIT
(PARTE TRASERA DE LA UNIDAD)
.
Figure No. 3
9
¾ Water Faucet Installation And Water Line Connection
Connection to the water supply must be performed by a professional licensed plumber and comply
with all Local Codes and Ordinances.
10
¾ Overflow Drain Line Installation
• The mol ded end of the waste drain must fit the connections on the waste tee and overflow
adapter.
• Connect the waste tee with overflow adapter to the waste drain hose and secure drain hose to the
waste tee and overflow adapter with clamps. The connection must be performed by a professional
licensed plumber and comply with all Local Codes and Ordinances. See Figure No. 6.
Figure No. 6
¾ Installation Of Your Refrigerator
NOTE: The refrigerator is supplied with a separate inst ruction manual. Please review prior to final
installation of your Compact Kitchen.
• Disconnect the power supply. Failure to disconnect the appliance could result in electrical shock
or personal injury.
• Connect the Refrigerator power supply cord to the receptacle in the junction box located at the
back of kitchen cabinet under the countertop as s hown in Figure No. 7.
• Slide the refrigerator into the kitchen cabinet by slightly lifting the rear part of refrigerator. Make
sure the power supply cord is not kinked or damaged under the refrigerator.
• Secure refrigerator leveling legs in place using the bottom bracket notc hes as shown in Figure
No. 7.
JUNCTION BOX
BOTTOM BRACKET WITH2 NOTCHES
TO SECURE REFRIGERATOR IN PLACE
(SOPORTE DE METAL CON2 APERTURAS
PARA FIJAR EL REFRIGERADOR EN SU
LUGAR)
Figure No. 7
11
¾ Installation Of Side Tray
NOTE: Side tray is not a standard supplied part. If you need it, please contact Avanti Service Center
to buy it using the form provided.
Figure No. 8
OPERATING Y OUR COMPACT KITC HEN
¾ Operating Your Refrigerator
The refrigerator is supplied with a separate instruction manual. Please find the details for how to
operate the refrigerator inside.
¾ Operating Your Burners
Your compact kitchen comes with two burners (500W and 900W power input).
To operate the burners simply push in and turn the knob to t he desired position.
These controls go from low to high power output, having a number of positions
(see Figure No. 9).
LO
MED
OFF
HI
When the burners are in operation the indicator lights on the cook top panel will
be lit regardless of the setting.
Figure No. 9
LO
MED
OFF
HI
¾ Directions For Use Of Electrical Connection
The appliance is equipped with a junction box located under the countertop with two outlets. One
outlet for burners and one outlet for refrigerator (see Figure No. 10). Once the unit is installed by
a qualified electrician make sure that both, the burners and the refrigerator are properly
connected to the box.
JUNCTION BOX (CAJA ELECTRICA)
Figure No. 10
12
CARE AND MAINTENANCE
¾ Cleaning You r Comp act Kitchen
• Disconnect the A/C from the main power box or desig nated circuit breaker, turn off the Compact
Kitchen, make sure all surface units are off and cool before removing anything, then remove al l
items including shelves and rack.
• Wash the inside s urfaces with a warm water and baking soda solution. The solution should be
about 2 tablespoons of baking soda to a quart of water.
• Wash the shelves and rack with a mild detergent solution.
• The outside of the Compact Kitchen should be cleaned with mild d etergent and warm water.
• Wring excess water out of the sponge or cloth when cleaning area of the controls, or any
electrical parts.
• Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with
a clean soft cloth.
• Do not use steel wool or steel brush on the cook-top.
CAUTION
FAILURE TO DISCONNECT THE APPLIANCE COULD RESULT IN ELECTRICAL SHOCK OR
PERSONAL INJURY.
¾ Cleaning Burners And Reflector Bowls
• Disconnect the A/C from the main power box or designated circuit breaker and turn off the
Compact Kitchen to make sure that burners are off and cool before removing burners and
reflector bowls.
• Removing the burners and reflector bowls as following:
• Lift the edge of the burners opposite from the receptacle and pull them gently out of the
mounting receptacles.
• After the burners have been removed, the reflector b owls can be lifted out of their mountings.
• Clean the burners and reflector bowls with mild detergent and warm water. Wring excess water
out of the sponge or cloth when cleaning them.
• Replace the burners and reflector bowls as following:
• Line up the opening of t he reflector bowls with the burners receptacle, hold the burners as
level as possible with the terminals just positioned into the receptacle, then push the burners’
terminals into the receptacles.
• When the terminals are pushed into the receptacles as far as it will go, push down the edge of
burners opposite the receptacle.
NOTE: Do not immerse burners in water or any other liquids.
¾ Power Failure
• Most power failures are corrected within a few hours and should not affect the temperature of
your refrigerator if you minimize the number of times the door is opened. If the power is goi ng to
be off for a longer period of time, you need to take the proper steps to protect your contents.
• When power f ailures please make sure to turn all burners off.
¾ Vacation Time
• Short vacations: Leave the Refrigerator of Compact Kitchen operating during vac ations of less
than three weeks.
• Long vacations: If the appliance will not be used for several months, remove all items and turn
off the power supply. Clean and dry the interior thoroughly. To prevent odor and mold growth,
leave the door open slightly: blocking it open if necessary.
13
¾ Moving Your Compact Kitchen
• Have a qualified electrician to disconnect the power supply and shut off the water supply.
• Use a qualified plumber to disconnect the water supply connec tions and water drain connection.
• Remove all items from the storage compartment.
• Unplug and remove the refrigerator out of the Compact Kitchen and move them separately.
• Securely tape down all loose items (shelves and basket) inside your Compact Kitchen
Compartment and Refrigerator.
• Turn the adjustable feet up to the base to avoid damage.
• Tape the door shut.
• Be sure the Compact Kitchen and Refrigerator stay secure in the upright position during
transportation. Also protect outside of Compact kitchen and Ref rigerat or with a blanket, or similar
item.
14
PROBLEMS WITH YOUR COMPACT KITCHEN?
You can solve many common Compact Kitchen problems easily, saving you the cost of a possible
service call. Try the suggestions below to see if you can solve the problem before calling the servicer.
TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE CAUSE
COMPACT KITCHEN does not operate.
The Refrigerator does not operate
The Refrigerator turns on and off frequently. The room temperature is hotter than normal.
Vibrations. Check to assure that the refrigerator is leveled.
The Refrigerator seems to make too much noise.
The refrigerator door will not close properly.
Burners will not maintain a rolling boil or frying
rate is not fast enough.
Foods cook slowly
Burners do not operate
Burners control knobs will not turn
Not connected to power supply.
The circuit breaker tripped or a blown fuse.
Not connected to power supply.
The circuit breaker tripped or a blown fuse.
The temperature control knob is set in “OFF”
position.
The door is opened too often.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
The rattling noise may come from the flow of the
refrigerant, which is normal.
As each cycle ends, you may hear gurgling
sounds caused by the flow of refrigerant.
Contraction and expansion of the inside walls
may cause popping and crackling noises.
The refrigerator is not leveled.
The refrigerator is not leveled.
The gasket is dirty.
The shelves are out of position.
You must use pans that are absolutely flat.
Pan bottom should closely match the diameter of
the burners se le c ted.
Improper cookware being used.
The circuit breaker tripped or a blown fuse.
The burners are not plugged in the receptacle all
the way.
The power switch knobs are not set correctly.
You are not pushing in before turning.
15
SERVICE FOR YOUR COMPACT KITCHEN
We are proud of our customer service organization and the network of professional service
technicians that provide service on your Avanti Pro ducts appliances. Wit h the purchas e of your Av anti
Products appliance, you can be confident that if you ever need additional information or assistance,
the Avanti Products Customer Service team will be here for you. Just call us toll-free.
AVANTI PRODUCTS CUSTOMER SERVICES
Product Information
800-323-5029
Part Orders
800-220-5570
In-Home Repair Service
800-220-5570
Whatever your questions are about our products,
help is available.
You may order parts and accessories that will be
delivered directly to your home by personal
check, money order, Master Card, or Visa.
An Avanti Products authorized service center will
provide expert repair service, scheduled at a time
that is convenient for you. Our trained servicers
know your Compact kitchen inside and out.
WIRING DIAGRAM
16
YOUR AVANTI PRODUCTS WARRANTY Staple your sales receipt here. Proof of
original purchase date is needed to obtain
service under warranty.
WHAT IS COVERED
LIMITED ONE-YEAR
WARRANTY
For one year from the date of
purchase by the original owner, Avanti
Products will, at its option, repair or
replace any part of the unit, which
proves to be defective in material or
workmanship under normal use.
During this period Avanti Products will
provide all parts and labor necessary
to correct such defects free of c harge,
so long as the unit has been installed
and operated in accordance with the
written instructions in this manual. In
rental or commercial use, the warranty
period is 90 days. All Avanti
Appliances of 3.5 cubic feet capacity
or less must be brought/sent to the
appliance service shop for repair.
LIMITED SECOND THROUGH
FIFTH YEAR WARRANTY
For the second through the fifth year from date
of original purchase, Avanti Products will
provide a replacement compressor free of
charge due to a failure. You are responsible
for the service labor and freight charges. In
rental or commercial use, the limited
compressor warranty is one year and nine
months. Cost to move the unit to the servicers’
shop and back to the user's home, as may be
required, are the user's responsibility.
WHAT IS NOT COVERED
• Content losses of food due to spoilage.
• Incidental or consequential damages.
• Parts and labor costs for the following will
not be considered as warranty:
• Door springs, and/or frames.
• Inner door panels, door rails and/or door
supports.
• Lig ht bulbs and/or plastic housing.
• Plastic cabinet liners.
• Punctured evaporator that voids the
warranty on the complete sealed system.
• Repairs performed by unauthorized
servicers.
• Servic e calls that do not involve defects in
material or workmanship such as
customer education, door reversal, or
proper installation.
• Service calls that are related to external
problems, such as abuse, misuse,
inadequate electrical power, accidents,
fire, floods, or acts of God.
• Surcharg es includi ng, but not limited to,
any after hour, weekend, or holiday
service calls, tolls, ferry trip charges, or
mileage expense for service calls to
remove areas, including the State of
Alaska.
• Replacement of house fuses or resetting
circuit breakers.
• F ailure of the product if it is used for other
than its intended purpose.
• T his warranty does not apply outside the
Continental USA.
17
CARACTERISTICAS
1. FUENTE DE AGUA
2. PANEL TRASERO
3. DESAGUE DE DESBORDE
4. FREGADERO
5. GABINETE
6. PUERTA DEL GABINETE
7. MANIJA DEL GABINETE
8. REPISAS DEL GABINETE (2)
9. HORNILLA TRASERA DE 500 VATIOS
10. CONTROL DE TEMPERATURA (DE LA HORNILLA TRASERA)
11. LUZ INDICADORA (DE LA HORNILLA TRASERA)
12. LUZ INDICADORA (DE LA HORNILLA FRONTAL)
13. CONTROL DE TEMPERATURA (DE LA HORNILLA FRONTAL)
14. HORNILLA FRONTAL DE 900 VATIOS
15. REFRIGERADOR
16. PATAS NIVELADORAS
18
INSTRUCCIONES EN ESPAÑOL
PRECAUCIÓN
• Lea todas las instrucciones antes de usar su electrodoméstico.
• Peligro o Precaución: Existe el riesgo que los niños queden atrapados.
• Niños atrapados o sofocamiento no son un problema del pasado. Los electrodomésticos son
peligrosos aún si solo los deja en el garaje por un par de días.
• Antes de desechar su electrodoméstico o refrigerador usado: quítele las puertas. Deje las
repisas en su lugar para evitar que los niños se queden atrapados.
• No permita que los niños manejen, jueguen o entren dentro del electrodoméstico.
• No limpie su electrodoméstico con líquidos inflamables. Los gases pueden ocasionar fuego o
una explosión.
• No guarde ni use gasolina u otros líquidos inflamables cerca de este o de cualquier otro
electrodoméstico. Los vapores pueden ocasionar fuego o explosión.
- Guarde estas instrucciones-
Para reducir el riesgo de incendio, descarga
eléctrica, o daño cuando use su
electrodoméstico, siga las siguientes
precauciones.
ADVERTENCIA
La coneccion de la caja eléctrica debe ser realizada por un electricista profesional y
licenciado. También debe cumplir con los códigos locales y estatales.
INSTRUCCIONES PARA LA INSTALACION ELECTRICA.
Primeramente seleccione el receptáculo donde la unidad va a ser conectada.
Asegúrese que la corriente eléctrica del receptáculo que se v a a usar esté propiamente
desconectada antes de comenzar la instalación. Este rece ptáculo debe ser usado exclusivamente
para esta unidad.
Instale y asegure el conducto eléctrico de metal flexible al orificio de la caja eléctrica de la unidad.
Use un conducto eléctrico de metal flexible (Greenfield) suficientemente largo para llegar desde la
unidad hasta el receptáculo de la pared.
Remueva la tapa de la caja eléctrica de la unidad, introduzca los alambres a través del conducto de
metal y conecte los alambres a los receptáculos siguiendo los códigos de colores.
Asegúrese también de tener la conexión a tierra.
Al otro extremo del conducto eléctrico de metal (Greenfield) asegúrese de conectar al receptáculo de
la pared los alambres siguiendo los códigos de colores. Asegúrese de hacer la conexi ón a tierra.
Reemplace o instale la tapa de la caja eléctrica y conecte el cable de las hornill as y del refrigerador a
los receptáculos propiamente designados en la caja eléctrica para su instalación.
INSTALACION DEL REFRIGERADOR
Retire los (plásticos protectores, y tiras engomadas). Limpie el exterior con un trapo suave y seco, y
el interior con un trapo húmedo y tibio.
19
UBICACION
1. Seleccione un lugar con un piso firme y nivelado.
2. Para un mejor desempeño, nivele el refrigerador utilizando las patas ajustables o tornillos
nivelador es. Para verificar el nivel, ab r a l a pu e rta hasta la mitad, debe regr esar sola.
INSTRUCCIONES PARA LA CONECCION A TIERRA
Este aparato electrodoméstico debe estar conectado a tierra. En cas o de un cortocircuito eléctrico, la
conexión a tierra reduce el riesgo de choque eléctrico proporcionando un cable de escape para la
corriente eléctrica.
Asegúrese de usar un plomero certificado para la conectar el agua a la unidad.
NO USE UN CORDON DE EXTENSION
Use un tomacorriente de pared exclusivo.
Nunca junto a cualquier otro electrodoméstico en el mismo tomacorriente de pared.
ADVERTENCIA IMPORTANTE:
Un refrigerador vacío es una atracción muy peligrosa para los niñ os. Quite los sellos magnéticos,
puertas o cerraduras de todo electrodo méstico que esté en uso.
OPERACION
El tomacorriente usado debe ser 115-120v con fusible o protección de 15 AMP ó más.
Para evitar vibraciones, la unidad debe estar bien nivelada.
Para encender el refrigerador, gire el control de temperatura a la posición que corresponda al
enfriamiento deseado. Bajo condiciones normales mueva el control a la posición “ 4 ”.
De otra manera ajuste la temperatura siguiendo las indicaciones señaladas en los gráficos.
CONTROL DE TEMPERATURAS
El control de temperaturas está localizado en el interior del refrigerador. Cuando conecte su
refrigerador por la primera vez se recomienda que el botón del control se coloque en la posición “ 4 ”.
Deje el refrigerador trabajar por 20 minutos. La perilla de contr ol se puede graduar desde la posición
más calurosa hasta la más fría. Después de un día o dos usted decidirá si el control está graduado
correctamente. Hay 8 posiciones incluyendo “ OFF ”. En la posición “ OFF ” el motor parará pero la
unidad se mantendrá aun con corriente .
PERDIDA DE LA FUENTE ELECTRICA
La mayoría de las perdidas de la fuente eléctrica son solucionadas en pocas horas y no afectan el
funcionamiento de su unidad. Minimice el abrir y cerrar la puerta durante ese periodo de tiempo. Si la
perdida de la fuente eléctrica se extiende a muchas horas, siga los pasos necesarios para proteger el
contenido de su refrigerador.
CUIDADOS EN LOS PERIODOS DE AUSENCIA
Para cortos períodos de ausencia (menos de 21 días) la unidad podrá quedar funcionando.
En períodos de ausencia más largos, se aconseja dejar la unidad limpia y desconectada.
Saque todo lo que tenga adentro de la unidad y haga y la limpieza general.
Deje la puerta entreabierta para que penetre el aire y así evitar la formación de olores.
ECONOMIA DE ENERGIA
Evite dejar por mucho tiempo la puerta abierta.
Evite aperturas frecuentes de la puerta.
Coloque el botón de control de temperaturas en la posición adecuada.
SI USTED SE VA DE VACACIONES
Saque todos los artículos de la unidad si Ud. se va de vacaci ones por un mes o más.
Desconecte el refrigerador del tomacorriente de la caja eléctrical y limpielo bien.
Deje la puerta abierta para evitar la formación de olores, condensación o moho.
COMO CAMBIAR LA DIRECCION DE APERTURA DE LA PUERTA
En caso de que necesite cambiar el lado de apertura de la puerta, por favor consulte al servicio
pos-venta de su localidad o al empleado que le vendió la unidad.
20
PREPARANDO SU COCINA PARA UTILIZARLA POR PRIMERA VEZ
Coloque el panel trasero utilizando los 3 tornillos incluidos (vea Figura 3).
CONEXION DE LA FUENTE DE AGUA
ADVERTENCIA
La conexión de la fuente de agua debe ser realizada por un plomero profesional y
licenciado. También debe cumplir con los código s locales y estatales.
• Ciérre la llave maestra del agua.
• Instale las llaves de agua (vea figura 4).
• Conecte las mangueras de suminist ro de agua (no incluidas a las llav es. Primero la de agua fría,
haga lo mismo c o n el ag ua calient e.
CONEXION DE DRENAJE (FREGADERO)
• El filtro viene instalado de fábrica.
• Asegure el sistema de drenaje (vea Fig 5).
INSTALACION DEL REFRIGERADOR
Su refrigerador viene equipado con su propio manual de instrucciones. For favor léalo antes de
colocar el refrigerador en la posición que le corresponde.
Este aparato viene equipado con su propio AC cable. Co necte este cable al receptáculo marcado
“Fridge” en la caja eléctrica localizada debajo del gabinete superior de acero inoxidable y hacia la
parte posterior. Mueva el refrigerador hacia el espacio designa do levantándolo por la parte trasera.
Asegúrese que el cordón no se trabe debajo del refrigerador.
Para fijar el refrigerador en su lugar use las aperturas del soporte de metal (vea Fig 7).
FUNCIONAMIENTO DEL REFRIGERADOR
Lea las instrucciones colocadas dentro de la unidad.
FUNCIONAMIENTO DE LAS HORNILLAS
Conecte su mini-cocina al receptáculo de la pared (120V AC/60 ciclos), usando el cordón de la caja
eléctrica. (El cordón de las hornillas ha sido conectado en la planta, antes de entregarle su cocina).
Su cocina viene con dos hornillas (500 vatios y 900 vatios). Para encender las hornillas, presione y
gire el control a la posición deseada.
Los controles de temperatura van de bajo a alto poder. Cuando las hornillas están encendidas, los
indicadores de luz localizados en el panel frontal se encender án.
CAJA ELECTRICA
Esta unidad viene equipada con una caja eléctrica (vea Fig 10) debajo del gabi nete superior. La c aja
tiene 2 receptáculos, uno marcado “Fridge” donde se conecta el cordón del refrigerador y otro
marcado “Burners” para las hornillas. Este último ya viene conectado desde la planta.
21
IRREGULARIDADES CON EL FUNCIONAMIENTO DEL REFRIGERADOR
PROBLEMA CAUSAS PROBABLES SOLUCION
El refrigerador no funciona. Falta de energía.
Tomacorriente defectuoso.
Control de temperaturas en la
posición “ O ”.
Enchufe desconectado.
La refrigeración es
insuficiente.
Ruidos anormales. Expansión del gas en el evaporador.
El refrigerador no funciona Enchufe el cordón del refrigerador en
Botón de control de temperatura en la
posición incorrecta.
Elevada frecuencia de apertura de la
puerta.
Tubos en contacto con gabinetes o
paredes.
IRREGULARIDADES CON EL FUNCIONAMIENTO DE LAS HORNILLAS
Verifique el fusible.
Substitúyalo o arréglelo.
Girar el botón en la posición correcta.
Conéctelo.
Observe las instrucciones.
Evite abrir la puerta demasiado.
Normal.
Aléjelos.
la caja eléctrica a la posición
marcada “Fridge”.
PROBLEMA CAUSAS PROBABLES SOLUCION
Olor a quemado Acumulación de residuo de alimentos
en las hornillas
Las hornillas no encienden La unida esta desconectada adentro. Enchufe el cordón de las hornillas en
Solamente un elemento se
calienta.
Nada funciona Todos los cordones están
El control de temperatura para la
hornilla correspondiente no esta
encendido.
desconectados.
Fusible defectuoso.
Limpie las hornillas
la caja eléctrica.
Seleccione el control de temperatura
que le corresponde.
La unidad no esta conectada al
enchufe de la pared.
La caja eléctrica tiene los
receptáculos abiertos.
Reemplazar fusible.
22
REGISTRATION INFORMATION
Thank you for purchasing this fine Avanti product. Please fill out this form and return it to the
following address within 100 days of purchase an d receive these important benefits:
Avanti Products, A Division of The Mackle Co., Inc.
P.O.Box 520604 – Miami, Florida 33152
¾ Protect your product:
We will keep the model number and date of purchase of your new Avanti Products product on
file to help you refer to this information in the event of an insurance claim such as fire or theft.
¾ Promote better products:
We value your input. Your responses will help us develop products designed to best meet
your future needs.
----------------------------------------------------------(detach here)----------------------------------------------------------
Avanti Registration Form
__________________________________ _____________________________________
Name Model # Serial #
__________________________________ _____________________________________
Address Date Purchased Store/Dealer Name
__________________________________ ______________________________________
City State Zip Occupation
__________________________________ As Your Primary Residence, Do You:
Area Code Phone Number Own Rent
Did You Purchase An Additional Warranty:
Extended Food Loss None under 18 18-25 26-30
Reason For Choosing This Avanti Product: 31-35 36-50 over 50
Please indicate the most important factors Marital Status:
that influenced your decision to purchase Married Single
this product. Is This Product Used In The:
Price Home Business
Product Features How Did You Learn About This Product:
Avanti Products Reputation Advertising
Product Quality In Store Demo Personal Demo
Salesperson Recommendation Other______________________________
Friend/Relative Recommendation Comments____________________________
Warranty _____________________________________
Other_______________________ _____________________________________
Your Age:
23
PRINTED IN CHINA
24
Loading...
