Avalon Stoves Direct Vent Freestanding Stove User Manual

Download

• Direct Vent Freestanding Stove

• Natural Gas or Propane

• Vent Horizontally or Vertically

• Standard Residential

• Mobile Home Approved

Tested and Listed by

OMNI-Test Laboratories, Inc.

Beaverton, Oregon

Report # 028-S-58-5

Featuring the

WARNING: If the information in these instructions is not followed exactly, a fire or explosion

may result causing property damage, personal injury or loss of life.

Burner

ANSI Z21.88

- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call gas supplier from a neighbor's phone. Follow the gas supplier's

instructions.

• If you cannot reach your gas supplier, call the fire department.

- Installation and service must be performed by a qualified installer, service agency or the gas supplier.

This appliance may be installed in an aftermarket permanently located, manufactured home (USA only) or mobile home, where not prohibited by local codes.

This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases unless a certified kit is used.

Tree of Life Owner's Manual

Installer: After installation give this manual to the home-owner and

explain operation of this heater.

4800 Harbour Pointe Blvd. SW

Mukilteo, WA 98275

2 Introduction

Introduction

We welcome you as a new owner of an Avalon Tree of Life stove. In purchasing a Tree of Life you have joined the growing ranks of concerned individuals whose selection of an energy system reflects both a concern for the environment and aesthetics. The Tree of Life is one of the finest home heaters the world over. This manual will explain the installation, operation, and maintenance of this stove. Please familiarize yourself with the Owner's Manual before operating your heater and save the manual for future reference. Included are helpful hints and suggestions that will make the operation and maintenance of your new stove an easier and more enjoyable experience. We offer our continual support and guidance to help you achieve the maximum benefit and enjoyment from your heater.

Important Information

No other Tree of Life Stove has the same serial number as yours. The serial number is on the listing plate chained to the gas control valve.

This serial number will be needed in case you require service of any type.

Model: Avalon Tree of Life Stove Serial Number: Purchase Date: Purchased From:

traviswarranty.com

Or, mail your warranty card to:

Travis Industries House of Fire 4800 Harbour Pointe Blvd. SW Mukilteo, WA 98275

Save Your Bill of Sale.

To receive full warranty coverage, you will need to show evidence of the date you purchased your heater. Do not mail your Bill of Sale to us.

We suggest that you attach your Bill of Sale to this page so that you will have all the information you need in one place should the need for service or information occur.

Travis Industries 100-01169_001 4050119

Table of Contents 3

Introduction

Introduction & Important Information................2

Safety Precautions

Safety Precautions......................................4

Features & Specifications

Features ....................................................6

Installation Options ......................................6

Heating Specifications ..................................6

Dimensions.................................................6

Installation

Installation Warning......................................7

Packing List................................................7

Additional Items Required for Installation..........7

Installation Overview ....................................7

Installation Hints..........................................8

Stove Clearances ........................................8

Mobile Home Requirements............................8

Heater Placement Requirements.....................9

Floor Protection Requirements........................9

Gas Line Installation.....................................10

Vent Requirements.......................................11

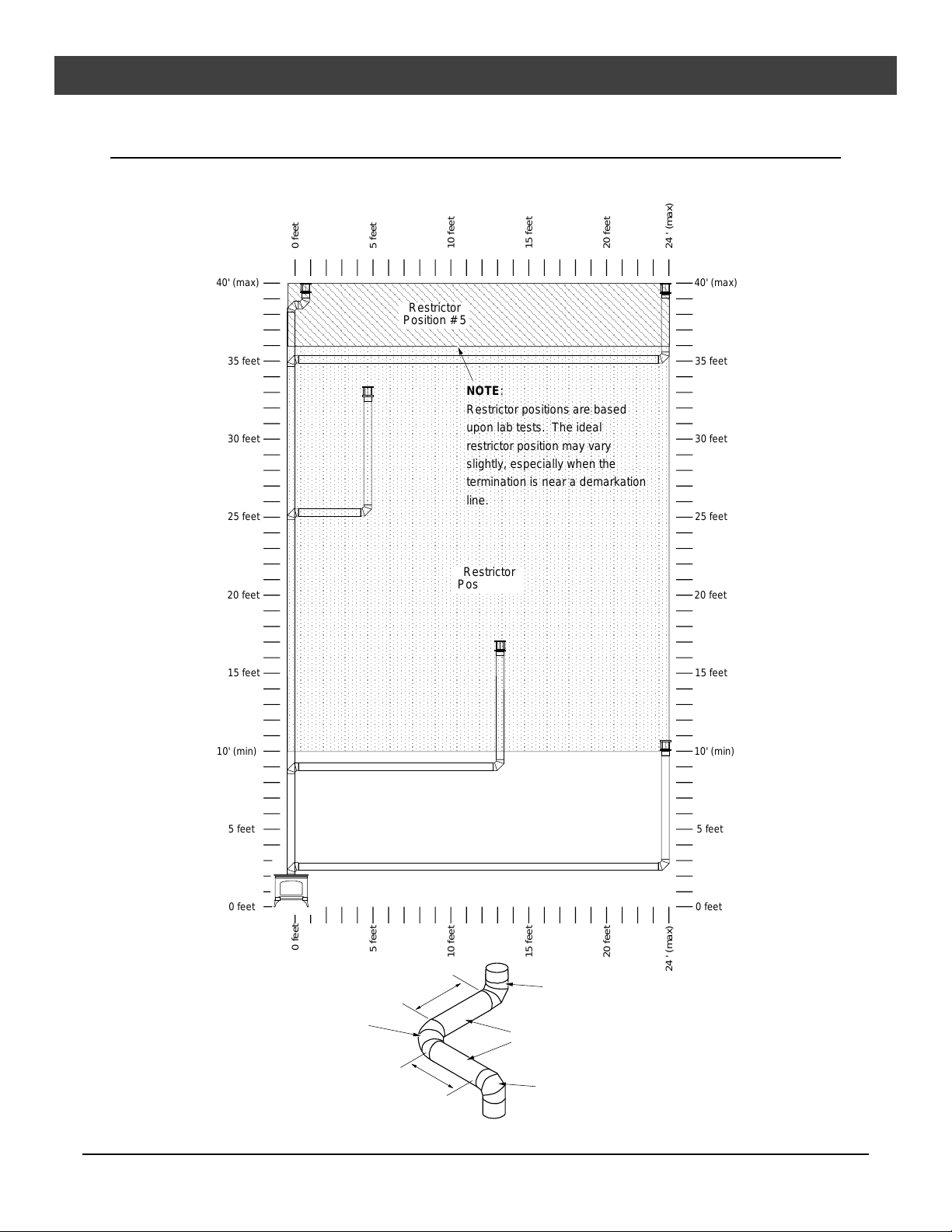

Approved Vent Configurations........................12

Restrictor Position...................................12

Measuring Vent Lengths...........................12

Vertical Term. with 0, 2, or 4 45° Elbows .......13

Hor. Term. with 1 90° Elbow........................14

Hor. Term. with 2 Elbows...........................15

Hor. Term. with 3 Elbows...........................16

Vertical Term. with 2 90° Elbows .................17

Vertical Term. with 3 Elbows......................18

Vent Termination Requirements ......................19

Class A Chimney Conversion..........................20

Masonry Chimney Conversion ........................21

Operation

Before You Begin.........................................28

Location of Controls .....................................28

Starting The Pilot .........................................29

Starting the Stove for the First Time.................30

Turning the Stove On and Off .........................30

Adjusting the Flame Height.............................30

Adjusting the Blower Speed (optional) ..............31

Normal Operating Sounds..............................31

Normal Operating Odors................................31

Maintenance

Maintaining Your Stove’s Appearance..............32

Yearly Service Procedure..............................32

Troubleshooting Table...................................33

How this Stove Works...................................34

What Turns the Main Burners On and Off......34

What Prevents Gas Buildup.......................34

Wiring Diagram ............................................35

Replacement Parts List.................................35

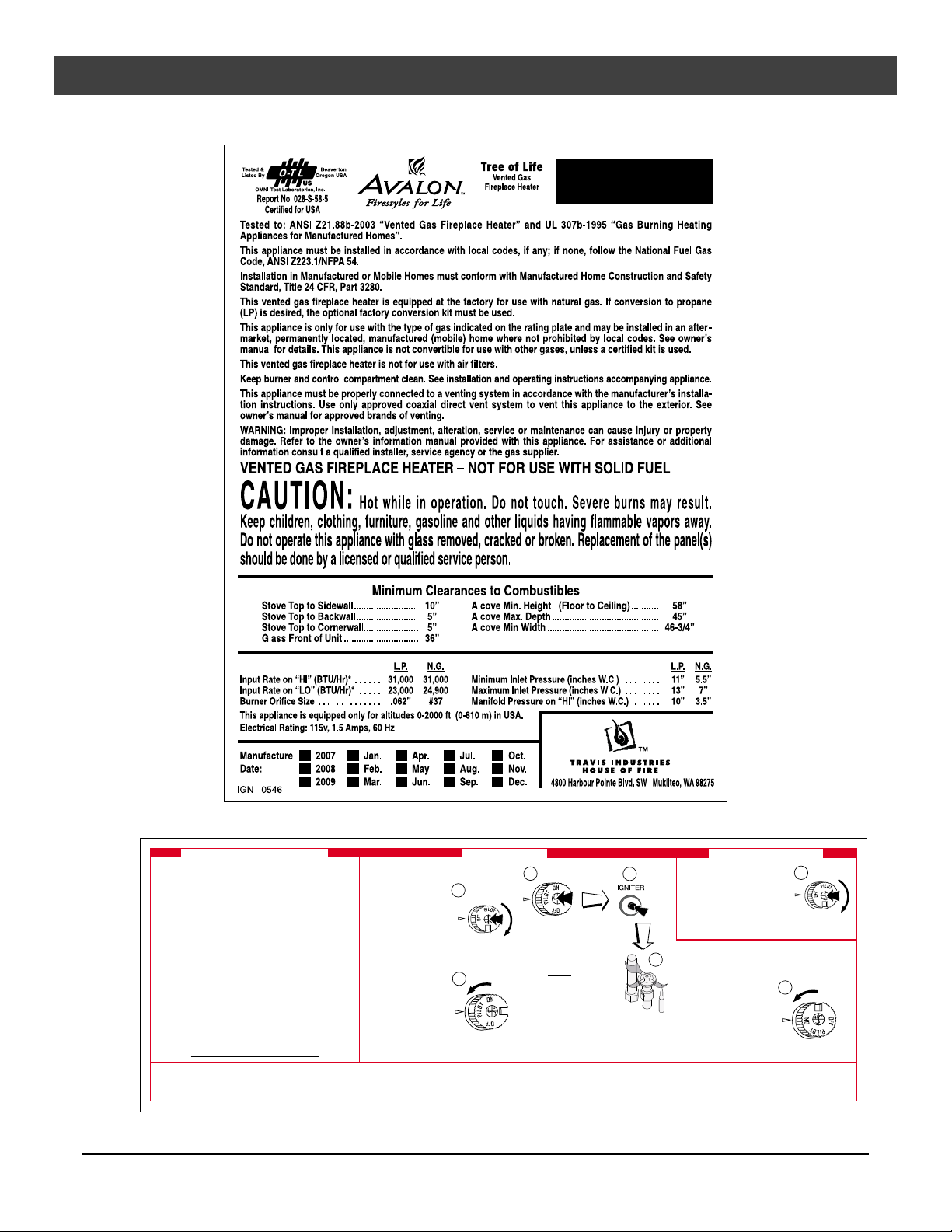

Safety Label

Safety (Listing) Label....................................36

Warranty

Warranty....................................................37

Optional Equipment

LP Conversion Kit ........................................38

Blower .......................................................41

Accent Light ...............................................43

Index

Index.........................................................46

Finalizing the Installation

Pilot Adjustment ..........................................22

Air Shutter Adjustment..................................23

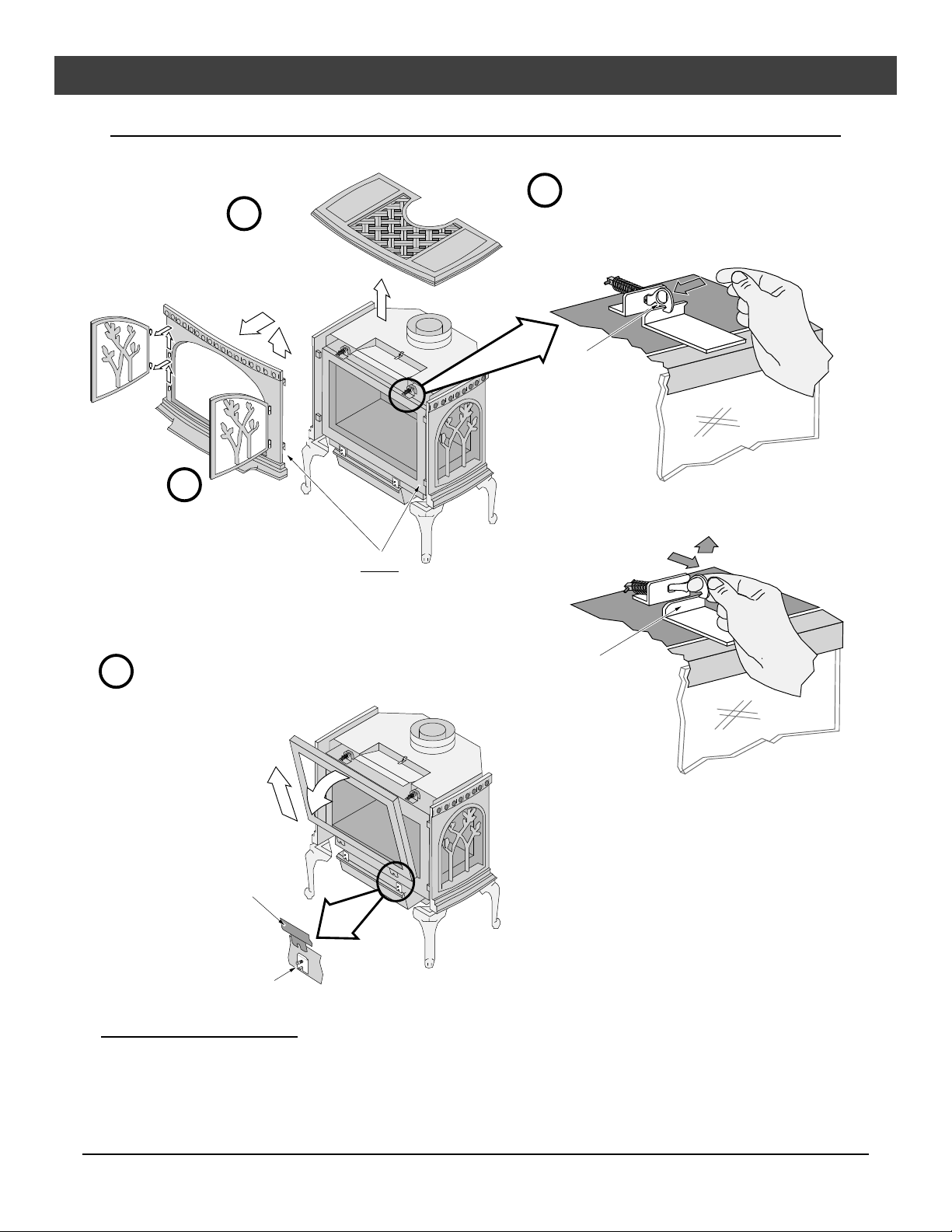

Glass Removal (& installation)........................24

Log Installation............................................26

Travis Industries 100-01169_001 4050119

4 Safety Precautions

• IF YOU SMELL GAS:

* Do not light any appliance * Extinguish any open flame * Do not touch any electrical switch or plug or unplug anything * Open windows and vacate building * Call gas supplier from neighbor's house, if not reached, call fire

department

• This unit must be installed by a qualified installer to prevent the possibility of an explosion. Your dealer will know the requirements in your area and can inform you of those people considered qualified. The room heater should be inspected before use and at least annually by a qualified service person. More frequent cleaning may be required due to excessive lint from carpeting, bedding material, etc.

• The instructions in this manual must be strictly adhered to. Do not use makeshift methods or compromise in the installation. Improper installation will void the warranty and safety listing.

Look for this label:

For LPG only | Pout 11” W.C.

If the label is present, the heater is equipped for LP (propane). If the label is absent, the heater is equipped for NG (natural gas).

• This heater is either approved for natural gas (NG) or for propane (LP or LPG). Burning the incorrect fuel will void the warranty and safety listing and may cause an extreme safety hazard. Direct questions about the type of fuel used to your dealer. Check for the label shown to the right.

Gas

• Contact your local building officials to obtain a permit and information on any installation restrictions or inspection requirements in your area. Notify your insurance company of this heater as well.

• It is imperative that control compartments, screens, or circulating air passageways of the heater be kept clean and free of obstructions. These areas provide the air necessary for safe operation.

• Do not store or use gasoline or other flammable liquids in the vicinity of this heater.

• If the flame becomes sooty, dark orange in color, or extremely tall, do not operate the heater. Call your dealer and arrange for proper servicing.

• Do not operate the heater if it is not operating properly in any fashion or if you are uncertain. Call your dealer for a full explanation of your heater and what to expect.

• Do not use this appliance if any part has been under water. Immediately call a qualified service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.

Travis Industries 100-01169_001 4050119

Safety Precautions 5

• Do not place clothing or other flammable items on or near the heater. Because this heater can be controlled by a thermostat there is a possibility of the heater turning on and igniting any items placed on or near it.

• The viewing glass should be opened only for lighting the pilot or conducting service. Do not operate with cracked, broken, or removed glass.

• Any safety screen or guard removed for servicing must be replaced prior to operating the heater.

• Operate the heater according to the instructions included in this manual.

• If the main burners do not start correctly turn the gas off at the gas control valve and call your dealer for service.

• Light the heater using the built-in piezo igniter. Do not use matches or any other external device to light your heater.

• Never remove, replace, modify or substitute any part of the heater unless

instructions are given in this manual. All other work must be done by a trained technician. Don't modify or replace orifices.

• Allow the heater to cool before carrying out any maintenance or cleaning.

• The pilot flame must contact the thermopile and thermocouple (see the illustration to the left). If it does not, turn the gas control valve to "OFF" and call your dealer.

• This unit is not for use with solid fuel

• Do not place anything inside the firebox (except the included fiber logs).

• If the fiber logs become damaged, replace with Travis Industries log set.

• Children and adults should be alerted to the hazards of high surface temperature and should stay away to avoid burns or clothing ignition. Young children should be supervised when they are in the same room as the heater.

• Instruct everyone in the house how to shut gas off to the appliance and at the gas main shutoff valve. The gas main shutoff valve is usually next to the gas meter or propane tank and requires a wrench to shut off.

This Manual

• Do not throw this manual away. This manual has important operating and maintenance instructions that you will need at a later time. Always follow the instructions in this manual.

• Plug the heater into a 120V grounded electrical outlet. Do not remove the grounding plug.

• Don’t route the electrical cord in front of, over, or under the heater

• Travis Industries, Inc.

grants no warranty, implied or stated, for the installation or maintenance of your heater, and assumes no responsibility of any consequential damage(s).

Travis Industries 100-01169_001 4050119

6 Specifications

Features:

- Ember Fyre™ Burner for "Wood Fire" Look

- Works During Power Outages (millivolt system)

- High Efficiency

- Optional Thermostat or Remote Control

- Optional Blower for Quicker Heat Distribution

- Convenient Operating Controls

- Variable-Rate Heat Output

- Low Maintenance

Installation Options:

- Freestanding Stove

- Horizontal or Vertical Vent

- Residential or Mobile Home

- Straight or Corner Placement

- Bedroom Approved

Heating Specifications:

Approximate Heating Capacity (in square feet)*.....................500 - 1,500 with Blower, 500 to 1,200 Without

Maximum BTU Input Per Hour..............................................31,000

Output from Low to High (in BTU’s per hour).........................16,608 to 26,815

Steady State Efficiency (without blower)**............................Up to 86.5 %

AFUE (without blower)........................................................Up to 72.8 %

* Heating capacity will vary depending on the home’s floor plan, degree of insulation, and the outside temperature. ** Efficiency rating is a product of thermal efficiency rating determined under continuous operation independent of

installed system.

Dimensions & Weight:

18-3/8"

15-1/4"

4-7/8"

26-3/4"

The flue collar protrudes 7/8" above the stove top

NOTE: Measure side, corner, and back clearances from the stove top.

28-3/4"

Weight: 215 Lbs.

Electrical Specifications (for optional blower)

Electrical Rating.........................................................115 Volts, 1.3 Amps, 60 Hz (150 watts on high)

Fuel:

This heater is shipped in natural gas (NG) configuration but may be converted to propane (LP) using the included LP conversion kit. The sticker on top of the gas control valve will verify the correct fuel.

Travis Industries 100-01169_001 4050119

Installation (for qualified installers only) 7

AAAAAAAAAAAAAAAAAAAA

AAAAAAAAAAAAAAAAAA

Installation Warnings:

! Failure to follow all of the requirements may result in property damage, bodily

injury, or even death.

! This heater must be installed by a qualified installer who has gone through a

training program for the installation of direct vent gas appliances.

! This appliance must be installed in accordance with all local codes, if any; if not,

follow ANSI Z223.1 and NFPA 54(88).

! In Manufactured or Mobile Homes must conform with Manufactured Home

Construction and Safety Standard, Title 24 CFR, Part 3280, or, when such a standard is not applicable, the Standard for Manufactured Home Installations, ANSI/NCSBCS A225.1. This appliance may be installed in Manufactured Housing

only after the home is site located. ! This stove is designed to operate on natural gas or propane (LP). ! All exhaust gases must be vented outside the structure of the living-area.

Combustion air is drawn from outside the living-area structure. ! Notify your insurance company before hooking up this stove. ! The requirements listed below are divided into sections. All requirements must be

met simultaneously. The order of installation is not rigid – the qualified installer

should follow the procedure best suited for the installation.

Packing List

• Propane Conversion Kit

• Log Set

• Glass Latch Tool (to un-latch glass frame)

• Touch-Up Paint

Installation Overview

Travis Industries 100-01169_001 4050119

See "Vent Requirements"

See "Gas Line Installation"

Additional Items Required

• Vent (see “Venting Requirements” for details)

• Gas Line Equipment (shutoff valve, pipe, etc.)

See

"Clearances"

See "Floor Protection Requirements"

8 Installation (for qualified installers only)

AAA

Installation Hints:

• If converting to LP, convert the appliance prior to installation.

• The blower is easiest to install prior to installation. Because the blower is located near the gas inlet

location, the gas inlet must be routing around the blower position.

• Install the logs last - they are fragile.

• When determining the location of the stove, locate the wall studs (for horizontal penetrations) and

ceiling trusses (for vertical penetrations). You may wish to adjust the stove position slightly to ensure

the vent does not intersect with a framing member.

• Fumes and smoke from the paint curing and oil burning off the steel may occur the first time you start

this heater. This is normal. We recommend you open windows to vent the room.

Stove Clearances

Straight Installations Corner Installations

With this clearance the vent is centered 7-1/8"

from the back wall, 23-1/2"

from the side wall.

With this clearance, the vent is centered 15-3/4" from the wall.

10" Min.

5" Min.

Mobile Home Requirements

• When the stove is installed in a mobile home, it must be bolted to the floor and the appliance

grounded (use the optional blower with a grounded circuit or other suitable grounding method -

current ANSI/NFPA 70).

5" Min.

45°

Travis Industries 100-01169_001 4050119

Installation (for qualified installers only) 9

Heater Placement Requirements

• Heater must be installed on a level surface capable of supporting the heater and vent.

• Due to high temperatures, the appliance should be located out of traffic and away from furniture

and draperies.

• When placed in a location where the floor to ceiling height is under 7 feet, the installation is considered an alcove and must meet the following requirements:

• The alcove floor to ceiling height must be at least 58” tall

• The alcove must not be more than 45” deep before the ceiling returns to 7’

• The alcove must be at least 46-3/4” wide

• The heater must not be placed so the vents below or above the door, along the sides of heater, or

along the back of the heater can become blocked.

• This heater may be placed in a bedroom. Please be aware of the large amount of heat this appliance produces when determining a location.

Floor Protection Requirements

• When the stove is installed directly on carpeting, vinyl or other combustible material other

than wood flooring or a high pressure laminate wood floor, the stove must be installed on a metal or wood protection panel extending the full width and depth of the heater (Minimum 26-3/4” wide by 19” deep).

Make sure these rubber tipped bolts on each leg contact the floor (they dampen any noise that may

transmit through the hearth). Do not adjust with weight on the legs, the rubber tips may tear.

Travis Industries 100-01169_001 4050119

10 Installation (for qualified installers only)

Gas Line Installation

MASSACHUSETTS INSTALLATIONS - WARNING:

THIS PRODUCT MUST BE INSTALLED BY A LICENSED PLUMBER OR GAS FITTER WHEN INSTALLED WITHIN THE COMMONWEALTH OF MASSACHUSETTS.

OTHER MASSACHUSETTS CODE REQUIREMENTS:

• Flexible connector must not be longer than 36 inches.

• Shutoff valve must be a “T” handle gas cock.

• Only direct vent sealed combustion products are approved for bedrooms or bathrooms.

• Fireplace dampers must be removed or welded in the open position prior to the installation of a fireplace insert or gas log.

• A carbon monoxide (CO) detector is required in the same room as the appliance.

! The gas line must be installed in accordance with all local codes, if any; if not, follow current ANSI

Z223.1 or NFPA 54.

! The heater and gas control valve must be disconnected from the gas supply piping during any

pressure testing of that system at test pressures in excess of 1/2 psig (3.45 kPA). For pressures under 1/2 psig (3.45 kPA), isolate the gas supply piping by closing the manual shutoff valve.

NOTE: The gas inlet may pass close

to the blower - we suggest you install the blower first or provide adequate clearance.

• This heater is designed for natural gas but can be converted to propane. Check the sticker on top of the gas control valve to verify the correct fuel is used (see page 4).

• Leak test all gas line joints and the gas control valve prior to and after starting the heater.

• A manual shutoff valve is required for installation (it must be located within 3’ of the heater). T-Handle gas cocks are required in Massachusetts in compliance with code 248CMR.

• The location of the gas inlet (3/8" FPT) is shown to the right.

5-3/4"

Centerline

6-1/2"

10-1/4"

Gas Inlet Pressure

• With the heater off, the inlet pressure must meet the requirements listed in the table below

• If the pressure is not sufficient, make sure the piping used is large enough and the total gas load

for the residence does not exceed the amount supplied.

• The supply regulator (the regulator that attaches directly to the residence inlet or to the propane tank) should supply gas at the suggested input pressure listed below. Contact the local gas supplier if the regulator is at an improper pressure.

Standard Input Pressure

Natural Gas 7” W.C. (1.74 Kpa) Propane 13” W.C. (3.23 Kpa)

Travis Industries 100-01169_001 4050119

Installation (for qualified installers only) 11

Vent Requirements

• The vent must maintain the required 1" clearance to combustible materials to prevent a fire. Do not fill air spaces with insulation.

• The gas appliance and vent system must be vented directly to the outside of the building, and never be attached to a chimney serving a separate solid fuel or gas-burning appliance. Each direct vent gas appliance must use it's own separate vent system.

• When the vent passes through a wall a wall thimble is required. When the vent passes through a ceiling a support box or firestop is required. When the vent passes through the roof, a roof flashing and storm collar are required. Follow the instructions provided with the vent for installing these items.

NOTE: Wall thimbles may have

different dimensions than what is required by this heater.

• Failure to adjust the air shutter properly may lead to improper combustion which can create a safety hazard. Consult your dealer or installer if you suspect an improperly adjusted air shutter.

Vertical Termination always use the "high-wind" version (if applicable)

Use a roof flashing and storm collar whenever passing through the roof

Use a firestop whenever passing through a ceiling

NOTE:

Use a support box on exposed vent

Use a thimble when passing through a wall

Vertical Vent

Requirements

Maintain a minimum 1" clearance from vent to any combustible

Horizontal Vent

Requirements

•

This heater has been tested at altitudes ranging from sea level to 8,000 feet (2,400 M). In this testing we have found that the heater, with its standard orifice, burns correctly with just an air

Minimum Framing for wall thimble

Maintain a minimum 1" clearance from vent to any combustible.

Horizontal Termination

shutter adjustment.

• Use of of the following 6-5/8" diameter co-axial gas direct vent systems:

Manuafacturer Series

Simpson Dura-Vent Model GS Selkirk Hearth Products Direct-Temp American Metal Products Ameri-Vent

NOTE : Always use the high-wind cap for the type of vent you are using (if applicable)

• Slide the vent sections together and turn 1/4 turn until the sections lock in place.

• Screws are not required to secure the vent. However, three screws may be used to

secure vent sections together if desired.

• High temperature sealant is recommended at the appliance starter section connection (use high-temperature silicone or Mill-Pac®).

• If disassembly is required, at time of re-assembly check to see if the vent creates a tight fit. If it does not, apply high temperature sealant to the joints of the affected sections.

• Horizontal sections require a 1/4" rise every 12" of travel

• Horizontal sections require non-combustible support every three feet (e.g.: plumbing

tape)

Travis Industries 100-01169_001 4050119

12 Installation (for qualified installers only)

Approved Vent Configurations

Restrictor Position

• A restrictor is built into the appliance to control the flow rate of exhaust gases. This ensures proper flames for the wide variety of vent configurations. Depending upon the vent configuration, you may be required to adjust the restrictor position. The charts for approved vent configurations describe which position the vent restrictor must be in.

To Access the Restrictor

Use both hands to lift the stove top off the stove.

Lift the cotter pin out.

NOTE:

The restrictor is shipped in position #1.

To Adjust the Restrictor

Slide the restrictor

adjustment rod in.

Restrictor Positions

# 5

# 6

# 4

# 1

# 3

# 2

Replace the cotter pin

through the correct hole on the restrictor adjustment rod.

This restrictor is

in position # 6

Measuring Vent Lengths

Vent Height is calculated to the top of the vent on horizontal terminations and to the top of the termination on vertical terminations.

Vent

Height

Vent Horizontal Run

Horizontal

Elbow

Vent Horizontal Run is measured from the start of the horizontal section to the end of the termination.

Vertical Elbow

NOTE:

When a horizontal elbow (90° or 45°) is used, horizontal length is the sum of the two lengths (H1 + H2).

Vertical Elbow

Travis Industries 100-01169_001 4050119

Installation (for qualified installers only) 13

Vertical Termination with Zero, Two, or Four 45° Elbows

• The termination must fall within the shaded area shown in the chart. Use the indicated restrictor position.

40' (max)

0 feet

5 feet

Restrictor

10 feet

15 feet

20 feet

24 ' (max)

40' (max)

• If using offsets, use the table below to calculate the vertical rise and horizontal offset

Horizontal Offset

Vertical

Rise

Offset Length

Offset Length Hor. Offset Vert. Rise None 5” 1’

1’ Section 1’ 1’ 7” 2’ Section 1’ 9” 2’ 4” 3’ Section 2’ 5” 3’ 4’ Section 3’ 2” 3’ 8” 4’ + 1’ Section 3’ 9” 4’ 4” 4’ + 2’ Section 4’ 6” 5’ 4’ + 3’ Section 5’ 2” 5’ 9” 4’ + 4’ Section 6’ 6’ 9”

30 feet

25 feet

20 feet

15 feet

10 feet

5 feet

Position # 6

NOTE: Restrictor positions are based upon lab tests. The ideal restrictor position may vary slightly, especially when the termination is near a demarkation line.

Restrictor

Position # 5

35 feet35 feet

30 feet

25 feet

20 feet

15 feet

10 feet

5 feet

0 feet

5 feet

10 feet

15 feet

20 feet

0 feet

24 ' (max)

Travis Industries 100-01169_001 4050119

14 Installation (for qualified installers only)

Horizontal Termination with One 90° Elbow

• If using a Snorkel Termination (14” or 36”) add the snorkel height to the vertical height (snorkel terminations are used primarily for basement installations).

• The termination must fall within the shaded area shown in the chart. Use the indicated restrictor position.

19' (max)

15 feet

10 feet

5 feet

0 feet

5 feet

Restrictor Position # 5

NOTE:

Horizontal sections require a 1/4" rise every 12" of travel.

NATURAL GAS: Min. 2' Section Required PROPANE (LP): Min. 3' Section Required

10 feet

Restrictor

Position # 1

15 feet

NOTE: Restrictor positions are based upon lab tests. The ideal restrictor position may vary slightly, especially when the termination is near a demarkation line.

20 feet

24 ' (max)

19' (max)

15 feet

10 feet

5 feet

0 feet

5 feet

10 feet

15 feet

20 feet

0 feet

24 ' (max)

Travis Industries 100-01169_001 4050119

Installation (for qualified installers only) 15

Horizontal Termination with Two Elbows (one 90° vertical and one 90° or 45° horizontal elbow)

• If using a Snorkel Termination (14” or 36”) add the snorkel height to the vertical height (snorkel terminations are used primarily for basement installations).

• The termination must fall within the shaded area shown in the chart. Use the indicated restrictor position.

19' (max)

15 feet

10 feet

5 feet

0 feet

5 feet

10 feet

Restrictor

Position # 5

NOTE: Restrictor positions are based upon lab tests. The ideal restrictor position may vary

Restrictor

Position # 1

slightly, especially when the termination is near a demarkation line.

NOTE:

Horizontal sections require a 1/4" rise every 12" of travel.

NATURAL GAS: Min. 2' Section Required PROPANE (LP): Min. 3' Section Required

15 feet

20 feet

24 ' (max)

19' (max)

15 feet

10 feet

5 feet

0 feet

5 feet

10 feet

15 feet

20 feet

0 feet

24 ' (max)

This is considered a horizontal elbow (it does not matter whether it turns right or left). It may be a 90° or 45° elbow.

Horizontal length (max. 24') is calculated by adding both lengths of horizontal run (Horizontal Length = H1 + H2).

This is considered a vertical elbows

Travis Industries 100-01169_001 4050119

16 Installation (for qualified installers only)

Horizontal Termination with Three 90° Elbows (all vertical)

• The termination must fall within the shaded area shown in the chart. Use the indicated restrictor position.

21' (max)

15 feet

10' (min)

5 feet

0 feet

5 feet

10 feet

Restrictor

Position # 5

Restrictor

Position # 1

NOTE:

Horizontal sections require a 1/4" rise every 12" of travel.

15 feet

NOTE: Restrictor positions are based upon lab tests. The ideal restrictor position may vary slightly, especially when the termination is near a demarkation line.

20 feet

24 ' (max)

21' (max)

15 feet

10' (min)

5 feet

0 feet

This is a horizontal elbow -

NOT ALLOWED FOR THIS

VENT CONFIGURATION

5 feet

10 feet

15 feet

20 feet

These are vertical elbows.

0 feet

24 ' (max)

Travis Industries 100-01169_001 4050119

Installation (for qualified installers only) 17

Vertical Termination with Two 90° Elbows

• The termination must fall within the shaded area shown in the chart. Use the indicated restrictor position.

40' (max)

30 feet

25 feet

20 feet

15 feet

0 feet

5 feet

Restrictor

Position # 1

10 feet

Restrictor

Position # 6

Restrictor

Position # 5

15 feet

NOTE: Restrictor positions are based upon lab tests. The ideal restrictor position may vary slightly, especially when the termination is near a demarkation line.

20 feet

24 ' (max)

40' (max)

35 feet35 feet

30 feet

25 feet

20 feet

15 feet

10' (min)

5 feet

0 feet

NOTE:

Horizontal sections require a 1/4" rise every 12" of travel.

0 feet

This is a horizontal elbow -

NOT ALLOWED FOR THIS

VENT CONFIGURATION

5 feet

10 feet

15 feet

20 feet

These are vertical elbows.

10' (min)

5 feet

0 feet

24 ' (max)

Travis Industries 100-01169_001 4050119

18 Installation (for qualified installers only)

Vertical Termination with Three 90° Elbows

(Two 90° Vertical and One 45° or 90° Horizontal Elbow)

• The termination must fall within the shaded area shown in the chart. Use the indicated restrictor position.

40' (max)

30 feet

25 feet

20 feet

15 feet

0 feet

5 feet

10 feet

Restrictor

Position # 5

15 feet

20 feet

NOTE: Restrictor positions are based upon lab tests. The ideal restrictor position may vary slightly, especially when the termination is near a demarkation line.

Restrictor

Position # 1

24 ' (max)

40' (max)

35 feet35 feet

30 feet

25 feet

20 feet

15 feet

10' (min)

NOTE:

Horizontal sections require a

5 feet

0 feet

This is considered a horizontal elbow (it does not matter whether it turns right or left). It may be a 45° or 90° elbow.

0 feet

1/4" rise every 12" of travel.

5 feet

10 feet

15 feet

This is considered a vertical elbow

Horizontal length (max. 24') is calculated by adding both lengths of horizontal run (Horizontal Length = H1 + H2).

This is considered a vertical elbow

20 feet

5 feet

0 feet

24 ' (max)

Travis Industries 100-01169_001 4050119

Installation (for qualified installers only) 19

Vent Termination Requirements (see illustration below)

! Venting terminals shall not be recessed into a wall or siding.

A Minimum 9" clearance from any door or window B Minimum 12" above any grade, veranda, porch, deck or balcony C Minimum 3-3/8" from outside corner walls

NOTE: Clearance in accordance with local installation codes and the requirements of the gas supplier.

D Minimum 12" from inside corner walls

NOTE: Clearance in accordance with local installation codes and the requirements of the gas supplier.

E Minimum 11" clearance below unventilated soffits or roof surfaces

Minimum 18" clearance below ventilated soffits Minimum 6" clearance below roof eaves

NOTE: Vinyl surfaces require 24" NOTE: Clearance in accordance with local installation codes and the requirements of the gas supplier.

F Minimum 12" clearance below a veranda, porch, deck or balcony

NOTE: Permitted only if veranda, porch, deck, or balcony is fully open on a minumum of two sides beneath the floor. NOTE: Clearance in accordance with local installation codes and the requirements of the gas supplier.

G Minimum 48" clearance from any adjacent building H Minimum 84" clearance above any grade when adjacent to public walkways or driveways

NOTE: may not be used over a walkway or driveway shared by an adjacent building

I Minimum 48" clearance from any mechanical air supply inlet J Minimum 36" clearance above and 48” below and to the sides of non-mechanical air supply inlet K Minimum 36" from the area above the meter/regulator (vent outlet)

NOTE: Clearance in accordance with local installation codes and the requirements of the gas supplier.

L Minimum 36" from the meter/regulator (vent outlet)

NOTE: Clearance in accordance with local installation codes and the requirements of the gas supplier.

M Minimum 12” above the roof line (for vertical terminations) N Minimum 24” horizontal clearance to any surface (such as an exterior wall) – for vertical terminations

Roof Surface

11” Min.

6” Min.

Roof Eaves

NOTE: Measure clearances to the nearest edge of the exhaust hood.

• Use the vinyl siding standoff (#1250) when installing on an exterior with vinyl siding.

• Vent termination must not be located where it will become plugged by snow or other material

Travis Industries 100-01169_001 4050119

20 Installation (for qualified installers only)

Class A Chimney Conversion Kit

Simpson Duravent provides a conversion kit for those wishing to use an existing wood stove chimney to vent this direct vent stove. The illustration below gives an overview of this type of installation. See the instructions included with the kit for details.

! Do not exceed the maximum vertical rise. The restrictor position should be set to the position that

most closely resembles the vent configuration (see "Approved Vent Configurations" for details). NOTE: because this installation utilizes non-standard vent, the restrictor position may vary. Carefully monitor the burn characteristics to verify correct restrictor position.

! The conversion kit does not work on interior masonry chimneys.

Chimney Conversion Kit A (# 931)

Metalbestos 6" I.D. Security Chimneys 6" I.D. Jackes-Evans 6" I.D. Hart & Cooley 6" I.D. Pro-Jet 6" I.D.

Chimney Conversion Kit B (# 932)

Simpson Dura-Vent 6" I.D. Air-Jet 6" I.D. Metal-Fab 6" and 7" I.D. Amer. Metals 6" & 7" I.D. Metalbestos 7" and 8" I.D. Jackes-Evans 7" and 8" I.D. Hart & Cooley 7" and 8" I.D. Pro-Jet 7" and 8" I.D. Security Chimneys 8" I.D.

Chimney Conversion Kit C (# 933)

Simpson Dura-Vent 7" and 8" I.D. American Metals 8" I.D. Air-Jet 8" I.D. Metal-Fab 8" I.D. American Metals 8" I.D.

Each Kit Contains:

Retro Connector Retro Vertical Top

Additional Required Equipment:

4" Flex (#711 or U.L. 1777) Termination (#991) Co-Axial Sections

Screw the Retro Vertical Top to the Flex Pipe

Type A Chimney

4" (100 mm) Aluminum Flex Pipe

Retro Connector (screw to chimney)

Simpson Duravent Direct Vent Pipe Sections (use adjustable section)

Retro Vertical Top (screw to chimney)

Cut the Flex Pipe to the chimney height plus 3" (75 mm)

Screw the Retro Connector to the Flex Pipe

Travis Industries 100-01169_001 4050119

Installation (for qualified installers only) 21

Masonry Chimney Conversions (Interior or Standard)

• Follow the requirements and use the equipment listed in the illustration below to install this appliance into an interior masonry chimney.

• Maximum vertical rise is 40'

• Minimum vertical rise is 10'

• The restrictor position should be set to the position that most closely resembles the vent

configuration (see "Approved Vent Configurations" for details). NOTE: because this installation utilizes non-standard vent, the restrictor position may vary. Carefully monitor the burn characteristics to verify correct restrictor position.

NOTE : Certain jurisdictions may not allow this type of installation or may require two co-linear vents be used for

venting through an existing masonry chimney. Check with your local building official before installing.

Freestanding Masonry Chimney

The entire chimney system must be air-tight. Make sure to seal the flashing, clean-out, and thimble connection, and to inspect the chimney.

Make sure the coaxial pipe maintains a 1” clearance to any combustible. The vent must be sealed air-tight.

#990 90° Elbow

Co-Axial Straight Lengths

Standard Masonry Fireplace

The entire chimney system must be air-tight. Seal the connector cover and inspect the chimney.

High-Temp.

Silicone

Make sure the coaxial pipe maintains a 1” clearance to any combustible. The vent must be sealed air-tight.

#991 High Wind Termination

Flashing (included in #934 Masonry Conversion Kit

High-Temp.

Silicone

4" Dia. Flex Line (UL 1777 Gas Liner)

Connector with Cover (included in #934 Masonry Conversion Kit)

#991 High Wind Termination

Flashing (included in #934 Masonry Conversion Kit)

4" Dia. Flex Line (UL 1777 Gas Liner)

Connector (included in #934 Masonry Conversion Kit) secured and sealed to block-off plate.

Travis Industries 100-01169_001 4050119

22 Finalizing the Installation (for qualified installers only)

Finalizing the Installation

! Make sure the gas control valve is “OFF” and the heater is cool prior to conducting service.

1 Remove the face and glass (see page 24)

! We recommend you purge the gas line at this time (with the glass removed). This allows gas to be

detected once it enters the firebox, ensuring gas does not build up.

2 Install the log set and coals (see page 26).

3 Turn on gas to the heater. Leak test all gas joints prior to starting the appliance. Start the pilot. Start

the main burner. Leak test all gas joints again.

4 Inspect the pilot flame (see the illustration below). Adjust the pilot flame if necessary.

Pilot Flame Adjustment

To adjust the pilot flame, turn this screw (NOTE: if totally unscrewed gas will come out of this port). Clockwise lowers the flame while counter-clockwise raises it.

Standard Screwdriver

5 Replace and secure the glass and face (see page 24)

The pilot flame must contact the thermocouple and thermopile (see the illustration below). Adjust the pilot up or down as necessary.

Travis Industries 100-01169_001 4050119

Finalizing the Installation (for qualified installers only) 23

6 Let the heater burn for thirty minutes. Adjust the air shutter, if necessary, to achieve the correct

looking flame (see the illustration below).

• The air shutter adjusts the amount of air that mixes with the gas before it exits the burner holes. It is used to fine-tune the flame for differences in altitude and vent configuration.

Air Shutter Adjustment

ADJUSTING THE AIR SHUTTER

Pushing to the left gives the flame less air (making it more orange). Pushing to the right gives the flame more air, making it more blue. For fine adjustments use a screwdriver to tap the air shutter.

NOTE: If the air shutter is all the way open, yet the flames remain sooty, shut off gas to the fireplace and contact a qualified gas service technician.

Correct

Flames should be blue at the base, yellow-orange on the top.

Gas Control Valve

NOTE: The logs must be installed correctly to monitor the flame while adjusting the air shutter.

Not Enough Air

If the flames are over 14" tall or sooty on the ends, open the air shutter.

Air Shutter Control

Too Much Air

If the flames are all blue and short, close the air shutter.

! If the vent configuration is installed incorrectly the vent may cause the flames inside the heater to lift or

“ghost” – a dangerous situation. Inspect the flames after installation to insure proper performance. If the vent configuration is correct, yet the flames are lifting or ghosting, shut off gas to the heater and contact the dealer for information on remedying the problem.

! Failure to properly adjust the air shutter may lead to improper combustion and a safety hazard. Consult

your dealer or installer if you suspect an improperly adjusted air shutter.

Burner Ports

Burner Pan

The flames should burn right off the top of the burner ports (if they are too blue, adjust the air control).

If the flames are lifting, yet the vent configuration is correct, contact your dealer.

(holes)

If the flames are ghosting, yet the vent configuration is correct, contact your dealer.

7 Turn the flame adjust knob to its highest position - the flames should be a maximum 9” to 10” tall.

Check the flame on low position. The flames should burn off of each burner hole. If the heater does not work correctly, contact your dealer for a remedy.

8 Give this manual to the home owner and fully explain the operation of this heater.

Travis Industries 100-01169_001 4050119

24 Finalizing the Installation (for qualified installers only)

Glass Removal

! Make sure the gas control valve is “OFF” and the heater is cool prior to conducting service.

Open the two latches holding the glass frame in

place - follow the directions shown below

Lift the stove top off the stove and place it aside.

Top of Firebox

Latch

Glass

Open the doors, lift them off the hinges, and place them aside. Remove the stove front by lifting it up then forward. Place it aside.

NOTE: The metal tabs on the stove front slide over the tabs on the side castings.

Lift the glass frame slightly, swing the top forward, then lift

the glass frame to disengage it from the bottom guides.

Glass Frame

Glass Frame Guide

Re-Attaching the Glass Frame:

a) Slide the two brackets on the bottom of the glass frame into the glass frame

guides (hold the glass frame at a slight angle. b) Swing the glass frame into place - you may have to lift it slightly to allow it to fit over the top of the firebox. c) Attach the upper latches (follow the instructions above in reverse). d) Replace the stove front and top.

Catch (on glass frame)

Travis Industries 100-01169_001 4050119

Finalizing the Installation (for qualified installers only) 25

Glass Frame Removal and Installation (continued)

The latch can come loose from the latch assembly. This occurs only when it is rotated. Follow the directions below to re-install the latch if it comes loose.

Hold the latch at an angle and insert it into the slot on the glass frame anchor.

Latch

Top of Firebox

Glass Frame Anchor

Note how the washer on the latch fits behind the flange on the glass frame anchor.

NOTE: this slot may be at a different angle than illustrated.

Once fully inserted, turn the latch until it is upright.

Travis Industries 100-01169_001 4050119

26 Finalizing the Installation (for qualified installers only)

Log Installation

! Make sure the gas control valve is “OFF” and the heater is cool prior to conducting service. ! Failure to position the parts in accordance with these diagrams or failure to use only parts specifically

approved with this appliance may result in property damage or personal injury.

NOTE: The burner must be correctly positioned. Grasp the burner, lift it up,

position the gas inlet tube over the burner tube, and slide the burner all the way down (see page 38 for details).

These steel platforms with

pins are for the rear log.

The pins are used to locate

the logs on the burner.

These flat spots are for the

front twigs.

Place the rear log in place as

shown here.

Place the front logs in place. Note how the holes in the bottom of the front logs fit over the pins on the burner.

Travis Industries 100-01169_001 4050119

Finalizing the Installation (for qualified installers only) 27

AAAA

Log Installation (continued)

Place the top twigs in place. Note how the holes in the bottom of the twigs fit over the pins on the logs.

Place the front twigs in place. They fit on the flat portions of the burner.

Installing the Rock Wool

The rock wool comes in one clump. Tear off “dime” sized clumps and flatten. Then pull on the wool to create gauze-like pieces. Place them near some of the burner holes. The wool glows best when very thin and porous.

NOTE : We recommend using very little rock wool, especially in LP or high-altitude installations.

Travis Industries 100-01169_001 4050119

28 Operation

Before You Begin

Warning: Read this entire manual before you use your new stove (especially the section "Safety

Precautions" on pages 4 & 5). Failure to follow the instructions may result in property damage, bodily injury, or even death.

Warning : Do not operate appliance with the glass front removed, cracked or broken. Replacement of the glass

should be done by a licensed or qualified service person.

Location of Controls - See explanation below

The on/off switch and optional blower control are located on the back of the heater.

ON/OFF Switch

OFF

Optional Blower Control

The Pilot Flame

can be found below

the back log.

An instruction card for operating the heater is attached near the gas control valve. Replace it for easy reference.

IGNITER

Pilot Igniter

Gas Control Valve

Swing the control cover down to access the gas control valve and pilot igniter.

Gas Control Knob

Flame Adjust Knob

On/Off Switch This control is used to turn the flame on and off. Optional Blower Control This knob controls the speed of the internal convection blower that

pushes heated air into the room.

Gas Control Knob This knob controls gas to the stove and pilot. There are three positions: ON,

OFF, and PILOT. The indicator line is to the left of the knob.

Flame Adjust Knob This knob controls the flame height from low ("LO") to high ("HI”). The

indicator line is above the knob.

Pilot Igniter The pilot igniter is used only to start the pilot. When pressed, it sends an

electrical charge to the pilot assembly. This creates a blue spark directly next to the pilot, igniting the pilot flame.

• If using a remote control or thermostat, the On/Off Switch must be left "OFF". Turning the On/Off Switch "ON" will keep the stove on always.

Travis Industries 100-01169_001 4050119

Starting The Pilot Flame

Operation 29

The pilot flame is required to ignite the main burners (it also plays a safety role). It should be left on once lit. It will stay lit unless the gas control valve is turned to "OFF". However, the pilot will go out if the gas is shut off, the propane tank runs out (or low) or if the stove malfunctions. If the pilot turns off frequently, call your dealer for information. To start the pilot follow the directions below:

WARNING : When lighting or re-lighting the pilot,

the glass must be removed (see page

24).

a Remove the glass (see page 24 for details). b Push the gas control knob in slightly and turn it to

the "OFF" position. The knob will not turn from "ON" to "OFF" unless the knob is depressed slightly. Wait five minutes to let any gas that may have accumulated inside the firebox escape. If you smell leaking gas, follow the directions on the cover "IF YOU SMELL GAS".

c Turn the gas control knob to the "PILOT" position

and press the knob in, this will allow gas to flow to the pilot light. Press the button on the pilot igniter repeatedly until you see the pilot light.

WARNING: If the pilot does not light after 15

seconds, release the knob and call your dealer for service. Do not attempt to light pilot until service has been performed.

5 minutes

PILOT

IGNITER

30 seconds

NOTE: You may wish to remove the log set to

gain a better view of the pilot (see page

26).

d Keep the gas control knob depressed for 30

seconds once it is lit.

e Release the gas control knob. If the pilot goes

out, repeat step C. If the pilot refuses to stay lit, call your dealer for service. With the pilot lit, proceed to step “f”.

NOTE: If the gas control knob is turned to

“OFF” after the pilot has been lit for several seconds, the knob will not turn. This safety feature prevents gas from entering the firebox.

f Replace the glass. g Turn the gas control knob counter-clockwise to

"ON". The pilot is now lit and the heater can be turned on and off.

Travis Industries 100-01169_001 4050119

30 Operation

Starting the Stove for the First Time

Fumes from the Painted Surfaces Curing

Burn the heater at a medium setting for approximately one hour the first time. This will cure the painted surfaces. Fumes from the paint curing and oil burning off the steel may occur. This is normal. We recommend you open the window to vent the room.

Condensation

Water may appear on the glass each time you start the heater - this is normal.

Blue Flames

The flames will be blue when first started. After fifteen minutes the flames will turn a more realistic yellow and orange color.

Turning the Stove On and Off

After the pilot has been started...

For systems with wall thermostats, use this switch to control the temperature (right is hotter, left cooler). Some systems require the on/off switch to be on.

Use this switch to turn the main burner on and off manually.

See the instructions included with the remote for details on operation.

See the instructions included with the remote for changing the battery.

ROOM TEMP

°F

SET TEMP

TIMER

MIN

°F

Time

OFF

Set

Time Cancel

Warning: Do not place combustible items on top or directly in front of the heater, even temporarily.

The optional thermostat may start the heater causing a combustible item to ignite.

Note: If the heater turns on and off frequently while using the thermostat, you may want to

adjust the flame height down until it produces just enough heat needed.

Adjusting the Flame Height

+ Your stove has an adjustable flame to tailor the look and heat output to your specific needs. It is

adjusted by turning the middle dial on the gas control valve.

Flame Height Adjustment Knob

Index Mark

Turn counter-clockwise to adjust the flame higher, clockwise to lower.

Travis Industries 100-01169_001 4050119

Operation 31

Adjusting the Blower Speed (optional)

The blower helps transfer heat from the heater into the room. It will not turn on until the heater is up to temperature (approximately 10 minutes after starting). See the illustration below for instructions on adjusting the blower speed.

OFF

Turn the dial all the way counterclockwise until it clicks off.

OFF

Normal Operating Sounds

Pilot Flame

The pilot flame, which remains on, makes a very slight "whisper" sound.

HIGH

The high position is all the way counterclockwise, clicking off.

without

OFF

The appliance may creak with change of temperature -- THIS IS NORMAL.

LOW

Turn the dial all the way clockwise.

OFF

Blower This heater uses a blower to push heated air into the room. You will hear the sound of air movement that increases as the speed is increased.

Extinction Pops It is not unusual, especially on Propane (LP) appliances, to experience a "pop"

Gas Control Valve

As the gas control valve is turned on and off you will hear a dull clicking sound. This is the valve opening up and shutting down.

when the burner is shut off.

Blower Snap Disk This part can produce a clicking sound as it turns the blower on and off.

Normal Operating Odors

This appliance has several areas that reach high temperatures. Dust or other particles on these areas may burn and create a burnt-paper smell. This is normal during startup. You may notice the smell is more acute if the appliance was left idle for a long period.

Travis Industries 100-01169_001 4050119

32 Maintenance (for qualified service personnel only)

C o d

Maintaining Your Stove's Appearance

WARNING : Make sure the appliance has fully cooled prior to cleaning. Painted Surfaces

• Painted surfaces should be cleaned with a duster. If scratches occur, lightly sand the area with fine sandpaper. Clean the area and, with the stove cool, apply one or two thin coats of stove paint to the area (mask the area to avoid overspray). Allow the stove to dry, then turn the stove on to cure the paint (1 hour on medium).

Enamel Surfaces

• Use only soft cloth and water to clean enamel surfaces. To fix chips in the enamel, follow the directions below:

1) Let the stove cool. Clean the area thoroughly.

2) Shake the Travis Enamel Touch-Up thoroughly. Apply to the damaged area.

Glass

• Clean the glass with soap and water (do not use abrasives). To remove the glass, follow the instructions on page 24.

Yearly Service Procedure

• Failure to inspect and maintain the heater may lead to improper combustion and a potentially dangerous situation. We recommend the following procedures be done by a qualified technician.

1 Check the pilot flame. It should touch approximately 3/8" of the top of the thermopile and touch the top of the

thermocouple (see illustration below). If it does not, contact your dealer for service.

2 Shut off gas to the heater by turning the gas control knob to "OFF" (see step A under "Starting the Pilot" on page

29). Let the heater cool for 15 minutes. Remove the glass (see page 24).

3 Remove the log set (NOTE: the logs are very fragile - see page 26). If severely deteriorated, replace.

Check the logs for sooting. A small amount of soot along the bottom of the logs is normal. If excessive sooting is found, the heater will require adjustment. Contact your dealer.

4 Clean the burner (especially the burner holes) and inspect the following:

• Make sure the burner is not warped, cracked, or damaged.

• Check the firebox and area around the pilot to make sure there is no warping or damage.

If any problem is found, discontinue use and contact your dealer for service.

Before Disassembly - Check the pilot flame.

heck the walls and ceiling f the firebox for eterioration.

It should touch the thermocouple and thermopile.

Thermopile

Pilot Hood

Thermocouple

Check the burner holes.

Make sure the burner is not warped or damaged.

5 Replace the log set. Clean and replace the glass (use non-abrasive cleaner - if damaged, replace). Make sure

the gasket along the perimeter of the glass contacts the face of the firebox and forms an air-tight seal. If it does not, re-align or replace the gasket to insure an air-tight seal. Replace the glass.

6 Inspect the area behind the access door. Clean if necessary. Check the gas control valve and the gas lines. If

damage is found, discontinue use and contact your dealer for service. Clean the air channels and ducts.

7 Start the pilot and turn on the main burner. The flames should be orange/yellow and not touch the top of the

firebox. If the pilot or main burners do not burn correctly, contact your dealer for service. Monitor the blower operation.

8 Remove any debris or vegetation near the vent termination. Contact your dealer if any sooting or deterioration is

found near the vent termination.

Travis Industries 100-01169_001 4050119

Maintenance (for qualified service personnel only) 33

Troubleshooting Table

Problem: Possible Cause: Don't Call for Service

Until You:

Pilot Will Not Light

A gas shut off valve is turned off The gas control knob isn't turned to "PILOT" The valve control knob isn't pushed in The igniter wasn't pressed repeatedly No Propane in Tank

Check all gas shut off valves See "Starting the Pilot Light" Step C See "Starting the Pilot Light" Step C See "Starting the Pilot Light" Step C Check Tank Level

Main Burners Will Not

Start

Remote Control Does

Not Work

Thermostat Does Not

Work

Optional Blower Does

Not Work

The pilot light has gone out The gas control valve is turned to "PILOT" or "OFF" The ON/OFF switch is turned to "OFF" The remote control is not working correctly The thermostat is set too low

The pilot light has gone out The gas control valve is turned to "PILOT" or "OFF" ON/OFF switch is turned to "ON" (stove stays on) The remote is too far away from the stove The remote control receiver is turned "Off" One of the two remote control batteries is dead

The pilot light has gone out The gas control valve is turned to "PILOT" or "OFF" ON/OFF switch is turned to "ON" (stove stays on) The thermostat is set too low

The stove is not getting electricity The stove is not up to temperature

See "Starting the Pilot Light" See "Starting the Pilot Light" Turn the ON/OFF switch to "ON" See the remote control instructions Set thermostat to higher temperature

See "Starting the Pilot Light" See "Starting the Pilot Light" Turn the ON/OFF switch to "OFF" Use the remote closer to the stove See the remote control instructions See the remote control instructions

See "Starting the Pilot Light" See "Starting the Pilot Light" Turn the ON/OFF switch to "OFF" Set thermostat to higher temperature

Check the breaker switch See "Operating Your Stove"

Pilot Goes Out Once A

The gas supply has been shut off Keep the gas supply turned on

Month Or More

Flames Are Too Blue

Flames Are Too Short

(Under 6")

Thin Layer of Soot

Covers the Glass

The stove has just been started

Improper air shutter adjustment

The flame height may be turned too low Turn the flame height to "HI" -

The logs or coals are placed incorrectly Improper air shutter adjustment

This is normal - see "Starting the

Stove for the First Time"

Adjust Air Shutter - contact your

dealer

See "Adjusting the Flame Height"

See "Log Set Installation & Removal" Adjust Air Shutter - contact your

dealer

Travis Industries 100-01169_001 4050119

34 Maintenance (for qualified service personnel only)

How this Stove Works

! This stove was designed with safety as the primary concern. Many of the components inside this

stove are for safety purposes. Therefore, only certified gas service technicians should service this stove.

What Turns the Main Burners On and Off

This stove uses a millivolt system to control its operation (a millivolt is a very small amount of electricity). The thermopile and thermocouple generate electricity when heated by the pilot flame. This electricity is used to operate the gas valve. Without enough electricity, the gas valve will not turn on. That is why when starting the pilot the gas control knob has to be pressed in long enough for the thermocouple to heat up and generate enough electricity. The thermopile provides power for the ON/OFF switch, remote control, or thermostat (see the illustration below). Because the thermopile generates the electricity needed to turn the stove on and off, this stove can be operated when the power is out (although the blower will not run).

When heated, the thermopile generates electricity (a very small amount measured in "Millivolts").

This electricity is used to operate the main burners.

The main burners are switched on and off using the electricity generated by the thermopile. The ON/OFF switch, remote control, or thermostat control the circuit to the main burner.

MAIN BURNER

OFF

What Prevents Gas Buildup

+ This appliance utilizes a high-technology gas valve in conjunction with a pilot flame to ensure no gas

builds up inside the firebox.

+ The thermocouple (next to the pilot) senses when the pilot flame is lit. If the pilot flame goes out, this

thermocouple no longer generates electricity, causing the gas valve to automatically shut off all gas to the heater, preventing the pilot from spilling gas into the firebox.

Pilot Flame

The pilot flame is a time-proven component that eliminates the possibility of gas buildup inside the firebox.

Gas Valve

This high-technology valve automatically shuts off all gas if it does not receive a signal from the thermocouple. If any component is damaged or sensing a malfunction, or if the wiring is damaged, it will shut off all gas.

External Shut Off Valve

This valve is placed on the gas line to shut off gas to the appliance during maintenance procedures.

Thermocouple

The thermocouple generates a small amount of electricity. If the pilot flame goes out, the gas valve automatically shuts off all gas.

Ceramic Glass

The glass in your heater is the most durable glass available. It has been tested to be extremely resistant to breakage from temperature changes.

Travis Industries 100-01169_001 4050119

Maintenance (for qualified service personnel only) 35

Wiring Diagram

Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause

improper and dangerous operation. Verify proper operation after servicing.

Millivolt Wiring (for gas control valve)

Red

On/Off Switch

Brown

Copper Co-Axial

Wire

Red

Thermocouple

White

Thermopile

Piezo Igniter

Spark Electrode

Pilot Hood

Orange

Remote

Control

Molex

Connector

Optional Remote

Control

120 Volt Wiring

Ground (green)

Common

Power Supply

Optional

Blower

Gas Control

Valve

Optional Regulator

(white)

Hot

(black)

Solenoid

Power In

Molex

Connector

Black White

Green

Ground

(attached to stove)

White

Black

Blue

Brown

Red

Blue

Optional

Thermostat

Black

Rheostat

Blower Snap Disk

Replacement Parts List

Caution: Use only Travis Industries replacement parts. Do not use substitute materials.

BLOWER MNTNG BRKT ASS'Y, LEFT - G18/G22/G39 228-20001 INJECTOR, PILOT - LP (#35) # - (ORIFICE) USE w/SIT PILOT ONLY 100-05217 BLOWER MOUNT GRMT/SPACER (4)# - 1997+ PEL/1995+ GAS 93005017 INJECTOR, PILOT - NG (#62) # - (ORIFICE) USE w/SIT PILOT ONLY 93006508 BLOWER MOUNTING BRKT, G18/G22 - FAN KIT 99000201 KNOB (PLASTIC), RHEOSTATS # - BLACK W/GOLDLINE - GAS/WOOD 100-04111 BLOWER, CONV, G3/G7-10/G14- # - 16/G18/G21-26/P9-10 - PHD KIT 98900755A LOG EMBERS, ROCK WOOL # 93006053 BURNER ASS'Y (EF), B38 LP/NG - TREE of LIFE 226-20049 LOG SET, LS22 - 8 PIECE# - T.O.L. 172-00023 BURNER O-RING, #08, 3/16 id" - 5/16" od BERK/SHEFF SHELL KIT 100-05101 MAGNET w/SHEATH - 1.000 x .750" 1/4" THICK 100-02802 BURNER O-RINGS, #20, 7/8" id - x 1" od - B15/B17/B18 100-05102 MANUAL, TREE OF LIFE 2005 100-01169 CONV PARTS, LP - G18/22/G24- - G25('03) - EF BURNER/SIT(#175) 93006503 MIXING TUBE ASS'Y, G18/21-2/39 - w/B15/17/18/21/23/36/38 BURNER 100-05401 CONV PARTS, NG - G18/22/33/34 - SIT PILOT/VALVE 225-10304 ORIFICE, BURNER - .0625" # - 1.180" BRASS HEX (.0625 dia) 100-05206 DOOR ASS'Y, LT - TOL CASHMERE 224-12025 ORIFICE, BURNER - No. 37 # - 1.180" BRASS HEX (.104 dia) 100-05204 DOOR ASS'Y, LT - TOL MAJOLICA 224-12027 PIEZO IGNITER, ALL GAS UNITS 100-05110 DOOR ASS'Y, LT - TOL MET BLK 224-12023 PILOT ASS'Y, NG - S.I.T. # - COMPLETE 100-05403 DOOR ASS'Y, LT - TOL VERDE MST 224-12029 PILOT BAFFLE (BRK/PRA - 20 GA ALZ - 1.976 x 1.500 210-05138 DOOR ASS'Y, RT - TOL CASHMERE 224-12026 PILOT ELECTRODE, S.I.T. PILOT - ASSEMBLY 93006523 DOOR ASS'Y, RT - TOL MAJOLICA 224-12028 PILOT HOOD, S.I.T (REMVABLE) - REMOVEABLE - 2000 93006517 DOOR ASS'Y, RT - TOL MET BLK 224-12024 PILOT TUBE, S.I.T. PILOT ASSY - USE w/S.I.T. PILOT ONLY 93006522 DOOR ASS'Y, RT - TOL VERDE MST 224-12030 POWER CORD, w/MOLEX CONNECTOR - (TERMINATED) 100-00260 DOOR HNG S-ASS'Y, LT - TOL BLK - BLACK PAINTED 220-00140 RHEOSTAT, RECTANGULAR - w/OFF - (WALL) w/NUT & WASHER 100-00122 DOOR HNG S-ASS'Y, LT - TOL CSH - CASHMERE PAINTED 220-00139 SIDE GLASS ASS'Y - T.O.L. 224-22025 DOOR HNG S-ASS'Y, RT - TOL BLK - BLACK PAINTED 220-00142 SNAP-DISC - 120deg NO # - NORMALLY OPEN 100-00231 DOOR HNG S-ASS'Y, RT - TOL CSH - CASHMERE PAINTED 220-00141 STOVE PACK, TOL - CASHMERE - #459 225-10459 ENAMEL TOUCH-UP - CASHMERE - 15 ml BOTTLE 100-02409 STOVE PACK, TOL - MAJOLICA - #458 225-10458 ENAMEL TOUCH-UP - MAJOLICA - 15 ml BOTTLE 100-02410 STOVE PACK, TOL - MET BLACK - #457 225-10457 ENAMEL TOUCH-UP - VERDE MIST - (GREEN) 15 ml BOTTLE 100-02411 STOVE PACK, TOL - VERDE MIST - #472 225-10472 FACE HINGE LEAF, TOL - BLACK - BLACK PAINTED 220-00144 SWITCH, ON/OFF - SMALL, GAS # - 1996 & UP, ALSO 1995 DV 98900747 FACE HINGE LEAF, TOL - CSHMRE - CASHMERE PAINTED 220-00143 THERMO-COUPLE - S.I.T. # - USE w/S.I.T. PILOT ONLY 93006518 FLEX PIPE, 3/8"od x 12" BLK # - 13-1/8" WITH FITTINGS 100-05115 THERMO-GENERATOR - S.I.T. # - (THERMO-PILE) - S.I.T. PILOT 93006519 FLUE STARTER SECT., G18/G22 - G22/G28 - 2.188" x 6.629" dia 93006555 TOOL, KEY - DIE CAST ZINC - 1/4" x 3.75" 100-02314 GASKET, GLASS 15/16x54" 302-B - VARIOUS WOOD, PELLET & GAS 99900408 VALVE REGULATOR, LP SIT # - S.I.T. # 907.204 100-05504 GLASS SPRING PIN ASSY, 2004+ - ALL UNITS w/GLASS FRAME ASS'Y 221-22220 VALVE REGULATOR, NG SIT # - S.I.T. 907.201 93006500 GLASS w/FRAME ASS'Y, G18 '05/ - G39 224-21015 VALVE, NG - S.I.T. (1.6-3.5) - S.I.T. # 820.704 100-05508 GLASS, SIDE w/GSKT - T.O.L. - SERVICE PART 250-00216 WIRE HRNS, BLWR - G18/21/22/# - G39(OPT. BLOWER), G31 (MAIN 1)100-00341 HW PACK, BLOWER - G18/G22 - #164 98900489 WIRE HRNS, MAIN - G18/G22 # - Small gas units (NO SWITCH) 100-00367 HW PACK, LEG LVL BOLT, CAST # - 1/4-20 - FOUR w/RUBBER TIPS 98900415

Travis Industries 100-01169_001 4050119

36 Safety Label

If the pilot will not stay lit after several tries, turn the gas control knob to "OFF" and call your service technician or gas supplier.

9. Turn the gas control knob counterclockwise to "ON".

10. Turn on the blower (room air fan) on the appliance.

11. Set the thermostat to desired setting (if applicable) or use the ON/OFF rocker switch or remote control to operate the main burner.

1. STOP! Read the safety information to the left and at the bottom of this label before proceeding.

2. Set the thermostat to lowest

setting (if applicable).

3. Turn off the blower (room air fan)

on the appliance (if applicable).

4. Push the gas control knob in

slightly and turn it clockwise to the "OFF" position.

NOTE: The knob will not turn from "ON" to "OFF" unless the knob is depressed slightly. Do not force.

5. Wait five (5) minutes to clear out

any gas. Then smell for gas, including near the floor. If you smell gas, STOP! Follow "B" in the safety information to the left on this label. If you don't smell gas, go to the next step.

6. Turn gas control knob

counterclockwise to the "PILOT" position.

7. A) Press the knob in and hold. B) Immediately press the igniter

button repeatedly until the pilot is lit. WARNING

: If the pilot does not light after 15 seconds, release the knob and call your dealer for service.

C) Keep the gas control knob

depressed for 30 seconds once the pilot is lit.

8. Release the gas control knob. If the pilot goes out, repeat step 7.

• If the knob does not pop up when released, stop and immediately call your service technician or gas supplier.

A. This appliance is equipped with an ignition device which must be lighted by hand.

When lighting the pilot, follow these instructions exactly.

B. BEFORE LIGHTING, smell all around the appliance area for gas. Be sure to smell next

to the floor because some gas is heavier than air and will settle on the floor.

WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electric switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.

• If you cannot reach your gas supplier, call the fire department.

C. Use only your hand to push in or turn the gas control knob. Never use tools. If the

knob will not push in or turn by hand, don't try to repair it, call a qualified service technician. Force or attempted repair may result in a fire or explosion.

D. Do not use this appliance if any part has been under water. Immediately call a qualified

service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.

E. Do not block any control compartments, screens or circulating air passageways.

These areas provide air necessary for safe operation.

DO NOT REMOVE THIS INSTRUCTION PLATE

1. Set the thermostat to lowest setting (if applicable).

2. Turn off the blower (room air fan) on the appliance.

3. Push the gas control knob in slightly and turn it clockwise to the "OFF" position.

NOTE: The knob will not turn from "ON" to "OFF" unless the knob is depressed slightly. Do not force.

FOR YOUR SAFETY READ BEFORE LIGHTING

LIGHTING INSTRUCTIONS

TO TURN OFF GAS TO APPLIANCE

WARNING:

IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT, CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE. WHEN LIGHTING OR RE-LIGHTING THE PILOT, THE DOOR MUST BE OPEN OR THE GLASS REMOVED. AFTER THE PILOT IS LIT, CLOSE AND LATCH THE DOOR OR REPLACE THE GLASS BEFORE LIGHTING THE BURNER.

0330

A copy of the safety (listing) label (adhered to the back of the stove) is shown below.

A copy of the instruction label (on a tag near the gas control valve) is shown below.

Travis Industries 100-01169 4050119

Limited 7 Year Warranty 37

To register your TRAVIS INDUSTRIES, INC. 7 Year Warranty, complete the enclosed warranty card and mail it within ten (10) days of the appliance

purchase date to: TRAVIS INDUSTRIES, INC., 4800 Harbour Pointe Blvd. SW, Mukilteo, WA 98275. TRAVIS INDUSTRIES, INC. warrants this gas appliance (appliance is defined as the equipment manufactured by Travis Industries, Inc.) to be defect-free in material and workmanship to the original purchaser from the date of purchase as follows:

Check with your dealer in advance for any costs to you when arranging a warranty call.

Mileage or service charges are not covered by this warranty. This charge can vary from store to store.

Years 1 & 2 - COVERAGE: PARTS & LABOR

Burner Assembly:

Burner Pan, Mixing Tube, Air Shutter Assembly, Main Burner Orifice

Firebox Assembly:

Adjustable Air Restrictor, Pressure Relief Mechanisms (direct vents only), Glass Attachment Mechanism

Gas Control Assembly

Adjustable control valve, millivolt wiring and connectors (located within the metal heater structure), thermopile, thermocouple, pilot hood, orifices, pilot gas line, piezo ignitor

Exclusions: Paint, Gasketing

Years 3 THROUGH 5 - COVERAGE: PARTS & LABOR

Firebox Assembly:

Adjustable Air Restrictor, Pressure Relief Mechanisms (direct vents only), Glass Attachment Mechanism

Exclusions: Paint, Gasketing, Burner Assembly, Electrical Assembly, Gas Control Assembly, Ceramic Glass, Ceramic Logs, Gold & Nickel

Plating, Accessories, Re-Installation Allowance

Ceramic Glass

Glass (breakage from thermal shock)

Ceramic Logs

Log Set, Coals, Ember Strip (Steel Fiber)

Gold Plating

Gold or Nickel Door, Optional Grill (see “Conditions and Exclusions” # 9)

Electrical Assembly :

Blower, wiring harness, snap discs, rheostat speed control

Convection Heat Exchanger

Accessories

Legs, Cast Firebacks

Convection Heat Exchanger Re-Installation Allowance

In cases where heater must be removed from home for repairs, a partial cost of re-installation is covered (preauthorization required)

One-Way Freight Allowance

One-way freight allowance on pre-authorized repair done at factory is covered.

One-Way Freight Allowance

One-way freight allowance on pre-authorized repair done at factory is covered.

Years 6 & 7 - COVERAGE: PARTS ONLY

Firebox Assembly:

Adjustable Air Restrictor, Pressure Relief Mechanisms (direct vents only), Glass Attachment Mechanism

Exclusions: Paint, Gasketing, Burner Assembly, Electrical Assembly, Gas Control Assembly, Ceramic Glass, Ceramic Logs, Gold & Nickel

Plating, Accessories, Convection Heat Exchanger, Re-Installation Allowance, One-Way Freight Allowance, Labor

CONDITIONS & EXCLUSIONS

1. This new gas appliance must be installed by a qualified gas appliance technician. It must be installed, operated, and maintained at all times in accordance with the instructions in the Owner’s Manual. Any alteration, willful abuse, accident, neglect, or misuse of the product shall nullify this warranty.

2. This warranty is nontransferable, and is made to the ORIGINAL purchaser, provided that the purchase was made through an authorized TRAVIS dealer.

3. Discoloration and some minor expansion, contraction, or movement of certain parts and resulting noise, is normal and not a defect and, therefore, not covered under warranty. The installer must ensure the appliance is burning as per the rating tag at the time of installation. Over-firing (operation above the listed BTU rate) of this appliance can cause serious damage and will nullify this warranty.

4. The warranty, as outlined within this document, does not apply to the chimney components or other Non-Travis accessories used in conjunction with the installation of this product. If in doubt as to the extent of this warranty, contact your authorized TRAVIS retailer before installation.

5. Travis Industries will not be responsible for inadequate performance caused by environmental conditions such as nearby trees, buildings, roof tops, wind, hills or mountains or negative pressure or other influences from mechanical systems such as furnaces, fans, clothes dryers, etc.

6. This Warranty is void if: a. The unit has been operated in atmospheres contaminated by chlorine, fluorine or other damaging chemicals. b. The unit is subject to submersion in water or prolonged periods of dampness or condensation. c. Any damage to the unit, combustion chamber, heat exchanger or other components due to water, or weather damage which is the result of, but not limited to, improper chimney/venting

7. Exclusions to this 7 Year Warranty include: injury, loss of use, damage, failure to function due to accident, negligence, misuse, improper installation, alteration or adjustment of the

8. This 7 Year warranty excludes damage caused by normal wear and tear, such as paint discoloration or chipping, worn or torn gasketing, corroded or cracked logs, embers, etc. Also excluded is

9. Damage to gold, nickel, or brass surfaces caused by fingerprints, scratches, melted items, or other external sources left on the surface is not covered in this warranty. Damage from the use

10. TRAVIS INDUSTRIES, INC. is free of liability for any damages caused by the appliance, as well as inconvenience expenses and materials. Incidental or consequential damages are not covered

11. This warranty does not cover any loss or damage incurred by the use or removal of any component or apparatus to or from the gas appliance without the express written permission of TRAVIS

12. Any statement or representation of TRAVIS products and their performance contained in TRAVIS advertising, packaging literature, or printed material is not part of this 7 year warranty.

13. This warranty is automatically voided if the appliance’s serial number has been removed or altered in any way. If the appliance is used for commercial purposes, it is excluded from this warranty.

14. No dealer, distributor, or similar person has the authority to represent or warrant TRAVIS products beyond the terms contained within this warranty. TRAVIS INDUSTRIES, INC. assumes no

15. Travis Industries will not cover the cost of the removal or re-installation of hearths, facing, mantels, venting or other components.

16. If for any reason any section of this warranty is declared invalid, the balance of the warranty remains in effect and all other clauses shall remain in effect.

17. THIS 7 YEAR WARRANTY IS THE ONLY WARRANTY SUPPLIED BY TRAVIS INDUSTRIES, INC., THE MANUFACTURER OF THE APPLIANCE. ALL OTHER WARRANTIES,

installation. manufacturer's settings of components, lack of proper and regular maintenance, damage incurred while the appliance is in transit, alteration, or act of God. damage to the unit caused by abuse, improper installation, modification of the unit, drilling of the orifices, or the use of fuel other than that for which the unit is configured. Units are shipped for

natural gas and must be converted to propane using the included conversion kit. Confirm fuel configuration with your installer. of cleaners other than denatured alcohol on gold or nickel is not covered in this warranty. Damage from the use of abrasive cleaners on brass is not covered in this warranty. by this warranty. In some states, the exclusion of incidental or consequential damage may not apply. INDUSTRIES, INC. and bearing a TRAVIS INDUSTRIES, INC. label of approval.

liability for such warranties or representations.

WHETHER EXPRESS OR IMPLIED, ARE HEREBY EXPRESSLY DISCLAIMED AND PURCHASER’S RECOURSE IS EXPRESSLY LIMITED TO THE WARRANTIES SET FORTH HEREIN.

IF WARRANTY SERVICE IS NEEDED:

1. If you discover a problem that you believe is covered by this warranty, you MUST REPORT it to your TRAVIS dealer WITHIN 30 DAYS, giving them proof of purchase, the purchase date, and the model name and serial number.

2. Travis Industries has the option of either repairing or replacing the defective component.

3. If your dealer is unable to repair your appliance’s defect, he may process a warranty claim through TRAVIS INDUSTRIES, INC., including the name of the dealership where you purchased the appliance, a copy of your receipt showing the date of the appliance’s purchase, and the serial number on your appliance. At that time, you may be asked to ship your appliance, freight charges prepaid, to TRAVIS INDUSTRIES, INC. TRAVIS INDUSTRIES, INC., at its option, will repair or replace, free of charge, your TRAVIS appliance if it is found to be defective in material or workmanship within the time frame stated within this 7 year warranty. TRAVIS INDUSTRIES, INC. will return your appliance, freight charges (years 1 to 5) prepaid by TRAVIS INDUSTRIES, INC., to your regional distributor, or dealership.

4. Check with your dealer in advance for any costs to you when arranging a warranty call. Mileage or service charges are not covered by this warranty. This charge can vary from store to store.

Travis Industries 100-01169_001 4050119

38 Optional Equipment (for qualified installers only)

LP Conversion Instructions

Install the conversion kit prior to installing the gas line to ensure proper gas use.

1 Remove the face and glass (see page 24). Remove the logs and coals (if installed - page 26) 2 Remove the burner (see illustration below).

Remove the ember trays from both sides of the burner.

Reach into the firebox and lift the burner upwards.

Do not lift burner out by the pins.

Pull the burner forward, out of the firebox.

This tube on the burner inserts into this tube on the mixing tube.

When Installing, make sure the burner is fully seated - it rests on these supports. Replace the ember trays last.

Travis Industries 100-01169_001 4050119

Optional Equipment (for qualified installers only) 39

AA AA

3 Follow the directions below to replace the orifice.

Remove the four screws holding the

mixing tube in place.

1/4" Nutdriver

Remove the mixing tube from the

air shutter by sliding it to the left.

Air Shutter

Slide the air shutter to the fully open position.

Burner Orifice

Manifold

Use a 1/2” open end wrench to unscrew the burner orifice.

1/2" Wrench

NOTE:

The new LP orifice has “.062” stamped on it.

.062

Apply thread sealant to the new orifice and install.

Screw the LP orifice in

5/16”

so the orifice shoulder protrudes 5/16” (indicating full insertion).

The old NG orifice has “37” stamped on it.

4 Remove the pilot orifice following the instructions below. Replace with the propane pilot orifice

Lift the pilot hood

off the pilot assembly.

Use a hex wrench to

unscrew the orifice.

Remove the orifice and replace with the LP orifice. Screw the

orifice all the way in and replace the pilot hood.

Orifice Identification:

LP (Propane) Orifice

NG (Natural Gas) Orifice

5/32" Hex

NOTE: when re-attaching, this pin lines up with the notch in the pilot hood.

Travis Industries 100-01169_001 4050119

40 Optional Equipment (for qualified installers only)

5 Install the logs and

embers.

6 Replace glass and

face.

7 Remove the

regulator from the front of the gas control valve. Replace with the propane regulator, using the new gasket and screws included with the regulator. NOTE:

Leak test this area after the heater is installed, gas is connected, and the main burner is lit.

Remove and discard the three screws using a slotted screwdriver of Torx T-20.

Remove and discard the regulator, diaphram, spring and center post.

Slotted Screwdriver (or T-20 Torx)

Install the LP regulator. Use the screws included with the LP regulator. Tighten to approximately 25 Lbs. torque.

NOTE: Make sure the regulator gasket is correctly aligned before installation.

Slotted Screwdriver (or T-20 Torx)

Place the LP label on top of the control cover near the gas control valve.

8 Make the gas line connection, bleed the gas line (if applicable), start the heater and thoroughly leak-

test all gas connections and the gas control valve. Check the pilot. Adjust if necessary.

WARNING: When lighting or re-lighting the pilot, the glass must be removed (see

page 24).

To adjust the pilot flame, turn this screw (NOTE: if totally unscrewed gas will come out of this port). Clockwise lowers the flame while counter-clockwise raises it.

Standard Screwdriver

The pilot flame must contact the thermocouple and thermopile (see the illustration below). Adjust the pilot up or down as necessary.

Travis Industries 100-01169_001 4050119

Optional Equipment (for qualified installers only) 41

Blower (SKU 99000153)

WARNING: Turn the gas control valve to off and make sure the appliance has fully cooled prior to

conducting service.

1 Attach the two black wires at the rear right of the stove to the thermodisk (orientation does not matter).

Then attach the thermodisk to the bottom of the stove body following the directions below.

Attach the snap disk

using the screws removed in step "a".

Snap Disk Wires (Black - orientation does not matter)

Back of Stove

Remove the snap disk cover plate below

the burner on the the stove from the front).

left side (when facing

Attach the wires

labeled snap disk to the snap disk.

2 Place the blower near the rear of the stove. Attach the wiring in grommets following the directions

below.

Remove one of the screws holding

the mounting bracket in place. Insert the screw through the eyelet on the green ground wire and replace.

1/4" Nutdriver

Back of

Stove

Attach the black and white wires

labeled “Blower” to the blower (orientation does not matter).

Route the wires labeled “Valve on/off” and “Solenoid” under

the burner pan to a location near the gas control valve.

Attach the two wires leading from the control box to the two block wires labeled “Rheostat”.

Slide the rubber grommets (with

spacers inserted inside) onto the fan mounting bracket.

Travis Industries 100-01169_001 4050119

Attach the molex connector.

DO NOT PLUG THE STOVE IN UNTIL INSTALLATION IS COMPLETE.

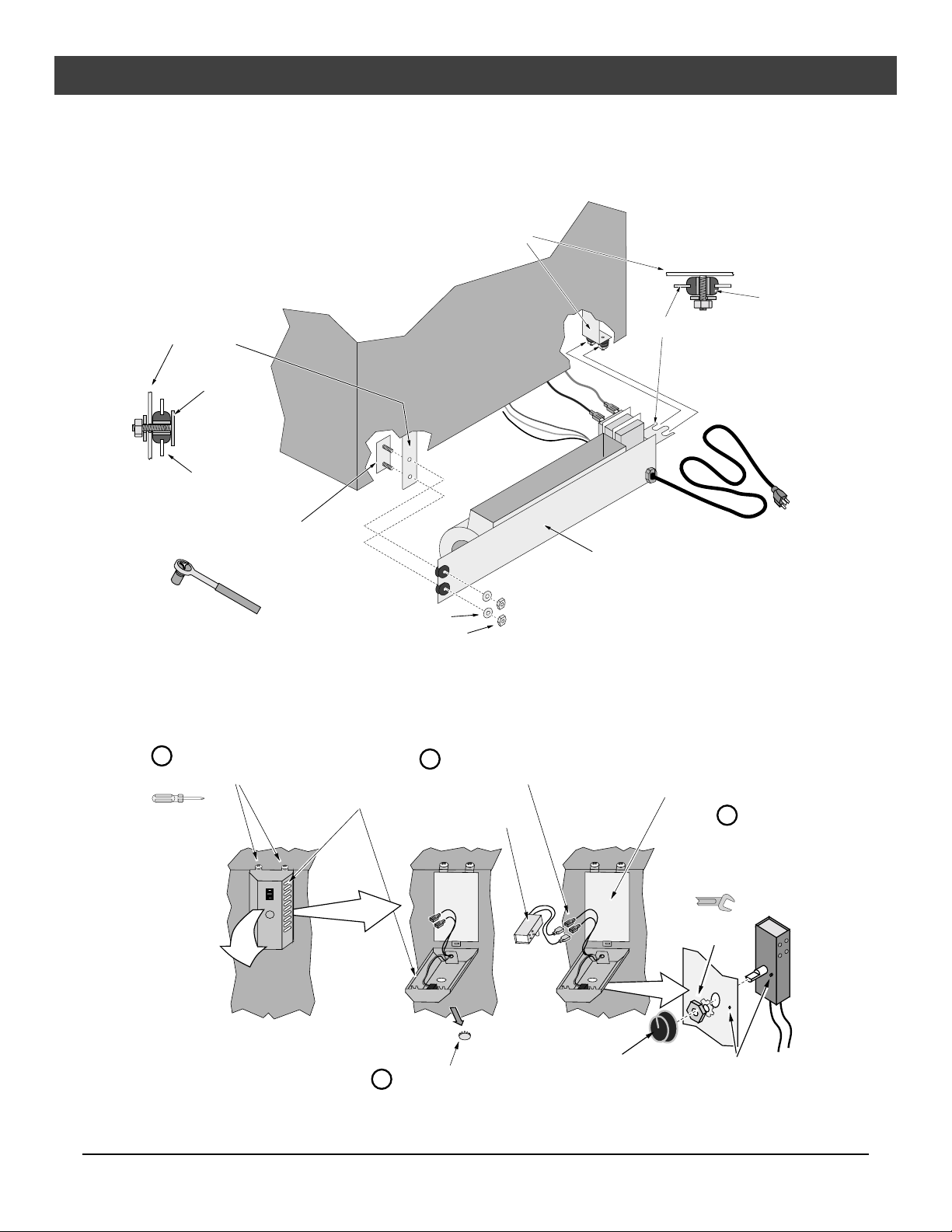

42 Optional Equipment (for qualified installers only)

3 Slide the left side of the blower mounting bracket over the grommets on the left mounting bracket

attached to the stove (see the illustration below). Then insert the stud plate through the right side grommets and through the right mounting bracket on the stove. Secure the stud plate with the included washers and nuts

Make sure the bracket

Right Mounting

Bracket (on stove)

Stud Plate

Blower Mounting Bracket

Stud Plate

Left Mounting

Bracket (on stove)

Back of

Stove

slides into the groove on the rubber grommets.

Blower Mounting

Bracket

Rubber

Grommet

Blower Mounting Bracket

11/32”

Socket

Washer

Nut

4 Make sure all of the wiring is placed away from the blower impeller and the bottom of the burner. Use

lock ties, if necessary, to ensure no wires are damaged.

5 Open the control cover following the directions below. Remove the button plug and install the

rheostat.

Loosen the two screws holding the control box in place. This allows access to the

back of the control box.

Phillips Screwdriver

Back of

Stove

Control Box

Attach the rheostat wires to the two quick connects inside the control

box (orientation does not matter).

Rheostat

NOTE: make sure the fiberglass heat shield is in place when re-attaching the control box.

Attach the rheostat to the control panel with the included nut and star washer.

1/2"

Wrench

Attach

Remove the button plug

from the control box.

the knob.

NOTE: this tab fits into the hole on the mounting bracket.

6 Plug the blower in. Let the heater achieve operating temperature and test blower operation.

Travis Industries 100-01169_001 4050119

Optional Equipment (for qualified installers only) 43

Accent Light (Type 2 – 94400111)

Make sure power to the heater has been turned off prior to installation (unplug the power cord).

Do not connect 110-120 VAC to the gas control valve or the on/off circuit on this fireplace.

IMPORTANT INSTALLATION NOTE FOR MODELS USING THE FIREBACKS:

Follow the steps below if installing the firebacks with an accent light.

• Remove the burner (see the manual for details).

• Install the rear fireback (see the instructions included with the firebacks).

• Install the accent light.

• Replace the burner.

• Install the side firebacks (see the directions included with the firebacks).

NOTE : The bulb may be shipped separately. Do not touch the bulb – oil or other residue left on the

bulb may lead to premature bulb failure. Use a cloth or paper towel to handle the bulb.

1 Modify the accent light assembly as shown in the illustration below.

Remove the screw

that holds the accent light bracket in place. Re-attach it in the

Loosen these nuts and slide the light receptacle out (take care to not touch the halogen bulb)

Re-attach the

receptacle to the

opposite side.

Accent Light Bracket

second hole from the top. This lowers the accent light for proper light placement.

Bend this tab upwards to a 90° angle.

2 Remove the burner from the stove (see owner’s manual for details). Install the accent light assembly as

shown in the illustration below.

Remove this screw on the firebox floor.

NOTE: To prevent heat-damage to the wires, make sure this wires are routed along the floor of the firebox, away from the burner.

NOTE: The accent light requires the right side access hole. If this hole is being used for the thermodisk for optional blower, switch the thermodisk to the mounting position on the left side.

Position the accent light assembly in the same location, and re-attach the screw to secure the accent light assembly.

Remove and discard the cover

plate (accessed from below).

Route the wires from the

accent light through gasket and hole. Attach the accent light cover plate (with grommet) to the firebox floor with the screws removed in step “b”. Pull the excess wire through the grommet, towards the front of the stove (this helps prevent the wire from contacting the burner).

Travis Industries 100-01169_001 4050119

44 Optional Equipment (for qualified installers only)

3 Attach the rheostat assembly following the directions below.

Attach the quickconnect from the accent light to the quick-connect on the rheostat wiring harness.

Use the included wire nut to connect the wire leading from the rheostat to the remaining wire leading from the accent light.

Disconnect the molex connector

leading to the power cord.

Slide the rheostat assembly into place and secure with the included nuts.

Make sure all wiring does not contact the firebox or blower (use wireties if necessary).

4 Restore the firebox to the correct configuration (replace the burners, etc.).

Attach the two molex connectors on the rheostat wiring harness to the power cord and the molex connector on the appliance.

Travis Industries 100-01169_001 4050119

Optional Equipment (for qualified installers only) 45

Accent Light Operation

OFF

Turn the dial all the way counter-clockwise until it clicks off.

LOW

Turn the dial 180° clockwise until the light begins to glow.

HIGH

The high position is all the way clockwise.

NOTE : The accent light responds best when turned to high, then turned down to the desired light level.

Bulb Replacement

NOTE : Do not touch the bulb – oil or other residue left on the bulb may lead to premature bulb

failure. Use a cloth or paper towel to handle the bulb.

The accent light must be replaced with 35 Watt 120 Volt T4 Halogen Bulbs (G6.35 Base) – available at most hardware stores. To replace the bulb, simply remove it from the socket and insert the new bulb (pin orientation does not matter).

Travis Industries 100-01169_001 4050119

46 Index

Accent Light.....................................................43

Adjusting the Blower Speed..............................31

Adjusting the Flame Height...............................30

Air Shutter Adjustment......................................23

Altitude Considerations.....................................10

Approved Vent Configurations ..........................13-18

Blower Control..................................................31

BTU Input.........................................................6

BTU Output......................................................6

Cap (see vent termination).................................19

Chimney Cap (see vent termination)...................19

Clearances.......................................................8

Condensation on Glass.....................................3 0

Corner Installation.............................................8

Dimensions......................................................6

Elbows.............................................................12

Face Removal...................................................2 4

Finalizing the Installation....................................2 2

Floor Protection ...............................................9

Fuel .................................................................4

Gas Control Valve (Location)..............................2 8

Gas Inlet Pressure.............................................1 0

Gas Line Connection........................................10

Gas Line Install..................................................1 0

Gas Smell.................................See Inst. on Cover

Glass Installation and Removal ...........................24

Hearth Requirements........................................9

Heating Specifications......................................6

Horizontal Vent Termination Requirements........19

How this Stove Works.......................................34

Installation Options...........................................6

Items Required for Installation............................7

Leaking Gas.............................See Inst. on Cover

Listing Information............................................36

Location of Controls..........................................28

Log Set Installation and Removal.......................26

Maintenance....................................................32

Noise (see Normal Operating Sounds)...............31

Normal Operating Sounds.................................3 1

Packing List......................................................7

Pilot Flame Inspection.......................................22

Piping Installation (see Gas Line Install)...............1 0

Restrictor Position............................................12

Safety Label.....................................................3 6

Safety Precautions...........................................4

Starting The Pilot..............................................2 9

Starting the Stove for the First Time...................30

Thermostat Operation .......................................30

Turning the Stove On and Off............................30

Vent Length (see “Vent Config.”) ......................12

Vent Requirements..........................................11

Vertical Vent Termination Requirements............19

Warnings..........................................................4

Warranty...........................................................3 7

Water on Glass (see Condensation)...................30

Weight .............................................................6

What Prevents Gas Buildup...............................34

What Turns the Main Burners On and Off............3 4

Wiring Diagram..................................................3 5

Yearly Service Procedure..................................32

Travis Industries 100-01169_001 4050119

Avalon Stoves Direct Vent Freestanding Stove User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
