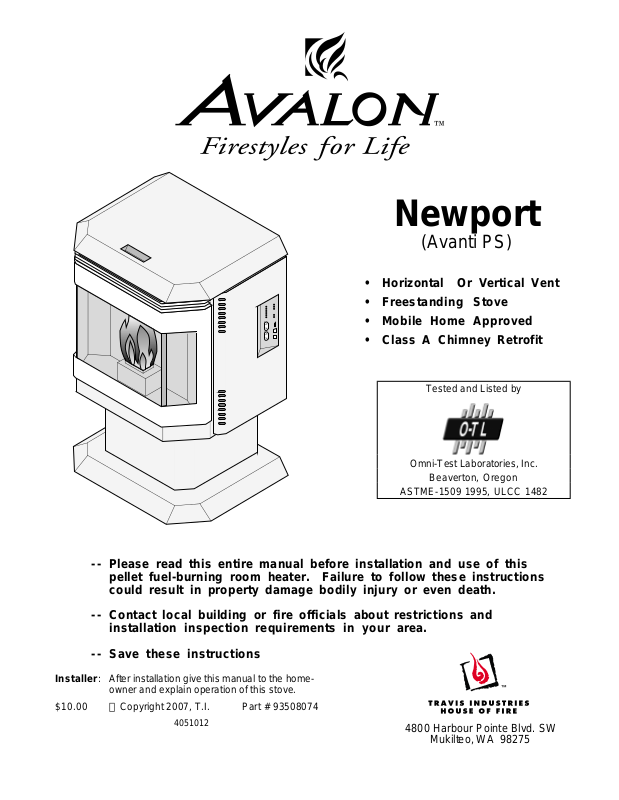

Avalon Stoves Avanti PS User Manual
Newport
(Avanti PS)
• Horizontal Or Vertical Vent
• Freestanding Stove
• Mobile Home Approved
• Class A Chimney Retrofit
Tested and Listed by
Omni-Test Laboratories, Inc.
Beaverton, Oregon
ASTME-1509 1995, ULCC 1482
-- Please read this entire manual before installation and use of this
pellet fuel-burning room heater. Failure to follow these instructions
could result in property damage bodily injury or even death.
-- Contact local building or fire officials about restrictions and
installation inspection requirements in your area.
-- Save these instructions
Installer: After installation give this manual to the home-
owner and explain operation of this stove.
$10.00 Copyright 2007, T.I. Part # 93508074
4051012
4800 Harbour Pointe Blvd. SW
Mukilteo, WA 98275
Introduction 1
Introduction
We welcome you as a new owner of a Newport (Avanti PS) pellet heater. In purchasing a Newport you
have joined the growing ranks of concerned individuals whose selection of an energy system reflects
both a concern for the environment and aesthetics. The Newport is one of the finest home heaters
the world over. This manual will explain the installation, operation, and maintenance of this pelletburning heater. Please familiarize yourself with the Owner's Manual before operating your heater and
save the manual for future reference. Included are helpful hints and suggestions which will make the
installation and operation of your new heater an easier and more enjoyable experience. We offer our
continual support and guidance to help you achieve the maximum benefit and enjoyment from your
heater.
Important Information
No other Newport (Avanti PS) heater has the same
serial number as yours. On the Newport the serial
number is on the hopper lid.
This serial number will be needed in case you require
service of any type.
Model: Newport (Avanti PS)
Serial Number:
Purchase Date:
Purchased From:
Mail your Warranty Card
Today, and Save Your Bill of
Sale.
To receive full warranty coverage,
you will need to show evidence of
the date you purchased your
heater. Do not mail your Bill of
Sale to us.
We suggest that you attach your
Bill of Sale to this page so that you
will have all the information you
need in one place should the need
for service or information occur.
Travis Industries Newport 290902
2 Safety Precautions
Gas
• Do not operate the
heater if you smell
smoke coming from
the heater. Turn the
POWER switch to
"OFF", monitor your
heater, and call your
dealer.
• Never use gasoline,
gasoline-type lantern fuel,
kerosene, charcoal lighter
fluid, or similar liquids to
start or 'freshen up' a fire in
this heater. Keep all such
liquids well away from the
heater while it is in use.
• Do not unplug the heater
if you suspect a
malfunction. Turn the
MODE SWITCH to "OFF"
and periodically inspect
the heater.
Ok
Sealant
• Contact your local building
officials to obtain a permit
and information on any
installation restrictions or
inspection requirements
in your area. Notify your
insurance company of this
heater as well.
• The exhaust system must
be completely airtight and
properly installed. The
pellet vent joints must be
sealed with RTV 500o F.
(260o C.) silicone sealant.
• This unit must be properly
installed to prevent the
possibility of a house fire.
The instructions must be
strictly adhered to. Do not
use makeshift methods or
compromise in the
installation.
• Never try to repair or
replace any part of the
heater unless instructions
are given in this manual.
All other work should be
done by a trained
technician.
• The viewing door and
ashpan must be closed
and latched during
operation.
• Never block free airflow
through the open vents of
the unit.
• Do not operate the heater
if the flame becomes dark
& sooty of if the firepot
overfills with pellets. Turn
the MODE SWITCH to
"OFF" and periodically
inspect the heater (see
"Running Your Heater").
• Your heater requires
periodic maintenance and
cleaning (see "Maintaining
Your Heater"). Failure to
maintain your heater may
lead to smoke spillage in
your home.
• Allow the heater to cool
before carrying out any
maintenance or cleaning.
Ashes must be disposed
in a metal container with a
tight lid and placed on a
non-combustible surface
well away from the home
or structure.
• This heater is designed
and approved for
pelletized wood fuel only.
Any other type of fuel
burned in this heater will
void the warranty and
safety listing.
Travis Industries Newport 290902
Safety Precautions 3
• The heater will not operate
during a power outage. If
a power outage does
occur, check the heater
for smoke spillage and
open a window if any
smoke spills into the room.
• Keep foreign objects out
?
of the hopper.
Mobile
Home
• Disconnect the power
cord before performing
any maintenance.
NOTE:
Turning the Mode Switch
to "OFF" does not
disconnect all power to
the heater.
• This heater must be
connected to a standard
115 V., 60 Hz grounded
electrical outlet. Do not
use an adapter plug or
sever the grounding plug.
Do not route the electrical
cord underneath, in front
of, or over the heater.
• When installed in a mobile
home, the heater must be
bolted to the floor, have
outside air, and NOT BE
INSTALLED IN THE
BEDROOM (Per H.U.D.
requirements). Check
with local building officials.
• The exhaust system
should be checked twice a
year minimum for any
build-up of soot or
creosote.
This
Manual
• Do not throw this manual
away. This manual has
important operating and
maintenance instructions
that you will need at a later
time. Always follow the
instructions in this manual.
• Do not place clothing or
other flammable items on
or near the heater.
Because this heater can
be controlled by a
thermostat there is a
possibility of the heater
turning on and igniting any
items placed on or near it.
• Do not touch the hot
surfaces of the heater.
Educate all children of the
danger of a hightemperature heater.
Young children should be
supervised when they are
in the same room as the
heater.
• Travis Industries, Inc.
grants no warranty,
implied or stated, for
the installation or
maintenance of your
heater, and assumes
no responsibility of
any consequential
damage(s).
Travis Industries Newport 290902
4 Table of Contents
Introduction
Introduction ......................................................1
Important Information .........................................1
Safety Precautions
Safety Precautions............................................2
Specifications
Heating Specifications ........................................5
Dimensions.......................................................5
Electrical Specifications......................................5
Fuel.................................................................5
EPA Compliance................................................5
Installation
Before you Begin ...............................................6
Installation Options ............................................6
Planning the Installation ......................................6
Stove Placement ...............................................6
Floor Protection Requirements..............................6
Clearances - Straight Installation ..........................7
Clearances - Corner Installation............................7
Venting the Pellet Stove......................................8
Maximum Venting Distance .............................8
Pellet Vent Type............................................9
Installing the Pellet Vent .................................9
Pellet Vent Termination...................................9
Mobile Home Requirements..................................10
Outside Air .......................................................10
Alcove Installation Requirements ..........................11
Restrictor Adjustment .........................................11
Installation Example: Direct "Through the Wall" ........12
Installation Example: Interior Vertical.....................13
Installation Example: Type A Chimney Retrofit.........14
Installation Example: Hearth Fireplace ...................15
Operation
Safety Notice ....................................................16
Location of Controls ...........................................16
Starting the Heater for the First Time......................16
Curing the Paint ............................................16
Priming the Auger..........................................16
Loading Pellets..................................................17
The Two Modes of Operation ................................17
Operation (continued)
Manual Mode.....................................................18
Auto Mode........................................................19
Restrictor Adjustment .........................................20
Adjusting the Fan Speed......................................20
Start-Up Sequence.............................................21
"AUGER ON" Light..............................................21
"FAULT" Light....................................................21
Power Outages..................................................21
Maintenance
Daily Maintenance (whenever using the stove).........22
Inspect the Burn ...........................................22
Make Sure Pellets are not Piling Up...................22
Check Firepot for Clinkers...............................23
Cleaning the Firepot.......................................23
Bi-Weekly Maintenance (or every 10 bags pellets)....24
Clean the Heat Exchange Tubes.......................24
Vacuum Hopper ............................................24
Clean the Gold Door.......................................24
Opening the Door ..........................................25
Sweep Ash Into Ashpan..................................26
Check Ashpan, Dispose if Necessary................27
Clean the Glass ............................................27
Yearly Maintenance (or every two tons)..................28
Clean the Exhaust Duct..................................28
Clean the Exhaust Blower ...............................29
Clean the Vent..............................................29
Check for Air Leaks - Door, Glass and Ashpan ....30
Normal Operating Sounds
Normal Operating Sounds....................................31
Safety Label
Safety Label .....................................................32
Warranty
Warranty..........................................................33
Optional Equipment
Thermostat.......................................................34
Optional Log .....................................................36
Optional Gold Grill..............................................37
Optional Gold Door.............................................37
Index
Index...............................................................38
Travis Industries Newport 290902
Specifications 5
Heating Specifications:
Approximate Maximum Heating Capacity (in square feet)*.................................800 to 1,600 Sq. Feet
Burn Rate (Pounds per Hour)**.......................................................................1.0 to 3.5
Maximum Burn Time on Low Burn**................................................................15 - 50 Hours
Hopper Capacity............................................................................................55 Pounds
* Heating capacity will vary depending on the home's floor plan, degree of insulation, and the outside
temperature. It is also affected by the fuel size, quality, and moisture level.
** Small pellets will increase or decrease the stated burn rates and burn times. Differences of plus or minus 20%
depending on fuel quality may occur.
Dimensions:
5-5/8"
7-5/8"
29-1/2"
Air Inlet
(1-3/4"
Outside
Diameter)
10-3/4"
21-5/8"
20-7/8"
Weight: 175 Lbs.
Electrical Specifications:
Electrical Rating.........................................................................................115 Volts, 3.6 Amps, 60 Hz
Watts During Start-Up Sequence...................................................................400 (approximately)
Watts During Operation ...............................................................................180 (approximately)
Fuel:
3" Diameter
Exhaust
16-7/8"
The unit is designed for wood pellets that comply with the standards set by the Association of Pellet Fuel
Industry (density of at least 40 lbs. per cubic foot, 1/4" to 5/16" diameter, length no greater than 1–1/2", 8200
BTU's/lb., moisture under 8% by weight, ash under 1% by weight, and salt under 300 parts per million). If the fuel
does not comply to this standard, the unit may not operate as designed.
EPA Compliance:
This heater is EPA exempt from Phase II requirements, but has been tested for emissions using EPA test
methods by OMNI Test Labs.
Travis Industries Newport 290902
6 Installation
Before You Begin
READ THIS ENTIRE MANUAL BEFORE YOU INSTALL AND USE THIS HEATER.
FAILURE TO FOLLOW THE INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE,
BODILY INJURY, OR EVEN DEATH.
Check with local building officials for any permits required for installation of this pellet heater and notify
your insurance company before proceeding with installation.
Packing List
• Newport Stove • Owner's Manual • Door Latch Tool • Fuses (2) • Lag Bolts (2)
Installation Options:
• Residential or Mobile Home (see the section "Mobile Home Requirements")
• Alcove Compatible (see the section "Alcove Installation")
• Horizontal or Vertical Vent
• Outside Air Compatible
• Vent with L-Vent, L-Vent Fireplace Liner, or Type A Chimney (with adapter)
Planning The Installation
HINT: Have an authorized Travis Industries dealer install this heater. If you install the heater
yourself, have your dealer review your installation plans.
HINT: Sketch out a detailed plan of the installation including dimensions. Then verify the
dimensions with the requirements listed in this manual.
HINT: When determining the location of the stove, locate the wall studs (for horizontal
penetrations) and ceiling trusses (for vertical penetrations). You may wish to adjust the
stove position slightly to ensure the vent does not intersect with a framing member.
HINT: Place the heater outside and load 10 pounds of pellets inside the hopper. Plug the
heater in and let it run on HIGH until the pellets run out. This will cure the paint and burn
off any oil on the steel, eliminating any smell inside the home.
Stove Placement
• Stove must be placed so that no combustibles are within, or can swing within (e.g. drapes,
doors), 36" of the front of the heater.
? If the stove is placed in a location where the ceiling height is less than 7', it must follow the
requirements in the section "Alcove Installation Requirements".
HINT: REDUCING CLEARANCES - Clearances may be reduced by methods specified in NFPA
211, listed wall shields, pipe shields, or other means approved by local building or fire
officials.
• Heater and floor protection must be installed on a level, secure floor.
Floor Protection Requirements
• The heater must be installed on a non-combustible floor protector extending the full width
and depth of the heater and extending 6" in front (Minimum 21-5/8" wide by 26-7/8"
deep) (minimum .018" thick - 26 gauge) .
• Must extend under and 2" to each side and rear of a chimney "Tee" (if used).
Travis Industries Newport 290902
Installation 7
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A

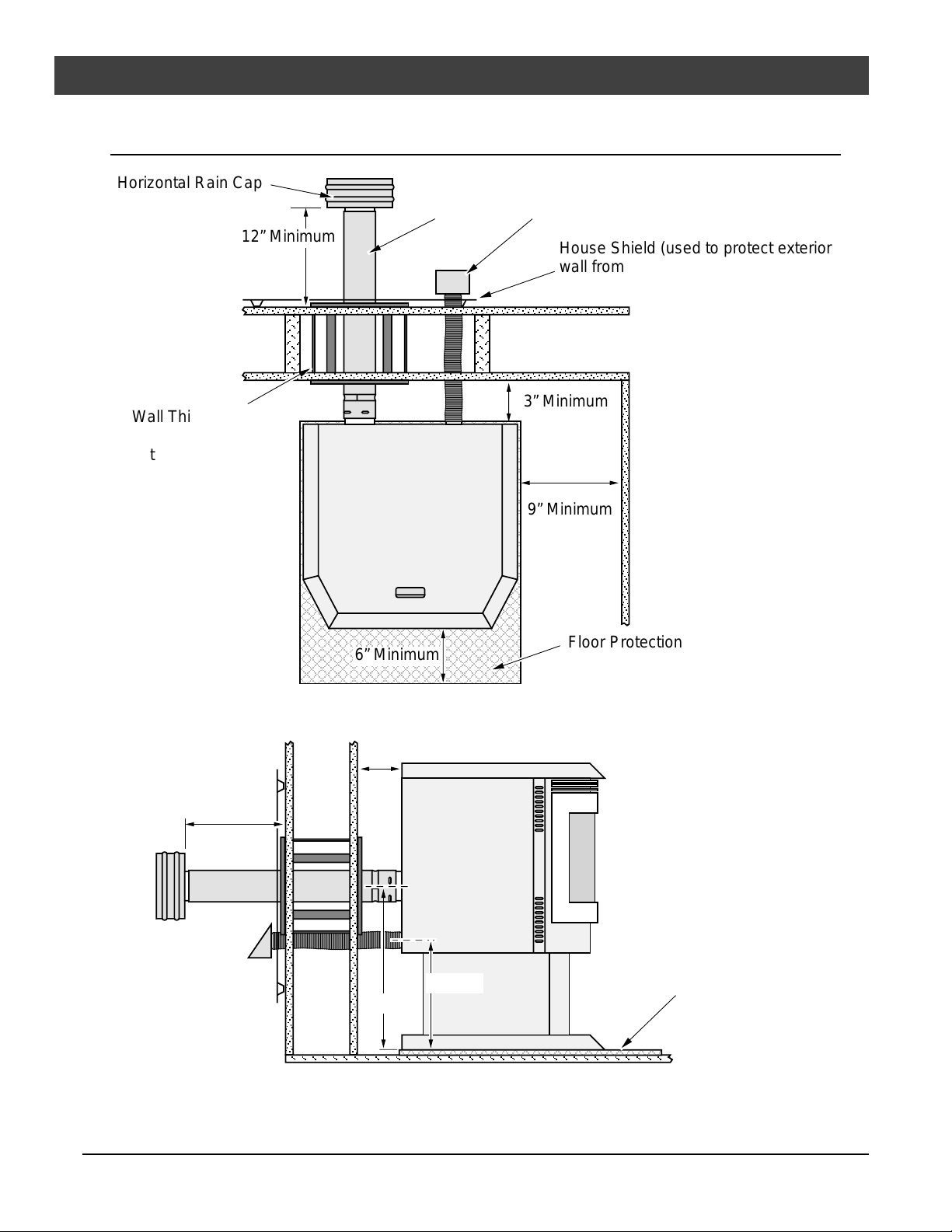

Clearances - Straight Installation
Through the Wall Installations Interior Vertical Vents
Minimum
3” Minimum
3”
AAAAAA
AAAAAA
“Tee”
AAAAAA
2”
Minimum
AAAAAA
AAAAAA
AAAAAA
9” Minimum
AAAAAA
AAAAAA
AAAAAA
AAAAAA
6” Minimum
Floor Protection
AAAAAA
Clearances - Corner Installation
Through the Wall Vents
2” Minimum
45°
45° Elbow
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
6” Minimum
Interior Vertical Vents
2”
Minimum
3” Minimum
9” Minimum
2”
Minimum
“Tee”
2”
Minimum
6” Minimum
2” Minimum
6” Minimum
Floor Protection
Note: If interior vertical pellet vent is used, the clearance to the backwall is determined by the
Travis Industries Newport 290902
upward-turning elbow or "Tee". It will vary in depth depending on the brand of pellet vent
used (it is approximately 5"). Before placing the heater, connect the elbow or "Tee" and
measure off the 3" clearance.
8 Installation
Venting the Pellet Stove
• PELLET VENT MUST MAINTAIN A MINIMUM 3" CLEARANCE TO ANY
COMBUSTIBLE (INSTALL VENT AT CLEARANCES SPECIFIED BY THE
VENT MANUFACTURER).
• DO NOT CONNECT THE PELLET VENT TO A VENT SERVING ANY
OTHER APPLIANCE OR STOVE.
• DO NOT INSTALL A FLUE DAMPER IN THE EXHAUST VENTING SYSTEM
OF THIS UNIT.
• USE AN APPROVED WALL THIMBLE WHEN PASSING THE VENT
THROUGH WALLS AND A CEILING SUPPORT/FIRE STOP SPACER
WHEN PASSING THE VENT THROUGH CEILINGS (MAKE SURE TO
MAINTAIN 3" CLEARANCE TO ANY COMBUSTIBLES.
• No more than 180° of elbows (two 90° elbows, or two 45° & one 90° elbow, etc.).
33 Feet
(max.)
Maximum Venting
Distance:
• Vent must have a
support bracket every
5' of pellet vent when
exterior of structure
• If the heater is
installed at an altitude
over 4,000' use 4"
diameter for all
applications
The vent height and run
must not exceed the
distance shown in the
shaded region shown to the
right.
NOTE: To achieve optimum
performance, we
recommend keeping the
vent as short as possible
(horizontal run especially).
Use 4” diameter
vent if venting
into this shaded
region.
Use 3” or 4”
diameter
vent if
venting into
this shaded
region.
30 Feet
25 Feet
20 Feet
15 Feet
10 Feet
5 Feet
0 Feet
10 Feet
0 Feet
5 Feet
(max.)
Travis Industries Newport 290902
Installation 9
Pellet Vent Type
• Must be Type "L"(except for masonry fireplace installations) - or - connect the vent to a
factory built type "A" chimney (use an adapter and seal all joints).
Installing the Pellet Vent
Seal each vent section by
500° F. RTV
Silicone
• Horizontal sections must have a 1/4" rise every 12" of travel.
• Pellet vent connections must be sealed airtight with 500° F. RTV silicone and screwed
together with at least three sheet metal screws.
Pellet Vent Termination (See the illustration below)
injecting a liberal amount of
500° F. RTV silicone into the
gap between sections.
• Must have an approved cap (to prevent water from entering) or a 45° downturn.
• If the termination is located on a windy side of the house, an approved house shield is
recommended to prevent soot from building up on the side of the house.
• Must not be located where it will become plugged by snow or other material.
• Horizontal terminations must protrude 12" from the wall, verticall terminations require 24".
X
B
C
NOTE: Measure clearances to the nearest edge of the exhaust hood.
H
A
F
E
G
A
F
D
A Minimum 4' clearance below or beside any door or window that opens
B Minimum 1' clearance above any door or window that opens
C Minimum 2' clearance from any adjacent building
D Minimum 7' clearance above any grade when adjacent to public walkways
NOTE: Vent may not terminate in covered walkway or breezeway.
E Minimum 2' clearance above any grass, plants, or other combustible materials
F Minimum 3' clearance from any forced air intake of any other appliance
G Minimum 2' clearance below eaves or overhangs
H Minimum 1' clearance horizontally from combustible wall
X Must be a minimum of 2' above the roof
Travis Industries Newport 290902
10 Installation
Mobile Home Requirements
• Outside air is required (used for
combustion) - see the directions
below.
• The heater must be bolted to the
floor (Some states do not require
this; check with your local building
department). See the illustration
to the right.
• The heater must be grounded to
the steel chassis of the mobile
home (Some states do not require
this; check with your local building
department).
WARNING: DO NOT INSTALL IN
SLEEPING ROOM.
CAUTION: THE STRUCTURAL
INTEGRITY OF THE
MANUFACTURED HOME
FLOOR, WALL, AND
CEILING/ROOF MUST BE
MAINTAINED.
c
Lift the stove off of the
pedestal and place it on a
piece of wood so that the
ash pan trap door does
not become damaged.
d
Use the included lag bolts to screw
the pedestal to the floor. Then
replace the stove and ash pan.
a
Remove the ash pan
(see page 27).
1/2”
Socket
b
Remove the four
bolts holding the
stove to the pedestal.
7/16”
Socket
Outside Air (used for combustion)
• Must not be drawn from an enclosed space (garage, unventilated crawl space).
HINT: Travis Industries strongly suggests outside air for all residential installations, especially for
those that are energy efficient, air tight homes.
WARNING: During a power outage there is a
possibility of some smoke entering
the room if an outside air
connection is not used.
• Must not be over 15' long.
• Must be made with 1 3/4" diameter
or larger metal or aluminum duct
with a metal screen attached to the
end to keep out rodents (P.V.C. or
other combustible materials may
not be used). Use the Travis
Industries Outside Air Kit (part #
99200136).
• Must not terminate above or within
1' of the chimney termination.
• Must have a rain cap or downturned elbow to prevent water
from entering.
• Must be located so that it will not
become plugged by snow or other
material.
7-5/8"
Silicone
10-3/4"
Cut a minimum 2"
diameter hole in
the wall.
1-3/4" Diameter
Flex Duct
Select a location between
framing members for the
outside air hole.
Wall
Cover
Plate
Silicone
We recommend
the use of the
Travis Industries
Outside Air Kit
(Part # 99200136)
Seal the area around
the tube to prevent air
from entering the
wall.
Silicone
Seal the vent with
silicone.
Silicone
Rain
Hood with
Rodent
Screen
Travis Industries Newport 290902
Loading...
