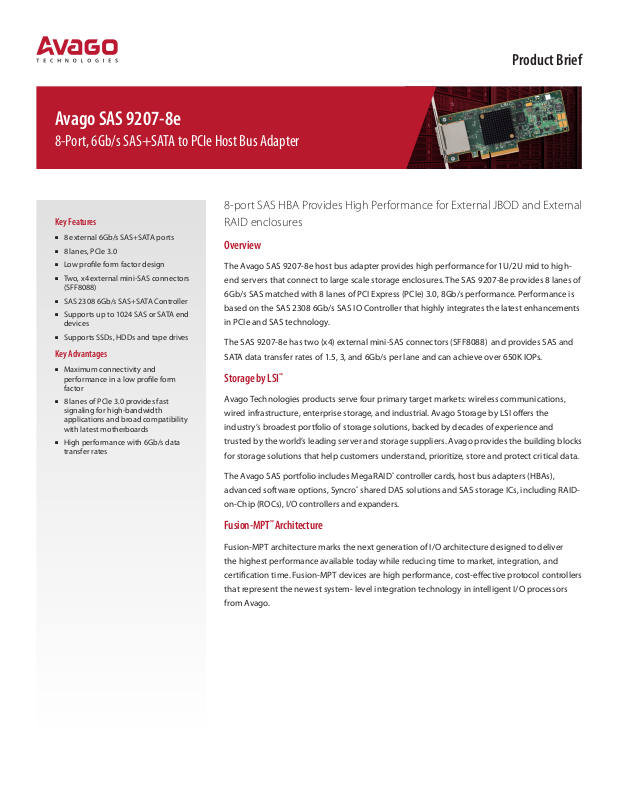

Avago SAS 9207-8e
8-Port, 6Gb/s SAS+SATA to PCIe Host Bus Adapter
8-port SAS HBA Provides High Performance for External JBOD and External
Key Features
8 external 6Gb/s SAS+SATA ports
8 lanes, PCIe 3.0
Low prole form factor design
Two, x4 external mini-SAS connectors
(SFF8088)
SAS 2308 6Gb/s SAS+SATA Controller
Supports up to 1024 SAS or SATA end
devices
Supports SSDs, HDDs and tape drives
Key Advantages
Maximum connectivity and
performance in a low prole form
factor
8 lanes of PCIe 3.0 provides fast
signaling for high-bandwidth
applications and broad compatibility
with latest motherboards
High performance with 6Gb/s data
transfer rates
RAID enclosures
Overview
The Avago SAS 9207-8e host bus adapter provides high performance for 1U/2U mid to high-
end servers that connect to large scale storage enclosures. The SAS 9207-8e provides 8 lanes of
6Gb/s SAS matched with 8 lanes of PCI Express (PCIe) 3.0, 8Gb/s performance. Performance is
based on the SAS 2308 6Gb/s SAS IO Controller that highly integrates the latest enhancements
in PCIe and SAS technology.
The SAS 9207-8e has two (x4) external mini-SAS connectors (SFF8088) and provides SAS and
SATA data transfer rates of 1.5, 3, and 6Gb/s per lane and can achieve over 650K IOPs.
Storage by LSI
Avago Technologies products serve four primary target markets: wireless communications,
wired infrastructure, enterprise storage, and industrial. Avago Storage by LSI oers the
industry’s broadest portfolio of storage solutions, backed by decades of experience and
trusted by the world’s leading server and storage suppliers. Avago provides the building blocks
for storage solutions that help customers understand, prioritize, store and protect critical data.
™
Product Brief
The Avago SAS portfolio includes MegaRAID® controller cards, host bus adapters (HBAs),
advanced software options, Syncro® shared DAS solutions and SAS storage ICs, including RAID-
on-Chip (ROCs), I/O controllers and expanders.
Fusion-MPT™ Architecture
Fusion-MPT architecture marks the next generation of I/O architecture designed to deliver
the highest performance available today while reducing time to market, integration, and
certication time. Fusion-MPT devices are high performance, cost-eective protocol controllers
that represent the newest system- level integration technology in intelligent I/O processors
from Avago.
Product Brief
SAS 9207-8e Host Bus Adapter
IO Controller SAS 2308, Fusion MPT 2.0
Storage Connectivity Data Transfer Rates 8 ports, 6Gb/s SAS 2.1 Compliant
SAS Bandwidth Half Duplex
600 MB/s per lane
Port Congurations 8 ea, x1 ports (individual drives)
2 ea, x4 wide ports
Host Bus x8 lane, PCI Express 3.0
PCI Data Burst Transfer Rates Half Duplex
x8, PCIe, 8000 MB/s
Physical Dimensions Low Prole (2.7” x 6.6”)
Connectors Two mini-SAS external connectors (SFF8088)
Brackets Full height and low prole
Cable Support Passive Copper, Active Copper
PCI Card Type 3.3 V Add-in Card
Operating Voltage +12V +/-8%; 3.3V +/-9%
PCI Power (Nominal) 9.8W
Device Support 1024 Non-RAID SAS/SATA devices
Environmental Operating
0oC to 55oC
5 to 90% Non-condensing
MTBF >2,000,000 hrs
Regulatory Certications EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024);
Australia/New Zealand (AS/NZS 3548); Korea (N-B 2-0001-404); Safety: EN60950; RoHS; WEEE
OS Support Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware, Free BSD
See http://www.lsi.com/support/pages/download-search.aspx for details on versions
Warranty 3 years; with advanced replacement option
Free technical support at http://www.lsi.com/support
Storage
-45°C to 105°C
5 to 90% Non-condensing
Ordering Information
SAS 9207-8e SGL
MPN: H5-25427-00
OPN: LSI00300
Visit the Avago Server Storage website at: avagotech.com/server-storage
Avago, Avago Technologies, MegaRAID, and the Storage by LSI logo are trademarks of Avago Technologies. All other trademarks are the
property of their respective owners.
Copyright ©2015 Avago Technologies. All rights reserved. > 9.8.15
