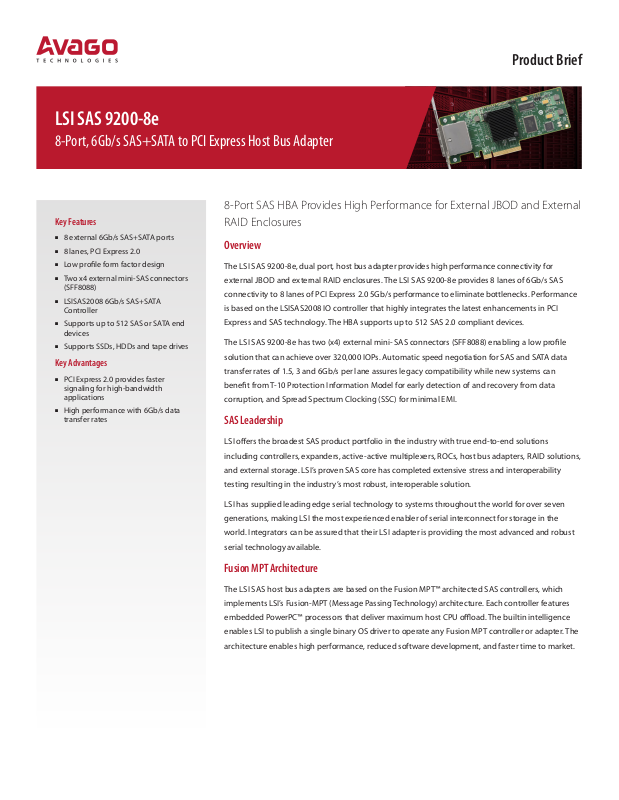

LSI SAS 9200-8e

8-Port, 6Gb/s SAS+SATA to PCI Express Host Bus Adapter

8-Port SAS HBA Provides High Performance for External JBOD and External

Key Features



8 external 6Gb/s SAS+SATA ports



8 lanes, PCI Express 2.0



Low prole form factor design



Two x4 external mini-SAS connectors (SFF8088)



LSISAS2008 6Gb/s SAS+SATA Controller



Supports up to 512 SAS or SATA end devices



Supports SSDs, HDDs and tape drives

Key Advantages



PCI Express 2.0 provides faster signaling for high-bandwidth applications



High performance with 6Gb/s data transfer rates

RAID Enclosures

Overview

The LSI SAS 9200-8e, dual port, host bus adapter provides high performance connectivity for

external JBOD and external RAID enclosures. The LSI SAS 9200-8e provides 8 lanes of 6Gb/s SAS

connectivity to 8 lanes of PCI Express 2.0 5Gb/s performance to eliminate bottlenecks. Performance

is based on the LSISAS2008 IO controller that highly integrates the latest enhancements in PCI

Express and SAS technology. The HBA supports up to 512 SAS 2.0 compliant devices.

The LSI SAS 9200-8e has two (x4) external mini- SAS connectors (SFF8088) enabling a low prole

solution that can achieve over 320,000 IOPs. Automatic speed negotiation for SAS and SATA data

transfer rates of 1.5, 3 and 6Gb/s per lane assures legacy compatibility while new systems can

benet from T-10 Protection Information Model for early detection of and recovery from data

corruption, and Spread Spectrum Clocking (SSC) for minimal EMI.

SAS Leadership

Product Brief

LSI oers the broadest SAS product portfolio in the industry with true end-to-end solutions

including controllers, expanders, active-active multiplexers, ROCs, host bus adapters, RAID solutions,

and external storage. LSI’s proven SAS core has completed extensive stress and interoperability

testing resulting in the industry’s most robust, interoperable solution.

LSI has supplied leading edge serial technology to systems throughout the world for over seven

generations, making LSI the most experienced enabler of serial interconnect for storage in the

world. Integrators can be assured that their LSI adapter is providing the most advanced and robust

serial technology available.

Fusion MPT Architecture

The LSI SAS host bus adapters are based on the Fusion MPT™ architected SAS controllers, which

implements LSI’s Fusion-MPT (Message Passing Technology) architecture. Each controller features

embedded PowerPC™ processors that deliver maximum host CPU ooad. The builtin intelligence

enables LSI to publish a single binary OS driver to operate any Fusion MPT controller or adapter. The

architecture enables high performance, reduced software development, and faster time to market.

Product Brief

LSI SAS 9200-8i Host Bus Adapter

I/O Controller LSI SAS2008/ Fusion MPT 2.0

Storage Connectivity ; Data Transfer Rates 8 ports; 6Gb/s SAS 2.0 compliant

Host Bus x8 lane, PCI Express 2.0 compliant

PCI Data Burst Transfer Rates Half Duplex

x8, PCIe, 4000 MB/s

+12V ±10%

Physical Dimensions Low Prole (2. 6” x 6.6”)

Connectors Two mini-SAS external connectors (SFF8088)

Brackets Full height and low prole

Cable Support Passive Copper

PCI Card Type 3.3 V Add-in Card

Operating Voltage +12V +/-8%; 3.3V +/-8%

PCI Power (Nominal) 8 W typical (Airow min 200 LFM)

Device Support 512 Non-RAID SAS/SATA devices

Environments Operating

0°C to 55°C

5 to 90% Non-condensing

MTBF >2,000,000 Hours

Regulatory Certications EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024);

Australia/New Zealand (AS/NZS 3548); Safety: EN60950; RoHS; WEEE

OS Support Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware

See http://www.lsi.com/channel/ChannelDownloads for details on versions

Warranty 3 years; with advanced replacement option

Free technical support at http://www.lsi.com/channel/support

Storage

-45°C to 105°C

5 to 90% Non-condensing

Ordering Information

SAS 9200-8e SGL

MPN: H5-25086-01

OPN: LSI00188
