AutoPage RS-900LCD Operation Manual

THIS PRODUCT IS DESIGNED FOR PROFESSIONAL INSTALLATION ONLY

RS-900LCD

PROFESSIONAL 915 MHz. 2-WAY LCD REMOTE

CAR STARTER & ALARM SYSTEM

With

Built in Temperature sensor

And Serial Port Data Link

OPERATION MANUAL

Please register your product at:

www.autopageusa.com

TABLE OF CONTENTS:

A BATTERY REPLACEMENT B THE REMOTE LCD ICONS WITH FUNCTION C PROGRAMMING OF THE LCD REMOTE TRANSMITTER

1. Screen Lamp ON

2. Power Save Mode

3. Clear The Flash Icon and Melody Sound

4. Stop The Melody Sound.

5. Button Lock

6. Vibration / Melody Mode

7. Enable / Disable Bi Sound While Pressing Button:

8. Low Battery Indication.

9. Set Up Fixed Count Down Timer

10. Out Of The Range Check

D CLOCK & TIMER SETTING

1. Clock Setting.

2. Alert Alarm Timer Setting

3. Count Down Timer Setting

4. Time Set-Up For “Daily Timer Start”

REMOTE TRANSMITTER OPERATION A. REMOTE TRANSMITTER OPERATION B LCD DISPLAY TRANSMITTER OPERATION C LED DISPLAY D CHIRP INDICATOR E PARKING LIGHT F ALARM OPERATION CONDITION G ACTIVE ARMING – ARM & LOCK

Defective Sensor Reminder Silent Arming / Disarming Shock Sensor By-Pass Hidden Alarm Function

H PASSIVE ARMING

Passive Arming with Passive Door Locking Passive Arming By-Pass

I ACTIVE DISARMING – UNLOCK & DISARM

Tamper Disarming Pathway Illumination Two Steps Door Unlock Automatic Re-Arm

J DISARMING WITHOUT A TRANSMITTER

Overrides the Alarm without Password Pin Code Overrides the Alarm With Password Pin Code

K VALET MODE

Enter Valet Mode Exit Valet Mode

L CAR LOCATOR M PANIC FUNCTION

LCD REMOTE TRANSMITTER:

4 5 7 7 7

7 7 8 8 8 8 8

9 9 9 10 11

11 12 13 13 13 13 13

13 13 13 13 13 13 13 14 15 15 15 15 16 16 16 16 16 17 17 17

N TRIGGER THE SYSTEM

Clear The Trigger Icons and Melody Sound Stop The Melody Sound Only Noise Abatement Circuit

O ANTI CAR- JACKING

Active Anti Car Jacking Passive Anti Car Jacking Trigger The Anti Car Jacking Mode Override The System To Turn Off Anti Car Jacking

P SYSTEM’S TRIGGER CHECK Q SYSTEM’S STATUS CHECK R DRIVER PAGING (OPTION) S DOME LIGHT CONVENIENCE DELAY & SUPERVISION T IGNITION CONTROL THE DOOR LOCK/UNLOCK U TRUNK RELEASE (CHANNEL 3) OUTPUT V CHANNEL 4 TIMER CONTROL OUTPUT W CHANNEL 5 TIMER CONTROL OUTPUT X CHANNEL 6 TIMER CONTROL OUTPUT Y SECOND VEHICLE SECURITY SYSTEM OPERATION

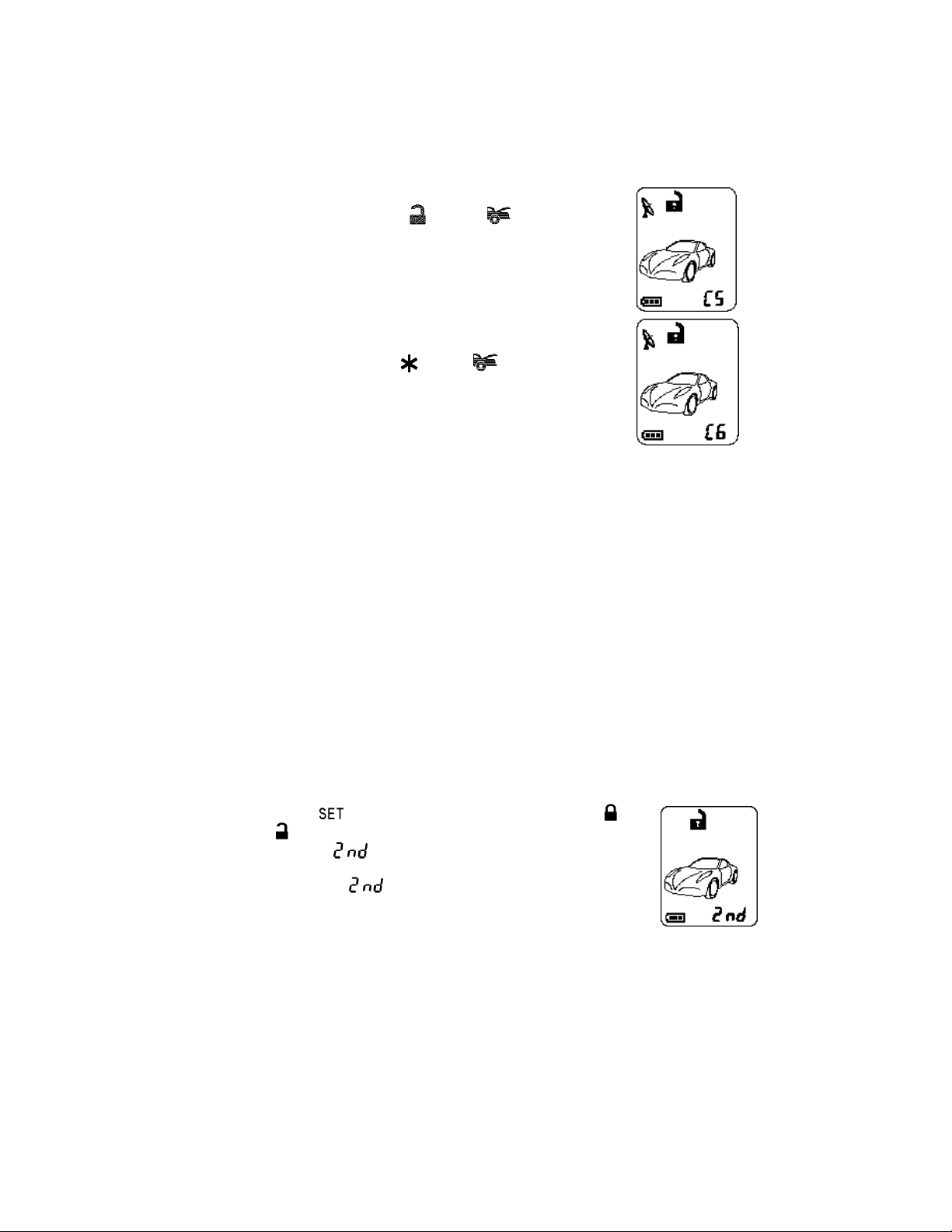

Programming 2nd car transmitter For Standard Remote Transmitter For 2-Way LCD Display Transmitter

Z POWER ON MEMORY

A TO REMOTE START THE VEHICLE

Safe Start (Child safety mode)

B TO OPERATE VEHICLE WHILE RUNNING ON REMOTE START C TEMPORARY STOP FEATURE D TURBO CHARGE MODE E TIMER / TEMPERATURE START

3 (2) Hours Timer Start With Temperature-Control Off 3 (2) Hours Timer Start With Temperature-Control Daily Timer Start Exit the Timer Start

F TEMPERATURE CHECK G TO TURN OFF THE REMOTE START H SHUT-DOWN INPUT FOR REMOTE STARTER I DISABLING THE REMOTE START SYSTEM Warranty Information

Congratulations on your purchase of the RS900 LCD remote start vehicle security system. We sincerely hope the purchase of the RS900 remote start security system gives you peace of mind.

The RS900 LCD is a state-of-the-art two-way communication system. Please take the time to read over this manual to thoroughly familiarize yourself with the many features and options of the RS900.

17 18 18 18 18 18 18 18 19 19 19 19 20

20 20 21 21 21 21

21 21 21 22

23 23 23 24 24

24 24 24 25 25 25 25 26

Auto Page, Inc. has over 25 years of experience in the vehicle security industry in the United States and is a wholly owned subsidiary of Iwata Electric Co., of Tokyo, Japan. Iwata has been an industry leader for over 50 years, establishing a reputation for ingenuity in its engineering capability and innovative communication products. Auto Page and Iwata maintain a long tradition of providing the best value to their customers.

TRANSMITTERS

The RS900 comes with two transmitters. The XT-90LCD is a 2-way transmitter and receiver, also referred to as a transceiver. The XT-90S is a mini-size 1-way transmitter. Both operate on the 915 MHz. with a code-rolling feature that will prevent any illegal use of a code-grabber attempting to record and steal the codes of your transmitter.

CHANGING THE BATTERY IN YOUR TRANSMITTERS XT-90 LCD

Information on changing the battery can be found on page 5 of this manual.

XT-90S: This transmitter uses one (1) 3-volt lithium ion battery (#CR2032) that

is placed with the (+) side facing upward. To replace the battery, you will need to use a small flat blade screwdriver and a small Philips screwdriver. Remove the small Philips head screw. Then locate the small notch on the lower right side of the transmitter case next to the key ring. Using the flat blade screwdriver, carefully pry the top case from the bottom case. It should snap apart after breaking the seal. Before removing the battery note the direction of the positive (+) terminal. Place the new battery in exactly the same manner, being careful not to bend or damage the contact terminal. Snap the cases back together and then test the transmitter to insure it arms and disarms the alarm. Reinstall the Philips screw to finalize the battery replacement.

XT-90S Extended Range Sliding Cover remote

This transmitter uses a standard 1.5-volt AAA battery.

CR2032

3-Volt Battery

WARNINGS:

As with any product that performs automatic functions, there are certain safety precautions that you must practice and be aware of.

1. Keep the transmitter out of children’s reach.

2. Do not leave anyone in the vehicle while running on remote control.

3. Alert servicing personnel that the vehicle can be started automatically.

4. Do not start the vehicle by remote while it’s in an enclosed area or garage.

5. Always apply the parking brake and lock the vehicle as you exit the vehicle.

6. The vehicle windows must be rolled up.

7. Should the unit malfunction, disconnect the fuse until the problem is corrected.

8. The use and operations of this system is the sole responsibility of the operator.

9. Some areas may have local ordinances that prohibit leaving a vehicle running on public streets.

10. It is not safe to remote start the vehicle if the vehicle is parked on a steep

incline.

LCD REMOTE CONTROL TRANSMITTER:

Note: If the system is interfered by stronger radio

frequency around, sources of high voltage electric power or such obstacles like tall buildings and so on, the transmission range may get shorter as the system uses low output powered frequency.

unlocked and the system is

Your vehicle is in armed

Remote Control vibrates

B. THE REMOTE LCD ICONS WITH FUNCTION:

Door Lock

Your vehicle doors are locked

Armed Mode

mode

Remote Transmission

You are transmitting a signal to the control unit

Door Open Warning

Doors are illegally opened (Zone 3)

Shock Sensor Trigger

Trigger on Shock Sensor (Zone 4)

Engine Starting

Your vehicle engine starting by remote control

Timer Control Start Start the Engine automatically at the same time next day or every 3-hours.

Time Monitor Clock

Count Down Timer

Reminder when time is up for parking

Vibration Mode

when the system is triggered

Driver paging

Someone is paging you in front of your vehicle

Door Unlock

Your vehicle doors are

disarmed

Valet Mode

All the function are temporarily on hold.

In – Range Indicator Your are within the remote control range.

Trunk/Hood Trigger Trunk or Hood is illegally opened (Zone 2)

Warn Away trigger

Trigger on Shock Sensor (Zone 1)

Engine Running

Your vehicle's engine is running

Temperature Monitor

Indoor temperature of your vehicle

Alert Alarm

You have set morning call alarm

Power Save Mode

Save the battery power

Button Lock

Disable the transmission function temporarily

Low Battery

You have to replace the battery of the remote control.

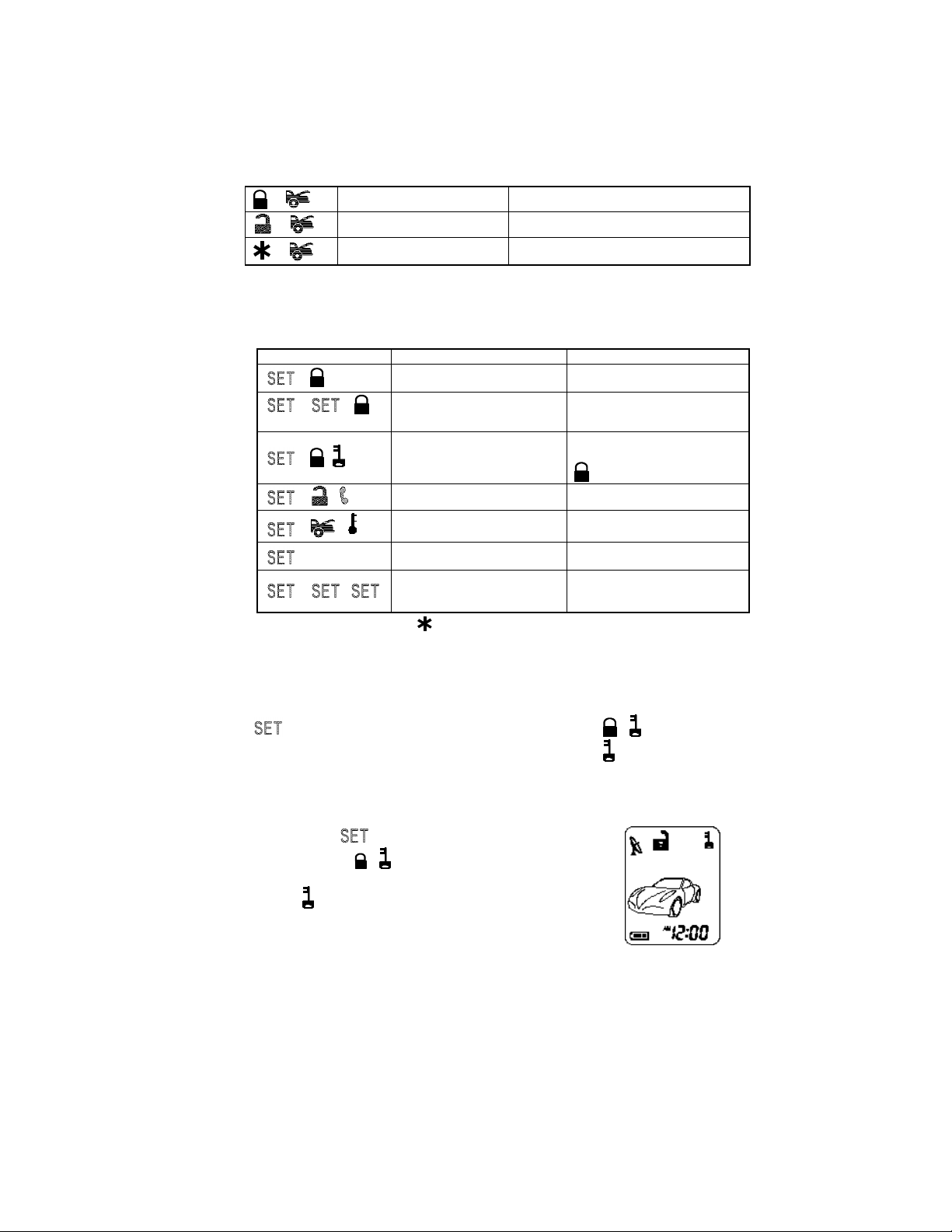

C: PROGRAMMING OF THE LCD REMOTE TRANSMITTER:

Transmitter Button Description Operation

(1 second)

(3 seconds)

(5 seconds)

- -

- (2-second)

- (

2-second)

LCD screen lamp turns on for 5 seconds. Time set mode. This is used to set the clock and timers on the remote

Power Save Mode.

Clear the Flash Icon and Melody Sound on the LCD Screen Transmitter

Button Lock ( ) enable / disable

Melody / Vibration ( ) Mode Program Count Down Timer

(10-Minute / 20M / 30

( )

M /1Hour /1.5H / 2.0H) Enable / Disable Bi Sound

(Bi) While Pressing Button

Press and hold for 1 second 1 melody sound to confirm enters. Press and hold for 3 seconds 2-melody sounds to confirm enter. Press and hold for 5 seconds 1 melody sound to confirm enters. Press within 3 seconds

Press within 3 seconds

Within 3 seconds press the

button until desired

time is set, then flashes

1. Screen Lamp ON: Press and hold the button for one second. One

melody sound will be heard and the LCD screen lamp will turns on for 5 seconds

2. Power Save Mode: While the power save mode, the LCD remote

transmitter uses “0” current to save the battery power.

Entry: 1. Press & hold the button for 5 seconds, with one melody sound and icon on the LCD screen to indicate

entry in the “power save mode”.

2. Under the “Active Arming Mode” and Disarm mode. Turn the ignition switch to ON, the LCD remote transmitter will automatically enter the “Power Save Mode”

Exit: Press any button of the LCD remote transmitter to exit the

“Power Save Mode”.

3. Clear the Flash Icon and Melody Sound:

times within 3 seconds will clear the flashing icons and melody sounds on the LCD screen transmitter

Pressing the button 3

button first, within 3 seconds press and hold

4. Stop The Trigger Melody Sound:

screen will alert user through melody sound and flashing trigger icon. Press any button on the LCD remote transmitter to stop melody sound only.

While triggering the alarm the LCD

5. Button Lock:

the transmission function of the remote control temporarily to prevent the inadvertent pressing of the buttons. Press the

button first, within 3 seconds press and hold the

button for 2 seconds to activate or cancel the button lock function The icon will displayed on the LCD screen to show

the LCD remote transmitter is on “Button Lock”.

This may be useful if you want to disable

(

)

6. Vibration / Melody Mode:

This feature is useful when you are in a noisy place and it is

difficult to hear the beep sound from the remote control. The remote control in this mode will vibrate when your security system is triggered.

Press the the ( ) button for 2 seconds to select the mode of

vibration or melody. The icon will be displayed on the LCD screen to showing that the LCD remote transmitter is in vibration mode.

7. Enable / Disable Bi Sound While Pressing Button:

The remote has a short “bi” sound while pressing the button of the LCD screen transmitter.

If you want to mute the “bi” sound while pressing the buttons. Press the

(Bi)

button first, within 3 seconds press and hold the to disable the “bi” sound.

button for 2 seconds

8. Low Battery Indication:

When the power of the battery weakens, the remote has two short “bi” sounds and will flash the icon while pressing the button of the LCD screen

transmitter.

9. Set Up Fixed Count Down Timer:

1. Press the button first, within 3 seconds press and hold the ()

button for 2 seconds, the LCD screen will shows an icon and timer (i.e. 0:10),

(

2. Press the

(ie.0: 20), press them again (ie.0: 30)…and so on.

3. Leave the buttons alone and unit will start counting down. The icon will

start flashing

Note:

1.The count down period is fixed to 10 minutes, 20 minutes, 30

minutes, 1 hour, 1.5 hours and 2 hours maximum.

a. When the count down timer shows 0:00 the time has elapsed.

)

button again showing next order time on the screen

b. Press button for real time indication of when the timer is counting

down.

10. Out Of Range and Temperature Indication:

If this feature is selected, the system will automatically check if you are

within transmitting range and check the temperature every 30 minutes.

1. If within the range, the icon will display on the LCD screen.

2. If you are out of range, the icon will disappear on the LCD screen.

D. CLOCK & TIMER SETTING:

Transmitter Button Description

Press & Hold the

button until hour flashes Press the button

once Press the button

once. Press the button

once Press the button

once

Press the button

once

Press the button once

Press & hold the

button for 2 seconds.

Clock Setting (Hour) *Flash digit for adjusting

Time setting (Minute) *Flash digit for adjusting

Alert Alarm Time Setting

(Hour) *Flash digit for adjusting Alert Alarm Time Setting (Minute) *Flash digit for adjusting

Alert Alarm Setting ON / OFF Count Down Timer Setting

(Hour) *Flash digit for adjusting (Max.19 hours 59 minutes) Count down Timer Setting (Minute) *Flash digit for adjusting

Count down Timer Setting ON / OFF

Daily Timer Start Timer

Setting Flash /

icon and “Hours” for adjusting

EXIT: Press and hold the button for 2 seconds or leave it for 10seconds,

the system will exit the programming mode.

1. Clock Setting: Example to 10:30 AM

1. Press & hold the button for 3 seconds, with two-melody sounds and the “Hours” digit flashes for adjusting.

2. Press the or button to decrease or increase the “Hour” digit until AM10:xx

Press Transmitter Button

for – and for

for OFF and

for ON

for – and for

for OFF and

for ON

for – and for
