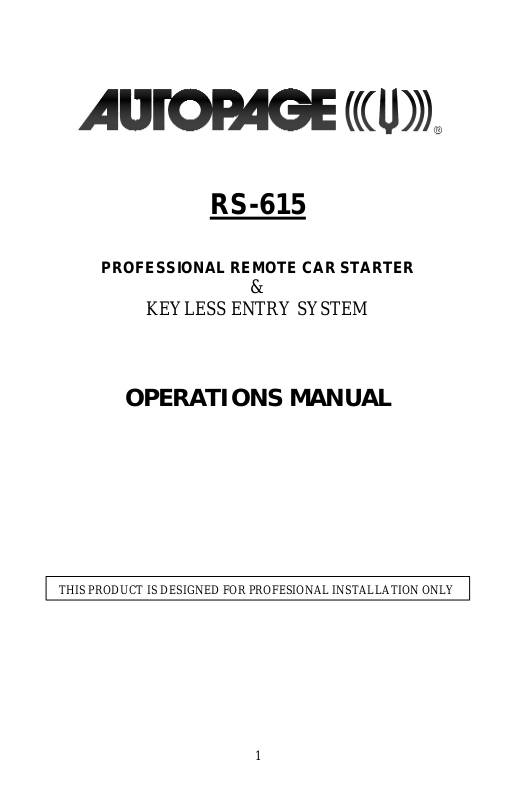

Auto Page RS-615 User Manual

THIS PRODUCT IS DESIGNED FOR PROFESIONAL INSTALLATION ONLY

RS-615

PROFESSIONAL REMOTE CAR STARTER

KEYLESS ENTRY SYSTEM

OPERATIONS MANUAL

SYSTEM OPERATIONS:

WARNINGS:

As with any product that performs automatic functions, there are certain safety precautions that you must practice and be aware of.

1. Keep the transmitter out of children’s reach.

2. Do not leave anyone in the vehicle while running on remote control.

3. Alert servicing personnel that the vehicle can be started automatically.

4. Do not start the vehicle by remote while it’s in an enclosed area or garage.

5. Always apply the parking brake and lock the vehicle as you exit the vehicle.

6. The vehicle windows must be rolled up.

7. Should the unit malfunction, disconnect the fuse until the problem is corrected.

8. The use and operations of this system is the sole responsibility of the operator.

9. Some areas may have local ordinances that prohibit leaving a vehicle running on public streets.

10.Do not start the vehicle by remote while the standard transmission vehicle is

parked at a steep place.

Transmitter

Button

Lock Doors Panic function Press and Hold for 3 seconds

Silent Lock / Unlock Ignition in "off" position. Unlock Doors

Two Step Door Unlock (Driver’s door on the first push; Passenger’s door on the second push

Trunk Release (Channel 3) Press and Hold for 2 seconds Car Locator Under locked mode Activate or Turn Off The Remote

Start Switching code For 2nd Car Operation.

System Function Remark

Press twice within 3 seconds.

For regular remote transmitter Only

CHANGING THE BATTERY IN YOUR TRANSMITTERS XT72S: This transmitter uses two (2) 3-volt lithium ion batteries

(#CR2016) that are sandwiched together with the (+) side facing upward. To replace the battery, you will need to use a small flat blade screwdriver. Locate the small notch on the lower right side of the transmitter case next to the key ring. Using the flat blade screwdriver, carefully pry the top case from the bottom case. It should snap apart after breaking the seal. Before removing the batteries note the direction of the positive (+) terminal. Place the new batteries in exactly the same manner, being careful not to bend or damage the contact terminal. Snap the cases back together and then test the transmitter to insure it arms and disarms the alarm.

(2) CR2016

3-Volt Batteries

ACTIVE LOCK:

1. Press button on the transmitter.

2. The horn will chirp once and parking lights will flash once indicating that the system is now active. The vehicle doors will lock upon activating when int erfaced with the keyless entry system.

SILENT LOCKING / UNLOCKING: Pressing the + buttons together on the transmitter will lock or unlock your system, No chirp sound will be heard, lock / unlock confirmation will be through the vehicle’s parking lights only.

ACTIVE UNLOCK:

1. Press button on the transmitter.

2. The horn will chirp twice and parking light will flash twice to indicating

that the keyless system is now unlocked. The vehicle doors will unlock and dome lights will turn on for 30 seconds .

PATHWAY ILLUMINATION

This feature turns the parking light “ON” for 30 seconds upon a unlock signal and for 10 seconds upon the lock signal.

TWO STEPS DOOR UNLOCK: This feature will independently unlock the driver door only when deactivating the system. Pushing the

button a second time within 3 seconds will unlock the entire vehicle.

LED DISPLAY:

LED Function

Off Unlock

Slow Flash

On (Solid) Valet Mode

Locked

CHIRP INDICATOR:

Chirp Function

1 chirp Lock 2 chirps Unlock 6 chirps Car Locator

PARKING LIGHTS:

Parking light Function

1 flash Lock

2 flashes Unlock

12 flashes Car Locator

Constant On Under Remote Start

DEACTIVATING WITHOUT A TRANSMITTER

The Override function may be used if the remote transmitter is lost or inoperative.

1. Enter the vehicle and turn the ignition switch to ‘ON’ position.

2. Within 10 seconds push and release the valet switch

If starter disable is installed. You can now start and operate the vehicle normally.

VALET MODE:

The valet switch allows you to temporarily bypass all system function, eliminating the need to hand your transmitter to parking attendants or garage mechanics. When the system is in valet mode, and remote start functions are bypassed, however the remote panic feature and remote door locks will remain operational. To use the valet mode, the system must first be deactivated either by using you remote transmitter, or by operating the Manual override sequence. Enter Valet Mode:

1. From the Unlock condition, turn the ignition to “ON” position.

2. Push and hold valet switch for 2 seconds until the LED turns on. The
