Autel MaxiTPMS TS401 User Manual

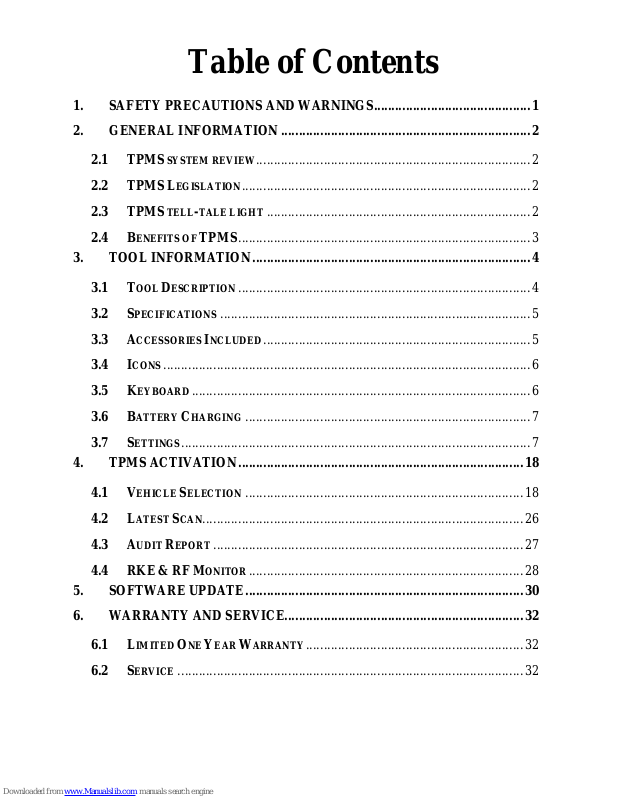

Table of Contents

1. SAFETY PRECAUTIONS AND WARNINGS ............................................ 1

2. GENERAL INFORMATION ...................................................................... 2

2.1 TPMS SYSTEM REVIEW ............................................................................. 2

2.2 TPMS LEGISLATION ................................................................................. 2

2.3 TPMS TELL-TALE LIGHT .......................................................................... 2

2.4 BENEFITS OF TPMS .................................................................................. 3

3. TOOL INFORMATION .............................................................................. 4

3.1 TOOL DESCRIPTION .................................................................................. 4

3.2 SPECIFICATIONS ....................................................................................... 5

3.3 ACCESSORIES INCLUDED ........................................................................... 5

3.4 ICONS ....................................................................................................... 6

3.5 KEYBOARD ............................................................................................... 6

3.6 BATTERY CHARGING ................................................................................ 7

3.7 SETTINGS .................................................................................................. 7

4. TPMS ACTIVATION ................................................................................ 18

4.1 VEHICLE SELECTION .............................................................................. 18

4.2 LATEST SCAN.......................................................................................... 26

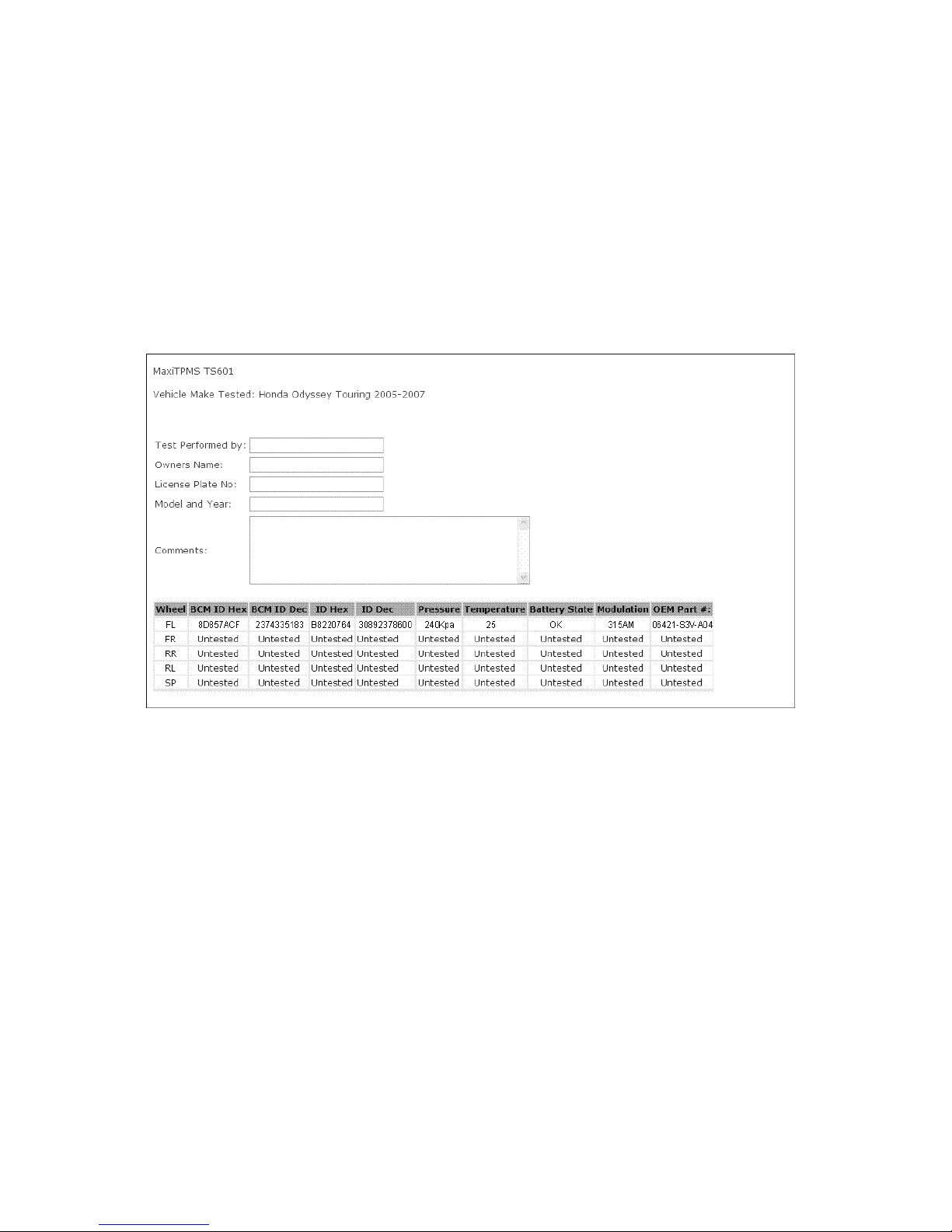

4.3 AUDIT REPORT ....................................................................................... 27

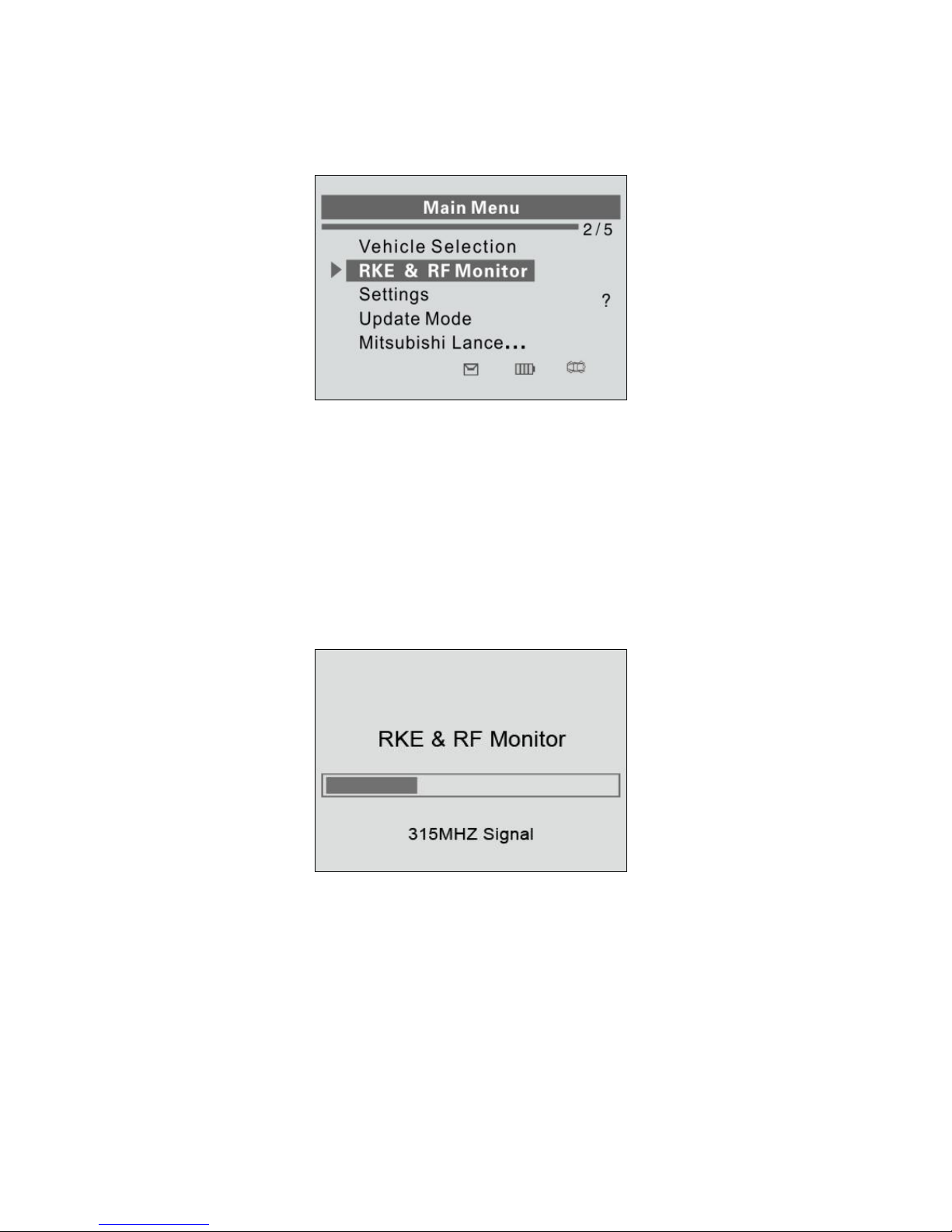

4.4 RKE & RF MONITOR ............................................................................. 28

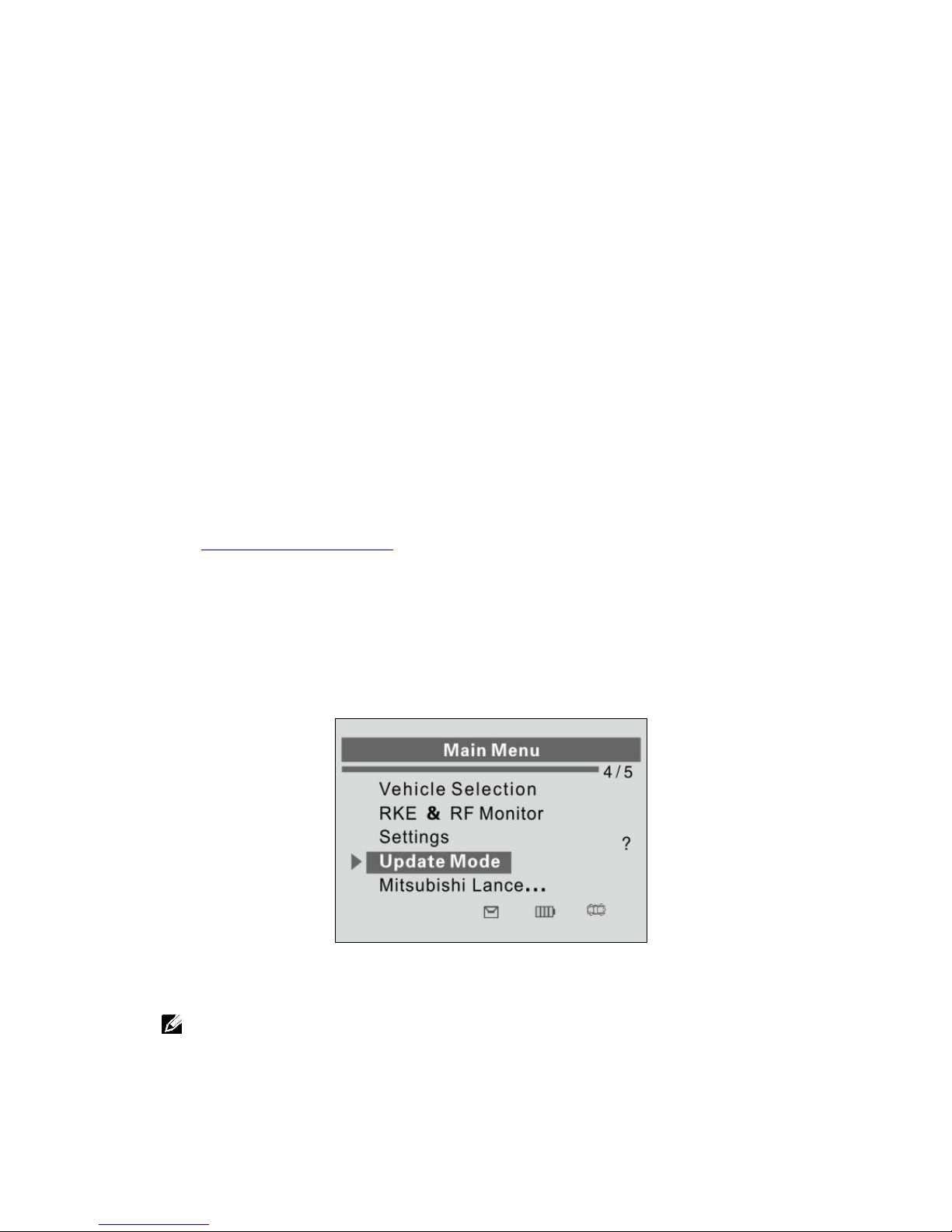

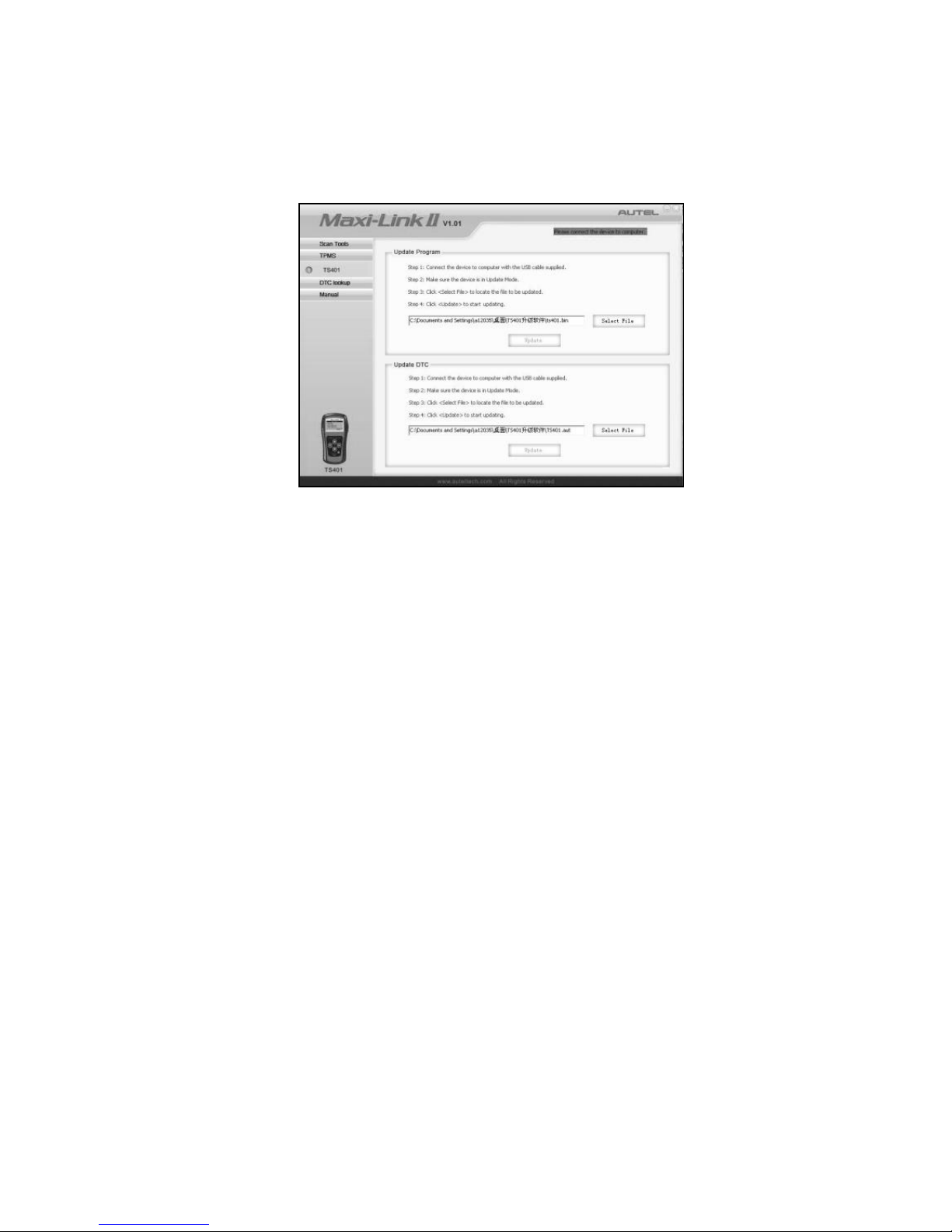

5. SOFTWARE UPDATE .............................................................................. 30

6. WARRANTY AND SERVICE................................................................... 32

6.1 LIMITED ONE YEAR WARRANTY ............................................................. 32

6.2 SERVICE ................................................................................................. 32

1

1. Safety Precautions and Warnings

To prevent personal injury or damage to vehicles and/or the
scan tool, read this instruction manual first and observe the
following safety precautions at a minimum whenever working
on a vehicle:

 Always perform diagnosis or service in a safe environment.

Wear safety eye protection that meets ANSI standards.

 Wear safety eye protection that meets ANSI standards.
 Keep clothing, hair, hands, tools, test equipment, etc. away from

all moving or hot engine parts.

 Operate the vehicle in a well ventilated work area: Exhaust

gases are poisonous.

 Put blocks in front of the drive wheels and never leave the

vehicle unattended while running tests.

 Use extreme caution when working around the ignition coil,

distributor cap, ignition wires and spark plugs. These
components create hazardous voltages when the engine is
running.

 Keep a fire extinguisher suitable for gasoline/chemical/electrical

fires nearby.

 Put the transmission in PARK (for automatic transmission) or

NEUTRAL (for manual transmission) and make sure the
parking brake is engaged.

 Refer to the user’s manual for the vehicle being serviced and

adhere to all diagnostic procedures and precautions. Otherwise
personal injury or unneeded repairs may result.

 Keep the scan tool dry, clean, free from oil/water or grease. Use

a mild detergent on a clean cloth to clean the outside of the scan
tool, when necessary.

 Keep the TPMS tool dry, clean, free from oil, water and grease.

Use a mild detergent on a clean cloth to clean the outside of the
TPMS tool when necessary.

2

2. General Information

2.1 TPMS system review

A tire pressure monitoring system (TPMS) is an electronic system
designed to monitor the air pressure inside the pneumatic tires on
various types of vehicles. TPMS report real-time tire-pressure
information to the driver of the vehicle, either via a gauge, a
pictogram display, or a simple low-pressure warning light. TPMS
can be divided into two different types — direct (dTPMS) and
indirect (iTPMS). TPMS are provided both at an OEM (factory)
level as well as an aftermarket solution.

2.2 TPMS Legislation

In the United States, the United States Department of Transportation
(NHTSA) released the FMVSS No. 138, which requires an
installation of a Tire Pressure Monitoring System to all new
passenger cars, multipurpose passenger vehicles, trucks, and buses
that have a gross vehicle weight rating (GVWR) of 4,536 kg
(10,000 lbs.) or less, except those vehicles with dual wheels on an
axle, as of 2007. In the European Union, starting November 1, 2012,
all new models of passenger cars must be equipped with a TPMS,
with even tighter specifications that will be defined by the UNECE
Vehicle Regulations (Regulation No. 64). From November 1, 2014,
all new passenger cars sold in the European Union must be equipped
with TPMS. On July 13, 2010, the South Korean Ministry of Land,
Transport and Maritime Affairs announced a pending partial-revision
to the Korea Motor Vehicle Safety Standards (KMVSS), specifying
that "TPMS shall be installed to passenger vehicles and vehicles of
GVW 3.5 tons or less, ... [effective] on January 1, 2013 for new
models and on June 30, 2014 for existing models". Japan is expected
to adopt European Union legislation approximately one year after
European Union implementation. Further countries to make TPMS
mandatory include Russia, Indonesia, the Philippines, Israel,
Malaysia and Turkey.

2.3 TPMS tell-tale light

3

When diagnosing TPMS systems, you should understand what the
TPMS tell-tale light means.

When turning the ignition OFF to ON, the TPMS tell-tale should
come on, and then go off, which indicates the system is working fine.
If the light stays on, there would be a pressure problem. If the light
flashes, there would be a system problem, which can range from
faulty sensors to sensors on the vehicle that haven’t been learned to
that vehicle.

2.4 Benefits of TPMS

The significant advantages of TPMS are summarized as follows:

 Fuel saving.
 Extended tire life.
 Decreased downtime and maintenance.
 Improved safety.
 Environmental efficiency.

4

3. Tool Information

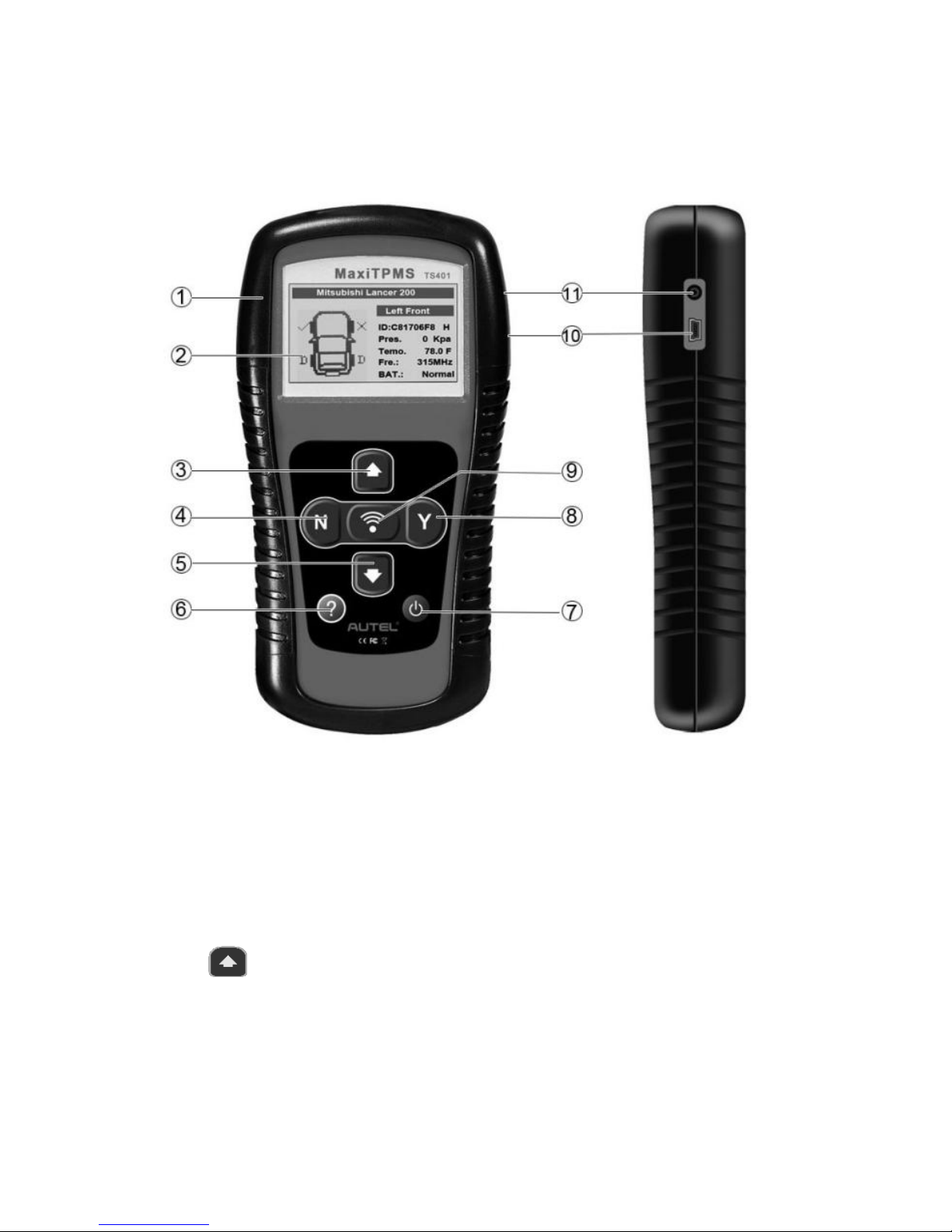

3.1 Tool Description

1) Rubber BOOT – Protects the TPMS tool from drop, abrasion,

and etc.

2) LCD DISPLAY – Indicates test results. Backlit 128*64 pixel

display with contrast adjustment.

3) UP SCROLL BUTTON – Moves up through menu and

submenu items in menu mode. When more than one set of data
are retrieved, use this button to move down to next screens for
additional data.

5

4) N BUTTON – Cancels a selection (or action) from a menu

or return to previous menu.

5) DOWN SCROLL BUTTON – Moves down through

menu and submenu items in menu mode. When more than one
set of data are retrieved, use this button to move down to next
screens for additional data.

6) HELP BUTTON – Provides help information.

7) POWER BUTTON – Turns on/off the tool.

8) Y BUTTON – Confirms a selection (or action) from a

menu or return to previous menu.

9) TEST BUTTON – Commences a TPMS test.

10) USB PORT – Connects the TPMS tool to computer with the

USB cable supplied to update the device or for charging.

11) POWER PORT – Connects the TPMS tool to the mains with

the charger supplied for battery charging.

3.2 Specifications

1) Display: Backlit 128*64 pixel display with contrast adjustment

2) Power: 3.7V Li-polymer battery

3) Operating Temperature: 0 to 50°C (32 to 122 °F)

4) Storage Temperature: -20 to 70°C (-4 to 158 °F)

5) Dimensions:

6) Length Width Height

195.5 mm (7.7") 104 mm (4.09") 37.5 mm (1.48")

7) Weight: 0.37 kg (0.82 lb.)

3.3 Accessories Included

1) User’s Manual -- Instructions on tool operations.

6

2) USB Cable -- Allows easy update through PC via internet

connection.

3) Carry Case – A case to store the tool when not in use.

4) Magnet -- Used to trigger magnetically activated sensors (early

model TPMS sensors)

5) Power Adapter – Charges the built-in battery.

6) CD – Includes user’s manual, MaxilinkII Kit, etc.

3.4 Icons

1) “►” -- Indicates current selection.

2) “X/X” -- Indicates total items in a menu and their sequence.

3) “ ” -- Indicates there is data stored in the tool.

4) “ ” -- Indicates battery volume.

5) “ ” -- Indicates USB communication with the computer is

established.

6) “? ” -- Indicates there is tip for relevant item. Press HELP

BUTTON to view the details for help information.

7) “…”-- Indicates the item is too long for the display. Press

HELP BUTTON to view the full text.

8) “ ” -- Indicates magnet is required to activate TPMS sensor.

9) “P↓”-- Indicates deflation is required to activate TPMS sensor.

10) “ ” -- Indicates test mode One Wheel of Wheels to Test in the

system setting is selected.

11) “ ” -- Indicates test mode ALL Wheels of Wheels to Test in

the system setting is selected.

12) “ ” – Indicates the TPMS tool is sending signals to the tire

sensor for activation and test.

3.5 Keyboard

7

No solvents such as alcohol are allowed to clean the keypad or display.
Use a mild nonabrasive detergent and a soft cotton cloth. Do not soak

the keypad as the keypad is not waterproof.

3.6 Battery Charging

The tool has a 3.7v built-in lithium-ion polymer rechargeable battery.
There are two means of battery charging:

1) To charge battery by power adapter.

 Locate the power port of the device.
 Connect the device and the power source with the adapter.

2) To charge battery by USB cable

 Locate the USB port of the device.
 Connect the device and the computer with the USB cable.

For optimum performance, always keep your tool sufficiently
charged. It is recommended that you charge the tool for over 2 hours
before the first use.

NOTE: Only use the power adaptor or USB cable that is

included in our pack to charge this tool. The use of un-approved
power supplies may damage your tool and void the tool
warranty.

3.7 Settings

The tool allows you to make the following adjustments and settings.

1) Language: Selects the desired language.

2) ID Format: Sets the ID displaying in Hexadecimal or Decimal.

3) Pressure Unit: Sets the pressure unit in kPa, Psi or Bar.

4) Temperature Unit: Sets the temperature unit in degree Celsius

or Fahrenheit.

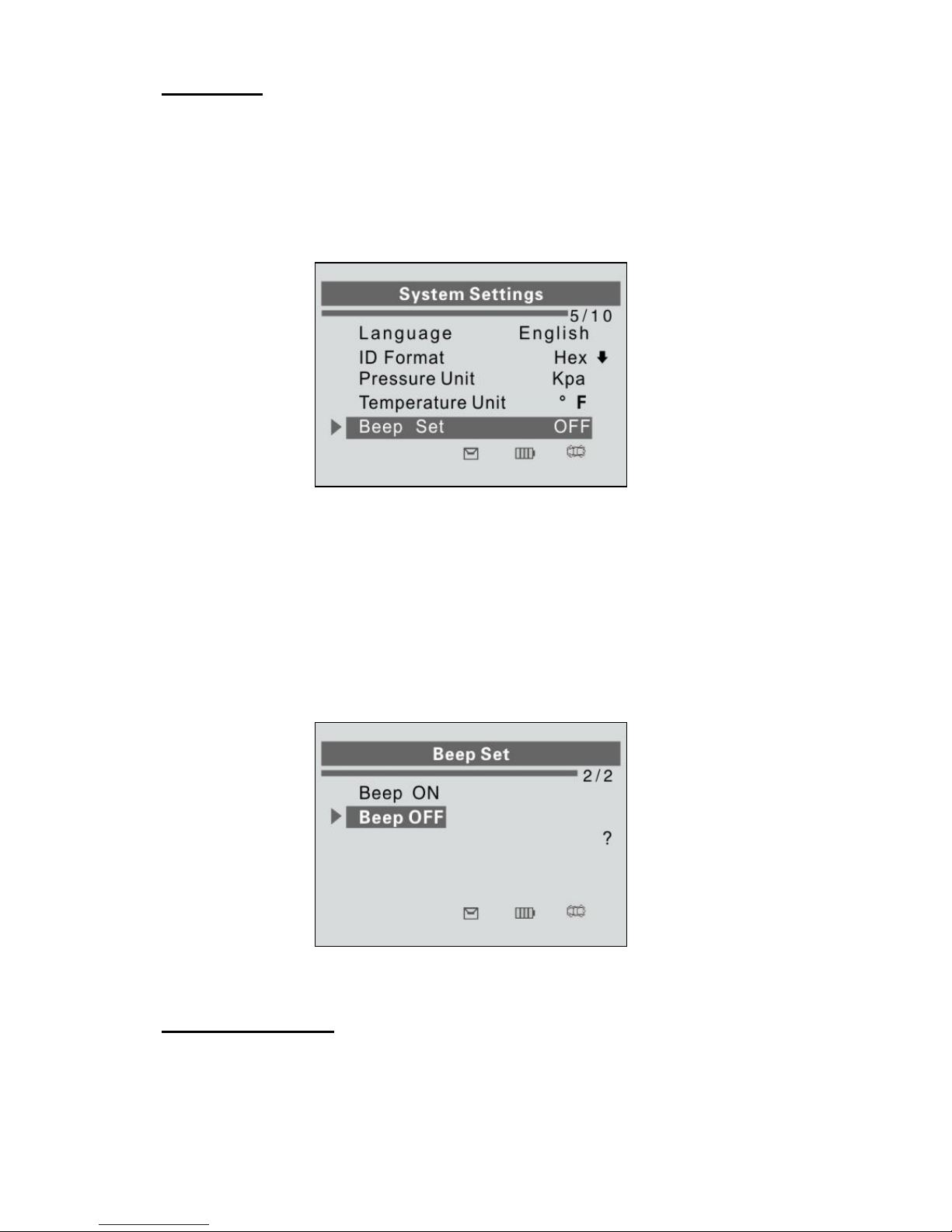

5) Beep Set: Turns on/off key-press beep.

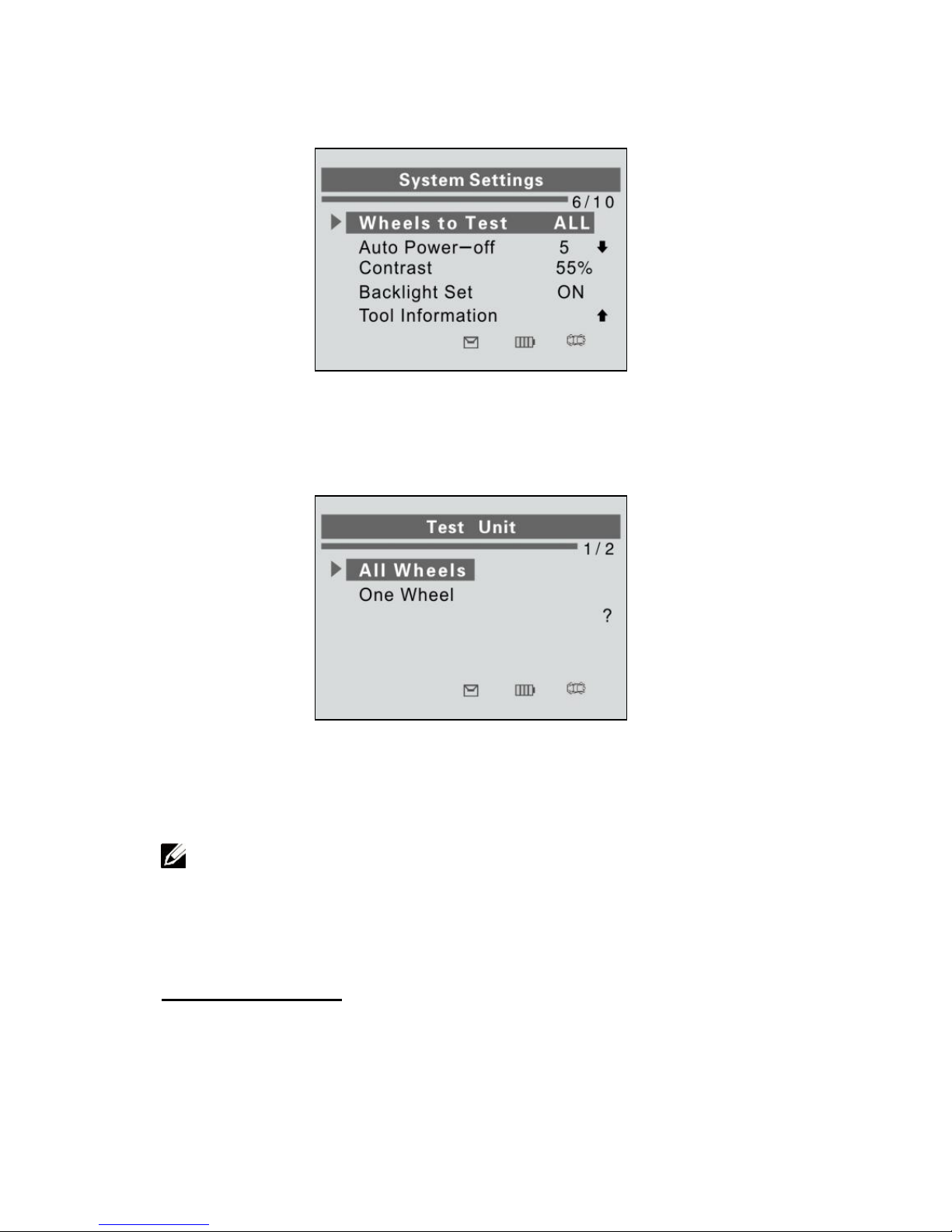

6) Wheels to Test: Gives the operator the choice to test One wheel

or All wheels.

8

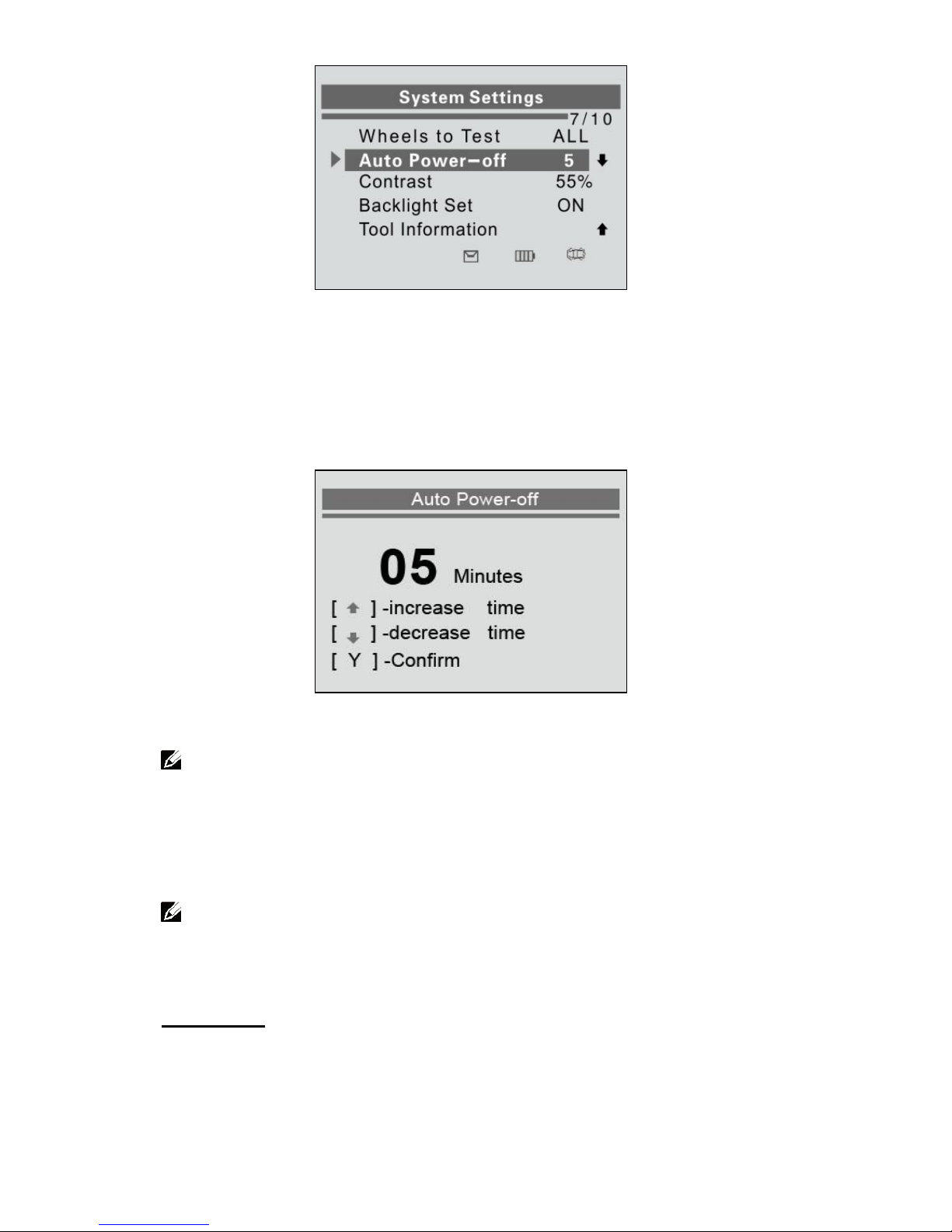

7) Auto Power-off: Sets the time to power off automatically.

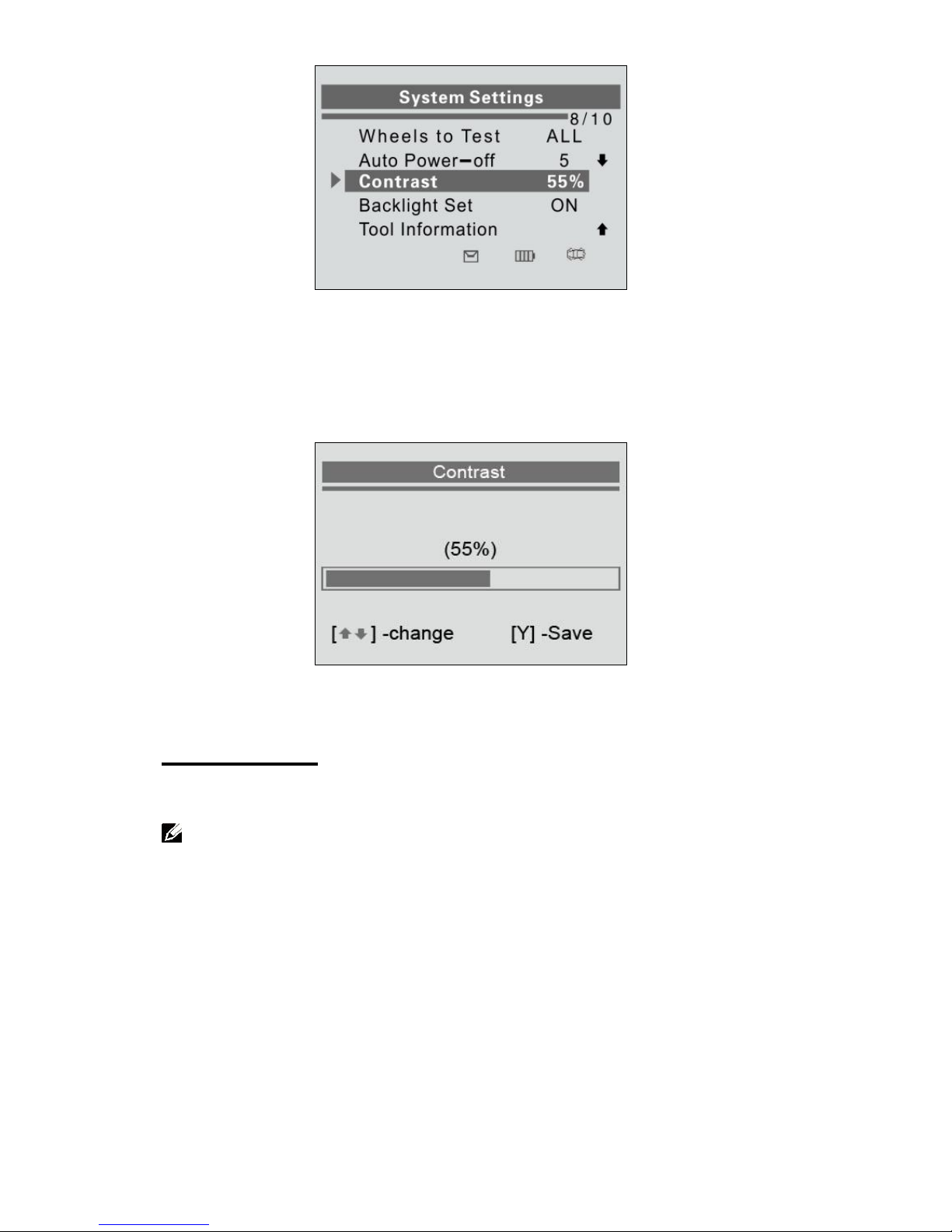

8) Contrast: Adjusts the contrast of the LCD display.

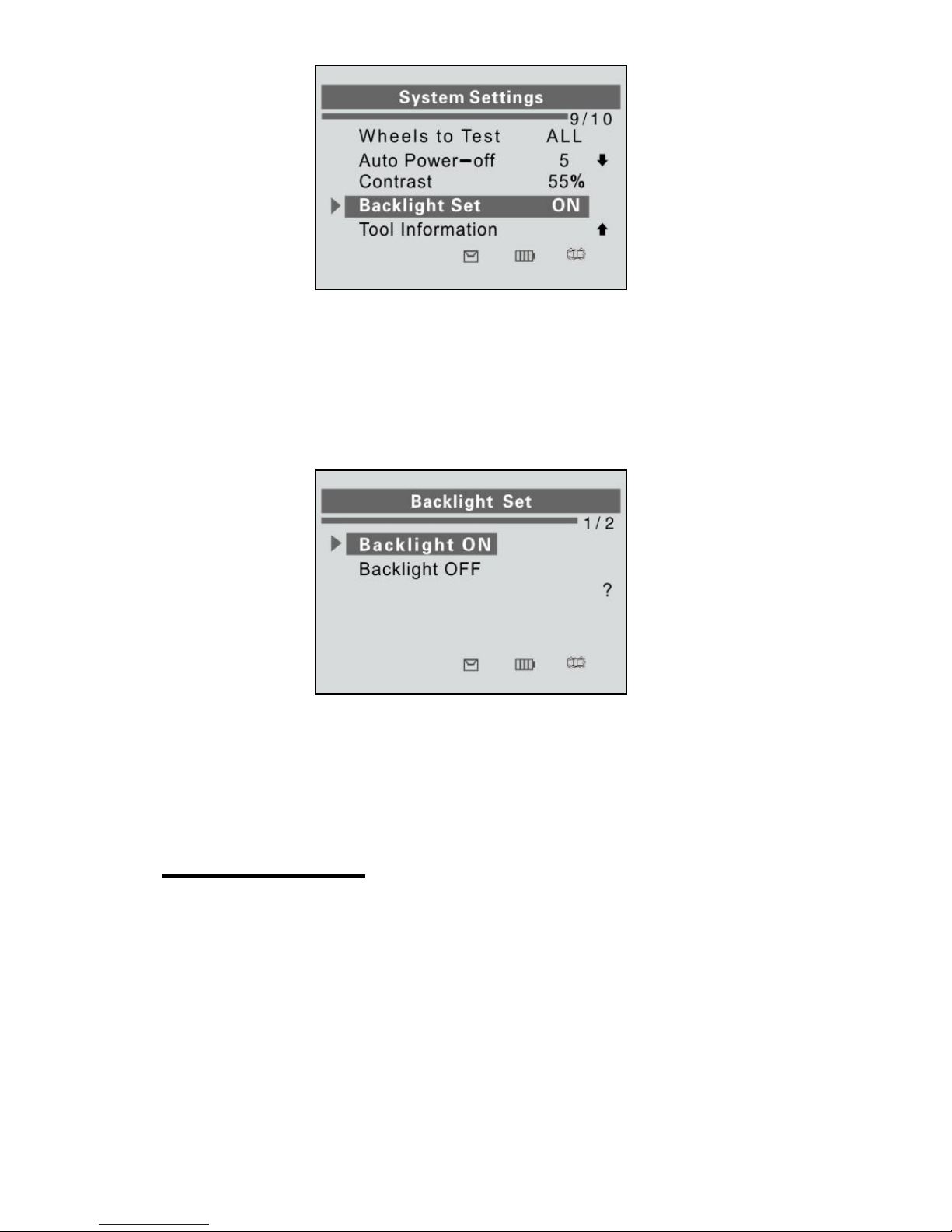

9) Backlight Set: Turns on/off the backlight.

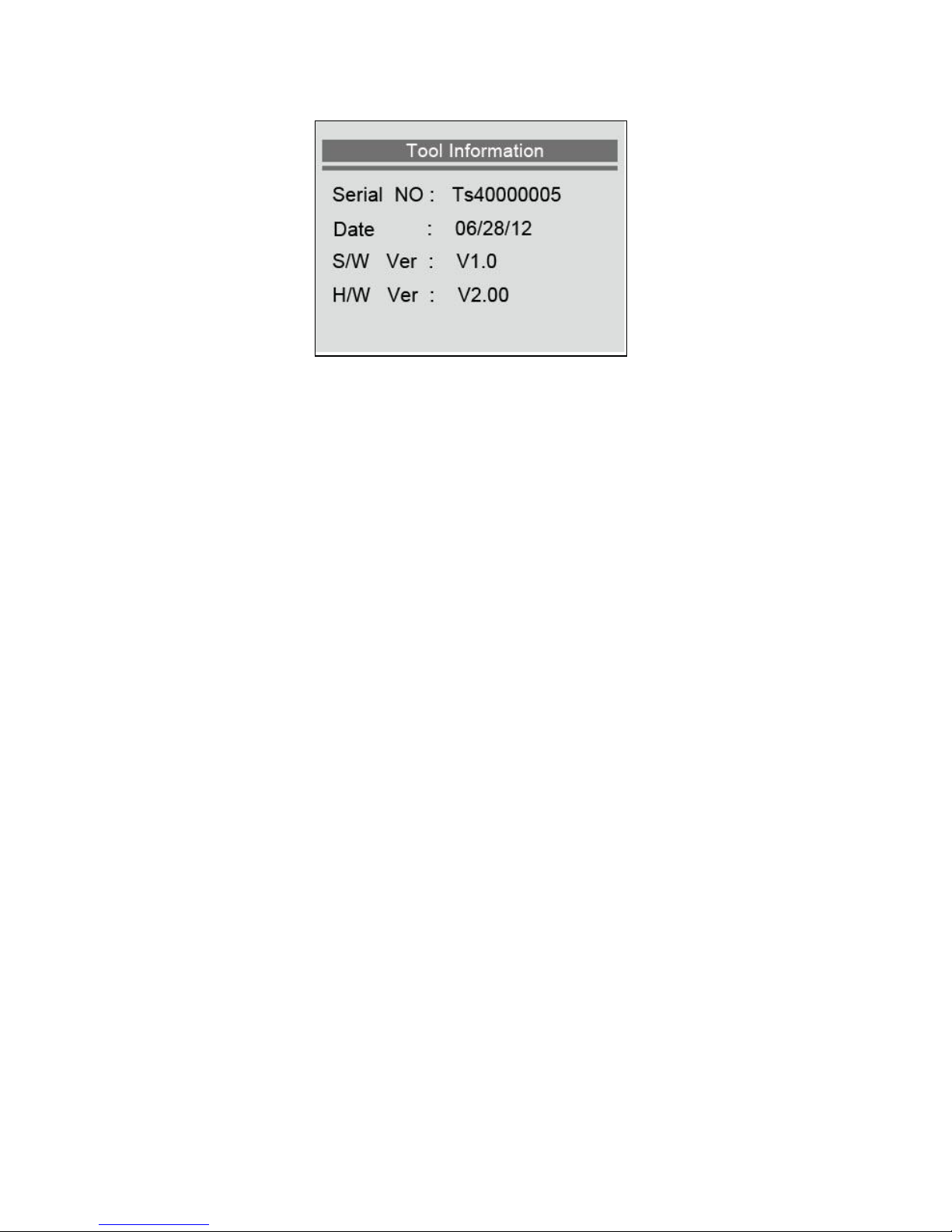

10) Tool Information: Views the important information of the tool.

 Settings of the unit will remain until change to the existing

settings is made.

To enter the Setup menu

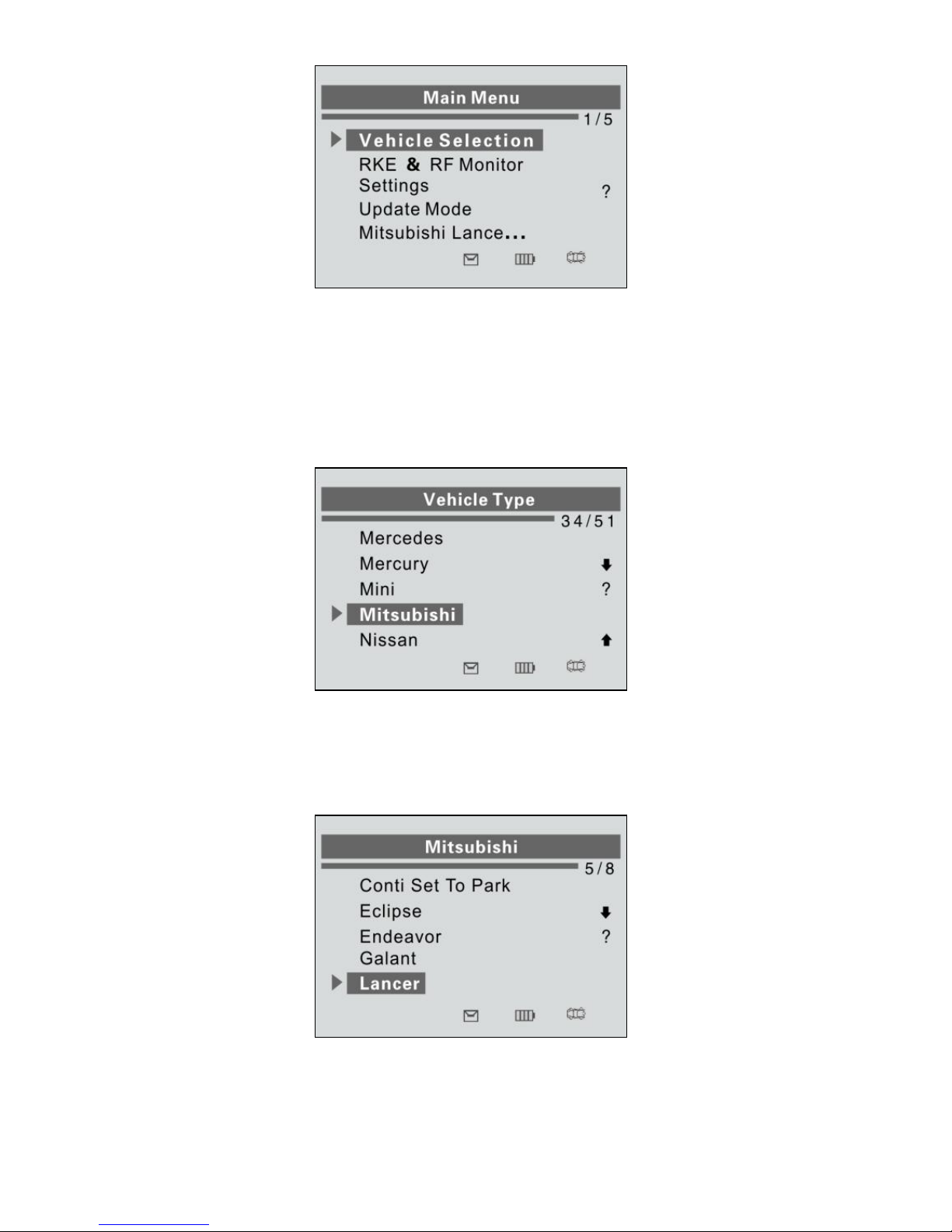

When the scan tool is powered on, it displays a Main Menu. (Figure

3.1) Use the UP/DOWN scroll button to select Settings from
Main Menu, and press the Y button.

Figure 3.1

Language

1) From System Settings screen, use the UP/DOWN SCROLL

button to select Language, and press the Y button.

Figure 3.2

9

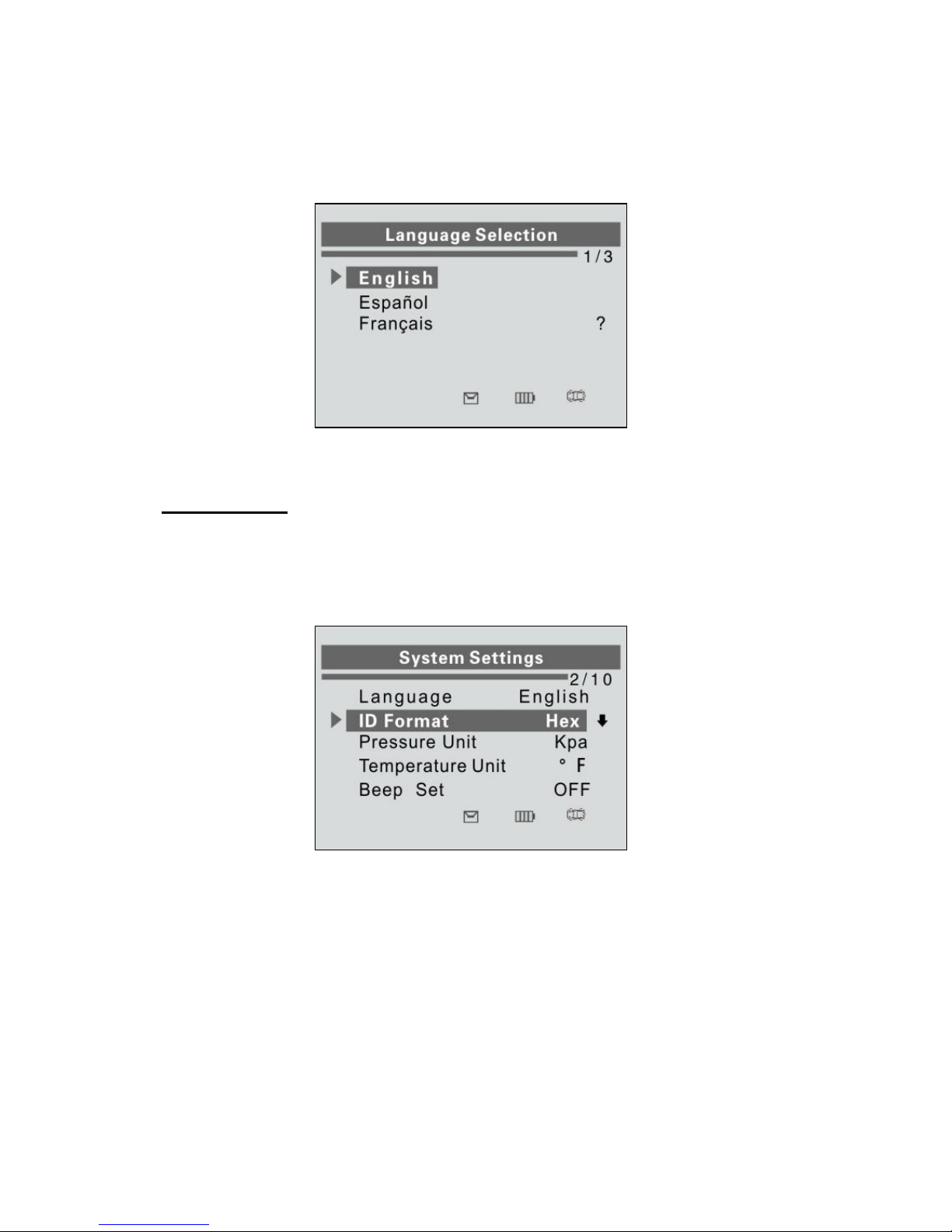

2) Use the UP/DOWN SCROLL button to select the desired

language and press the Y button to save your selection and return
to the previous screen. We provide three language options
currently.

Figure 3.3

ID Format

1) From System Settings screen, use the UP/DOWN SCROLL

button to select ID Format, and press the Y button.

Figure 3.4

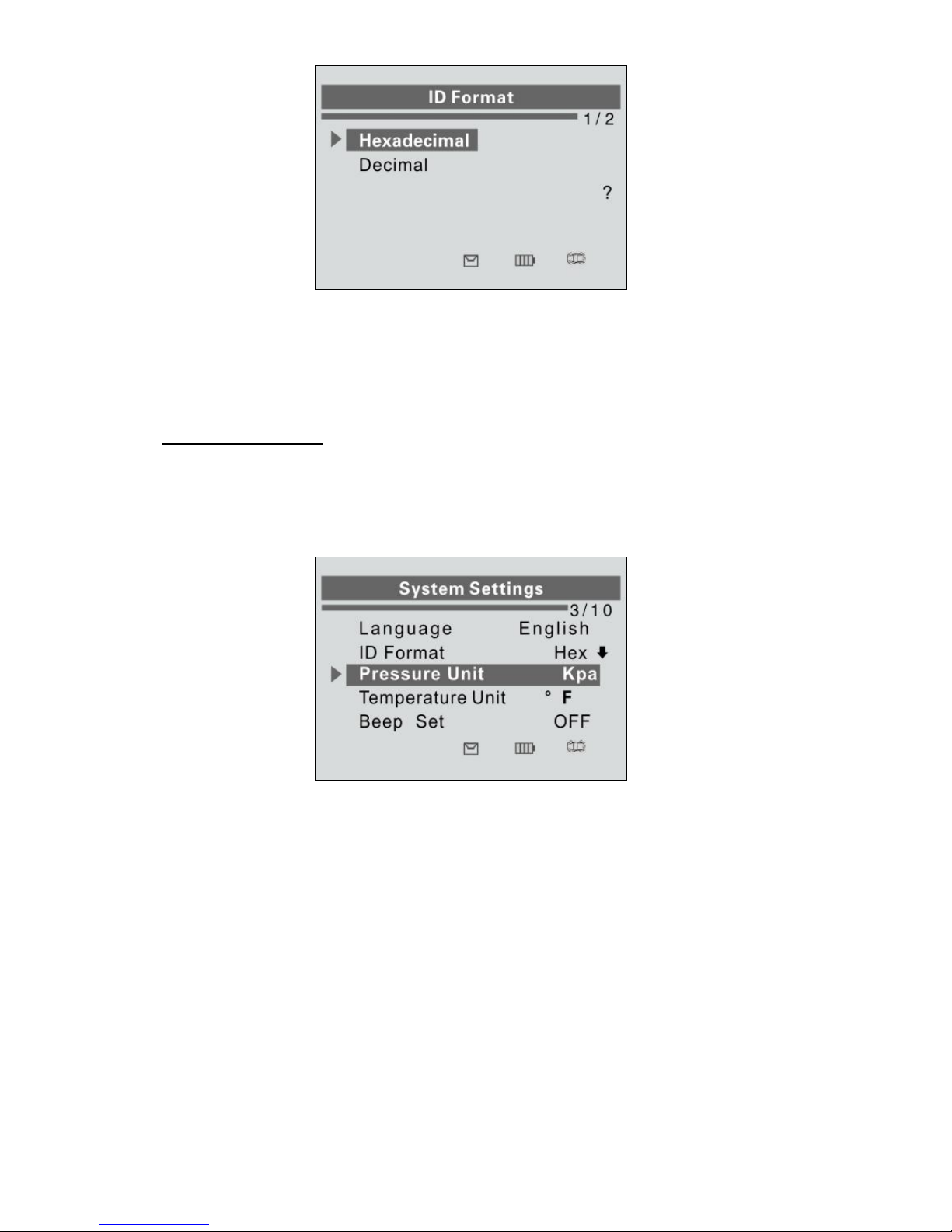

2) From ID Format screen, use the UP/DOWN SCROLL button

to select the desired format of ID.

10

Figure 3.5

3) Press the Y button to save your settings and return to previous

menu, or press the N button to exit without change.

Pressure Unit

1) From System Settings screen, use the UP/DOWN SCROLL

button to select Pressure Unit, and press the Y button.

Figure 3.6

2) From Pressure Unit screen, use the UP/DOWN SCROLL

button to select the desired unit: Kpa, Psi or Bar. (Figure 3.7)

3) Press the Y button to save your settings and return to previous

menu, or press the N button to exit without change.

11

Figure 3.7

Temperature Unit

1) From System Settings screen, use the UP/DOWN SCROLL

button to select Temperature Unit, and press the Y button.

Figure 3.8

2) From Temperature Unit screen, use the UP/DOWN SCROLL

button to select the desired unit of temperature. (Figure 3.9)

3) Press the Y button to save your settings and return to the previous

menu, or press the N button to exit without change.

Figure 3.9

12

Beep Set

This function allows you to turn on/off the build-in speaker for key
pressing.

1) From System Settings screen, use the UP/DOWN SCROLL

button to select Beep Set, and press the Y button.

Figure 3.10

2) From Beep Set menu, use the UP/DOWN SCROLL button to

select Beep ON or Beep OFF to turn on/off the beep. (Figure

3.11)

3) Press the Y button to save your selection or the N button to

cancel and return to the previous menu.

Figure 3.11

Wheels to Test

This function gives you choice to test TPMS sensors in ALL Wheels
mode or One Wheel mode.

13

1) From System Settings screen, use the UP/DOWN SCROLL

button to select Wheels to Test, and press the Y button.

Figure 3.12

2) From Test Unit menu, use the UP/DOWN SCROLL button to

select All Wheels or One Wheel mode for TPMS sensor testing.

Figure 3.13

3) Press the Y button to save your selection or the N button to

cancel and return to the previous menu.

NOTE: In All Wheels mode, the tool will determine if a

duplicate sensor ID has been read. In this case, the tool will
display a message “Sensor ID Duplicate.” In One Wheel mode,
the tool will not check the duplicate sensor ID.

Auto Power-off

1) From System Settings screen, use the UP/DOWN SCROLL

button to select Auto Power-off, and press the Y button.

14

Figure 3.14

2) Press the UP/DOWN SCROLL button to increase or

decrease the time to auto power-off the tool, and then press
the Y button to confirm your change or the N button to cancel
and return to the previous menu.

Figure 3.15

NOTE: Before the tool powers off automatically, it will save all

the TPMS test data. Next time when the tool is powered on, you
may retrieve the recorded data. If the tool automatically powers
off during a test operation, next time when the tool is powered
on, it will automatically turn to the previous operation screen.

NOTE: When using external power, the scan tool stays on until

you turn it off. When using internal battery power, the scan tool
turns off automatically after a set time of inactivity.

Contrast

1) From System Settings screen, use the UP/DOWN SCROLL

button to select Contrast, and press the Y button.

15

Figure 3.16

2) Press the UP/DOWN SCROLL button to adjust the screen

display contrast, and then press the Y button to confirm your
change or the N button to cancel and return to previous menu.

Figure 3.17

Backlight Set

The Backlight function allows you to adjust the screen backlighting.

NOTE: Temperature or lighting may affect the brightness of the

scan tool screen. If necessary, use the Contrast Adjust function
to adjust the screen for working conditions.

1) From System Settings screen, use the UP/DOWN SCROLL

button to select Backlight Set, and press the Y button.

16

Figure 3.18

2) From Backlight Set menu, use the UP/DOWN SCROLL button

to select Backlight ON or Backlight OFF to turn on/off the
backlight.

Figure 3.19

3) Press the Y button to save your selection or the N button to

cancel and return to previous menu.

Tool Information

This function allows user to view some important information about
the tool, such as serial number, software version and hardware
version.

1) From System Settings screen, use the UP/DOWN SCROLL

button to select Tool Information, and press the Y button; wait
for the Tool Information screen to appear.

17

2) View tool information on screen.

Figure 3.20

18

4. TPMS Activation

The MaxiTPMS® TS401 is a hand held tool used to activate all

magnetic, frequency, and tire deflation triggered sensors used on
vehicle tire pressure monitoring systems to get information such as
sensor ID, tire pressure, tire temperature, sensor battery, and
frequency. It also sends the sensor data to vehicle’s ECU to let the
ECU learn the positions of sensors whenever tires and wheels are
rotated or sensors are replaced.

There are two means of activating a TPM sensor:
A. Vehicle Selection--To activate the sensor by selecting vehicle

make, model and year.

B. Latest Scan--The TPMS tool automatically records the latest

activated sensor and it activates the sensor by using the wave
signal of the latest trigger event. So Latest Scan is very useful for
technicians to wake up sensors of the same vehicle.

 All software screens shown in this manual are examples.

Actual test screens may vary for each vehicle being tested.

4.1 Vehicle Selection

1) Use the UP/DOWN SCROLL button to select Vehicle

Selection from Main Menu (Figure 4.1), and press the Y

button to confirm.

2) Observe the menu title and use the UP/DOWN SCROLL

button to select by make, model and year to identify the vehicle
being tested, place the device alongside the valve stem and
press the Y button. (Taking Mitsubishi as an example.)

19

Figure 4.1

 The selected vehicle is remembered by the tool when a test is

commenced.

Select by Make

Figure 4.2

Select by Model

Figure 4.3

Select by Year

20

Figure 4.4

3) Depending upon the reading mode (All Wheels or One Wheel),

results are displayed in different manners.

All Wheels Mode

In this mode, the screen will display as below (Figure 4.5). The tool
will do TPMS test in a sequence of FL (Left Front), FR (Right Front),
RR (Right Rear), RL (Left Rear) and SPARE, if the vehicle has the
option for the spare. Use the UP/DOWN SCROLL button to move
to the desired wheel for testing. Place the tool alongside the valve
stem and point toward the sensor location and then press TEST
button.

Figure 4.5

Once the first sensor test is completed, the screen will hold for 3
seconds for viewing and then switch to the next sensor test. Follow
the same procedure for the rest of the three or four wheels by
pressing the UP/DOWN SCROLL button and then TEST button.

21

The tool will send LF signal to trigger the sensor. Depending on the
sensor type, the tool will activate the sensor on the first or last step.
Once the sensor is successfully activated and decoded, the tool will
display as below with an audible beep. (Figure 4.6)

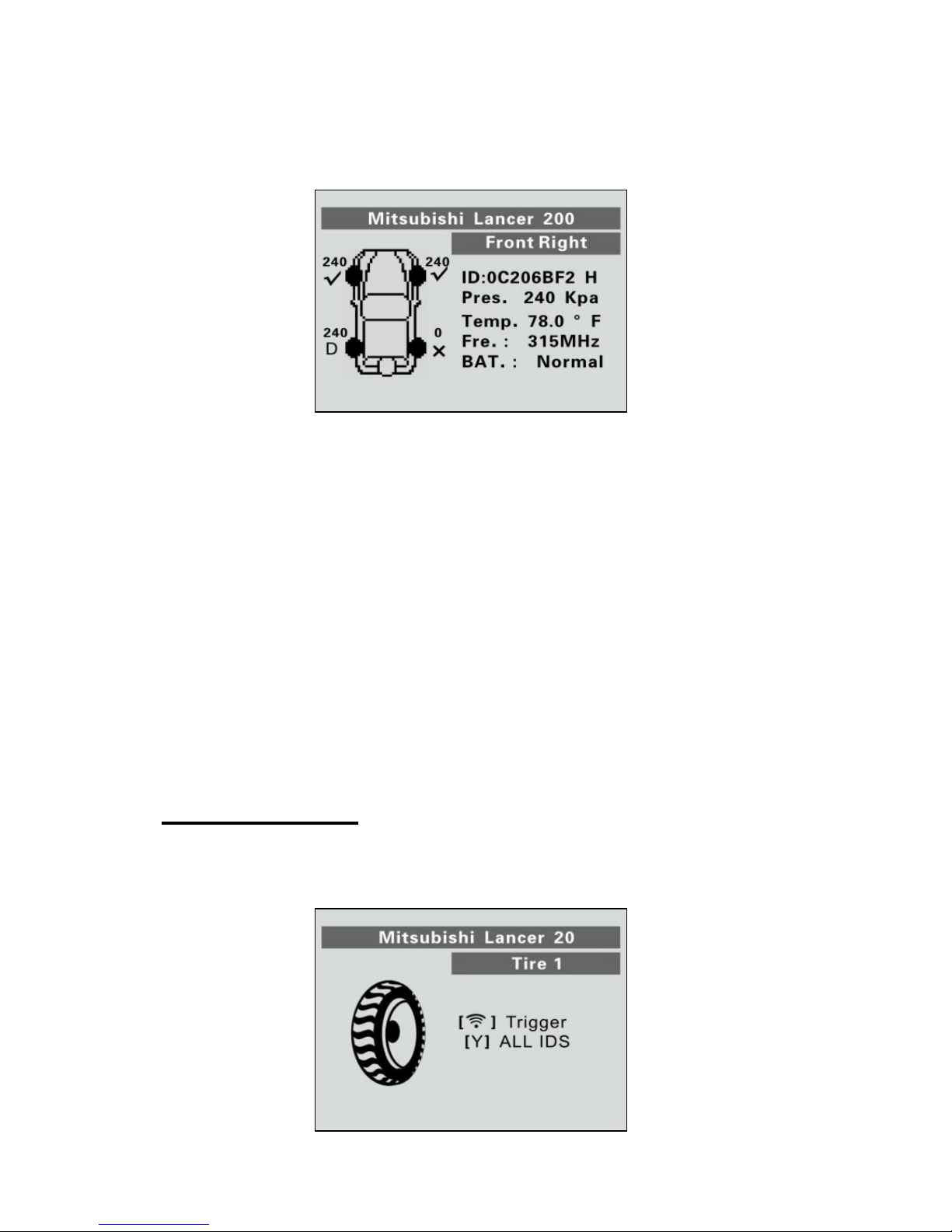

Figure 4.6

After the sensor is activated, a test result icon, “√” ,”x”, “D”, will
display alongside the wheel, indicating the wheel test is completed,

otherwise there’s no result icon displayed.
The figure by the side of the result icon (Figure 4.6) indicates the

specific tire pressure value.

 Press Y button to read all sensor data, including sensor ID,

tire pressure, temperature, battery condition and modulation.

 Hollow wheel indicates wheel test has not been carried out.
 Solid wheel indicates wheel test has completed.

One Wheel Mode

The screen will show as below.

22

Figure 4.7

In this mode, the tool will do TPMS test for each single wheel. Place
the tool alongside the valve stem and point toward the sensor
location and then press TEST button. Wait for test result before
moving the tool.

The tool will send LF signal to trigger the sensor. Depending on the
sensor type, the tool will activate the sensor on the first or last step.
Once the sensor is successfully activated and decoded, the tool will
display as below with an audible beep. (Figure 4.8)

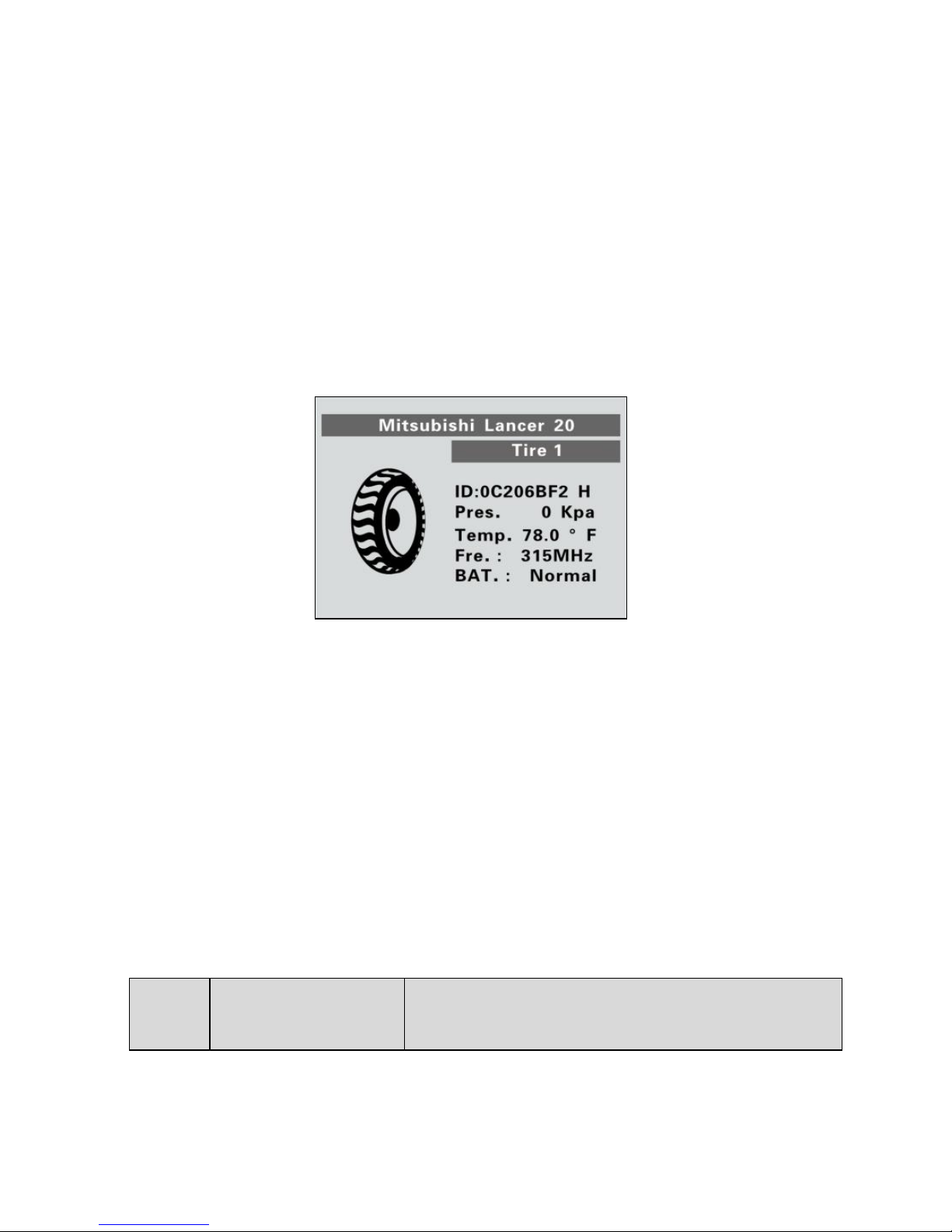

Figure 4.8

Once the first sensor test is completed, the screen will hold for 3
seconds for data viewing and then switch to next sensor test. Follow
the same procedure for the other sensor tests.

The tool can save up to 5 TPMS sensor data records at each time.
Press the UP/DOWN or LEFT/RIGHT scroll button to turn over
data screens while viewing. If more than five records are stored, the
latest record will overwrite the first one.

TABLE 1 POSSIBLE RESULTS FOR TESTING

Icon

Test Results

Description

23

√

Successful
Sensor Read

TPMS sensor is successfully activated and
decoded. The tool displays the sensor
information.

X

Failed Sensor
Read

If the search period expires and no sensor
activation or decode, it may be wrong
sensor fitting or non-functioning sensor.
The tool displays a message “No sensor
detected.”.

In this case, repeat test to confirm the
TPMS failure.

X

Wrong Sensor
Type

A TPMS sensor is activated and decoded,
but does not match the protocol for the
Make, Model or Year that the tool was
set-up for. The tool displays a message
“Sensor triggered but cannot be known.”.

In this case, verify the Make, Model or
Year you have selected as well as the
sensor part number that was fitted.

D

Duplicate ID
(only checked in
All Wheels
mode)

A sensor with a duplicate ID has been
read. The tool displays a message “Sensor
ID Duplicate.”.

In this case, clear data and re-read again.

NOTE: With Ford Banded sensors, the tool should be held 180
degree away from the stem. Please refer to vehicle user’s manual.

 If the TPMS sensor requires a magnet, place the magnet over

24

the stem and then place the tool alongside the stem, and press
TEST button.

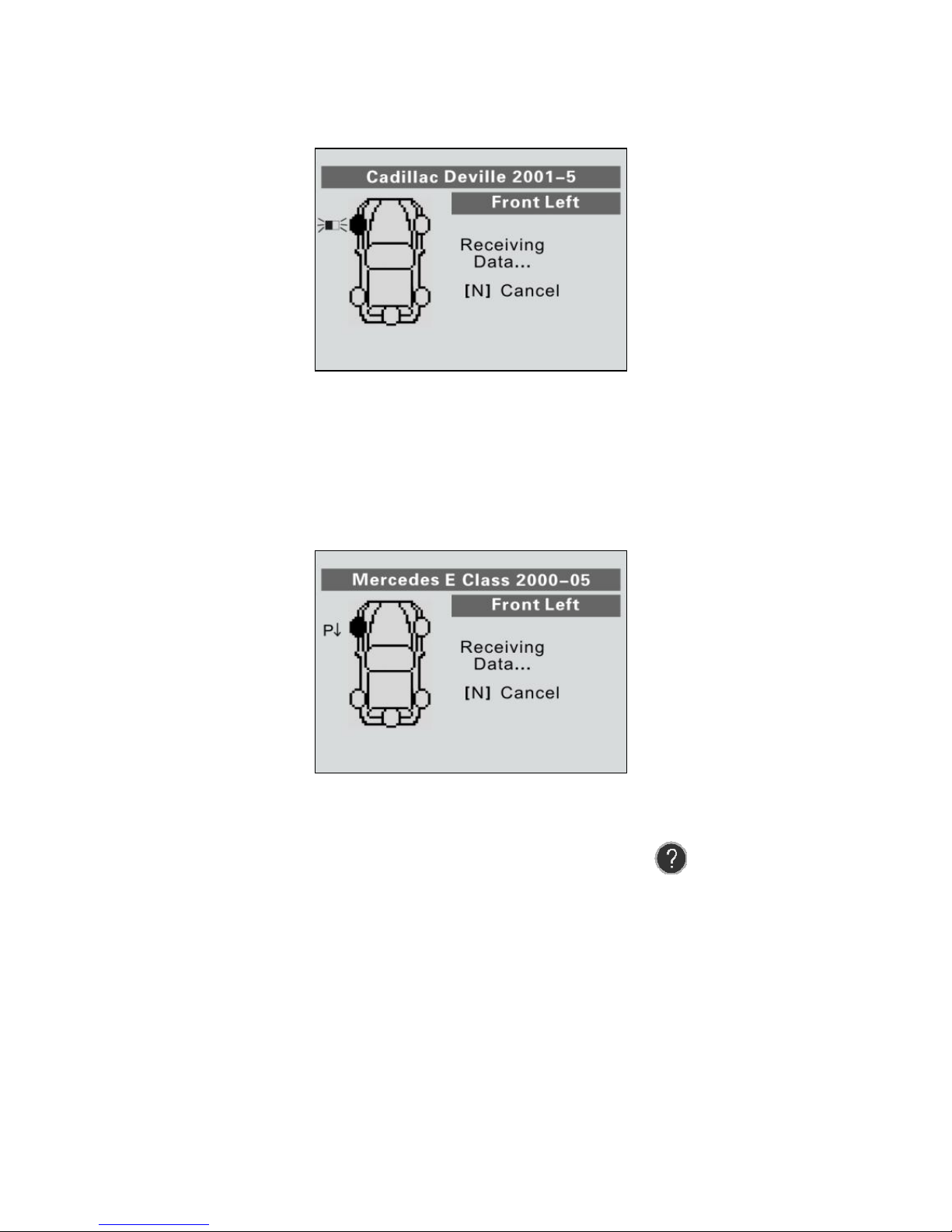

Figure 4.9

 If the TPMS sensor requires tire deflation (of the order of

10PSI), then deflate the tire and place the tool alongside the
stem while pressing TEST button.

Figure 4.10

 Anytime while doing the TPMS test, press BUTTON to

read the sensor make, and relearn information for the vehicle
being tested.

25

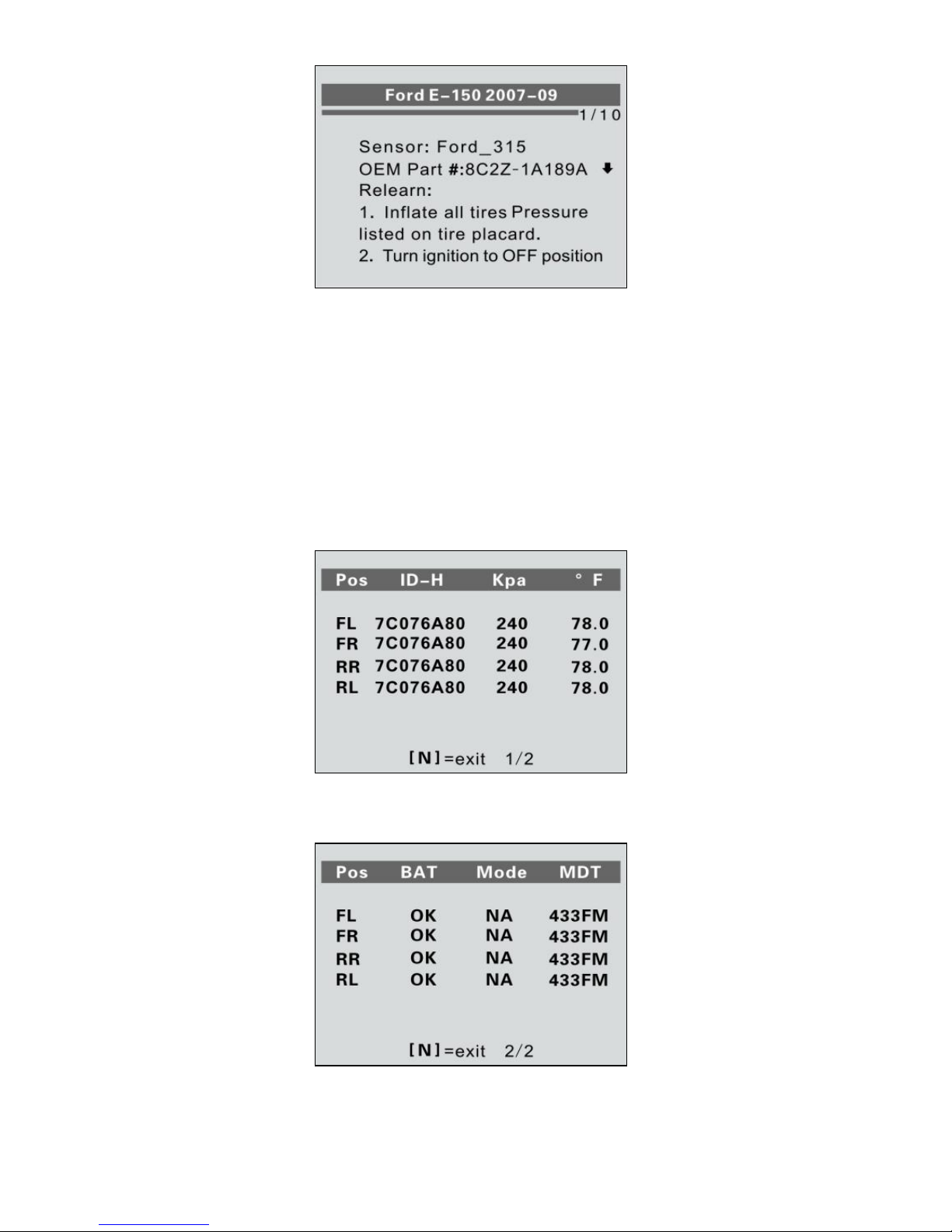

Figure 4.11

 Sensor activation can be aborted at any time by pressing the N

button. When the activation is aborted, the tool will return to the
previous menu.

 By pressing the Y button, you may review information of all

sensors tested. The screen will switch every five seconds.

Figure 4.12

Figure 4.13

26

[Pos] – Indicates the wheel sensor position.
[ID-H/D] – Shows sensor ID data.
[KPa/Psi/Bar] – Indicates wheel pressure.

[℃/℉] – Indicates wheel temperature.
[BAT] – Indicates battery condition.

[Mode] – Defines tire sensor working mode or status.
[MDT] – Indicates sensor signal frequency.

NOTE: Different ID format, pressure and temperature units will
display at the title bar according to the device’s system setting,
please refer to 2.7 Settings for detailed guidance.

4.2 Latest Scan

This function allows you to review the last tested sensor data and
activate the sensor by using the wave signal of the latest trigger event,
which is very useful for technicians to wake up sensors of the same
vehicle.

 Once the tool has been used to test a vehicle, this item will

change to the name of vehicle being tested.

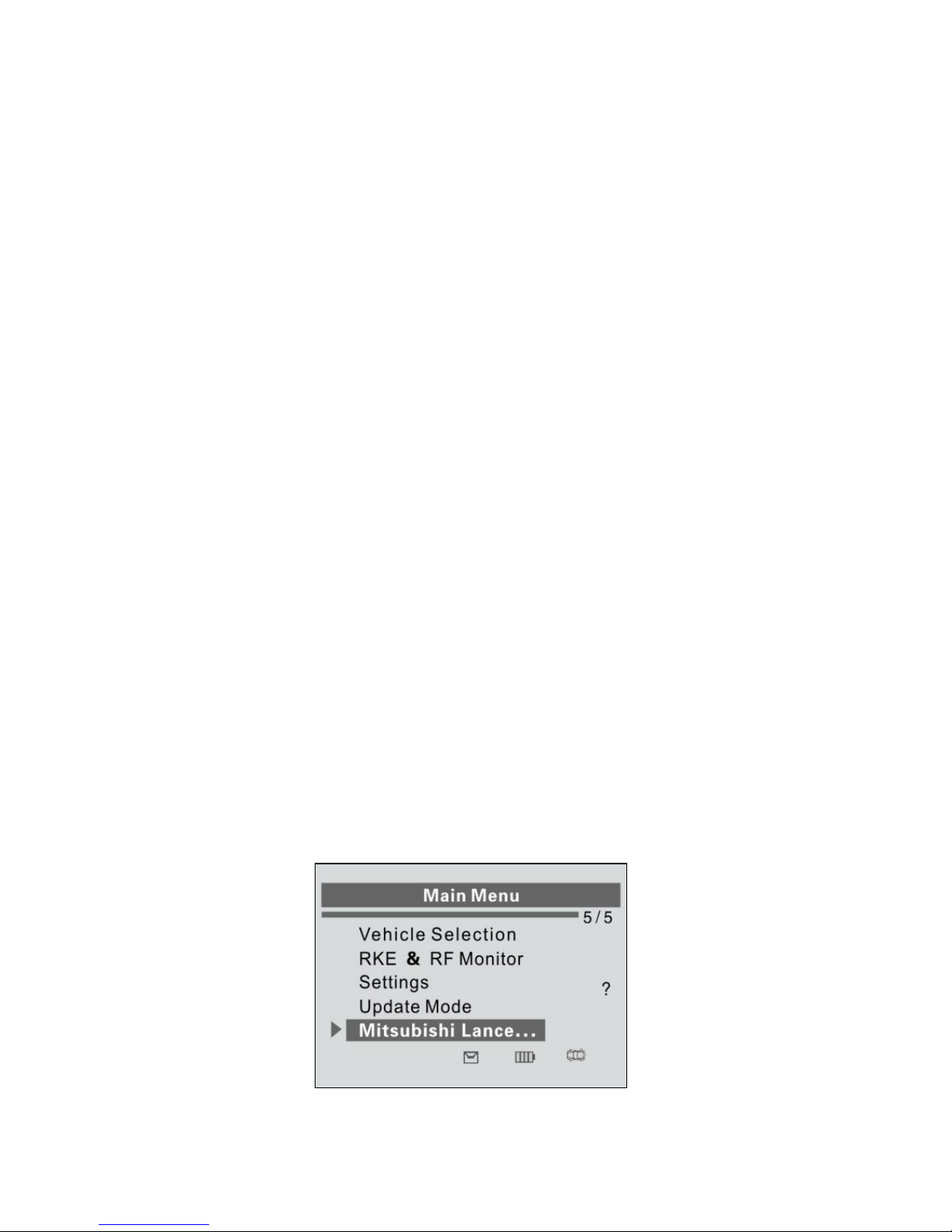

1) Use the UP/DOWN SCROLL button to select Latest Scan (In

our example, this is Mitsubishi Lance) from Main Menu
(Figure 4.14), place the device alongside the valve stem and
press the Y button to confirm.

Figure 4.14

27

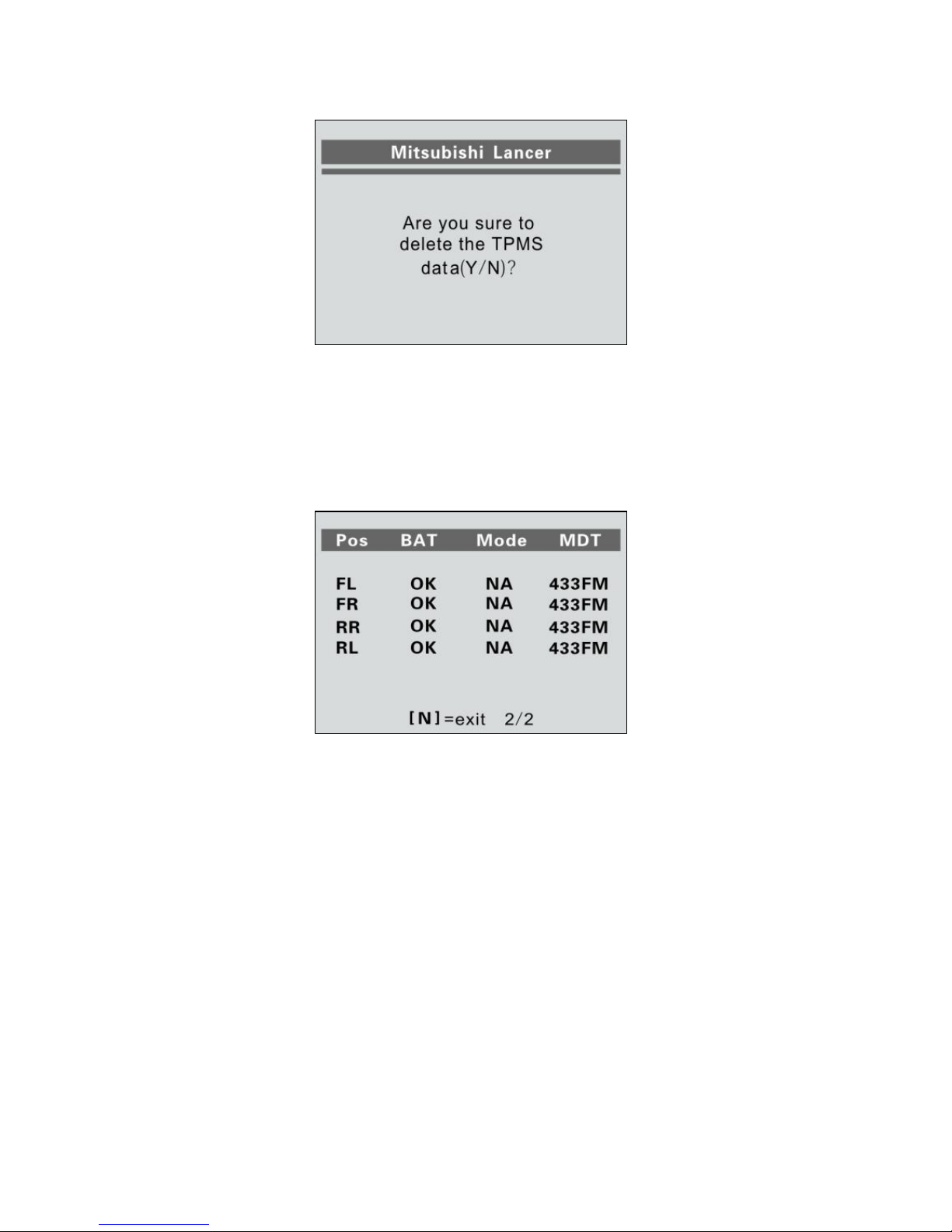

2) A prompt comes up asking for your confirmation.

Figure 4.15

3) Press the N button to playback the historical records. (Figure

4.16) Use the UP/DOWN SCROLL button to view additional
information or press the N button to exit.

Figure 4.16

4) Press the Y button to delete test records and enter test mode. For

detailed procedure, please refer to section 4.1 Vehicle Selection.

4.3 Audit Report

After the user finished the TPMS test, the tool is capable of
presenting all of its stored TPMS data in a HTML file when
connected to a PC via an USB cable.

The tool will automatically pop up a explorer window in PC screen
when connected to an active USB port on the PC. Make sure the tool
is powered on. Otherwise, there will be no communication between

28

the tool and computer.
Once the explorer window is open, you may view a file by

double-clicking on the file. If this explorer window does not
automatically pop up, the user may browse for the newly connected
device manually.

The data presented is in a HTML form format that displays not only
information regarding the TPMS, but also automatically updates with
the date. It also provides data entry areas for other tester and vehicle
data.

Figure 4.17

4.4 RKE & RF Monitor

Today's keyless remotes -- also known as key fobs -- make life easier.
But when your key fob stops working or starts to perform
sporadically, it will be particularly frustrating. Check your key fob to
make sure it is in top condition so it will work when you really need
it.

Since a key fob is attuned to a special frequency that is only detected
by the car for which it was issued, you will need to have your vehicle
to test the fob. Otherwise you will have to take it to a dealership or
an automotive locksmith to have them tested for the right frequency.
But with our TPMS tool, the key fob testing becomes easy and
convenient.

29

1) Use the UP/DOWN SCROLL button to select RKE & RF

Monitor from Main Menu (Figure 4.18), and press the Y button
to confirm.

Figure 4.18

2) Hold the key fob very close to the tool and press the function

buttons on key fob to test. If the button works and the key fob is
sending a signal, the tool will beep and the screen will show as
below. If the button does not work, the tool will do nothing. To
make sure each button is working properly, please follow the
process to test each button in turn.

Figure 4.19

 The progress bar indicates the approximate power level of

the key fob.

 The stronger the signal, the higher the beep tone.
 The tool only tests 315MHz and 433MHz key fobs.

3) Press the N button to return to previous menu.

30

5. Software Update

The tool allows user to update software. It works on computers
running Windows systems (XP/2000/Vista/Windows7).

To update software, you will need the followings:

 TS401
 CD with update tool
 PC or laptop with USB ports
 USB cable

CAUTION: DO NOT try to update the tool when the battery is low.
Data will be lost if the device is out of power while updating.

1) Download the latest update files from our website:

www.auteltech.com, and save in your computer.

2) Connect the TPMS tool to the computer with the USB cable.

3) Use the UP/DOWN SCROLL button to select Update Mode

from Main Menu (Figure 5.1), and press the Y button to
confirm.

Figure 5.1

NOTE: When you made a wrong choice and the tool is unable

to work properly, you may need to update the programs. To
hold the N button and power on the scan tool, you will enter

31

the Update Mode forcedly. Then follow the update procedure
to refresh the program.

4) Run the Maxi-link II Kit in your computer. (Figure 5.2)

Figure 5.2

5) Click Select File button to locate the latest update file you have

recently downloaded.

6) Click Update to start updating.

7) Once the update is complete, the tool is updated and ready to go.

32

6. Warranty and Service

6.1 Limited One Year Warranty

Autel warrants to its customers that this product will be free from all
defects in materials and workmanship for a period of one (1) year from
the date of the original purchase, subject to the following terms and
conditions:

1) The sole responsibility of Autel under the Warranty is limited to

either the repair or, at the option of Autel, replacement of the
TPMS tool at no charge with Proof of Purchase. The sales receipt
may be used for this purpose.

2) This warranty does not apply to damage due directly or indirectly,

to misuse, abuse, negligence or accidents, repairs or alterations
outside our Service Center or facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance.

3) Autel shall not be liable for any incidental or consequential

damages arising from the use, misuse, or mounting of the TPMS
tool. Some states do not allow limitations on how long an implied
warranty lasts, so the above limitations may not apply to you.

4) All information in this manual is based on the latest information

available at the time of publication and no warranty can be made
for its accuracy or completeness. Autel reserves the right to make
changes at any time without notice.

6.2 Service

If you have any questions, please contact your local distributor or visit

our website at www.auteltech.com.

If it becomes necessary to return the tool for repair, contact your

local distributor for more information.
