Transmitter System
USER’S MANUAL
Light Series
Follow the indications and warnings given by the machine producer regarding the machine
controlled by the radio remote control.
The information contained in this manual considers a representative configuration of the
radio remote control: please find radio remote control real configuration in the technical data
sheet (attached to the manual).
If this manual is lost or damaged, ask for a copy from AUTEC. Please specify the serial
number of the relative radio remote control.
Contact AUTEC if any of the instructions and/or warnings given in this manual are not clear.
The information contained in this manual is subject to modification without notice and is not
binding.
No parts of this manual may be reproduced by any means without the written permission of
AUTEC (including recording and photocopying).
LILKNPA0
1
Index and Conventions
1
INDEX AND CONVENTIONS
INDEX
Page
1
2
Introduction to LIGHT series
3
LK transmitting unit
4
Warnings for use
5
Warnings for maintenance
6
LK transmitting unit operation
7
Frequencies
8
Programming
9
LK transmitting unit diagnostic
2
5
7
8
9
11
12
13
CONVENTIONS
In this manual, all important information is indicated using the following symbols and
conventions:
!
abcd. . .
abcd. . .
: WARNINGS
: TECHNICAL DATA
abcd. . .
abcd. . .
: INSTRUCTIONS
: IMPORTANT TEXTS
THIS MANUAL REFERS EXCLUSIVELY TO THE TRANSMITTING UNIT: THE
INSTALLATION WARNINGS ARE GIVEN IN THE RECEIVING UNIT MANUAL.
BEFORE INSTALLING, STARTING AND USING THE RADIO REMOTE CONTROL, THIS
MANUAL MUST BE READ AND UNDERSTOOD CAREFULLY BY ALL PEOPLE WHO
INSTALL, USE AND CARRY OUT MAINTENANCE ON THE RADIO REMOTE CONTROL.
Page 1
LILKNPA0
2
INTRODUCTION TO LIGHT SERIES
Industrial radio remote controls of the LIGHT series
are used to command machines from a distance. Each
industrial radio remote control is made up of a portable
transmitting unit, from which the user can remotely
control the machine, and a receiving unit installed on
board the machine itself.

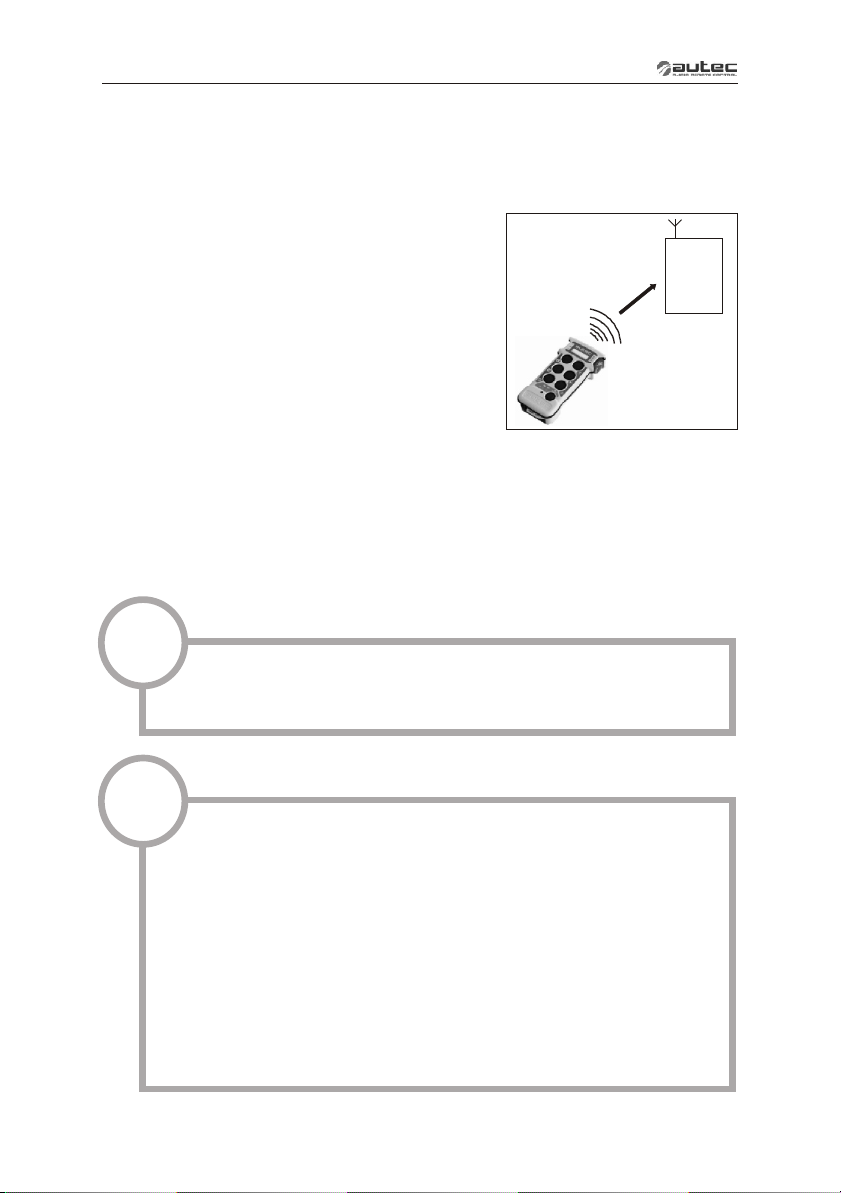

The transmitting unit uses radio frequencies to
transmit a coded message which contains a value
called address. Each receiving unit can only decode
the messages coming from a transmitting unit with the
same address.
This excludes the possibility of an interference
activating any system function. If the radio frequency
transmission is disturbed, incorrect or interrupted, the
receiving unit autonomously stops the whole system.
Each Light series radio remote control complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Transmitting
unit
Receiving
unit
!
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate
the equipment.
!
Autec cannot be held responsible if the radio remote control is
installed on applications that are different from those permitted
PERMITTED USES
Material lifting machines (construction cranes, industrial bridge cranes,
machines for moving material in general, . . . )
FORBIDDEN USES
Machines installed in areas where equipment with explosion-proof
characteristics are being used.
Machines for moving, raising and transporting people.
.
:
Page 2
LILKNPA0
Alll machines must undergo a risk analysis; therefore it is necessary to evaluate, within
the limits of this analysis, if the machine can be radio remote controlled.
The machine producer and/or the person who decides upon radio remote control use
and installation is responsible for this analysis.
Autec cannot be held responsible if the risk analysis is not carried out correctly.
To guarantee correct radio remote control operation, all current regulations regarding
safety at work and accident prevention should be respected. All current user country
national laws regarding the use of both the machine and the radio remote control MUST
ALWAYS be respected.
Autec cannot be held responsible if the radio remote control is used in unlawful
working conditions.
System must be installed by a licensed technician and in accordance with all
relevant local, state/provincial and federal regulations, including but not limited to
NEC, OSHA, CE etc.
!
In any cases of emergencies, faults or damaged parts, ALWAYS stop
the “machine + radio remote control” system until the problem has
been solved.
Any damaged parts can ONLY be replaced by authorised
Autec personnel or service representative, and only using original Autec
spare parts.
Page 3
LILKNPA0
INSTRUCTIONS FOR DOCUMENT MANAGEMENT
The following minimum documentation is supplied with each radio remote
control:
- transmitting unit manual
- receiving unit manual
- battery charger manual
- a guarantee certificate
- the radio remote control technical data sheet.
Make sure that the following documents have been supplied: if they are not, request
them from Autec. Please specify the radio remote control serial number.
The conditions of the radio remote control guarantee are given in the “Certificate of
CERTIFICATE OF GUARANTEE
Guarantee”.
TECHNICAL DATA SHEET
The technical data sheet shows the wiring system between the receiving unit and the
machine. It should be compiled and checked by the installer, who has the responsibility
of correct wiring. Once all necessary checks have taken place the installer must sign the
technical data sheet, which must be kept with the user's manual (always keep a copy of
this data sheet in case it is needed for administrative purposes).

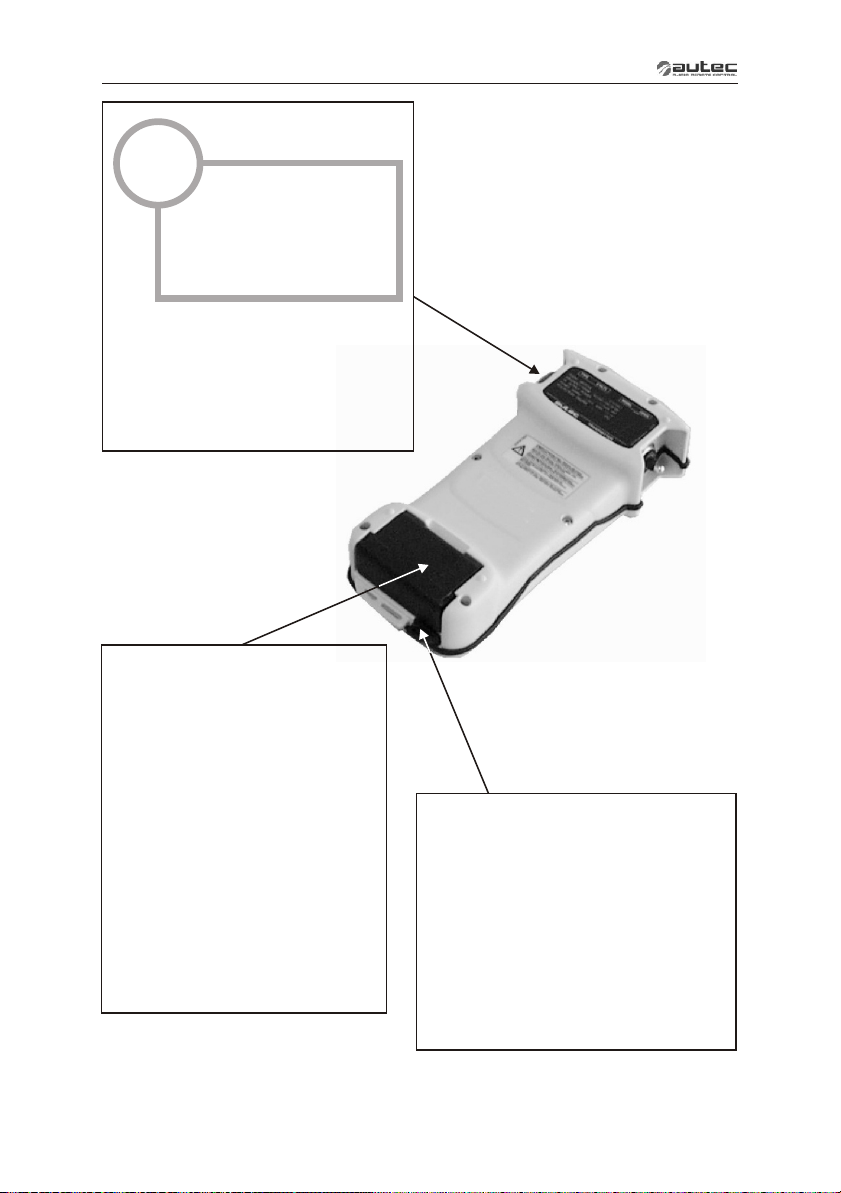

IDENTIFICATION PLATES
The radio remote control identification and approval data is given on plates that are on
both the transmitting unit and the receiving unit.
The plates MUST NOT be removed from where they are placed or damaged
otherwise the warranty will be forfeited.
TECHNICAL DATA
Frequency band
Programmable radio channel
Hamming distance
Probability of non-recognition of error
Typical working range
Time of reply to commands
Time of reply to STOP
Passive emergency time
* refer to paragraph “Programming” in the receiving unit manual, DIP nr. 1
settings.
902 - 928 MHz
32
³ 8
<10 exp-11
100 m
<100 ms
<100 ms
* 0,35 / 1 sec.
Page 4
LILKNPA0
3
LK TRANSMITTING UNIT

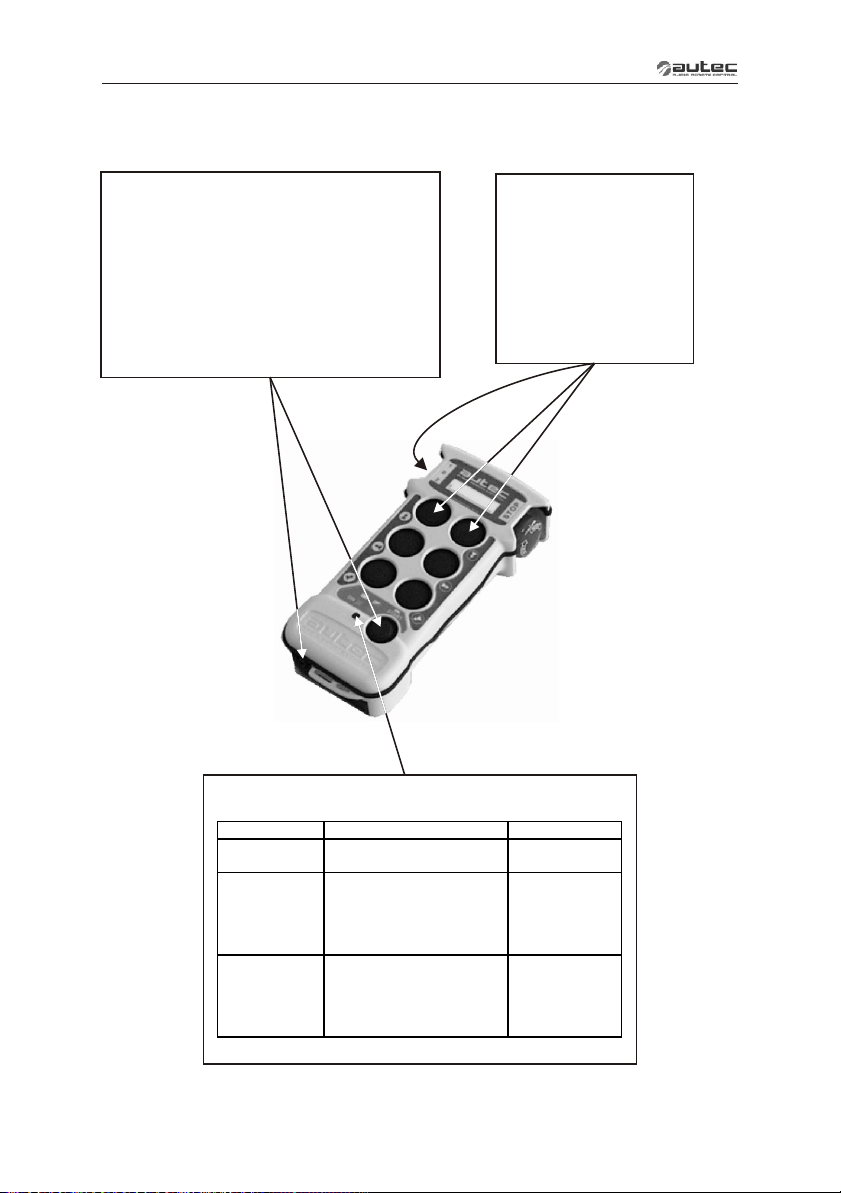

A LK transmitting unit can be used with one of the following receiving units:
- Type R102
- Type R202
- Type R302.

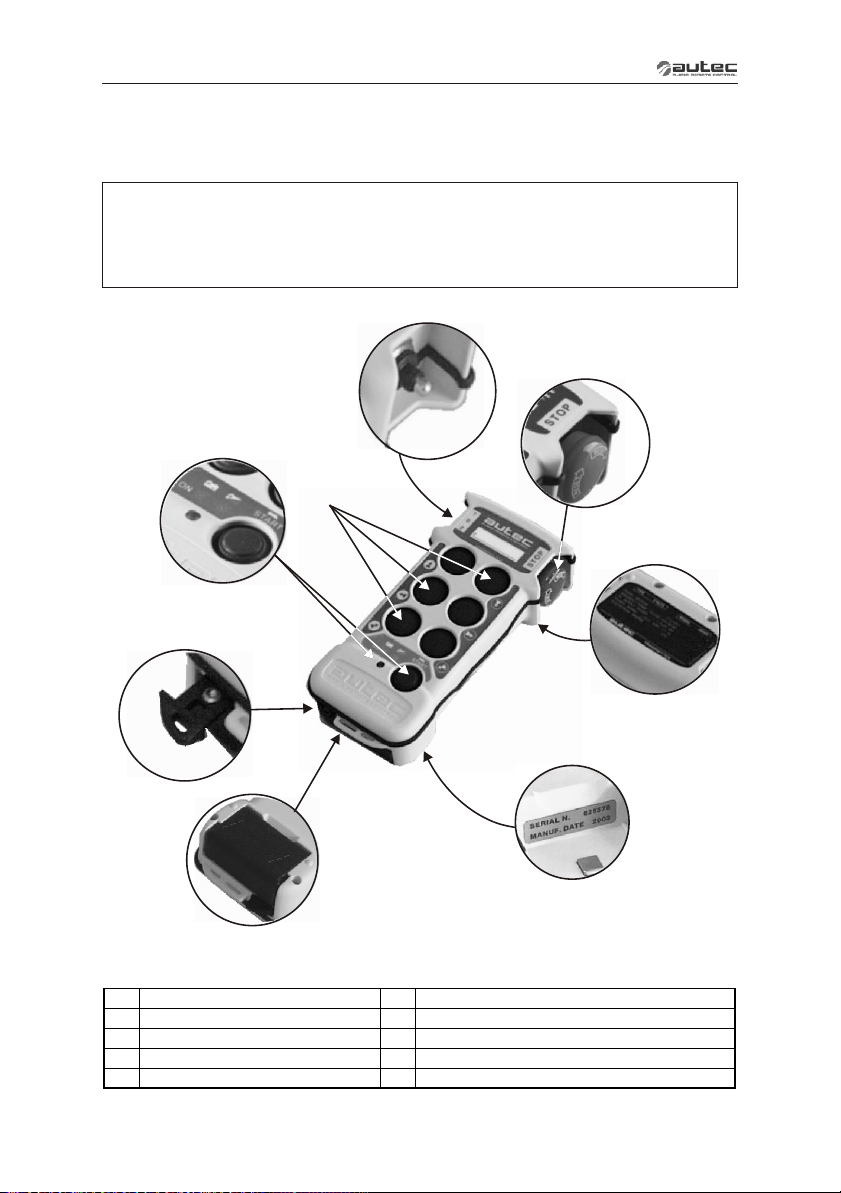

starting keyswitch
A
green signalling LED
B
actuators pushbutton
C
selector
D
technical data plate
E
(optional)
C
D
F
H
B
E
A
I
F
G
H
I
G
STOP button
identification plate
START pushbutton
battery
Page 5
LILKNPA0
The LK transmitter has different configuration according to the number of available
pushbutton actuators.
The LIGHT series is equipped with a safety function called SAFETY that protects the
“radio remote control + machine” system, when it is in neutral (rest position), from
involuntary movements caused by possible radio remote control faults.
LK TRANSMITTING UNIT TECHNICAL DATA
Power supply (battery pack LBM02MH)
Antenna
Output power
meets FCC Part 15 for license-free operation
Housing
Minimum protection grade
Working temperature
Dimensions
Weight
Autonomy with fully charged battery (at 68°F)
Warning of low battery charge
* refer to battery technical data in the battery charger manual.
* NiMH 2,4Vdc
internal
PA66 (50% fg)
IP65
-4°F - +131°F
80x185x43 mm
420 gr
~ 12 hours
3,5 minutes
Page 6
LILKNPA0
4
WARNINGS FOR USE
!
THE OPERATOR
MUST ALWAYS
VISUALLY FOLLOW all movements of the machine and its load remaining
inside radio remote control typical working range.
BE POSITIONED
“machine + radio remote control” system, and above all the load, in the best
possible way.
Before using the radio remote control ALWAYS MAKE SURE that the STOP
push-button can be pressed and released: if it does not work, do not use the
radio remote control.
SWITCH OFF the transmitting unit when work is interrupted. Avoid leaving
the load suspended in the air (even when changing the battery).
NEVER LEAVE the transmitting unit unguarded when the starting keyswitch
is inserted.
ONLY SWITCH ON OR USE the transmitting unit when starting work:
improper use could be hazardous.
NEVER SWITCH ON OR USE the transmitting unit in closed spaces, with the
machine not in sight, or outside the typical working range.
PRESS immediately the STOP button in case of hazard.
PAY ATTENTION to the entire work area. Press the STOP button in case of
hazard.
PAY ATTENTION not to let elements such as cement, sand, lime, etc. deposit
on the transmitting unit because they can compromise transmitting unit use
and safety.
In case of malfunctions and/or damaged and/or faulty parts, PUT the radio
remote control out of use until the problem has been completely eliminated.
in a way that permits him to see the
FAILURE TO COMPLY WITH THE ABOVE WARNINGS MAY RESULT IN
SERIOUS INJURY OR DEATH TO PERSONNEL AND DAMAGE TO
EQUIPMENT.
Page 7
LILKNPA0
!
5
WARNINGS FOR MAINTENANCE
ENSURE THAT THE BATTERY HAS BEEN REMOVED
FROM THE TRANSMITTING UNIT BEFORE
CARRYING OUT ANY MAINTENANCE WORK.
Any faults should be repaired by authorised Autec
personnel using original Autec spare parts only.
No particular maintenance needs to be carried out on the transmitting unit, but the
following should be done in order to always keep it reliable and safe:
BEFORE USING:
- make sure that the unit is integral ,
- make sure that the gaskets, bellows and the actuator hoods (selectors and
pushbuttons) are whole, soft and elastic, and that the symbols on the panel can be seen
clearly.
AFTER USE:
- always store the unit in a clean dry place,
- make sure that the battery seat is and contacts are clean,
- remove dust or any other material that has deposited on the transmitting unit with a cloth
that has been dampened with water (never use solvents or flammable/corrosive
materials to clean, and do not use high pressure water cleaners or stream cleaners).
AUTHORIZED SERVICE CENTER
When it is necessary to carry out special maintenance (radio remote control repair and
replacement of damaged or faulty parts), do not contact anyone other than our
Authorized Service Center. In order to make the intervention faster and more reliable,
please help us identify the radio remote control correctly and completely by giving:
- the serial number
- the purchase date (given on the guarantee)
- description of the problem found
- the address and telephone number of the place where the radio remote control is being
used
- the name of the person to be contacted
- the name of the company that supplied the radio remote control.
S
RVICE
E
Before speaking with a service technician, it is advisable to make sure that the
given instructions have been followed correctly.
Entrust the radio remote control and the its battery to the separate scrap collecting
services in the user country.
DISPOSAL
Page 8
LILKNPA0
6
LK TRANSMITTING UNIT OPERATION

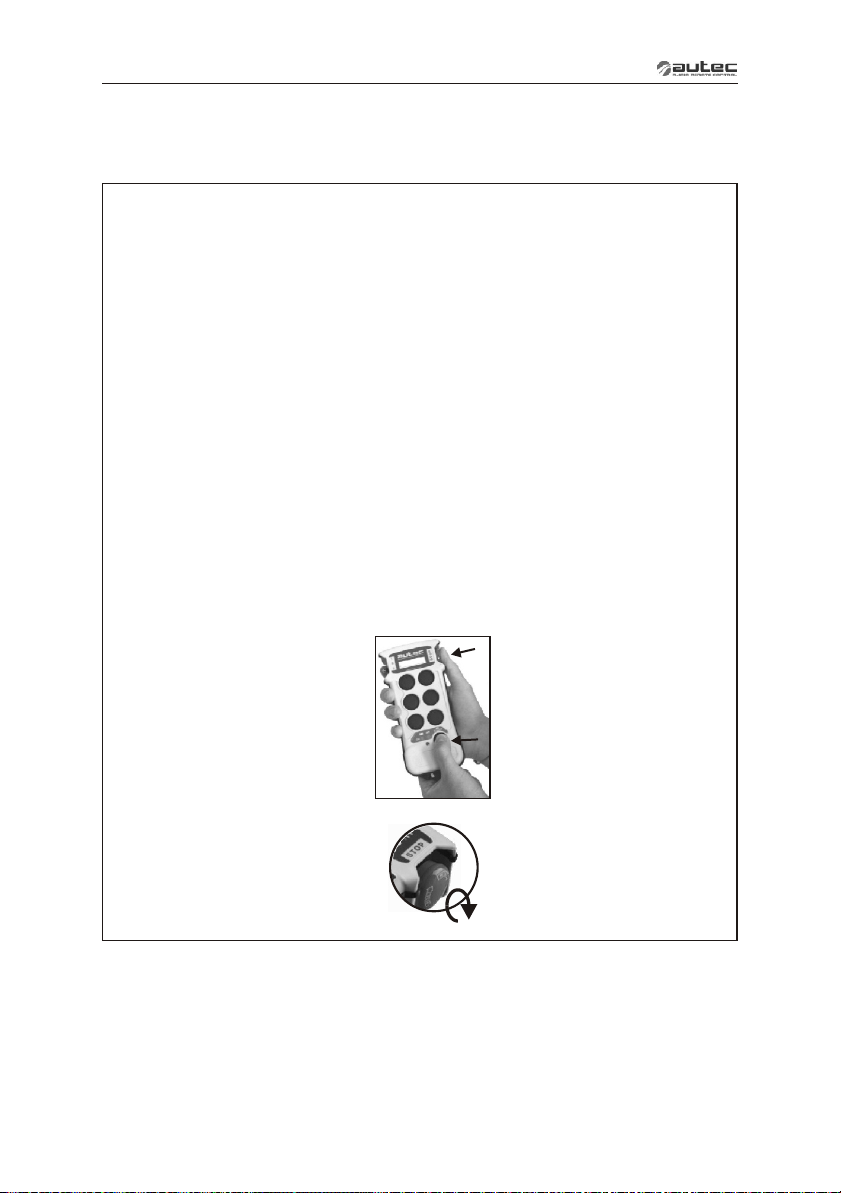

POWER ON AND STARTING
Switch on the transmitter unit by inserting
1
the key in the appropriate slot.
To start the radio remote control functions,
2
press the “START” button for 1÷2 seconds.
After starting, the green signalling LED
always lights up.
2
1
COMMAND
ACTIVATION
Operate the pushbutton
and/or the selector
actuators relevant to
whatever movement or
selection command is to
be carried out.
LED SIGNALS
TYPE MEANING ACTION
Slow
flash
Fast
Flash (*)
Steady light
on starting (*)
(*) red led if present
OPERATION
NORMAL
LOW BATTERY
The transmitting unit
switches off 3,5 minutes
after the LED starts
flashing
ONE OR MORE
(movement) ACTUATORS
and/or STOP
PUSHBUTTON
INSERTED
Switch off the
transmitter unit
and replace the
///
battery
Release
actuator(s)
and/or the
STOP
pushbutton
Page 9
LILKNPA0
STOPPING
!
The STOP button
should be used when it
is necessary to stop the
machine immediately in
order to check any
danger condition.
To stop the machine immediately, press
the STOP button.
To start working again, after having
made sure that the working conditions
are safe, turn the STOP button in the
direction indicated to deactivate it and
repeat the starting procedure.
BATTERY
To recharge a flat battery, proceed as
follows:
1. Insert the battery into its proper
battery charger, which should be
positioned in an area having a
temperature of between +5°C and
+45°C. The battery now starts
charging, a state signalled by the
lighting up of the “CHARGE” pilot
light.
After a maximum of 4 hours the
2.
"CHARGE" indicator switches off:
the battery is fully charged. Remove
the battery from the charger (if the
battery is not removed, charging
continues in maintenance mode).
SWITCHING OFF
The transmitting unit should be
switched off each time work is stopped
by turning the ignition key to "O" and
extracting it (always put the key in a safe
place).
The unit may also switch off if the battery is
not sufficiently charged and/or when the
radio remote control is not used for more
than 3,5 minutes (set DIP nr. 1: refer to
paragraph 8 "Programming").
Page 10
LILKNPA0
7
FREQUENCIES
The radio frequency of AUTEC radio remote controls is included in the group of
frequencies permitted by regulations that are current at the moment of radio
remote control entry onto the market.
Each radio remote control is programmed by the producer in the AUTOMATIC scan
mode (producer's standard programming) or MANUAL selection mode.
When operating in the MANUAL selection mode it is possible to work at a specific
frequency that must be set manually by programming the dip switches in the radio
modules (see “Settings” on page 13).
To set or modify this operation mode contact personnel that have been authorised
by Autec.
When operating in the AUTOMATIC scan mode it is possible to operate at a specific
frequency, which can be changed in case of interference or conflict with other radio
equipment using the “Changing the operating frequency” procedure.
This mode avoids internal interventions on the transmitting unit and the receiving unit.
MANUAL SELECTION MODE
AUTOMATIC SCAN MODE
Working frequency change process
With the transmitting unit started
1
(blinking green LED):
- press the START pushbutton
and keep it pressed (a),
- press the STOP pushbutton (b)
- release the START pushbutton.
Unlock the STOP pushbutton
2
by turning it as shown in the
photo and repeat the starting
procedure.
b
N.B.: During the work
frequency changing
process, the receiving unit
loses radioelectric
a
connection with the
transmitting unit. After
starting, some seconds may
be necessary to reset
connection, therefore keep
the START button pressed
for about 8÷10 seconds.
Page 11
LILKNPA0
PROGRAMMING
!
The dip switches must be programmed with the battery removed from
the transmitting unit and can be done only by authorised personnel.

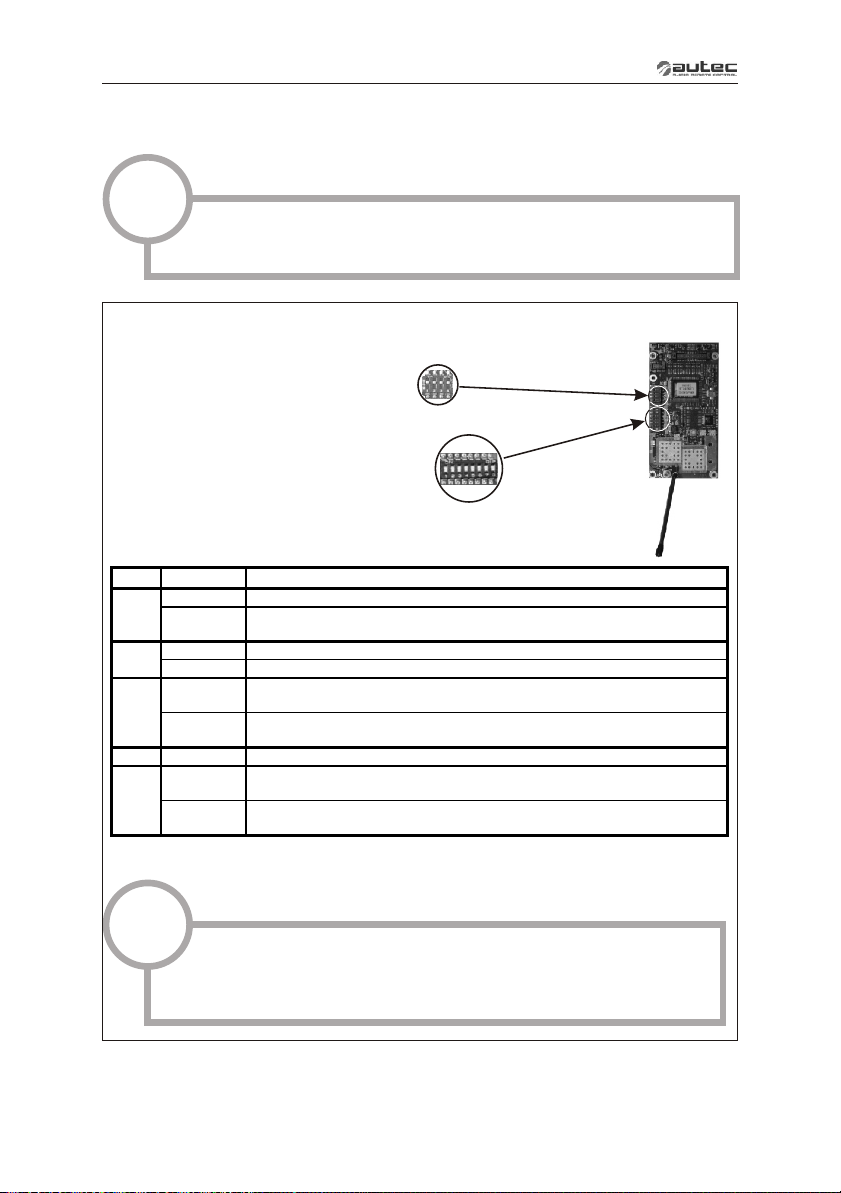

DIP SWITCHES ON E16STXUS1 RADIO TRANSMITTING MODULE
The group of eight dip switches found
in the module are necessary for
programming some operations and
setting the operating frequency.
The programming set in the other
group of four dip switches must never
be modified.
Group of 8 dip switches
8
Group of 4
dip switches
Group of 8
dip switches
DIP POS. DESCRIPTION
1 (*)
2
3
3 - 7 ON/OFF
8
ON
OFF
ON
OFF
ON
OFF
ON
OFF
!
These eight dip switches must be programmed in the same manner as
the group of 8 dip switches (excluding DIP 1) present in the radio
module of the receiving unit (see manual).
The transmitting unit never switches off automatically
The transmitting unit switched on without movement commands entered
switches off after approx. 3,5 minutes
Deactivated of low battery warning from horn on mac hine
Activation of low battery warning from horn on machine
With DIP 8 OFF automatic scan mode of the frequencies in the
915 - 928 MHz
With DIP 8 OFF automatic scan mode of the frequencies in the
902 - 915 MHz
With DIP 8 ON see “Appendix: Frequency Table”
Manual selection of frequencies with
DIP 3 - DIP 7 (see “Appendix: Frequency Table”)
Automatic scan mode of frequencies in the band selected with DIP 3
(DIP 4 – DIP 7 not relevant)
Page 12
LILKNPA0
9
LK TRANSMITTING UNIT DIAGNOSTIC
If the “machine+radio remote control” system does not start, check if the problem is caused
by the radio remote control or the machine. Before carrying out any verifications, check the
functioning of the machine with the cable control panel:
- if it does not switch on, the problem lies with the machine itself
- if it does switch on, the problem lies with the radio remote control. In this case, proceed as
follows:
If you activate
START,
is the led on with
a steady light?
NO
Does the led
blink quickly ?
NO NO
Does the led
blink slowly ?
NO
YES
YES
YES
Is the STOP
button or one
of the movement
actuator inserted?
Release it/them
The battery is
discharged:
replace it with one
that is charged.
Does it continue
to blink quickly?
NO
Carry out
diagnostics
checks on the
receiver unit.
YES
Is the led on with
a steady light?
NO
Clean the contacts
in the battery seat.
Does it continue
to blink quickly?
YES
YES
If the problem
persists
CALL
TECHNICAL
ASSISTANCE
Page 13

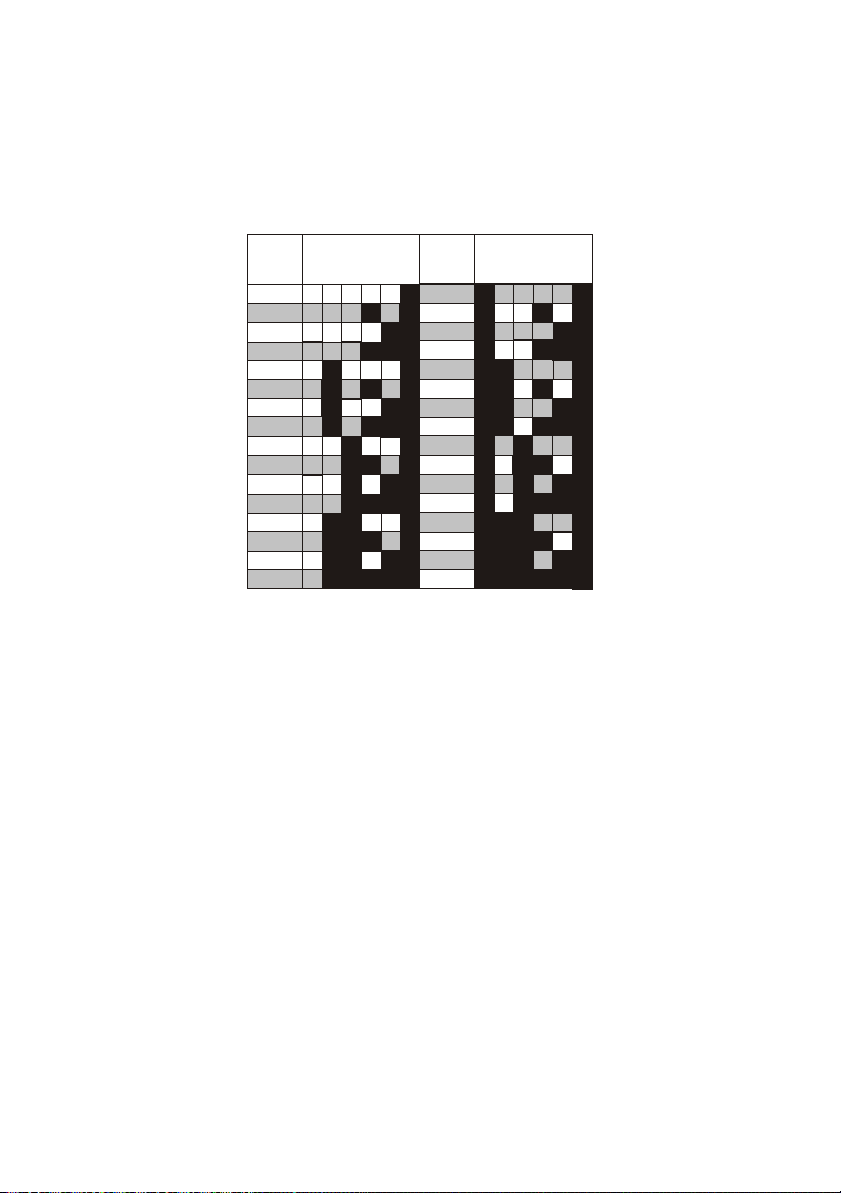

Appendix: FREQUENCY TABLE
E16STXUS1
DIP SWITCH DIP SWITCH
MHz MHz
4
3
OFF OFF OFF
OFF
902.150
903.050
903.850
904.650
905.525
906.325
907.175
907.975
908.850
909.650
910.450
911.250
912.125
912.925
913.775
914.525
OFF OFF
OFF
OFF OFF
OFF
OFF OFF OFF
OFF OFFONOFF
OFF
OFF OFF
OFF
ON
OFFONOFF
OFF
OFFOFF
ON
ON
OFF
ON
OFF
OFF
ON
OFF
OFF
OFF
OFF
ON
OFF OFF
OFF
ONON
OFF
ON
ON
OFF
8
7
ON
OFF OFF OFF OFF
ON
ON
OFF
ON
ON
OFF
ON
ON
ON
ON
ONON
ON
ON
ON
ONON
ON
ON
OFFOFF
OFF
ON
ON
OFF
ON
ON
OFF
ONONON
ON
ONON
OFF
ON
OFF
OFF
ON
ON ON
ON
ONONON ON
915.350
916.250
917.050
917.850
918.675
919.525
920.375
921.175
922.050
922.850
923.650
924.450
925.325
926.175
926.925
927.725
3
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
4
OFF OFF
OFF OFF
OFF OFF
ON
ON
ON
OFF
OFF
OFF
ON
ON
5566
OFF OFFONOFF
OFF OFF
OFFONOFF
OFF
ON
ON
ON
ON
ONON
ON
ONON ON
7
8
ON
OFF
ON
ON
OFF
ON
ON
OFF
ON
ON
ON
ON
ON
ON
ON
ON
ONON
ON
OFFOFF
OFF
ON
ON
OFF
ON
ON
OFF
ONON
ON
ON
ON
OFF
OFF
OFF
ON
ONON
ON
OFF
ON
ON
ON
Via Pomaroli, 65
36030 Caldogno (VI) ITALY
Tel : ++39 - 0444/901000 r.a.
Fax: ++39 - 0444/901011
email: info@autec.it
http://www.autec.it
Loading...
