Page 1
DASH V3.X SERIES
Technical Manual
www.dzsupervision.com
Brief

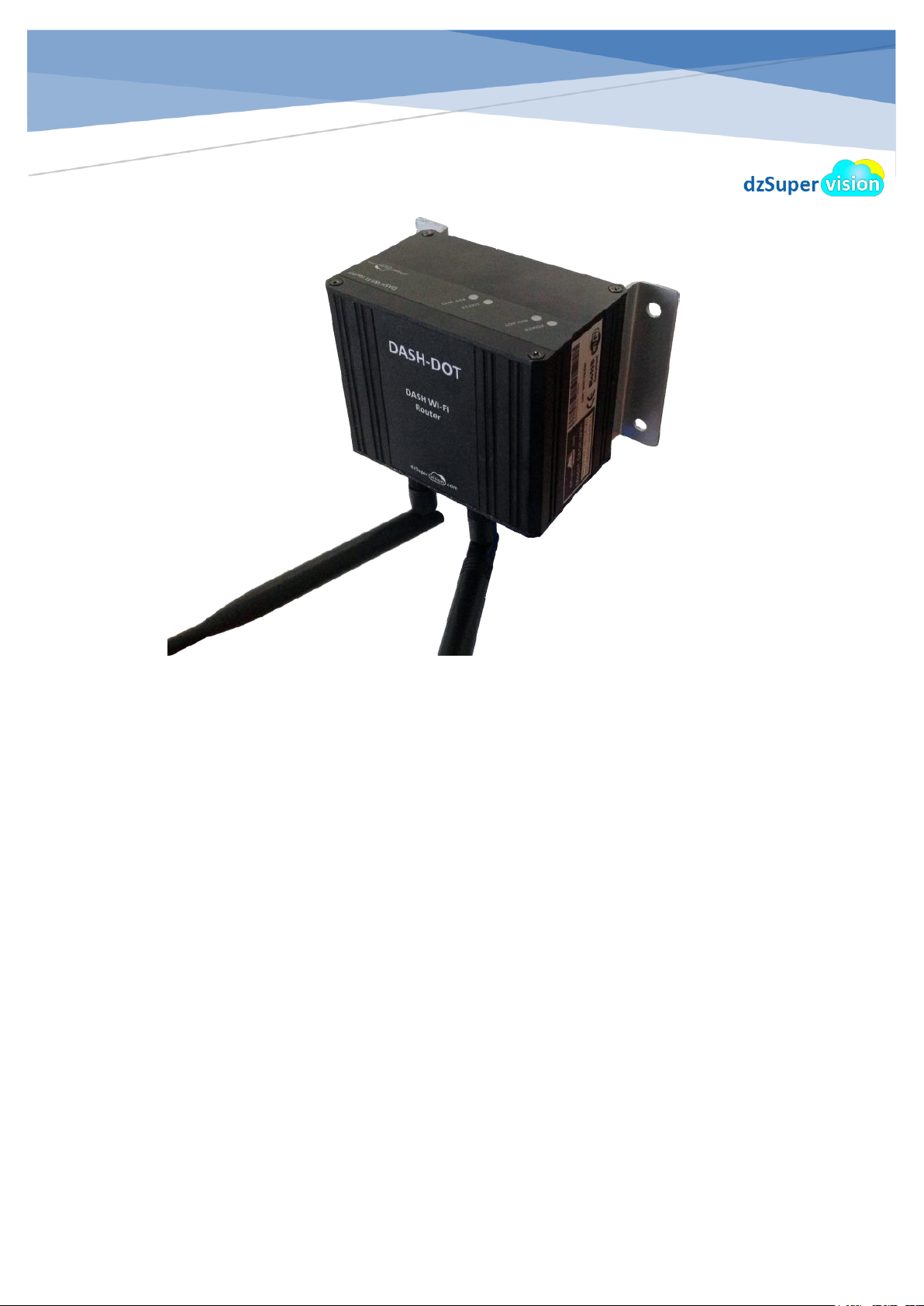

DASH V3.0 is the smart device that acts as a wireless gateway between one or more DOTs
and the server. Store and forward technology built into DASH allows seamless
communication even on poor wireless coverage areas.
Page 2
DASH 3.x Series
Features
Internal 4GB memory for store and forward
buffer.
Remote configuration and control.
Upgradeable firmware
100 – 240 VAC powered.
Available in Wi-Fi and GPRS versions.
IP 64 enclosure.
Up to 5 DOTs at maximum sampling rate
DASH V3.X SERIES
http://www.dzsupervision.com 1
Page 3
DASH 3.x Series
Contents
Overview
Specifications
Electrical Characteristics
Mounting and Installation
Physical Dimensions
Panel Mounting Example
Installation Instructions
Relevant Information
Led Signal Code
Descriptive Label
Basic Troubleshooting
Recommendations, Warnings and Restrictions
Warranty Information
Manufacturer
http://www.dzsupervision.com 2
Page 4
DASH 3.x Series
Parameter
Min
Typ
Max
Units
Operating Voltage(AC)
100 - 240 V Operating Input Current
0.25
-
0.15
A
Parameter
Conditions
Min
Type
Max
Units
Frequency Band
WIFI
2.4 - 2.5
GHz
GPRS
850 / 900 / 1800 / 1900
MHz
Reconnection Time(*)
After power down
30
45
60
Sec.
DOTs supported
simultaneously
Maximum sampling
rate
- 5 -
DOTs
Specifications
Note: Reconnection time depends on the configuration and WIFI quality.
Electrical Characteristics
http://www.dzsupervision.com 3
Page 5
DASH 3.x Series

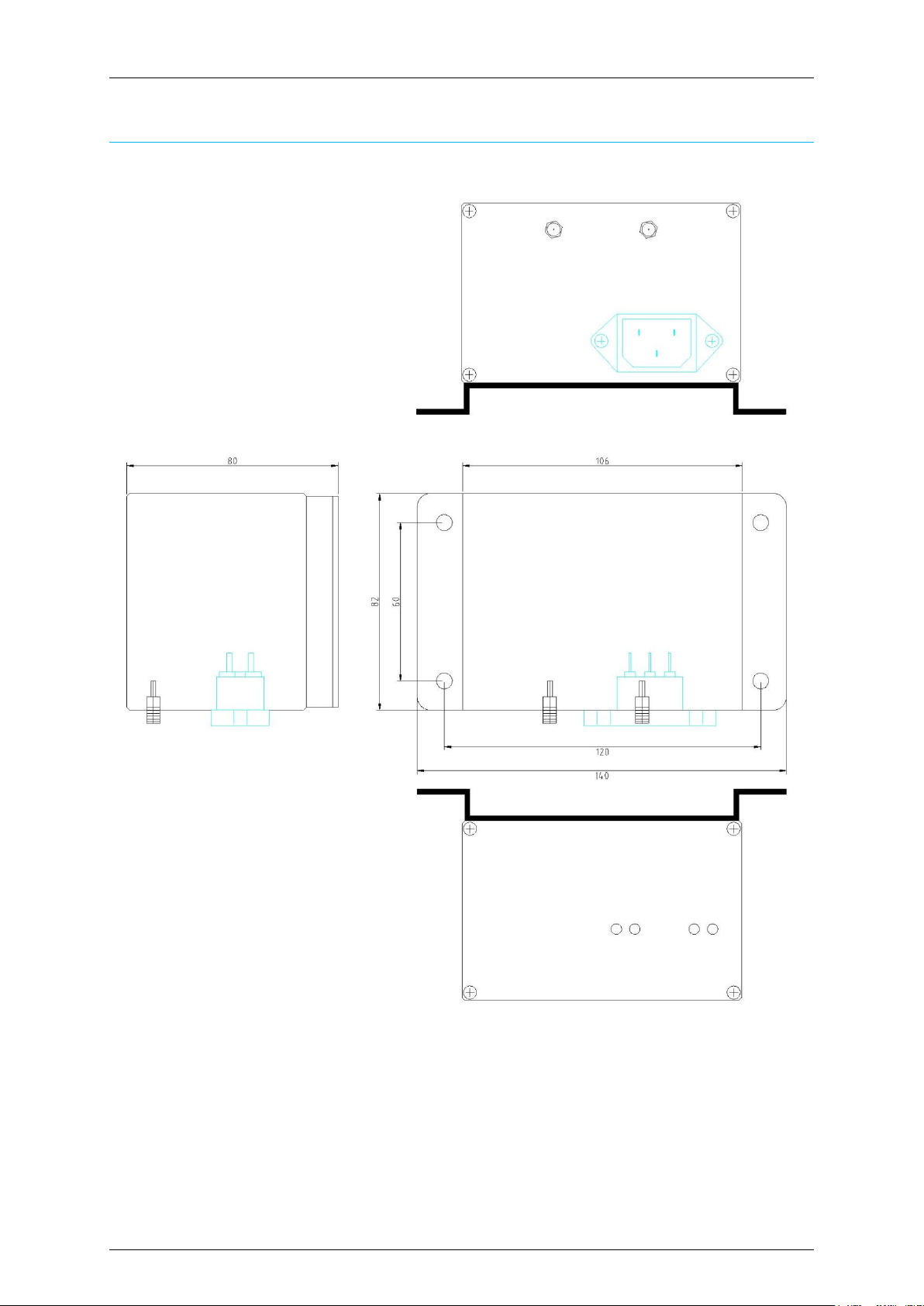

Physical Dimensions
Dimensions are in millimeters.
http://www.dzsupervision.com 4
Page 6
DASH 3.x Series

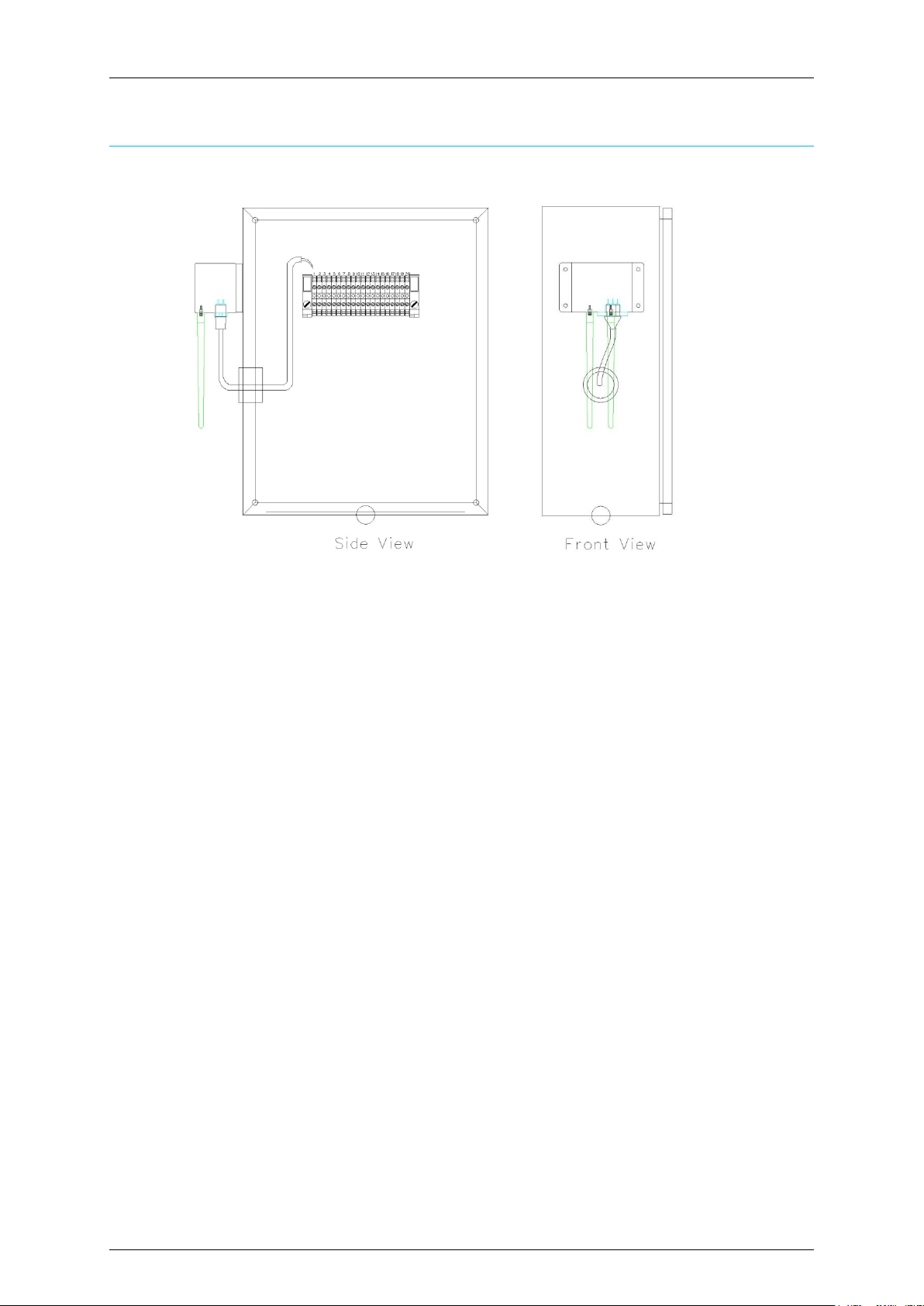

Panel Mounting Example
http://www.dzsupervision.com 5
Page 7
DASH 3.x Series
Installation Instructions
Day zero configuration provides a comprehensive interface to make the installation process in four easy
steps.

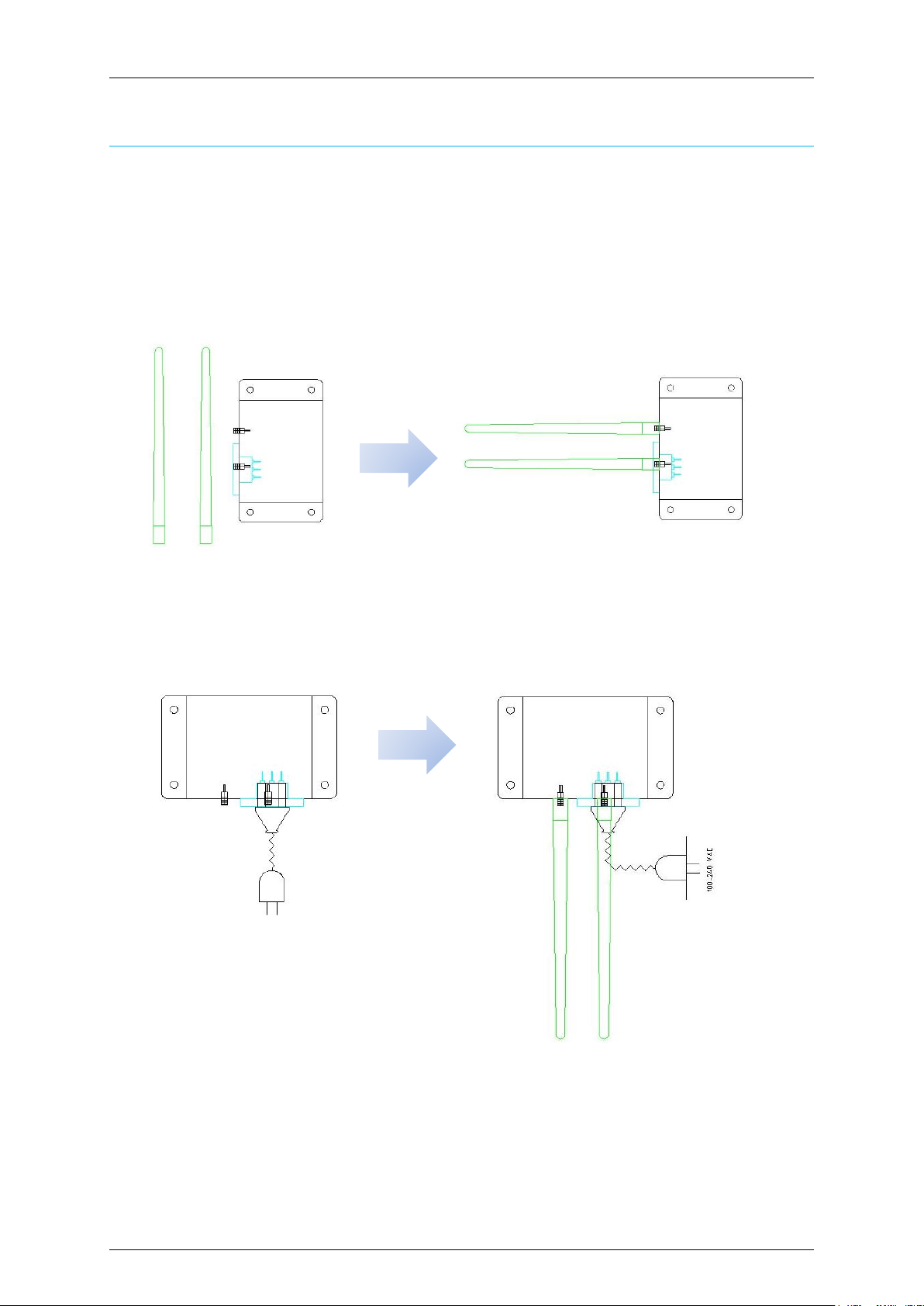

1° Mount according to the drawing in page 4. Make sure that it has WIFI or GPRS reception (depending
on the DASH version).
2° Attach two 2.4 GHz antennas, in their slots.
3° Plug the interlock cable and connect it to a power supply (100-240 VAC). This device has no buttons
or switches so, once it is powered, it should start running.
4° When POWER led is on and RSSI-WIFI led is lock on red, DASH is operative and ready.
http://www.dzsupervision.com 6
Page 8
DASH 3.x Series
RSSI-WIFI(red)
STATUS(white)
RSSI-DOT(blue)
POWER(green)
DASH on
- - -
On
Packet received from DOT.
-
-
Blinks. If packets of data
are received continuously,
this led may stay on.
-
Setting IP (DHCP).
Blinks for 1 second
every 2 seconds.
- - -
IP configured.
On - -
-
Wi-Fi configuration setup failed.
Off - -
-
Updating Firmware
-
On - -
Normal operation.
-
Blinks for 1 second
every 5 seconds.
-
-
Server is not responding.
-
2 500ms blinks
every 2 seconds.
-
-
Micro SD failed.
-
3 500ms blinks
every 2 seconds.
-
-
Losing data. Serial communication
reached its max baud rate.
-
4 500ms blinks
every 2 seconds.
-
-

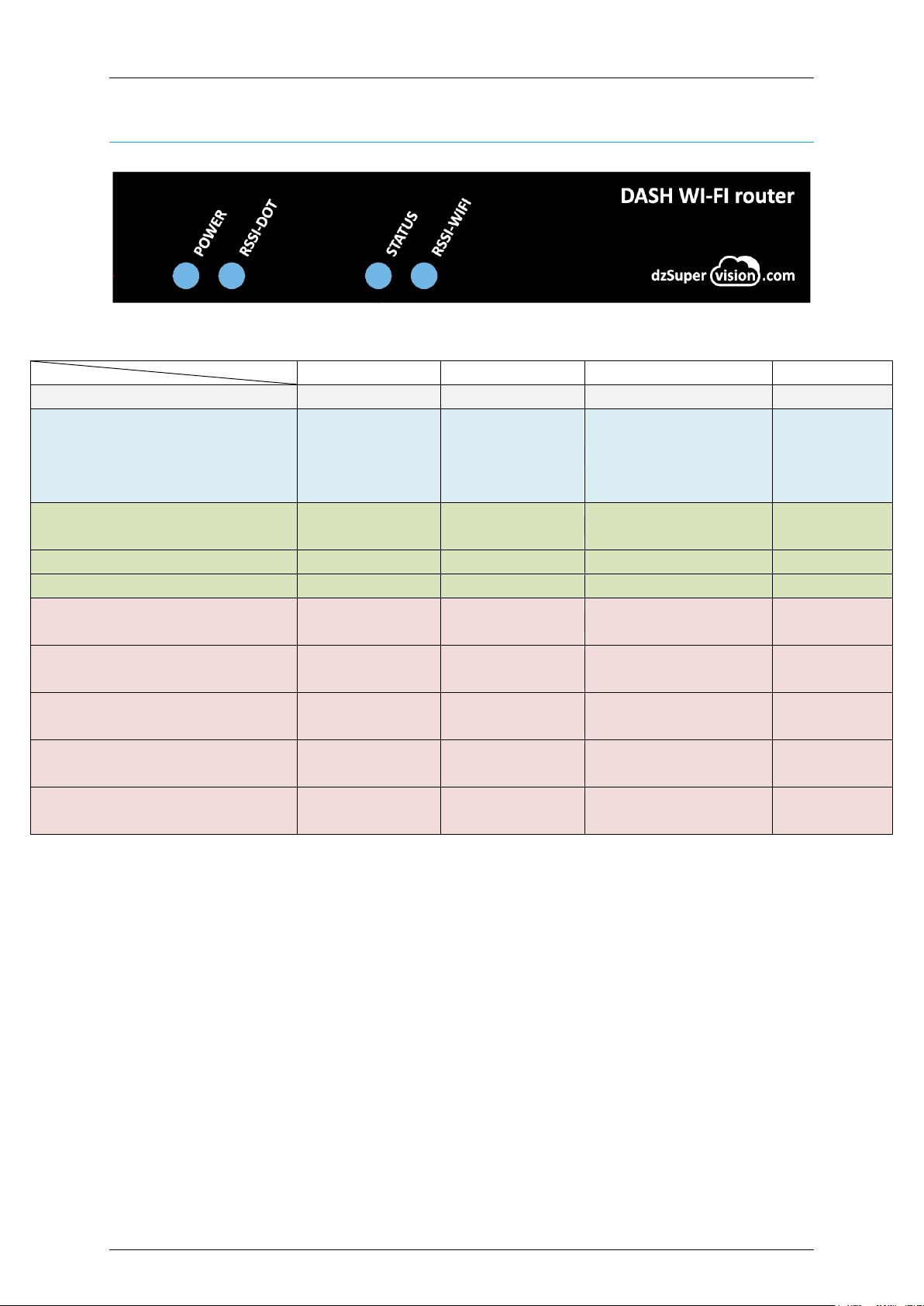

Led Signal Code
http://www.dzsupervision.com 7
Page 9
DASH 3.x Series
DASH ID
Certifications
DASH model
Product code
Descriptive Label
On the right side of the housing is a silver-black label. This label contains relevant information about the
device.
http://www.dzsupervision.com 8
Page 10
DASH 3.x Series
Symptoms
Posible Reasons
Solutions
DASH is not
responding. No led
activity.
The device is disconnected.
Connect the DASH to a power supply (100-240
VAC).
Power cable is damaged.
Replace the interlock power cable.
DASH can’t configure a
valid IP.
Wi-Fi signal quality is not strong
enough.
Check that the antennas are well screwed. If
they are, try replacing them.
Check the Wi-Fi signal quality in the area.
Bad setting of Wi-Fi configuration.
Check saved configuration on internal Micro SD
card.
DASH can´t connect
with server.
DASH in not connected to
internet.
See “DASH can’t configure a valid IP”.
Server has no access to the
DASH’s network.
Check if the server is visible from the DASH’s
network.
Micro SD failed.
Micro SD card is damaged.
Replace the internal Micro SD card for a new
one.
Loss of Data.
DASH is overloaded.
Remove DOTs connected to the DASH, one by
one, until data is displayed in real time and no
data is missing.
Basic Troubleshooting
http://www.dzsupervision.com 9
Page 11
DASH 3.x Series
OMNI-DIRECTIONAL ANTENNAS
Part Number
Type(Description)
Gain
Min Separation
Minimum Cable
Loss/Power/Reduction/
Attenuation Required
29000313
Integral PCB antenna
0.0 dBi
20 cm
N/A
A24-HASM-450
Dipole (Half-wave
articulated RPSMA - 4.5”)
2.1 dBi
20 cm
N/A
A24-HABSM
Dipole (Articulated
RPSMA)
2.1 dBi
20 cm
N/A
29000095
Dipole (Half-wave
articulated RPSMA - 4.5”)
2.1 dBi
20 cm
N/A
A24-HABUF-P5I
Dipole (Half-wave
articulated bulkhead
mount U.FL. w/ 5” pigtail)
2.1 dBi
20 cm
N/A
A24-HASM-525
Dipole (Half-wave
articulated RPSMA -
5.25")
2.1 dBi
20 cm
N/A
A24-QI
Monopole (Integrated
whip)
1.5 dBi
20 cm
N/A
A24-F2NF
Omni-directional
(Fiberglass base station)
2.1 dBi
20 cm
N/A
A24-F3NF
Omni-directional
(Fiberglass base station)
3.0 dBi
20 cm
N/A
A24-F5NF
Omni-directional
(Fiberglass base station)
5.0 dBi
20 cm
N/A
A24-F8NF
Omni-directional
(Fiberglass base station)
8.0 dBi
2 m
N/A
A24-F9NF
Omni-directional
(Fiberglass base station)
9.5 dBi
2 m
N/A
A24-F10NF
Omni-directional
(Fiberglass base station)
10 dBi
2 m
N/A
A24-F12NF
Omni-directional
(Fiberglass base station)
12 dBi
2 m
N/A
A24-W7NF
Omni-directional
(Fiberglass base station)
7.2 dBi
2 m
N/A
A24-M7NF
Omni-directional (Mag-
mount base station)
7.2 dBi
2 m
N/A
Recommendations, Warnings and Restrictions.
FCC-Approved Antennas (2.4 GHz)
For complying with FCC regulations, use the tables below for choose the correct antennas.
If he antenna is mounted at least 20cm (8 in.) from nearby persons, the application is considered a
mobile application. Antennas not listed in the table must be tested to comply with FCC Section 15.203
(Unique Antenna Connectors) and Section 15.247 Emissions).
Australtek does not carry all of these antenna variants. Contact Australtek for available antennas.
RF Antennas approved for use with the DASH 3.x Series (Cable loss is not required).
http://www.dzsupervision.com 10
Page 12
DASH 3.x Series
DIPOLE ANTENNAS
Minimum Cable
Loss/Power/Reduction/
Attenuation Required
Part Number
Type(Description)
Gain
Min
Separation
b mode
g mode
n mode
A24-HASM-450
Dipole (Half-wave
Articulated RPSMA-4.5")
2.1 dBi
20 cm
N/A
N/A
N/A
A24-HABSM
Dipole (Articulated RPSMA)
2.1 dBi
20 cm
N/A
N/A
N/A
A24-HABUF-P5I
Dipole (Half-wave bulkhead
mount U.FL s/ 5" pigtail)
2.1 dBi
20 cm
N/A
N/A
N/A
A24-HASM-525
Dipole (Half-wave articulated
RPSMA-5.25")
2.1 dBi
20 cm
N/A
N/A
N/A
OMNI-DIRECTIONAL ANTENNAS
Minimum Cable
Loss/Power/Reduction/
Attenuation Required
Part Number
Type(Description)
Gain
Min
Separation
b mode
g mode
n mode
A24-F2NF
Omni-directional
(Fiberglass base station)
2.1 dBi
20 cm
N/A
N/A
N/A
A24-F3NF
Omni-directional (Fiberglass
base station)
3.0 dBi
20 cm
N/A
N/A
N/A
A24-F5NF
Omni-directional
(Fiberglass base station)
5.0 dBi
20 cm
N/A
N/A
0.12 dB
A24-F8NF
Omni-directional
(Fiberglass base station)
8.0 dBi
2 m
N/A
N/A
3.12 dB
A24-F9NF
Omni-directional
(Fiberglass base station)
9.5 dBi
2 m
N/A
1.0 dB
4.62 dB
A24-F10NF
Omni-directional
(Fiberglass base station)
10 dBi
2 m
N/A
1.5 dB
5.12 dB
A24-F12NF
Omni-directional
(Fiberglass base station)
12 dBi
2 m
N/A
3.5 dB
7.12 dB
A24-F15NF
Omni-directional
(Fiberglass base station)
15 dBi
2 m
0.56 dB
6.5 dB
10.12 dB
A24-W7NF
Omni-directional
(Fiberglass base station)
7.2 dBi
2 m
N/A
N/A
2.32 dB
A24-M7NF
Omni-directional (Mag-mount
base station)
7.2 dBi
2 m
N/A
N/A
2.32 dB
Wi-Fi Antennas approved for use with the DASH 3.x Series.
http://www.dzsupervision.com 11
Page 13
DASH 3.x Series
PANEL CLASS ANTENNAS
Minimum Cable
Loss/Power/Reduction/
Attenuation Required
Part Number
Type(Description)
Gain
Min
Separation
b mode
g mode
n mode
A24-P8SF
Flat Panel
8.5 dBi
2 m
N/A
5.96 dB
10.04 dB
A24-P8NF
Flat Panel
8.5 dBi
3 m
N/A
5.96 dB
10.04 dB
A24-P13NF
Flat Panel
13.0 dBi
4 m
N/A
10.46 dB
14.54 dB
A24-P14NF
Flat Panel
14.0 dBi
5 m
N/A
11.46 dB
15.54 dB
A24-P15NF
Flat Panel
15.0 dBi
2 m
0.12 dB
12.46 dB
16.54 dB
A24-P16NF
Flat Panel
16.0 dBi
2 m
1.12 Db
13.46 dB
17.54 dB
A24-P19NF
Flat Panel
19.0 dBi
2 m
4.12 dB
16.46 dB
20.54 dB
PANEL CLASS ANTENNAS
Part Number
Type(Description)
Gain
Min Separation
Cable-Loss
A24-P8SF
Flat Panel
8.5 dBi
2 m
N/A
A24-P8NF
Flat Panel
8.5 dBi
2 m
N/A
A24-P13NF
Flat Panel
13.0 dBi
2 m
4.3 dB
A24-P14NF
Flat Panel
14.0 dBi
2 m
5.3 dB
A24-P15NF
Flat Panel
15.0 dBi
2 m
6.3 dB
A24-P16NF
Flat Panel
16.0 dBi
2 m
7.3 dB
A24-P19NF
Flat Panel
19.0 dBi
2 m
10.3 dB
OMNI-DIRECTIONAL ANTENNAS
Part Number
Type(Description)
Gain
Min Separation
Cable-Loss
A24-F15NF
Omni-Directional (Fiberglass base station)
15.0 dBi
2 m
1 dB
YAGI CLASS ANTENNAS
Part Number
Type(Description)
Gain
Min Separation
Cable-Loss
A24-Y6NF
Yagi (6-element)
8.8 dBi
2 m
N/A
A24-Y7NF
Yagi (7-element)
9.0 dBi
2 m
N/A
A24-Y9NF
Yagi (9-element)
10.0 dBi
2 m
N/A
A24-Y10NF
Yagi (10-element)
11.0 dBi
2 m
0.1 dB
A24-Y12NF
Yagi (12-element)
12.0 dBi
2 m
1.1 dB
A24-Y13NF
Yagi (13-element)
12.0 dBi
2 m
1.1 dB
A24-Y15NF
Yagi (15-element)
12.5 dBi
2 m
1.6 dB
A24-Y16NF
Yagi (16-element)
13.5 dBi
2 m
2.6 dB
A24-Y16RM
Yagi (16-element, RPSMA connector)
13.5 dBi
2 m
2.6 dB
A24-Y18NF
Yagi (18-element)
15.0 dBi
2 m
4.1 dB
RF Antennas approved for use with the DASH 3.x Series (Channels 11 ‐ 25).
http://www.dzsupervision.com 12
Page 14
DASH 3.x Series
YAGI CLASS ANTENNAS
Minimum Cable
Loss/Power/Reduction/
Attenuation Required
Part Number
Type(Description)
Gain
Min
Separation
b mode
g mode
n mode
A24-Y6NF
Yagi (6-element)
8.8 dBi
2 m
N/A
2.58 dB
7.52 dB
A24-Y7NF
Yagi (7-element)
9.0 dBi
2 m
N/A
5.78 dB
7.72 dB
A24-Y9NF
Yagi (9-element)
10.0 dBi
2 m
N/A
6.78 dB
8.72 dB
A24-Y10NF
Yagi (10-element)
11.0 dBi
2 m
N/A
7.78 dB
9.72 dB
A24-Y12NF
Yagi (12-element)
12.0 dBi
2 m
N/A
8.78 dB
10.72 dB
A24-Y13NF
Yagi (13-element)
12.0 dBi
2 m
N/A
8.78 dB
10.72 dB
A24-Y15NF
Yagi (15-element)
12.5 dBi
2 m
N/A
9.28 dB
11.22 dB
A24-Y16NF
Yagi (16-element)
13.5 dBi
2 m
0.56 dB
10.28 dB
12.22 dB
A24-Y16RM
Yagi (16-element,
RPSMA connector)
13.5 dBi
2 m
2.6 dB
10.28 dB
12.22 dB
A24-Y18NF
Yagi (18-element)
15.0 dBi
2 m
4.1 dB
11.78 dB
13.72 dB
Wi-Fi Antennas approved for use with the DASH 3.x Series (Channels 11 ‐ 25).
RF Exposure WARNING:
To satisfy FCC RF exposure requirements, a separation distance of 20 cm or more
should be maintained between the antenna of this device and persons during device
operation. To ensure compliance, operations at closer than this distance are not
recommended.
Restrictions
France: Outdoor use limited to 10 mW EIRP within the band 2454-2483.5 MHz.
Norway: Norway prohibits operation near Ny-Alesund in Svalbard. More information can be found at the
Norway Posts and Telecommunications site (www.npt.no).
Italy: For private use, a general authorization is required if WAS/RLANs are used outside own
premises. For public use, a general authorization is required.
Russian Federation:
• Maximum mean EIRP density is 2 mW/MHz, maximum 100 mW EIRP.
• Maximum mean EIRP density is 20 mW/MHz, maximum 100 mW EIRP permitted to use SRD for
outdoor applications only, for purposes of gathering telemetry information for automated monitoring and
resources accounting systems or security systems.
• Maximum mean EIRP density is 10 mW/MHz, maximum 100 mW EIRP for indoor applications.
Ukraine: EIRP must be less than or equal to 100 mW with built-in antenna, with amplification factor up
to 6 dBi.
http://www.dzsupervision.com 13
Page 15
DASH 3.x Series
Warranty Information
1 Year Warranty
DOT and DASH devices, from Australtek, are warranted against defects in materials and workmanship
under normal use, for a period of 1 year from the date of purchase. In the event of a product failure due
to materials or workmanship, Australtek will repair or replace the defective product. For warranty
service, return the defective product to Australtek, shipping prepaid, for prompt repair or replacement.
The foregoing sets forth the full extent of Australtek's warranties regarding the product. Repair or
replacement at Australtek's option is the exclusive remedy.
THIS WARRANTY IS GIVEN IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
AND AUSTRALTEK SPECIFICALLY DISCLAIMS ALL WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL AUSTRALTEK-AMEPXA, ITS
SUPPLIERS OR LICENSORS BELIABLE FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE
OF THE PRODUCT, FOR ANY LOSS OF USE, LOSS OF TIME, INCONVENIENCE, COMMERCIAL
LOSS, LOST PROFITS OR SAVINGS, OR OTHER INCIDENTAL, SPECIAL OR CONSEQUENTIAL
DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PRODUCT, TO THE FULL
EXTENT SUCH MAY BE DISCLAIMED BY LAW. SOME STATES DO NOT ALLOW THE EXCLUSION
OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES. THEREFORE, THE
FOREGOING EXCLUSIONS MAY NOT APPLY IN ALL CASES. This warranty provides specific legal
rights. Other rights which vary from state to state may also apply.
http://www.dzsupervision.com 14
Page 16
DASH 3.x Series
Manufacturer
Australtek
Argentina Office:
Cuidad de la Paz 1965 3°D
Buenos Aires, Argentina.
Phone: +54 (11) 5263-0222
Fax: +54 (11) 5263-0222
USA Office:
800 Old Pond Road - Suite 706K
Bridgeville, PA 15017 USA
Phone: (412)257-2377
Fax : (412)257-2388
Website: http://www.australtek.com
http://www.dzsupervision.com 15
Loading...
