Australian Monitor Contractor Tools User Manual

LET’S SPLIT (L) LET’S SPLIT (M) GET DOWN

GET UP DROP ME MULTI CAN JUICED UP

AUDIO CONTRACTOR TOOLS

INSTALLATION A N D O P ERAT IO N MAN UA L

IM PO RTA N T SA F E T Y IN FO R M AT I ON

1. Save the carton and packing material even if the
equipment has arrived in good condition. Should you ever
need to ship the unit, use only the original factory
packing.

2. Read all documentation before operating your equipment.
Retain all documentation for future reference.

3. Follow all instructions printed on unit chassis for
proper operation.

4. Do not spill water or other liquids into or on the unit,
or operatethe unit while standing in liquid.

5. Make sure power outlets conform to the power
requirements listed on the back of the unit.

6. Do not use the unit if the electrical power cord is frayed
or broken. The power supply cords should be routed so
that they are not likely to be walked on or pinched by
items placed upon or against them, paying particular
attention to cords and plugs, convenience receptacles,
and the point where they exit from the appliance.

7. Always operate the unit with the AC ground wire
connected to the electrical system ground. Precautions
should be taken so that the means of grounding of a piece
of equipment is not defeated.

8. Mains voltage must be correct and the same as that
printed on the rear of the unit. Damage caused by
connection to improper AC voltage is not covered by
any warranty.

14. Do not remove the cover. Removing the cover will expose
you to potentially dangerous voltages. There are no user
serviceable parts inside.

15. Do not drive the inputs with a signal level greater than
that required to drive equipment to full output.

16. Do not connect the inputs / outputs of amplifiers or
consoles to any other voltage source, such as a battery,
mains source, or power supply, regardless of whether the
amplifier or console is turned on or off.

17. Do not run the output of any amplifier channel back into
another channel’s input. Do not parallel- or series-connect
an amplifier output with any other amplifier output.
Australian Monitor Inc is not responsible for damage to
loudspeakers for any reason.

18. Do not ground any red (“hot”) terminal. Never connect a
“hot” (red) output to ground or to another “hot” (red)
output!

19. Non-use periods. The power cord of equipment should be
unplugged from the outlet when left unused for a long
period of time.

20. Service Information Equipment should be serviced by
qualified service personnel when:

A. The power supply cord or the plug has been damaged.

B. Objects have fallen, or liquid has been spilled into the
equipment

9. Have gain controls on amplifiers turned down during
power-up to prevent speaker damage if there are high
signal levels at the inputs.

10 Power down & disconnect units from mains voltage
before making connections.

11. Never hold a power switch in the “ON” position if it
won’t stay there itself!

12. Do not use the unit near stoves, heat registers,
radiators, or ther heat producing devices.

13. Do not block fan intake or exhaust ports. Do not operate
equipment on a surface or in an environment which may
impede the normal flow of air around the unit, such as a
bed, rug, weathersheet, carpet, or completely enclosed
rack. If the unit is used in an extremely dusty or smoky
environment, the unit should be periodically “blown free”
of foreign matter.

THIS SAFETY INFORMATION IS OF A GENERAL NATURE AND MAY BE SUPERSEDED BY INSTRUCTIONS CONTAINED WITHIN THIS MANUAL

C. The equipment has been exposed to rain

D. The equipment does not appear to operate normally, or
exhibits a marked change in performance

E. The equipment has been dropped, or the enclosure
damaged.

I N T R O D UC T IO N AN D CO N T EN T S

AUDIO CONTRACTOR TOOLS

Since their introduction the AMIS contractor tool range has
proved immensely popular with AV installers all around the
world. The entire range of audio contractor tools has been
redesigned & expanded to provide even more useful solutions
for audio contractors the world over. NOW RACKMOUNTABLE
(Up to three audio contractor tools per 1RU shelf)

IN T R OD U CT I ON 3

LE T ’ S S PL I T ( L) & L ET ’ S S P LI T ( M ) 4

GE T DO W N & G E T U P 5

DR O P M E & MU LT I CA N 6

JU I C ED UP & B UZ Z O F F 7

PR E ME 8

MI X E D U P & T H E I NJ E CT O R 9

SP E C IF I CAT IO N S 10

AUS, EUR, USA

REV A: Mar 2007

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK),

NO USER SERVICEABLE PARTS INSIDE,

REFER SERVICING TO QUALIFIED SERVICE PERSONAL.

WARNING!

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK

DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

Caution:

This symbol is intended to alert the user to the presence
of uninsulated “dangerous voltage” within the products
enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence
of important operational and maintenance (servicing)
instructions in the literature accompanying the
appliance.

To prevent electric shock do not use this (polarised) plug
with an extension cord, receptacle or other outlet unless
the blades can be fully inserted to prevent blade exposure.
To prevent electric shock, match wide blade of plug to
wide slot, fully insert.

PA GE 3AU D IO C ON T RA CT OR T OO LS

L E T ’ S SP L IT ( L) & L E T ’S S PL I T ( M )

LETS SPLIT (M)

Mic Splitter

GROUND

LINE SPLITTER

The LETS SPLIT (L) is a balanced line level splitter with a balanced XLR line level input which provides both a transformer
balanced XLR output & a thru (direct) XLR output of the input signal. The LETS SPLIT (L) also provides a ground lift switch to
eliminate ground loop hum.

BALANCED XLR INPUT CONNECTOR

1

BALANCED XLR THRU OUTPUT CONNECTOR

2

Parallel to input

1 2 3

4

3

BALANCED XLR OUTPUT CONNECTOR

Transformer isolated

GROUND LIFT SWITCH

4

Pin1 lift on transformer isolated XLR output Set to
“GND” to connect pin 1 of output XLR connector to pin
1 of input XLR connectors. Set to “Lift” to disconnect
pin1 output XLR connector

LINE SPLITTER

The AMIS LETS SPLIT (M) is a balanced microphone level splitter with a balanced XLR microphone level input which provides
both a transformer balanced XLR output & a thru (direct) XLR output of the input signal. The LETS SPLIT (M) also provides a
ground lift switch to eliminate ground loop hum.

BALANCED XLR INPUT CONNECTOR

1

BALANCED XLR THRU OUTPUT CONNECTOR

2

Parallel to input

3

1 2 3

BALANCED XLR OUTPUT CONNECTOR

Transformer isolated

GROUND LIFT SWITCH

4

Pin1 lift on transformer isolated XLR output Set to

4

PA GE 4 AU D IO C ON T RA CT OR T OO LS

“GND” to connect pin 1 of output XLR connector to pin
1 of input XLR connectors. Set to “Lift” to disconnect
pin1 output XLR connector

STEREO CONVERTER

G E T D O W N & GE T UP

The AMIS GET DOWN stereo converter converts a professional
line level balanced audio signal to an unbalanced domestic level
signal. Inputs are balanced XLRs & outputs are stereo RCA
connectors. The GET DOWN also features a front panel level
control for achieving the optimal output level.

1 2 3

4 5

STEREO CONVERTER

The AMIS GET UP stereo converter converts an unbalanced
domestic level signal to a professional line level balanced audio
signal. Inputs are stereo RCA connectors & outputs are balanced
XLR’s. The GET UP also features a front panel level control for
achieving the optimal output level.

1 2

STEREO BALANCED LINE LEVEL

1

XLR input connectors

STEREO UNBALANCED LINE LEVEL

2

RCA output connectors

3

POWER INPUT CONNECTOR

12VDC Centre +ve

4

POWER LED INDICATOR

Illuminated = On

LEVEL CONTROL

5

Adjusts the level of the audio signal on the stereo
unbalanced RCA output connectors

STEREO UNBALANCED LINE LEVEL

1

RCA input connectors

STEREO BALANCED LINE LEVEL

2

XLR output connectors

POWER INPUT CONNECTOR

3

12VDC Centre +ve

4

POWER LED INDICATOR

3

Illuminated = On

LEVEL CONTROL

5

Adjusts the level of the audio signal on the stereo
balanced XLR output connectors

4 5

PA GE 5AU D IO C ON T RA CT OR T OO LS

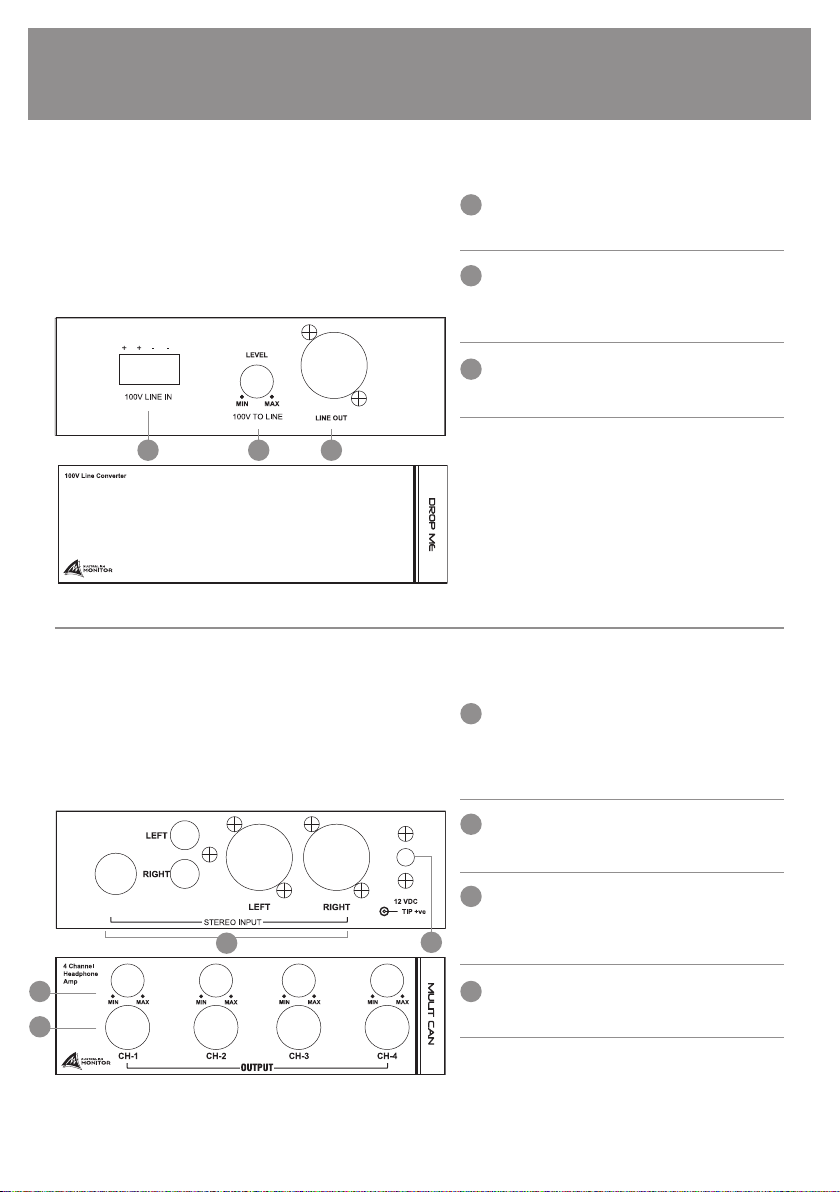

D R O P M E & M U LT I C A N

100 VOLT LINE CONVERTER

The AMIS DROP ME allows you to convert a 100 volt line amplifier
speaker output signal to a balanced line level signal. The 100 volt
line signal input is via phoenix connector & the output is balanced
XLR. The DROP ME also features a rear panel level control for
achieving the optimal output level.

1 2 2

4 CHANNEL HEADPHONE AMPLIFIER

The AMIS MULTI CAN is a compact yet high quality 4 channel
headphone amplifier, featuring 6.35mm TRS, dual RCA & dual XLR
stereo inputs & 6.35mm TRS headphone outputs. The MULTI CAN
also offers individual output level controls per channel.

1

3

4

100V SPEAKER LINE INPUT

1

WECO connector with parallel output

LEVEL CONTROL

2

Adjusts the level of the audio signal on the XLR output
connector

BALANCED LINE LEVEL XLR OUTPUT

3

CONNECTOR

STEREO LINE LEVEL INPUT CONNECTORS

1

In parallel (6.35mm TRS stereo jack, stereo RCA
connectors, stereo XLR connectors) All four headphone
amplifiers share the same common stereo input

2

POWER INPUT CONNECTOR

12VDC Centre +ve

3

FOUR LEVEL CONTROLS

Adjusts the level of the audio signal of the headphone

2

jack directly below

FOUR STEREO HEADPHONE CONNECTORS

4

6.35mm stereo sockets

PA GE 6 AU D IO C ON T RA CT OR T OO LS

DUAL PHANTOM POWER SUPPLY

J U I C E D U P & B UZ Z OF F

The AMIS JUICED UP is a 2 channel phantom power supply that
features balanced XLR inputs & outputs per channel. The JUICED UP
can operate via the supplied external power supply or via two on board
9 volt batteries, selectable via a rear panel slider switch. The Juiced
up will supply 12VDC phantom power via battery power & 42VDC off
external power supply

1 2 1 2 4 3

1

DUAL CHANNEL HUM ELIMINATOR

The AMIS BUZZ OFF is a two channel hum eliminator featuring
both balanced XLR inputs & outputs & unbalanced RCA inputs &
outputs per channel. The BUZZ OFF is ideal or getting rid of hum &
extraneous noise from long cable runs.

3

1 2 4 2

BALANCED XLR INPUT CONNECTOR

1

1 per channel

2

BALANCED XLR OUTPUT CONNECTOR

1 per channel

POWER INPUT CONNECTOR

3

12VDC Centre +ve

4

POWER SOURCE SELECTION SWITCH.

Set to “Batt” to run off 2x 9V internal batteries
(12VDC phantom power output). Set to “PPack” to run
off an external 12VDC (centre +ve) plug pack (42VDC
phantom power output). Set to “PPack” when not in
use to prolong internal battery life.

POWER LED INDICATOR

5

Illuminated = On

BALANCED XLR INPUT CONNECTOR

1

1 per channel

BALANCED XLR TRANSFORMER ISOLATED

2

OUTPUT CONNECTOR

1 per channel

UNBALANCED RCA INPUT CONNECTOR

3

In parallel to XLR input connector, 1 per channel

UNBALANCED RCA TRANSFORMER

4

ISOLATED OUTPUT CONNECTOR

In parallel to XLR output connector, 1 per channel

PA GE 7AU D IO C ON T RA CT OR T OO LS

P R E M E

MICROPHONE PRE AMPLIFIER

The AMIS PRE ME is a compact yet highly featured microphone
pre amplifier. The PRE ME features dual RCA line input & a
balanced XLR input switchable between microphone & line level.
The PRE ME also offers +40VDC phantom power, switchable High
pass filter (rolling off at dB per octave at 100 Hz & balanced XLR
output. A front panel gain control & dual colour signal present LED
are also offered for ease of setup & operation

1 2 3 4 5

7 8 9

STEREO UNBALANCED

1

LINE LEVEL

RCA input connectors (mono summed)

BALANCED MICROPHONE/LINE

2

LEVEL

XLR input connector

XLR INPUT CONNECTOR MODE

3

SWITCH.

Set to “+40V MIC” to set the XLR input
connector sensitivity to microphone
level with phantom power enabled. Set
to “MIC” to set the XLR input connector
sensitivity to microphone level.
Set to “LINE” to set the XLR input
connector sensitivity to line level

6

HIGH PASS FILTER SWITCH.

4

Set to “100Hz” to enable the 100Hz high
pass filter on all inputs. Set to “Off” to
disable the high pass filter on all inputs.

BALANCED LINE LEVEL

5

XLR output connector

POWER INPUT CONNECTOR

6

12VDC Centre +ve

7

POWER LED INDICATOR

Illuminated = On

SIGNAL PRESENCE LED.

8

Illuminates green to indicate audio
signal present on the output XLR
connector. Illuminates red to indicate
audio signal clipping (illuminates -6dB
before clipping occurs)

LEVEL CONTROL

9

Adjusts the level of the audio signal on
the XLR output connector

PA GE 8 AU D IO C ON T RA CT OR T OO LS

4 CHANNEL PASSIVE MIXER

M I X E D UP & T H E I N JE C T O R

The AMIS MIXED UP is a passive 4 channel mixer which features
2 balanced XLR microphone inputs & 2 dual RCA line inputs & a
single microphone level balanced XLR output. The MIXED UP also
offers individual front panel level controls per input.

1 1 2 2 3

4

PASSIVE DI

The AMIS THE INJECTOR is a passive direct injection box which
offers a 6.35mm input, 6.35mm thru output (direct) & a balanced
XLR output. The INJECTOR also features ground lift switching for
elimination of hum & a three stage pad offering up to 40dB
of attenuation.

1 2 3

4 5

BALANCED MICROPHONE LEVEL XLR INPUT

1

CONNECTORS

2 off

UNBALANCED LINE LEVEL STEREO RCA

2

INPUT CONNECTORS

2 off, mono summed

BALANCED MICROPHONE LEVEL XLR

3

OUTPUT CONNECTOR

4

FOUR LEVEL CONTROLS

Adjusts the level of the audio signal of the respective
source in the output mix

1

UNBALANCED LINE LEVEL

6.35mm jack socket input connector

2

UNBALANCED LINE LEVEL

6.35mm jack socket output connector (in parallel with
jack input connector)

3

BALANCED LINE LEVEL XLR OUTPUT
CONNECTOR

4

GROUND LIFT SWITCH

Pin1 lift on transformer isolated XLR output. Set to
“GND” to connect pin 1 of output XLR connector to pin
1 of input XLR connectors. Set to “Lift” to disconnect
pin1 output XLR connector

5

PAD SWITCH.

Set to “0dB’ to allow the audio signal to not be attenu­ated. Set to “-20dB” to reduce the signal level on the
XLR output connector by 20dB. Set to “-40dB” to reduce
the signal level on the XLR output connector by 40dB.

PA GE 9AU D IO C ON T RA CT OR T OO LS

S P E C I F IC AT I ON S

ALL AUDIO CONTRACTOR TOOLS DIMENSIONS

WEIGHT 1KG

SHIPPING DIMENSIONS 300X200X100MM

SHIPPING WEIGHT 2KG

LETS SPLIT(L)

Frequency Response 10Hz - 60kHz
THD <0.005%
Output impedance 110 Ohms
Max Input at 1kHz >+30dBu
Max Input at 50Hz >+4dBu

LETS SPLIT(M)

Frequency Response 10Hz - 60kHz
THD <0.005%
Output impedance 110 Ohms
Max Input at 1kHz >+30dBu
Max Input at 50Hz >+4dBu

GET DOWN

Frequency Response 10Hz - 100kHz
THD <0.005%
Noise + Hum <-85dBu
Max Input +22dBu
Stereo seperation -68dB

GET UP

Frequency Response 35Hz - 80kHz
THD <0.02%
Noise + Hum <-74dBu
Max Input +30dBu
Stereo seperation -52dB

JUICED UP

Frequency Response 50Hz - 77kHz
THD <0.07%

PRE ME

Frequency Response 80Hz - 30kHz
THD <0.3%
Noise + Hum <-86dBu
Mic Max Input -10dBu
Line Max Input +16dBu
RCA Max Input +24dBu
Phantom Power 40V
Mic Gain +39dB
Line Gain +12dB
RCA Gain +4.5dB
Max Out +8dBu
Output Impedance 200 Ohms
Mic Input impedance 1k5 Ohms
Line Input Impedance 27k5 Ohms
RCA Input Impedance 29k Ohms

HUM ELIMINATOR

Frequency Response 10Hz - 80kHz
THD <0.006%
Output impedance 750 Ohms
Max Input at 1kHz >+30dBu
Max Input at 50Hz >+20dBu

DROP ME

Frequency Response 10Hz - 60kHz
THD <0.005%

MULTI CAN

Frequency Response 10Hz - 29kHz
THD <0.03%
Output impedance 50 Ohms
Max Output Power 7.5mW
Noise + Hum -91dBu
Stereo seperation -63dB

PA GE 1 0 AU D IO C ON T RA CT OR T OO LS

MIXED UP

Frequency Response 10Hz - 60kHz
THD <0.005%

THE INJECTOR

Frequency Response 13Hz - 44kHz
THD <0.07% at +30dBu
Output impedance 250 Ohms

N O T E S

PA GE 1 1AU D IO C ON T RA CT OR T OO LS

AUSTR ALI A AN D N EW Z EAL A ND

w w w. a us t ra li a nm o ni t or. c o m. a u

SY DNE Y

(NSW & ACT SALES)

1 Clyde Street

Silverwater

NSW 2128

Private Bag 149

Silverwater NSW 1811

Phone: [phone]

Fax: [phone]

Email:

[e-mail]

ME LBO URN E

(VIC & TAS SALES)

22/277

Middleborough Road

Box Hill VIC 3128

PO Box 151 Blackburn

South VIC 3130

Phone: [phone]

Fax: [phone]

Email:

[e-mail]

BR ISB ANE

(QLD SALES)

42 Commercial Road

Fortitude Valley

QLD 4006

PO Box 871 Fortitude

Valley QLD 4006

Phone: [phone]

Fax: [phone]

Email:

[e-mail]

EURO PE / AS IA / MI DDL E EA ST

w w w. a us t ra li a nm o ni t or. c o m. a u

IN TER NATI ONA L S ALE S

1 Clyde Street Silverwater NSW 2128 Australia

Private Bag 149 Silverwater NSW 1811

Phone: [phone]

Fax: [phone]

Email:

[e-mail]

AD ELA IDE

(SA & NT SALES)

31 Walsh Street

Thebarton

SA 5031

PO Box 157

Hindmarsh SA 5007

Phone: [phone]

Fax: [phone]

Email:

[e-mail]

PE RTH

(WA SALES)

3/11 Howe Street

Osborne Park WA 6017

PO Box 1281

Osborne Park

BC WA 6916

Phone: [phone]

Fax: [phone]

Email:

[e-mail]

AU C K LAND

(NZ SALES)

9C Piermark Drive

Albany 0752

New Zealand

PO Box 300-512

Albany 0752

Phone: [phone]

Fax: [phone]

Email:

[e-mail]
