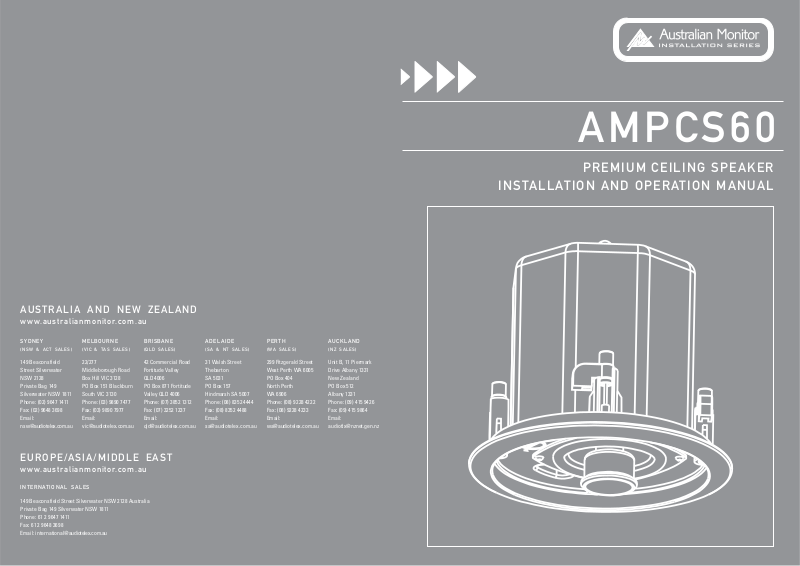

AMPCS60

PREMIUM CEILING SPEAKER

INSTALLATION AND OPERATION MANUAL

SYDNEY

(NSW & ACT SALES)

149 Beaconsfield
Street Silverwater
NSW 2128
Private Bag 149
Silverwater NSW 1811
Phone: [phone]
Fax: [phone]
Email:
[e-mail]

MELBOURNE

(VIC & TAS SALES)

22/277
Middleborough Road
Box Hill VIC 3128
PO Box 151 Blackburn
South VIC 3130
Phone: [phone]
Fax: [phone]
Email:
[e-mail]

BRISBANE

(QLD SALES)

42 Commercial Road
Fortitude Valley
QLD 4006
PO Box 871 Fortitude
Valley QLD 4006
Phone: [phone]
Fax: [phone]
Email:
[e-mail]

EUROPE/ASIA/MIDDLE EAST

www.australianmonitor.com.au

INTERNATIONAL SALES

149 Beaconsfield Street Silverwater NSW 2128 Australia
Private Bag 149 Silverwater NSW 1811
Phone: [phone]
Fax: [phone]
Email: [e-mail]

ADELAIDE

(SA & NT SALES)

31 Walsh Street
Thebarton
SA 5031
PO Box 157
Hindmarsh SA 5007
Phone: [phone]
Fax: [phone]
Email:
[e-mail]

PERTH

(WA SALES)

299 Fitzgerald Street
West Perth WA 6005
PO Box 404
North Perth
WA 6906
Phone: [phone]
Fax: [phone]
Email:
[e-mail]

AUCKLAND

(NZ SALES)

Unit B, 11 Piermark
Drive Albany 1331
New Zealand
PO Box 512
Albany 1331
Phone: [phone]
Fax: [phone]
Email:
[e-mail]

1. Save the carton and packing material even if the equipment has
arrived in good condition. Should you ever need to ship the unit,
use only the original factory packing.

2. Read all documentation before operating your equipment.
Retain all documentation for future reference.

3. Follow all instructions printed on unit chassis for proper operation.

4. Do not spill water or other liquids into or on the unit, or operate the
unit while standing in liquid.

5. Make sure power outlets conform to the power requirements listed
on the back of the unit.

6. Do not use the unit if the electrical power cord is frayed or broken.
The power supply cords should be routed so that they are not likely
to be walked on or pinched by items placed upon or against them,
paying particular attention to cords and plugs, convenience
receptacles, and the point where they exit from the appliance.

7. Always operate the unit with the AC ground wire connected to the
electrical system ground. Precautions should be taken so that the
means of grounding of a piece of equipment is not defeated.

8. Mains voltage must be correct and the same as that printed on the
rear of the unit. Damage caused by connection to improper AC

voltage is not covered by any warranty.

9. Have gain controls on amplifiers turned down during power-up to
prevent speaker damage if there are high signal levels at the
inputs.

10. Power down & disconnect units from mains voltage before making
connections.

11. Never hold a power switch in the “ON” position if it won’t stay
there itself!

12. Do not use the unit near stoves, heat registers, radiators, or other
heat producing devices

13. Do not block fan intake or exhaust ports. Do not operate
equipment on a surface or in an environment which may impede
the normal flow of air around the unit, such as a bed, rug,
weathersheet, carpet, or completely enclosed rack. If the unit
is used in an extremely dusty or smoky environment, the unit
should be periodically “blown free” of foreign matter.

14. Do not remove the cover. Removing the cover will expose you to
potentially dangerous voltages. There are no user serviceable
parts inside.

15. Do not drive the inputs with a signal level greater than that
required to drive equipment to full output.

16. Do not connect the inputs / outputs of amplifiers or consoles to
any other voltage source, such as a battery, mains source, or
power supply, regardless of whether the amplifier or console is
turned on or off.

17. Do not run the output of any amplifier channel back into another
channel’s input. Do not parallel- or series-connect an amplifier
output with any other amplifier output.

Australian Monitor Inc is not responsible for damage to
loudspeakers for any reason.

18. Do not ground any red (“hot”) terminal. Never connect a “hot”
(red) output to ground or to another “hot” (red) output!

19. Non-use periods. The power cord of equipment should be unplugged
from the outlet when left unused for a long period of time.

20. Service Information Equipment should be serviced by qualified
service personnel when:

A. The power supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the

equipment
C. The equipment has been exposed to rain
D. The equipment does not appear to operate normally,

or exhibits a marked change in performance
E. The equipment has been dropped, or the enclosure damaged.

IMPORTANT SAFETY INFORMATION

THIS SAFETY INFORMATION IS OF A GENERAL NATURE AND MAY BE SUPERSEDED BY INSTRUCTIONS CONTAINED WITHIN THIS MANUAL

INTRODUCTION AND CONTENTS

Thank you for choosing the Australian
Monitor AMPCS60 premium ceiling
speaker.

The AMPCS60 has been developed using
innovative design and materials to meet
the demanding constraints of high quality
foreground/background sound
reproduction from a ceiling-mounted
speaker. Featuring a sealed metal back box,
the 6.5" woofer gives superior bass
response to a conventional ceiling speaker.
The 3/4" titanium tweeter is horn-loaded
to maximize high-frequency coverage.

Rated at 60 watts, with 70/100V tappings
at 7.5, 15, 30 and 60 watts, the AMPCS60
also features a 16 ohm transformer bypass
setting.

Included mounting hardware give ease of
installation combined with safety.

FEATURES 2

INSTALLATION 3

SPECIFICATIONS 8

AUS, EUR, USA

Copyright 7 Nov 2005

Rev A: 7 Nov 2005

Caution:

This symbol is intended to alert the user to the presence

of uninsulated “dangerous voltage” within the product’s

enclosure that may be of sufficient magnitude to

constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence

of important operation and maintenance (servicing)

instructions in the literature accompanying the appliance.

To prevent electric shock do not use this (polarised) plug

with an extension cord, receptacle or other outlet unless

the blades can be fully inserted to prevent blade exposure.

To prevent electric shock, match wide blade of plug to

wide slot, fully insert.
