Page 1
Manual Number: 131120
USERS GUIDE
DXE-USB Series
USB 2.0 CAT 6 480Mbps 220’ Extender
i
Page 2
User Guide
The lightning symbol in the triangle is used to alert you to the presence of dangerous voltage
inside the product that may be sufficient to constitute a risk of electric shock to anyone opening
the case. It is also used to indicate improper installation or handling of the product that could
damage the electrical system in the product or in other equipment attached to the product.
The exclamation point in the triangle is used to alert you to important operating and maintenance
instructions. Failure to follow these instructions could result in injury to you or damage to the
product.
SAFETY INSTRUCTIONS
Please review the following safety precautions. If this is the first time using this model, then read this manual
before installing or using the product. If the product is not functioning properly, please contact your local
dealer or Aurora for further instructions.
Be careful with electricity:
Power outlet: To prevent electric shock, be sure the electrical plug used on the product power cord
matches the electrical outlet used to supply power to the Aurora product. Use only the power adapter
and power connection cables designed for this unit.
Power cord: Be sure the power cord is routed so that it will not be stepped on or pinched by heavy
items.
Lightning: For protection from lightning or when the product is left unattended for a long period,
disconnect it from the power source.
.
Also follow these precautions:
Ventilation: Do not block the ventilation slots if applicable on the product or place any heavy object on
top of it.
Blocking the air flow could cause damage. Arrange components so that air can flow freely. Ensure that
there is adequate ventilation if the product is placed in a stand or cabinet. Put the product in a properly
ventilated area, away from direct sunlight or any source of heat.
Overheating: Avoid stacking the Aurora product on top of a hot component such as a power amplifier.
Risk of Fire: Do not place unit on top of any easily combustible material, such as carpet or fabric.
Proper Connections: Be sure all cables and equipment are connected to the unit as described in this
manual.
Object Entry: To avoid electric shock, never stick anything in the slots on the case or remove the cover.
Water Exposure: To reduce the risk of fire or electric shock, do not expose to rain or moisture.
Cleaning: Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the
device before cleaning.
ESD: Handle this unit with proper ESD care. Failure to do so can result in failure.
FCC
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired
operation.
Trademarks
All trademarks in this document are the properties of their respective owners.
i
Page 3
User Guide
TABLE OF CONTENTS
PACKAGE CONTENTS ............................................................................................................. 1
INTRODUCTION ........................................................................................................................ 2
About ..................................................................................................................................................... 2
Features ................................................................................................................................................ 2
Front DXE-USB-H1, DXE-USB-D1 ....................................................................................................... 3
Rear Panel DXE-USB-H1, DXE-USB-D1, DXE-USB-D1P ................................................................... 4
APPLICATIONS ......................................................................................................................... 5
Example 1 DXE-USB-H1 Connected to DXE-USB-D1......................................................................... 5
Example 2 DXW-2EU Connected to DXE-USB-H1 .............................................................................. 6
Example 3 DXW-2EUH Connected to DXE-USB-D1P ......................................................................... 7
OPERATION .............................................................................................................................. 8

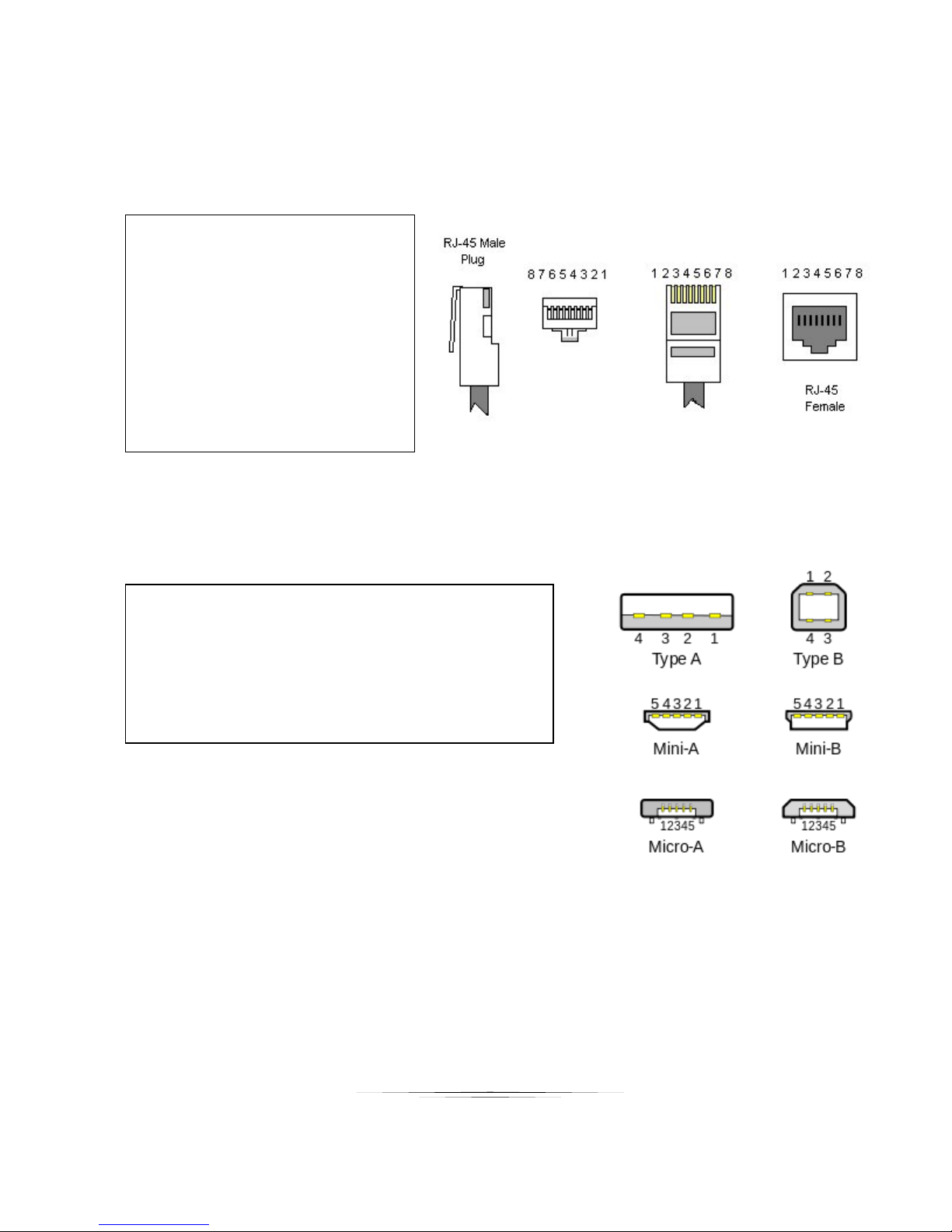

CONNECTOR PIN DEFINITION ................................................................................................ 9
CAT6 Extender Port .............................................................................................................................. 9
USB ....................................................................................................................................................... 9
CAT5e/6/6A ......................................................................................................................................... 10
APPENDIX 1 Troubleshooting ........................................................................................... 11
APPENDIX 2 Technical Specifications .............................................................................. 12
APPENDIX 3 Warranty ....................................................................................................... 13
ii
Page 4
User Guide
PACKAGE CONTENTS
Please make sure the following items are included within your package. Contact your dealer if any items
are missing or damaged.
DXE-USB-S1
1 qty DXE-USB-H1 Host Side (PC) Extender
1 qty DXE-USB-D1 Device Side Extender
1 qty CA0056-1 Mini USB Type B (5 pin) to USB Type A cable for H1
2 qty EN0156-1 Mounting Ears
4 qty HD0026-2 4/40” Mounting Ear Black Countersunk Screws
1 qty PS0053-1 24v DC 15.5 Watt Power Supply
DXE-USB-H1
1 qty DXE-USB-H1 Host Side (PC) Extender
1 qty Mini USB Type B (5 pin) to USB Type A cable for H1
2 qty EN0156-1 Mounting Ears
4 qty HD0026-2 4/40” Mounting Ear Black Countersunk Screws
DXE-USB-D1
1 qty DXE-USB-D1 Device Side Extender
2 qty EN0156-1 Mounting Ears
4 qty HD0026-2 4/40” Mounting Ear Black Countersunk Screws
DXE-USB-D1P
1 qty DXE-USB-D1 Device Side Extender
2 qty EN0156-1 Mounting Ears
4 qty HD0026-2 4/40” Mounting Ear Black Countersunk Screws
1 qty PS0053-1 24v DC 15.5 Watt Power Supply
Optional Accessories
PS0053-1 24v DC 15.5 Watt power Supply
PS0062-1 24v DC 24 Watt power Supply
Note: Go to www.auroramm.com for latest manual and firmware
1
Page 5
User Guide
INTRODUCTION
About
The DXE-USB Series is a single cable USB extender capable of transmitting bi-directional USB
2.0 over a CAT 5e/6 cable. Together (DXE-USB-S1) the DXE-USB-H1 (Host PC Side) & DXEUSB-D1 (Device Accessory Side) work together to extend to USB up to 220 feet at a full 480Mbps.
To make installations easier the DXE-USB-D1 receives it power over the CAT cable from the
DXE-USB-H1 and has dual USB ports with the built in hub. Both units can be ordered individually
to work with other devices such as the DXW-2EU which also has USB extension capabilities.
Even better the DXE-USB-D1 can supply up to 1A of power allowing for use with power hungry
devices like "Smart Boards", touch screens, tablet charging, etc. Low cost, low power, simplicity,
and compatibility with other Aurora USB extender products makes the DXE-USB the solution of
choice.
Features
USB 2.0 Using Single CAT 6 Shielded Cable
480Mbps Data Rate
Up to 220ft distance
Remote power of DXE-USB-D1 (Device Side)
2 Port Hub (DXE-USB-D1)
Supplies up to 1A of power on USB. Can charge tablets and easily handle "Smart Boards" and
touch screens
DXE-USB-H1 (Host Side) designed to work with DXW-2EU
DXE-USB-D1P (Device Side with Local Power) designed for DXE-2EUH
Status LEDs
Small Size 78mm x 61mm x 25.4mm
Low Power
Warning: Do not plug RJ-45 into a device other than a DXE-USB compliant device or damage may occur to
either product.
2
Page 6
User Guide

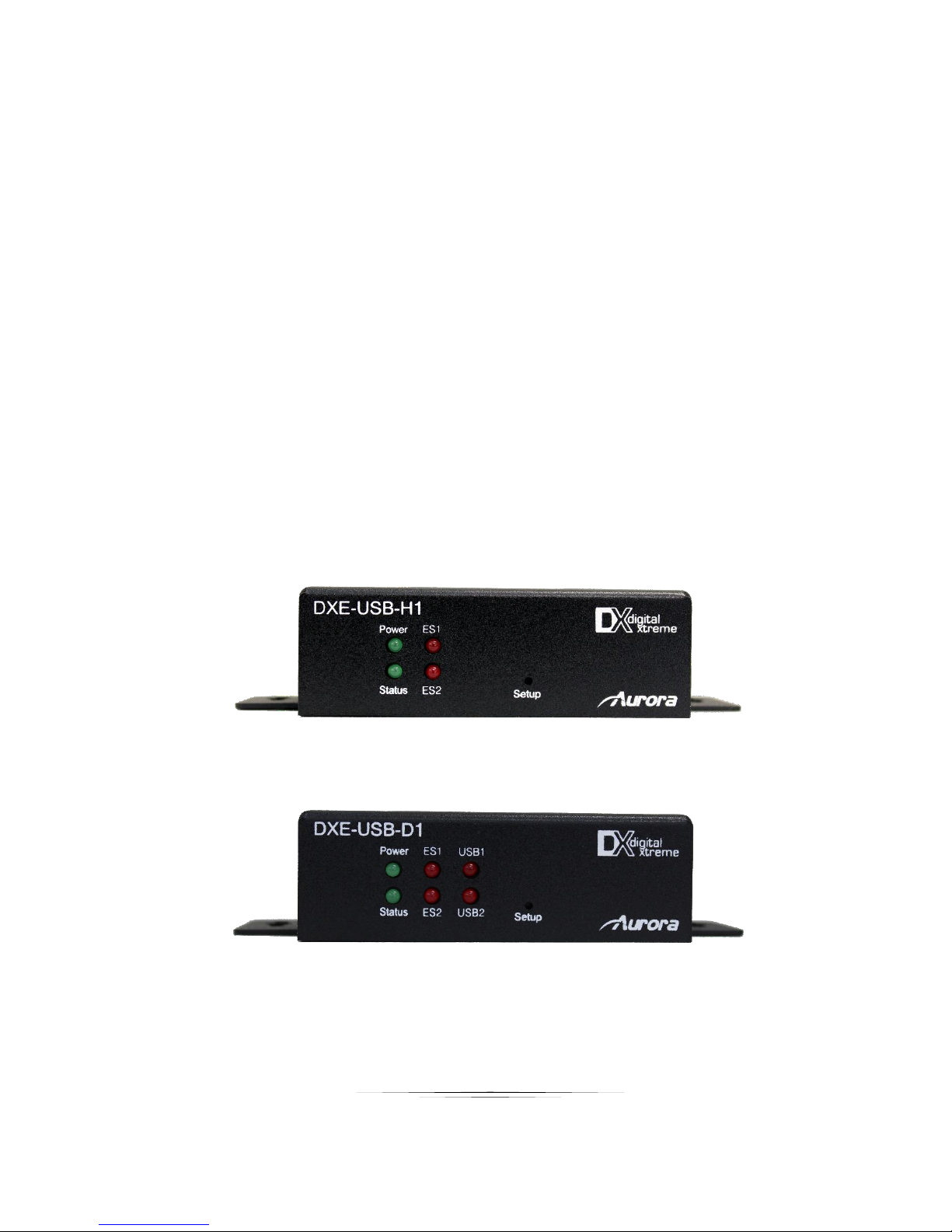

Front DXE-USB-H1, DXE-USB-D1
DXE-USB-H1 Front
Power LED – Lights solid green when unit is powered.
Status LED – Blinks green when processor is running.
ES1 & ES2 LEDs – Lights red when setup button is pushed to indicate what mode of
operation the unit is in. Currently ES LEDs are used for distance settings.
Setup Button – Use a paper clip or object of similar size in the hole to push the button. For
every push the ES LEDs will change its indication for the current mode of operation.
DXE-USB-D1 / D1P Front
Power LED – Lights solid green when unit is powered.
Status LED – Blinks green when processor is running.
ES1 & ES2 LEDs – Lights red when setup button is pushed to indicate what mode of
operation the unit is in. Currently ES LEDs are used for distance settings.
USB1 LED – Lights red when a USB device is plugged into USB port 1 and communicating
with PC.
USB2 LED – Lights red when a USB device is plugged into USB port 2 and communicating
with PC.
Setup Button – Use a paper clip or object of similar size in the hole to push the button. For
every push the ES LEDs will change its indication for the current mode of operation.
Note: DXE-USB-D1P front silk screen is same as D1. The difference is on the rear as it has a 24v DC
power jack whereby the D1 does not. The D1P model is primarily used with the DXW-2EUH.
3
Page 7
User Guide

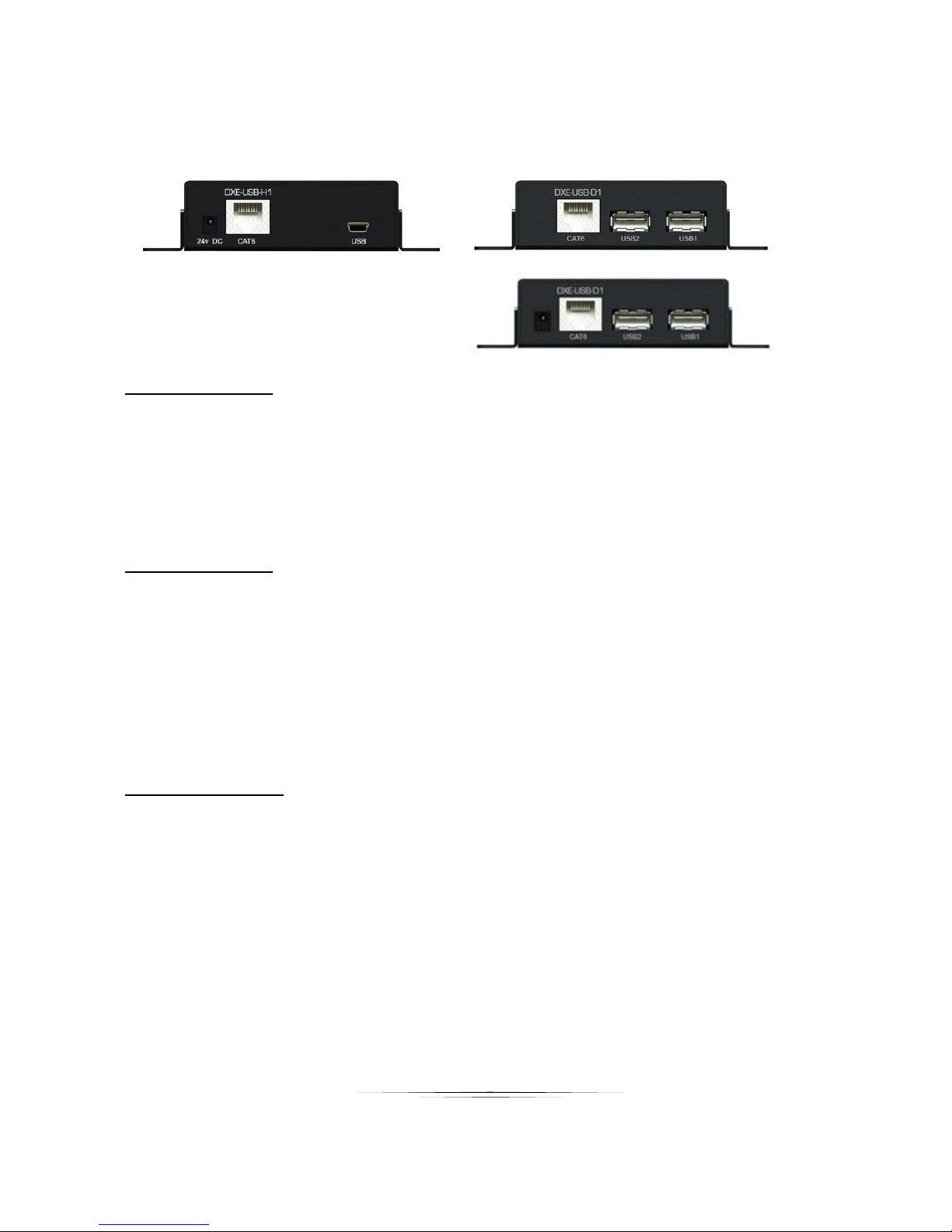

Rear Panel DXE-USB-H1, DXE-USB-D1, DXE-USB-D1P
DXE-USB-H1 Rear
24V DC – Power connector for 24v DC power supply.
CAT6 – Connect a standard RJ-45 CAT6 cable to a DXE-USB-D1 / D1P or DXW-2EU.
USB – Connect this Mini USB Type B connector to a PC (Host) using the supplied cable.
DXE-USB-D1 Rear
CAT6 – Connect a standard RJ-45 CAT6 cable to a DXE-USB-D1 / D1P or DXW-2EU.
USB1 – Connect this Type A USB port to a device like a keyboard, mouse, memory stick,
touch panel, etc.
USB2 – Connect this Type A USB port to a device like a keyboard, mouse, memory stick,
touch panel, etc.
DXE-USB-D1P Rear
24V DC – Power connector for 24v DC power supply.
CAT6 – Connect a standard RJ-45 CAT6 cable to a DXE-USB-D1 / D1P or DXW-2EU.
USB1 – Connect this Type A USB port to a device like a keyboard, mouse, memory stick,
touch panel, etc.
USB2 – Connect this Type A USB port to a device like a keyboard, mouse, memory stick,
touch panel, etc.
Note: DXE-USB-D1P rear silk screen is same as D1. The difference is on the rear as it has a 24v DC
power jack whereby the D1 does not. The D1P model is primarily used with the DXW-2EUH.
4
Page 8
User Guide

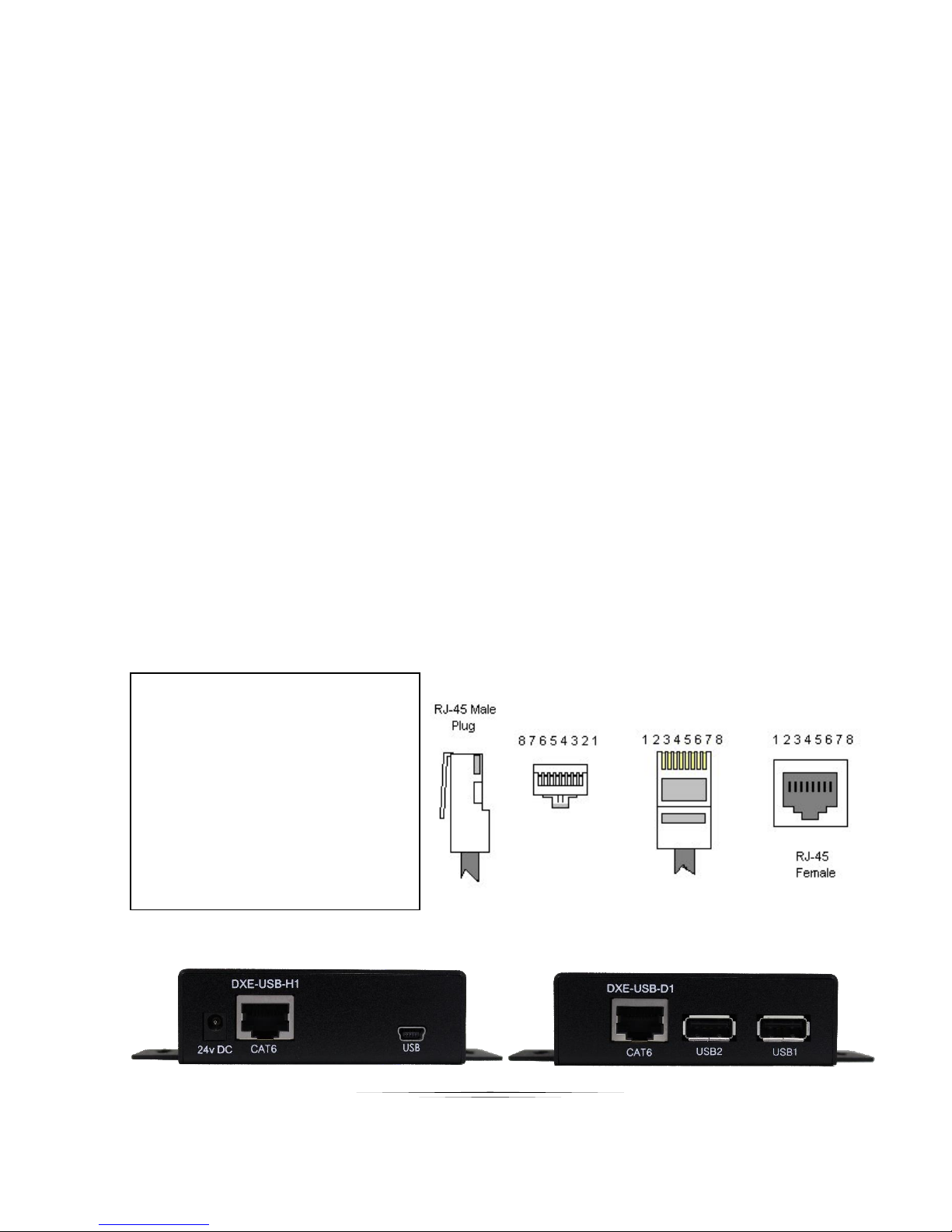

APPLICATIONS
1- DM
2- DP
3- 24V DC
4- Host Detect
5- Device Detect
6- GND
7- QM
8- QP
Example 1 DXE-USB-H1 Connected to DXE-USB-D1
The DXE-USB-H1 (Host Unit) will be located by the computer using the Mini USB to
USB Type A Male cable that is supplied with the DXE-USB-H1. Power will be drawn
from the computer’s USB port for the H1. The 24v DC must be connected to power the
remote DXE-USB-D1. The DXE-USB-D1 will supply 5v to the USB connectors for local
charging even if the DXE-USB-H1 is not connected to a PC as long as the 24v DC is
connected. Please note many tablet devices have proprietary charging circuits and may
not fast charge.

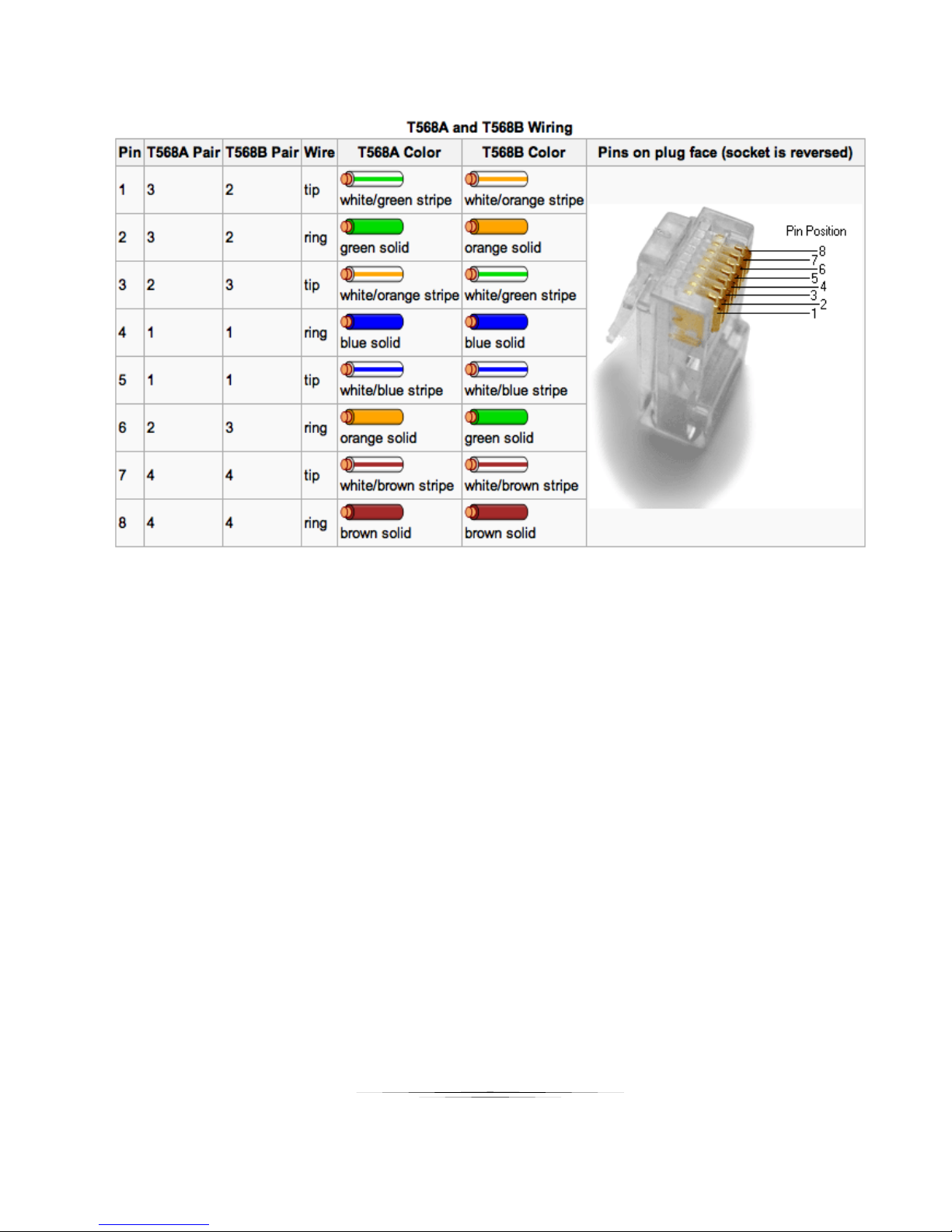

The RJ-45 of the DXE-USB-H1 labeled CAT 6 will connect to the DXE-USB-D1 CAT 6
port using a standard pin for pin T568A or B style LAN termination. (See connector
definition section)
IMPORTANT!!! Shielded cable terminated at both ends must be used or damage
may occur. The DXE-USB will use it for power ground. Pin 6 gnd will not be
enough to handle the load.
5
Page 9
User Guide

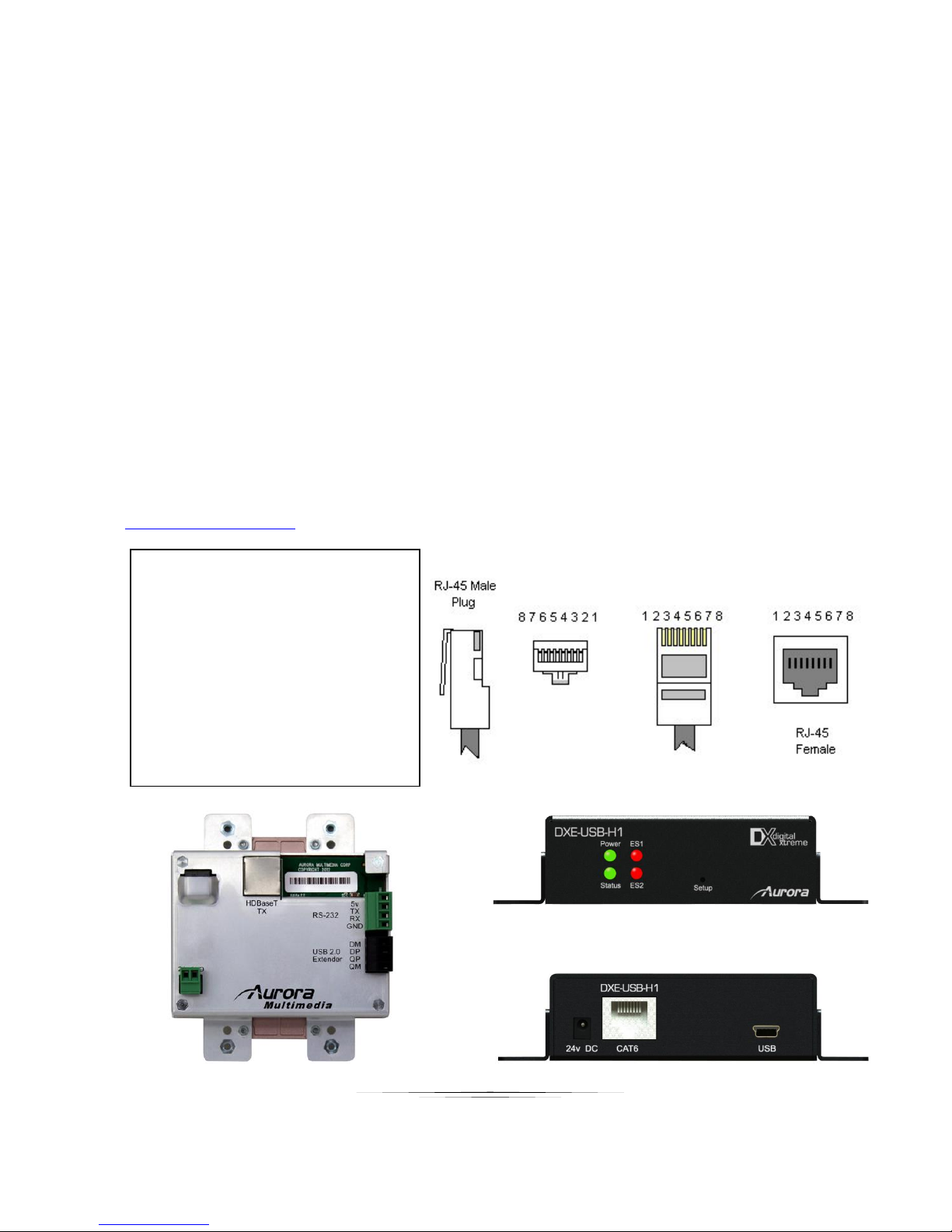

Example 2 DXW-2EU Connected to DXE-USB-H1
1- DM
2- DP
3- 24V DC (Do not connect)
4- Host Detect (Do not connect)
5- Device Detect (Connect to 5V)
6- GND
7- QM
8- QP
The DXE-USB-H1 (Host Unit) will be located by the computer using the Mini USB to
USB Type A Male cable that is supplied with the DXE-USB-H1. The 24v DC is not
required to be connected when used with the DXW-2EU. Power will be drawn from the
computer. The DXW-2EU will supply 5v to the USB connectors for local charging even if
the DXE-USB-H1 is not connected as it derives its power from the HDBaseT
connection. Please note many tablet devices have proprietary charging circuits and may
not fast charge.
The RJ-45 of the DXE-USB-H1 will connect to the DXW-2EU USB 2.0 3.5mm black
connector and the RS-232 3.81mm green connector (power & ground only). The pin-out
for the RJ-45 is noted below.
More information on the DXE-USB-H1 can be found on the Aurora website
www.auroramm.com
6
Page 10
User Guide

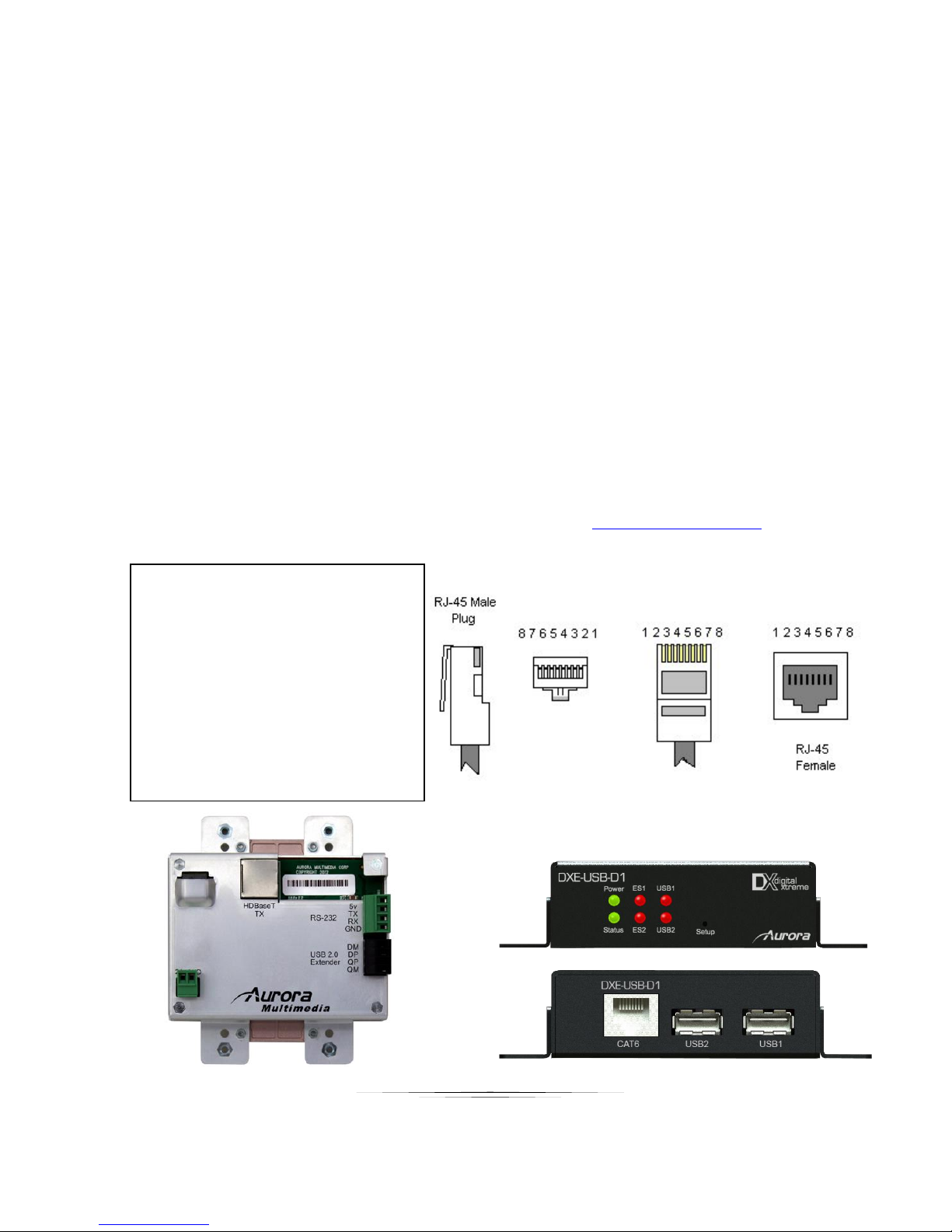

Example 3 DXW-2EUH Connected to DXE-USB-D1P
1- DM
2- DP
3- 24V DC (Do not connect)
4- Host Detect (Connect to 5V)
5- Device Detect (Connect to RX)
6- GND
7- QM
8- QP
The DXE-USB-D1P (Device Unit with 24v DC supply) will be located by the product
using the USB Type A connectors (ex. Keyboard, mouse, etc). The DXW-2EUH will
supply 5v to the USB connectors for local charging even if the DXE-USB-D1P is not
connected as it derives its power from the HDBaseT connection. Please note many
tablet devices have proprietary charging circuits and may not fast charge. The top USB
port of the DXW-2EUH is the Host and the bottom connector is for charging only. The
top Host port will connect to the PC USB port via supplied USB Type A to Type A cable.
The RJ-45 of the DXE-USB-D1P will connect to the DXW-2EUH USB 2.0 3.5mm black
connector and the RS-232 3.81mm green connector (power & ground only). The pin-out
for the RJ-45 is noted below. Note the RS-232 RX will be used as a detect line but the
TX will still work for RS-232.
More information on the DXE-USB-D1P can be found at www.auroramm.com
7
Page 11
User Guide
OPERATION
The DXE-USB Series has the ability to send USB 2.0 up to 220ft at a data rate of 480Mbps. The
DXE-USB-H1 is the host extender that will sit by the computer. It is powered from the USB port
itself of the computer. The 24v DC plug is specifically to power the remote DXE-USB-D1 so no
power is needed at the other end for the D1. The D1 is a 2 port hub for the remote devices. If it is
properly communicating with the computer over the CAT6 cable the USB1 or 2 light will illuminate
accordingly and the computer will see the device(s). Please note if the peripheral you are using
on the D1 does not work directly plugged into the computer then it will not work through the
extender. It is always best to verify operation first directly with the computer on the same USB
port of the computer. Some devices do not work well on hubs with other devices. If two devices
are plugged in at the same time try removing both then plugging in one or the other to see if
operation resumes.
For best operation try to use a direct USB port not a USB port from a HUB as performance may
be degraded.
8
Page 12
User Guide
CONNECTOR PIN DEFINITION
1- DM
2- DP
3- 24V DC
4- Host Detect
5- Device Detect
6- GND
7- QM
8- QP
1- VCC (+5V)
2- D- (Data-)
3- D+ (Data+)
4- ID (5 pin Micro & Mini) or GND (4 pin Type A or B)
5- GND (Ground 5 pin Micro & Mini only)
CAT6 Extender Port
USB
9
Page 13
User Guide
CAT5e/6/6A
1. All transmission distances are measured using Belden 1583A CAT5e 125MHz Solid UTP cable. The transmission distance is
defined as the distance between the video source and the display.
2. To reduce the interference among the unshielded twisted pairs of wires in UTP cable, you can use shielded STP cables to
improve EMI problems, which is worsen in long transmission.
10
Page 14
User Guide
APPENDIX 1 Troubleshooting
Problem
Solution
1. Power LED is not lit on D1
a. Check 24v power supply is plugged in on H1 unit.
b. Check to see if Wall supply is plugged into wall outlet.
c. Make certain wall outlet has power.
d. Verify CAT6 cable connection
2. Power LED is not lit on D1P
e. Check 24v power supply is plugged in on D1P unit.
f. Check to see if Wall supply is plugged into wall outlet.
g. Make certain wall outlet has power.
3. Power LED is not lit on H1
a. Check H1 USB connection to computer.
b. Make certain computer is on.
4. USB not charging on D1
a. Total power between the 2 ports is 5 watts. If exceeded the fuse
protection will kick in until within specification. Try connecting one
device at a time to make certain it works before plugging in 2 devices.
b. iPad® & iPhone® require DXE-USB-H1 connected to PC in order to
charge. iPad® will maintain power but not charge.
5. USB not working
a. Make certain DXE-USB-H1 is connected to PC
b. Make certain the cabling is correct.
6. Device does not show up on PC
a. Plug device direct into same port as H1 to verify PC can detect device
without the extender.
b. If 2 devices unplug both than try one at a time. Some devices do not
work well on hubs.
Warning: Do not plug RJ-45 to non-compliant DXE-USB device or damage may
occur to either product.
IMPORTANT!!! When using 24v DC remote power from H1 to D1 shielded cable
terminated at both ends must be used or damage may occur. The DXE-USB will
use it for power ground. Pin 6 gnd will not be enough to handle the load.
11
Page 15
User Guide
APPENDIX 2 Technical Specifications
Model Name
DXE-USB
Technical
DXE-USB Series
USB 2.0 Distance
220ft CAT 6
Front Selections
Paperclip hole setup button
Front LED for H1
Power, Status, ES1, ES2
Front LED for D1 / D1P
Power, Status, ES1, ES2, USB1, USB2
CAT 6 Extender Connector
RJ-45 WE/SS 8P8C Right Angle
D1 / DP USB Connector
Type A
H1 USB Connector
Mini Type B 5 Pin
Power Connector
Diameter 1.35mm ID, 3.5mm OD
Mechanical
DXE-USB Series
Housing
Aluminum painted black
Dimensions [L x W x D]
3” x 2.42” x 1” (78mm x 61mm x 25.4mm)
Weight
DXE-USB-D1: .207lbs (93.89g) DXE-USB-H1: .193lbs (87.54g)
Mounting
Wall Mounting (Detachable right angle ears)
Power supply
24 .65A DC
Power consumption
DXE-USB-D1 / D1P: 1.37 Watts DXE-USB-H1: .575 Watts
USB Available Power
DXE-USB-D1 / D1P: 5 Watts total between port 1 & 2
Operation temperature
0~40C [32~104F]
Storage temperature
-20~60C [-4~140F]
Relative humidity
20~90% RH [no condensation]
Package Contents
DXE-USB-S1
1x DXE-USB-D1 Device Side / 1x DXE-USB-H1 Host Side
1x CA0056-1 USB Mini Type B to USB Type A
1x PS0053-1 24v DC Power Supply
2x EN0156-1 Mounting Ears
4x HD0026-2 4/40” Mounting Ear Black Countersunk Screws
DXE-USB-H1
1x DXE-USB-H1 Host Side
1x CA0056-1 USB Mini Type B to USB Type A
2x EN0156-1 Mounting Ears
4x HD0026-2 4/40” Mounting Ear Black Countersunk Screws
DXE-USB-D1
1x DXE-USB-D1 Device Side
2x EN0156-1 Mounting Ears
4x HD0026-2 4/40” Mounting Ear Black Countersunk Screws
DXE-USB-D1P
1x DXE-USB-D1 Device Side
1x PS0053-1 24v DC Power Supply
2x EN0156-1 Mounting Ears
4x HD0026-2 4/40” Mounting Ear Black Countersunk Screws
Options
PS0053-1 24v DC 15.5 Watt power Supply
PS0062-1 24v DC 24 Watt power Supply
Specifications subject to change without notice.
12
Page 16
User Guide
APPENDIX 3 Warranty
Limited 3 Year Warranty
Aurora Multimedia Corp. (“Manufacturer”) warrants that this product is free of defects in both materials and
workmanship for a period of 3 years as defined herein for parts and labor from date of purchase. This Limited Warranty
covers products purchased in the year of 2009 and after. Motorized mechanical parts (Hard Drives, DVD, etc),
mechanical parts (buttons, doors, etc), remotes and cables are covered for a period of 1 year. Touch screen displays
are covered for 1 year; touch screen overlay components are covered for 90 days. Supplied batteries are not covered
by this warranty. During the warranty period, and upon proof of purchase, the product will be repaired or replaced (with
same or similar model) at our option without charge for parts or labor for the specified product lifetime warranty period.
This warranty shall not apply if any of the following:
A. The product has been damaged by negligence, accident, lightning, water, act-of-God or mishandling; or,
B. The product has not been operated in accordance with procedures specified in operating instructions: or,
C. The product has been repaired and or altered by other than manufacturer or authorized service center; or,
D. The product's original serial number has been modified or removed: or,
E. External equipment other than supplied by manufacturer, in determination of manufacturer, shall have
affected the performance, safety or reliability of the product.
F. Part(s) are no longer available for product.
In the event that the product needs repair or replacement during the specified warranty period, product should be
shipped back to Manufacturer at Purchaser's expense. Repaired or replaced product shall be returned to Purchaser
by standard shipping methods at Manufacturer's discretion. Express shipping will be at the expense of the Purchaser.
If Purchaser resides outside the contiguous US, return shipping shall be at Purchaser's expense.
No other warranty, express or implied other than Manufacturer's shall apply.
Manufacturer does not assume any responsibility for consequential damages, expenses or loss of revenue or property,
inconvenience or interruption in operation experienced by the customer due to a malfunction of the purchased
equipment. No warranty service performed on any product shall extend the applicable warranty period. This warranty
does not cover damage to the equipment during shipping and Manufacturer assumes no responsibility for such
damage.
13
Page 17
User Guide
This product warranty extends to the original purchaser only and will be null and void upon any assignment or
Aurora Multimedia Corp.
205 Commercial Court
Morganville, NJ 07751
Phone: 732-591-5800 Fax: 732-591-6801
www.auroramm.com
14
Loading...
