PACKAGE CONTENTS
1 x The Aurora DXM-G4 Series Matrix (DXM-88-G4 or DXM-1616-G4)
1 x Power cord
INTRODUCTION
Description
The Aurora DXM-G4 Series Matrix is a modular multi-format matrix for 4K Ultra-HD video signal and audio management. The device supports flexible video I/O configurations:
• DXM-G4 Series Matrix 8C: Slot 1 to 6 for in- or output cards, Slot 7+8 for output cards
• DXM-G4 Series Matrix 16C: Slot 1 to 12 for in- or output cards, Slot 13 to 16 for output cards
• DXM-G4 Series Matrix 32C: Slot 1 to 24 for in- or output cards, Slot 25 to 32 for output cards DXM-G4 Series Matrix can be configured with optional I/O modules for the following signal types: HDMI (DVI), HDBT and VGA video format. Optional HDMI scaler output cards allow seamless switching. The current input/output status is displayed on a front LCD touch display.
Safety Instructions
Please read the instructions carefully and store them
The switch must be operated at safety low voltage
Make sure that there is sufficient ventilation for all devices
The unit may only be stored and used in a dry place
Please note the safety instructions of the connected equipment
User Guide
2
PRODUCT SERIES DESCRIPTION
Matrix Technical Parameters
Type MVP-
8C (N)
MVP-16C MVP-32C
Size 2Urack mounted
3Urack mounted
5.5Urackmounte d
Port number 8 16 32
Maximum AV
in/out channel
The 7~8 are fixation output channel the 1~6 are input or output channel
The 13~16 are fixation output channel the 1~12 are input or output channel
The 25~32 are fixation output channel
The 1~24 are input or output channel
Center control
number
Not supported 1
Power input AC 100 – 240V 50Hz/60Hz
Power output 24V 4 A 27V 7.5A 28V 11A
Power
dissipation
≤ 96 W ≤ 202.5 W ≤ 308 W
Fuse standard 220 V 1.5A
Redundant
power
Storage
temperature/h
umidity
-20 85 / 20%60%
Operating
temperature/h
umidity
0 60/ 10%80%
Altitude limit
0 2000m
Air pressure
limit
≤ 79.5 kPa
Signal type TMDS
Lever
+0.6 V +1.2 V
Maximum
TMDS
bandwidth
6 G bit/s
Maximum
connector
bandwidth
6 G bit/s
Maximum
audio sampling
48kHz
Maximum color 1080P 36 bit/px; 4K 24 bit/px
Port impedance 50Ω / 100Ω
Clock recovery Auto
DDC protocol DDC DDC2B
DDC lever 5 Volts p-p(TTL)
Switching time
seamless ≤ 1scommon≤ 5s
Serial port
1-bidirectional RS-2323PIN Phoenixfemale
User Guide
3
Type MVP-
8C (N)
MVP-16C MVP-32C
Port define PIN 1:TX PIN 2:GND PIN 3:RX
Baud rate
9600~115200(default),8 data bits,
1 stop bit,none,
Control
protocol
ASCII code
LAN port RJ-45
LAN data rate
10/100BaseThalf/full duplex
Ethernet
support
protocol
ICMPARPIPTCPUDPDHCPHTTP
Update port RJ45
Update way browser
Cooling system Cool wind
User Guide
4
Cards Technical Parameters
Card version Type
Video
signal
type
Resolution
Seaml
ess
switch
ing
EDID/
HDCP
Control
signal/
POE
Audio
embedd
ed
Status
HDTV VESA 4K
MVPS-I-HDMI I HDMI
×
×
Sale
MVPS-O-HDMI O HDMI
×
×
Sale
MVPS-I-HDMI2.0 I HDMI
×
×
Sale
MVPS-O-HDMI2.0 O HDMI
×
×
Sale
MVPS-I-HDBT1 I HDBT
×
Sale
MVPS-O-HDBT1 O HDBT
×
Sale
MVPS-I-HDBT2 I HDBT
×
Sale
MVPS-0-HDBT2 O HDBT
×
Sale
MVPS-I-VGA- I VGA
× × × ×
Sale
MVPS-I-YPBPR I YPbPr
× × × × ×
Sale
MVPS-I-CVBS I CVBS
× × × × ×
Sale
MVPS-I-DVI I DVI
× ×
×
Sale
MVPS-I-SDI I 3G SDI
× × ×
×
Sale
MVPS-I-DP I DP
×
×
MVPS-I-OPTIC I Optic
×
Sale
MVPS-O-HDMI-S O
HDMI-
S
×
Sale
MVPS-O-DVI-S O DVI-S
×
Sale
MVPS-O-DP-S O DP-S
×
MVPS-0-SDI-S O
3G
SDI-S
× ×
× ×
Sale
MVPS-O-HDBT-S O
HDBas
eT-S
Sale
MVPS-O-OPTIC-S O Optic-S
Sale
MVPS-0-VGA-S O VGAS
× ×
× ×
Sale
MVPS-0-YPBPR-S O
YPBPR-
S
× ×
× ×
Sale
note:
“I”means input card“O”means output card
● : support all character
○ : support portion character
× : Not supported
HDTV resolution480i、576i、720p1080i1080p
VESA resolution800×600 1920×1200
4k resolution3840×2160
User Guide
5
Card Options
Note: Please insert the cards only when power cable is NOT connected to main power supply. Carefully align and position the cards before tightening the modules with 2 screws. Please insert or extract cables carefully with power switched off. The last Slot is reserved for the LAN / RS232 Communication module ‘CTRL’. Quality cables are highly recommended. Cat cables are recommend as Cat 6, AWG 23 or better, S/FTP cable.
Main Control Card
LEDs: STA (Status) : Green if signal is active PWR (Power) : Red if board electricity works accordingly
Technical Parameters
Specification
Type
RS232
1 channel RS232 port
Can be control the matrix by the commands
Support bidirectional
LAN
1 channel LAN port
Can be programmable, support TCP/IP
Support WEB server management
Output control voltage 5V, Upper limit voltage 24V

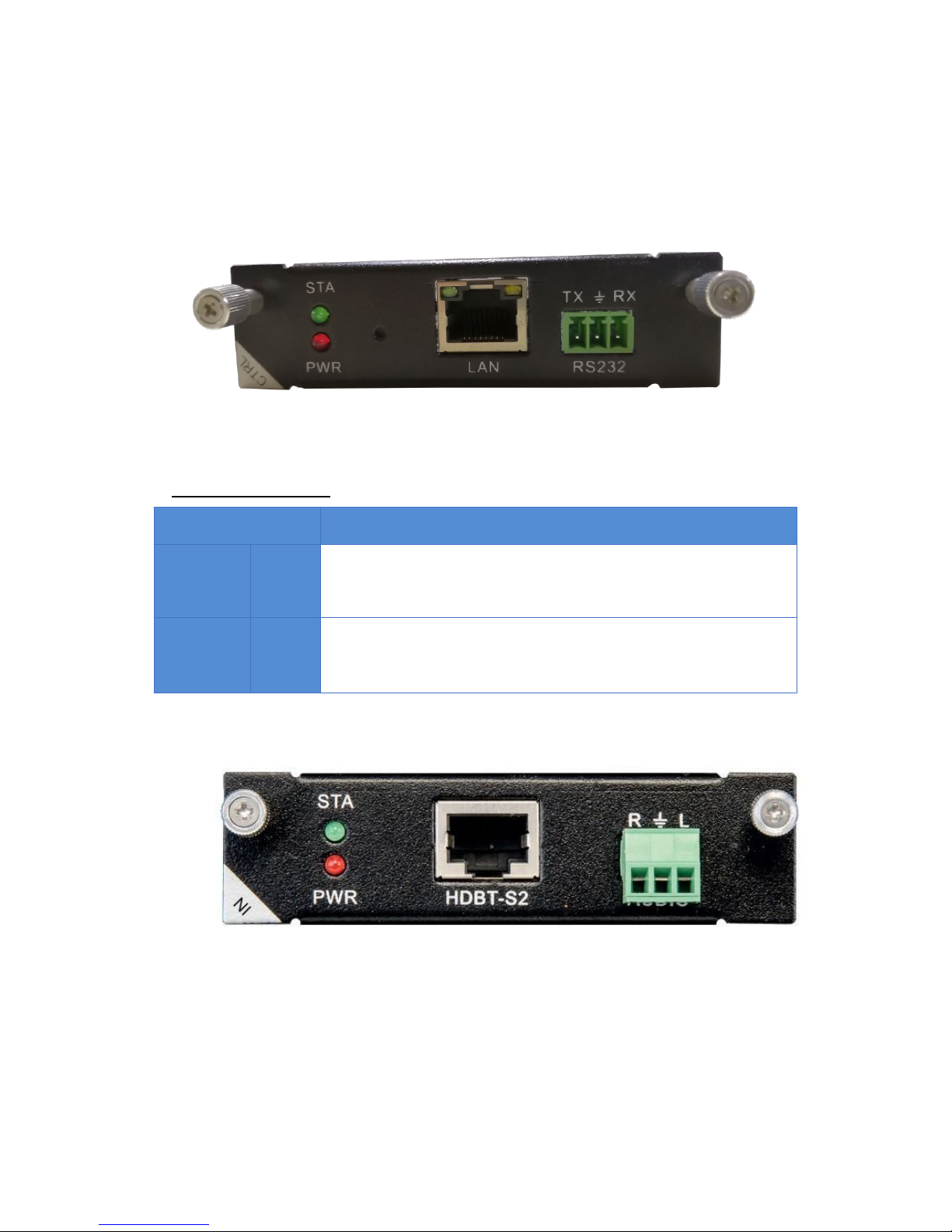

HDBaseT card
Please note, that you must first plug the jumpers at correct position for external power supply of connected HDBT units, before installation in the matrix.
1 Port HDBT input card with analog audio embedding, supports RS232
passthrough.
LEDs: STA (Status) : Green if signal is active PWR (Power) : Red if board electricity works accordingly
User Guide
6
Technical Parameters
The board type HDBT1 input HDBT2 input HDBT1 output HDBT2 output
number/Signal
types
A HDBaseT audio and video signals and control signals
The connector
type
RJ-45 8P line terminal
Recommend the
cable type
STP CAT6/CAT6A and above
1080P Maximum
transmission
distance
≤ 70m ≤ 100m
4KMaximum
transmission
distance
≤ 30m(CAT6A) ≤ 60mCAT6A
Supporst video
standard
HDTV 1080p @60HzVESA 1920×12004K 30Hz
Supports color
space
RGBYCbCr(4:2:2) YCbCr(4:4:4)
Seamless
switching
No support
EDID management
DDC channels, EDID manager
HDCP
management
Settings HDCP authorization or not
Board type
HDBT1 input
HDBT2 input
HDBT1 output
HDBT2 output
Audio embedded embedded De-embedded
Port hot plug support
Power supply Single channel transceiver power supply DC +28V
Storage
temperature/
humidity
-20 85 / 5%40% RH
Work
temperature/humi
dity
0 50/ 10%70% RH
Note Support RS232 pass through, terminal blocks, more flow
The matrix's HDBT modules (PoC) can supply power to connected HDBT modules. Plug in the jumpers J4 / J5: PoE (right, prepared but not yet available) or PoC (left, see illustration). Remove the jumpers when connected HDBT modules have their own power supply.
User Guide
7
HDMI card
1 Port HDMI input card with analog audio embedding.
LEDs: STA (Status) : Green if signal is active PWR (Power) : Red if board electricity works accordingly
Technical Parameters
The board type HDMI input HDMI output
number/Signal
types
A HDMI signal A HDMI signal
The connector
type
HDMI Type A
terminal
HDMI Type A
terminal
Recommend the
cable type
The standard 26AWG HDMI 2.0
Maximum
transmission
distance
≤ 10m
Support video
standard
HDTV 1080p @60Hz;VESA 1920×1200
4K@60Hz
Support color
space
RGBYCbCr(4:2:2) YCbCr(4:4:4)
Seamless
switching
Not supported Support
EDID
management
DDC channels, EDID manager
HDCP
management
Settings HDCP authorization or not
Audio embedded embedded De-embedded
Port hot plug support
Power supply DC +5V 0.25A(1.25W)
Storage
temperature/
humidity
-20 85 / 5%40% RH
operating
temperature/
humidity
0 50/ 10%70% RH
User Guide
8
DVI card
1 Port DVI input card with analog audio embedding.
1 Port DVI output card with analog audio de-embedding.
LEDs: STA (Status) : Green if signal is active PWR (Power) : Red if board electricity works accordingly
Technical Parameters
The board type MVPS-I1-DVI MVPS-O1-DVI-S
number/Signal types
1 channel DVI-D signal
The connector type DVI-I 24+5
Recommend the
cable type
Standard 26AWG
Maximum
transmission
distance
≤ 10m ≤ 10m
Support video
standard
HDTV 1080p @60HzVESA 1920×1200
1080p/720p60Hz
Support color space
RGBYCbCr(4:2:2) YCbCr(4:4:4)
Seamless switching Not supported Support
EDID management DDC channels, EDID manager Not supported
HDCP management Settings HDCP authorization or not Not supported
Audio embedded embedded De-embedded
Port hot plug Support
Power supply DC +5V 0.25A(1.25W)
Storage
temperature/
humidity
-10 70 / 5%40% RH
operating
temperature/
humidity
0 50/ 10%70% RH
User Guide
9

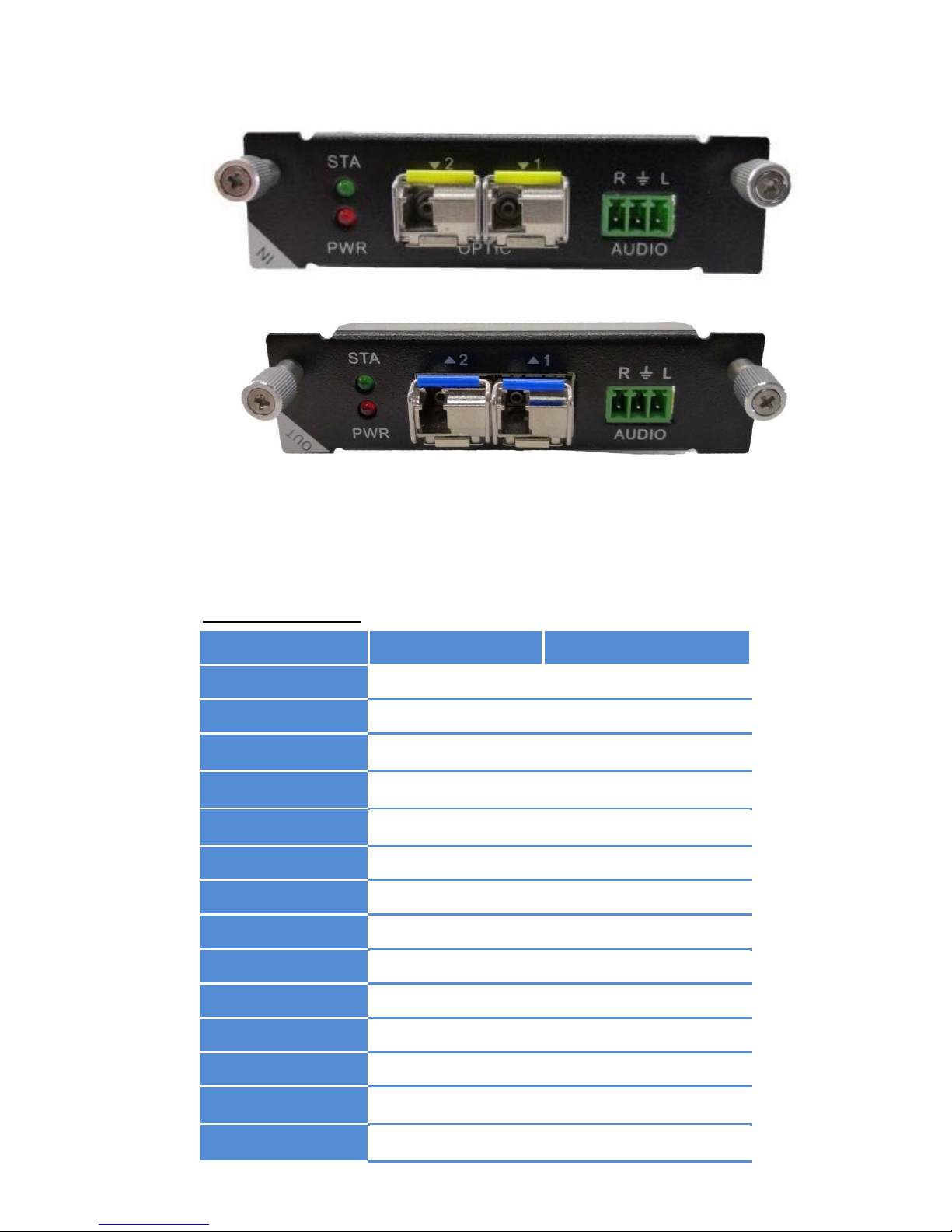

Optic card
1 Port OPTIC input card with analog audio embedding.
1 Port OPTIC output card with analog audio de-embedding.
LEDs: STA (Status) : Green if signal is active PWR (Power) : Red if board electricity works accordingly
Technical Parameters
The board type MVPS-I1-Optic MVPS-O1-Optic
number/Signal types 1-core Multi Mode Fiber Video Extender
The connector type LC fiber optic port
Recommend the cable
type
2-core one mode G652.D or Multi Mode OM3
Maximum
transmission distance
single mode≤1500m or multi mode≤300m
Support video
standard
HDTV 1080p @60HzVESA 1920×1200
Support color space
RGBYCbCr(4:2:2) YCbCr(4:4:4)
Seamless switching Not supported Support
EDID management Not supported
HDCP management Not supported
Audio embedded embedded De-embedded
Port hot plug Support
Power supply Not supported
Storage
temperature/humidity
0 60/ 5%40% RH
operating
temperature/humidity
0 45℃ / 10%70% RH
