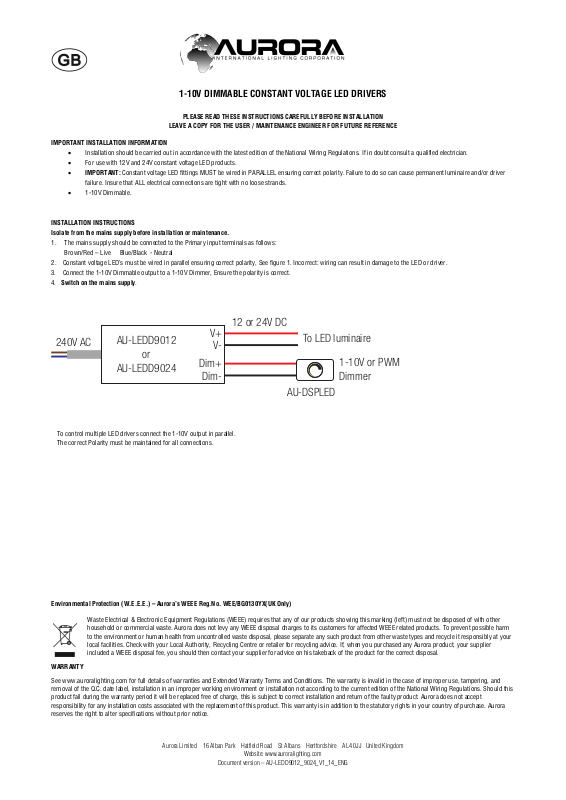

1-10V DIMMABLE CONSTANT VOLTAGE LED DRIVERS
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION
LEAVE A COPY FOR THE USER / MAINTENANCE ENGINEER FOR FUTURE REFERENCE
IMPORTANT INSTALLATION INFORMATION
Installation should be carried out in accordance with the latest edition of the National Wiring Regulations. If in doubt consult a qualified electrician.
For use with 12V and 24V constant voltage LED products.
IMPORTANT: Constant voltage LED fittings MUST be wired in PARALLEL ensuring correct polarity. Failure to do so can cause permanent luminaire and/or driver
failure. Insure that ALL electrical connections are tight with no loose strands.
1-10V Dimmable.
INSTALLATION INSTRUCTIONS
Isolate from the mains supply before installation or maintenance.
1. The mains supply should be connected to the Primary input terminals as follows:
Brown/Red – Live Blue/Black - Neutral
2. Constant voltage LED’s must be wired in parallel ensuring correct polarity, See figure 1. Incorrect: wiring can result in damage to the LED or driver.
3. Connect the 1-10V Dimmable output to a 1-10V Dimmer, Ensure the polarity is correct.
4. Switch on the mains supply.
12 or 24V DC
240V AC
AU-LEDD9012
V+
V-
To LED luminaire
or
AU-LEDD9024
Dim+
Dim-
AU-DSPLED
To control multiple LED drivers connect the 1-10V output in parallel.
The correct Polarit
Environmental Protection (W.E.E.E.) – Aurora’s WEEE Reg.No. WEE/BG0130YX(UK Only)
WARRANTY
See www.auroralighting.com for full details of warranties and Extended Warranty Terms and Conditions. The warranty is invalid in the case of improper use, tampering, and
removal of the Q.C. date label, installation in an improper working environment or installation not according to the current edition of the National Wiring Regulations. Should this
product fail during the warranty period it will be replaced free of charge, this is subject to correct installation and return of the faulty product. Aurora does not accept
responsibility for any installation costs associated with the replacement of this product. This warranty is in addition to the statutory rights in your country of purchase. Aurora
reserves the right to alter specifications without prior notice.
must be maintained for all connections.
Waste Electrical & Electronic Equipment Regulations (WEEE) requires that any of our products showing this marking (left) must not be disposed of with other
household or commercial waste. Aurora does not levy any WEEE disposal charges to its customers for affected WEEE related products. To prevent possible harm
to the environment or human health from uncontrolled waste disposal, please separate any such product from other waste types and recycle it responsibly at your
local facilities. Check with your Local Authority, Recycling Centre or retailer for recycling advice. If, when you purchased any Aurora product, your supplier
included a WEEE disposal fee, you should then contact your supplier for advice on his takeback of the product for the correct disposal.
1-10V or PWM
Dimmer
Aurora Limited 16 Alban Park Hatfield Road St Albans Hertfordshire AL4 0JJ United Kingdom
Website: www.auroralighting.com
Document version – AU-LEDD9012_9024_V1_14_ENG
