TX1-HCS-433 TX2-HCS-433 TX3-HCS-433
User Manual
Variazioni senza preavviso delle presenti informazioni non implicano responsabilità da parte AUREL. L’acquirente assume ogni responsabilità derivante dall’uso del prodotto.
AUR°EL S.p.A. Via Foro dei Tigli, 4 - 47015 Modigliana (FC) – ITALY Rev. A, 16-01-2001
Tel.: +390546941124 – Fa x: +390546941660 Pag 1 of 3

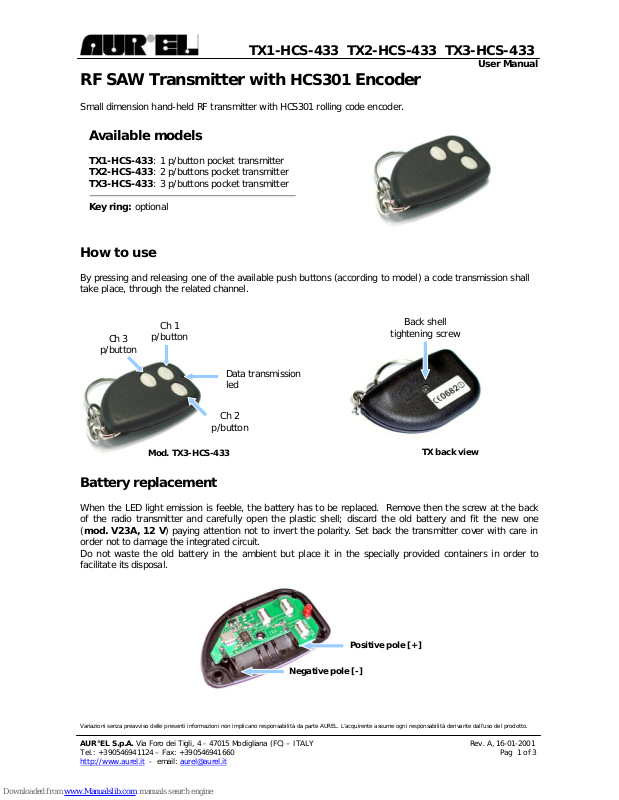

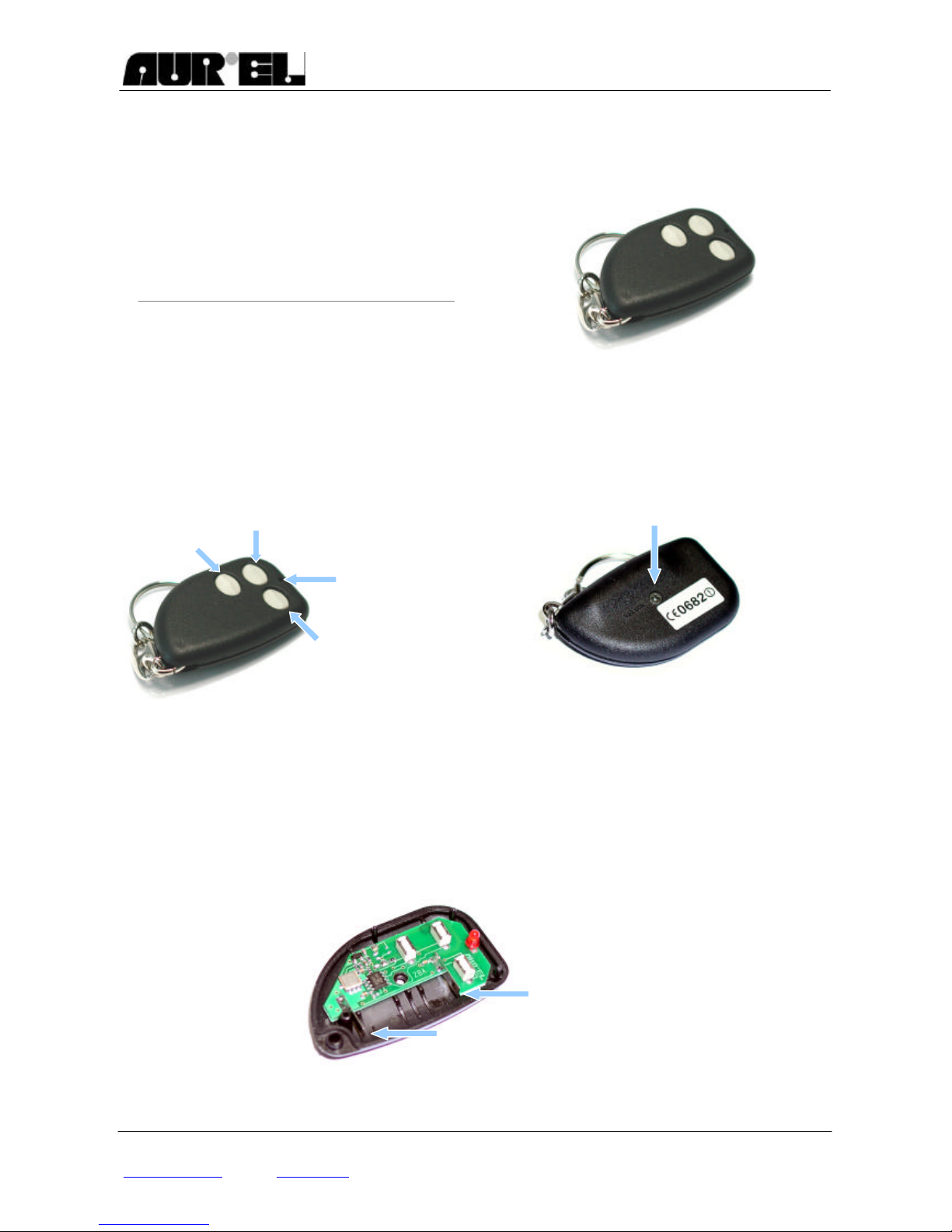

RF SAW Transmitter with HCS301 Encoder
Small dimension hand-held RF transmitter with HCS301 rolling code encoder.
How to use
By pressing and releasing one of the available push buttons (according to model) a code transmission shall
take place, through the related channel.
Battery replacement
When the LED light emission is feeble, the battery has to be replaced. Remove then the screw at the back
of the radio transmitter and carefully open the plastic shell; discard the old battery and fit the new one
(mod. V23A, 12 V) paying attention not to invert the polarity. Set back the transmitter cover with care in
order not to damage the integrated circuit.
Do not waste the old battery in the ambient but place it in the specially provided containers in order to
facilitate its disposal.
Available models
TX1-HCS-433: 1 p/button pocket transmitter
TX2-HCS-433: 2 p/buttons pocket transmitter
TX3-HCS-433: 3 p/buttons pocket transmitter
Key ring: optional
Back shell
tightening screw
Data transmission
led
Ch 3
p/button
Mod. TX3-HCS-433
Ch 1
p/button
Ch 2
p/button
TX back view
Positive pole [+]
Negative pole [-]
Page 2
TX1-HCS-433 TX2-HCS-433 TX3-HCS-433
User Manual
Variazioni senza preavviso delle presenti informazioni non implicano responsabilità da parte AUREL. L’acquirente assume ogni responsabilità derivante dall’uso del prodotto.
AUR°EL S.p.A. Via Foro dei Tigli, 4 - 47015 Modigliana (FC) – ITALY Rev. A, 16-01-2001
Tel.: +390546941124 – Fax: +390546941660 Pag 2 of 3
http://www.aurel.it
- email: [email protected]
CE Reference

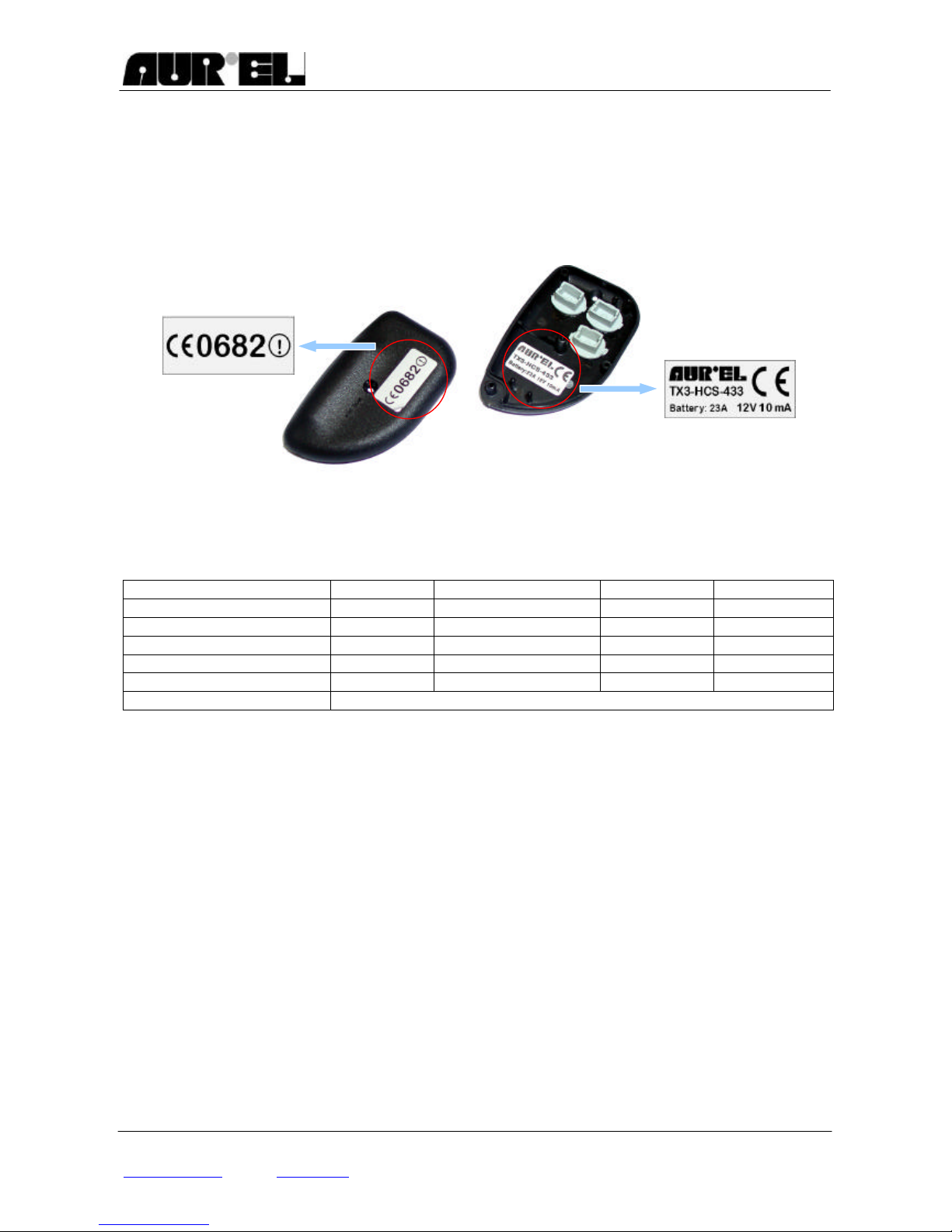

Inside the front half of the transmitter plastic shell, there is a label which contains the device identification
data (product name, manufacturer, feed voltage and power consumption).
Technical features
Min Typ Max Unit
Frequency
433.92 ± 0.15
MHz
Emitted radio power –5 dBm
Modulation OOK (On Off Keying)
Power consumption 10 mA
Operating Temperature -10 +55 °C
Dimensions 56.5 x 36 x 14 mm
Regulations compliance
The TX1 -HCS -433, TX2-HCS -433 and TX3-HCS-433 radiotransmitters comply with European
Regulations EN 300 220, EN 301 489 and EN 60950.
The technical reports have been issued by PRIMA RICERCA & SVILUPPO (*) laboratory.
(*) PRIMA RICERCA & SVILUPPO – via Campagna, 58 – 22020 Gaggino Faloppio (CO) – Italy.
Inner view ot the
transmitter front shell
External view of the
transmitter back shell
[External]
[Internal]
Page 3
TX1-HCS-433 TX2-HCS-433 TX3-HCS-433
User Manual
INFORMATION TO USER
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) This device must accept
any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for Class B Digital Device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures.
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected
• Consult the dealer or an experienced radio/TV technician for help
Any changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
Variazioni senza preavviso delle presenti informazioni non implicano responsabilità da parte AUREL. L’acquirente assume ogni responsabilità derivante dall’uso del prodotto.
AUR°EL S.p.A. Via Foro dei Tigli, 4 - 47015 Modigliana (FC) – ITALY Rev. A, 16-01-2001
Tel.: +390546941124 – Fax: +390546941660 Pag 3 of 3
http://www.aurel.it
