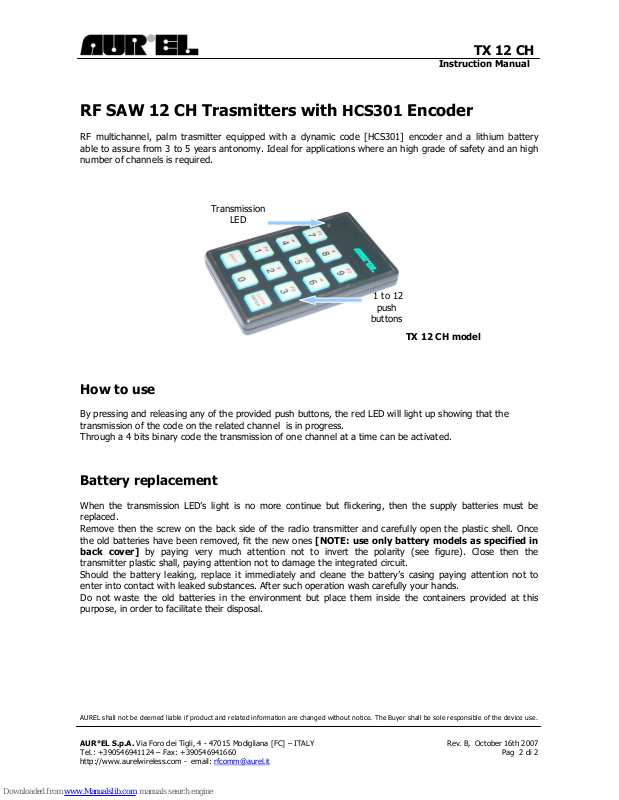

TX 12 CH
Instruction Manual
AUREL shall not be deemed liable if product and related information are changed without notice. The Buyer shall be sole responsible of the device use.
AUR°EL S.p.A. Via Foro dei Tigli, 4 - 47015 Modigliana [FC] – ITALY Rev. B, October 16th 2007
Tel.: +390546941124 – Fax: +390546941660 Pag 2 di 2
http://www.aurelwireless.com - email: [email protected]
RF SAW 12 CH Trasmitters with
HCS301
Encoder
RF multichannel, palm trasmitter equipped with a dynamic code [HCS301] encoder and a lithium battery
able to assure from 3 to 5 years antonomy. Ideal for applications where an high grade of safety and an high
number of channels is required.

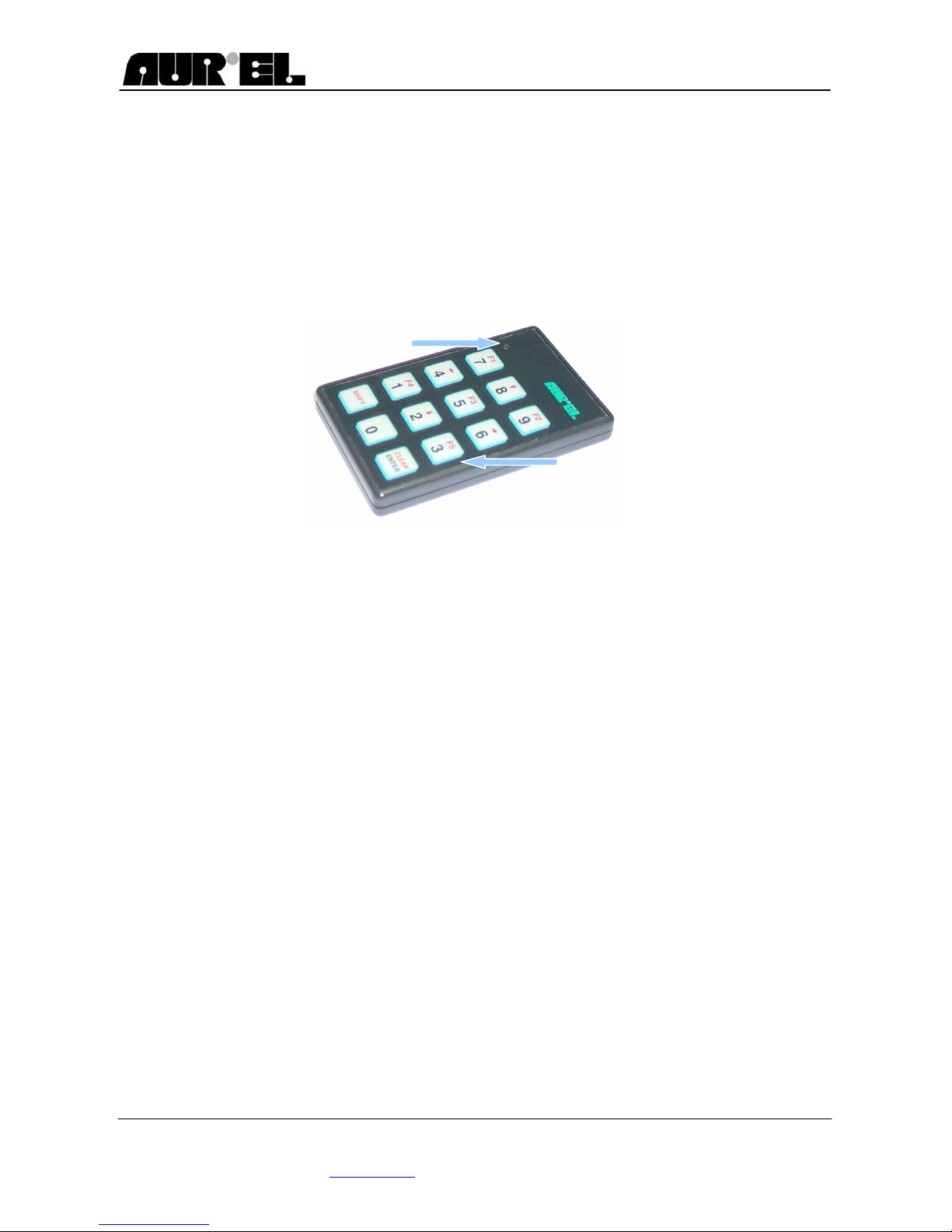

TX 12 CH model
How to use
By pressing and releasing any of the provided push buttons, the red LED will light up showing that the
transmission of the code on the related channel is in progress.
Through a 4 bits binary code the transmission of one channel at a time can be activated.
Battery replacement
When the transmission LED’s light is no more continue but flickering, then the supply batteries must be
replaced.
Remove then the screw on the back side of the radio transmitter and carefully open the plastic shell. Once
the old batteries have been removed, fit the new ones [NOTE: use only battery models as specified in
back cover] by paying very much attention not to invert the polarity (see figure). Close then the
transmitter plastic shall, paying attention not to damage the integrated circuit.
Should the battery leaking, replace it immediately and cleane the battery’s casing paying attention not to
enter into contact with leaked substances. After such operation wash carefully your hands.
Do not waste the old batteries in the environment but place them inside the containers provided at this
purpose, in order to facilitate their disposal.
Transmission
LED
1 to 12
push
buttons
Page 2
TX 12 CH
Instruction Manual
AUREL shall not be deemed liable if product and related information are changed without notice. The Buyer shall be sole responsible of the device use.
AUR°EL S.p.A. Via Foro dei Tigli, 4 - 47015 Modigliana [FC] – ITALY Rev. B, October 16th 2007
Tel.: +390546941124 – Fax: +390546941660 Pag 2 di 2
http://www.aurelwireless.com - email: [email protected]

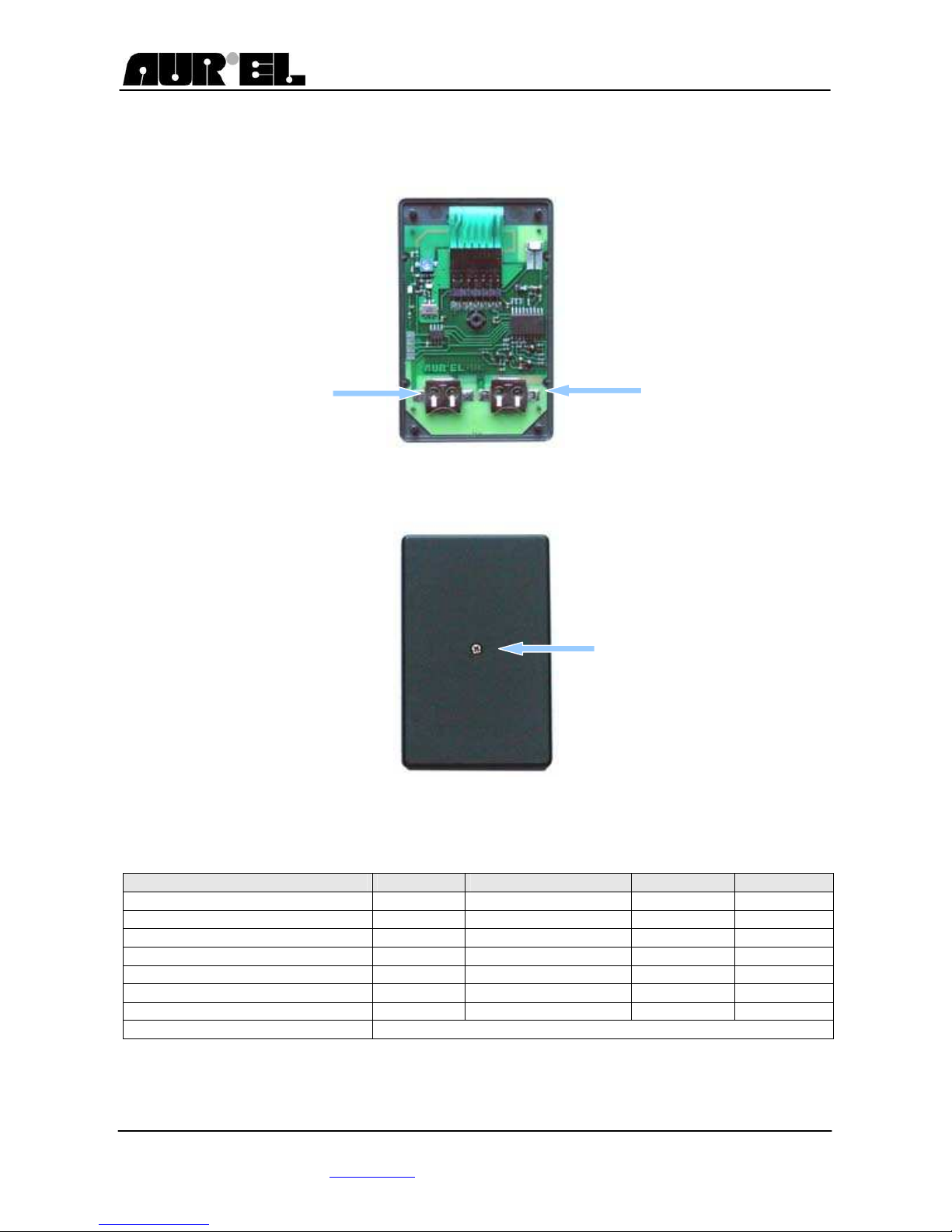

TX inside view
TX back side view
Technical features
Min Typical Max Unity
Carrier’s Frequency 433.92 MHz
Radiated Power [E.R.P.] 1 mW
Modulation OOK [On Off Keying]
Nos. 2 batteries (NOTE A) 6 V
Power consumption 10 mA
Battery life 3 5 years
Operating Temperature -10 +55 °C
Dimensions 54 x 85.5 x 10.4 mm
NOTE A: battery tyre was CR 1220. Now 2032 is used. Please, change battery with model
specified in back cover.
Positive pole [+] up,
negative pole [-] down
NOTE A
Transmitter shell
locking screw
