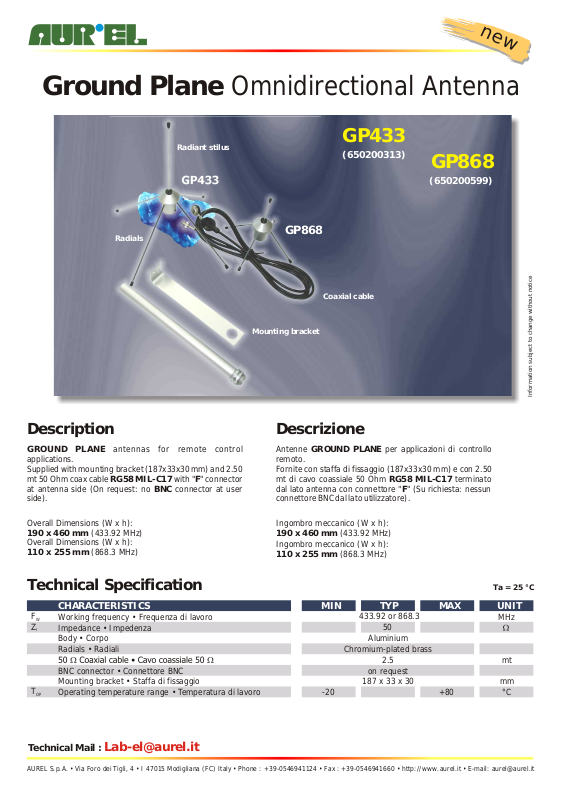

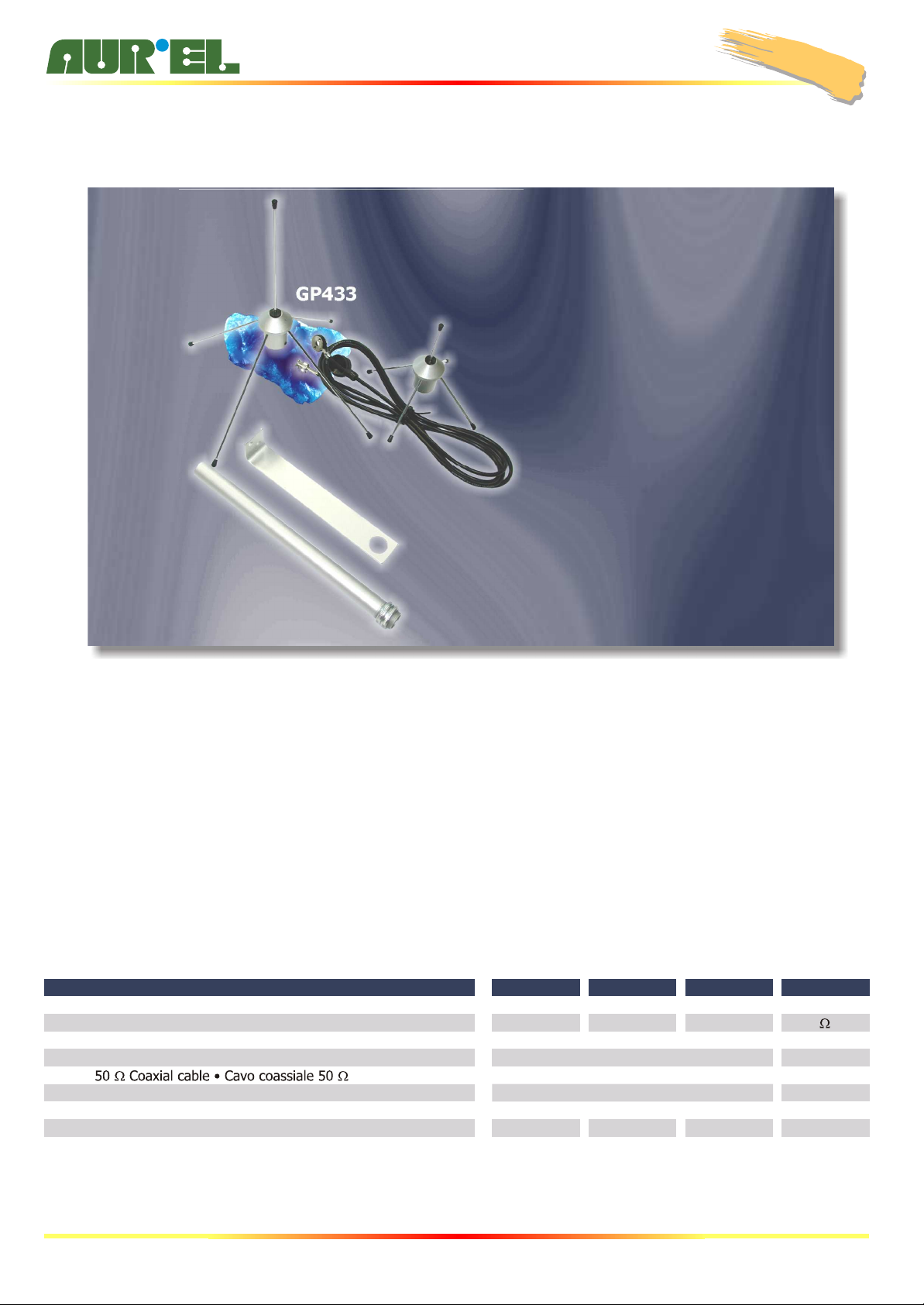

Ground Plane Omnidirectional Antenna
Radials
Radiant stilus
GP433
GP433
(650200313)
GP868
(650200599)
GP868
Coaxial cable
Mounting bracket
Information subject to change without notice
Description Descrizione
GROUND PLANE antennas for remote control
applications.
Supplied with mounting bracket (187x33x30 mm) and 2.50
mt 50 Ohm coax cable RG58 MIL-C17 with "F" connector
at antenna side (On request: no BNC connector at user
side).
Overall Dimensions (W x h):
190 x 460 mm (433.92 MHz)
Overall Dimensions (W x h):
110 x 255 mm (868.3 MHz)
Antenne GROUND PLANE per applicazioni di controllo
remoto.
Fornite con staffa di fissaggio (187x33x30 mm) e con 2.50
mt di cavo coassiale 50 Ohm RG58 MIL-C17 terminato
dal lato antenna con connettore "F" (Su richiesta: nessun
connettore BNC dal lato utilizzatore).
Ingombro meccanico (W x h):
190 x 460 mm (433.92 MHz)
Ingombro meccanico (W x h):
110 x 255 mm (868.3 MHz)
Technical Specification
CHARACTERISTICS
F
Working frequency • Frequenza di lavoro
W
Z
Impedance • Impedenza
I
Body • Corpo
Radials • Radiali
BNC connector • Connettore BNC
Mounting bracket • Staffa di fissaggio
T
Operating temperature range • Temperatura di lavoro
OP
MIN TYP MAX UNIT
Chromium-plated brass
433.92 or 868.3
50
Aluminium
2.5
on request
187 x 33 x 30
Ta = 25 °C
MHz
mt
mm
+80-20
°C
