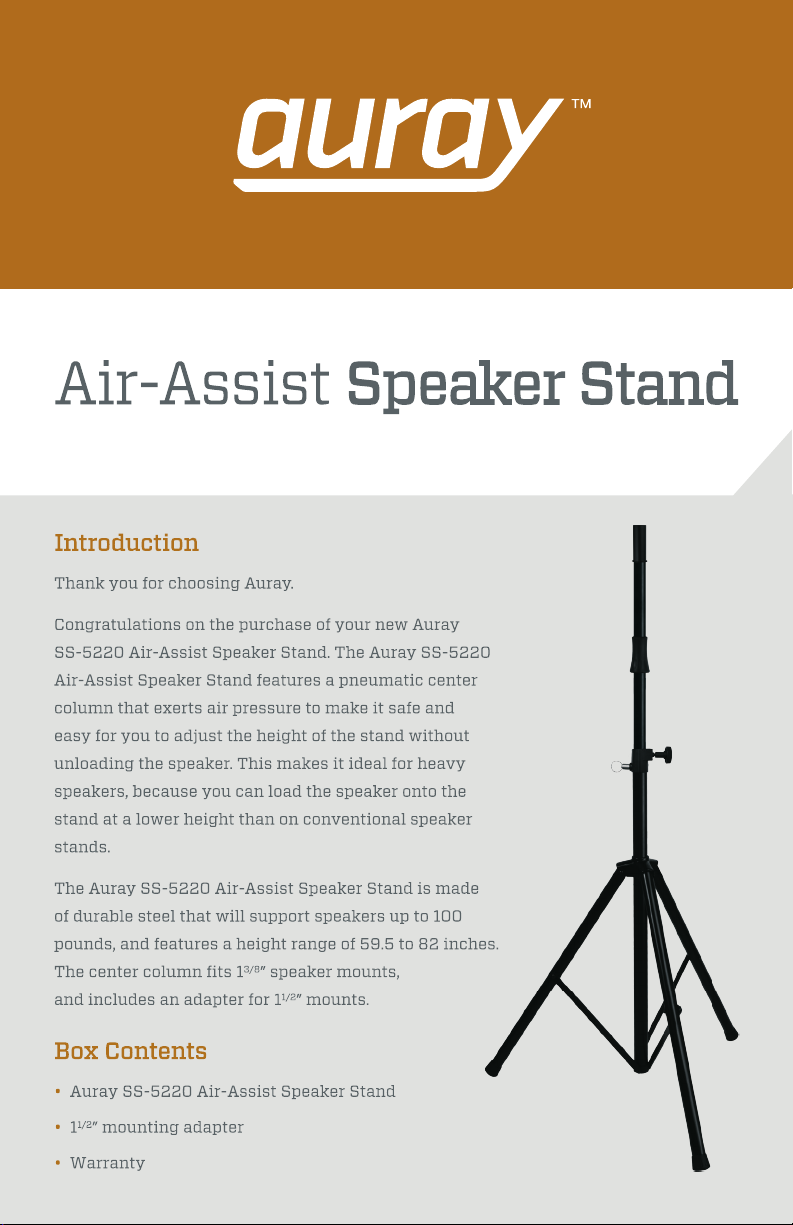

Page 1
SS-5220
Owner’s Manual
Page 2
Instructions
1.
1
2.
2
3.
collar to spread the
3
1
2
3
4
1. After loading the speaker onto the speaker
stand, pull the center column locking pin.
Note: You may need to push down on the
center column while pulling the locking pin.
2. Hold onto the center column grip and slowly
loosen the locking knob to release the center
column.
3. Adjust the height of the speaker by pushing
the center column up or down.
4. When the speaker is at the desired height, tighten the locking knob
until secure. Make sure to keep one hand on the center column to hold
it steady.
4
Page 3
1. With one hand firmly holding onto the
center column, loosen the center column
locking knob.
2. Lower the speaker by pushing the center
column down.
3. Push the center column down until the pin
locks into place.
4. Tighten the locking knob until secure.
5. Unload the speaker from the speaker stand.
6. Loosen the locking knob that attaches the
legs to the center column of the speaker stand.
7. Collapse the legs, and tighten the locking knob
until the legs are secure.
5
6
5
6
Warnings
!
Page 4

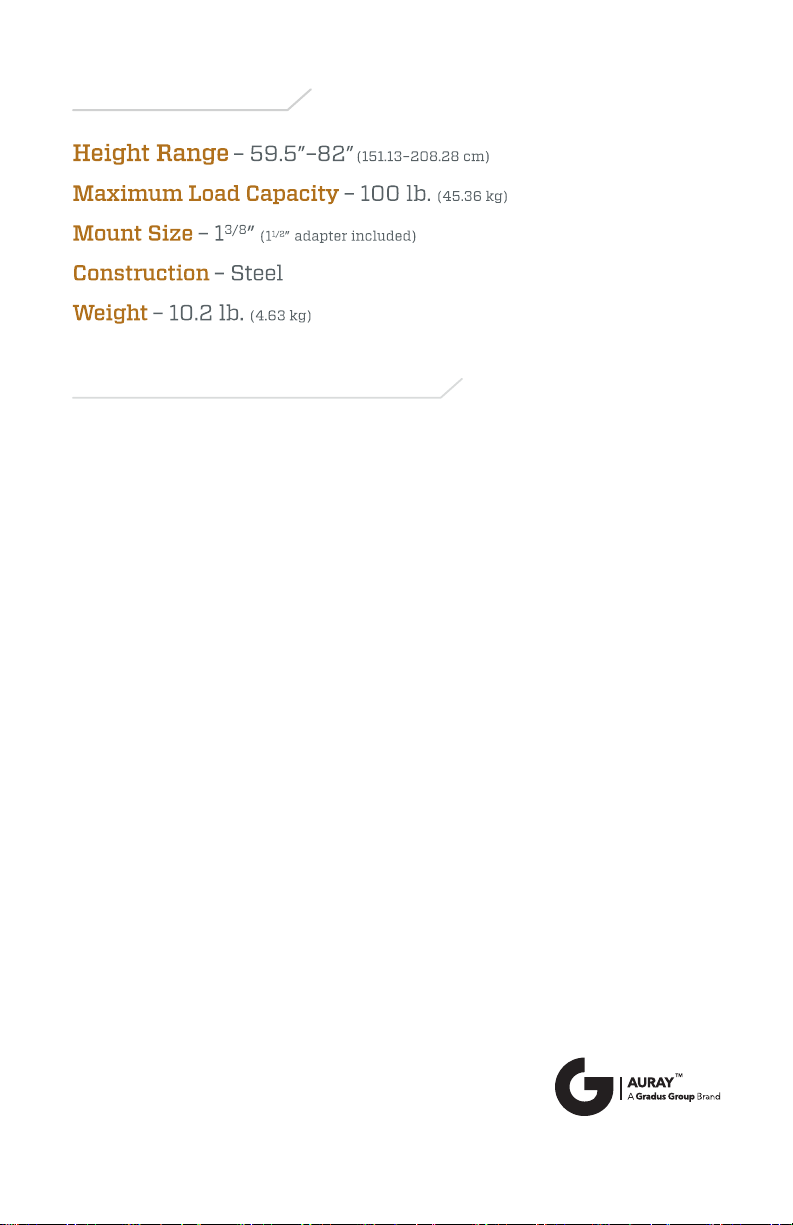

Specifications
One-Year Limited Warranty
This AURAY product is warranted to the original purchaser to be free from defects
in materials and workmanship under normal consumer use for a period of one
(1) year from the original purchase date or thirty (30) days after replacement,
whichever occurs later. The warranty provider’s responsibility with respect to this
limited warranty shall be limited solely to repair or replacement, at the provider’s
discretion, of any product that fails during normal use of this product in its intended
manner and in its intended environment. Inoperability of the product or part(s) shall
be determined by the warranty provider. If the product has been discontinued, the
warranty provider reserves the right to replace it with a model of equivalent quality
and function.
This warranty does not cover damage or defect caused by misuse, neglect,
accident, alteration, abuse, improper installation or maintenance. EXCEPT AS
PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS
WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED
TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and
you may also have additional rights that vary from state to state.
To obtain warranty coverage, contact the Auray Customer Service Department to
obtain a return merchandise authorization (“RMA”) number, and return the defective
product to Auray along with the RMA number and proof of purchase. Shipment of the
defective product is at the purchaser’s own risk and expense.
For more information or to arrange service, visit www.aurayaudio.com or call
Customer Service at 212-594-2353.
Product warranty provided by the Gradus Group.
www.gradusgroup.com
AURAY is a registered trademark of the Gradus Group. © 2014 Gradus Group LLC. All Rights Reserved.
