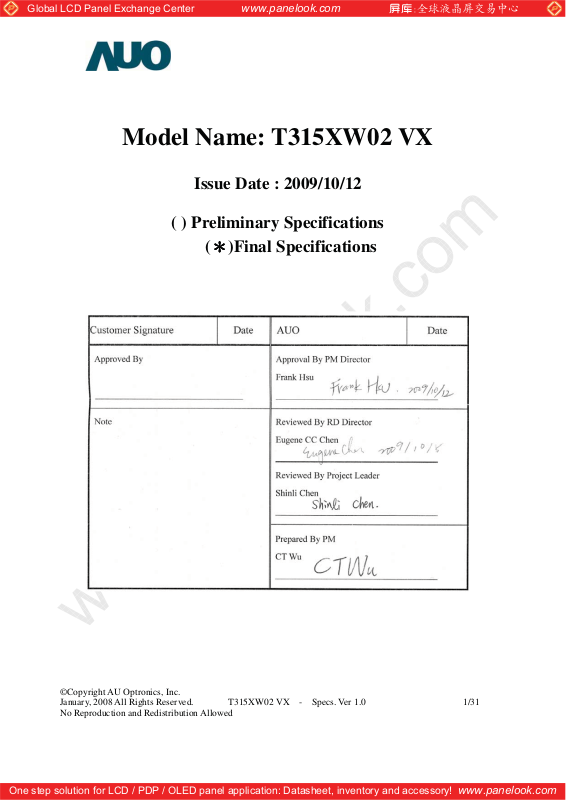

Page 1

Global LCD Panel Exchange Center

Model Name: T315XW02 VX

( ) Preliminary Specifications

www.panelook.com

Issue Date : 2009/10/12

(ϠϠϠϠ)Final Specifications

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 2

Global LCD Panel Exchange Center

COVER

www.panelook.com

Contents

CONTENTS

RECORD OF REVISIONS

GENERAL DESCRIPTION 1

ABSOLUTE MAXIMUM RATINGS 2

ELECTRICAL SPECIFICATIONS 3

ELECTRICAL CHARACTREISTICS 3-1

INTERFACE CONNECTIONS 3-2

SIGNAL TIMING SPECIFICATIONS 3-3

COLOR INPUT DATA REFERNECE 3-5

SIGNAL TIMING WAVEFORMS 3-4

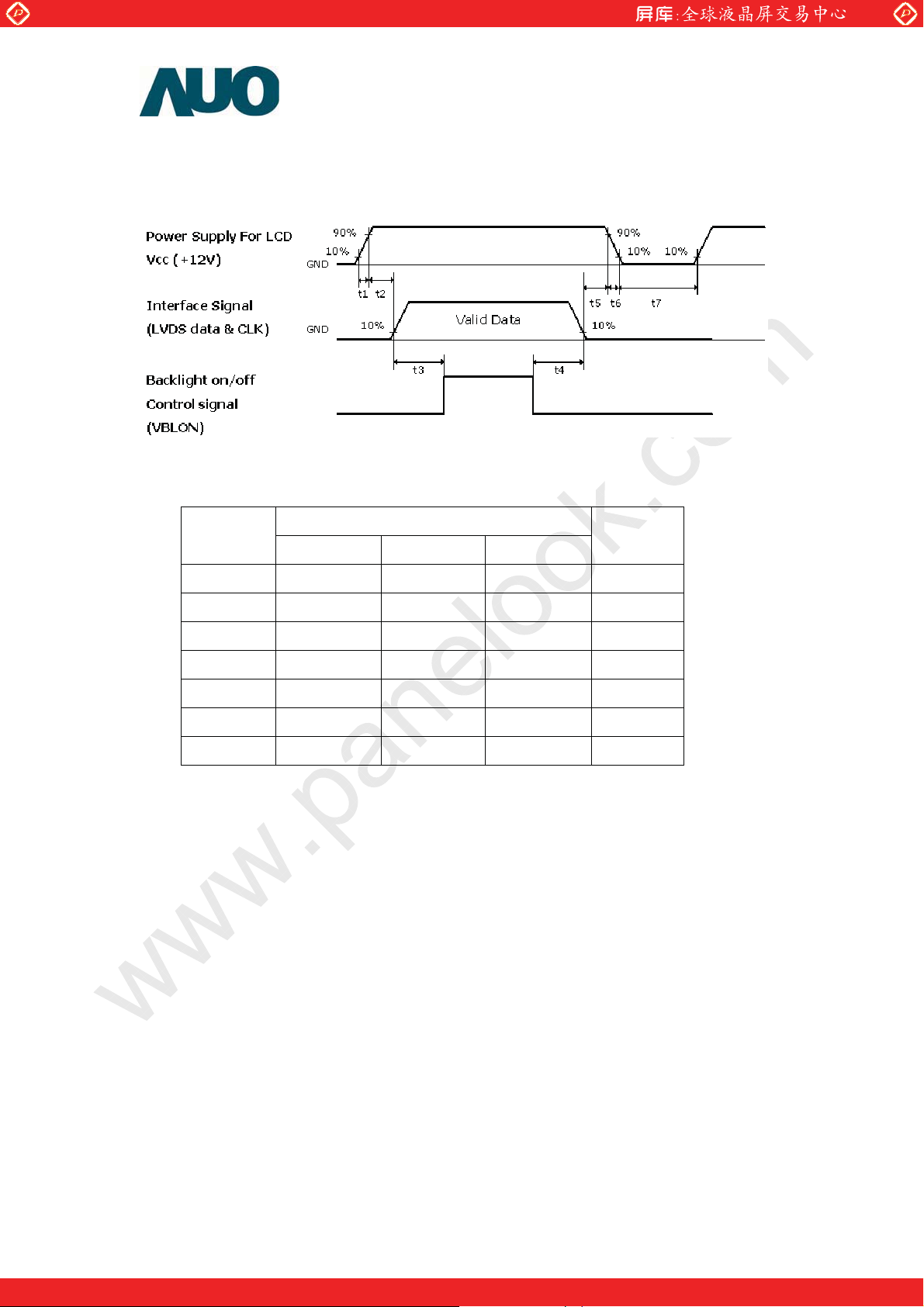

POWER SEQUENCE 3-6

OPTICAL SPECIFICATIONS 4

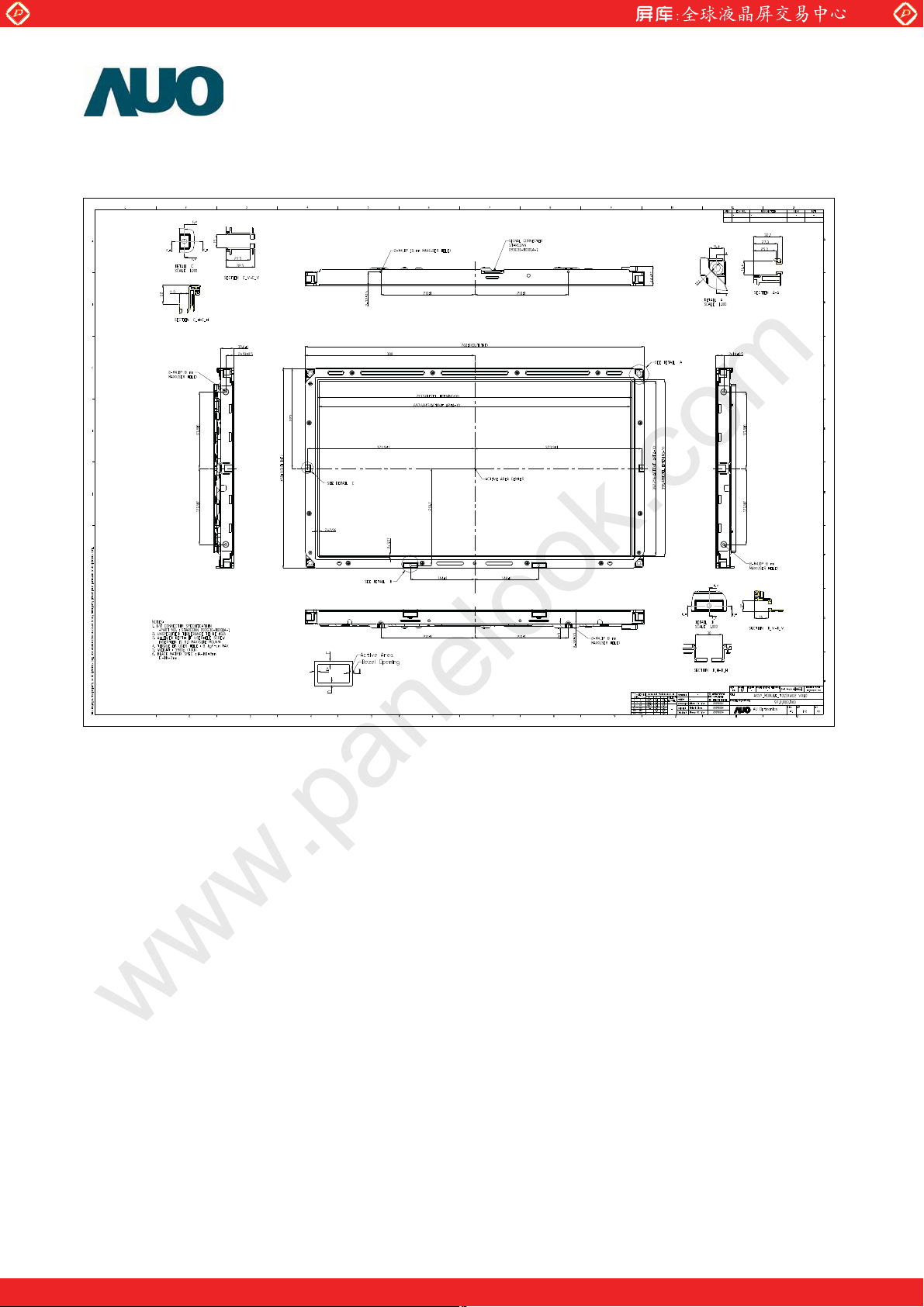

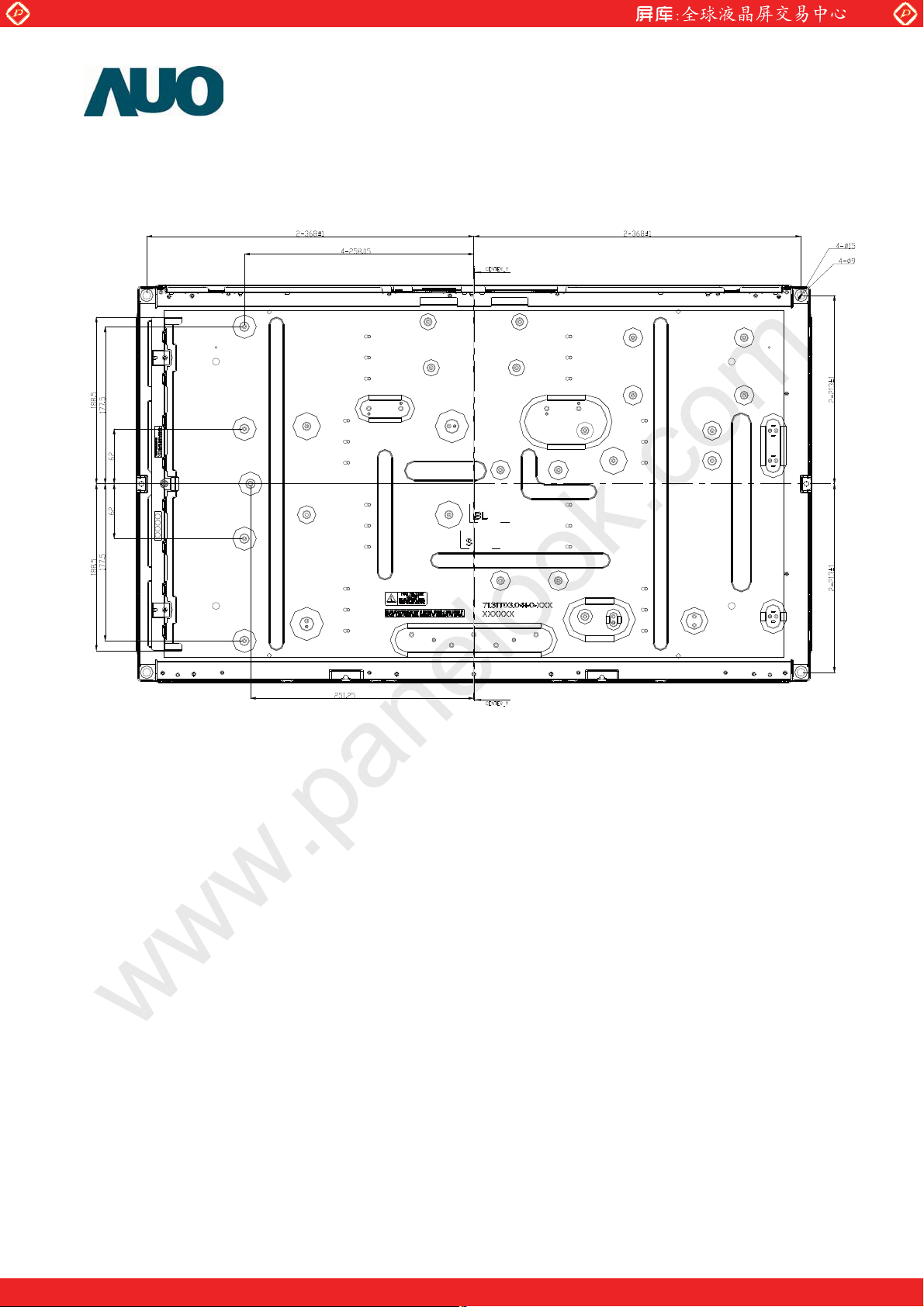

MECHANICAL CHARACTERISTICS 5

RELIABLITY 6

INTERNATIONAL STANDARDS 7

SAFETY 7-1

EMC 7-2

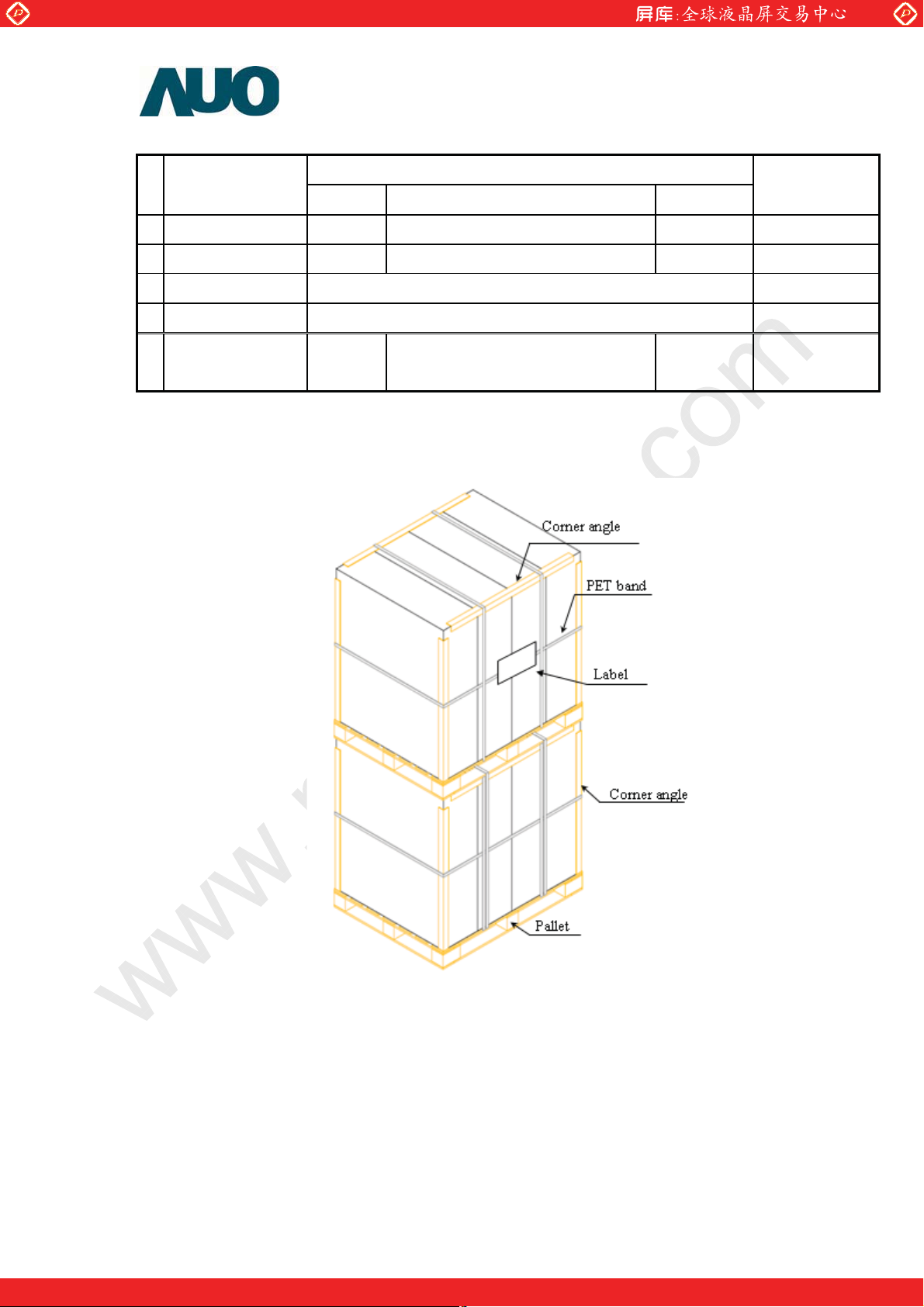

PACKIN G 8

PRECAUTIONS 9

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 3

Global LCD Panel Exchange Center

Version Date No Old Description New Description Remark

1.0 2009/10/12 First issue

www.panelook.com

Record of Revision

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 4

Global LCD Panel Exchange Center

1. General Description

This specification applies to the 31.51 inch Color TFT-LCD Module T315XW02

VX. This LCD module has a TFT active matrix type liquid crystal panel 1366x768

pixels, and diagonal size of 31.51 inch. This module supports 1366x768

XGA-WIDE mode (Non-interlace).

Each pixel is divided into Red, Green and Blue sub-pixels or dots which are

arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is

determined with a 8-bit gray scale signal for each dot.

The T315XW02 VX has been designed to apply the 8-bit 1 channel LVDS interface

method. It is intended to support displays where high brightness, wide viewing

www.panelook.com

angle, high color saturation, and high color depth are very important.

The T315XW02 VX model is RoHS verified which can be distinguished on panel

label.

General Information

Items Specification Unit Note

Active Screen Size 31.51 inches

Display Area 697.685 (H) x 392.256(V) mm

Outline Dimension 760.0(H) x 450.0(V) x 45(D) mm

Driver Element a-Si TFT active matrix

Display Colors 16.7M Colors

Number of Pixels 1366 x 768 Pixel

Pixel Pitch 0.51075 mm

Pixel Arrangement RGB vertical stripe

Display Mode Normally Black

Surface Treatment Anti-Glare, 3H Haze =11%

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 5

Global LCD Panel Exchange Center

2. Absolute Maximum Ratings

The following are maximum values which, if exceeded, may cause permanent damage to the unit.

Item Symbol Min Max Unit Conditions

Logic/LCD Drive Voltage Vcc -0.3 14 [Volt] Note 1

Input Voltage of Signal Vin -0.3 3.6 [Volt] Note 1

BLU Input Voltage VDDB -0.3 28 [Volt] Note 1

BLU Brightness Control Voltage Vdim -0.3 7.0 [Volt] Note 1

www.panelook.com

Operating Temperature TOP 0 +50 [oC] Note 2

Operating Humidity HOP 10 90 [%RH] Note 2

Storage Temperature TST -20 +60 [oC] Note 2

Storage Humidity HST 10 90 [%RH] Note 2

Panel Surface Temperature PST 65 [oC]

Note 1: Duration:50 msec.

Note 2 : Maximum Wet-Bulb should be 39 and No condensation.

The relative humidity must not exceed 90% non-condensing at temperatures of 40 or less. At

temperatures greater than 40 , the wet bulb temperature must not exceed 39 .

кк

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 6

Global LCD Panel Exchange Center

3. Electrical Specification

The T315XW02 VX requires two power inputs. One is employed to power the LCD electronics and to drive the TFT array and liquid crystal. The second input power for the BLU, is to power inverter..

3-1 Electrical Characteristics

www.panelook.com

Parameter

Symbol

Values

Unit Notes

Min Typ Max

LCD:

Power Supply Input Voltage Vcc 10.8 12 13.2 Vdc 1

Power Supply Input Current Icc - 0.45 0.55 A 2

Power Consumption Pc - 5.4

Inrush Current I

LV DS

Interface

CMOS

ifferential Input High Threshold

Vo l t a g e

Differential Input Low Threshold

Vo l t a g e

Common Input Voltage

Input High Threshold Voltage

Interface

Input Low Threshold Voltage

- - 6 Apeak 3

RUSH

VTH - - 100 mV 4

VTL -100 - - mV 4

VCIM 1.10 1.25 1.40 V 4

VIH

2.4 3.3 Vdc

(High)

VIL

0 0.7 Vdc

7.26 Watt 2

(Low)

Life Time 50,000 Hours 5,6,7,8

Note :

1. The ripple voltage should be controlled under 10% of V

=vf

2. Vcc=12.0V,

60Hz, fCLK=81.5Mhz , 25 , Test Pattern : White Patternк

3. Measurement condition :

ˌ˃ʸ

˄˃ʸ

GND

˧˻ʳːʳˇˊ˃ʳ˦

VCC

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 7

Global LCD Panel Exchange Center

4. VCIM = 1.25V

www.panelook.com

VCIM

VTH

VIL

5. The performance of the Lamp in LCM, for example life time or brightness, is extremely

influenced by the characteristics of the DC-AC Inverter. So all the parameters of an inverter

should be carefully designed so as not to produce too much leakage current from

high-voltage output of the inverter. When you design or order the inverter, please make

sure unwanted lighting caused by the mismatch of the lamp and the inverter (no lighting,

flicker, etc) never occurs. When you confirm it, the LCD Assembly should be operated in

the same condition as installed in your instrument.

6. Do not attach a conducting tape to lamp connecting wire. If the lamp wire attach to

conducting tape, TFT-LCD Module have a low luminance and the inverter has abnormal

action because leakage current occurs between lamp wire and conducting tape.

7. The relative humidity must not exceed 80% non-condensing at temperatures of 40 or less.

At temperatures greater than 40 , the wet bulb temperature must not exceed 39 . When

operate at low temperatures, the brightness of CCFL will drop and the life time of CCFL

will be reduced.

8. Specified values are for a single lamp only which is aligned horizontally. The

lifetime is defined as the time which luminance of the lamp is 50% compared

to its original value.

[Operating condition: Continuous operating at Ta = 25±2

кк

]

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 8

Global LCD Panel Exchange Center

3-2 Interface Connections

Connector on Panel: 093G30-B0001A-1 (Manufactured by

Pin No Symbol Description Default

1 VCC +12V, DC, Regulated

2 VCC +12V, DC, Regulated

3 VCC +12V, DC, Regulated

4 VCC +12V, DC, Regulated

5 GND Ground and Signal Return

6 GND Ground and Signal Return

7 GND Ground and Signal Return

8 GND Ground and Signal Return

9 LVDS Option Low/Open for Normal (NS), High for JEIDA NS mode

10 Reserved Open AUO internal test

11 GND Ground and Signal Return for LVDS

12 RIN0- LVDS Channel 0 negative

13 RIN0+ LVDS Channel 0 positive

14 GND Ground and Signal Return for LVDS

15 RIN1- LVDS Channel 1 negative

16 RIN1+ LVDS Channel 1 positive

17 GND Ground and Signal Return for LVDS

18 RIN2- LVDS Channel 2 negative

19 RIN2+ LVDS Channel 2 positive

20 GND Ground and Signal Return for LVDS

21 RCLK- LVDS Clock negative

22 RCLK+ LVDS Clock positive

23 GND Ground and Signal Return for LVDS

24 RIN3- LVDS Channel 3 negative

25 RIN3+ LVDS Channel 3 positive

26 GND Ground and Signal Return for LVDS

27 Reserved Open or High AUO internal test

28 Reserved Open or High AUO internal test

29 GND Ground and Signal Return

30 GND Ground and Signal Return

Note:

1. All GND (ground) pins should be connected together and should also be

connected to the LCD’s metal frame. All Vcc (power input) pins should be connected together.

2. For Pin 10, 27 and 28, panel will not damage if negligently connect these

pins to high or low

www.panelook.com

ʳ˦˴˶

)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 9

Global LCD Panel Exchange Center

LVDS Option = High (JEIDA)

www.panelook.com

LVDS Option = Low or Open (NS)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 10

Global LCD Panel Exchange Center

www.panelook.com

BACKLIGHT CONNECTOR PIN CONFIGURATION

1. Electrical specification

1 Operating Voltage Vo 639 710 781 Vrms

2 Operating Current Io 12 12.5 13 mArms

3 BL Total Power Dissipation PBL 76

4 Striking Voltage

5 Striking Time Ts 1000 - 1500 msec

Description Min Typ Max Unit

80 Watt

Vrms

At 0к

˅ˈк

1500 1650

Vstrike

1350 1500

Condition/Note

1. Dimming range is set 100%

2. Base on lamp specification, for each lamp need to be applied at least minimum operating voltage to ensure each lamp can be normally worked!

1. Dimming range is set 100%

2. Base on lamp specification, for each lamp need to be applied at least minimum operating current to ensure each lamp can be normally worked!

1. Dimming range is set 100%.

2. In order to get typical light out, the backlight need to be applied typical power.

3. Input power of JIG BD is about 78 W (typ) by AUO measure!

1. Base on lamp specification, to ensure each lamp can be normally ignited, need to apply at least minimum striking voltage to each lamp

1. To ensure each lamp can be normally ignited, each lamp need to be applied at least minimum striking voltage during minimum striking time.

6 Operating Frequency fo 55 kHz

PWM Operating Frequency F_PWM 120 180 240 Hz

PWM Dimming Duty Ratio D_PWM

9 Lamp Type U type

100

10 Number of Lamps 4 pcs

Ta=2 55к, Turn

on for 45minutes

1. Operating frequency is set by customer.

2. Need to double confirm display quality.(*)

1. PWM frequency is set by customer.

2. Need to double confirm display quality.(*)

Note 1. Dimming range Note 2. Note 3. Duty ratio definition.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 11

Global LCD Panel Exchange Center

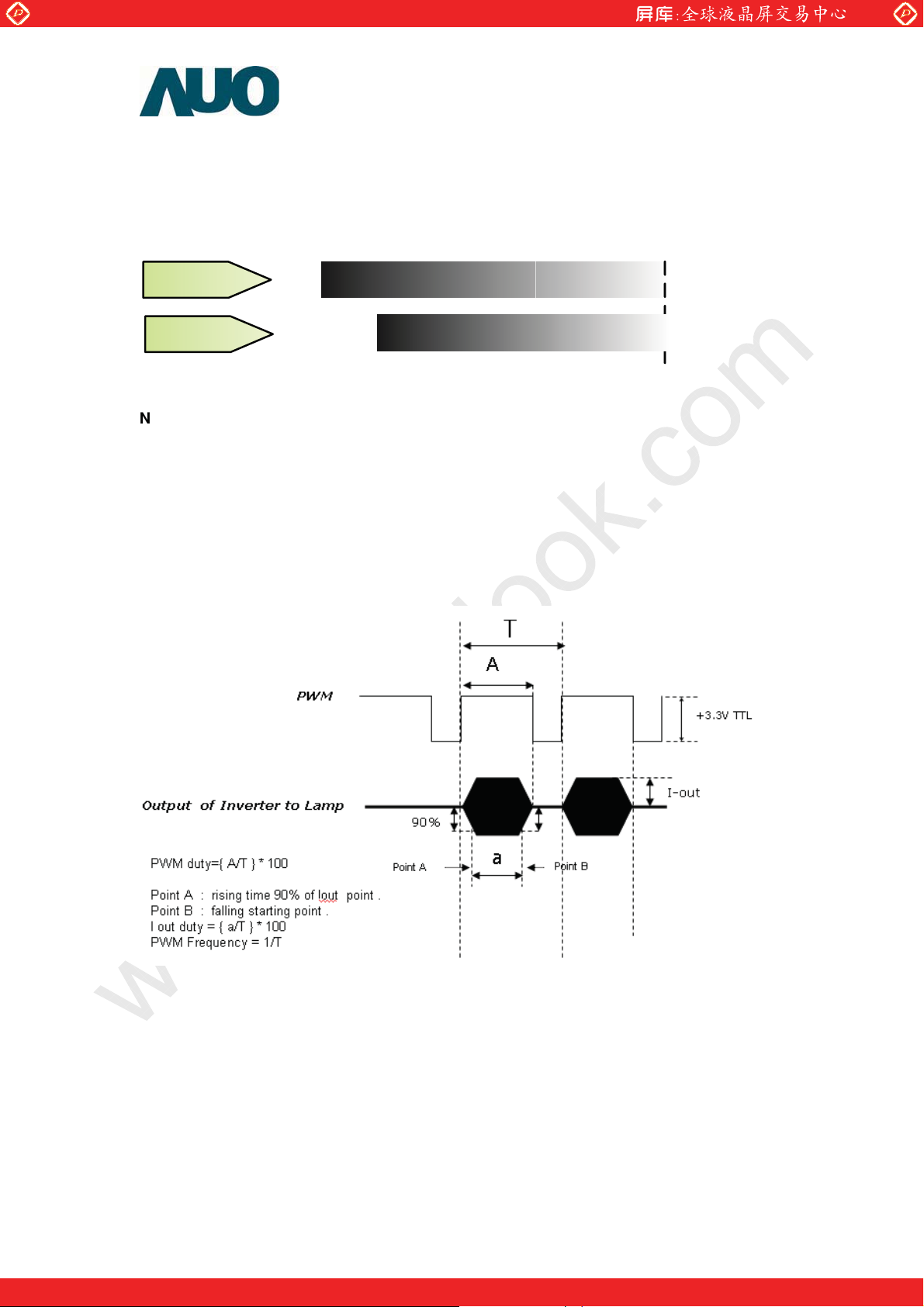

Note 1:

Dimming range

Control

range

www.panelook.com

100%

PWM

Dimming

PWM Dimming : include Internal and External PWM Dimming

Note 2:

When PWM dimming ratio is operated within recommend value, backlight can be ensured that there is no flicker and uniformity issue and display quality of panel can be normally display! When PWM dimming ration is operated less than recommend value, backlight need to be double confirmed display quality. LIPS need to be double confirmed feedback signal and all protection function!

Note 3:

Duty ratio definition.

20%

100%



       

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!



www.panelook.com

Page 12

Global LCD Panel Exchange Center

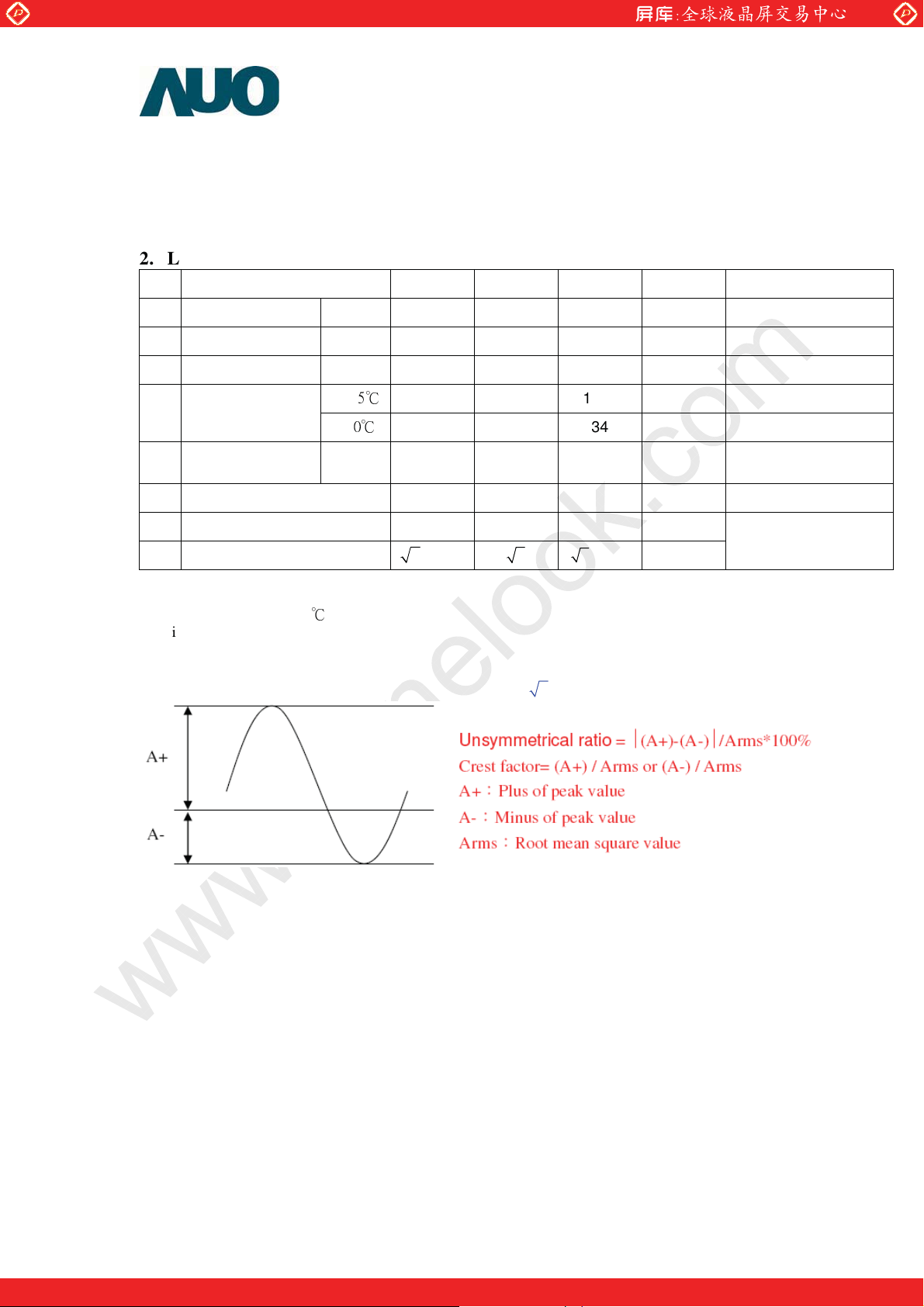

2. Lamp specification

Description Min Typ Max Unit Note

1 Lamp voltage Vlamp 626 695 765 Vrms At Ilamp=12.5mA

2 Lamp current Ilamp 12 12.5 13 mArms

3 Lamp frequency flamp 35 - 80 kHz

www.panelook.com

   

4 Striking voltage

Delayed discharge

time

6 Life time 50K - - hr

7 Unsymmetrical ratio - - 10% -

8 Crest factor (C.F)

The above characteristics are measured under the conditions: Ambient temperature: 25±2 Relative Humidity: 65±20%RH.

Note 1:

Please light on the lamp with symmetrical voltage and current waveform

(unsymmetrical ratio is less than 10%, crest factor within

At 2ˈк

˃к

Tdelay - - 1000 msec

- - 1115 Vrms

- - 1340 Vrms

Note 1.

2 10%−

2 10%+

2 10%±

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 13

Global LCD Panel Exchange Center

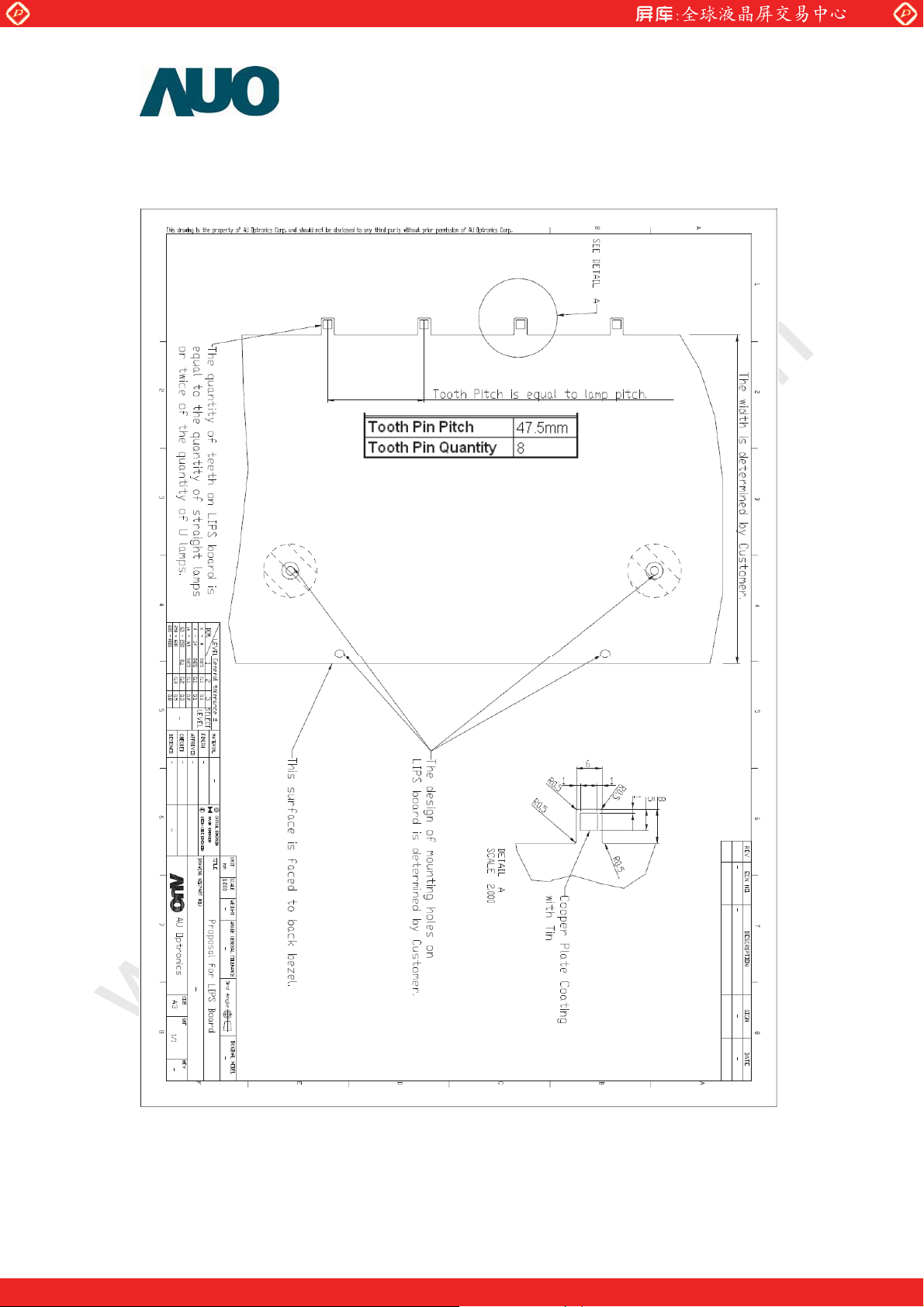

Input Interface for LIPS board

CN1: 106001-00003 (Manufactured by P-TWO)

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 14

Global LCD Panel Exchange Center

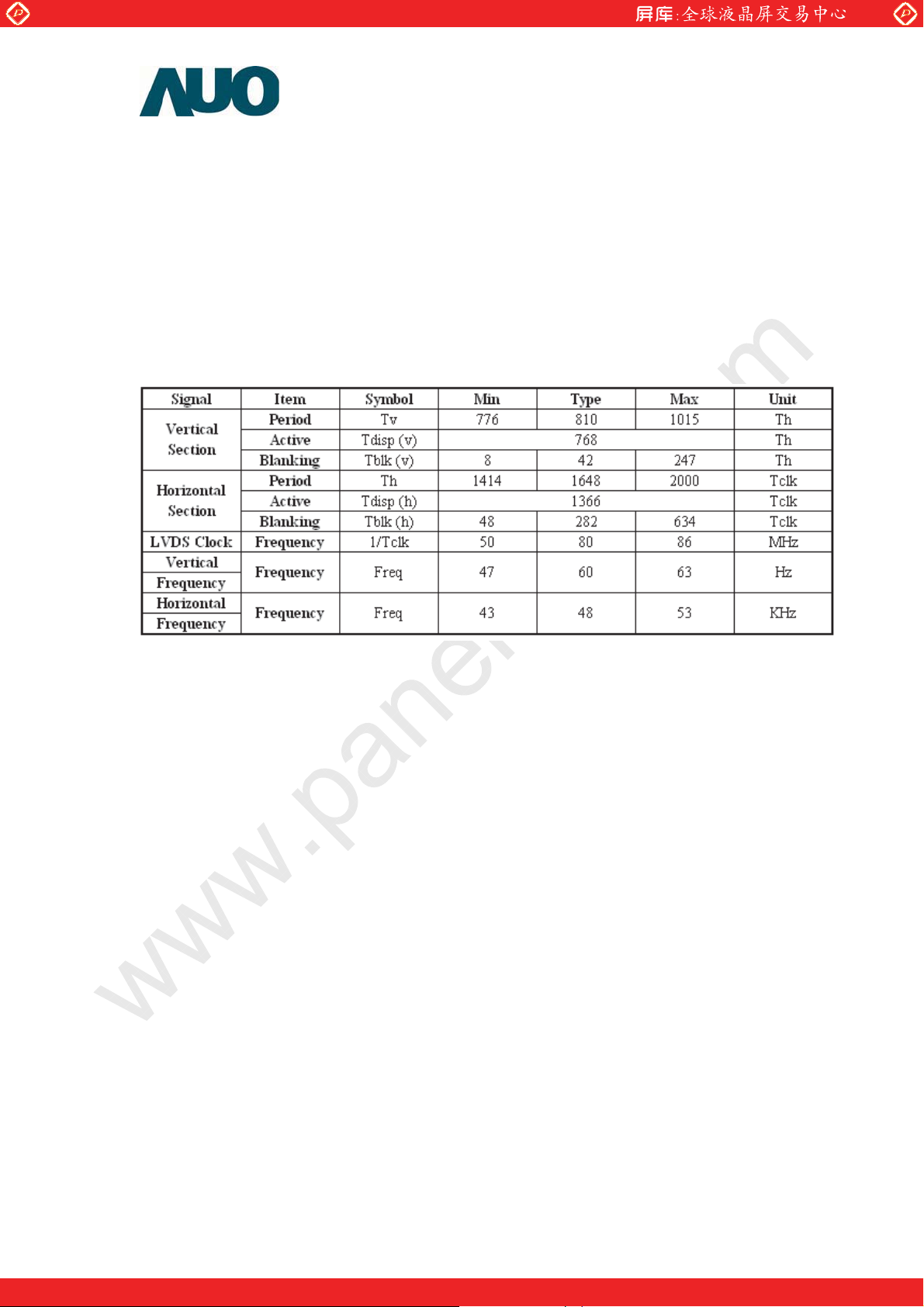

3-3 Signal Timing Specifications

This is the signal timing required at the input of the User connector. All of the interface signal timing should be satisfied with the following specifications for it’s proper operation.

* Timing Table

DE only Mode

Vertical Frequency:

www.panelook.com

Notes:

1.) Display position is specific by the rise of DE signal only. Horizontal display position is specified by the rising edge of 1

DE, is displayed on the left edge of the screen. Vertical display position is specified by the rise of DE after a “Low” level period equivalent to eight times of horizontal period. The 1 horizontal line after the rise the of 1

DE is displayed at the top line of screen.

DCLK after the rise of

data corresponding to one

2.) The display position does not fit to the screen if a period of DE “High” and the effective data period do not synchronize with each other.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 15

Global LCD Panel Exchange Center

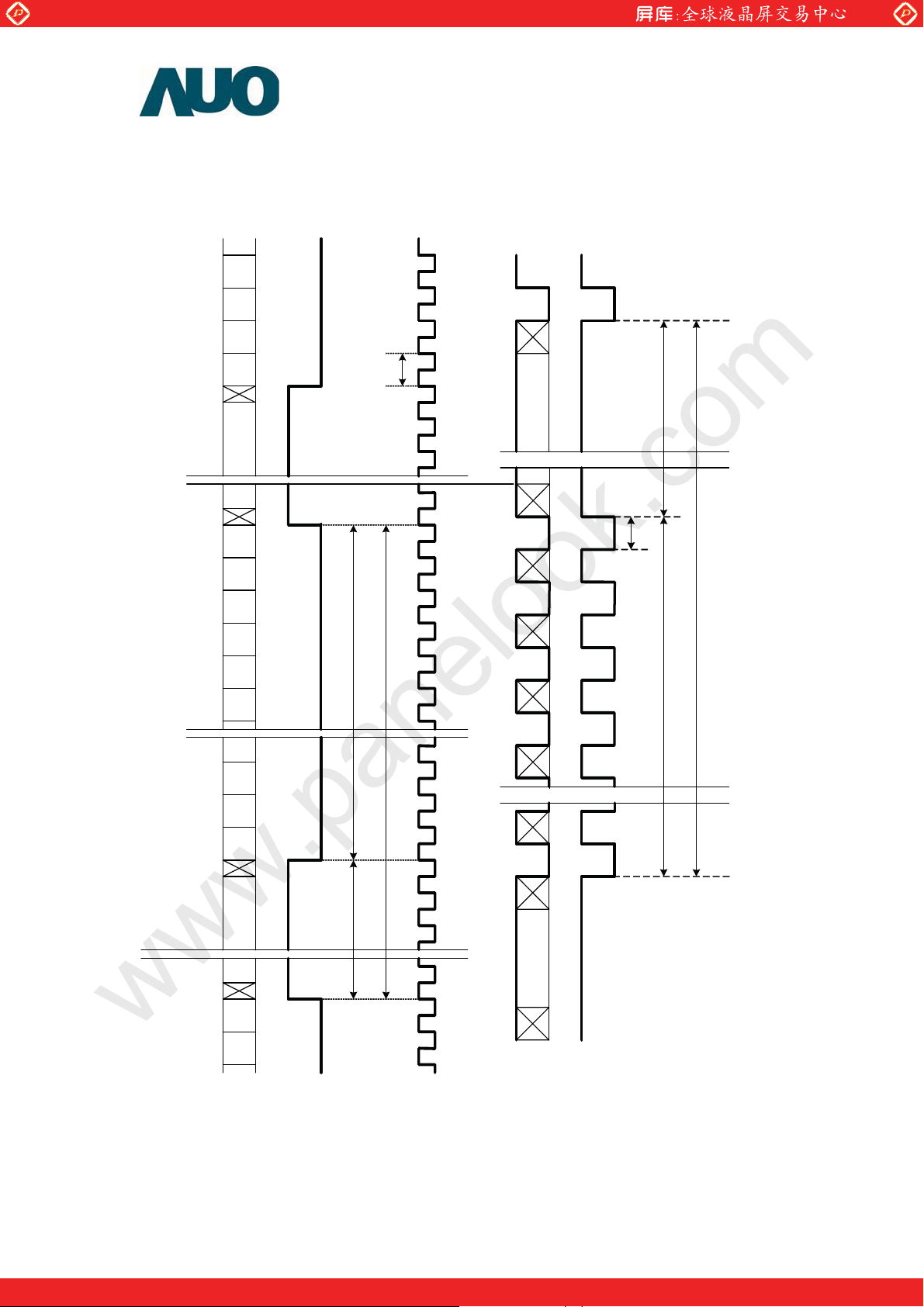

3-4 Signal Timing Waveforms

1366

RGB Data

Pix el

Invalid Data

www.panelook.com

CLK

Line

Tcl k

RGB

Dat a

768

Invalid Data Invalid Data

Line

Pixel

Pix el

1366

Pix el

Invalid Data

Tdisp(h)

Line

768

Tdis p(v)

Pix el

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 16

Global LCD Panel Exchange Center

3-5 Color Input Data Reference

The brightness of each primary color (red, green and blue) is based on the 8 bit gray scale data input for the color; the higher the binary input, the brighter the color. The table below provides a reference for color versus data input.

COLOR DATA REFERENCE

www.panelook.com

Color

Basic

Color

RED

Input Color Data

RED

MSB LSB

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Red(255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Green(255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

Blue(255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Cyan 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Magenta 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Yellow 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

RED(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED(001) 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

----

RED(254) 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

MSB LSB

GREEN

BLUE

MSB LSB

GREEN

BLUE

RED(255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

GREEN(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

GREEN(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0

----

GREEN(254) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0

GREEN(255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

BLUE(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

BLUE(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

-------

BLUE(254) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0

BLUE(255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 17

Global LCD Panel Exchange Center

3-6 Power Sequence for LCD Module

3.6.1 Power Sequence for LCD

www.panelook.com

Va lue s Parameter

Min. Typ. Max.

t1 0.4 - 30 ms

t2 0.1 - 50 ms

t3 200 - - ms

t4 10 - - ms

t5 0.1 - 50 ms

t6 - 300 ms

t7 500 - - ms

Units

Note:

The timing controller will not be damaged in case of TV set AC input power

suddenly shut down.

Once power reset, it should follow power sequence as spec. definition.

(1)

Apply the lamp voltage within the LCD operation range. When the back-light turns on before the LCD operation or the LCD turns off before the back-light turns off, the display may momentarily become abnormal screen.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 18

Global LCD Panel Exchange Center

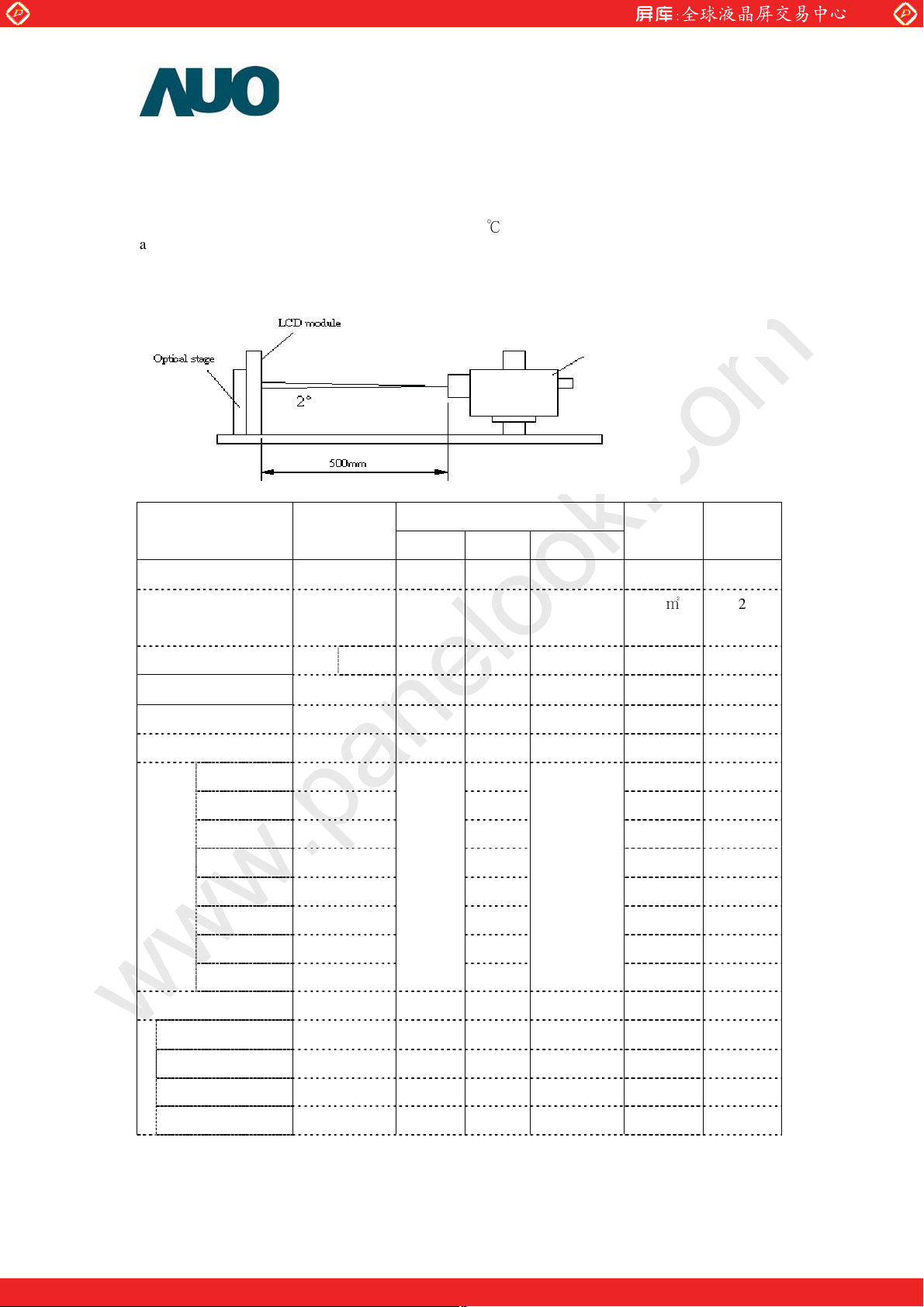

4. Optical Specification

Optical characteristics are determined after the unit has been ‘ON’ and stable for approximately 45 minutes in a dark environment at 25 . The values specified are at an approximate distance 50cm from the LCD surface at a viewing angle of ĭ and

equal to 0°.

Fig.1 1 presents additional information concerning the measurement equipment

www.panelook.com

and method.

SR3 or equivalent

Parameter

Symbol

Values

Min. Typ. Max.

Units Notes

Contrast Ratio CR 2400 3000 1

Surface Luminance,

LWH 350 420

cd/

white

Luminance Variation

G to G Response time

9 p 1.30 3

WHITE

TȖ

6.5 ms 4

Color Gamut NTSC 72 %

Color Coordinates

RED RX 0.64

0.33

GREEN GX 0.28

0.60

Typ.-0.03

Typ.+0.03

BLUE BX 0.15

0.05

WHITE WX 0.28

0.29

Viewing Angle

x axis, right(ĳ=0°)

x axis, left(ĳ=180°)

y axis, up(ĳ=90°)

y axis, down (

=0°)

89 Degree 5

89 Degree

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 19

Global LCD Panel Exchange Center

Note:

1. Contrast Ratio (CR) is defined mathematically as:

Contrast Ratio=

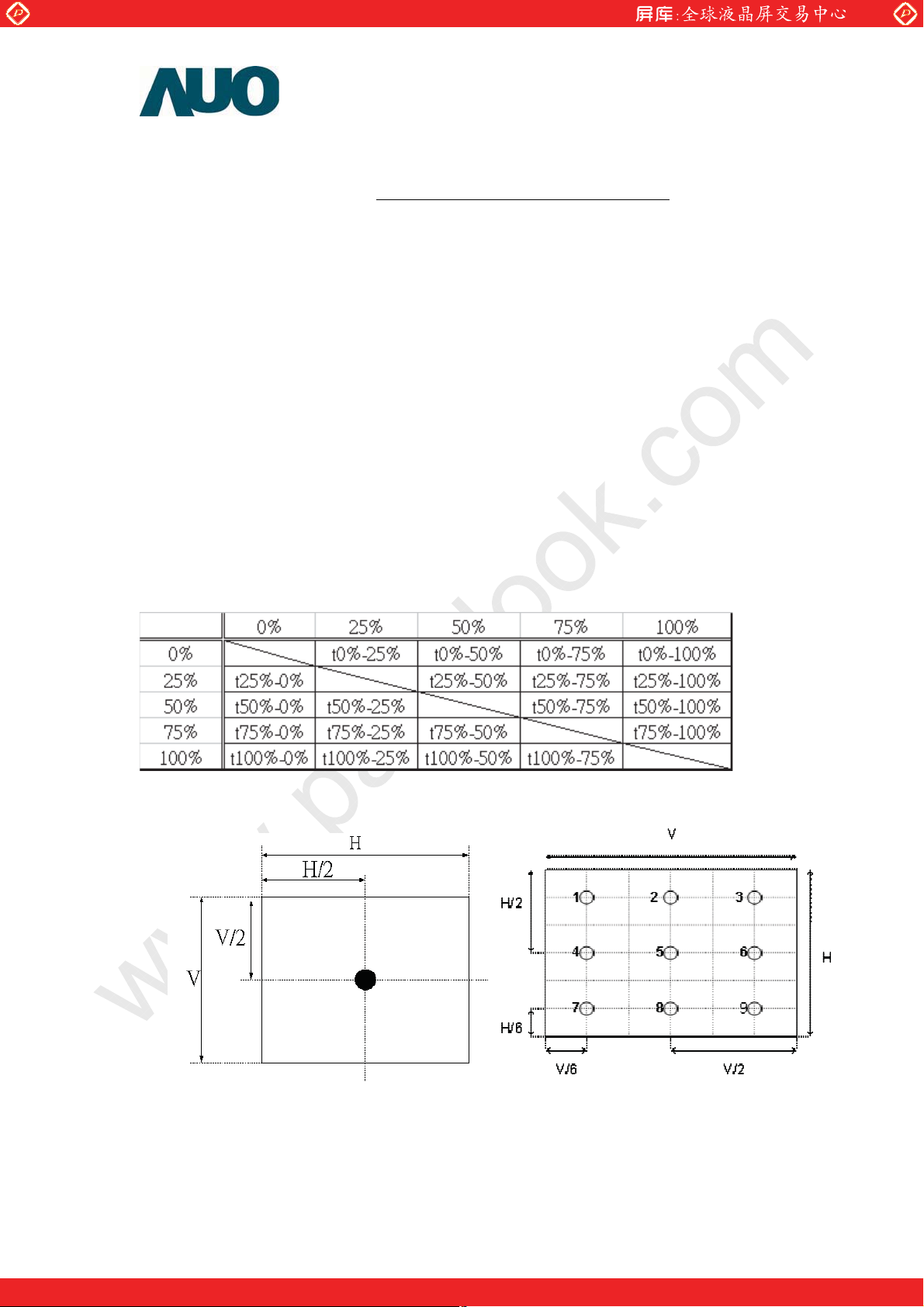

2. Surface luminance is luminance value at point 5 across the LCD surface 50cm

from the surface with all pixels displaying white. For more information see FIG 2.

www.panelook.com

Surface Luminance of

on5

off5

When VDDB = 24V, IDDB = 5A, L

all pixels displaying white at center 5 location.

The variation in surface luminance, įWHITE is defined (center of Screen) as:

WHITE(9P)

,…L

on2

on9

Response time TȖ is the average time required for display transition by switching

the input signal for five luminance ratio (0%,25%,50%,75%,100% brightness

matrix) and is based on f

= Maximum(L

)

=60Hz to optimize.

=Lon5, where Lon5 is the luminance with

on1

, L

on2

,…,L

)/ Minimum(L

on9

FIG. 2 Luminance

on1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 20

Global LCD Panel Exchange Center

Viewing angle is the angle at which the contrast ratio is greater than 10. The

angles are determined for the horizontal or x axis and the vertical or y axis with

respect to the z axis which is normal to the LCD surface. For more information

see FIG4.

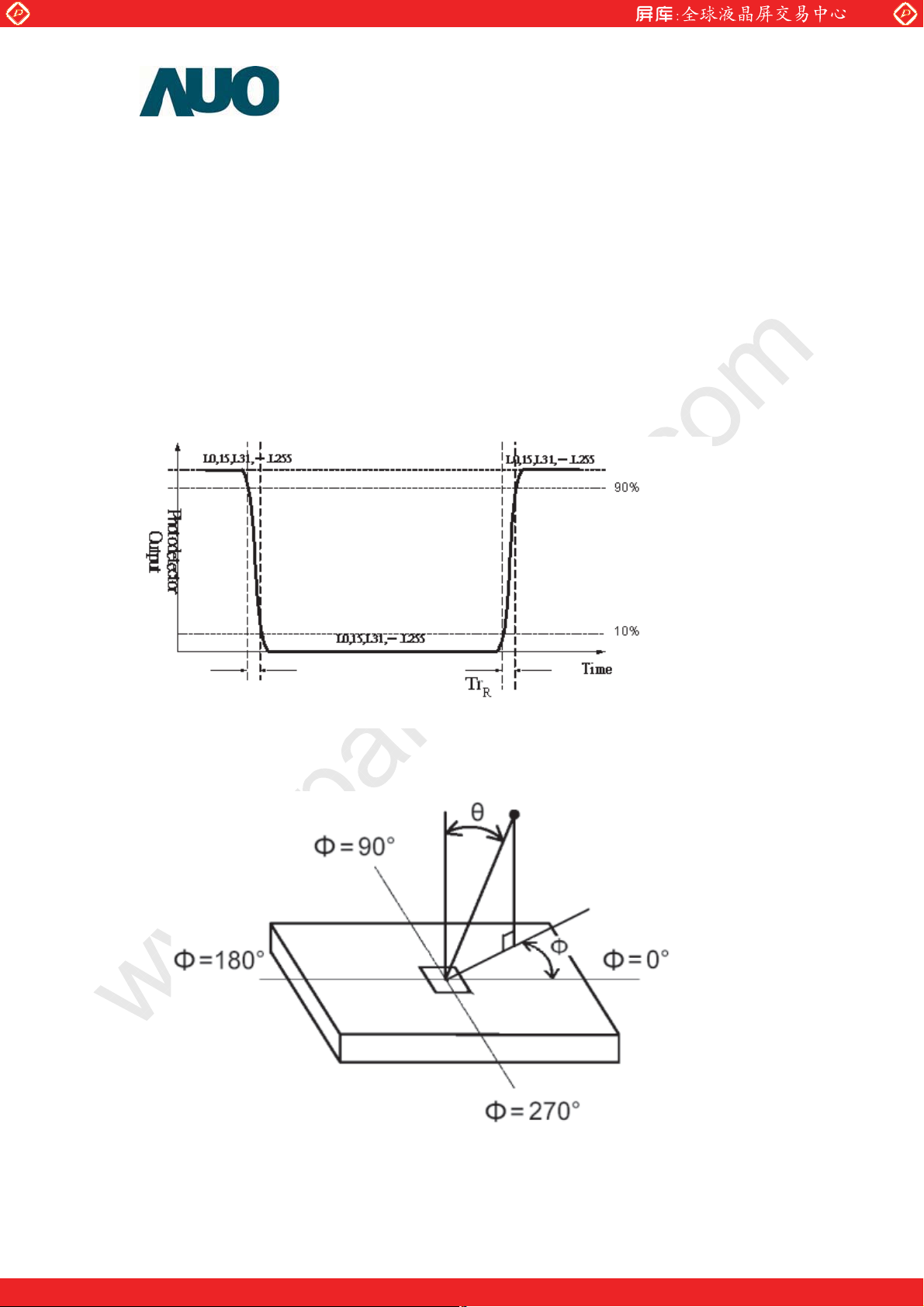

FIG. 3 Response Time

The response time is defined as the following figure and shall be measured by switching the input signal for “any level of gray (bright) “ and “any level of gray(dark)”.

gray(Bright)

Any level of gray(Bright) Any level of gray(Dark) Any level of

www.panelook.com

FIG. 4 Viewing angle

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 21

Global LCD Panel Exchange Center

5. Mechanical Characteristics

The contents provide general mechanical characteristics for the model T315XW02 VX.

In addition the figures in the next page are detailed mechanical drawing of the LCD.

www.panelook.com

Outline Dimension

Weight 5900g Typ.

Surface Treatment AG, 3H

Horizontal 760.0mm

Vertical 450.0mm

Depth 45mm

Horizontal 703.6mm Bezel Opening

Vertical 398.4mm

Horizontal 697.685mm Active Display Area

Vertical 392.256mm

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 22

Global LCD Panel Exchange Center

Front

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 23

Global LCD Panel Exchange Center

Back

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 24

Global LCD Panel Exchange Center

6. Reliability:

Environment test condition

No Test Item Condition

1 High temperature storage test

2 Low temperature storage test

3 High temperature operation test

4 Low temperature operation test

5 Vibration test

(non-operating)

6 Shock test

(non-operating)

7 Vibration test

www.panelook.com

Ta= 60

Ta= -2 0

Ta= 50

Ta= -5

"(10 ~ 300Hz/1.5G/11min SR, XYZ 30min/axis) Vibration level : 1.5G RMS, Bandwidth : 10-300Hz Duration: X, Y, Z 30min, "

Shock level: 50G Waveform: half since wave, 11ms Direction:

Random wave (1.5 Grms 10~200Hz)

300h



X, Y, Z, one time each direction

(with carton)

8 Drop test

(with carton)

30mins / Per each X.Y.Z axes "

Height: 38cm

1 corner, 3 edges, 6 surfaces

(ASTMD4169-I)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 25

Global LCD Panel Exchange Center

7. International Standard

7-1. Safety

(1) UL1950 Third Edition, Underwriters Laboratories, Inc. Jan. 28, 1995

Standard for Safety of Information Technology Equipment Including electrical

Business Equipment.

(2)

CAN/CSA C22.2 No. 950-95/60950 Third Edition, Canadian

Standards Association,

Standard for Safety of Information Technology Equipment Including Electrical

Business Equipment.

(3)

EN60950 : 1992+A2: 1993+A2: 1993+C3: 1995+A4: 1997+A11:

1997

www.panelook.com

IEC 950: 1991+A1: 1992+A2: 1993+C3: 1995+A4:1996

European Committee for Electrotechnical Standardization (CENELEC)

EUROPEAN STANDARD for Safety of Information Technology Equipment

Including Electrical Business Equipment.

(4) EN60065: 2002; IEC 60065: 2001

7-2. EMC

a) ANSI C63.4 “Methods of Measurement of Radio-Noise Emissions from

Low-Voltage Electrical and Electrical Equipment in the Range of 9kHz to

40GHz. “American National standards Institute(ANSI), 1992

b) C.I.S.P.R “Limits and Methods of Measurement of Radio Interface

Characteristics of Information Technology Equipment.” International

Special committee on Radio Interference.

EN 55022 “Limits and Methods of Measurement of Radio Interface

Characteristics of Information Technology Equipment.” European

Committee for Electrotechnical Standardization. (CENELEC), 1998

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 26

Global LCD Panel Exchange Center

–

8. Packing

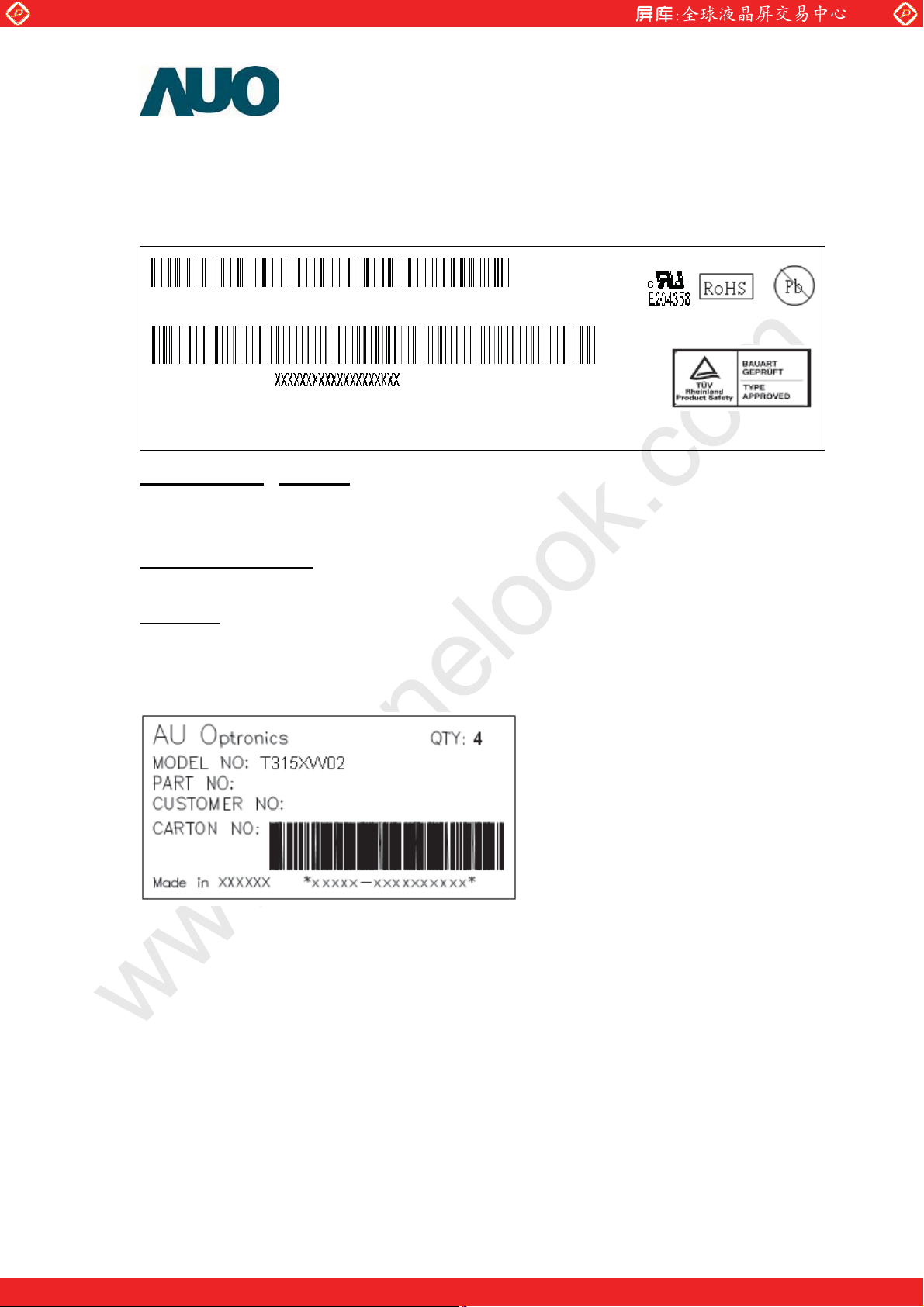

Panel label:

www.panelook.com

*838A0584AHZZ

AU Optronics XXXXG Made in China

Manufactured 09/02 AM89018 Model NO: T315XW02

838A0584AHZ

– ZS0200

ZS0200*

838A0584AHZZ: Panel Unique ID

ZS0200: AUO internal use

Manufactured 09/02

2009 week 02

AM89018

AUO internal use

Carton Label:

97.31T03.XXX

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 27

Global LCD Panel Exchange Center

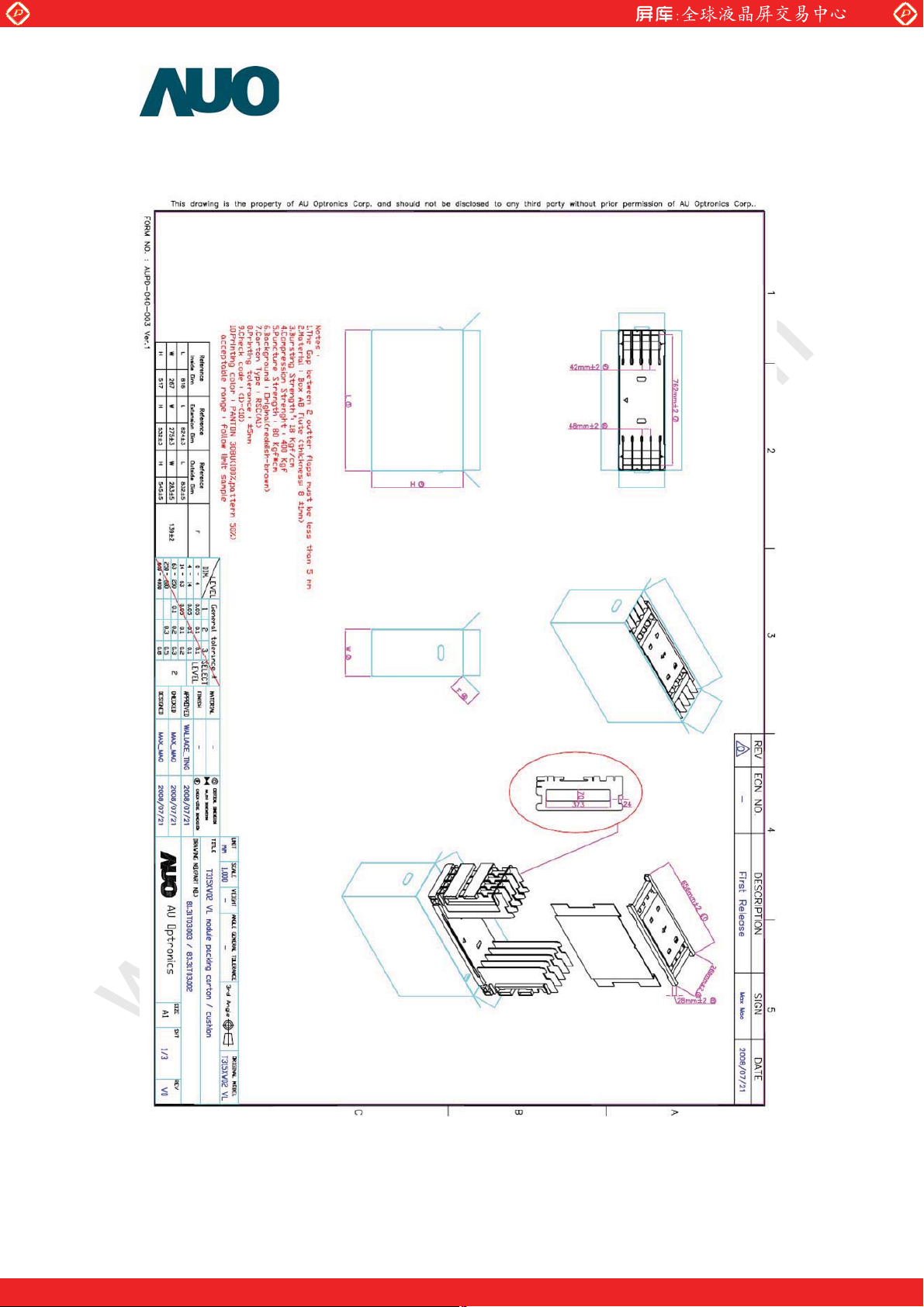

Carton:

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 28

Global LCD Panel Exchange Center

www.panelook.com

Item

Qty. Dimension Weight (kg)

1 Packing BOX 4pcs/box 832(L)mm*283(W)mm*545(H)mm 30.5

2 Pallet 1 1150(L)mm*840(W)mm*138(H)mm 13

3 Boxes per Pallet 8 boxes/Pallet

4 Panels per Pallet 32pcs/pallet

Pallet after packing 32 1150(L)mm*840(W)mm*2460(H)mm 256

Specification

Packing Remark

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 29

Global LCD Panel Exchange Center

9. PRECAUTIONS

Please pay attention to the followings when you use this TFT LCD module.

9-1 MOUNTING PRECAUTIONS

(1) You must mount a module using holes arranged in four corners or four sides. (2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not

applied to module. And the case on which a module is mounted should have sufficient

strength so that external force is not transmitted directly to the module. (3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer. Transparent protective plate should have sufficient strength in order to the resist external force. (4)

You should adopt radiation structure to satisfy the temperature specification. Acetic acid type and chlorine type materials for the cover case are not desirable because the

(5) former generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break by electro-chemical reaction. (6)

Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB pencil lead. And please do not rub with dust clothes with chemical treatment. Do not touch the surface of polarizer for bare hand or greasy cloth. (Some cosmetics are detrimental to the polarizer.) (7)

When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like chamois soaks with petroleum benzene. Normal-hexane is recommended for cleaning the adhesives used to attach front/ rear polarizers. Do not use acetone, toluene and alcohol because they cause chemical damage to the polarizer.

Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer

(8)

causes deformations and color fading. (9)

Do not open the case because inside circuits do not have sufficient strength.

www.panelook.com

9-2 OPERATING PRECAUTIONS

(1) The device listed in the product specification sheets was designed and manufactured for TV

application

(2)

The spike noise causes the mis-operation of circuits. It should be lower than following voltage:

V=±200mV(Over and under shoot voltage)

(3)

Response time depends on the temperature. (In lower temperature, it becomes longer..)

(4)

Brightness depends on the temperature. (In lower temperature, it becomes lower.) And in

lower temperature, response time (required time that brightness is stable after turned on)

becomes longer.

(5)

Be careful for condensation at sudden temperature change. Condensation makes damage to

polarizer or electrical contacted parts. And after fading condensation, smear or spot will occur.

(6)

When fixed patterns are displayed for a long time, remnant image is likely to occur.

(7)

Module has high frequency circuits. Sufficient suppression to the electromagnetic interference

shall be done by system manufacturers. Grounding and shielding methods may be important

to minimize the interface.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 30

Global LCD Panel Exchange Center

9-3 ELECTROSTATIC DISCHARGE CONTROL

Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make

certain that treatment persons are connected to ground through wrist band etc. And don’t touch

interface pin directly.

9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

Strong light exposure causes degradation of polarizer and color filter.

9-5 STORAGEЀЀЀЀ

When storing modules as spares for a long time, the following precautions are necessary.

(1)

Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep

www.panelook.com

the temperature between 5 and 35 at normal humidity.

(2)

The polarizer surface should not come in contact with any other object. It is recommended

that they be stored in the container in which they were shipped.

кк

9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM

(1) The protection film is attached to the bezel with a small masking tape. When the protection

film is peeled off, static electricity is generated between the film and polarizer. This should be

peeled off slowly and carefully by people who are electrically grounded and with well

ion-blown equipment or in such a condition, etc.

(2)

When the module with protection film attached is stored for a long time, sometimes there

remains a very small amount of flue still on the Bezel after the protection film is peeled off.

(3)

You can remove the glue easily. When the glue remains on the Bezel or its vestige is

recognized, please wipe them off with absorbent cotton waste or other soft material like

chamois soaked with normal-hexane.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com
