AUO T315XW02 VV Specification

Download

Page 1

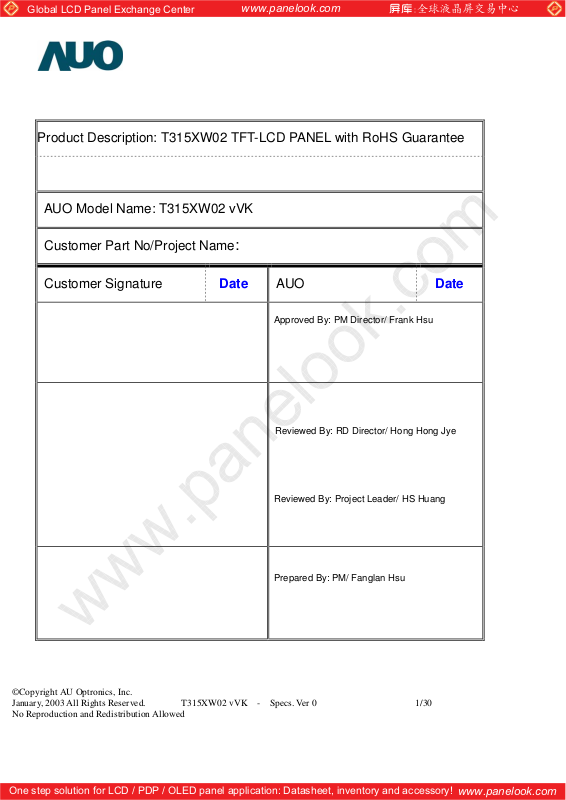

Global LCD Panel Exchange Center

www.panelook.com

Product Description: T315XW02 TFT-LCD PANEL with RoHS Guarantee

AUO Model Name: T315XW02 vVK

Customer Part No/Project Name:

Customer Signature Date AUO Date

Approved By: PM Director/ Frank Hsu

Reviewed By: RD Director/ Hong Hong Jye

Reviewed By: Project Leader/ HS Huang

Prepared By: PM/ Fanglan Hsu

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 2

Global LCD Panel Exchange Center

www.panelook.com

Document Version : 0

Date : 2008/10/02

Product Specifications

31.5” WXGA Color TFT-LCD Module Model Name: T315XW02 vVK

(*) Preliminary Specifications

( ) Final Specifications

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 3

Global LCD Panel Exchange Center

COVER

www.panelook.com

Contents

CONTENTS

RECORD OF REVISIONS

GENERAL DESCRIPTION 1

ABSOLUTE MAXIMUM RATINGS 2

ELECTRICAL SPECIFICATIONS 3

ELECTRICAL CHARACTREISTICS 3-1

INTERFACE CONNECTIONS 3-2

SIGNAL TIMING SPECIFICATIONS 3-3

COLOR INPUT DATA REFERNECE 3-5

SIGNAL TIMING WAVEFORMS 3-4

POWER SEQUENCE 3-6

OPTICAL SPECIFICATIONS 4

MECHANICAL CHARACTERISTICS 5

RELIABLITY 6

INTERNATIONAL STANDARDS 7

SAFETY 7-1

EMC 7-2

PACK ING 8

PRECAUTIONS 9

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 4

Global LCD Panel Exchange Center

www.panelook.com

Record of Revision

Version Date No Old Description New Description Remark

0 2008/10/02 First issue

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 5

Global LCD Panel Exchange Center

www.panelook.com

1. General Description

This specification applies to the 31.51 inch Color TFT-LCD Module T315XW02 vVK. This

LCD module has a TFT active matrix type liquid crystal panel 1366x768 pixels, and

diagonal size of 31.51 inch. This module supports 1366x768 XGA-WIDE mode

(Non-interlace).

Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in

vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a 8-bit

gray scale signal for each dot.

The T315XW02 vVK has been designed to apply the 8-bit 1 channel LVDS interface

method. It is intended to support displays where high brightness, wide viewing angle, high

color saturation, and high color depth are very important.

The T315XW02 vVK model is RoHS verified which can be distinguished on panel label.

General Information

Items Specification Unit Note

Active Screen Size 31.51 inches

Display Area 697.685 (H) x 392.256(V) mm

Outline Dimension 760.0(H) x 450.0(V) x 45(D) mm

Driver Element a-Si TFT active matrix

Display Colors 16.7M Colors

Number of Pixels 1366 x 768 Pixel

Pixel Pitch 0.51075 mm

Pixel Arrangement RGB vertical stripe

Display Mode Normally Black

Surface Treatment Anti-Glare, Haze =11%, 3H

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 6

Global LCD Panel Exchange Center

www.panelook.com

2. Absolute Maximum Ratings

The following are maximum values which, if exceeded, may cause permanent damage to the unit.

Item Symbol Min Max Unit Conditions

Logic/LCD Drive Voltage Vcc -0.3 14 [Volt] Note 1

Input Voltage of Signal Vin -0.3 3.6 [Volt] Note 1

BLU Input Voltage VDDB -0.3 28 [Volt] Note 1

BLU Brightness Control Voltage Vdim -0.3 7.0 [Volt] Note 1

Operating Temperature TOP 0 +50 [oC] Note 2

Operating Humidity HOP 10 90 [%RH] Note 2

Storage Temperature TST -20 +60 [oC] Note 2

Storage Humidity HST 10 90 [%RH] Note 2

Panel Surface Temperature PST 65 [oC]

Note 1: Duration:50 msec.

Note 2 : Maximum Wet-Bulb should be 39 and No condensation.

The relative humidity must not exceed 90% non-condensing at temperatures of 40 or less. At temp

greater than 40 , the wet bulb temperature must not exceed 39 .

кк

eratures

10%

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 7

Global LCD Panel Exchange Center

www.panelook.com

3. Electrical Specification

The T315XW02 vVK requires two power inputs. One is employed to power the LCD electronics and to drive the TFT array and liquid crystal. The second input power for the BLU, is to power inverter..

3-1 Electrical Characteristics

Parameter

Symbol

Values

Unit Notes

Min Typ Max

LCD:

Power Supply Input Voltage Vcc 10.8 12 13.2 Vdc 1

Power Supply Input Current Icc - 0.45 0.55 A 2

Power Consumption Pc - 5.4

Inrush Current I

LV DS

Interface

CMOS

ifferential Input High Threshold

Vo l t a g e

Differential Input Low Threshold

Vo l t a g e

Common Input Voltage

Input High Threshold Voltage

Interface

Input Low Threshold Voltage

- - 6 Apeak 3

RUSH

VTH 100 mV 4

VTL 100 mV 4

VCIM 1.10 1.25 1.40 V 4

VIH

2.4 3.3 Vdc

(High)

VIL

0 0.7 Vdc

7.26 Watt 2

(Low)

Life Time 50,000 Hours 5,6,7

Note :

1. The ripple voltage should be controlled under 10% of V

=vf

2. Vcc=12.0V,

60Hz, fCLK=81.5Mhz , 25 , Test Pattern : White Patternк

3. Measurement condition :

ˌ˃ʸ

GND

˄˃ʸ

˧˻ʳːʳˇˊ˃ʳ˦

VCC

4. VCIM = 1.2V

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 8

Global LCD Panel Exchange Center

www.panelook.com

VCIM

VTH

VIL

5. The performance of the Lamp in LCD panel, for example life time or brightness, is extremely

influenced by the characteristics of the DC-AC Inverter. So all the parameters of an inverter should

be carefully designed as not to produce too much leakage current from high-voltage output of the

inverter. When you design or order the inverter, please make sure unwanted lighting caused by the

mismatch of the lamp and the inverter (no lighting, flicker, etc) never occurs. After confirmation, the

LCD panel should be operated in the same condition as installed in your instrument.

6. Do not attach a conducting tape to lamp connecting wire. If the lamp wire attach to conducting tape,

TFT-LCD Module have a low luminance and the inverter has abnormal action because leakage

current occurs between lamp wire and conducting tape.

7. The relative humidity must not exceed 80% non-condensing at temperatures of 40 or less. At

temperatures greater than 40 , the wet bulb temperature must not exceed 39 . When operate at

кк

low temperatures, the brightness of CCFL will drop and the life time of CCFL will be reduced.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 9

Global LCD Panel Exchange Center

www.panelook.com

3-2 Interface Connections

- Connector on Panel: 196161-XX031-3 (Manufactured by P-two Industries INC.) or equivalent.

Pin no. Symbol Description

1 AGING No Connect (AUO Aging Only)

2 SCL EEPROM Serial Clock

3 SDA EEPROM Serial Data

4 GND Ground

5 R_0- LVDS Channel, Signal 0-

6 R_0+ LVDS Channel, Signal 0+

7 GND Ground

8 R_1- LVDS Channel, Signal 1-

9 R_1+ LVDS Channel, Signal 1+

10 GND Ground

11 R_2- LVDS Channel, Signal 2-

12 R_2+ LVDS Channel, Signal 2+

13 GND Ground

14 R_CLK- LVDS Channel, Clock -

15 R_CLK+ LVDS Channel, Clock +

16 GND Ground

17 R_3- LVDS Channel, Signal 3-

18 R_3+ LVDS Channel, Signal 3+

19 GND Ground

20 NC No Connect (AUO Internal Use Only)

21 LVDS_SEL Open/High(3.3V) for NS, Low(GND) for JEIDA

22 WP EEPROM Write Protection

23 GND Ground

24 GND Ground

25 GND Ground

26 VDD Operating Voltage Supply, +12V DC Regulated

27 VDD Operating Voltage Supply, +12V DC Regulated

28 VDD Operating Voltage Supply, +12V DC Regulated

29 VDD Operating Voltage Supply, +12V DC Regulated

30 VDD Operating Voltage Supply, +12V DC Regulated

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 10

Global LCD Panel Exchange Center

LVDS Option = High

www.panelook.com

LVDS Option = Low or Open

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 11

Global LCD Panel Exchange Center

www.panelook.com

BACKLIGHT CONNECTOR PIN CONFIGURATION

1. Electrical specification

1 Operating Voltage Vo 639 710 781 Vrms

2 Operating Current Io 12 12.5 13 mArms

3 BL Total Power Dissipation PBL 76

4 Striking Voltage

5 Striking Time Ts 1000 - 1500 msec

Description Min Typ Max Unit

80 Watt

Vrms

At 0к

˅ˈк

1500 2200

Vstrike

1350 2200

Condition/Note

1. Dimming range is set 100%

2. Base on lamp specification, for each lamp need to be applied at least minimum operating voltage to ensure each lamp can be normally worked!

1. Dimming range is set 100%

2. Base on lamp specification, for each lamp need to be applied at least minimum operating current to ensure each lamp can be normally worked!

1. Dimming range is set 100%.

2. In order to get typical light out, the backlight need to be applied typical power.

3. Input power of JIG BD is about 90 W (typ) by AUO measure!

1. Base on lamp specification, to ensure each lamp can be normally ignited, need to apply at least minimum striking voltage to each lamp

1. To ensure each lamp can be normally ignited, each lamp need to be applied at least minimum striking voltage during minimum striking time.

1. Operating frequency is set by

6 Operating Frequency fo kHz

PWM Operating Frequency F_PWM 140 180 240 Hz

PWM Dimming Duty Ratio D_PWM

100

9 Lamp Type U type

10 Number of Lamps 4 pcs

Ta=2 55к, Turn on for 45minutesα

customer.

2. Need to double confirm display quality.(*)

1. PWM frequency is set by customer.

2. Need to double confirm display quality.(*)

Note 1. Dimming range Note 2. Note 3. Duty ratio definition.

(*) The operating frequency of lamp may produce interference with horizontal frequency from display, and may cause line noise on the display. In order to avoid interference, the operating frequency should be separated from horizontal frequency.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 12

Global LCD Panel Exchange Center

Note 1:

Dimming range

Control

range

www.panelook.com

100%

PWM

Dimming

PWM Dimming : include Internal and External PWM Dimming

 

Note 2:

When PWM dimming ration is operated less than recommend value, feedback signal and all protection functions should be confirmed for LIPS design. Picture performance and quality should also be confirmed by customers.

Note 3:

Duty ratio definition.

20%

100%



One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 13

Global LCD Panel Exchange Center

www.panelook.com

2. Lamp specification

Description Min Typ Max Unit Note

1 Lamp voltage Vlamp 639 710 781 Vrms At Ilamp=12.5mA

2 Lamp current Ilamp 12 12.5 13 mArms

3 Lamp frequency flamp 35 - 80 kHz

4 Striking voltage

Delayed discharge

time

6 Life time 50K - - hr

7 Unsymmetrical ratio - - 10% -

8 Crest factor (C.F)

The above characteristics are measured under the conditions: Ambient temperature: 25±2

At 2ˈк

˃к

Tdelay - - 1000 msec

, Relative Humidity: 65±20%RH.

- - 1115 Vrms

- - 1340 Vrms

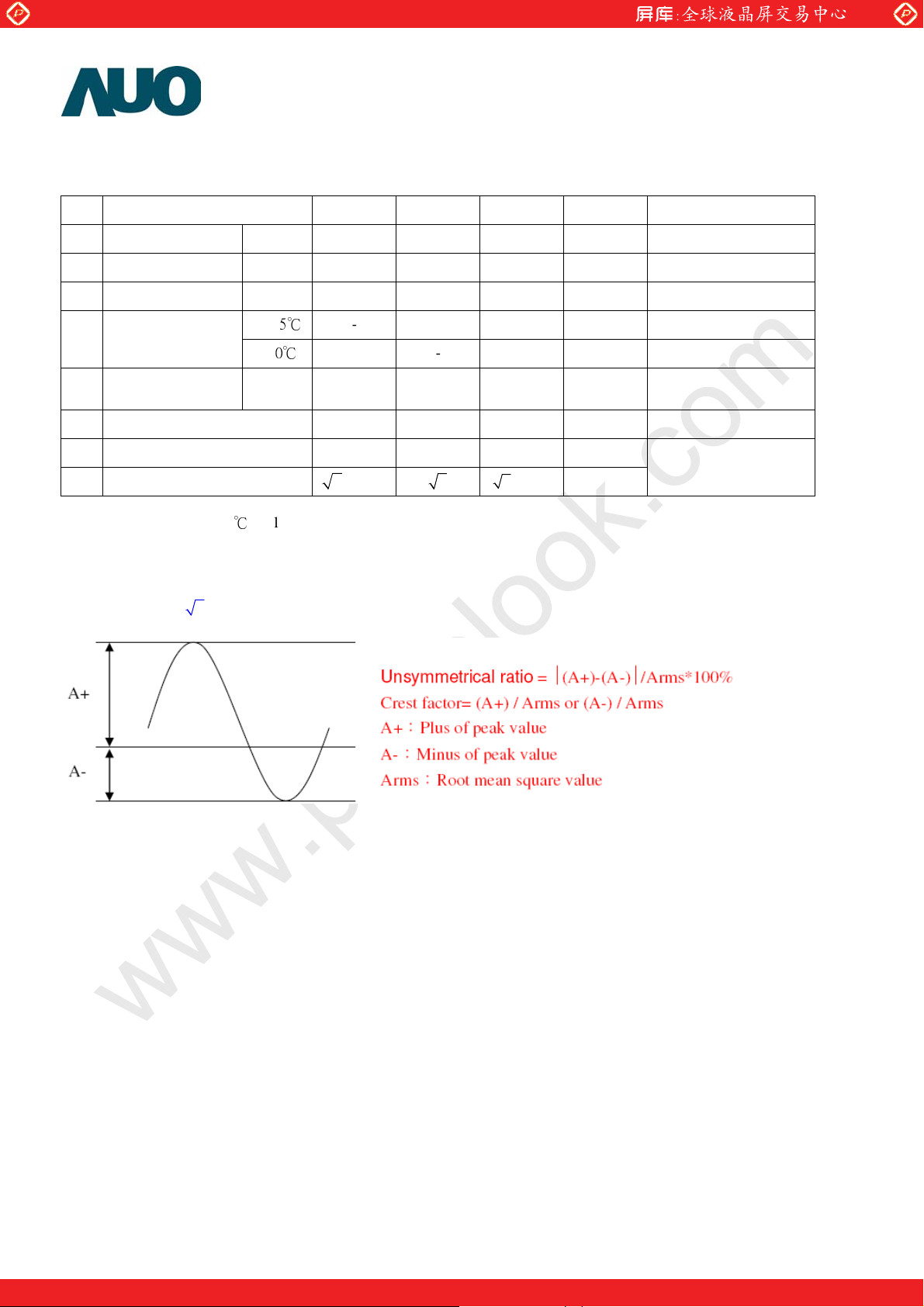

Note 1.

2 10%−

2 10%+

Note 1:

Please light on the lamp with symmetrical voltage and current waveform (unsymmetrical ratio is less than 10%,

crest factor within

2 10%±

). The inverter output waveform should be better similar to the ideal sine wave.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 14

Global LCD Panel Exchange Center

Input Interface for LIPS board

CN1: EL7H001ZZ2 (Manufactured by JAE)

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 15

Global LCD Panel Exchange Center

www.panelook.com

3-3 Signal Timing Specifications

This is the signal timing required at the input of the User connector. All of the interface signal timing should be satisfied with the following specifications for it’s proper operation.

* Timing Table

DE only Mode

Vertical Frequency:

Notes:

1.) Display position is specific by the rise of DE signal only. Horizontal display position is specified by the rising edge of 1 edge of the screen. Vertical display position is specified by the rise of DE after a “Low” level period equivalent to eight times of horizontal period. The 1

2.) If a period of DE “High” is less than 1366 DCLK or less than 768 lines, the rest of the screen displays black.

3.) The display position does not fit to the screen if a period of DE “High” and the effective data period do not synchronize with each other.

data corresponding to one horizontal line after the rise the of 1st DE is displayed at the top line of screen.

DCLK after the rise of 1st DE, is displayed on the left

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 16

Global LCD Panel Exchange Center

3-4 Signal Timing Waveforms

1366

RGB Data

Pix el

Invalid Data

Tcl k

www.panelook.com

CLK

RGB

Dat a

Line

768

Invalid Data Invalid Data

Line

Pixel

Pix el

1366

Pix el

Invalid Data

Tdisp(h)

Line

768

Tdis p(v)

Pix el

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 17

Global LCD Panel Exchange Center

www.panelook.com

3-5 Color Input Data Reference

The brightness of each primary color (red, green and blue) is based on the 8 bit gray scale data input for the color; the higher the binary input, the brighter the color. The table below provides a reference for color versus data input.

COLOR DATA REFERENCE

Color

Basic

Color

RED

Input Color Data

RED

MSB LSB

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Red(255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Green(255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

Blue(255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Cyan 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Magenta 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Yellow 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

RED(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED(001) 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

----

RED(254) 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

MSB LSB

GREEN

BLUE

MSB LSB

RED(255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

GREEN

BLUE

GREEN(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

GREEN(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0

----

GREEN(254) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0

GREEN(255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

BLUE(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

BLUE(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

-------

BLUE(254) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0

BLUE(255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 18

Global LCD Panel Exchange Center

3-6 Power Sequence for LCD Module

3.6.1 Power Sequence for LCD

www.panelook.com

Values Parameter

Min. Typ. Max.

t1 0.4 - 30 ms

t2 0.1 - 50 ms

t3 200 - - ms

t4 10 - - ms

t5 0.1 - 50 ms

t6 - 300 ms

t7 500 - - ms

Note:

The timing controller will not be damaged in case of TV set AC input power suddenly shut down.

Once power reset, it should follow power sequence as spec. definition.

Units

(1)

Apply the lamp voltage within the LCD operation range. When the back-light turns on before the LCD operation or the LCD turns off before the back-light turns off, the display may momentarily become abnormal screen.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 19

Global LCD Panel Exchange Center

www.panelook.com

4. Optical Specification

Optical characteristics are determined after the unit has been ‘ON’ and stable for approximately 45 minutes in a dark environment at 25 . The values specified are at an approximate distance 50cm from the LCD surface at a viewing angle of ĭ and șequal to 0°.

Fig.1 1 presents additional information concerning the measurement equipment and method.

Parameter

Symbol

Val ue s

Min. Typ. Max.

Units Notes

Contrast Ratio CR 2500 3000 1

Surface Luminance, white LWH 360 450

Luminance Variation

G to G Response time

9 p 1.30 3

WHITE

TȖ

6.5 ms 4

cd/

Color Gamut NTSC 72 %

Color Coordinates

RED RX 0.64

0.33

GREEN GX 0.28

0.60

Typ.-0 .03

Typ.+0.03

BLUE BX 0.15

0.05

WHITE WX 0.28

0.29

Viewing Angle

x axis, right(ĳ=0°)

x axis, left(ĳ=180°)

y axis, up(ĳ=90°)

y axis, down (

=0°)

89 Degree 6

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 20

Global LCD Panel Exchange Center

Note:

1. Contrast Ratio (CR) is defined mathematically as:

Surface Luminance of

Contrast Ratio=

Surface luminance is luminance value at point 5 across the LCD surface 50cm from the surface with all

Surface Luminance of

www.panelook.com

on5

off5

pixels displaying white. From more information see FIG 2. When VDDB = 24V, IDDB = 5A, L

where Lon5 is the luminance with all pixels displaying white at center 5 location.

The variation in surface luminance, įWHITE is defined (center of Screen) as:

WHITE(9P)

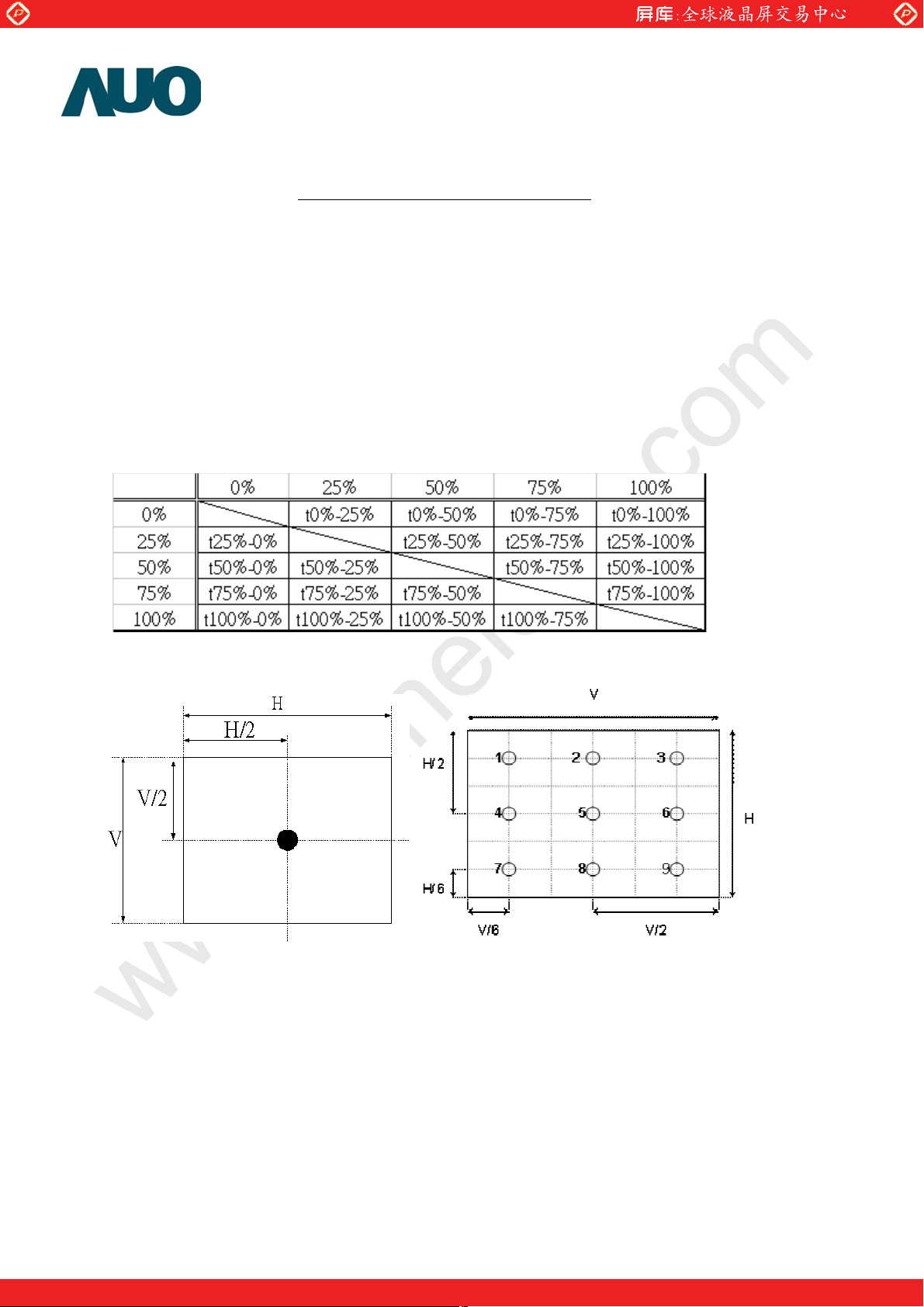

Response time TȖ is the average time required for display transition by switching the input signal for five

luminance ratio (0%,25%,50%,75%,100% brightness matrix) and is based on f

= Maximum(L

on1

, L

on2

,…,L

)/ Minimum(L

on9

on1

, L

,…L

on2

=60Hz to optimize.

on9

)

FIG. 2 Luminance

=Lon5,

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 21

Global LCD Panel Exchange Center

Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined for the

horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the LCD surface.

For more information see FIG3.

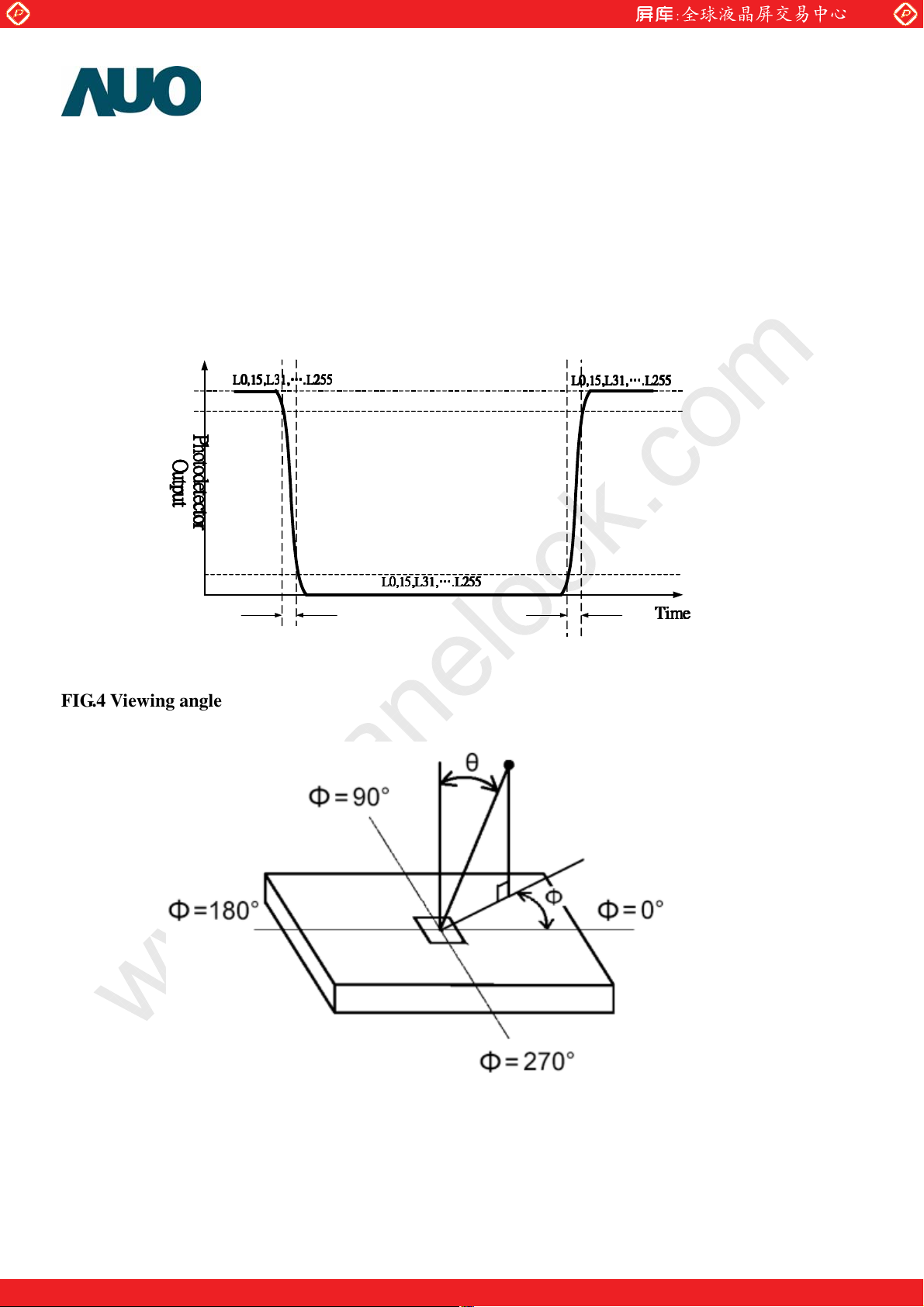

FIG. 3 Response Time

The response time is defined as the following figure and shall be measured by switching the input signal for “any level of gray(bright) “ and “any level of gray(dark)”.

Any level of gray(Bright) Any level of gray(Dark) Any level of gray(Bright)

˟˃ʿ˄ˈʿ˟ˆ˄ʿΞˁ˟˅ˈˈ

˟˃ʿ˄ˈʿ˟ˆ˄ʿΞˁ˟˅ˈˈ˟˃ʿ˄ˈʿ˟ˆ˄ʿΞˁ˟˅ˈˈ

ˣ ˻

˻ 



















˶ 





 



www.panelook.com

˟˃ʿ˄ˈʿ˟ˆ˄ʿΞˁ˟˅ˈˈ

˟˃ʿ˄ˈʿ˟ˆ˄ʿΞˁ˟˅ˈˈ˟˃ʿ˄ˈʿ˟ˆ˄ʿΞˁ˟˅ˈˈ

FIG.4 Viewing angle

˟˃ʿ˄ˈʿ˟ˆ˄ʿΞˁ˟˅ˈˈ

˟˃ʿ˄ˈʿ˟ˆ˄ʿΞˁ˟˅ˈˈ˟˃ʿ˄ˈʿ˟ˆ˄ʿΞˁ˟˅ˈˈ

˧˼˸

˧˼˸˧˼˸

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 22

Global LCD Panel Exchange Center

www.panelook.com

5. Mechanical Characteristics

The contents provide general mechanical characteristics for the model T315XW02 vVK. In addition the

figures in the next page are detailed mechanical drawing of the LCD.

Outline Dimension

Weight 6000g Typ.

Surface Treatment AG, 3H

Horizontal 760.0mm

Vertical 450.0mm

Depth 45mm

Horizontal 703.6mm Bezel Opening

Vertical 398.3mm

Horizontal 697.685mm Active Display Area

Vertical 392.256mm

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 23

Global LCD Panel Exchange Center

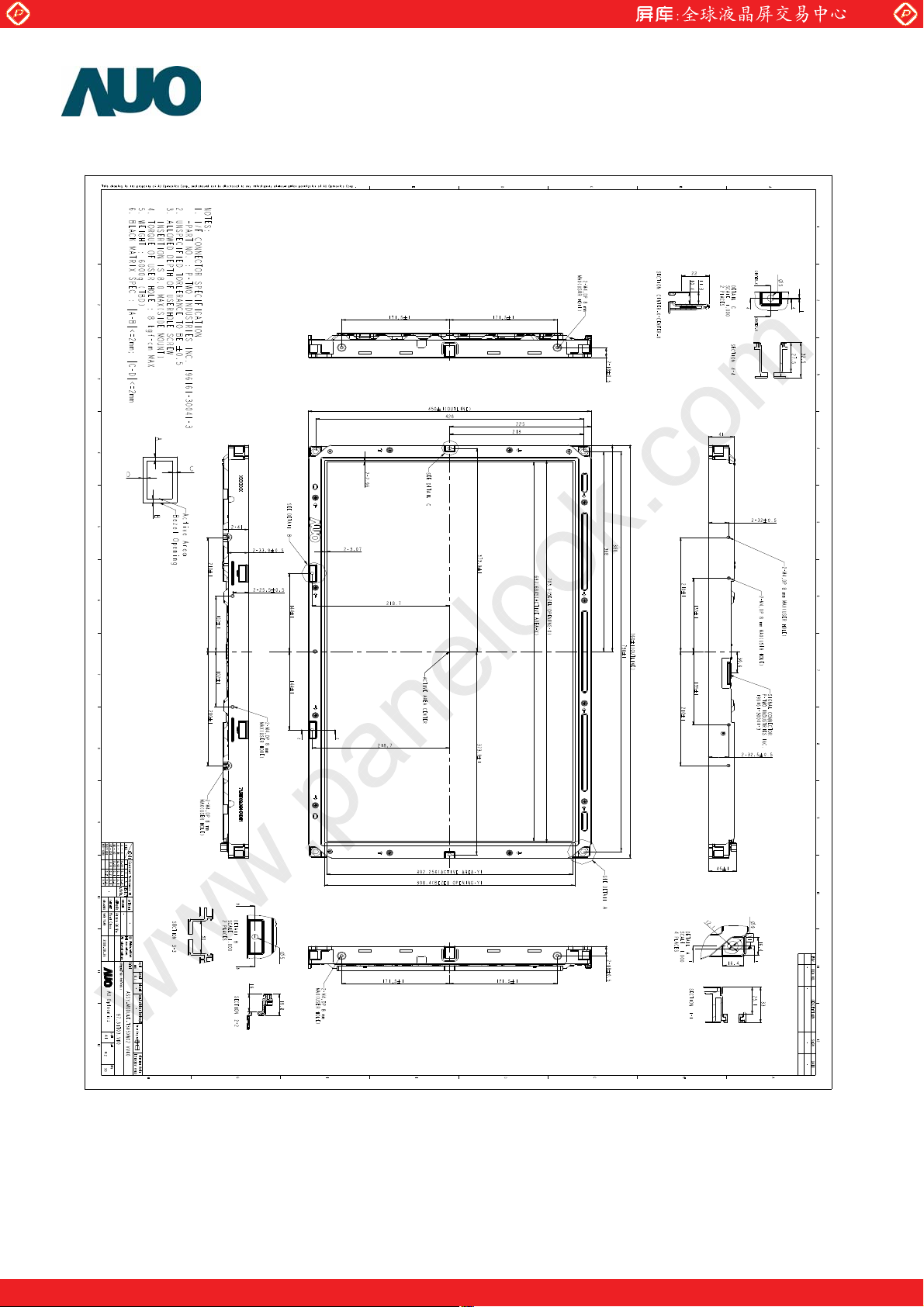

Front View:

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 24

Global LCD Panel Exchange Center

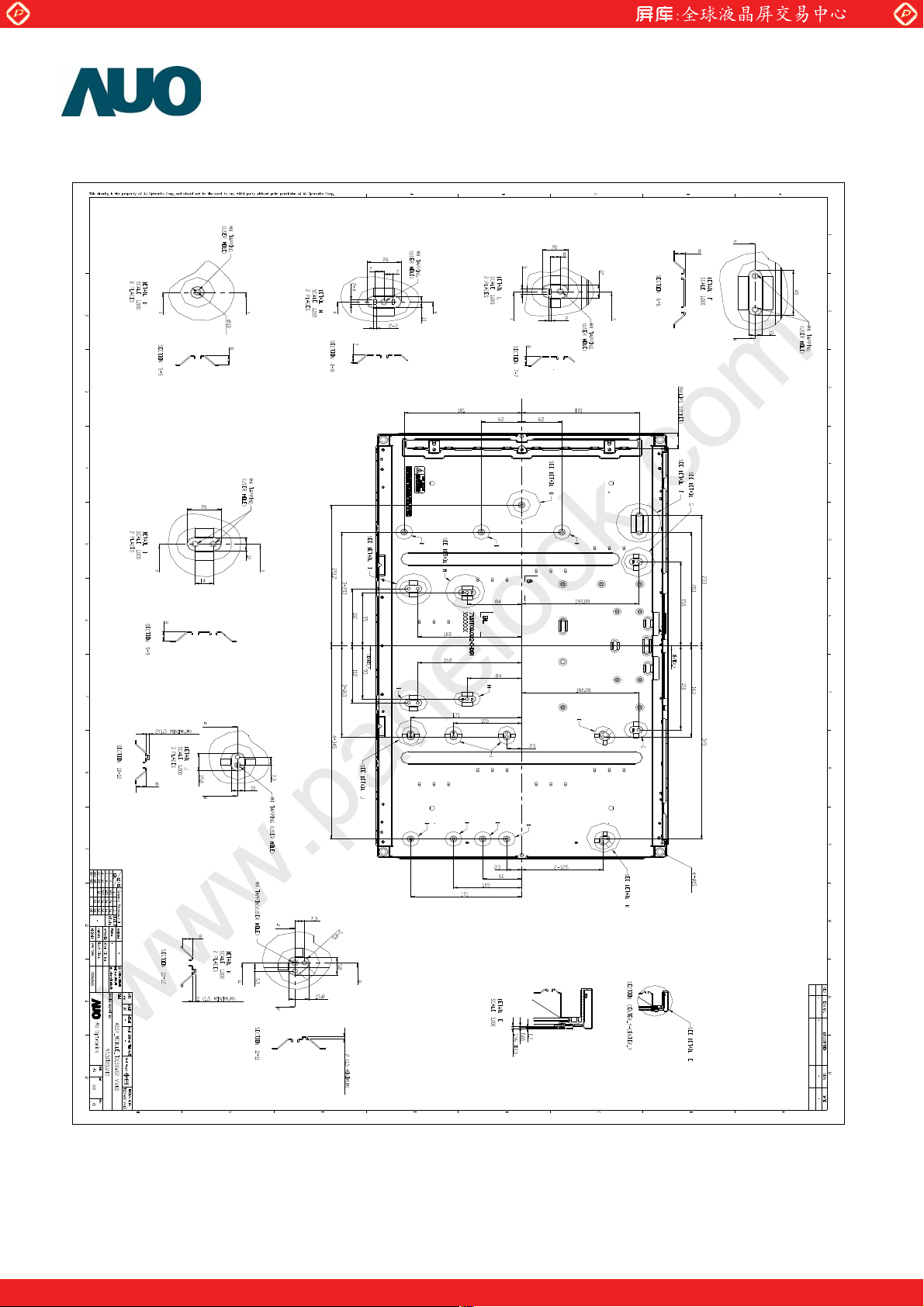

Back View

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 25

Global LCD Panel Exchange Center

6. Reliability:

Environment test condition

No Test Item Condition

1 High temperature storage test

2 Low temperature storage test

3 High temperature operation test

4 Low temperature operation test

5 Vibration test

(non-operating)

6 Shock test

(non-operating)

7 Vibration test

www.panelook.com

Ta= 60

Ta= -20

Ta= 50

Ta= -5

"(10 ~ 300Hz/1.5G/11min SR, XYZ 30min/axis) Vibration level : 1.5G RMS, Bandwidth : 10-300Hz Duration: X, Y, Z 30min, "

Shock level: 50G Waveform: half since wave, 11ms Direction:

Random wave (1.5 Grms 10~200Hz)

300h



X, Y, Z, one time each direction

(with carton)

8 Drop test

(with carton)

30mins / Per each X.Y.Z axes "

Height: 46cm

1 corner, 3 edges, 6 surfaces

(ASTMD4169-I)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 26

Global LCD Panel Exchange Center

7. International Standard

7-1. Safety

(1) UL1950 Third Edition, Underwriters Laboratories, Inc. Jan. 28, 1995

Standard for Safety of Information Technology Equipment Including electrical Business Equipment.

(2)

CAN/CSA C22.2 No. 950-95/60950 Third Edition, Canadian Standards Association,

Standard for Safety of Information Technology Equipment Including Electrical Business Equipment.

(3)

EN60950 : 1992+A2: 1993+A2: 1993+C3: 1995+A4: 1997+A11: 1997

IEC 950: 1991+A1: 1992+A2: 1993+C3: 1995+A4:1996

European Committee for Electrotechnical Standardization (CENELEC)

EUROPEAN STANDARD for Safety of Information Technology Equipment Including Electrical

Business Equipment.

www.panelook.com

7-2. EMC

a) ANSI C63.4 “Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and

Electrical Equipment in the Range of 9kHz to 40GHz. “American National standards

Institute(ANSI), 1992

b) C.I.S.P.R “Limits and Methods of Measurement of Radio Interface Characteristics of Information

Technology Equipment.” International Special committee on Radio Interference.

EN 55022 “Limits and Methods of Measurement of Radio Interface Characteristics of Information

Technology Equipment.” European Committee for Electrotechnical Standardization. (CENELEC),

1998

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 27

Global LCD Panel Exchange Center

8. Packing

Panel label:

www.panelook.com

AM8701402966-ZS0205

AM87014: A: China

02966: Panel Serial Number

ZS0: AUO internal code

Manufactured 08/29: 2008 week 29

Made In China: China made

Carton Label:

97.31T03.VK0

V.V

Made In China: China Made

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 28

Global LCD Panel Exchange Center

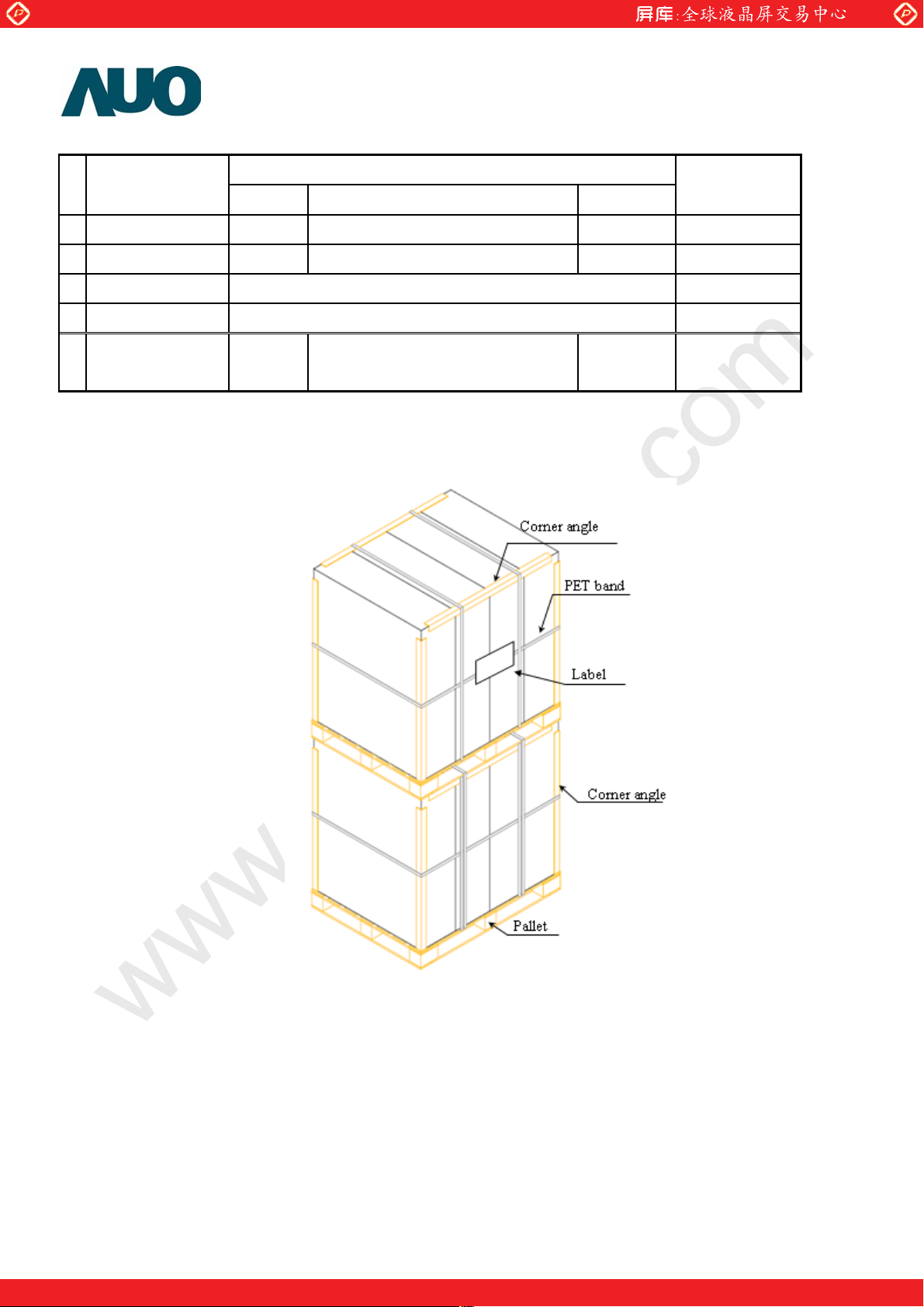

Carton:

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 29

Global LCD Panel Exchange Center

www.panelook.com

Item

Qty. Dimension Weight (kg)

1 Packing BOX 4pcs/box 832(L)mm*283(W)mm*545(H)mm 30.5

2 Pallet 1 1150(L)mm*840(W)mm*138(H)mm 13

3 Boxes per Pallet 8 boxes/Pallet

4 Panels per Pallet 32pcs/pallet

Pallet after packing 32 1150(L)mm*840(W)mm*2460(H)mm 256

Specification

Packing Remark

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 30

Global LCD Panel Exchange Center

9. PRECAUTIONS

Please pay attention to the followings when you use this TFT LCD module.

9-1 MOUNTING PRECAUTIONS

(1) You must mount a module using holes arranged in four corners or four sides. (2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to module. And the case on which a module is mounted should have sufficient strength so that external force is not transmitted directly to the module. (3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer. Transparent protective plate should have sufficient strength in order to the resist external force. (4)

You should adopt radiation structure to satisfy the temperature specification.

(5)

Acetic acid type and chlorine type materials for the cover case are not desirable because the former generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break by electro-chemical reaction.

(6)

Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB pencil lead. And please do not rub with dust clothes with chemical treatment. Do not touch the surface of polarizer for bare hand or greasy cloth. (Some cosmetics are detrimental to the polarizer.)

(7)

When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like chamois soaks with petroleum benzene. Normal-hexane is recommended for cleaning the adhesives used to attach front/ rear polarizers. Do not use acetone, toluene and alcohol because they cause chemical damage to the polarizer.

(8)

Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes deformations and color fading.

(9)

Do not open the case because inside circuits do not have sufficient strength.

www.panelook.com

9-2 OPERATING PRECAUTIONS

(1) The device listed in the product specification sheets was designed and manufactured for TV

application

(2)

The spike noise causes the mis-operation of circuits. It should be lower than following voltage:

V=±200mV(Over and under shoot voltage)

(3)

Response time depends on the temperature. (In lower temperature, it becomes longer..)

(4)

Brightness depends on the temperature. (In lower temperature, it becomes lower.) And in

lower temperature, response time (required time that brightness is stable after turned on)

becomes longer.

(5)

Be careful for condensation at sudden temperature change. Condensation makes damage to

polarizer or electrical contacted parts. And after fading condensation, smear or spot will occur.

(6)

When fixed patterns are displayed for a long time, remnant image is likely to occur.

(7)

Module has high frequency circuits. Sufficient suppression to the electromagnetic interference

shall be done by system manufacturers. Grounding and shielding methods may be important

to minimize the interface.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 31

Global LCD Panel Exchange Center

www.panelook.com

9-3 ELECTROSTATIC DISCHARGE CONTROL

Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain that

treatment persons are connected to ground through wrist band etc. And don’t touch interface pin directly.

9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

Strong light exposure causes degradation of polarizer and color filter.

9-5 STORAGEЀЀЀЀ

When storing modules as spares for a long time, the following precautions are necessary.

(1)

Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the

temperature between 5 and 35 at normal humidity.

(2)

The polarizer surface should not come in contact with any other object. It is recommended that they be

stored in the container in which they were shipped.

кк

9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM

(1) The protection film is attached to the bezel with a small masking tape. When the protection film is peeled

off, static electricity is generated between the film and polarizer. This should be peeled off slowly and

carefully by people who are electrically grounded and with well ion-blown equipment or in such a

condition, etc.

(2)

When the module with protection film attached is stored for a long time, sometimes there remains a very

small amount of flue still on the Bezel after the protection film is peeled off.

(3)

You can remove the glue easily. When the glue remains on the Bezel or its vestige is recognized, please

wipe them off with absorbent cotton waste or other soft material like chamois soaked with normal-hexane.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 32

Global LCD Panel Exchange Center

Appendix A

1. EMI specification

Item Min Typ Max Unit

EMI level (Note) --- --- -6 dB(ȝV/m)

SSCG --- 300 --- ps

Model name: T315XW02 VS

Note: (a). Criteria: CISPR22 (b). Signal generator: PSG400 (Sony EMCS) (c). EMI site: Sony EMCS Ichinomiya Tec. or using correlation value (d). Find result should be checked by connecting with TV-set

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

AUO T315XW02 VV Specification

Specifications and Main Features

Frequently Asked Questions

User Manual
