AUO T315HW04 VC Specification

T315HW04 VC Product Specification

Rev.0.3

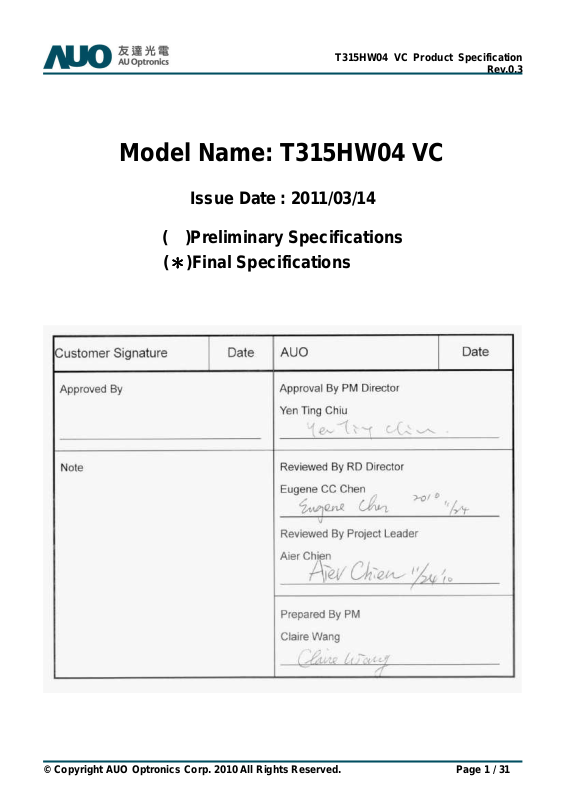

Model Name: T315HW04 VC

Issue Date : 2011/03/14

( )Preliminary Specifications

(＊＊＊＊)Final Specifications

T315HW04 VC Product Specification

Rev.0.3

Contents

No

CONTENTS

RECORD OF REVISIONS 1 GENERAL DESCRIPTION 2 ABSOLUTE MAXIMUM RATINGS 3 ELECTRICAL SPECIFICATION

3-1 ELECTRIACL CHARACTERISTICS

3-2 INTERFACE CONNECTIONS

3-3 SIGNAL TIMING SPECIFICATION

3-4 SIGNAL TIMING WAVEFORM

3-5 COLOR INPUT DATA REFERENCE

3-6 POWER SEQUENCE

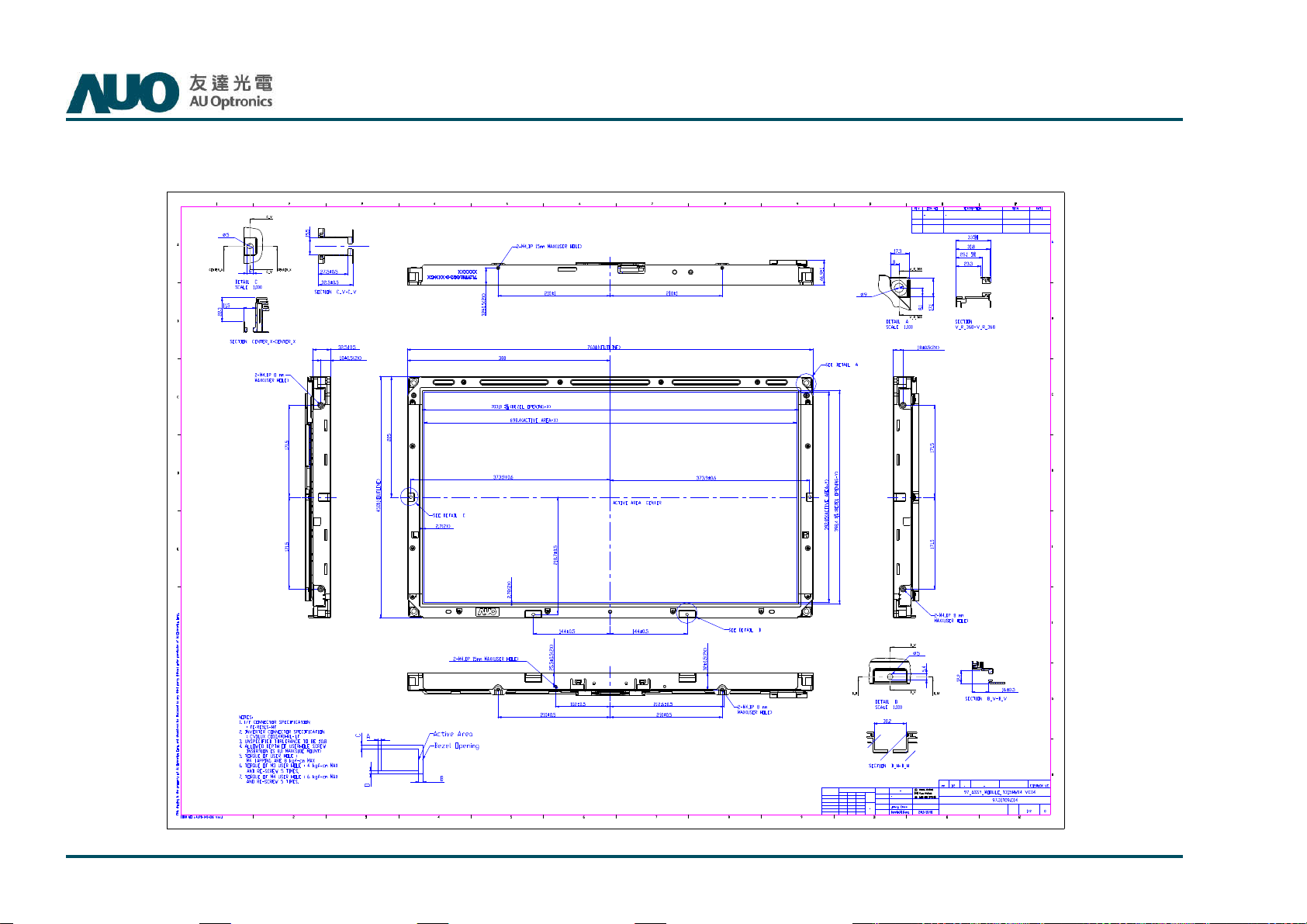

3-7 BACKLIGHT SPECIFICATION 4 OPTICAL SPECIFICATION 5 MECHANICAL CHARACTERISTICS 6 RELIABILITY TEST ITEMS 7 INTERNATIONAL STANDARD

7-1 SAFETY

7-2 EMC 8 PACKING

8-1 DEFINITION OF LABEL

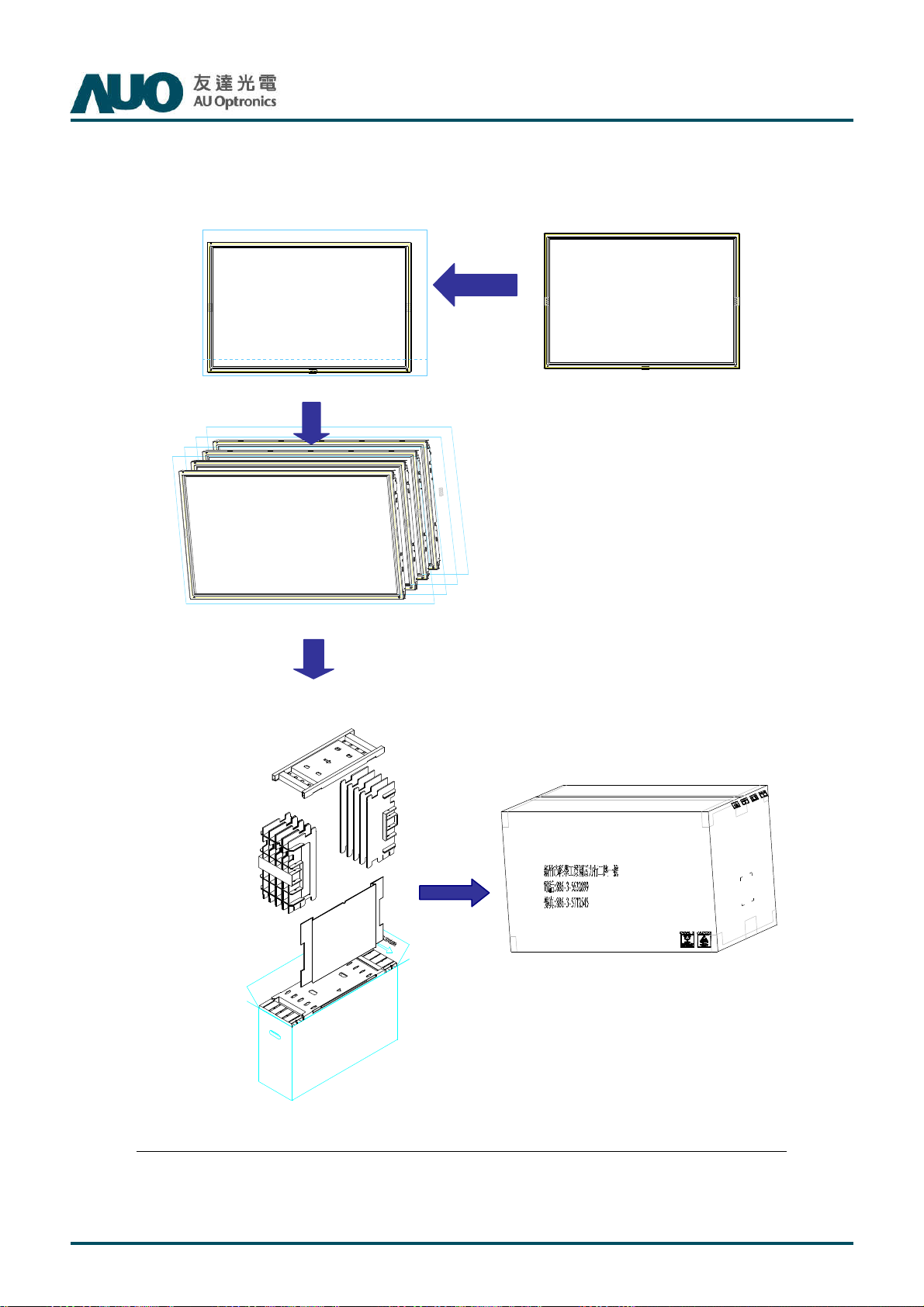

8-2 PACKING METHODS

8-3 PALLET AND SHIPMENT INFORMATION 9 PRECAUTION

9-1 MOUNTING PRECAUTIONS

9-2 OPERATING PRECAUTIONS

9-3 ELECTROSTATIC DISCHARGE CONTROL

9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

9-5 STORAGE

9-6 HANDLING PRECAUTIONS FOR PROTECT FILM

Record of Revision

T315HW04 VC Product Specification

Rev.0.3

Version

0.0 2010/10/01 First release

0.1 2010/11/14

0.2 2010/11/23

0.3 2011/3/14

Date Page Description

4

Update rotate function in general information

6

Update LCD power information and without diming.

9

Add item 8~11 for AC characteristics

16

Update the input power

19

Update spec of response time

20

Add determination of Tr

22

Update the depth

12 Update horizontal frequency

6

Update life time to 50000hr

16

Update lamp type

T315HW04 VC Product Specification

Rev.0.3

1. General Description

This specification applies to the 31.5 inch Color TFT-LCD Module T315HW04 VC. This LCD module has a TFT active matrix type liquid crystal panel 1,920x1,080 pixels, and diagonal size of 31.5 inch. This module supports 1,920x1,080 mode. Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal for each dot.

The T315HW04 VC has been designed to apply the 8-bit 2 channel LVDS interface method. It is intended to support displays where high brightness, wide viewing angle, high color saturation, and high color depth are very important.

* General Information

Items Specification Unit Note

Active Screen Size 31.55 inch Display Area 698.4 (H) x 392.85 (V) mm Outline Dimension 760.0 (H) x 450.0 (V) x 46.9 (D) mm D: front bezel to T-con cover Driver Element a-Si TFT active matrix Bezel Opening 703.8(H) x 398.4 (V) mm Display Colors 8 bit, 16.7M Colors Number of Pixels 1,920x1,080 Pixel Pixel Pitch 0.36375 (H) x 0.36375 (W) mm Pixel Arrangement RGB vertical stripe Display Operation Mode Normally Black Surface Treatment Anti-Glare, 3H Haze=2% Rotate Function Unachievable Note 1

Note 1: Rotate Function refers to LCD display could be able to rotate.

T315HW04 VC Product Specification

2. Absolute Maximum Ratings

The followings are maximum values which, if exceeded, may cause faulty operation or damage to the unit

Item Symbol Min Max Unit Conditions

Logic/LCD Drive Voltage Vcc -0.3 14 [Volt] Note 1 Logic/LCD Drive Voltage Vcc -0.3 6 [Volt] Note 1 Operating Temperature TOP 0 +50 [oC] Note 2 Operating Humidity HOP 10 90 [%RH] Note 2 Storage Temperature TST -20 +60 [oC] Note 2 Storage Humidity HST 10 90 [%RH] Note 2 Panel Surface Temperature PST 65 [oC] Note 3

Note 1: Duration:50 msec. Note 2 : Maximum Wet-Bulb should be 39 and No condensation.℃

Rev.0.3

The relative humidity must not exceed 90% non-condensing at temperatures of 40 or less. At temperatures ℃ greater than 40 , the wet bulb temperature must not exceed 39 .℃ ℃ Note 3: Surface temperature is measured at 50℃ Dry condition

T315HW04 VC Product Specification

Rev.0.3

3. Electrical Specification

The T315HW04 VC requires two power inputs. One is employed to power the LCD electronics and to drive the TFT array and liquid crystal. The other is to power Back Light Unit.

3.1 Electrical Characteristics

3.1.1: DC Characteristics

Parameter Symbol

LCD Power Supply Input Voltage VDD 10.8 12 13.2 VDC Power Supply Input Current IDD -- 0.55 0.65 A 1 Power Consumption PC -- 6.6 7.8 Watt 1 Inrush Current I

Input Differential Voltage

LVDS Interface

CMOS Interface

Backlight Power Consumption PBL 78 Watt

Differential Input High Threshold Voltage

Differential Input Low Threshold Voltage Input Common Mode Voltage V

Input High Threshold Voltage

Input Low Threshold Voltage

RUSH

∣VID∣

VTH +100 -- +300 mVDC 3

VTL -300 -- -100 mVDC 3

ICM

VIH

(High)

VIL

(Low)

Min. Typ. Max

-- -- 4 A 2 200 400 600 mVDC 3

1.1 1.25 1.4 VDC 3

2.7 -- 3.3 VDC 4

0 -- 0.6 VDC 4

Value

Unit Note

Life time 50000

Hour 9,10

s

µ

3.1.2: AC Characteristics

T315HW04 VC Product Specification

Rev.0.3

Parameter Symbol

Receiver Clock : Spread Spectrum Modulation range

LVDS Interface

Receiver Clock : Spread Spectrum Modulation frequency

Receiver Data Input Margin Fclk = 85 MHz Fclk = 65 MHz

Note :

1. V

2. Measurement condition : Rising time = 400us

= 12.0V, Fv = 60Hz, Fclk= 67.5, 25 , Test Pattern : White Pattern℃

DD

GND

10%

Value

Unit Note

Min. Typ. Max

Fclk_ss

Fclk

-3%

--

Fclk

+3%

MHz 6

Fss 30 -- 200 KHz 6

tRMG

90%

-0.4

-0.5

V

DD

--

0.4

ns 7

0.5

3. V

= 1.25V

ICM

LV D S -

LV D S +

V

IC M

GND

0V

400

|VID|

V

TH

|VID|

V

TL

T315HW04 VC Product Specification

Rev.0.3

4. The measure points of V

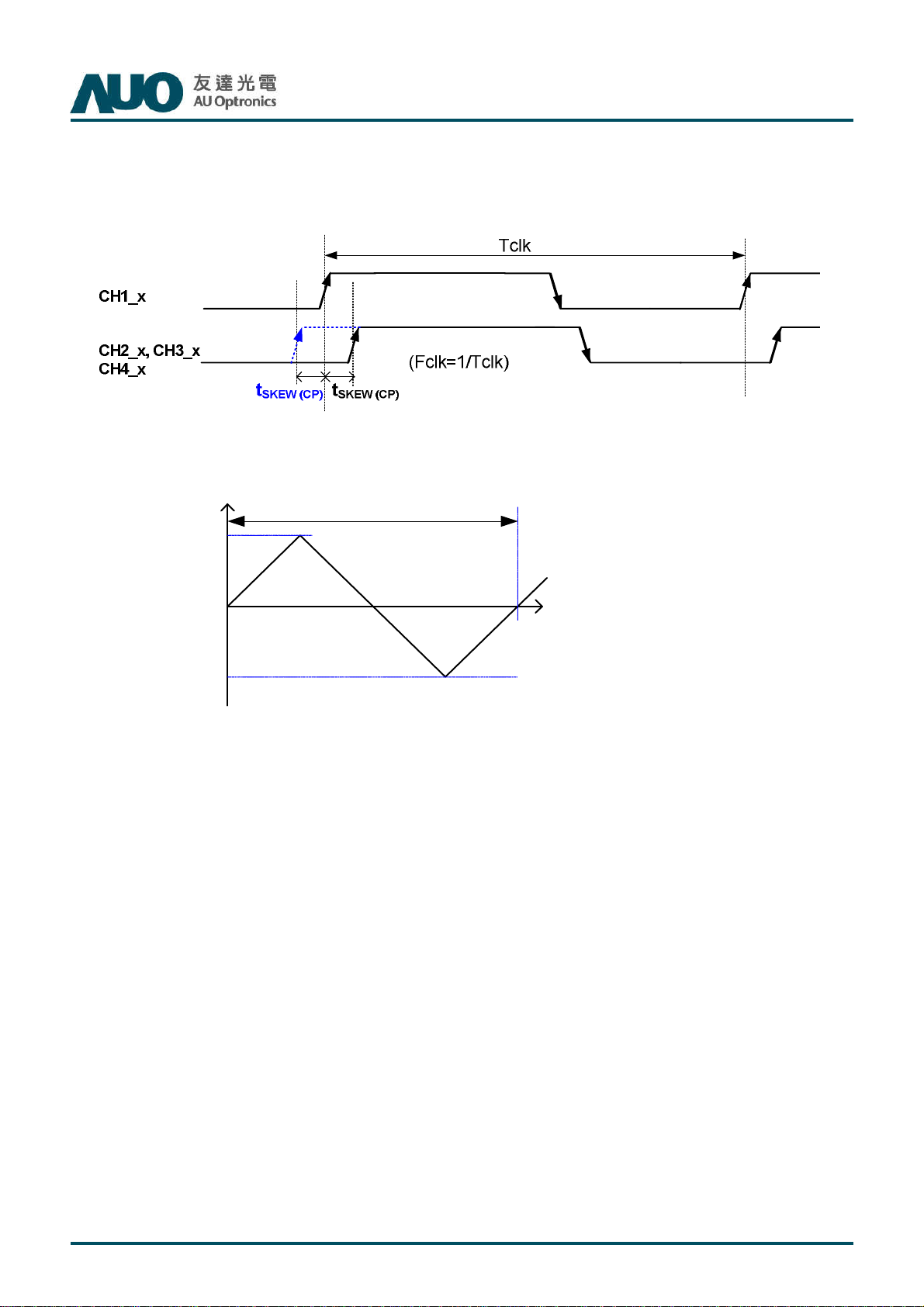

5. Input Channel Pair Skew Margin

Note: x = 0, 1, 2, 3, 4

6. LVDS Receiver Clock SSCG (Spread spectrum clock generator) is defined as below figures

and V

IH

are in LCM side after connecting the System Board and LCM.

IL

1/F

SS

Fclk_ss(max)

Fclk

Fclk_ss(min)

7. Receiver Data Input Margin

T315HW04 VC Product Specification

Rev.0.3

Parameter Symbol

Min Type Max

Rating

Unit

Note

tRIP2

tRIP3

tRIP4

tRIP5

tRIP6

tRIP0

tRIP1 LVDS-Rx Input Data

Rx1 Rx0 Rx6 Rx5 Rx4 Rx3 Rx2 Rx1 Rx0 Rx6Rx2Rx3

LVDS-Rx

V

= 0V

Input Clock

diff

1/Fclk=T

8. Do not attach a conducting tape to lamp connecting wire. If the lamp wire attach to conducting tape, TFT-LCD Module have a low luminance and the inverter has abnormal action because leakage current occurs between lamp wire and conducting tape.

9. The relative humidity must not exceed 80% non-condensing at temperatures of 40 or less. At ℃ temperatures greater than 40 , the wet bulb temperatu℃ re must not exceed 39 . When operate at low ℃ temperatures, the brightness of CCFL will drop and the life time of CCFL will be reduced.

10. Specified values are for a single lamp only which is aligned horizontally. The lifetime is defined as the time which luminance of the lamp is 50% compared to its original value. [Operating condition: Continuous operating at Ta = 25±2℃]

T315HW04 VC Product Specification

3.2 Interface Connections



LCD connector: 187059-51221 (P-TWO, LVDS connector)

 Mating connector: FI-RE51S-HF (JAE, LVDS connector)

PIN Symbol Description PIN Symbol Description

Rev.0.3

1 2 3 4 5 6 Reserved 7 8 9

10

11 12 13 14 15 16

VDD Power Supply, +12V DC Regulated 26 VDD Power Supply, +12V DC Regulated 27 VDD Power Supply, +12V DC Regulated 28 VDD Power Supply, +12V DC Regulated 29 VDD Power Supply, +12V DC Regulated 30

AUO Internal Use Only 31 GND Ground 32 GND Ground 33 GND Ground 34

CH1_0- LVDS Channel 1, Signal 0-

CH1_0+ LVDS Channel 1, Signal 0+

CH1_1- LVDS Channel 1, Signal 1-

CH1_1+ LVDS Channel 1, Signal 1+

CH1_2- LVDS Channel 1, Signal 2-

CH1_2+ LVDS Channel 1, Signal 2+

GND Ground

35 36 37 38 39 40 41

CH2_0+ LVDS Channel 2, Signal 0+

CH2_1- LVDS Channel 2, Signal 1-

CH2_1+ LVDS Channel 2, Signal 1+

CH2_2- LVDS Channel 2, Signal 2-

CH2_2+ LVDS Channel 2, Signal 2+

GND Ground

CH2_CLK-

CH2_CLK+

GND Ground

CH2_3- LVDS Channel 2, Signal 3-

CH2_3+ LVDS Channel 2, Signal 3+

NC No connection NC No connection

GND Ground

SCL LVDS_SCL

SDA LVDS_SDA

LVDS Channel 2, Clock -

LVDS Channel 2, Clock +

CH1_CLK-

17

CH1_CLK+

18 19

20

21 22 23 24 25

GND Ground

CH1_3- LVDS Channel 1, Signal 3-

CH1_3+ LVDS Channel 1, Signal 3+

NC No connection NC No connection

GND Ground

CH2_0- LVDS Channel 2, Signal 0-

LVDS Channel 1, Clock -

LVDS Channel 1, Clock +

51

42 43 44

45 LVDS_SEL

46 47 48 49 50

NC No connection NC No connection NC No connection

NC No connection NC No connection NC No connection NC No connection NC No connection NC No connection

Open/High(3.3V) for NS,

Low(GND) for JEIDA

LVDS Option = High/OpenNS

P re vious C ycle C urre n t C ycle Next Cyc le

C lo ck

T315HW04 VC Product Specification

Rev.0.3

C Hx_ 0 + C Hx_ 0 -

C Hx_ 1 + C Hx_ 1 -

C Hx_ 2 + C Hx_ 2 -

C Hx_ 3 + C Hx_ 3 -

Note: x = 1, 2, 3, 4…

LVDS Option = LowJEIDA

P re vious C ycle C urre n t C ycle Next Cyc le

C lock

R 0R5 G 0G 0R 0R 1 R 2R 3R 4 R 1

G 1B0 B 1B1G 1G 2 G 3G 4G 5 G 2

B2N A D ED EB 2B3 B4B 5N A B 3

R 6B7 N AN AR 6R 7 G6G 7B6 R 7

C H x_ 0 + C H x_ 0 -

C H x_ 1 + C H x_ 1 -

C H x_ 2 + C H x_ 2 -

C H x_ 3 + C H x_ 3 -

G7

R 2R7 G 2G 2R 2R 3 R 4R 5R 6 R 3

G 3B2 B 3B3G 3G 4 G 5G 6G 7 G 4

B4N A D ED EB 4B5 B6B 7N A B 5

R 0B1 N AN AR 0R 1 G0G 1B0 R 1

Note: x = 1, 2, 3, 4…

T315HW04 VC Product Specification

Rev.0.3

3.3 Signal Timing Specification

This is the signal timing required at the input of the user connector. All of the interface signal timing should be satisfied with the following specifications for its proper operation.

Timing Table (DE only Mode)

Signal Item Symbol Min. Typ. Max Unit

Period Tv 1090 1125 1480 Th

Vertical Section

Horizontal Section

Clock Frequency Fclk=1/Tclk 50 74.25 82 MHz Vertical Frequency Frequency Fv 47 60 63 Hz Horizontal Frequency Frequency Fh 60 67.5 73 KHz

Notes: (1) Display position is specific by the rise of DE signal only.

Horizontal display position is specified by the rising edge of 1st DCLK after the rise of 1st DE, is displayed on the left edge of the screen.

(2)Vertical display position is specified by the rise of DE after a “Low” level period equivalent to eight times of

horizontal period. The 1st data corresponding to one horizontal line after the rise of 1st DE is displayed at the top line of screen.

Active Tdisp (v) 1080 Th

Blanking Tblk (v) 10 45 400 Th

Period Th 1030 1100 1325 Tclk

Active Tdisp (h) 960 Tclk

Blanking Tblk (h) 70 140 365 Tclk

(3)If a period of DE “High” is less than 1920 DCLK or less than 1080 lines, the rest of the screen displays black. (4)The display position does not fit to the screen if a period of DE “High” and the effective data period do not

synchronize with each other.

Rev.0.3

Tv

M pixel

Tdisp(v)Tblk(v)

Th

N Lin e

DE

RGB

T315HW04 VC Product Specification

Data

Line

N

Invalid Data Invalid Data

Line

1

Line

2

Line

3

Line

4

Line

N

CLK

Tclk

Th

Tdisp(h) Tblk(h)

DE

Pixel

CH1

M-7

M-5

M-3

Pixel

M-1

Invalid Data

Pixel

1

Pixel 3Pixel

5

Pixel

7

Pixel

9

Pixel

11

Pixel

M-5

Pixel

M-3

Pixel

M-1

Invalid Data

Pixel

1

Pixel

3

Pixel

CH2

3.4 Signal Timing Waveforms

M-6

M-4

M-2

Pixel

M

Invalid Data

Pixel

2

Pixel 4Pixel

6

Pixel

8

Pixel

10

Pixel

12

Pixel

M-4

Pixel

M-2

Pixel

M

Invalid Data

Pixel

2

Pixel

4

T315HW04 VC Product Specification

Rev.0.3

3.5

Color Input Data Reference

The brightness of each primary color (red, green and blue) is based on the 8 bit gray scale data input for the color; the higher the binary input, the brighter the color. The table below provides a reference for color versus data input.

COLOR DATA REFERENCE

Input Color Data

Basic Color

R

Color

MSB LSB

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0 Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 Red(255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 Green(255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 Blue(255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 Cyan 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 Magenta 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 Yellow 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 RED(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 RED(001) 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

---RED(254) 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 RED(255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED

MSB LSB

GREEN

BLUE

MSB LSB

GREEN(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 GREEN(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0

G

B

---GREEN(254) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 GREEN(255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 BLUE(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 BLUE(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

---BLUE(254) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 BLUE(255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Power Sequence for LCD

T315HW04 VC Product Specification

Rev.0.3

Power Supply For LC D VDD (+12V)

G ND

Interface Signal (LV DS Data & CLK)

G ND

Backligh t on/off control signal (VB LO N)

G ND

CM OS Interface Sig nal

G ND

Parameter

t1 0.4 --- 30 ms

10 %

90 %

t1

t2

Valid Data

t3 t4

t8 t9

Values

Min. Type. Max.

90 %

10 %

t6

t5

10 %

t7

Unit

t2 0.1 --- 50 ms t3 450 --- --- ms t4 0*1 --- --- ms t5 0 --- --- ms t6 --- --- ---*2 ms t7 500 --- --- ms

t8 10 --- 50 ms t9 0 --- --- ms

Note: (1) t4=0 : concern for residual pattern before BLU turn off. (2) t6 : voltage of VDD must decay smoothly after power-off. (customer system decide this value)

T315HW04 VC Product Specification

3.7 Backlight Specification (Inverter Type)

The backlight unit contains 4-U type CCFLs (Cold Cathode Fluorescent Lamp)

3.7.1 Electrical specification

Item Symbol Condition

Min Typ Max

Spec

Rev.0.3

Unit Note

1 2 3 4

5 On/Off control voltage

6

7 Dimming Control Voltage V_DIM

8 Dimming Control Current 9 Internal Dimming Ratio

10

Input Voltage VDDB - 21.6 Input Current I

Input Power P

Inrush Current I

V

BLON

On/Off control current

External PWM

Control Voltage

V_EPWM

24 26.4

VDDB=24V 3.09 3.25 3.41

DDB

VDDB=24V 74.1

DDB

VDDB=24V

RUSH

ON 2 - 5.5 -

OFF

I

VDDB=24V

BLON

MAX 3.0 - 3.3 VDC -

MIN

I_DIM VDDB=24V

DIM_R VDDB=24V 10 - 100 % 3

MAX VDDB=24V

MIN VDDB=24V

VDDB=24V

- - 5.25

0 - 0.8

- - 1.5 mA -

- 0 - VDC -

- - 2 mADC -

2 - 3.3 0 - 0.8

78 81.9

VDC ADC 1

W 1

ADC 2

VDC

-

11 12 External PWM Duty ratio 13

Note 1 : Dimming ratio= 100% (MAX)（Ta=25±5 , Turn on for 45minutes℃ ） Note 2 : Measurement condition Rising time = 20ms (VDDB : 10%~90%);

Note 3 : Less than10% dimming control is functional well and no backlight shutdown happened

External PWM

Control Current

External PWM

Frequency

I_EPWM VDDB=24V

D_EPWM VDDB=24V 10 - 100 % 3

F_EPWM VDDB=24V 140 180 240 Hz -

- - 2 mADC -

3.7.2 Input Pin Assignment

CN3: CI0114M1HRL-NH (Cvilux)

Pin Symbol Description

1 VDDB Operating Voltage Supply, +24V DC regulated 2 VDDB Operating Voltage Supply, +24V DC regulated 3 VDDB Operating Voltage Supply, +24V DC regulated 4 VDDB Operating Voltage Supply, +24V DC regulated 5 VDDB Operating Voltage Supply, +24V DC regulated 6 BLGND Ground and Current Return 7 BLGND Ground and Current Return 8 BLGND Ground and Current Return 9 BLGND Ground and Current Return

10 BLGND Ground and Current Return

T315HW04 VC Product Specification

Rev.0.3

11 DET

12 VBLON

13 VDIM

14 PDIM

BLU status detection: Normal : 0~0.8V ; Abnormal : Open collector

BLU On-Off control: BL On : High/Open (2V~5.5V); BL off : Low (0~0.8V/GND)

Internal PWM (0~3.3V for 10~100% Duty, open for 100%) < NC ; at External PWM mode>

External PWM (10%~100% Duty, open for 100%) < NC ; at Internal PWM mode>

3.7.3 Power Sequence for Inverter

90% 90%

10%

Power Input for BLU

(VDDB)

Dimming Control Signal

(VDIM)

BLU On/Off Enable

(VBLON)

10%

T1 T2

T315HW04 VC Product Specification

24V(typ.)

T3 T4

T3 T4T4

T5

Rev.0.3

Dip condition for Inverter

Power Input for BLU

(VDDB)

VDDB(typ.)*0.8

Parameter

T1 20 - - ms T2 500 - - ms T3 250 - - ms T4 0 - - ms

T6

Value

Min Typ Max

Units

T5 1 - - ms T6 - - 10 ms

T315HW04 VC Product Specification

Rev.0.3

4. Optical Specification

Optical characteristics are determined after the unit has been ‘ON’ and stable for approximately 45 minutes in a dark environment at 25°C. The values specified are at an approximate distance 50cm from the LCD surface at a viewing angle of φ and θ equal to 0°.

Fig.1 presents additional information concerning the measurement equipment and method.

SR3 or equivalent

Parameter Symbol

Min. Typ. Max Contrast Ratio CR 4000 5000 -- 1 Surface Luminance (White) LWH 360 450 -- cd/m2 2

Luminance Variation δ Response Time (G to G) Tγ -- 6.5 -- Ms 4 Color Gamut NTSC 72 % Color Coordinates

Red RX 0.640 RY 0.330 Green GX 0.281 GY 0.590 Blue BX 0.144 BY 0.060

WHITE(9P)

-- -- 1.33 3

Typ.-0.03

Values

Unit Notes

Typ.+0.03

White WX 0.280 WY

Viewing Angle 5

Note:

x axis, right(φ=0°) θr -- 89 -- degree x axis, left(φ=180°) θl -- 89 -- degree y axis, up(φ=90°) θu -- 89 -- degree y axis, down (φ=270°) θ

-- 89 -- degree

d

0.290

T315HW04 VC Product Specification

Rev.0.3

1. Contrast Ratio (CR) is defined mathematically as:

Surface Luminance of

Contrast Ratio=

2. Surface luminance is luminance value at point 5 across the LCD surface 50cm from the surface with all pixels displaying white. From more information see FIG 2. When lamp current IH = 11mA. LWH=Lon5 where Lon5 is the luminance with all pixels displaying white at center 5 location.

3. The variation in surface luminance, δWHITE is defined (center of Screen) as:

Surface Luminance of

L

on5

L

off5

δ

WHITE(9P)

4. Response time Tγ is the average time required for display transition by switching the input signal for five luminance ratio (0%,25%,50%,75%,100% brightness matrix) and is based on Fv=60Hz to optimize.

= Maximum(L

on1

, L

on2

,…,L

)/ Minimum(L

on9

on1

, L

on2

,…L

on9

)

Target Measured

Response Time

0%

25%

Start

50% 75%

100%

T

γ

is determined by 10% to 90% brightness difference of rising or falling period. (As illustrated)

The response time is defined as the following figure and shall be measured by switching the input signal for “any level of grey(bright) “ and “any level of gray(dark)”.

Any level of gray (Bright) Any level of gray (Dark) Any level of gray (Bright)

0%, 25%, 50%, 75%, 100%

100%

0% 25% 50% 75% 100%

0% to 25% 0% to 50% 0% to 75% 0% to 100% 25% to 0% 25% to 50% 25% to 75% 25% to 100% 50% to 0% 50% to 25% 75% to 0% 75% to 25% 75% to 50%

100% to 0% 100% to 25% 100% to 50% 100% to 75%

50% to 75% 50% to 100%

75% to 100%

0%, 25%, 50%, 75%, 100%

90%

Photodetector

Output

10%

0%, 25%, 50%, 75%, 100%

Time

T

γγγγ

(F)

T

γγγγ

(R)

FIG. 2 Luminance

T315HW04 VC Product Specification

Rev.0.3

V

H/2

H/6

1

H

V/2 V/6

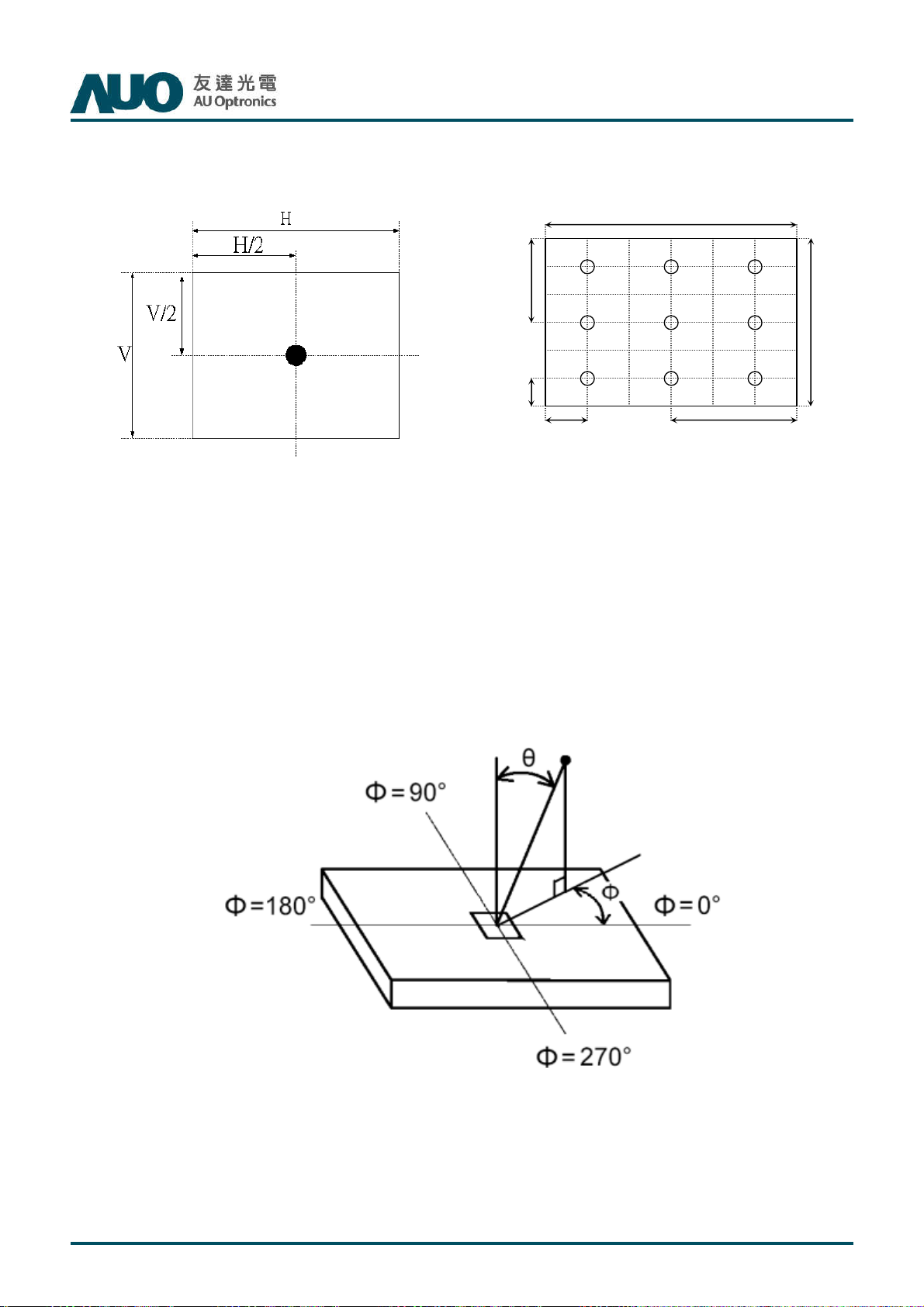

5. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined for the horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the LCD surface. For more information see FIG3.

FIG.3 Viewing Angle

T315HW04 VC Product Specification

Rev.0.3

5. Mechanical Characteristics

The contents provide general mechanical characteristics for the model T315HW04 VC. In addition the figures in the next page are detailed mechanical drawing of the LCD.

Item Dimension Unit Note

Horizontal 760.0 mm

Vertical 450.0 mm

Outline Dimension

Depth (Dmin) 30.54 mm to rear

Depth (Dmax) 46.9 mm to inverter cover

Weight 5300 g

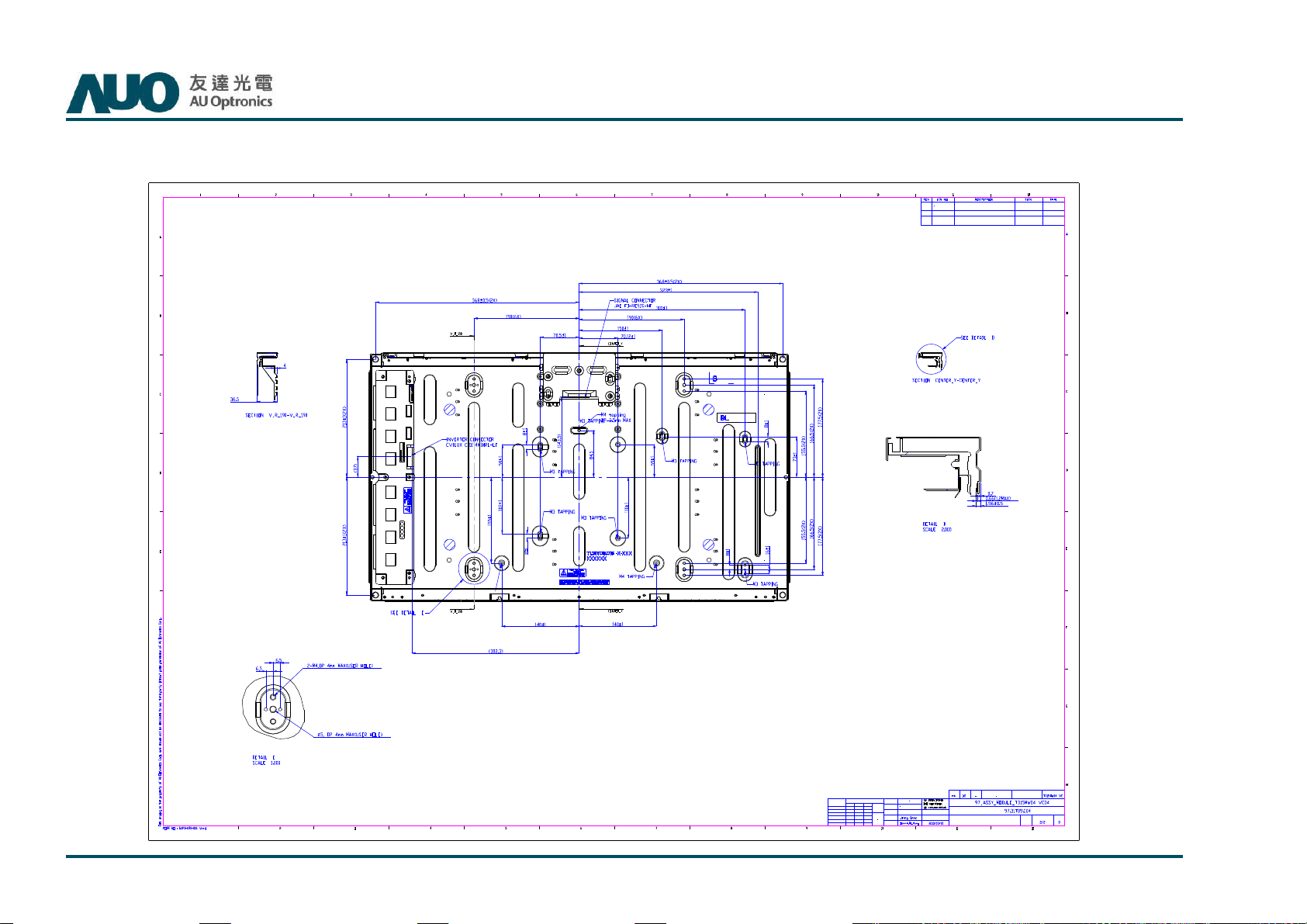

Front View

T315HW04 VC Product Specification

Rev.0.3

Back View

T315HW04 VC Product Specification

Rev.0.3

6. Reliability Test Items

T315HW04 VC Product Specification

Rev.0.3

1 High temperature storage test 3 60℃, 300hrs 2 Low temperature storage test 3 -20℃, 300hrs 3 High temperature operation test 3 50℃, 300hrs 4 Low temperature operation test 3 -5℃, 300hrs

5 Vibration test (non-operation) 3

6 Shock test (non-operation) 3

7 Vibration test (With carton) 4

Test Item Q’ty Condition

Wave form: random Vibration level: 1.5G RMS Bandwidth: 10-300Hz, Duration: X, Y, Z 30min One time each direction Shock level: 50G Waveform: half since wave, 11ms Direction: ±X, ±Y, ±Z, One time each direction

Random wave (1.5G RMS, 10-200Hz) 30mins/ Per each X,Y,Z axes

8 Drop test (With carton) 4

Height: 45.7cm (ASTMD4169-I) 1 corner, 3 edges, 6 surfaces (refer ASTM D 5276)

7. International Standard

7.1 Safety

(1) UL 60950-1, UL 60065; Standard for Safety of Information Technology Equipment Including

electrical Business Equipment.

(2) IEC 60950-1 : 2001, IEC 60065:2001 ; Standard for Safety of International Electrotechnical

Commission

(3) EN 60950 : 2001+A11, EN 60065:2002+A1:2006; European Committee for Electrotechnical

Standardization (CENELEC), EUROPEAN STANDARD for Safety of Information Technology Equipment Including Electrical Business Equipment.

7.2 EMC

(1) ANSI C63.4 “Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and

Electrical Equipment in the Range of 9kHz to 40GHz. “American National standards Institute(ANSI),

T315HW04 VC Product Specification

Rev.0.3

1992

(2) C.I.S.P.R “Limits and Methods of Measurement of Radio Interface Characteristics of Information

Technology Equipment.” International Special committee on Radio Interference.

(3) EN 55022 “Limits and Methods of Measurement of Radio Interface Characteristics of Information

Technology Equipment.” European Committee for Electrotechnical Standardization. (CENELEC), 1998

QTY :

4

Manufactured

XX/XX

MADE IN

XXXXX

8. Packing

8-1 DEFINITION OF LABEL:

A. Panel Label:

*xxxxxxxxxxxx-xxxx*

T315HW04 VC Product Specification

Rev.0.3

Panel Unique ID

XXXXX Model NO: T315HW04 V.C XXXXXXX

Green mark description

Year

AUO Internal Use

AU Optronics

Week Factory Location AUO Internal Use

AUO Internal Use

(1) For Pb Free Product, AUO will add for identification. (2) For RoHs compatible products, AUO will add RoHS for identification.

Note: The green Mark will be present only when the green documents have been ready by AUO internal green team. (definition of green design follows the AUO green design checklist.)

B. Carton Label:

T315HW04 VC

97.31T09.CXX

1pcs Module/ESD Bag

1pcs Module/ESD Bag1pcs Module/ESD Bag

1pcs Module/ESD Bag

Mod

ModMod

Mod

ule

uleule

ule

4pcs Modules

4pcs Modules4pcs Modules

4pcs Modules

””””

HHHH

””””

Tape

Tape Tape

Tape

Cushion set

Cushion setCushion set

Cushion set

8-2 PACKING METHODS:

T315HW04 VC Product Specification

Rev.0.3

8-3 Pallet and Shipment Information

T315HW04 VC Product Specification

Rev.0.3

Item

Qty. Dimension Weight (kg)

s1 Packing BOX 4pcs/box 832(L)*283(W)*545(H) 24.1

2 Pallet 1 1150(L)*840(W)*132(H) 3 Boxes per Pallet 8 boxes/pallet 4 Panels per Pallet 32pcs/pallet

Pallet after packing

32 1150(L)*840(W)*1222(H)

Specification

13

205.8

Corner angle

Stretch film

Moisture-proof film

Packing Remark

Box = 1.8 kg Cushion = 2.3kg

Label

PET band

Corner angle

Pallet

T315HW04 VC Product Specification

11. PRECAUTIONS

Please pay attention to the followings when you use this TFT LCD module.

9-1 MOUNTING PRECAUTIONS

(1) You must mount a module using holes arranged in four corners or four sides. (2) You should consider the mounting structure so that uneven force (ex. twisted stress) is not applied

to module. And the case on which a module is mounted should have sufficient strength so that external force is not transmitted directly to the module.

(3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.

Transparent protective plate should have sufficient strength in order to the resist external force.

(4) You should adopt radiation structure to satisfy the temperature specification. (5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former

Rev.0.3

generates corrosive gas of attacking the polarizer at high temperature and the latter cause circuit broken by electro-chemical reaction.

(6) Do not touch, push or rub the exposed polarizer with glass, tweezers or anything harder than HB

pencil lead. And please do not rub with dust clothes with chemical treatment. Do not touch the surface of polarizer for bare hand or greasy cloth. (Some cosmetics are detrimental to the polarizer.)

(7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials

like chamois soaks with petroleum benzene. Normal-hexane is recommended for cleaning the adhesives used to attach front/ rear polarizer. Do not use acetone, toluene and alcohol because they cause chemical damage to the polarizer.

(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes

deformations and color fading.

(9) Do not open the case because inside circuits do not have sufficient strength.

9-2 OPERATING PRECAUTIONS

(1) The device listed in the product specification sheets was designed and manufactured for TV

application

(2) The spike noise causes the mis-operation of circuits. It should be lower than following voltage:

V=±200mV(Over and under shoot voltage) (3) Response time depends on the temperature. (In lower temperature, it becomes longer..) (4) Brightness of CCFL depends on the temperature. (In lower temperature, it becomes lower.) And in

lower temperature, response time (required time that brightness is stable after turned on) becomes

longer. (5) Be careful for condensation at sudden temperature change. Condensation makes damage to

polarizer or electrical contacted parts. And after fading condensation, smear or spot will occur. (6) When fixed patterns are displayed for a long time, remnant image is likely to occur. (7) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall

be done by system manufacturers. Grounding and shielding methods may be important to minimize

the interface.

9-3 ELECTROSTATIC DISCHARGE CONTROL

Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain that treatment persons are connected to ground through wristband etc. And don’t touch interface pin directly.

9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

Strong light exposure causes degradation of polarizer and color filter.

9-5 STORAGE

When storing modules as spares for a long time, the following precautions are necessary.

(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the

T315HW04 VC Product Specification

Rev.0.3

temperature between 5 and 35 at normal humidity.℃ ℃ (2) The polarizer surface should not come in contact with any other object. It is recommended that they

be stored in the container in which they were shipped.

9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM

(1) The protection film is attached to the bezel with a small masking tape. When the protection film is

peeled off, static electricity is generated between the film and polarizer. This should be peeled off

slowly and carefully by people who are electrically grounded and with well ion-blown equipment or

in such a condition, etc. (2) When the module with protection film attached is stored for a long time, sometimes there remains a

very small amount of glue still on the bezel after the protection film is peeled off. (3) You can remove the glue easily. When the glue remains on the bezel or its vestige is recognized,

please wipe them off with absorbent cotton waste or other soft material like chamois soaked with

normal-hexane.
