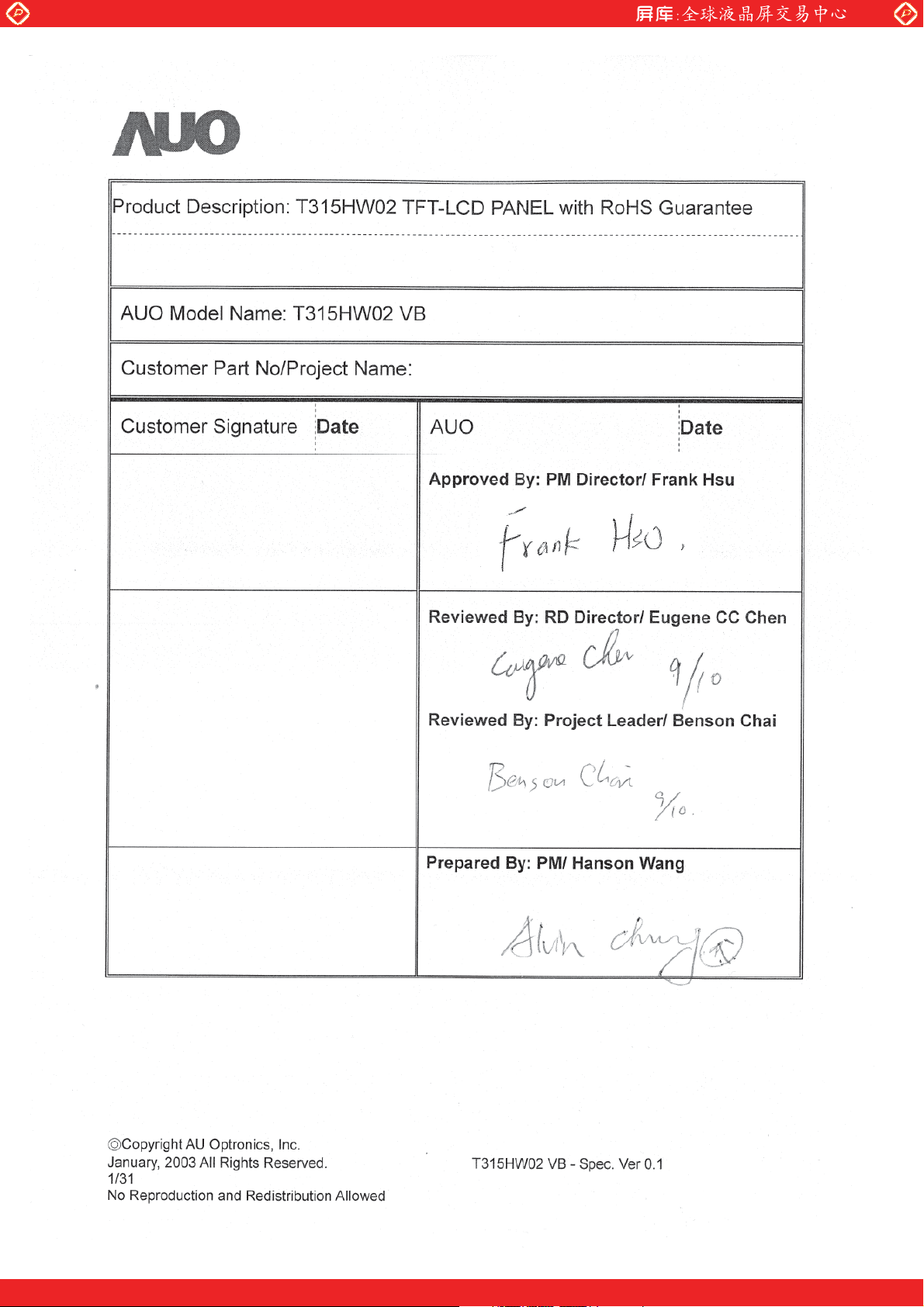

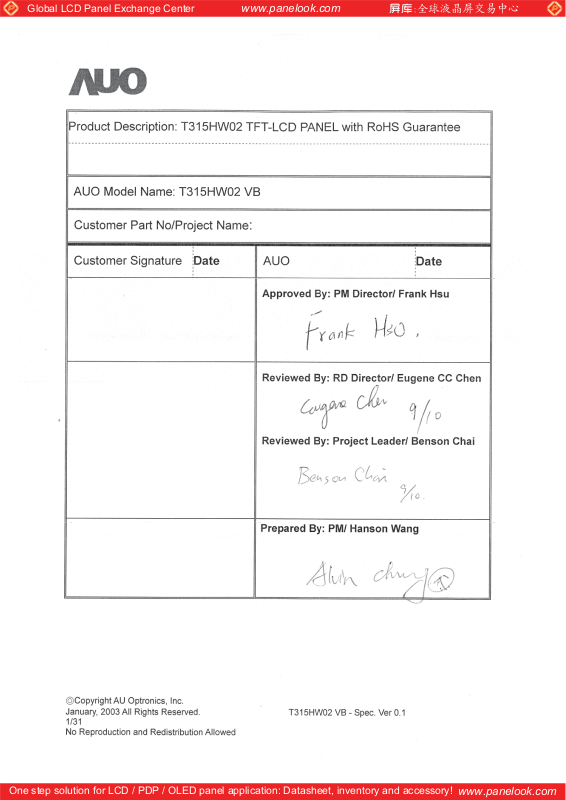

AUO T315HW02 VB Specification

Global LCD Panel Exchange Center

Product Description: T315HW02 TFT-LCD PANEL with RoHS Guarantee

AUO Model Name: T315HW02 VB

Customer Part No/Project Name:

Customer Signature Date AUO Date

www.panelook.com

Approved By: PM Director/ Frank Hsu

Reviewed By: RD Director/ Eugene CC Chen

Reviewed By: Project Leader/ Benson Chai

Prepared By: PM/ Hanson Wang

1/31 No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Document Version : 0.1

Date : 2009/9/3

Product Specifications

31.5” FHD Color TFT-LCD Module Model Name: T315HW02 VB

() Preliminary Specifications

(*) Final Specifications

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

No

COVER

CONTENTS

RECORD OF REVISIONS

1 GENERAL DESCRIPTION

2 ABSOLUTE MAXIMUM RATINGS

3 ELECTRICAL SPECIFICATIONS

3-1 ELECTRICAL CHARACTREISTICS

3-2 INTERFACE CONNECTIONS

3-3 SIGNAL TIMING SPECIFICATIONS

3-4 SIGNAL TIMING WAVEFORMS

3-5 COLOR INPUT DATA REFERNECE

3-6 POWER SEQUENCE

4 OPTICAL SPECIFICATIONS

5 MECHANICAL CHARACTERISTICS

6 RELIABLITY

7 INTERNATIONAL STANDARDS

8 PACKING

www.panelook.com

Contents

9 PRECAUTIONS

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

Version Date No Old Description New Description Remark

0.1 2009/9/3 First issue

www.panelook.com

Record of Revision

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

1. General Description

This specification applies to the 31.5 inch Color TFT-LCD Module T315HW02 VB. This LCD

module has a TFT active matrix type liquid crystal panel 1920x1080 pixels, and diagonal size of

31.5 inch. This module supports 1920x1080 HDTV mode (Non-interlace).

Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical

stripes. Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale

signal for each dot.

The T315HW02 VB has been designed to apply the 8-bit 2 channel LVDS interface method. It is

intended to support displays where high brightness, wide viewing angle, high color saturation, and

high color depth are very important.

The T315HW02 VB model is RoHS verified which can be distinguished on panel label.

www.panelook.com

* General Information

Items Specification Unit Note

Active Screen Size 31.55 inches

Display Area 698.4 (H) x 392.85 (V) mm

Outline Dimension 760.0(H) x 450.0(V) x 45(D) mm w/o Inverter

Driver Element a-Si TFT active matrix

Display Colors 16.7M Colors

Number of Pixels 1920x1080 Pixel

Pixel Pitch 0.36375 mm

Pixel Arrangement RGB vertical stripe

Display Mode Normally Black

Surface Treatment AG, 3H Haze = 11%

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

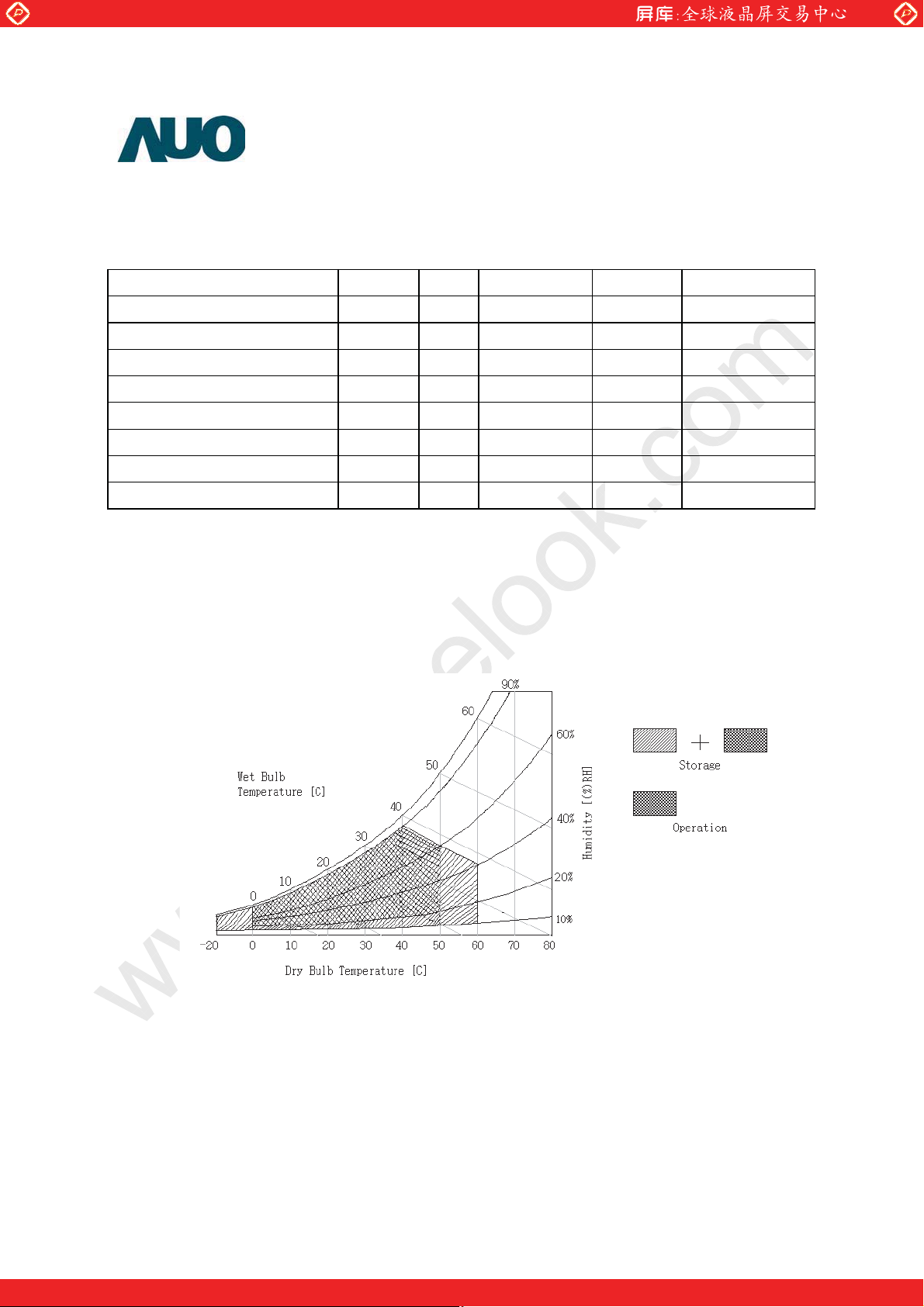

2. Absolute Maximum Ratings

The following are maximum values which, if exceeded, may cause permanent damage to the unit.

Item Symbol Min Max Unit Conditions

Logic/LCD Drive Voltage Vcc -0.3 14 [Volt] Note 1

Input Voltage of Signal Vin -0.3 3.6 [Volt] Note 1

BLU Brightness Control Voltage Vdim -0.3 7.0 [Volt] Note 1

Operating Temperature TOP 0 +50 [oC] Note 2

Operating Humidity HOP 10 90 [%RH] Note 2

Storage Temperature TST -20 +60 [oC] Note 2

www.panelook.com

Storage Humidity HST 10 90 [%RH] Note 2

Panel Surface Temperature PST 65 [oC] Note 3

Note 1: Duration:50 msec.

Note 2 : Maximum Wet-Bulb should be 39 and No condensation.к

The relative humidity must not exceed 90% non-condensing at temperatures of 40 or less. At temperatures greater к

than 40 , the wet bulb temperature must not exceed 39 . кк

Note 3: Surface temperature is measured at 50к Dry condition

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

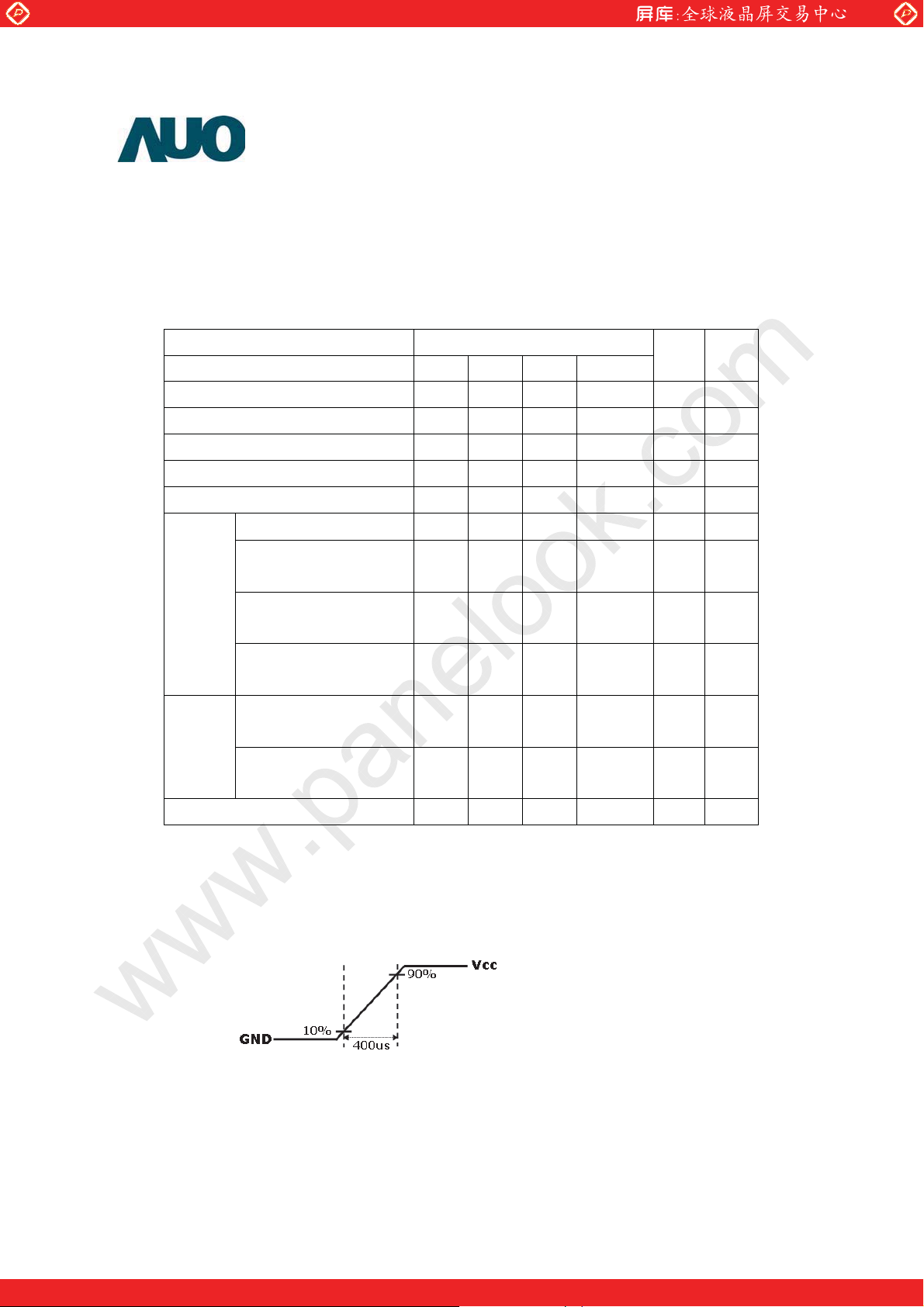

3. Electrical Specification

The T315HW02 VB requires two power inputs. One is employed to power the LCD electronics and to drive the TFT array and liquid crystal. The second input, which powers the CCFL, is typically generated by an integrated power (I/P) system.

3-1 Electrical Characteristics

Parameter Values

Min Typ Max

CD:

Power Supply Input Voltage Vcc 10.8 12 13.2 Vdc 1

Power Supply Input Current Icc - 0.65 0.75 A 2

www.panelook.com

Unit Notes

Power Consumption Pc - 7.8 9 Watt 2

Inrush Current I

Differential Input Voltage |VID|

Differential Input High Threshold

LVDS

Interface

CMOS

Interface

Life Time 50,000 Hours 6

Voltage

Differential Input Low Threshold

Voltage

Common Input Voltage

Input High Threshold Voltage

Input Low Threshold Voltage

- - 6 Apeak 3

RUSH

100 400 600 mV

VTH 100 mV 4

VTL -100 mV 4

VCIM

VIH

(High)

VIL

(Low)

|VID|/2

2.0 3.3 Vdc

0 0.8 Vdc

1.2

(VDD-0.4)

ID|/2

-|V

V 4

Note :

1. The ripple voltage should be controlled under 10% of V

2. Vcc=12.0V,

3. Measurement condition :

=vf 60Hz, fCLK=81.5Mhz , 25 , Test Pattern : White Patternк

CC

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

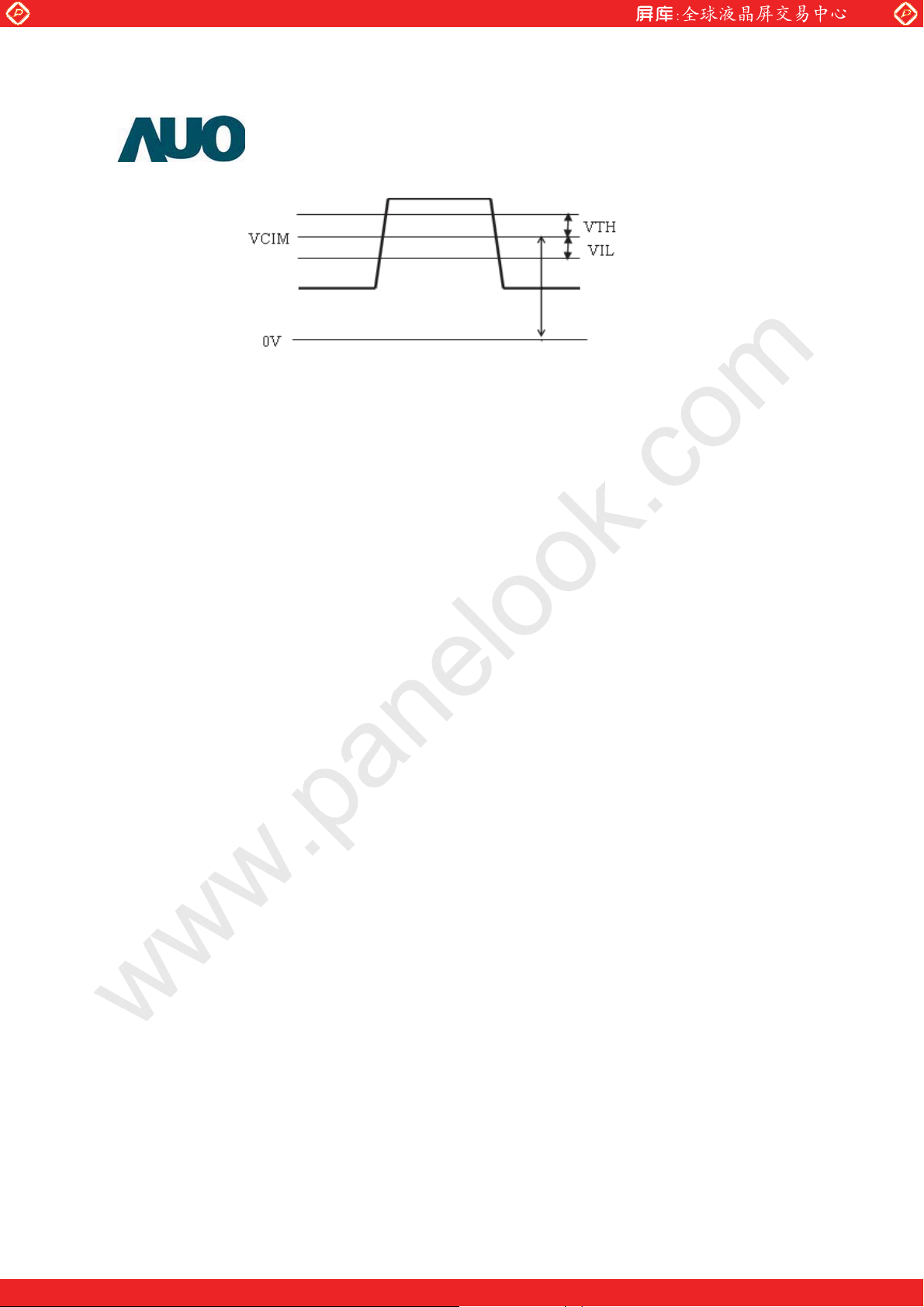

4. VCIM = 1.2V

www.panelook.com

5. The performance of the Lamp in LCD panel, for example life time or brightness, is extremely influenced by the

characteristics of balanced board and I/P board. All the parameters should be carefully designed as not to

produce too much leakage current from high-voltage output. While you design or order the balance board,

please make sure unwanted lighting caused by the mismatch of the lamp and the balanced board (no lighting,

flicker, etc) never occurs. After confirmation, the LCD panel should be operated in the same condition as

installed in your instrument.

6. Do not attach a conducting tape to lamp connecting wire. If the lamp wire attach to conducting tape, TFT-LCD

Module have a low luminance and the inverter has abnormal action because leakage current occurs between

lamp wire and conducting tape.

7. The relative humidity must not exceed 80% non-condensing at temperatures of 40 or less. At temperatк ures

greater than 40 , the wet bulb temperature must not exceed 39 . When operate at low temperatures, the кк

brightness of CCFL will drop and the life time of CCFL will be reduced.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

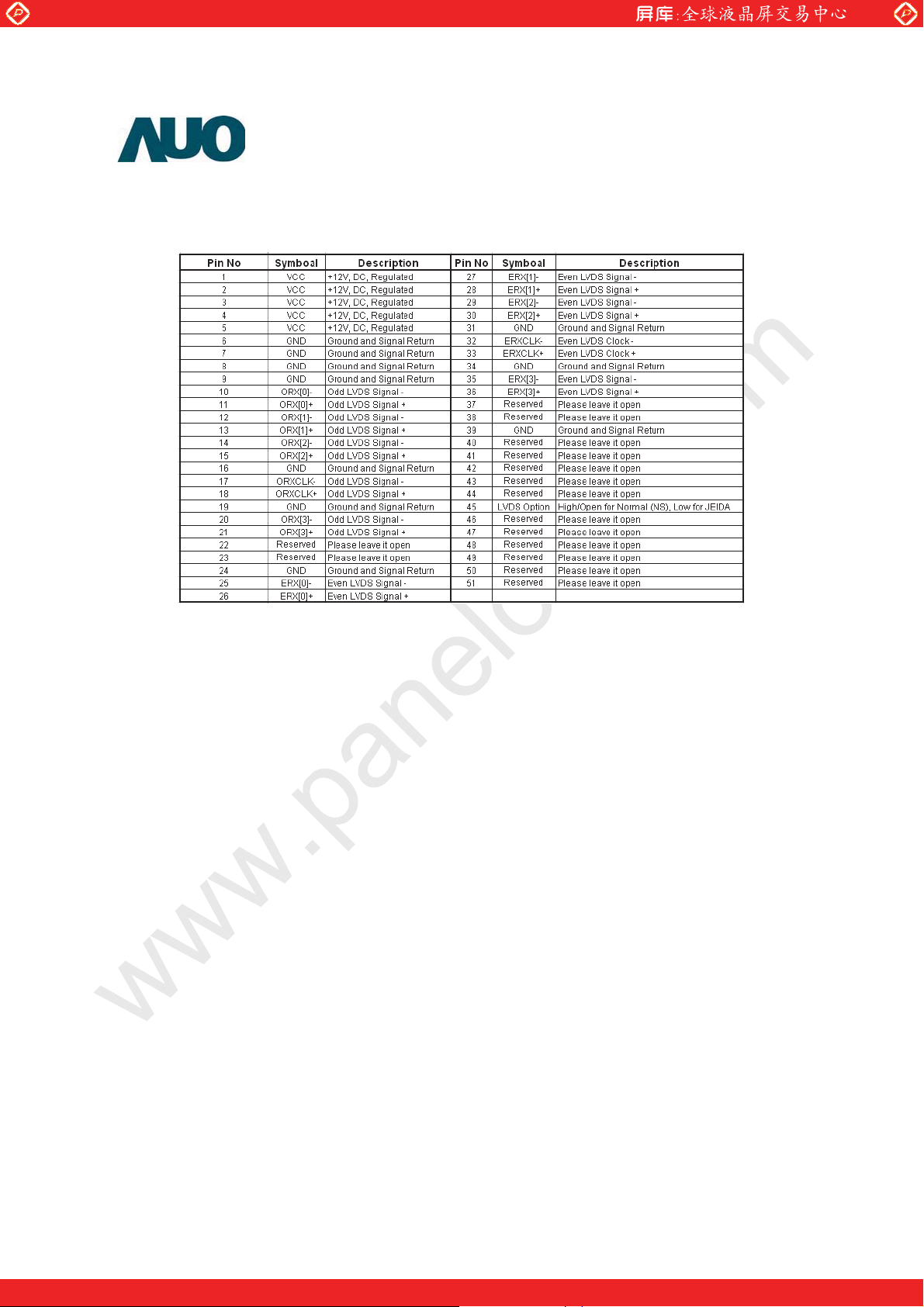

3-2 Interface Connections

- Connector on Panel: JAE FI-RE51S-HF (Manufactured by JAE)

-

www.panelook.com

Note:

1. All GND (ground) pins should be connected together and should also be connected to the LCD’s metal frame.

All Vcc (power input) pins should be connected together.

2. For Pin 10, 27 and 28, panel will not damage if negligently connect these pins to high or low

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

LVDS Option = High/Open, NS mode

ORXCLK+

ORXCLK-

www.panelook.com

OR0 OG0 OR5 OR4

ORX0

ORX1

ORX2

ORX3

ERXCLK+

ERXCLK-

ERX0

ERX1

ERX2

ERX3

OR0 OG0 OR5 OR4

OG1 OB1 OB0 OG5

VS

OB2 DE

OR6

ER0 EG0

EG1 EB1

EB2 EB5 EB4 EB3 EB2 DE

ER6

VS

OB7

ER5

EB0

DE VS HS

EB7

Note:

 Odd data is the first priority.

 First data is odd.

LVDS Option = Low (0V) , JEIDA mode

ORXCLK+

OR1

OR3 OR2

OG4 OG3

HS OB5 OB4 OB3 OB2

OB6 OG7 OG6 OR7 OR6

ER4

ER3 ER2

EG5 EG 4 EG3 EG2 EG1 EB1

EB6 EG7 EG6 ER7 ER6

OR1

OG2

ER1

OR0

OG1

ER0

OG0

OB1

EG0

ORXCLK-

OR7

ORX0

ORX1

ORX2

ORX3

ERXCLK+

ERXCLK-

ERX0

ERX1

ERX2

ERX3

OR2 OG2

OG3 OB3 OB2 OG7

OB4 DE

OR0 OB1 OB0

ER2 EG2

EG3 EB3 EB2 EG7

EB4

ER0

OR7

OR6 OR5 OR4 OR3 OR2 OG2

VS

HS

ER7

ER6 ER5 ER4 ER3 ER2 EG2

DE VS HS

EB1

EB0 EG1 EG0 ER1 ER0

OG6 OG5

OB7 OB6

OG1 OG0

EG6 EG 5

EB7 EB6

OG4

OB5

OR1

EG4

EB5

OG3

OB4

OR0

EG3

EB4

OB3

EB2

DE

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

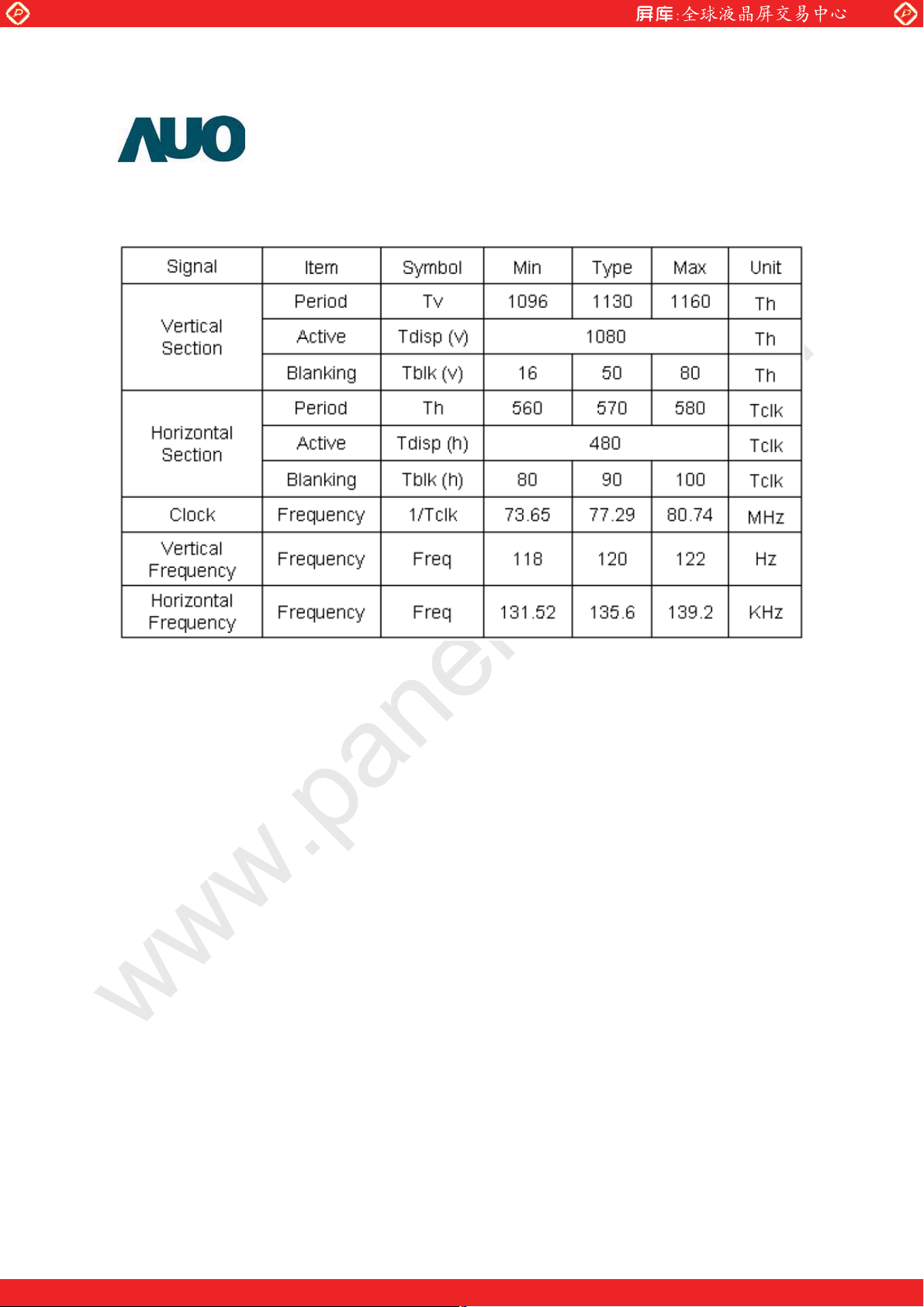

3-3 Signal Timing Specifications

This is the signal timing required at the input of the User connector. All of the interface signal timing should be satisfied with the following specifications for it’s proper operation.

* Timing Table DE only Mode Vertical Frequency:

Signal Item Symbol Min. Typ. Max. Unit

www.panelook.com

Vert i cal

Section

Horizontal

Section

LVDS Clock Frequency

Vert i cal

Frequency

Horizontal

Frequency

Notes:

1.) Di splay position is specific by the rise of DE signal only. Horizontal display position is specified by the falling edge of 1 left edge of the screen. Vertical display position is specified by the rise of DE after a “Low” level period equivalent to eight times of horizontal period. The 1

2.) The display position does not fit to the screen if a period of DE “High” and the effective data period do not synchronize with each other.

st

data corresponding to one horizontal line after the rise the of ENAB is displayed at the top line of screen.

Period

Active

Blanking

Period

Active

Blanking

Frequency

Tv 1090 1125 1480 Th

Tdisp(v) 1080 Th

Tblk (v) 10 45 400 Th

Th 1030 1100 1325 Tclk

Tdisp(h) 960 Tclk

Tblk (h) 70 140 365 Tclk

Fclk (1/Tclk) 50 74.25 82 MHz

Fv 47 60 63 Hz

Fh 60 67.5 73 kHz

st

DCLK right after the rise of ENAB, is displayed on the

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

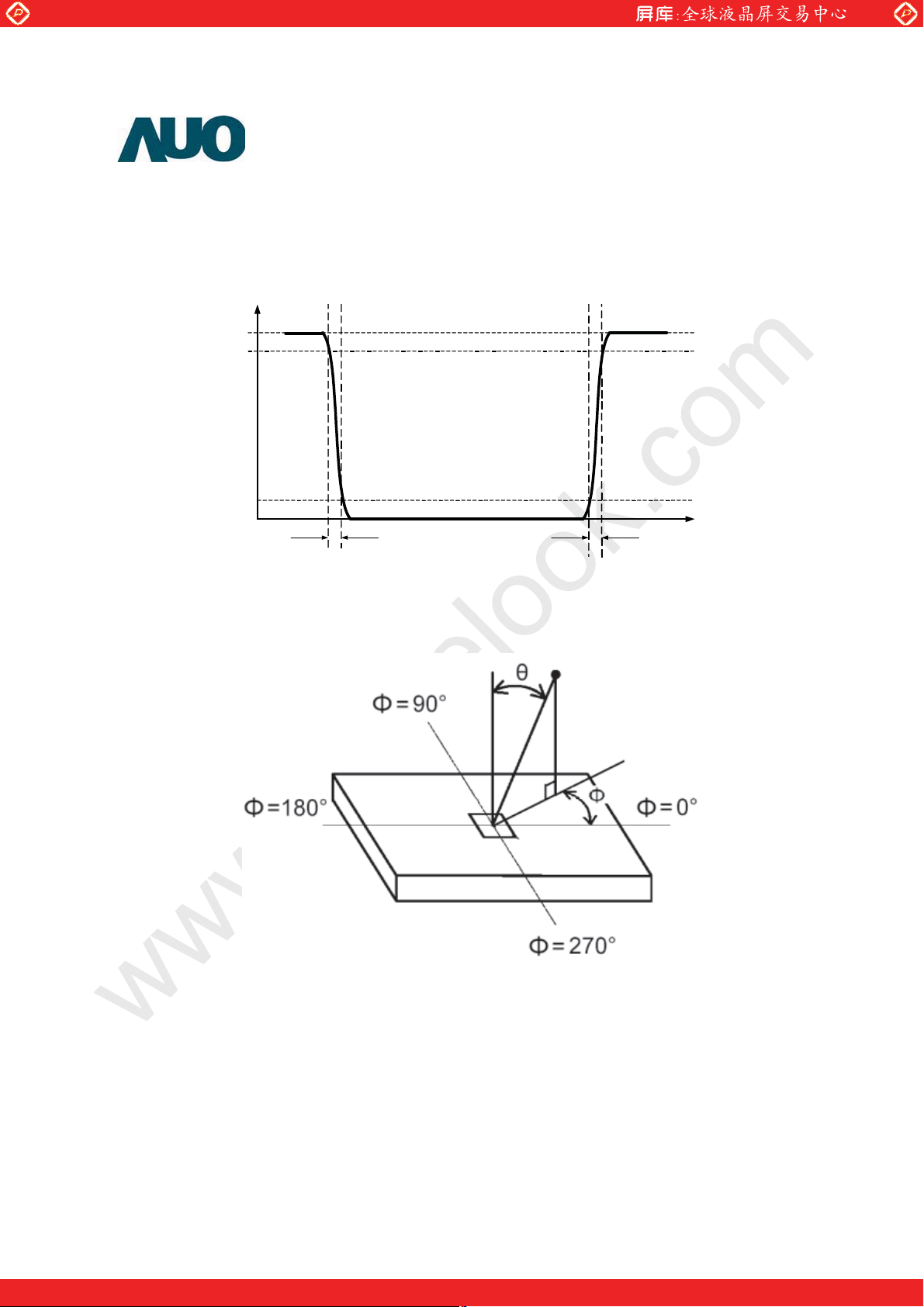

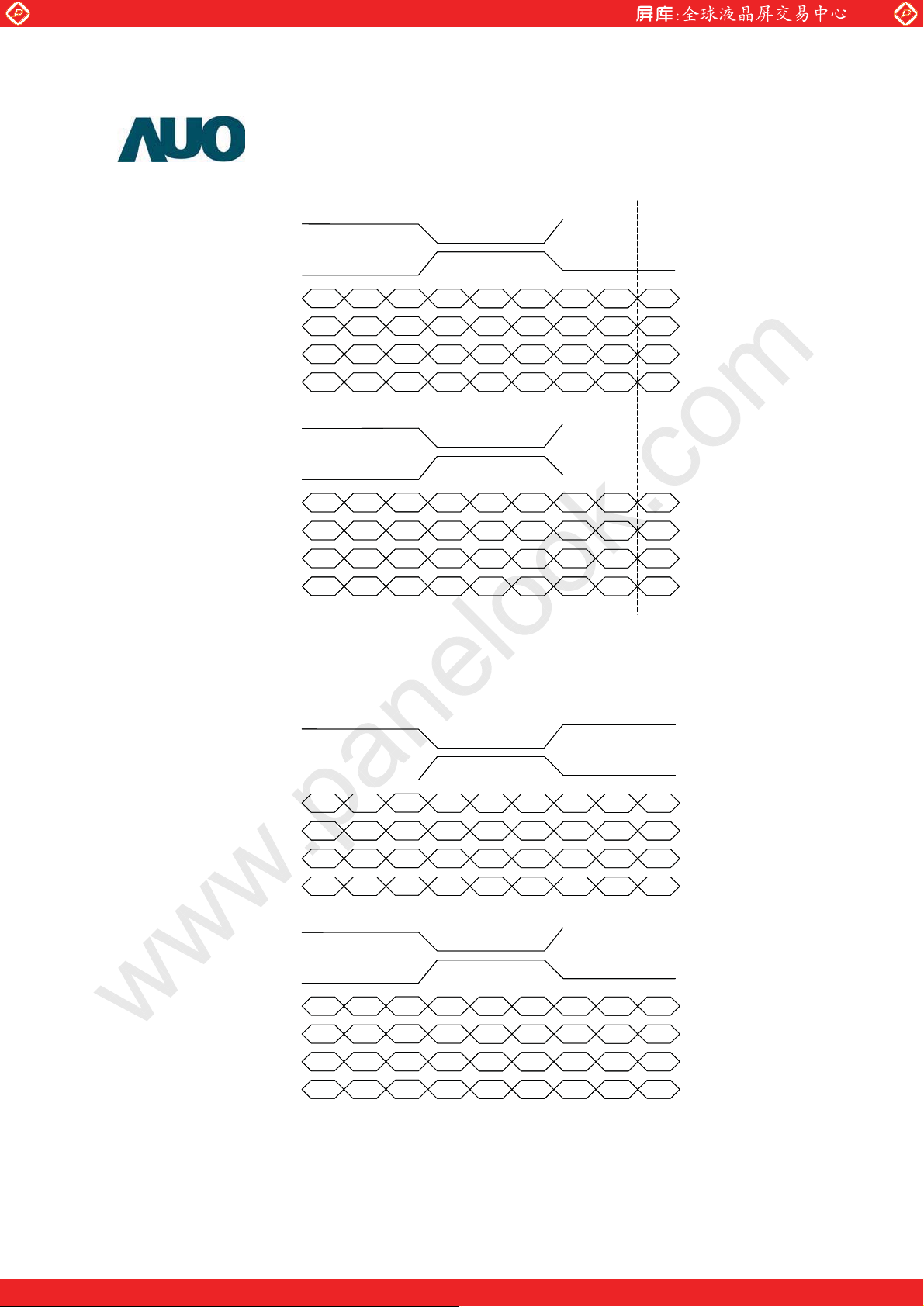

3-4 Signal Timing Waveforms

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

3-5 Color Input Data Reference

The brightness of each primary color (red, green and blue) is based on the 8 bit gray scale data input for the color; the higher the binary input, the brighter the color. The table below provides a reference for color versus data input.

www.panelook.com

COLOR DATA REFERENCE

Color

Basic

Color

RED

GREEN

Input Color Data

RED

MSB LSB

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Red(255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Green(255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

Blue(255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Cyan 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Magenta 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Yellow 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

RED(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED(001) 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

----

RED(254) 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED(255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

GREEN(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

GREEN(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0

----

MSB LSB

GREEN

BLUE

MSB LSB

GREEN(254) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0

GREEN(255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

BLUE

BLUE(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

BLUE(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

-------

BLUE(254) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0

BLUE(255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

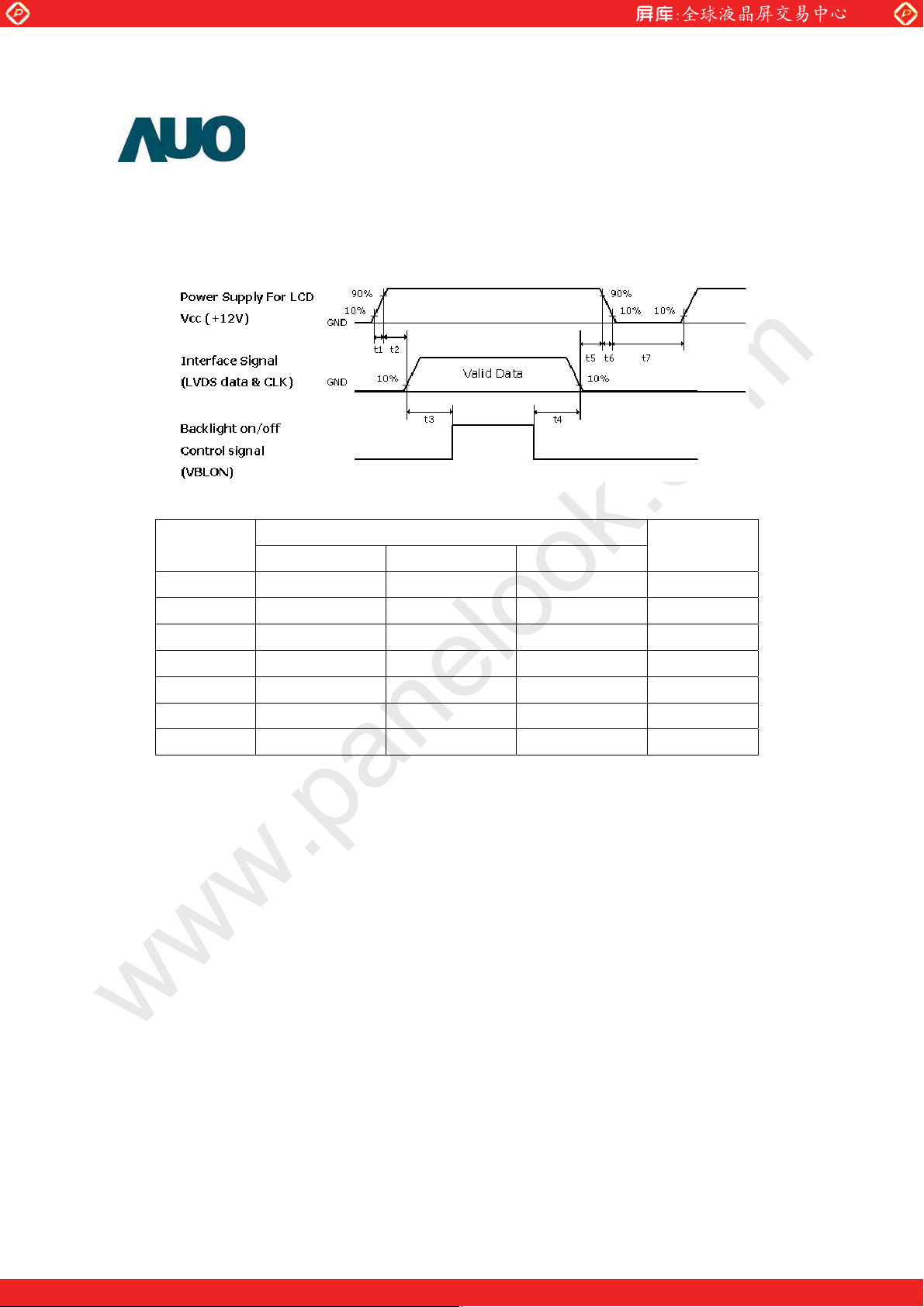

3-6 Power Sequence for LCD Module

3.6.1 Power Sequence for LCD

www.panelook.com

Values Parameter

Min. Typ. Max.

t1 0.4 --- 30 ms

t2 0.1 --- 50 ms

t3 300 --- --- ms

t4 10 --- --- ms

t5 0.1 --- 50 ms

t6 --- --- 300 ms

t7 500 --- --- s

Note:

The timing controller will not be damaged in case of TV set AC input power suddenly shut down.

Once power reset, it should follow power sequence as spec. definition.

(1) Apply the lamp voltage within the LCD operation range. When the back-light turns on before the LCD operation or

the LCD turns off before the back-light turns off, the display may momentarily become abnormal screen.

Units

14/31 No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

3-7 Backlight Power Specification for LCD Module

3.7.1 Electrical specification

ʳ

1 Operating Voltage Vo 1245 1380 1518 Vrms

2 Operating Current Io 12 12.5 13 mArms

3 BL Total Power Dissipation PBL 74.4

Description Min Typ Max Unit

www.panelook.com

78

80 Watt

Condition/Note

1. Dimming range is set 100%

2. Base on lamp specification, for each lamp need to be applied at least minimum operating voltage to ensure each lamp can be normally worked!

1. Dimming range is set 100%

2. Base on lamp specification, for each lamp need to be applied at least minimum operating current to ensure each lamp can be normally worked!

1. Dimming range is set 100%.

2. In order to get typical light out, the backlight need to be applied typical power.

3. Input power of JIG BD is about 78 W (typ) by AUO measure!

1. Base on lamp specification, to ensure

Vrms

each lamp can be normally ignited, need to apply at least minimum striking voltage to each lamp

1. To ensure each lamp can be normally ignited, each lamp need to be applied at least minimum striking voltage during minimum striking time.

1. Operating frequency is set by customer.

2. Need to double confirm display quality.(*)

1. PWM frequency is set by customer.

2. Need to double confirm display quality.(*)

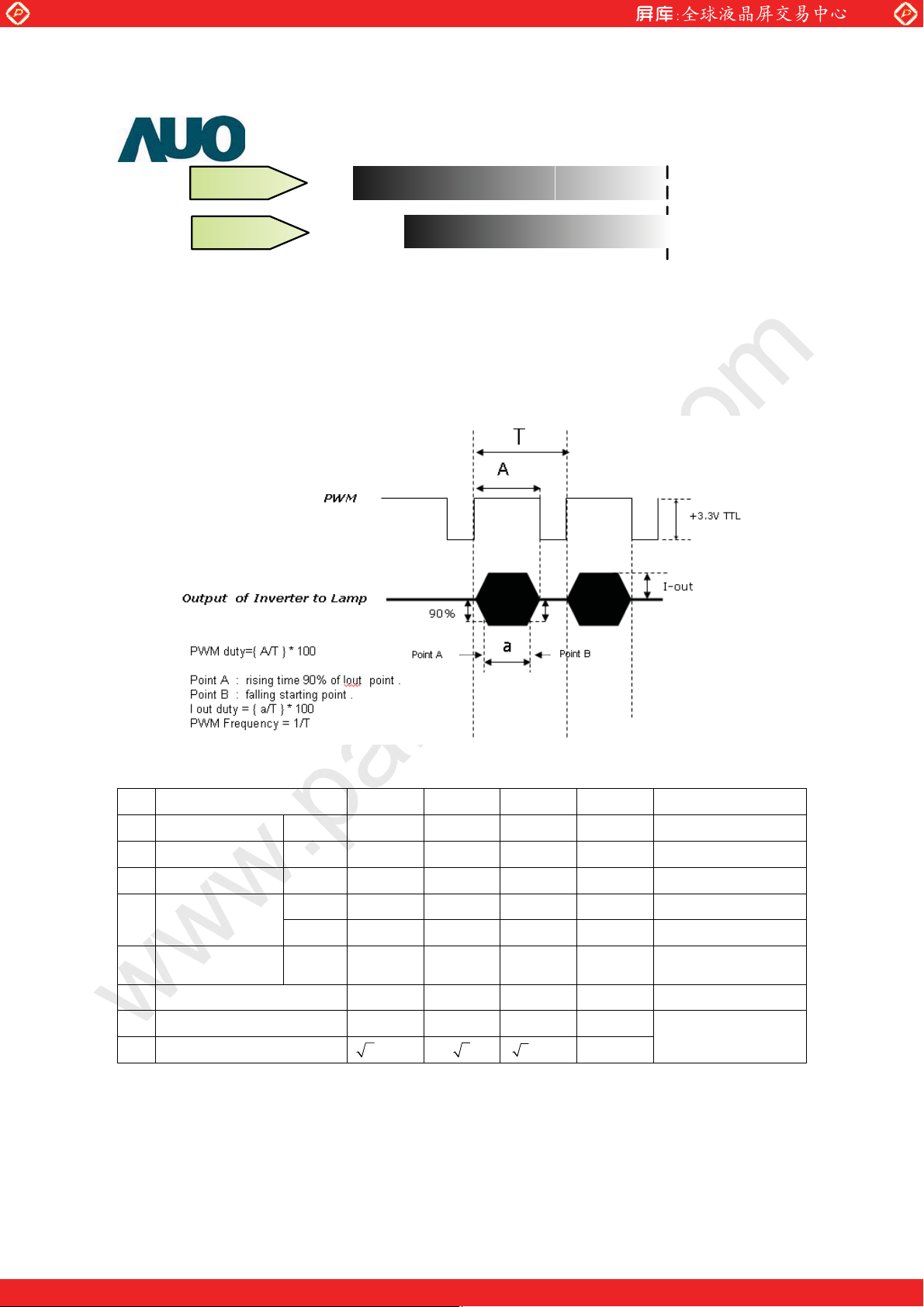

Note 1. Dimming range Note 2. Note 3. Duty ratio definition.

4 Striking Voltage

At 0к

Vstrike

At ˅ˈк

2750 2900 -

2290 2440 -

5 Striking Time Ts 1000 - 1500 msec

6 Operating Frequency fo 49 - 52 kHz

PWM Operating Frequency F_PWM 140 180 240 Hz

7

PWM Dimming Duty Ratio D_PWM 20 - 100 %

8

9 Lamp Type Straight type ʳ

10 Number of Lamps 4U pcs

ΰTa =2 5 5к, Turn on for 45minutesα

(*) The operating frequency of lamp may produce interference with horizontal frequency from display, and may cause line noise on the display. In order to avoid interference, the operating frequency should be separated from horizontal frequency.

Note 1:

Dimming range

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

Control

range

0%

www.panelook.com

100%

PWM

Dimming

PWM Dimming : include Internal and External PWM Dimming

Note 2:

When PWM dimming ration is operated less than recommend value, feedback signal and all protection functions should be confirmed for LIPS design. Picture performance and quality should also be confirmed by customers.

Note 3:

Duty ratio definition.

20%

100%



2. Lamp specification

Description Min Typ Max Unit Note

1 Lamp voltage Vlamp 1245 1380 1518 Vrms At Ilamp=12.5mA

2 Lamp current Ilamp - 12.5 - mArms

3 Lamp frequency flamp 35 - 80 kHz

4 Striking voltage

Delayed discharge

5

time

6 Life time 50K - - hr

7 Unsymmetrical ratio - - 10% -

8 Crest factor (C.F)

The above characteristics are measured under the conditions: Ambient temperature: 25±2к, Relative Humidity: 65±20%RH.

At 2ˈк

At ˃к

Tdelay - - 1000 msec

- - 2290 Vrms

- - 2750 Vrms

Note 1.

210%−

2

210%+

-



One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Note 1:

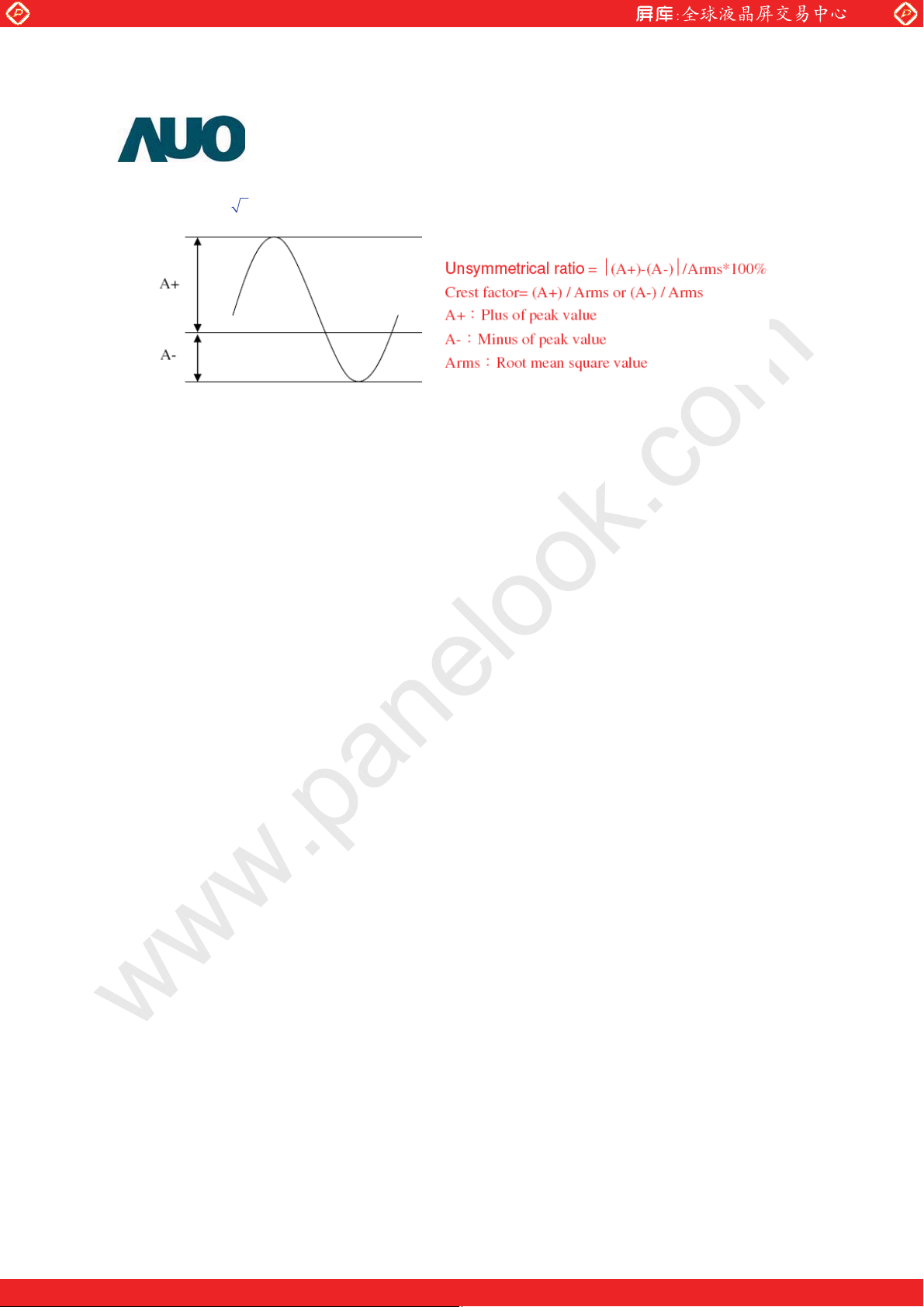

Please light on the lamp with symmetrical voltage and current waveform (unsymmetrical ratio is less than 10%,

crest factor within

210%±

). The inverter output waveform should be better similar to the ideal sine wave.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

4. Optical Specification

Optical characteristics are determined after the unit has been ‘ON’ and stable for approximately 45 minutes in a dark environment at 25 . The values specified are at an approximate distance 50cm from the LCD surface at a viewing angle к of ĭ and șequal to 0°.

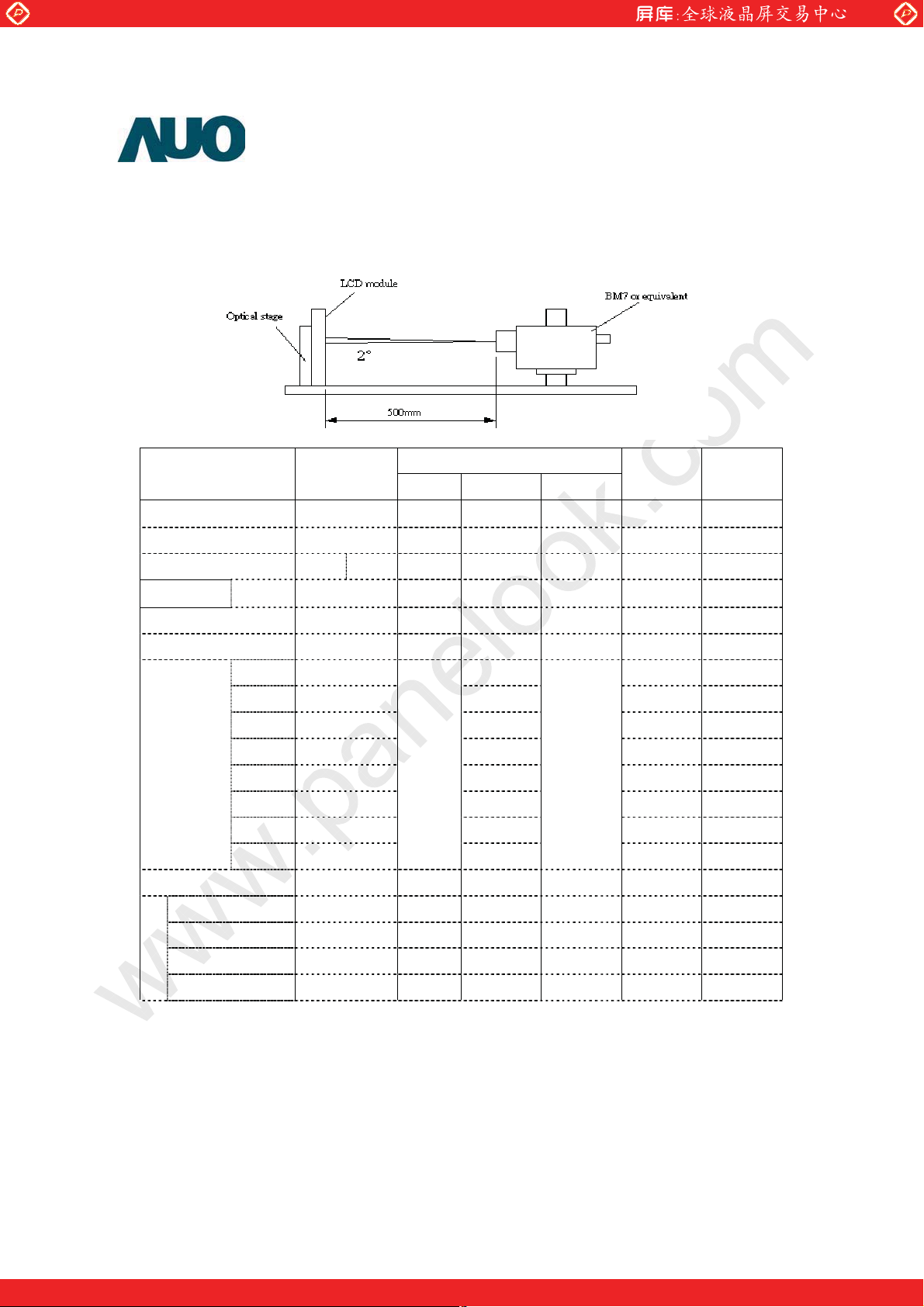

Fig.1 1 presents additional information concerning the measurement equipment and method.

Parameter

Contrast Ratio CR 4000 5000 1

Symbol

www.panelook.com

Values

Min. Typ. Max.

Units Notes

Surface Luminance, white LWH 425 500

Luminance Variation į

Response time G to G

9 p 1.30 3

WHITE

TȖ

6.5 ms 4

cd/ф

2

Color Gamut NTSC 72 %

Color Coordinates

RED RX 0.64

R

0.33

Y

GREEN GX 0.29

G

0.60

Y

Typ.-0.03

Typ.+0.03

BLUE BX 0.15

B

0.06

Y

WHITE WX 0.28

W

Y

0.29

Viewing Angle

x axis, right(ĳ=0°) șr 89 degree 5

x axis, left(ĳ=180°) șl 89

y axis, up(ĳ=90°) șu 89

y axis, down (ĳ=0°) ș

89

d

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

3

Note:

1. Contrast Ratio (CR) is defined mathematically as:

Contrast Ratio=

Surface luminance is luminance value at point 5 across the LCD surface 50cm from the surface with all pixels

displaying white. From more information see FIG 2. When lamp current IH=11mA, LWH=Lon5, where Lon5

is the luminance with all pixels displaying white at center 1 location.

2. The variation in surface luminance, įWHITE is defined (center of Screen) as:

į

WHITE(9P)

3. Response time TȖ is the average time required for display transition by switching the input signal for five luminance

ratio (0%,25%,50%,75%,100% brightness matrix) and is based on f

= Maximum(L

, L

on1

www.panelook.com

Surface Luminance of

on2

,…,L

)/ Minimum(L

on9

L

on5

L

off5

, L

on2

,…L

on9

on1

=60Hz to optimize.

v

)

4. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined for the horizontal

or x axis and the vertical or y axis with respect to the z axis which is normal to the LCD surface. For more

information see FIG4.

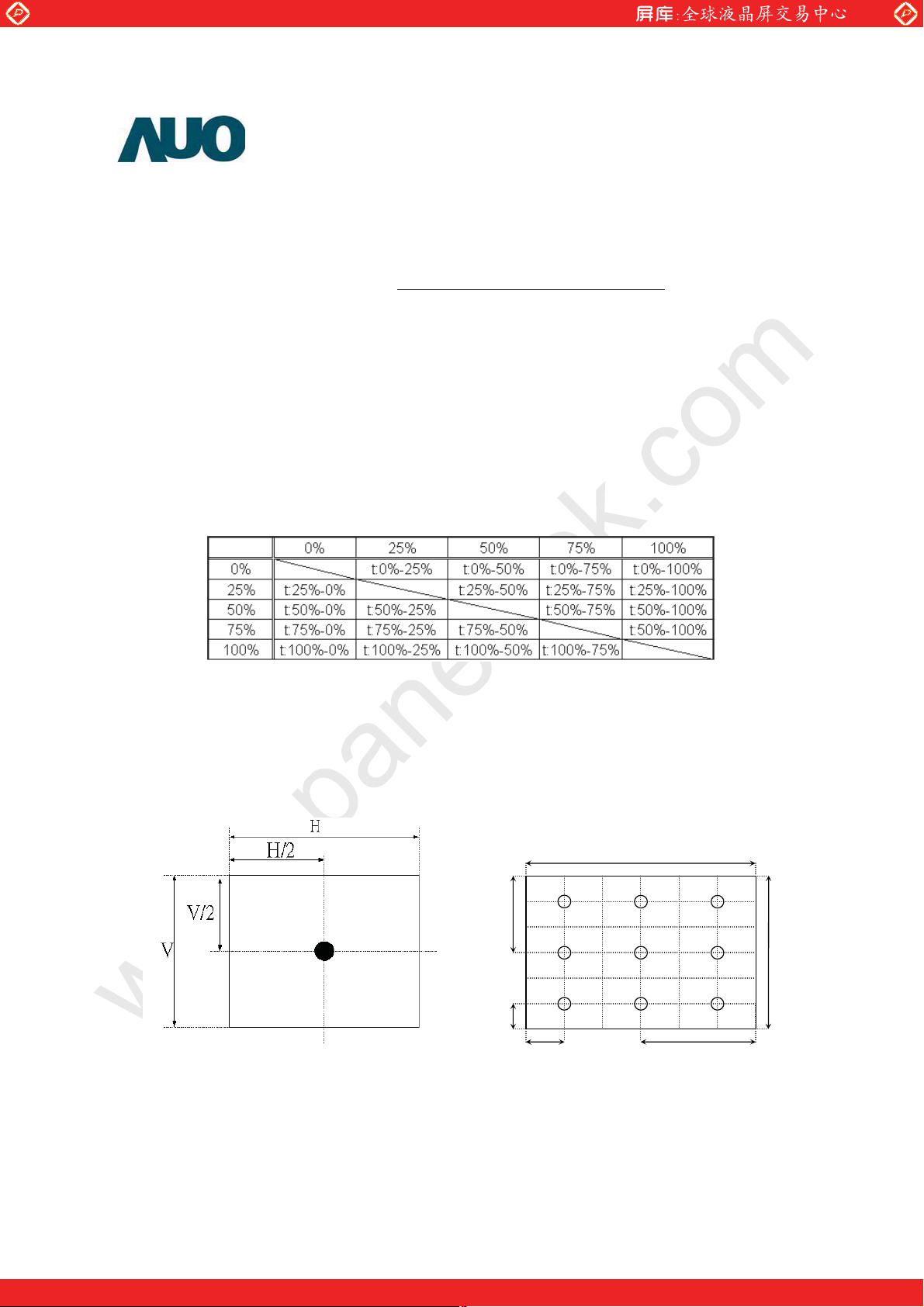

FIG. 2 Luminance

V

H/2

H/6

1

7

2

H

V/2 V/6

19/31 No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

FIG.3 Response Time

The response time is defined as the following figure and shall be measured by switching the input signal for “any level of gray(bright) “ and “any level of gray(dark)”.

Any level of gray(Bright) Any level of gray(Dark) Any level of gray(Bright)

˟˃ʿ˄ˈʿ˟ˆ˄ʿΞˁ˟˅ˈˈ

˟˃ʿ˄ˈʿ˟ˆ˄ʿΞˁ˟˅ˈˈ˟˃ʿ˄ˈʿ˟ˆ˄ʿΞˁ˟˅ˈˈ

ˣ

ˣ ˻

˻



ˢ







˷



˸







˸



˶







ʳ

www.panelook.com

˟˃ʿ˄ˈʿ˟ˆ˄ʿΞˁ˟˅ˈˈ

˟˃ʿ˄ˈʿ˟ˆ˄ʿΞˁ˟˅ˈˈ˟˃ʿ˄ˈʿ˟ˆ˄ʿΞˁ˟˅ˈˈ

FIG.4 Viewing angle

˟˃ʿ˄ˈʿ˟ˆ˄ʿΞˁ˟˅ˈˈ

˟˃ʿ˄ˈʿ˟ˆ˄ʿΞˁ˟˅ˈˈ˟˃ʿ˄ˈʿ˟ˆ˄ʿΞˁ˟˅ˈˈ

Tr

˧˼˸

˧˼˸˧˼˸

R

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

5. Mechanical Characteristics

The contents provide general mechanical characteristics for the model T315HW02 VB. In addition the figures in the

next page are detailed mechanical drawing of the LCD.

Outline Dimension

Bezel Opening

Active Display Area

Weight 6500g Typ.

Surface Treatment AG, 3H, Haze=11%

www.panelook.com

Horizontal 760.0mm

Vertical 450.0mm

Depth 45mm

Horizontal 703.6mm

Vertical 398.4mm

Horizontal 698.4mm

Vertical 392.85mm

21/31 No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

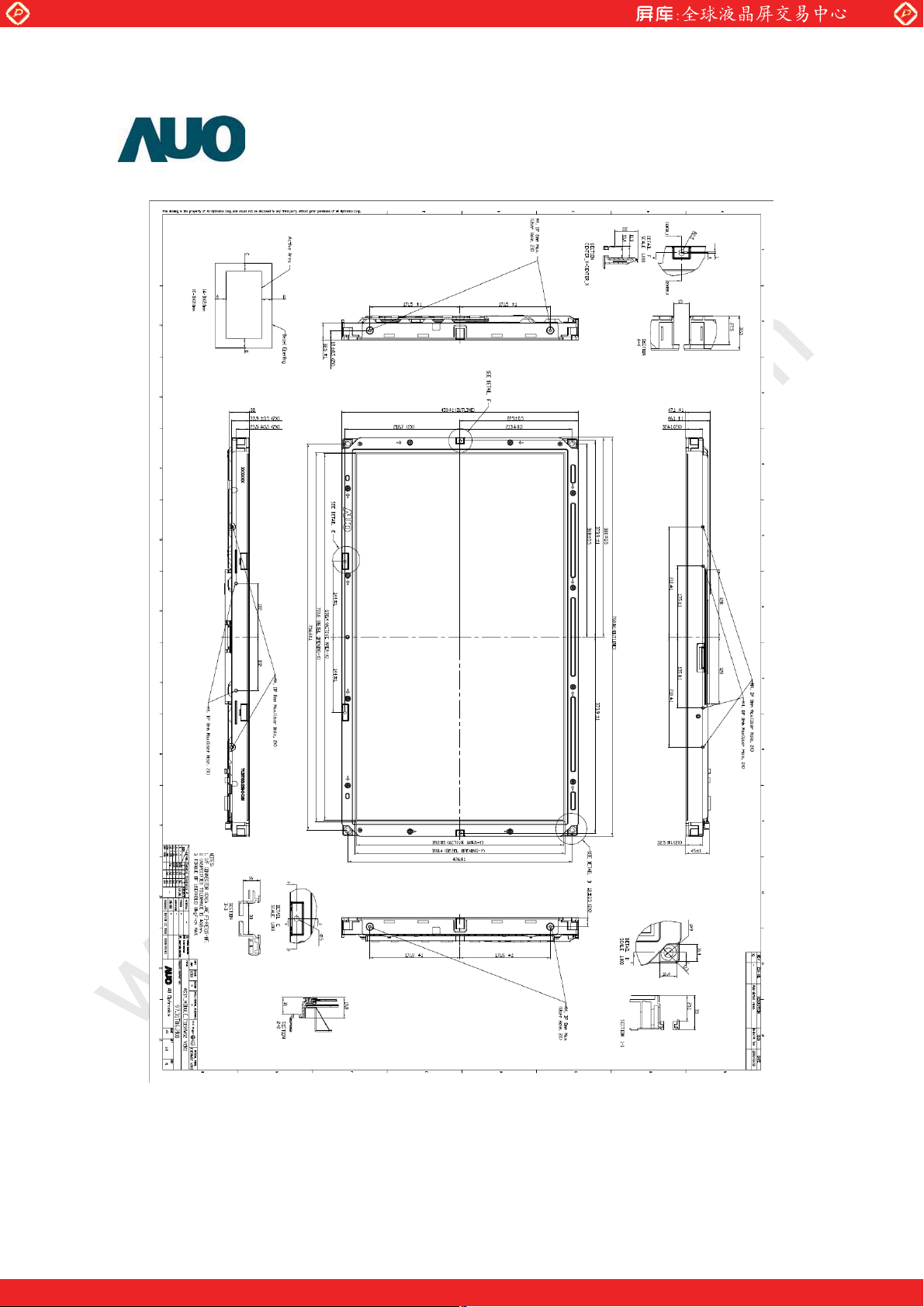

Front:

www.panelook.com

22/31 No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

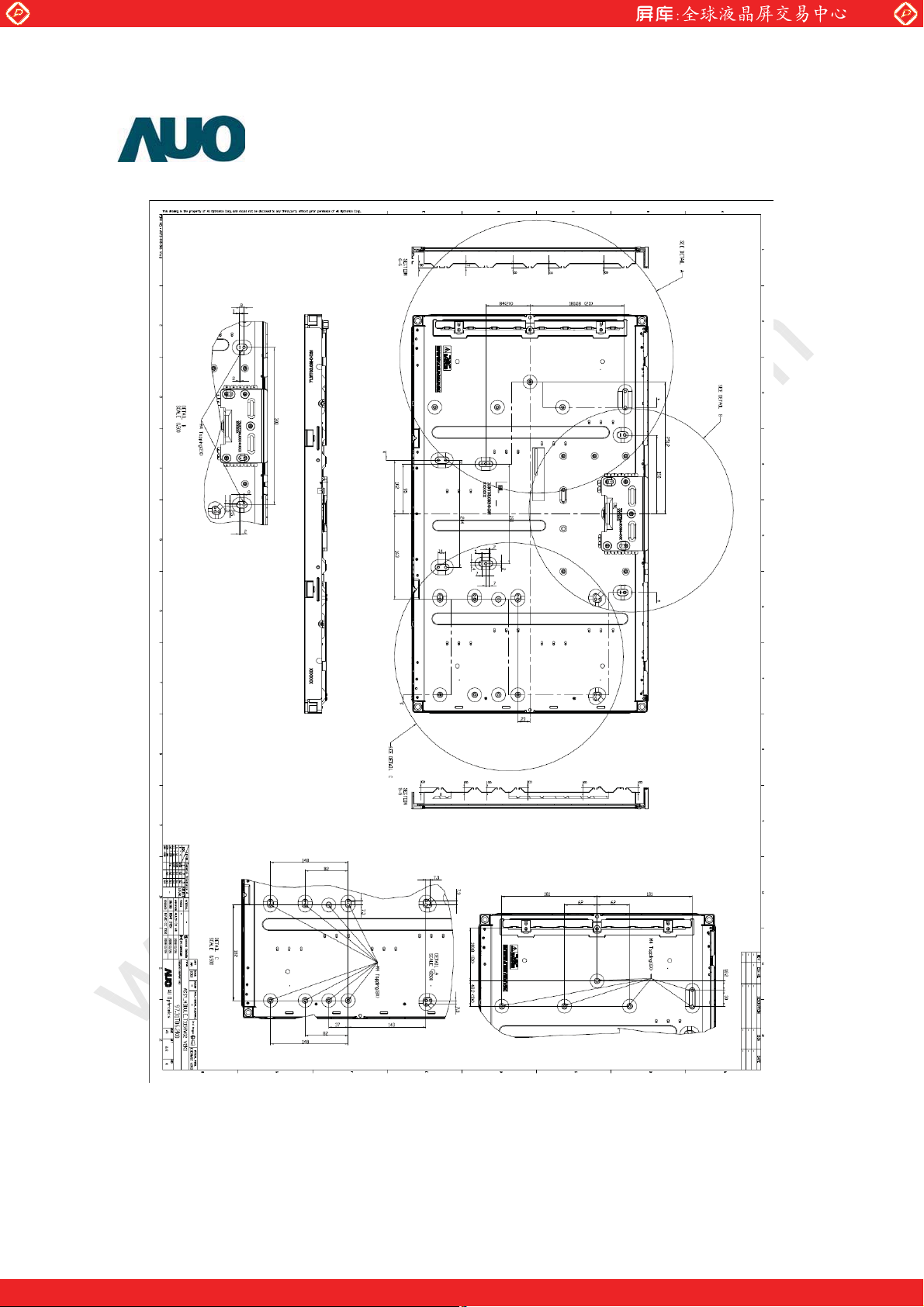

Back:

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

6. Reliability:

Environment test condition

ʳʳʳʳ Test Items Q'ty Conditions

1 High Temperature Stroage 3

2 Low Temperature Stroage 3

3 High Temperature Operation 3

4 Low Temperature Operation 3

5 Vibration (non-operation) 3

6 Shock (non-operation) 3

7 Vibration (With carton) 3

8 Drop (With carton) 3

60кккк 300 hrs

-20кккк, 300 hrs

50кккк, 300 hrs

-5кккк, 300 hrs

(10 ~ 300Hz/1.5G/11min SR, XYZ 30min/axis)

Vibration level : 1.5G RMS, Bandwidth : 10-300Hz

Duration: X, Y, Z 30min,

Shock level: 50G

Waveform: have sine wave, 11ms

Direction: ±X,±Y, ±Z One time each direction

Random wave (1.5 Grms 5~500Hz)

30mins / Per each X.Y.Z axes

Height: 38cm

1 corner, 3 edges, 6 surfaces

(ASTMD4169-I)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

7. International Standard

7-1. Safety

i. UL1950 Third Edition, Underwriters Laboratories, Inc. Jan. 28, 1995

Standard for Safety of Information Technology Equipment Including electrical Business Equipment.

ii. CAN/CSA C22.2 No. 950-95/60950 Third Edition, Canadian Standards Association,

Standard for Safety of Information Technology Equipment Including Electrical Business Equipment.

iii. EN60950 : 1992+A2: 1993+A2: 1993+C3: 1995+A4: 1997+A11: 1997

IEC 950: 1991+A1: 1992+A2: 1993+C3: 1995+A4:1996

European Committee for Electrotechnical Standardization (CENELEC)

EUROPEAN STANDARD for Safety of Information Technology Equipment Including Electrical Business

Equipment.

www.panelook.com

7-2. EMC

a) ANSI C63.4 “Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electrical

Equipment in the Range of 9kHz to 40GHz. “American National standards Institute(ANSI), 1992

b) C.I.S.P.R “Limits and Methods of Measurement of Radio Interface Characteristics of Information Technology

Equipment.” International Special committee on Radio Interference.

c) EN 55022 “Limits and Methods of Measurement of Radio Interface Characteristics of Information

Technology Equipment.” European Committee for Electrotechnical Standardization. (CENELEC), 1998

25/31 No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

8. Packing

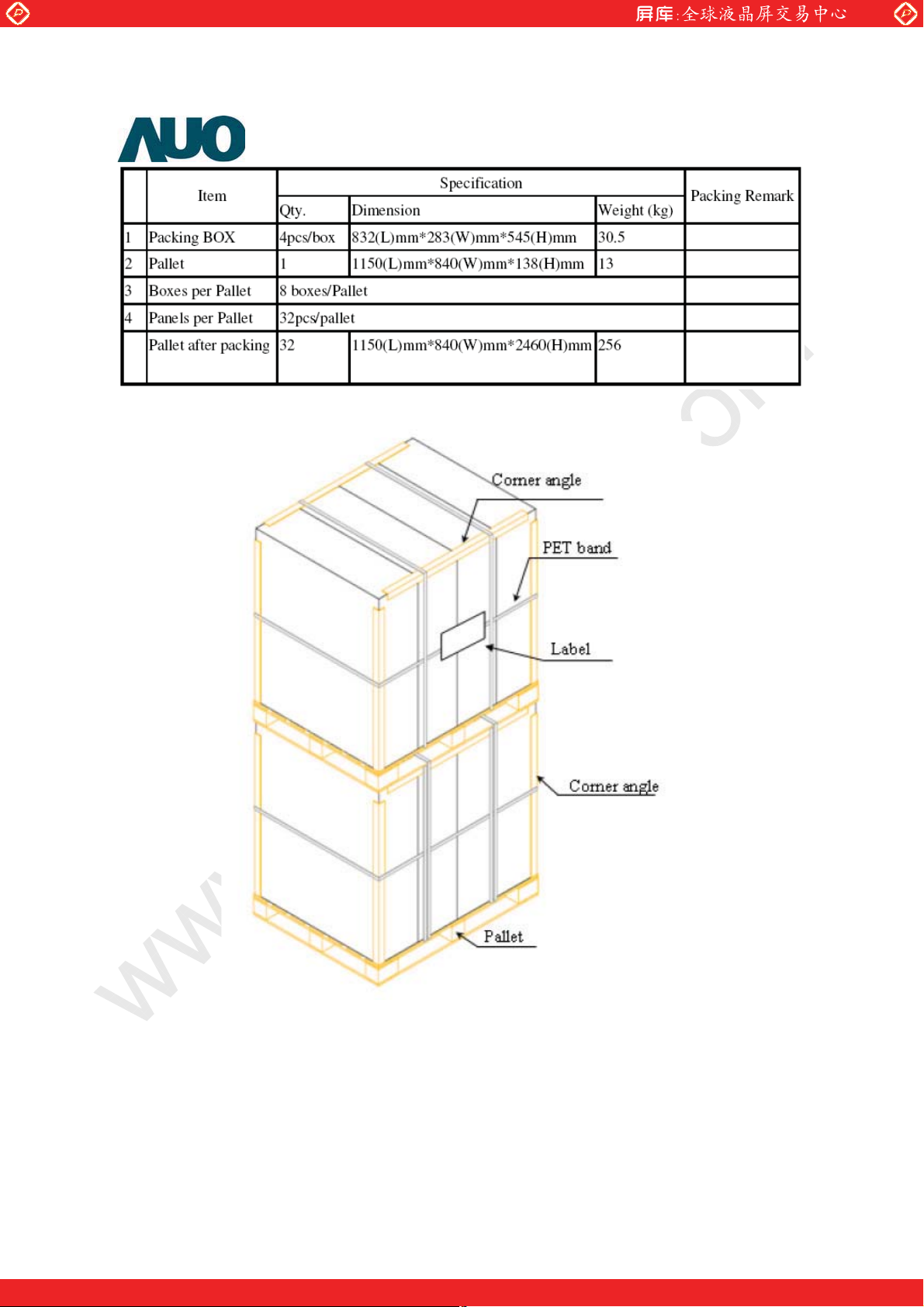

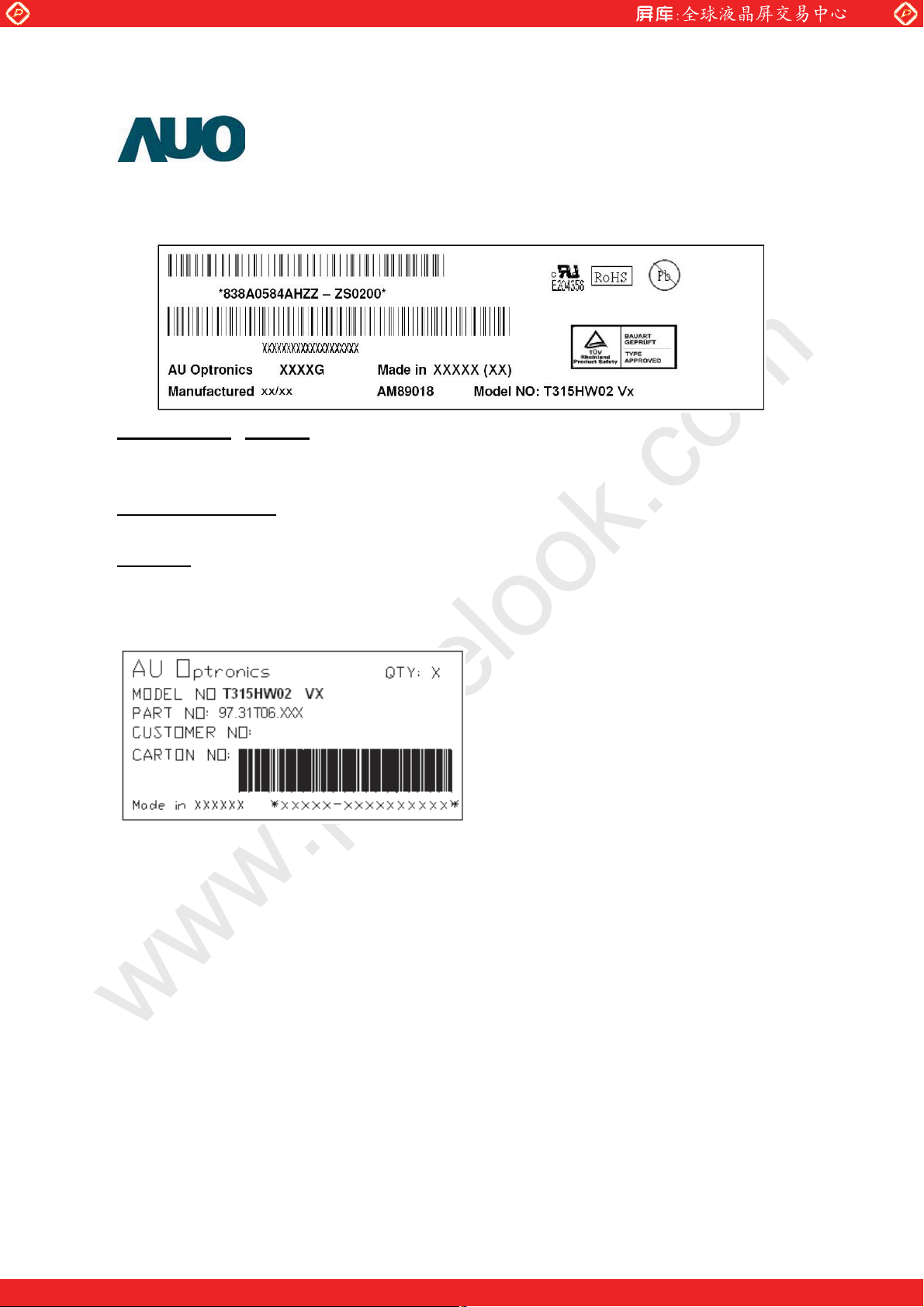

Panel label:

838A0584AHZ

838A0584AHZZ: Panel Unique ID

ZS0200: AUO internal use

Manufactured 09/02

2009 week 02

AM89018

AUO internal use

Carton Label:

– ZS0200

www.panelook.com

26/31 No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

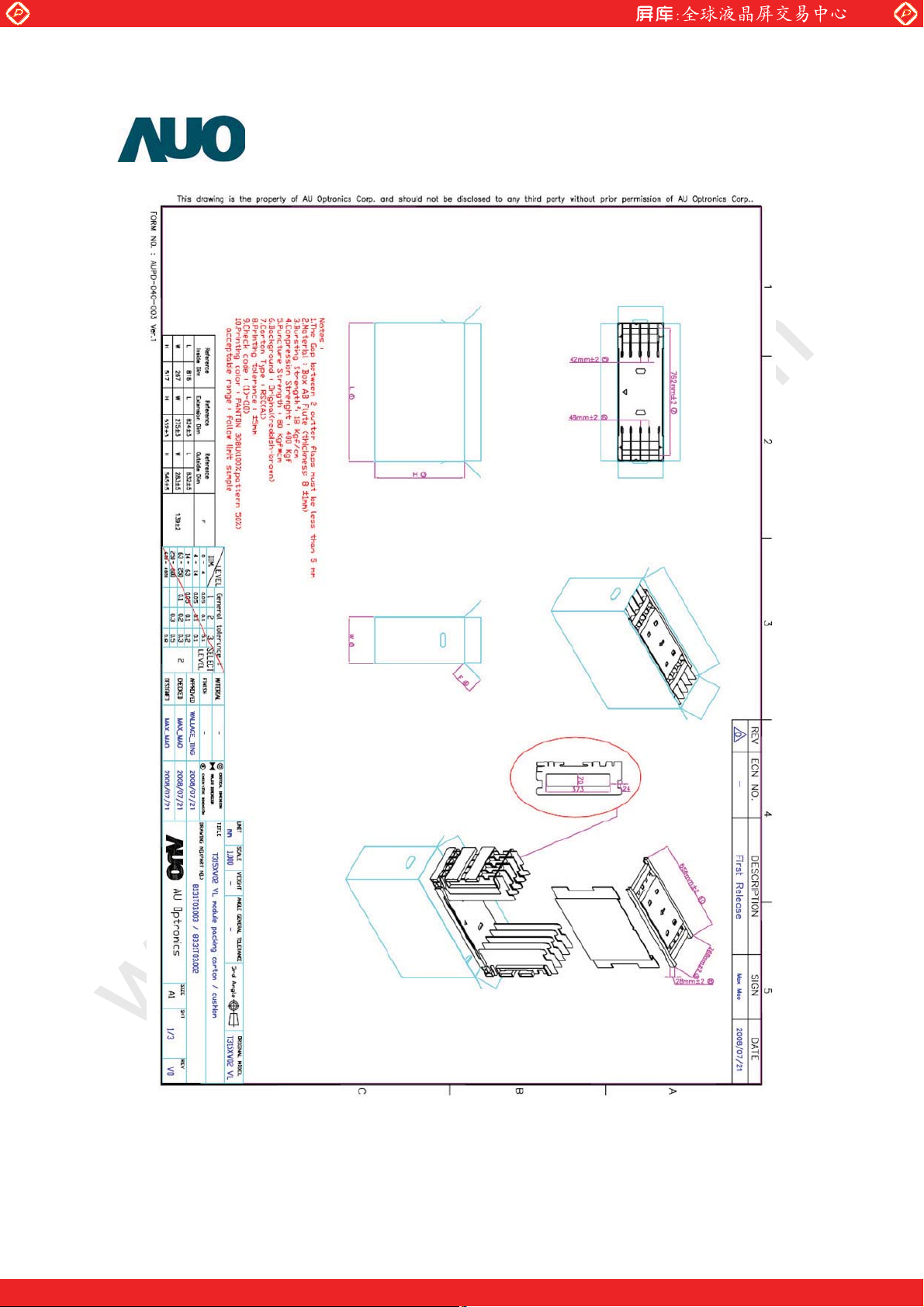

Carton:

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

9. PRECAUTIONS

Please pay attention to the followings when you use this TFT LCD module.

9-1 MOUNTING PRECAUTIONS

(1) You must mount a module using holes arranged in four corners or four sides. (2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to module.

And the case on which a module is mounted should have sufficient strength so that external force is not transmitted directly to the module.

(3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.

Transparent protective plate should have sufficient strength in order to the resist external force.

(4) You should adopt radiation structure to satisfy the temperature specification. (5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former generates

corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break by electro-chemical reaction.

(6) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB pencil lead.

And please do not rub with dust clothes with chemical treatment. Do not touch the surface of polarizer for bare hand or greasy cloth. (Some cosmetics are detrimental to the polarizer).

(7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like

chamois soaks with petroleum benzene. Normal-hexane is recommended for cleaning the adhesives used to attach front/ rear polarizers. Do not use acetone, toluene and alcohol because they cause chemical damage to the polarizer.

(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes

deformations and color fading.

(9) Do not open the case because inside circuits do not have sufficient strength.

www.panelook.com

9-2 OPERATING PRECAUTIONS

(1) The device listed in the product specification sheets was designed and manufactured for TV application

(2) The spike noise causes the mis-operation of circuits. It should be lower than following voltage:

V=±200mV(Over and under shoot voltage)

(3) Response time depends on the temperature. (In lower temperature, it becomes longer..)

(4) Brightness depends on the temperature. (In lower temperature, it becomes lower.) And in lower temperature,

response time (required time that brightness is stable after turned on) becomes longer.

(5) Be careful for condensation at sudden temperature change. Condensation makes damage to polarizer or

electrical contacted parts. And after fading condensation, smear or spot will occur.

(6) When fixed patterns are displayed for a long time, remnant image is likely to occur.

(7) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be done

by system manufacturers. Grounding and shielding methods may be important to minimize the interface.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

9-3 ELECTROSTATIC DISCHARGE CONTROL

Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain that treatment

persons are connected to ground through wrist band etc. And don’t touch interface pin directly.

9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

Strong light exposure causes degradation of polarizer and color filter.

9-5 STORAGEЀЀЀЀ

When storing modules as spares for a long time, the following precautions are necessary.

(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the temperature

between 5 and 35 at normal humidity.кк

(2) The polarizer surface should not come in contact with any other object. It is recommended that they be stored

in the container in which they were shipped.

www.panelook.com

9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM

(1) The protection film is attached to the bezel with a small masking tape. When the protection film is peeled off,

static electricity is generated between the film and polarizer. This should be peeled off slowly and carefully

by people who are electrically grounded and with well ion-blown equipment or in such a condition, etc.

(2) When the module with protection film attached is stored for a long time, sometimes there remains a very

small amount of flue still on the Bezel after the protection film is peeled off.

(3) You can remove the glue easily. When the glue remains on the Bezel or its vestige is recognized, please wipe

them off with absorbent cotton waste or other soft material like chamois soaked with normal-hexane.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

APPENDIX

AUO T315HW02 V3 T-CON LVDS timing (120Hz)

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

AUO T315HW02 VB Specification

Specifications and Main Features

Frequently Asked Questions

User Manual
