AUO T216XW01 V2 Specification

Download

Global LCD Panel Exchange Center

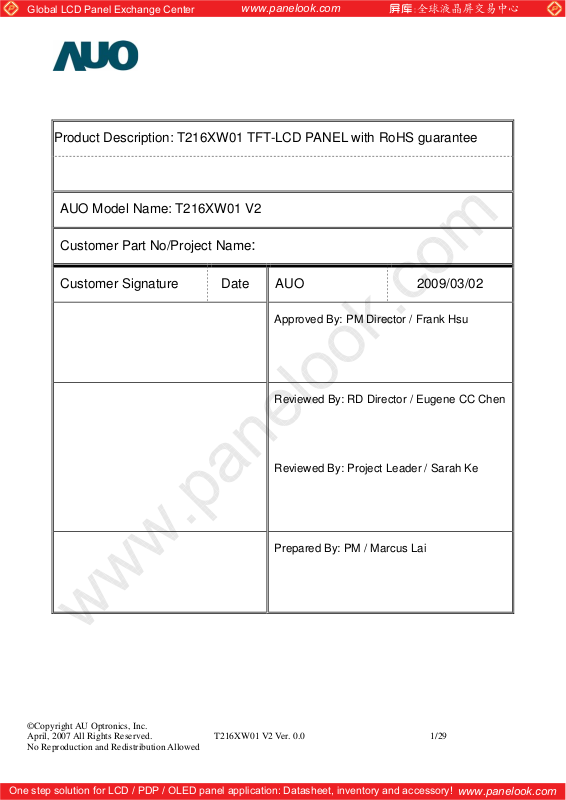

Product Description: T216XW01 TFT-LCD PANEL with RoHS guarantee

AUO Model Name: T216XW01 V2

Customer Part No/Project Name:

www.panelook.com

Customer Signature Date AUO 2009/03/02

Approved By: PM Director / Frank Hsu

Reviewed By: RD Director / Eugene CC Chen

Reviewed By: Project Leader / Sarah Ke

Prepared By: PM / Marcus Lai

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Product Specifications

21.6” WXGA Color TFT-LCD Module Model Name: T216XW01 V2

(*) Preliminary Specifications

() Final Specifications

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

No ITEM

COVER

CONTENTS

RECORD OF REVISIONS

1 GENERAL DESCRIPTION

2 ABSOLUTE MAXIMUM RATINGS

3 ELECTRICAL SPECIFICATIONS

3-1 ELECTRICAL CHARACTERISTICS

3-2 INTERFACE CONNECTIONS

3-3 SIGNAL TIMING SPECIFICATIONS

www.panelook.com

Contents

3-4 SIGNAL TIMING WAVEFORMS

3-5 COLOR INPUT DATA REFERENCE

3-6 POWER SEQUENCE for LCD

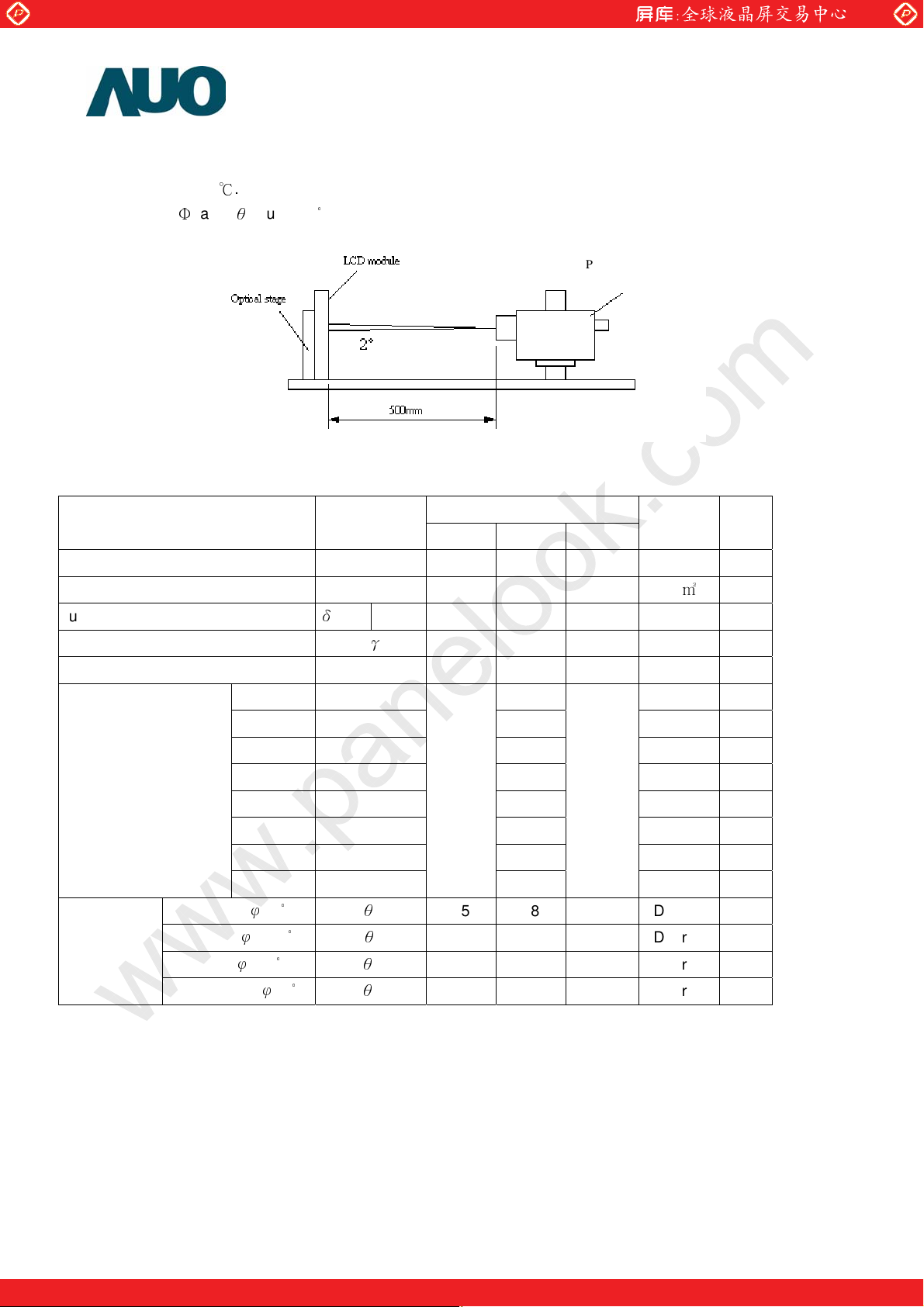

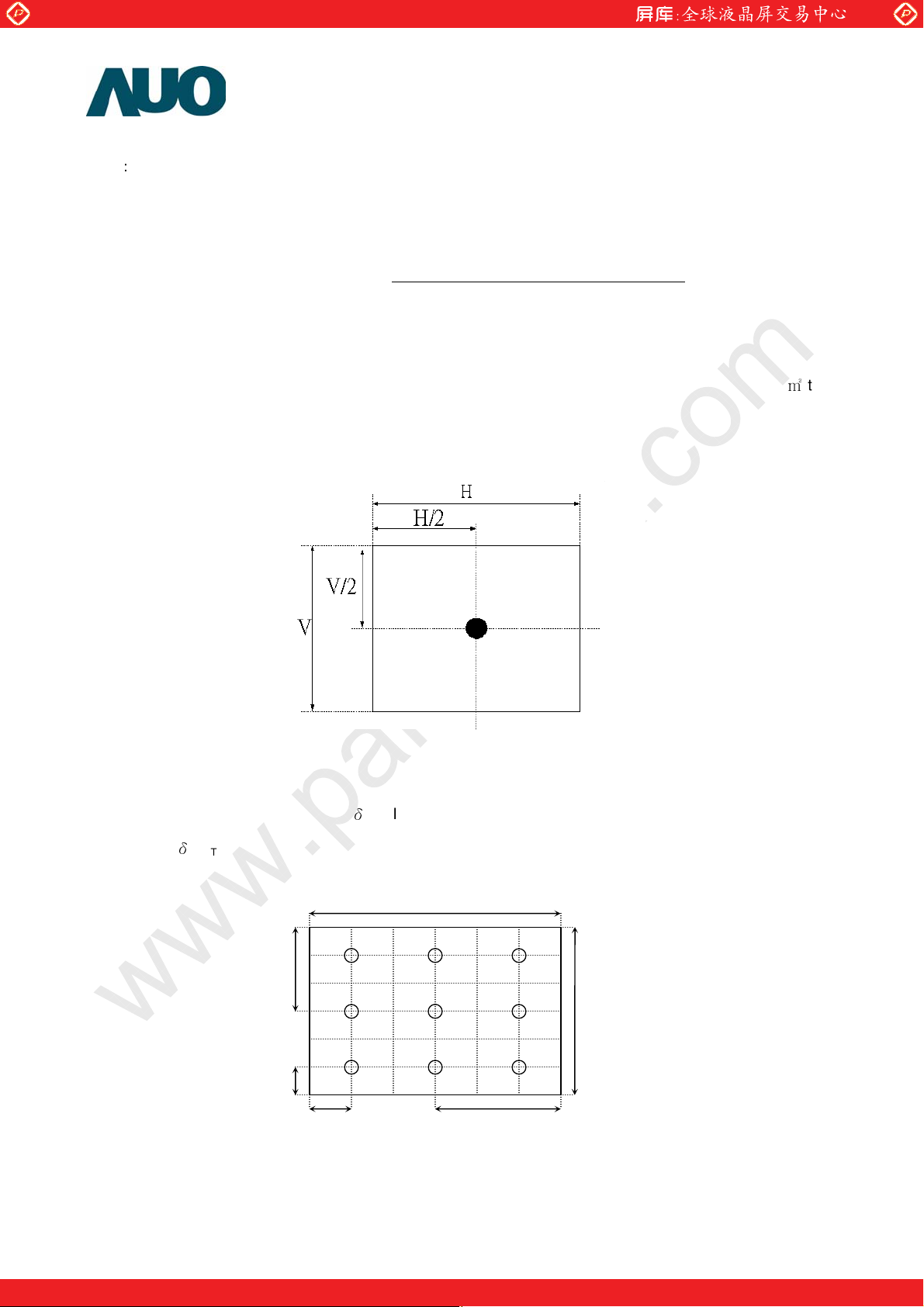

4 OPTICAL SPECIFICATIONS

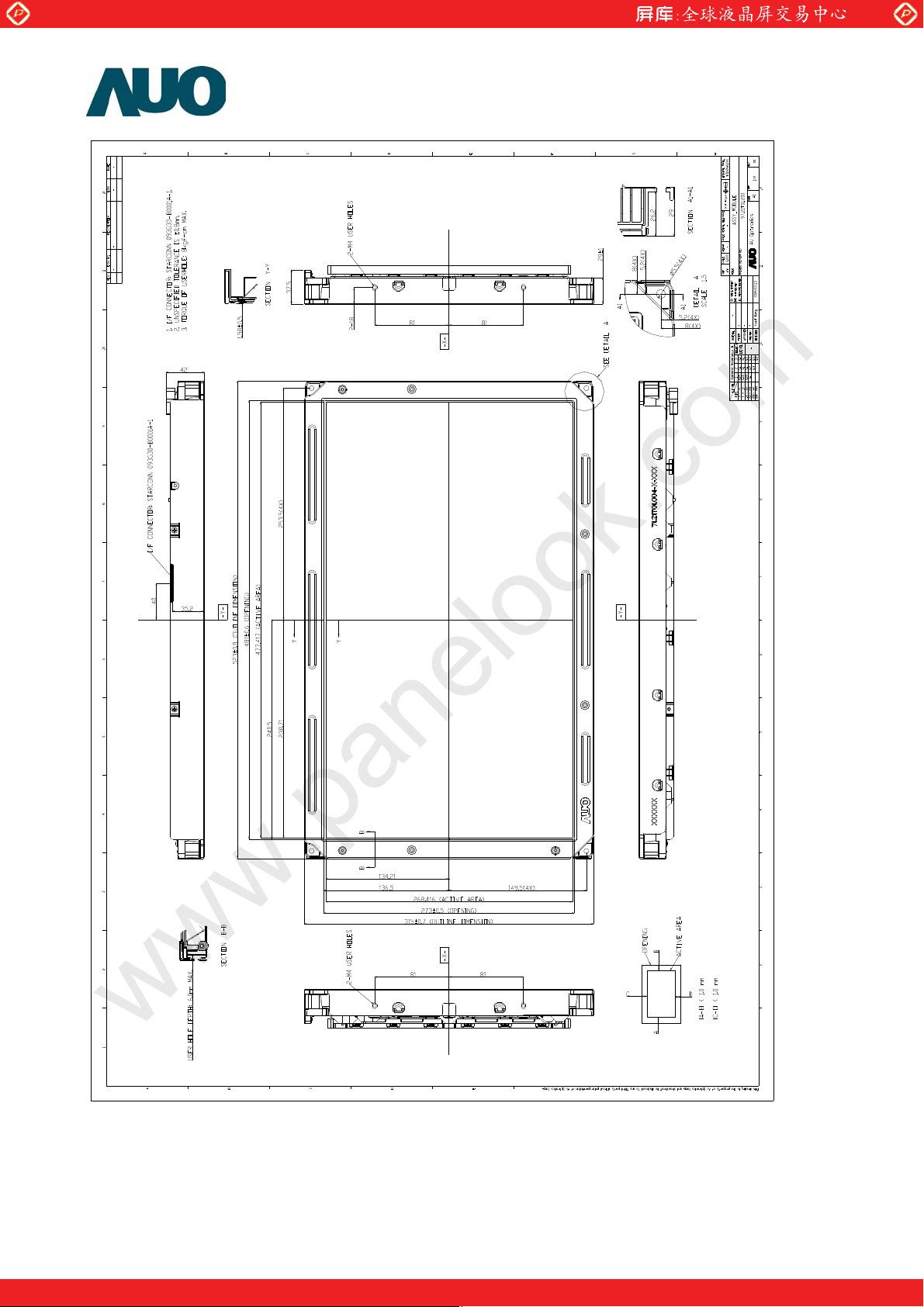

5 MECHANICAL CHARACTERISTICS

5-1 FRONT VIEW

5-2 REAR VIEW

6 RELIABILITY

7 INTERNATIONAL STANDARDS

7-1 SAFETY

7-2 EMC

7-3 GREEN

8 PACKING

8-1 PACKING INSTRUCTION

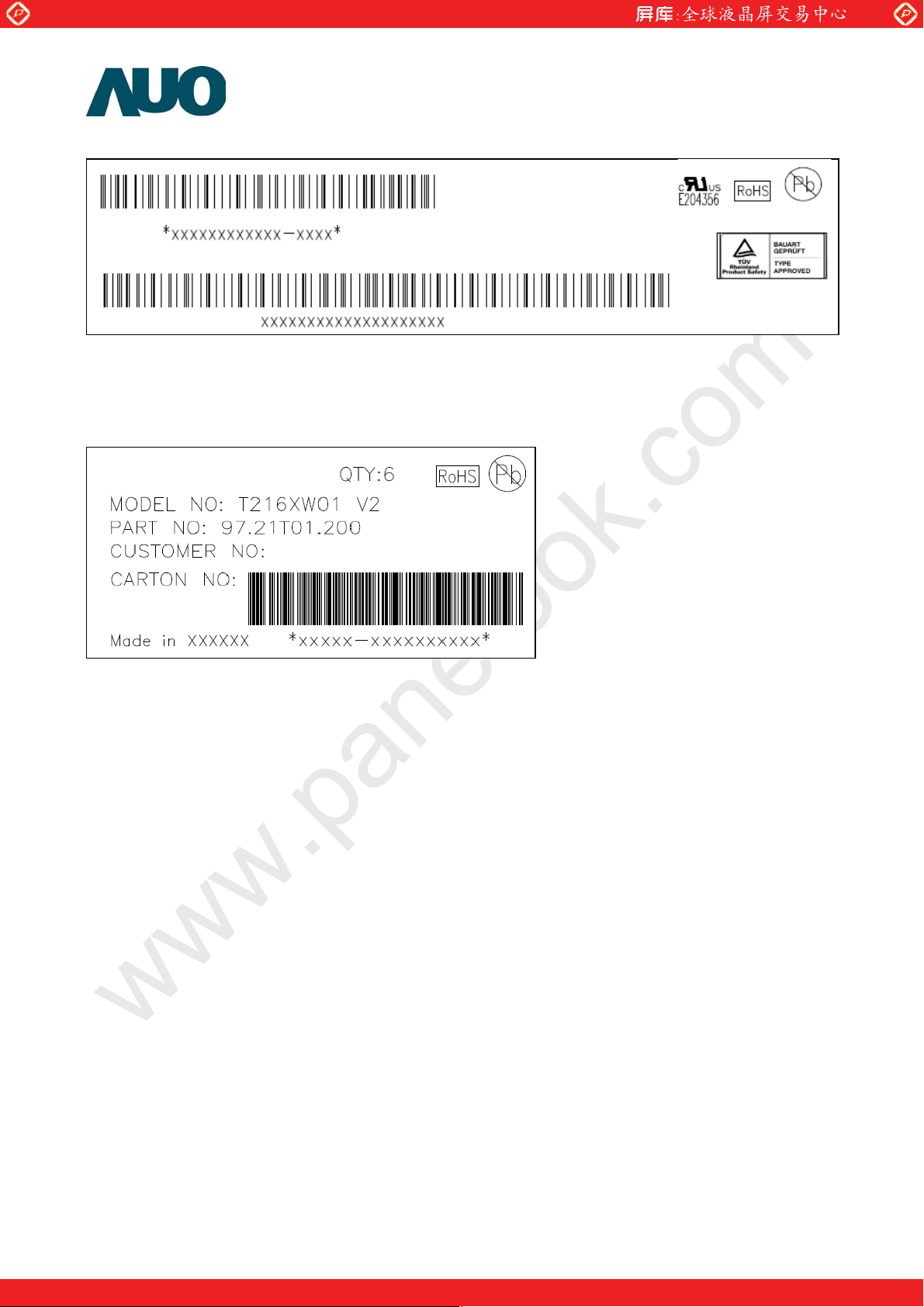

8-2 SHIPPING LABEL

8-3 CARTON LABEL

9 PRECAUTIONS

9-1 MOUNTING PRECAUTIONS

9-2 OPERATING PRECAUTIONS

9-3 ELECTROSTATIC DISCHARGE CONTROL

9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

9-5 STORAGE

9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM

Record Revision

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

Version Date No Old Description New Description Remark

0.0 2009/03/02 First Draft

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

1. General Description

This specification applies to the 21.6 inch Color TFT-LCD Module T216XW01. This LCD module has a TFT

active matrix type liquid crystal panel with 1,366x768 pixels, and the diagonal size is 21.6 inches. This module

supports 1,366x768 XGA-WIDE mode (Non-interlace).

Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray

scale or the brightness of the sub-pixel color is determined with an 8-bit gray scale signal for each dot.

The T216XW01 has been designed to apply to 8-bit and 1 channel LVDS interface method. It is intended to

support displays where high brightness, wide viewing angle, high color saturation, and high color depth are

very important.

This module is not equipped with inverter board for backlight.

* General Information

Item Specification Unit Note

Active Screen Size 21.6 Inch

Display Area 477.417 (H) x 268.416 (V) mm

Outline Dimension

Resolution 1,366 x 768 pixel

Pixel Pitch 0.3495 mm

Pixel Arrangement RGB vertical stripe

Display mode Normally Black

Display Colors 16.7M (8-bit for R,G,B) color

Typical White Luminance 350 @ 9.5 mA [cd/m2]

Surface Treatment AG, Haze=11%, 3H

Green RoHS compliance

523 (H)



315 (V)  29 (D)

mm w/o Inverter

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

2. Absolute Maximum Ratings

The following are maximum values which, if exceeded, may cause faulty operation or damage to the unit.

Item Symbol Min Max Unit Note

Logic/LCD Drive Voltage Vdd -0.3 6 [Volt] 1

Input Voltage of Signal Vin -0.3 3.6 [Volt] 1

Operating Temperature TOP 0 +50 [oC] 2

Operating Humidity HOP 10 90 [%RH] 2

Storage Temperature TST -20 +60 [oC] 2

Storage Humidity HST 10 90 [%RH] 2

Note

1, Duration = 50 msec

2, Maximum Wet-Bulb should be 39 and

non-condensing at temperatures of 40 or less. At temperatures greater than 40 , the w

temperature must not exceed 39 .

3, Surface temperature is measured at 50

no condensation. The relative humidity must not exceed 90%

кк

Dry condition

et bulb

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

3. Electrical Specification

The T216XW01 requires two power inputs. One is employed to power the LCD electronics and to drive the

TFT array and liquid crystal. An inverter typically generates the second input, which powers the CCFL.

3-1 Electrical Characteristics

Values

Parameter Symbol

Min Typ Max

Power Supply Input Voltage Vcc 4.5 5.0 5.5 Vdc 1

Unit Notes

LCD

LVDS

Interface

CMOS

Interface

Note :

1. The ripple voltage should be controlled under 10% of V

2. Vcc=5.0V,

3. Measurement condition:

Power Supply Input Current Icc

Power Consumption Pc - 4.0 5.0 Watt 2

Inrush Current I

Differential Input High Threshold Voltage

Differential Input Low Threshold Voltage

Common Input Voltage VCIM 0.6 1.25 1.8 V 4

Input High Threshold Voltage

Input Low Threshold Voltage

Life Time 50,000 - - 5,6,7,8

=vf

60Hz, fCLK=81.5Mhz , 25к, Test Pattern : White Pattern

- - 3 Apeak 3

RUSH

VTH - - 100 mV 4

VTL -100 - - mV 4

VIH

(High)

VIL

(Low)

- 0.8 1.0 A 2

2.0 3.3 3.6 Vdc

0 - 0.8 Vdc

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

4. VCIM = 1.25V

www.panelook.com

VCIM

VTH

VIL

5. Take the life time and brightness for example, the performance of the lamp in LCD panel is extremely

influenced by the characteristics of the DC-AC Inverter. All the parameters of the inverter should be

carefully designed to avoid producing too much leakage current from high-voltage output of the inverter.

Please make sure unwanted lighting caused by the mismatch of the lamp and the inverter (no lighting,

flicker, etc) never occurs. After confirmation, the LCD panel should be operated in the same condition

as installed in your instrument.

6. Do not attach a conducting tape to lamp connecting wire. If the lamp wire attach to conducting tape, the

TFT-LCD Module has a low luminance and the inverter has abnormal action because leakage current

occurs between lamp wire and conducting tape.

7. The relative humidity must not exceed 80% non-condensing at temperatures of 40 or less. At

temperatures greater than 40 , the wet bulb temperature must not exceed 39 . When operate at low

temperatures, the brightness of CCFL will drop and the life time of CCFL will be reduced.

8. Specified values are for a single lamp only which is aligned horizontally. The lifetime is defined as the

time which luminance of the lamp is 50% compared to its original value.

[Operating condition: Continuous operating at Ta = 25±2 ]

кк

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

3-2 Interface Connectionsʳ

3-2-1 LCD connector (CN1): Starconn 093G30-B0001A-1

Pin No Symbol Description Note

1 Reserved Open AUO internal test pin

2 Reserved Open AUO internal test pin

3 Reserved Open AUO internal test pin

4 GND Ground

5 Rx0- LVDS Channel 0 [Polarity: Negative]

6 Rx0+ LVDS Channel 0 [Polarity: Positive]

7 GND Ground

8 Rx1- LVDS Channel 1 [Polarity: Negative]

9 Rx1+ LVDS Channel 1 [Polarity: Positive]

10 GND Ground

11 Rx2- LVDS Channel 2 [Polarity: Negative]

12 Rx2+ LVDS Channel 2 [Polarity: Positive]

13 GND Ground

ʳʳ

14 RXCLK- LVDS Clock [Polarity: Negative]

15 RXCLK+ LVDS Clock [Polarity: Positive]

16 GND Ground

17 Rx3- LVDS Channel 3 [Polarity: Negative]

18 Rx3+ LVDS Channel 3 [Polarity: Positive]

19 GND Ground

20 Reserved Open AUO internal test pin

21 LVDS Option* Low for JEIDA, High/Open for NS

22 Reserved Open

23 GND Ground

24 GND Ground

25 GND Ground

26 Vdd (+5V) 5V, DC, Regulated

27 Vdd (+5V) 5V, DC, Regulated

28 Vdd (+5V) 5V, DC, Regulated

29 Vdd (+5V) 5V, DC, Regulated

30 Vdd (+5V) 5V, DC, Regulated

NoteΚ

1, All GND (ground) pins should be connected together and should also be connected to the LCD’s metal

frame.

2, All Vcc (power input) pins should be connected together.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

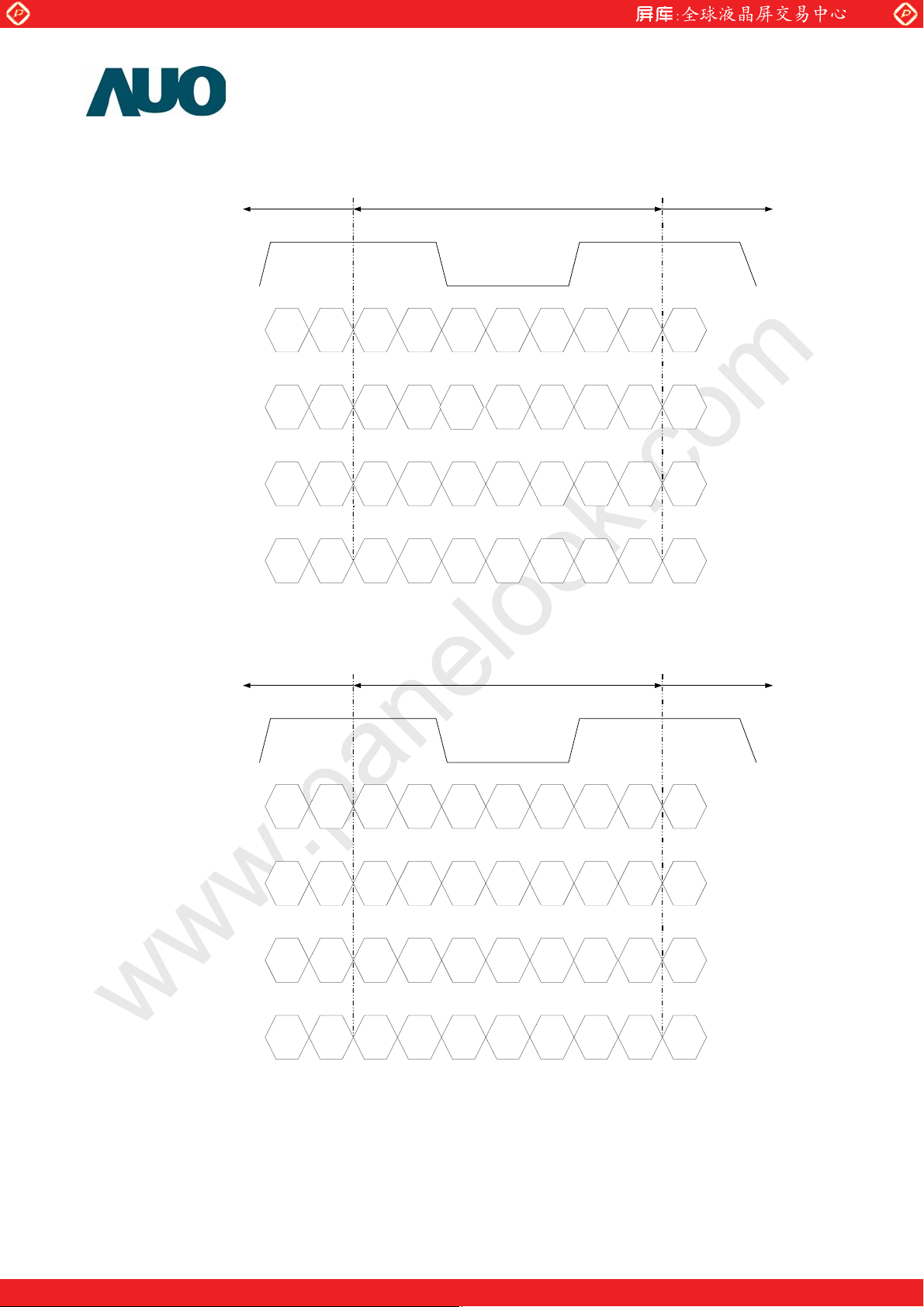

* LVDS Option = L (GND) ÎÎÎÎ JETDA Format

Previous Cycle Current Cycle Next Cycle

Clock

www.panelook.com

RIN0+ RIN0-

RIN1+ RIN1-

RIN2+ RIN2-

RIN3+

RIN3-

* LVDS Option = H (3.3V) or N.C.ÎÎÎÎ NS Format

Previous Cycle Current Cycle Next Cycle

Clock

R2R7 G2G2R2R3 R4R5R6 R3

G3B2 B3B3G3G4 G5G6 G4

B4NA DEDEB4B5 B6B7NA B5

R0B1 NANAR0R1 G0G1B0 R1

RIN0+ RIN0-

RIN1+ RIN1-

RIN2+ RIN2-

RIN3+

RIN3-

R0R5 G0G0R0R1 R2R3R4 R1

G1B0 B1B1G1G2 G3G4G5 G2

B2NA DEDEB2B3 B4B5NA

R6B7 NANAR6R7 G6G7B6 R7

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

3-2-2 Backlight Electrical Specification

www.panelook.com

1 Operating Voltage Vo 1060.2 1178 1295.8 Vrms

2 Operating Current Io 8.0 9.5 10 mArms

3 BL Total Power Dissipation PBL 30 36 Watt

4 Striking Voltage

5 Striking Time Ts 1000 - 1500 msec

6 Operating Frequency fo - 58 - kHz

.7 PWM Operating Frequency F_PWM 140 180 240 Hz

Description Min Typ Max Unit Condition/Note

At 0к

At 25

Vstrike

1860 2060 -

Vrms

1550 1750 -

1. Dimming range is set 100%

2. Base on lamp specification, for each lamp need to be applied at least minimum operating voltage to ensure each lamp can be normally worked!

1. Dimming range is set 100%

2. Base on lamp specification, for each lamp need to be applied at least minimum operating current to ensure each lamp can be normally worked!

1. Dimming range is set 100%.

2. In order to get typical light out, the backlight need to be applied typical power.

3. Input power of JIG BD is about 75 W (typ.) by AUO’s measurement!

1. Base on lamp specification, to ensure each lamp can be normally ignited, need to apply at least minimum striking voltage to each lamp

1. To ensure each lamp can be normally ignited, each lamp need to be applied at least minimum striking voltage during minimum striking time.

1. Operating frequency is set by customers.

2. Need to double confirm display quality.(*)

1. PWM frequency is set by customers.

2. Need to double confirm display quality.(*)

8 PWM Dimming Duty Ratio D_PWM 10 - 100 %

9 Lamp Type U type

10 Number of Lamps 3 pcs

Note :

1, Ta=25±5 , Turn on for 45minutes

2, When PWM dimming ratio is operated within recommend value, backlight can be ensured that there is

no flicker and uniformity issue and display quality of panel can be normally display! When PWM

dimming ration is operated less than recommend value, backlight need to be double confirmed display

quality. LIPS need to be double confirmed feedback signal and all protection function!

Note 2. Note 3. Duty ratio definition.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

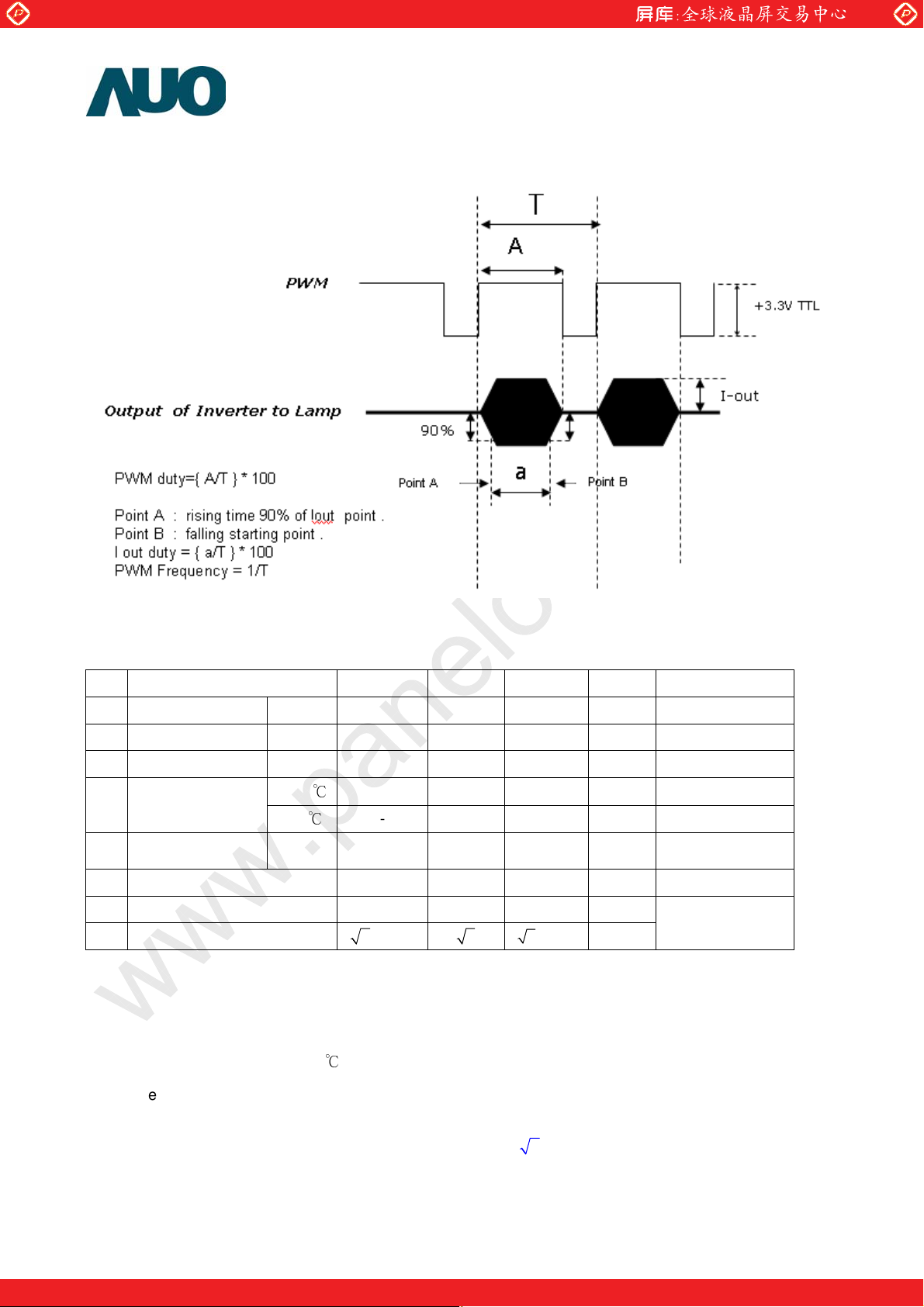

3, Duty ratio definition:

www.panelook.com

3-2-3 Lamp specification

Description Min Typ Max

1 Lamp voltage Vlamp 1060.2 1178 1295.8 Vrms At Ilamp=12.5mA

2 Lamp current Ilamp 8.0 9.5 10 mArms

3 Lamp frequency flamp 40 55 80 kHz

4 Striking voltage

Delayed discharge

time

6 Life time 50K 50K - hour

7 Unsymmetrical ratio - - 10% -

8 Crest factor (C.F)

Note

1, The above characteristics are measured under the conditions:

At 25к

At 0

Tdelay - - 1000 msec

- - 1550 Vrms

- - 1860 Vrms

2 10%−

2 10%+

Unit

Note 2

Note

Ambient temperature: 25±2 ,

Relative Humidity: 65±20%RH.

2. Please light on the lamp with symmetrical voltage and current waveform

(unsymmetrical ratio is less than 10%, crest factor within

2 10%±

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

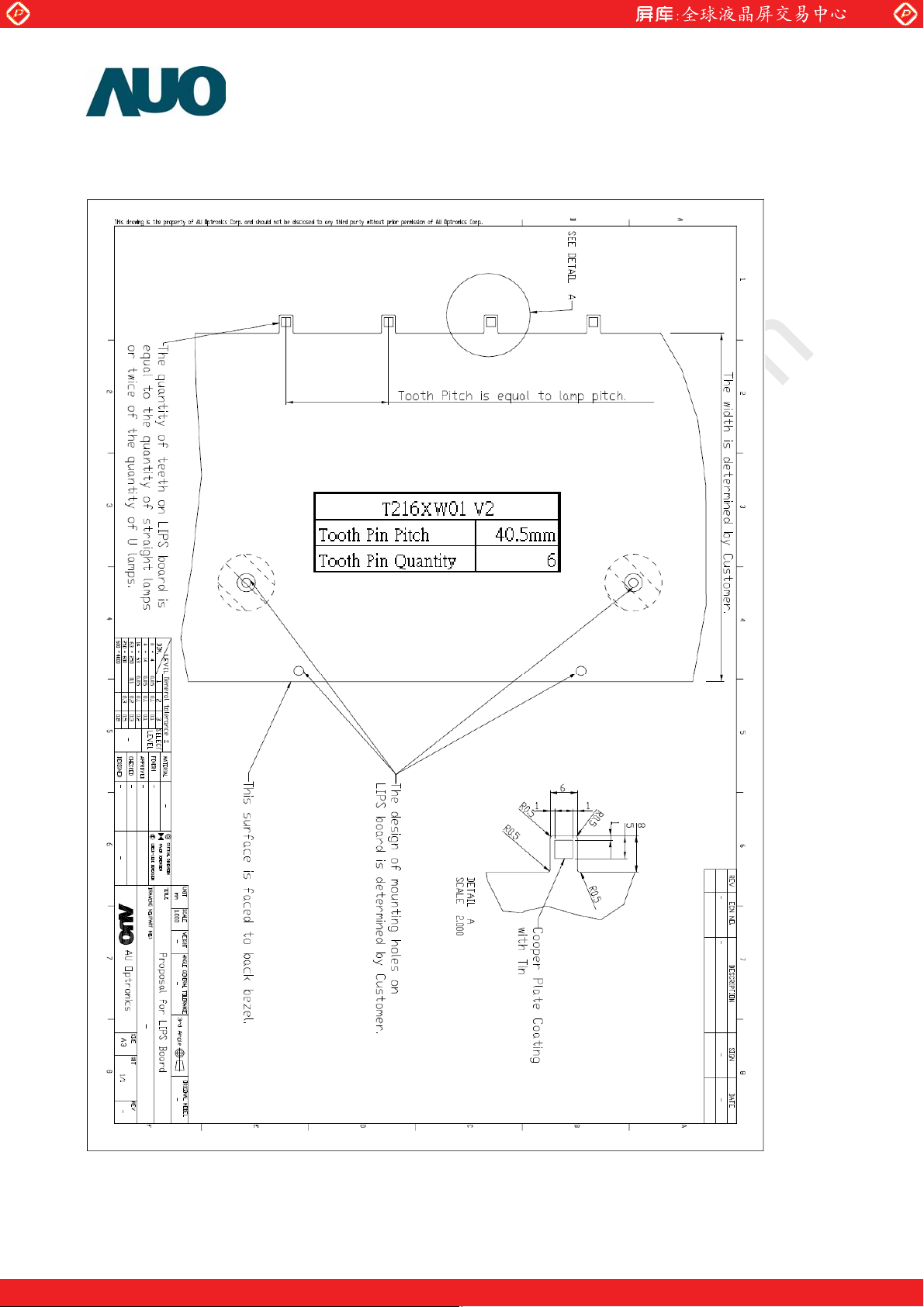

3-2-4 Input Interface for LIPS board

CN1: EL7H001ZZ2 (Manufactured by JAE)

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

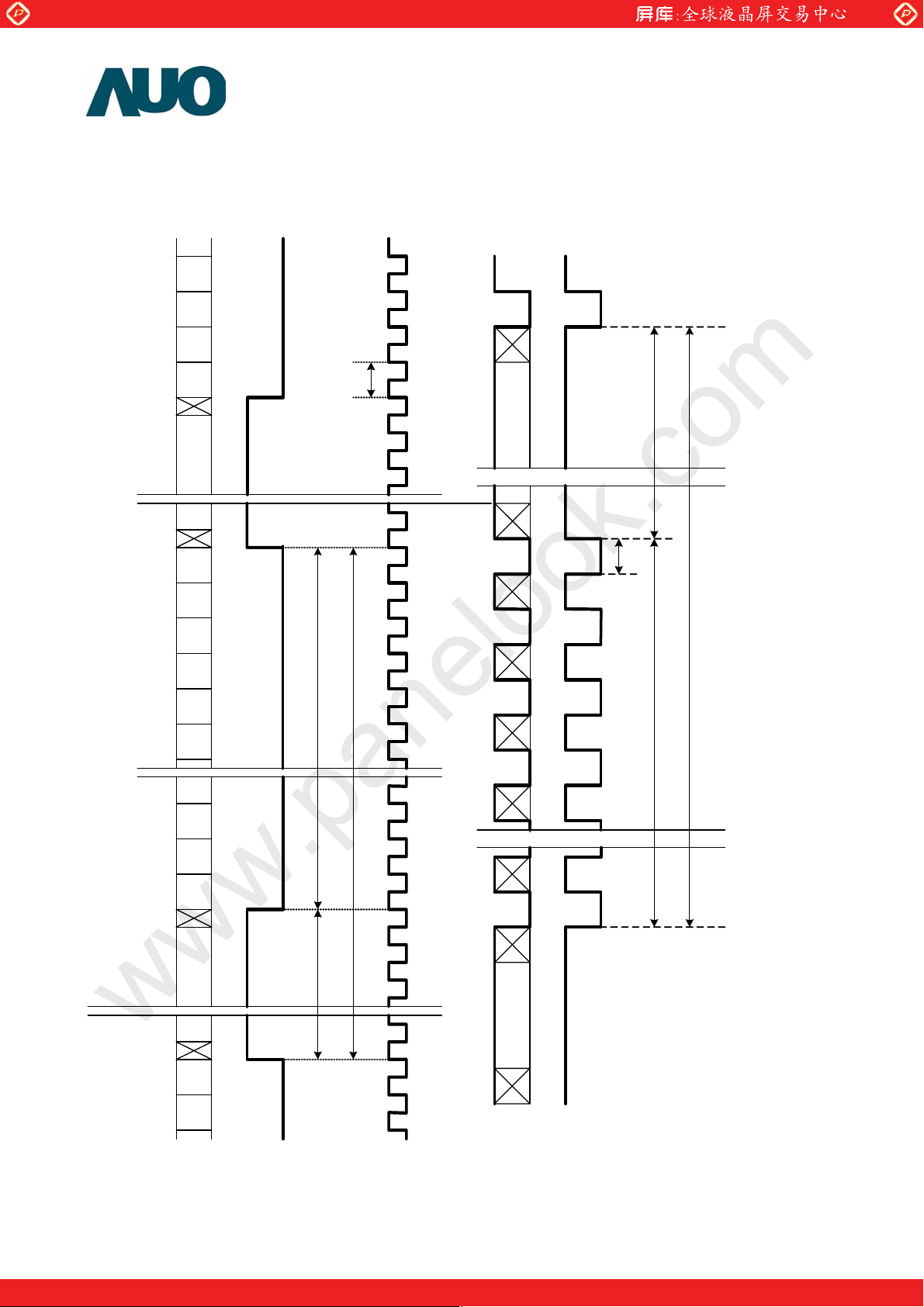

3-3 Signal Timing Specifications

This is the signal timing required at the input of the User connector. All of the interface signal timings should be

satisfied with the following specifications for the proper operation.

* Timing Table

Signal Item Symbol Min. Typ. Max. Unit

Period Tv 776 810 1,015 Th Ver t ical Section

Horizontal

Section

Active Tdisp(v) 768 Th

Blanking Tblk (v) 8 42 247 Th

Period Th 1,414 1,648 2,000 Tclk

Active Tdisp(h) 1,366 Tclk

Blanking Tblk (h) 48 282 634 Tclk

LVDS Clock Frequency Fclk (1/Tclk) 50 80 86 MHz

Ver t ical

Frequency

Horizontal

Frequency

NoteΚ

1, CLK signal input must be valid while power supply is applied.

2, Display position is specific by the rise of DE signal only. Horizontal display position is specified by the falling

edge of 1

specified by the rise of DE after a “Low” level period equivalent to eight times of horizontal period. The 1

corresponding to one horizontal line after the rise of DE is displayed at the top line of screen.

3, If a period of DE “High” is less than 1,366 CLK or less than 768 lines, the rest of the screen displays black.

4, The display position does not fit to the screen if a period of DE “High” and the effective data period do not

synchronize with each other.

CLK right after the rise of DE, is displayed on the left edge of the screen. Vertical display position is

Frequency Fv 47 60 63 Hz

Frequency Fh 43 48 53 kHz

data

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

3-4 Signal Timing Waveforms

RGB Data

1366

Invalid Data

Pi xel

www.panelook.com

CLK

Tcl k

RGB

Dat a

Line

768

Invalid Data Invalid Data

1366

Invalid Data

Line

Pix el

Pixe l

Pix el

Pixe l

Pi xel

Tdisp( h)

Line

768

Tdi sp(v)

Pi xel

Pix el

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

3-5 Color Input Data Reference

The brightness of each primary color (red, green and blue) is based on the 8 bit gray scale data input for the

color. The higher the binary input, the brighter the color. The table below provides a reference for color versus

data input.

* COLOR DATA REFERENCE

Color

Basic Color

RED

Input Color Data

RED

MSB LSB

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0

Black(L0) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Red(255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Green(255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

Blue(255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Cyan 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Magenta 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Yellow 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

White(L255) 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

RED(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED(001) 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

----

RED(254) 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED(255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

GREEN(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

MSB LSB

GREEN

BLUE

MSB LSB

GREEN

BLUE

GREEN(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0

----

GREEN(254) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0

GREEN(255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

BLUE(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

BLUE(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

-------

BLUE(254) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0

BLUE(255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

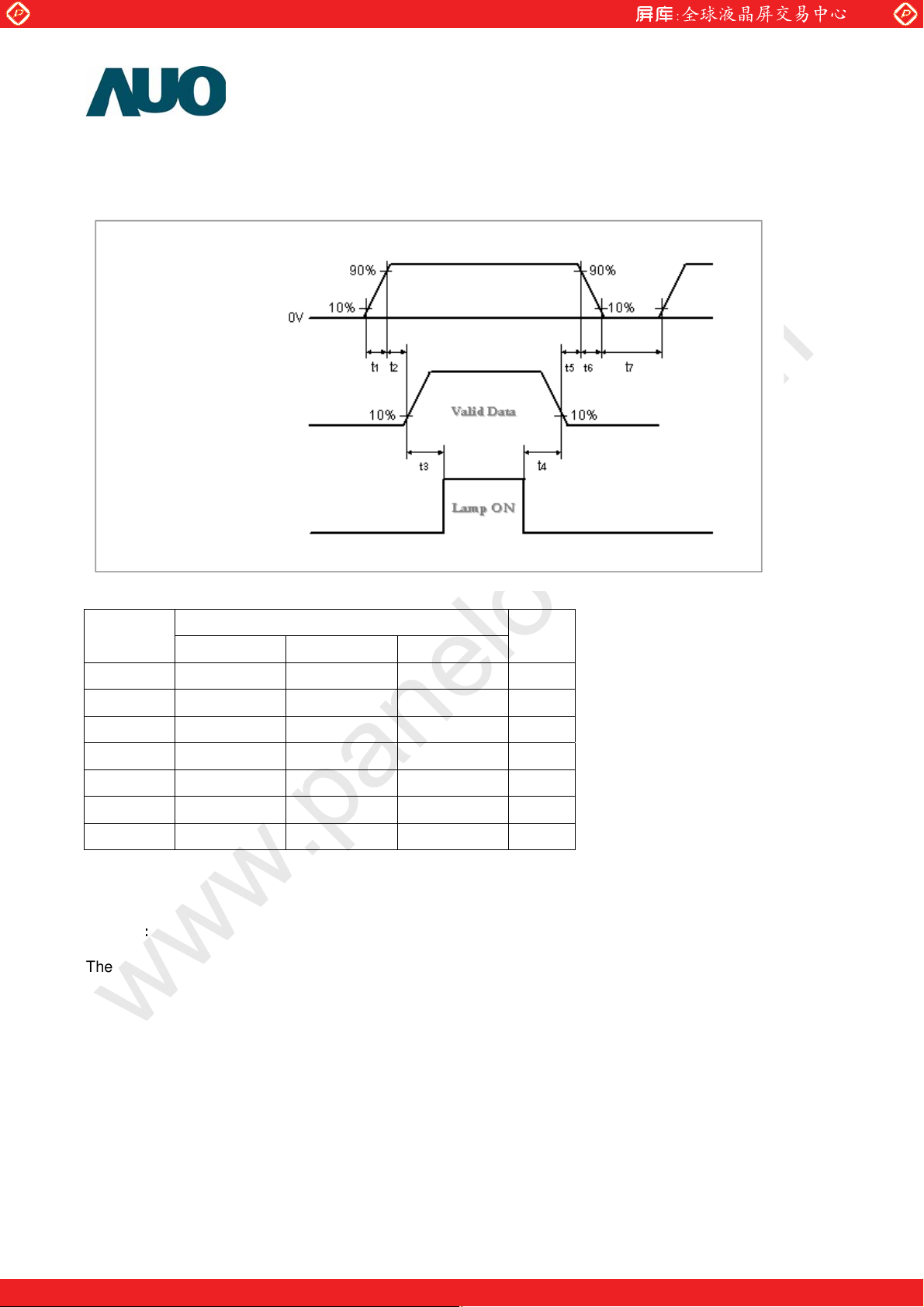

3-6 Power Sequence

Power Supply for LCD (Vdd)

LVDS Data & CLK

www.panelook.com

Power for LAMP

Parameter

t1 0.4 - 30 ms

t2 0.1 - 50 ms

t3 200 - - ms

t4 10 - - ms

t5 0.1 - 50 ms

t6 - - 300 ms

t7 500 - - ms

Apply the lamp voltage within the LCD operating range. When the backlight turns on before the LCD operation

or the LCD turns off before the backlight turns off, the display may momentarily become abnormal.

ΚΚΚΚ

Caution

Min. Typ. Max.

Values

Unit

The above on/off sequence should be applied to avoid abnormal function in the display. In case of handling,

make sure to turn off the power when you plug the cable into the input connector or pull the cable out of the

connector.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

4. Optical Specification

Optical characteristics are determined after the unit has been ‘ON’ and stable for approximately 30 minutes in a

dark environment at 25

viewing angle of

. The values specified are at an approximate distance 50cm from the LCD surface at a

and Ӱequal to 0.

PR880 or equivalent

Fig.4-1 Optical measurement equipment and method

Value

Parameter Symbol

Unit Note

Min. Typ. Max.

Contrast Ratio CR 2,000 2,500 1

cd/

Surface Luminance, white LWH 300 350

Luminance Variation

Response Time

WHITE

9 p 1.3 3

6.5 ms 4

Color Gamut 72 %

RED RX 0.640

0.330

GREEN GX 0.290

Color Coordinates

0.600

Typ.-0.03

Typ.+0.03

BLUE BX 0.150

0.060

WHITE WX 0.285

Viewing Angle by ELDIM

x axis, right(ӽ=0)

x axis, left(ӽ=180)

y axis, up(ӽ=90)

y axis, down (

ӽ=0

)

Ӱ Ӱ Ӱ

65 88 Degree 5

55 88 Degree 5

0.293

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

NoteΚ

1, Contrast Ratio (CR) is defined mathematically as:

Surface Luminance of L

on1

Contrast Ratio=

Surface Luminance of L

off1

2, Surface luminance is luminance value at point 1 across the LCD surface 50cm from the surface with all pixels displaying white. From more information see FIG 4-2. When I L

=Lon1, Where Lon1 is the luminance with all pixels displaying white at center 1 location.

= 57mA, LWH=350cd/ф(typ.)

3, The variation in surface luminance,

WHITE(9P)

=Maximum(L

on1

V/2

V/6

Fig.4-2 Luminance

WHITE is defined (center of Screen) as:

, L

,…,L

on2

4 5 6

7 8

)/Minimum(L

on9

2 3

, L

on1

H/2 H/6

,…L

on2

on9

Fig.4-3 Luminance Variation

)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

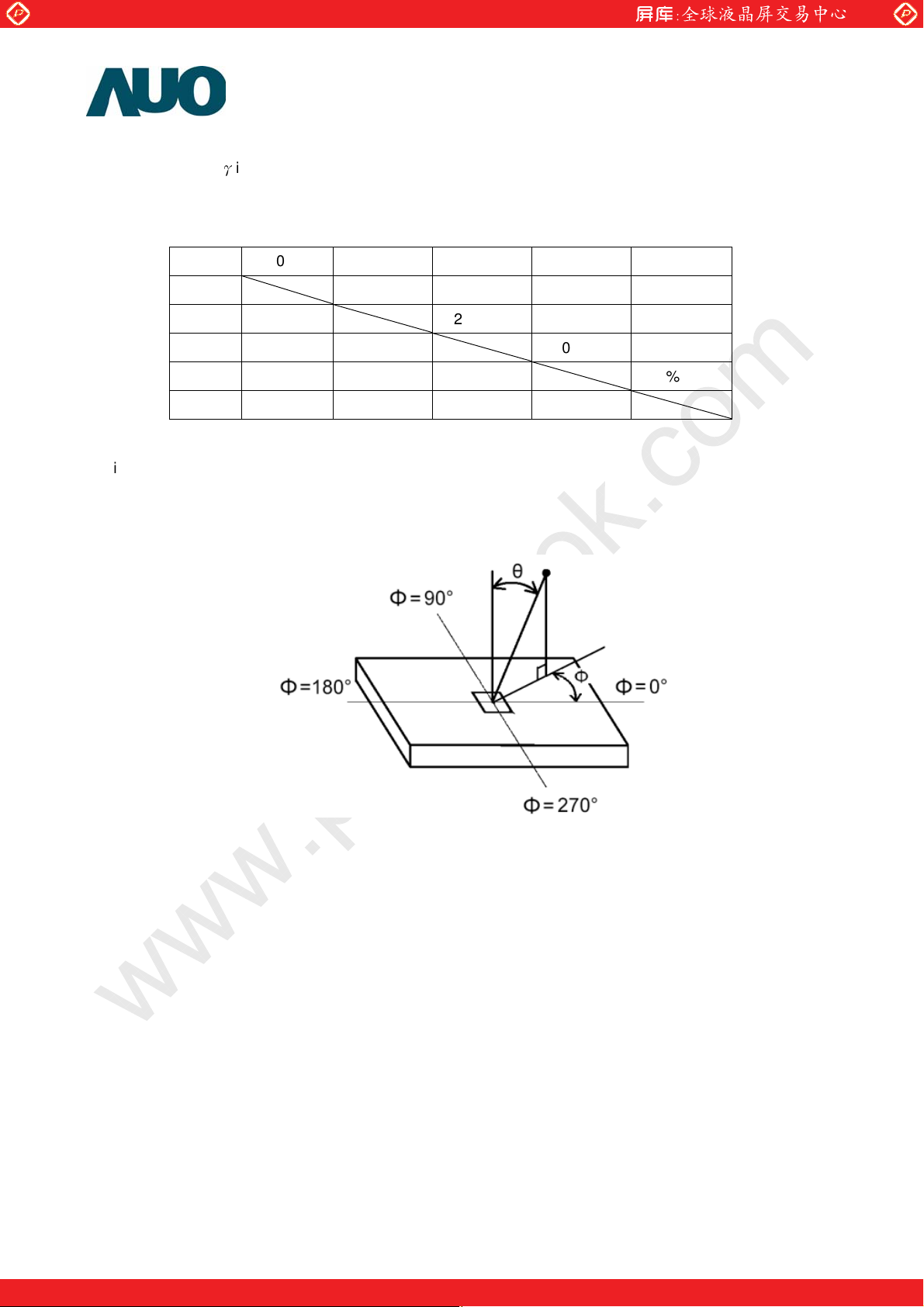

4, Response time T

luminance ratio (0%,25%,50%,75%,100% brightness matrix) and is based on f

5, Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined for the

horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the LCD surface. For

more information see FIG 4-5.

is the average time required for display transition by switching the input signal for five

=60Hz to optimize.

0% 25% 50% 75% 100%

25%

50%

75%

100%

25%-0%

50%-0%

75%-0%

100%-0%

0%-25%

50%-25%

75%-25%

100%-25%

0%-50%

25%-50%

75%-50%

100%-50%

0%-75%

25%-75%

50%-75%

100%-75%

0%-100%

25%-100%

50%-100%

75%-100%

Fig.4-4 Viewing Angle Definition

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

5. Mechanical Characteristics

The contents provide general mechanical characteristics for the model T216XW01. In addition the figures in the

next page are detailed mechanical drawing of the LCD.

Horizontal (typ.) 523 mm

Outline Dimension

Bezel Area

Active Display Area

Weight

Surface Treatment HC, 3H

Vertical (typ.) 315 mm

Depth (typ.) 29 mm (37.5 mm)

Horizontal (typ.) 481 mm

Vertical (typ.) 273 mm

Horizontal 477.417 mm

Vertical 268.416 mm

TBD (typ.)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

5-1 Front View (2D drawing)

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

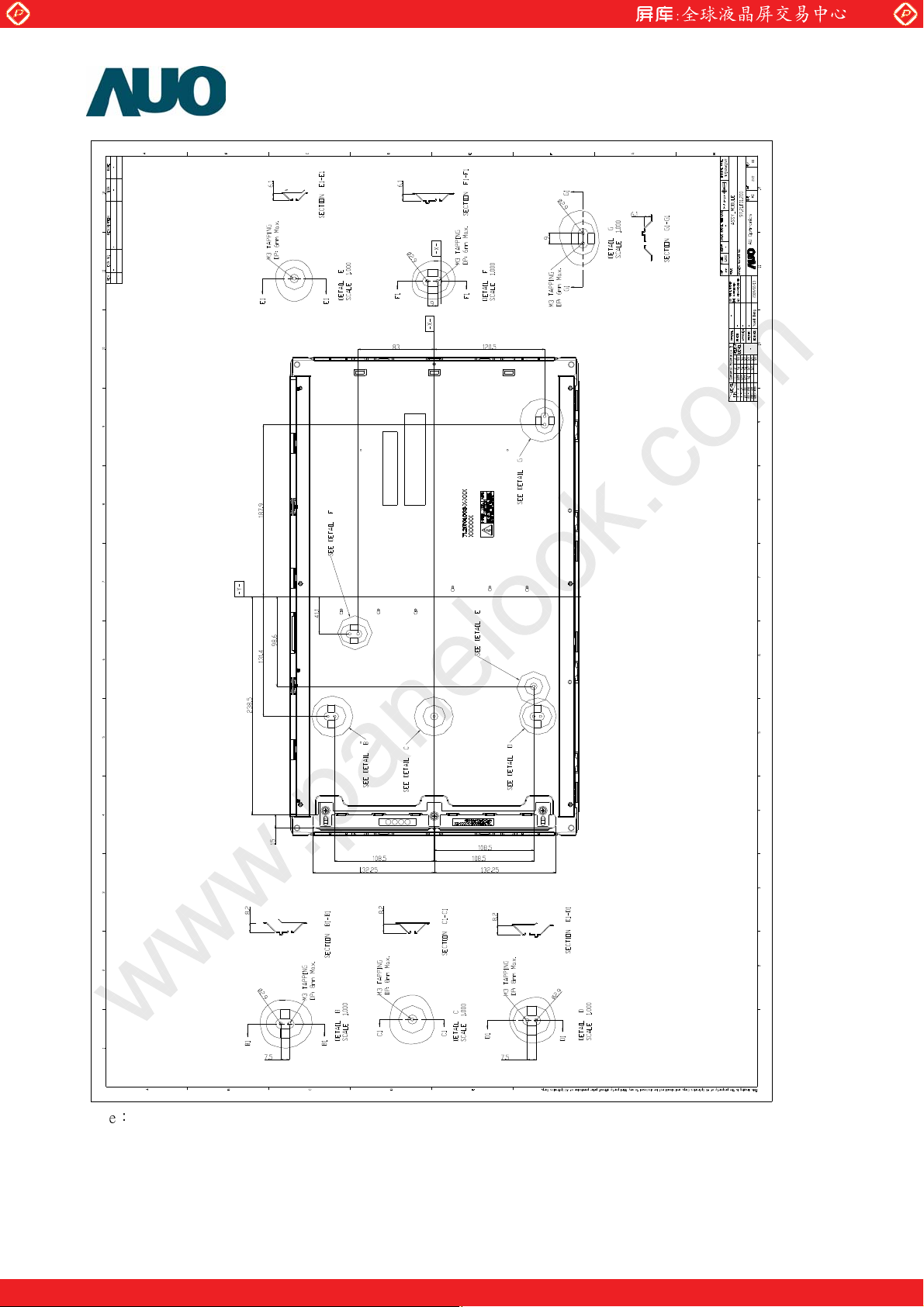

5-2 Rear View (2D drawing)

www.panelook.com

˸Κ

Not 1, Assembly lamp connecter type : YEONHO 35001HS-02L

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

6. Reliability ʳ

Environment test condition

1 High Temperature Storage 3

2 Low Temperature Storage 3

3 High Temperature Operation 3

4 Low Temperature Operation 3

5 Vibration (non-operation) 3

6 Shock (non-operation) 3

7 Vibration (With carton) 3

8 Drop (With carton) 3

ʳʳ

Test Items Q'ty Conditions

www.panelook.com

300 hrs

-20

, 300 hrs

-5

, 300 hrs

(10 ~ 300Hz/1.5G/11min SR, XYZ 30min/axis) Vibration level : 1.5G RMS, Bandwidth : 10-300Hz Duration: X, Y, Z 30min, Shock level: 50G Waveform: have sine wave, 11ms Direction: ±X,±Y, ±Z One time each direction Random wave (1.5 Grms 10~200Hz) 30mins / Per each X.Y.Z axes Height: 45.7cm 1 corner, 3 edges, 6 surfaces (ASTMD4169-I)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

7. International Standard

7-1 Safety

1, UL6500, Underwriters Laboratories, Inc. (AUO file number : E204356)

Standard for Safety of Information Technology Equipment Including electrical Business Equipment.

2, CAN/CSA C22.2 No. 950-95 Third Edition, Canadian Standards Association, Jan. 28, 1995

Standard for Safety of Information Technology Equipment Including Electrical Business Equipment.

3, EN60950 : 1992+A2: 1993+A2: 1993+C3: 1995+A4: 1997+A11: 1997

IEC 950: 1991+A1: 1992+A2: 1993+C3: 1995+A4:1996

IEC 60065

European Committee for Electro technical Standardization (CENELEC)

EUROPEAN STANDARD for Safety of Information Technology Equipment Including Electrical Business

Equipment.

7-2. EMC

1, ANSI C63.4 “Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and

Electrical Equipment in the Range of 9kHz to 40GHz. “American National standards Institute(ANSI), 1992

2, C.I.S.P.R “Limits and Methods of Measurement of Radio Interface Characteristics of Information

Technology Equipment.” International Special committee on Radio Interference.

3, EN 55022 “Limits and Methods of Measurement of Radio Interface Characteristics of Information

Technology Equipment.” European Committee for Electrotechnical Standardization. (CENELEC), 1998

7-3 Green 

Green Mark Description:

1, For Pb Free products, AUO will add

2, For RoHS compatible products, AUO will add

Note

：

The Green Mark will be present only when the green documents have been ready by AUO Internal Green Team. (The definition of green design follows the AUO green design checklist.)





for identification.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

8. Packing

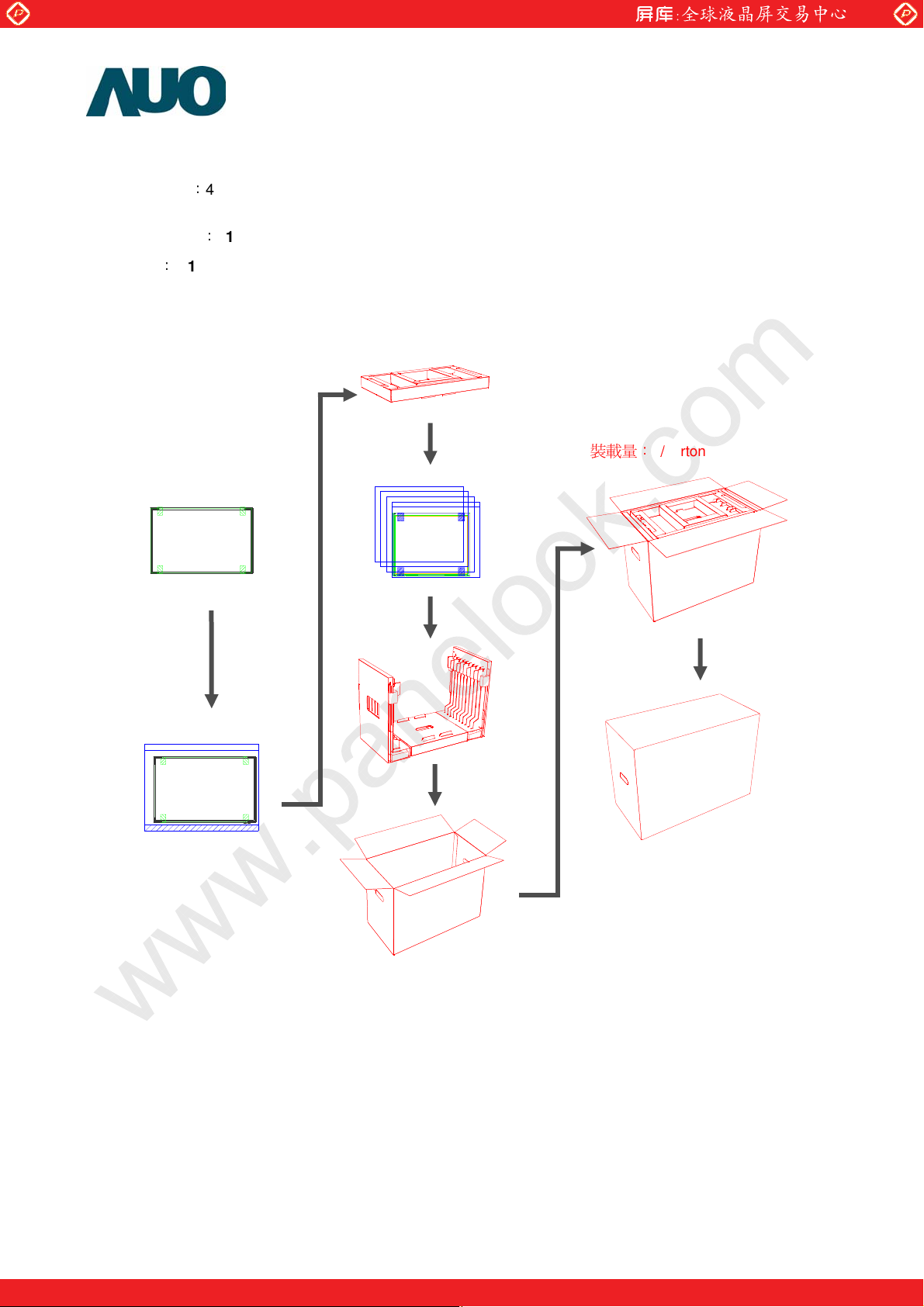

8-1 Packing Instruction

By air & by seaΚ4pcs/carton, (4*2)*2 layers, 16 boxes in a pallet, total 64 pcs of module in a pallet, 20 pallets/40”DC

Pallet Dimension

Dimension

1,150 * 1180 * 1,944 mm

1,150 * 1180 * 132 mm

Carton : 583mm*282mm*409mm

ᇘሉၦΚ4˂

carton

8-2 Shipping Label

Shipping Label : 100 mm * 23 mm

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Manufactured: XX/XX Model No : T216XW01 V2 AU Optronics XXXXG Made in XXX

8-3 Carton Label

Carton Label : 80 mm * 40 mm

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

9. PRECAUTIONS

Please pay attention to the followings when you use this TFT LCD module.

9-1 MOUNTING PRECAUTIONS

1, You must mount a module using holes arranged in four corners or four sides.

2, You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to

module. And the case on which a module is mounted should have sufficient strength so that external

force is not transmitted directly to the module.

3, Please attach the surface transparent protective plate to the surface in order to protect the polarizer.

Transparent protective plate should have sufficient strength in order to the resist external force.

4, You should adopt radiation structure to satisfy the temperature specification.

www.panelook.com

5, Acetic acid type and chlorine type materials for the cover case are not desirable because the former

generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break

by electro-chemical reaction.

6, Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB pencil

lead. And please do not rub with dust clothes with chemical treatment. Do not touch the surface of

polarizer for bare hand or greasy cloth. (Some cosmetics are detrimental to the polarizer.)

7, When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like

chamois soaks with petroleum benzene. Normal-hexane is recommended for cleaning the adhesives

used to attach front/ rear polarizers. Do not use acetone, toluene and alcohol because they cause

chemical damage to the polarizer.

8, Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes

deformations and color fading.

9, Do not open the case because inside circuits do not have sufficient strength.

9-2 OPERATING PRECAUTIONS

1, The device listed in the product specification sheets was designed and manufactured for TV application

2, The spike noise causes the mis-operation of circuits. It should be lower than following voltage:

V=±200mV(Over and under shoot voltage)

3, Response time depends on the temperature. (In lower temperature, it becomes longer..)

4, Brightness depends on the temperature. (In lower temperature, it becomes lower.) And in lower

temperature, response time (required time that brightness is stable after turned on) becomes longer.

5, Be careful for condensation at sudden temperature change. Condensation makes damage to polarizer or

electrical contacted parts. And after fading condensation, smear or spot will occur.

6, When fixed patterns are displayed for a long time, remnant image is likely to occur.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

7, Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be

done by system manufacturers. Grounding and shielding methods may be important to minimize the

interface.

www.panelook.com

9-3 ELECTROSTATIC DISCHARGE CONTROL

Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain that

treatment persons are connected to ground through wrist band etc. And don’t touch interface pin directly.

9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

Strong light exposure causes degradation of polarizer and color filter.

9-5 STORAGE

When storing modules as spares for a long time, the following precautions are necessary.

1, Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the

temperature between 5

2, The polarizer surface should not come in contact with any other object. It is recommended that they be

stored in the container in which they were shipped.

and 35к at normal humidity.

9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM

1, The protection film is attached to the bezel with a small masking tape. When the protection film is peeled

off, static electricity is generated between the film and polarizer. This should be peeled off slowly and

carefully by people who are electrically grounded and with well ion-blown equipment or in such a condition,

etc.

2, When the module with protection film attached is stored for a long time, sometimes there remains a very

small amount of flue still on the Bezel after the protection film is peeled off.

3, You can remove the glue easily. When the glue remains on the Bezel or its vestige is recognized, please

wipe them off with absorbent cotton waste or other soft material like chamois soaked with normal-hexane.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

AUO T216XW01 V2 Specification

Specifications and Main Features

Frequently Asked Questions

User Manual
