AUO G150XG01 V0 Specification

Download

Global LCD Panel Exchange Center

AU OPTRONICS CORPORATION

www.panelook.com

G150XG01 V0

Product Specification

15.0” XGA Color TFT-LCD Module

Model Name: G150XG01 V.0

Approved by Prepared by

ML Lee Daniel Chi

GDBD Marketing Division / AU Optronics corporation

Customer Checked & Approved by

No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

1/31

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

G150XG01 V0

Version: 5.1

Date: Aug 22, 2006

Product Specification

15.0” XGA Color TFT-LCD Module Model Name: G150XG01

V.0

Final Specifications

No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

2/31

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

G150XG01 V0

Contents

1.0 HANDLING PRECAUTIONS.............................................................7

2.0 GENERAL DESCRIPTION................................................................8

2.1 Display Characteristics....................................................................................... 9

2.2 Functional Block Diagram ................................................................................10

3.0 ABSOLUTE MAXIMUM RATINGS .................................................. 11

4.0 OPTICAL CHARACTERISTICS ......................................................12

5.0 SIGNAL INTERFACE......................................................................16

5.1 Module Interface Connectors........................................................................... 16

5.2 Module Connector Pin Configuration ...............................................................16

5.3 Backlight Connectors .......................................................................................17

5.4 Backlight Connector Pin Configuration ............................................................ 17

5.5 Signal Electrical Characteristics....................................................................... 17

5.6 Interface Timing Characteristics.......................................................................19

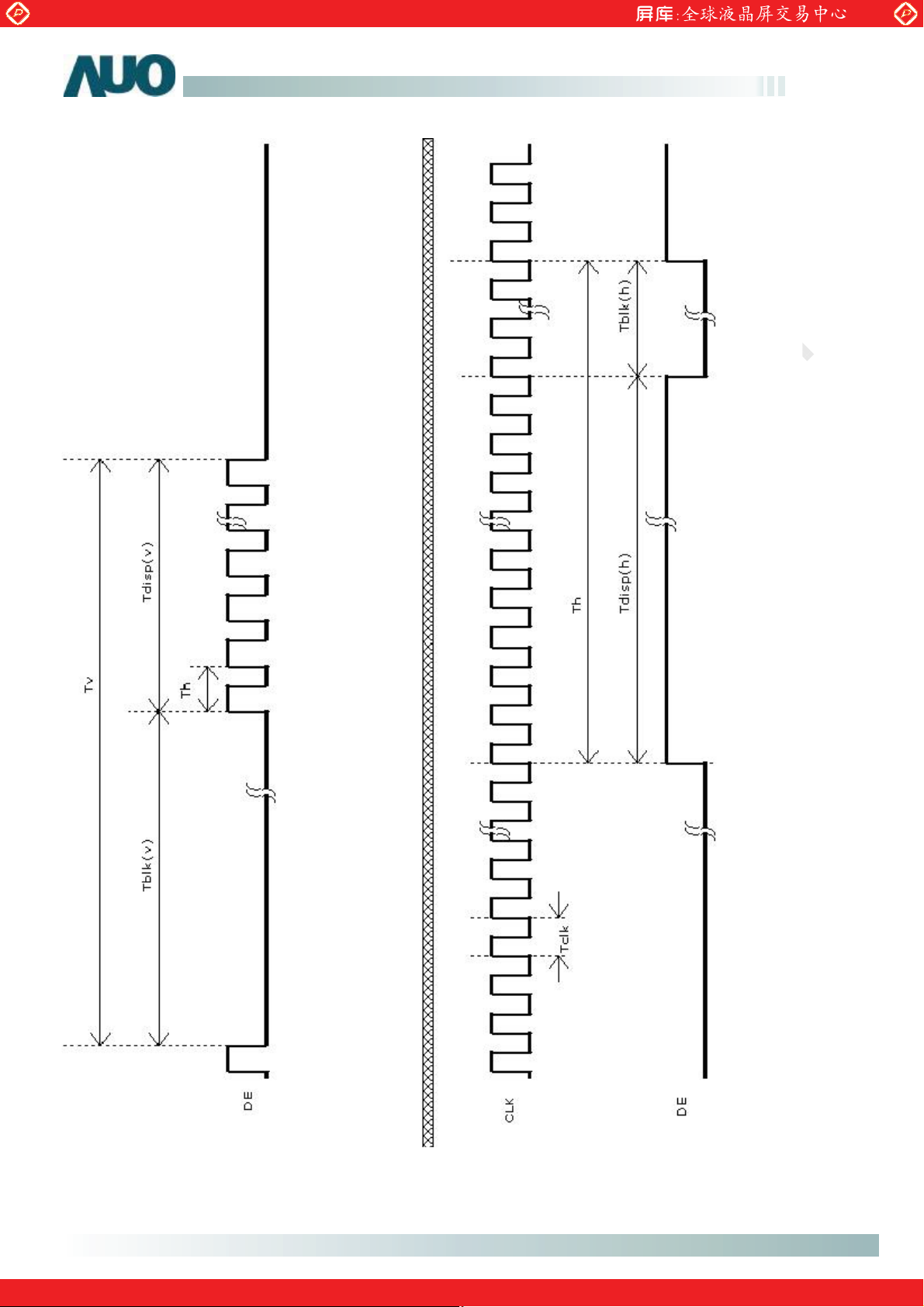

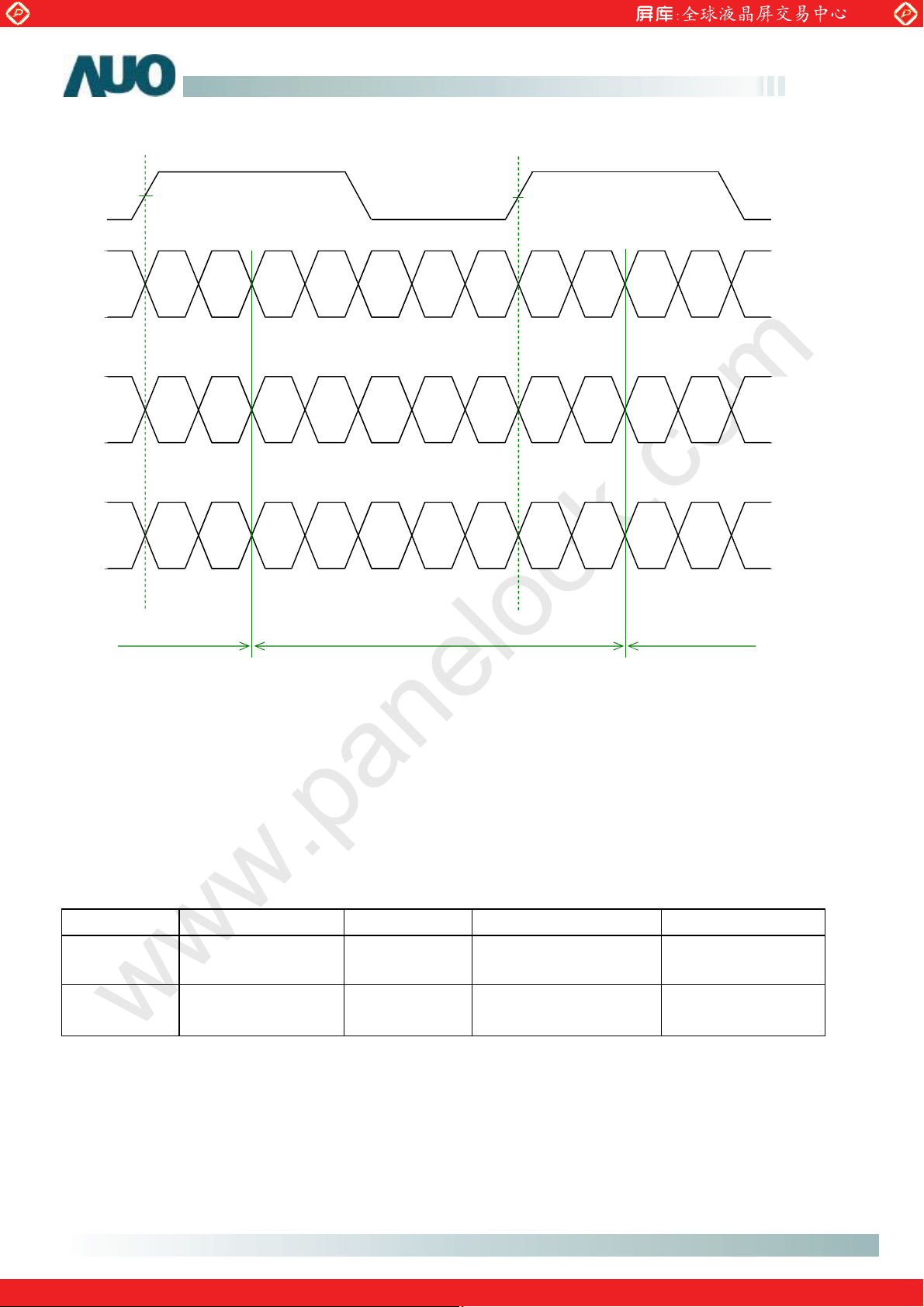

5.7 Interface Timing Definition ............................................................................... 20

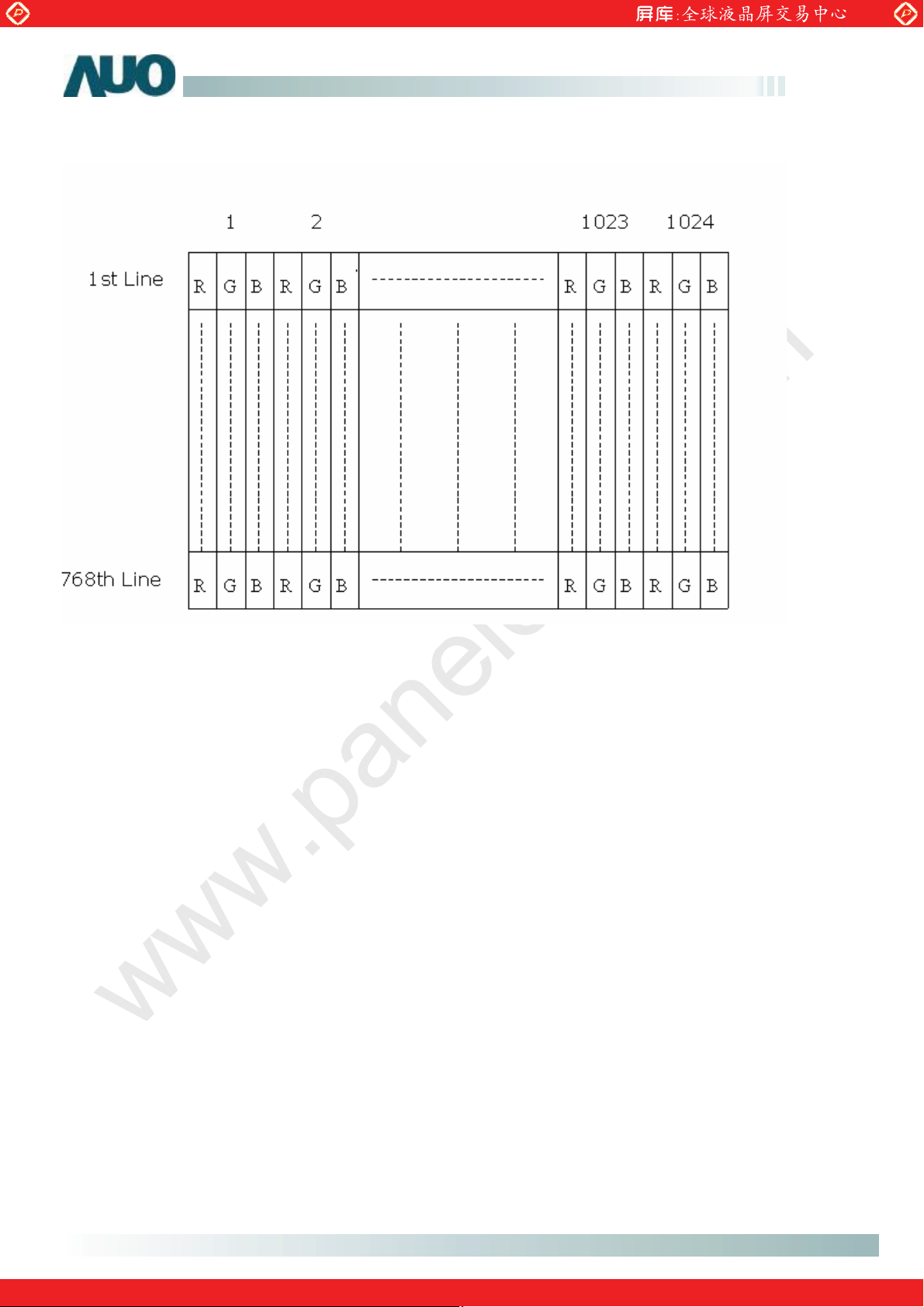

6.0 PIXEL FORMAT IMAGE..................................................................21

7.0 POWER CONSUMPTION ...............................................................22

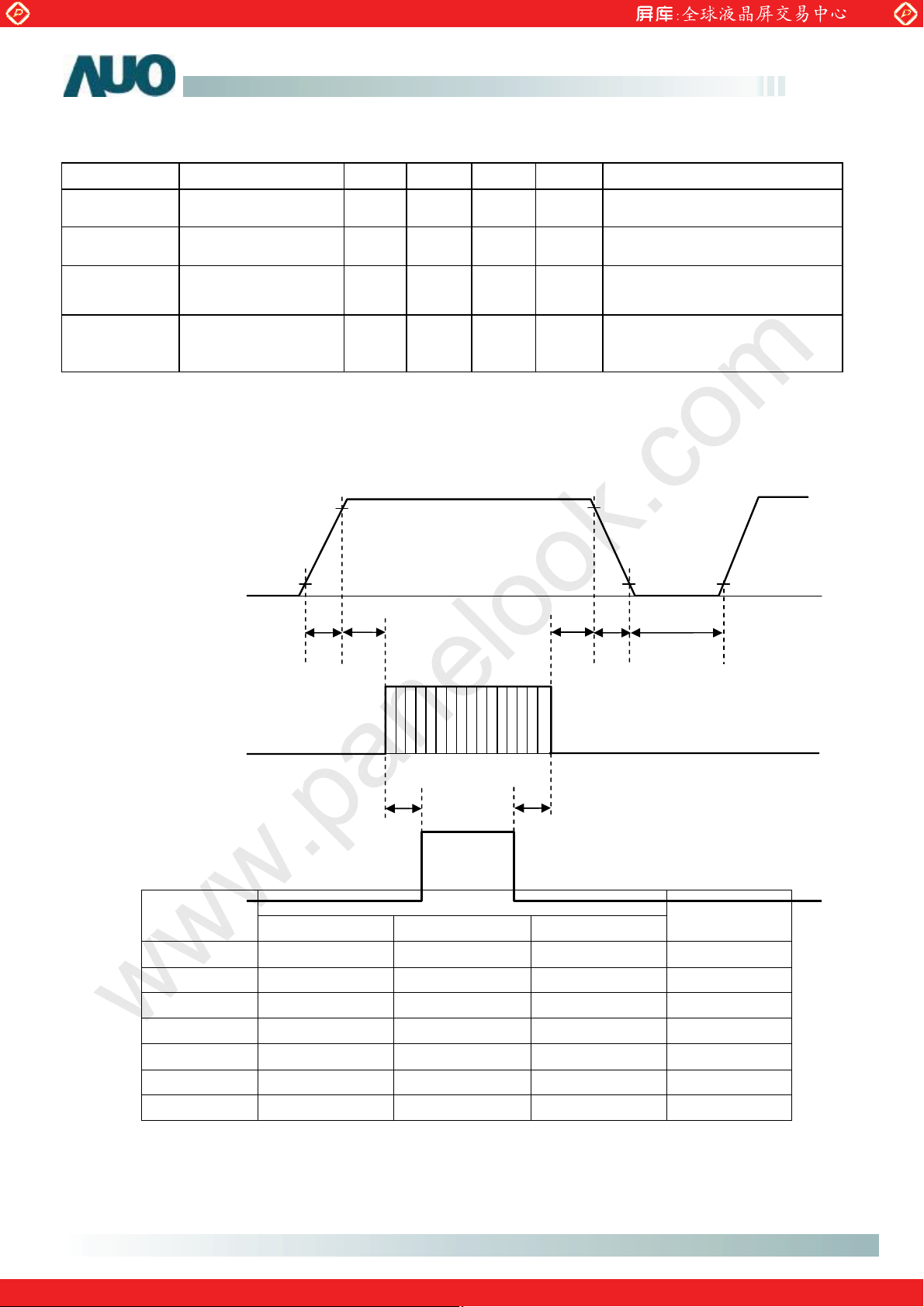

8.0 POWER ON/OFF SEQUENCE........................................................22

9.0 BACKLIGHT CHARACTERISTICS.................................................23

9.1 Signal for Lamp connector.............................................................................. 23

9.2 Parameter guide line for CCFL Inverter......................................................... 23

10.0 VIBRATION, SHOCK, AND DROP................................................24

10.1 Vibration & Shock.......................................................................................... 24

10.2 Drop ............................................................................................................... 24

11.0 ENVIRONMENT ............................................................................25

11.1 Temperature and Humidity............................................................................ 25

11.2 Atmospheric Pressure ................................................................................... 25

11.3 Thermal Shock .............................................................................................. 25

12.0 RELIABILITY ................................................................................26

12.1 Failure Criteria............................................................................................... 26

12.2 Failure Rate ................................................................................................... 26

12.3 CCFL Life....................................................................................................... 26

12.4 ON/OFF Cycle ...............................................................................................26

13.0 SAFETY ........................................................................................27

13.1 Sharp Edge Requirements ........................................................................... 27

No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

3/31

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

G150XG01 V0

13.2 Materials ........................................................................................................ 27

14.0 OTHER REQUIREMENTS ............................................................27

14.1 Smoke Free Design ......................................................................................27

14.2 National Test Lab Requirement....................................................................27

15.0 LABEL ..........................................................................................28

16.0 CARTON PACKAGE.....................................................................28

17.0 MECHANICAL CHARACTERISTICS............................................29

No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

4/31

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

G150XG01 V0

ii Record of Revision

Version and Date Chapter Old description New Description Remark

1.0 Feb. 6, 2004 All N/A First Edition for Customers

2.0 Aug.16, 2004 2.1 Anti-glare, hard coating (3H) reflection

Aug.16, 2004 4.0 Min. 320 nits Min. 300 nits

Lamp life: 50,000 hrs (typ.)

Anti-glare, hard coating (3H), low

Aug.16, 2004 9.2

Ambient temp 20~35(with no wind) This module comforming to RoHS

3.0 Sept. 23, 2005 2.0 N/A

directive is available starting from Q3 2005. Add shipping label figure

2.1 N/A Weight 1150g (max)

2.1 Low reflection Remove low reflection

2.1/4.0 Contrast Ratio 400:1 (typ) Contrast Ratio 500:1 (typ) Operating Humidity 8~90% Storage Humidity 8~90% Update wet bulb temperature chart

3.0

Operating Humidity 20~80% Storage Humidity 5~95%

4.0 N/A Add optical characteristic notes

9.2 Lamp life typical 50,000 hrs Lamp life minumn 50,000 hrs

2.0/15.0 Non green design label sample

Green Design (RoHS) version label sample

4.0 Nov. 21, 2005 View Angle 60/60/40/60 View Angle 65/65/65/552.1

4.0

Color Gamut 60% (Typ.) of NTSC coverage

Optical Characteristics Optical Characteristics

Conditions Min. Typ. Max. Conditions Min. Typ. Max.

Horizontal CR 10

(Right)

(Left)

CR 5

(Right)

(Left)

Color Gamut 65% (Typ.) of NTSC coverage

Horizontal CR 10

CR 5

(Right)

(Left)

(Right)

(Left)

Surface treatment

White

Luminance

@ CCFL

6.5mA

Vertical CR 10

(Upper) (Lower)

CR 5

(Upper) (Lower)

No Reproduction and Redistribution Allowed

Vertical CR 10

CR 5

(Upper) (Lower)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

5/31

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

G150XG01 V0

4.0

5.0 Feb. 27, 2006 2.1

2.0

15.0

5.1 Aug. 22, 2006 16.0

Raising Time

Ton

( 10%-90% )

Falling Time Toff

( 90%-10% )

Raising + Falling

Red x

Red y

Green x

Green y

Blue x

Blue y

White x 0.283 0.313 0.343 White x 0.280 0.310 0.340

White y 0.299 0.329 0.359 White y 0.300 0.330 0.360

Note 3: Definition of Response time

“Black” to “White” (falling time),

“White” to “Black” (rising time)

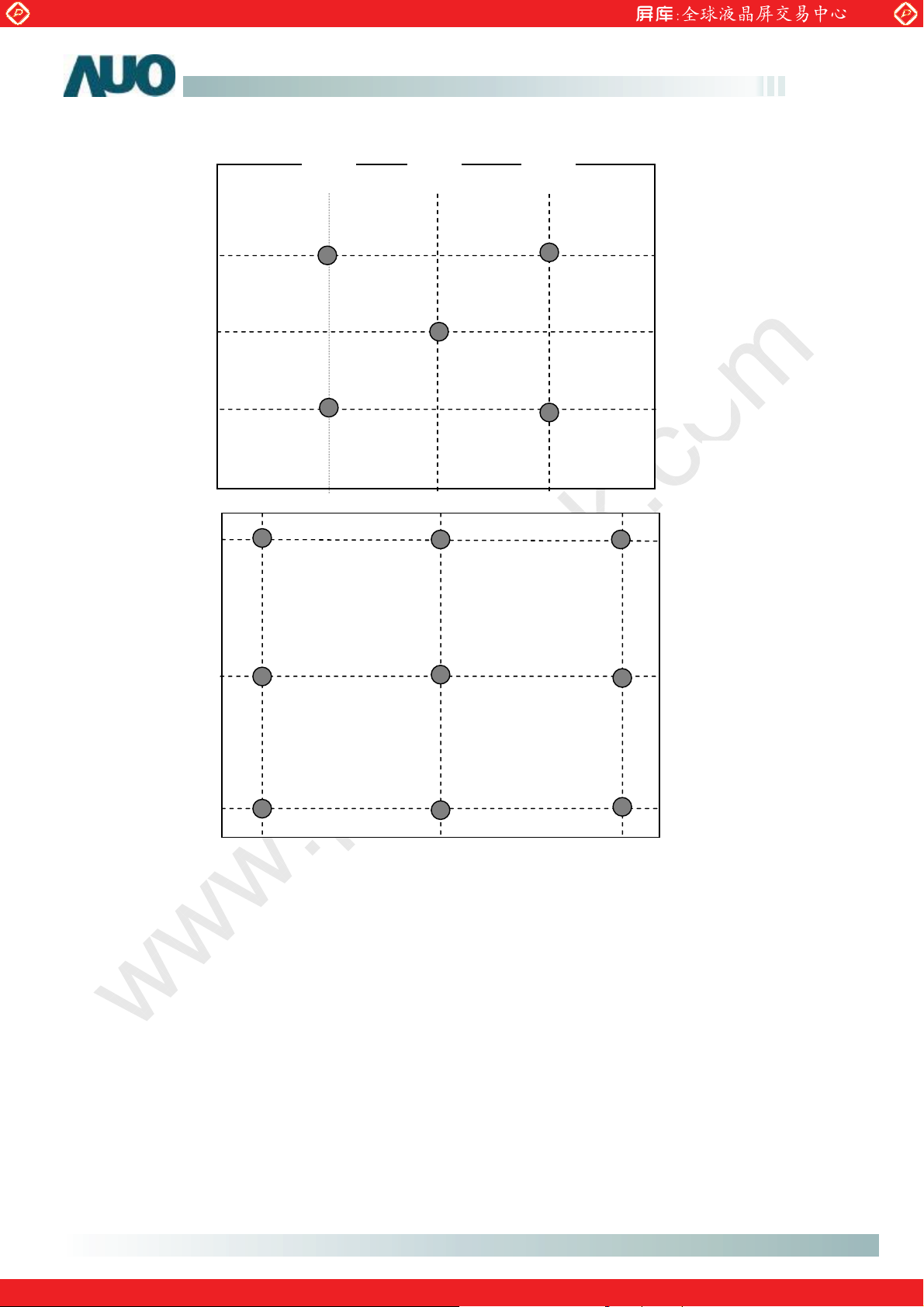

Description for Brightness Uniformity,

Crosstalk, White Luminance

Product Shipping Label

Mechanical Characteristics

-46

-1217

-1623

0.587 0.617 0.647

0.317 0.347 0.377

0.260 0.290 0.320

0.563 0.593 0.623

0.118 0.148 0.178

0.070 0.100 0.130

Raising Time

Falling Time

Raising + Falling

Red x

Red y

Green x

Green y

Blue x

Blue y

Note 3: Definition of Response time

“Full Black” to “Full White” (falling time),

“Full White” to “Full Black” (rising time)

Move to Chapter 4.0

Move to Chapter 15.0

Move to Chapter 16.0

Add “16.0 Carton Package”

-8.8-

-3.2-

-12-

0.610 0.640 0.670

0.300 0.330 0.360

0.270 0.300 0.330

0.560 0.590 0.620

0.120 0.150 0.180

0.070 0.100 0.130

No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

6/31

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

G150XG01 V0

1.0 Handling Precautions

1) Since front polarizer is easily damaged, pay attention not to scratch it.

2) Be sure to turn off power supply when inserting or disconnecting from input connector.

3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.

4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.

5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.

6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth when handling.

7) Do not open nor modify the Module Assembly.

8) Do not press the reflector sheet at the back of the module to any directions.

9) In case if a Module has to be put back into the packing container slot after once it was taken out from the container, do not press the center of the CCFL Reflector edge. Instead, press at the far ends of the CFL Reflector edge softly. Otherwise the TFT Module may be damaged.

10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the Interface Connector of the TFT Module.

11) After installation of the TFT Module into an enclosure (LCD monitor housing, for example), do not twist nor bend the TFT Module even momentary. At designing the enclosure, it should be taken into consideration that no bending/twisting forces are applied to the TFT Module from outside. Otherwise the TFT Module may be damaged.

12) Cold cathode fluorescent lamp in LCD contains a small amount of mercury. Please follow local ordinances or regulations for disposal.

13) Small amount of materials having no flammability grade is used in the LCD module. The LCD module should be supplied by power complied with requirements of Limited Power Source (2.11, IEC60950 or UL1950), or be applied exemption.

14) The LCD module is designed so that the CFL in it is supplied by Limited Current Circuit (2.4, IEC60950 or UL1950). Do not connect the CFL in Hazardous Voltage Circuit.

No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

7/31

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

2.0 General Description

This specification applies to the 15.0 inch Color TFT-LCD Module G150XG01.

The display supports the XGA (1024(H) x 768(V)) screen format and 262,144 colors (RGB 6-bits data).

All input signals are 1 Channel LVDS interface compatible.

This module does not contain an inverter card for backlight.

This module comforming to RoHS directive is available starting from Q3 2005.

Features

-XGA 1024(H) x 768(V) resolution

- 50,000 hours lamp life

-2 CCFLs (Cold cathode Fluorescent Lamp)

-High contrast ratio, high aperture ratio

-Wide viewing angle

-High-speed response

-Low power consumption

G150XG01 V0

Application

Industrial Applications

No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

8/31

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

2.1 Display Characteristics

The following items are characteristics summary on the table under 25  condition:

ITEMS Unit SPECIFICATIONS

Screen diagonal [mm] 381 (15”) Outline dimension [mm] 326.5 (Typ.) x 253.5 (Typ.) x 12.0 (Max.) Display Area [mm] 304.128 (H) x 228.096(38.1cm diagonal) Resolution 1024(R,G,B x 3) x 768 Pixel Pitch [mm] 0.297 x 0.297 Pixel Arrangement R.G.B. Vertical Stripe Display Mode TN mode, Normally White Typical white Luminance. [cd/m2] 350nit (Typ.) @ 6.5mA Contrast Ratio 500 : 1 (Typ.) Support Colors 262,144 colors (6-bit for R,G,B) Chromaticity(CIE1931)

White-x 0.313

White-y 0.329 Color Gamut 65% (Typ.) of NTSC coverage Viewing angle (L/R/U/D) 65/65/65/55 (CR10) Response Time [msec] 12ms (Typ.) (Tr +Tf) Nominal Input Voltage VDD [Volt] +3.3 V Power Consumption (VDD line + CCFL line) Electrical Interface LVDS (1 Ch) Frame rate [Hz] 60Hz (Typ.), 75Hz (Max.) Weight [Grams] 1100 (Typ.) 1150 (Max.) Mounting method Side mounting Surface treatment Anti-glare, hard coating (3H) Temperature Range

Operating Storage (Shipping)

[Watt] 11.5 W (Typ.) @6.5mA (All Black Pattern)

[

0 to +50

-20 to +60

G150XG01 V0

No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

9/31

www.panelook.com

Global LCD Panel Exchange Center

Driver IC

www.panelook.com

2.2 Functional Block Diagram

The following diagram shows the functional block of 15.0 inches Color TFT-LCD Module:

LVDS

AU ASIC

G150XG01 V0

+ 3.3 V

Connector

DC/DC

Converter

LVDS

Receiver

Timing

Controller

RSDS

Transmitter

Gamma

Correc

TFT-LCD

1024*(3)*768

Pixels

-Driver IC

G768

D1 D3072

2 CCFL

DC POWER

DF-14H-20P-1.25H (Hirose) JST BHR-03VS-1 CWY20G-A0D1T (PTWO)

No Reproduction and Redistribution Allowed

Inverter

10/31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

G150XG01 V0

3.0 Absolute Maximum Ratings

Absolute maximum ratings of the module is as following:

Item Symbol Min Max Unit Conditions

Logic/LCD Drive Voltage VDD -0.3 +3.6 [Volt]

Input Voltage of Signal Vin -0.3 +3.6 [Volt]

CCFL Current ICFL 2.5 8.5 [mA] rms

Operating Temperature TOP 0 +50 [oC] Note 2 Operating Humidity HOP 8 90 [%RH] Note 2 Storage Temperature TST -20 +60 [oC] Note 2 Storage Humidity HST 8 90 [%RH] Note 2 Vibration - 1.5 / 10-200 [G / Hz] Shock - 50/20 [G / ms] Half sine wave

Note 1: CCFL life time will drop dramatically if exceeding 6.5 mA; It will have safety concern if exceeding 8.5 mA.

Note 2: Maximum Wet-Bulb should be 39 and No condensation.

Note 1

Note 3: For quality performance, please refer to AUO IIS (Incoming Inspection Standard). Please refer to the graph below for corresponding of temperature and humidity.

Wet bulb temperature chart

No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

11/31

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

G150XG01 V0

4.0 Optical Characteristics

Optical characteristics are determined after the unit has been ‘ON’ and stable for approximately 30 minutes in a dark environment at 25. The values specified are at an approximate distance 50cm from the LCD surface at a viewing

angle of  and equal to 0.

Item Unit Conditions Min. Typ. Max. Note

Viewing Angle

[degree]

Horizontal (Right)

CR 10 (Left)

(Right)

CR 5(Left) Vertical (Upper)

CR 10 (Lower)

(Upper)

CR 5 (Lower)

Contrast ratio

Response Time( Note 1) [msec] Raising Time

[msec] Falling Time

[msec] Raising + Falling

Color / Chromaticity Red x

Coordinates (CIE) Red y

Color Coordinates (CIE) White

Brightness Uniformity [%]

Crosstalk ( in 60Hz) [%] - - 1.2 5

White Luminance @ CCFL 6.5mA [cd/m2]

Normal Direction 400 500 - 2

Green x

Green y

Blue x

Blue y

White x

White y

-8.8-

-3.2-

-12-

0.610 0.640 0.670

0.300 0.330 0.360

0.270 0.300 0.330

0.560 0.590 0.620

0.120 0.150 0.180

0.070 0.100 0.130

0.280 0.310 0.340

0.300 0.330 0.360

75 80 - 4,6

300 350 - 6

No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

12/31

www.panelook.com

Global LCD Panel Exchange Center

Note 1. Viewing Angle:

Viewing angle is the measurement of contrast ratio, at the screen center, over a 180° horizontal and 180° vertical range (off-normal viewing angles). The 180° viewing angle range is broken down as follows; 90° () horizontal left and right and 90° () vertical, high (up) and low (down). The measurement direction is typically perpendicular to the display surface with the screen rotated about its center to develop the desired measurement viewing angle.

www.panelook.com

G150XG01 V0

Viewing Angle Definition

No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

13/31

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Note 2: Contrast Ratio (CR) is defined mathematically as:

G150XG01 V0

Contrast ratio(CR)=

Note 3: Definition of Response time:

The output signals of photo detector are measured when the input signals are changed from“ Full Black” to “Full White” (falling time), and from “Full White” to “Full Black” (rising time), respectively. The response time interval between the 10% and 90% of amplitudes. Refer to figure as below.

100%

S ig

90%

n a l( R

e la

tiv e

v a lu

10%

e )

Brightness on the "white" state Brightness on the "black" state

"Black"

Response time

"White""White"

Note 4: Brightness uniformity of the 9 points is defined as below:

(Min. brightness / Max. brightness) x 100%

Note 5: Crosstalk is defined as below:

1/2

1/6

1/2

32 gray level 32 gray level

Unit: percentage of dimension of display area

l L

l/ LAx 100%= 1.2% max., LA and LB are brightness at location A and B

A-LA’

l/ LBx 100%= 1.2% max., LA’ and LB’ are brightness at location A’ and B’

B-LB’

2/3 1/3

1/2

’

0 gray level

1/6

1/3

1/2

B’

2/3

No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

14/31

www.panelook.com

Global LCD Panel Exchange Center

Note 6: Brightness is measured at the center point of brightness value with all pixels displaying white.

www.panelook.com

G150XG01 V0

90 %

256

512

50 %

768

192

384

576

Unit: pixels

10 %

Unit: percentage of dimension of display area

50 %

90 %

No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

15/31

www.panelook.com

Global LCD Panel Exchange Center

)

www.panelook.com

5.0 Signal Interface

5.1 Module Interface Connectors

Physical interface is described as for the connector on module.

These connectors are capable of accommodating the following signals and will be following components.

G150XG01 V0

Connector Name

Manufacturer

Type / Part Number

Interface Connector

Hirose, PTWO or compatible

DF-14H-20P-1.25H (Hirose) CWY20G-

5.2 Module Connector Pin Configuration

DF-14H-20P-1.25H (Hirose) or CWY20G-A0D1T (PTWO)

Pin No. Symbol Description

1 VDD Power Supply, 3.3V (typical)

2 VDD Power Supply, 3.3V (typical)

3 VSS Ground

4 VSS Ground

5 Rin0- - LVDS differential data input (R0-R5, G0)

6 Rin0+ + LVDS differential data input (R0-R5, G0)

7 VSS Ground

0D1T (PTWO

8 Rin1- - LVDS differential data input (G1-G5, B0-B1)

9 Rin1+ + LVDS differential data input (G1-G5, B0-B1)

10 VSS Ground

11 Rin2- - LVDS differential data input (B2-B5, HS, VS, DE)

12 Rin2+ + LVDS differential data input (B2-B5, HS, VS, DE)

13 VSS Ground

14 ClkIN- - LVDS differential clock input

15 ClkIN+ + LVDS differential clock input

16 VSS Ground

17 Rin3- NC

18 Rin3+ NC

19 VSS Ground

20 NC Please *floating* and don’t connect to ground.

No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

16/31

www.panelook.com

Global LCD Panel Exchange Center

5.3 Backlight Connectors

www.panelook.com

G150XG01 V0

Connector Name / Designation

Manufacturer

Type / Part Number

Mating Type / Part Number

For Lamp Connector

JST or compatible

BHR-03VS-1

SM02(8.0)B-BHS-1-TB

5.4 Backlight Connector Pin Configuration

Pin Symbol Description

1 HV Lamp High Voltage

2 NC No connection

3 LV Ground

 Cable length: 140 +- 5 mm

 Connector-output position: right side (front view)

 Lamp assembly design shall be easy for replacement and repair.

5.5 Signal Electrical Characteristics

Each signal characteristics are as follows;

Item Symbol Min Typ Max Unit

LCD Drive voltage

“High” input signal voltage

“Low” input signal voltage

VDD +3.0 +3.3 +3.6 [V]

Vih 2.0 - - [V]

Vil - - 0.8 [V]

No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

17/31

www.panelook.com

Global LCD Panel Exchange Center

6-bits input data format

www.panelook.com

G150XG01 V0

Clkln

R0IN0

R1IN1

R2IN2

Vdiff=0

Previou

G0 R5 R4 R3 R2 R1 R0

B1 B0 G5 G4 G3 G2 G1

DE VS HS B5 B4 B3 B2

Data for current Clk cycle Next

Note: R/G/B data 5: MSB, R/G/B data 0: LSB

Input signals shall be low or Hi-Z state when Vin is off It is recommended to refer to the specifications of SN75LVDS82DGG (Texas Instruments) in detail.

Each signal characteristics are as follows:

Parameter Condition Min Max Unit

Vth

Vtl

Differential InputHigh Voltage(Vcm=+1.2V)

Differential Input Low Voltage(Vcm=+1.2V)

-100

+100

[mV]

No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

18/31

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

5.6 Interface Timing Characteristics

Basically, interface timings described here is not actual input timing of LCD module but output timing of SN75LVDS82DGG (Texas Instruments) or equivalent.

Signal Parameter Symbol MIN TYP MAX Unit

Clock Timing Clock frequency Hsync Timing

Vsync Timing

Note: Typical value refer to VESA STANDARD

Horizontal active Horizontal blanking Horizontal period Vertical active Vertical blanking Vertical period

clk 50 65 81 MHz

Thd 1024 1024 1024 Tclk

Thbl 30 320 1024 Tclk

Th 1054 1344 2048 Tck

Tvd 768 768 768 Th

Tvbl 8 38 256 Th

Tv 776 806 1024 Th

G150XG01 V0

No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

19/31

www.panelook.com

Global LCD Panel Exchange Center

5.7 Interface Timing Definition

www.panelook.com

G150XG01 V0

No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

20/31

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

6.0 Pixel format image

Following figure shows the relationship of the input signals and LCD pixel format.

G150XG01 V0

No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

21/31

www.panelook.com

Global LCD Panel Exchange Center

7.0 Power Consumption

Input power specifications are as follows:

Symbol Parameter Min Typ Max Unit Condition

VDD

LCD Drive Voltage

www.panelook.com

G150XG01 V0

3.0 3.3 3.6 [V]

IDD

PDD

VDDns

LCD Drive Current

LCD Drive power consumption

Allowable LCD Drive Ripple Noise

- 1.0 1.3 [A] VDD=3.3V, All Black Pattern

- 3.3 4.3 [Watt] VDD=3.3V, All Black Pattern

- - 100

[mV]

p-p

8.0 Power ON/OFF Sequence

Vin and lamp power on/off sequence are as follows. The timing of interface signal are shown in the table below.

90% 90%

Vin

10%

T1 T2 T5 T6 T7

10%

Signal

Lam

Symbol

Min Typ Max

T1 0.5 - 10 [ms]

T2 0.5 25 50 [ms]

T3 200 - - [ms]

T4 200 - - [ms]

T5 0.5 16 50 [ms]

T6 0.5 - 10 [ms]

T7 1000 - - [ms]

No Reproduction and Redistribution Allowed

Values

Unit

22/31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

9.0 Backlight Characteristics

9.1 Signal for Lamp connector

Pin # signal Name

www.panelook.com

G150XG01 V0

Lamp High Voltage

No connection

Ground

9.2 Parameter guide line for CCFL Inverter

Symble Parameter Min Typ Max Units Condition

IRCFL CCFL operation range 2.5 6.5 8.5

ICFL CCFL Inrush current - - 20 [mA]

FCFL CCFL Frequency 40 55 80 [KHz]

ViCFL (25) (reference)

ViCFL (0) (reference)

CCFL Ignition Voltage 1100 - -

CCFL Ignition Voltage 1450 - -

[mA]

rms

[Volt]

rms

[Volt]

rms

(Ta=25)

Note 4

(Ta=25)

Note 1

(Ta=25)

Note 3

(Ta=0)

Note 3

VCFL CCFL Discharge Voltage -

PCFL

Lamp life 50,000 - - [Hrs]

Note 1: CCFL Frequency should be carefully determined to avoid interference between inverter and TFT LCD Note 2: Calculator value for reference (IRCFL×VCFLx2=PCFL) Note 3: CCFL inverter should be able to give out a power that has a generating capacity of over 1450 voltage.

Lamp units need 1450 voltage minimum for ignition

Note 4: CCFL life time 50,000hr at 6.5mA. It’s defined as the brightness of A point of lamp becomes 50% of the

No Reproduction and Redistribution Allowed

CCFL Power consumption @8mA

initial brightness. It’s recommended not to exceed 6.5 mA for CCFL life time concern and it’s prohibited to exceed 8.5 mA for safety concern.

(excluding inverter)

- 8.5 11 [Watt]

645

(@6.5mA)

710

(@2.5mA)

[Volt]

rms

(Ta=25)

Note 2

(Ta=25)

Note 2

Ambient temp 20 ~35(with no wind)

Note 4

23/31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

10.0 Vibration, Shock, and Drop

10.1 Vibration & Shock

The module shall work error free after following vibration and shock condition. Likewise the module shall not

sustain any damage after vibration and shock test.

10.1.1 Vibration Test Spec:

 Frequency: 10 - 200Hz

 Sweep: 30 Minutes each Axis (X, Y, Z)

 Acceleration: 1.5G(10~200Hz P- P)

 Test method:

G150XG01 V0

Acceleration (G)

Frequency (Hz)

Active time (min)

10.1.2 Shock Test Spec:

Acceleration (G)

Active time(ms)

Wave form

Times

 Direction: X , Y, Z

10.2 Drop

Package test: The drop height is defined as 60 cm.

(1 corner,3 edges,6 flat faces)

-- No damage and defect found for panel.

1.5

10~200~10

Half-sin

No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

24/31

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

11.0 Environment

The display module will meet the provision of this specification during operating condition or after storage or

shipment condition specified below. Operation at 10% beyond the specified range will not cause physical

damage to the unit.

11.1 Temperature and Humidity

11.1.1 Operating Conditions

The display module operates error free, when operated under the following conditions; Temperature 0 Relative Humidity 20% to 85% Wet Bulb Temperature 39.0

11.1.2 Shipping Conditions

The display module operates error free, after the following conditions; Temperature -20 Relative Humidity 5% to 95% Wet Bulb Temperature 39.0

C to 50 0C

C to 60 0C

G150XG01 V0

11.2 Atmospheric Pressure

The display assembly is capable of being operated without affecting its operations over the pressure range as following specified:

Pressure Altitude

Maximum Pressure 1040 hPa 0 m = sea level

Minimum Pressure 601 hPa 3658 m = 12,000 feet

Note: Non-operation altitude limit of this display module = 40,000 feet. = 12193 m.

11.3 Thermal Shock

The display module will not sustain damage after being subjected to 100 cycles of rapid temperature change. A cycle of rapid temperature change consists of varying the temperature from -20

Thermal shock cycle -20

C for 30min

Power is not applied during the test. After temperature cycling, the unit is placed in normal room ambient for at least 4 hours before powering on.

C to 600C, and back again.

No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

25/31

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

12.0 Reliability

This display module and the packaging of that will comply following standards.

12.1 Failure Criteria

The display assembly will be considered as failing unit when it no longer meets any of the requirements stated in this specification. Only as for maximum white luminance, following criteria is applicable. Note: Maximum white Luminance shall be 75 cd/m

12.2 Failure Rate

The average failure rate of the display module (from first power-on cycle till 1,000 hours later) will not exceed1.0%. The average failure rate of the display module from 1,000 hours until 10,000 hours will not exceed 0.70% per 1000 hours.

12.2.1 Usage

The assumed usage for the above criteria is:

 220 power-on hours per month  500 power on/off cycles per month  Maximum brightness setting  Operation to be within office environment (25

or more.

C typical)

G150XG01 V0

12.2.2 Component De-rating

All the components used in this device will be checked the load condition to meet the failure rate criteria.

12.3 CCFL Life

The assumed CCFL Life will be typically 50,000 hours under stable condition at 255 Standard current at 6.5  0.5 mA Definition of life: brightness becomes 50% or less than the minimum luminance value of CCFL.

12.4 ON/OFF Cycle

The display module will be capable of being operated over the following ON/OFF Cycles.

ON/OFF Value Cycle

+VDD and CCFL power 36,000 10 seconds on / 10 seconds off

No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

26/31

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

13.0 Safety

13.1 Sharp Edge Requirements

There will be no sharp edges or corners on the display assembly that could cause injury.

13.2 Materials

13.2.1 Toxicity

There will be no carcinogenic materials used anywhere in the display module. If toxic materials are used,

they will be reviewed and approved by the responsible AUO Toxicologist.

13.2.2 Flammability

All components including electrical components that do not meet the flammability grade UL94-V1 in the

module will complete the flammability rating exception approval process. The printed circuit board will be

made from material rated 94-V1 or better. The actual UL flammability rating will be printed on the printed

circuit board.

G150XG01 V0

14.0 Other requirements

14.1 Smoke Free Design

Any smoke nor strange smell shall not be observed by the operator at any single failure.

14.2 National Test Lab Requirement

The display module will satisfy all requirements for compliance to the following requirement:

UL 1950, First Edition U.S.A. Information Technology Equipment

CSA C22.2 No.950-M89 Canada, Information Technology Equipment

IEC 950 International, Information Technology Equipment

EN 60 950 International, Information Processing Equipment

(European Norm for IEC950)

The construction of the display module is designed to suppress EMI. When mounted into a specified host system, the system will meet the following EMI requirement:

FCC Part 15 Class B VCCI Class 2 CISPR 22, class B Taiwan CNS standard China CCIB standard

No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

27/31

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

15.0 Label

Product Shipping Label (on the rear side of TFT-LCD module)

G150XG01 V0

16.0 Carton Package

1. Max Capacity : 10 LCD module/Carton

2. Max Weight: 14kg/Carton

3. The outside dimension of carton is 401(L)mm x 323(W)mm x 353(H)mm

No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

28/31

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

29/31

17.0 Mechanical Characteristics

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

No Reproduction and Redistribution Allowed

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

30/31

G150XG01 V0 front and side view

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

No Reproduction and Redistribution Allowed

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

G150XG01 V0 Rear View

31/31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

No Reproduction and Redistribution Allowed

www.panelook.com

AUO G150XG01 V0 Specification

Specifications and Main Features

Frequently Asked Questions

User Manual
