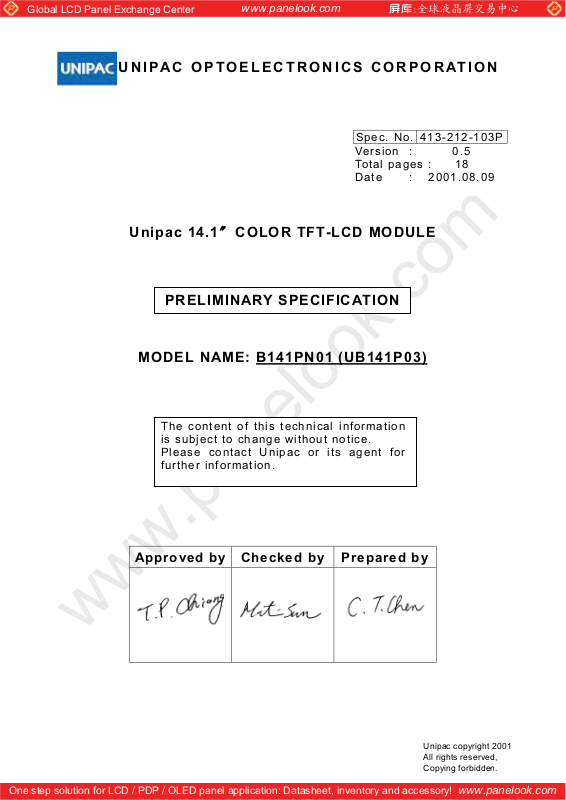

AUO B141PN01 Specification
Global LCD Panel Exchange Center
UNIPAC OPTOELECTRONICS CORPORATION
Unipac 14.1ϛCOLOR TFT-LCD MODULE
www.panelook.com
Spec. No. 413-212-103P
Version : 0.5
Total pages : 18
Date : 2001.08.09
PRELIMINARY SPECIFICATION
MODEL NAME: B141PN01 (UB141P03)
The content of this technical information
is subject to change without notice.
Please contact Unipac or its agent for
further information.
Approved by Checked by Prepared by
Unipac copyright 2001
All rights reserved,
Copying forbidden.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Record of Revision
Version Revise Date Page Content
0.1 22/Mar./2001 First draft.
9 d. Display position subtract 1 from X item 0.2 19/April./2001
17 X item of even and odd data bus
0.3 28/May/2001
0.4 15/Jun./2001 17 Update Fig.2 Timing chart => EVEN and ODD data bus
0.5 10/Aug./2001 2 Change weight => (460g) Ш 455g
Ш FI-XB30S-HF10 (JAE), 30-pin
2 Change Weight => (480g) Ш (460g)
6 Change Current consumption =>IB = 600(Max.) Ш (840)(Max.)
10
Change Lamp voltage =>VL = 900(Typ.) Ш 650(Typ.)
Change Power consumption =>P
6 Change Current consumption =>IA = 540(Typ.) Ш 440 (Typ.)
6 Change Current consumption =>IB = 840(Max.) Ш 660(Max.)
Change CN1 type => DF-19K—20P-1H(Hirose),20-pin
= 5.4(Typ.) Ш 3.9(Typ.)
L
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
Spec. No. : 413-212-103P
Version : 0.5
Page : /17
www.panelook.com
1
Contents:
A. Physical specification
B. Electrical specifications
1. Pin assignmentˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁ
2. Absolute maximum ratingsˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁ
3. Electrical characteristicsˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁ
a. Typical operating conditionsˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁ
b. Display color v.s. input data signalsˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁ
c. Input signal timingˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁ
d. Display positionˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁ
e. Backlight unit ˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁ
ˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁ
ˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁ
P2
P3
P3
P5
P6
P6
P7
P8
P9
P10
C. Optical specifications
D. Reliability test items
E. Display quality
F. Handling precaution
G. Packing form
ˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁ
ˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁ
ˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁ
ˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁ
ˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁ
Appendix:
Fig.1-(a) LCM outline dimensions(Front side)ˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁ
Fig.1-(b) LCM outline dimensions (Back side)ˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁ
Fig.2 Timing chartˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁˁ
P11
P13
P13
P13
P14
P15
P16
P17
ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PRPER SHALL NOT BE REPRODUCED, COPIED, OR
TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM UNIPAC OPTOELECTRONICS CORP.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Spec. No. : 413-212-103P
Version : 0.5
Page : /17
2
A. Physical specifications
NO. Item Specification Remark
1 Display resolution(pixel)
2 Active area(mm)
3 Screen size(inch) 14.1(Diagonal)
4 Pixel pitch(mm)
5 Color configuration R. G. B. Vertical stripe
6 Overall dimension(mm)
7 Weight(g) 455g
8 Surface treatment Hard coating(3H), anti-glare of the front
1400(H)1050(V)
285.6(H)214.2(V)
0.204(H)0.204(V)
298.5226.75.2 [W H D]
polarizer(Haze25%)
Note 1: Refer to Fig. 1. on page 15,16.
SXGA+
Note 1
ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PRPER SHALL NOT BE REPRODUCED, COPIED, OR
TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM UNIPAC OPTOELECTRONICS CORP.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Spec. No. : 413-212-103P
Version : 0.5
Page : /17
3
B. Electrical specifications
1.Pin assignment
(1).Input signal interface
CN1 (30P) connector : FI-XB30S-HF10 (JAE)
Matching connector : FI-X30H (wire Type)
FI-X30M (FPC Type)
Pin no Symbol Function Etc.
1 VCC +3.3 V power supply
2 VCC +3.3 V power supply
3 GND Ground
4 GND Ground
5 ReIN0-
6 ReIN0+
7 ReIN1-
8 ReIN1+
9 ReIN2-
10 ReIN2+
11 ReCLKIN-
12 ReCLKIN+
13 RoIN0-
14 RoIN0+
15 RoIN1-
16 RoIN1+
17 RoIN2-
18 RoIN2+
19 RoCLKIN-
20 RoCLKIN+
LVDS receiver signal channel 0 (EVEN)
LVDS receiver signal channel 1 (EVEN)
LVDS receiver signal channel 2 (EVEN)
LVDS receiver signal clock (EVEN)
LVDS receiver signal channel 0 (ODD)
LVDS receiver signal channel 1 (ODD)
LVDS receiver signal channel 2 (ODD)
LVDS receiver signal clock 3 (ODD)
ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PRPER SHALL NOT BE REPRODUCED, COPIED, OR
TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM UNIPAC OPTOELECTRONICS CORP.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Spec. No. : 413-212-103P
Version : 0.5
Page : /17
(2) LVDS transmitter/receiver signal mapping(EVEN)
Symbol Function
TxIN0 EVEN R0 EVEN Red data (LSB)
TxIN1 EVEN R1 EVEN Red data
4
TxIN2 EVEN R2 EVEN Red data
TxIN3 EVEN R3 EVEN Red data
TxIN4 EVEN R4 EVEN Red data
TxIN5 EVEN R5 EVEN Red data (MSB)
TxIN6 EVEN G0 EVEN Green data (LSB)
TxIN7 EVEN G1 EVEN Green data
TxIN8 EVEN G2 EVEN Green data
TxIN9 EVEN G3 EVEN Green data
TxIN10 EVEN G4 EVEN Green data
TxIN11 EVEN G5 EVEN Green data (MSB)
TxIN12 EVEN B0 EVEN Blue data (LSB)
TxIN13 EVEN B1 EVEN Blue data
TxIN14 EVEN B2 EVEN Blue data
TxIN15 EVEN B3 EVEN Blue data
TxIN16 EVEN B4 EVEN Blue data
TxIN17 EVEN B5 EVEN Blue data (MSB)
TxIN18 Hs EVEN Horizontal sync
6 bit even red display data
6 bit even green display data
6 bit even blue display data
TxIN19 Vs Vertical sync
TxIN20 DE Data enable
TxCLKIN EVEN CLK EVEN Clock even Dot clock
ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PRPER SHALL NOT BE REPRODUCED, COPIED, OR
TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM UNIPAC OPTOELECTRONICS CORP.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
