FCC TEST REPORT

for

Aukey Technology Co.,Ltd

USB C HUB

Model Number:CB-C72, CB-C81, CB-C82, CB-C83, CB-C84,

CB-C85, CB-C86, CB-C87, CB-C88, CB-C89, CB-C90, CB-C91,

CB-C92, CB-C93, CB-C94, CB-C95

Prepared for:Aukey Technology Co.,Ltd

ddress :

Prepared by :

ddress :

Room 102, Building P09, South China City Electronic trading center, Longgang District,Shenzhen

Guangdong KeywayTesting Technology Co., Ltd. No.7 of Zhangmutou District, Guanzhang Road, Zhangmutou town, Dongguan Guangdong China.

Tel: 86-769-87182258 Fax: 86-769-87181058

Report No. : TR19100442-E-000 Date of Test : Dec. 27, 2019~ Jan. 07, 2020

Date of Report : Jan. 08, 2020

Guangdong KeywayTesting Technology Co., Ltd. Report No. TR19120435-E-000 Page1of

Page 2

Page 3

TABLE OF CONTENTS

Test Report Declaration Page

1. GENERAL PRODUCT INFORMATION..........................................................................................4

1.1. Product Function......................................................................................................................... 4

1.2. Description of Device (EUT)......................................................................................................4

1.3. Difference between Model Numbers........................................................................................4

1.4. Independent Operation Modes..................................................................................................4

1.5. Test Supporting System.............................................................................................................4

2. TEST SITES.........................................................................................................................................5

2.1. Test Facilities...............................................................................................................................5

2.2. Test Summary..............................................................................................................................6

2.3. List of Test and Measurement Instruments.............................................................................7

3. TEST SET-UP AND OPERATION MODES...................................................................................8

3.1. Principle of Configuration Selection......................................................................................... 8

3.2. Block Diagram of Test Set-up................................................................................................... 8

3.3. Test Operation Mode and Test Software................................................................................ 8

3.4. Special Accessories and Auxiliary Equipment........................................................................8

3.5. Countermeasures to Achieve EMC Compliance....................................................................8

4. TEST RESULTS..................................................................................................................................9

4.1. Conducted Emission at the Mains Terminals Test................................................................ 9

4.2. Radiated Emission Test (below 1 GHz).................................................................................10

4.3. Radiated Emission Test (above 1 GHz)................................................................................13

5. PHOTOGRAPHS OF TEST SET-UP.............................................................................................14

6. PHOTOGRAPHS OF THE EUT..................................................................................................... 15

Guangdong KeywayTesting Technology Co., Ltd. Report No. TR19120435-E-000 Page3of

Page 4

1. GENERAL PRODUCT INFORMATION

1.1.Product Function

Refer to Technical Construction Form and User Manual.

1.2.Description of Device (EUT)

Description : USB C HUB

CB-C72, CB-C81, CB-C82, CB-C83, CB-C84, CB-C85, CB-C86,

M/N : Power Input : DC 5V fromPC

Output : DC 5V Operation

frequency Remark: CB-C72 was selected as the test model and its data have been recorded in this report.

1.3.Difference between Model Numbers

Note:All models are the same except the product name

CB-C87, CB-C88, CB-C89, CB-C90, CB-C91, CB-C92, CB-C93, CB-C94, CB-C95

: <108MHz

1.4.Independent Operation Modes

The basic operation mode is:

Mode Description

Mode 1 Data transmission

1.5.Test Supporting System

1.5.1 PC Manufacturer : DELL Model Number : DCNE1F Power Cord : Unshielded, Detachable, 1.5m S/N : 13XHTD2Y

1.5.2 TV TV Manufacturer : SONY Model Number : KDL-26X550 Equip No. : 1020345

Guangdong KeywayTesting Technology Co., Ltd. Report No. TR19120435-E-000 Page4of

Page 5

2. TEST SITES

2.1.Test Facilities

Lab Qualifications : 944 Shielded Room built by ETS-Lindgren, USA

Date of completion: March 28, 2011 966 Chamber built by ETS-Lindgren, USA

Date of completion: March 28, 2011 Certificated by TUV Rheinland, Germany.

Registration No.: UA 50207153 Date of registration: July 13, 2011

Certificated by UL, USA Registration No.: 100567237 Date of registration: September 5, 2012

Certificated by Intertek Registration No.: 2016-RTL-L2-199 Date of registration: May 10, 2016

Certificated by VCCI Member No.3498 Facility:966 Chamber: Registration No.: R-4045 Facility:944 Shielded Room :Registration No.:C-4522 Date of registration: September 10, 2016

Certificated by PHOENIX TESTLAB GmbH Registration No.: 702860c Date of registration: May 11, 2016

Certificated by CNAS China Registration No.: CNAS L5783 Date of registration: August 8, 2012

Name of Firm

Guangdong Keyway Testing Technology Co., Ltd.

Site Location : No.7 of Zhangmutou District, Guanzhang Road,

Zhangmutou town, Dongguan Guangdong China.

Guangdong KeywayTesting Technology Co., Ltd. Report No. TR19120435-E-000 Page5of

Page 6

2.2.Test Summary

Test Item Condition Standard Result

Conducted disturbance at mains terminals

Radiated Emission (below 1 GHz)

Radiated Emission (above 1 GHz)

Remark: 1. The symbol “N/A” in above table means Not Applicable.

2. Because the EUT employ battery power for operation and which do not operate from the AC power lines or contain provisions for operation while connected to the AC power lines, so the test item of Conducted disturbance at mains terminals is not applicable.

3.When determining the test results, measurement uncertainty of tests has been considered.

Test Items Extended Uncertainty Uncertainty for Radiated Emission in 3m chamber 3.60dB Uncertainty for Conducted Emission. 2.60dB

150kHz to 30MHz

30MHz to 1GHz

Above 1GHz

System Measurement Uncertainty

FCC Part 15, Subpart B ANSI C63.4:2014

N/A

Pass

N/A

Guangdong KeywayTesting Technology Co., Ltd. Report No. TR19120435-E-000 Page6of

Page 7

2.3.List of Test and Measurement Instruments

Equipment Manufacturer Model No. Serial No. Last Cal. Next Cal.

For conducted emission at the mains terminals and load port test

EMI Test Receiver Rohde&Schwarz ESCI 101156 Apr 12,19 Apr 11,20 Artificial Mains Network Rohde&Schwarz ENV216 101315 Apr 12,19 Apr 11,20 Artificial Mains Network (AUX) RF Cable FUJIKURA 3D-2W 944 Cable Apr 12,19 Apr 11,20 Voltage Probe CHWARZBECK A130302 KWE-053 Apr 12,19 Apr 11,20

For radiated emission test (Below 1GHz)

EMI Test Receiver Rohde&Schwarz ESCI 101156 Apr 12,19 Apr 11,20 TRILOG Broadband Antenna Spectrum Analyzer Agilent 8593E 3911A04271 Apr 12,19 Apr 11,20 3m Semi-anechoic Chamber Signal Amplifier SONOMA 310 186956 Apr 12,19 Apr 11,20 RF Cable IMRO IMRO-400 966 Cable 1# Apr 12,19 Apr 11,20 MULTI-DEVICE Controller Antenna Holder ETS-LINDGREN 2070B 00109601 N/A N/A

For radiated emission test (Above 1GHz)

EMI Test Receiver Rohde&Schwarz ESCI 101156 Apr 12,19 Apr 11,20 Horn Antenna DAZE ZN30701 11003 Apr 12,19 Apr 11,20 MXG Signal Analyzer Keysight N9020A MY56070279 Apr 12,19 Apr 11,20 3m Semi-anechoic Chamber Signal Amplifier ZHINAN ZN3380C 11001 Apr 12,19 Apr 11,20 RF Cable IMRO IMRO-400 966 Cable 1# Apr 12,19 Apr 11,20 MULTI-DEVICE Controller Antenna Holder ETS-LINDGREN 2070B 00109601 N/A N/A

Note:

Used Not Used

Rohde&Schwarz ENV216 101314 Apr 12,19 Apr 11,20

SCHWARZBECK VULB 9168 00829 Apr 12,19 Apr 11,20

ETS-LINDGREN 966 170326 Apr 12,19 Apr 11,20

ETS-LINDGREN 2090 126913 N/A N/A

ETS-LINDGREN 966 170326 Apr 12,19 Apr 11,20

ETS-LINDGREN 2090 126913 N/A N/A

Guangdong KeywayTesting Technology Co., Ltd. Report No. TR19120435-E-000 Page7of

Page 8

3. TEST SET-UP AND OPERATION MODES

3.1.Principle of Configuration Selection

Emission: The equipment under test (EUT) was configured to measure its highest

possible radiation level. The test modes were adapted accordingly in reference to the Operating Instructions.

3.2.Block Diagram of Test Set-up

System Diagram of Connections between EUT and Simulators

EUT

(EUT: USB C HUB)

3.3.Test Operation Mode and Test Software

Refer to Test Setup in clause 4 & 5.

3.4.Special Accessories and Auxiliary Equipment

None.

3.5.Countermeasures to Achieve EMC Compliance

None.

AC Mains

Guangdong KeywayTesting Technology Co., Ltd. Report No. TR19120435-E-000 Page8of

Page 9

4. TEST RESULTS

4.1.Conducted Emission at the Mains Terminals Test

Result : N/A

Test Site : 944 Shielded Room Limits : FCC Part 15B

Frequency range

MHz

Quasi-peak Average

Limits dB(μV)

0,15 to 0,50 66 to 56 56 to 46

0,50 to 5 56 46

5to30 60 50

NOTE: 1.The lower limit shall apply at the transition frequencies.

2.The limit decreases linearly with the logarithm of the frequency in the range 0,15 MHz to 0,50 MHz.

Test Specification

1.The EUT was put on a wooden table which was 0.8 m high above the ground and connected to the AC mains through the Artificial Mains Network (AMN). Where the mains cable supplied by the manufacture was longer than 1 m, the excess was folded back and forth parallel to the cable at the centre so as to form a bundle no longer than 0.4 m.

2.The EUT was kept 0.4 m from any other earthed conducting surface. Both sides of AC line were checked to find out the maximum conducted emission levels according to the test procedure during the conducted emission test.

3.The bandwidth of the test receiver was set at 9 kHz.

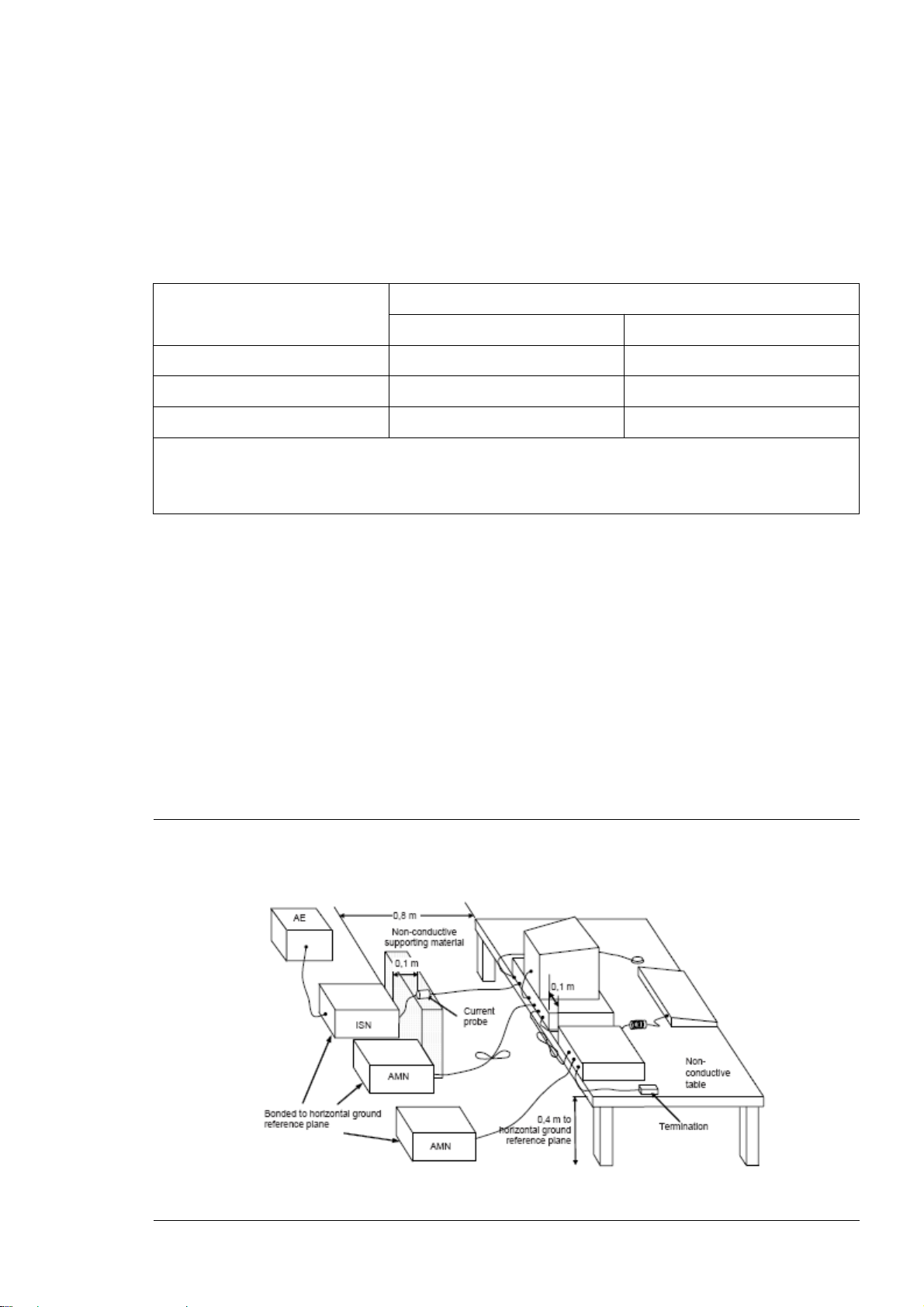

Test Set-up

Guangdong KeywayTesting Technology Co., Ltd. Report No. TR19120435-E-000 Page9of

Page 10

4.2.Radiated Emission Test (below 1 GHz)

Result : PASS

Test Site : 966 Chamber Limits : FCC Part 15B

Frequency range

MHz

Quasi-peak limits 3m

dB(μV/m)

30-88 40

88-216 43.5

216-960 46

960-1000 54

Note: 1.The lower limit shall apply at the transition frequency.

2.Additional provisions may be required for cases where interference occurs. Conditional testing procedure

1.The EUT was placed on a turn table which was 0.8 m above the ground. The turn table can rotate 360 degrees to determine the position of the maximum emission level. The EUT was set 3 m away from the receiving antenna which was mounted on an antenna tower. The measuring antenna moved up and down to find out the maximum emission level. It moved from 1 m to 4 m for both horizontal and vertical polarizations.

2.The highest frequency of the internal sources of the EUT is less than 108 MHz, the measurement shall only be made up to 1 GHz.

3.The EUT was tested in the Chamber Site. It was pre-scanned with a Peak detector from the spectrum, and all the final readings from the test receiver were measured with the Quasi-Peak detector.

4.The bandwidth setting on the test receiver was 120 kHz.

5.The worst test data were reported on the following pages.

6.Emission Level = Antenna Factor + Cable Loss + Meter Reading - Preamp Factor.

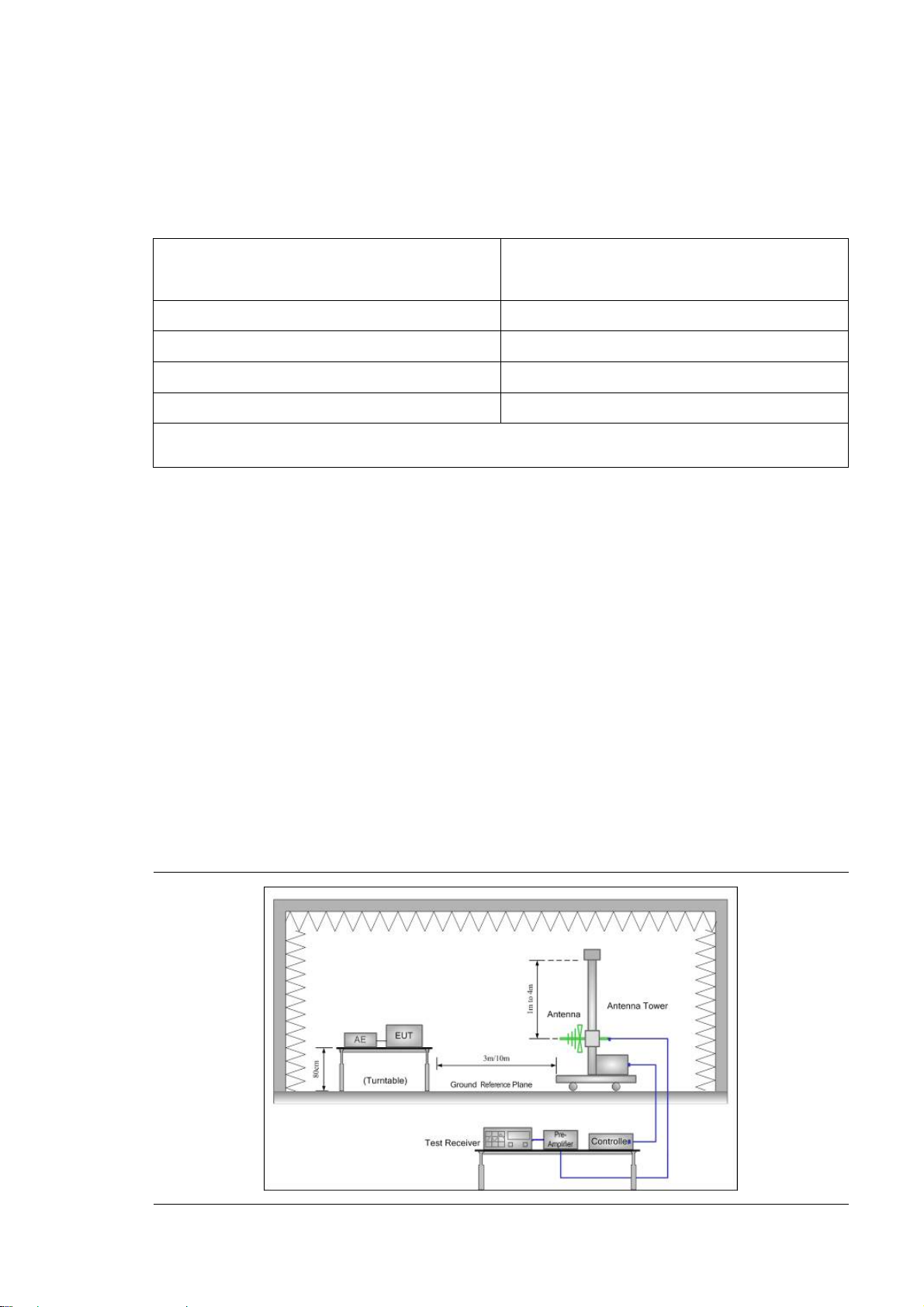

Test Set-up

Guangdong KeywayTesting Technology Co., Ltd. Report No. TR19120435-E-000 Page10of

Page 11

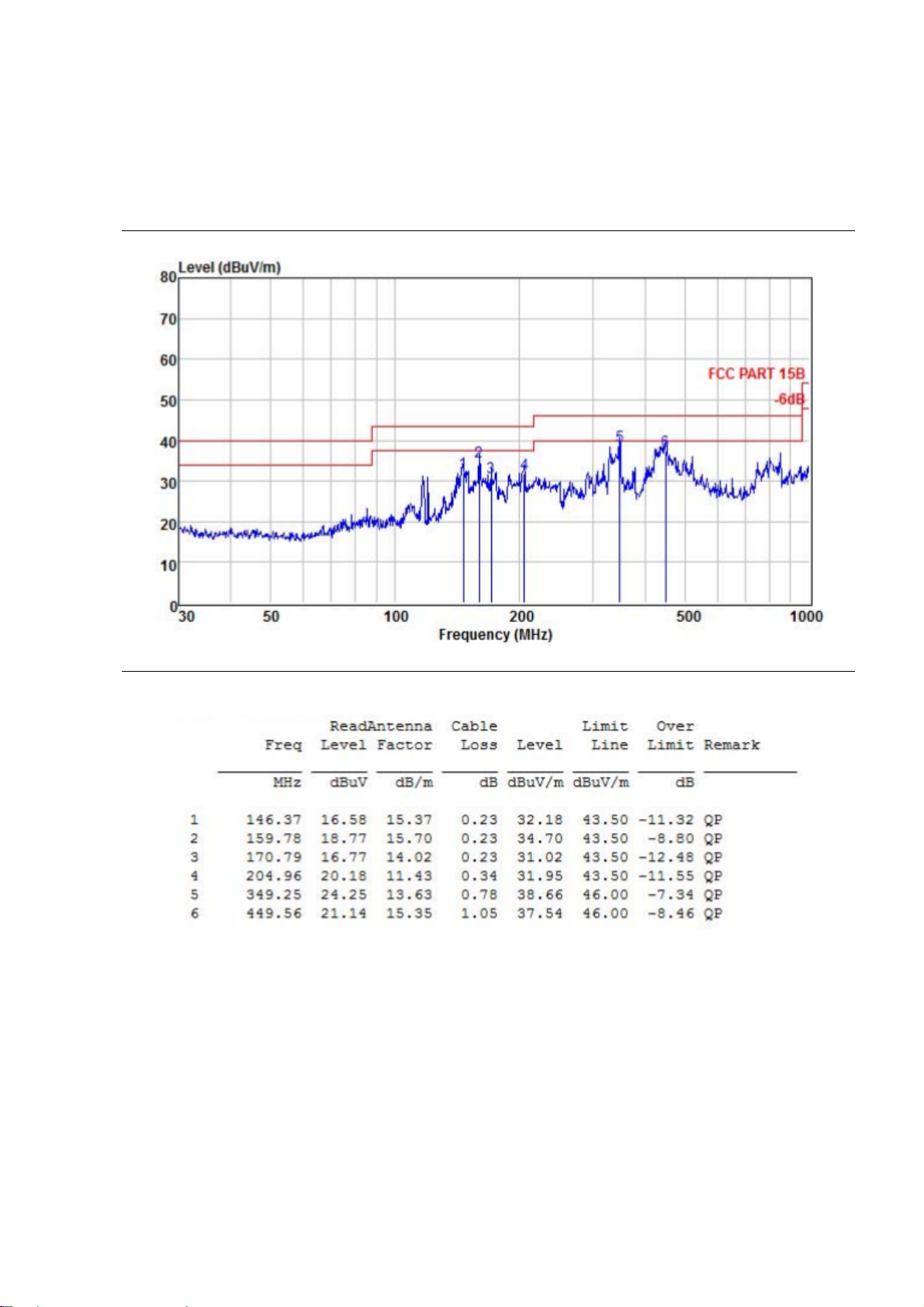

M/N : CB-C72 Operation Mode : Mode 1 Test Voltage : DC 5V From PC Test Specification : Vertical

Temperature (°C) : 24.9 Relative Humidity (%) : 56 Atmospheric Pressure(mbar) : 1015

Guangdong KeywayTesting Technology Co., Ltd. Report No. TR19120435-E-000 Page11of

Page 12

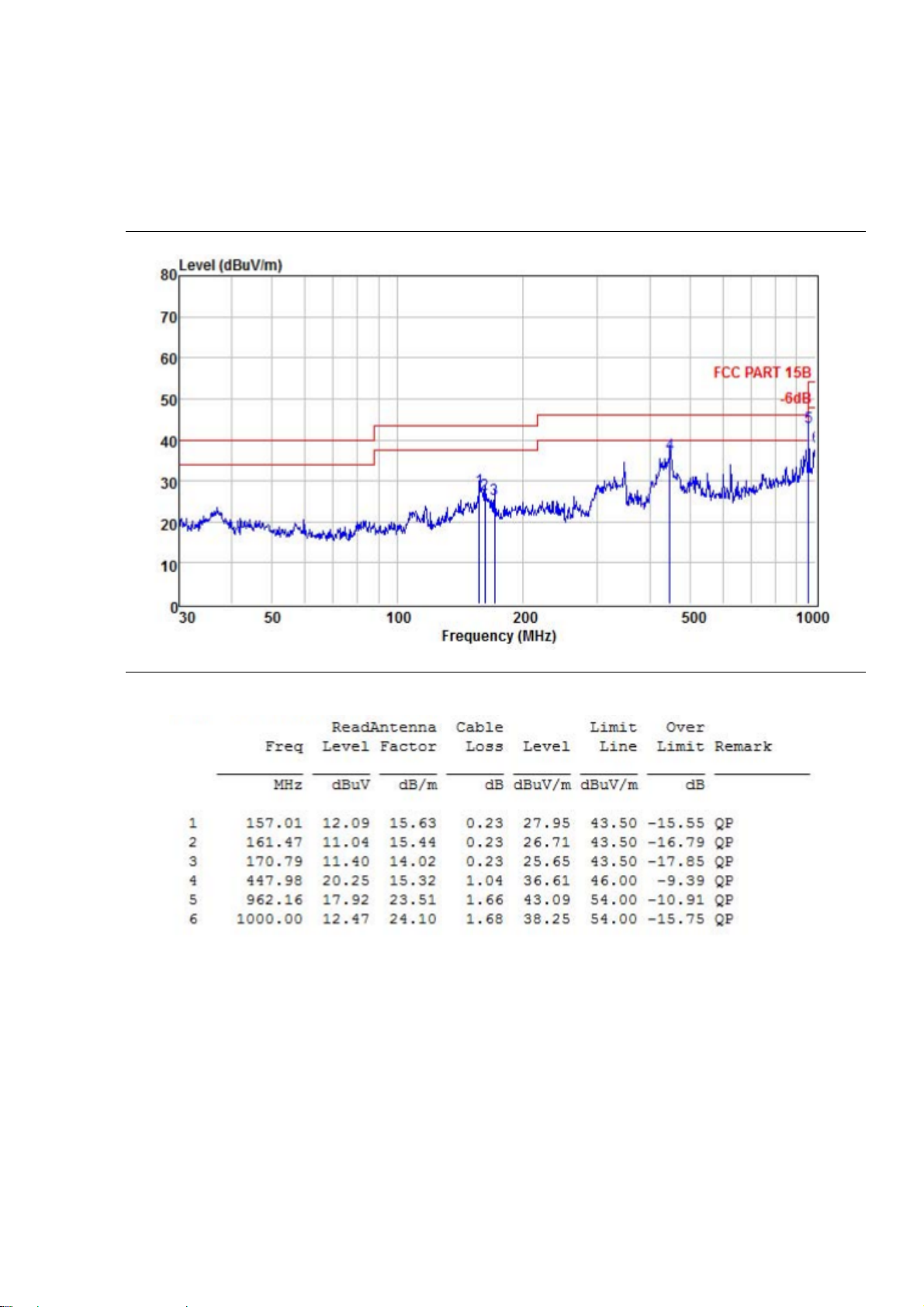

M/N : CB-C72 Operation Mode : Mode 1 Test Voltage : DC 5V From PC Test Specification : Horizontal

Temperature (°C) : 24.9 Relative Humidity (%) : 56 Atmospheric Pressure(mbar) : 1015

Guangdong KeywayTesting Technology Co., Ltd. Report No. TR19120435-E-000 Page12of

Page 13

4.3.Radiated Emission Test (above 1 GHz)

Result : N/A

Test Site : 966 Chamber Limits : FCC Part 15B

Frequency range

GHz

Average limit

dB(µV/m)

Peak limit dB(µV/m)

1-3 50 70 3-6 54 74

Note: The lower limit applies at the transition frequency Conditional testing procedure

2.The EUT was tested in the 3m Chamber Site. It was pre-scanned with a Peak detector from the spectrum.

3.The bandwidth setting on the test receiver was 1 MHz.

4. Emission Level = Antenna Factor + Cable Loss + Meter Reading - Preamp Factor. the highest frequency of the internal sources of the EUT is between 108 MHz and 500 MHz,

themeasurementshallonlybemadeupto2GHz.

the highest frequency of the internal sources of the EUT is between 500 MHz and 1 GHz,

themeasurementshallonlybemadeupto5GHz.

the highest frequency of the internal sources of the EUT is above 1 GHz, the measurement

shall be made up to 5 times the highest frequency or 40 GHz, whichever is lower.

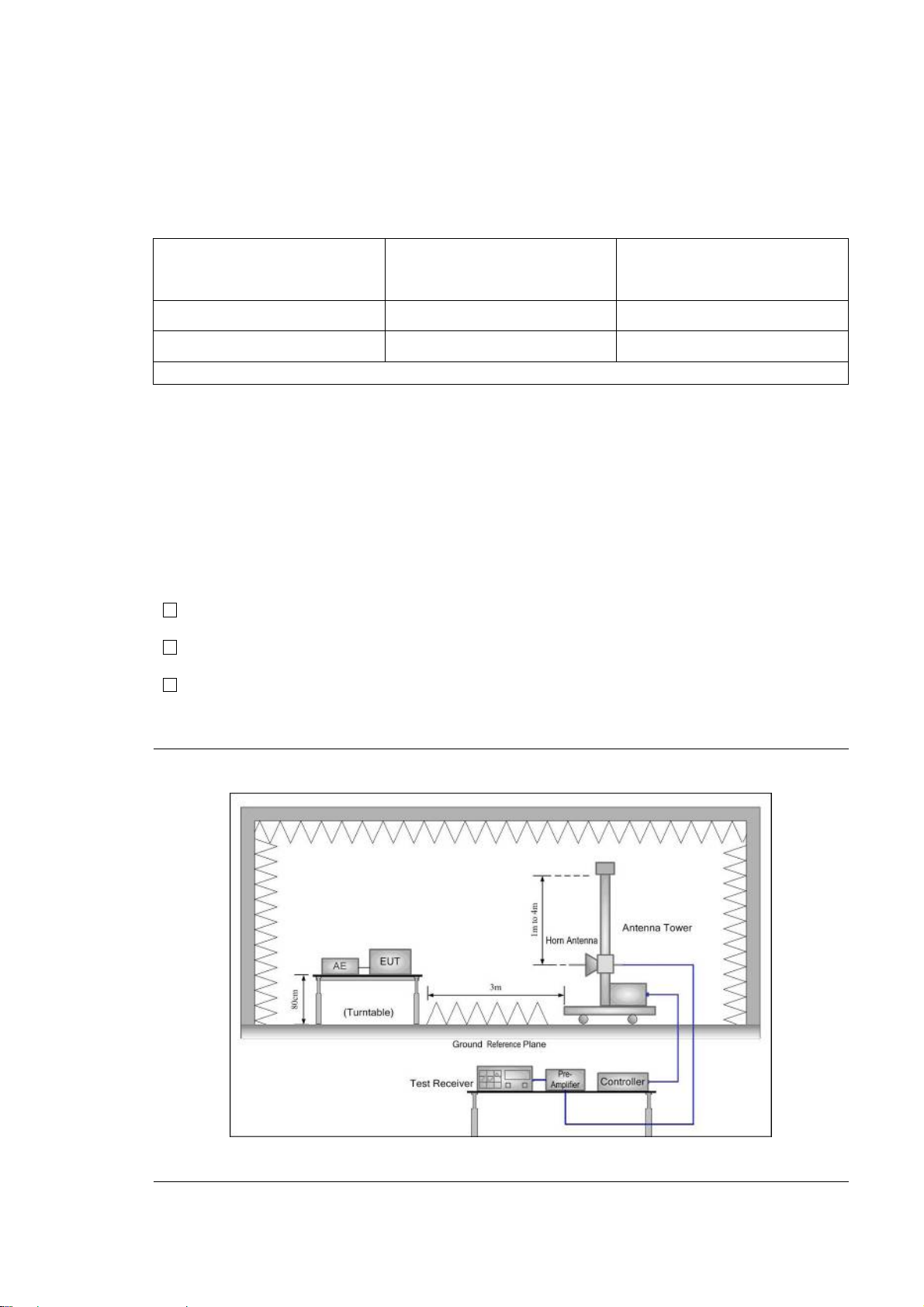

Test Set-up

Guangdong KeywayTesting Technology Co., Ltd. Report No. TR19120435-E-000 Page13of

Page 14

5. PHOTOGRAPHS OF TEST SET-UP

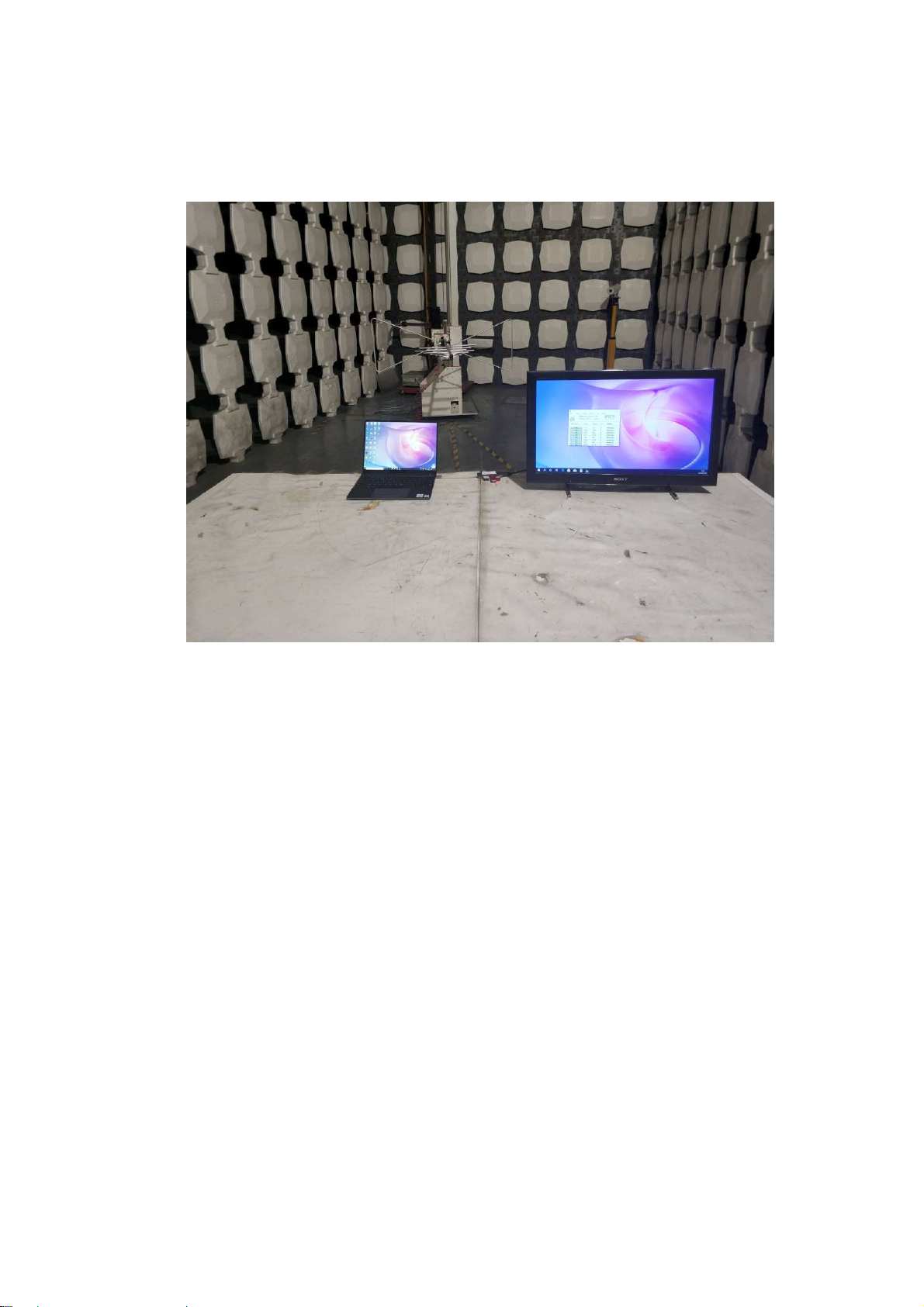

Radiated Emission Test (Below 1GHz)

Guangdong KeywayTesting Technology Co., Ltd. Report No. TR19120435-E-000 Page14of

Page 15

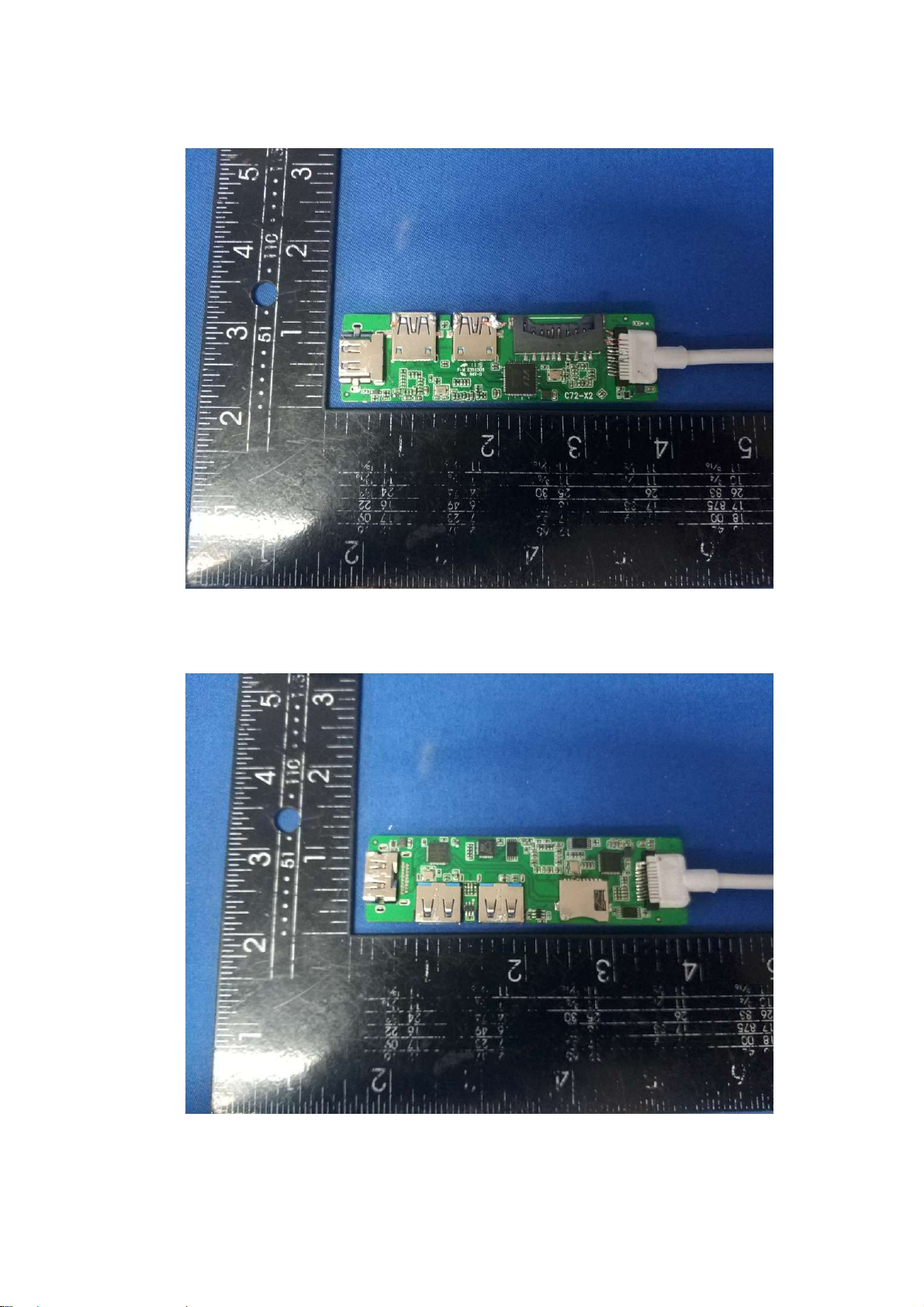

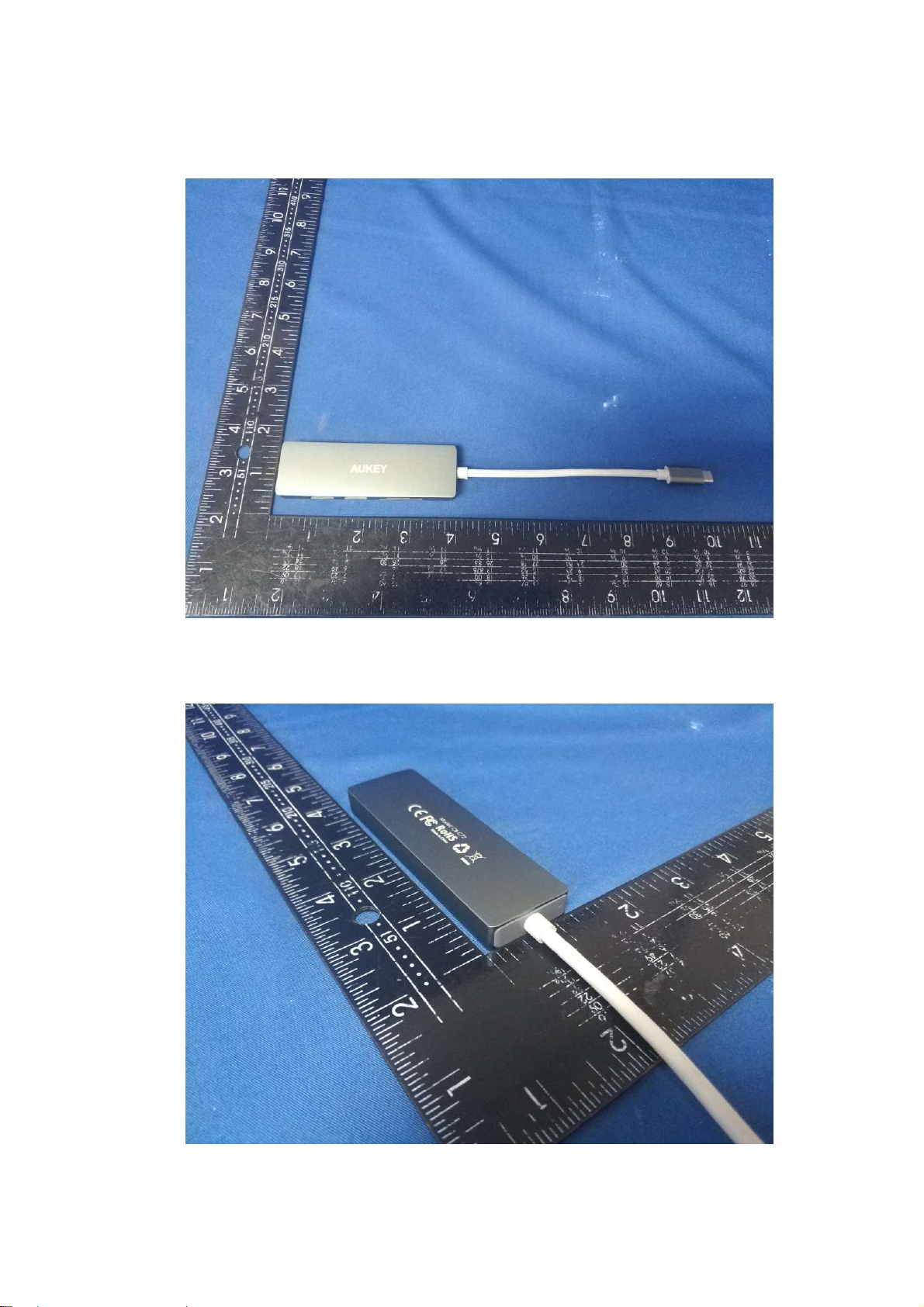

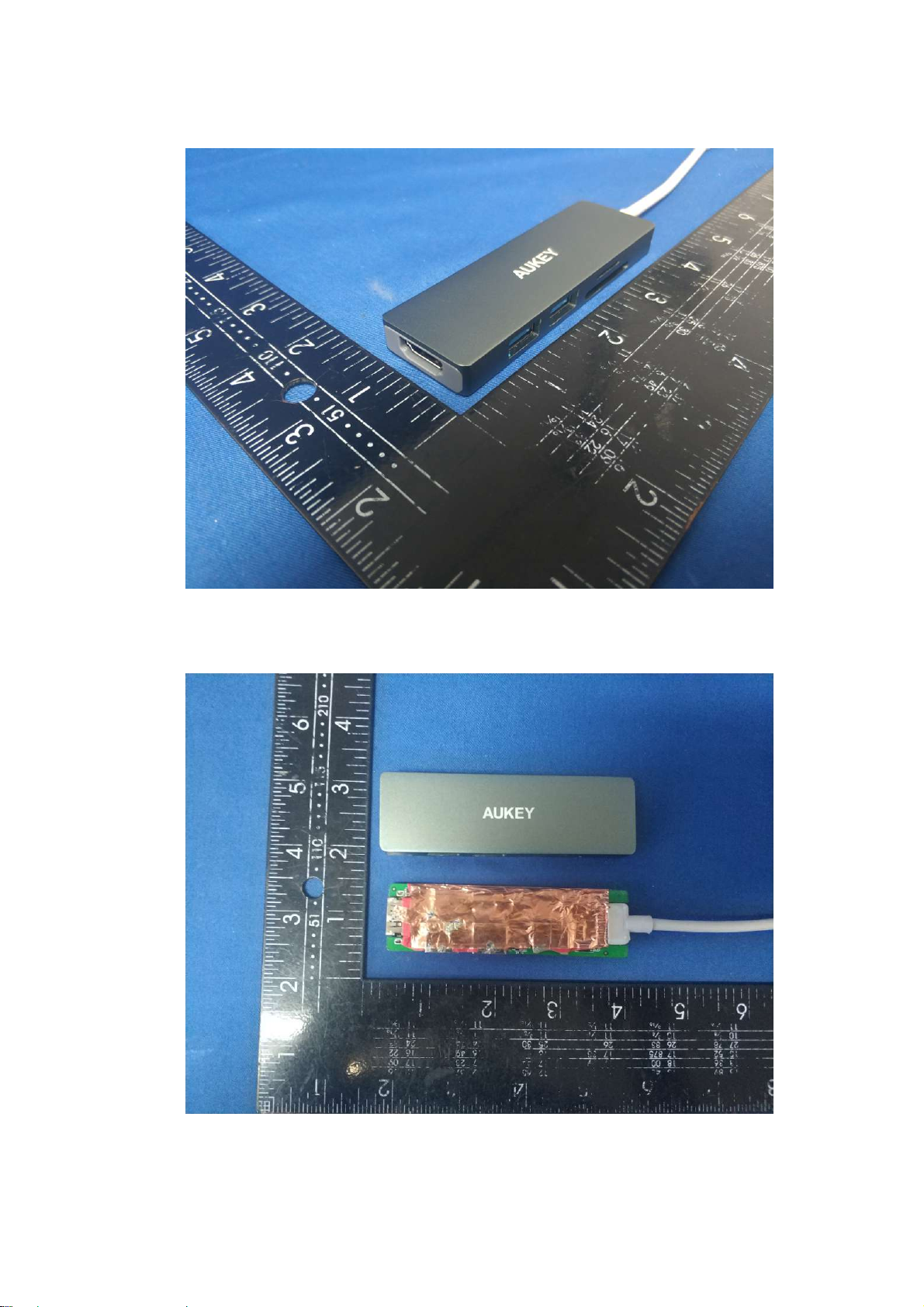

6. PHOTOGRAPHS OF THE EUT

Guangdong KeywayTesting Technology Co., Ltd. Report No. TR19120435-E-000 Page15of

Page 16

Guangdong KeywayTesting Technology Co., Ltd. Report No. TR19120435-E-000 Page16of

Page 17

***the end of the report***
