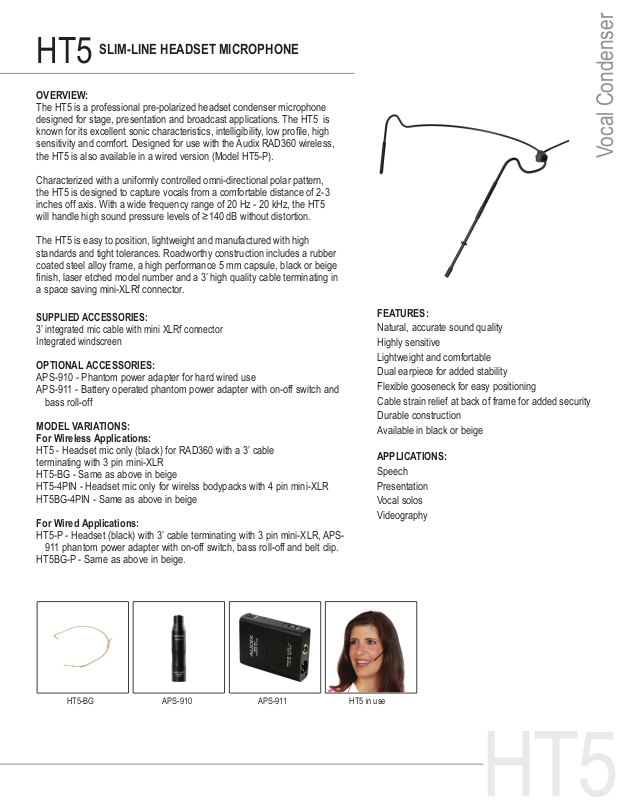

HT5
Vocal Condenser
HT5
SLIM-LINE HEADSET MICROPHONE
OVERVIEW:
The HT5 is a professional pre-polarized headset condenser microphone
designed for stage, presentation and broadcast applications. The HT5 is
known for its excellent sonic characteristics, intelligibility, low prole, high
sensitivity and comfort. Designed for use with the Audix RAD360 wireless,
the HT5 is also available in a wired version (Model HT5-P).
Characterized with a uniformly controlled omni-directional polar pattern,
the HT5 is designed to capture vocals from a comfortable distance of 2-3
inches off axis. With a wide frequency range of 20 Hz - 20 kHz, the HT5
will handle high sound pressure levels of ≥140 dB without distortion.
The HT5 is easy to position, lightweight and manufactured with high
standards and tight tolerances. Roadworthy construction includes a rubber
coated steel alloy frame, a high performance 5 mm capsule, black or beige
nish, laser etched model number and a 3’ high quality cable terminating in
a space saving mini-XLRf connector.
SUPPLIED ACCESSORIES:
3’ integrated mic cable with mini XLRf connector
Integrated windscreen
OPTIONAL ACCESSORIES:
APS-910 - Phantom power adapter for hard wired use
APS-911 - Battery operated phantom power adapter with on-off switch and
bass roll-off
MODEL VARIATIONS:
For Wireless Applications:
HT5 - Headset mic only (black) for RAD360 with a 3’ cable
terminating with 3 pin mini-XLR
HT5-BG - Same as above in beige
HT5-4PIN - Headset mic only for wirelss bodypacks with 4 pin mini-XLR
HT5BG-4PIN - Same as above in beige
For Wired Applications:
HT5-P - Headset (black) with 3’ cable terminating with 3 pin mini-XLR, APS-
911 phantom power adapter with on-off switch, bass roll-off and belt clip.
HT5BG-P - Same as above in beige.
FEATURES:
Natural, accurate sound quality
Highly sensitive
Lightweight and comfortable
Dual earpiece for added stability
Flexible gooseneck for easy positioning
Cable strain relief at back of frame for added security
Durable construction
Available in black or beige
APPLICATIONS:
Speech
Presentation
Vocal solos
Videography
HT5-BG APS-910 APS-911 HT5 in use
SPECIFICATIONS: ARCHITECTS AND ENGINEERS SPECIFICATIONS:
HT5
Transducer Type Pre-Polarized Condenser
Frequency Response 20 Hz - 20 kHz
Polar Pattern Omni-directional
Output Impedance 1000 Ohms balanced
Sensitivity 5 mV / Pa @ 1k
The microphone shall be a back plate pre-polarized condenser with an omni-directional polar
pattern. The microphone shall operate on 5-52 Volts biased from a wireless bodypack or phantom
power and the nominal output impedance shall be equal to 1000 ohms at 1 kHz. The microphone
shall have a sensitivity of 5 mV / Pa at 1 kHz. The microphone shall have a maximum SPL level
of ≥140 dB with a THD of 0.5%. The headset shall be made of exible steel alloy with steel coiled
gooseneck supporting the microphone element. The microphone shall be the Audix HT5.
Equivalent Noise Level 26 dB (A weighted)
Signal to Noise Ratio 68 dB
Maximum SPL 140 dB
Cable/Connector Miniature 3 pin or
4 pin (HT5-4PIN)
OPERATION AND MAINTENANCE:
The HT5 is a low impedance microphone designed for use with the Audix RAD360 wireless
bodypack. The HT5 may be used with other brands of wireless bodypacks, however, the connector
and wiring will most likely have to be modied in order to match the specs of the system being used.
(see wiring diagram of HT5)
XLRf connector
Polarity Positive pressure on
diaphragm produces
positive voltage on pin
2 relative to pin 3
Housing/Finish Flexible steel alloy /
Black or Beige
Weight 1.1 oz / 31 grams
HT5-P: The wired version, HT5-P, should be plugged into one of the “mic level” inputs on your
mixer, console, or recording device. The HT5-P will NOT operate without phantom power voltage
(9-48 Volts recommended) which is available on most professional mic preamps and mixing
devices. If phantom power is not available on your equipment, you may use the Audix APS-911
phantom power supply which allows battery powered operation. Avoid plugging or unplugging the
microphone from a PA system unless the channel is muted or the volume of the system is turned
down. Failure to do so may result in a loud “popping” noise which could seriously damage the
speakers in the PA system.
USER TIPS:
The HT5 is designed so that the headband is worn around the back of the head with the curved
ear pieces resting lightly around both ears. If the user has long hair, the back of the headset will be
completely hidden. The dual ear system keeps the headset stable once it is in the desired position.
The microphone is at the very end of the exible boom and should be positioned on the user’s left
side of the cheek just off the corner of the mouth. The exible steel cage can be adjusted to t your
head comfortably by either opening or closing the cage. For optimum sound and performance, DO
NOT put the microphone directly in front of the mouth or in the airow path of the nose.
*Further miking techniques may be found on our website at www.audixusa.com
FREQUENCY / POLARS:
***All specications subject to change without notice.
SERVICE AND WARRANTY:
This microphone is under warranty for
a period of 3 years from any and all
manufacturing defects. Should your
microphone fail in any way, please contact the Audix Service department at
503-682-6933. A Return Authorization
number is required before returning
any products.
CARE AND MAINTENANCE:
The HT5 is manufactured to exacting specs
with roadworthy construction. However, the
capsule is highly sensitive and should be
handled with care. Avoid extreme temperatures
and be sure to store your microphone in the
pouch provided when not in use. Moisture of
any kind can adversely affect the sound and
performance of your microphone.
DIMENSIONS (mm):
To register your
microphone, please visit
www.audixusa.com
www.audixusa.com Call: 503-682-6933 Fax: 503-682-7114
Audix Corporation 9400 SW Barber Street, Wilsonville, OR 97070
