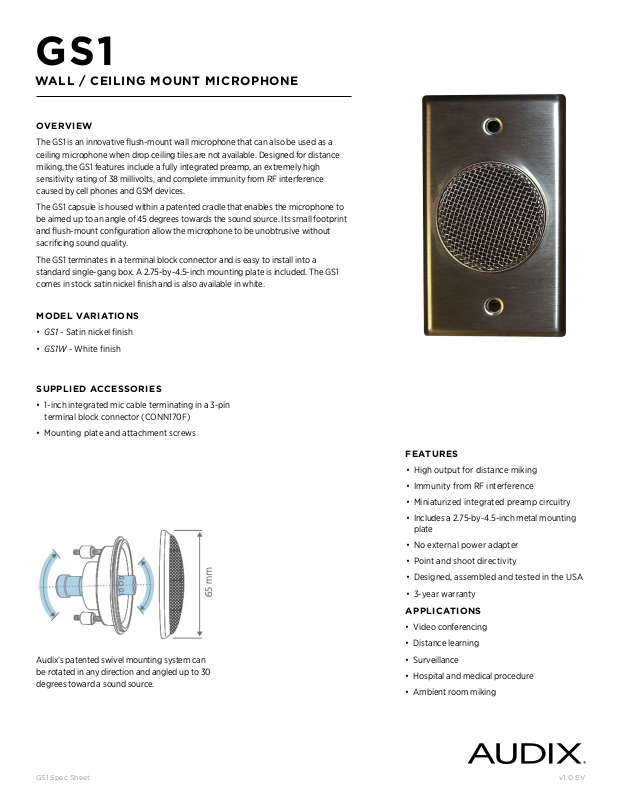

GS1
WALL / CEILING MOUNT MICROPHONE
OVERVIEW
The GS1 is an innovative flush-mount wall microphone that can also be used as a
ceiling microphone when drop ceiling tiles are not available. Designed for distance
miking, the GS1 features include a fully integrated preamp, an extremely high
sensitivity rating of 38 millivolts, and complete immunity from RF interference
caused by cell phones and GSM devices.
The GS1 capsule is housed within a patented cradle that enables the microphone to
be aimed up to an angle of 45 degrees towards the sound source. Its small footprint
and flush-mount configuration allow the microphone to be unobtrusive without
sacrificing sound quality.
The GS1 terminates in a terminal block connector and is easy to install into a
standard single-gang box. A 2.75-by-4.5-inch mounting plate is included. The GS1
comes in stock satin nickel finish and is also available in white.
MODEL VARIATIONS
• GS1 - Satin nickel finish
• GS1W - White finish
SUPPLIED ACCESSORIES
• 1-inch integrated mic cable terminating in a 3-pin
terminal block connector (CONN170F)
• Mounting plate and attachment screws
Audix’s patented swivel mounting system can
be rotated in any direction and angled up to 30
degrees toward a sound source.
FEATURES
• High output for distance miking
• Immunity from RF interference
• Miniaturized integrated preamp circuitry
• Includes a 2.75-by-4.5-inch metal mounting
plate
• No external power adapter
Point and shoot directivity
•
• Designed, assembled and tested in the USA
• 3-year warranty
APPLICATIONS
• Video conferencing
• Distance learning
• Surveillance
• Hospital and medical procedure
• Ambient room miking
GS1 Spec Sheet
v1.0 EV
ARCHITECT AND ENGINEER SPECIFICATIONS
The microphone shall be of the condenser type with a cardioid polar pattern.
The microphone shall be protected from RF interference. The microphone shall
have a fully integrated preamp circuitry thereby eliminating the need for a
remote preamplifier module. The microphone shall operate on 18-52 Volts DC
and the nominal output impedance shall be equal to 150 ohms at 1 kHz. The
microphone shall have a sensitivity of 38 mV / Pa at 1 kHz. The microphone shall
have a maximum SPL level of ≥130 dB with THD of 0.5%. The microphone shall be
machined out ofbrass, aluminum and the dimensions shall be 65 mm in diameter
by 10 mm in depth. The microphone shall have the ability to be aimed and rotated
within a radius of 60 degrees. The microphone shall be configured for wall
mounting and surrounded by a metal wall plate which will conceal and protect
wiring from the microphone and the terminal connectors. The microphone shall be
the Audix GS1.
FREQUENCY RESPONSE
SPECIFICATIONS
Type Condenser
Polar Pattern Cardioid
Frequency Response 60 Hz - 10 kHz
Output Impedance 150 Ohms
Sensitivity 38 mV / Pascal @ 1k
Signal to Noise Ratio 72 dB
Equivalent Noise Level 22 dB
Maximum SPL ≥130 dB
Dynamic Range 108 dB
Power Requirements 18 - 52 V phantom
Connector 3-pin Phoenix fe
Polarity Positive pressure on
diaphragm produces
positive voltage on blue
(center) Phoenix conductor
Materials / Finish Brass aluminum and steel
White or Nickel
Recommended Cable Belden 9451 P or 82761
Length 176 mm / 6.9 in
POLAR PATTERNS
DIMENSIONS
2.5” (64 mm)
Wall Thickness
MIN. 0.4 inch (10 mm)
MAX.
0.8 inch (21 mm)
For thicker mounts, contact Audix.
0.5” (13.5 mm)
© 2019 AUDIX CORPORATION. AUDIX IS A REGISTERED TRADEMARK OF THE AUDIX
CORPORATION. SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE. VISIT AUDIXUSA.COM
FOR SERVICE AND WARRANTY.
