Audix FP QUAD SPECIFICATIONS

FP QUAD
Drum Microphone Packs
FP QUAD
PACKAGED SET OF 4 DRUM MICS
Aluminum road case
1 x f5 snare mic
1 x f6 kick mic
2 x f9 overhead mics
1 x DVICE rim mount with MC1 mic clip
3 x DCLIP mic clips
PROFESSIONAL DRUM AND PERCUSSION MIC PACKAGE
FP QUAD
When it comes to drum and percussion microphones, Audix is the industry leader. These high precision instrument microphones are designed to ll the specic needs of artists and engineers for both studio and live applications.
The Audix FP Series QUAD pack is the simplest and most eective combination of microphones that will allow you to capture the depth and imaging of a full drum kit. With kick, snare and two overheads, the QUAD incorporates the best of two miking techniques: close miking and overhead (ambient) miking.
Close Miking: The f6 for kick drum and the f5 for snare are considered the two microphones every drummer must have. The kick and snare are considered the core of any drum kit and the foundation for every groove. Close miking insures that they will be captured in the mix. If either the kick or the snare is unable to be heard, there is simply no groove. Being high SPL dynamic microphones, the f6 and f5 excel at “close miking”. This miking technique is required in order to capture the attack and percussive sound of the drum. Also, by having the mic close to the source of the sound, it helps to isolate the sound of each drum and separate it from the rest of the kit.
Overhead (ambient) miking: Supporting the idea that “less is more”, there are many engineers who will use just two overhead mics to capture the natural sound of the complete drum kit. With two overhead mics, positioned correctly, it is absolutely true that you can capture the transients, tonality and balance of the kit in a completely phase-coherent manner. The f9, which is a pre-polarized condenser microphone with a 14mm gold sputtered diaphragm, is designed specically with overhead applications in mind. Due to its cardioid pickup pattern, high sensitivity and slim pencil design, the two f9 mics can be easily positioned overhead to provide a nice stereo image of the entire drum kit.
The Blend: With contemporary music and with the volumes typically generated on stage, it is more practical and eective to create a blended eect of close miking and overhead miking – the exact intent of the FP QUAD. The f6 will help provide the earthshaking lows and the attack of the kick; the f5 will reinforce the depth and crack of the snare; the overheads will pick up the high-hat, tom lls, cymbals and the ambiance of the entire kit. With the FP QUAD, drums will maintain their sound integrity and critical presence, regardless of the size of the room and PA system.

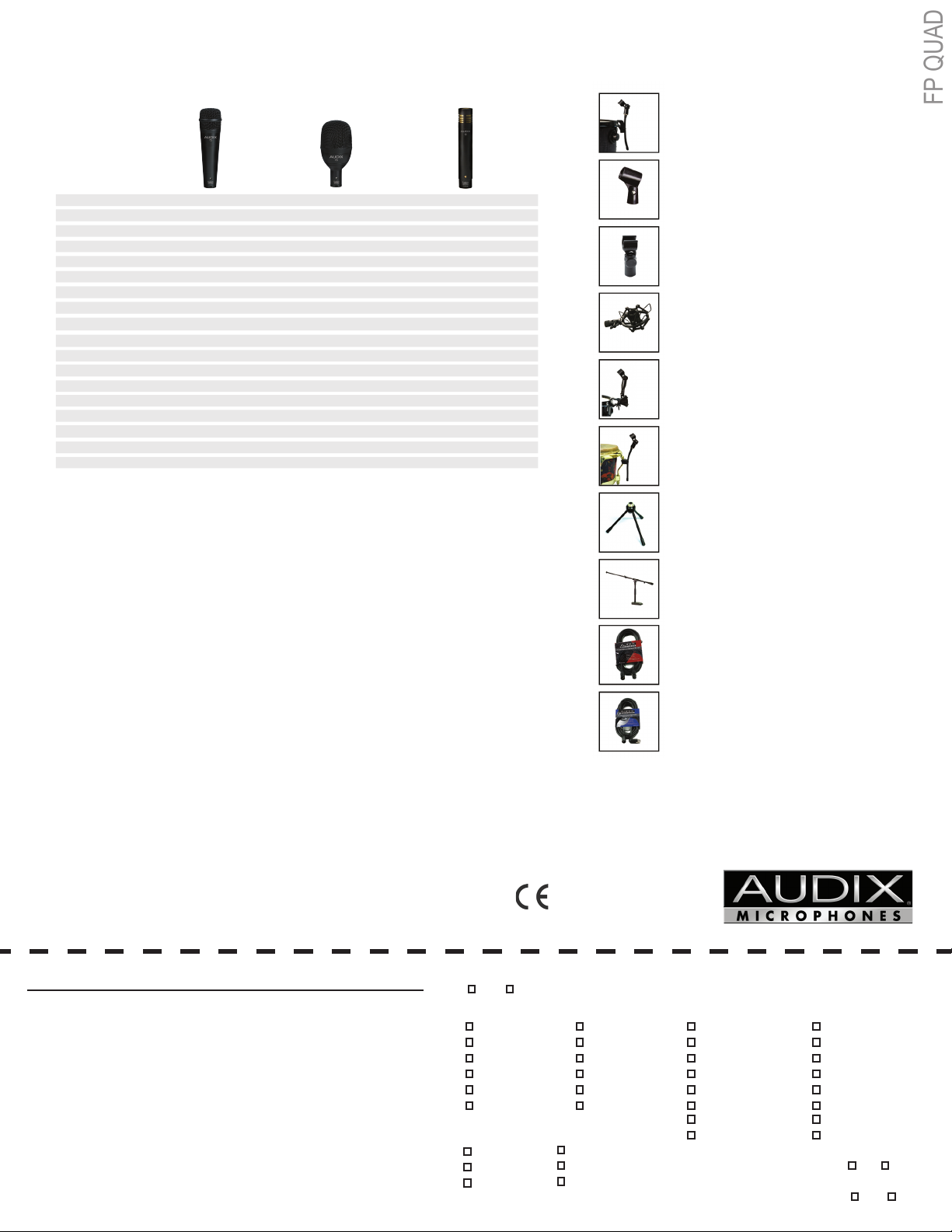

SPECIFICATIONS:
FP QUAD
OPTIONAL ACCESSORIES:
DVICE
Spring loaded rim mount clamp
f9
Overheads, high-hat,
cymbals, goodie table
Accurate reproduction of
high frequency instruments,
-10 dB pad bass roll-off lter
Pre-polarized Condenser
40 Hz - 20 kHz
Cardioid
200 ohms
8 mV / Pa @ 1k
≥137 dB
>24 dB
9 - 52v phantom
Cast Zinc Alloy /
Black Finish
91 g / 3.2 ounces
Application
Features
Transducer Type Frequency Response Polar Pattern Output Impedance Sensitivity Maximum SPL Off-axis rejection Power Requirements Housing / Finish
Weight
Snare (top or bottom), toms,
hand percussion, guitar cabs,
Protective steel mesh grill,
easy to set up and use, clean,
f5
acoustic instruments
accurate sound
Dynamic
55 Hz - 15 kHz
Hypercardioid
580 ohms
2.2 mV / Pa @ 1k
≥137 dB
>20 dB
None
Cast Zinc Alloy /
Black Finish
283 g / 10 ounces
f6
Kick drum, oor tom,
djembe, cajon
Extended low end for
larger drums, accurate
frequency response,
natural sound
Dynamic
40 Hz - 16 kHz
Hypercardioid
580 ohms
1.2 mV / Pa @ 80Hz
≥140 dB
>23 dB
None
Cast Zinc Alloy /
Black Finish
311 g / 11 ounces
USER TIPS:
The following are some ideas as to how the microphones in the pack interact with each other. FP QUAD [1 x f5, 1 x f6, 2 x f9]: This package is ideal for literally any 5 piece kit for stage or recording. f6 - Kick Drum: To position the f6, a good starting point is a few inches inside the port of the front head with the mic pointing o­center and not directly at the beater. For more attack, move the mic closer towards the beater head. For more bass, pull the mic away from the beater head. f5 - Snare: As a general rule, the f5 is meant to be close miked. A good starting point is 2 inches above the rim with the mic pointing towards the center of the head. For more “rim” sound, pull the mic back closer to the rim. For more resonance and depth of eld, pull the mic further away from the head. The trick is to nd the right balance between resonance and attack while still controlling bleed from the other drums. f9s - As overheads: The most common positioning concept is to keep the snare as the focal point and move the mics into various left and right positions equal distance from the snare; 4 feet is a good starting point. For best results, keep the mics in a vertical position, keeping in mind that you are not necessarily just miking the cymbals but the whole kit. You will nd after some experimentation that the kick, snare, and overheads will provide most of your sound while the tom mics are used for sweetening. Note: To pick up more of the high-hat, you can change the balance of the mics by pulling the mic on the hi-hat side of your kit closer towards the high hat.
MC1
Nylon mic clip
DCLIP Heavy duty mic clip provided with D
series and SCX series
SMT25
Shockmount suspension clip
DFLEX
All purpose percussion clamp
DCLAMP
Tension rod mic clamp
TRIPOD
Tripod mic stand
STAND-KD Adjustable kick drum mic stand
CBL-20 20’ XLR-XLR mic cable
CBL-DR25 25’ right angle XLR-XLR mic cable
For more tips on miking your kit, please refer to the Audix DVD on “How to Mic your Drums” or visit the Audix website to view the individual chapters.
***All specications subject to change without notice.
SERVICE AND WARRANTY:
These microphones are under warranty for a period of 3 years for condensers and 5 years for dynamics from any and all manufacturing defects. Should your microphone fail in any way, please contact the Audix Service department at 503­682-6933. A Return Authorization number is required before
returning any products.
CARE AND MAINTENANCE:
The microphones in the FP Series Packs are manufactured to exacting specs with roadworthy construction. However, the capsule is highly sensitive and should be handled with care. Avoid extreme temperatures and be sure to store your microphone in the case provided when not in use. Moisture of any kind can adversely aect the sound and performance of your microphone.
AUDIX WARRANTY REGISTRATION FORM
Name:________________________________ Model:___________________ Company:_____________________________ Serial Number:_____________ Address:______________________________ Store:____________________ City:_________________________________ Store Location:_____________ Prov./State:___________ Zip:_____________ Purchase Date:_____________ Phone: ( )___________________________ Signature:_________________ Email:________________________________ Date:____________________
Please register your product online at www.audixusa.com or mail this form to:
Audix Microphones P.O. Box 4010 Wilsonville, OR 97070
www.audixusa.com
Audix Corporation 9400 SW Barber St. Wilsonville, OR 97070
503-682-6933 Fax: 503-682-7114
Please Check all that apply: Male Female
Age: Occupation: Primary Instruments: Product to be used for: 18 or Under Musician Vocal Pro live sound 19-25 Producer Guitar / Bass Pro recording 26-35 Sound Eng. Drums Home recording 36-45 Radio/TV Keyboard Rehearsal 46-55 Production Brass Installation 55 + Other _______ Woodwinds School Strings House of Worship How did you hear about Audix? Other ___________ Other ___________ Magazine Ad Online Ad On-line Store Friend Do you own other Audix Products? Yes No Salesman Other __________ Model(s) ________________________________ Have you visited the Audix website? Yes No
