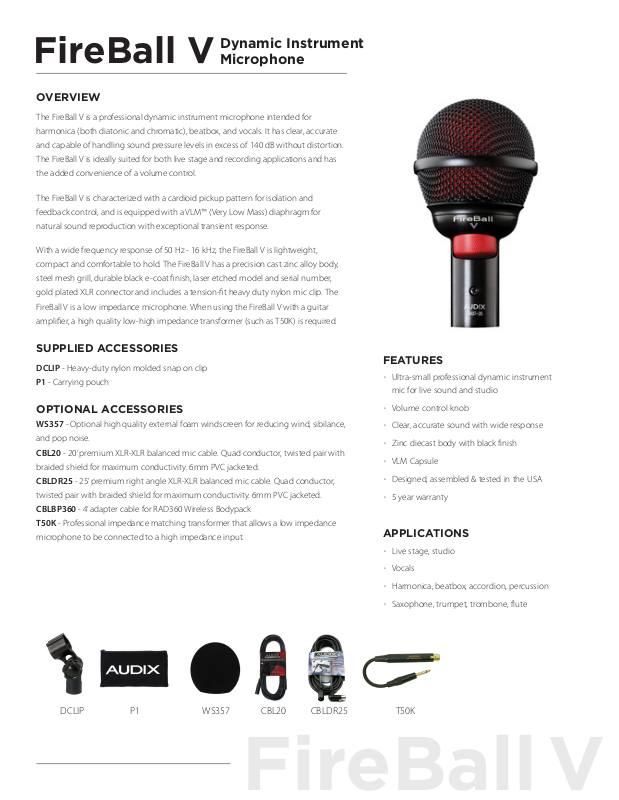

Audix FIREBALLV Specifications

Dynamic Instrument

FireBall V

FireBall V

OVERVIEW

The FireBall V is a professional dynamic instrument microphone intended for

harmonica (both diatonic and chromatic), beatbox, and vocals. It has clear, accurate

and capable of handling sound pressure levels in excess of 140 dB without distortion.

The FireBall V is ideally suited for both live stage and recording applications and has

the added convenience of a volume control.

The FireBall V is characterized with a cardioid pickup pattern for isolation and

feedback control, and is equipped with a VLM™ (Very Low Mass) diaphragm for

natural sound reproduction with exceptional transient response.

With a wide frequency response of 50 Hz - 16 kHz, the FireBall V is lightweight,

compact and comfortable to hold. The FireBall V has a precision cast zinc alloy body,

steel mesh grill, durable black e-coat finish, laser etched model and serial number,

gold plated XLR connector and includes a tension-fit heavy duty nylon mic clip. The

FireBall V is a low impedance microphone. When using the FireBall V with a guitar

amplifier, a high quality low-high impedance transformer (such as T50K) is required.

Microphone

SUPPLIED ACCESSORIES

DCLIP - Heavy-duty nylon molded snap on clip

P1 - Carrying pouch

OPTIONAL ACCESSORIES

WS357 - Optional high quality external foam windscreen for reducing wind, sibilance,

and pop noise.

CBL20 - 20’ premium XLR-XLR balanced mic cable. Quad conductor, twisted pair with

braided shield for maximum conductivity. 6mm PVC jacketed.

CBLDR25 - 25’ premium right angle XLR-XLR balanced mic cable. Quad conductor,

twisted pair with braided shield for maximum conductivity. 6mm PVC jacketed.

CBLBP360 - 4’ adapter cable for RAD360 Wireless Bodypack

T50K - Professional impedance matching transformer that allows a low impedance

microphone to be connected to a high impedance input.

FEATURES

· Ultra-small professional dynamic instrument

mic for live sound and studio

· Volume control knob

· Clear, accurate sound with wide response

· Zinc diecast body with black finish

· VLM Capsule

· Designed, assembled & tested in the USA

· 5 year warranty

APPLICATIONS

· Live stage, studio

· Vocals

· Harmonica, beatbox, accordion, percussion

· Saxophone, trumpet, trombone, flute

DCLIP P1 WS357 CBL20 CBLDR25 T50K

SPECIFICATIONS

Transducer Type

Frequency Response

Polar Pattern

Output Impedance

Sensitivity

Capsule Technology

Off-Axis Rejection

Maximum SPL

Power Requirements

Connector

Polarity

Materials / Finish

Weight

Length

Dynamic

50 Hz - 16 kHz

Cardioid

280 ohms

1.5 mV / Pa @ 1k

VLM Tyle B

>23 dB

≥140 dB

None

3-pin XLRm

Positive pressure on diaphragm
produces positive voltage on
pin 2 relative to pin 3 of output
XLR connector

Zinc Alloy / Black Finish

180 g / 5 oz

99.5 mm / 3.9 in

ARCHITECT AND ENGINEER SPECIFICATIONS

The microphone shall be of the dynamic type operating on the moving coil

principle and the polar pattern of the microphone shall be cardioid. The nominal

output impedance shall be equal to 280 ohms at 1 kHz. The microphone shall

have a sensitivity of 1.5 mV / Pa at 1 kHz and a sound pressure level ≥140 dB. The

microphone body shall be die cast zinc alloy and the grill shall be of steel mesh.

The overall dimensions shall be 21mm in diameter at the base, 53.5 mm at the

widest point on the grill, and 99.5 mm in length.

OPERATION AND MAINTENANCE

The FireBall V is a low impedance microphone and should be plugged into a

“mic level” input on your console, mixer, or recording device. Please note that

your microphone does not require phantom power and will not be affected

in any way by phantom power should it be running simultaneously when the

microphone is in operation. Avoid plugging or unplugging the microphone

from the PA system unless the channel is muted or the volume of the system

turned down. Failure to do so may result in a loud “popping” noise which could

seriously damage the speakers in the PA system.

FireBall V

DIMENSIONS (mm)

FREQUENCY RESPONSE

POLAR PATTERNS

Lo

The FireBall V is manufactured to exacting specs with roadworthy construction.

However, the capsule is highly sensitive and should be handled with care. Avoid

extreme temperatures and be sure to store your microphone in the pouch

provided when not in use. Moisture of any kind can adversely effect the sound

and performance of your microphone.

USER TIPS

The FireBall V has a tight cardioid pick-up pattern in order to help eliminate

sound from other instruments on stage from “bleeding” into the microphone.

The FireBall V is a low impedance microphone, however, it may be plugged

directly into a guitar amp by using the Audix T50k impedance converter. This

will allow for the proper gain structure and will ensure the best possible sound

quality. Allow a distance of 2-3 feet between microphones to avoid phase

cancellation issues.

Further miking techniques may be found at www.audixusa.com.

Hi

PRODUCT REGISTRATION: Please register your product online at www.audixusa.com/docs_12/about/product_registration.shtml.
SERVICE AND WARRANTY:

workmanship, Audix will repair or replace said product at no charge with proof of purchase. Audix does not pay or reimburse shipping costs for warranty repairs or returns. The warranty excludes
any causes other than manufacturing defects, such as normal wear, abuse, environmental damage, shipping damage or failure to use or maintain the product per the supplied instructions. No
Implied Warranties: All implied warranties, including but not limited to implied warranties of merchantability and fitness for a particular purpose are hereby excluded. The liability of Audix, if any,
for damages relating to allegedly defective products shall be limited to the actual price paid by Dealer for such products and shall in no event include incidental or consequential damages of
any kind. Should your microphone fail in any way, please contact the Audix Service department at 503.682.6933. A Return Authorization is required before returning any product. OTHER THAN
THIS WARRANTY, AUDIX MAKES NO WARRANTIES, EXPRESS OR IMPLIED, WITH RESPECT TO THE PRODUCTS, THE USE OF THE PRODUCTS, THE PERFORMANCE OF THE PRODUCTS. AUDIX SHALL
NOT BE LIABLE FOR SPECIAL INCIDENTAL, CONSEQUENTIAL, INDIRECT OR SIMILAR DAMAGES ARISING FROM OR BASED ON THE SALE, USE, STORAGE OR DISPOSAL OF THE PRODUCTS, AUDIX’S
SERVICE WORK, BREACH OF WARRANTY, BREACH OF CONTRACT. NEGLIGENCE, OR ANY OTHER THEORY OF LIABILITY, EVEN IF AUDIX HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.

This microphone is under warranty for a period of 5 years to be free of defects in material and workmanship. In the event of a product failure due to materials or

www.audixusa.com

Audix Corporation 9400 SW Barber St. Wilsonville, OR 97070

503.682.6933 Fax: [phone]

ver 3.0 05-16
