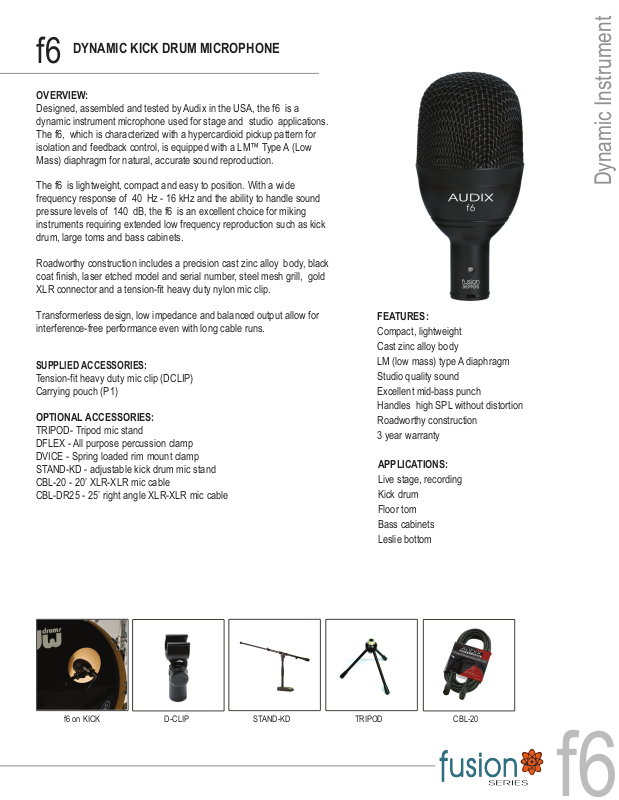

DYNAMIC KICK DRUM MICROPHONE
f6
Dynamic Instrument
f6
OVERVIEW:
Designed, assembled and tested by Audix in the USA, the f6 is a
dynamic instrument microphone used for stage and studio applications.
The f6, which is characterized with a hypercardioid pickup pattern for
isolation and feedback control, is equipped with a LM™ Type A (Low
Mass) diaphragm for natural, accurate sound reproduction.
The f6 is lightweight, compact and easy to position. With a wide
frequency response of 40 Hz - 16 kHz and the ability to handle sound
pressure levels of 140 dB, the f6 is an excellent choice for miking
instruments requiring extended low frequency reproduction such as kick
drum, large toms and bass cabinets.
Roadworthy construction includes a precision cast zinc alloy body, black
coat nish, laser etched model and serial number, steel mesh grill, gold
XLR connector and a tension-t heavy duty nylon mic clip.
Transformerless design, low impedance and balanced output allow for
interference-free performance even with long cable runs.
SUPPLIED ACCESSORIES:
Tension-fit heavy duty mic clip (DCLIP)
Carrying pouch (P1)
OPTIONAL ACCESSORIES:
TRIPOD- Tripod mic stand
DFLEX - All purpose percussion clamp
DVICE - Spring loaded rim mount clamp
STAND-KD - adjustable kick drum mic stand
CBL-20 - 20’ XLR-XLR mic cable
CBL-DR25 - 25’ right angle XLR-XLR mic cable
FEATURES:
Compact, lightweight
Cast zinc alloy body
LM (low mass) type A diaphragm
Studio quality sound
Excellent mid-bass punch
Handles high SPL without distortion
Roadworthy construction
3 year warranty
APPLICATIONS:
Live stage, recording
Kick drum
Floor tom
Bass cabinets
Leslie bottom
f6 on KICK D-CLIP STAND-KD TRIPOD CBL-20
SPECIFICATIONS:
f6
Transducer Type Dynamic
Frequency Response 40 Hz - 16 kHz
Polar Pattern Hypercardioid
Output Impedance 580 ohms
Sensitivity 0.6 mV / Pa @ 80 Hz
Capsule Technology LM Type A
Off Axis Rejection >23 dB
Maximum SPL ≥140 dB
Power Requirements None
Connector 3 pin gold plated male
XLR connector
Polarity Positive voltage on pin
2 relative to pin 3 of
output XLR connector
Housing / Finish Cast zinc alloy /
Black coat
Weight 311 g / 11 ounces
Length 121 mm / 4.76 inches
ARCHITECTS AND ENGINEERS SPECIFICATIONS:
The microphone shall be of the dynamic type operating on the moving coil principle
and the capsule shall be LM Type A. The polar pattern of the microphone shall be
hypercardioid. The nominal output impedance shall be 580 ohms at 1 kHz.The
microphone shall have a sensitivity of 0.6 mV / Pa at 1 kHz and will handle a sound
pressure level of ≥140 dB. The microphone body shall be cast of zinc alloy metal
and the grill cap shall be steel wire mesh. The overall dimensions shall be 21 mm in
diameter at the base, 58 mm in diameter at the widest point and 121 mm in length. The
microphone shall be the Audix f6.
OPERATION:
The f6 is a low impedance microphone and should be plugged into a “mic level” of
your console, mixer, or recording device. Please note that your microphone does not
require phantom power and will not be effected in any way by phantom power should
it be running simultaneously while the microphone is in operation. Avoid plugging or
unplugging the microphone from the PA system unless the channel is muted or the
volume of the system turned down. Failure to do so may result in a loud “popping”
noise which could seriously damage the speakers in the PA system.
USER TIPS:
The f6 is designed with low output in order to compensate for instruments having
very high sound pressure levels. For kick drums, as a general rule, start with the
mic positioned centered inside the middle of the drum pointed towards the beater. For
more attack, and less bass boom, move the mic closer to the beater. For less attack
and more bass, move the mic further away from the beater. For kick drums without
hole in front head, place the f6 a few inches from the head for a large dynamic sound.
For toms, position the mic 2 inches from the head and point towards the center of the
drum. For bass cabinets, position the mic 90 degrees to the grill cloth and 1-2 inches
inside the edge of the speaker.
*Further miking techniques may be found on our website at www.audixusa.com
FREQUENCY / POLARS:
DIMENSIONS (mm):
***All specications subject to change without notice.
SERVICE AND WARRANTY:
This microphone is under warranty for
a period of 3 years from any and all
manufacturing defects. Should your
microphone fail in any way, please contact the Audix Service department at
503-682-6933. A Return Authorization
number is required before returning
any products.
CARE AND MAINTENANCE:
The f6 is manufactured to exacting specs with
roadworthy construction. However, the capsule
is highly sensitive and should be handled with
care. Avoid extreme temperatures and be sure
to store your microphone in the pouch provided
when not in use. Moisture of any kind can
adversely affect the sound and performance of
your microphone.
To register your
microphone, please visit
www.audixusa.com
www.audixusa.com Call: 503-682-6933 Fax: 503-682-7114
Audix Corporation 9400 SW Barber Street, Wilsonville, OR 97070
