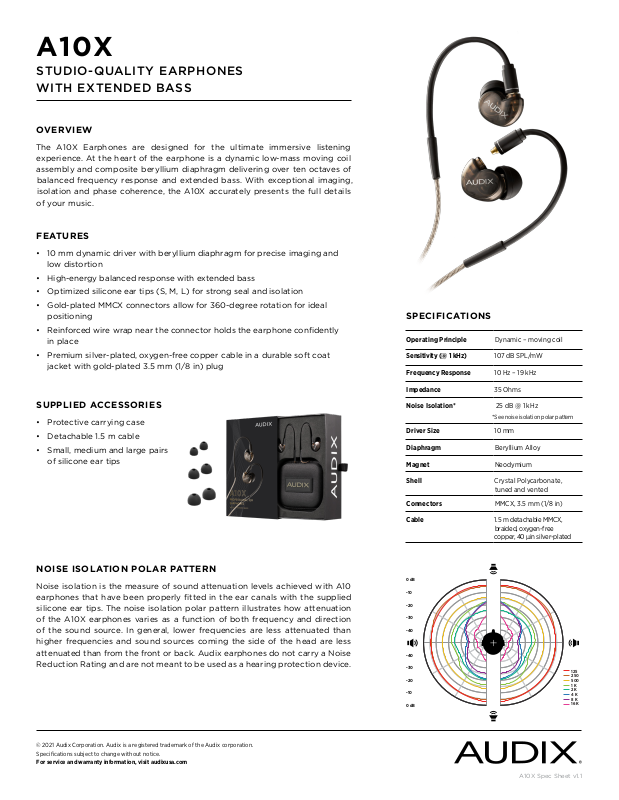

A10X
STUDIO-QUALITY EARPHONES
WITH EXTENDED BASS
OVERVIEW
The A10X Earphones are designed for the ultimate immersive listening
experience. At the heart of the earphone is a dynamic low-mass moving coil
assembly and composite beryllium diaphragm delivering over ten octaves of
balanced frequency response and extended bass. With exceptional imaging,
isolation and phase coherence, the A10X accurately presents the full details
of your music.
FEATURES
• 10 mm dynamic driver with beryllium diaphragm for precise imaging and
low distortion
• High-energy balanced response with extended bass
• Optimized silicone ear tips (S, M, L) for strong seal and isolation
• Gold-plated MMCX connectors allow for 360-degree rotation for ideal
positioning
• Reinforced wire wrap near the connector holds the earphone confidently
in place
• Premium silver-plated, oxygen-free copper cable in a durable soft coat
jacket with gold-plated 3.5 mm (1/8 in) plug
SUPPLIED ACCESSORIES
• Protective carrying case
• Detachable 1.5 m cable
• Small, medium and large pairs
of silicone ear tips
SPECIFICATIONS
Operating Principle Dynamic – moving coil
Sensitivity (@ 1 kHz) 107 dB SPL/mW
Frequency Response 10 Hz – 19 kHz
Impedance 35 Ohms
Noise Isolation* 25 dB @ 1 kHz
*See noise isolation polar pattern
Driver Size 10 mm
Diaphragm Beryllium Alloy
Magnet Neodymium
Shell Crystal Polycarbonate,
tuned and vented
Connectors MMCX, 3.5 mm (1/8 in)
Cable 1.5 m detachable MMCX,
braided, oxygen-free
copper, 40 µin silver-plated
NOISE ISOLATION POLAR PATTERN
Noise isolation is the measure of sound attenuation levels achieved with A10
earphones that have been properly fitted in the ear canals with the supplied
silicone ear tips. The noise isolation polar pattern illustrates how attenuation
of the A10X earphones varies as a function of both frequency and direction
of the sound source. In general, lower frequencies are less attenuated than
higher frequencies and sound sources coming the side of the head are less
attenuated than from the front or back. Audix earphones do not carry a Noise
Reduction Rating and are not meant to be used as a hearing protection device.
© 2021 Audix Corporation. Audix is a registered trademark of the Audix corporation.
Specifications subject to change without notice.
For service and warranty information, visit audixusa.com
0 dB
-10
-20
-30
-40
-40
-30
-20
-10
0 dB
125
250
500
1 K
2 K
4 K
8 K
16 K
A10X Spec Sheet v1.1
