Condenser Instrument
ADX10FLP
ADX10FLP
OVERVIEW
The ADX10FLP is characterized with a uniformly controlled cardioid polar pattern,
helping to isolate the area or section being miked from other instruments or vocals
on stage. With a smooth and accurate frequency range of 50 Hz - 18 kHz, the
ADX10FLP is lightweight, low profile and will provide natural sound with exceptional
transient response.

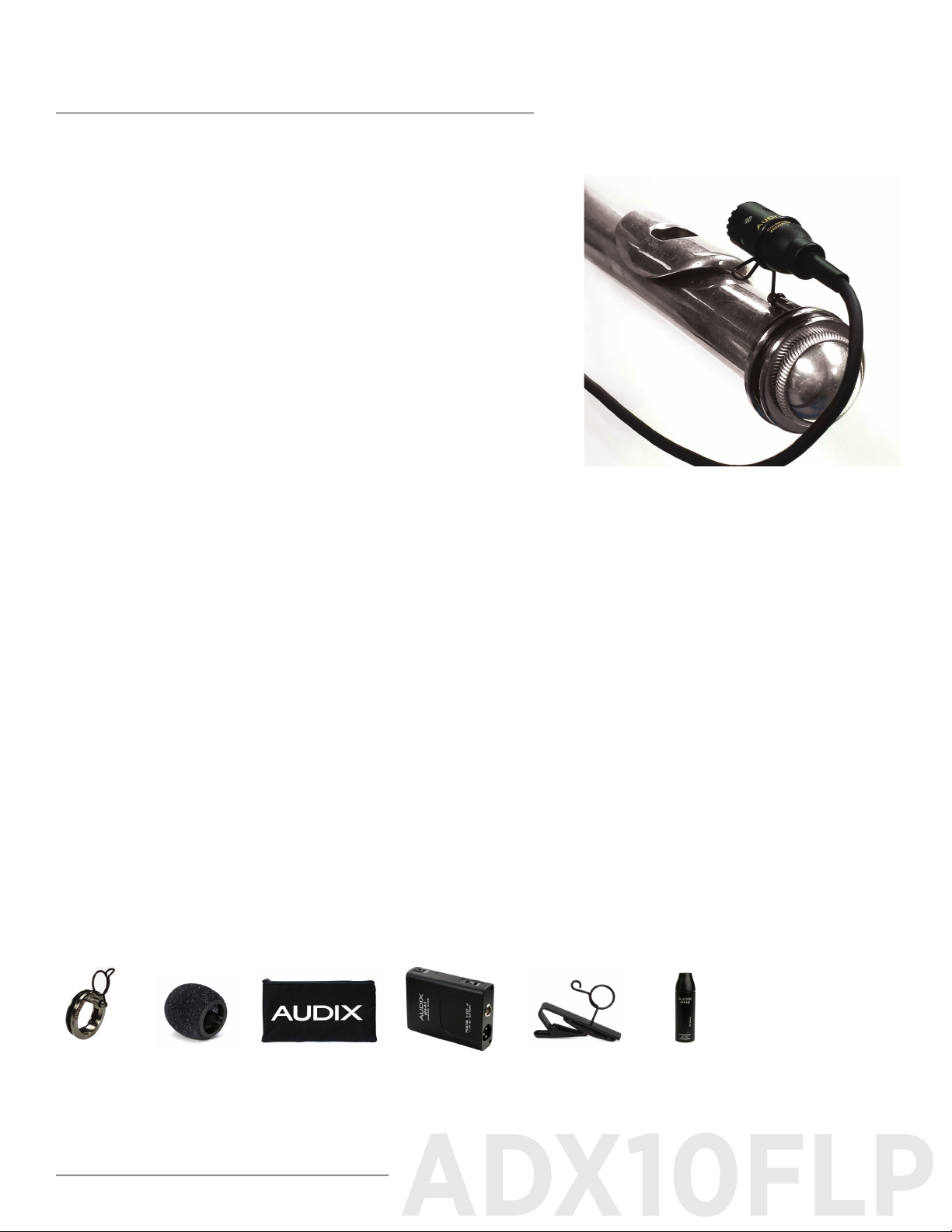

The ADX10FLP, specifically for use with a standard flute, includes a clip that attaches
to the headstock of a flute, an 8’ cable terminating to a mini XLR-f connector and a
phantom power adapter (APS911). Other model versions include the ADX10FL for use
with the Audix RAD360 wireless system.
Manufactured to high standards and tight tolerances, the ADX10FLP features a
modular threaded capsule, machined brass body with matte black finish, high quality
shielded microphone cable and a variety of optional accessories.
MODEL VARIATIONS
ADX10FL - Same as ADX10FLP without the APS911 phantom power adapter
SUPPLIED ACCESSORIES
MCFLUTE - Clip for ADX10FLP flute mic. Fits standard size flutes.
WS10 - External foam windscreen for reducing wind, sibilance, and pop noise
P1 - Carrying pouch
APS911 - Optional phantom power adapter for use with electret condenser
microphones. Runs on AA batteries when phantom power is not available. Features
on/off switch and bass roll-off filter.
Microphone
FEATURES
. Miniature condenser flute microphone
. Natural, accurate sound reproduction
. May be used wired or with RAD360 Wireless System
. Designed, assembled & tested in the USA
. 3 year warranty
APPLICATIONS
OPTIONAL ACCESSORIES
MC10L - Optional alligator style lapel clip with spring tension wire loop.
APS910 - 48 V phantom power adapter for use with electret
condenser microphones.
MCFLUTE WS10 P1 APS911 MC10L APS910
. Flute (Standard size)
Page 2
SPECIFICATIONS
Transducer Type
Frequency Response
Polar Pattern
Output Impedance
Sensitivity
Equivalent Noise Level <29 dB (A-weighted)
Signal to Noise Ratio
Maximum SPL
Power Requirements
Connector Shielded 3’ terminating to a
Polarity Positive pressure on diaphragm
Materials / Finish
Weight
Length
Pre-Polarized Condenser
50 Hz - 18 kHz
Cardioid
250 ohms
4.5 mV / Pa @ 1k
>65 dB
≥120 dB
5-52 V phantom
minature 3 pin XLRf
produces positive voltage on pin
2 relative to pin 3
Machined Brass Capsule / Black
Finish
110 g / 4 oz
25 mm / 0.98 in

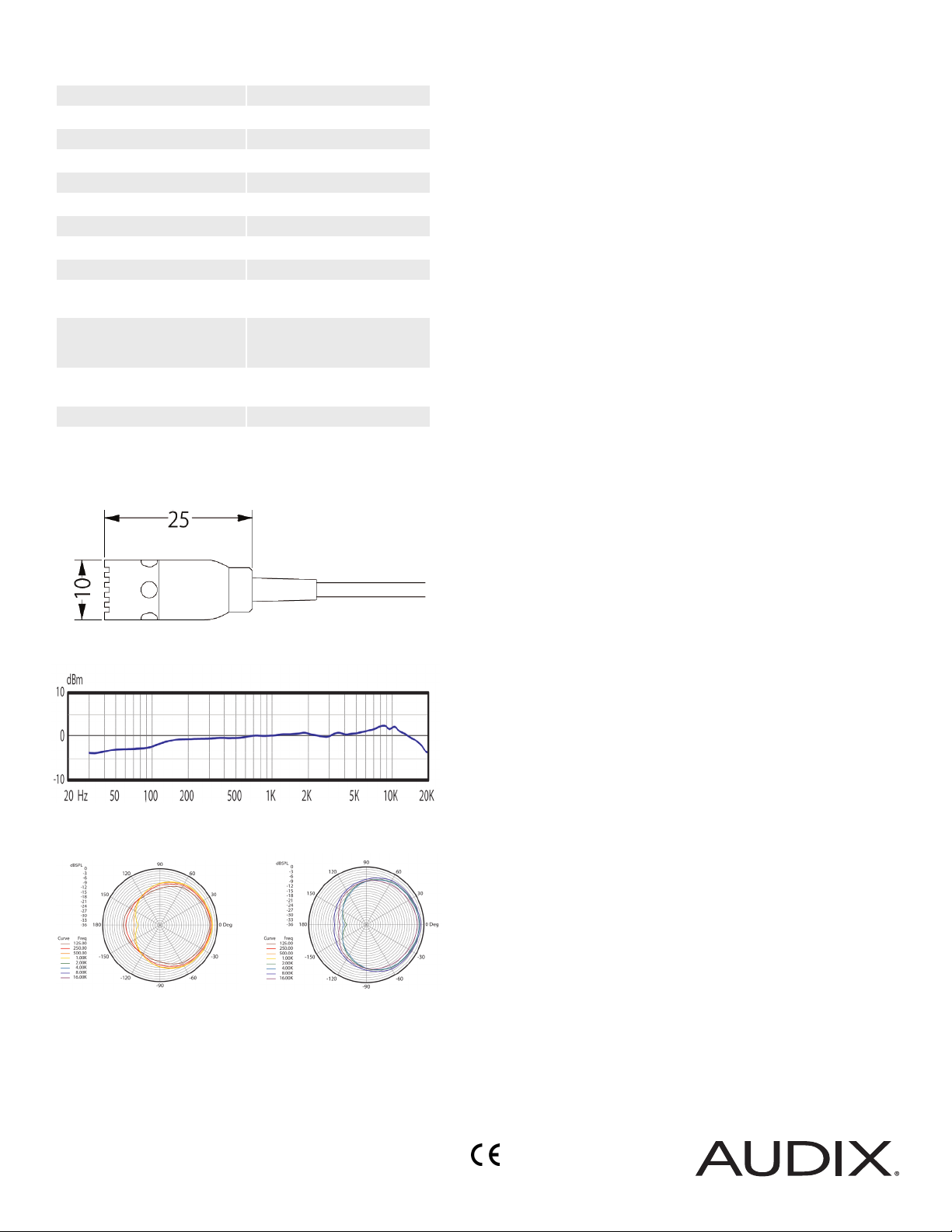

DIMENSIONS (mm)
ARCHITECT AND ENGINEER SPECIFICATIONS
The microphone shall be of the condenser type with a modular threaded
capsule. The microphone shall be available in a cardioid polar pattern
and shall have a 3’ or 8’ cable (depending on model) terminating in a
mini-XLR female connector. The microphone shall have a sensitivity
of 4.5 mV /Pa and a nominal impedance of 250 ohms at 1 kHz. The
microphone shall have a maximum SPL level of ≥120 dB and is machined
out of brass with a length of 25 mm and a capsule diameter of 10 mm.
OPERATION AND MAINTENANCE
ADX10FL: Simply plug the mini XLR on the mic cable directly into
bodypack of a RAD360 Wireless System.
ADX10FLP: Plug the mini XLR at the end of a mic cable into the APS911
phantom power adapter. The ADX10FLP requires phantom power and
will NOT operate without phantom power voltage (minimum of 5 - 52
Volts) which is available on most professional mic preamps and mixing
devices. If phantom power is not available on your equipment, use the
Audix APS911, a supplied accessory with the ADX10FLP model that allows
for battery operation. Avoid plugging or unplugging the microphone
from a PA system unless the channel is muted or the system volume is
turned down. Failure to do so may result in a loud “popping” noise which
could seriously damage the speakers in the PA system.
ADX10FLP
FREQUENCY RESPONSE
POLAR PATTERNS
Lo
The ADX10FL & ADX10FLP are manufactured to exacting specs with
roadworthy construction. However, the capsule is highly sensitive and should
be handled with care. Avoid extreme temperatures and be sure to store
your microphone in the pouch provided when not in use. Moisture of any
kind can adversely affect the sound and performance of your microphone.
USER TIPS
With the “crown” of the flute detached, simply place the “O-ring” portion
of the ADX10FLP mic clip at the end of the “head joint” and reattach the
crown to the head joint.
The APS 911 phantom/battery power supply: The mini XLRf connector
at the end of the ADX10FL plugs directly into the mini XLRm connector
on the APS911 power adapter. Next, plug a standard XLR-XLR microphone
cable to complete the connection from the APS911 to the mixing board.
Hi
The APS911 has the option to be used in phantom power mode or battery
mode. If there is no phantom power available on the mixing console or
equipment being used to amplify your signal, use the battery mode to
power up the mic. If further reduction of bass frequencies or plosives is
needed, the APS911 is equipped with a base roll-off filter.
Further miking techniques may be found at www.audixusa.com.
PRODUCT REGISTRATION: Please register your product online at www.audixusa.com/docs_12/about/product_registration.shtml.
SERVICE AND WARRANTY:
or workmanship, Audix will repair or replace said product at no charge with proof of purchase. Audix does not pay or reimburse shipping costs for warranty repairs or returns. The warranty excludes
any causes other than manufacturing defects, such as normal wear, abuse, environmental damage, shipping damage or failure to use or maintain the product per the supplied instructions. No
Implied Warranties: All implied warranties, including but not limited to implied warranties of merchantability and fitness for a particular purpose are hereby excluded. The liability of Audix, if any,
for damages relating to allegedly defective products shall be limited to the actual price paid by Dealer for such products and shall in no event include incidental or consequential damages of
any kind. Should your microphone fail in any way, please contact the Audix Service department at 503.682.6933. A Return Authorization is required before returning any product. OTHER THAN
THIS WARRANTY, AUDIX MAKES NO WARRANTIES, EXPRESS OR IMPLIED, WITH RESPECT TO THE PRODUCTS, THE USE OF THE PRODUCTS, THE PERFORMANCE OF THE PRODUCTS. AUDIX SHALL
NOT BE LIABLE FOR SPECIAL INCIDENTAL, CONSEQUENTIAL, INDIRECT OR SIMILAR DAMAGES ARISING FROM OR BASED ON THE SALE, USE, STORAGE OR DISPOSAL OF THE PRODUCTS, AUDIX’S
SERVICE WORK, BREACH OF WARRANTY, BREACH OF CONTRACT. NEGLIGENCE, OR ANY OTHER THEORY OF LIABILITY, EVEN IF AUDIX HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
These microphones are under warranty for a period of 3 years to be free of defects in material and workmanship. In the event of a product failure due to materials
www.audixusa.com
Audix Corporation 9400 SW Barber St. Wilsonville, OR 97070
503.682.6933 Fax: 503.682.7114
ver 3.0 05-16
