VME9311TS

MULTIMEDIA RECEIVER

MANUAL/WARRANTY CARD

CONTENT

- Preparation p. 3

- Adjustment of the Touch Screen Monitor p. 5

- Installation p. 6

- Controls and Indicators p. 10

- Remote Control p. 15

- Using the TFT Monitor p. 20

- Operating Instructions p. 24

- System Setup Menu p. 28

- Tuner Operation p. 34

- RDS Information p. 36

- DVD Player Operation p. 39

- DVD Setup Menu p. 49

- CD/MP3/WMA Operation p. 54

- iPod Operation p. 58

- Troubleshooting p. 61

- Specifications p. 65

- Guarantee conditions, warranty card p. 67

PREPARATION

Congratulations on your purchase of the Audiovox Mobile Multimedia AM/FM/DVD /iPod (not included) Receiver. It’s a good idea to read all of the instructions before beginning the installation. We recommend having your Audiovox installed by a reputable installation shop.

Features

• Single DIN Size

• Ultra slim slot-in DVD core mechanism

• 7 inch Panasonic TFT monitor

• Wide screen TFT display and segment LCD display

• Rotary volume control

• ISO Double-DIN chassis

• Light weight proprietary DVD core mechanism

• Wide screen (16:9) 6.5" TFT touch screen monitor

• Main System 13 Watts x 4 RMS / 40 Watts x 4 Peak

• 160 watts total system power

• AM / FM RDS Tuner

• Supports NTSC and PAL, auto negotiation

• Full, Wide, Normal and Off (Standby) screen modes

• Motorized TFT panel has 16 precise angle adjustments via remote control or infinitely variable manual adjustment from the front panel

• Over current motor protection for obstructed TFT panel

• Compatible optical formats: DVD-R/RW, DVD+R/RW, CD-R/RW,

CD-DA, MP3, WMA, HDCD, SVCD, VCD, MPEG (MPEG 1), MPEG 4, JPEG, MP3/ WMA files burned onto a DVD+R/RW or DVD-R/RW and Kodak Picture CD

• Multi-language, multi-subtitle and multi-angle playback options

• Last position memory for optical disc.

• Parental Lock - Uses a password and disc rating set-up to prevent unauthorized user access from display content

• Audio Mute

• 5-way joystick navigation

• Remote control - a full function remote control

• Over and under voltage protection to insure the unit operates within designed para-

meters

• Damped DVD mechanism with 16 Mbit flash memory ESP (Electronic Shock

Protection) provide smooth disc playback under the severest road conditions

Tools and Supplies

You will need these tools and supplies to install your Moniceiver:

• Torx type, flat-head and Philips screwdrivers

• Wire cutters and strippers

• Tools to remove existing radio (screwdriver, socket wrench set or other tools)

• Electrical tape

• Crimping tool

• Volt meter/test light

• Crimp connections

• 18 gauge wire for power connections

• 16 - 18 gauge speaker wire

WARNINGS!

- Only connect the unit to a 12-volt power supply with proper grounding.

- Never install this unit where operation and viewing could interfere with safe driving

conditions

- To reduce the risk of a traffic accident (except when using for a rear view video came-

ra) never use the video display function while driving the vehicle. This is a violation of federal law.

- Never disassemble or adjust the unit without the assistance of a professional. For details, please consult your local car stereo specialty shop.

- To prevent injury from shock or fire, never expose this unit to moisture or water.

- Never use irregular discs.

- To prevent damage to the mechanism inside this unit, avoid impact to the TFT monitor.

- Do not change the fuse on the power wire without professional guidance. Using an improper fuse may cause damage to the unit and result in a fire.

- The monitor employs an automatic motorized mechanism. To prevent damage to the

core mechanism, please do not push, pull or swivel the monitor manually.

Battery disposal:

At the end of the product´s useful life, please dispose of it at appropriate collection points provided in your country.

Disconnecting the Battery

To prevent a short circuit, be sure to turn off the ignition and remove the negative (-) battery cable prior to installation.

NOTE: If the Moniceiver is to be installed in a car equipped with an on-board drive or navigation computer, do not disconnect the battery cable. If the cable is disconnected, the computer memory may be lost. Under these conditions, use extra caution during installation to avoid causing a short circuit.

Adjustment of the Touch Screen monitor:

To offer the best performance it is necessary to do the following adjustment direct after the installation into the customers car:

Within the System Setup you will find the Screen Calibration. Once you select this choice then you will get a green cross at the left upper area at the screen. Please push the middle of the cross for 1 second and then the green cross appears in the lower right corner. Please push once more for 1 second the middle of the cross. Once you did this then the unit switch back to the System Setup and the adjustment is finished.

INSTALLATION

Pre-installation

1. Press the metal levers on both sides to remove the halfsleeve from the radio.

2. Remove the transport screws.

3. Install the half-sleeve.

a. Install adapter if necessary (optional). b. Install half-sleeve into adapter or dashboard (only use the supplied screws).

Do not force the sleeve into the opening or cause it to bend or bow.

c. Locate the series of bend tabs along the top, bottom and sides of the mounting slee-

ve. With the sleeve fully inserted into the dashboard opening, bend as many of the

tabs outward as necessary so that the sleeve is firmly secured to the dashboard.

d. Install support strap to make the unit more stable.

SUBJECT TO TECHNICAL CHANGE

CAUTION! Be careful not to damage the car wiring.

4. Place the radio in front of the dashboard opening so the wiring can be brought

through the mounting sleeve.

Wiring

Complete wiring as illustrated in the wiring diagram on page 9. Once the wiring is complete, reconnect the battery negative terminal. If there is no ACC available, connect the ACC lead to the power supply with a switch.

NOTE:

When replacing a fuse, be sure to use correct type and amperage to avoid damaging the radio. The radio uses one 10 amp mini-ATM fuse, located in the black filter box in-line with the main wire harness.

Final Installation

After completing the wiring connections, turn the unit on to confirm operation (ignition switch must be on). If unit does not operate, recheck all wiring until problem is corrected. Once proper operation is achieved, turn off the ignition switch and proceed with final mounting of the chassis.

1. Connect wiring adapter to existing wiring harness.

2. Connect antenna lead.

3. Carefully slide the radio into the half-sleeve making sure it is right-side-up until it is fully seated and the spring clips lock it into place.

NOTE:

For proper operation of the CD/DVD player, the chassis must be mounted wit-

hin 20° of horizontal. Make sure the unit is mounted within this limitation.

4. Attach one end of the perforated support strap (supplied) to the screw stud on the rear of the chassis using the hex nut provided. Fasten the other end of the perforated strap to a secure part of the dashboard either above or below the radio using the screw and hex nut provided. Bend the strap to position it as necessary.

CAUTION!

The rear of the radio must be supported with the strap to prevent damage

to the dashboard from the weight of the radio or improper operation due to vibration.

5. Replace any items you removed from the dashboard.

Final ISO-DIN Installation

1. Remove trim ring.

2. Mount factory brackets on new radio using existing screws from old radio.

3. Slide radio chassis into dash opening and secure.

4. Reinstall dash panel.

SUBJECT TO TECHNICAL CHANGE

iPod

WIRING DIAGRAM

CONTROLS AND INDICATORS

Button Operation

1. OPEN

Press the OPEN button (1) to activate the automatic mechanical system and move the TFT monitor into viewing position. Press again to close the TFT.

2. WIDE/ PICTURE

Press the WIDE/ PICTURE button (2) to adjust the display aspect of the picture to one of three settings: Wide, Full, Normal or OFF. Press and hold to access picture settings.

3. ( )

Press the button (3) to adjust the upward tilt angle of the screen one step at a time. Press and hold this button to continuously adjust the upward tilt or picture settings.

4. ( )

Press the button (4) to adjust the downward tilt angle of the screen one step at a time. Press and hold this button to continuously adjust the downward tilt or picture settings.

5. DISP Press the DISP button (5) to display system information on the screen.

6. VOL/LO/DX

Rotate the VOL/LO/DX knob (6) to adjust the volume. Press and release to enter and/or confirm audio settings. Press and hold to activate the Local (LOC) setting.

7. POWER/MUTE

Press the POWER/MUTE button (7) once to turn the unit on. Press again to mute the volume. Press and hold to turn the unit off.

8. 1/AUDIO

DVD Mode: Press to select audio language during playback. TUNER Mode: Press once to play preset radio station channel 1. Press and hold to store the current radio station in preset channel 1.

9. 2/SUBTITLE

DVD Mode: Press once to select the subtitle language during playback. TUNER Mode: Press once to play preset radio station channel 2. Press and hold to store the current radio station in preset channel 2.

v v

SUBJECT TO TECHNICAL CHANGE

10. 3/SCN

DVD Mode: Press once to start scan playback. TUNER Mode: Press once to play preset radio station channel 3. Press and hold to store the current radio station in preset channel 3.

11. 4/REP

DVD Mode: Press once to start repeat playback. TUNER Mode: Press once to play preset radio station channel 4. Press and hold to store the current radio station in preset channel 4.

12. 5/RDM

DVD Mode: Press once for random playback. TUNER Mode: Press once to play preset radio station channel 5. Press and hold to store the current radio station in preset channel 5.

13. 6/STOP

DVD Mode: Press once to stop playback. TUNER Mode: Press once to play preset radio station channel 6. Press and hold to store the current radio station in preset channel 6.

14. BAND

TUNER Mode: Press to switch between FM and AM.

15. SRC

Press once to select playing mode.

16. ()

DVD Mode: Press once to play back previous chapter/track. TUNER Mode: Press once to auto search for the previous available radio station. MENU Mode: Press once to move the cursor to the left.

17. ()

DVD Mode: Press once to enter the next chapter or track. TUNER Mode: Press once to auto-search the next available radio station. MENU Mode: Press once to move the cursor to the right.

18. ()

DVD Mode: Press once for fast forward/fast reverse. TUNER Mode: Press to go up one frequency step. Press and hold the button to aktivate/deactivate the REG function. MENU Mode: Press once to move the cursor up.

19. ()

DVD Mode: Press once for slow forward/slow reverse. TUNER Mode: Press to go down one frequency step. Press and hold the button to activate/deactivate the TA function. MENU Mode: Press once to move the cursor down.

20. PLAY/ENTER

DVD Mode: Press once to start a playback. Press once to confirm a selection.

21. (

)

Press once for disc insertion/ejection. Press and hold to reset core mechanism position.

22. RESET

Press to reset system settings to factory default (except the password and parental lock setting).

23. LCD Display

24. TFT Display

25. IR Remote Control Receiver

26. AS (Auto Store)

Press to auto store strong radio stations in the six preset channels in the current band.

SUBJECT TO TECHNICAL CHANGE

LCD Display/Indicators

1. Disc Indicator

Illuminated when disc is loaded

2. DVD Playback Indicators (SCN/RPT/RDM/ALL)

The following DVD playback indicators become Illuminated when the corresponding function is active:

• SCN: scan playback

• RPT: repeat playback

• RDM: random playback

• ALL: playback all chapters

3. Loudness Indicator (LOUD)

The loudness indicator becomes illuminated when the LOUD function is activated.

4. Main Display

The main display is an 8 digit, 14 segment LCD which displays the time, tuning frequency and other text information.

5. Channel/Disc Display

The channel/disc display is a 2 digit, 7 segment LCD display which displays the disc number or radio channel indicators when the corresponding function is active:

• CH: radio is activated

• DISC: DVD mode is activated

6. Stereo/Local Indicator

The stereo/local indicator illuminates one of the following indicators when the corresponding function is active:

• ST: radio is in stereo mode

• LOC: local radio station seeking function is activated

SUBJECT TO TECHNICAL CHANGE

REMOTE CONTROL FUNCTIONS

Button Name/Ref #

MENU 1:

DVD: Enters the main menu of the disc VCD: Turns on PBC when playing VCD iPod: Selects photo mode

TITLE 2:

DVD: Enters the title menu of the disc VCD: Plays first ten seconds of each chapter/title iPod: Selects movie mode

MUTE 3:

DVD/VCD/Tuner/CD/MP3/iPod: Toggles on/off audio output

POWER 4:

DVD/VCD/Tuner/CD/MP3/iPod: Turns the power on/off

AUDIO 5:

Changes the audio language for disc playback iPod: Selects video mode

REPT A-B 6:

DVD/VCD: Setup to repeat playback from time frame A to time frame B

REPT 7:

DVD/VCD/CD/MP3/iPod: Repeats playback of current chapter

SCR 8:

DVD/VCD/Tuner/CD/MP3/iPod: Selects playing mode

SUBTITLE 9:

DVD: Language selection for subtitle

DISP 10:

DVD/VCD/Tuner/CD/MP3/iPod: Displays playing information

ANGLE  26:

DVD/VCD/TUNER/CD/MP3: Continuously adjusts front panel tilt angle

ANGLE  27:

DVD/VCD/TUNER/CD/MP3: Continuously adjusts front panel tilt angle

ANGLE 13:

DVD: Plays back disc in different angle for a scene VCD: Plays back Picture CD with different angle of picture displayed

 14:

DVD/VCD/TUNER/CD/MP3: Fast forwards the disc content iPod: Accesses iPod Menu

VOL- 15:

DVD/VCD/TUNER/CD/MP3/iPod: Decreases volume

VOL+ 16:

DVD/VCD/TUNER/CD/MP3/iPod: Increases volume

 17:

DVD: Selects the previous chapter for playback VCD: Selects the previous chapter for playback TUNER: Searches an available radio station by decreasing tuning frequency CD/MP3: Selects the previous track for playback iPod: Selects the previous track for playback

/II 18:

DVD: Pauses playback/starts playback VCD: Pauses playback/starts playback TUNER: Scans FM/AM radio station; plays/stores radio station; deletes radio station CD/MP3: Pauses playback/starts playback iPod: Pauses playback/starts playback

 19:

DVD: Selects the next chapter for playback VCD: Selects the next chapter for playback TUNER: Searches an available radio station by increasing tuning frequency CD/MP3: Selects the next track for playback iPod: Selects the next track for playback

/BAND 20:

DVD: Stops playback VCD: Stops playback TUNER: Selects FM/AM band CD/MP3: Stops playback

GOTO 21:

DVD/VCD: Goes to specific time frame and playback

 22:

DVD/VCD: Slow playback/slow rewind playback

ZOOM 23:

DVD/VCD: Zooms in/out on an image

PIC 24:

DVD/VCD: Displays set-up parameters

OPEN/CLOSE 25:

DVD/VCD/TUNER/CD/MP3/iPod: Opens/Closes the TFT monitor

26:

DVD/VCD/TUNER/CD/MP3/iPod: Decreases monitor tilt angle

27:

DVD/VCD/TUNER/CD/MP3/iPod: Increases monitor tilt angle

WIDE 28:

DVD/VCD/TUNER/CD/MP3: Selects display mode: CINEMA, NORMAL, FULL or Off (Standby) iPod: Cinema or Off

0-9 (Numeric Keypad) 29:

DVD: Directly accesses chapter TUNER: 1-6 selects preset for current band CD/MP3: Directly accesses track

v v

DVD SETUP 30:

DVD/VCD/TUNER/CD/MP3/iPod: Access DVD Setup menu

SYS SETUP 31:

DVD/VCD/TUNER/CD/MP3/iPod: Access System Setup menu

SCN 34:

CD/MP3: Plays the first ten seconds of each track

EJECT 35:

DVD/VCD/TUNER/CD/MP3: Ejects disc

Note: Your remote control may differ slightly from the one pictured here. The above diagram is for illustrative purposes only.

SUBJECT TO TECHNICAL CHANGE

USING THE TFT MONITOR

Open/Close TFT Monitor

Press the OPEN button (1) on the front panel or press the (

) button (25) of the remo-

te control to open/close the monitor.

TFT Monitor Auto Open

• If “TFT Auto Open” is “on” when the unit is turned on, the monitor automatically moves to the last viewing position.

• If “TFT Auto Open” is ”off” when the unit is turned on, press the OPEN button (1) or (

) button (25) on the remote control to move the monitor into the desired viewing posi-

tion.

Monitor Tilt Angle Adjustment

A known characteristic of LCD panels is the quality of the display in relationship to the viewing angle. The monitor angle can be adjusted for optimum viewing using one of the following methods:

• Press the ( ) or ( ) buttons (3, 4) on the front of the unit to adjust the tilt angle of the screen one step at a time.

• Press and hold the to adjust the tilt angle of the screen one step at a time.

Aspect Ratio

The following sources only have the WIDE and OFF aspect ratio option: AM / FM Tuner, CD-DA, DVD+R/RW, DVD-R/RW and CD-R/RW with music files. Press the WIDE button (28) on the remote control to adjust the aspect ratio as follows:

v v

Image Setting

Video Output Format

Table 3 shows the video output format for each playing source.

Table 3: Video Output Formats

*CVBS - Composite Video Baseband Signal

CINEMA

The entire screen is extended horizontally to the aspect ratio of 16 to

9. The extension ratio is the same at any point.

NORMAL

The conventional display image has a 4 to 3 ratio of horizontal to vertical, leaving a blank area on the right and left sides of the display.

OFF

SUBJECT TO TECHNICAL CHANGE

Playing Source Video Output Format

TUNER RGB Mode DVD RGB Mode AUX IN CVBS Mode iPOD RGB Mode

Adjustable Parameters

When in DVD or TUNER mode, the parameter that can be adjusted is brightness (BRIGHT), “PICTURE”, “COLOR”, ”CONTRAST”, and “TINT”.

NOTE:

The default adjustment is “0” in PAL mode. Tint is unavailable for adjustment.

Parameter Adjustment Procedure

1. Enter Picture Quality Setting mode:

Press the PIC button (24) on the remote or press and hold the WIDE/PICTURE but- ton (2) on the unit.

2. Select Item to Set:

Press the () () buttons (14, 22) on the remote or press and hold the () or () but- tons (18, 19) on the front panel.

3. Set Parameters:

Press () () buttons (17, 19) on the remote or press () () buttons (16, 17) on the unit.

4. Exit Picture Quality Setting Mode:

Press the PIC button (24) on the remote or press and hold the WIDE/PICTURE but- ton (2) on the front panel.

Parking Brake Inhibit

• When the “PRK SW” cable (pink wire) is connected to the brake switch, the display on the TFT monitor will display video only when the vehicle is applied.

• When the parking brake inhibit is active, the front monitor displays “Parking Is On”, preventing the driver from watching content while driving. Rear video screens are not affected.

Monitor Movement Mechanism

If an obstruction occurs in the monitor path, the motion will stop automatically to prevent damage to the mechanism or monitor. Normal operation is resumed by pressing the OPEN button (1) or disconnecting and reconnecting the power.

Monitor Protective Measures

After the protective procedure is executed, normal operation is resumed by pressing the

OPEN button (1) or disconnecting and reconnecting the power.

Obstruction Self Protection OPEN Button

Pressed

Power Reconnected

Monitor loading out horizontally

Monitor is automatically loaded into unit

Monitor fully extended horizontally

Monitor is automatically loaded into unit

Monitor loading in horizontally

Unit stops at obstruction point

Monitor fully extended horizontally

Monitor is automatically loaded into unit

Monitor loading out vertically

Unit stops at obstruction point

Monitor swivels back to the unit

Monitor loading in vertically

Unit stops at obstruction point

Monitor swivels back to the unit

OPERATING INSTRUCTIONS

Power On / Off

Press the MUTE button (1) to turn the unit on. The buttons on the front of the unit light up and “WELCOME” appears briefly in the LCD panel (17), followed by the current mode status. If the TFT screen is open, only the current mode status is displayed. You can also turn on the unit by pressing the OPEN button (1) and opening the TFT screen.

Press and hold the MUTE button (1) on the front panel or the POWER button (4) on the remote to power off the unit.The monitor is drawn back into the main compartment and the LCD screen displays “BYE BYE”.

Audible Beep Confirmation

An audible beep tone confirms each function selection. The beep tone can be disabled in the General Setupmenue.

Mute

Press the MUTE button (1) on the front panel or the MUTE button (3) on the remote to mute the volume from the unit. Press the MUTE button again to restore the volume. “MUTE” is displayed on the LCD monitor. Adjusting the volume or using any of the audio set-up features cancels the mute function.

Playing Source Selection

Press the SRC button (15) on the front panel or the SRC button (8) on the remote to change between available playing sources in the following order: TUNER, DVD, iPod and AUX IN. The playing mode is displayed on the TFT and LCD screens.

AUX IN Mode

An external peripheral device can be connected to this unit via RCA output and “AUXIN”.

Volume Adjustment

To increase or decrease the volume level, turn the ROTARY ENCODER (6) on the front panel or press the VOL+/VOL- buttons (15, 16) on remote control. When the volume level reaches “0” or “40”, a beep sounds, indicating that the adjustment limit has been reached. The volume ranges from “0” to 40”. The LCD or TFT screen displays the volume level for 3 seconds.

Programmable Turn-On Volume

This feature allows the user to select a turn-on volume setting regardless of the volume setting prior to turning the unit off.

To program a specific volume level, push and hold the VOL/LO/DX button (6) while the yellow volume bar is displayed on the screen. The unit will beep two times to confirm your turn-on volume setting.

AUDIO CONTROL MENU

The Audio Control feature allows you to easily adjust your audio system to meet the acoustical characteristics of your vehicle, which vary depending on the type of vehicle and its measurements. To get the best possible sound quality from your new system, be sure to adjust the settings for the speakers as well. Proper setting of the Fader and Balance boosts the effects of the cabin equalizer.

Accesing the Audio Control Menu

Rotate the VOL/LO/DX knob (6) on the front panel once to display the “AUDIO” menu.

Selecting an Audio Feature for Adjustment

Continuously press the VOL/LO/DX know (6) on the front panel, or press the ()/() buttons (14, 22) on the remote control or the ()/() buttons (18, 19) on the joystick to select the audio feature to be adjusted.

Table 4: Audio Adjustments

Note:

The Bass and Treble levels are only adjustable when EQ is set to “User” mode.

The Loud function compensates for deficiencies in sound ranges at low levels. Loudness levels range from 1-4 or “off”. When the Loud function is on, LOUD is displayed on the screen.

Exiting the Audio Control Menu

Press and hold the VOL/LO/DX knob (6) or stop making adjustments for a few seconds to exit the audio control menu.

Audio Function

BASS TREBL

SUB LOUD FAD (Fade) BAL

Adjustable Range

User Flat Jazz

Pop Classical

Rock Vocal

-14 to +14

-7 to +7 0 (off), 1-4

- 9 to + 9

System Reset

To correct a system halt or other illegal operation, use the tip of a pen to press the RESET button (22) located on the front bottomright corner of the unit. After a system reset, the unit restores all factory default settings.

Note:

If the unit is reset while a DVD is playing, the DVD resumes play once the reset

is complete.

Line Mute

If the “MUTE” wire is connected, audio output mutes when a telephone call is received by the car phone or when verbal navigation is performed.

(RESET) Button

SYSTEM SETUP MENU

In “System Setup” mode, “ASP CONFIG”, “RDS SETUP, SCREENCAL” and “GENERAL SETUP ” are available for adjustment. Setup can be performed by pressing the dedicated button on the remote control or by touching the top left corner of the TFT screen. For system settings, press the SYS SETUP button (31) on the remote control or touch “SETUP” on the screen to enter the “SETUP” menu. “SYS SETUP” is highlighted in green.

General Setup Menu

Accessing the General Setup Menu

To access the “GENERAL SETUP” Menu, press the direction buttons on the joystick (16, 17, 18, 19) or remote control (14, 17, 18, 19, 22) to highlight “GENERAL SETUP” in green.

Press the/ II button (18) on the remote control to enter the “GENERAL SETUP” menu. A menu appears with the option for the first item, “Radio”, highlighted in light blue.

SUBJECT TO TECHNICAL CHANGE

Selecting a Feature for Adjustment

Press the  or  buttons (14, 22) on the remote control or the  or  buttons (18,

19) on the joystick to select the feature to be adjusted.

Adjusting a Feature

1. Enter the option field for the feature you want to adjust by pressing the/ II button (18) on the remote or by pressing the ENTER (joystick) button (20) on the unit. A submenu appears in a second row with the selected option highlighted in light blue.

2. Select a new value by pressing the  or  buttons (14, 22) on the remote control or the  or  buttons (18, 19) on the joystick.

3. Confirm your selection by pressing the , , or  buttons (22, 17, 19) on the remote control, or the or  button (16, 17) on the joystick. The new value is highlighted in light blue and setup is complete.

SUBJECT TO TECHNICAL CHANGE

Europe

Table 6: General Setup Menu Features

Setting

Radio

Clock Mode

Screen Saver

TV System

TFT Auto Open

OSD Language

Clock

Beep

Option

USA1

S. Amer 1

Arabia

China

S. Amer 2

Europe

Korea

12H

24H

On / Off

Auto

NTSC

PAL On

Off

Manual English German Italian

(HH:MM)

On / Off

Function

Select the appropriate setting based on the country in which you reside

Clock displays 12 hour time using AM and PM..

Clock displays 24 hour time up to 23:59.

Turn screen saver on/off.

The color signal output is switched automatically based on the current disc.

The color signals are output in the standard NTSC format.

The color signals are output in the standard PAL format. The TFT panel automatically opens when the unit is turned on.

You must press the OPEN button (12) to open the TFT panel.

manual / Open / Close

The menus are displayed in English, German and Italian

See “Adjusting the clock” to learn how to set the clock.

Beep-Sound on or off

Camera Normal

Mirror Off

no rotation rotation off

BACK (zurück) back to the menu

Method 1 - Adjusting the Clock (TFT screen open)

1. Access the “Clock” setting under the General Setup menu.

2. Press the  or  buttons (14, 22) on the remote control or the  or  buttons (18, 19) on the joystick to move the cursor to the “Hour” or “Min” position.

3. Press the  or  buttons (17, 19) on the remote control or the or buttons (16, 17) on the joystick to adjust the hour or minutes.

4. Press the  button (22) on the remote control to confirm setup.

Method 2 - TFT screen closed:

1. Press and hold the DISP button (5) until the clock flashes in the LCD display.

2. Press the  or  buttons (18, 19) on the joystick to move the cursor to the “Hour” or “Min” position

3. Press the or  buttons (16, 17) on the joystick to adjust the hour or minutes.

4. Press the DISP button (5) on the unit to confirm setup.

Returning to the System Setup Menu

To return to the System Setup menu, move to BACK, then press the /II button (18) on the remote control.

ASP (Audio Sound Processing) Config Menu

The ASP Config Menu allows you to make fine audio adjustments.

Accessing the ASP Config Menu

To access the “ASP CONFIG” Menu from the “SYSTEM SETUP” menu, press the direction buttons on the joystick (16, 17, 18, 19) or remote control (14, 17, 18, 19, 22) to highlight “ASP CONFIG” in green. Press the /II button (18) on the remote control to enter the “ASP CONFIG” menu. A menu appears with the option for the first item, “Bass Center Freq”, highlighted in light blue.

Adjusting a Feature

1. Enter the option field for the feature you want to adjust by pressing the /II button (18) on the remote or by pressing the ENTER (joystick) button (20) on the unit. A submenu appears in a second row with the selected option highlighted in light blue.

2. Select a new value by pressing the  or  buttons (14, 22) on the remote control or the  or  buttons (18, 19) on the joystick.

3. Confirm your selection by pressing the , ,  or buttons (22, 17, 19) on the remote control, or the or  button (16, 17) on the joystick. The new value is highlighted in light blue and setup is complete.

SUBJECT TO TECHNICAL CHANGE

120 Hz

Table 7: ASP Config Menu Features

Exiting the System Setup Menu

To exit setup mode and resume normal playback, press the SYS SETUP button (31) on the remote control or the DISP button (5) on the front panel.

Setting

Bass Center Freq

Treble Center Freq

Sub.W Filter

Sub.W Phase

Bass Q-Factor

BACK

Options

60Hz 80 Hz 100Hz 130Hz 150Hz 200Hz 10KHz

12.5KHz 15KHz 17KHz 80Hz 120Hz 160Hz

OD 180D

1.0

1.25

1.5

2.0

Function

According to the audio source, select the Bass Center Frequency to achieve the best Bass effect.

According to the audio source, select the Bass Center Frequency to achieve the best Treble effect.

Selecting a crossover frequency sets a cut-off frequency of the subwoofer´s LPF (low-pass filter) and the “SMALL” speakers`HPF (high-pass filter). The Crossover frequency setting has no effect if the subwoofer is set to “OFF” and any other speaker is set to “LARGE”.

Subwoofer output IN phase Subwoofer output OUT OF phase

Note: Depending on your installation, reversing the subwoofer phase may increase Bass output.

When the Bass Center Frequency is selected, adjusting the Bass Q-Factor alters the sharpness of the Bass output.

Return to previous menu.

TUNER OPERATION

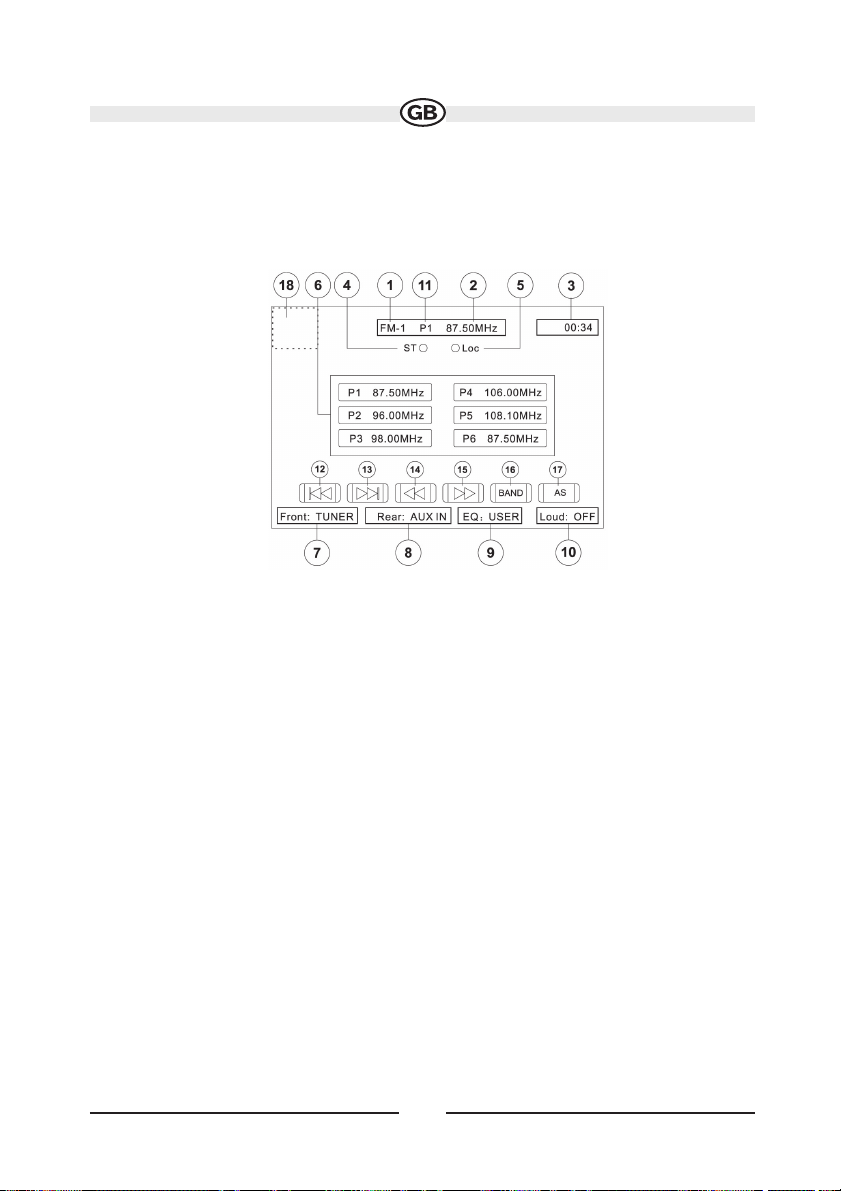

Tuner TFT Display

1. Current Radio Band Indicator

2. Radio Frequency Indicator

3. Clock

4. Stereo Broadcasting Indicator

5. Strong Local Signal Broadcasting Indicator: Touch and hold to activate/deactivate Local function

6. Preset Radio Stations: Touch to recall preset stations or touch and hold to store a station

7. Front Zone Playing Mode

9. User Defined Equalizer Level

10. Loud Setting Indicator

11. Current Preset Station Indicator

12. : Touch to seek backward

13. : Touch to seek forward

14. : Touch to tune backward one step

15. : Touch to tune forward one step

16. BAND: Touch to change between AM/FM bands

17. AS: Touch to automatically store stations

18. Touch this area to return to the MAIN MENU

SUBJECT TO TECHNICAL CHANGE

Switch to Radio Tuner source

Press the SRC button (15) on the front panel or remote control (8) to switch to the TUNER source.

Select FM/AM Band

Touch the BAND button (16) on the screen, or press the BAND button on the unit (14) or remote control (20) to change between the following bands: FM1, FM2, FM3, AM1 and AM2.

Auto Tuning

Press and hold the  button (19) on remote control or screen, or thebutton on the joystick (17) to seek the next available radio station by increasing the tuning frequency. Press the button again to stop searching.

Press and hold

the  button (17) on the remote control or screen, or the button on the joystick (16) to seek the next available radio station by decreasing the tuning frequency. Press the button again to stop searching.

Manual Tuning

Press the  or  buttons (14, 22) on the remote control or screen, or the  or  but- tons (18, 19) on the joystick to increase or decrease the tuning frequency one step.

Press and hold

the buttons to continuously tune until you release them.

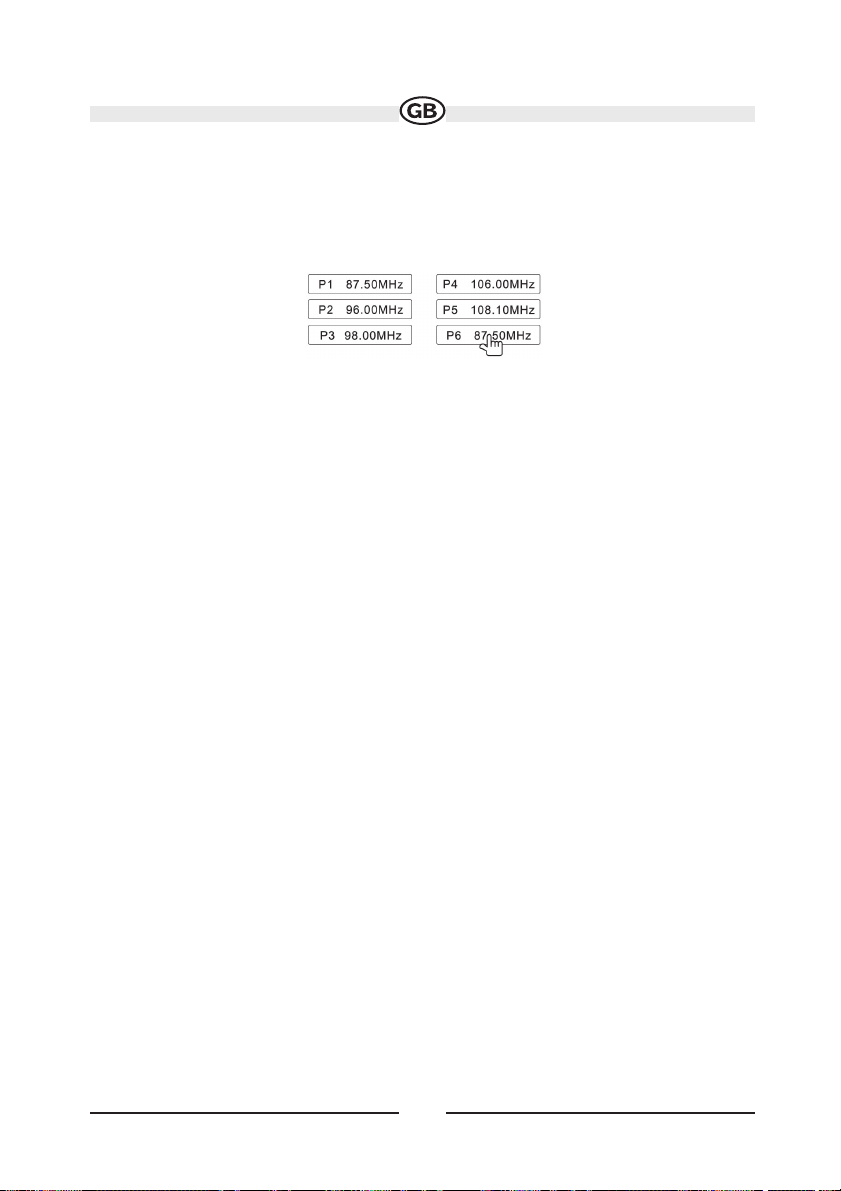

Using Preset Stations

Six numbered preset buttons store and recall stations for each band. All six stored stations (P1-P6) for the current band appear on the screen.

Storing a Station

1. Select a band (if needed), then select a station.

2. Touch and hold an on-screen preset button (6) for three seconds. The preset number appears at the top of the display.

Recalling a Station

1. Select a band (if needed).

2. Touch an on-screen preset button (6) to select the corresponding stored station.

Auto Store (AS)

Automatic Storing of Preset Stations

To select six strong stations and store them in the current band:

1. Select a band (if needed).

2. Touch AS (26) for 2 seconds to activate the Auto Store function.

The new stations replace stations already stored in that band.

Local Radio Station Seeking (LOC)

When the Local function is on, only radio stations with a strong radio signal are played. To activate the Local function in AM/FM tuner mode, press and hold the LO/DX button (6) on the front panel while the yellow volume bar IS NOT visible. Press LO/DX again to turn Local off. When the Local function is active, “LOC” appe- ars on the screen and a green indicator is illuminated.

RDS INFORMATION

Within the RDS Setup Menu (OSD) you will find the following setup possibilities.

OVERVIEW OF THE RDS FUNCTION A) Notes:

- RDS is only available for FM receiption

- The PS function allows station names to be displayed in clear letters.

SUBJECT TO TECHNICAL CHANGE

- Network Tracking receiption uses the PI and AF codes. The PI code identifies the country, area and broadcast system. AF lists up which reception frequencies at the area are broadcasting the same program and automatically changes to the best reception quality offering frequency without the need to interrupt the program by a seek function.

- Traffic programmes and announcements can be automatically received using the TA features.

- The station name is displayed automatically when a RDS station is received.

B) AF (Alternative Frequencies / REG (Regional): RDS AF Function

There are the following possible modes available:

- AF off: The network tracking is deactivated. Only station name will be displayed.

- AF on: Network tracking is activated. AF function changes between stations belonging to the broadcast network being received. (Can be adjusted within the RDS Setup menu)

Note: When this unit is set to this mode (REG OFF), a station broadcasting a different regional program in the same network may be received at certain times. This can happen only in case of listening to regionalized programs; no malfunction!

- AF on / REG ON: Network tracking is activated. Regional mode is engaged (AF function changes between stations broadcasting the same program at all times). Regional mode shall be selected only in case of driving in certain local areas. (Can be adjusted within the RDS Setup menu)

- RDS may not operate correctly in areas where no alternative station can be received.

- In reception borderland of a program chain normally no alternative stations can be found. In this case also a high advanced RDS function cannot help anymore, another program- of the driving area- must be selected.

- Especially in regional mode such reception borderland can be often reached. Because of possible reduced reception quality, the regional function shall be used only for driving short distances.

- If the RDS station does not suport AF data list or if the tuner cannot read AF data from receiption, no network tracking is possible. Switching to alternative frequencies does not work. After turning the RDS feature on, AF can be set to become “ON” or “OFF” using the OSD menue.

- AF “OFF”: When the AF switching mode is set to OFF and RDS is set to “ON”, a maximum number of 6 RDS and non-RDS channels will be stored together.

- AF “ON”: When the AF switching mode is set to ON the RDS station information will only be displayed.

- Illuminated AF Segment: When the AF switching mode is “ON”, the radio continually checks the AF signal strength. The interval of checking time of each AF depends on the signal strength of current station which can be anywhere from a few seconds for strong station to a few minutes for weak station. Every time a new AF is stronger than a current station, the AF will switch over to the stronger station quickly.

- REG mode “ON”: When the Region mode is set to ON the AF switching is implemented to the station that has all PI codes that are same as the current station. “REG ON” should be shown on screen. (Can be adjusted within the RDS Setup menu)

- REG mode “OFF”: When the regional mode is “OFF” the radio may switch from a national program station to a local variant of that program, or from a local station in an area to a local station in another area. This may cause customers to listen to a wrong program. To avoid this feature set the Region mode to “ON”, and then the radio will only switch to an AF that broadcasts Region mode to the same program. To switch the REG function “ON”/”OFF” please push the right joystick for 2 seconds up (see page 11 button 18).

TA (Traffic Announcement) / TP (Traffic Program)

TP mode will automatically switch between “ON” and “OFF” depending upon the broadcast. In order to access the TA mode. To switch the TA function “ON”/”OFF” please push the right joystick for 2 seconds down (see page 11 button 19). When the TA mode is “ON” and a traffic announcement is received the following may occur:

1. The unit will switch from the different sources temporarily to radio mode.

2. When a TP station is received, the OSD will display “TA ON”.

TA Volume (traffic announcement volume increasement)

In the RDS Setup you can adjust between 0-7.

PTY

Within the PTY field will be displayed additional broadcaster information.

DVD PLAYER OPERATION

NOTE: When properly installed, DVD video cannot be displayed on the main TFT screen unless the parking brake is applied. If you attempt to play a DVD while the vehicle is moving, the TFT screen displays “PARKING” with a blue background. Rear video screens, if applicable, will operate normally.

Opening/Closing the TFT Video Screen

Opening the TFT Screen

To open the TFT video screen, press the OPEN (1) button. The unit beeps and then open.

Closing the TFT Screen

Press the OPEN (1) button again to close the TFT screen. If the screen is in the “IN” position, it moves out before closing.

Insert/Eject Disc

Upon inserting a DVD disc, DVD mode is entered disc play begins.

NOTE: If Parental Lock (Rating) is activated and the disc inserted is not authorized, the 4-digit code must be entered and/or the disc must be authorized (see “RATING (Parental Lock) Menu” on page 57).

You cannot insert a disc if there is already a disc in the unit or if the power is off.

NOTE: CD-R/RW, DVD-R/RW, DVD+R/RWs will not play unless the recording session is closed.

Ejecting a Disc

Press the 

button (21) on the unit or remote control (25) to eject the disc. The unit automatically reverts to Tuner mode. You may eject a disc with the power off and the unit remains off after the disc is ejected.

Reset the Loading Mechanism

If the disc loads abnormally or an abnormal core mechanism operation occurs, press and hold the button (21) on the 

unit or remote control (25) to reset the loading

mechanism. Normal operation resumes.

Accessing DVD Mode

To switch to DVD mode when a disc is already inserted, press the SRC button (15) on the front panel or remote control (8) until DVD appears at the bottom of the screen.

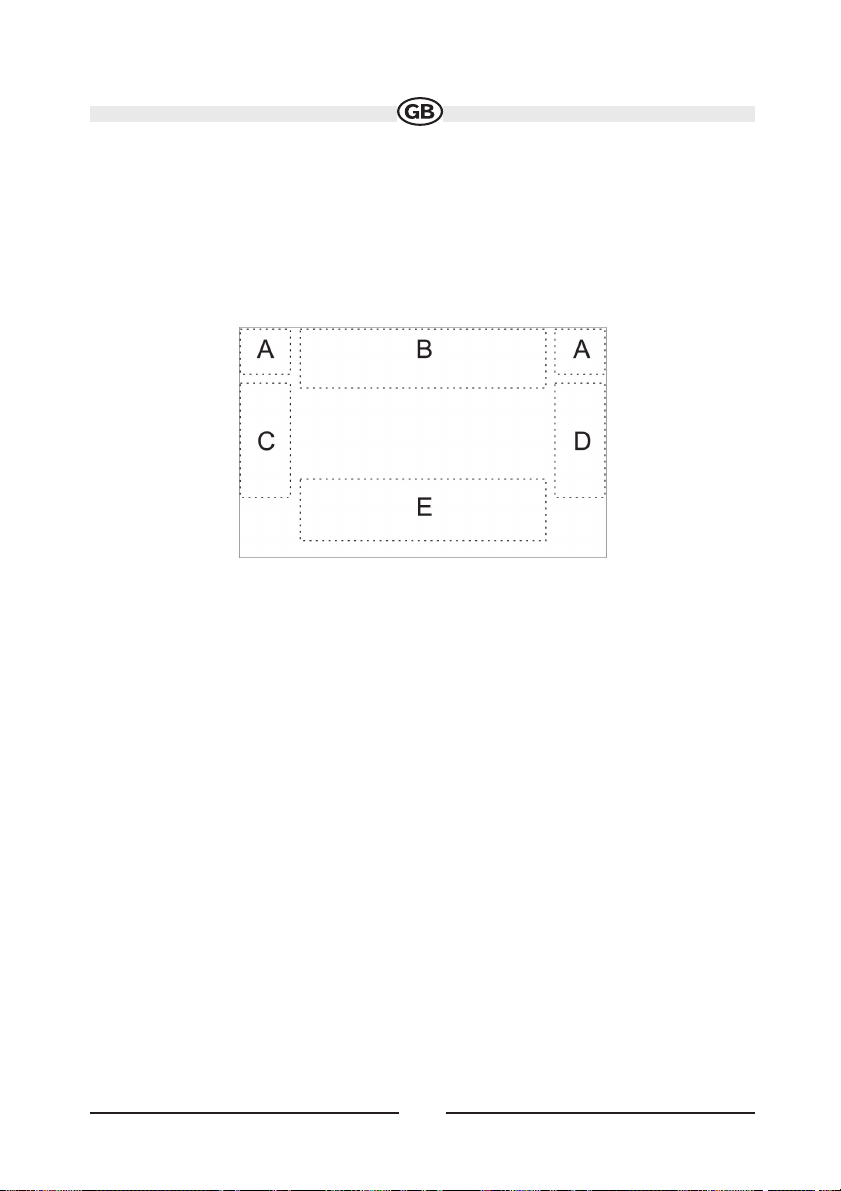

Using the Touch-Screen Controls

The touch key areas for DVD playback are outlined below.

A – Return to MAIN MENU B – DISP key: Displays playing information C – Select previous chapter D – Select next chapter E – Display the following on-screen controls: Menu, /II, , , , , .

Controlling Playback

Stopping Playback

Touch the stop button () on the screen or press the /BAND button (20) on the remote control to stop DVD play.

Pausing Playback

Touch the play/pause button (/II) on the screen or press the/II button on the remote control (18) to suspend or resume disc play.

Slow Motion Playback

Press the  button (22) on the remote control or the  button (19) on the joystick to play the current title in slow motion at 1/2, 1/4, 1/6 or 1/7, the normal speed. Press /II (18) to resume normal play. Continue pressing the  or  button to slow reverse.

SUBJECT TO TECHNICAL CHANGE

Repeat Playback

Press the REPT button (7) on the remote control to alter repeat mode according to the following:

• DVD: Repeat Title, Repeat Chapter, Repeat Off

• VCD (PBC Off): Repeat Single, Repeat Off

• MP3: Repeat Single, Repeat Folder, Repeat Off

NOTE: For VCD play, the repeat function is not available if PBC is on.

Sectional Repeat Function (A-B)

Use the A-B function to define a specific area of a disc to repeat.

• Press the REPT A-B button (6) on the remote control to set the start point (A) of the repeated section.

• Press the REPT A-B button again once you reach the desired end point (B) of the repeated section. The selected portion of the DVD will now repeat continuously.

• Press the REPT A-B button again to cancel the A-B section setting and stop repeat play.

Random Playback

With a DVD, VCD, or CD playing, press the RDM button (33) on the remote control to activate random playback and play all chapters/tracks in random order. “On” appears on the screen.

Press the  button (19) on the remote control or the  button on the joystick (17) to play the next random track. Press the RDM button again to turn random play off.

NOTE: When a VCD is playing with PBC turned “On”, activating random playback automatically turns PBC off.

Accessing the DVD Menu

Press the MENU button (1) on the remote control to recall the main DVD menu. Use the directional (arrow) buttons (,,  & ) on the joystick (16, 17, 18, 19) to select a title from the menu.

Press the TITLE button (2) on the remote control to select a different title for playback.

Press the /II button (18) on the remote control or the ENTER (joystick) button (20) to confirm your selection and begin playback.

Moving Through Chapters

Press the  button (19) on the remote control or the  button on the joystick (17) to advance to the next chapter on the DVD.

Press the  button (17) on the remote control or the button on the joystick (16) to move to the previous chapter.

Fast Forward/Fast Reverse

Press the  button (14) on the remote control or the  button (18) on the joystick to fast forward. Keep pressing and releasing the button to increase the rate from “2X” to “4X”, “8X”, and “20X”. Continue pressing the  or  button to fast reverse.

Scanning

Press the SCN button (34) on the remote control to play the first ten seconds of each chapter. Press SCN again to stop the scan function and play the current chapter.

Goto Search

During DVD or VCD playback, perform the following steps to use the GOTO feature to access a specific location on a disc:

1. Press the GOTO button (21) on remote control to enter “GO TO” mode.

2. Press the  or  buttons (14, 22) on the remote control or the  or  buttons (16,

17) on the joystick to select a category (highlighted in blue).

• For DVD mode, you can choose Time or Title/Chapter search.

DVD Search Time – Go to specific time in current title Title/Chapter – Go to specific time in a chapter

• For VCD mode, press the GOTO button to choose between Track Search, Disc Search and Exit.

SUBJECT TO TECHNICAL CHANGE

VCD Track Search Time – Go to specific time in the current track Track – Go to specific track

VCD Disc Search Time – Go to specific time on disc Track – Go to specific track

3. Enter a time into the field using the numeric keypad (29) on the remote control.

4. Press the /II button (18) on the remote control or the ENTER (joystick) button (20) to go to the specified location on the disc.

5. Press the GOTO button again to exit.

Direct Chapter / Track Selection

During DVD, VCD and CD playback, you can use the numeric keypad on the remote control (29) to access a track directly.

SUBJECT TO TECHNICAL CHANGE

Viewing an Alternate Picture Angle (DVD Only)

Some DVDs contain scenes that have been shot simultaneously from different angles. For discs recorded with multiple angles, press the ANGLE button (13) on the remote control to toggle available angles of the on-screen image.

Zooming

Press the ZOOM button (23) on the remote control to enlarge and pan through the video image using the following options: “Q1”, “Q2”, “Q3”, and “OFF”.

Multi-Language Discs (DVD Only)

Changing Audio Language

If you are watching a disc recorded in multiple languages, press the AUDIO button (5) on the remote control to choose a language.

Changing Subtitle Language

If you are watching a disc recorded in multiple languages with subtitles, press the SUBTITLE button (9) on the remote control to choose the language in which you would like

the subtitles to appear.

NOTE: During VCD playback, press the AUDIO button (5) on the remote control to choose between Left Channel, Right Channel, and Stereo.

PBC (Play back Control) (VCD Only)

For VCDs with play back functionality, play back control (PBC) provides additional controls for VCD playback. Press the MENU button (1) on the remote control to toggle the PBC function “On”/”Off”. Once PBC is on, playback starts from track one of the play list.

NOTE: When PBC is activated, fast forward, slow playback, and previous/next track are available. Repeat and direct track selection are not available.

When PBC is activated, selecting random, scan, or search playback automatically deactivates PBC.

Playback Information

During DVD and VCD playback, press the DISP button (10) on the remote control to display playback information on the screen, including the media playing and current playback time.

DVD Playback Information

The following information is displayed at the bottom of the screen during DVD playback:

• T: 5/8 – “5 / 8" indicates the fifth of 8 titles on the DVD is currently playing.

• C: 2/16 – “2 / 16" indicates that the second of 16 titles on the DVD is currently playing.

• 00:41:28 – “00:41:28” indicates the playback time of the current title.

• 2 / 6 Eng – The language display information indicates the second language out of 6 (English) is currently being used. The following information appears at the bottom of the screen during DVD playback:

• Front: DVD is the current playback source for the front zone.

• "Surround II" is the selected playback audio encoding process.

• "DSP" indicates Digital Signal Processing.

SUBJECT TO TECHNICAL CHANGE

VCD Playback Information

The following information is displayed on the screen during VCD playback:

• VCD2.0 – Format of current disc.

• T: 6/18 – “6/18” indicates the sixth of 18 tracks on the VCD is currently playing.

• 00:02:18 – “00:02:18” indicates the playback time of the current track. The following information appears on the screen during VCD playback in 6-Channel mode:

• Front: DVD – “DVD” is the current playing source for the front zone.

• “MPEG” is the decoding method in use.

• "Movie" indicates that movie effects are being applied to the audio sound track from the VCD. The following information appears on the screen during VCD playback in 2-Channel mode:

• Front: DVD – “DVD” is the current playing source for the front zone.

• EQ: FLAT – The equalizer setting is FLAT.

• Loud: Level 1 – The Loud option is set to Level 1 loudness.

SUBJECT TO TECHNICAL CHANGE

General Disc Information

Table 9: Disc Properties

Table 10: Disc Symbols

Symbol 12cm Disc Properties Max Play Time

Single side single layer (DVD-5) Single side double layer (DVD-9) Double side single layer (DVD-10) Double side double layer (DVD-18)

(MPEG 2 Method) 133 minutes 242 minutes 266 minutes 484 minutes

Single side single layer (VCD) (MPEG 1 Method)

74 minutes

Single side single layer 74 minutes

Symbol Meaning

Number of voice languages recorded. The number inside the icon indicates the number languages on the disc (maximum of

8). Number of subtitle languages available on the disc (maximum

of 32). Number of angles provided (maximum of 9).

Aspect ratios available. “LB” stands for Letter Box and “PS” stands for Pan/Scan. In the example on the left, the 16:9 video can be converted to Letter Box video.

Table 10: Disc Symbols

DVD SETUP MENU

In “DVD Setup” mode, “LANGUAGE”, “VIDEO”, “AUDIO” “SURR SETUP”, “SURROUND FX”, and “RATING” (parental lock) are available for setup. This operation can be performed using the remote control or joystick controls.

Accessing the DVD Setup Screen

Setup can be performed by pressing the dedicated button on the remote control or by pressing the SRC button (15) on the front panel. For system settings, press the DVD SETUP button (30) on the remote control or touch “SETUP” on the screen to enter the “SETUP” menu. “SYS SETUP” is highlighted in green. To access the “DVD SETUP” Menu, press the  button (7) on the remote control to choose the “DVD SETUP” option, then press the /II button (18), or just touch “DVD SETUP” on the screen. “LANGUAGE” is highlighted in green.

Symbol Meaning

Indicates the region code where the disc can be played.

• Region 1: USA, Canada, East Pacific Ocean Islands

• Region 2: Japan, Western Europe, Northern Europe, Egypt, South Africa, Middle East

• Region 3: Taiwan, Hong Kong, South Korea, Thailand, Indonesia, South-East Asia

• Region 4: Australia, New Zealand, Middle and South America, South Pacific Ocean Islands/Oceania

• Region 5: Russia, Mongolia, India, Middle Asia, Eastern Europe, North Korea, North Africa, North-West Asia

• Region 6: Mainland China

• ALL: All regions Regional Coding:

Both the DVD-Player and discs are coded by region. These region codes must match in order for the disc to play. If the codes do not match, the disc won’t play. This unit’s code is 2. DVD’s with other region codes cannot be played in this unit.

Note: Once the DVD setup is compete, the settings are memorized. To return to the factory default settings, press the RESET button (25) on the front panel.

Accessing a Menu

To access a menu (LANGUAGE, VIDEO, AUDIO, SURR SETUP, SURROUND FX, or RATING), press the direction buttons on the joystick (16, 17, 18, 19) or remote control (14, 17, 18, 19, 22) to highlight the desired menu in green. You can also touch the onscreen menu selection to access that menu.

SUBJECT TO TECHNICAL CHANGE

Selecting a Feature for Adjustment

Once inside a menu, press the  or  buttons (14, 22) on the remote control or the  or  buttons (18, 19) on the joystick to select the feature to be adjusted.

Adjusting a Feature

1. Enter the option field for the feature you want to adjust by pressing the /II button (18) on the remote or by pressing the ENTER (joystick) button (20) on the unit. A submenu appears in a second row with the selected option highlighted in light blue.

2. Select a new value by pressing the  or  buttons (14, 22) on the remote control or the  or  buttons (18, 19) on the joystick.

3. Confirm your selection by pressing the , , or  buttons (14, 17, 19) on the remote control, or the or  button (16, 17) on the joystick. The new value is highlighted in light blue and setup is complete.

LANGUAGE Menu

If a DVD supports more than 1 Subtitle or Audio language, all the languages are available for selection during playback. If the selected language is not supported by the DVD, then the default language is used. During playback, press the SUBTITLE (9) or AUDIO (5) button on the remote control to change the language directly. This will not affect the DVD menu settings.

LANGUAGE Menu Features

Subtitle English, Auto, Off: Select the default language in which you would like subtitles (if

applicable) to be displayed.

Audio English: Select the default language in which you would like audio (when optional) to

be played.

DVD Menu English: Select the default language in which you would like the DVD menu (if appli-

cable) to be displayed.

BACK: Return to previous menu.

VIDEO Menu Features

TV Shape (Aspect Ratio) 4:3: With 4:3 display, the left and right sides are cut off. 16:9: Image is presented in wide view with a 16:9 aspect ratio.

Angle Mark On: Angle indicator (if applicable) is shown. Off: Angle indicator is not shown.

BACK: Return to previous menu.

NOTE: For standard discs not formatted for “widescreen”, use of the 16:9 aspect ratio will result in image distortion.

AUDIO Menu

AUDIO Menu Features

Setting Options Function

DRC Off

Employ the Dynamic Range Control for better playback for low volumes

Back Return to previous menu.

RATING (Parental Lock) Menu

The DVD system has a built-in parental lock feature to prevent unauthorized persons from viewing restricted disc content. By default, the rating system is unlocked. Once setup, the parental lock is released only by entering the correct password. Once the password is entered, rating is available for setup.

RATING Menu Features

Password: Enter a 4-digit password to activate the “Rating” feature. The default

password is 0000.

Rating

1. Kid Safe

2. G

3. PG

4. PG-13

5. PG-R

6. R

7. NC-17

8. Adult

Select the appropriate rating level for the intended audience.

You may override higher ratings by using your password.

Load Factory Reset: Select “Reset” to restore the factory default settings for the

Rating system

only.

BACK: Return to previous menu.

To reset the password, access the “RATING” menu and enter the current password. Once the correct password is entered, you can access the “Password” field and enter a new one.

NOTE: Record the password and keep it in a safe place for future reference. The rating for each disc is marked on the disc, disc packing, or documentation. If the rating is not available on the disc, the parental lock feature is unavailable. Some discs restrict only portions of the disc and the appropriate content will play. For details, please refer to the disc description.

CD/MP3/WMA OPERATION

Instructions for Insert/Eject, Play/Pause, Stopping Playback, Track Selection, Fast Forward/Fast Reverse, Scan, and Random Play are the same for DVD, CD and MP3 operation. Please see the DVD Player Operation section for information about these topics.

NOTE: CD-R and CD-RW will not play unless the recording session is closed.

The file naming formats listed below are compatible with this unit:

• ISO 9660 – file name: 12 characters, file extension: 3 characters

• ISO 9660 – file name: 31 characters, file extension: 3 characters

• Joliet – 64 characters

If the file or folder name does not conform to ISO 9660 file system standards, it may not be displayed or played back correctly.

CD Player User Interface

The on-screen indicators and touch key areas for CD playback are outlined below.

1. Current track and total number of tracks on disc

2. Elapsed playing time

3. Touch to activate/deactivate Repeat play mode

4. Touch to activate/deactivate Scan mode

5. Touch to activate/deactivate Random mode

6. Current time

7. Disc Title

8. Track Title

9. Touch to return to MAIN MENU

10. /II: Touch to play/pause disc playback

11. : Touch to stop disc playback

12. : Touch to move to previous track

13. : Touch to move to next track

14. : Touch to rewind current track

15. : Touch to fast forward current track

16. Front Zone Playing Mode

19. "Surround Music" effect selected

SUBJECT TO TECHNICAL CHANGE

MP3/WMA Discs

This player allows you to playback MP3 files recorded on CD-ROM, CD-R, and CDRW. For CD-RW discs, please make sure it is formatted using the full method and not the quick method to prevent illegal disc operation.

Use the following settings when compressing audio data for your MP3 disc:

• Transfer Bit Rate: 320kbps

• Sampling Frequency: 48kHz

When recording MP3 up to the maximum disc capacity, disable additional writing. For recording on an empty disc up to maximum disc capacity, use the "Disc at once" setting.

Playing MP3/WMA Files

After inserting a MP3/WMA disc, files will play in the sequence of the “Root’ directory. Use the numeric keypad (29) on the remote control to access files directly.

Selecting a Playback Mode

1. Press the /BAND button (20) on the remote control to stop disc play.

2. Press the  button (19) on the remote control or the  button on the joystick (17) to enter playback mode (PLAY MOD).

3. Press the /II, , or  buttons (18, 17, 19) on the remote control, or the  or  button (16, 17) on the joystick to choose from the following playback options:

MP3/WMA Playback Modes

4. Press the  button (14) on the remote control to confirm the playback mode then press the /II button (18) to begin playback.

Play Mode Playback Details

Disc Normal Playback all files on the disc and stop at the end.

Disc Repeat Repeat playback of all files on the disc.

Random Randomly play all files and stop at the end.

Single Track Play a specific file and stop.

Repeat Track Repeat playback of a specific file.

Folder Normal Play all files in a folder and stop at the end.

Folder Repeat Repeat playback of all files in a folder/directory.

iPod OPERATION

Accessing iPod Mode

The unit will automatically switch to iPod mode when an iPod is plugged into the media module. To return to the iPod menu from any other source menu, press the SRC button (15) on the front panel or remote control (8) until the iPod menu appears on the screen.

Controlling your iPod by touch screen

The left upper corner brings you back to the source selection menu. If you touch the corresponding areas at the touch screen you gain access to the corresponding functions. (see picture 1)

Controlling your iPod

The following remote control buttons are used to access the iPod menus:

TITLE = Music MENU = Photos AUDIO = Videos

Use the joystick on the unit or the directional keys on the remote control to navigate the iPod menus.

picture 1

Music Playback

Press the  button (19) on remote control, or the  button on the joystick (17) to move to the next item on the menu. Press the  button (17) on the remote control, or the  button on the joystick (16) to move to the previous item on the menu.

Press the /II button (18) on the remote control or the joystick ENTER button (20) on the head unit to select the highlighted menu option. Press the  button (14) on the remote control or the  button (18) on the joystick to return to the previous menu.

Video Playback

While iPod video can be viewed on the screen, you must use the iPod to control video playback options.

Press the AUDIO button (5) on the remote control to access the iPod VIDEO mode. The Moniceiver will release control back to the iPod so you can select video media to be displayed on the TFT monitor. To exit VIDEO mode, press the  button (14) on the remote control or MENU button on the iPod.

NOTE: To transmit the video from your iPod to the screen, you must set the following options through the iPod video settings menu: TV Out = On, TV Signal = NTSC, and Widescreen = On

Photo Playback

While iPod photos can be viewed on the screen, you must use the iPod to control photo playback options. Press the MENU button (1) on the remote control to access the iPod PHOTO mode. The Moniceiver will release control back to the iPod so you can select video media to be displayed on the TFT monitor. To exit PHOTO mode, press the  button (14) on the remote control or MENU button on the iPod.

NOTE: After disconnecting your iPod, the Moniceiver will always return to last mode accessed when your iPod is plugged back into the unit.

Fast Forward/Fast Reverse

To fast forward or fast reverse, press and hold the  or  buttons (17, 19) for 1 second and continue to hold. Release to resume normal play.

Search Playlist/Artist/Album/Song

To search through Playlists, Artists, Albums and Songs, press the 1 button (29) on the remote control while in one of the following directories: Playlist, Artist, Album or Song. The selected directory will be accessed with the number of pages and files in that directory displayed at the top of the page. To access the page or file, enter the page or file number directly from the remote control keypad. Press the  or  button (17, 19) on the remote control or the  or  button (16, 17) on the joystick to select the desired song or track.

TROUBLESHOOTING

GENERAL

Problem Cause Corrective Action

Unit will not poweron- Radio Fuse blown

- Car battery fuse blown Illegal operation

- Install new fuse with correct rating

- Press the RESET button located in the bottom right corner of the front panel

Remote control does not function

- Battery depleted

- Battery installed incorrectly

- Replace battery with new one

- Remove battery and install correctly

No/low audio output - Improver audio output

connection

- Volume set too low

- Improver “MUTE” connection

- Speakers damaged

- Heavily biased volume balance

- Speaker wirings is in contact with metal part of car

- Check wiring and correct

- Increase volume level

- Review wiring diagram and check “MUTE” connection

- Replace speakers

- Adjust the channel balance to the center position

- Insulate all speaker wiring connections

Poor sound quality or distortion

- Pirated disc in use

- Speaker power rating not compatible with unit

- Speaker is shorted

- Use original copy

- Connect proper speakers

- Check speaker contact

Tel-Mute malfunction - “MUTE” wire is grounded - Check that “MUTE” connection is not

grounded and that it´s properly insulated

Unit resets itself when engine is off

- Incorrect connection between ACC and positive battery wire

- Check wiring and correct

TFT MONITOR

TUNER

Monitor does not open automatically

- TFT Auto Open is turned off - Turn TFT Auto Open on

No image - Incorrect connection to par-

king brake wire

- PRK SW is activated and parking brake is not engaged

- Check wiring and correct

- Stop vehicle in safe place and apply parking brake

Flashing image or interference appears on screen

- DVD is not compatible with current TV system settings

- Improper video signal connections

- Change setup to accommodate disc

- Check wiring and correct

Prolonged image or improper height/width ratio display

- Improper aspect ratio setup - Use correct aspect ratio setting

Monitor stops at incorrect position

- Moving path is blocked - Press OPEN key to restart monitor movement

Weak station searching - Auto antenna is not fully

extended

- Auto antenna is not properly

connected

- LOCAL function is activated

- Connect the auto antenna control cable property

- Turn LOCAL function off

Cannot insert disc - Disc already inside unit - Eject current disc and insert

new one

MP3

Problem Cause Corrective Action

Disc does not play back - Disc is warped or scratched

- Disc is dirty or wet

- Laser pickup is dirty

- Incompatible disc is used

- Disc rating exceeds Parental Lock rating limit

- Disc region code is not compatible with unit

- Disc is inserted upside down

- Use disc in good condition

- Clean disc with soft cloth

- Clean laser pickup with cleaning disc

- Use compatible disc

- Change Parental Lock settings to lower restriction

- Use disc with proper region code

- Insert disc with label side up

Image blurred, distorted, or dark

- Disc is illegally copied - Use original disc

PBC cannot be used during VCD playback

- PCB is not available on the disc

No repeat or searching while playing VCD

- PCB is on - Turn PCB off

Interruption occurred during playback

- Disc is dirty or scratched

- File is damaged/bad recording

- Clean disc or replace

- Recreate disc with good files

Incorrect playback message displayed

- Message is longer than LCD can display

Error Message

Care and Maintenance

1. Use only a clean silicone cloth and neutral detergent to clean the front panel or monitor. A rough cloth and nonneutral detergent (such as alcohol) may result in scratching or discoloration.

2. Do not get water or cleaning fluids on the unit.

3. If the temperature inside the player gets too hot, a protective circuit automatically stops play of the disc. If this occurs, allow the unit to cool before operating the player again.

4. Never insert anything other than a 5” (12 cm) compact disc into the player as the mechanism can be damaged by foreign objects.

5. Do not attempt to use a 3” (8 cm) CD-Single disc in this unit, either with or without an adaptor, as damage to the player and/or disc may occur. Such damage is not covered by the Warranty on this product.

6. The CD player may not operate properly in extreme hot or cold. If such conditions occur, allow the interior of the vehicle to reach a normal temperature before using player.

Message Displayed

Cause Corrective Action

Loading - Disc is being read No Disc - Disc is dirty

- Disc is upside down

- Disc not present in loading compartment

- Clean disc with soft cloth

- Insert disc with label side up

- Insert disc

Bad Disc - Disc is dirty

- Disc is upside down

- Clean disc with soft cloth

- Insert disc with label side up

Unknown disc - Disc format is not compatible

with this unit

Region Error - DVD is not compatible with

region code of unit

Error - illegal mechanism operation - Press EJECT key for 5 seconds to

reset loading mechanism

7. When the vehicle warms up during cold weather or under damp conditions, condensation may appear on the LCD panel. Should this occur, the screen will not operate properly until the moisture has evaporated.

8. We suggest you use a cleaning disc in this unit more frequently than in the unit in your home due to the environmental conditions of the vehicle.

SPECIFICATIONS

CEA Power Ratings

Main Amplifier

Power Output: 13 watts RMS X 4 channels into 4-ohms @ < 1% THD+N Signal to Noise Ratio: 70dBA below reference. (Reference: 1 watt, 4-ohms) Dynamic Power: 64 watts into 4-ohms, all channels driven Frequency Response: 20Hz to 20kHz, -3dB. Aux input used as source reference Reference Supply Voltage: 14.4VDC

DVD/CD Player

Compatible formats: DVD-R, DVD-RW, DVD+R, DVD+RW, CD-R, CD-RW, CD-DA, MP3, WMA, HDCD, SVCD, VCD, MPEG, JPEG, MP3/WMA files burned onto a DVD+R/W or DVD-R/W and Kodak Picture CD Signal to Noise Ratio: 95dBA Dynamic Range: >95dB Frequency Response: 20Hz to 20kHz, -3dB Channel Separation: > 60dB @ 1kHz D/A Converter(s): 6-channel high performance 24-bit, 192kHz, multi-bit Sigma Delta modulation. DAC supports sample rates from 8~192kHz. Electronic Skip Protection (ESP): 16Mbit high-speed flash memory DVD: 2-3 sec, CD-DA: 10 sec, MP3: 100 sec, WMA: 200 sec (ESP time is approximate)

Video

Format: NTSC, PAL (auto-detection) Output: 1Vp-p (75-ohm), buffered Input: 1Vp-p (75-ohm)

SUBJECT TO TECHNICAL CHANGE

FM/RDS Tuner

Tuning Range: 87.5MHz - 107.9MHz Mono Sensitivity (-30dB): 9dBf Quieting Sensitivity (-50dB): 15dBf Alternate Channel Selectivity: 70dB Signal to Noise Ratio @ 1kHz: 58dB Image Rejection: 80dB Stereo Separation @ 1kHz: 30dB Frequency Response: 30Hz - 15kHz, -3dB

AM Tuner

Tuning Range: 530kHz - 1710kHz Sensitivity (-20dB): 30uV Signal to Noise Ratio @ 1kHz: 50dB Image Rejection: 60dB Frequency Response: 50Hz - 2kHz, -3dB

Monitor

Screen Size: 7.0" (Measured diagonally), 16:9 Widescreen

• 6.06" (154.1mm) W X 3.42" (87mm) H Screen Type: TFT Liquid Crystal Display (LCD) active matrix Response Time: 30mSec rise time, 50mSec fall time Resolution, DVD/Composite Video in: 336,960 sub pixels, 1440 (W) X 234 (H) Viewing angle:

• 65 degrees left or right

• 40 degrees up

• 65 degrees down

General

Auxiliary Input impedance: 10k Power Supply: 11 to 16VDC, negative ground Fuse: 10-amp, mini ATM type DIN chassis dimensions: 7" X 7" X 2" (178mm x 178mm x 50mm)

SUBJECT TO TECHNICAL CHANGE

Audiovox VME9311TS User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
